Service oriented component model

Service-Oriented Component Model

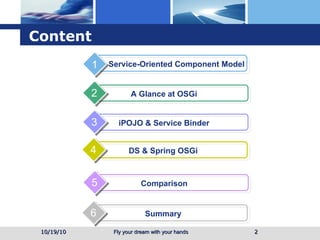

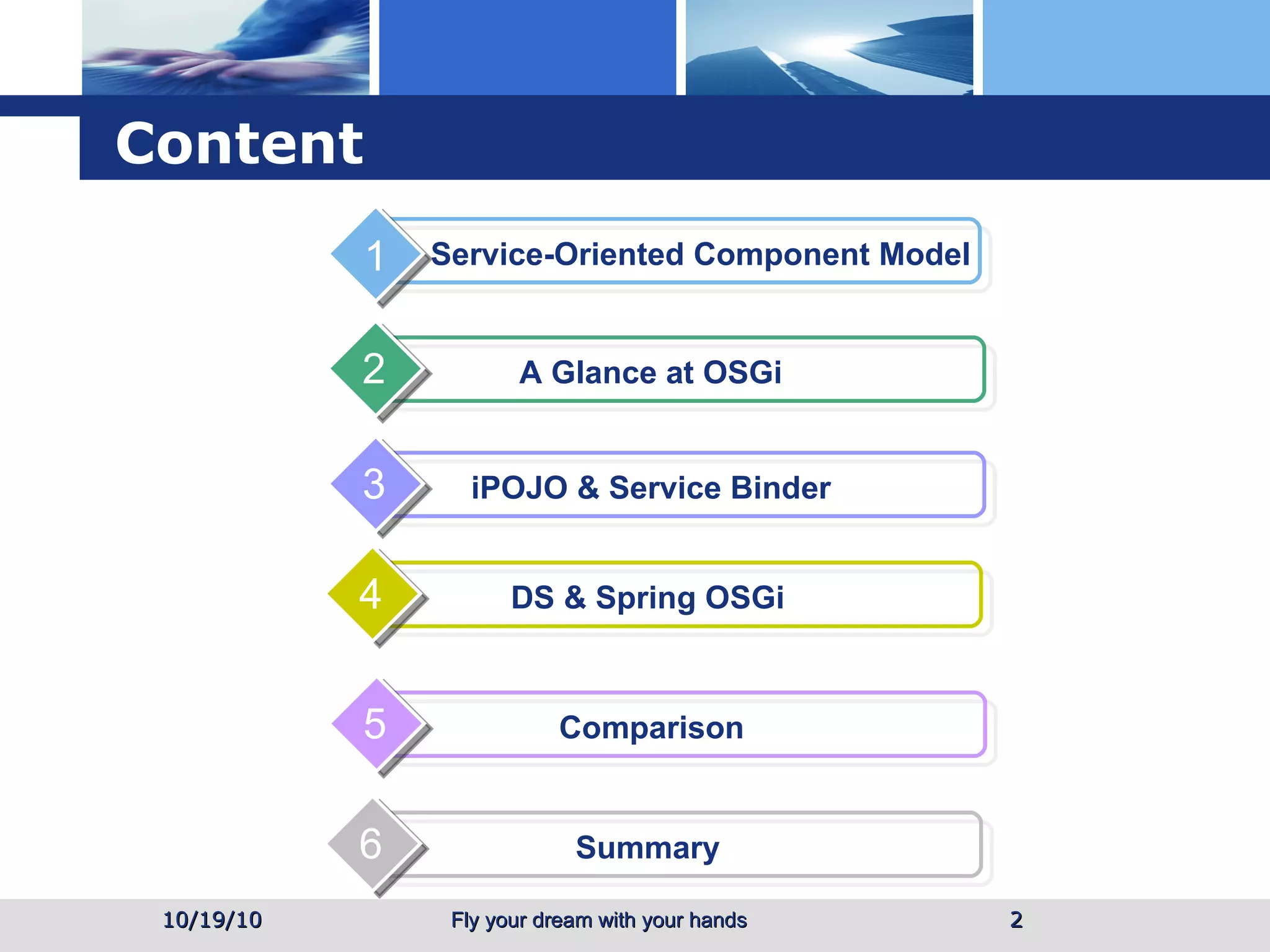

Content 10/19/10 2 Service-Oriented Component Model 1 A Glance at OSGi 2 iPOJO & Service Binder 3 DS & Spring OSGi 4 Comparison 5 Summary 6

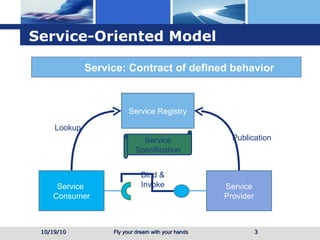

Service-Oriented Model 10/19/10 Publication Lookup Bind & Invoke Service: Contract of defined behavior Service Registry Service Consumer Service Provider Service Specification

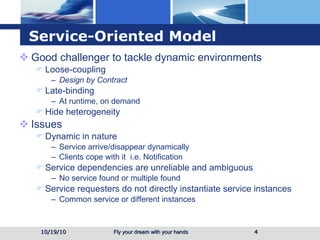

Service-Oriented Model Good challenger to tackle dynamic environments Loose-coupling Design by Contract Late-binding At runtime, on demand Hide heterogeneity Issues Dynamic in nature Service arrive/disappear dynamically Clients cope with it i.e. Notification Service dependencies are unreliable and ambiguous No service found or multiple found Service requesters do not directly instantiate service instances Common service or different instances 10/19/10

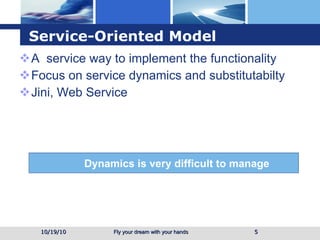

Service-Oriented Model A service way to implement the functionality Focus on service dynamics and substitutabilty Jini, Web Service 10/19/10 Dynamics is very difficult to manage

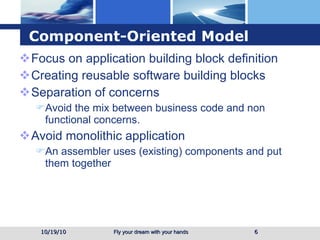

Component-Oriented Model Focus on application building block definition Creating reusable software building blocks Separation of concerns Avoid the mix between business code and non functional concerns. Avoid monolithic application An assembler uses (existing) components and put them together 10/19/10

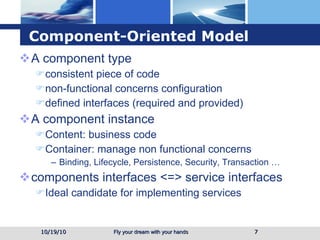

Component-Oriented Model A component type consistent piece of code non-functional concerns configuration defined interfaces (required and provided) A component instance Content: business code Container: manage non functional concerns Binding, Lifecycle, Persistence, Security, Transaction … components interfaces <=> service interfaces Ideal candidate for implementing services 10/19/10

SOC Model Focus on both Component -implementation Service Objectives Ease the development of application using services. Separation of concerns separate business code and dynamism management code 10/19/10 Business code Dynamic management code

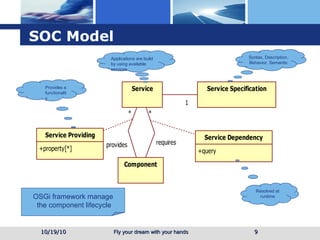

SOC Model 10/19/10 Resolved at runtime Syntax, Description, Behavior, Semantic Provides a functionality Applications are build by using available services OSGi framework manage the component lifecycle

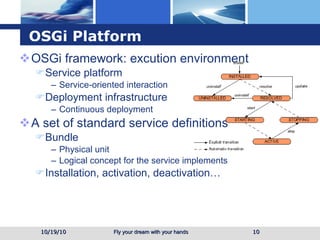

OSGi Platform OSGi framework: excution environment Service platform Service-oriented interaction Deployment infrastructure Continuous deployment A set of standard service definitions Bundle Physical unit Logical concept for the service implements Installation, activation, deactivation… 10/19/10

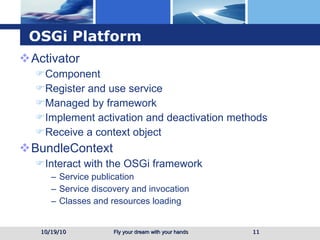

OSGi Platform Activator Component Register and use service Managed by framework Implement activation and deactivation methods Receive a context object BundleContext Interact with the OSGi framework Service publication Service discovery and invocation Classes and resources loading 10/19/10

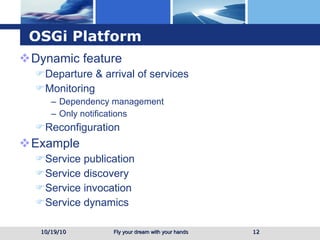

OSGi Platform Dynamic feature Departure & arrival of services Monitoring Dependency management Only notifications Reconfiguration Example Service publication Service discovery Service invocation Service dynamics 10/19/10

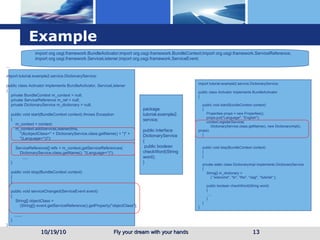

Example 10/19/10 ... import tutorial.example2.service.DictionaryService; public class Activator implements BundleActivator, ServiceListener { private BundleContext m_context = null; private ServiceReference m_ref = null; private DictionaryService m_dictionary = null; public void start(BundleContext context) throws Exception { m_context = context; m_context.addServiceListener(this, "(&(objectClass=" + DictionaryService.class.getName() + ")" + "(Language=*))"); ServiceReference[] refs = m_context.getServiceReferences( DictionaryService.class.getName(), "(Language=*)"); ..... } public void stop(BundleContext context) { } public void serviceChanged(ServiceEvent event) { String[] objectClass = (String[]) event.getServiceReference().getProperty("objectClass"); ....... } } import tutorial.example2.service.DictionaryService; public class Activator implements BundleActivator { public void start(BundleContext context) { Properties props = new Properties(); props.put("Language", "English"); context.registerService( DictionaryService.class.getName(), new DictionaryImpl(), props); } public void stop(BundleContext context) { } private static class DictionaryImpl implements DictionaryService { String[] m_dictionary = { "welcome", "to", "the", "osgi", "tutorial" }; public boolean checkWord(String word) { .... } } } package tutorial.example2.service; public interface DictionaryService { public boolean checkWord(String word); } import org.osgi.framework.BundleActivator;import org.osgi.framework.BundleContext;import org.osgi.framework.ServiceReference; import org.osgi.framework.ServiceListener;import org.osgi.framework.ServiceEvent;

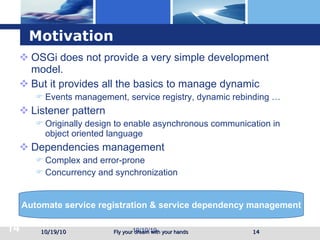

Motivation OSGi does not provide a very simple development model. But it provides all the basics to manage dynamic Events management, service registry, dynamic rebinding … Listener pattern Originally design to enable asynchronous communication in object oriented language Dependencies management Complex and error-prone Concurrency and synchronization 10/19/10 19/10/10 Automate service registration & service dependency management

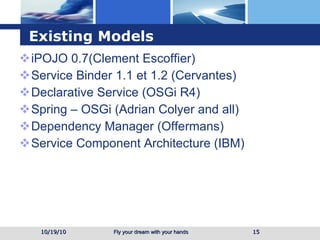

Existing Models iPOJO 0.7(Clement Escoffier) Service Binder 1.1 et 1.2 (Cervantes) Declarative Service (OSGi R4) Spring – OSGi (Adrian Colyer and all) Dependency Manager (Offermans) Service Component Architecture (IBM) 10/19/10

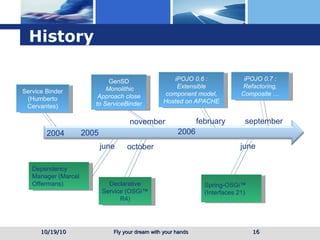

History 10/19/10 Service Binder (Humberto Cervantes) GenSD Monolithic Approach close to ServiceBinder iPOJO 0.6 : Extensible component model, Hosted on APACHE iPOJO 0.7 : Refactoring, Composite … Declarative Service (OSGi™ R4) Dependency Manager (Marcel Offermans) Spring-OSGi™ (Interfaces 21) 2004 2005 2006 october june november february june september

10/19/10 a service component framework

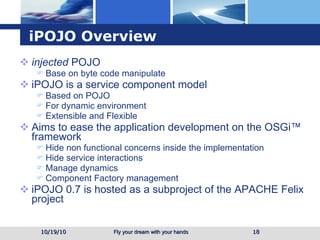

iPOJO Overview injected POJO Base on byte code manipulate iPOJO is a service component model Based on POJO For dynamic environment Extensible and Flexible Aims to ease the application development on the OSGi™ framework Hide non functional concerns inside the implementation Hide service interactions Manage dynamics Component Factory management iPOJO 0.7 is hosted as a subproject of the APACHE Felix project 10/19/10

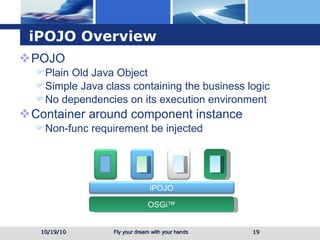

iPOJO Overview POJO Plain Old Java Object Simple Java class containing the business logic No dependencies on its execution environment Container around component instance Non-func requirement be injected 10/19/10 OSGi™ iPOJO

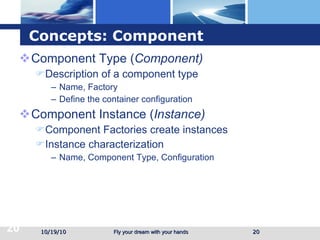

Concepts: Component Component Type ( Component) Description of a component type Name, Factory Define the container configuration Component Instance ( Instance) Component Factories create instances Instance characterization Name, Component Type, Configuration 10/19/10

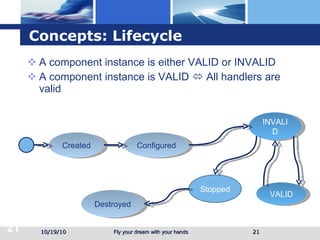

Concepts: Lifecycle A component instance is either VALID or INVALID A component instance is VALID  All handlers are valid 10/19/10 Configured Created INVALID Stopped VALID Destroyed

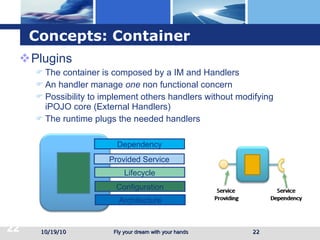

Concepts: Container Plugins The container is composed by a IM and Handlers An handler manage one non functional concern Possibility to implement others handlers without modifying iPOJO core (External Handlers) The runtime plugs the needed handlers 10/19/10 Provided Service Lifecycle Configuration Architecture Dependency

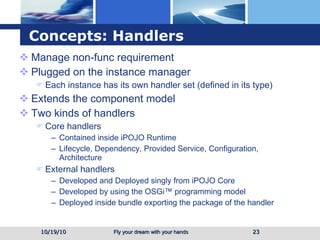

Concepts: Handlers Manage non-func requirement Plugged on the instance manager Each instance has its own handler set (defined in its type) Extends the component model Two kinds of handlers Core handlers Contained inside iPOJO Runtime Lifecycle, Dependency, Provided Service, Configuration, Architecture External handlers Developed and Deployed singly from iPOJO Core Developed by using the OSGi™ programming model Deployed inside bundle exporting the package of the handler 10/19/10

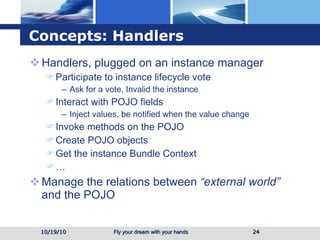

Concepts: Handlers Handlers, plugged on an instance manager Participate to instance lifecycle vote Ask for a vote, Invalid the instance Interact with POJO fields Inject values, be notified when the value change Invoke methods on the POJO Create POJO objects Get the instance Bundle Context … Manage the relations between “external world” and the POJO 10/19/10

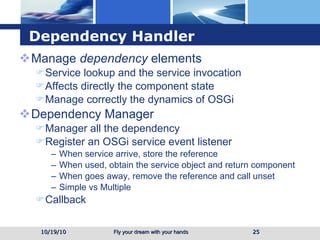

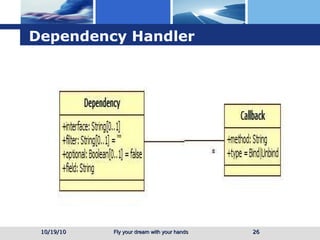

Dependency Handler Manage dependency elements Service lookup and the service invocation Affects directly the component state Manage correctly the dynamics of OSGi Dependency Manager Manager all the dependency Register an OSGi service event listener When service arrive, store the reference When used, obtain the service object and return component When goes away, remove the reference and call unset Simple vs Multiple Callback 10/19/10

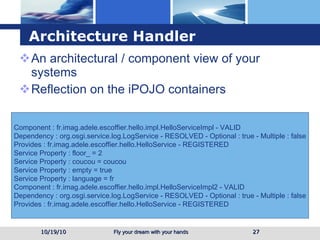

Architecture Handler An architectural / component view of your systems Reflection on the iPOJO containers 10/19/10 Component : fr.imag.adele.escoffier.hello.impl.HelloServiceImpl - VALID Dependency : org.osgi.service.log.LogService - RESOLVED - Optional : true - Multiple : false Provides : fr.imag.adele.escoffier.hello.HelloService - REGISTERED Service Property : floor_ = 2 Service Property : coucou = coucou Service Property : empty = true Service Property : language = fr Component : fr.imag.adele.escoffier.hello.impl.HelloServiceImpl2 - VALID Dependency : org.osgi.service.log.LogService - RESOLVED - Optional : true - Multiple : false Provides : fr.imag.adele.escoffier.hello.HelloService - REGISTERED

As Service Component Using special (service-aware) handlers Provided service handler Publish and manage an OSGi™ service Dependency Handler Discover and Track an OSGi™ service These handlers manage OSGi™ service dynamics These handlers allow dynamic service composition Composition described in term of service specifications not in term of component type 10/19/10

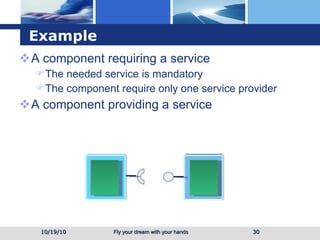

Example A component requiring a service The needed service is mandatory The component require only one service provider A component providing a service 10/19/10

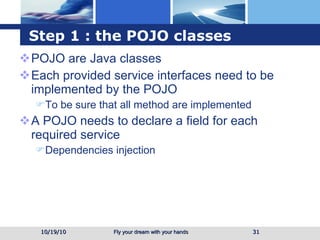

Step 1 : the POJO classes POJO are Java classes Each provided service interfaces need to be implemented by the POJO To be sure that all method are implemented A POJO needs to declare a field for each required service Dependencies injection 10/19/10

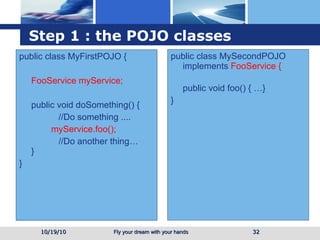

Step 1 : the POJO classes public class MyFirstPOJO { FooService myService; public void doSomething() { //Do something .... myService.foo(); //Do another thing… } } public class MySecondPOJO implements FooService { public void foo() { …} } 10/19/10

Step 2 : the Component Types A component type is describe by a name, an implementation class and the handlers configuration. iPOJO manages component factories to create component instance. One by component type Can be public (service) or private. 10/19/10

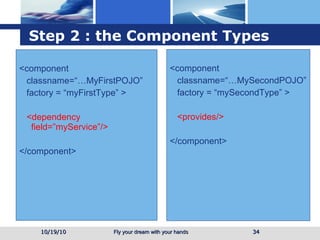

Step 2 : the Component Types <component classname=“…MyFirstPOJO” factory = “myFirstType” > <dependency field=”myService”/> </component> <component classname=“…MySecondPOJO” factory = “mySecondType” > <provides/> </component> 10/19/10

Step 3 : Component Instances An instance has a name and can receive a configuration. We can declare instances in the descriptor. These instances will be created when the bundle will be started. Can create instances from an external factory. Inside another metadata file. By using Factory and ManagedServiceFactory services. 10/19/10

Step 3 : Component Instances <instance component=“myFirstType” name = “myFirstInstance” /> <instance component=“mySecondType” name = “mySecondInstance” /> 10/19/10

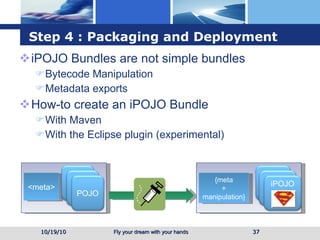

Step 4 : Packaging and Deployment iPOJO Bundles are not simple bundles Bytecode Manipulation Metadata exports How-to create an iPOJO Bundle With Maven With the Eclipse plugin (experimental) 10/19/10 <meta> {meta + manipulation} POJO POJO POJO POJO POJO iPOJO

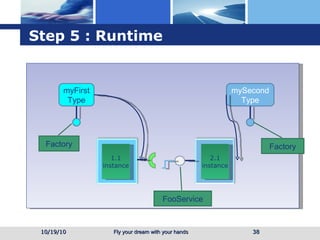

Step 5 : Runtime 10/19/10 myFirstType mySecondType 2.1 instance 1.1 instance FooService Factory Factory

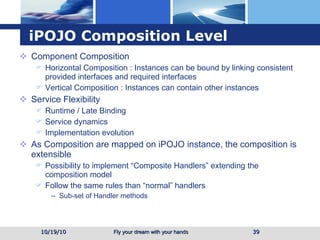

iPOJO Composition Level Component Composition Horizontal Composition : Instances can be bound by linking consistent provided interfaces and required interfaces Vertical Composition : Instances can contain other instances Service Flexibility Runtime / Late Binding Service dynamics Implementation evolution As Composition are mapped on iPOJO instance, the composition is extensible Possibility to implement “Composite Handlers” extending the composition model Follow the same rules than “normal” handlers Sub-set of Handler methods 10/19/10

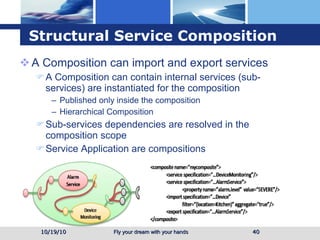

Structural Service Composition A Composition can import and export services A Composition can contain internal services (sub-services) are instantiated for the composition Published only inside the composition Hierarchical Composition Sub-services dependencies are resolved in the composition scope Service Application are compositions 10/19/10

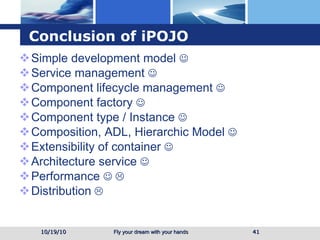

Conclusion of iPOJO Simple development model  Service management  Component lifecycle management  Component factory  Component type / Instance  Composition, ADL, Hierarchic Model  Extensibility of container  Architecture service  Performance   Distribution  10/19/10

10/19/10 Service Binder Simplifying application development on the OSGi services platform

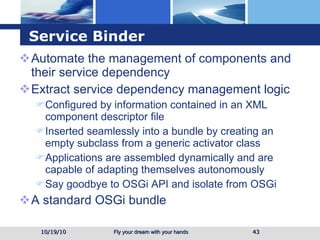

Service Binder Automate the management of components and their service dependency Extract service dependency management logic Configured by information contained in an XML component descriptor file Inserted seamlessly into a bundle by creating an empty subclass from a generic activator class Applications are assembled dynamically and are capable of adapting themselves autonomously Say goodbye to OSGi API and isolate from OSGi A standard OSGi bundle 10/19/10

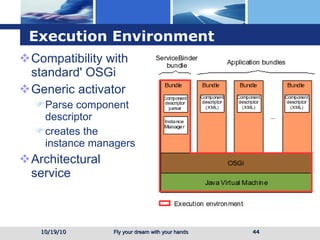

Execution Environment Compatibility with standard' OSGi Generic activator Parse component descriptor creates the instance managers Architectural service 10/19/10

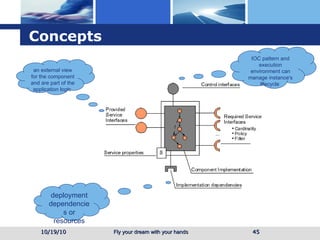

Concepts 10/19/10 an external view for the component and are part of the application logic IOC pattern and execution environment can manage instance's lifecycle deployment dependencies or resources

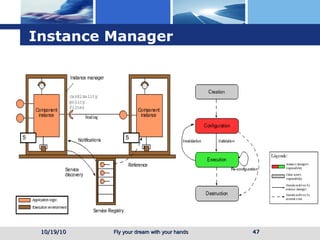

Instance Manager Every component instance is managed independently by an instance manager Bind/unbind required services to/from the component instance when it is created/destroyed Register/unregister any services provided by the component instance after its required services are bound/unbound Dynamically monitor the component instance's service dependencies, Create/destroy the component instance when its service dependencies are satisfied/unsatisfied, Manages the instance's life-cycle Control methods and interfaces Inversion of Control Constantly maintain the validity of the instance it manages 10/19/10

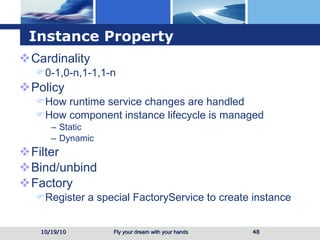

Instance Property Cardinality 0-1,0-n,1-1,1-n Policy How runtime service changes are handled How component instance lifecycle is managed Static Dynamic Filter Bind/unbind Factory Register a special FactoryService to create instance 10/19/10

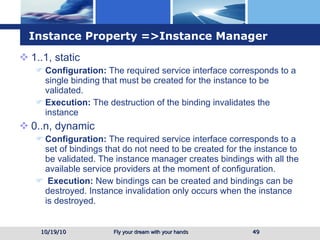

Instance Property =>Instance Manager 1..1, static Configuration: The required service interface corresponds to a single binding that must be created for the instance to be validated. Execution: The destruction of the binding invalidates the instance 0..n, dynamic Configuration: The required service interface corresponds to a set of bindings that do not need to be created for the instance to be validated. The instance manager creates bindings with all the available service providers at the moment of configuration. Execution: New bindings can be created and bindings can be destroyed. Instance invalidation only occurs when the instance is destroyed. 10/19/10

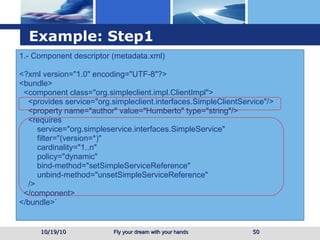

Example: Step1 1.- Component descriptor (metadata.xml) <?xml version="1.0" encoding="UTF-8"?> <bundle> <component class="org.simpleclient.impl.ClientImpl"> <provides service="org.simpleclient.interfaces.SimpleClientService"/> <property name="author" value="Humberto" type="string"/> <requires service="org.simpleservice.interfaces.SimpleService" filter="(version=*)" cardinality="1..n" policy="dynamic" bind-method="setSimpleServiceReference" unbind-method="unsetSimpleServiceReference" /> </component> </bundle>` 10/19/10

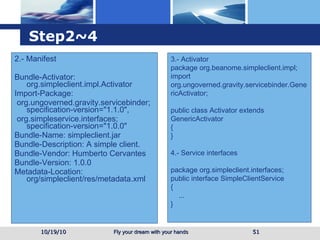

Step2~4 2.- Manifest Bundle-Activator: org.simpleclient.impl.Activator Import-Package: org.ungoverned.gravity.servicebinder; specification-version="1.1.0", org.simpleservice.interfaces; specification-version="1.0.0" Bundle-Name: simpleclient.jar Bundle-Description: A simple client. Bundle-Vendor: Humberto Cervantes Bundle-Version: 1.0.0 Metadata-Location: org/simpleclient/res/metadata.xml 10/19/10 3.- Activator package org.beanome.simpleclient.impl; import org.ungoverned.gravity.servicebinder.GenericActivator; public class Activator extends GenericActivator { } 4.- Service interfaces package org.simpleclient.interfaces; public interface SimpleClientService { ... }

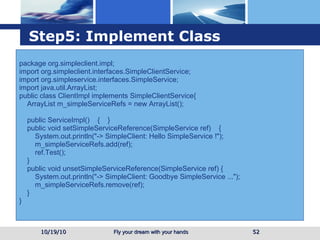

Step5: Implement Class package org.simpleclient.impl; import org.simpleclient.interfaces.SimpleClientService; import org.simpleservice.interfaces.SimpleService; import java.util.ArrayList; public class ClientImpl implements SimpleClientService{ ArrayList m_simpleServiceRefs = new ArrayList(); public ServiceImpl() { } public void setSimpleServiceReference(SimpleService ref) { System.out.println("-> SimpleClient: Hello SimpleService !"); m_simpleServiceRefs.add(ref); ref.Test(); } public void unsetSimpleServiceReference(SimpleService ref) { System.out.println("-> SimpleClient: Goodbye SimpleService ..."); m_simpleServiceRefs.remove(ref); } } 10/19/10

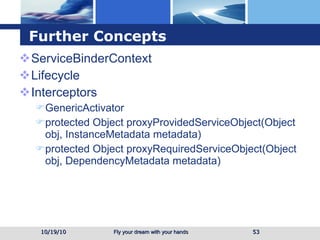

Further Concepts ServiceBinderContext Lifecycle Interceptors GenericActivator protected Object proxyProvidedServiceObject(Object obj, InstanceMetadata metadata) protected Object proxyRequiredServiceObject(Object obj, DependencyMetadata metadata) 10/19/10

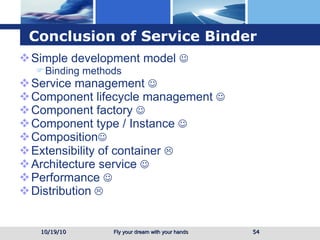

Conclusion of Service Binder Simple development model  Binding methods Service management  Component lifecycle management  Component factory  Component type / Instance  Composition  Extensibility of container  Architecture service  Performance  Distribution  10/19/10

Declarative Service Overview Service Compedium(RC4) Chapter 112 Version 1.0 Declarative Service is a Service Component Model.It uses a declarative model for publishing, finding and binding to OSGi services. Goals Simplicity High-Performance 10/19/10

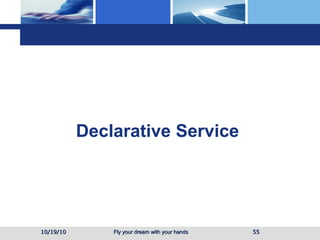

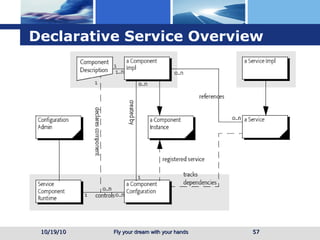

Declarative Service Overview 10/19/10

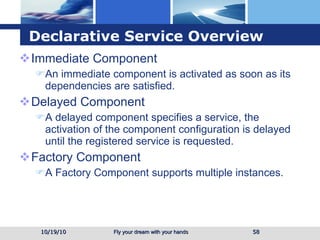

Declarative Service Overview Immediate Component An immediate component is activated as soon as its dependencies are satisfied. Delayed Component A delayed component specifies a service, the activation of the component configuration is delayed until the registered service is requested. Factory Component A Factory Component supports multiple instances. 10/19/10

Declarative Service Overview LifeCycle Enabled 10/19/10 Immediate Component Delayed Component Factory Component

Declarative Service Overview Service Binding and Unbinding 2 strategy:Event & Lookup Action in Component LifeCycle Binding: while activating the references are processed in the order in which they are specified in the component description. Unbinding: while deactivating the references are processed in the reverse order in which they are specified in the component description. Reference policy Static & Dynamic 10/19/10

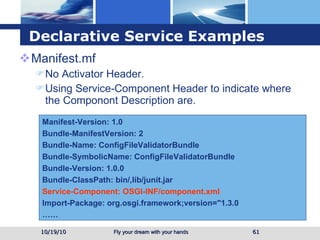

Declarative Service Examples Manifest.mf No Activator Header. Using Service-Component Header to indicate where the Componont Description are. 10/19/10 Manifest-Version: 1.0 Bundle-ManifestVersion: 2 Bundle-Name: ConfigFileValidatorBundle Bundle-SymbolicName: ConfigFileValidatorBundle Bundle-Version: 1.0.0 Bundle-ClassPath: bin/,lib/junit.jar Service-Component: OSGI-INF/component.xml Import-Package: org.osgi.framework;version="1.3.0 ……

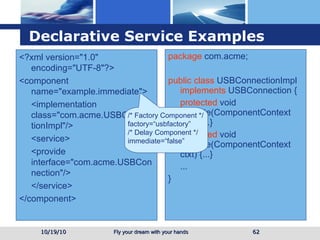

Declarative Service Examples 10/19/10 <?xml version="1.0" encoding="UTF-8"?> <component name="example.immediate"> <implementation class="com.acme.USBConnectionImpl"/> <service> <provide interface="com.acme.USBConnection"/> </service> </component> package com.acme; public class USBConnectionImpl implements USBConnection { protected void activate(ComponentContext ctxt) {...} protected void activate(ComponentContext ctxt) {...} ... } /* Factory Component */ factory=“usbfactory” /* Delay Component */ immediate=“false”

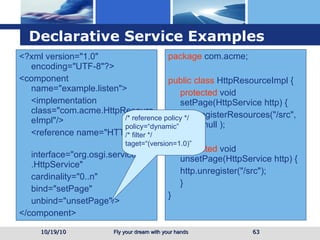

Declarative Service Examples 10/19/10 <?xml version="1.0" encoding="UTF-8"?> <component name="example.listen"> <implementation class="com.acme.HttpResourceImpl"/> <reference name="HTTP" interface="org.osgi.service.http.HttpService" cardinality="0..n" bind="setPage" unbind="unsetPage"/> </component> package com.acme; public class HttpResourceImpl { protected void setPage(HttpService http) { http.registerResources("/src", "src", null ); } protected void unsetPage(HttpService http) { http.unregister("/src"); } } /* reference policy */ policy=“dynamic” /* filter */ taget=“(version=1.0)”

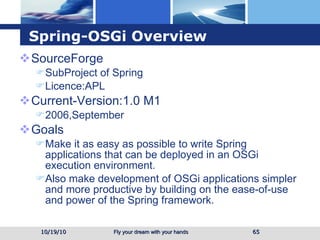

Spring-OSGi Overview SourceForge SubProject of Spring Licence:APL Current-Version:1.0 M1 2006,September Goals Make it as easy as possible to write Spring applications that can be deployed in an OSGi execution environment. Also make development of OSGi applications simpler and more productive by building on the ease-of-use and power of the Spring framework. 10/19/10

Spring-OSGi Overview 10/19/10 Manifest.mf No Activator Header. Using Spring-Context Header to indicate where the Componont Description are. Manifest-Version: 1.0 Bundle-ManifestVersion: 2 Bundle-Name: ConfigFileValidatorBundle Bundle-SymbolicName: ConfigFileValidatorBundle Bundle-Version: 1.0.0 Bundle-ClassPath: bin/,lib/junit.jar Spring-Context: *;wait-for-dependencies=false Import-Package: org.osgi.framework;version="1.3.0 …… META-INF/spring

Spring-OSGi Overview Export Services ApplicationContext----Contains some number of beans(Components/Services) 10/19/10 <osgi:service interface =“com.xyz.MessageService"> <bean class=“MessageServiceProvider”/> </osgi:service> <bean id =“MessageServiceProvider“ class=“com.xyz.MessageServiceImpl”/> </bean> lazy-init=“true”

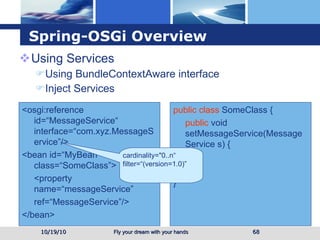

Spring-OSGi Overview Using Services Using BundleContextAware interface Inject Services 10/19/10 <osgi:reference id=“MessageService“ interface=“com.xyz.MessageService”/> <bean id=“MyBean” class=“SomeClass”> <property name=“messageService” ref=“MessageService”/> </bean> public class SomeClass { public void setMessageService(MessageService s) { … } } cardinality="0..n“ filter=“(version=1.0)”

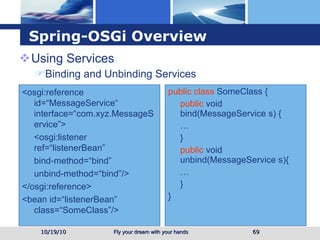

Spring-OSGi Overview Using Services Binding and Unbinding Services 10/19/10 <osgi:reference id=“MessageService“ interface=“com.xyz.MessageService”> <osgi:listener ref=“listenerBean” bind-method=“bind” unbind-method=“bind”/> </osgi:reference> <bean id=“listenerBean” class=“SomeClass”/> public class SomeClass { public void bind( MessageService s) { … } public void unbind( MessageService s){ … } }

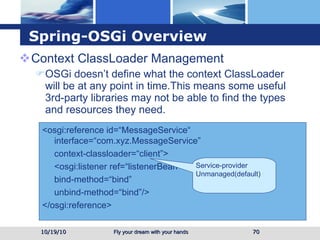

Spring-OSGi Overview Context ClassLoader Management OSGi doesn’t define what the context ClassLoader will be at any point in time.This means some useful 3rd-party libraries may not be able to find the types and resources they need. 10/19/10 <osgi:reference id=“MessageService“ interface=“com.xyz.MessageService” context-classloader=“client”> <osgi:listener ref=“listenerBean” bind-method=“bind” unbind-method=“bind”/> </osgi:reference> Service-provider Unmanaged(default)

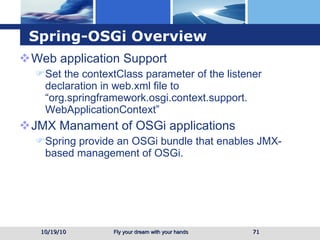

Spring-OSGi Overview Web application Support Set the contextClass parameter of the listener declaration in web.xml file to “org.springframework.osgi.context.support. WebApplicationContext” JMX Manament of OSGi applications Spring provide an OSGi bundle that enables JMX-based management of OSGi. 10/19/10

Comparison A development model simple and non intrusive Dynamics management and component lifecycle management Differentiation between component type / Instance Composition, ADL, Hierarchic Model Other non functional concerns management, extensibility, flexibility Runtime representation Performance Distribution 10/19/10

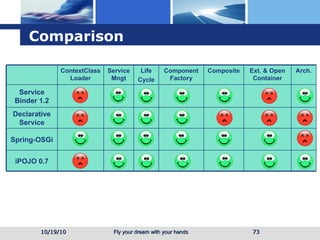

Comparison 10/19/10 ContextClassLoader Service Mngt Life Cycle Component Factory Composite Ext. & Open Container Arch. Service Binder 1.2 N Y Y Y Y N Y Declarative Service N Y Y Y N N N Spring-OSGi Y Y y N N N N iPOJO 0.7 N

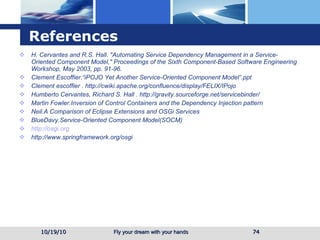

References H. Cervantes and R.S. Hall. "Automating Service Dependency Management in a Service-Oriented Component Model," Proceedings of the Sixth Component-Based Software Engineering Workshop, May 2003, pp. 91-96. Clement Escoffier. “iPOJO Yet Another Service-Oriented Component Model”.ppt Clement escoffier . http://cwiki.apache.org/confluence/display/FELIX/IPojo Humberto Cervantes, Richard S. Hall . http://gravity.sourceforge.net/servicebinder/ Martin Fowler.Inversion of Control Containers and the Dependency Injection pattern Neil.A Comparison of Eclipse Extensions and OSGi Services BlueDavy.Service-Oriented Component Model(SOCM) http://osgi.org http://www.springframework.org/osgi 10/19/10
