Serverless is the new black

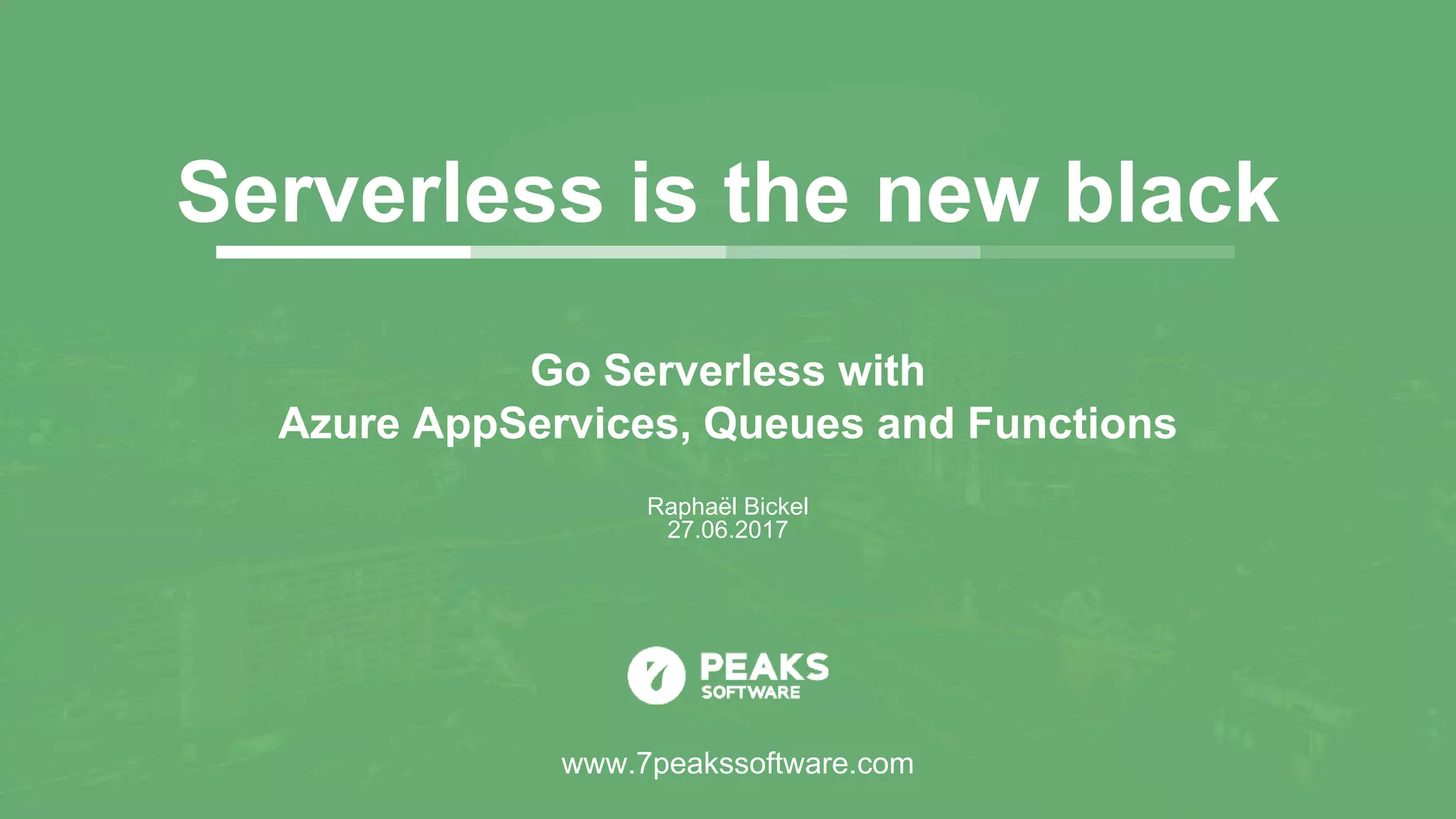

- 1. Serverless is thenew black Go Serverless with Azure AppServices, Queues and Functions Raphaël Bickel 27.06.2017 www.7peakssoftware.com
- 2. Agenda 1. Introduction 2. Whythe cloud ? 3. What is Serverless ? 4. Azure AppServices 5. Azure Queues 6. Azure Functions 7. Wrapping up
- 3. Introduction Raphaël Bickel 8 yearsexperience in software development and system architecture .Net / Java / SharePoint / Windows servers Amazon Web Services, Microsoft Azure Cloud Crazy about: Performance, maintainability, scalability, continuous integration, beer & pizza
- 4. Why the cloud? Flexility Cost Effort / Time Security
- 5.
- 6. What is serveless(?) • There is a server • Focus on Business • Pay As You Go • Time to market
- 7.
- 8. AppServices: What doesit solve ? Infrastructure using VMs VM VM VM Load balancer VM VM VM Load balancer SQL database

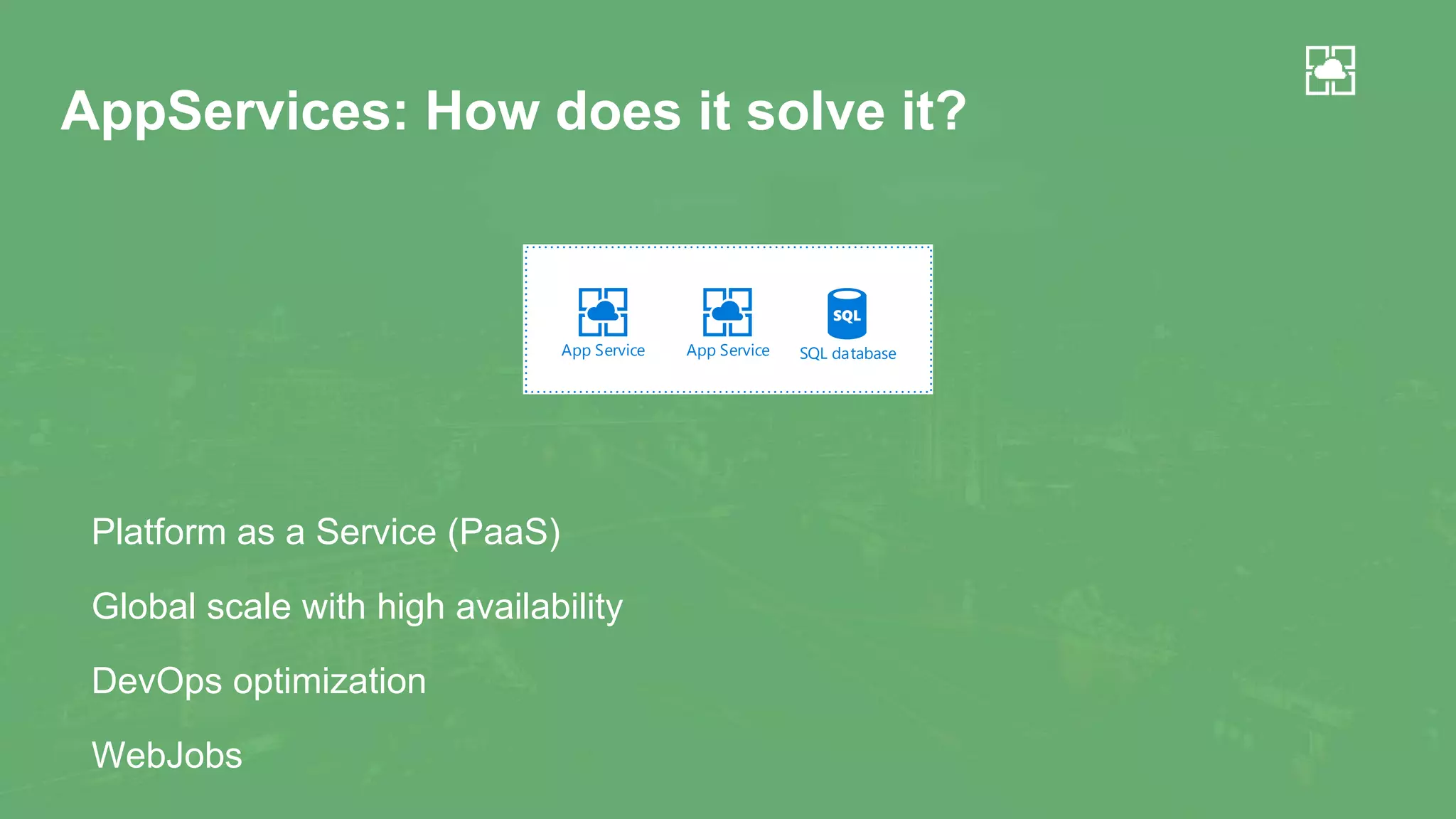

- 9. AppServices: How doesit solve it? Platform as a Service (PaaS) Global scale with high availability DevOps optimization WebJobs SQL databaseApp Service App Service
- 10.
- 11.
- 12. Queues: What doesit solve ? Database bottleneck Transient data Commands SQL database API App Web App Web App SQL data sync
- 13. Queues : Howdoes it solve it ? 64Kb message - UTF-8 7 days retention Concurrent access FIPFO Storage queue SQL database (generic) API App Web App Web App WebJobs Storage queue Batch Server 1
- 14.
- 15.
- 16. Azure Functions: Why? Idle time Cost Isolation (Single Responsibility Principle) Microservices vs Monolith application Email App SSO Webpage Resize Image API Shadow Encrypt Batch Server 1 Batch Server 2 SQL database SQL data sync
- 17.
- 18. Azure Functions: What? Microservices Instant scale Millisecond billing Bindings : http / queue / service bus / blob / timers / on demand / Cosmos DB Languages: C#, F#, Node.js, Python, PHP, batch, bash, or any executable
- 19.

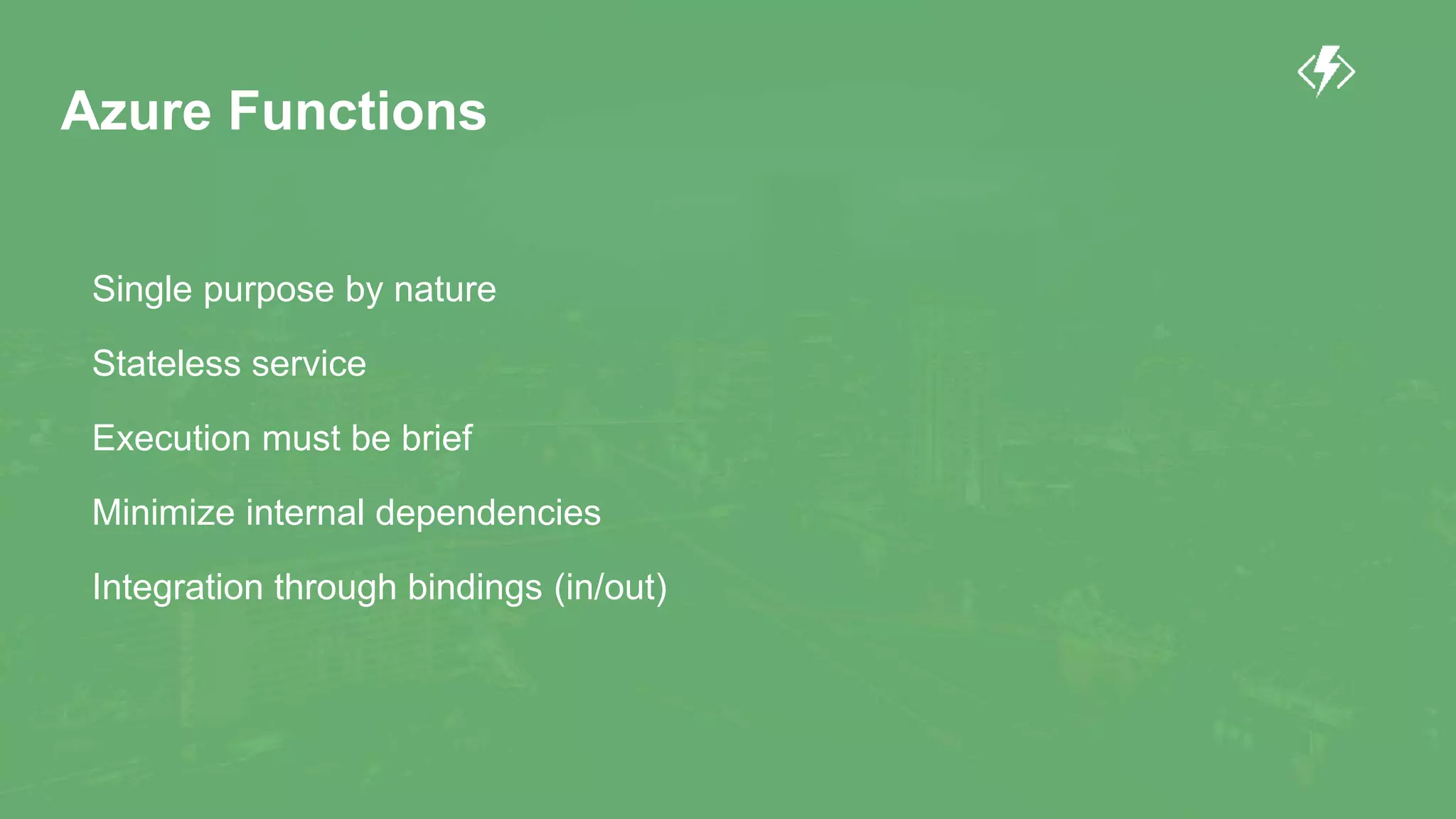

- 20. Azure Functions Single purposeby nature Stateless service Execution must be brief Minimize internal dependencies Integration through bindings (in/out)
- 21. Pros / cons Focuson business Reduce Dev/Ops Decouple apps Async Time to market Cost Short time running operations Vendor lock-in Cold start Tooling Additional overhead for function call
- 22. Conclusion Thick clients /thin and stateless backend Focus on Business Embrace the cloud

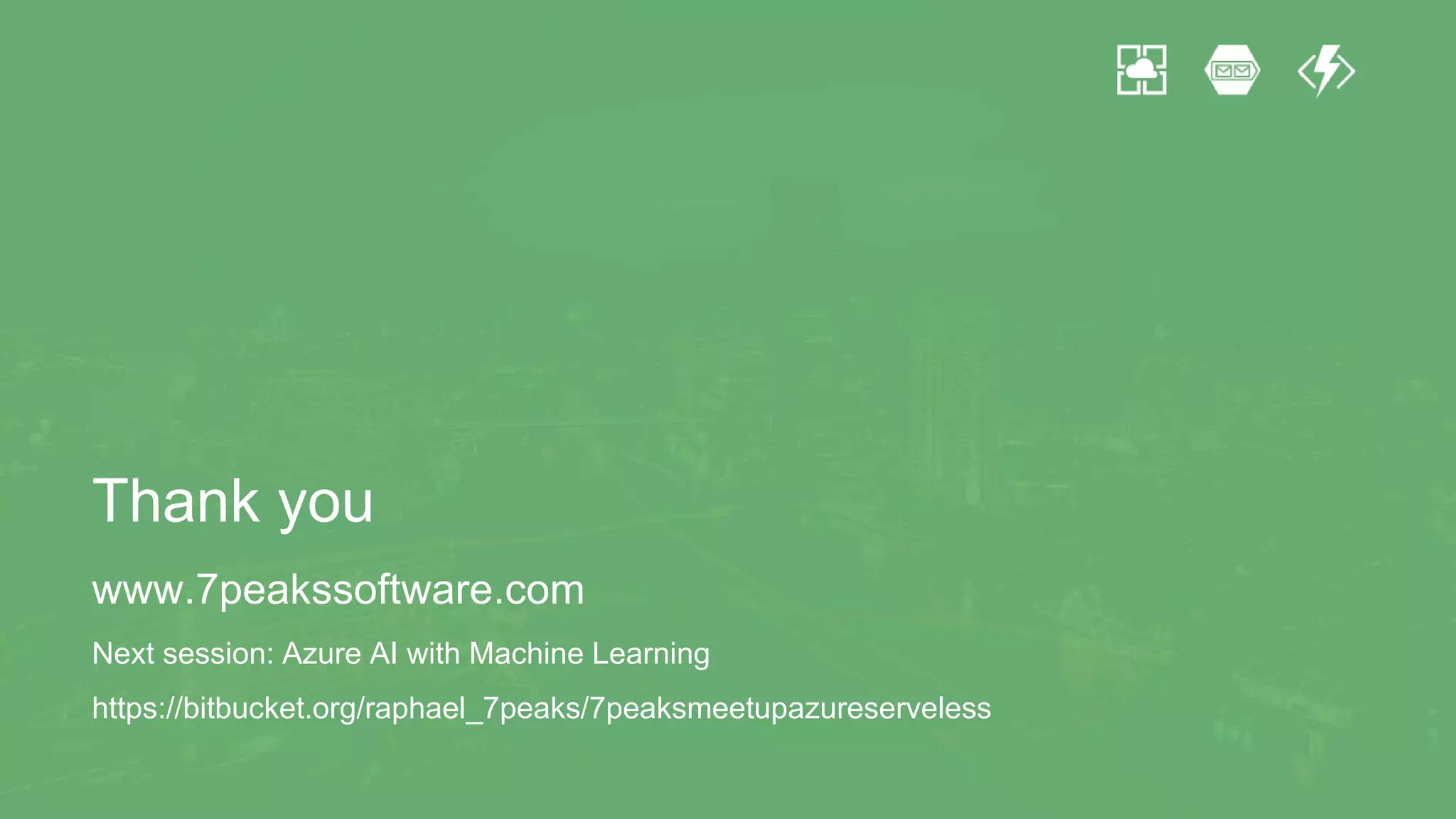

- 23. Thank you www.7peakssoftware.com Next session:Azure AI with Machine Learning https://bitbucket.org/raphael_7peaks/7peaksmeetupazureserveless
Editor's Notes
- #3 Me Nowadays we cannot avoid it anymore
- #5 Flexibility: Doesn’t need to dedicate hardware resources to a specific Application/Service Can change easily allocated resources Cost: Cheaper no need hardware Can also have Dev/Ops team. Less people needed Effort/Time Env. up in seconds / minutes Security Patching Data Encryption
- #6 Flexibility: Doesn’t need to dedicate hardware resources to a specific Application/Service Can change easily allocated resources Cost: Cheaper no need hardware Can also have Dev/Ops team. Less people needed Effort/Time Env. up in seconds / minutes Security Patching Data Encryption
- #7 Server less is the next level of PaaS You don’t even need to think about the resources
- #9 Setup VM Patch VM Setup LB LOOP on: Deploy app Create image Setup auto scaling Scaling:
- #10 Platform as a service Don’t need to worry / take care of OS, patches, IIS, Framework updates, etc. Run on Windows Servers / IIS or Linux / Docker .Net, php, java, python DevOps optimization Set up continuous integration and deployment with Visual Studio Team Services, GitHub, or BitBucket. Promote updates through test and staging environments. Perform A/B testing. Manage your apps in - App Service by using Azure PowerShell or the cross-platform command-line interface (CLI). 0 downtime deployments with slots Global scale with high availability Scale up/out in seconds Deploy across regions WebJobs - Scheduled tasks / Manual tasks

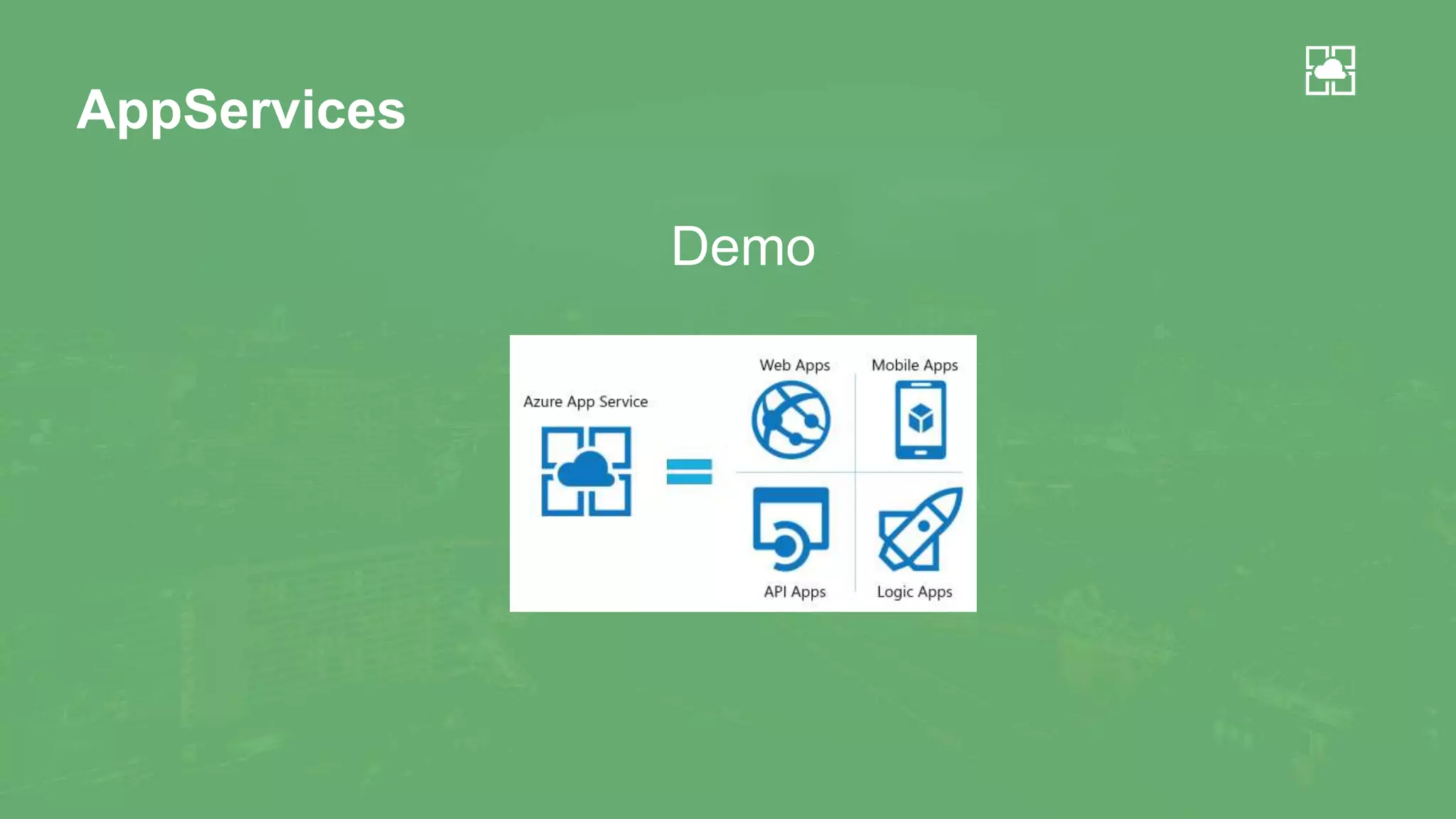

- #11 Create default .NetCore App Deploy to new / existing AppService Plan Show AppInsights
- #13 Main Goal of WebApplications / WebSites : Serve all the requests Serve client quickly Why use queue: Offload database operations Process async operations Exemples: Send confirmation email Compress image
- #14 Main Goal of WebApplications / WebSites : Serve all the requests Serve client quickly Why use queue: Offload database operations Process async operations Exemples: Send confirmation email Compress image FIPFO : First In Probably First Out Consumer read the message (hide it for 30seconds from other potential consummer. Consumer can delete the message, edit the message, or do nothing. Will be dequeued again after 30s Target throughput for single queue (1 KB messages)Up to 2000 messages per second
- #15 Main Goal of WebApplications / WebSites : Serve all the requests Serve client quickly Why use queue: Offload database operations Process async operations Exemples: Send confirmation email Compress image FIPFO : First In Probably First Out Consumer read the message (hide it for 30seconds from other potential consummer. Consumer can delete the message, edit the message, or do nothing. Will be dequeued again after 30s
- #18 - Warm-up ~4 seconds Scale-out when many events Low coupling Any exemple of Microservices
- #19 - Warm-up ~4 seconds Scale-out when many events Low coupling Any exemple of Microservices
- #20 Bindings exemples: https://github.com/Azure/azure-webjobs-sdk-samples/tree/master/BasicSamples
- #21 Examples: Async usage: Mail service Analytics service Ads service File post-processing Sync usage: - TODO list Money transfer Fraud check Any microservices
- #22 Focus on business: no overhead with VM / OS / Patching Reduce Dev/Ops : directly to code Decouple apps: Force to split into functions / micro-services Async: Process more asynchronous less synchronous. http://www.reactivemanifesto.org/ Time to market: Quicker software realease, also very compatible with agile where to focus on features Cost:lower operational and development costs Short time running operations: execution is limited to 5 minutes Vendor lock-in: increase couple with cloud vendor (however can use nodejs, python, …) Cold start: despite Microsoft works a lot on it, minimum cold start in 4s. Additional overhead for function calls: Need to integrate or app with more external services
