Serverless Development
Deep Dive
Danilo Poccia Randall Hunt
Technical Evangelist
randhunt@amazon.com
@jrhunt
ranman

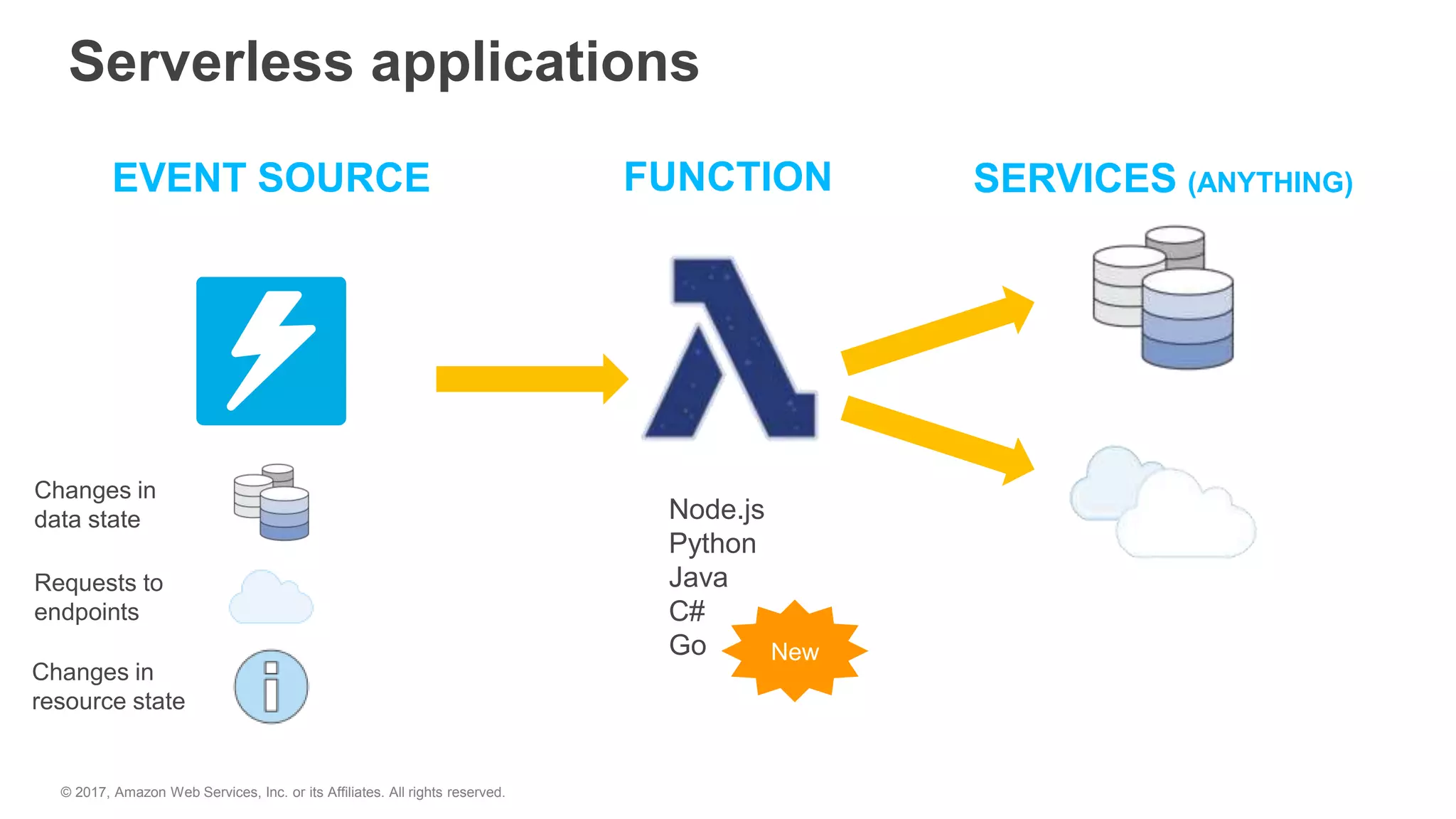

SERVICES (ANYTHING)
Changes in
data state
Requests to
endpoints
Changes in
resource state
EVENT SOURCE FUNCTION
Node.js
Python
Java
C#
Go
Serverless applications
New

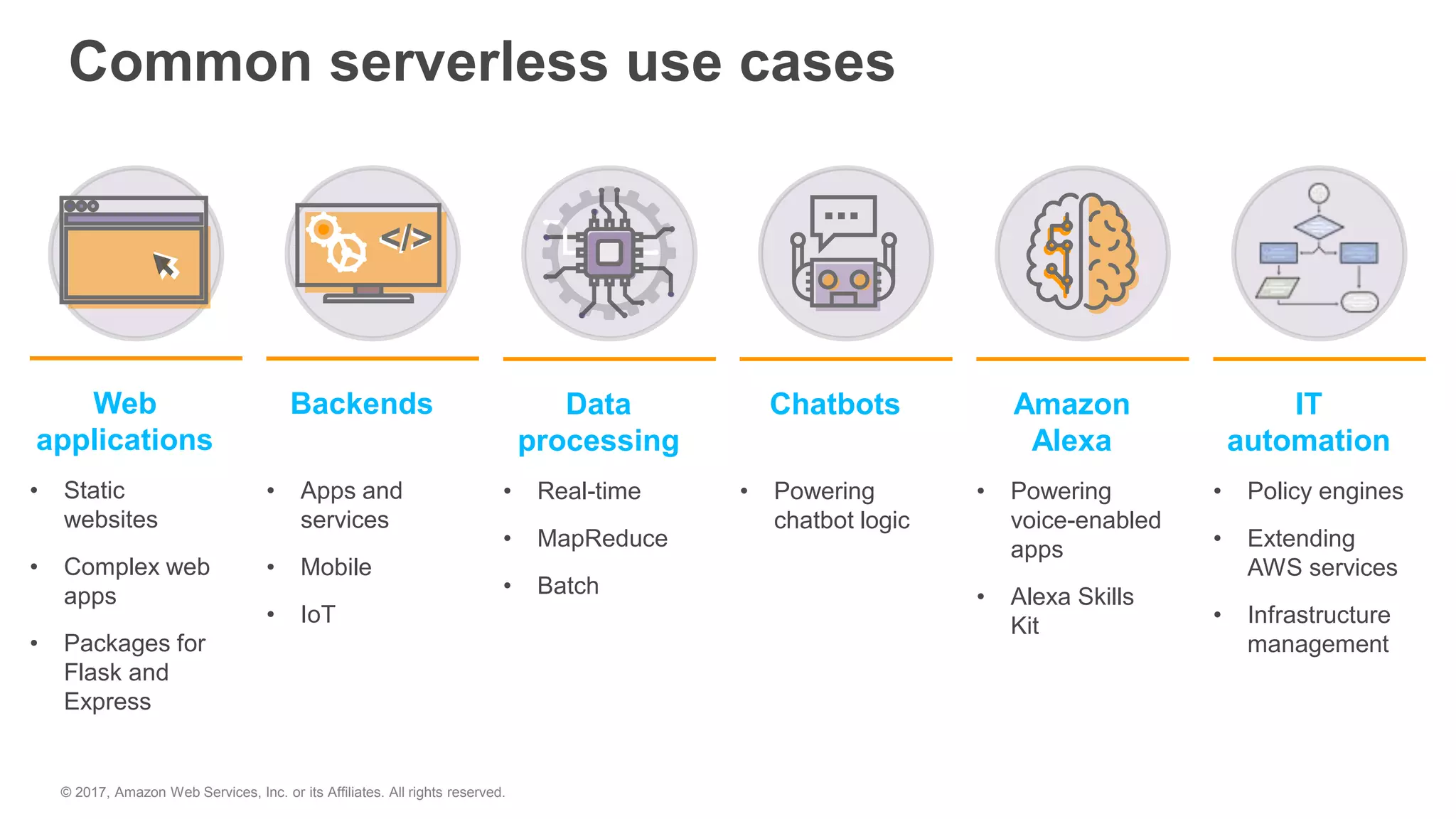

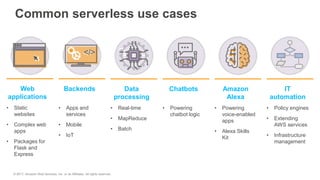

Common serverless use cases
Web
applications
• Static
websites
• Complex web
apps
• Packages for
Flask and
Express
Data
processing
• Real-time
• MapReduce
• Batch
Chatbots
• Powering
chatbot logic
Backends
• Apps and
services
• Mobile
• IoT
</></>
Amazon
Alexa
• Powering
voice-enabled
apps
• Alexa Skills
Kit
IT
automation
• Policy engines
• Extending
AWS services
• Infrastructure
management

Fine-grained pricing
Buy compute time in 100-ms increments
Low request charge
No hourly, daily, or monthly minimums
No per-device fees
Never pay for idle
Free Tier
1 M requests and 400,000 GB-s of compute
Every month, every customer

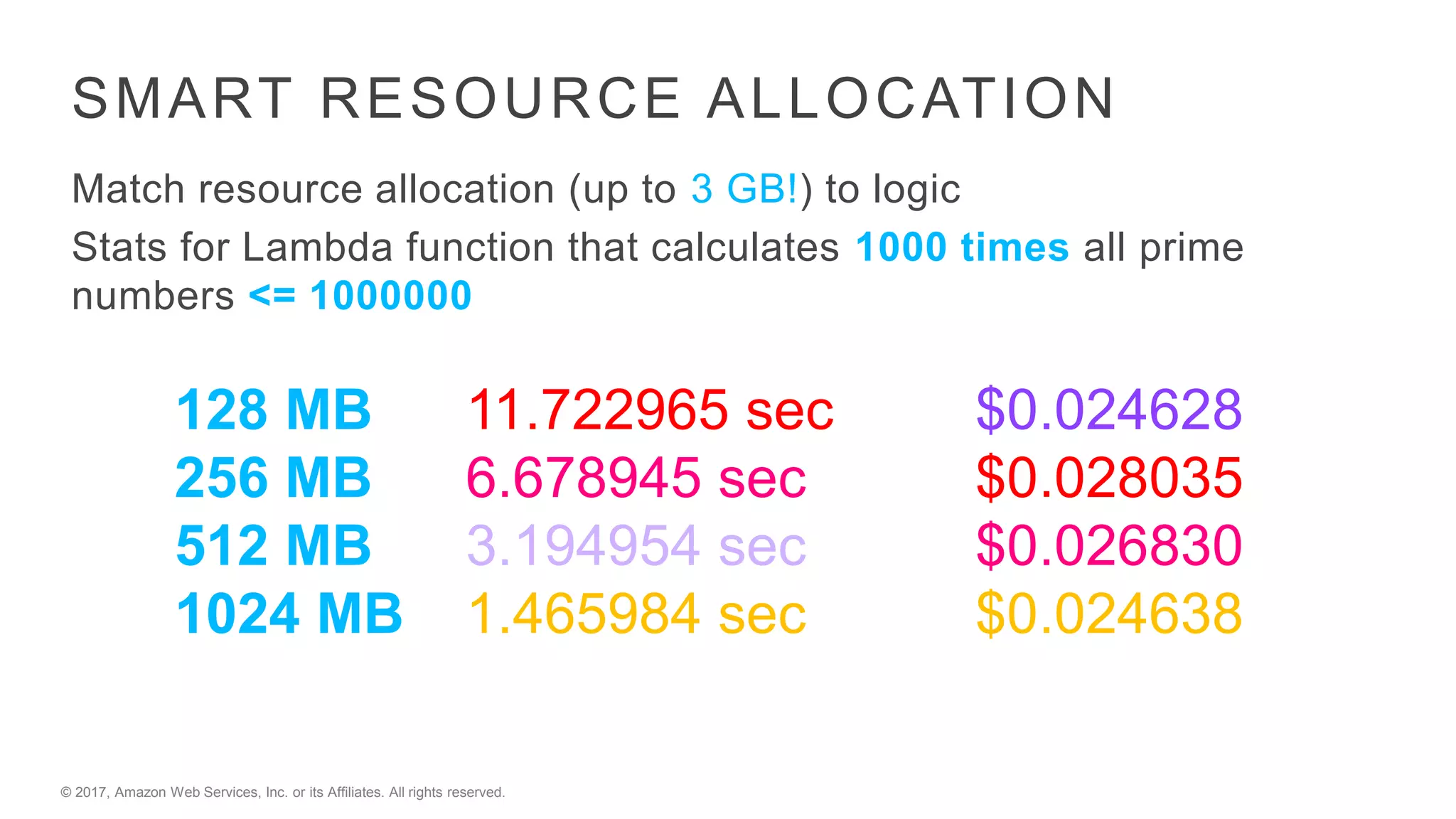

SMART RESOURCE ALLOCATION
Match resource allocation (up to 3 GB!) to logic
Stats for Lambda function that calculates 1000 times all prime
numbers <= 1000000
128 MB 11.722965 sec $0.024628
256 MB 6.678945 sec $0.028035
512 MB 3.194954 sec $0.026830
1024 MB 1.465984 sec $0.024638

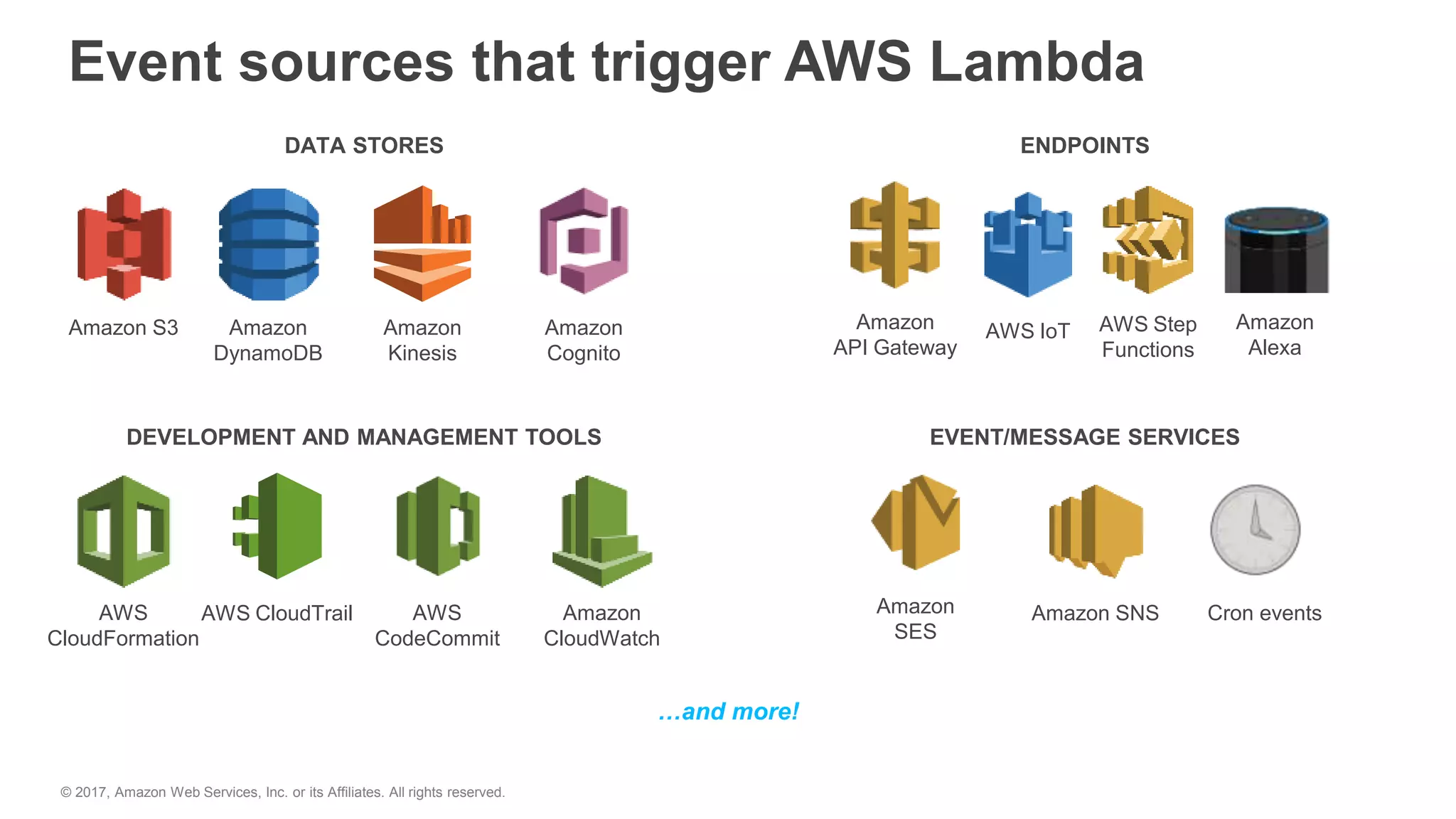

Amazon S3 Amazon
DynamoDB
Amazon
Kinesis
AWS
CloudFormation
AWS CloudTrail Amazon
CloudWatch
Amazon
Cognito
Amazon SNSAmazon
SES
Cron events
DATA STORES ENDPOINTS
DEVELOPMENT AND MANAGEMENT TOOLS EVENT/MESSAGE SERVICES
Event sources that trigger AWS Lambda
…and more!
AWS
CodeCommit
Amazon
API Gateway
Amazon
Alexa
AWS IoT AWS Step
Functions

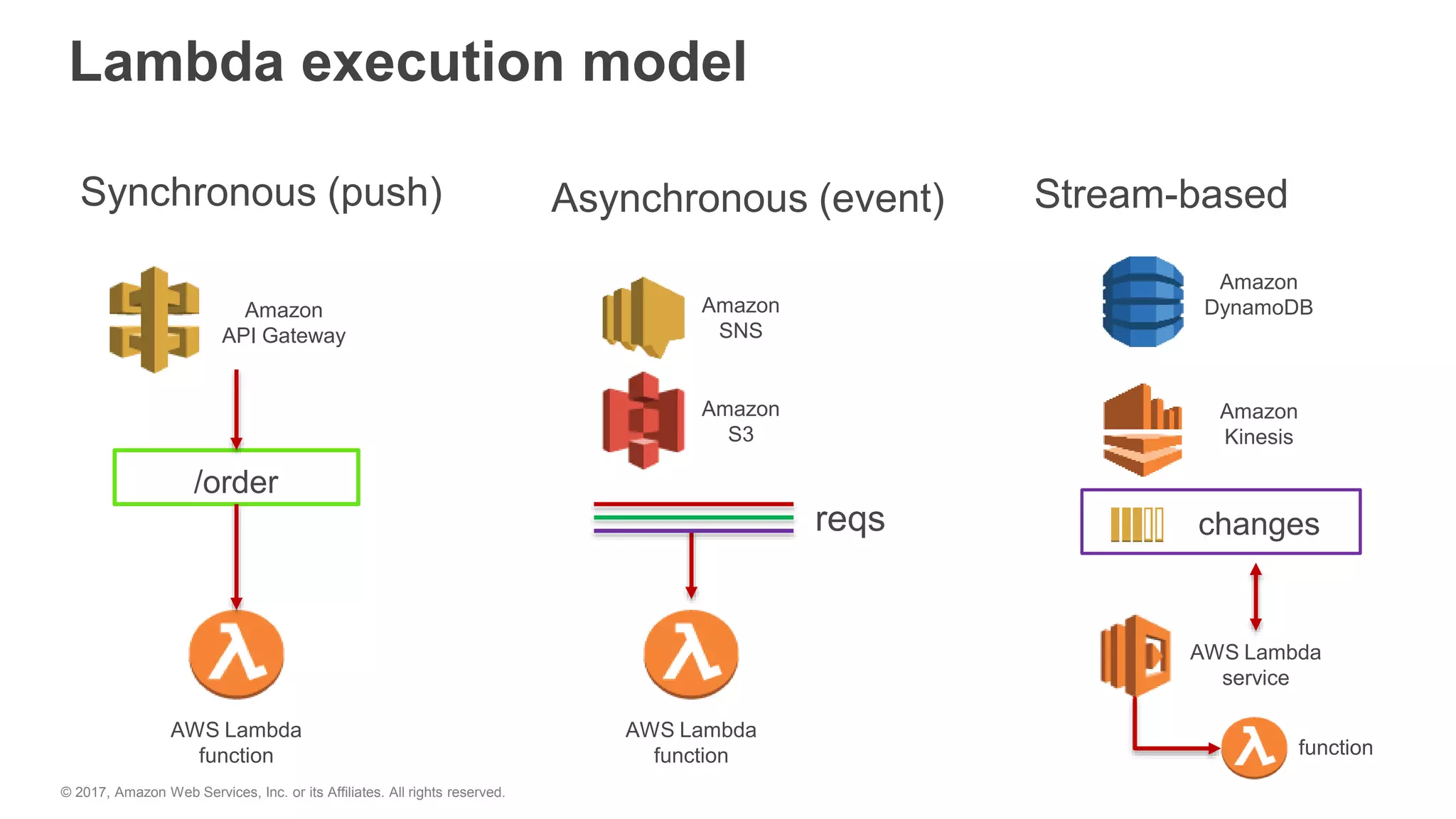

Lambda execution model
Synchronous (push) Asynchronous (event) Stream-based
Amazon
API Gateway
AWS Lambda
function
Amazon
DynamoDBAmazon
SNS
/order
AWS Lambda
function
Amazon
S3
reqs
Amazon
Kinesis
changes
AWS Lambda
service
function

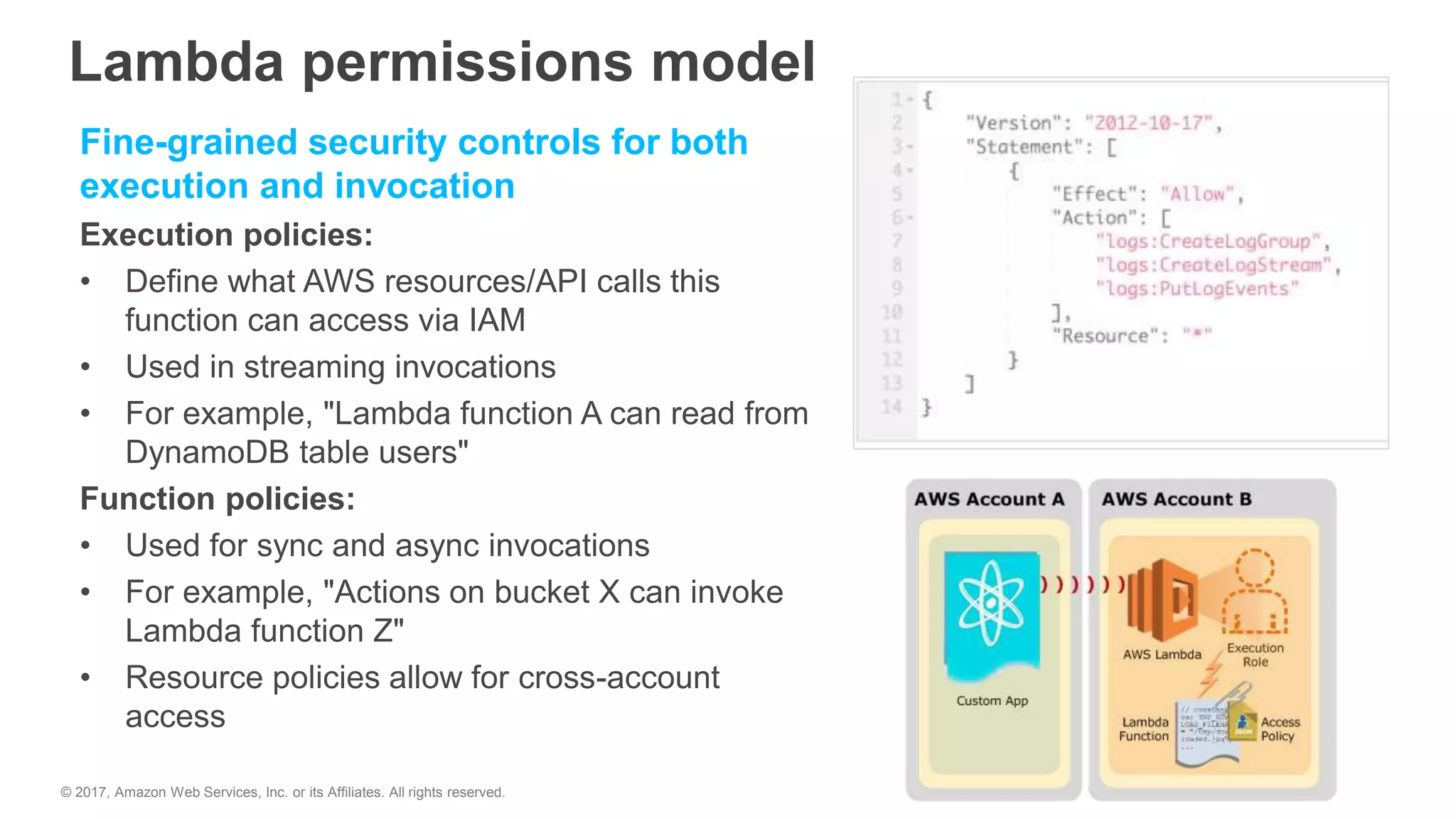

Lambda permissions model
Fine-grained security controls for both
execution and invocation
Execution policies:
• Define what AWS resources/API calls this
function can access via IAM
• Used in streaming invocations
• For example, "Lambda function A can read from
DynamoDB table users"
Function policies:
• Used for sync and async invocations
• For example, "Actions on bucket X can invoke
Lambda function Z"
• Resource policies allow for cross-account
access

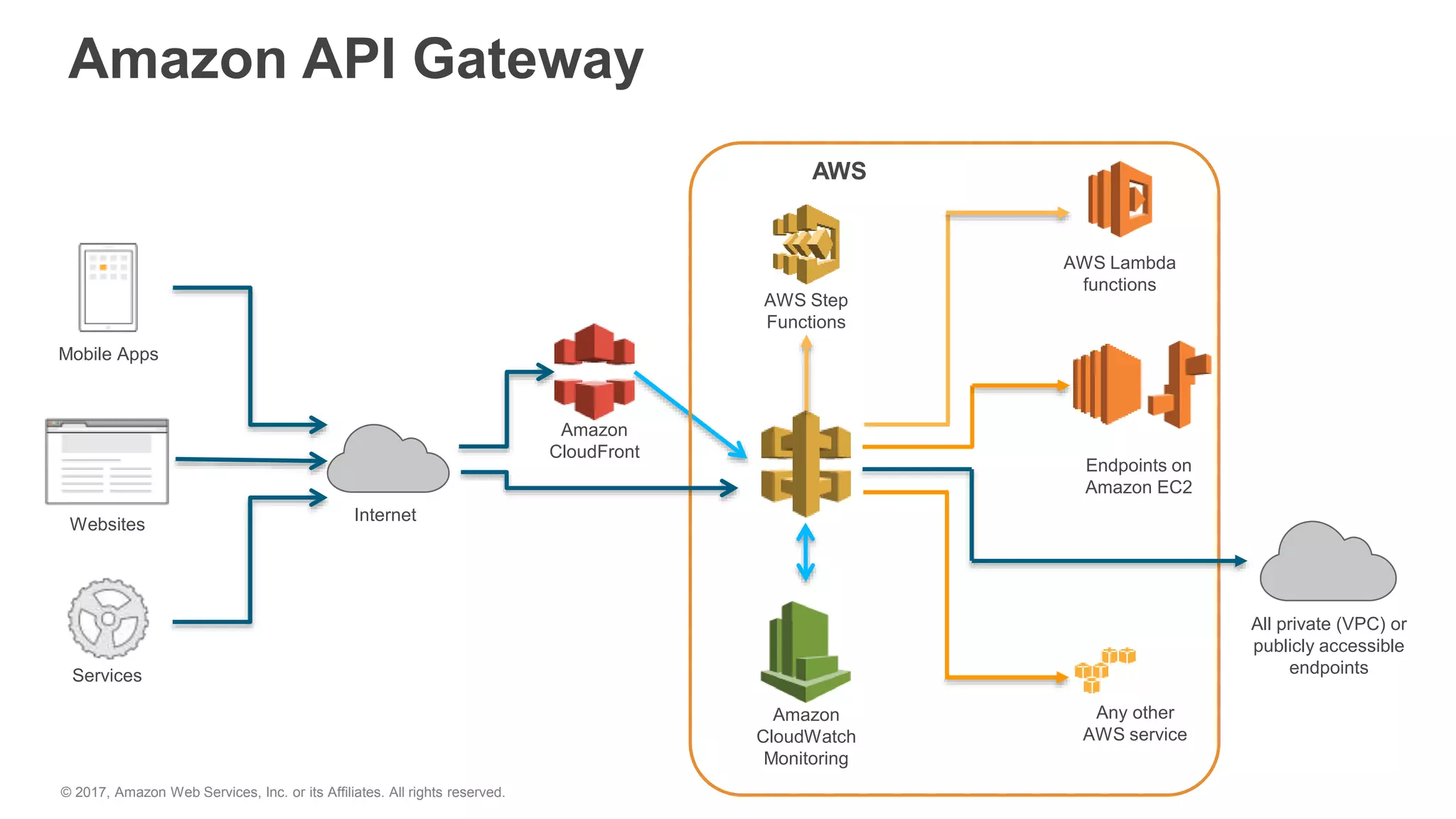

Amazon API Gateway
Internet
Mobile Apps
Websites
Services
AWS Lambda
functions
AWS
All private (VPC) or
publicly accessible
endpoints
Amazon
CloudWatch
Monitoring
Amazon
CloudFront
Any other
AWS service
Endpoints on
Amazon EC2
AWS Step
Functions

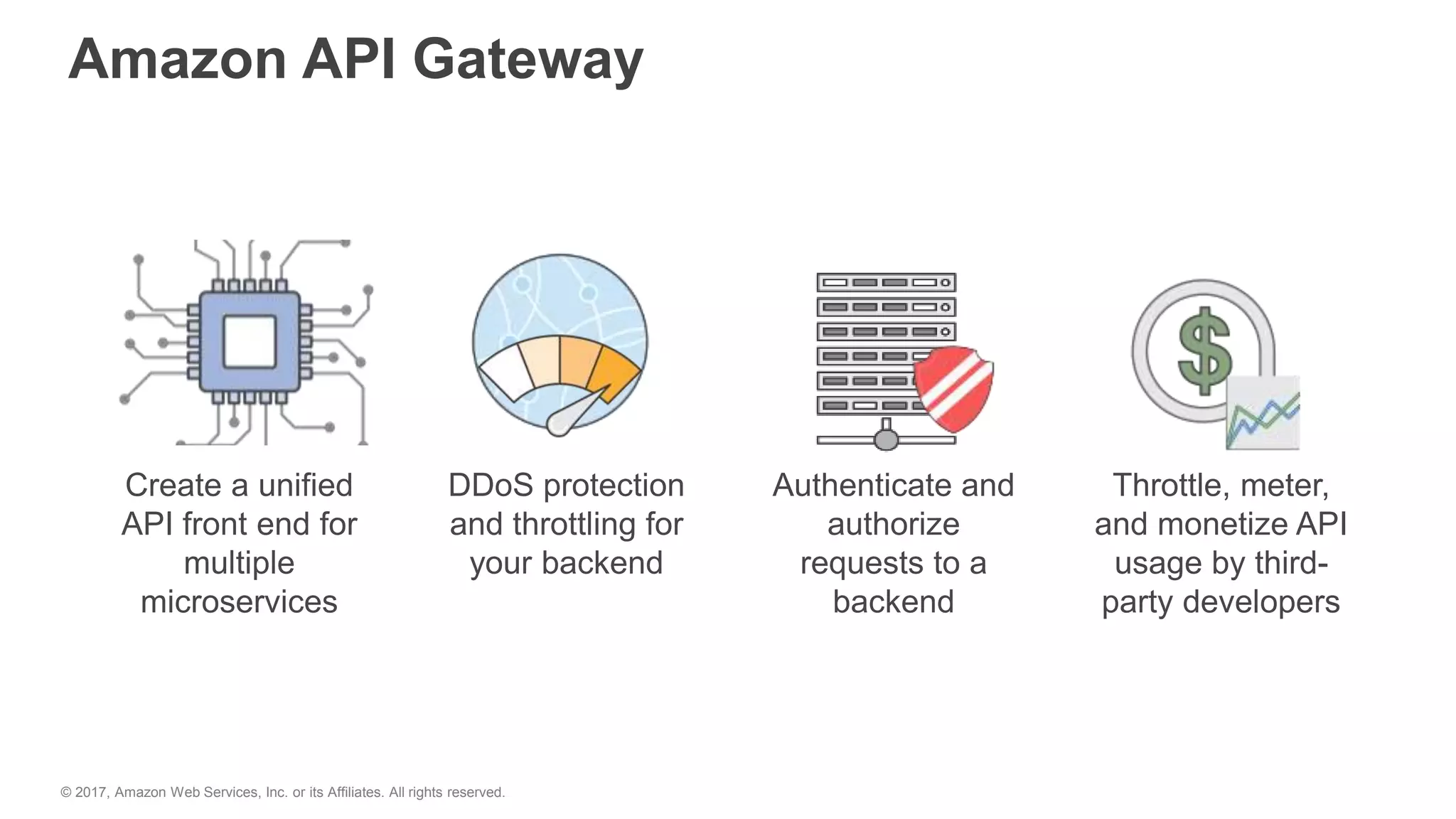

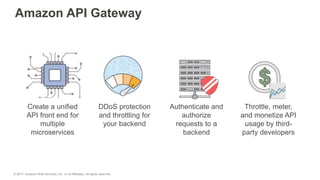

Create a unified
API front end for
multiple
microservices
Authenticate and
authorize
requests to a
backend
DDoS protection
and throttling for
your backend
Throttle, meter,
and monetize API
usage by third-
party developers
Amazon API Gateway

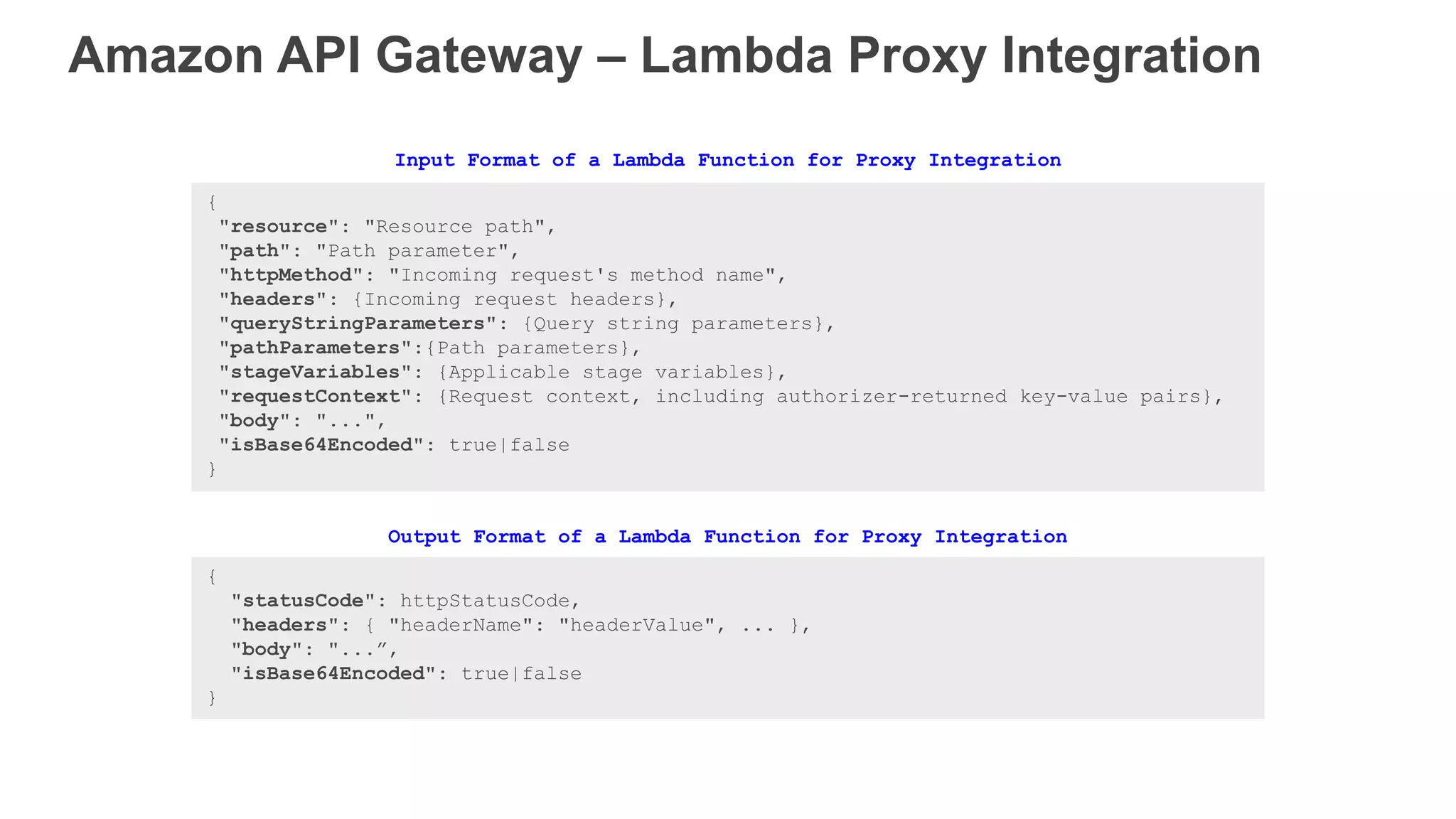

Amazon API Gateway – Lambda Proxy Integration
{
"resource": "Resource path",
"path": "Path parameter",
"httpMethod": "Incoming request's method name",
"headers": {Incoming request headers},
"queryStringParameters": {Query string parameters},
"pathParameters":{Path parameters},
"stageVariables": {Applicable stage variables},
"requestContext": {Request context, including authorizer-returned key-value pairs},
"body": "...",
"isBase64Encoded": true|false
}
{
"statusCode": httpStatusCode,
"headers": { "headerName": "headerValue", ... },
"body": "...”,
"isBase64Encoded": true|false
}
Input Format of a Lambda Function for Proxy Integration
Output Format of a Lambda Function for Proxy Integration

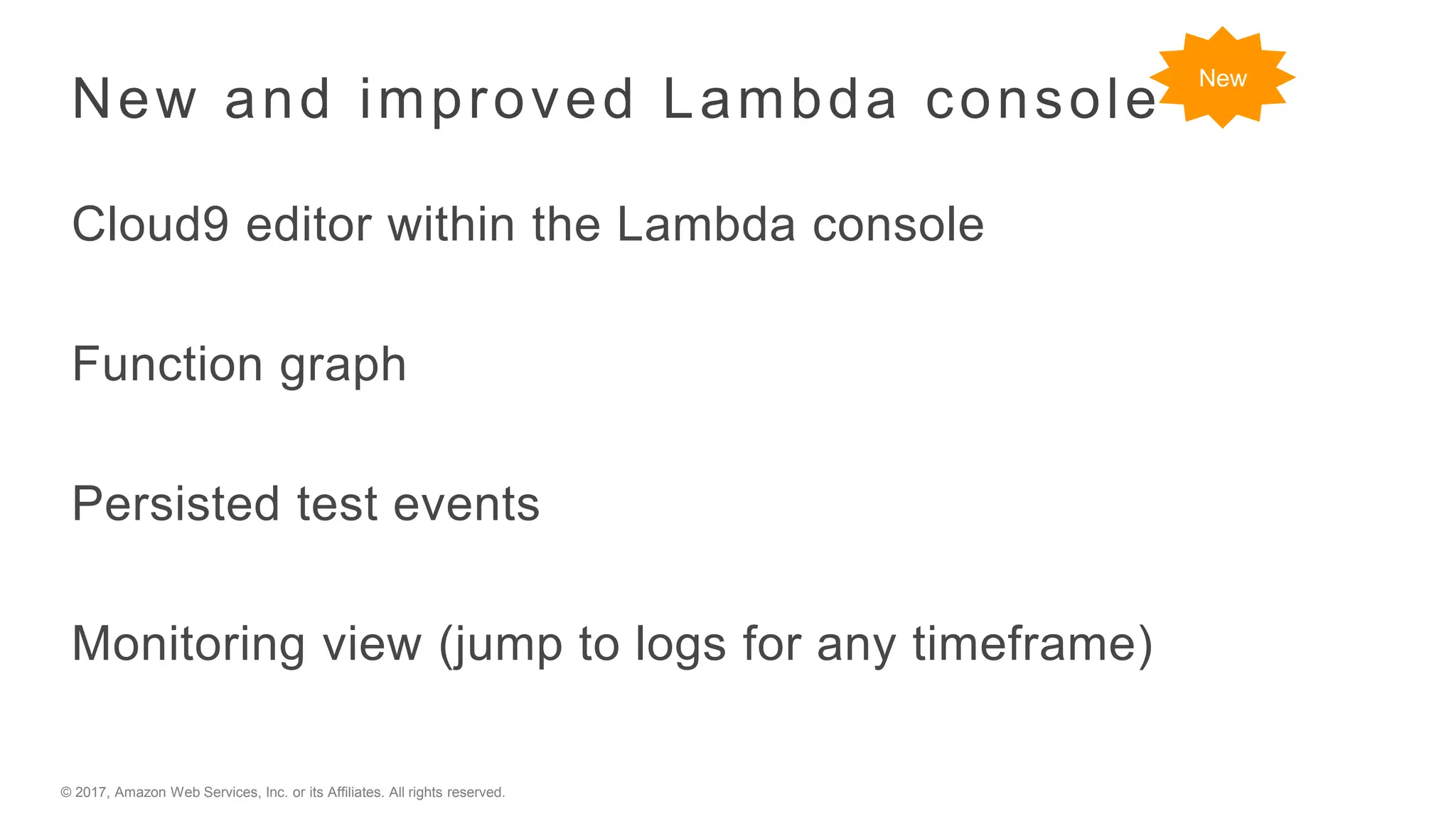

New and improved Lambda console
Cloud9 editor within the Lambda console
Function graph
Persisted test events
Monitoring view (jump to logs for any timeframe)
New

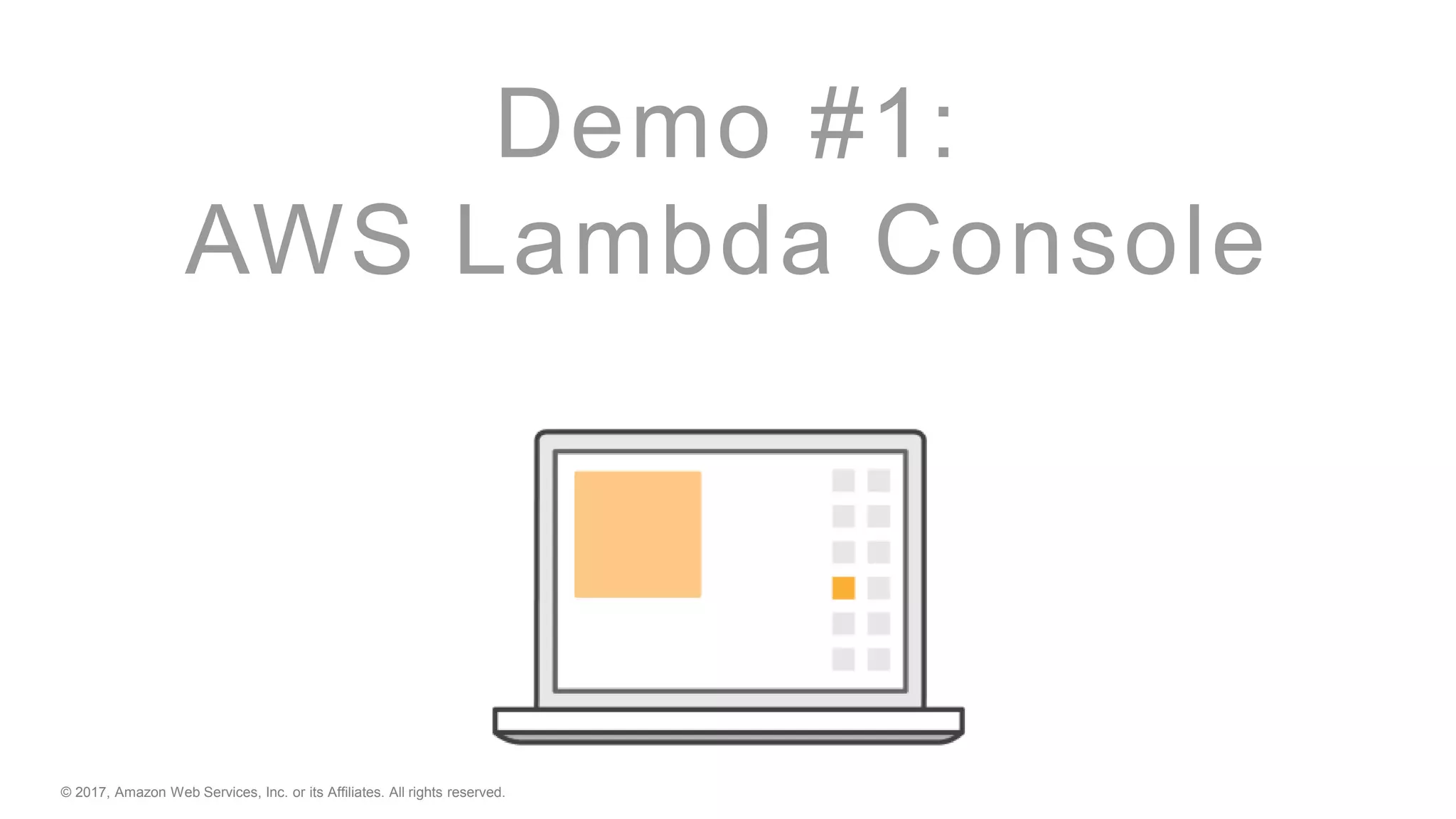

Demo #1:
AWS Lambda Console

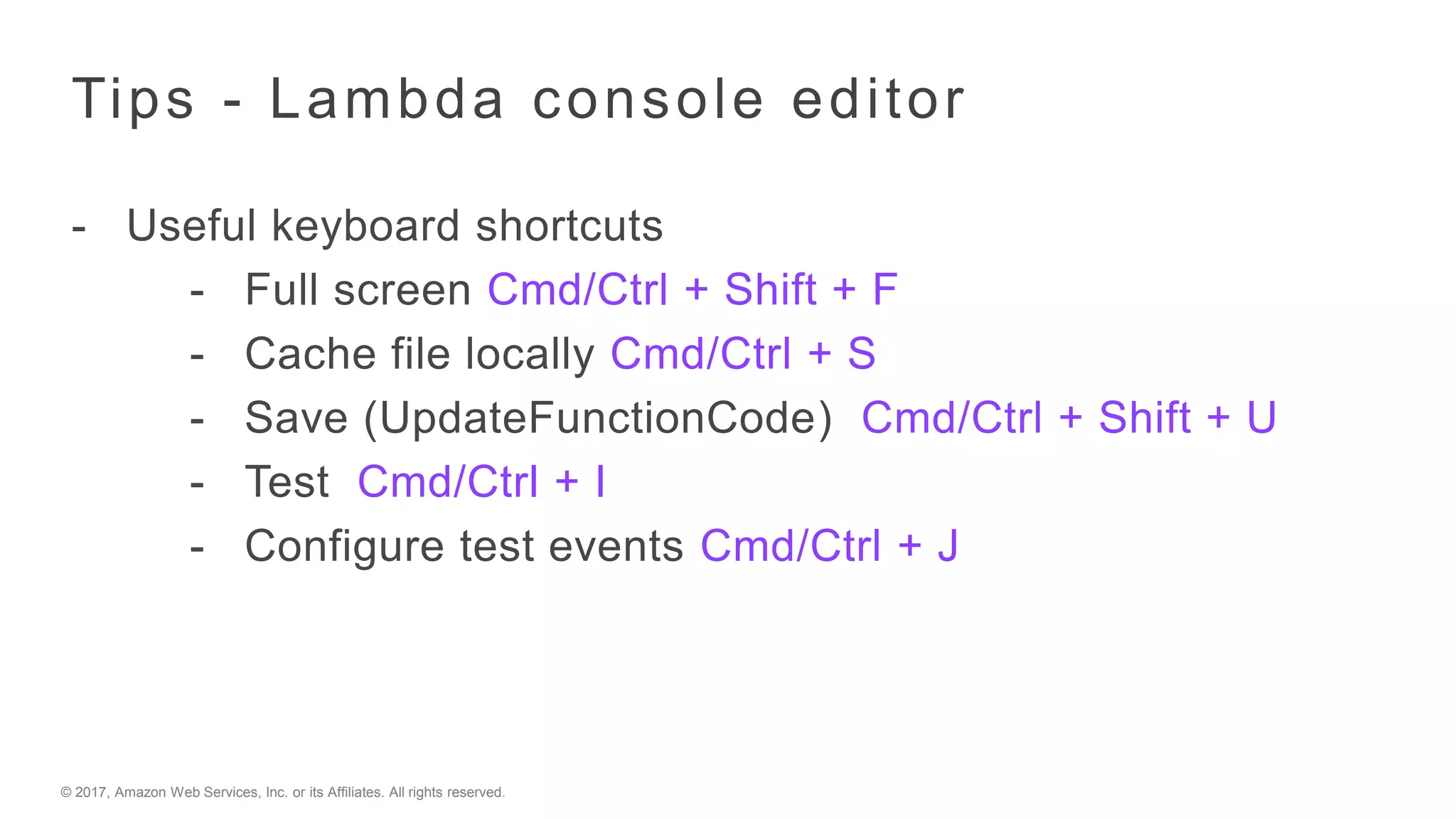

Tips - Lambda console editor
- Useful keyboard shortcuts
- Full screen Cmd/Ctrl + Shift + F
- Cache file locally Cmd/Ctrl + S
- Save (UpdateFunctionCode) Cmd/Ctrl + Shift + U
- Test Cmd/Ctrl + I
- Configure test events Cmd/Ctrl + J

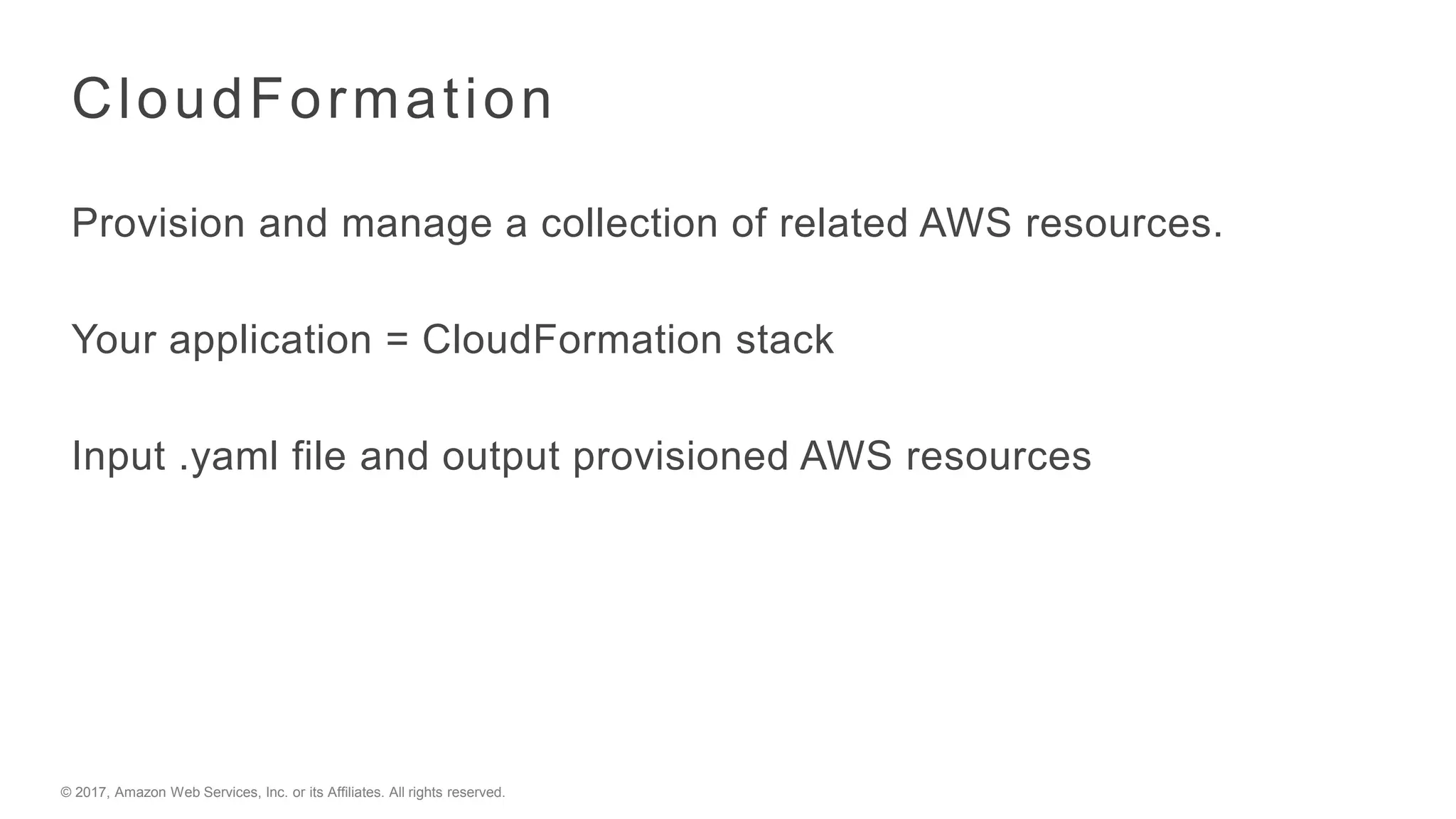

CloudFormation
Provision and manage a collection of related AWS resources.
Your application = CloudFormation stack
Input .yaml file and output provisioned AWS resources

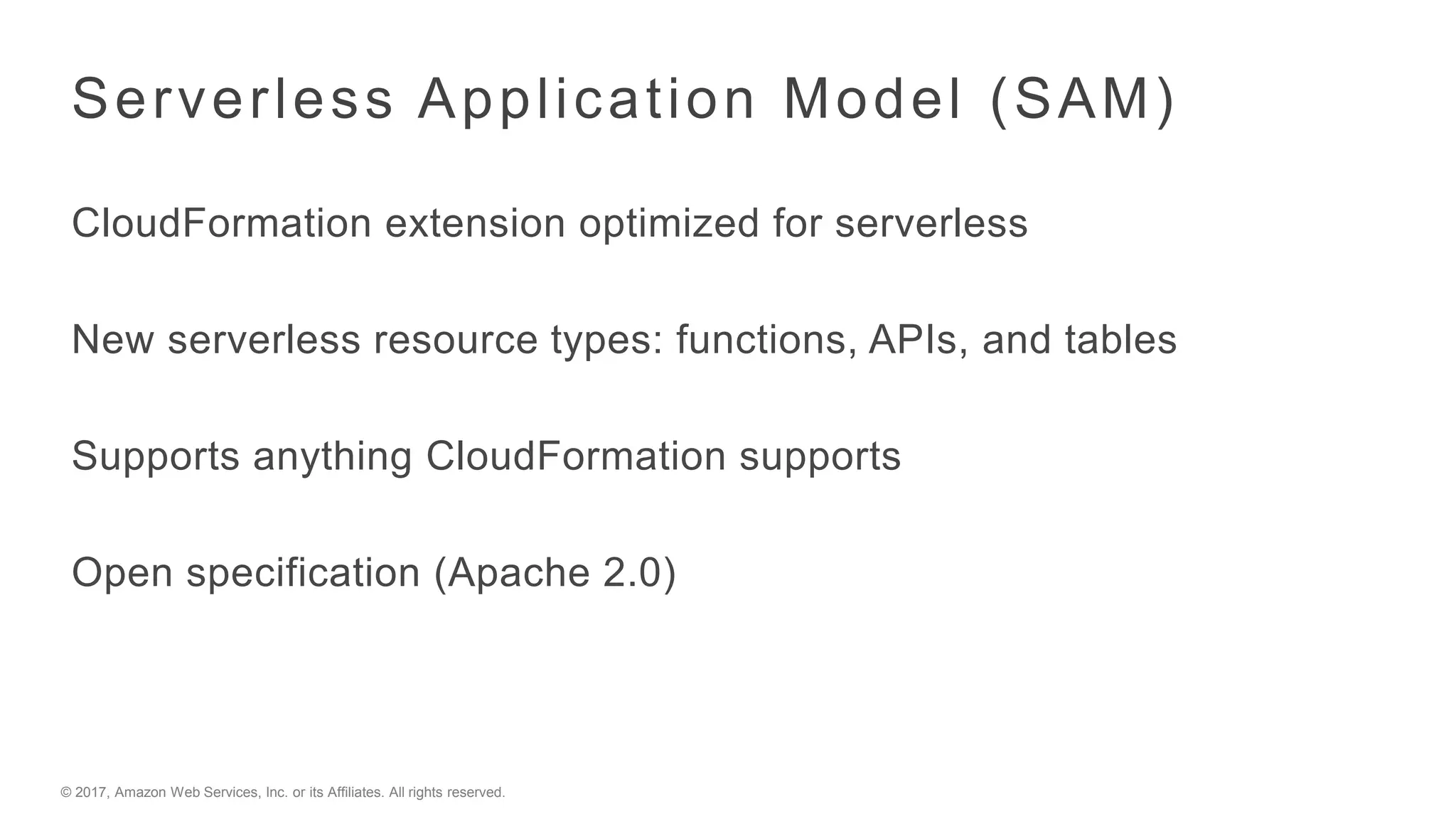

Serverless Application Model (SAM)
CloudFormation extension optimized for serverless
New serverless resource types: functions, APIs, and tables
Supports anything CloudFormation supports
Open specification (Apache 2.0)

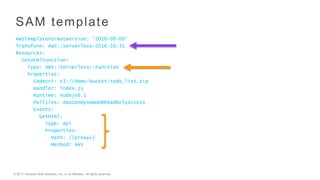

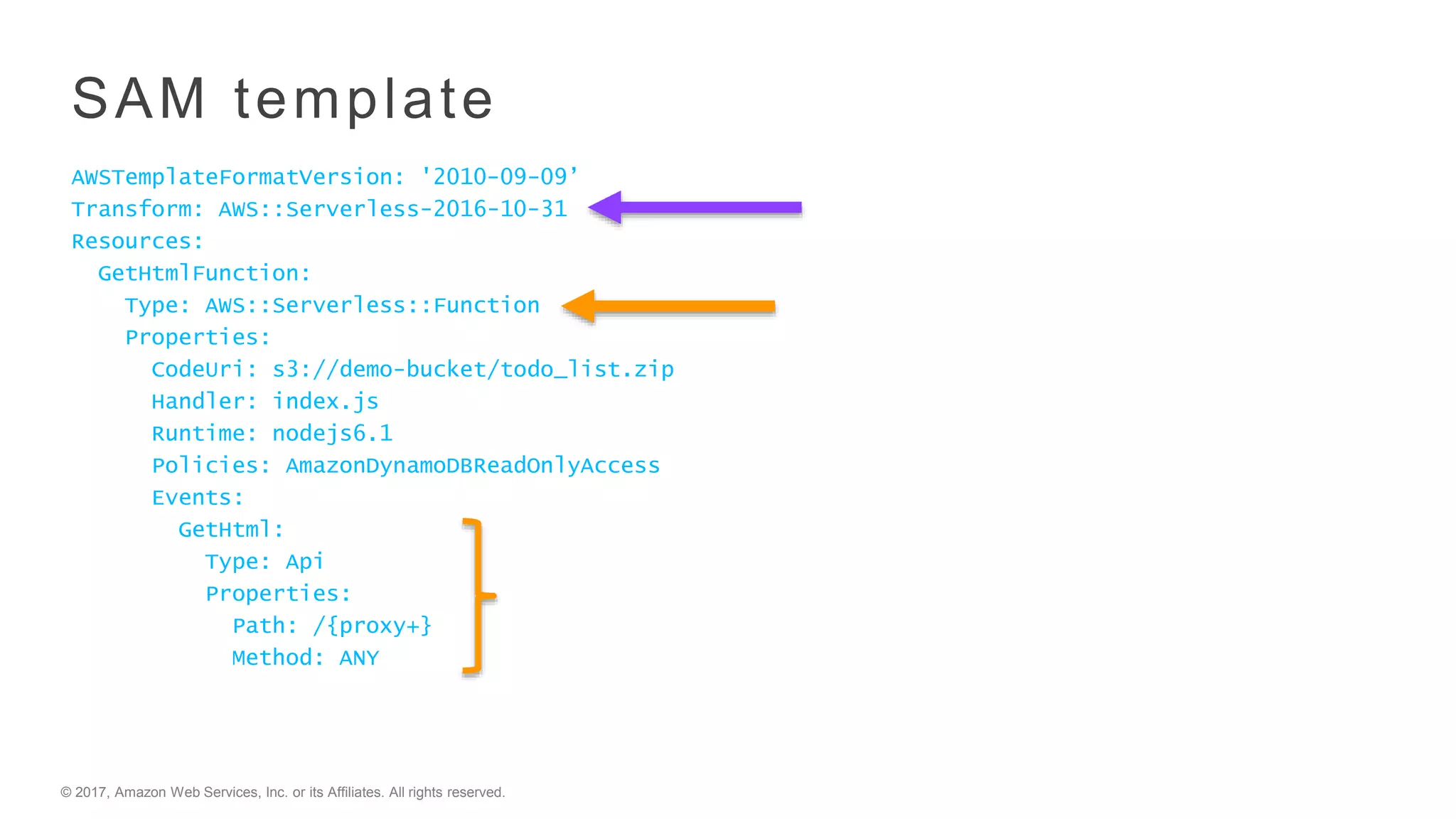

AWSTemplateFormatVersion: '2010-09-09’
Transform: AWS::Serverless-2016-10-31
Resources:
GetHtmlFunction:
Type: AWS::Serverless::Function
Properties:
CodeUri: s3://demo-bucket/todo_list.zip
Handler: index.js
Runtime: nodejs6.1
Policies: AmazonDynamoDBReadOnlyAccess
Events:
GetHtml:
Type: Api
Properties:
Path: /{proxy+}
Method: ANY

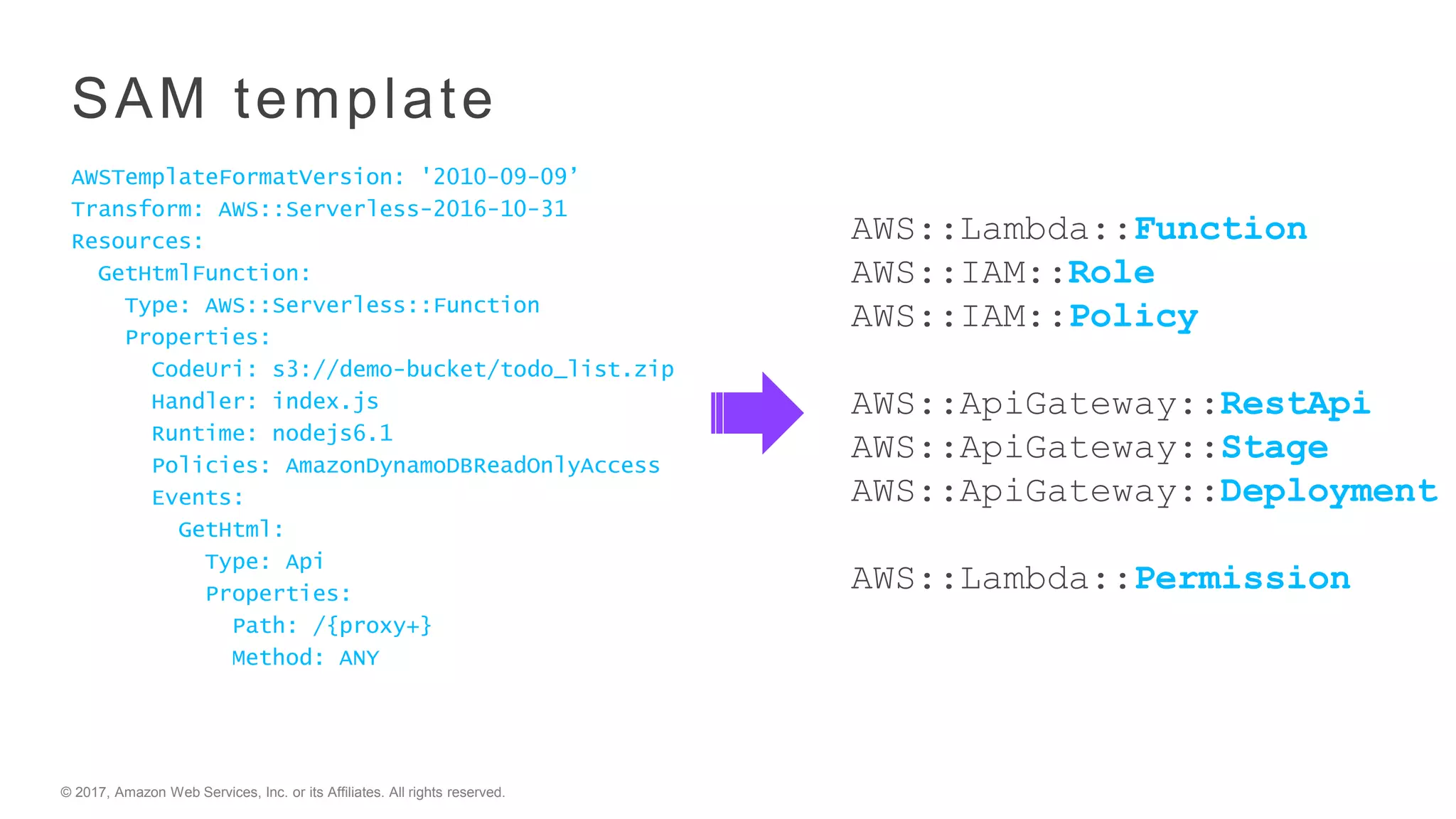

SAM template

Resources:
GetHtmlFunction:
Properties:
Handler: index.js
Runtime: nodejs6.1
Events:
GetHtml:
Type: Api
Properties:
Path: /{proxy+}
Method: ANY
SAM template
AWS::Lambda::Function
AWS::IAM::Role
AWS::IAM::Policy
AWS::ApiGateway::RestApi
AWS::ApiGateway::Stage
AWS::ApiGateway::Deployment
AWS::Lambda::Permission

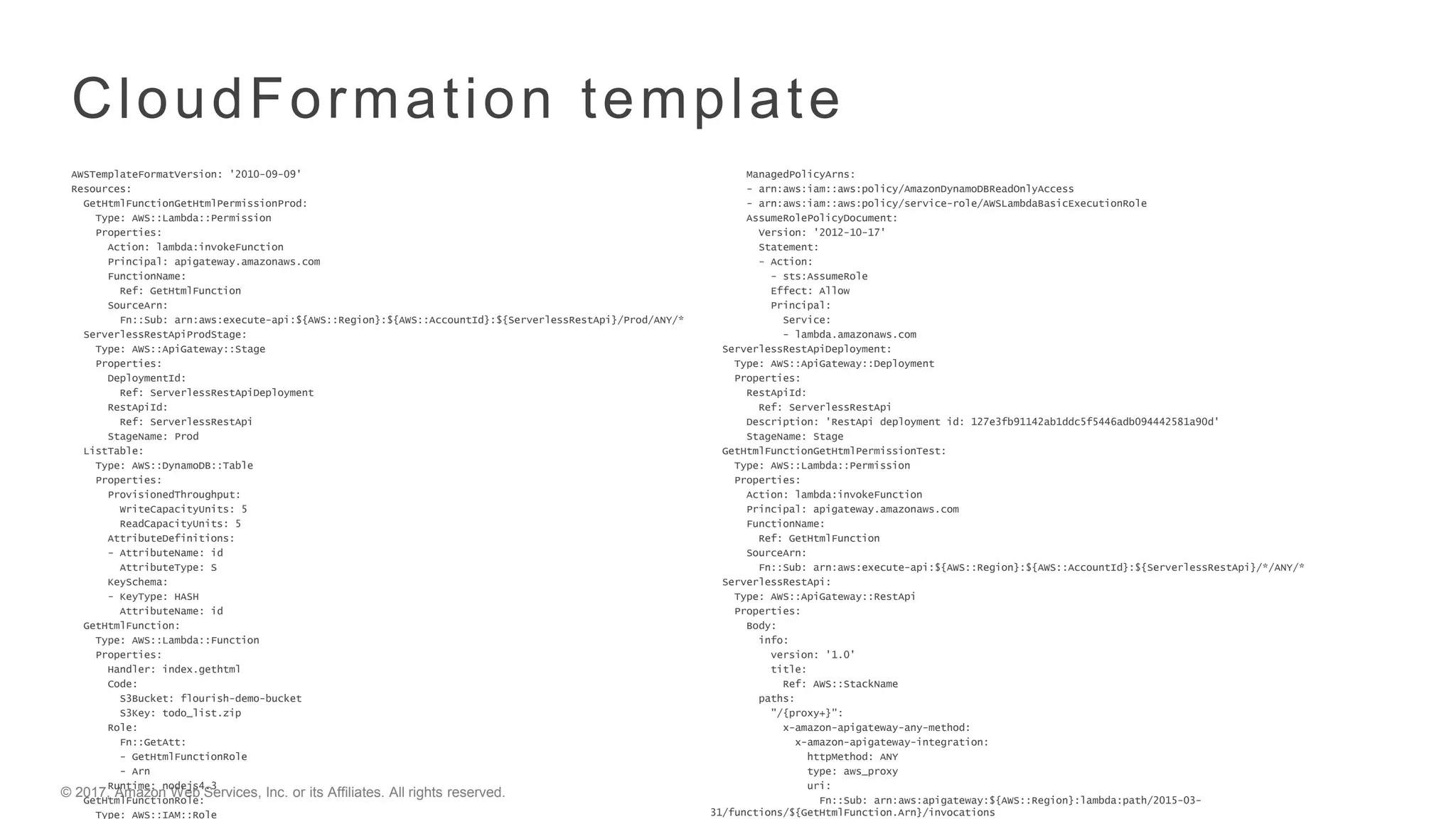

CloudFormation template
AWSTemplateFormatVersion: '2010-09-09'
Resources:
GetHtmlFunctionGetHtmlPermissionProd:
Type: AWS::Lambda::Permission
Properties:
Action: lambda:invokeFunction
Principal: apigateway.amazonaws.com
FunctionName:
Ref: GetHtmlFunction
SourceArn:
Fn::Sub: arn:aws:execute-api:${AWS::Region}:${AWS::AccountId}:${ServerlessRestApi}/Prod/ANY/*
ServerlessRestApiProdStage:
Type: AWS::ApiGateway::Stage
Properties:
DeploymentId:
Ref: ServerlessRestApiDeployment
RestApiId:
Ref: ServerlessRestApi
StageName: Prod
ListTable:
Type: AWS::DynamoDB::Table
Properties:
ProvisionedThroughput:
WriteCapacityUnits: 5
ReadCapacityUnits: 5
AttributeDefinitions:
- AttributeName: id
AttributeType: S
KeySchema:
- KeyType: HASH
AttributeName: id
GetHtmlFunction:
Type: AWS::Lambda::Function
Properties:
Handler: index.gethtml
Code:
S3Bucket: flourish-demo-bucket
S3Key: todo_list.zip
Role:
Fn::GetAtt:
- GetHtmlFunctionRole
- Arn
Runtime: nodejs4.3
GetHtmlFunctionRole:
Type: AWS::IAM::Role
ManagedPolicyArns:
- arn:aws:iam::aws:policy/AmazonDynamoDBReadOnlyAccess
- arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole
AssumeRolePolicyDocument:
Version: '2012-10-17'
Statement:
- Action:
- sts:AssumeRole
Effect: Allow
Principal:
Service:
- lambda.amazonaws.com
ServerlessRestApiDeployment:
Type: AWS::ApiGateway::Deployment
Properties:
RestApiId:
Ref: ServerlessRestApi
Description: 'RestApi deployment id: 127e3fb91142ab1ddc5f5446adb094442581a90d'
StageName: Stage
GetHtmlFunctionGetHtmlPermissionTest:
Type: AWS::Lambda::Permission
Properties:
Action: lambda:invokeFunction
Principal: apigateway.amazonaws.com
FunctionName:
Ref: GetHtmlFunction
SourceArn:
Fn::Sub: arn:aws:execute-api:${AWS::Region}:${AWS::AccountId}:${ServerlessRestApi}/*/ANY/*
ServerlessRestApi:
Type: AWS::ApiGateway::RestApi
Properties:
Body:
info:
version: '1.0'
title:
Ref: AWS::StackName
paths:
"/{proxy+}":
x-amazon-apigateway-any-method:
x-amazon-apigateway-integration:
httpMethod: ANY
type: aws_proxy
uri:
Fn::Sub: arn:aws:apigateway:${AWS::Region}:lambda:path/2015-03-
31/functions/${GetHtmlFunction.Arn}/invocations

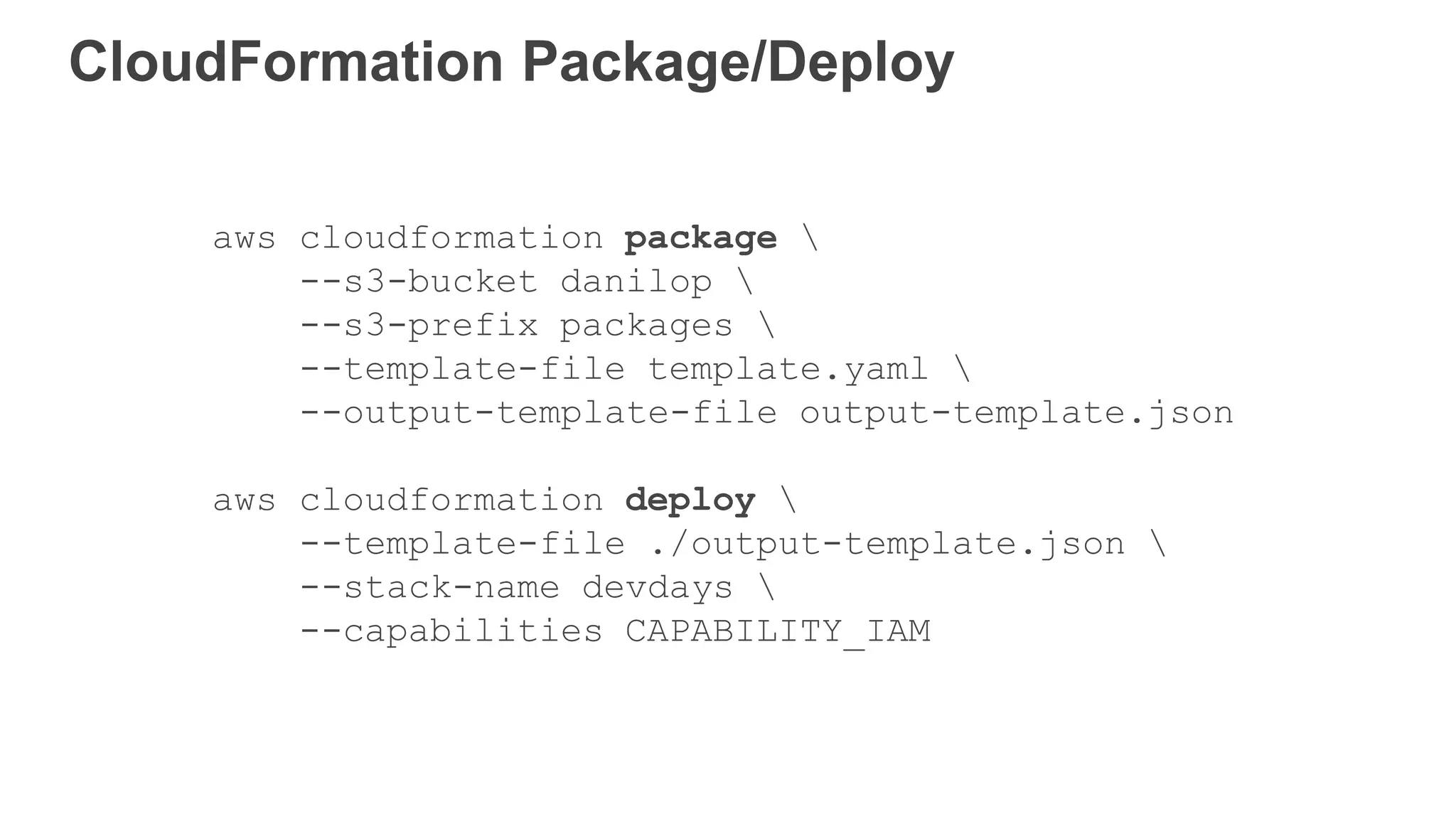

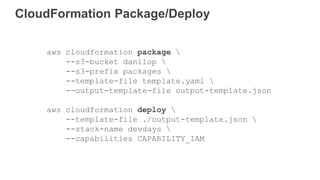

CloudFormation Package/Deploy
aws cloudformation package
--s3-bucket danilop
--s3-prefix packages
--template-file template.yaml
--output-template-file output-template.json
aws cloudformation deploy
--template-file ./output-template.json
--stack-name devdays
--capabilities CAPABILITY_IAM

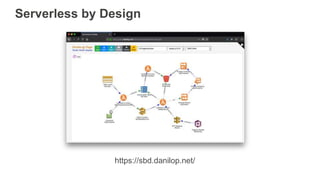

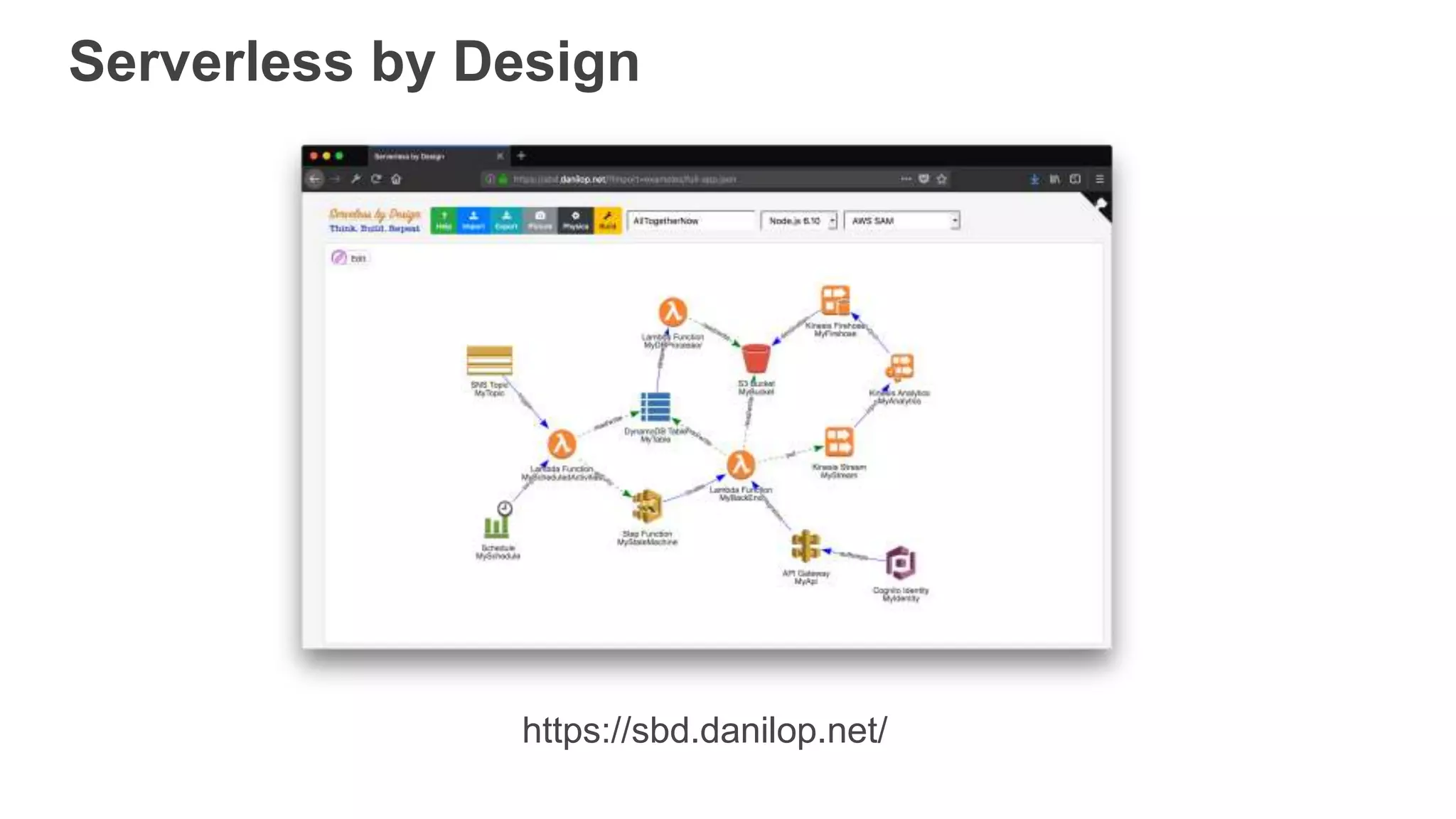

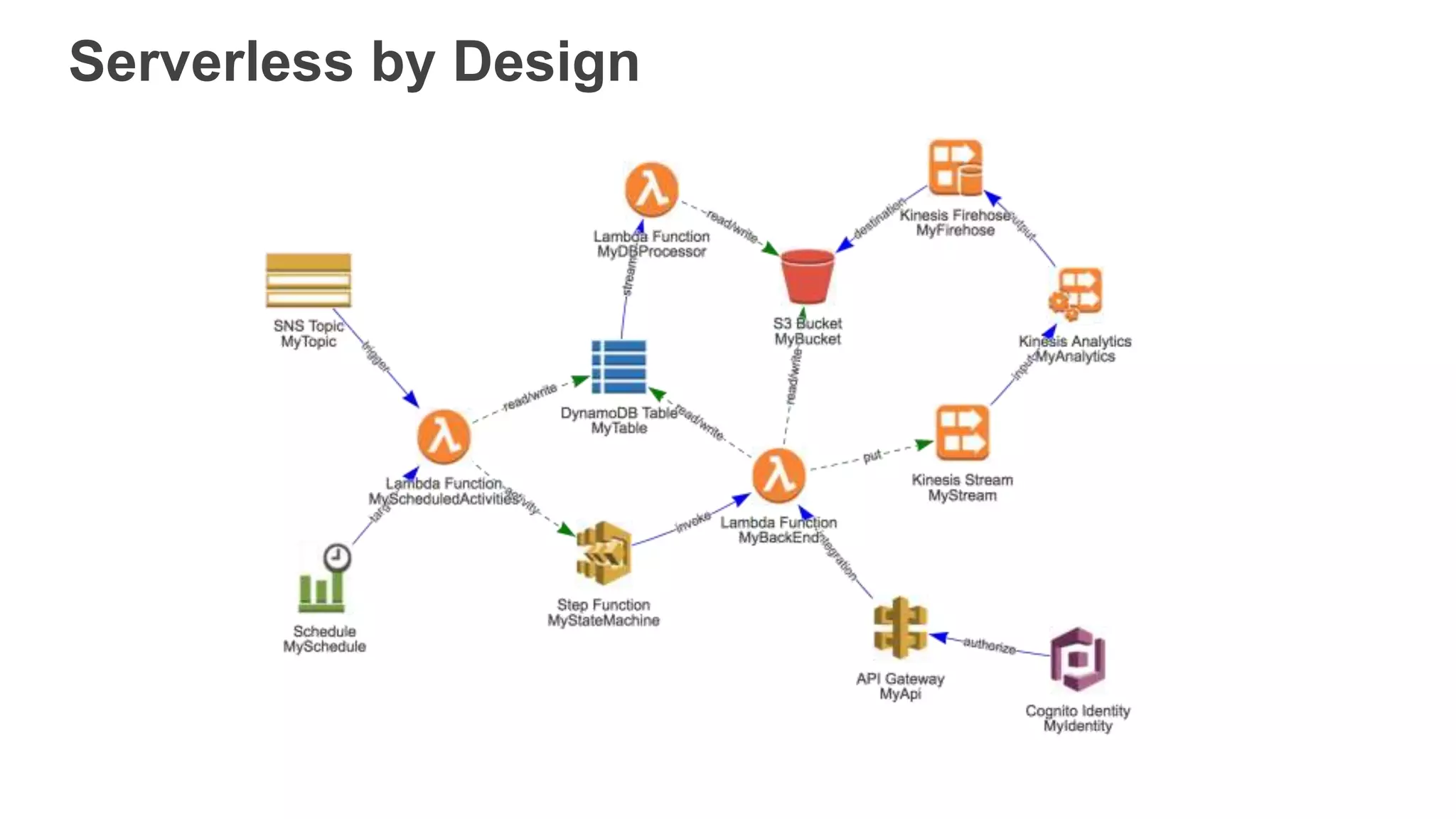

Serverless by Design
https://sbd.danilop.net/

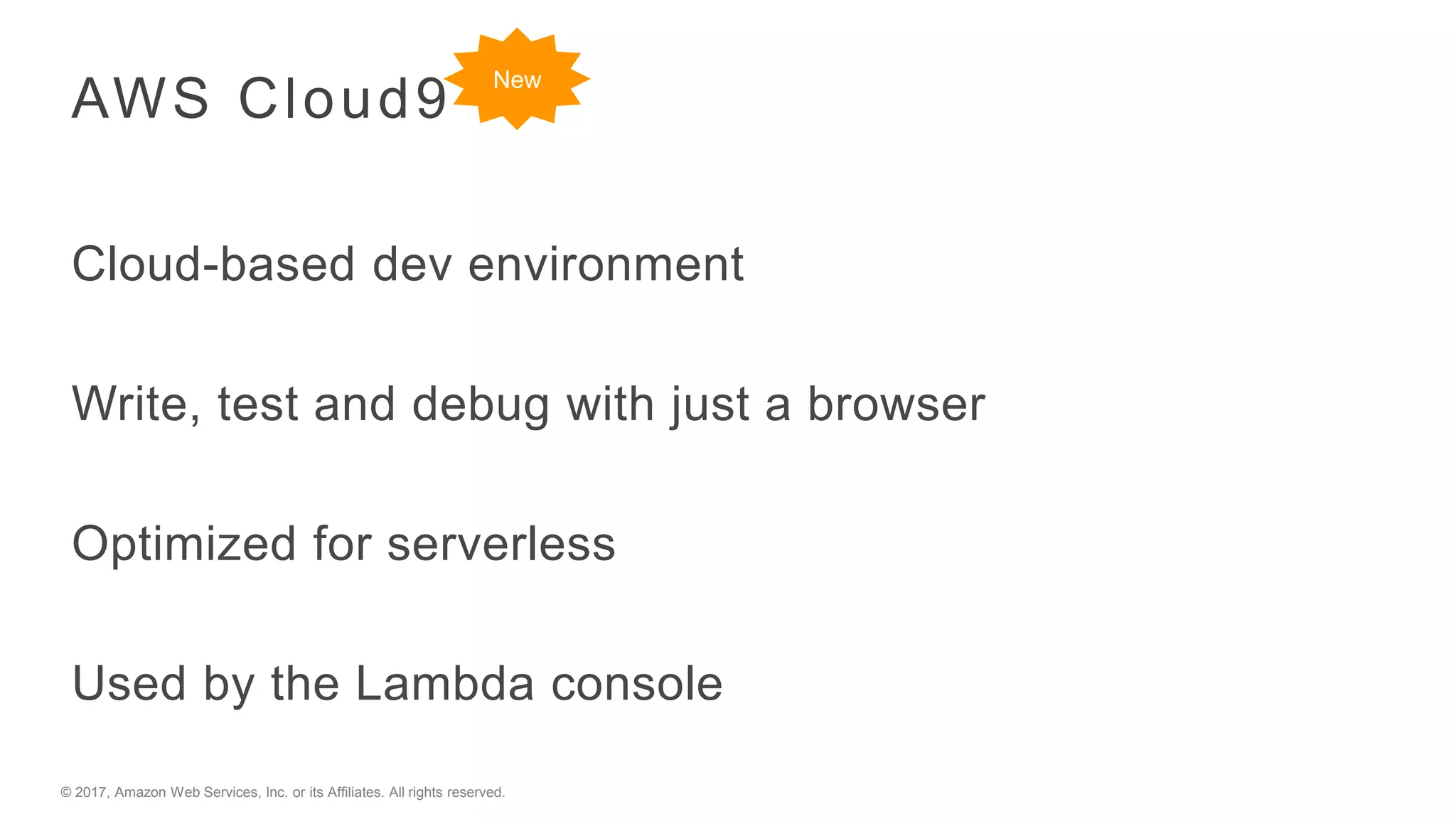

AWS Cloud9
Cloud-based dev environment
Write, test and debug with just a browser
Optimized for serverless
Used by the Lambda console
New

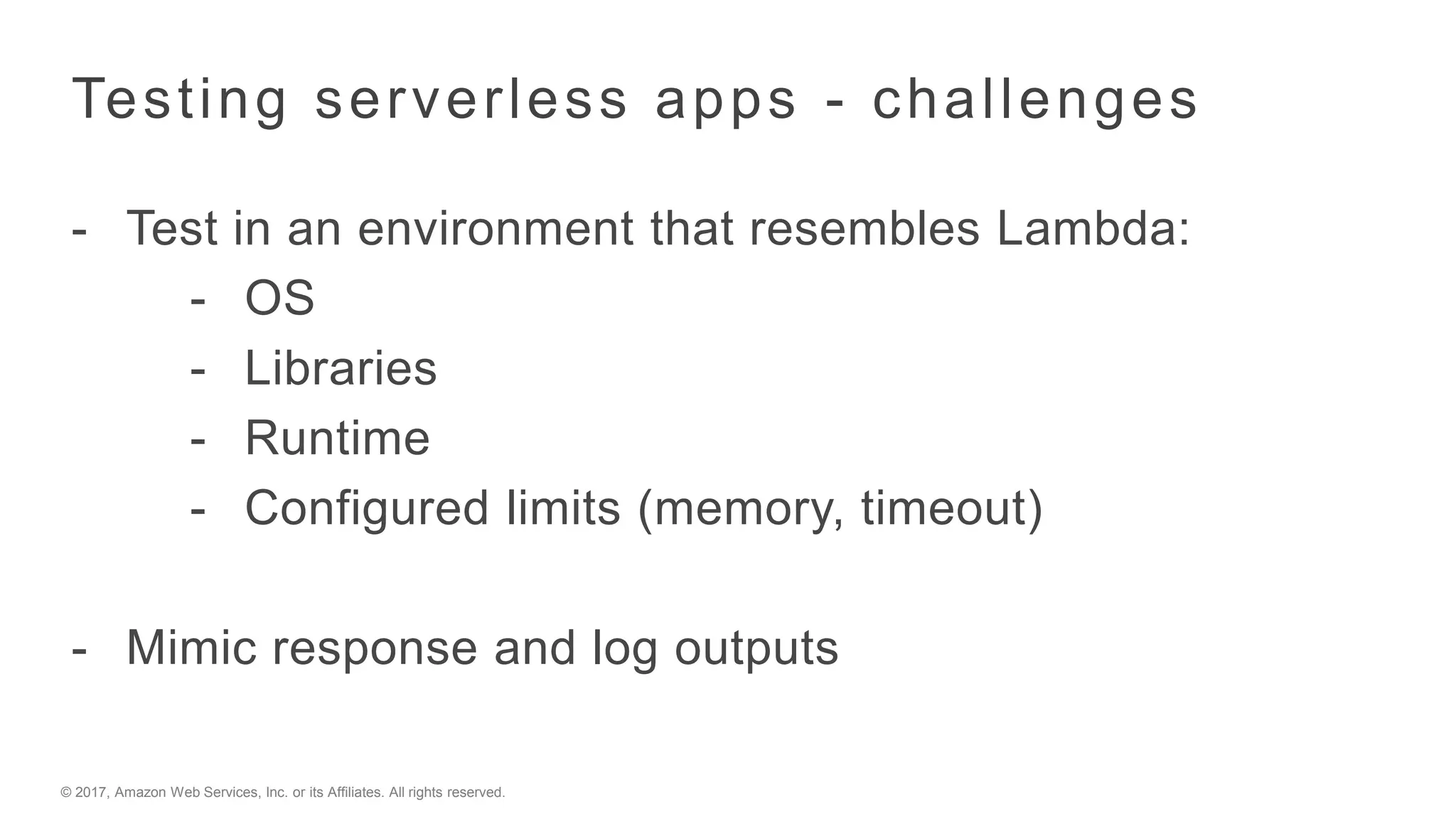

Testing serverless apps - challenges
- Test in an environment that resembles Lambda:
- OS
- Libraries
- Runtime
- Configured limits (memory, timeout)
- Mimic response and log outputs

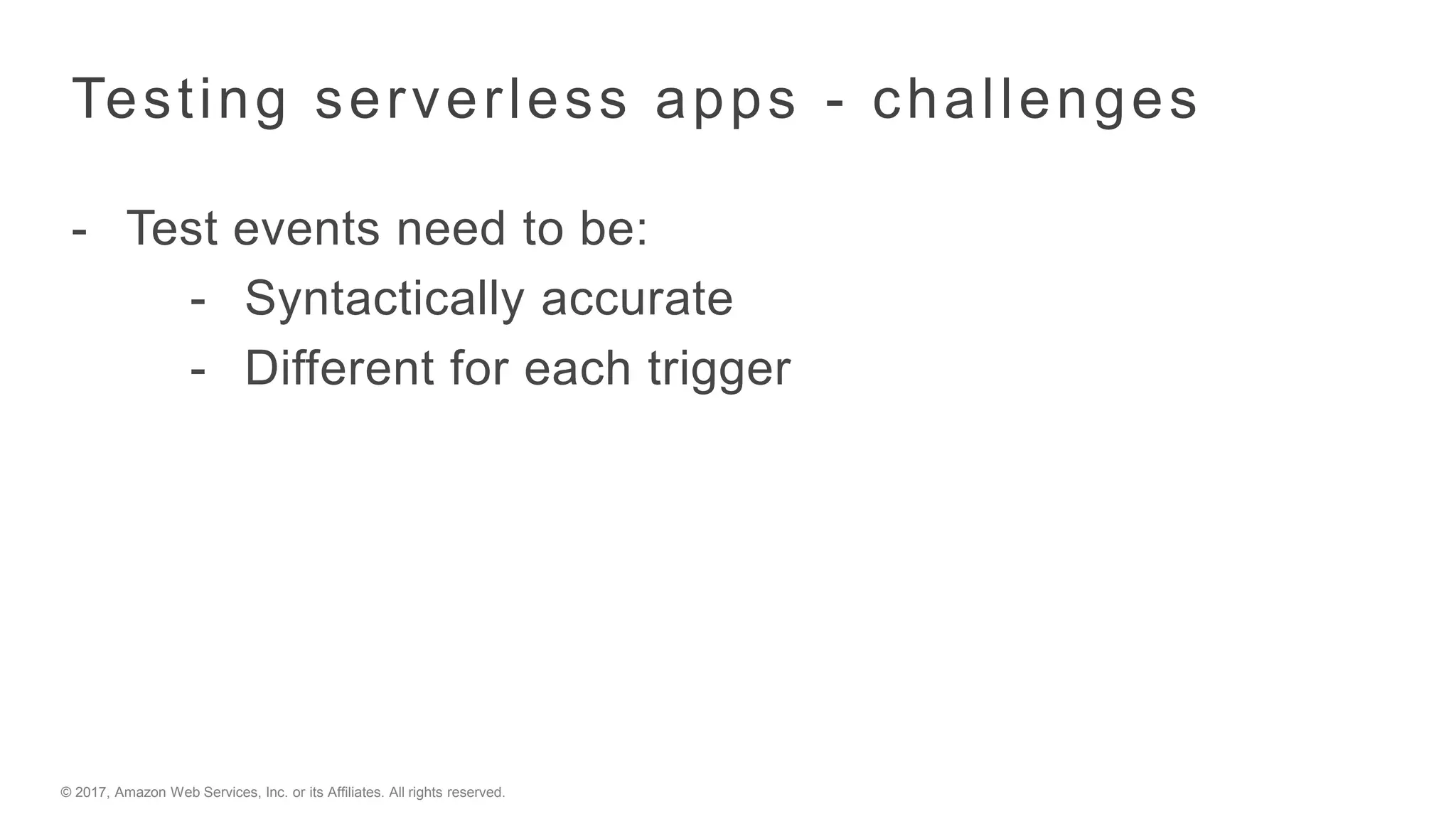

- Test events need to be:
- Syntactically accurate
- Different for each trigger

{
"Records": [
{
"eventVersion": "2.0",
"eventTime": "1970-01-01T00:00:00.000Z",
"requestParameters": {
"sourceIPAddress": "127.0.0.1"
},
"s3": {
"configurationId": "testConfigRule",
"object": {
"eTag":
"0123456789abcdef0123456789abcdef",
"sequencer": "0A1B2C3D4E5F678901",
"key": "myKey",
"size": 1024
},
"bucket": {
"arn": "arn:aws:s3:::myBucket",
"name": "myBucket",
"ownerIdentity": {
"principalId": "EXAMPLE"
}
},
"s3SchemaVersion": "1.0"
},
"responseElements": {
"x-amz-id-2":
"EXAMPLE123/5678abcdefghijklambdaisawesome/mnop
qrstuvwxyzABCDEFGH",
"x-amz-request-id": "EXAMPLE123456789"
},
"awsRegion": "us-east-1",
"eventName": "ObjectCreated:Put",
"userIdentity": {
"principalId": "EXAMPLE"
},
"eventSource": "aws:s3” } ] }

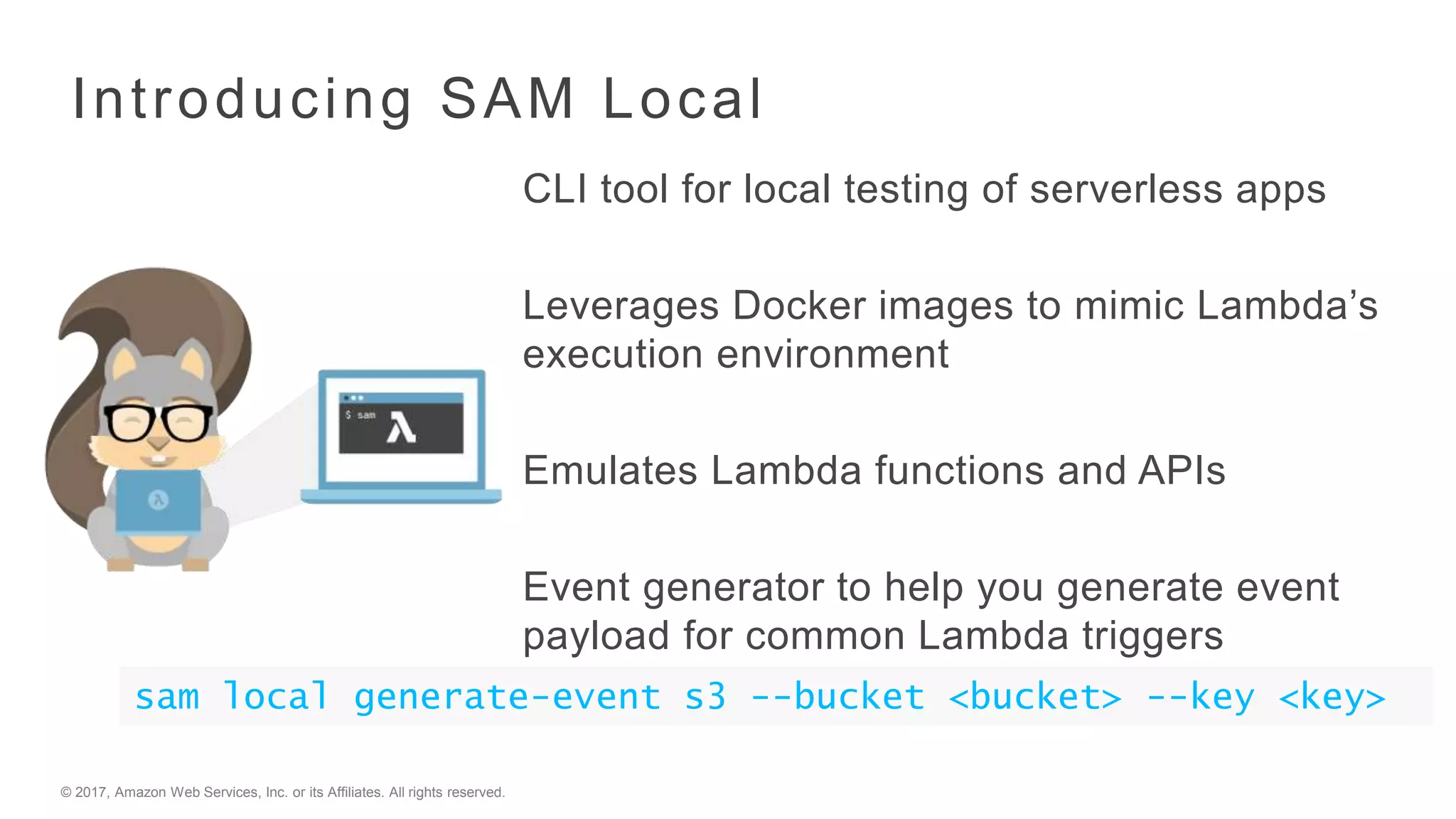

Introducing SAM Local
CLI tool for local testing of serverless apps
Leverages Docker images to mimic Lambda’s
execution environment
Emulates Lambda functions and APIs
Event generator to help you generate event
payload for common Lambda triggers
sam local generate-event s3 --bucket <bucket> --key <key>

Introducing SAM Local
Response object and function logs available
on your local machine
Supports live debugging
Currently supports Java, Node.js and Python
SAM Local is open source & accepting pull
requests!
https://github.com/awslabs/aws-sam-local
npm install –g aws-sam-
local

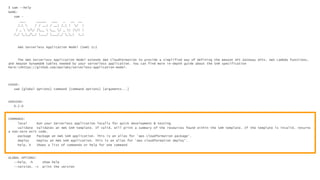

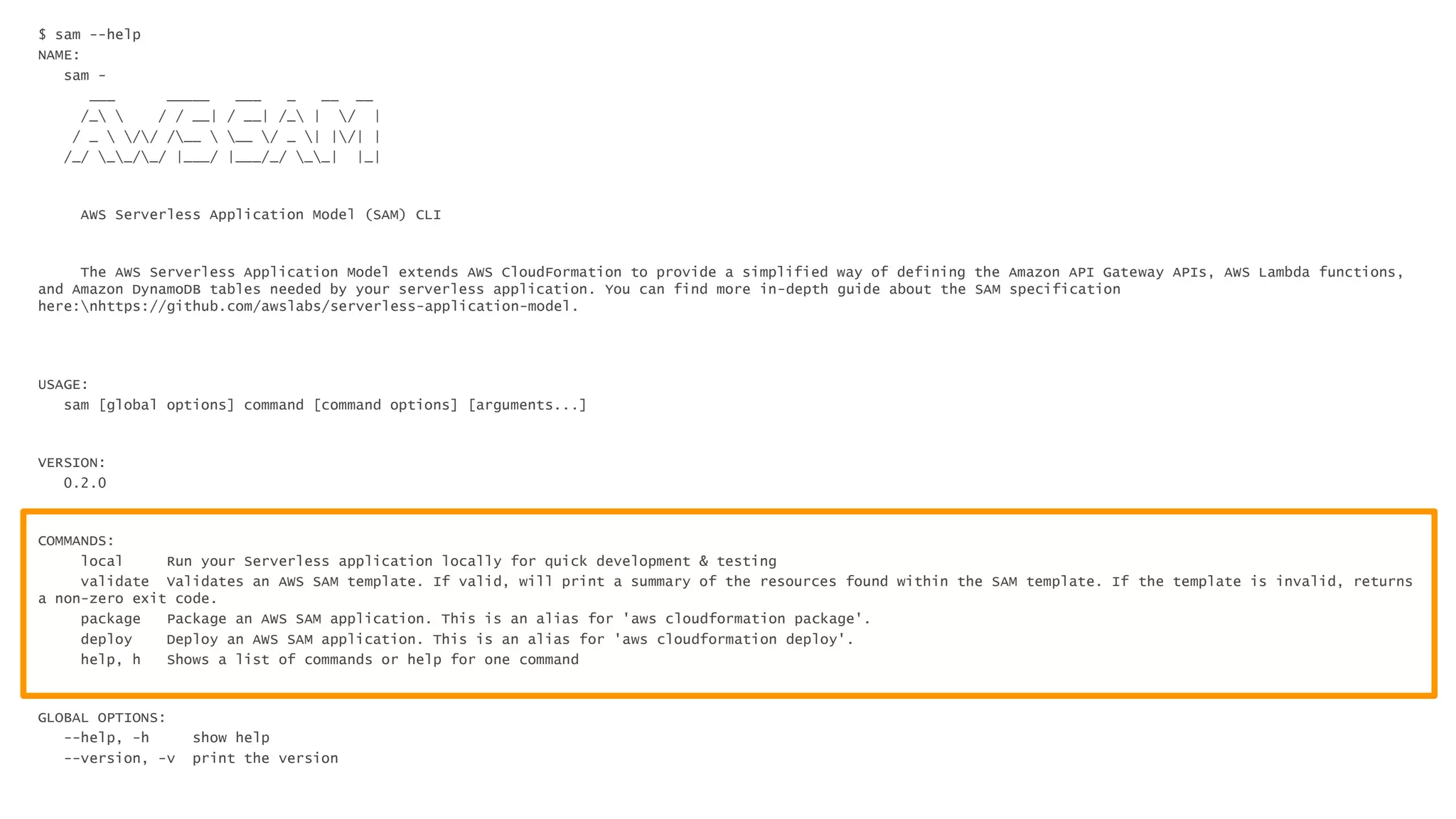

$ sam --help
NAME:
sam -
___ _____ ___ _ __ __
/_ / / __| / __| /_ | / |
/ _ // /__ __ / _ | |/| |
/_/ __/_/ |___/ |___/_/ __| |_|
AWS Serverless Application Model (SAM) CLI
The AWS Serverless Application Model extends AWS CloudFormation to provide a simplified way of defining the Amazon API Gateway APIs, AWS Lambda functions,
and Amazon DynamoDB tables needed by your serverless application. You can find more in-depth guide about the SAM specification
here:nhttps://github.com/awslabs/serverless-application-model.
USAGE:
sam [global options] command [command options] [arguments...]
VERSION:
0.2.0
COMMANDS:
local Run your Serverless application locally for quick development & testing
validate Validates an AWS SAM template. If valid, will print a summary of the resources found within the SAM template. If the template is invalid, returns
a non-zero exit code.
package Package an AWS SAM application. This is an alias for 'aws cloudformation package'.
deploy Deploy an AWS SAM application. This is an alias for 'aws cloudformation deploy'.
help, h Shows a list of commands or help for one command
GLOBAL OPTIONS:
--help, -h show help
--version, -v print the version

$ sam local --help
..
USAGE:
sam local command [command options] [arguments...]
COMMANDS:
start-api Allows you to run your Serverless application locally for quick development & testing. When run in a
directory that contains your Serverless functions and your AWS SAM template, it will create a local HTTP server
hosting all of your functions. When accessed (via browser, cli etc), it will launch a Docker container locally to
invoke the function. It will read the CodeUri property of AWS::Serverless::Function resource to find the path in your
file system containing the Lambda Function code. This could be the project's root directory for interpreted languages
like Node & Python, or a build directory that stores your compiled artifacts or a JAR file. If you are using a
interpreted language, local changes will be available immediately in Docker container on every invoke. For more
compiled languages or projects requiring complex packing support, we recommended you run your own building solution
and point SAM to the directory or file containing build artifacts.
invoke Invokes a local Lambda function once and quits after invocation completes.
Useful for developing serverless functions that handle asynchronous events (such as S3/Kinesis etc), or if you want
to compose a script of test cases. Event body can be passed in either by stdin (default), or by using the --event
parameter. Runtime output (logs etc) will be outputted to stderr, and the Lambda function result will be outputted to
stdout.
generate-event Generates Lambda events (e.g. for S3/Kinesis etc) that can be piped to 'sam local invoke'

</>

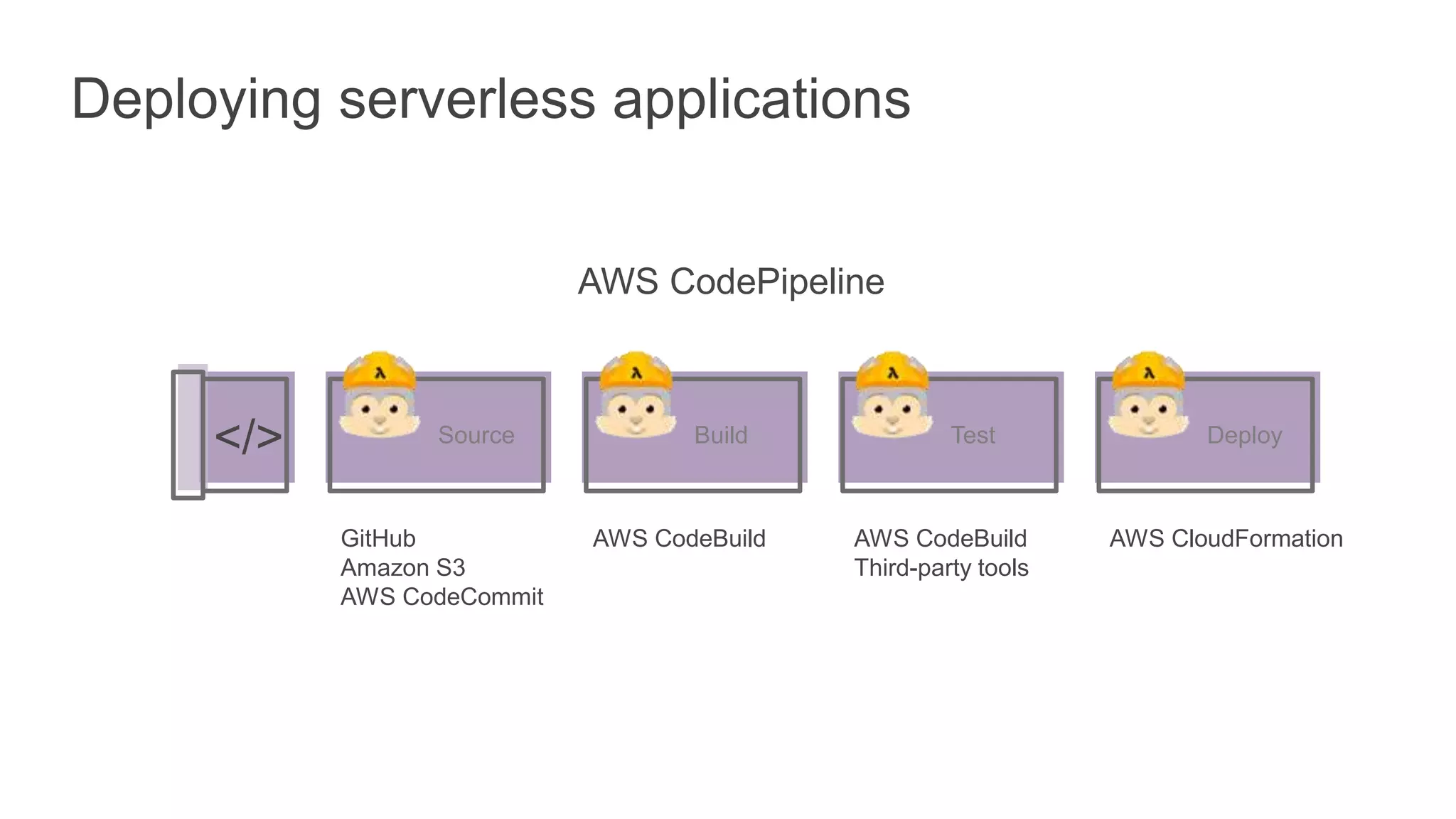

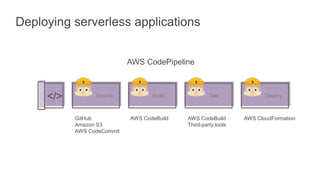

GitHub
Amazon S3
AWS CodeCommit
AWS CodeBuild AWS CodeBuild
Third-party tools
AWS CloudFormation
Source Build Test Deploy
Deploying serverless applications
AWS CodePipeline

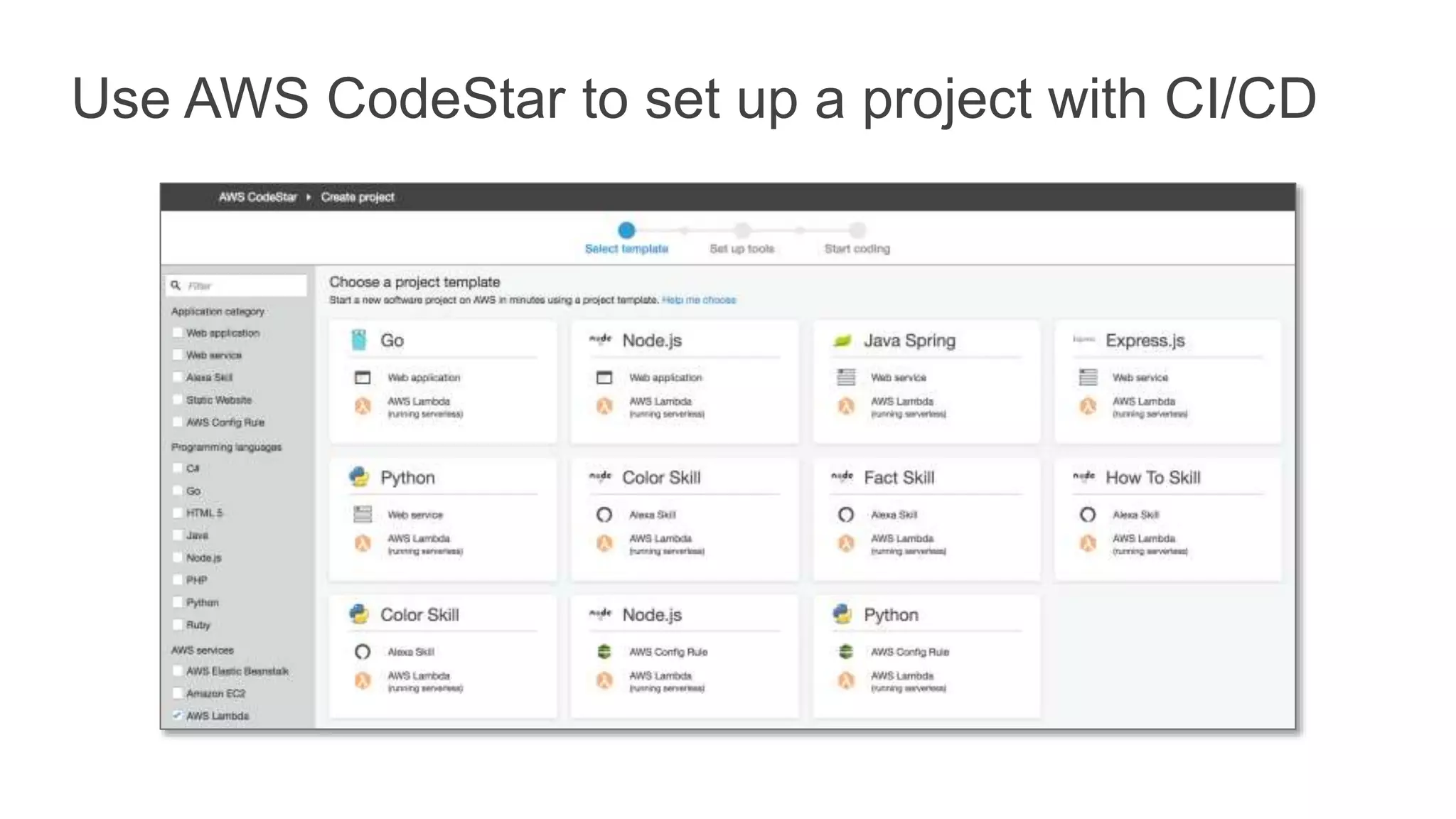

Use AWS CodeStar to set up a project with CI/CD

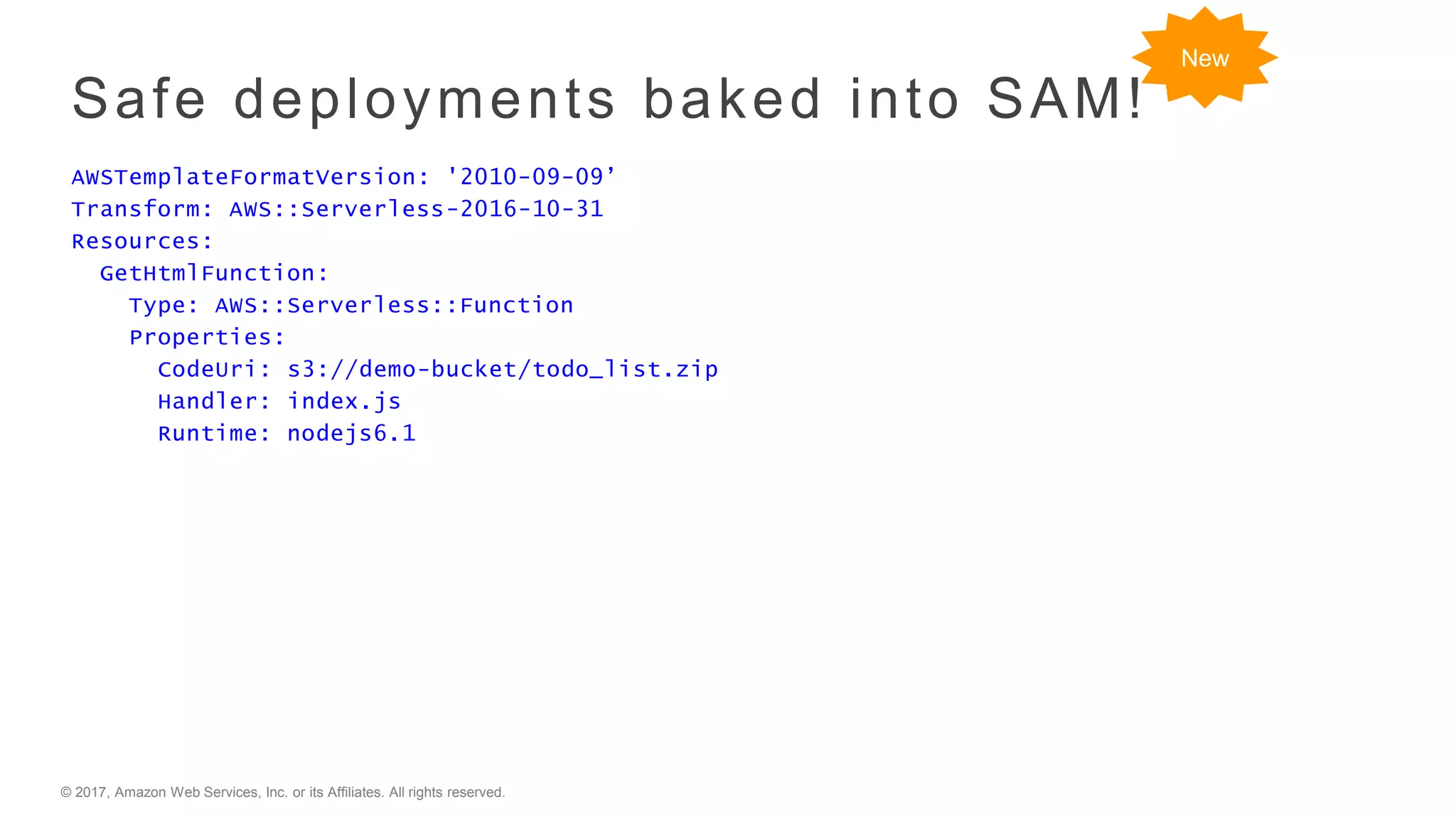

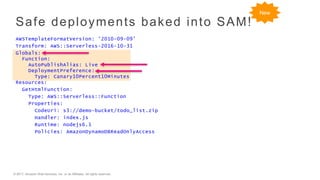

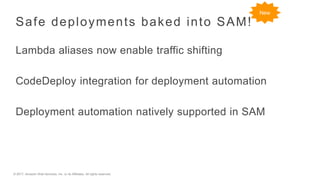

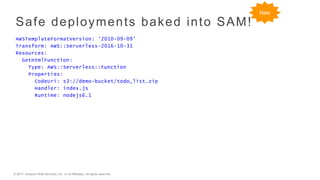

Safe deployments baked into SAM!
Lambda aliases now enable traffic shifting
CodeDeploy integration for deployment automation
Deployment automation natively supported in SAM
New

Resources:
GetHtmlFunction:
Properties:
Handler: index.js
Runtime: nodejs6.1
New

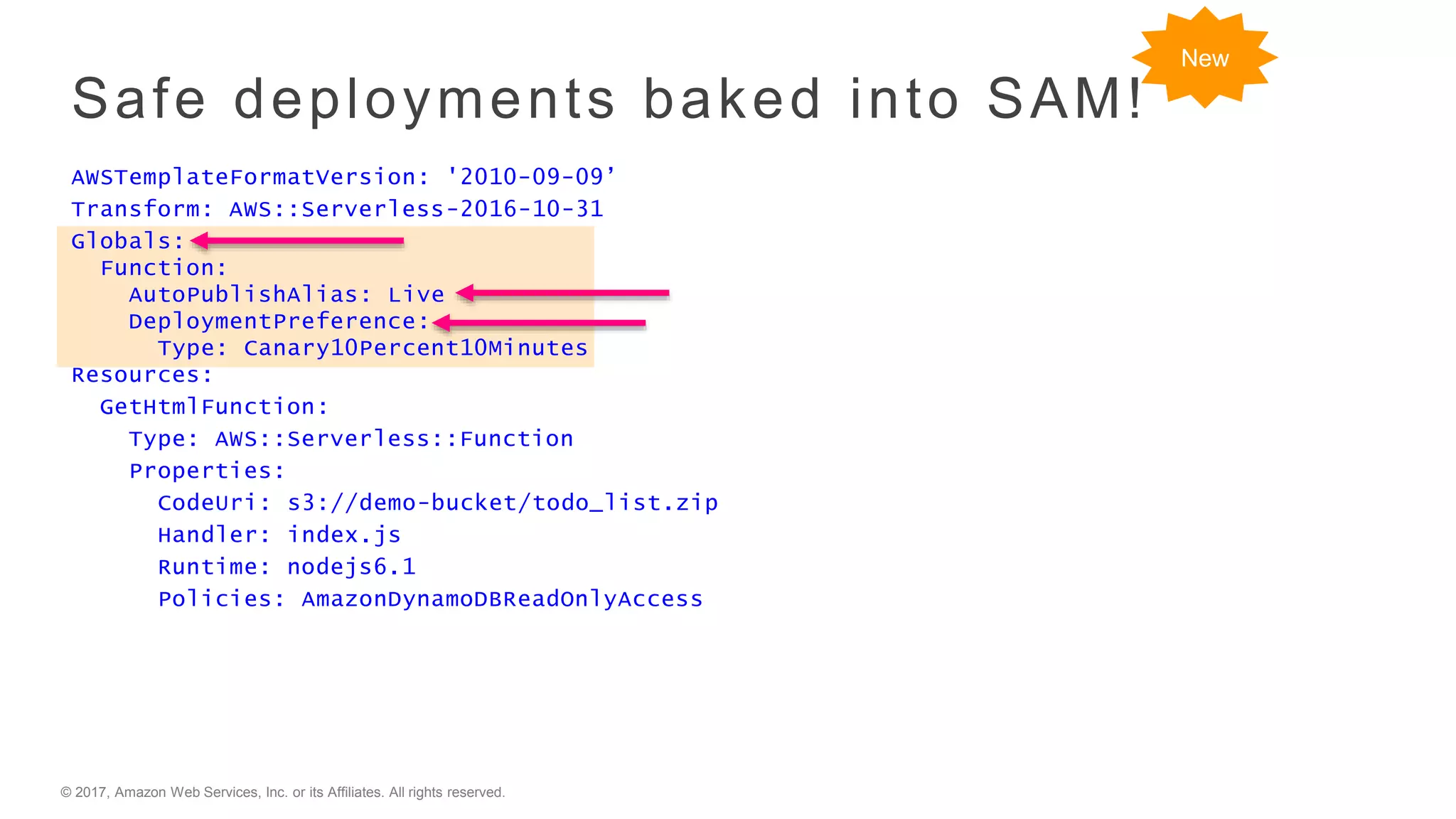

Globals:
Function:
AutoPublishAlias: Live
DeploymentPreference:
Type: Canary10Percent10Minutes
Resources:
GetHtmlFunction:
Properties:
Handler: index.js
Runtime: nodejs6.1
New

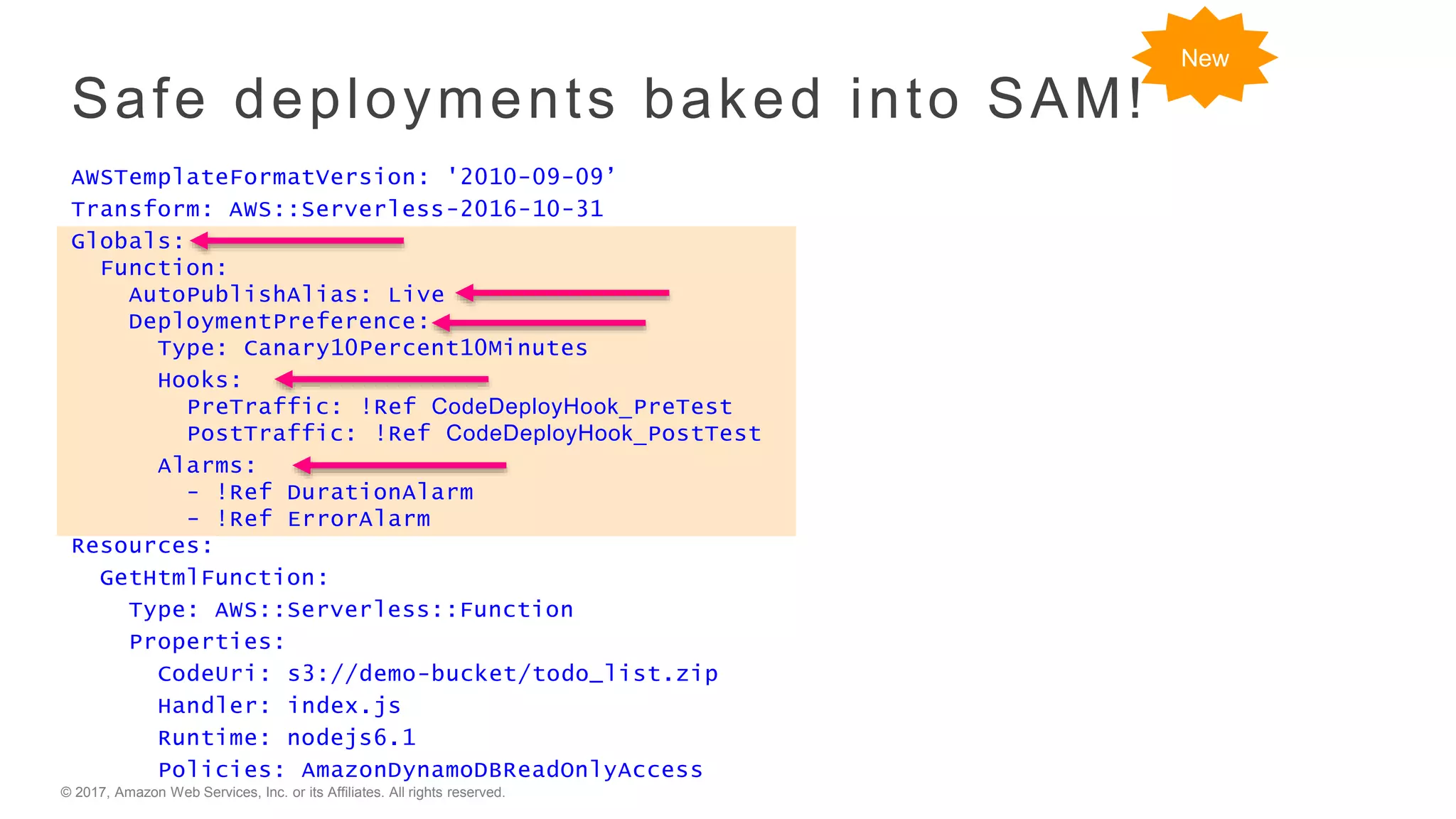

Globals:
Function:
AutoPublishAlias: Live
DeploymentPreference:
Type: Canary10Percent10Minutes
Hooks:
PreTraffic: !Ref CodeDeployHook_PreTest
PostTraffic: !Ref CodeDeployHook_PostTest
Alarms:
- !Ref DurationAlarm
- !Ref ErrorAlarm
Resources:
GetHtmlFunction:
Properties:
Handler: index.js
Runtime: nodejs6.1
New

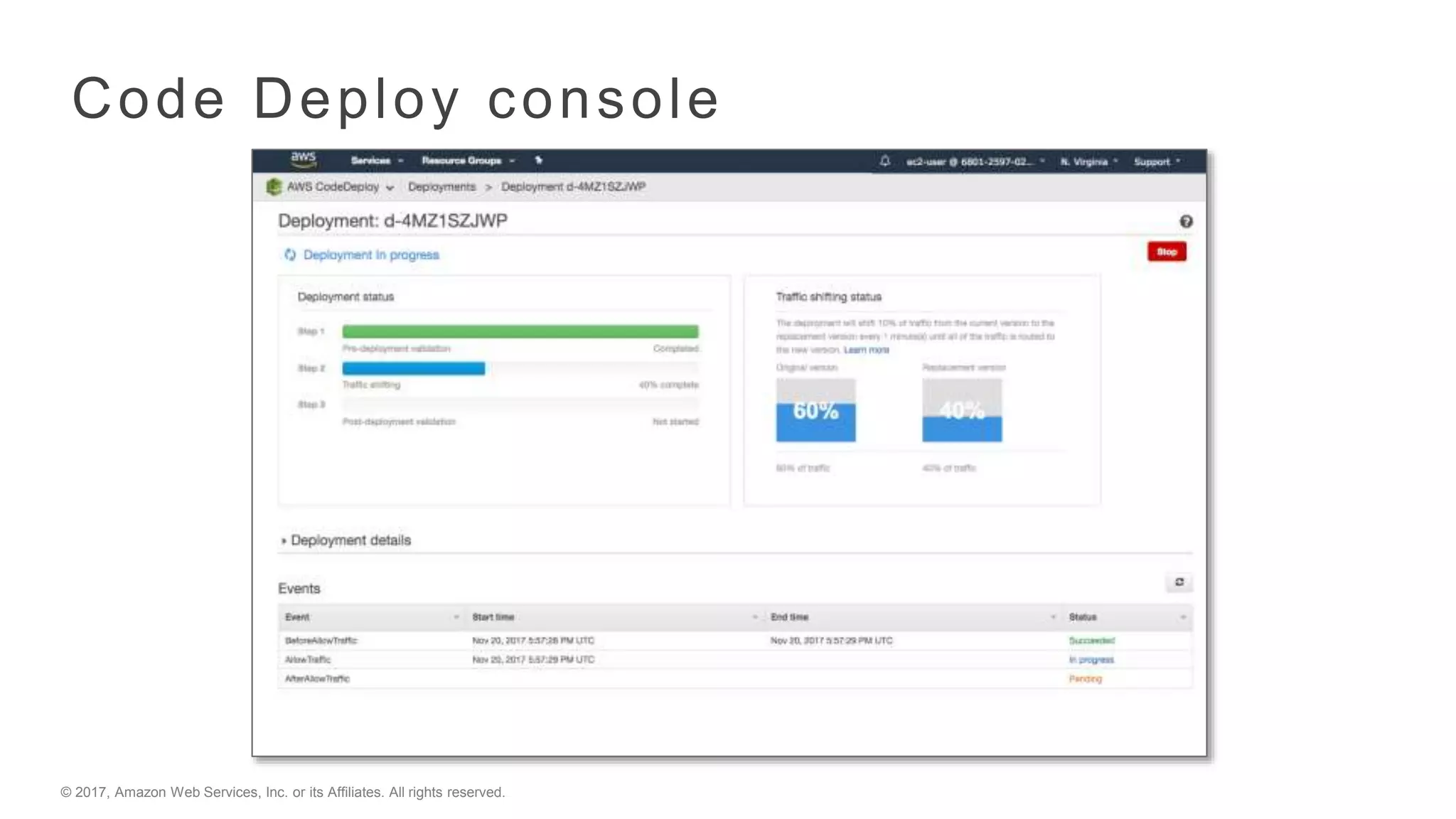

Code Deploy console

Demo #3:
AWS Cloud9 & SAM Local

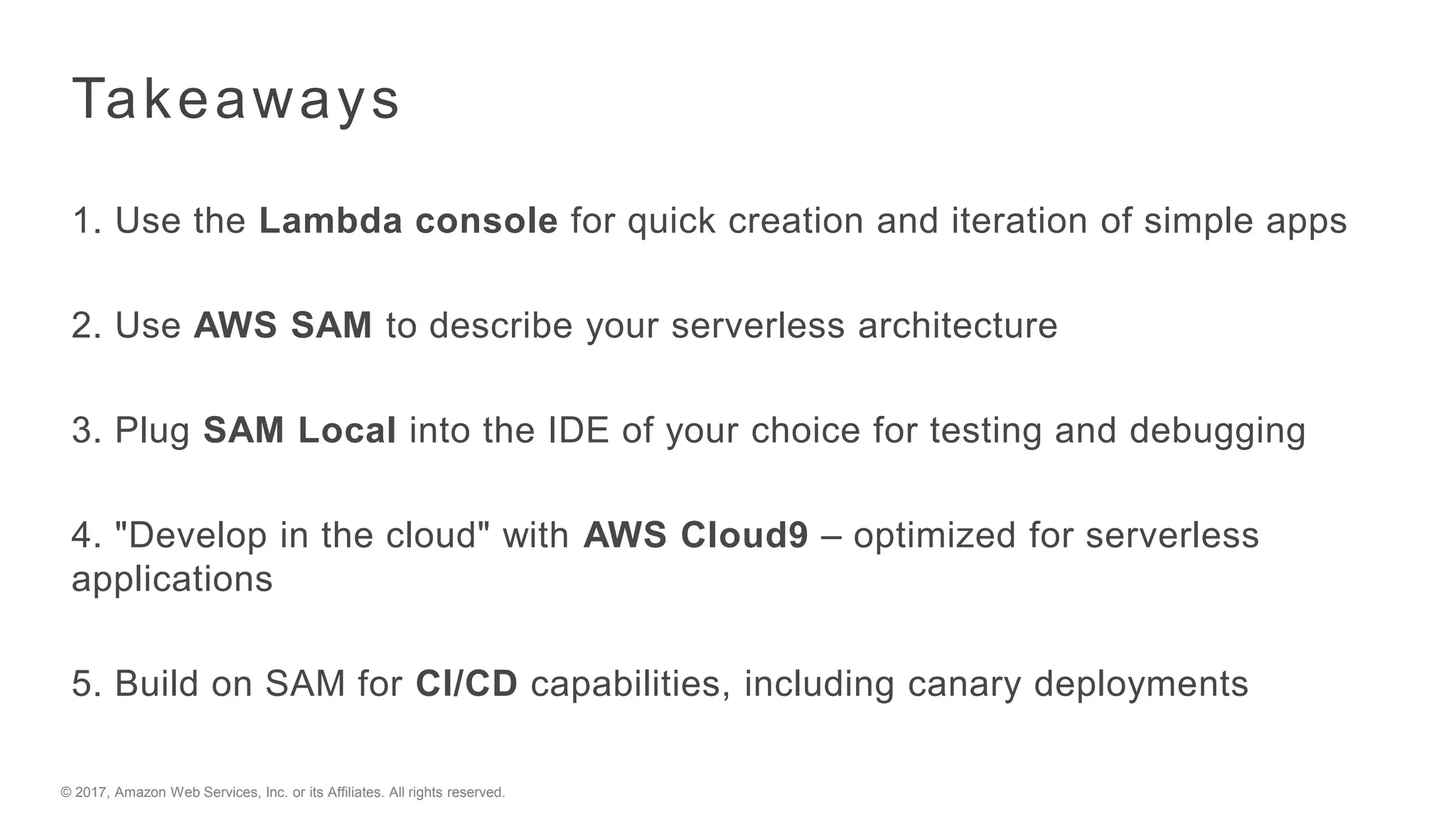

Takeaways
1. Use the Lambda console for quick creation and iteration of simple apps
2. Use AWS SAM to describe your serverless architecture
3. Plug SAM Local into the IDE of your choice for testing and debugging
4. "Develop in the cloud" with AWS Cloud9 – optimized for serverless
applications
5. Build on SAM for CI/CD capabilities, including canary deployments

Serverless Developer Experience I AWS Dev Day 2018

More Related Content

Similar to Serverless Developer Experience I AWS Dev Day 2018

More from AWS Germany

Recently uploaded

Serverless Developer Experience I AWS Dev Day 2018
