Serverless Computing, AWS Way by SourceFuse Technologies
- 1. Serverless Computing AWS Way By: Manpreet Singh, CTO
- 2. WHO WE ARE We are a team of over 150 technologists helping companies increase revenues and decrease expenses through technology and product development.

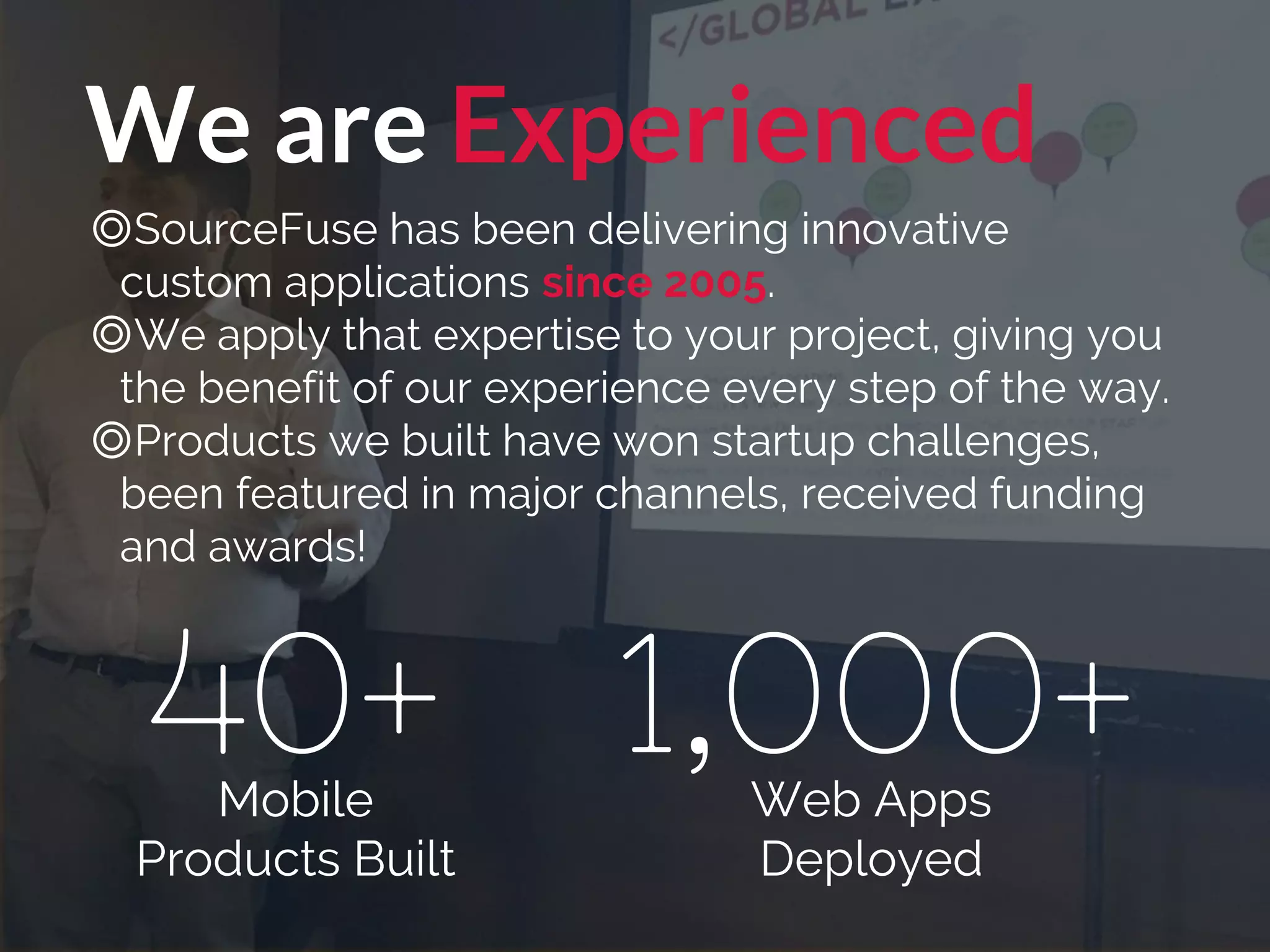

- 3. We are Experienced ◎SourceFuse has been delivering innovative custom applications since 2005. ◎We apply that expertise to your project, giving you the benefit of our experience every step of the way. ◎Products we built have won startup challenges, been featured in major channels, received funding and awards! 40+Mobile Products Built 1,000+Web Apps Deployed

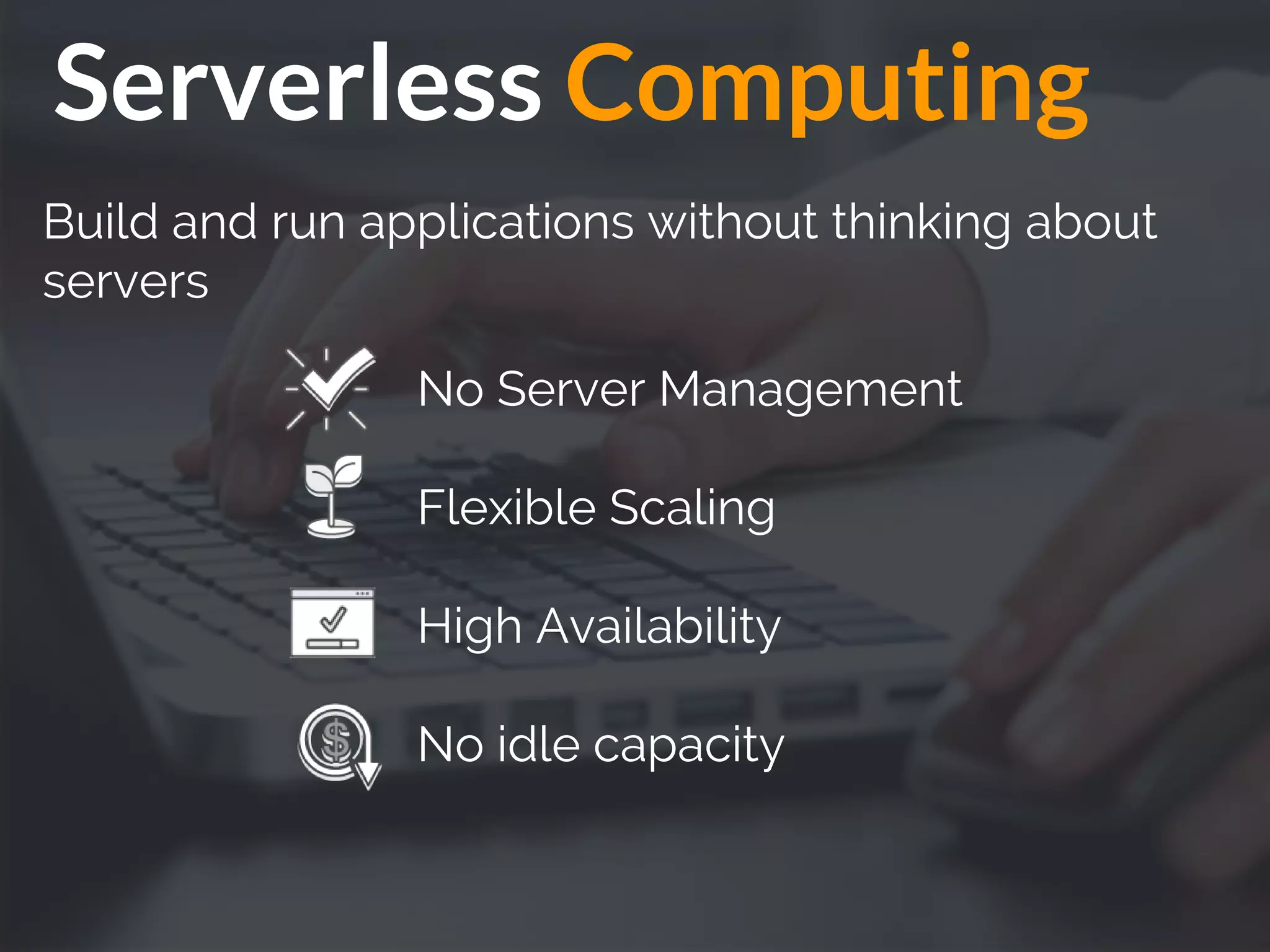

- 4. Serverless Computing Build and run applications without thinking about servers No Server Management Flexible Scaling High Availability No idle capacity

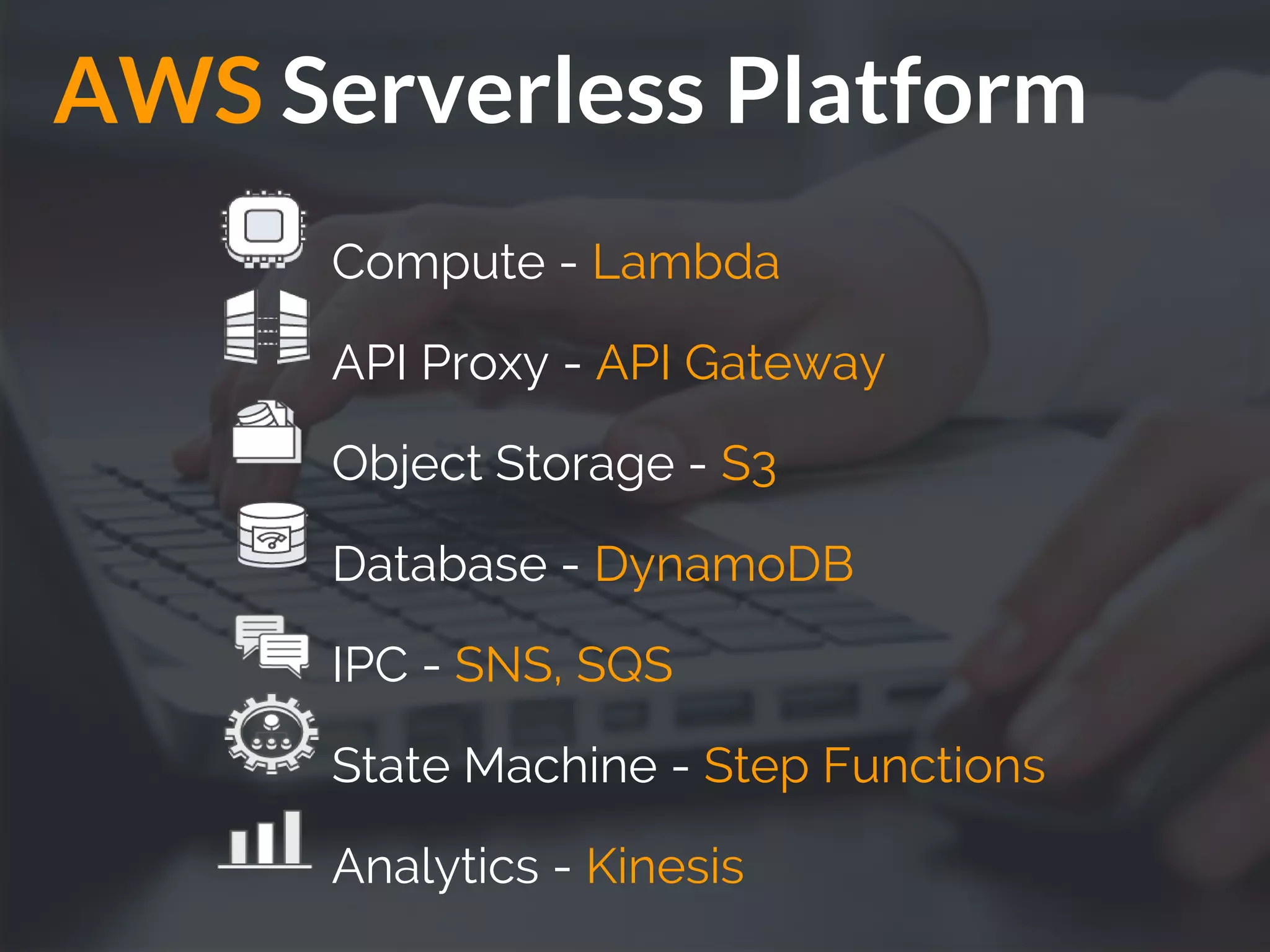

- 6. AWS Serverless Platform Compute - Lambda API Proxy - API Gateway Object Storage - S3 Database - DynamoDB IPC - SNS, SQS State Machine - Step Functions Analytics - Kinesis

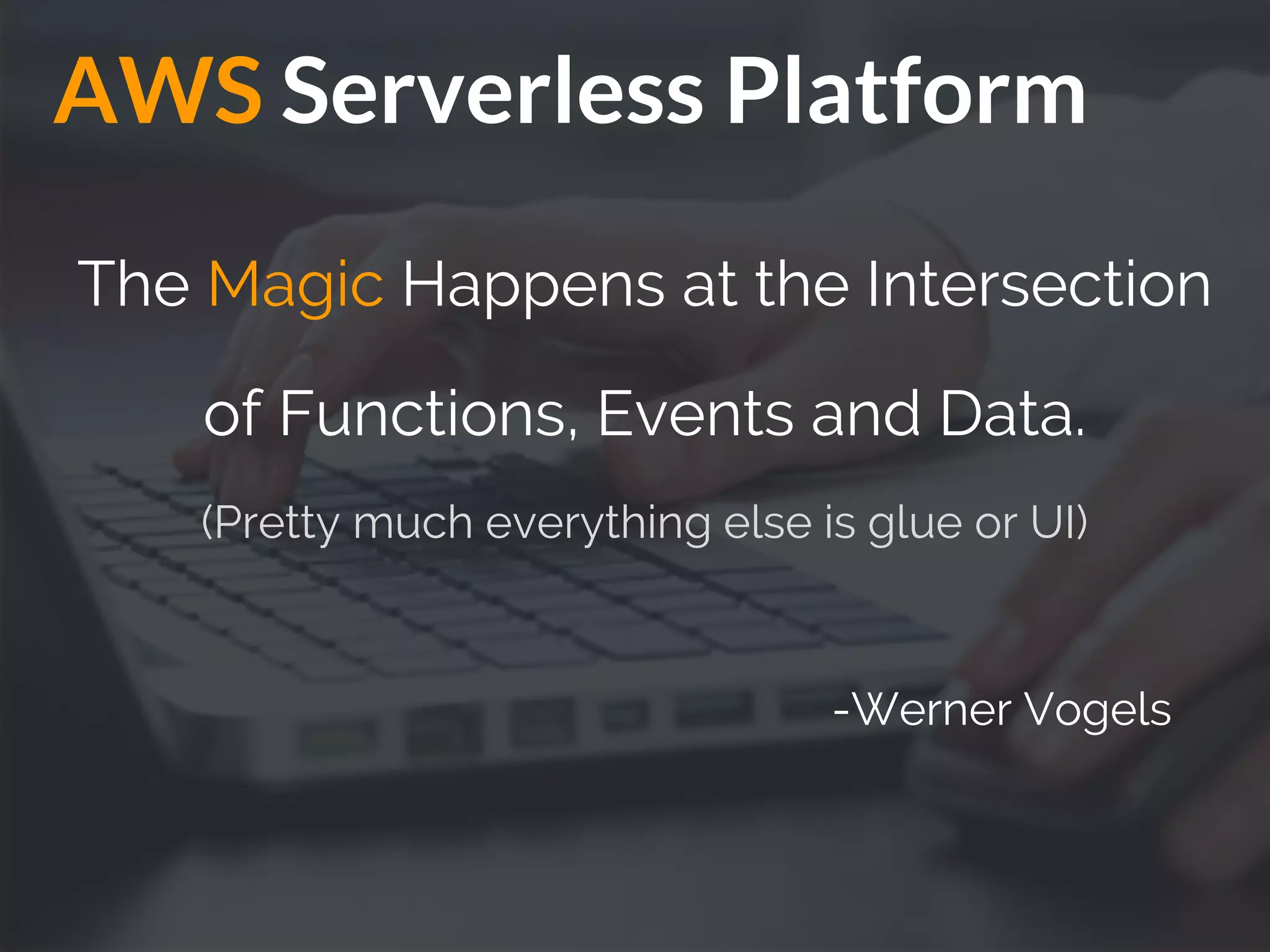

- 7. AWS Serverless Platform The Magic Happens at the Intersection of Functions, Events and Data. (Pretty much everything else is glue or UI) -Werner Vogels
- 8. AWS Lambda

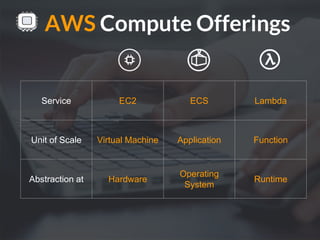

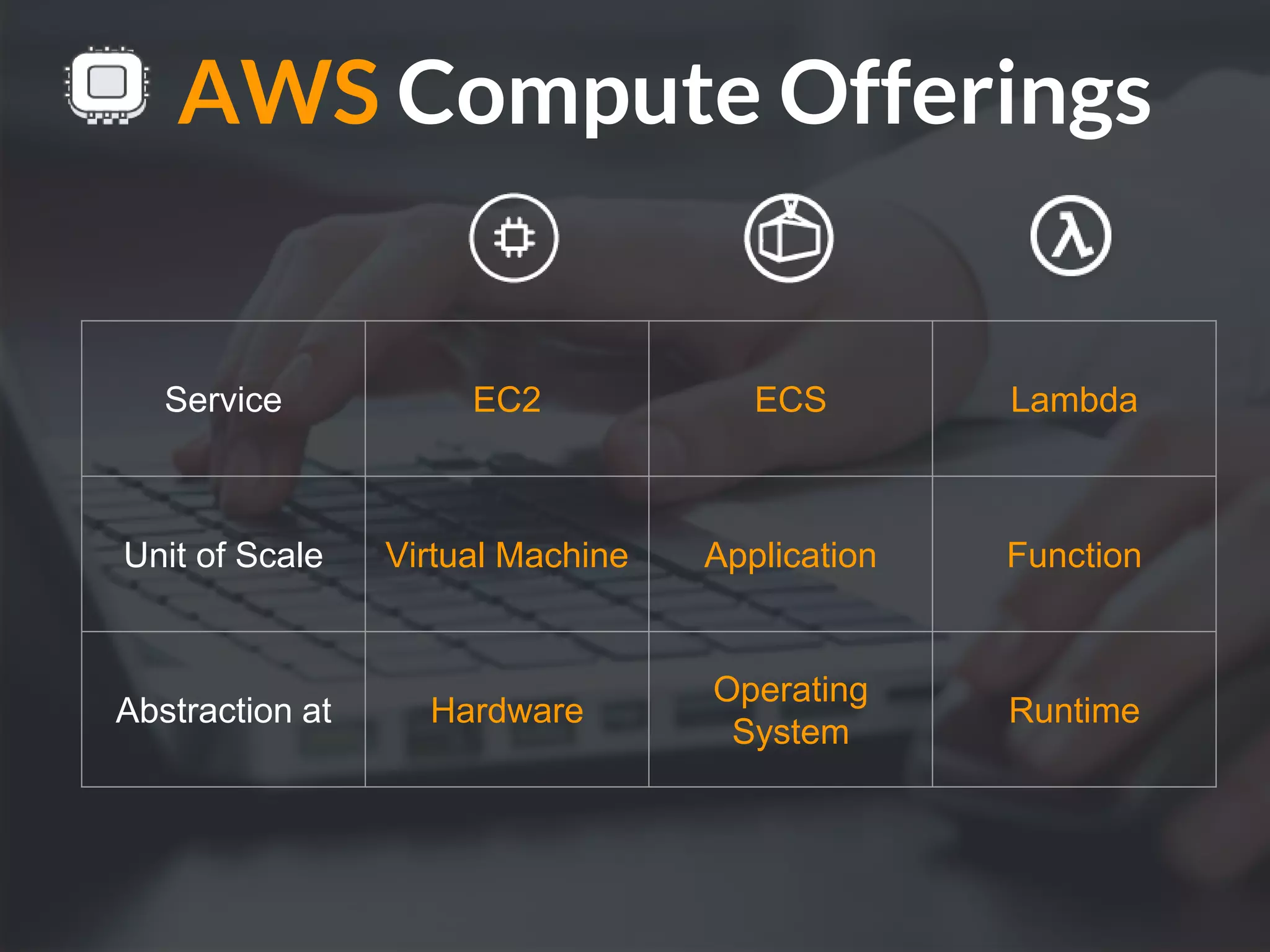

- 9. AWS Compute Offerings Service EC2 ECS Lambda Unit of Scale Virtual Machine Application Function Abstraction at Hardware Operating System Runtime

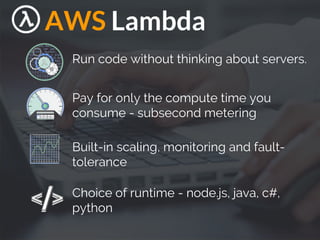

- 10. AWS Lambda Run code without thinking about servers. Pay for only the compute time you consume - subsecond metering Built-in scaling, monitoring and fault- tolerance Choice of runtime - node.js, java, c#, python

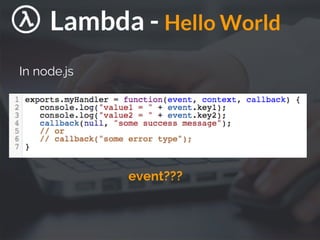

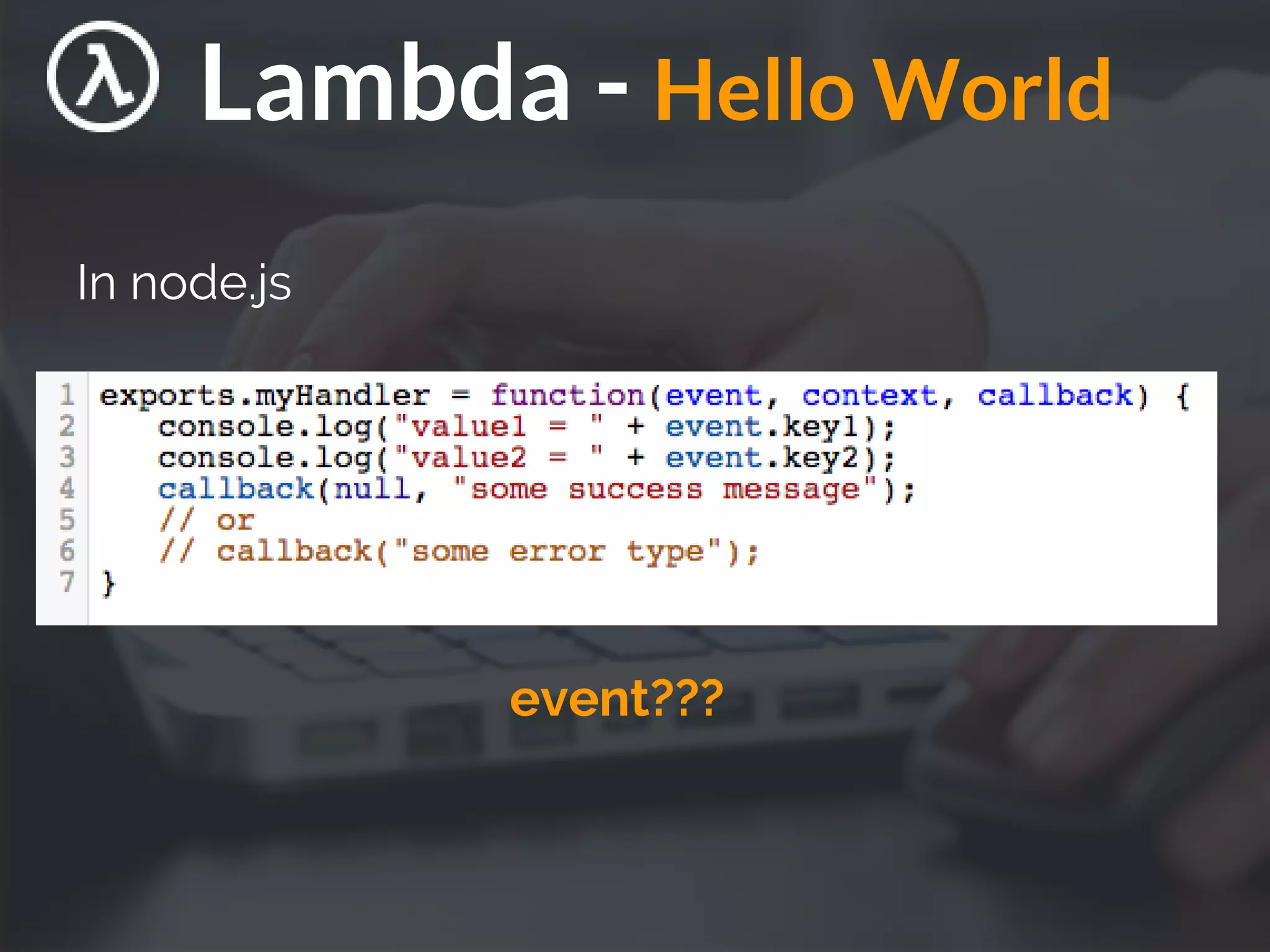

- 11. In node.js event??? Lambda - Hello World

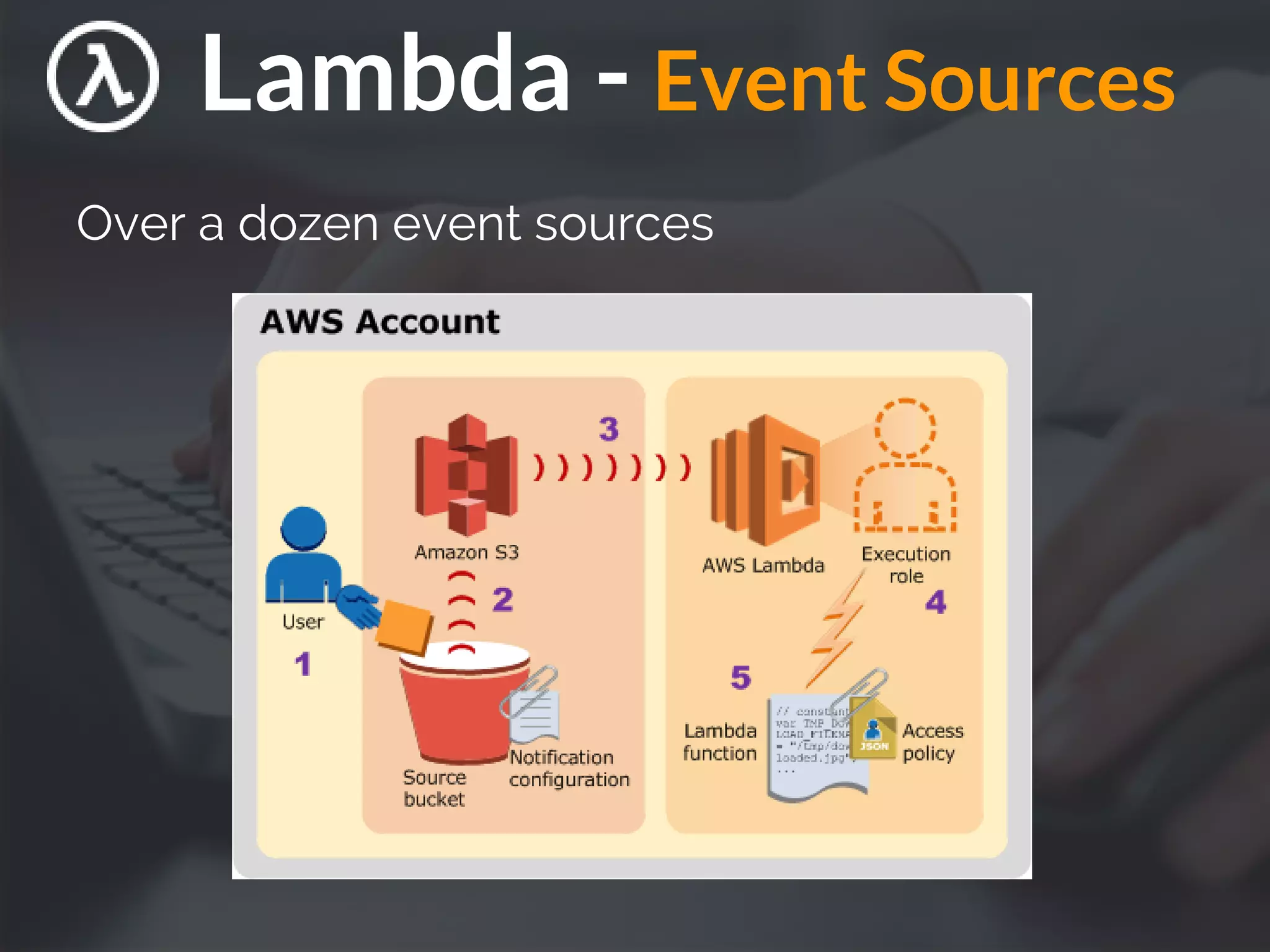

- 12. Lambda - Event Sources Over a dozen event sources

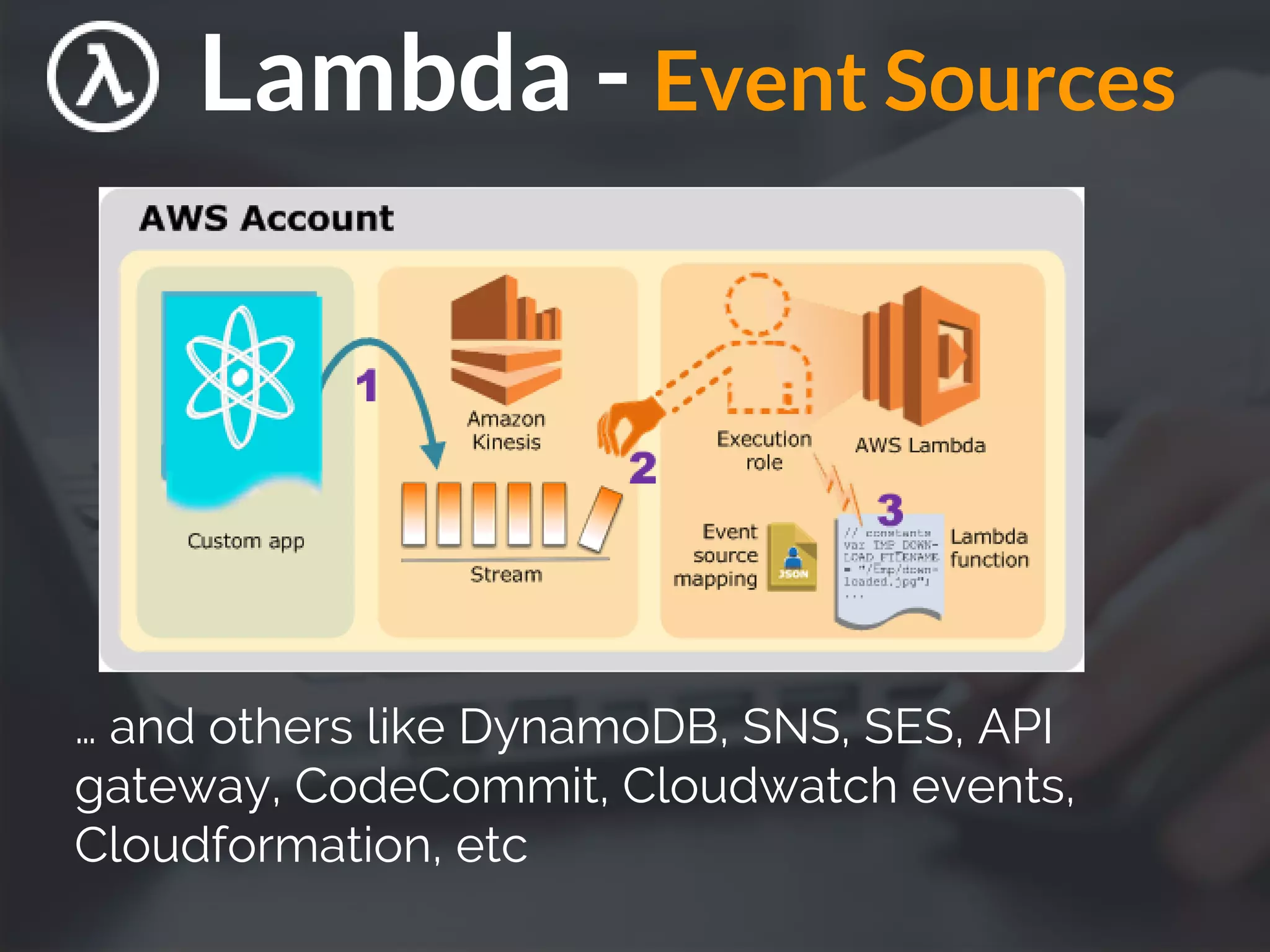

- 13. Lambda - Event Sources … and others like DynamoDB, SNS, SES, API gateway, CodeCommit, Cloudwatch events, Cloudformation, etc

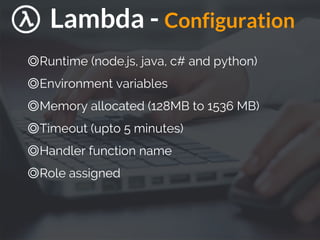

- 14. Lambda - Configuration ◎Runtime (node.js, java, c# and python) ◎Environment variables ◎Memory allocated (128MB to 1536 MB) ◎Timeout (upto 5 minutes) ◎Handler function name ◎Role assigned

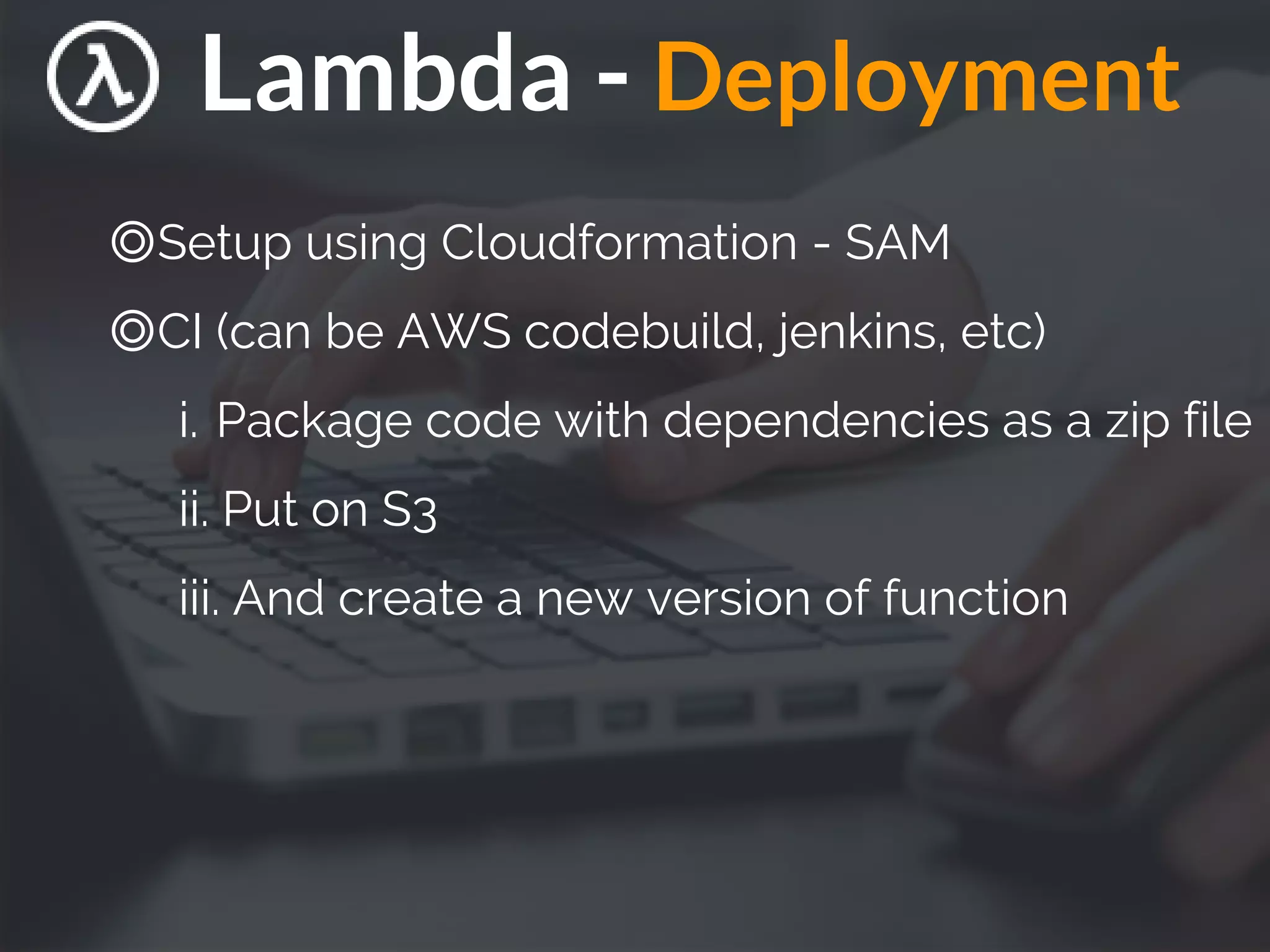

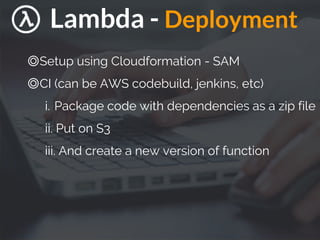

- 15. Lambda - Deployment ◎Setup using Cloudformation - SAM ◎CI (can be AWS codebuild, jenkins, etc) i. Package code with dependencies as a zip file ii. Put on S3 iii. And create a new version of function

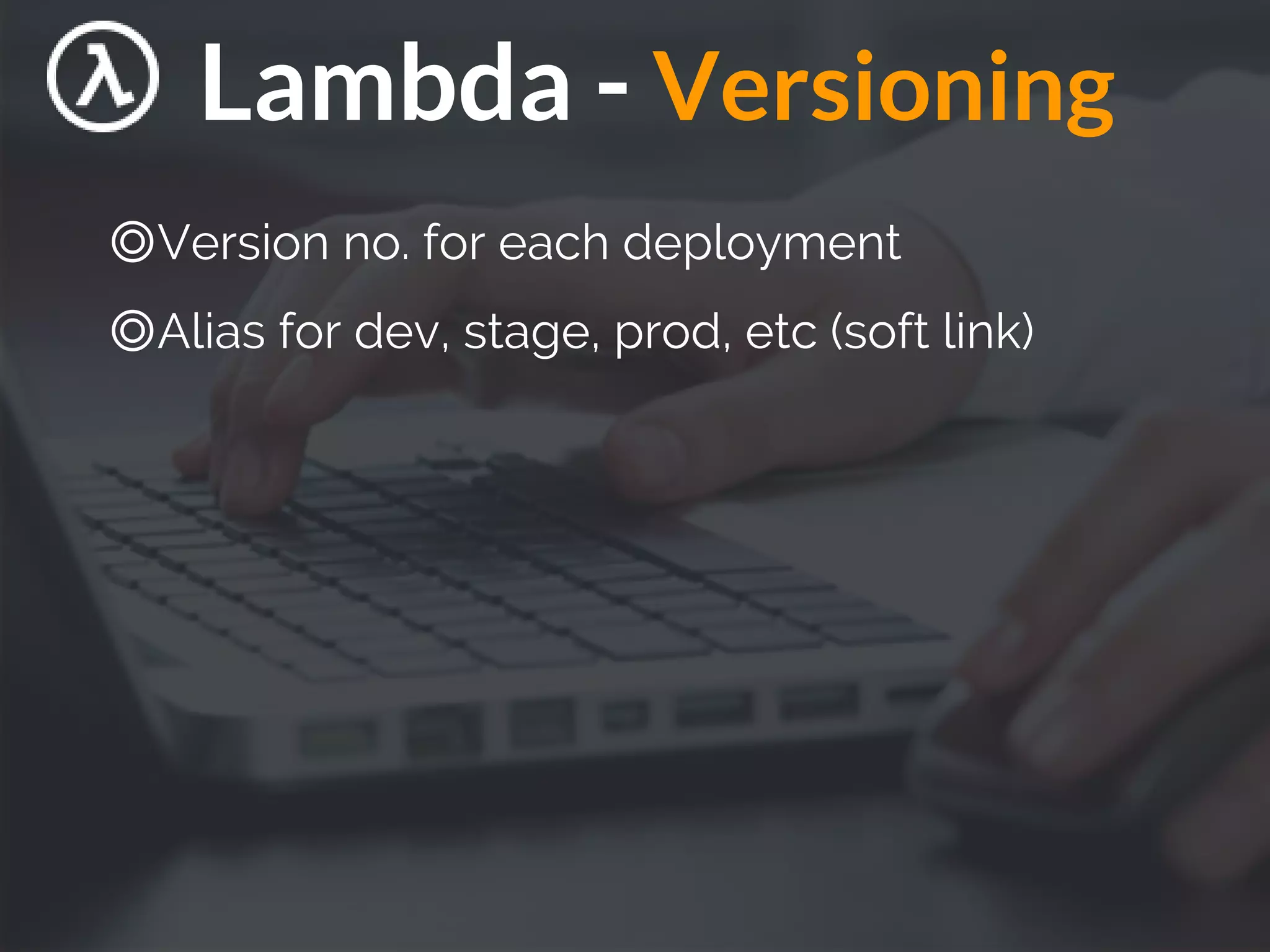

- 16. Lambda - Versioning ◎Version no. for each deployment ◎Alias for dev, stage, prod, etc (soft link)

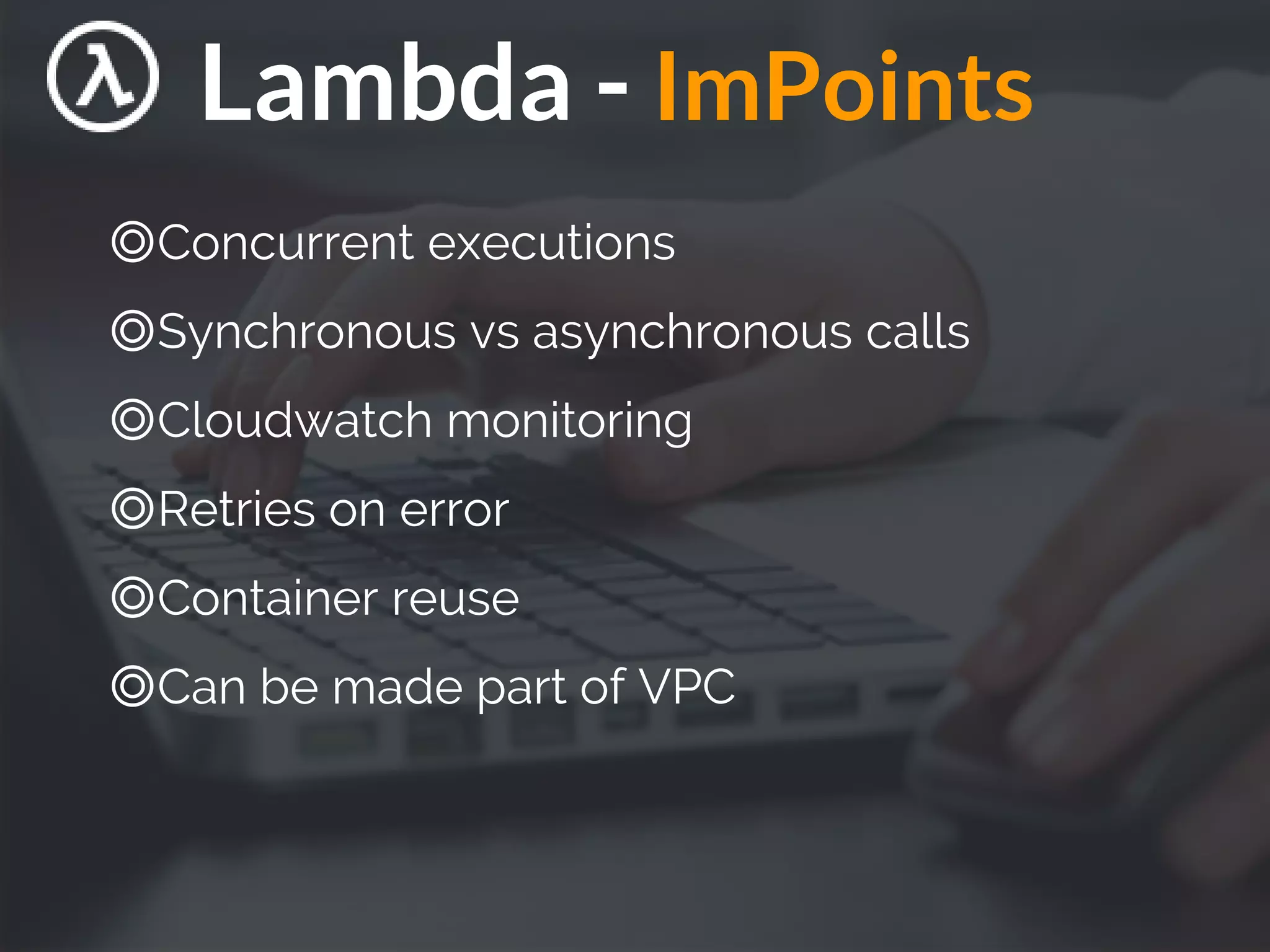

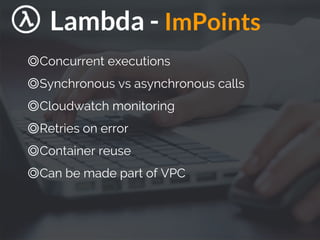

- 17. Lambda - ImPoints ◎Concurrent executions ◎Synchronous vs asynchronous calls ◎Cloudwatch monitoring ◎Retries on error ◎Container reuse ◎Can be made part of VPC
- 18. AWS API Gateway

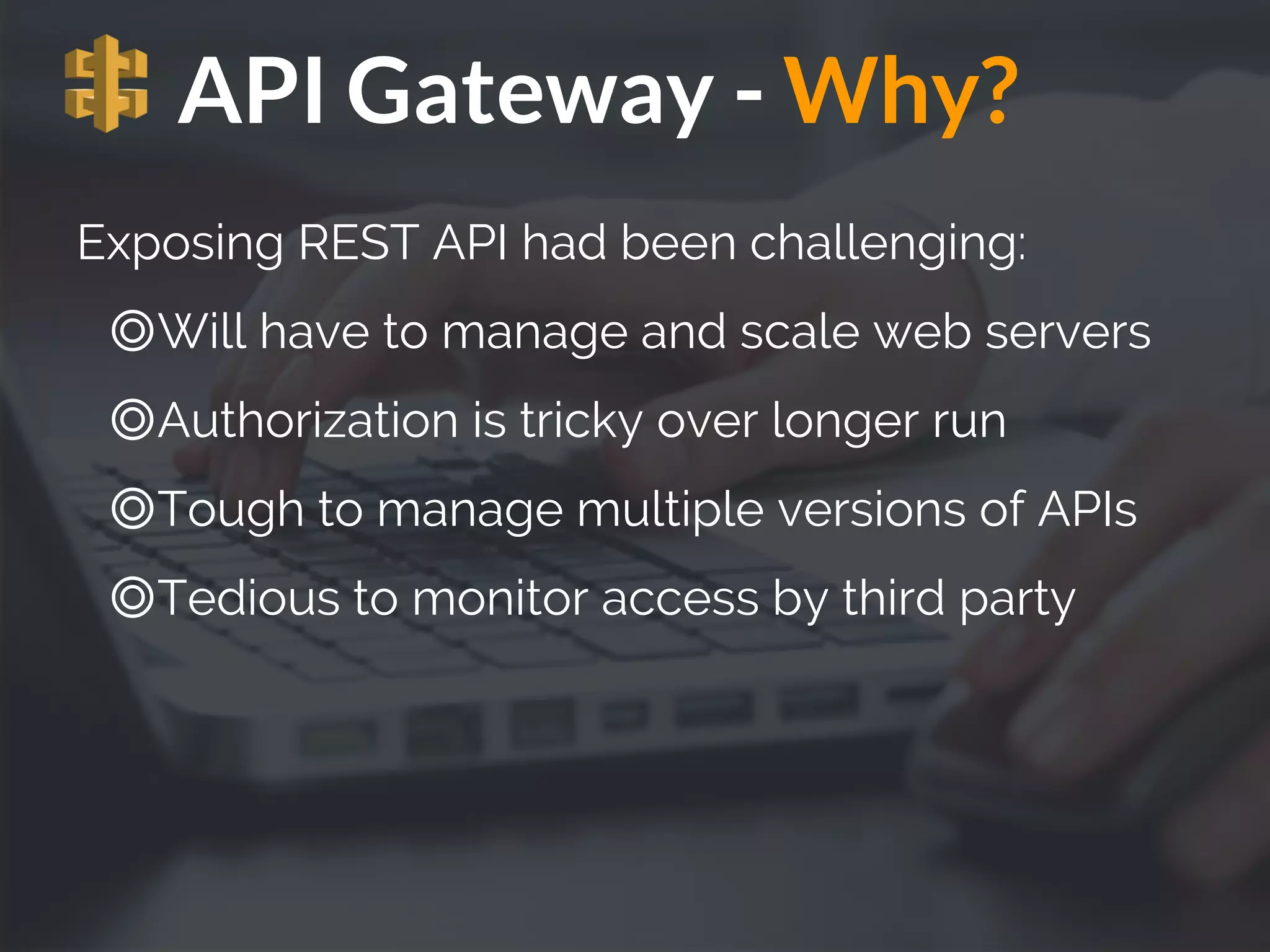

- 19. API Gateway - Why? Exposing REST API had been challenging: ◎Will have to manage and scale web servers ◎Authorization is tricky over longer run ◎Tough to manage multiple versions of APIs ◎Tedious to monitor access by third party

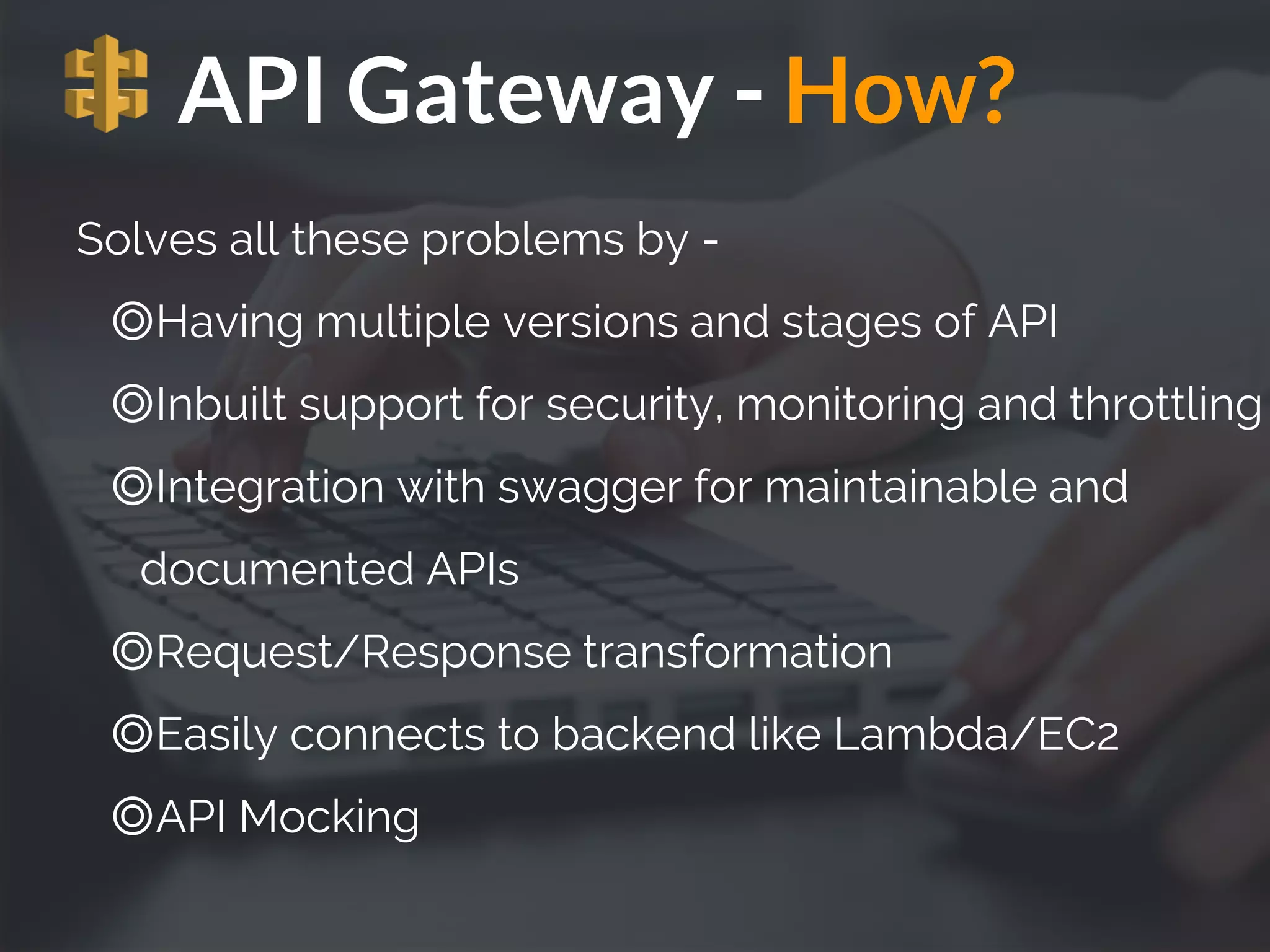

- 20. API Gateway - How? Solves all these problems by - ◎Having multiple versions and stages of API ◎Inbuilt support for security, monitoring and throttling ◎Integration with swagger for maintainable and documented APIs ◎Request/Response transformation ◎Easily connects to backend like Lambda/EC2 ◎API Mocking
- 21. API Gateway - Flow

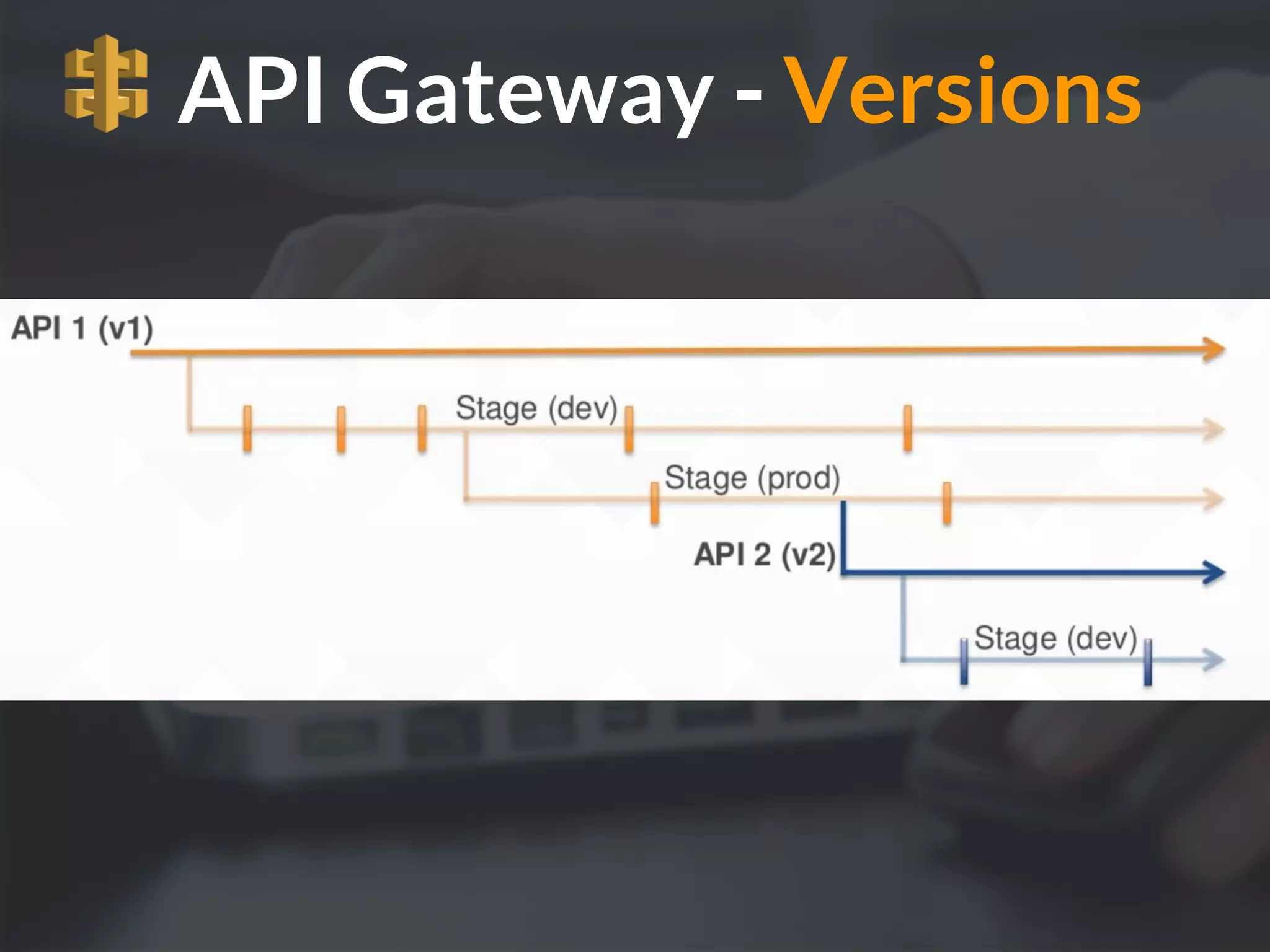

- 22. API Gateway - Versions

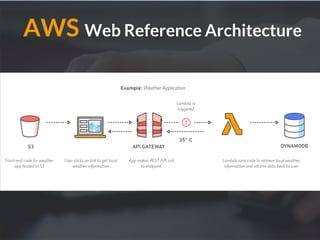

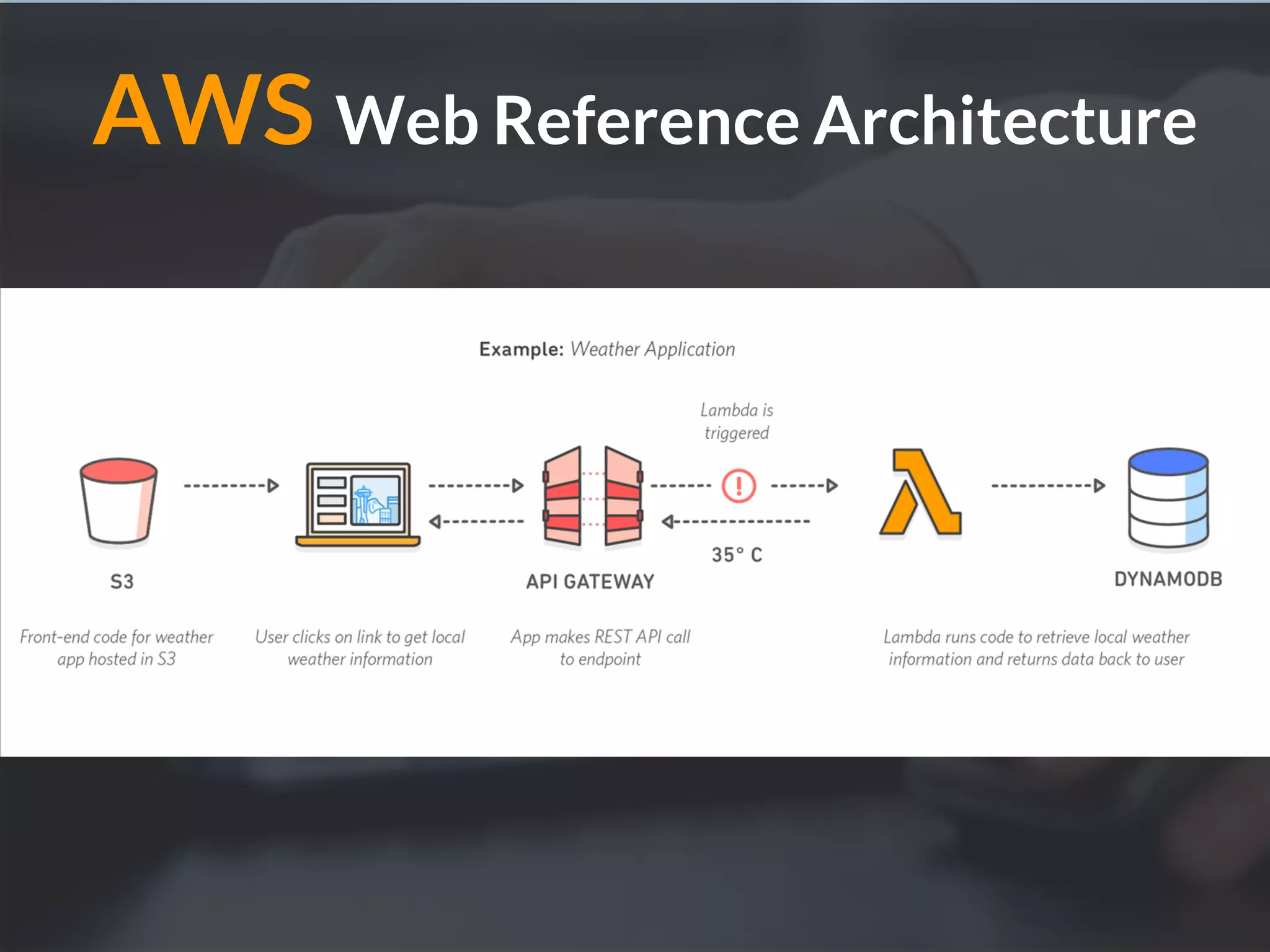

- 24. AWS Web Reference Architecture

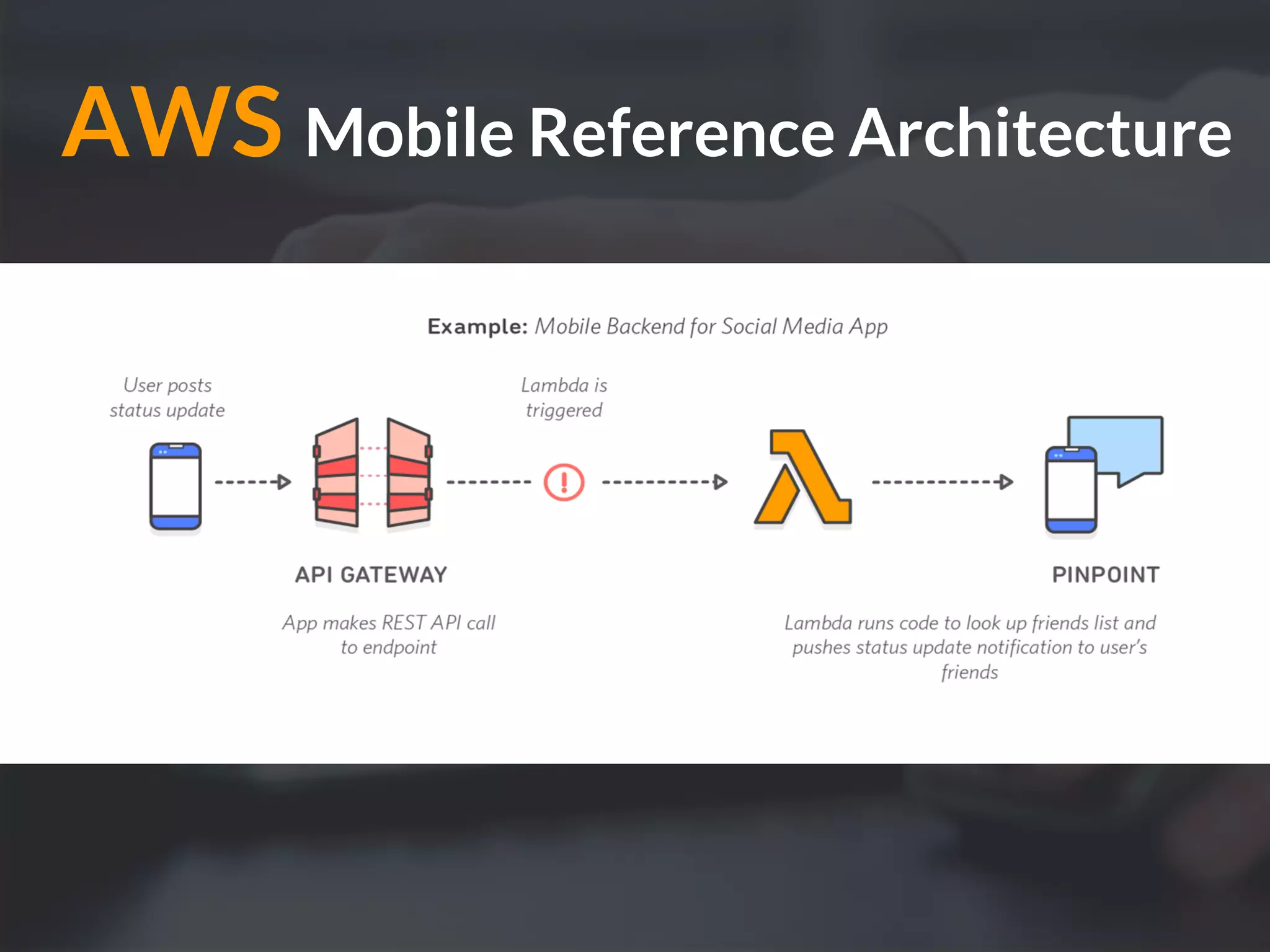

- 25. AWS Mobile Reference Architecture

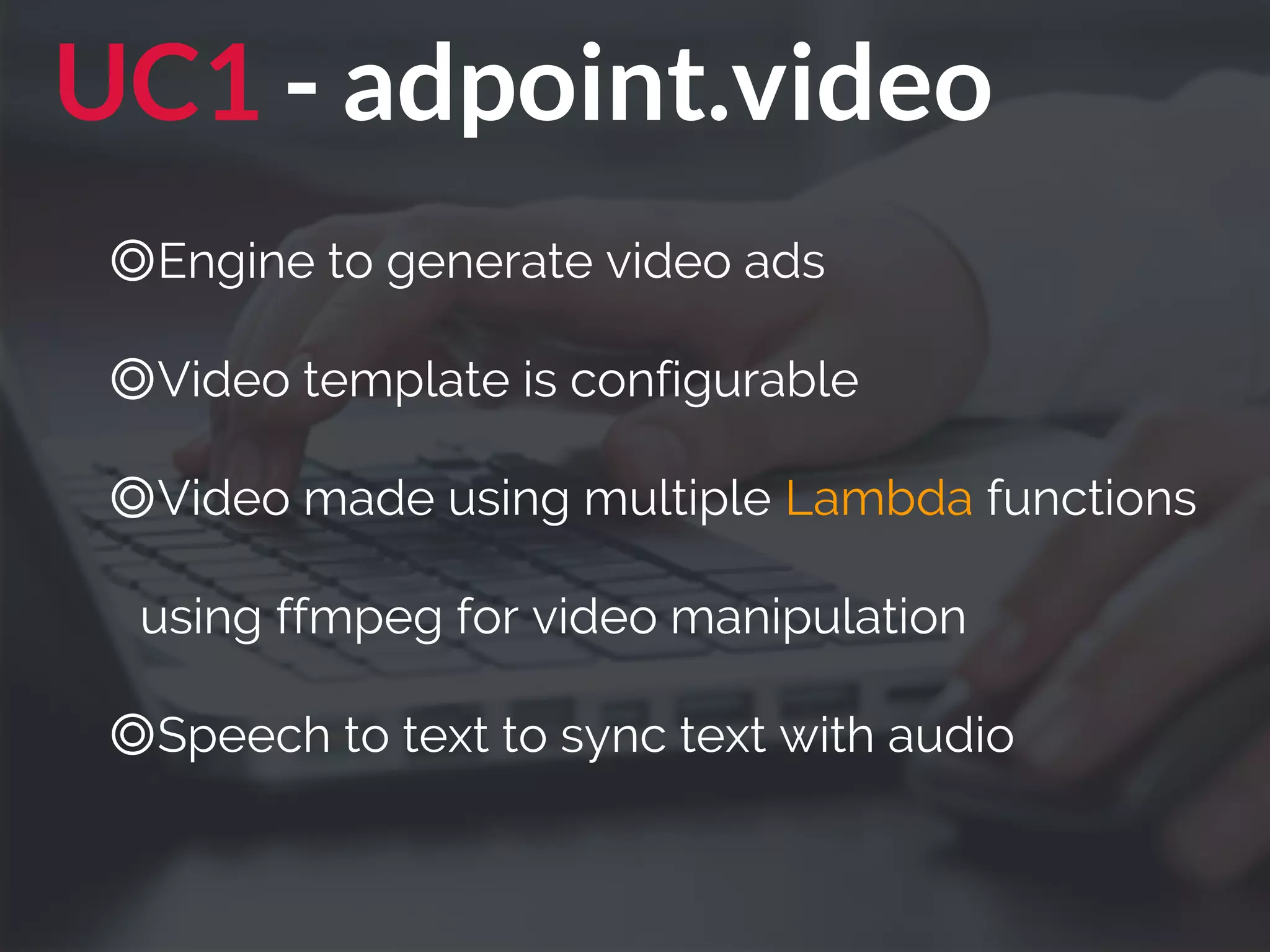

- 27. UC1 - adpoint.video ◎Engine to generate video ads ◎Video template is configurable ◎Video made using multiple Lambda functions using ffmpeg for video manipulation ◎Speech to text to sync text with audio

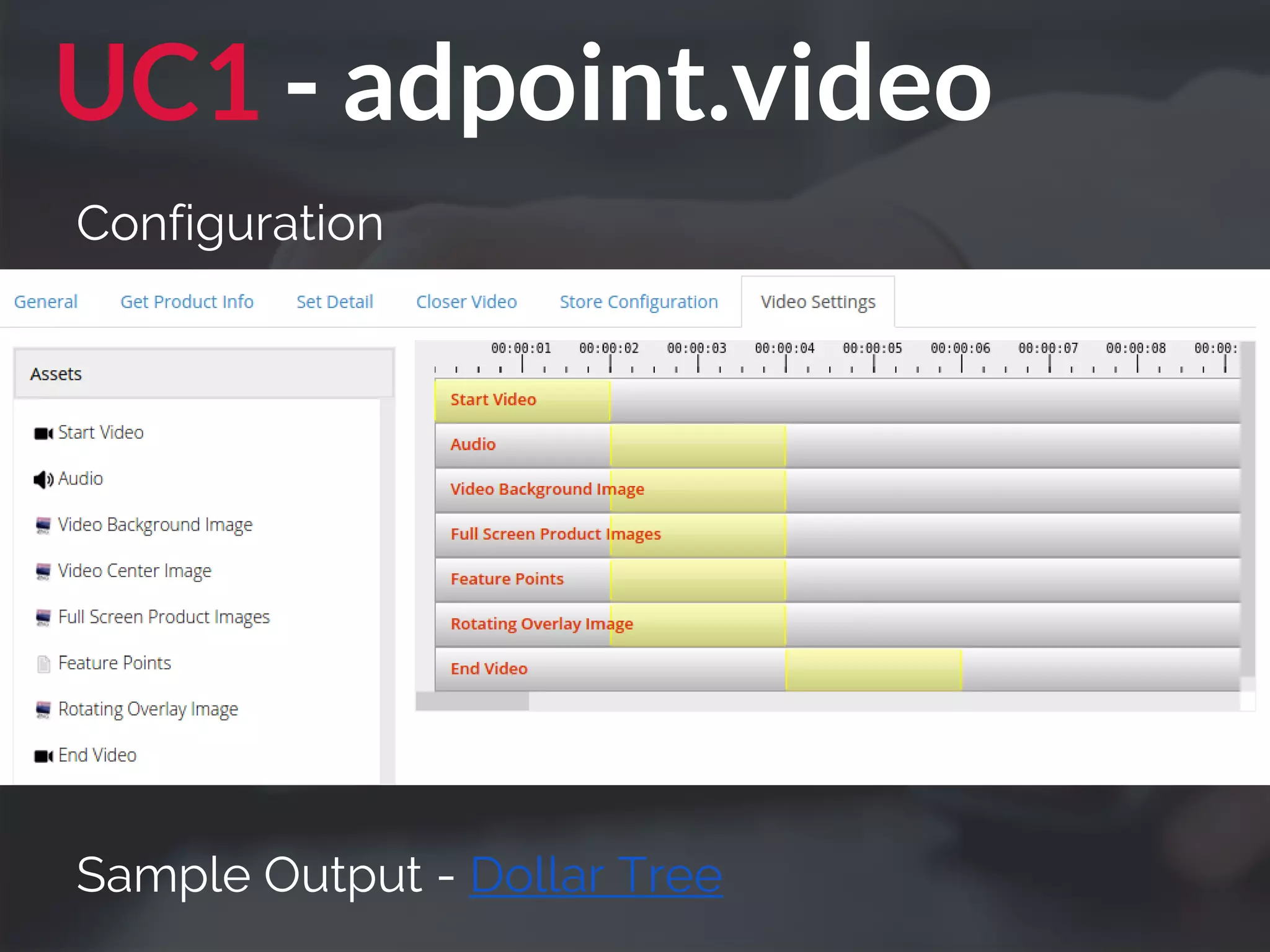

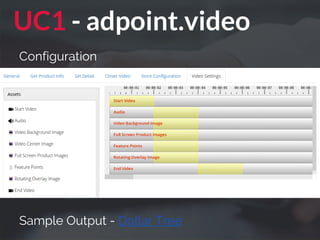

- 28. UC1 - adpoint.video Configuration Sample Output - Dollar Tree

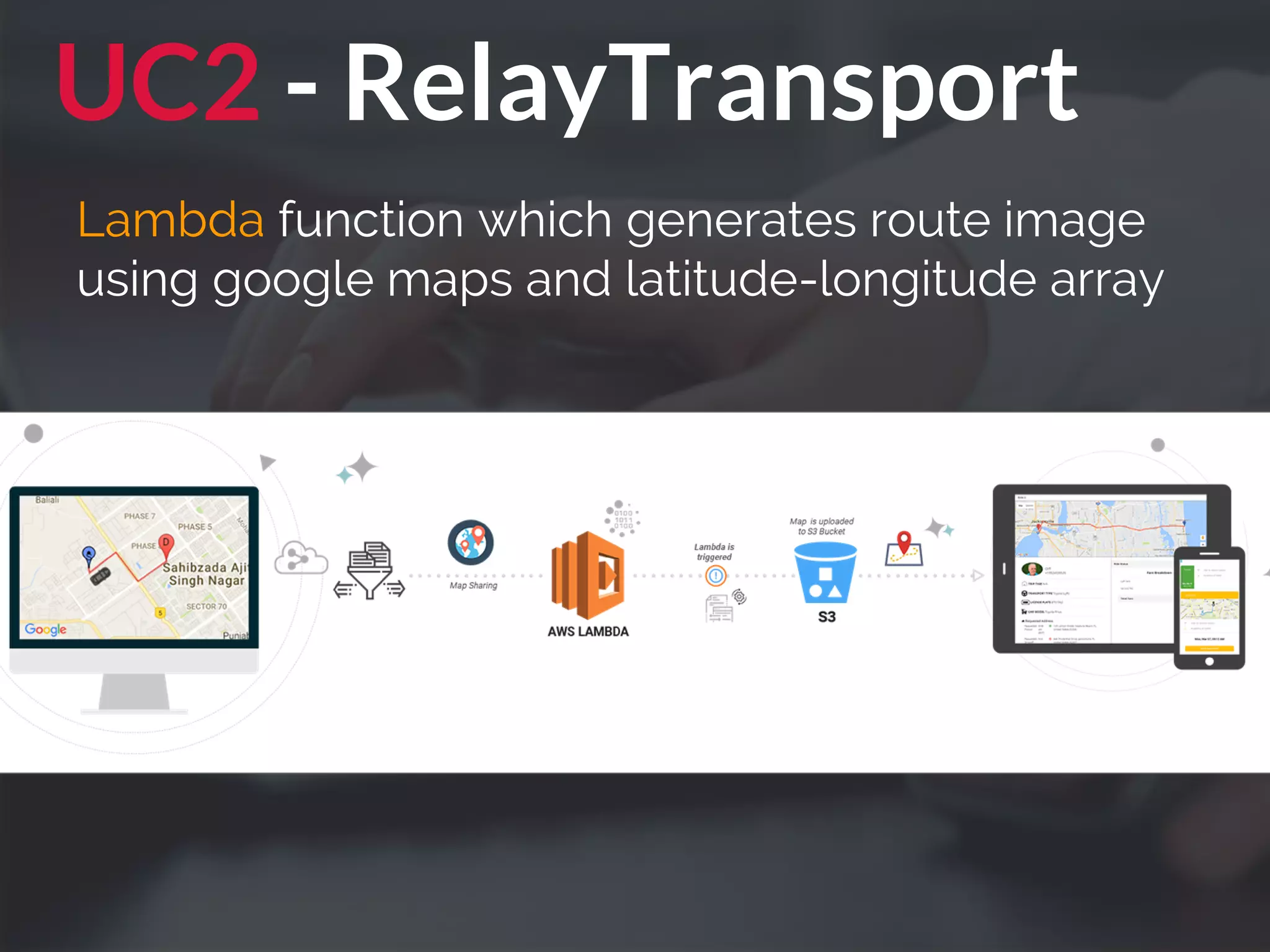

- 29. UC2 - RelayTransport Lambda function which generates route image using google maps and latitude-longitude array

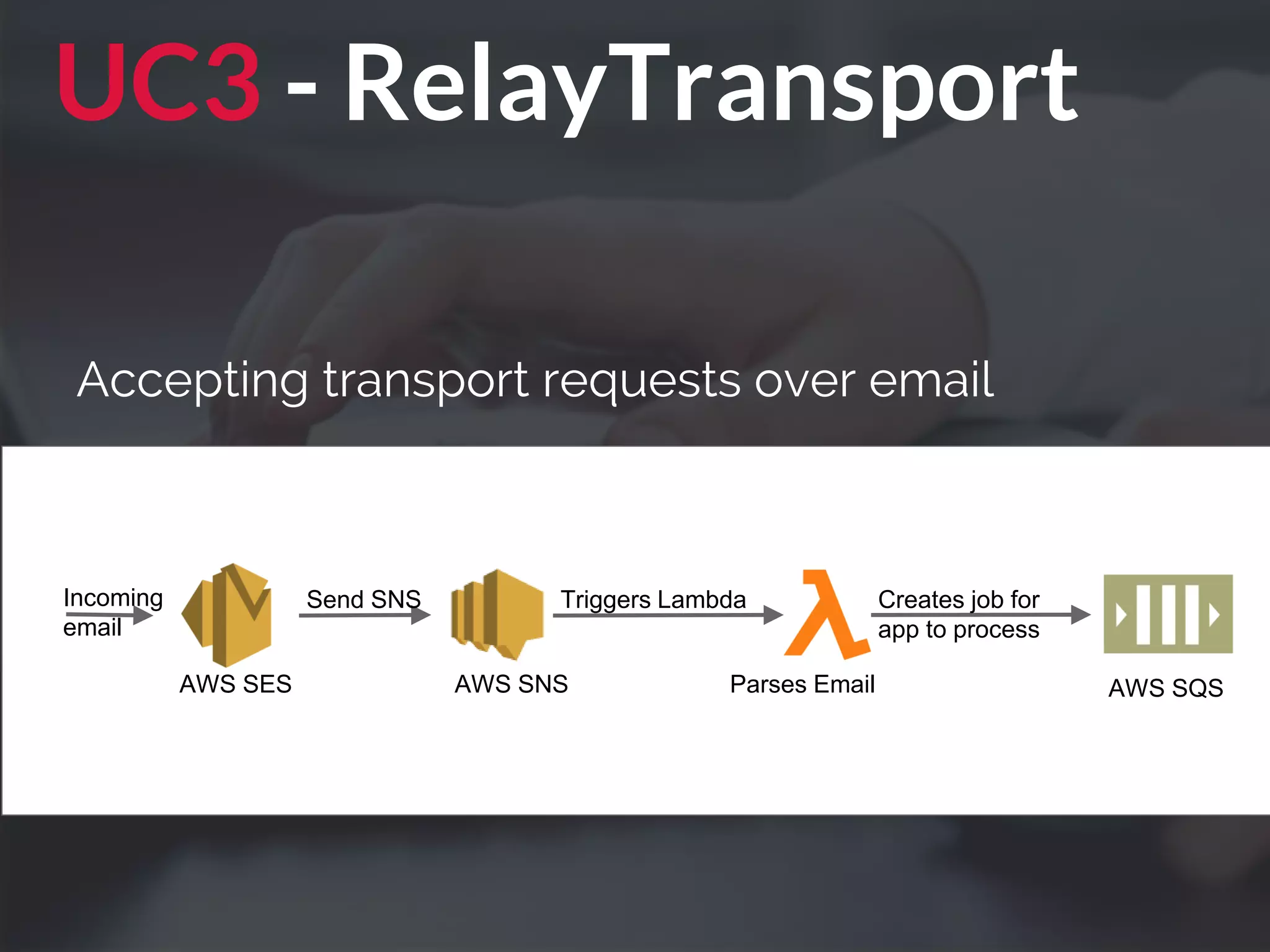

- 30. UC3 - RelayTransport Accepting transport requests over email Incoming email Send SNS Triggers Lambda AWS SES AWS SNS Parses Email Creates job for app to process AWS SQS
- 31. LET’S CONNECT Would you like to innovate faster, increase profits, launch a new product, or disrupt your market using AWS? connect@sourcefuse.com
