This document summarizes a study of the Huai Nam Nak Hot Spring in Tak Province, Thailand. The study examined the hydrogeology and geology of the area. The methodology included analyzing geological maps, topographic maps, and collecting hydrogeological data. Water samples were tested for parameters like temperature, turbidity, pH, and chemical composition. The results found the geology consists of limestone, dolomite limestone and granite intrusion. Travertine deposits were also observed. Groundwater quality was found to be suitable for drinking and below quality standards. The flow pattern of the groundwater was also analyzed. In conclusion, the geology and hydrogeochemistry of the hot spring were characterized.

1. HYDROGEOLOGY OF HUAI NAM NAK HOT SPRING
PHOB PHRA DISTRICT
TAK PROVINCE
PRESENTED BY
MR. WORACHET SANGAROON
ID : 5410405242
ADVISOR : DR. KANNAREE CHUANGCHUM
DEPARTMENT OF EARTH SCIENCES
FACULTY OF SCIENCES KASETSART UNIVERSITY

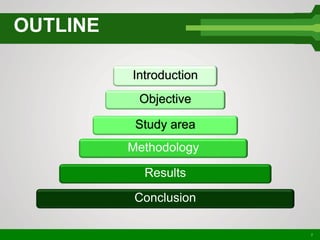

2. OUTLINE
2
Objective
Study area
Methodology
Results
Conclusion
Introduction

3. INTRODUCTION
3
Circulation of water over a magma body produces geysers or hot springs.
(Understanding Earth ,Fifth edition)

4. INTRODUCTION
• Map shows hot spring distribution and
active faults in Thailand. (DMR,2002)
4
San
Kampaeng
Hot Spring,
Chang Mai
Huai Nam Nak Hot Spring, Tak

5. OBJECTIVE
5
Hydrogeological
Characteristics
Geological
Characteristics
RELATIONSHIP
RELATIONSHIP
HUAI NAM NAK HOT SPRING

6. STUDY AREA
6
PHOP PHRA
DISTRICT
THAILAND

7. STUDY AREA
7
NO.1
NO.2 NO.3
Huai Nam Nak Hot Spring

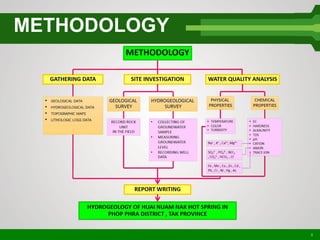

8. METHODOLOGY
8

9. METHODOLOGY
9
Geological map Topographic map
Hydrogeological data

10. METHODOLOGY
10

11. METHODOLOGY
11
Parameters Methods
Temperature (°C) Portable devices
Turbidity Turbidity meter
Color Nesler tube
Turbidity
meter
Nesler
tube
Portable devices

12. METHODOLOGY
12
Parameters Methods
pH Portable devices
Electrical Conductivity Portable devices
Hardness Titration
Alkalinity Titration
Cl-, HCO3
- , CO3
2- Titration
NO3
-,PO4
3-,SO4
2- Spectrophotometer
Na+, K+, Ca2+, Mg2+, Fe, Cd, Pb,
Ni, Cr, Cu, Mn, Zn, As, Hg
Atomic Absorption
Spectrometer (AAS)
Titration AAS

13. RESULTS
• Geological Results
• Hydrogeological Results
 Groundwater Quality Analysis
 Groundwater Flow Pattern
13

14. Geological Results
Triassic Granite Rock (Department of Mineral Resources,1998)
14

15. Geological Results
Travertine nearby
hot spring area
15
NO.2
NO.1
NO.3

16. Geological Results
16
Slightly Metamorphose Sandstone
Slightly Shale
in the North of hot spring area

17. Geological Results
17

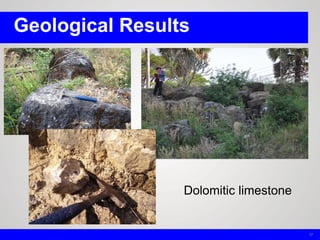

Dolomitic limestone

18. Geological Results
18

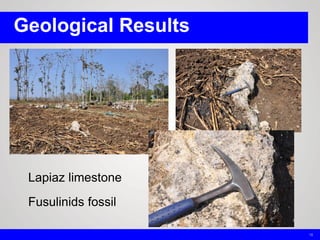

Lapiaz limestone
Fusulinids fossil

19. Geological Results
19

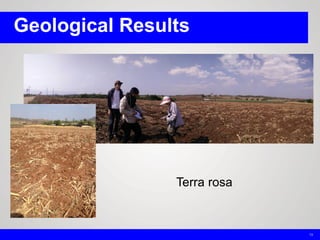

Terra rosa

20. Geological Results
20

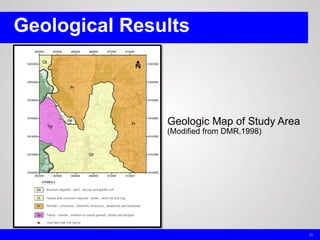

Geologic Map of Study Area
(Modified from DMR,1998)

21. Geological Results
21
Possible Heat Source
Limestone
Granite
EASTWEST
Ideal Geological cross-section showing the groundwater flow in the geothermal system.
TravertineTravertine

22. Hydrogeological Results
• PHYSICAL PROPERTIES
22
*Groundwater Standards for Drinking Purposes

23. Hydrogeological Results

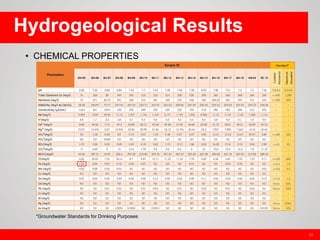

• CHEMICAL PROPERTIES
23
*Groundwater Standards for Drinking Purposes

24. Hydrogeological Results
24
• HYDROCHEMICAL FACIES
Piper diagram

25. Hydrogeological Results
25
• Groundwater flow pattern
Sample
ID.
UTM
Elevation
(m)
Water
level
(m)
E N
BH-06 465334 1815228 288 0.9
BH-07 465425 1814869 288 1.39
BH-08 467197 1812745 396 19
BH-09 468707 1824611 570 8
BH-10 472792 1818081 624 15
BH-12 471484 1813433 468 3.65
BH-13 471597 1813223 503 12
BH-15 467151 1811314 377 20

26. CONCLUSION
• The geology of study area consisted of Permian
limestone and dolomitic limestone and Triassic
granite intrusion. The travertine layers were
found only in the upper parts of the hot spring.
• The groundwater quality was temporary hardness
water and suitable for drinking water, as were
below maximum allowable groundwater quality
standard for drinking purpose.
26
