Self-hosting Kafka at Scale: Netflix's Journey & Challenges
Netflix's journey with self-hosting Apache Kafka highlights its evolution from a centralized event pipeline in 2015 to a more flexible Kafka as a Service (KaaS) platform by 2021. Key challenges included inefficiencies in streaming consumer processes and the need for advanced functionality to meet growing business demands, leading to the decision to build a managed Kafka platform. The presentation outlines architectural improvements, scaling strategies, and Kafka's role in data handling at Netflix's significant operational scale.
Self-hosting Kafka at Scale: Netflix's Journey & Challenges
- 1. Self-hosting Kafka atScale Netflix’s Journey & Challenges Piyush Goyal, Staff Engineer, Data Platform Nick Mahilani, Staff Engineer, Data Platform Current 2024
- 2. Thank you forbeing here! RAISE YOUR HAND IF YOU USE KAFKA IN YOUR ORGANIZATION
- 3. KEEP YOUR HANDUP IF YOU ARE SELF-HOSTING APACHE KAFKA (NOT using a Kafka service provider)

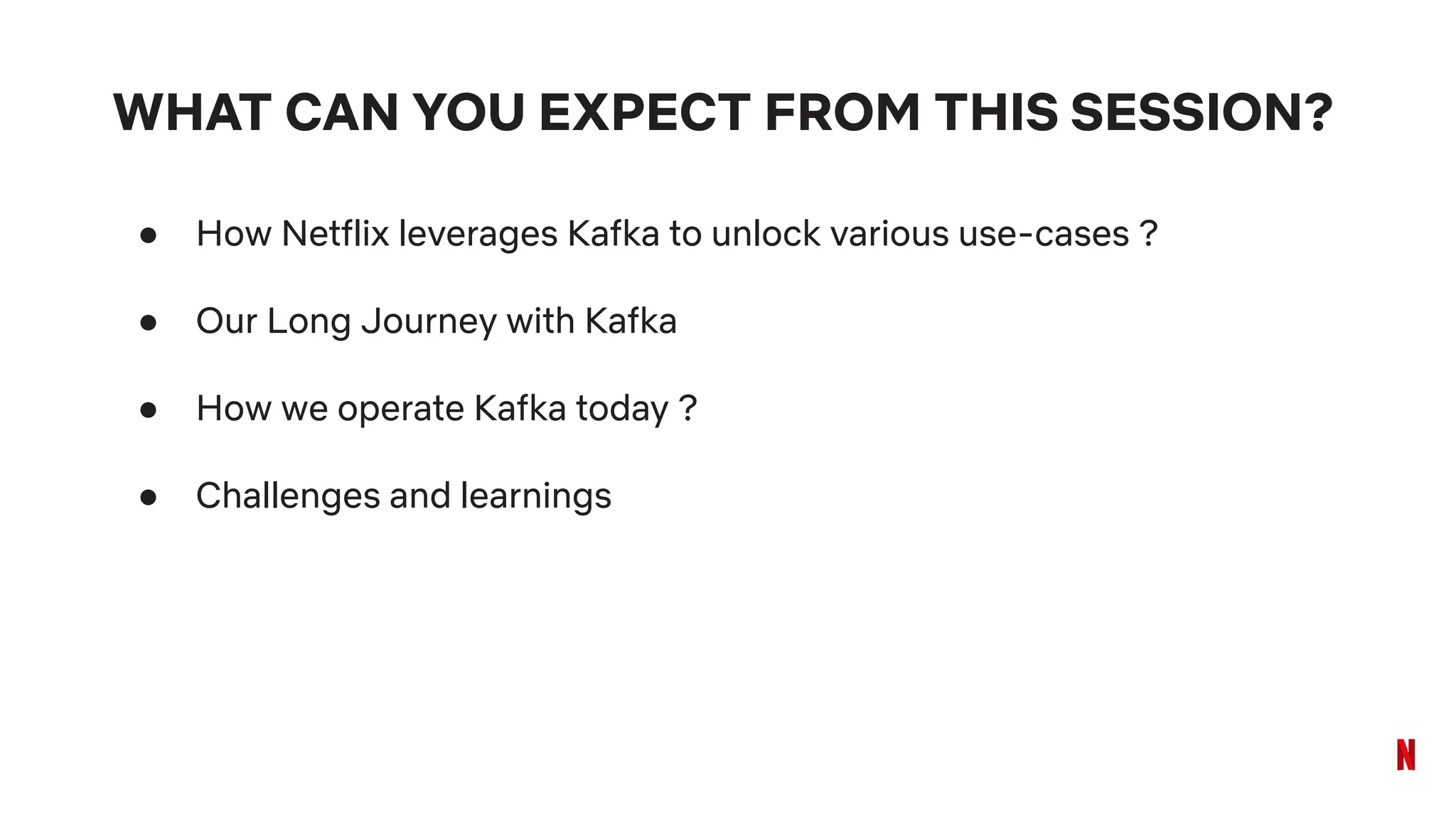

- 4. WHAT CAN YOUEXPECT FROM THIS SESSION? ● How Netflix leverages Kafka to unlock various use-cases ? ● Our Long Journey with Kafka ● How we operate Kafka today ? ● Challenges and learnings

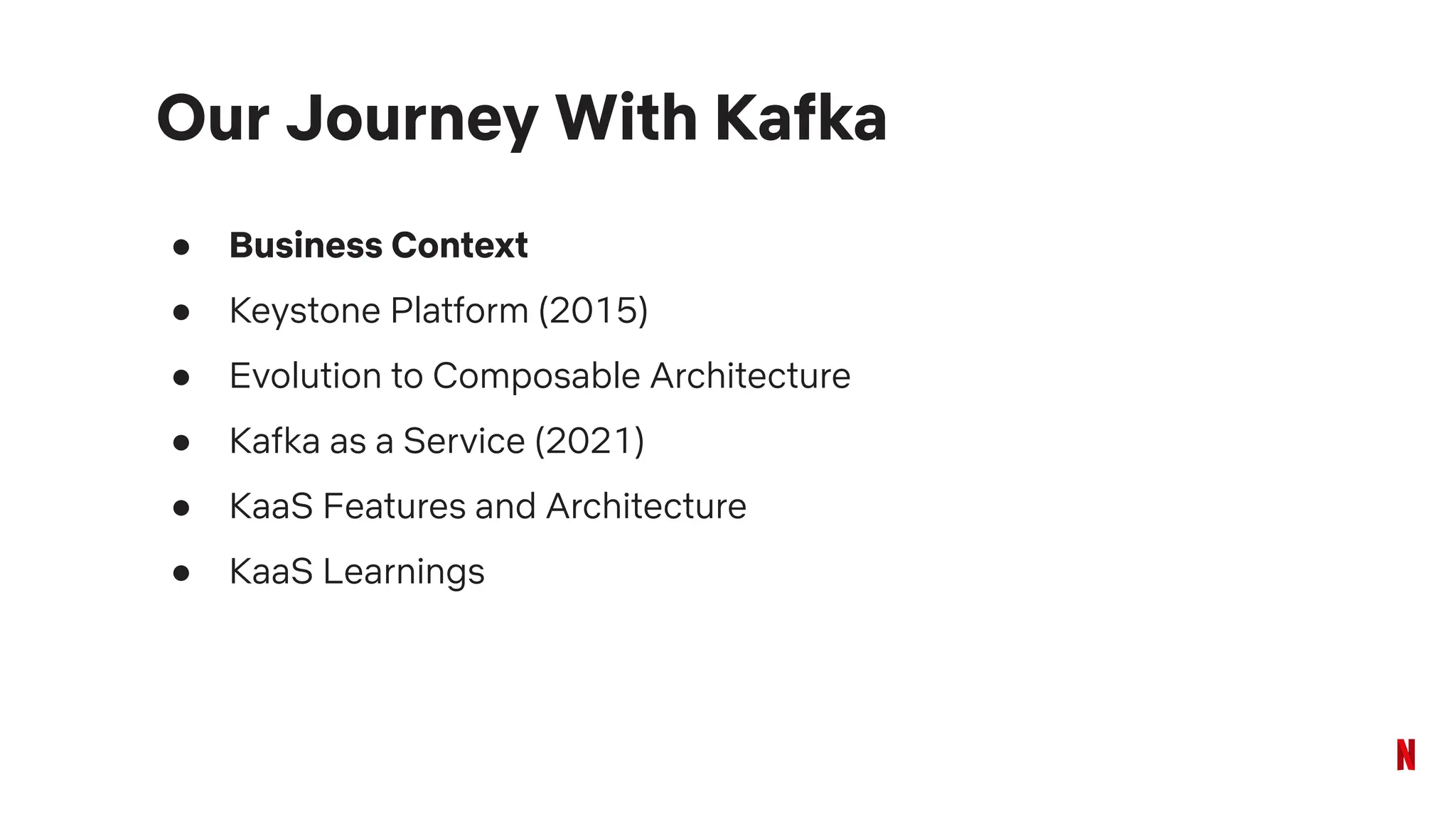

- 5. ● Business Context ●Keystone Platform (2015) ● Evolution to Composable Architecture ● Kafka as a Service (2021) ● KaaS Features and Architecture ● KaaS Learnings Our Journey With Kafka
- 6. Netflix Scale Devices >1,000,000,000 Countries >190 * August2024 Members >278,000,000

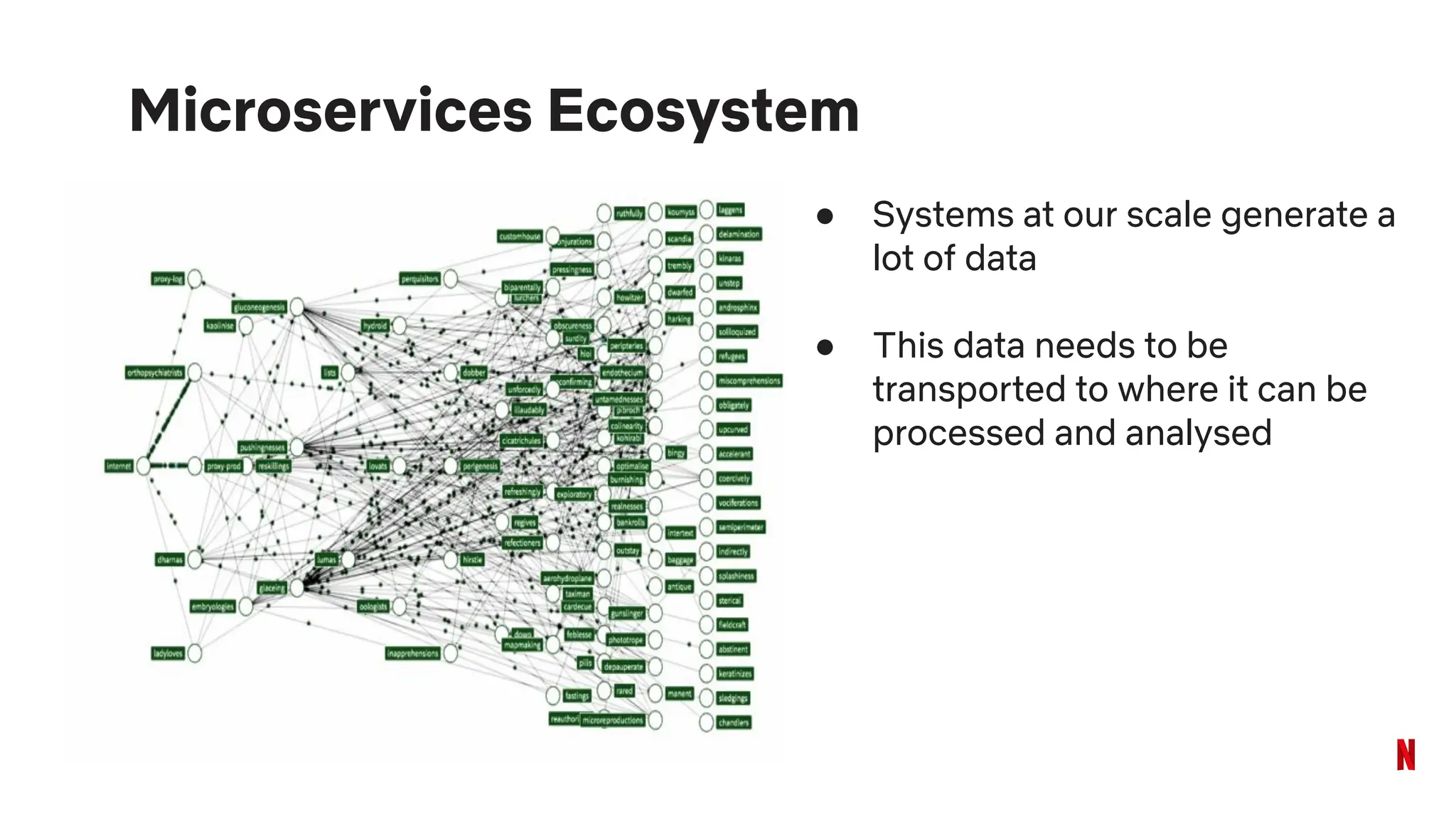

- 7. Microservices Ecosystem ● Systemsat our scale generate a lot of data ● This data needs to be transported to where it can be processed and analysed

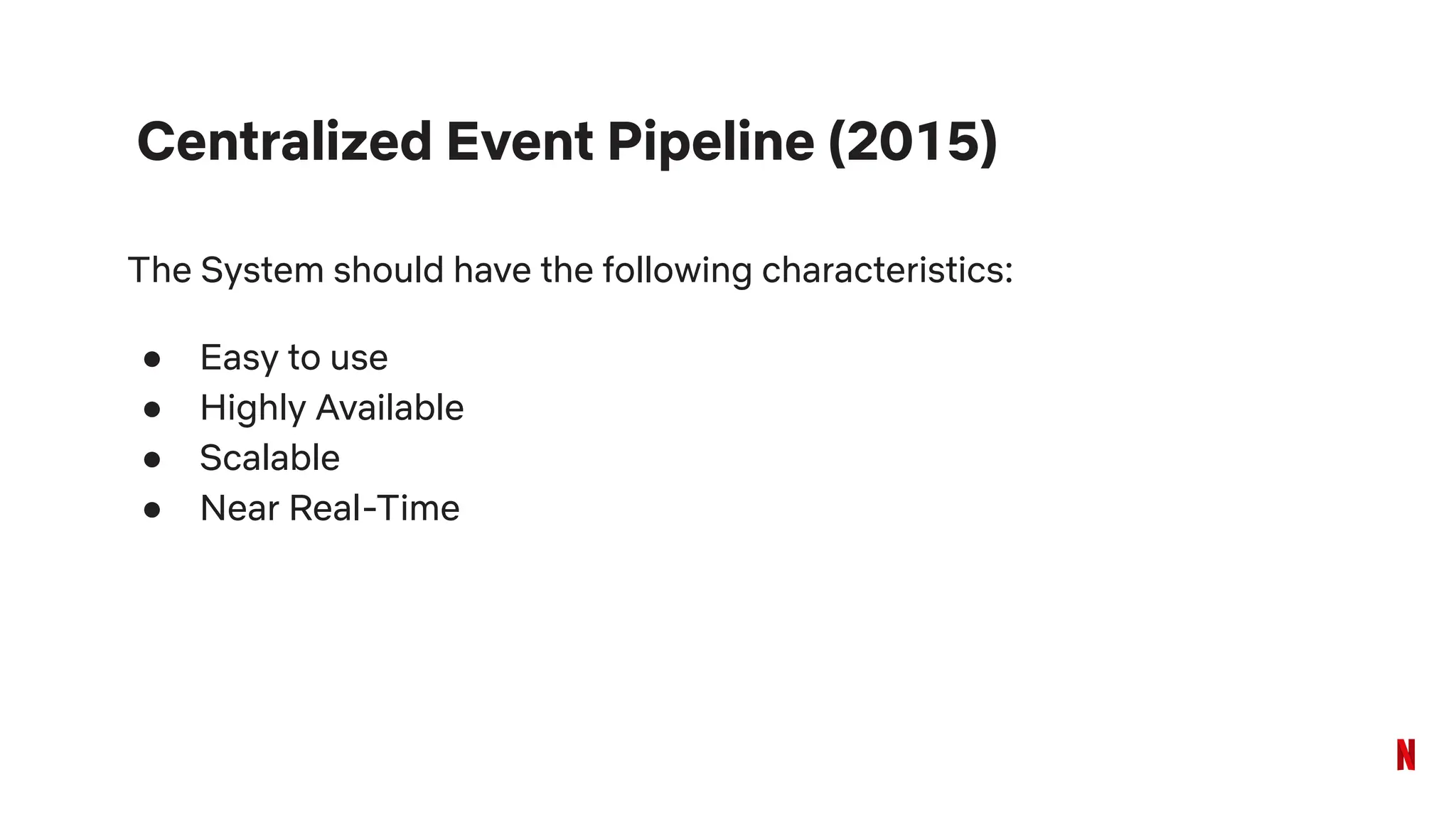

- 8. Centralized Event Pipeline(2015) The System should have the following characteristics: ● Easy to use ● Highly Available ● Scalable ● Near Real-Time

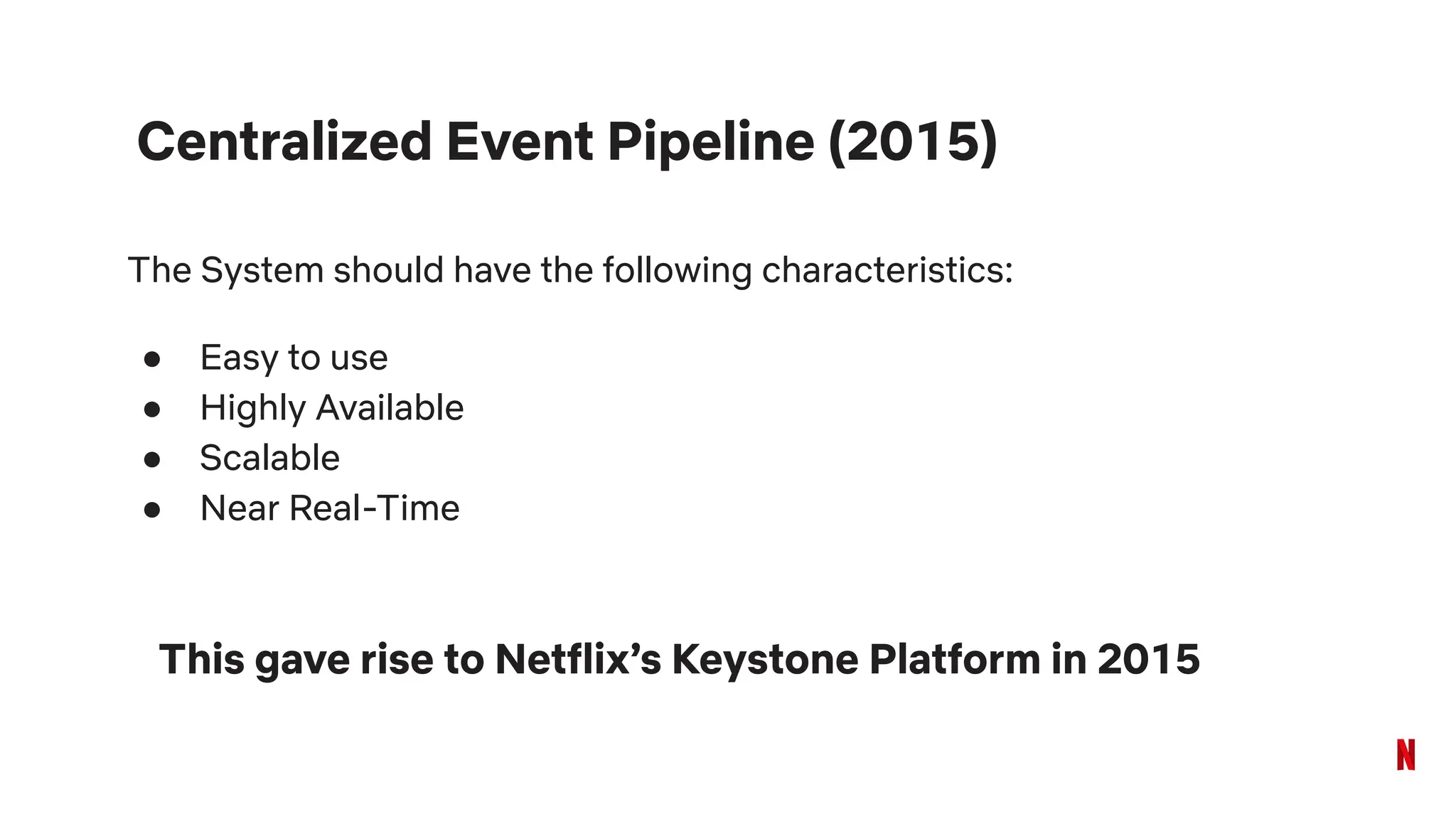

- 9. Centralized Event Pipeline(2015) The System should have the following characteristics: ● Easy to use ● Highly Available ● Scalable ● Near Real-Time This gave rise to Netflix’s Keystone Platform in 2015

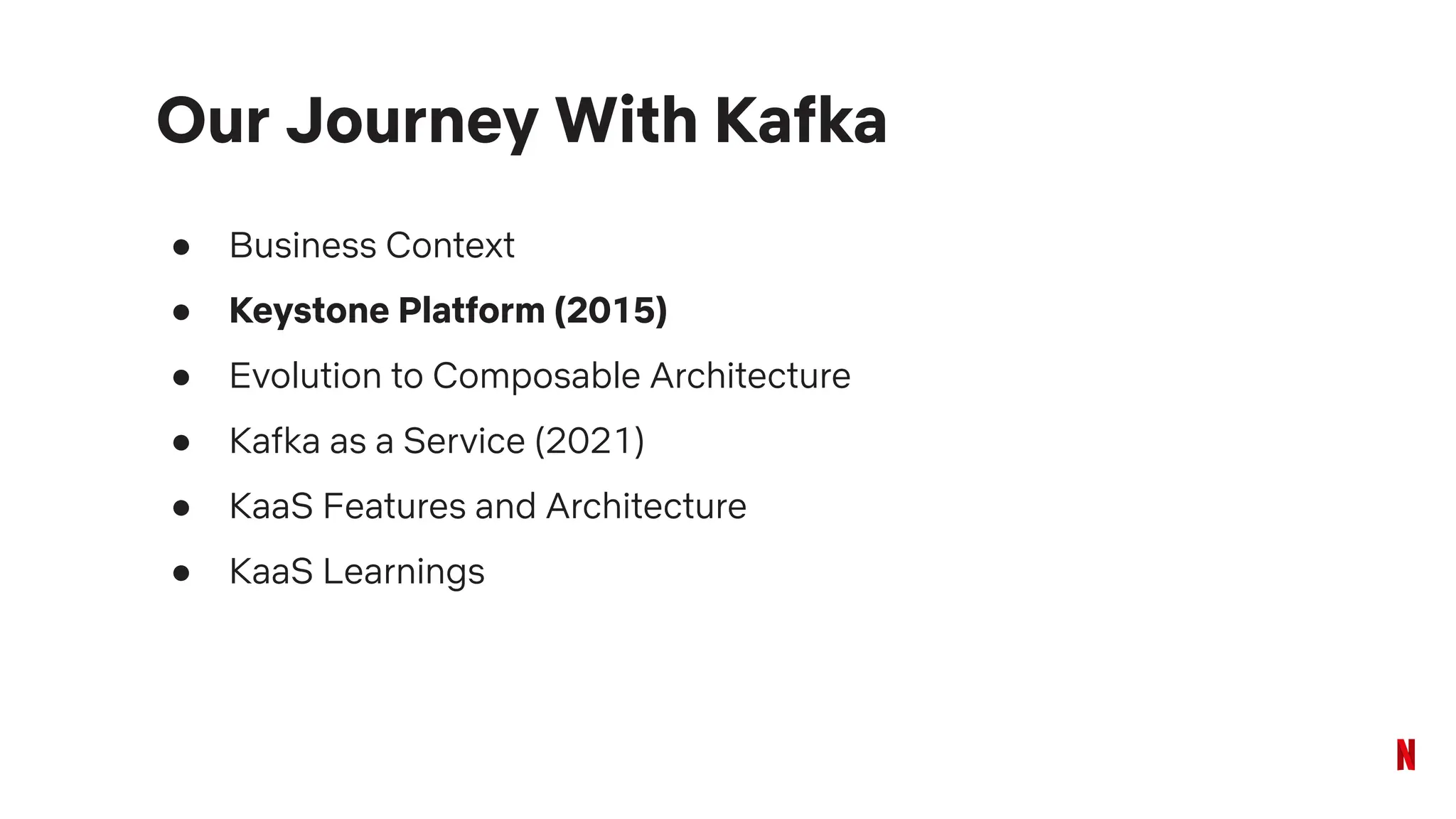

- 10. ● Business Context ●Keystone Platform (2015) ● Evolution to Composable Architecture ● Kafka as a Service (2021) ● KaaS Features and Architecture ● KaaS Learnings Our Journey With Kafka

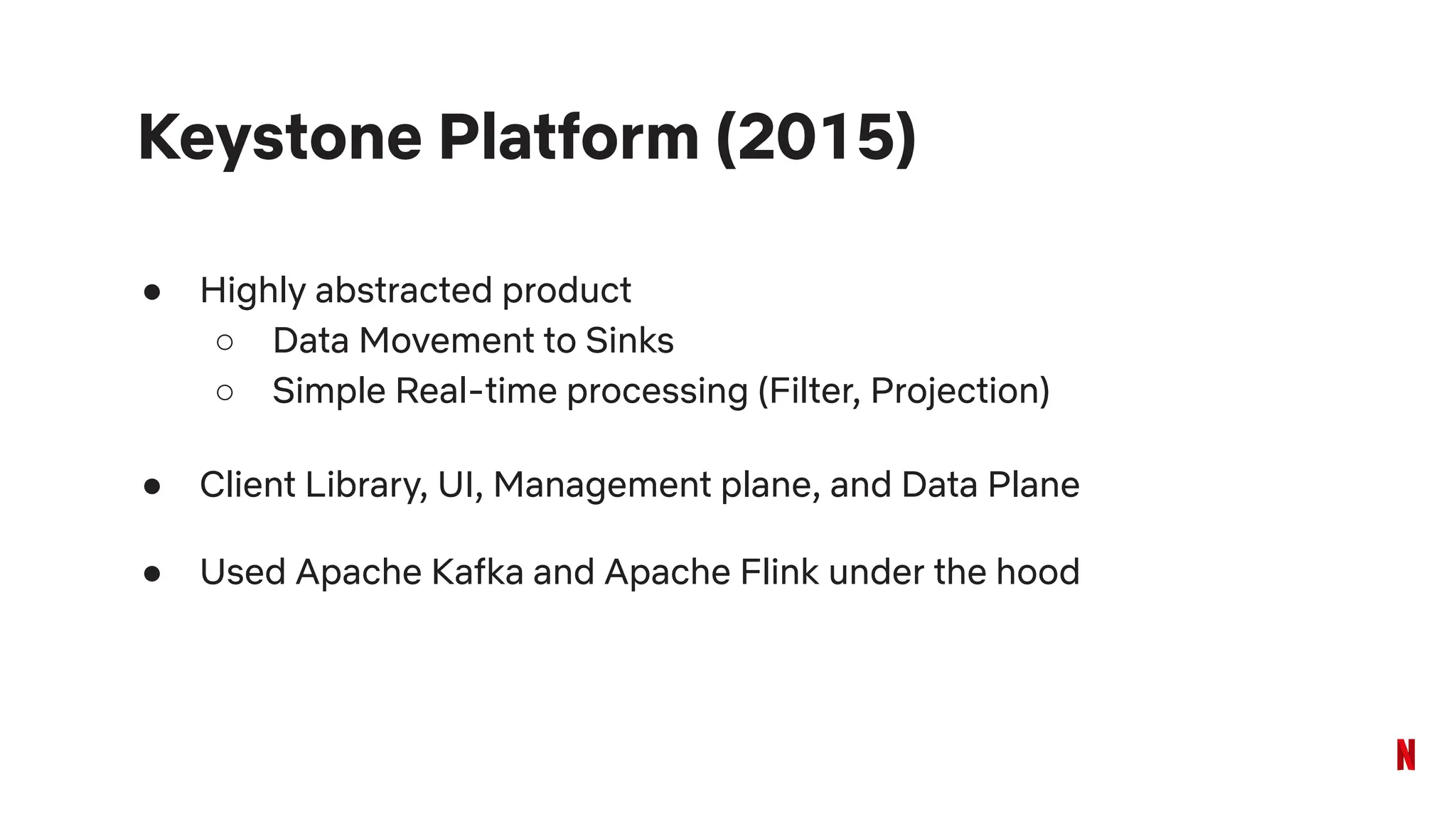

- 11. Keystone Platform (2015) ●Highly abstracted product ○ Data Movement to Sinks ○ Simple Real-time processing (Filter, Projection) ● Client Library, UI, Management plane, and Data Plane ● Used Apache Kafka and Apache Flink under the hood

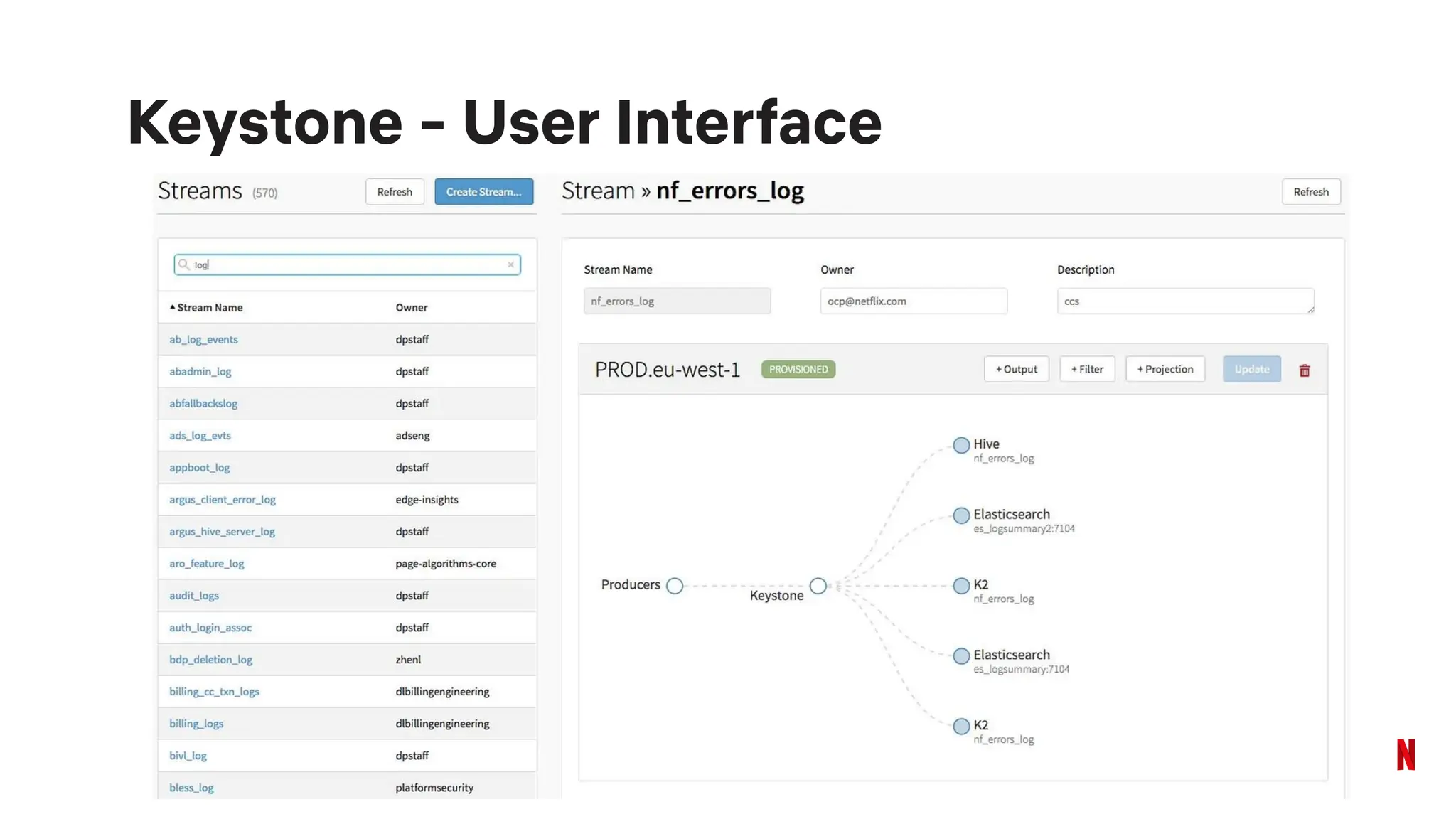

- 12. Keystone - UserInterface

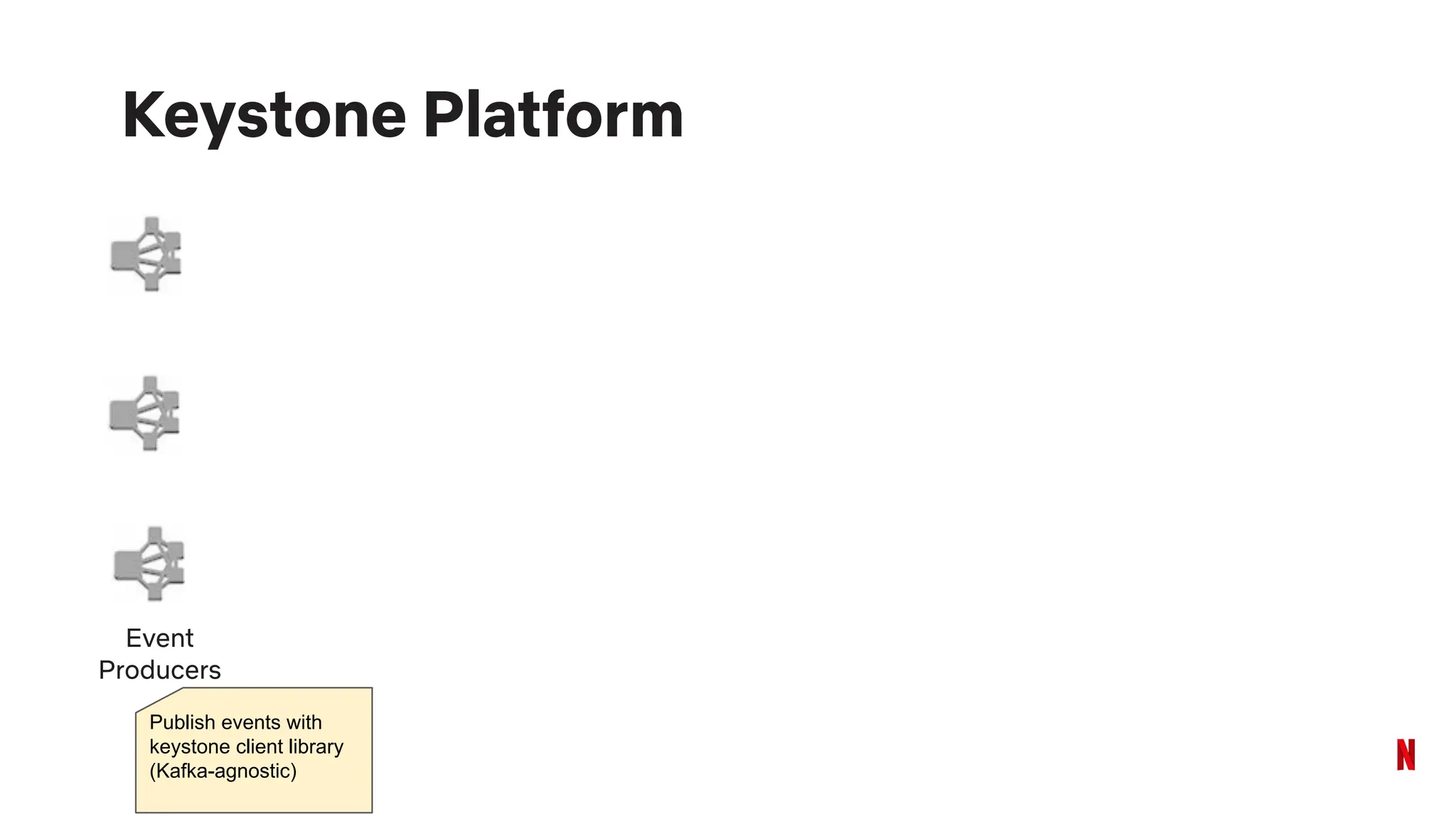

- 13. Keystone Platform Event Producers Publish eventswith keystone client library (Kafka-agnostic)

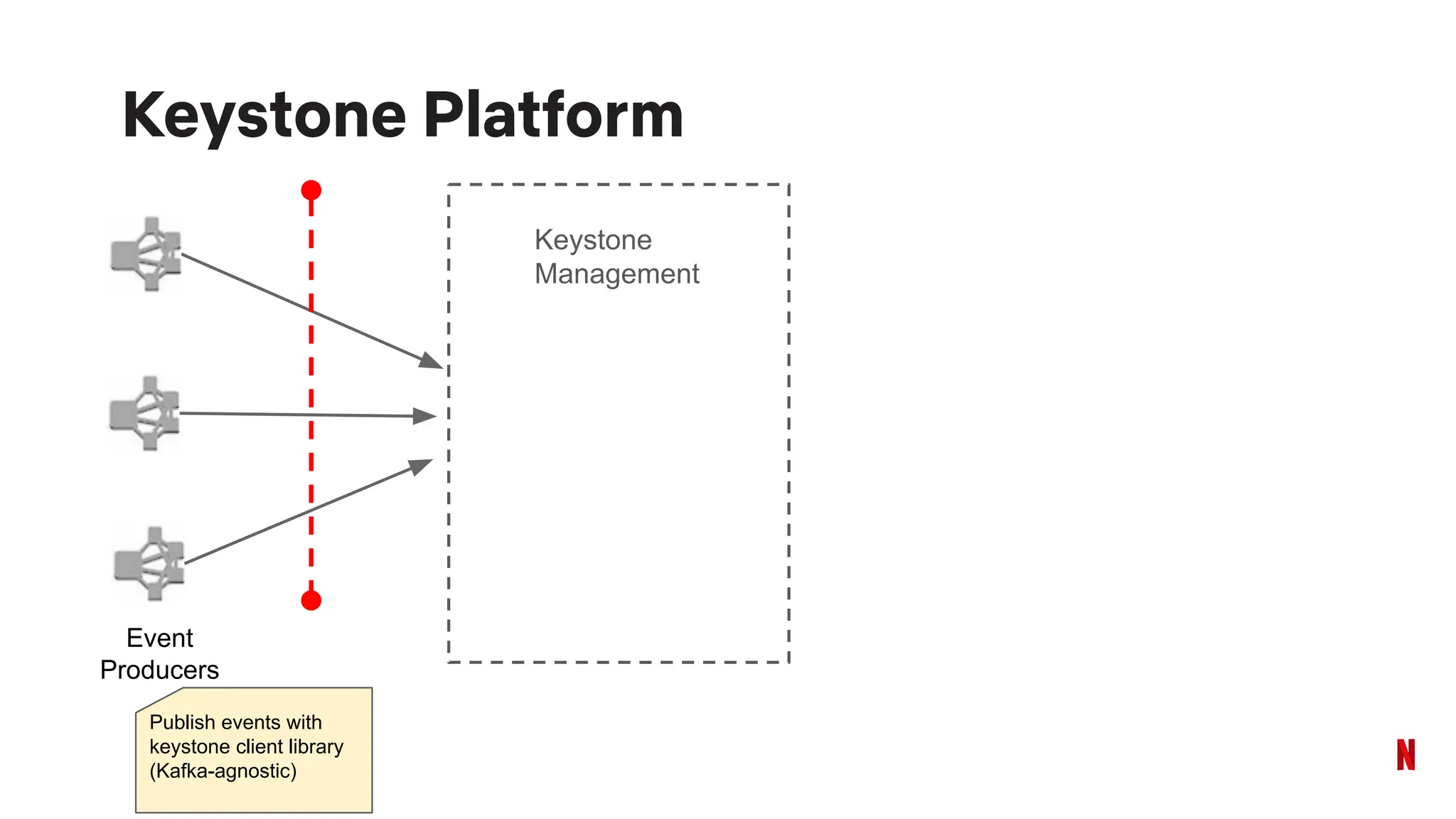

- 14. Keystone Platform Event Producers Keystone Management Publish eventswith keystone client library (Kafka-agnostic)

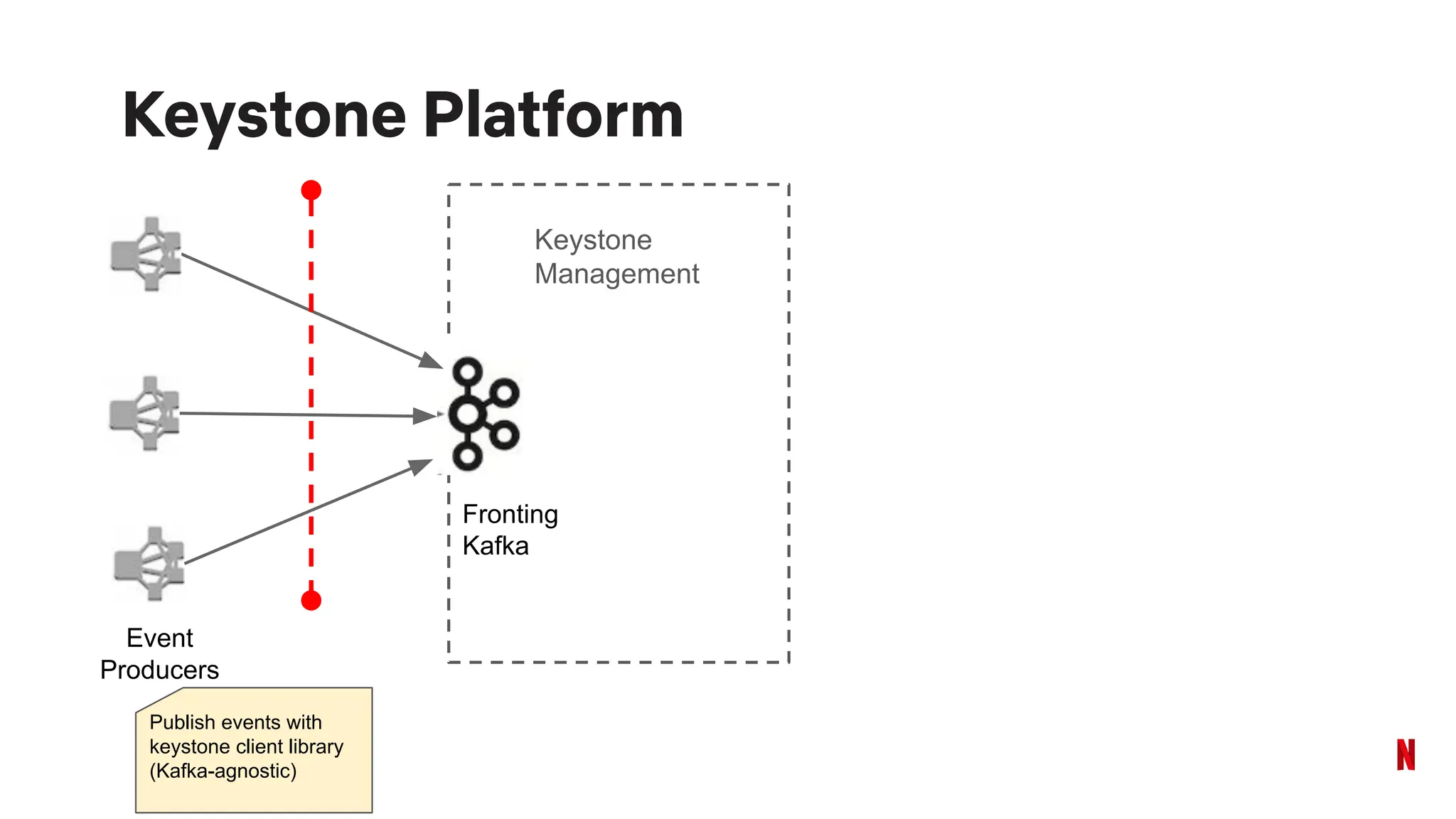

- 15. Keystone Platform Fronting Kafka Event Producers Keystone Management Publish eventswith keystone client library (Kafka-agnostic)

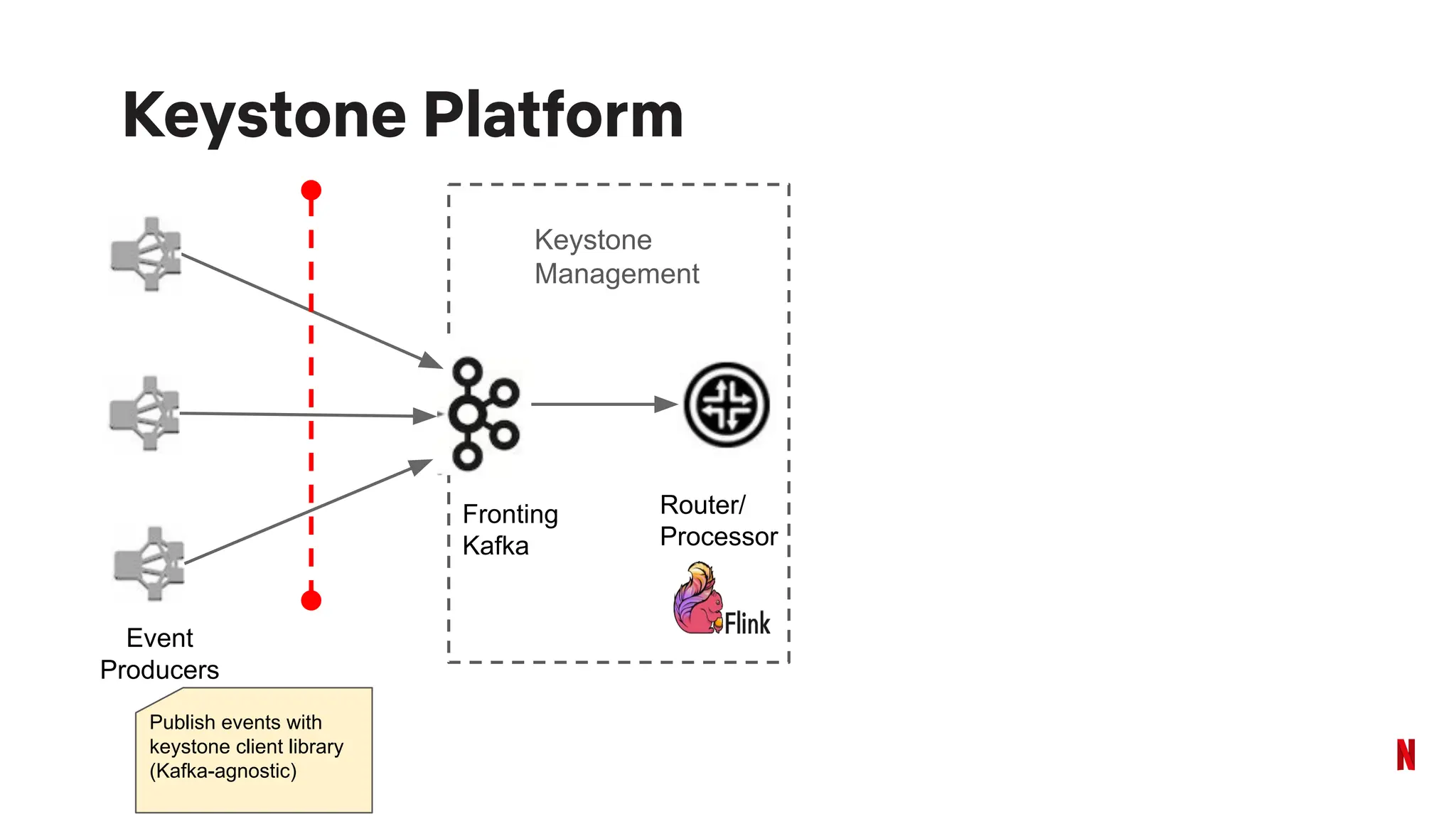

- 16. Keystone Platform Fronting Kafka Router/ Processor Event Producers Keystone Management Publish eventswith keystone client library (Kafka-agnostic)

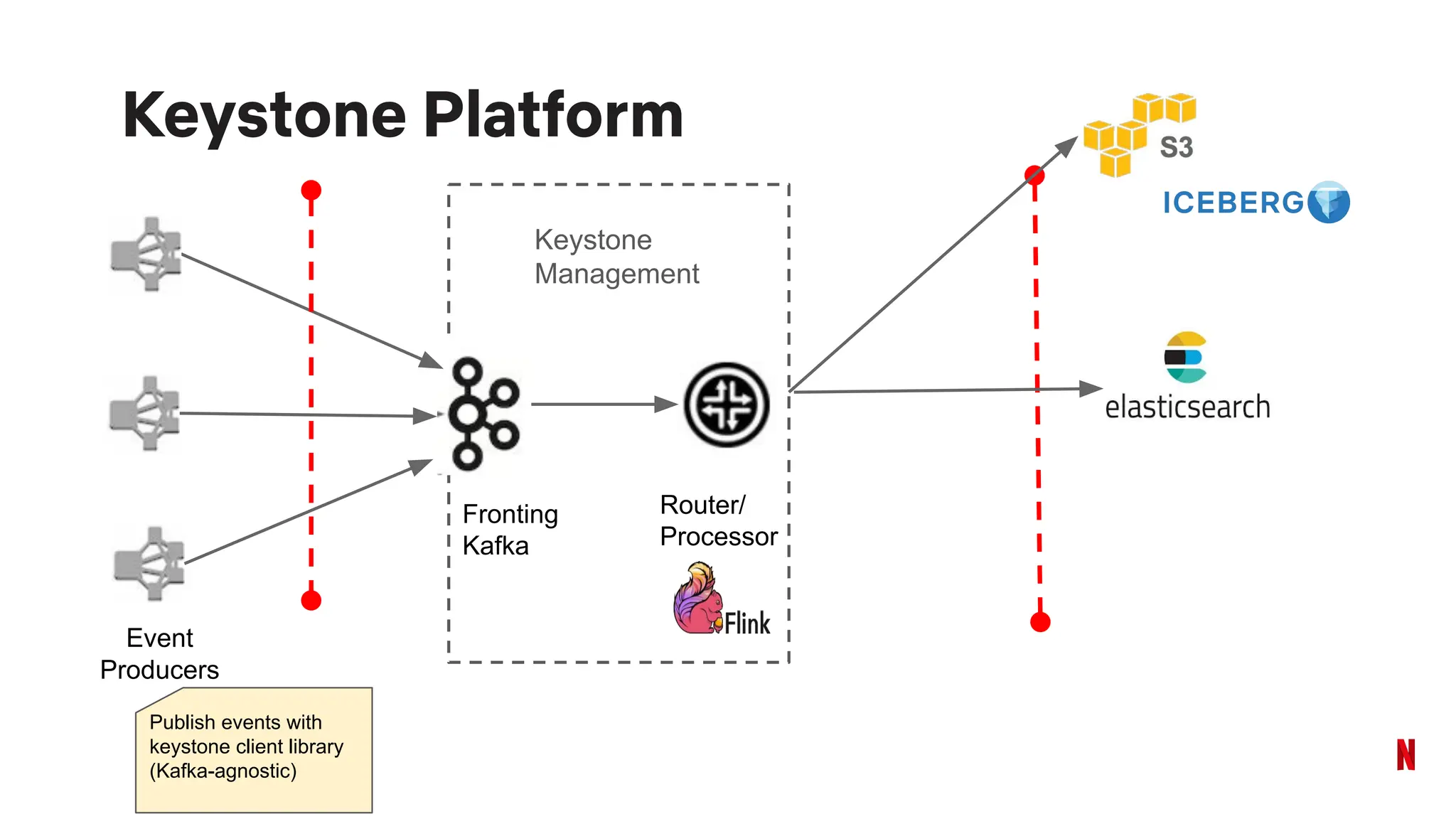

- 17. Keystone Platform Fronting Kafka Router/ Processor Event Producers Keystone Management Publish eventswith keystone client library (Kafka-agnostic)

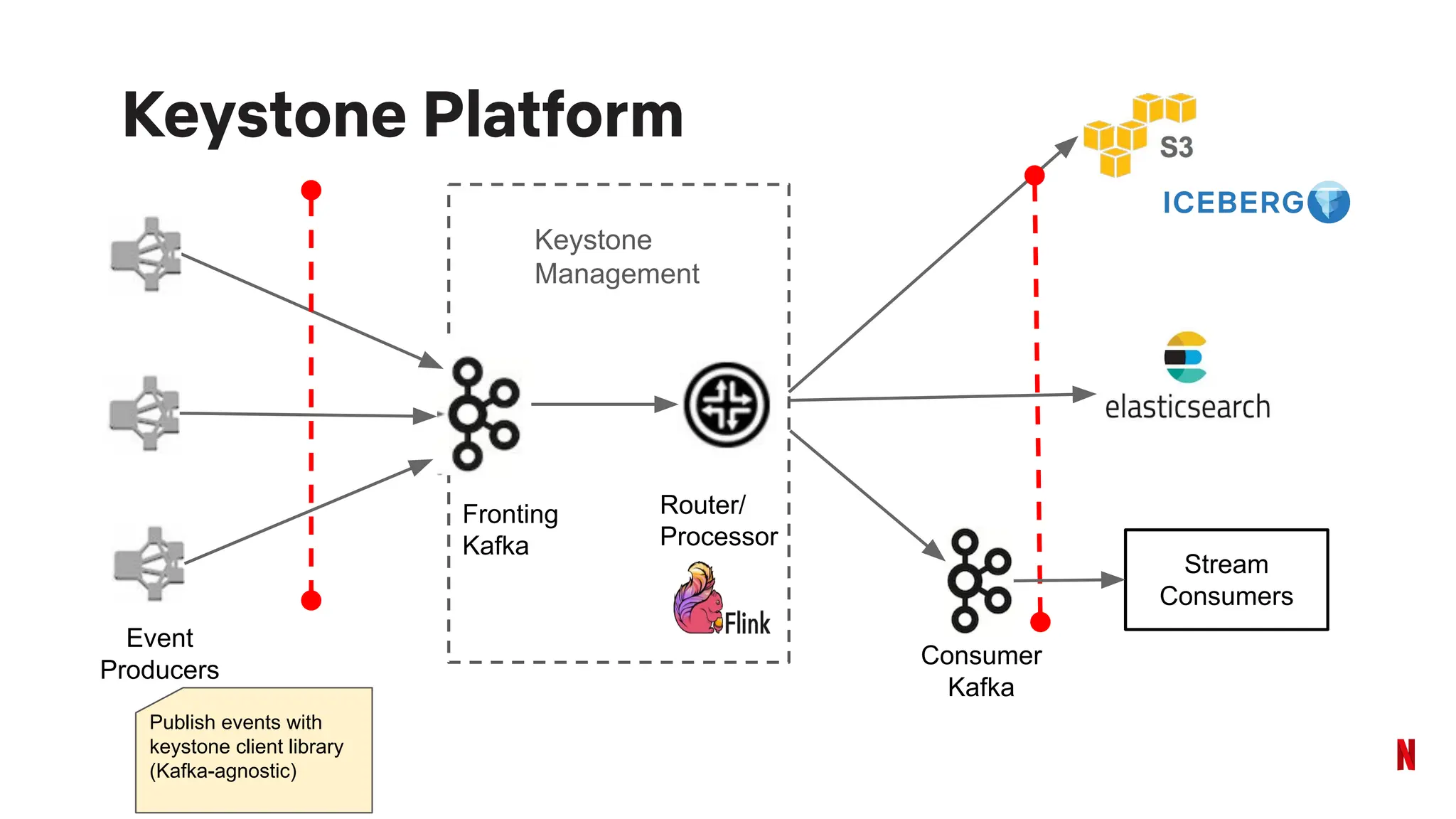

- 18. Keystone Platform Fronting Kafka Router/ Processor Event Producers Keystone Management Stream Consumers Consumer Kafka Publish eventswith keystone client library (Kafka-agnostic)

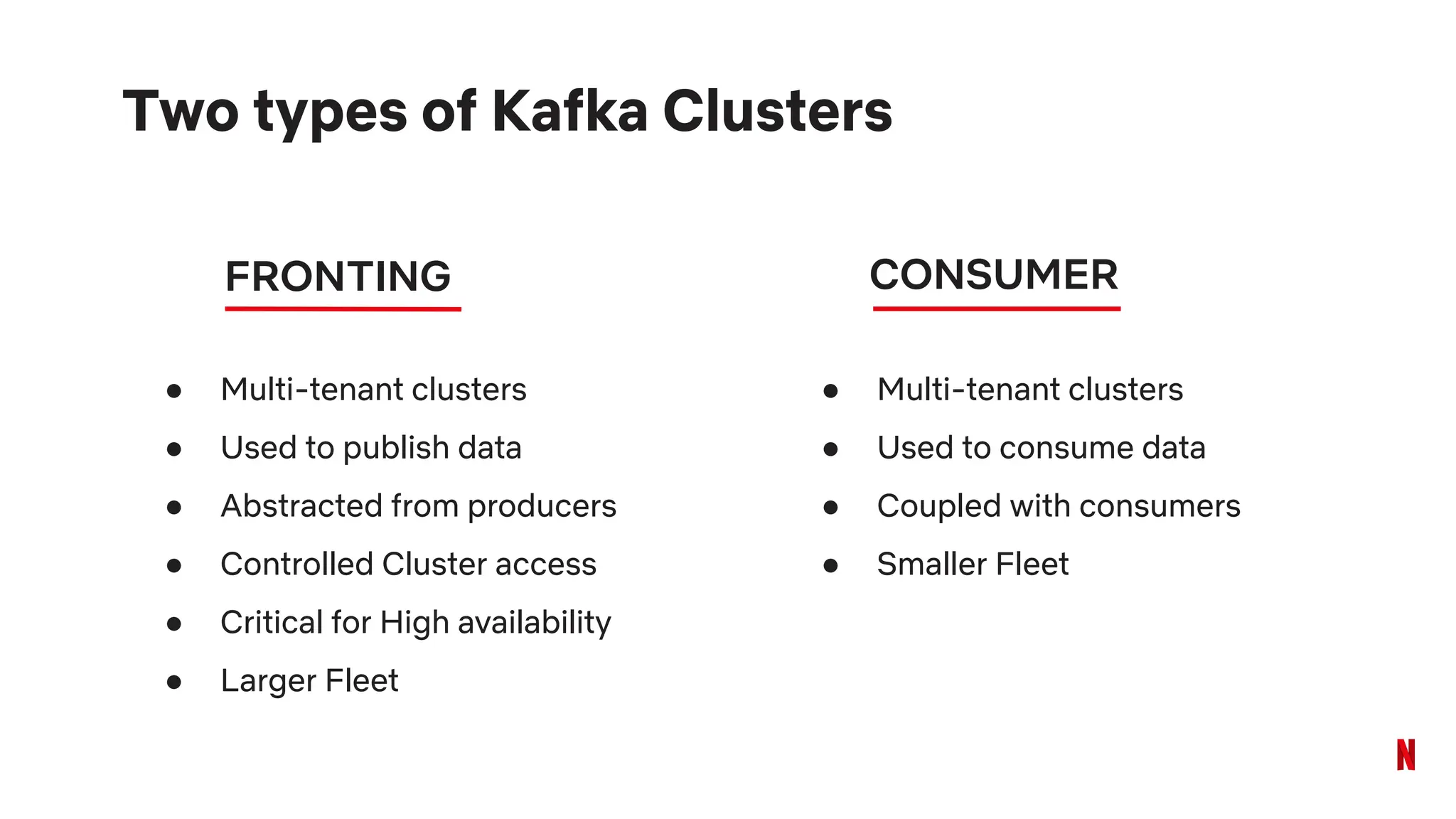

- 19. FRONTING CONSUMER ● Multi-tenantclusters ● Used to publish data ● Abstracted from producers ● Controlled Cluster access ● Critical for High availability ● Larger Fleet ● Multi-tenant clusters ● Used to consume data ● Coupled with consumers ● Smaller Fleet Two types of Kafka Clusters

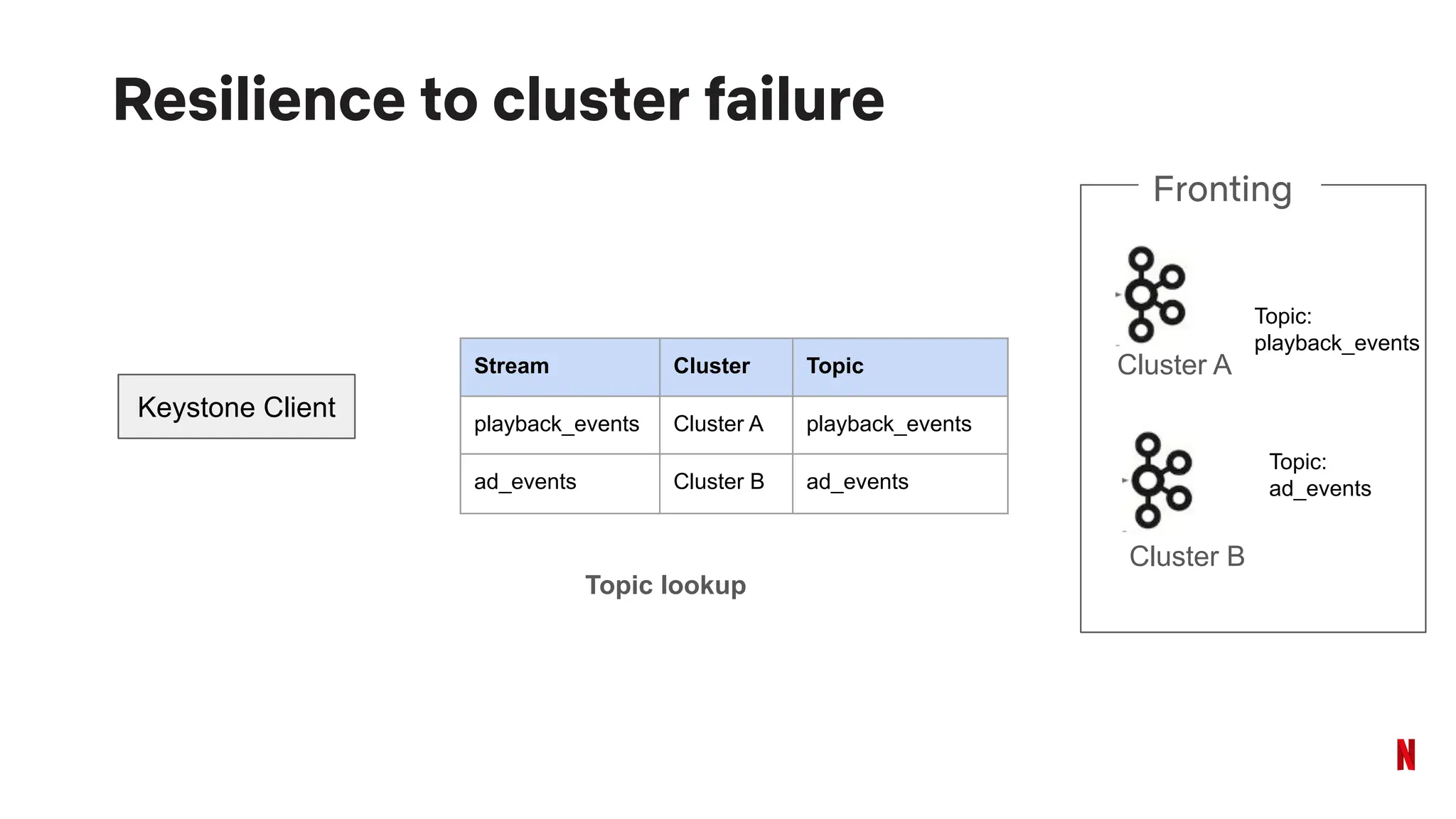

- 20. Resilience to clusterfailure Keystone Client Stream Cluster Topic playback_events Cluster A playback_events ad_events Cluster B ad_events Topic lookup Cluster A Cluster B Topic: playback_events Fronting Topic: ad_events

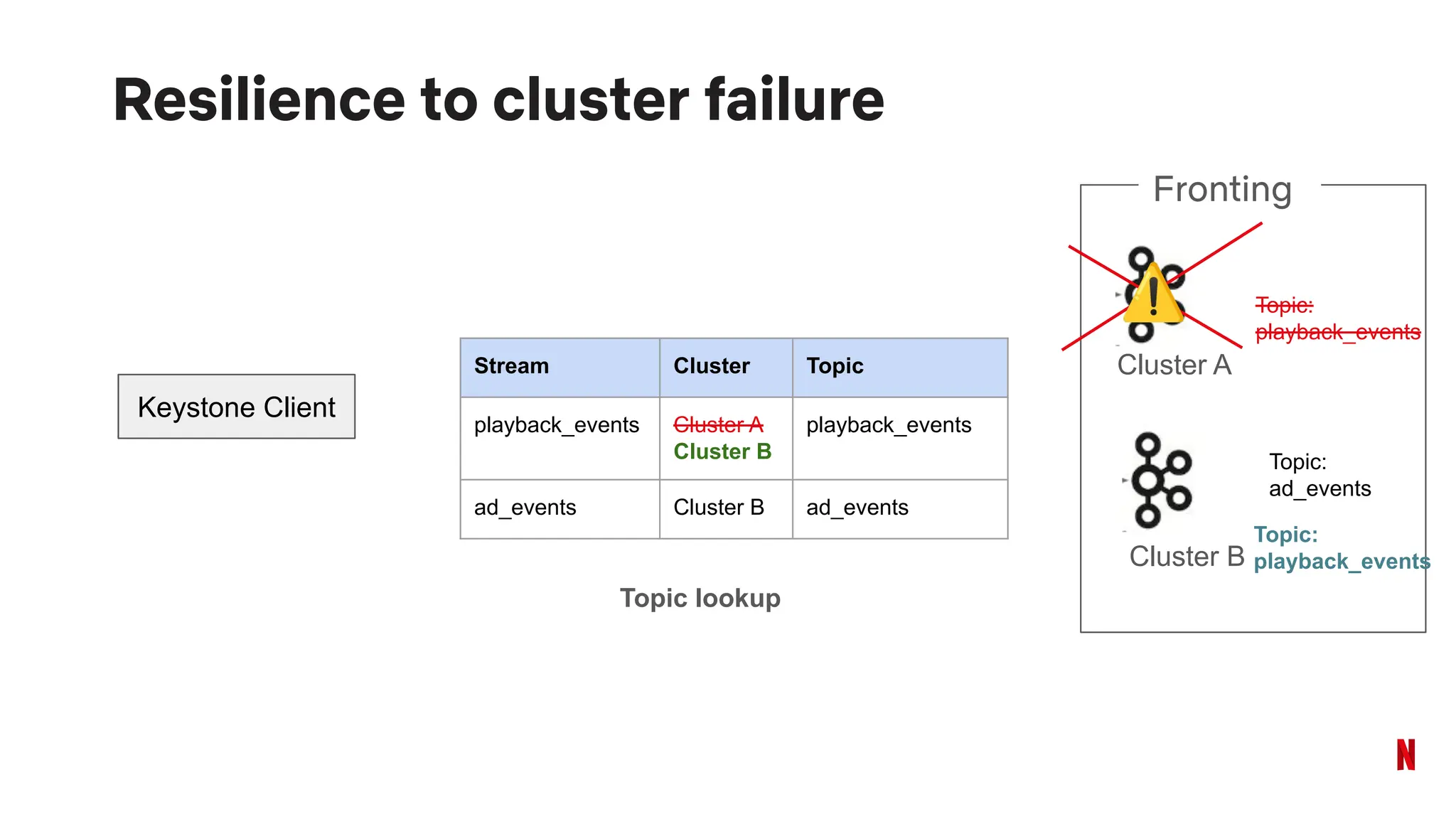

- 21. Resilience to clusterfailure Keystone Client Stream Cluster Topic playback_events Cluster A Cluster B playback_events ad_events Cluster B ad_events Topic lookup Cluster A Cluster B Topic: playback_events Fronting Topic: ad_events Topic: playback_events ⚠

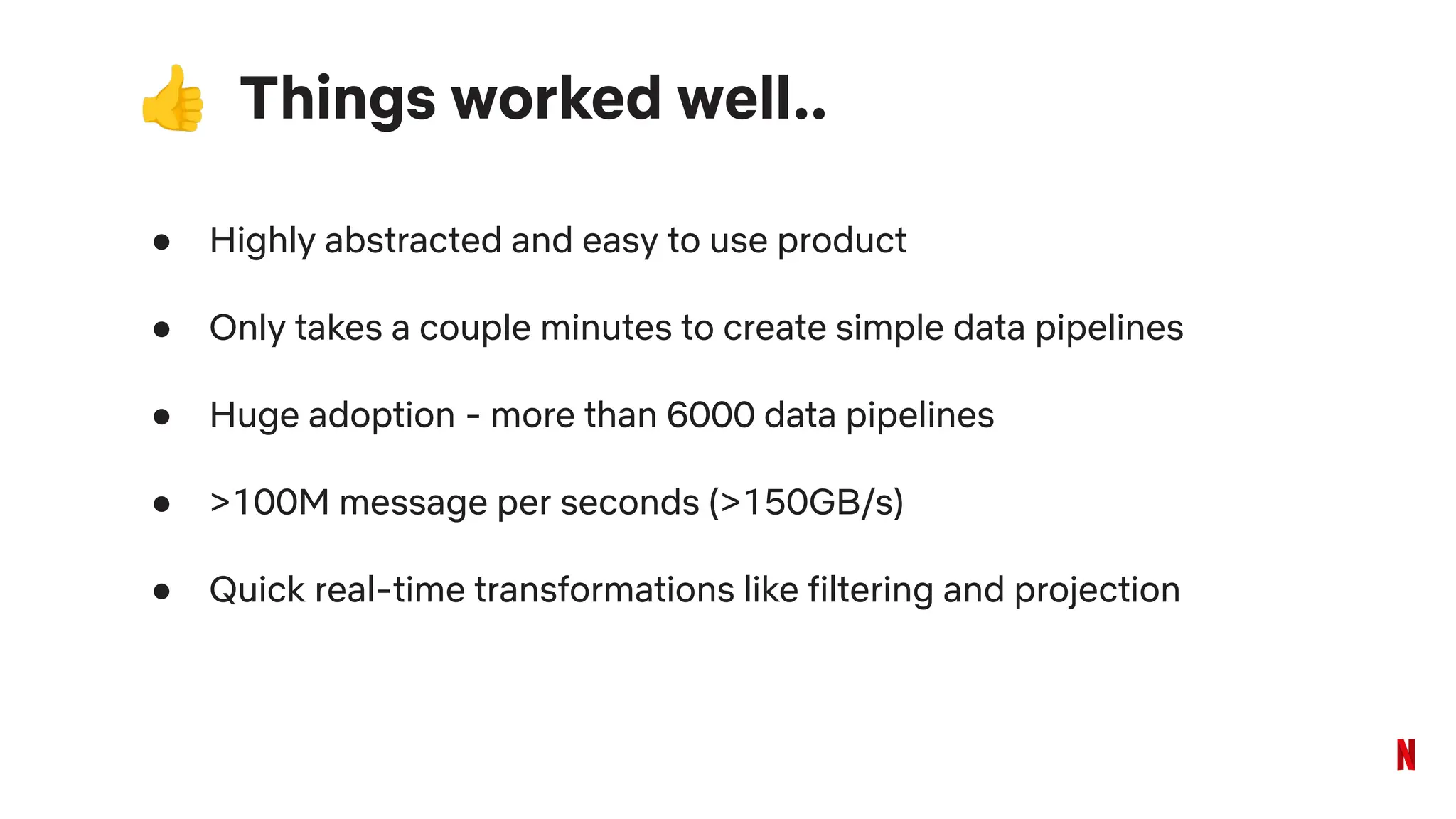

- 22. 👍 Things workedwell.. ● Highly abstracted and easy to use product ● Only takes a couple minutes to create simple data pipelines ● Huge adoption - more than 6000 data pipelines ● >100M message per seconds (>150GB/s) ● Quick real-time transformations like filtering and projection

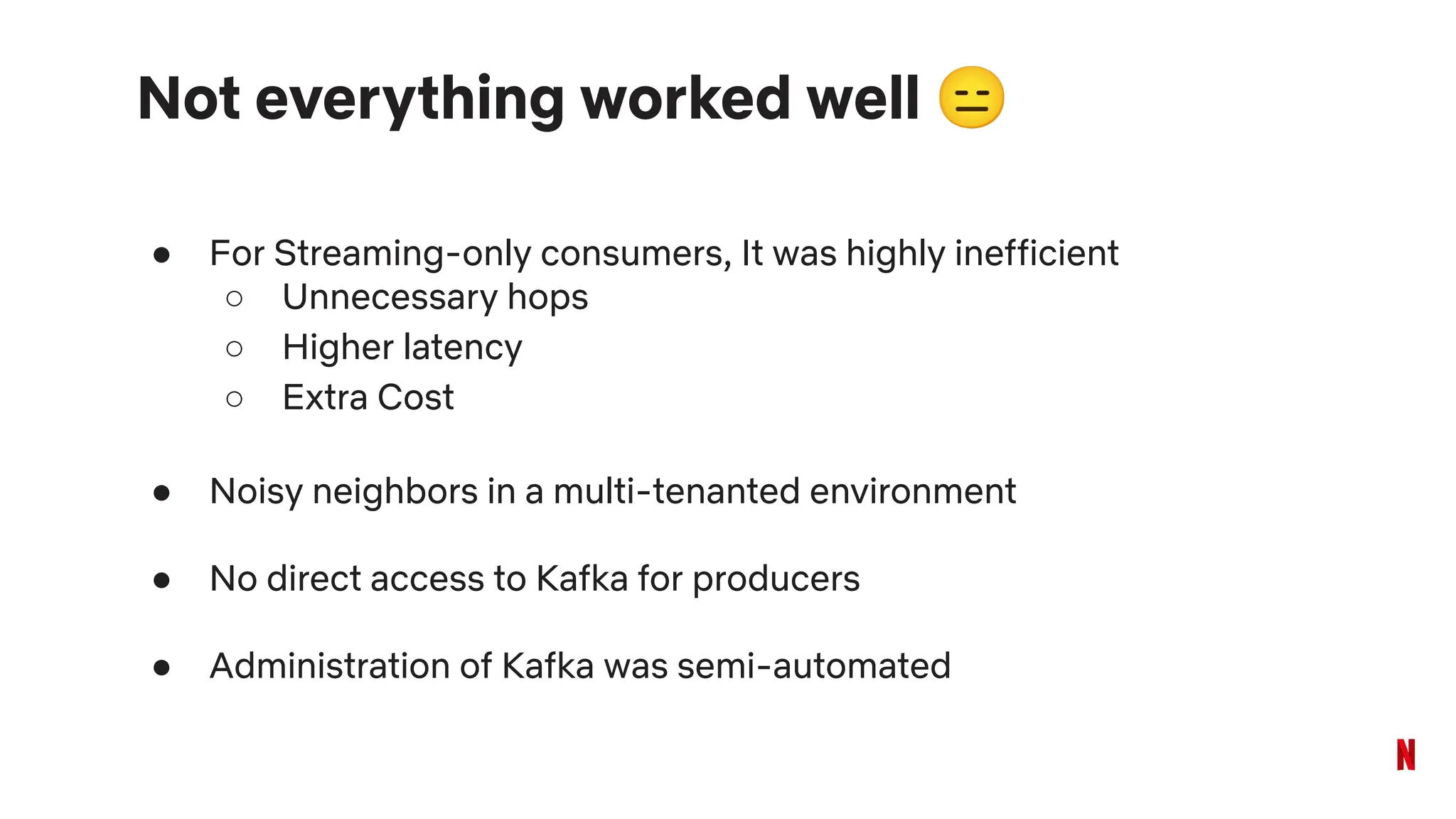

- 23. Not everything workedwell 😑 ● For Streaming-only consumers, It was highly inefficient ○ Unnecessary hops ○ Higher latency ○ Extra Cost ● Noisy neighbors in a multi-tenanted environment ● No direct access to Kafka for producers ● Administration of Kafka was semi-automated

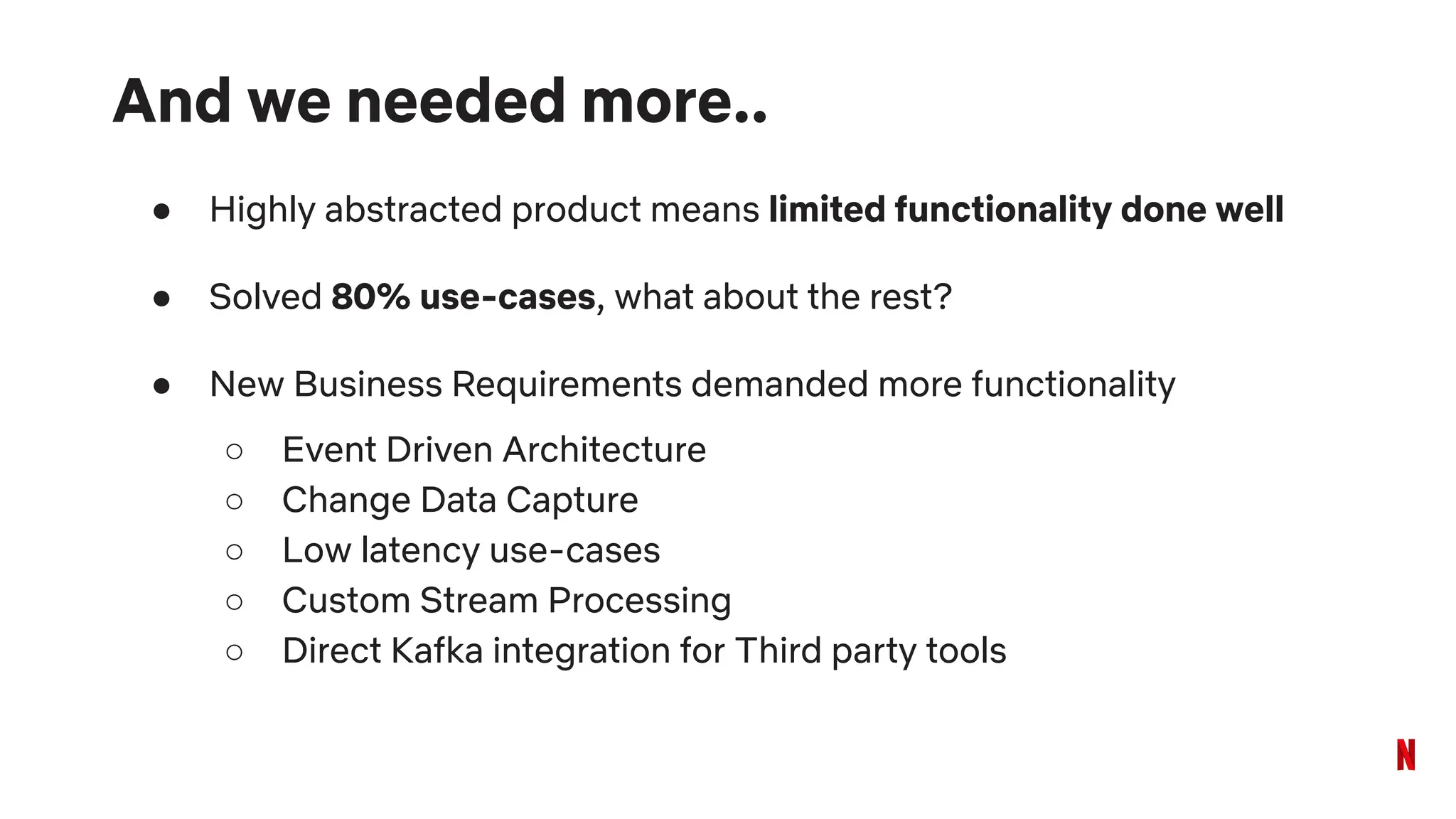

- 24. And we neededmore.. ● Highly abstracted product means limited functionality done well ● Solved 80% use-cases, what about the rest? ● New Business Requirements demanded more functionality ○ Event Driven Architecture ○ Change Data Capture ○ Low latency use-cases ○ Custom Stream Processing ○ Direct Kafka integration for Third party tools
- 25. ● Business Context ●Keystone Platform (2015) ● Evolution to Composable Architecture ● Kafka as a Service (2021) ● KaaS Features and Architecture ● KaaS Learnings Our Journey With Kafka

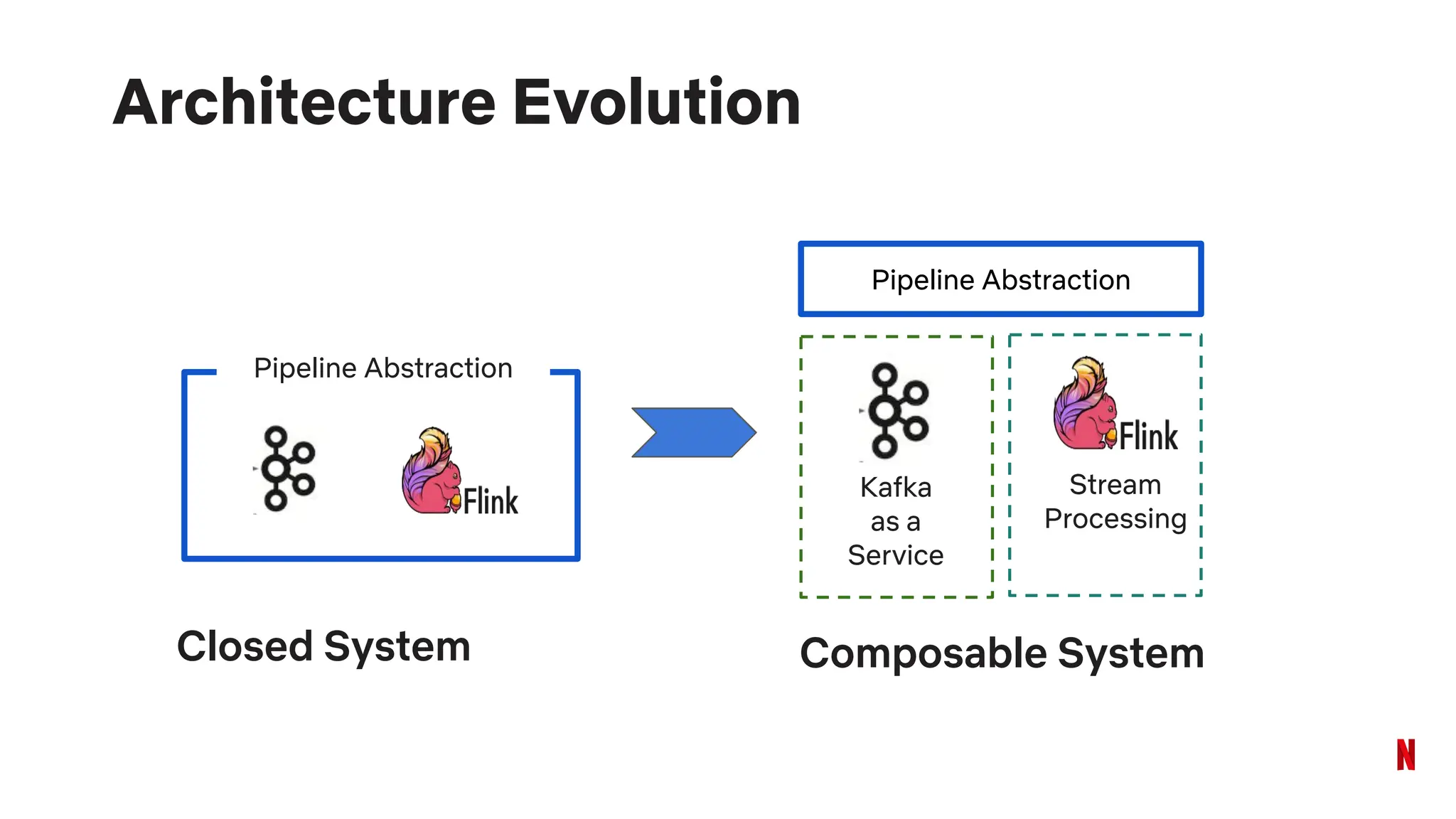

- 26. Closed System Pipeline Abstraction PipelineAbstraction Kafka as a Service Stream Processing Composable System Architecture Evolution

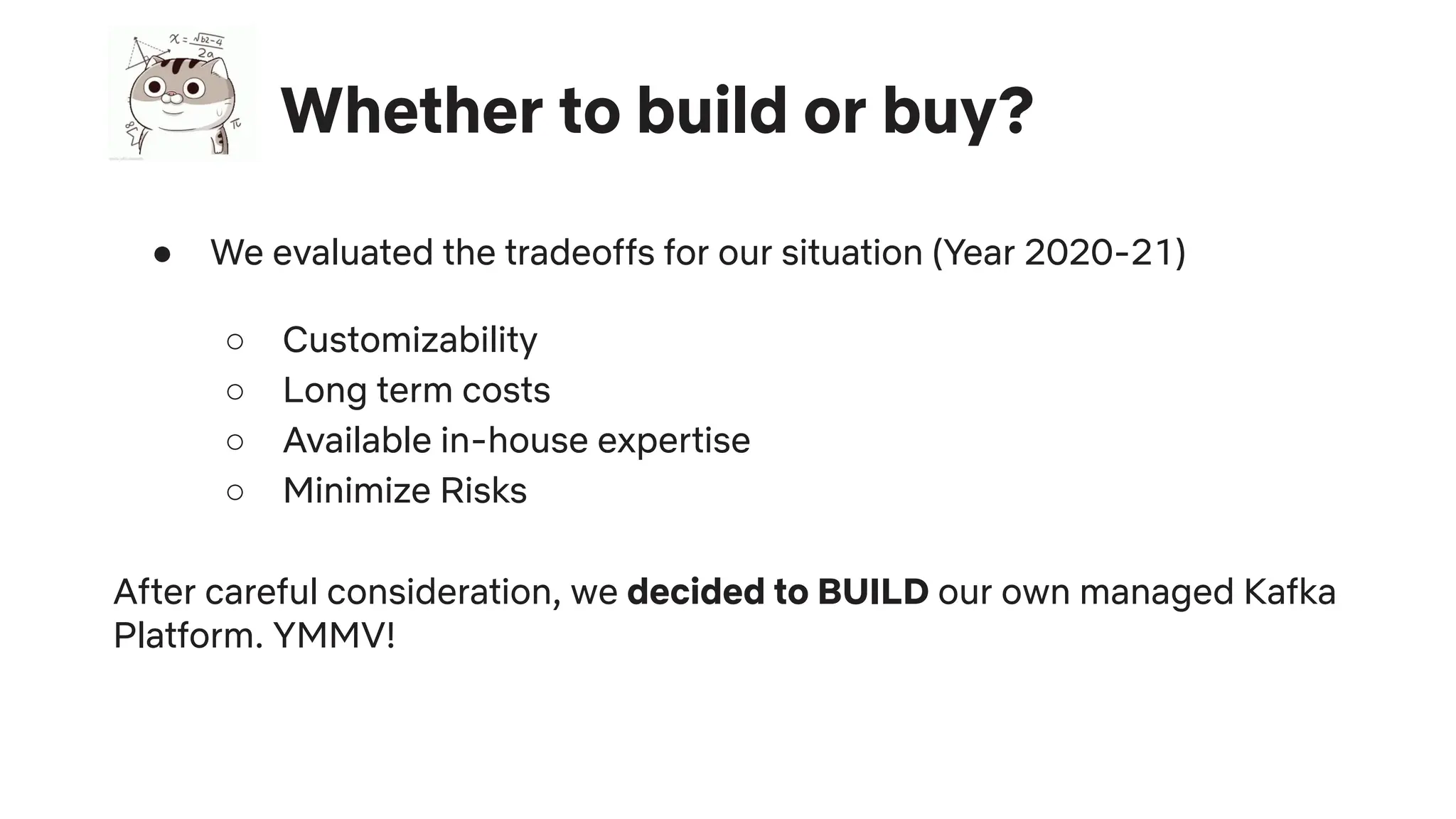

- 27. Whether to buildor buy? ● We evaluated the tradeoffs for our situation (Year 2020-21) ○ Customizability ○ Long term costs ○ Available in-house expertise ○ Minimize Risks After careful consideration, we decided to BUILD our own managed Kafka Platform. YMMV!

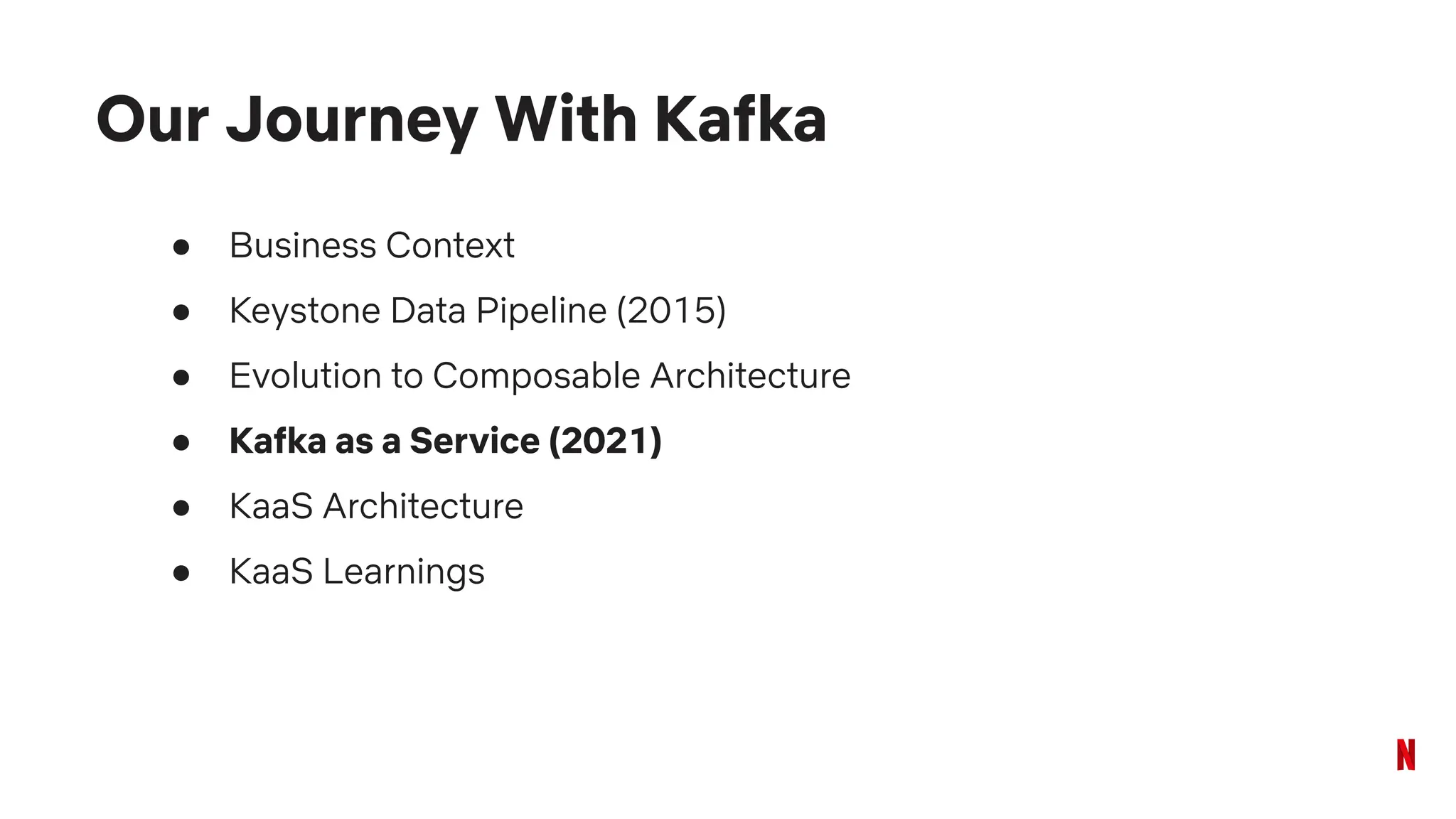

- 28. ● Business Context ●Keystone Data Pipeline (2015) ● Evolution to Composable Architecture ● Kafka as a Service (2021) ● KaaS Architecture ● KaaS Learnings Our Journey With Kafka

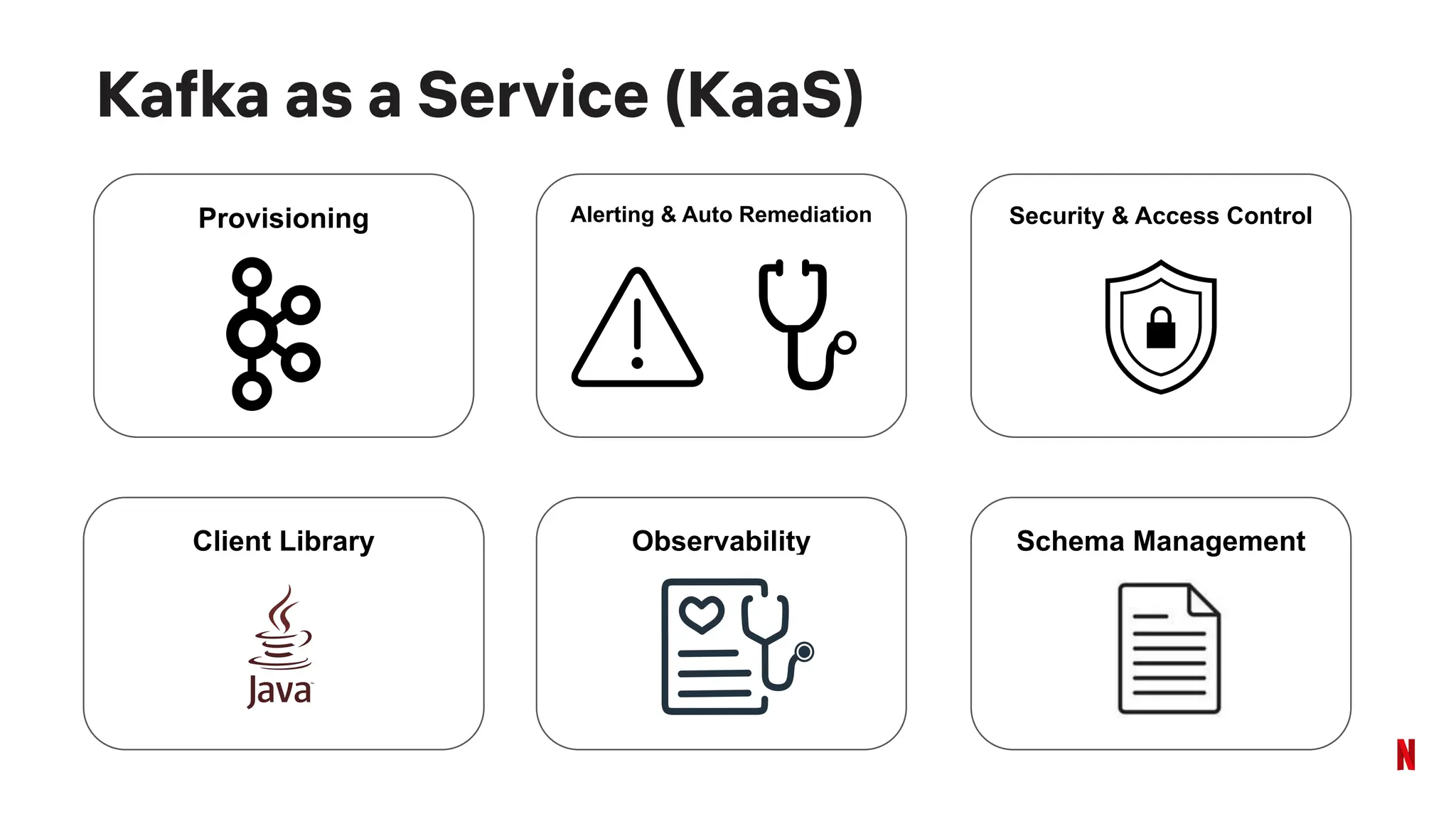

- 29. Kafka as aService (KaaS) Alerting & Auto Remediation Security & Access Control Observability Client Library Schema Management Provisioning
- 30.
- 31.

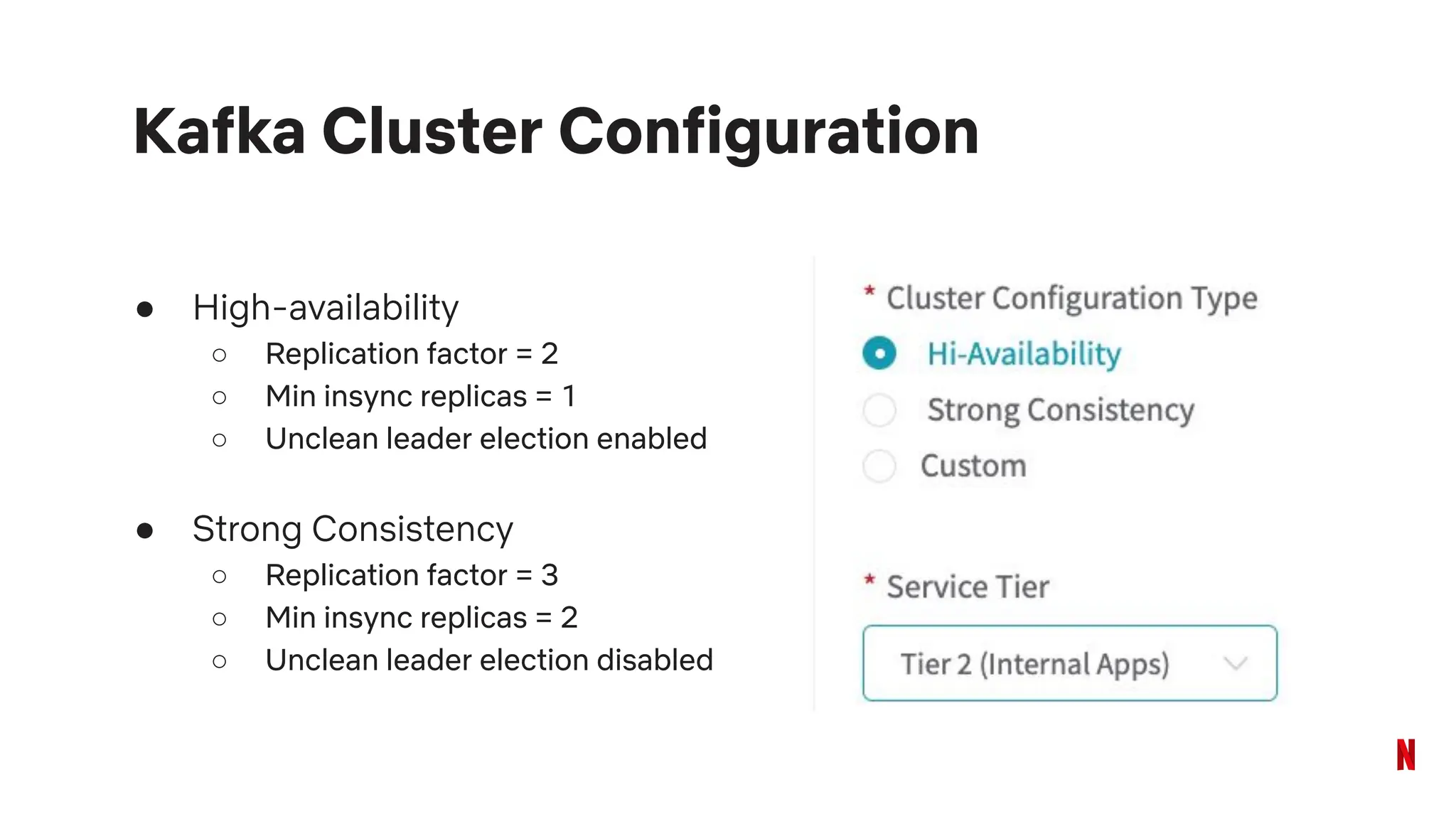

- 32. ● High-availability ○ Replicationfactor = 2 ○ Min insync replicas = 1 ○ Unclean leader election enabled ● Strong Consistency ○ Replication factor = 3 ○ Min insync replicas = 2 ○ Unclean leader election disabled Kafka Cluster Configuration
- 33.
- 34.
- 35.

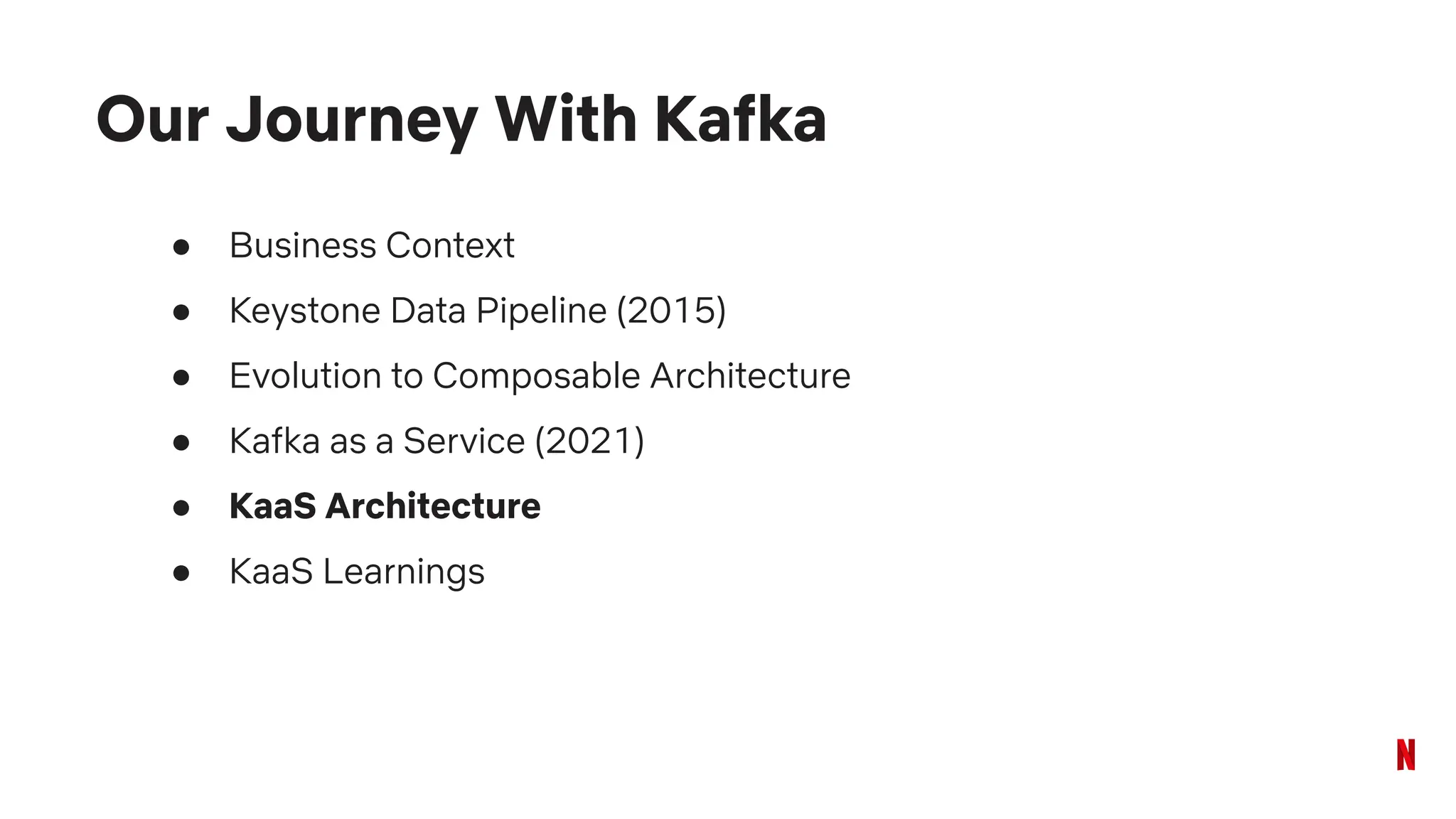

- 36. ● Business Context ●Keystone Data Pipeline (2015) ● Evolution to Composable Architecture ● Kafka as a Service (2021) ● KaaS Architecture ● KaaS Learnings Our Journey With Kafka

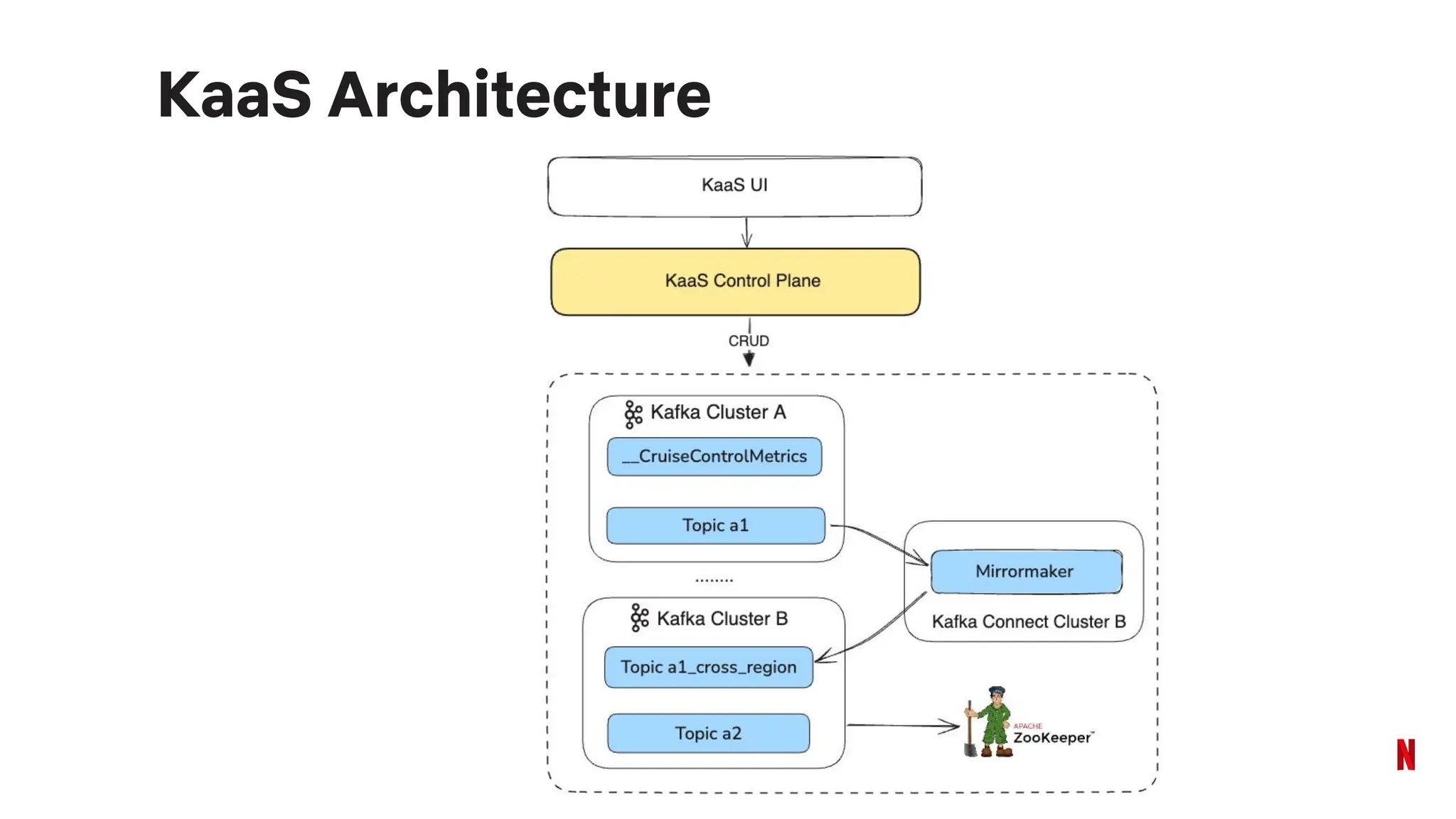

- 37.
- 38.
- 39.

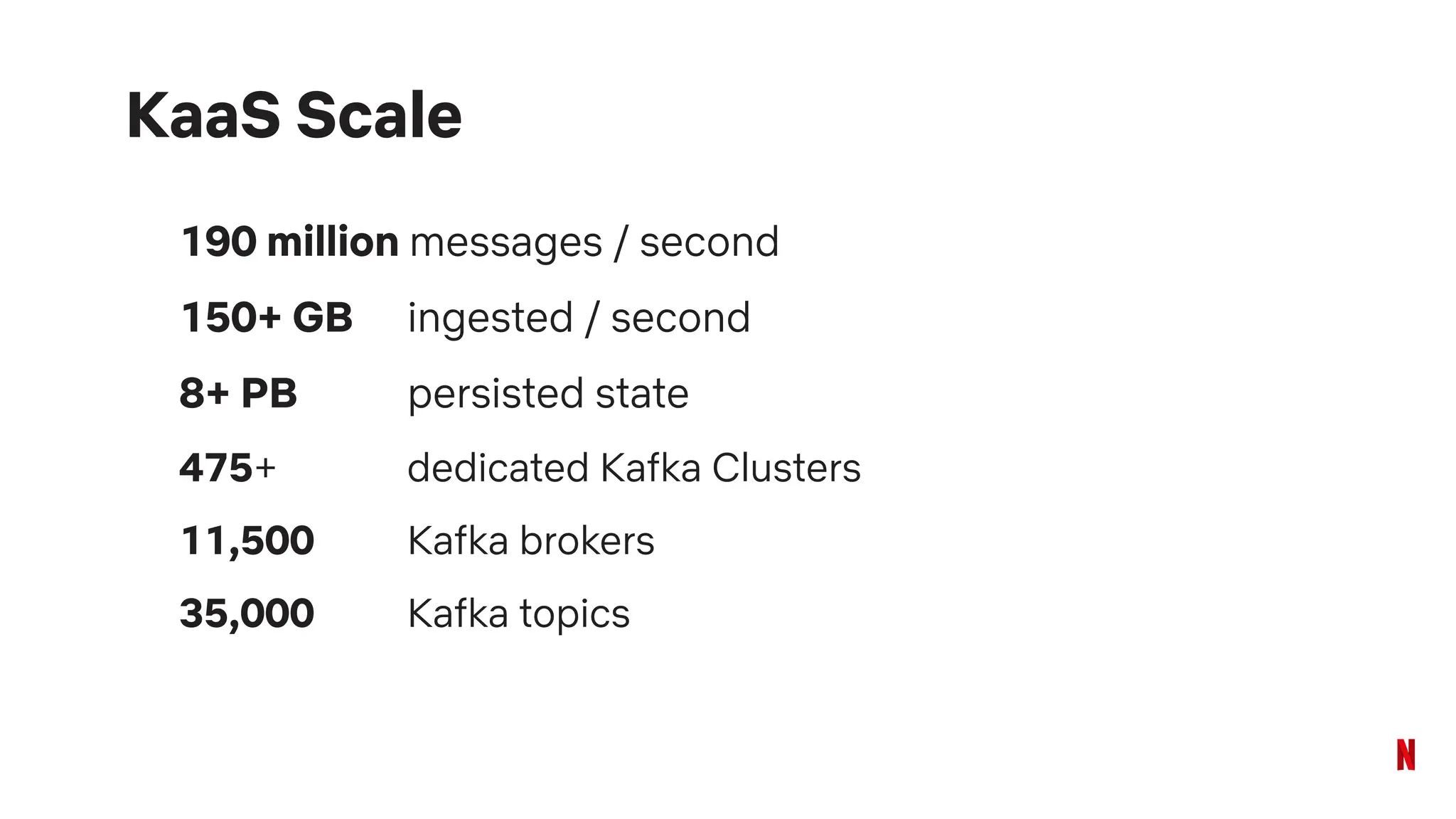

- 40. KaaS Scale 190 millionmessages / second 150+ GB ingested / second 8+ PB persisted state 475+ dedicated Kafka Clusters 11,500 Kafka brokers 35,000 Kafka topics

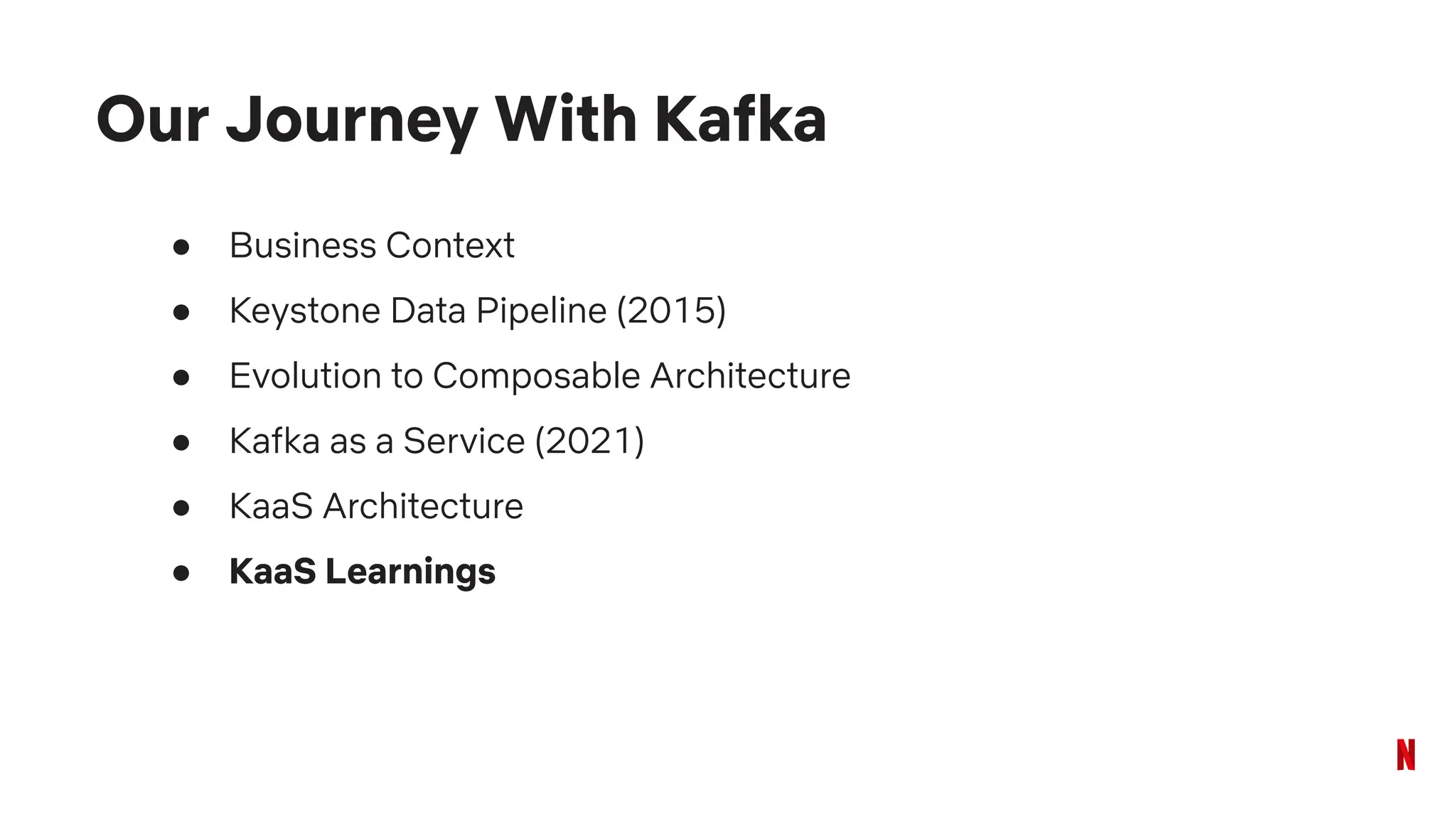

- 41. ● Business Context ●Keystone Data Pipeline (2015) ● Evolution to Composable Architecture ● Kafka as a Service (2021) ● KaaS Architecture ● KaaS Learnings Our Journey With Kafka
- 42. 1. Scaling asingle Kafka Cluster

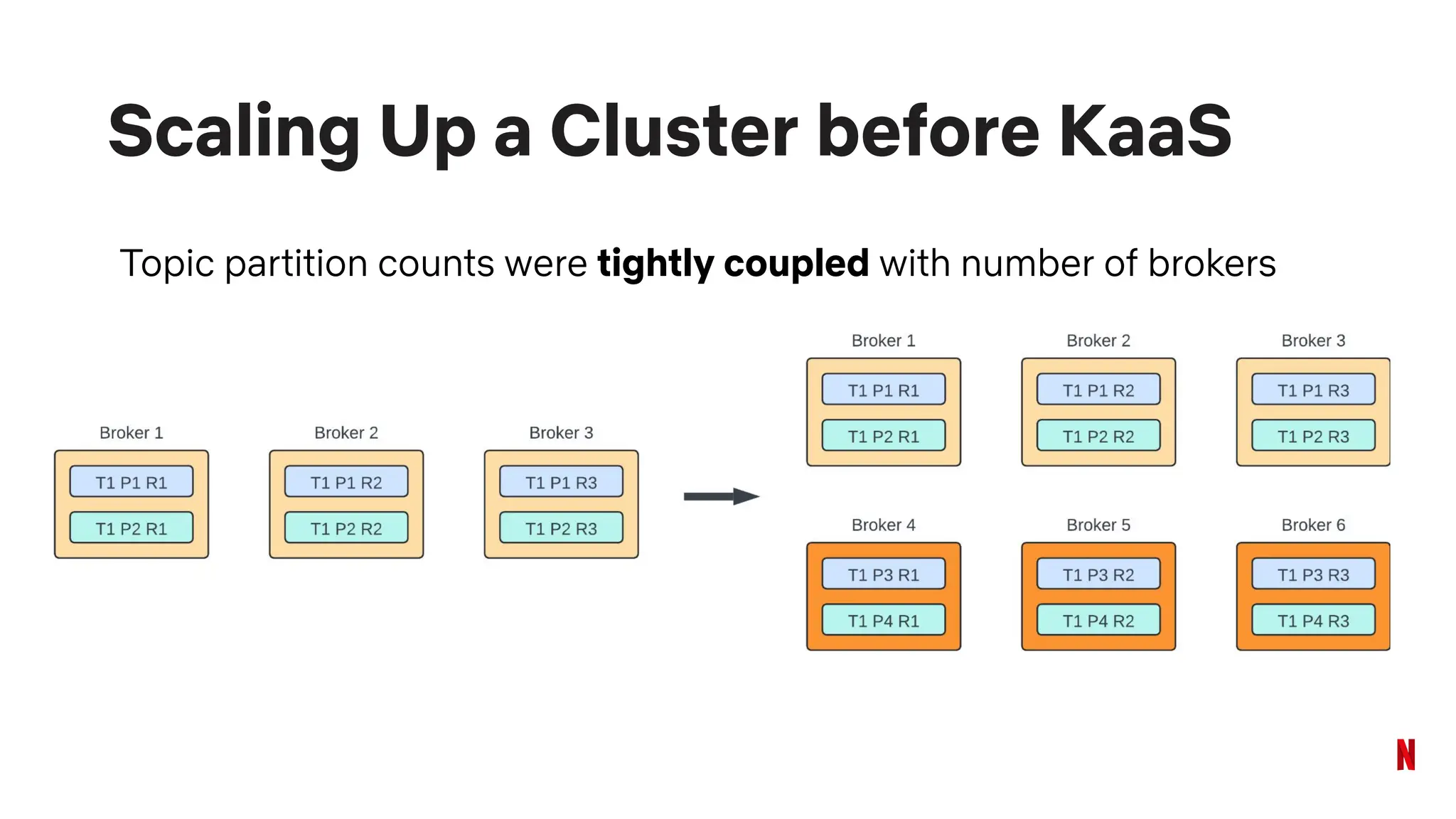

- 43. Scaling Up aCluster before KaaS Topic partition counts were tightly coupled with number of brokers

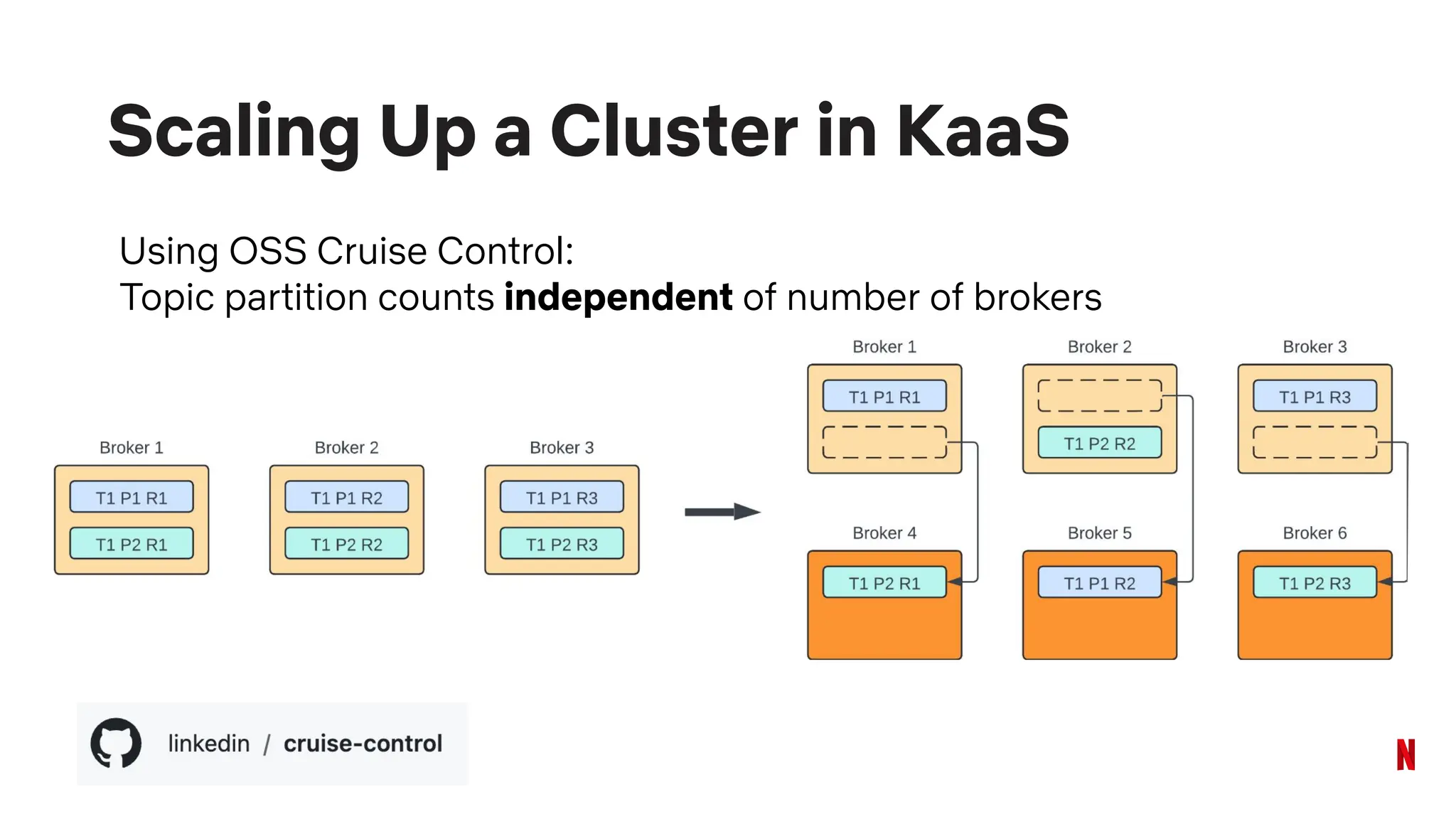

- 44. Using OSS CruiseControl: Topic partition counts independent of number of brokers Scaling Up a Cluster in KaaS

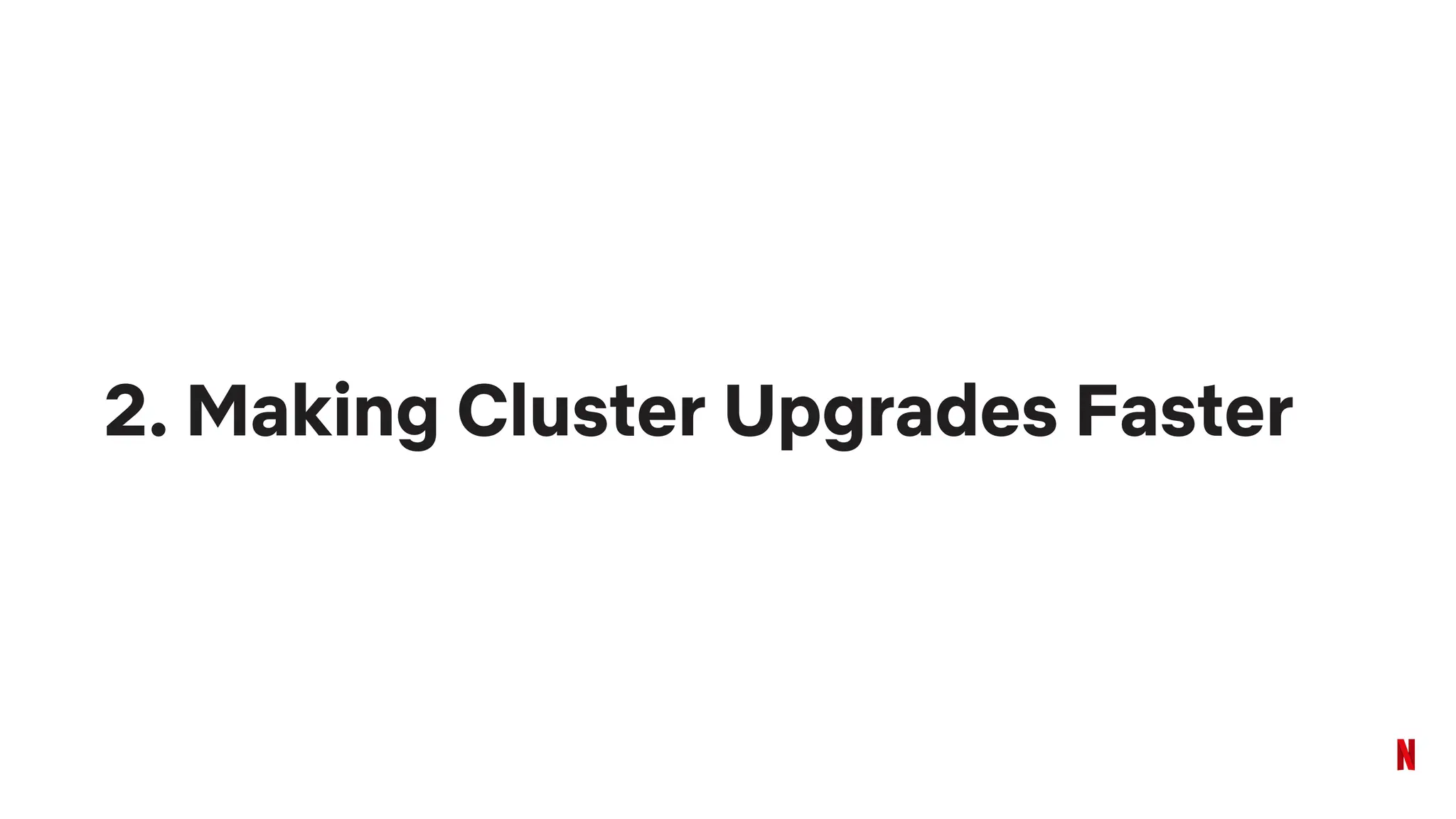

- 45. 2. Making ClusterUpgrades Faster

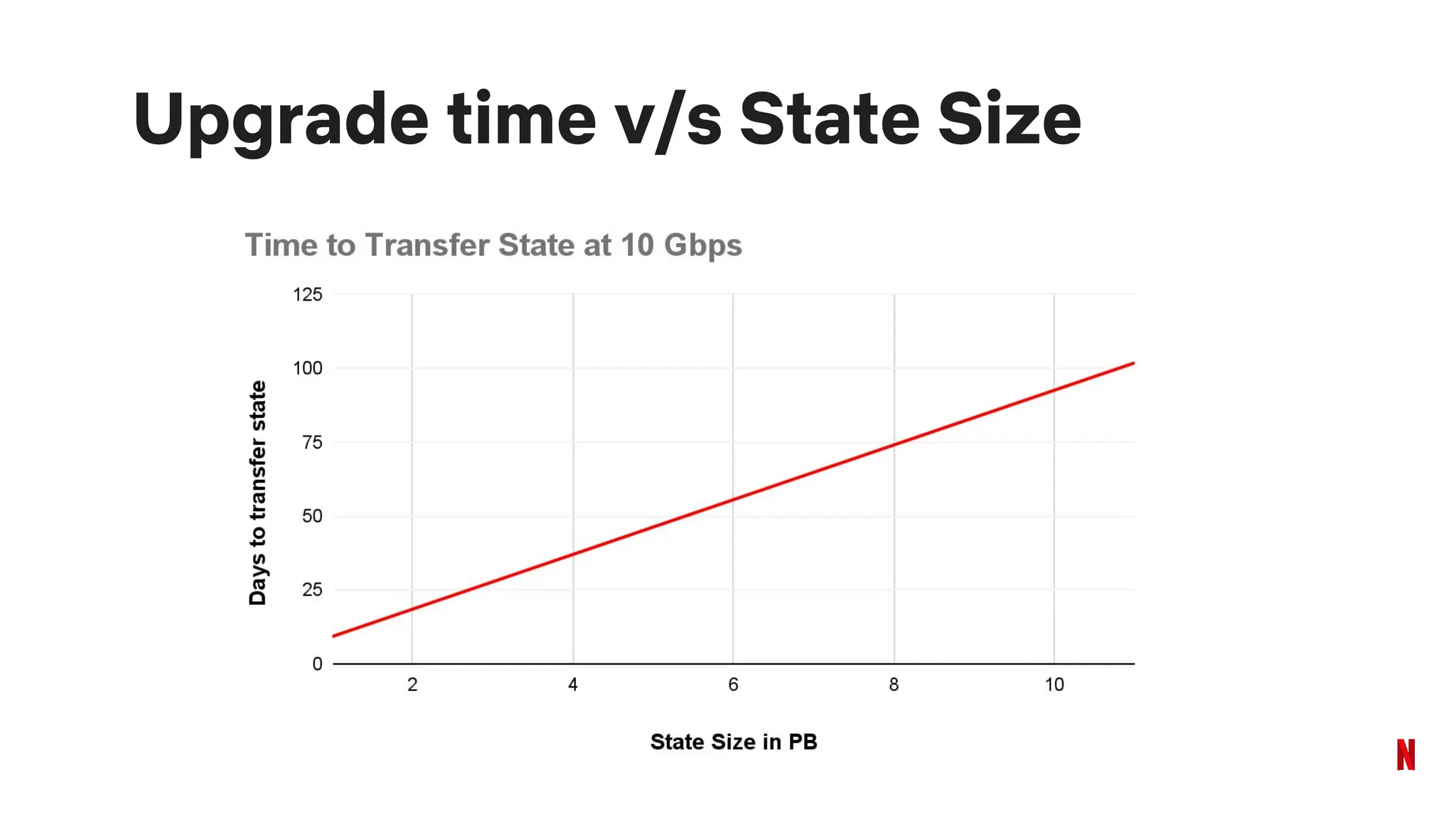

- 46. Upgrade time v/sState Size

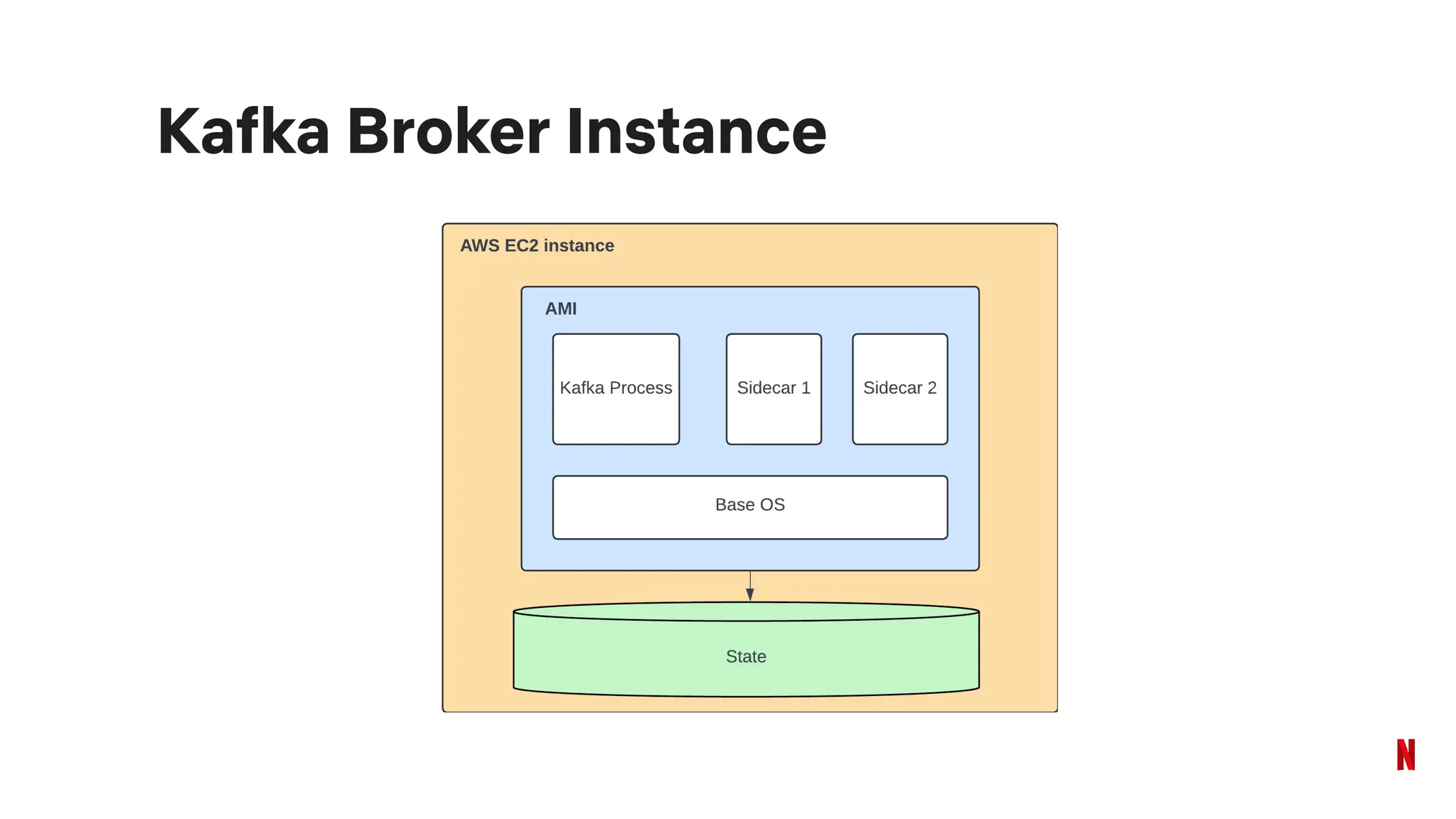

- 47.

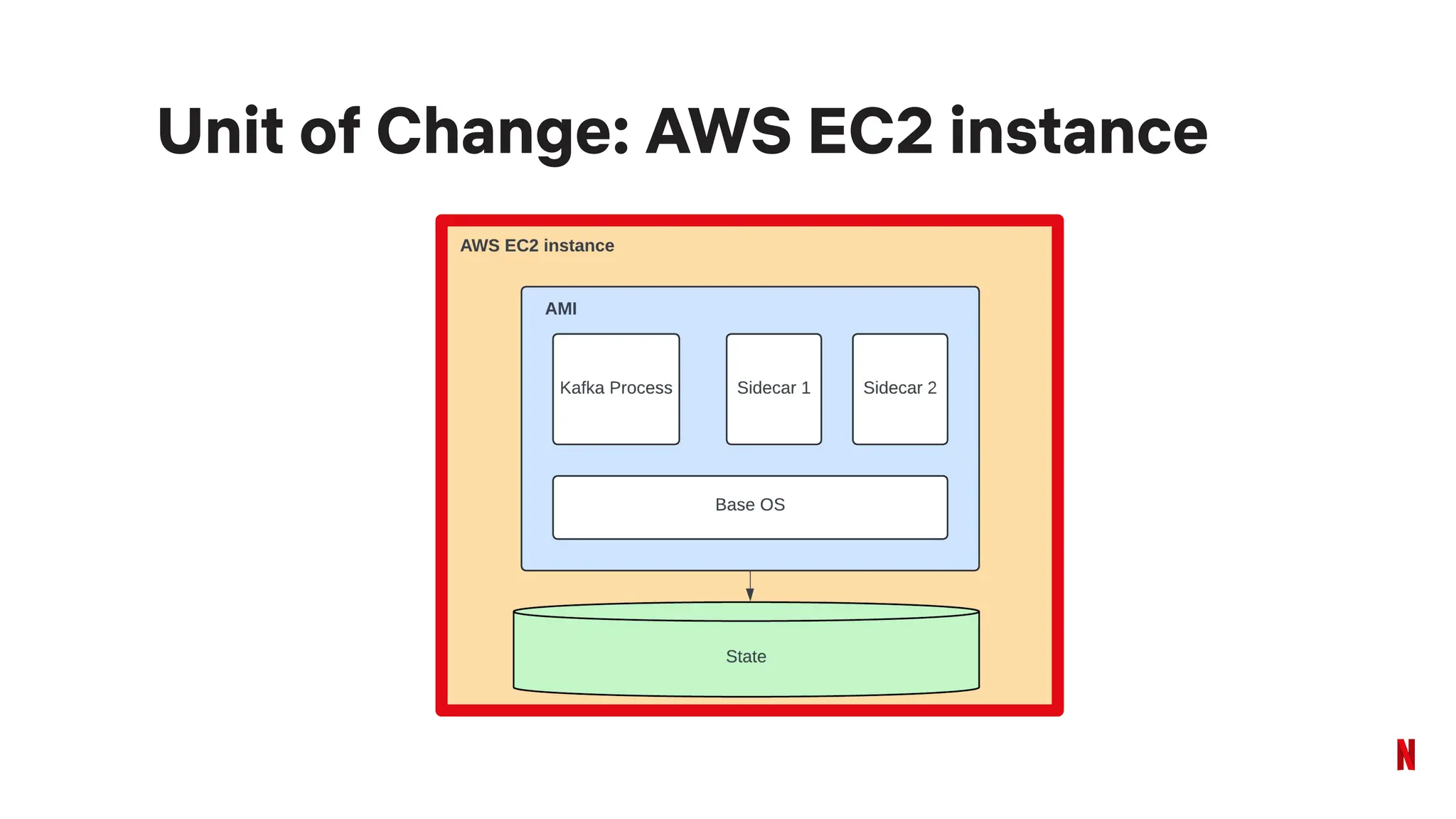

- 48. Unit of Change:AWS EC2 instance
- 49. Kafka Fleet Upgrades UpgradeTime (old strategy) Desired Upgrade Time Upgrade Frequency Hardware Upgrade 3+ months < 1 month annually Software Upgrade 3+ months < 1 week monthly

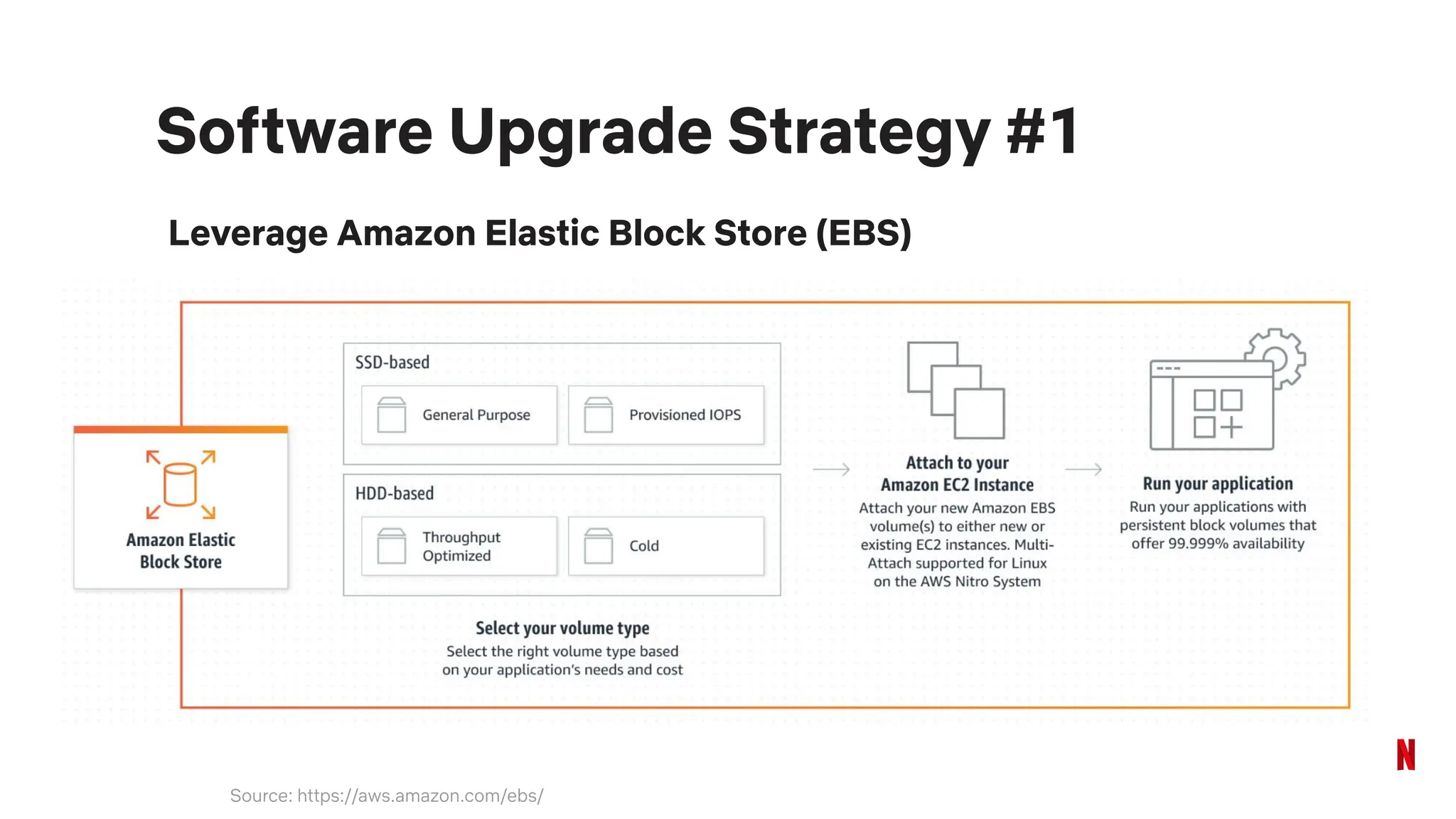

- 50. Software Upgrade Strategy#1 Leverage Amazon Elastic Block Store (EBS) Source: https://aws.amazon.com/ebs/

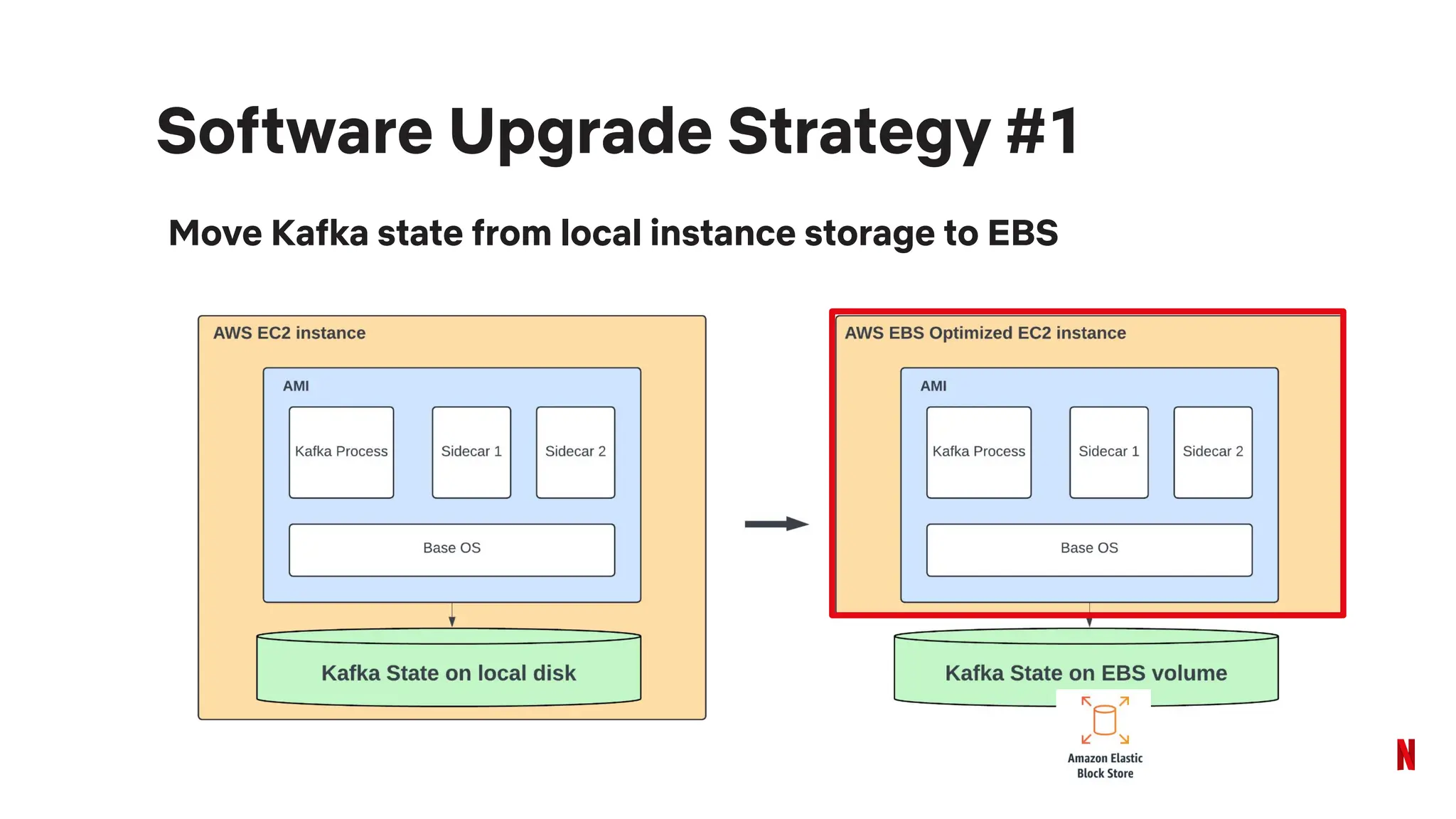

- 51. Move Kafka statefrom local instance storage to EBS Software Upgrade Strategy #1

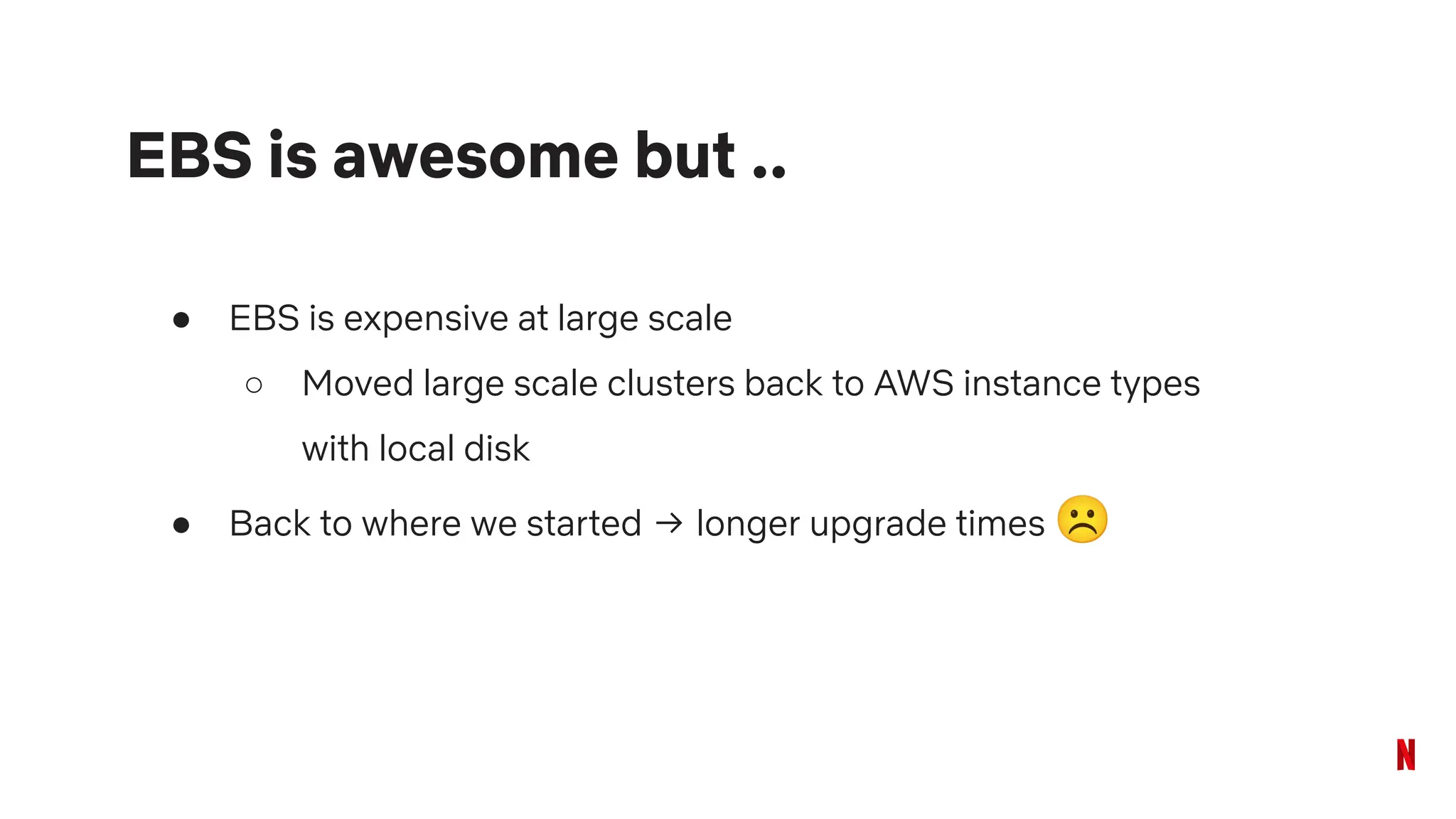

- 52. ● EBS isexpensive at large scale ○ Moved large scale clusters back to AWS instance types with local disk ● Back to where we started → longer upgrade times ☹ EBS is awesome but ..
- 53. How can weupgrade faster without EBS?

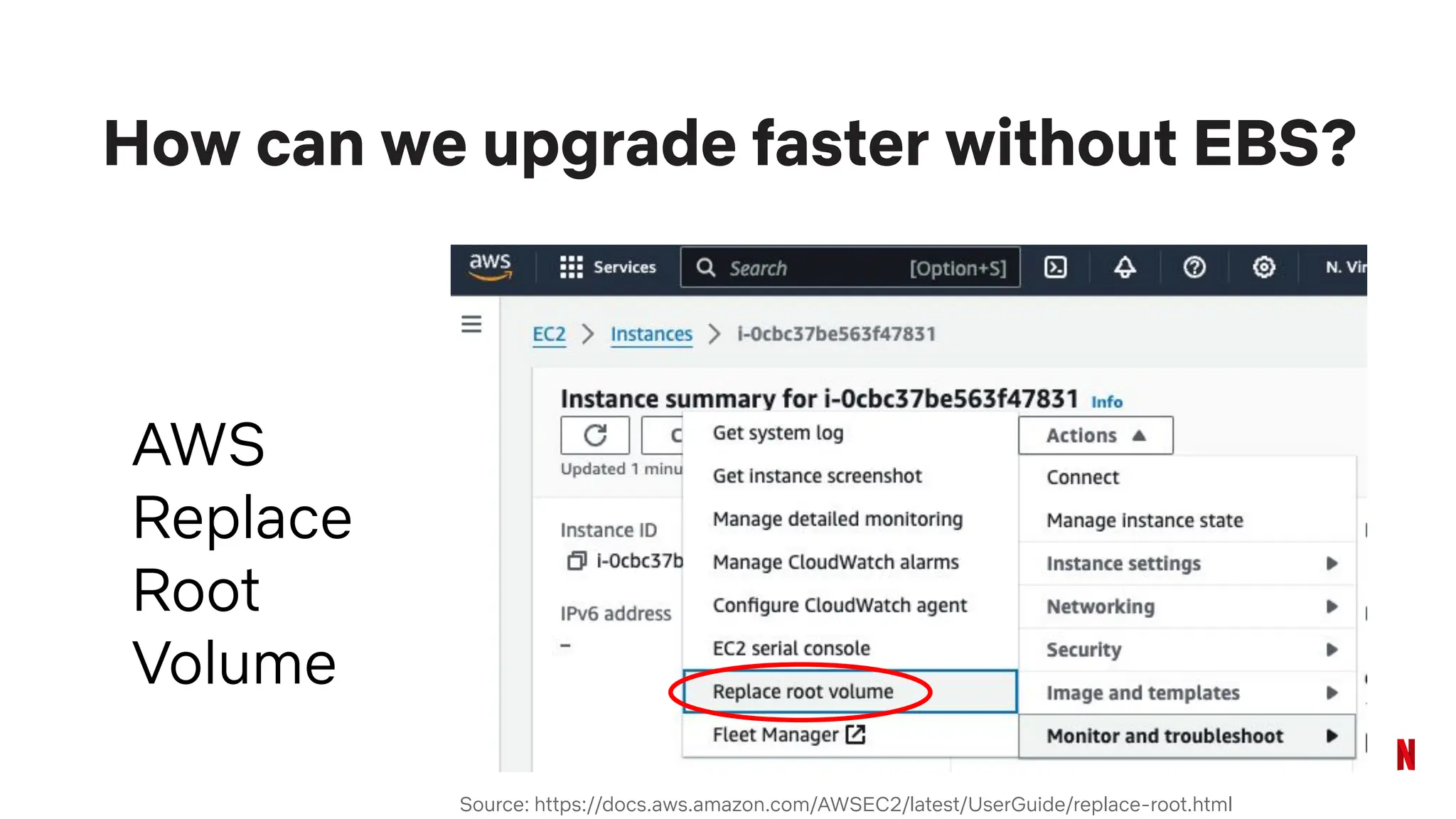

- 54. How can weupgrade faster without EBS? AWS Replace Root Volume Source: https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/replace-root.html

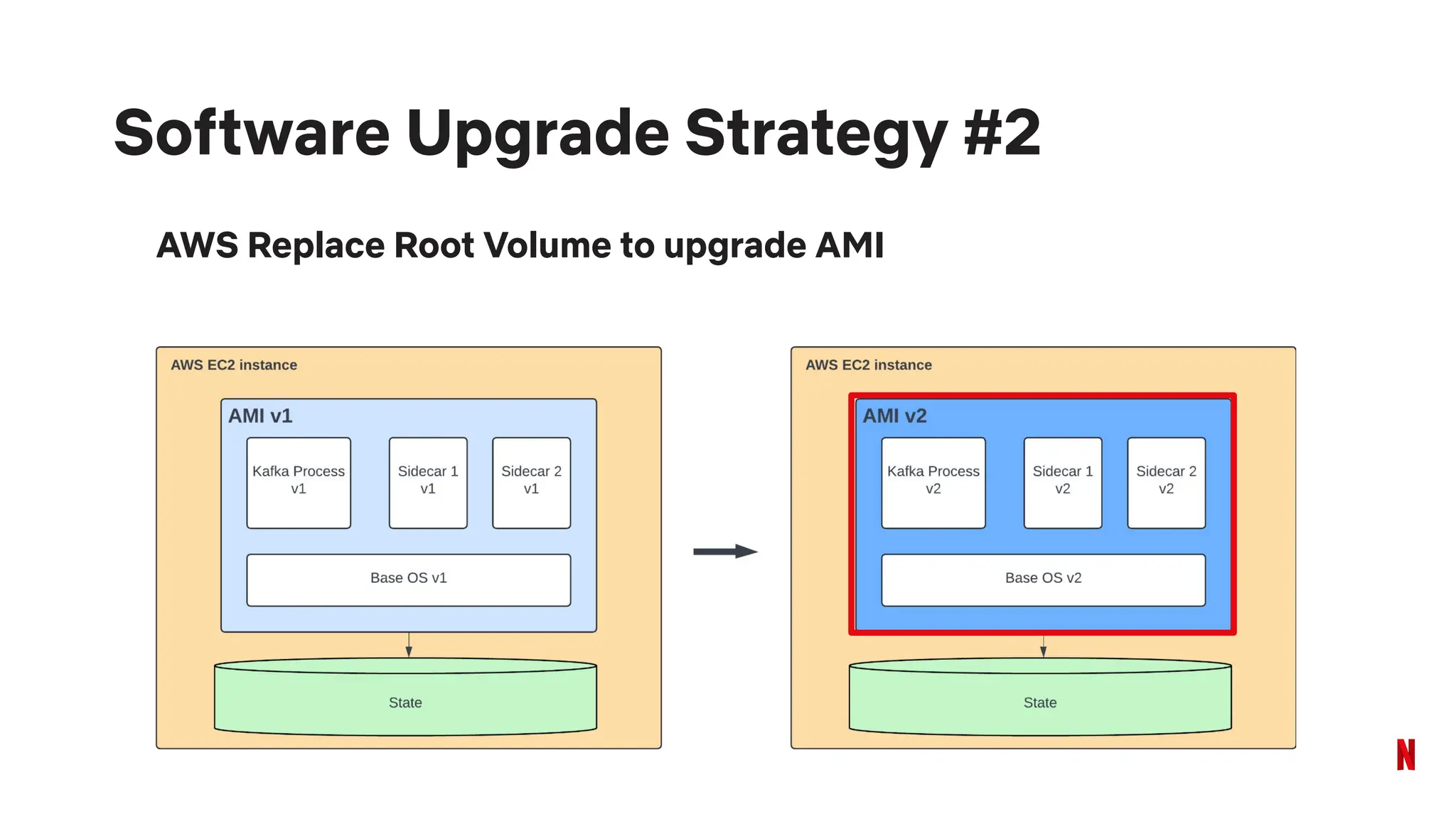

- 55. AWS Replace RootVolume to upgrade AMI Software Upgrade Strategy #2

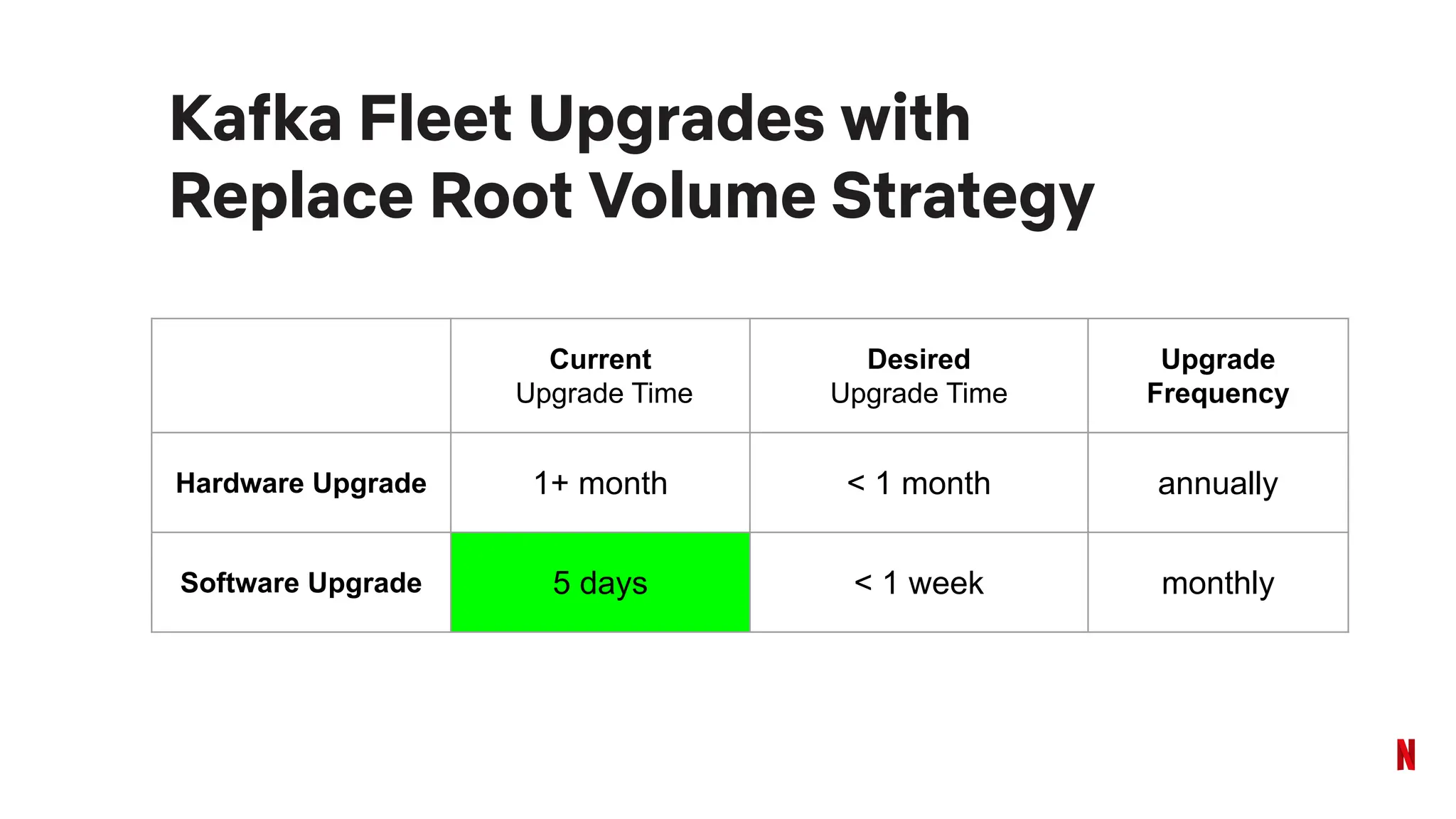

- 56. Kafka Fleet Upgradeswith Replace Root Volume Strategy Current Upgrade Time Desired Upgrade Time Upgrade Frequency Hardware Upgrade 1+ month < 1 month annually Software Upgrade 5 days < 1 week monthly
- 57.

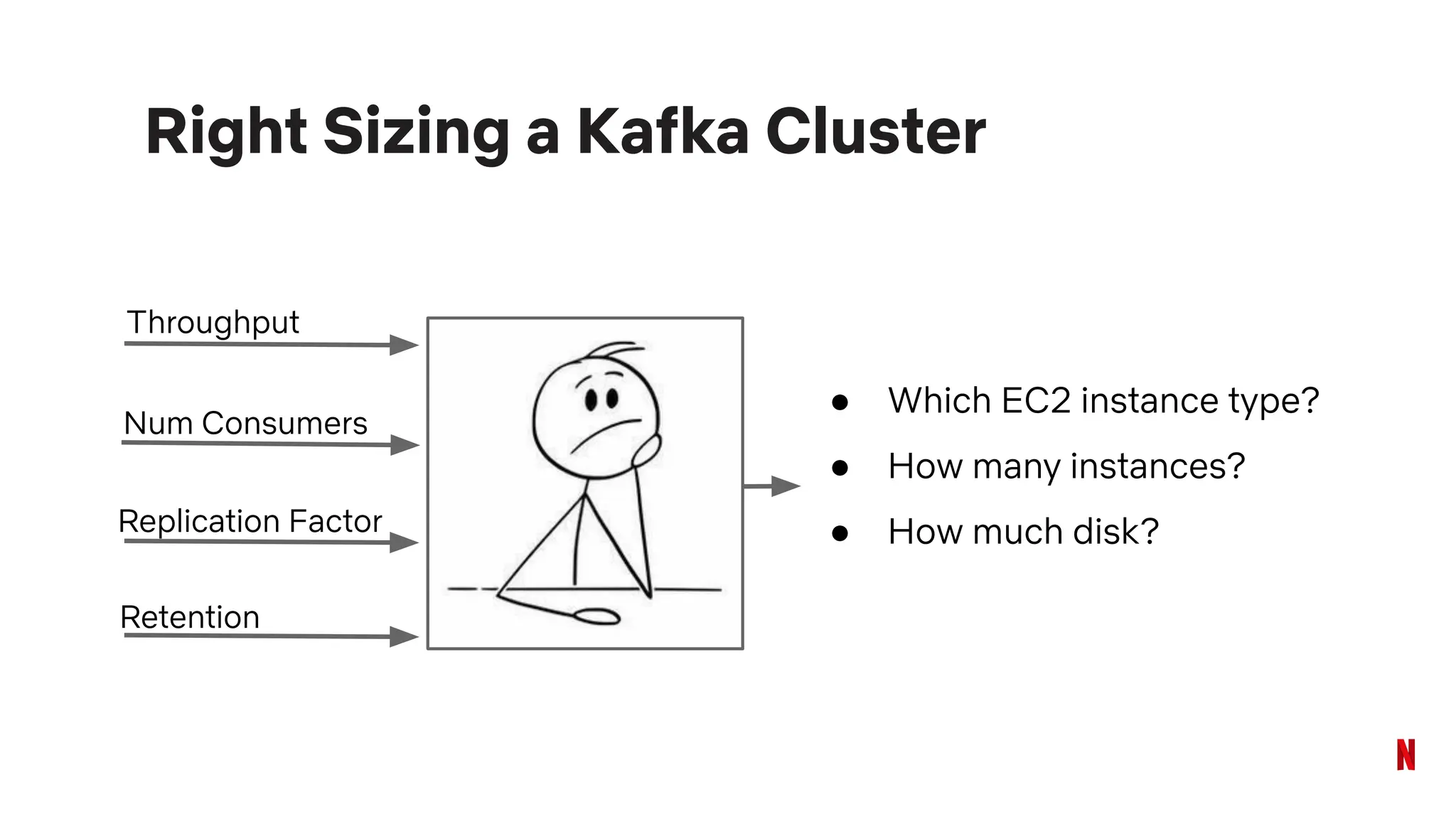

- 58. Right Sizing aKafka Cluster Num Consumers Throughput Replication Factor Retention ● Which EC2 instance type? ● How many instances? ● How much disk?

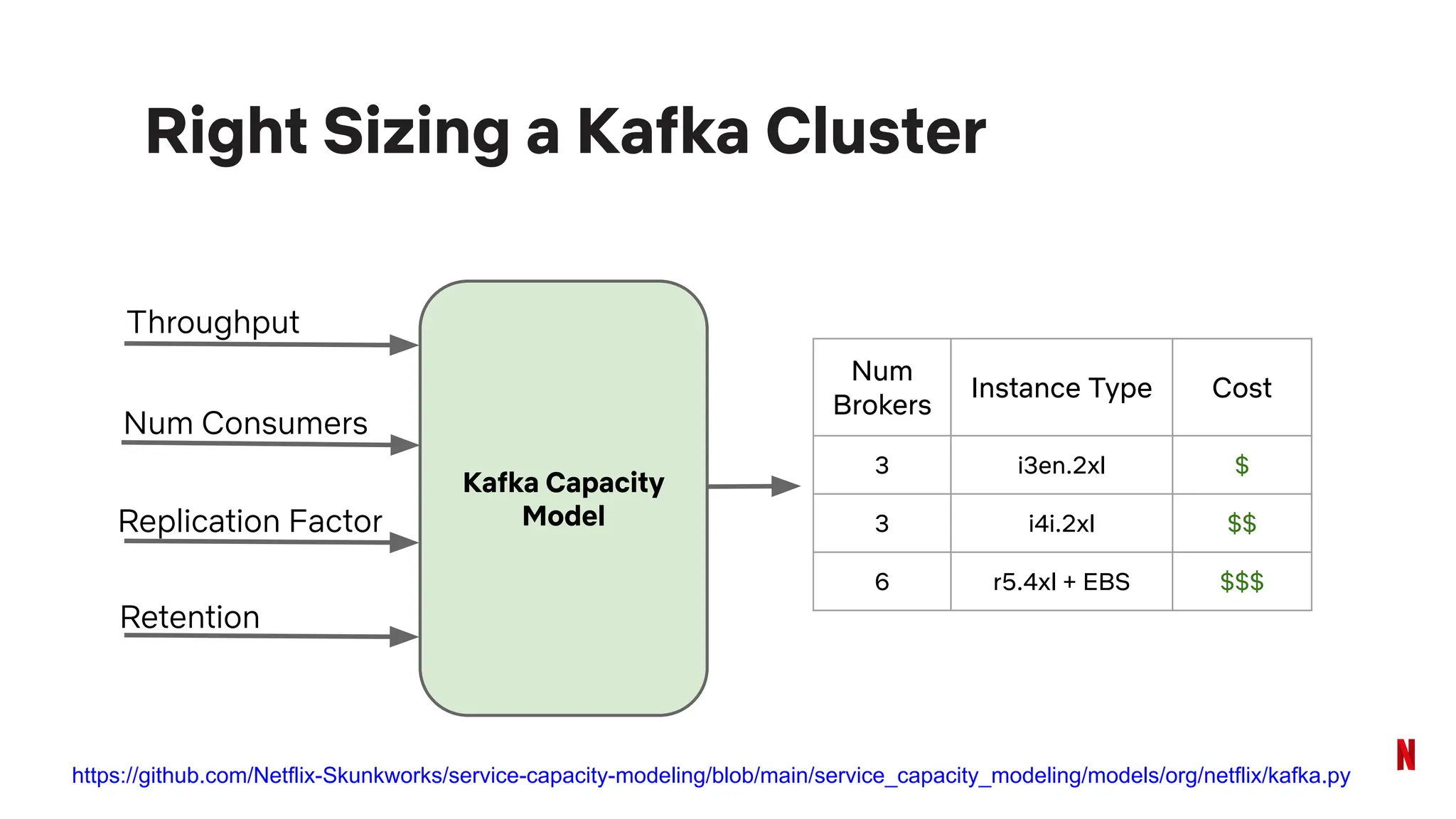

- 59. Right Sizing aKafka Cluster Num Consumers Throughput Replication Factor Retention Kafka Capacity Model Num Brokers Instance Type Cost 3 i3en.2xl $ 3 i4i.2xl $$ 6 r5.4xl + EBS $$$ https://github.com/Netflix-Skunkworks/service-capacity-modeling/blob/main/service_capacity_modeling/models/org/netflix/kafka.py
- 60. ● Business Context ●Keystone Data Pipeline (2015) ● Evolution to Composable Architecture ● Kafka as a Service (2021) ● KaaS Features and Architecture ● KaaS Learnings Our Journey With Kafka

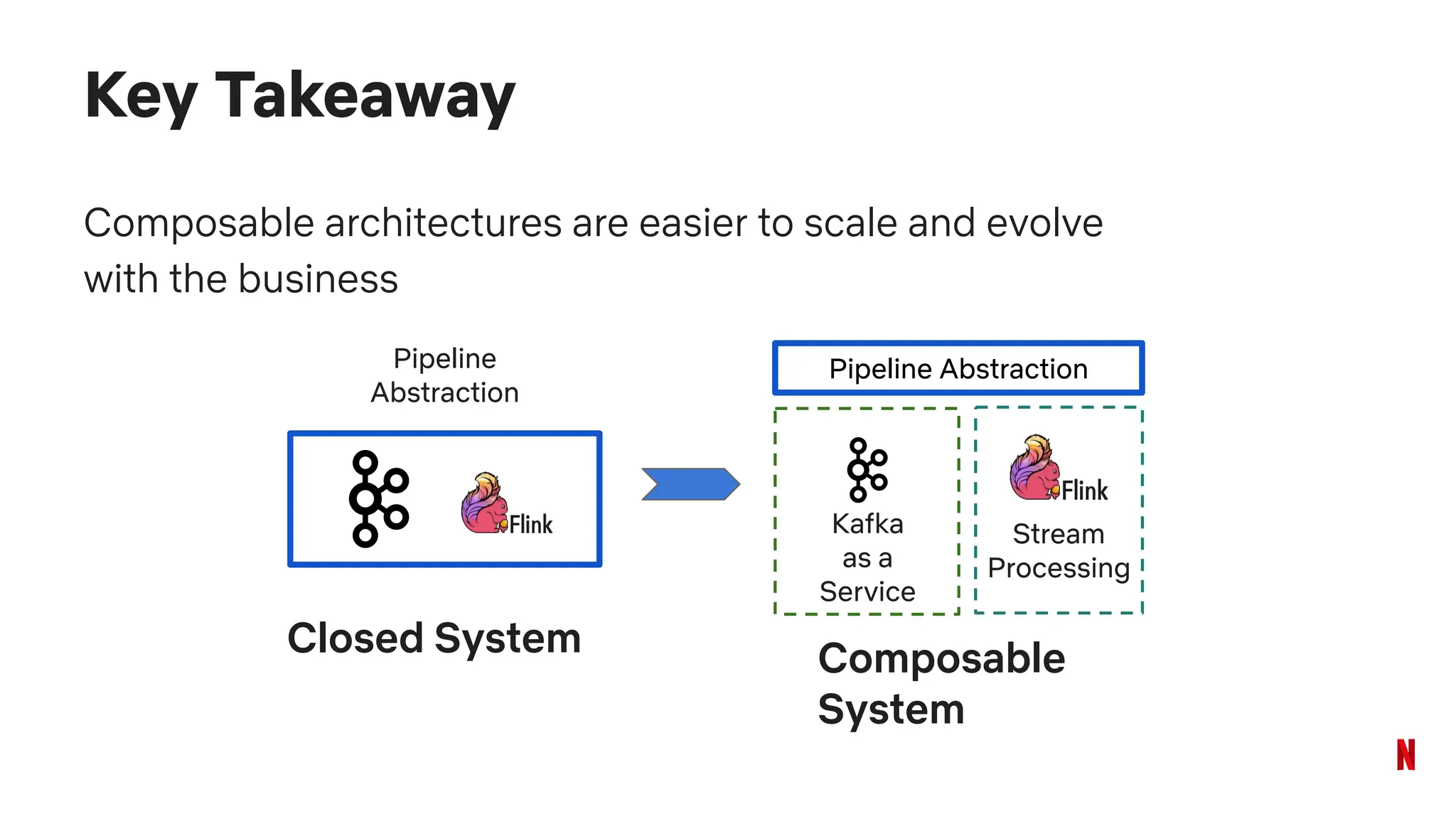

- 61. Composable architectures areeasier to scale and evolve with the business Key Takeaway Closed System Pipeline Abstraction Pipeline Abstraction Kafka as a Service Stream Processing Composable System
- 62. Q & A Self-hostingKafka at Scale Netflix’s Journey & Challenges Piyush Goyal Nick Mahilani

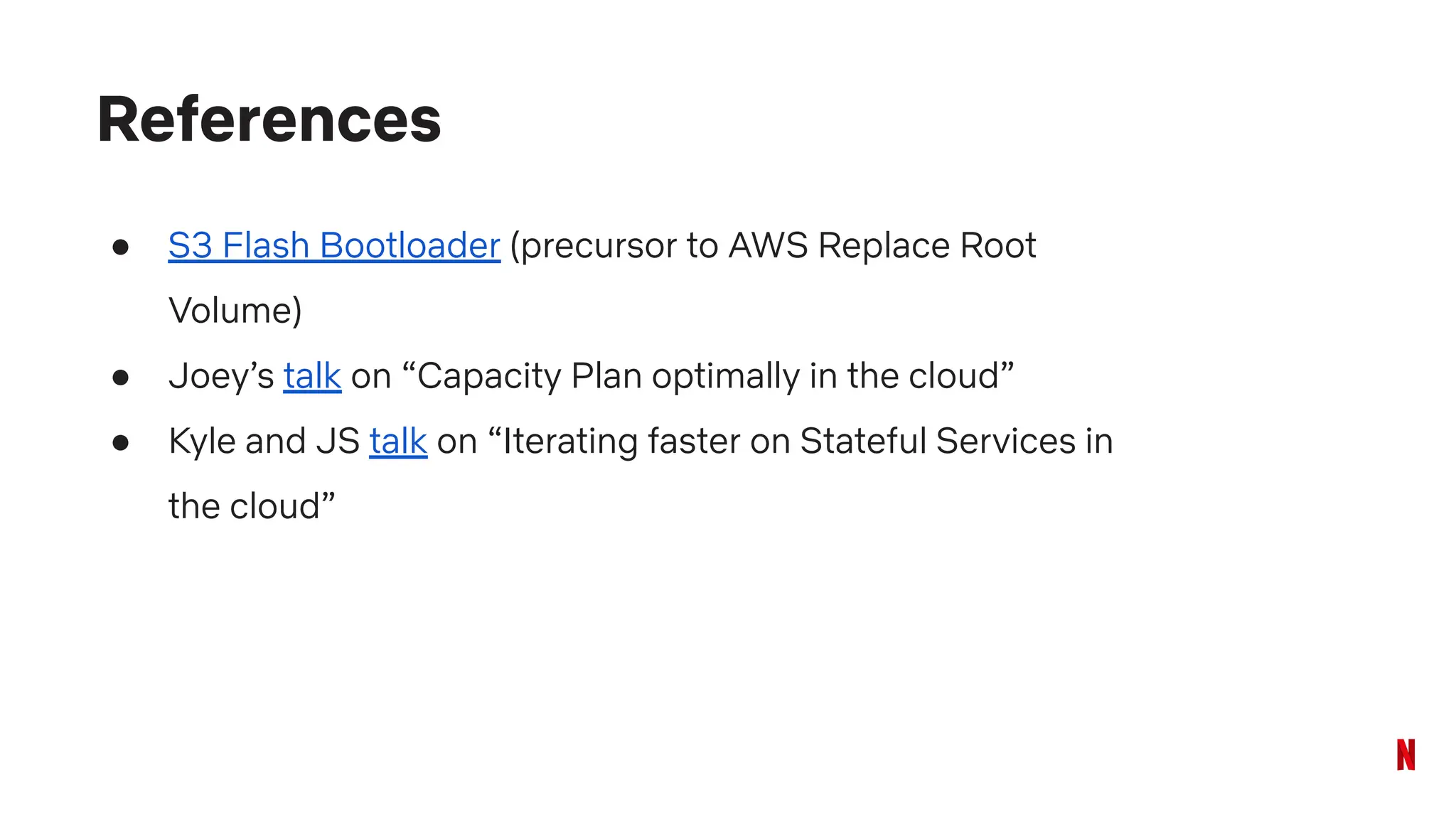

- 63. ● S3 FlashBootloader (precursor to AWS Replace Root Volume) ● Joey’s talk on “Capacity Plan optimally in the cloud” ● Kyle and JS talk on “Iterating faster on Stateful Services in the cloud” References
