The goal of SDC Verifier is checking structures according to standards and report generation.

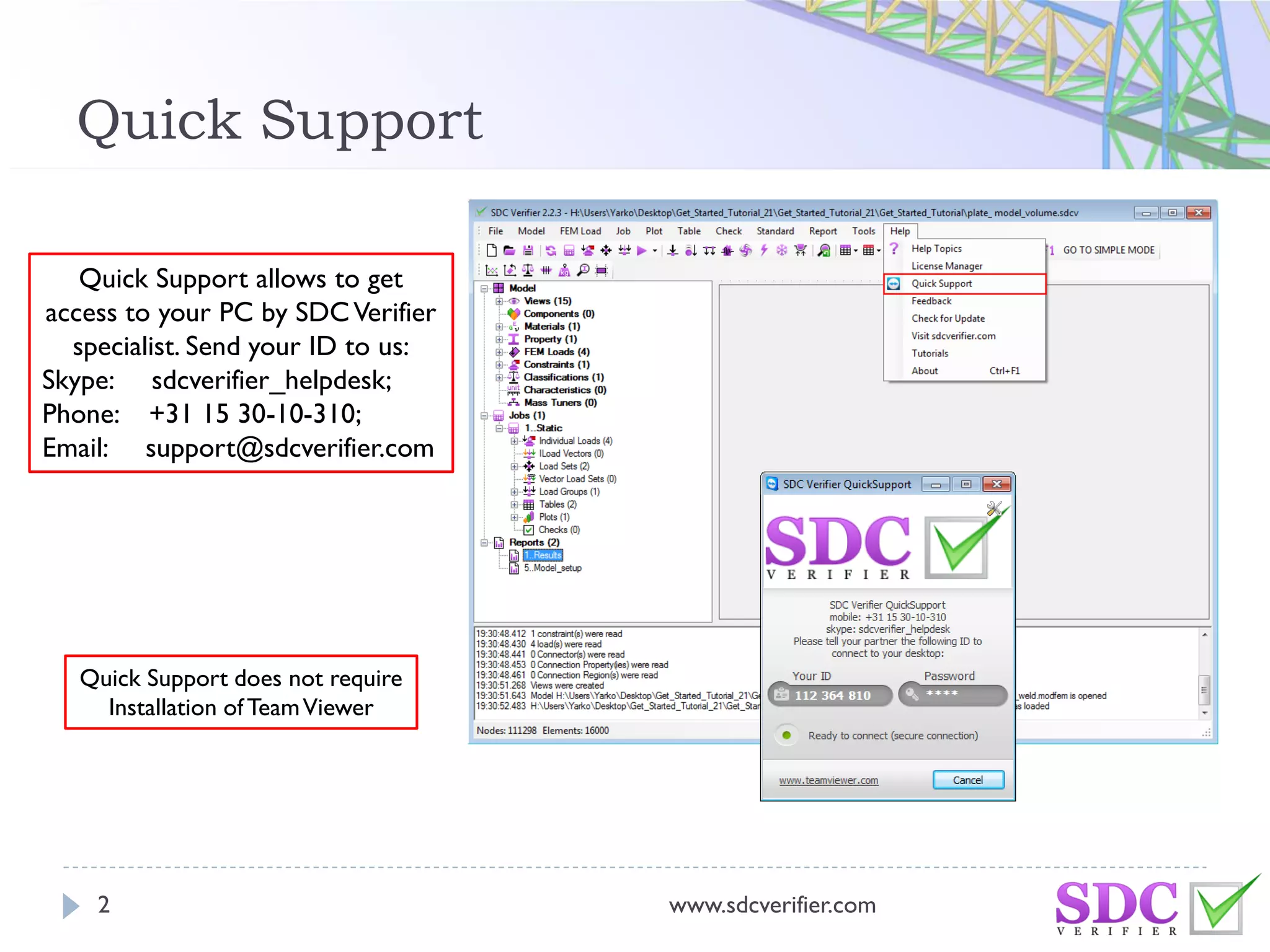

1. Structural Design Code Verifier

2. Quick Support
www.sdcverifier.com2
Quick Support allows to get
access to your PC by SDCVerifier
specialist. Send your ID to us:
Skype: sdcverifier_helpdesk;
Phone: +31 15 30-10-310;
Email: support@sdcverifier.com
Quick Support does not require
Installation ofTeamViewer

3. What is SDC Verifier?
www.sdcverifier.com3
The goal of SDCVerifier is checking structures according to
standards and report generation.

4. Load combinations: example from Standard
www.sdcverifier.com4
19Individualloads
SDCVerifier implements:
• Individual Loads;
• Load Sets;
• Load Groups;
A lot of loads and
combinations should
be checked according to
standards.
3LoadGroups
18LoadSets

5. Tools
www.sdcverifier.com5
 Panel Finder;
 Beam Member Finder;
 Complicated Load:Wind and Hydroload;
 Rule Based Selector;

6. Tools. Panel Finder.
www.sdcverifier.com6
XY and Z planes
Frames
DecksLongitudinals

7. Tools. Beam Member Finder.
www.sdcverifier.com7
Beams Intersection
Helps to define beam length.
Can be used in Beam Buckling
Check and custom checks.
Beam Length Plot

8. Tools. Complicated loads
www.sdcverifier.com8
Water level calculation
Hull pressure
Accelerations on tank
content included
HydroloadWind
Pressure (depend on height)

9. Rule based Selector
www.sdcverifier.com9
Always Up to date
Rule Types:
- Materials;
- Properties;
- Groups;
- Coordinate;
- ElementTypes;
- Element Shapes;
Operations:
- Add;
- Remove;
- Exclude;
- Reselect.
Coordinate Rule
ElementTypes Rule

10. Checks
www.sdcverifier.com10
 Fatigue check according to different methods and
standards
 Plate Buckling according to ABS and DNV standards;
 Custom Checks;
 Moment Shear Force Check;

11. Example: Fatigue Check with mean stress
correction
www.sdcverifier.com11
For single stresses
Fatigue Allowable Stress Design (Goodman relation)
Combined
Maximum Fatigue Damage
Allowable Stress depends on classification
Element Group 6 more
than 2 millions cycles
K4 welds example
Used by standards as DIN 15018, FEM 1.001, DASt-011, BS7608, AISC LRFD, etc

12. Fatigue Example
www.sdcverifier.com12
Allowable Stress vs Kappa Weld class K3 Weld class K0
Pylon Utilization Factor (Smax/Sallow)
Notch group

13. Plate Buckling Check (ABS, DNV)
www.sdcverifier.com13
Calculation methods:
Complete Structure Estimate – user define
standard panel dimension for selection. Element
orientation must be x=length y=width;
Single Panel – each panel is defined. Dimensions
are calculated (check by user). Stresses are
translated into panel direction.
No FEM buckling but stress based
(for full ship +1000 buckling modes)

14. Plate Buckling Example
www.sdcverifier.com14
OK with plate dimensions 700x1200Plots and model IHC Dredgers B.V.
Maximum plate dimensions 700x2450 Maximum plate dimensions 700x1200

15. SDC Verifier is customizable
www.sdcverifier.com15
If check is missing use custom check

16. Simple example 1: Static Stress Check
www.sdcverifier.com16
Equivalent Stress
Utilization Factor
Sallow = Max (Yield, 0.7 * Tensile)
Utilization Factor = Stress / Sallow

17. www.sdcverifier.com17
Example 2: AISC Buckling Check

18. Moment and Shear Force Check
www.sdcverifier.com18
Shear Force Moment
At section

19. Completely custom report
www.sdcverifier.com19
 Standard reports
 ReportWizard;
 Quick selection method for report generation
 Report Designer.
 Completely customizable method for fine tuning report
including extra text, summary etc.

20. Completely custom report
www.sdcverifier.com20
 ReportWizard;
 Report Designer.
Report Designer – previewer.
Advanced report
Report Wizard – easy
step by step report

21. Report Generation in Wizard
www.sdcverifier.com21
Generated Report
First Page
Model Setup
Job Settings
Tables
Plots
Checks

22. Model Setup Report
www.sdcverifier.com22
General information Property Table
Fem Load and Constraint
Description

23. Report Results
www.sdcverifier.com23
Result Tables
Result Plots
Checks

24. Tables
www.sdcverifier.com24
Displacement on nodes.Absolute maximum highlighted
Extreme Stresses
over directions
Extreme values over selections (properties)
Worst Stresses among loads
Sum of applied forces on loads
Extreme Location

25. Plots
www.sdcverifier.com25
Same plot differentViews Same plot different Components

26. Report Generation in Designer
www.sdcverifier.com26
Export To WordPrint and Preview without Word
Extra Items
Regenerate
part of report
Edit Item
Properties
Move items
(Drag and
Drop)
Edit properties
with context
menu easily
Toolbox with all project items

27. Re-use of calculation process
www.sdcverifier.com27
 Set in SDCVerifier file:
 full calculation settings
 Apply all loads, load combinations and load groups
 All checks (according to your standard)
 Necessary calculation documents
 Re-use .sdcv file as template with all above settings

28. Open as template
www.sdcverifier.com28
First model (template) New Model
Two models. Same report

29. Conclusions SDC Verifier the add-on for:
www.sdcverifier.com29
 Verification of structure according to standards
 Simple application of complicated loads
 Translation of FEM results in (complicated) code checking results
 Complete documentation of model and results
 Focus on engineering lets SDCVerifier do the bookkeeping
Use 45 days trial to check it yourself (download SDCVerifier on www.sdcverifier.com
and request trial at support@sdcverifier.com);
