Scale Multi container Apps using Docker Swarm and Azure Container Service
- 1. Scale Multi-container Apps using ACS & Docker Swarm

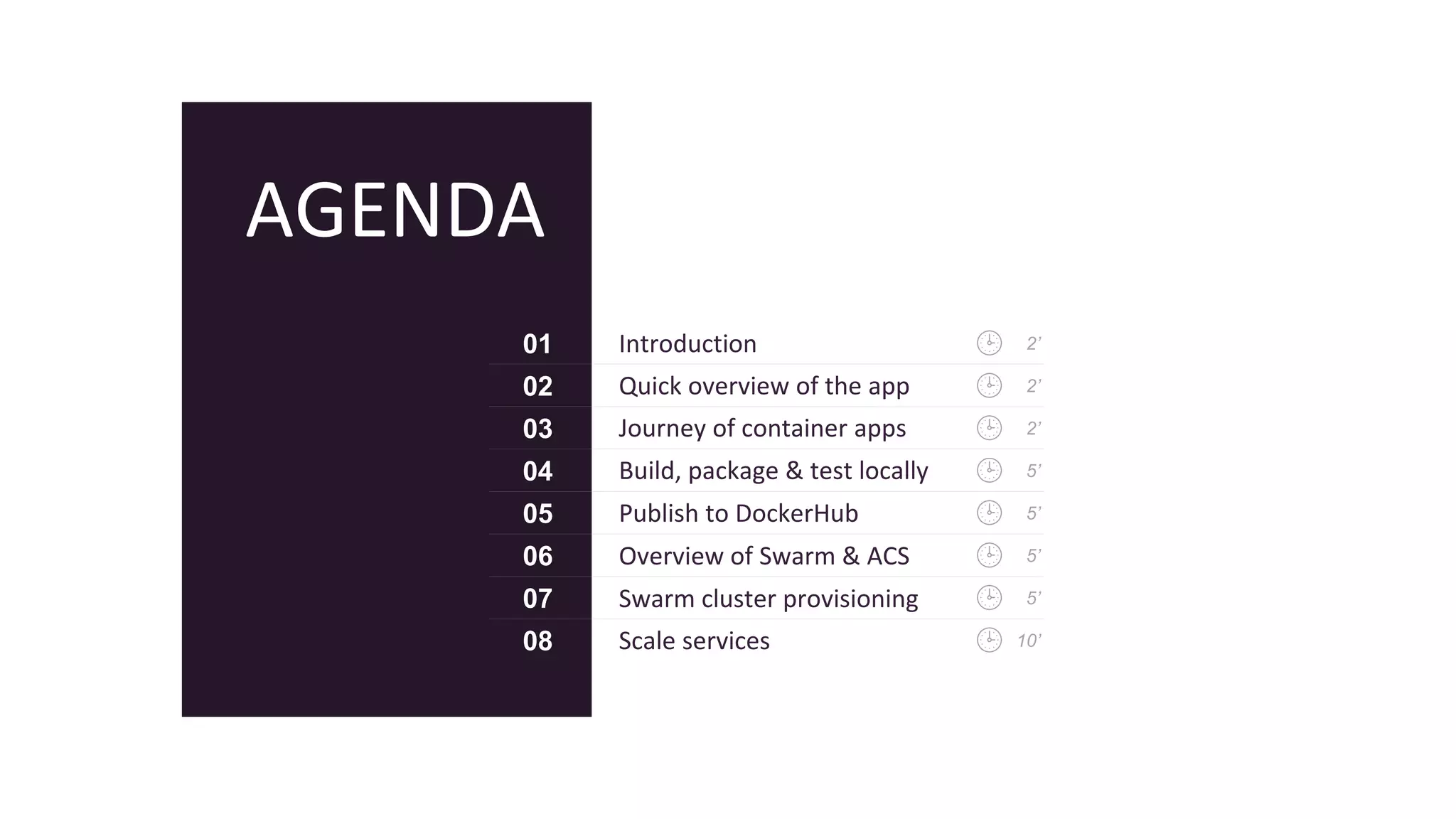

- 3. AGENDA Introduction01 02 03 04 05 06 07 08 Quick overview of the app Journey of container apps Build, package & test locally Publish to DockerHub Overview of Swarm & ACS Swarm cluster provisioning Scale services 2’ 2’ 2’ 5’ 5’ 5’ 5’ 10’

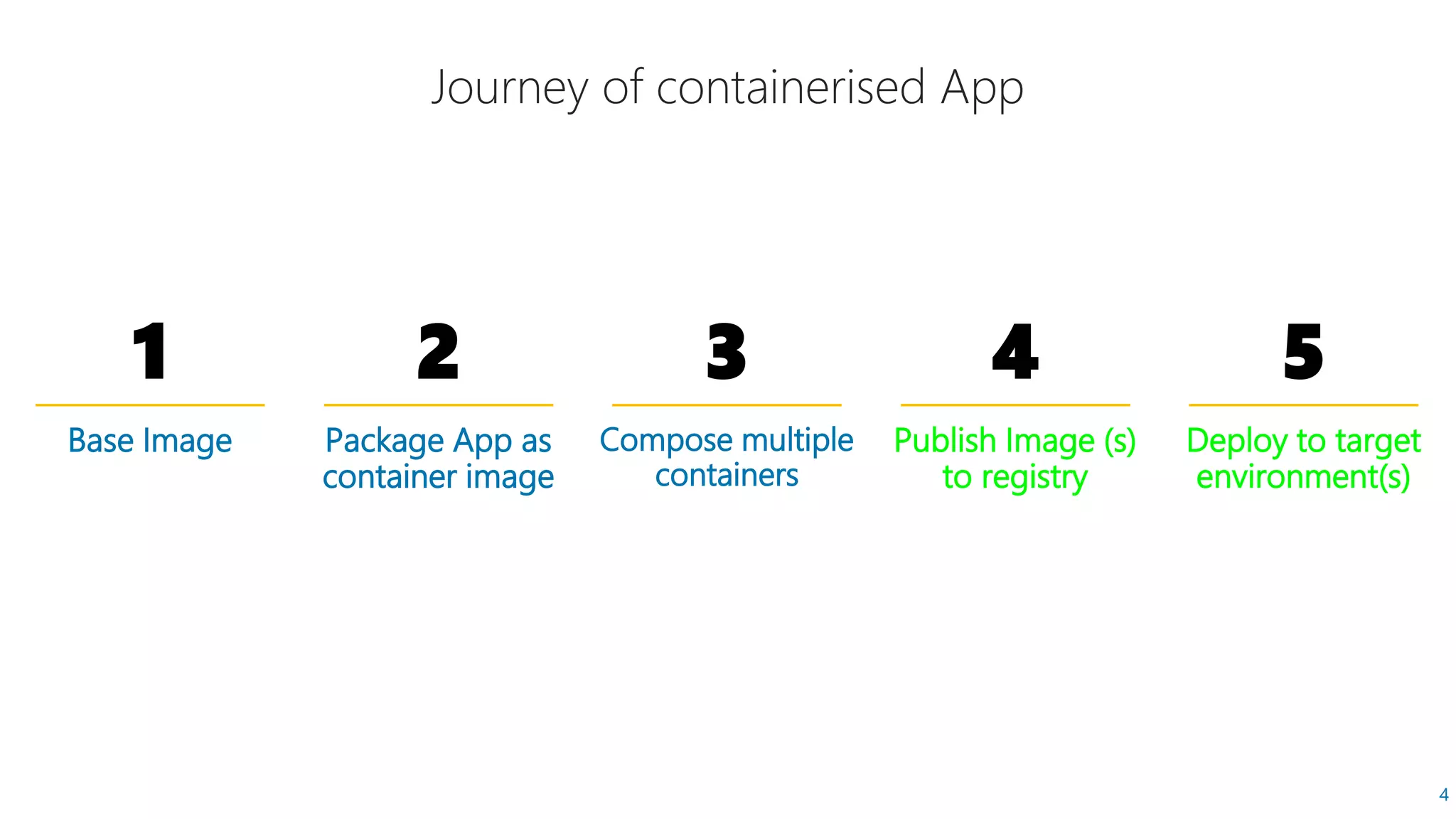

- 4. Base Image 4 Package App as container image Compose multiple containers Publish Image (s) to registry Deploy to target environment(s) Journey of containerised App 1 2 3 4 5

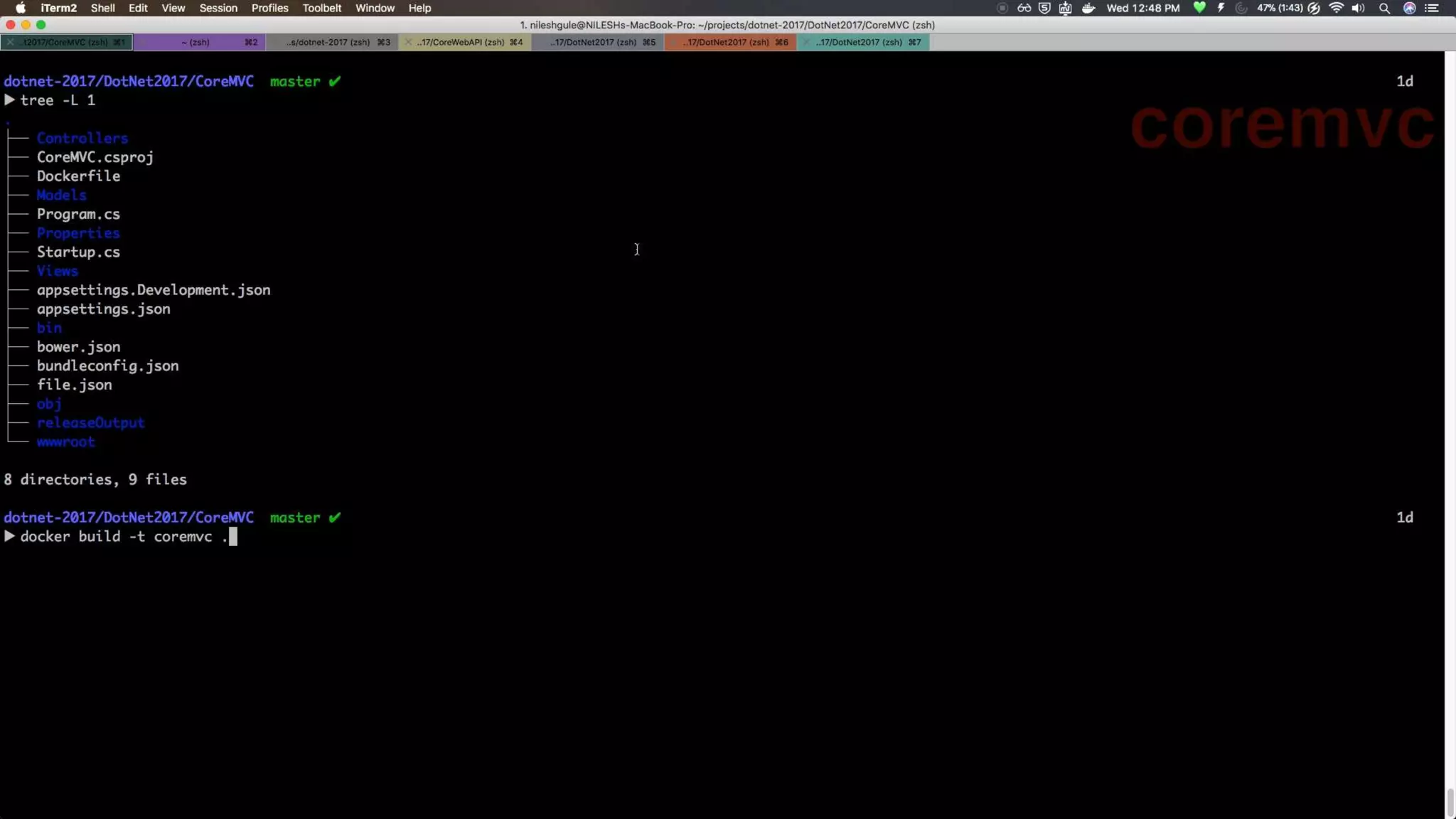

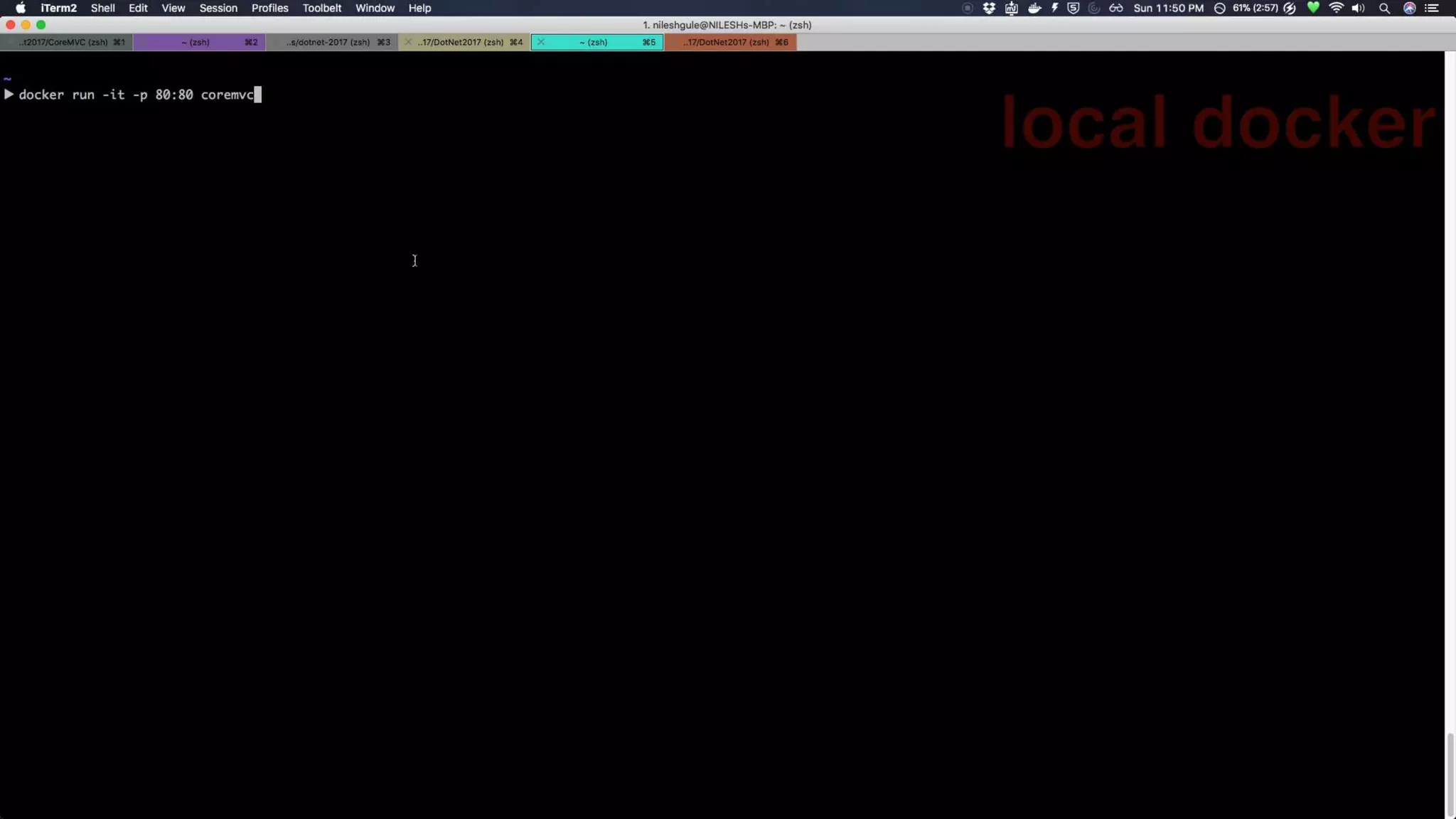

- 9. DEMO Package App into container Image 9

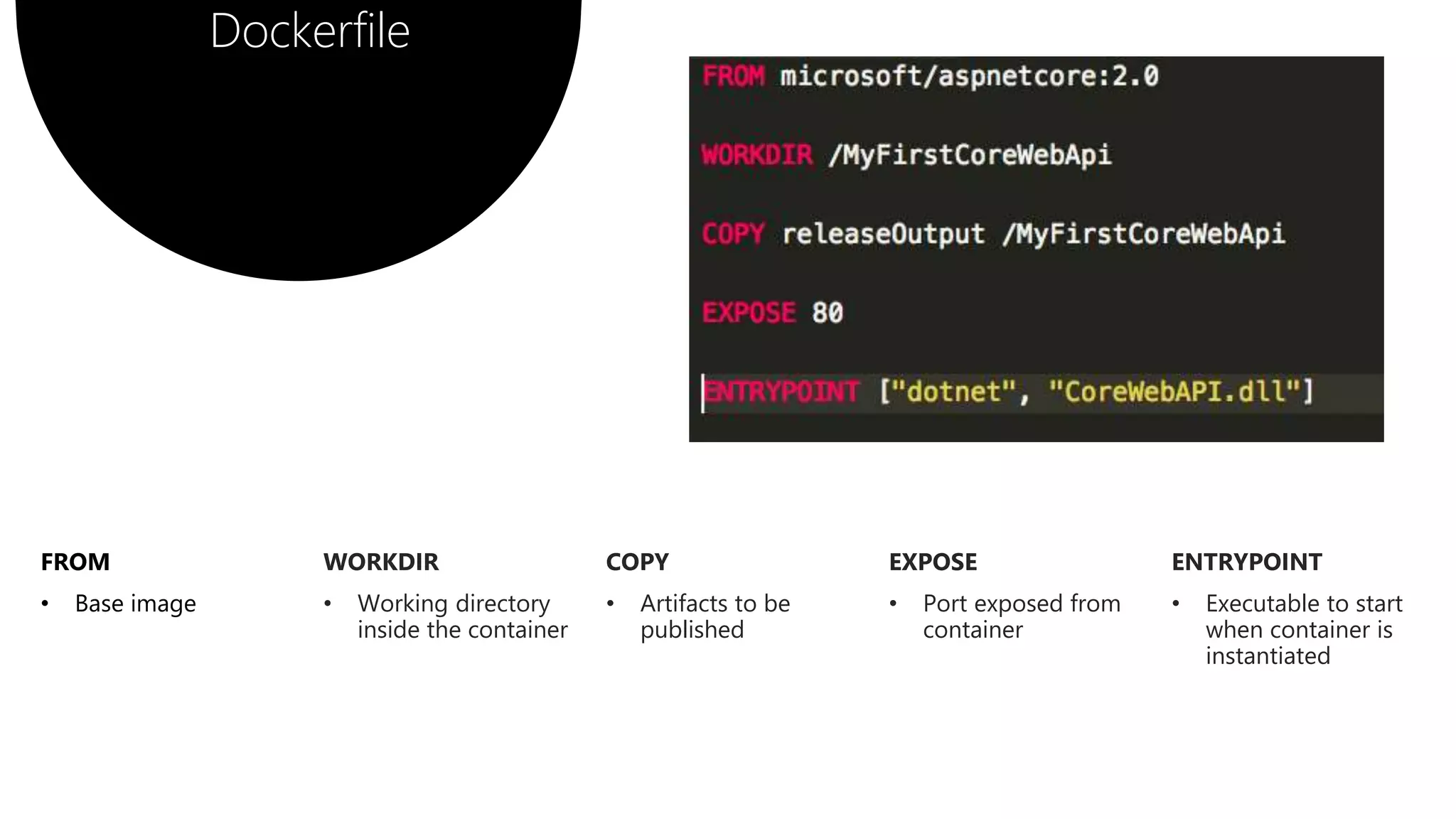

- 10. FROM • Base image Dockerfile WORKDIR • Working directory inside the container COPY • Artifacts to be published EXPOSE • Port exposed from container ENTRYPOINT • Executable to start when container is instantiated

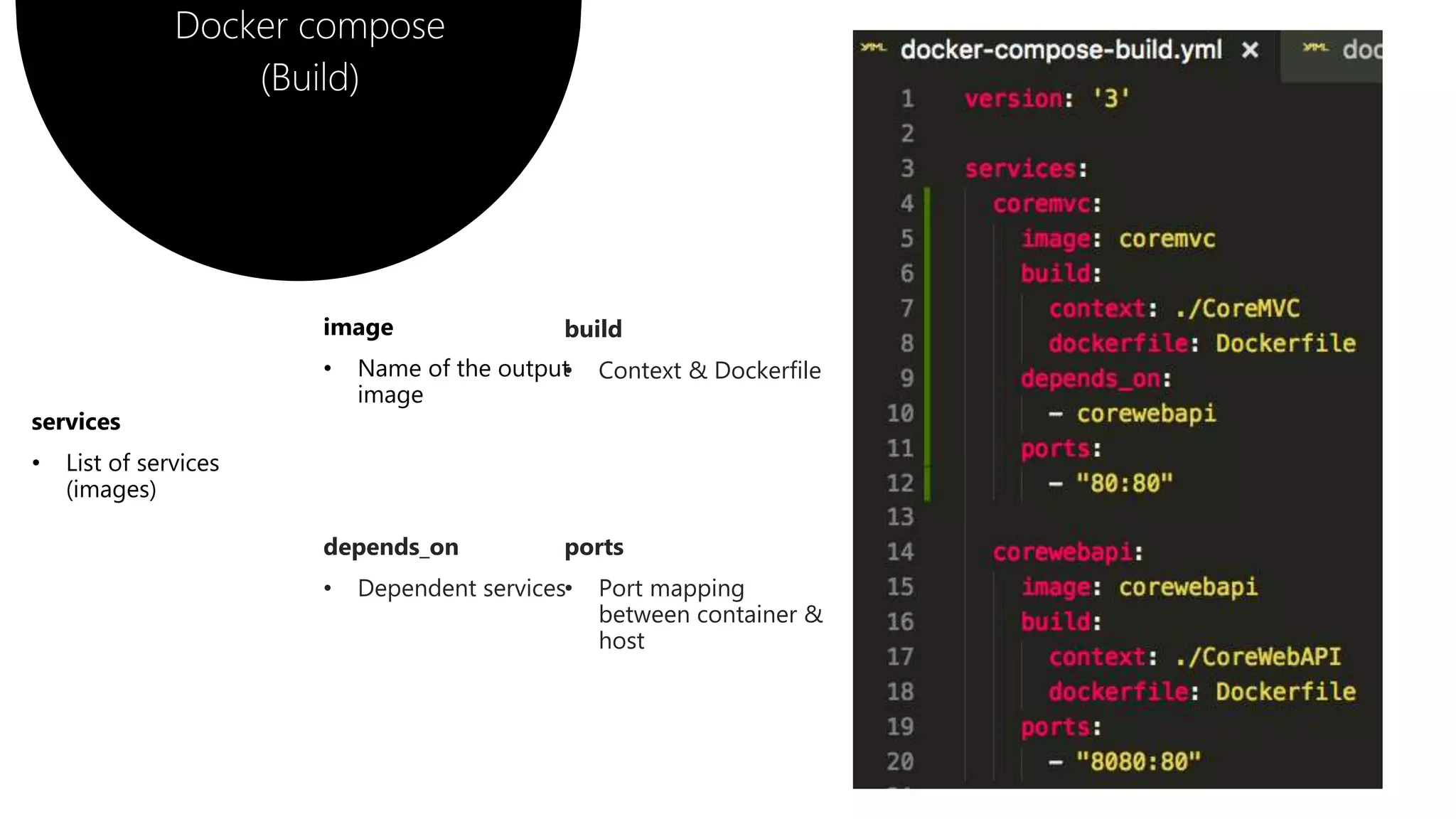

- 15. image • Name of the output image Docker compose (Build) build • Context & Dockerfile depends_on • Dependent services services • List of services (images) ports • Port mapping between container & host

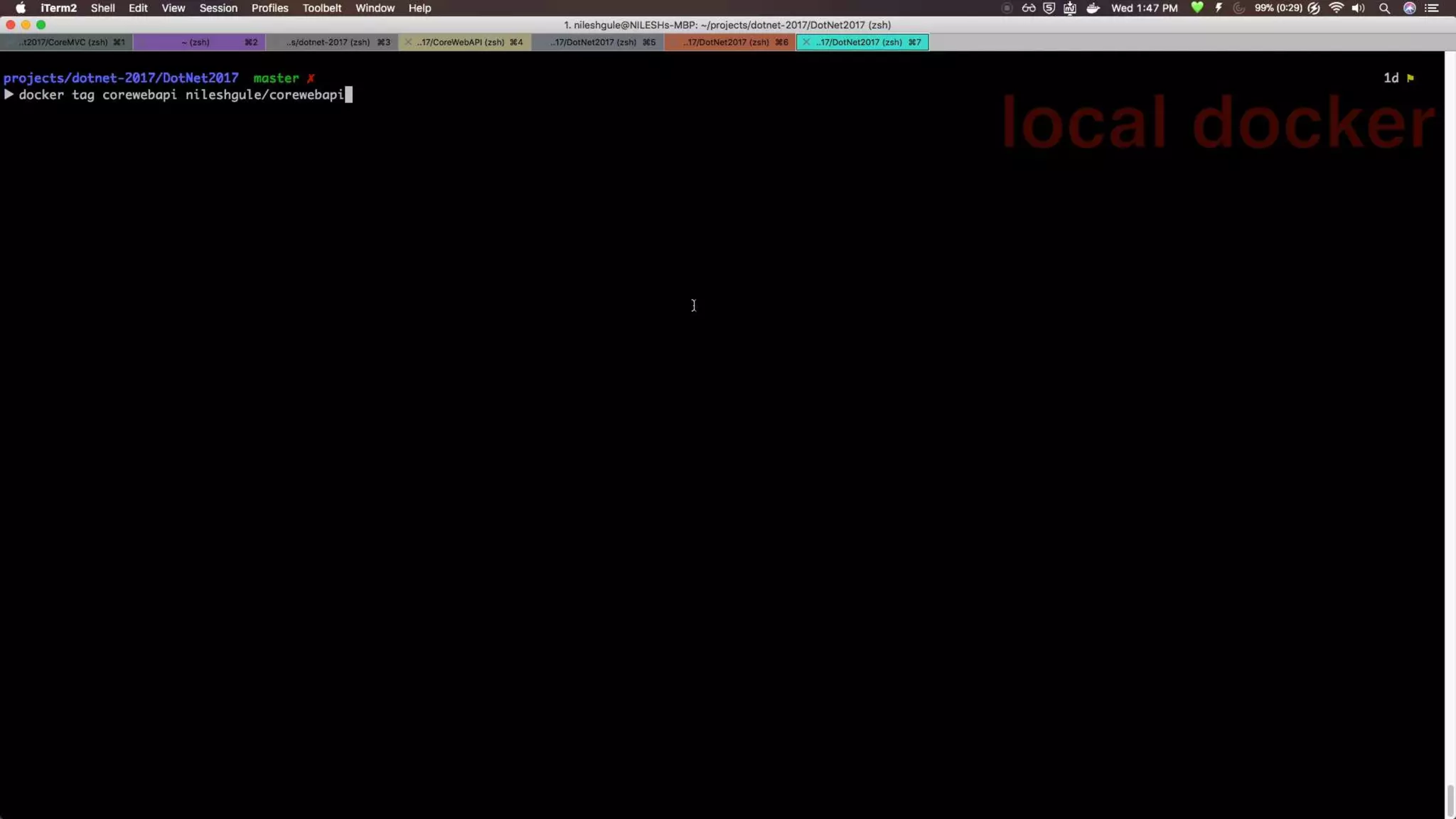

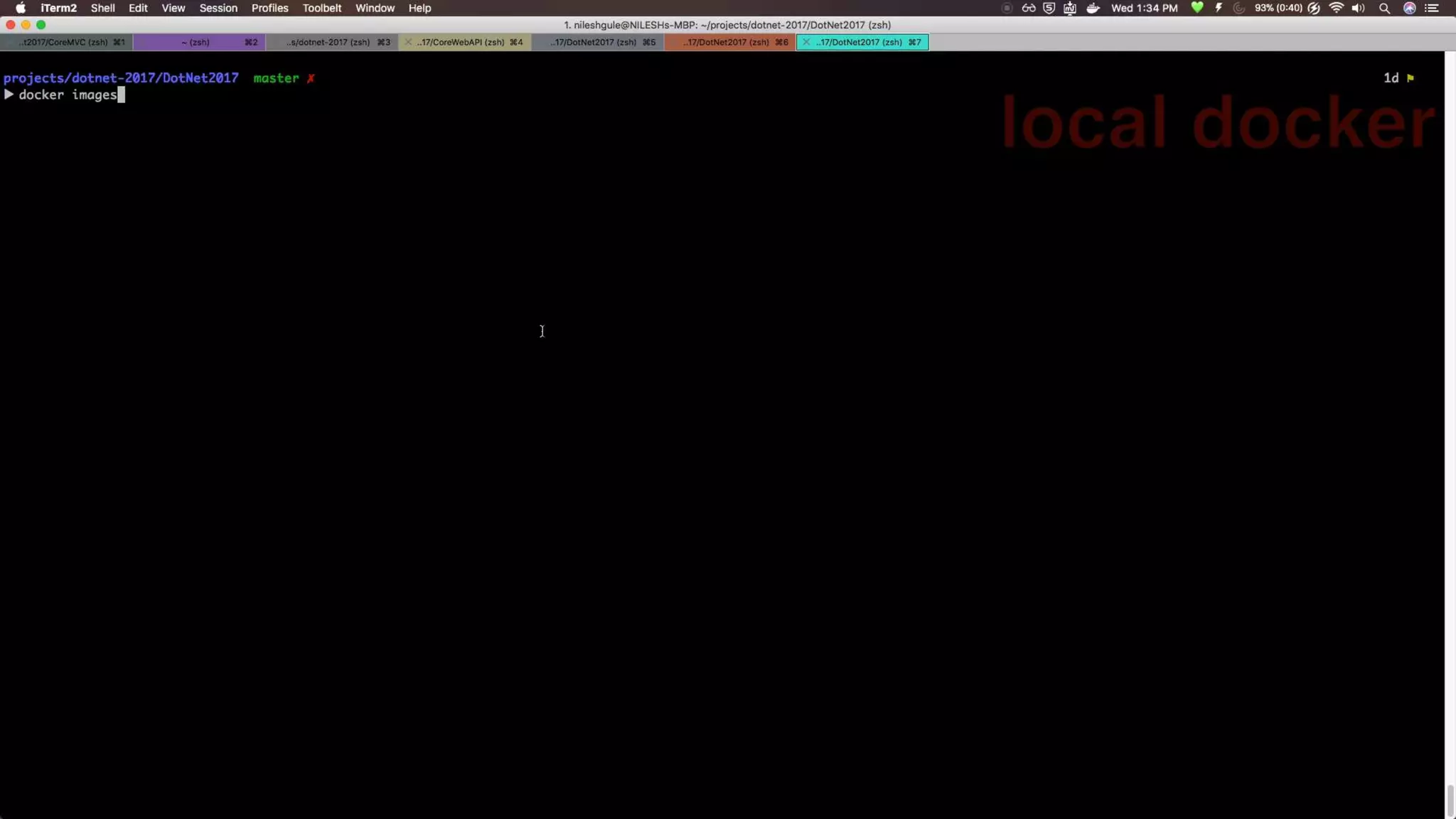

- 17. DEMO Tag & Publish to registry 17

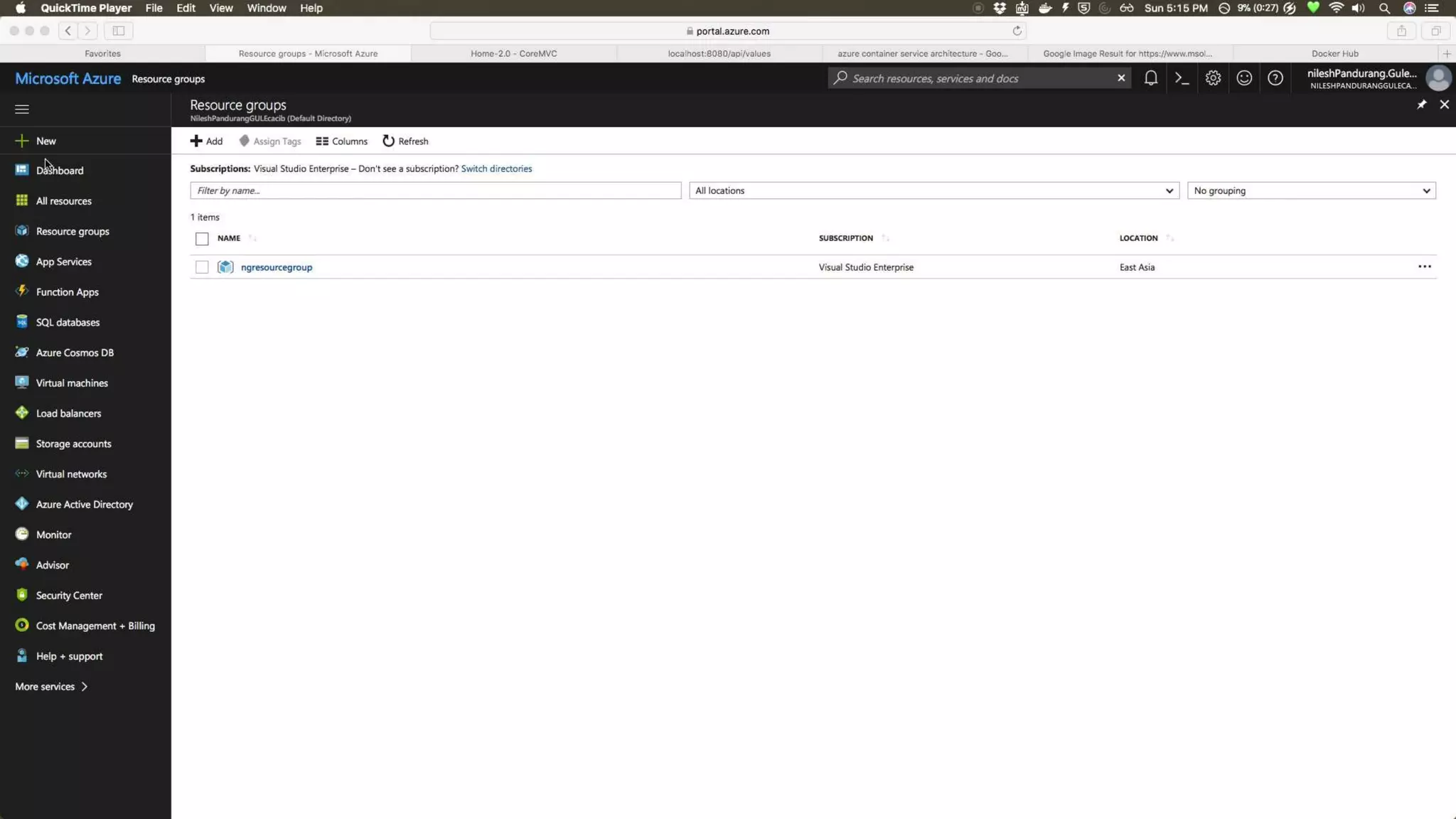

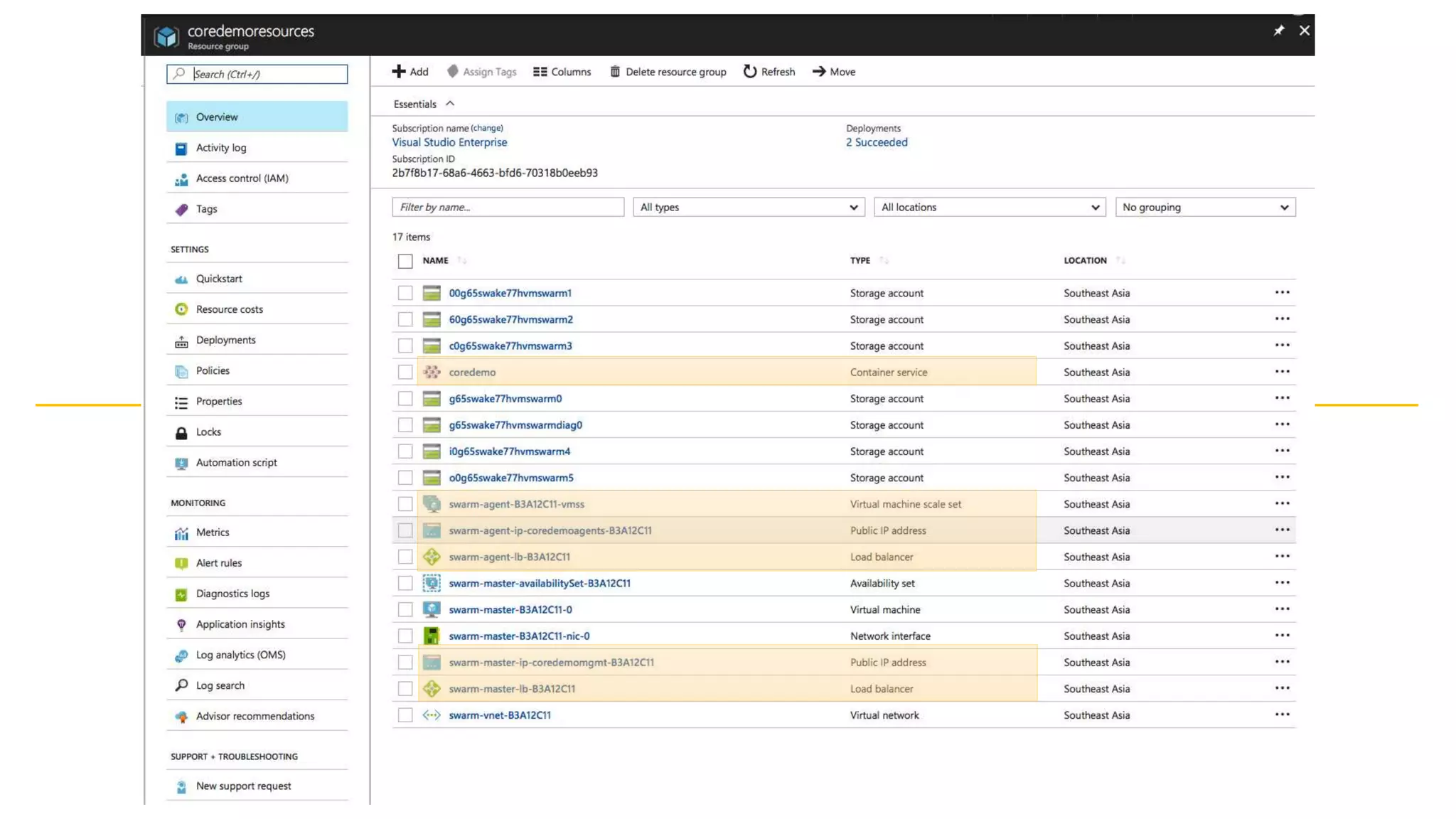

- 21. DEMO Provision Swarm cluster in ACS 21

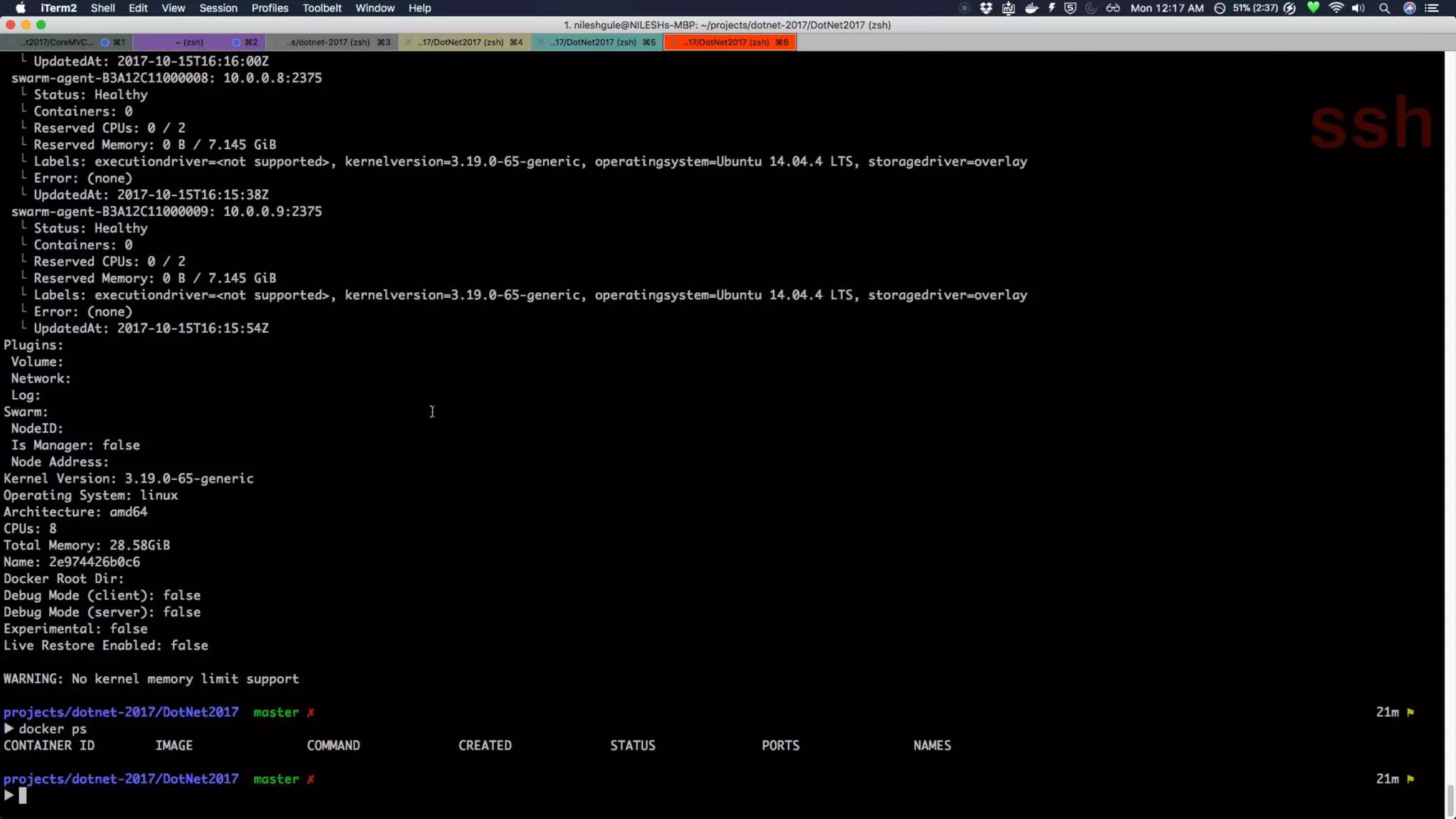

- 24. DEMO Deploy & Run containers at scale using Swarm 24

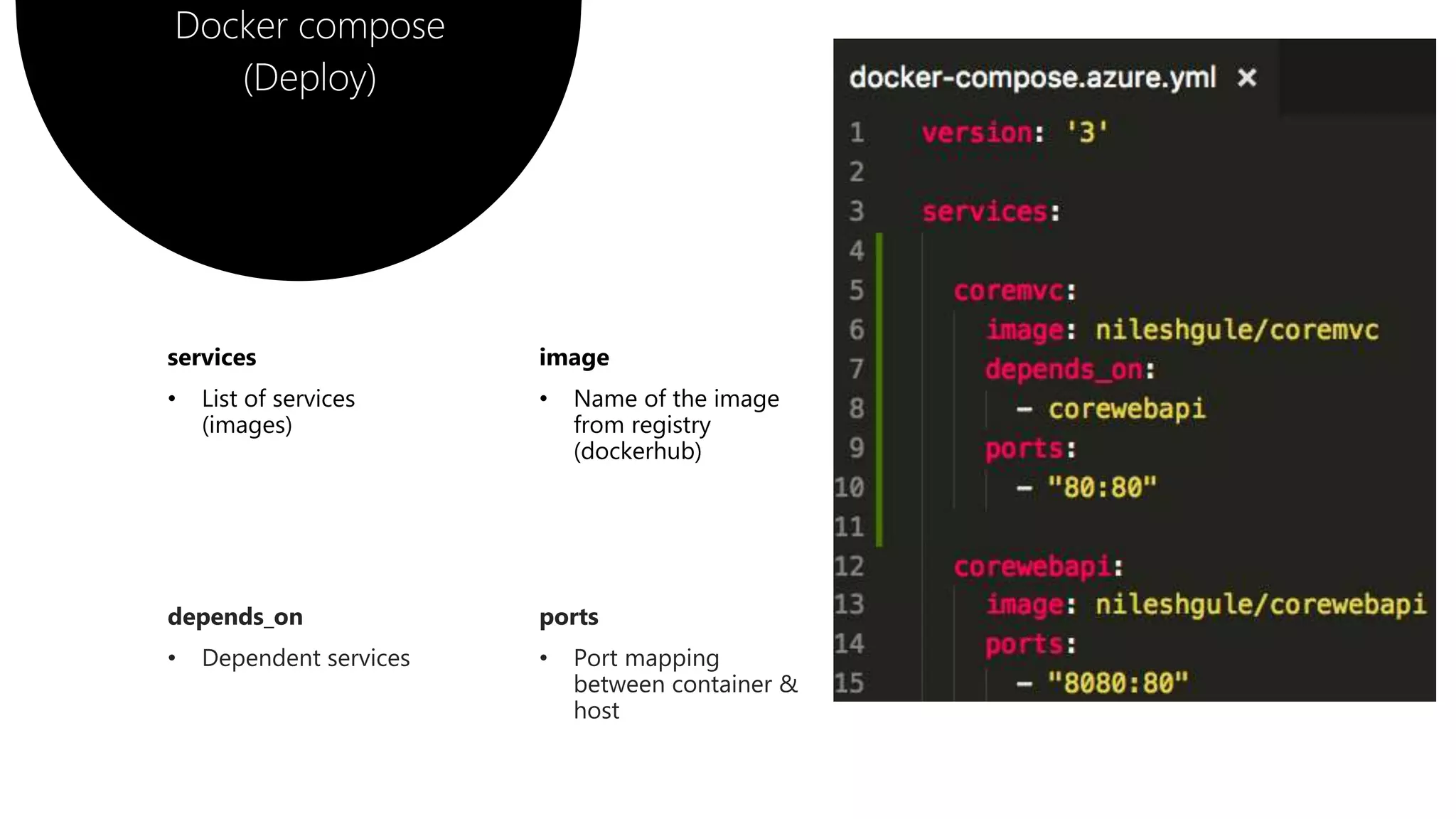

- 25. image • Name of the image from registry (dockerhub) Docker compose (Deploy) depends_on • Dependent services services • List of services (images) ports • Port mapping between container & host

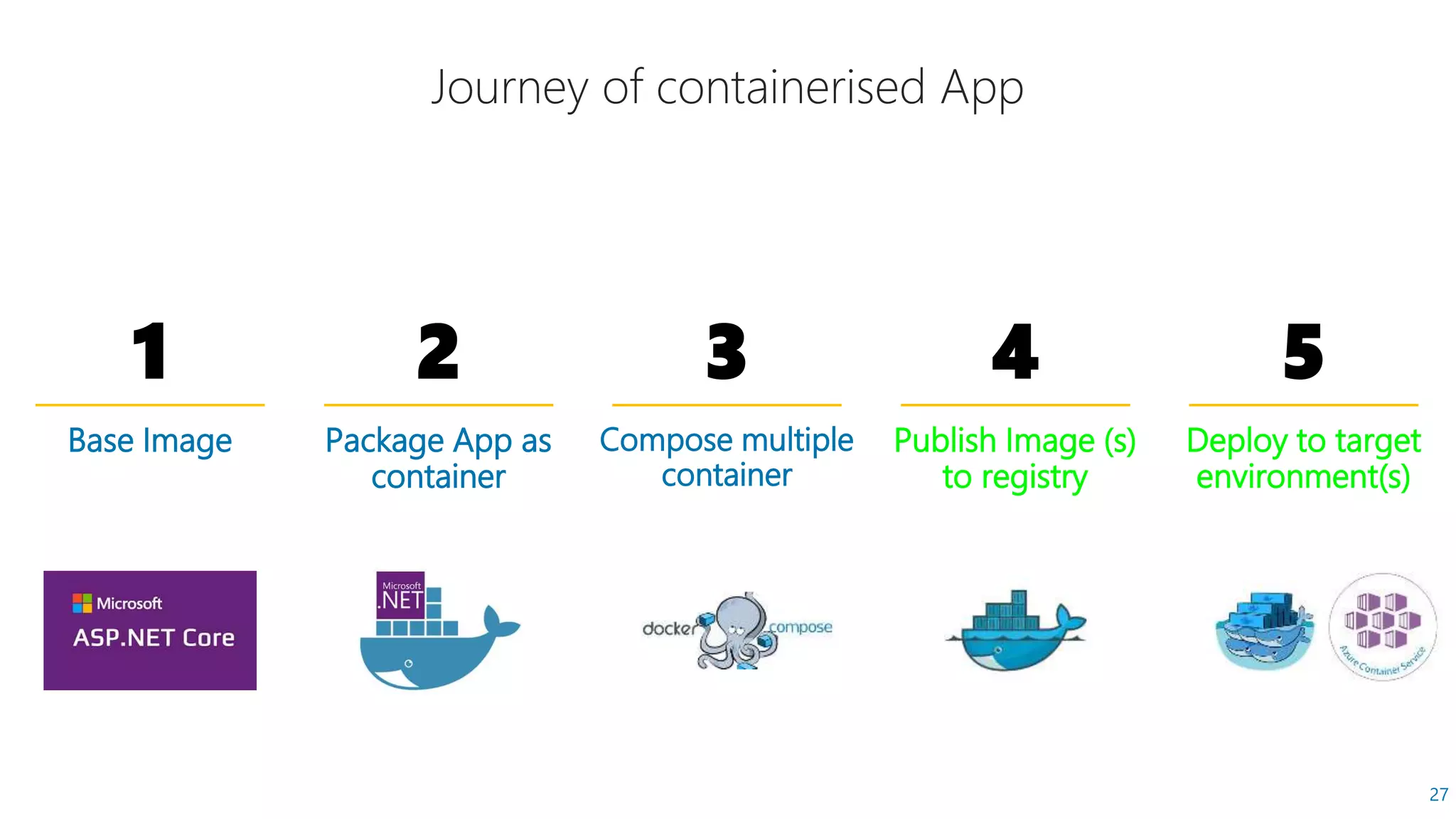

- 27. Base Image 27 Package App as container Compose multiple container Publish Image (s) to registry Deploy to target environment(s) Journey of containerised App 1 2 3 4 5

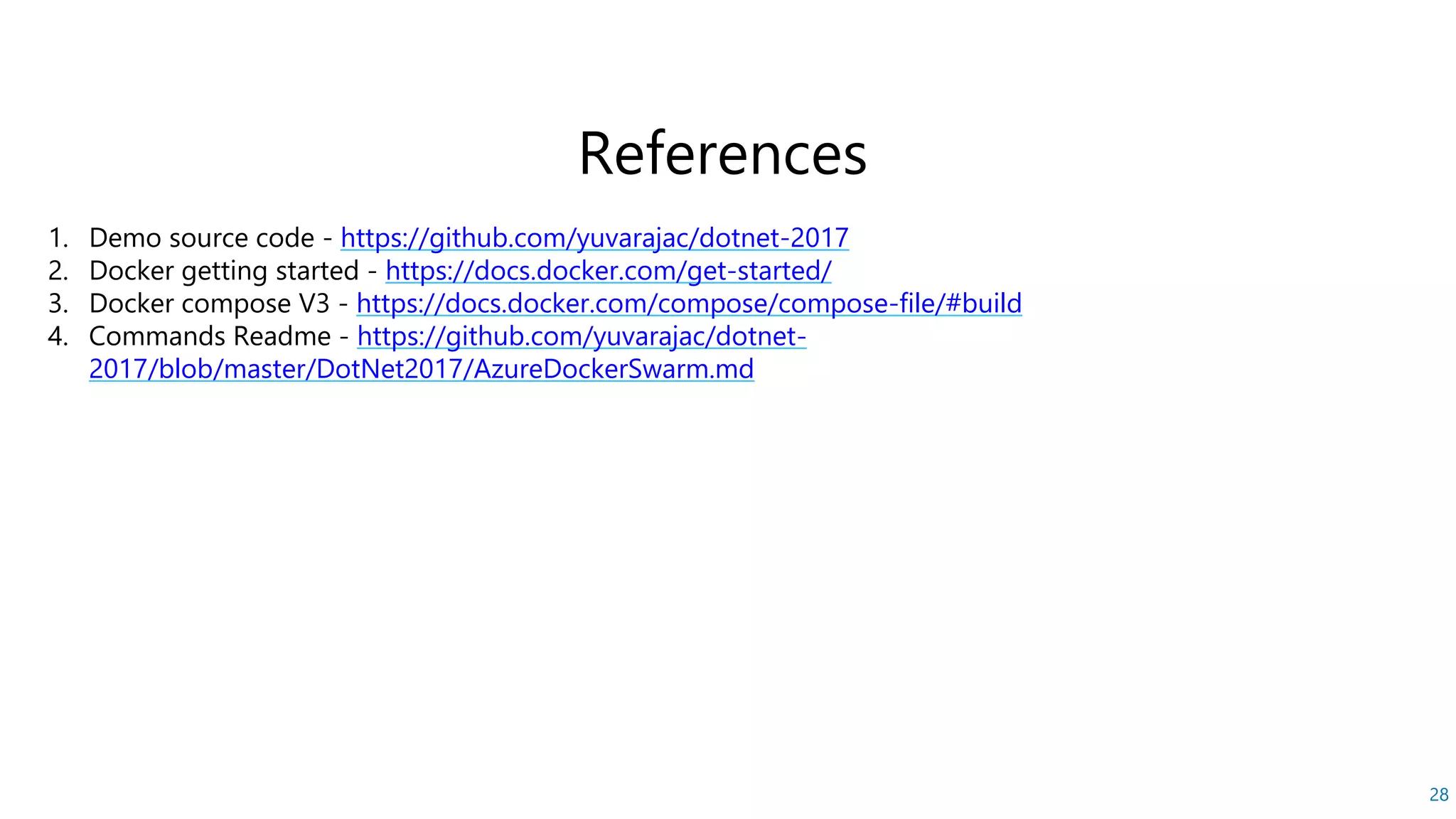

- 28. 28 References 1. Demo source code - https://github.com/yuvarajac/dotnet-2017 2. Docker getting started - https://docs.docker.com/get-started/ 3. Docker compose V3 - https://docs.docker.com/compose/compose-file/#build 4. Commands Readme - https://github.com/yuvarajac/dotnet- 2017/blob/master/DotNet2017/AzureDockerSwarm.md
Editor's Notes
- Clarify the point that the session is not about using docker Assumption is that a basic knowledge of docker is available with the viewers
- Show Dockerfile from VS code if possible for both API & MVC apps
- Highlight image sizes using coreaspnet image and the custom images
- Walkthrough about how to start with .NET core.
- Differentiate between interactive mode and detached mode while starting docker containers Real life apps with more than 2 containers and dependencies among them
- Highlight the builds order based on dependencies specified Talk about detached mode
- Walkthrough about how to start with .NET core.
- Tagging does not create new image but reuses the existing one Image layers reused by docker hub to reduce network transfer

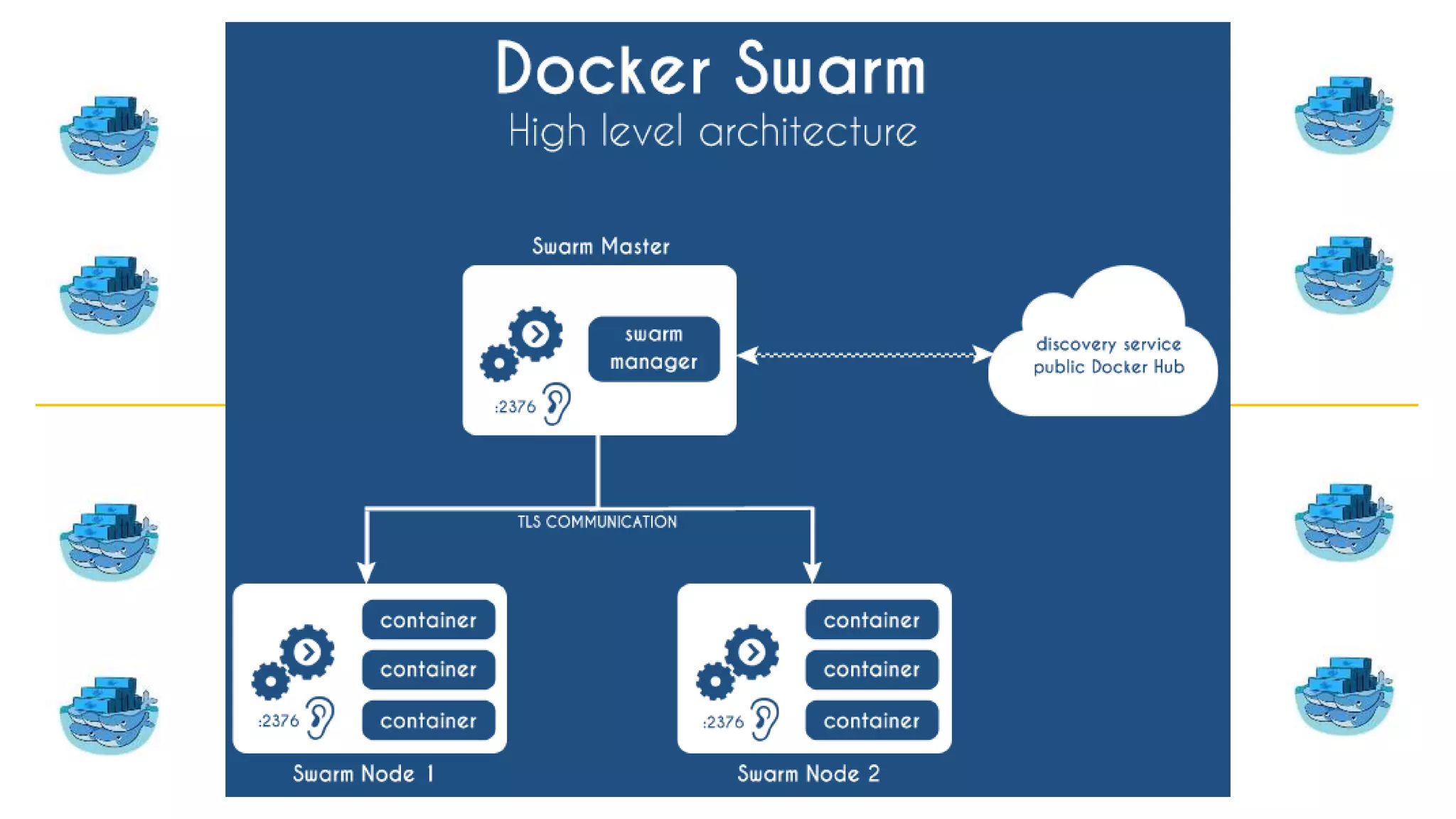

- Manages and organises docker containers across multiple hosts via the same API used by single docker host Highlight 2375 port number used in ACS service
- Mention 10-15 mins time required for provisioning the machines / resources in Azure
- Mention about SSH tunnelling Highlight difference between provisioning and actual agent nodes Highlight difference between management connection for deployment & agent connection for accessing the delayed sites Highlight zero lines of code changes & infrastructure as code aspects
