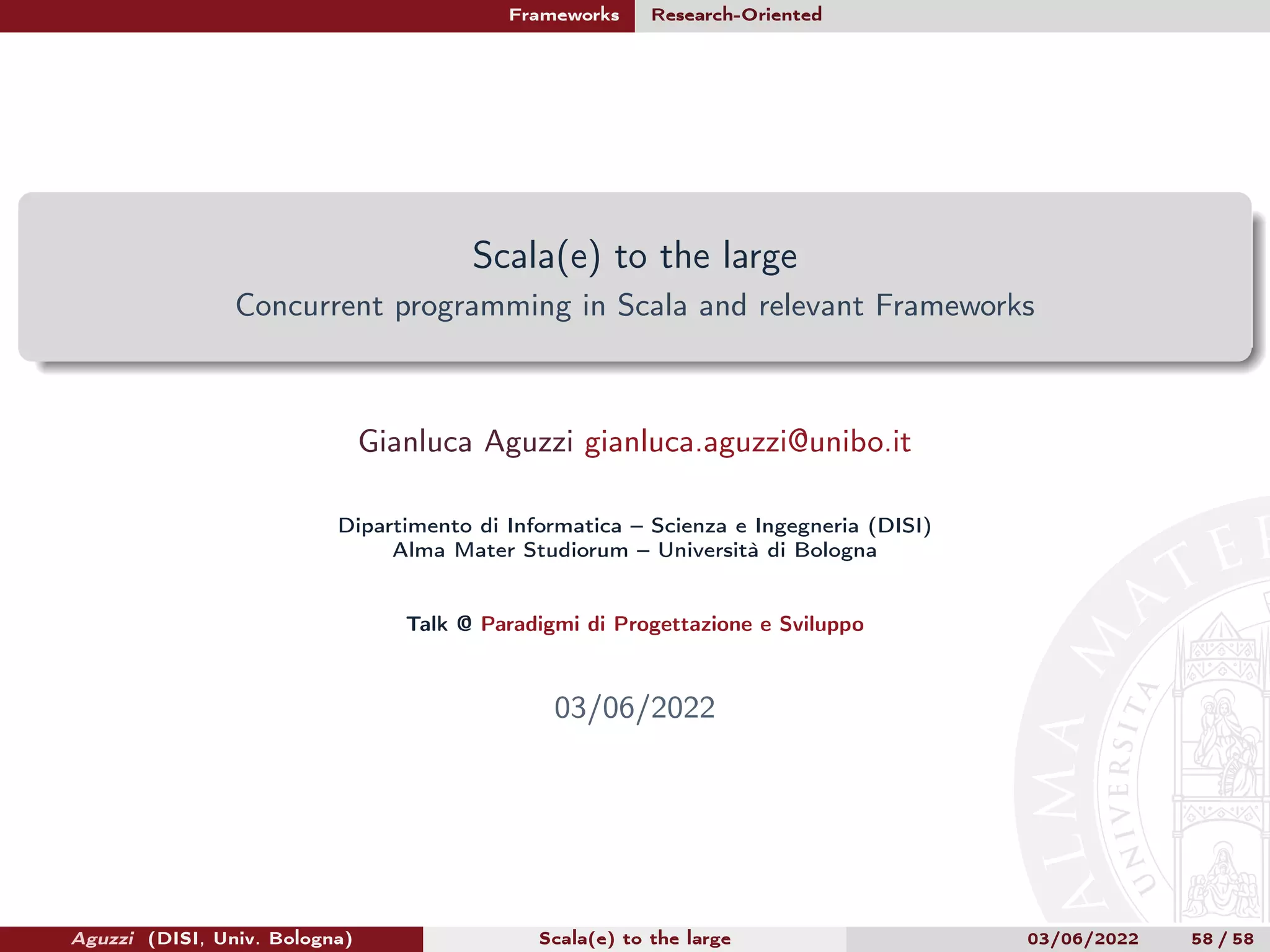

1. Scala(e) to the large
Concurrent programming in Scala and relevant Frameworks
Gianluca Aguzzi gianluca.aguzzi@unibo.it
Dipartimento di Informatica – Scienza e Ingegneria (DISI)
Alma Mater Studiorum – Università di Bologna
Talk @ Paradigmi di Progettazione e Sviluppo
03/06/2022
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 1 / 58
2. Introduction

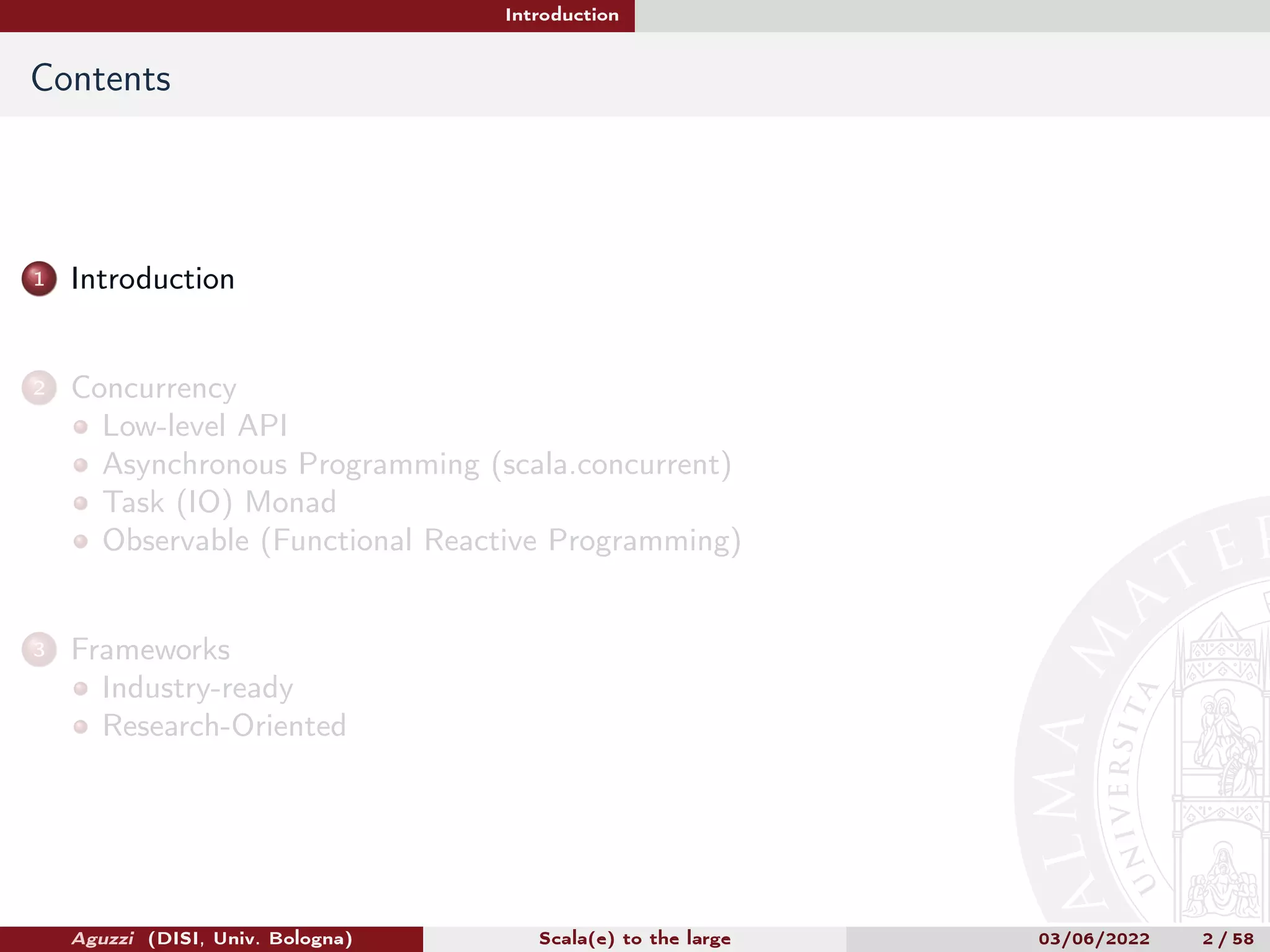

Contents
1 Introduction
2 Concurrency
Low-level API
Asynchronous Programming (scala.concurrent)
Task (IO) Monad
Observable (Functional Reactive Programming)
3 Frameworks
Industry-ready
Research-Oriented
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 2 / 58

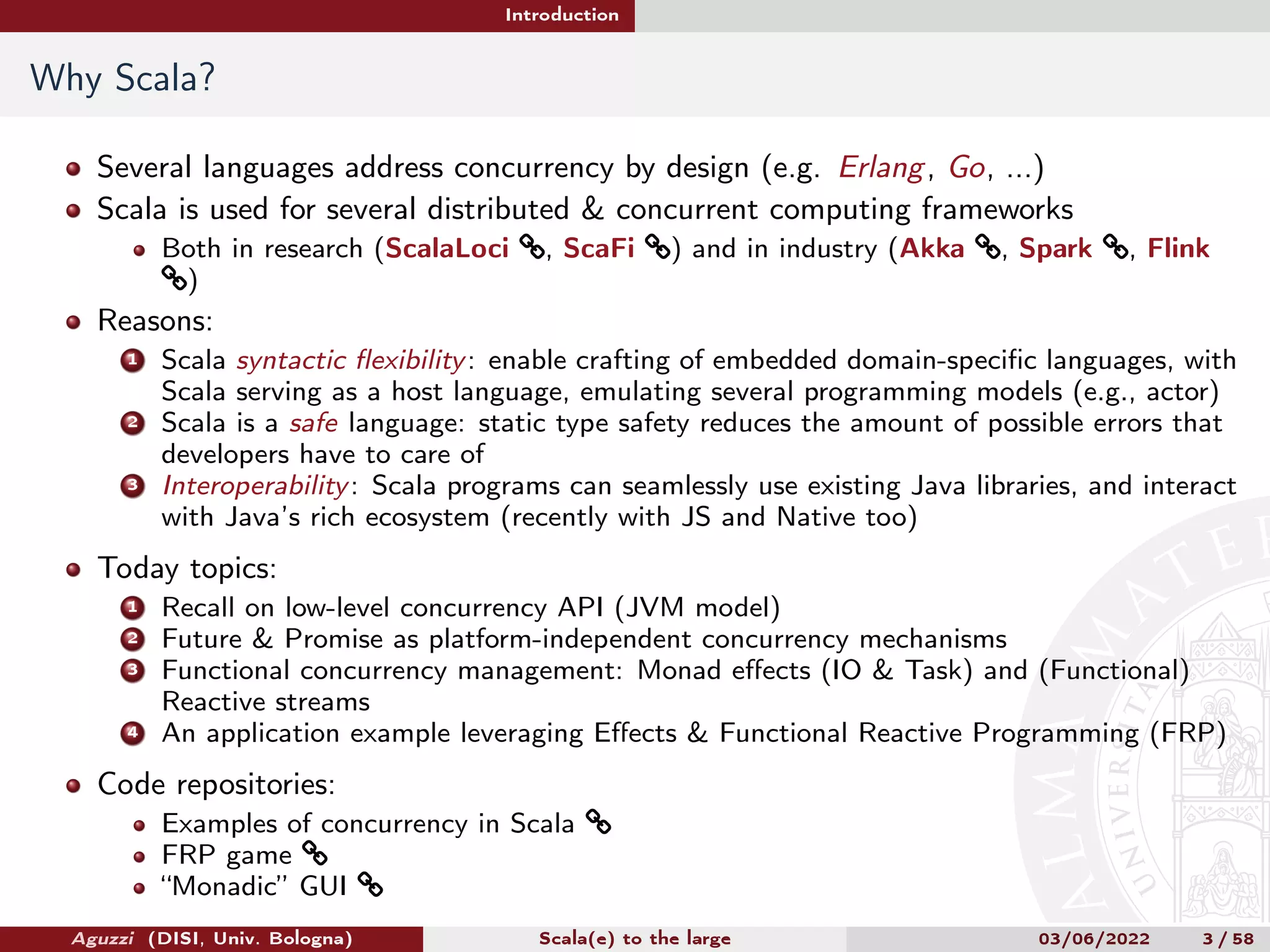

3. Introduction
Why Scala?
Several languages address concurrency by design (e.g. Erlang, Go, ...)
Scala is used for several distributed & concurrent computing frameworks
Both in research (ScalaLoci ®, ScaFi ®) and in industry (Akka ®, Spark ®, Flink
®)
Reasons:
1 Scala syntactic flexibility: enable crafting of embedded domain-specific languages, with
Scala serving as a host language, emulating several programming models (e.g., actor)
2 Scala is a safe language: static type safety reduces the amount of possible errors that
developers have to care of
3 Interoperability: Scala programs can seamlessly use existing Java libraries, and interact
with Java’s rich ecosystem (recently with JS and Native too)
Today topics:
1 Recall on low-level concurrency API (JVM model)
2 Future & Promise as platform-independent concurrency mechanisms
3 Functional concurrency management: Monad effects (IO & Task) and (Functional)
Reactive streams
4 An application example leveraging Effects & Functional Reactive Programming (FRP)
Code repositories:
Examples of concurrency in Scala ®
FRP game ®
“Monadic” GUI ®
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 3 / 58

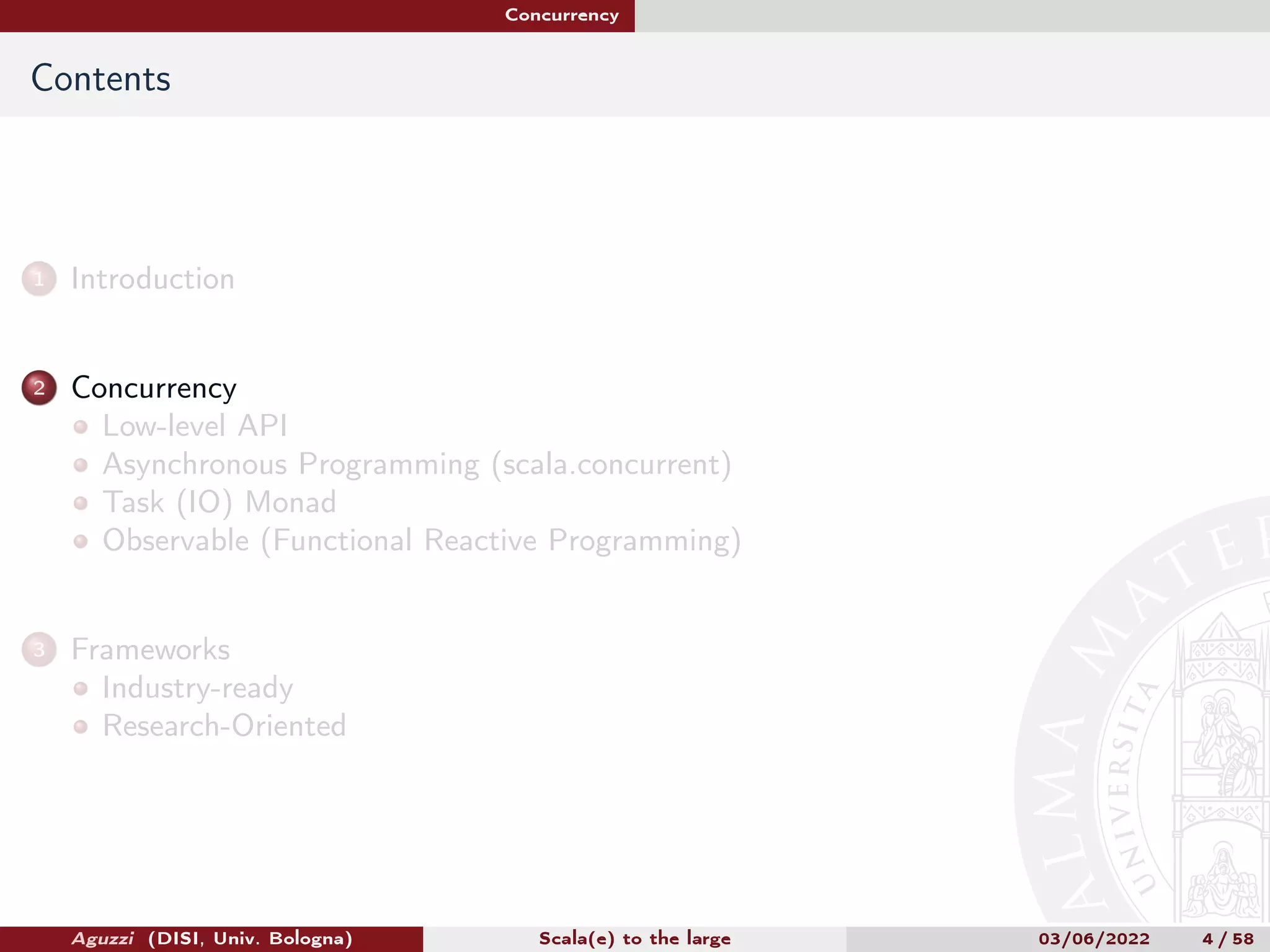

4. Concurrency
Contents
1 Introduction
2 Concurrency
Low-level API
Asynchronous Programming (scala.concurrent)
Task (IO) Monad
Observable (Functional Reactive Programming)
3 Frameworks
Industry-ready
Research-Oriented
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 4 / 58

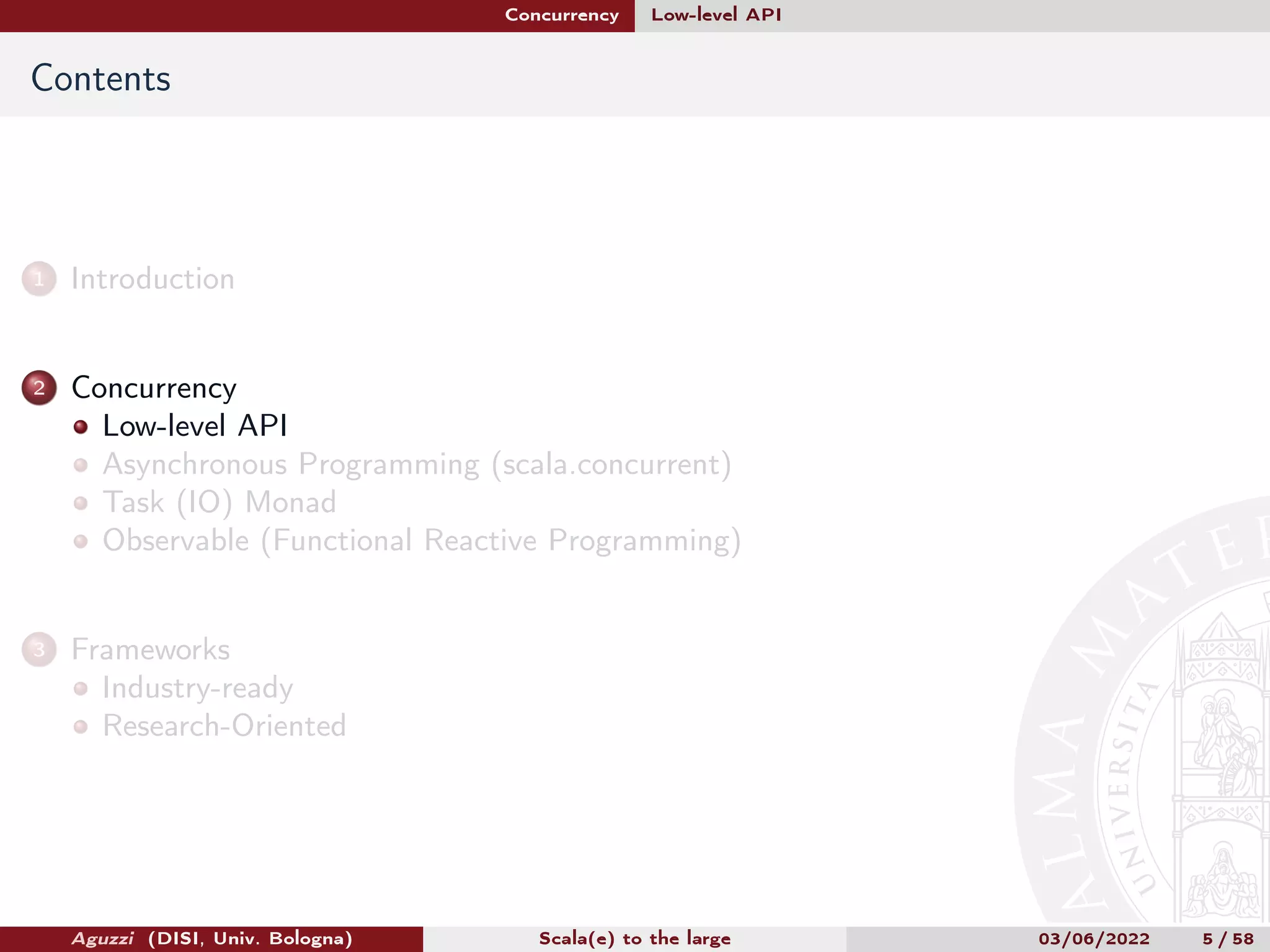

5. Concurrency Low-level API
Contents
1 Introduction
2 Concurrency
Low-level API
Asynchronous Programming (scala.concurrent)
Task (IO) Monad
Observable (Functional Reactive Programming)
3 Frameworks
Industry-ready
Research-Oriented
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 5 / 58

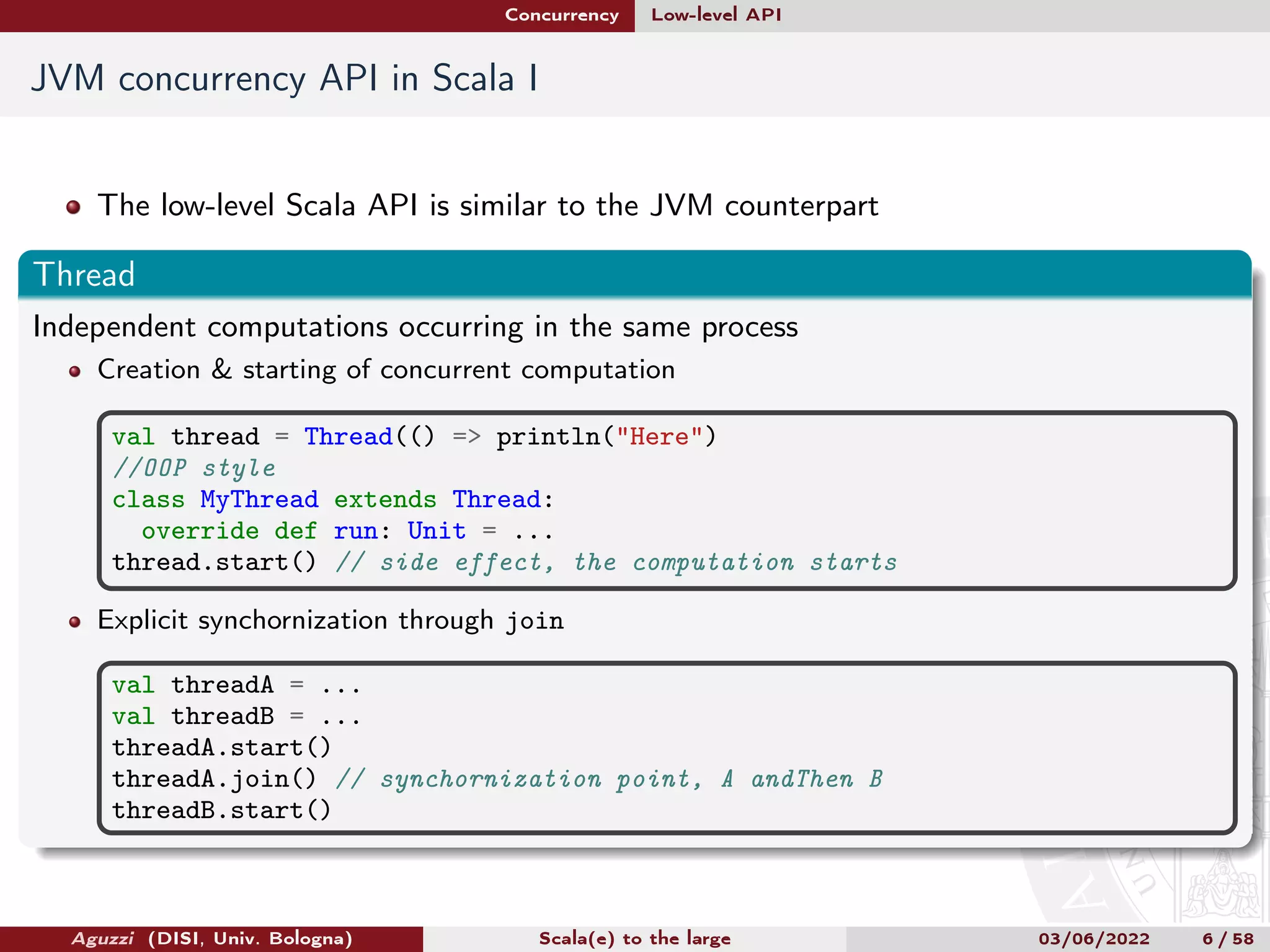

6. Concurrency Low-level API
JVM concurrency API in Scala I
The low-level Scala API is similar to the JVM counterpart
Thread
Independent computations occurring in the same process
Creation & starting of concurrent computation
val thread = Thread(() => println("Here")
//OOP style
class MyThread extends Thread:
override def run: Unit = ...
thread.start() // side effect, the computation starts
Explicit synchornization through join
val threadA = ...
val threadB = ...
threadA.start()
threadA.join() // synchornization point, A andThen B
threadB.start()
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 6 / 58

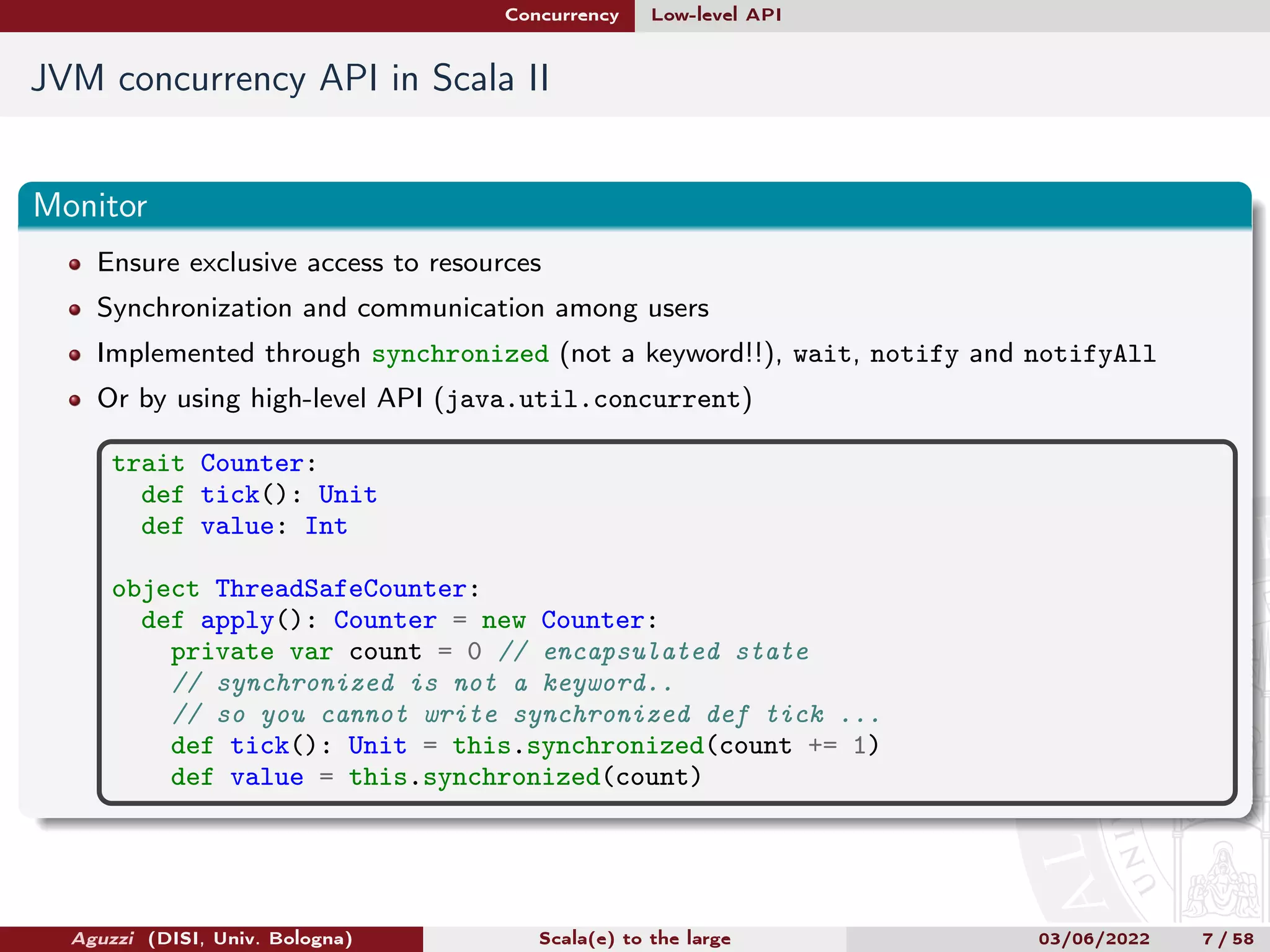

7. Concurrency Low-level API
JVM concurrency API in Scala II
Monitor
Ensure exclusive access to resources
Synchronization and communication among users
Implemented through synchronized (not a keyword!!), wait, notify and notifyAll
Or by using high-level API (java.util.concurrent)
trait Counter:
def tick(): Unit
def value: Int
object ThreadSafeCounter:
def apply(): Counter = new Counter:
private var count = 0 // encapsulated state
// synchronized is not a keyword..
// so you cannot write synchronized def tick ...
def tick(): Unit = this.synchronized(count += 1)
def value = this.synchronized(count)
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 7 / 58

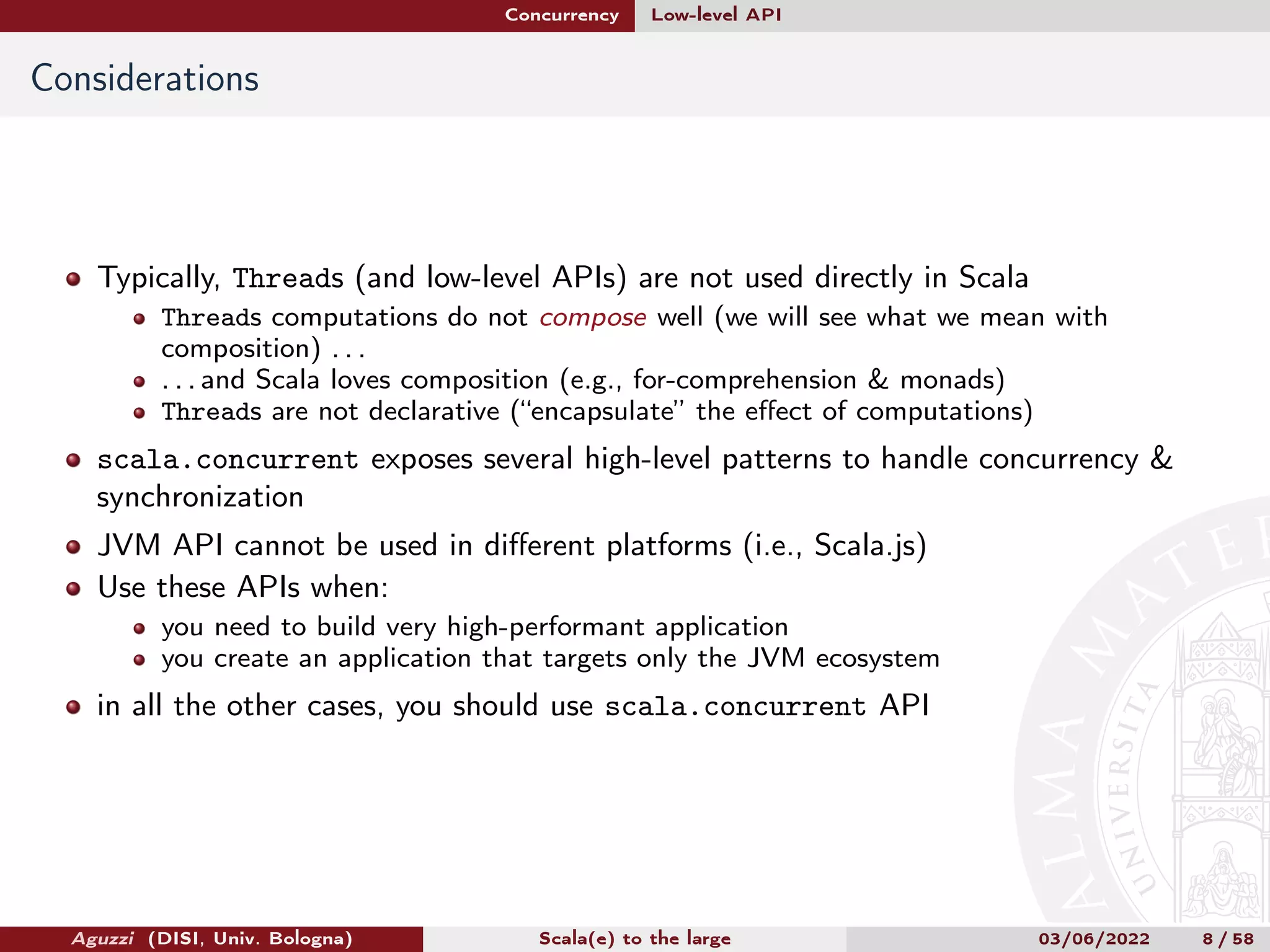

8. Concurrency Low-level API
Considerations
Typically, Threads (and low-level APIs) are not used directly in Scala
Threads computations do not compose well (we will see what we mean with
composition) . . .
. . . and Scala loves composition (e.g., for-comprehension & monads)
Threads are not declarative (“encapsulate” the effect of computations)
scala.concurrent exposes several high-level patterns to handle concurrency &
synchronization
JVM API cannot be used in different platforms (i.e., Scala.js)
Use these APIs when:
you need to build very high-performant application
you create an application that targets only the JVM ecosystem
in all the other cases, you should use scala.concurrent API
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 8 / 58
9. Concurrency Low-level API

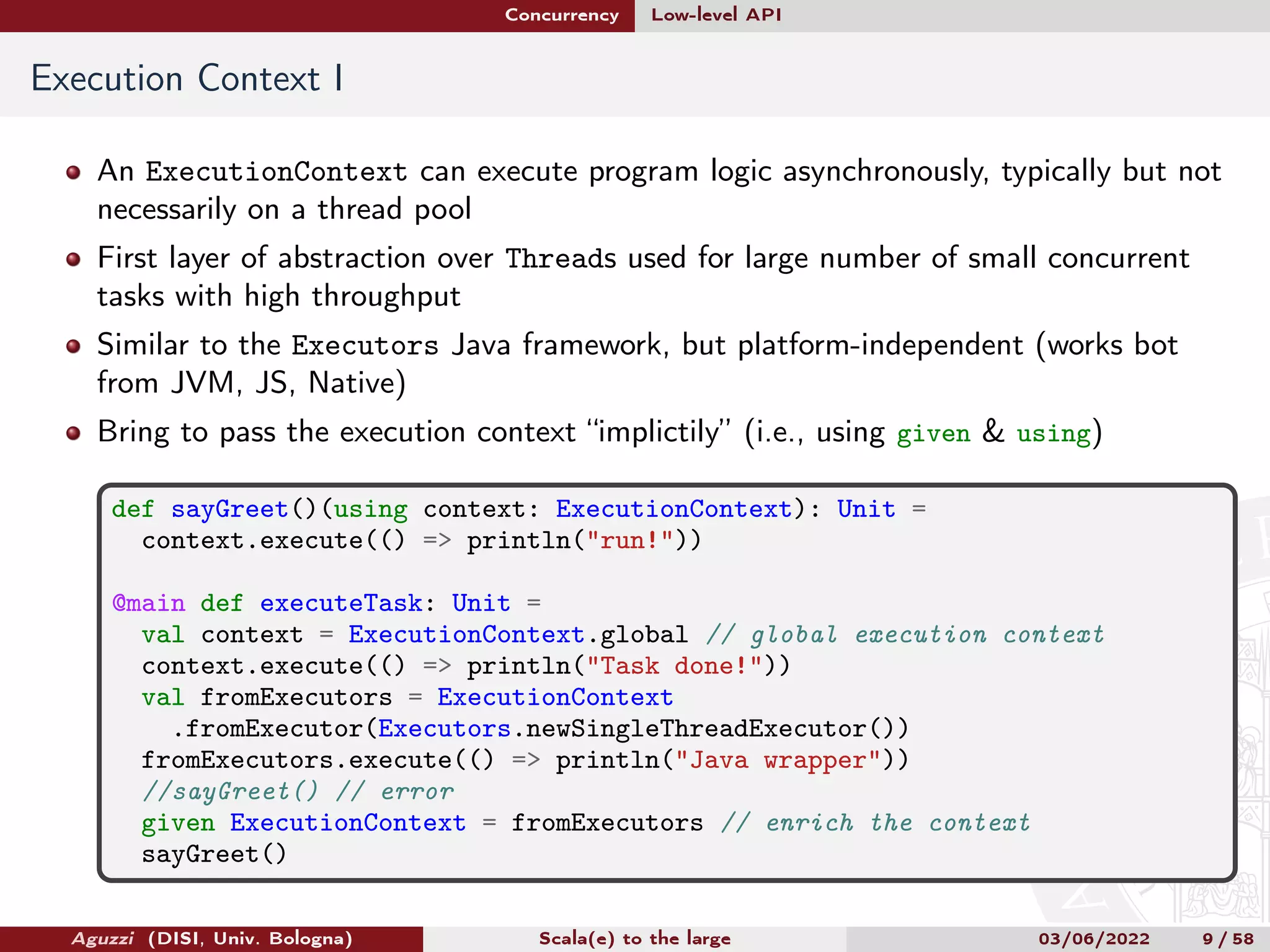

Execution Context I
An ExecutionContext can execute program logic asynchronously, typically but not
necessarily on a thread pool
First layer of abstraction over Threads used for large number of small concurrent
tasks with high throughput
Similar to the Executors Java framework, but platform-independent (works bot
from JVM, JS, Native)
Bring to pass the execution context “implictily” (i.e., using given & using)
def sayGreet()(using context: ExecutionContext): Unit =
context.execute(() => println("run!"))
@main def executeTask: Unit =
val context = ExecutionContext.global // global execution context
context.execute(() => println("Task done!"))
val fromExecutors = ExecutionContext
.fromExecutor(Executors.newSingleThreadExecutor())
fromExecutors.execute(() => println("Java wrapper"))
//sayGreet() // error
given ExecutionContext = fromExecutors // enrich the context
sayGreet()
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 9 / 58

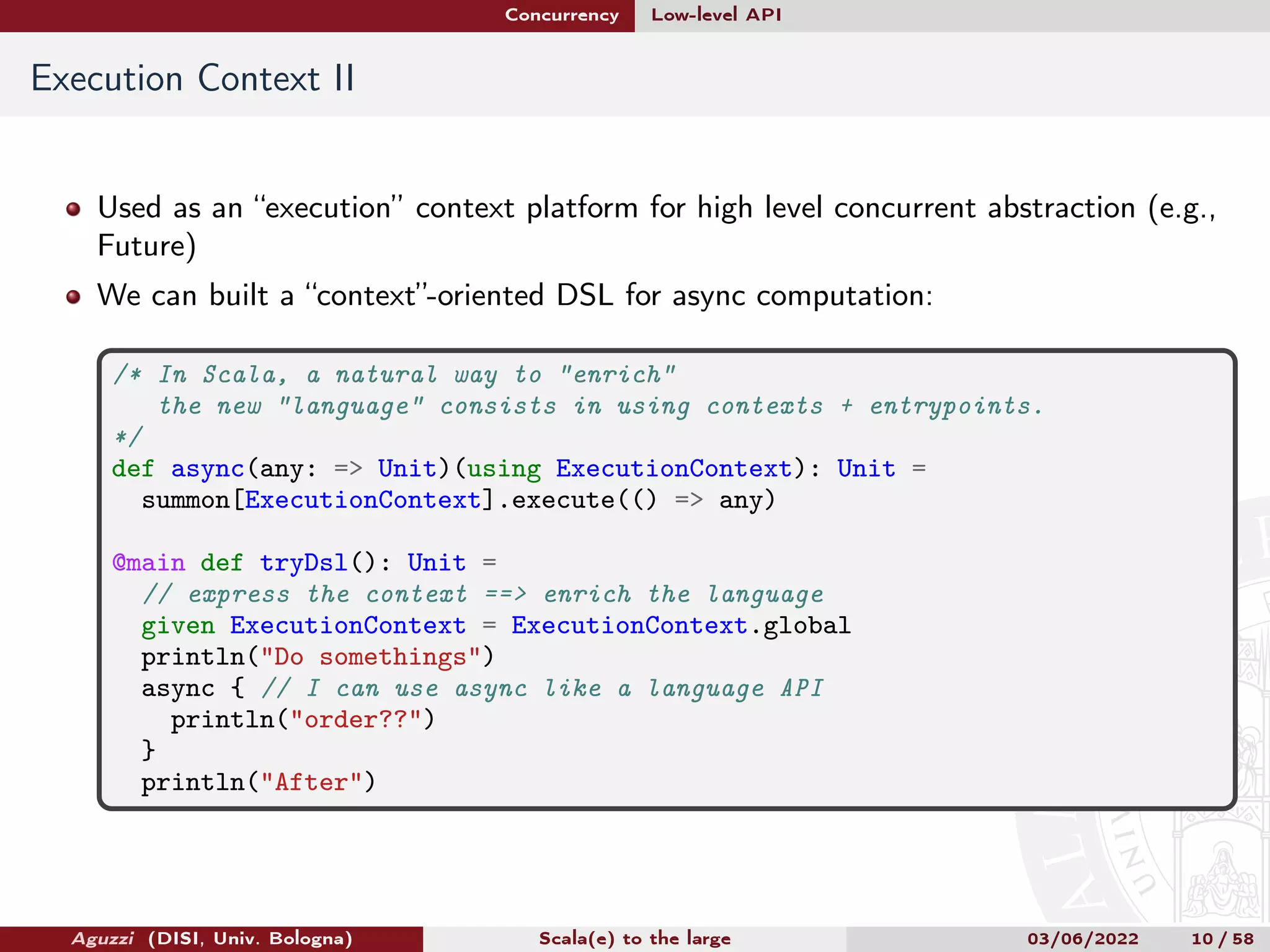

10. Concurrency Low-level API
Execution Context II
Used as an “execution” context platform for high level concurrent abstraction (e.g.,
Future)
We can built a “context”-oriented DSL for async computation:
/* In Scala, a natural way to "enrich"
the new "language" consists in using contexts + entrypoints.
*/
def async(any: => Unit)(using ExecutionContext): Unit =
summon[ExecutionContext].execute(() => any)
@main def tryDsl(): Unit =
// express the context ==> enrich the language
given ExecutionContext = ExecutionContext.global
println("Do somethings")
async { // I can use async like a language API
println("order??")
}
println("After")
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 10 / 58

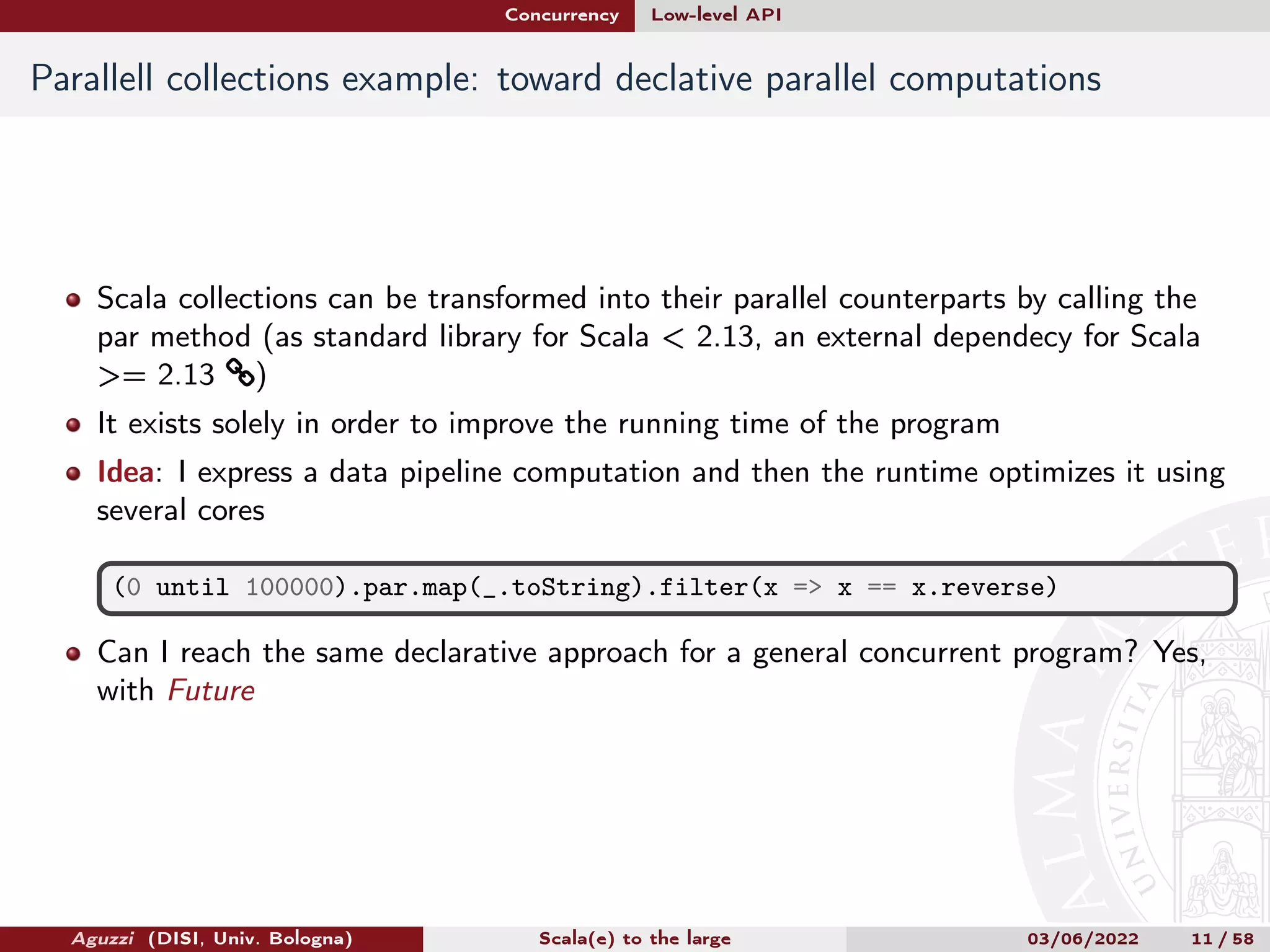

11. Concurrency Low-level API
Parallell collections example: toward declative parallel computations
Scala collections can be transformed into their parallel counterparts by calling the
par method (as standard library for Scala < 2.13, an external dependecy for Scala
>= 2.13 ®)
It exists solely in order to improve the running time of the program
Idea: I express a data pipeline computation and then the runtime optimizes it using
several cores
(0 until 100000).par.map(_.toString).filter(x => x == x.reverse)
Can I reach the same declarative approach for a general concurrent program? Yes,
with Future
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 11 / 58

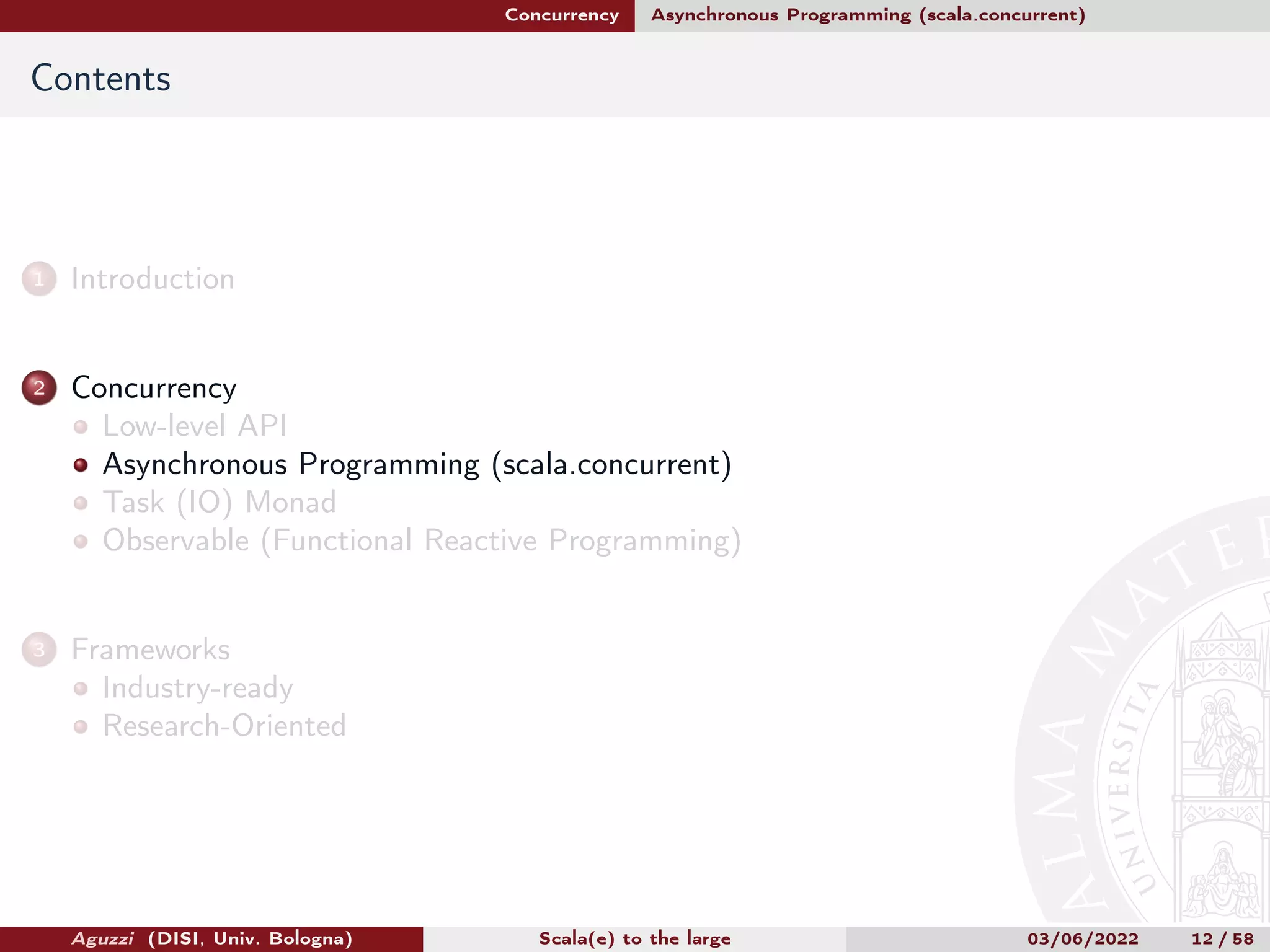

12. Concurrency Asynchronous Programming (scala.concurrent)
Contents
1 Introduction
2 Concurrency
Low-level API
Asynchronous Programming (scala.concurrent)
Task (IO) Monad
Observable (Functional Reactive Programming)
3 Frameworks
Industry-ready
Research-Oriented
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 12 / 58

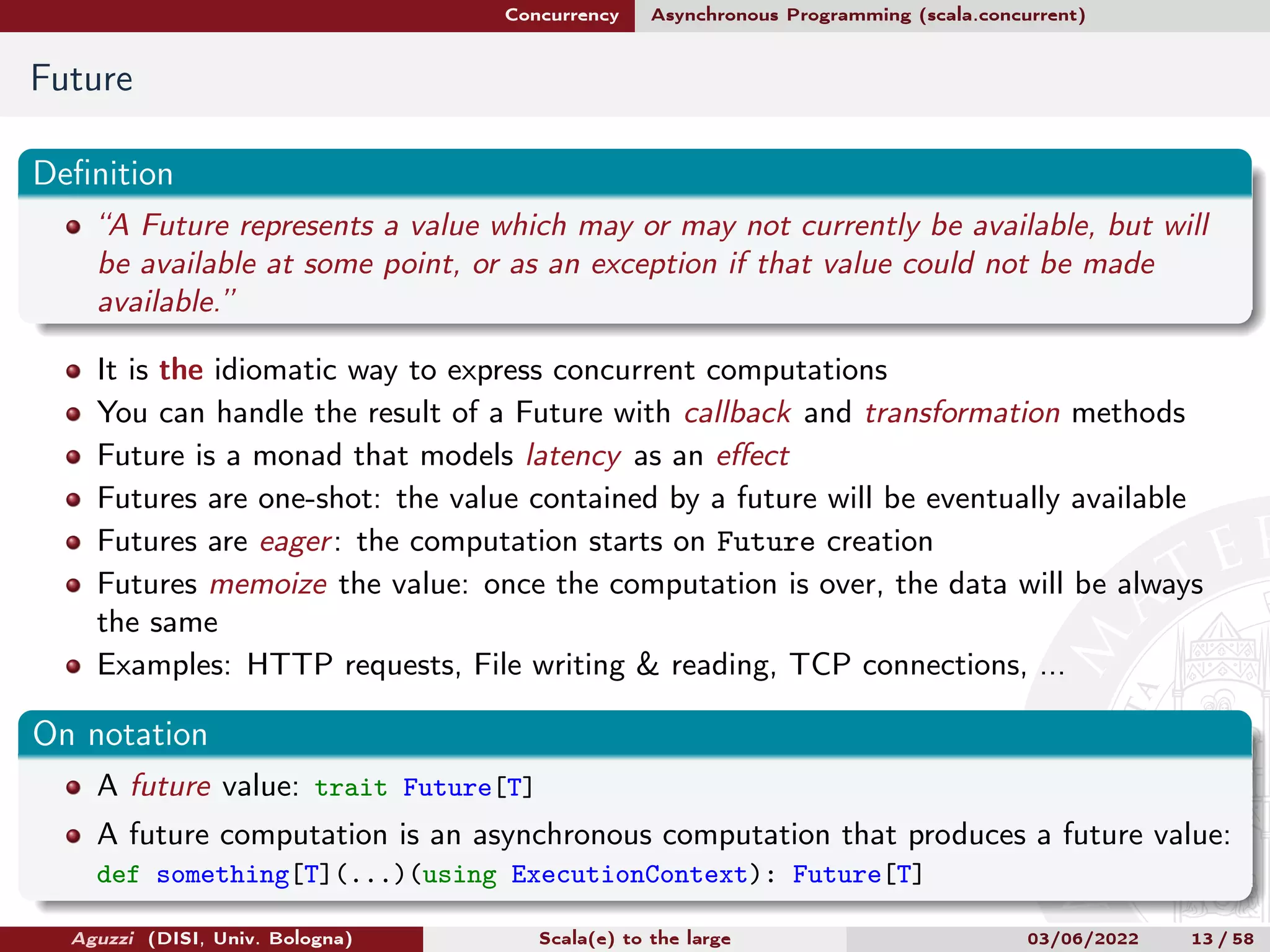

13. Concurrency Asynchronous Programming (scala.concurrent)
Future
Definition
“A Future represents a value which may or may not currently be available, but will
be available at some point, or as an exception if that value could not be made
available.”
It is the idiomatic way to express concurrent computations
You can handle the result of a Future with callback and transformation methods
Future is a monad that models latency as an effect
Futures are one-shot: the value contained by a future will be eventually available
Futures are eager: the computation starts on Future creation
Futures memoize the value: once the computation is over, the data will be always
the same
Examples: HTTP requests, File writing & reading, TCP connections, ...
On notation
A future value: trait Future[T]
A future computation is an asynchronous computation that produces a future value:
def something[T](...)(using ExecutionContext): Future[T]
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 13 / 58

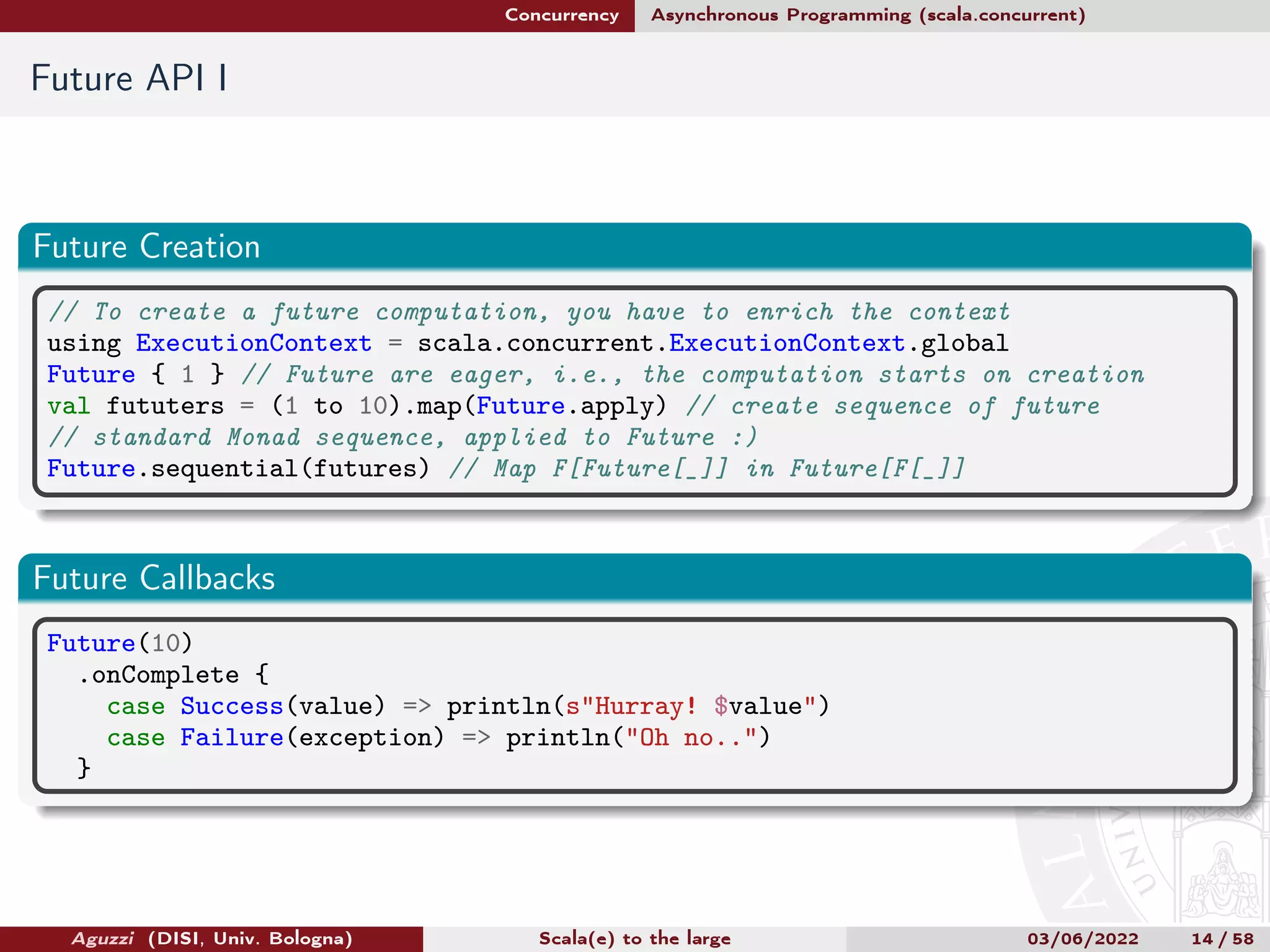

14. Concurrency Asynchronous Programming (scala.concurrent)
Future API I
Future Creation
// To create a future computation, you have to enrich the context
using ExecutionContext = scala.concurrent.ExecutionContext.global
Future { 1 } // Future are eager, i.e., the computation starts on creation
val fututers = (1 to 10).map(Future.apply) // create sequence of future
// standard Monad sequence, applied to Future :)
Future.sequential(futures) // Map F[Future[_]] in Future[F[_]]
Future Callbacks
Future(10)
.onComplete {
case Success(value) => println(s"Hurray! $value")
case Failure(exception) => println("Oh no..")
}
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 14 / 58

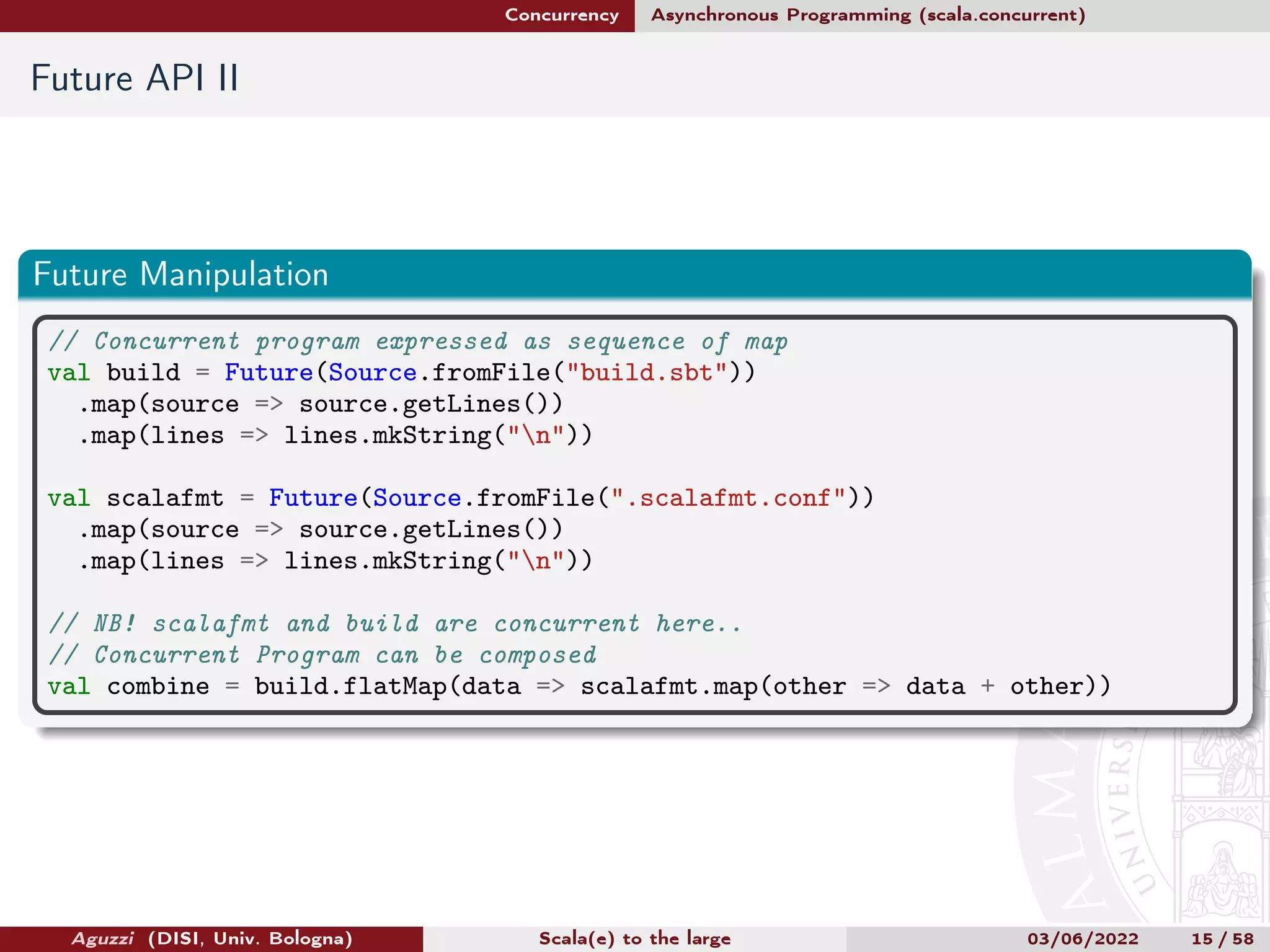

15. Concurrency Asynchronous Programming (scala.concurrent)
Future API II
Future Manipulation
// Concurrent program expressed as sequence of map
val build = Future(Source.fromFile("build.sbt"))
.map(source => source.getLines())
.map(lines => lines.mkString("n"))
val scalafmt = Future(Source.fromFile(".scalafmt.conf"))
.map(source => source.getLines())
.map(lines => lines.mkString("n"))
// NB! scalafmt and build are concurrent here..
// Concurrent Program can be composed
val combine = build.flatMap(data => scalafmt.map(other => data + other))
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 15 / 58

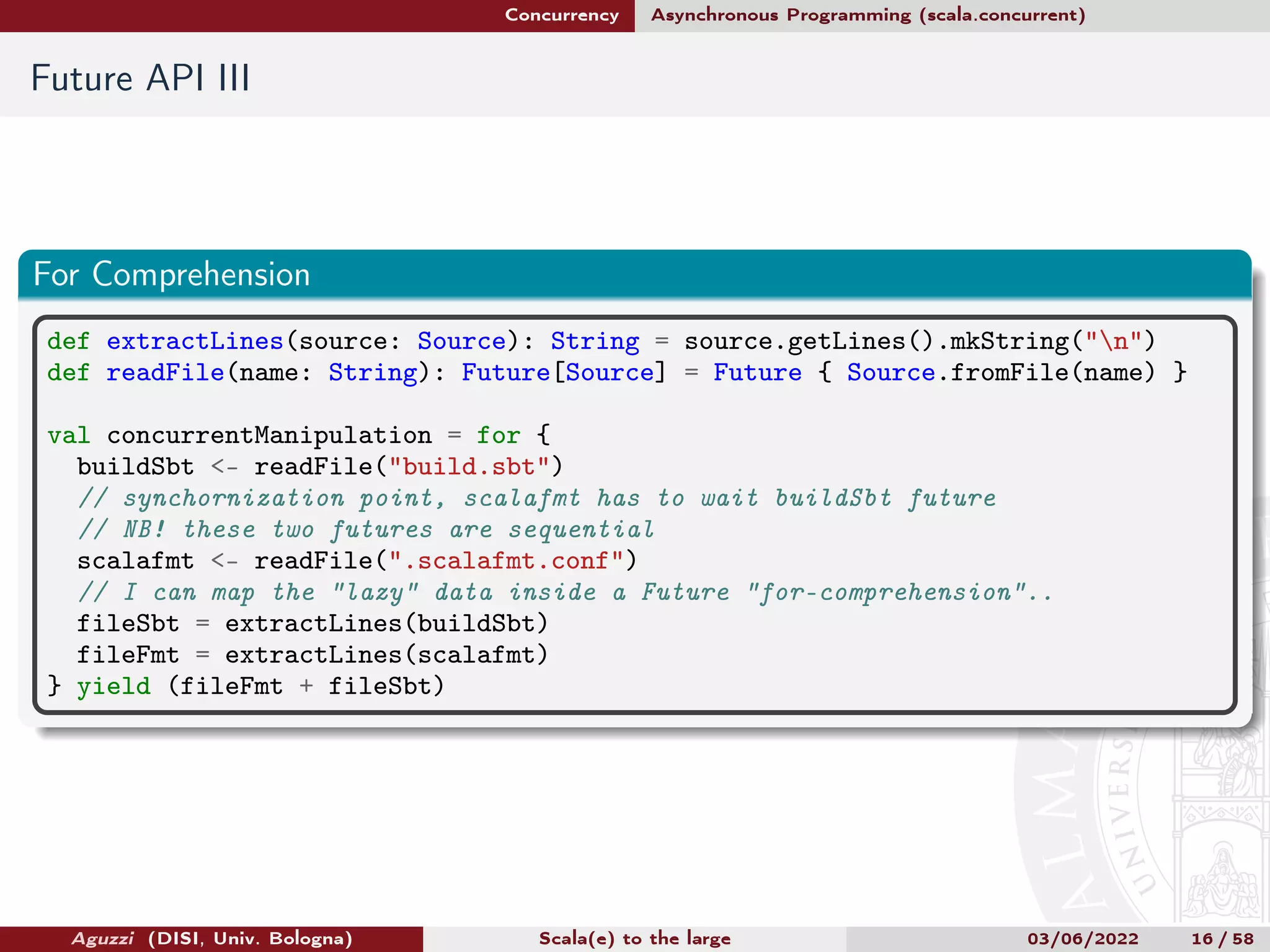

16. Concurrency Asynchronous Programming (scala.concurrent)
Future API III
For Comprehension
def extractLines(source: Source): String = source.getLines().mkString("n")
def readFile(name: String): Future[Source] = Future { Source.fromFile(name) }
val concurrentManipulation = for {
buildSbt <- readFile("build.sbt")
// synchornization point, scalafmt has to wait buildSbt future
// NB! these two futures are sequential
scalafmt <- readFile(".scalafmt.conf")
// I can map the "lazy" data inside a Future "for-comprehension"..
fileSbt = extractLines(buildSbt)
fileFmt = extractLines(scalafmt)
} yield (fileFmt + fileSbt)
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 16 / 58

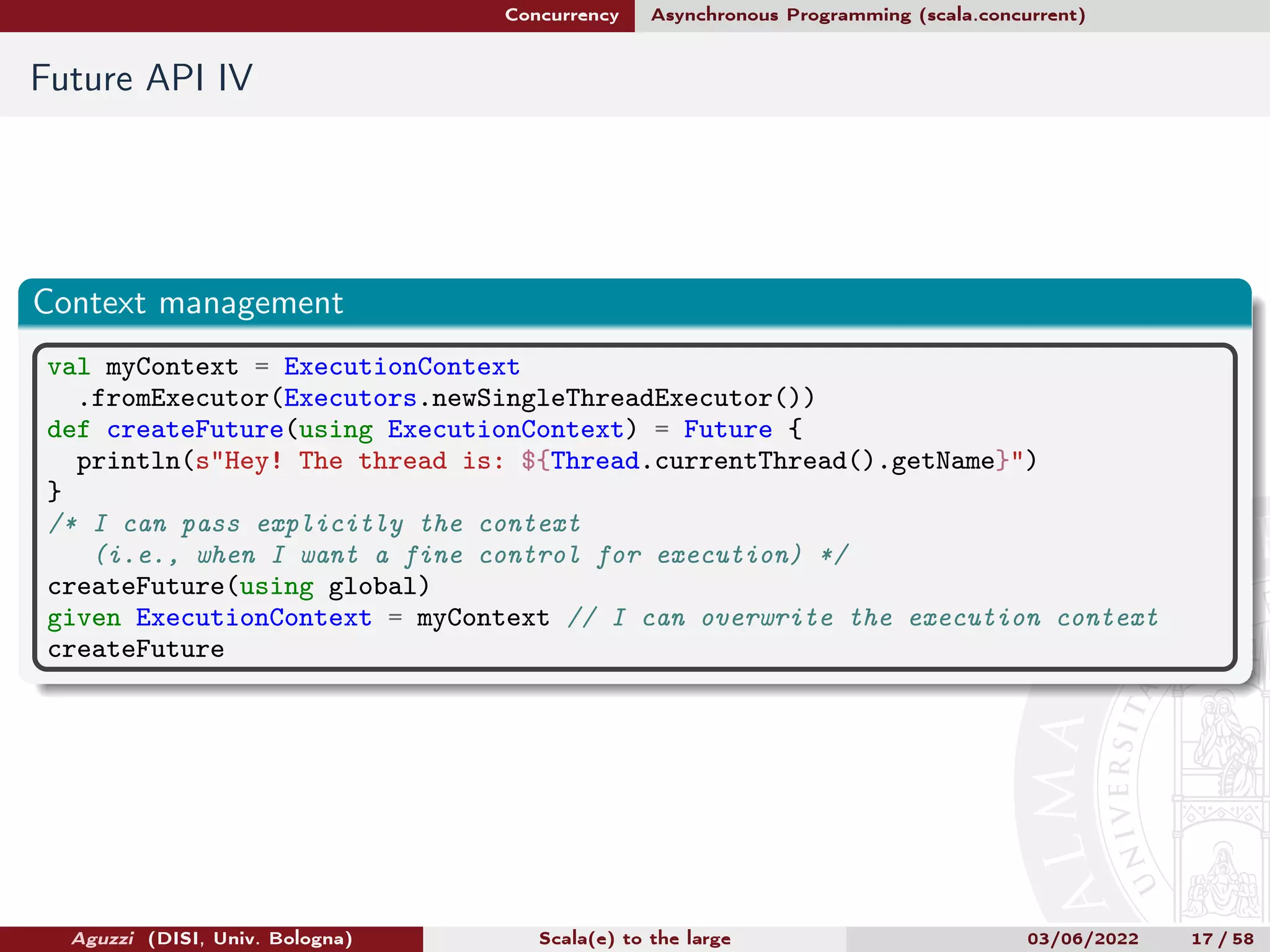

17. Concurrency Asynchronous Programming (scala.concurrent)
Future API IV
Context management
val myContext = ExecutionContext
.fromExecutor(Executors.newSingleThreadExecutor())
def createFuture(using ExecutionContext) = Future {
println(s"Hey! The thread is: ${Thread.currentThread().getName}")
}
/* I can pass explicitly the context
(i.e., when I want a fine control for execution) */
createFuture(using global)
given ExecutionContext = myContext // I can overwrite the execution context
createFuture
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 17 / 58

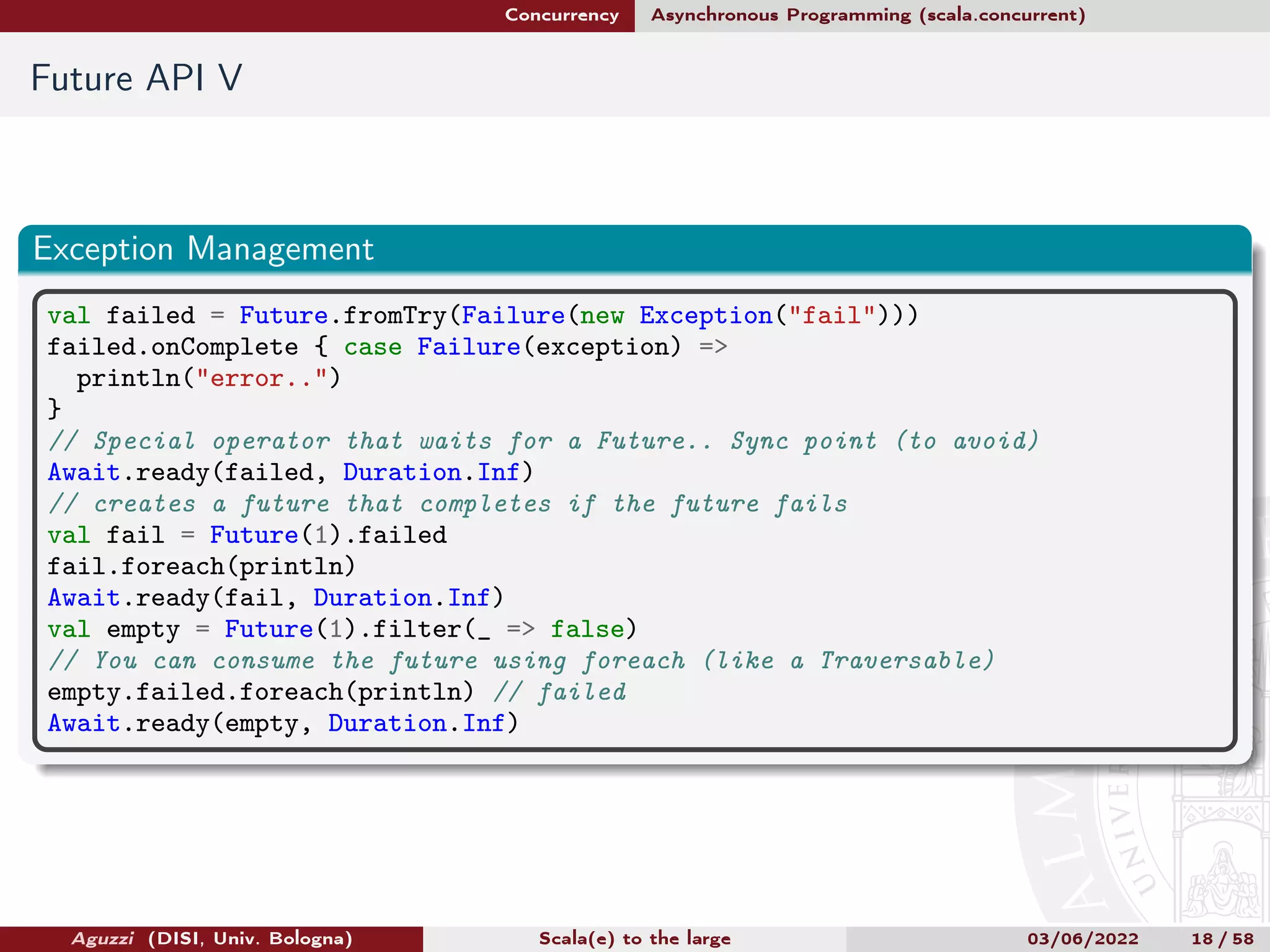

18. Concurrency Asynchronous Programming (scala.concurrent)
Future API V
Exception Management
val failed = Future.fromTry(Failure(new Exception("fail")))
failed.onComplete { case Failure(exception) =>
println("error..")
}
// Special operator that waits for a Future.. Sync point (to avoid)
Await.ready(failed, Duration.Inf)
// creates a future that completes if the future fails
val fail = Future(1).failed
fail.foreach(println)
Await.ready(fail, Duration.Inf)
val empty = Future(1).filter(_ => false)
// You can consume the future using foreach (like a Traversable)
empty.failed.foreach(println) // failed
Await.ready(empty, Duration.Inf)
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 18 / 58

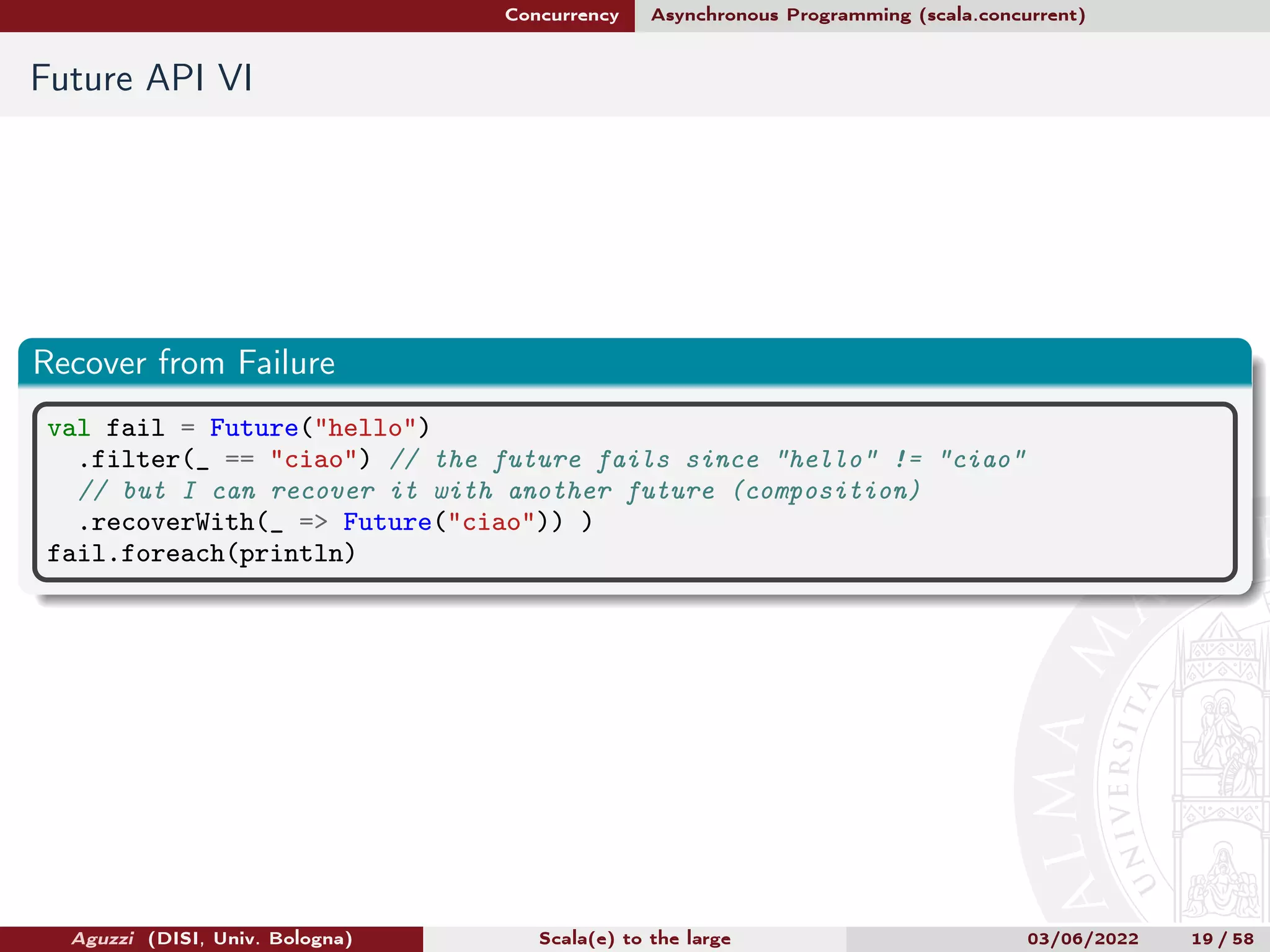

19. Concurrency Asynchronous Programming (scala.concurrent)
Future API VI
Recover from Failure
val fail = Future("hello")
.filter(_ == "ciao") // the future fails since "hello" != "ciao"
// but I can recover it with another future (composition)
.recoverWith(_ => Future("ciao")) )
fail.foreach(println)
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 19 / 58

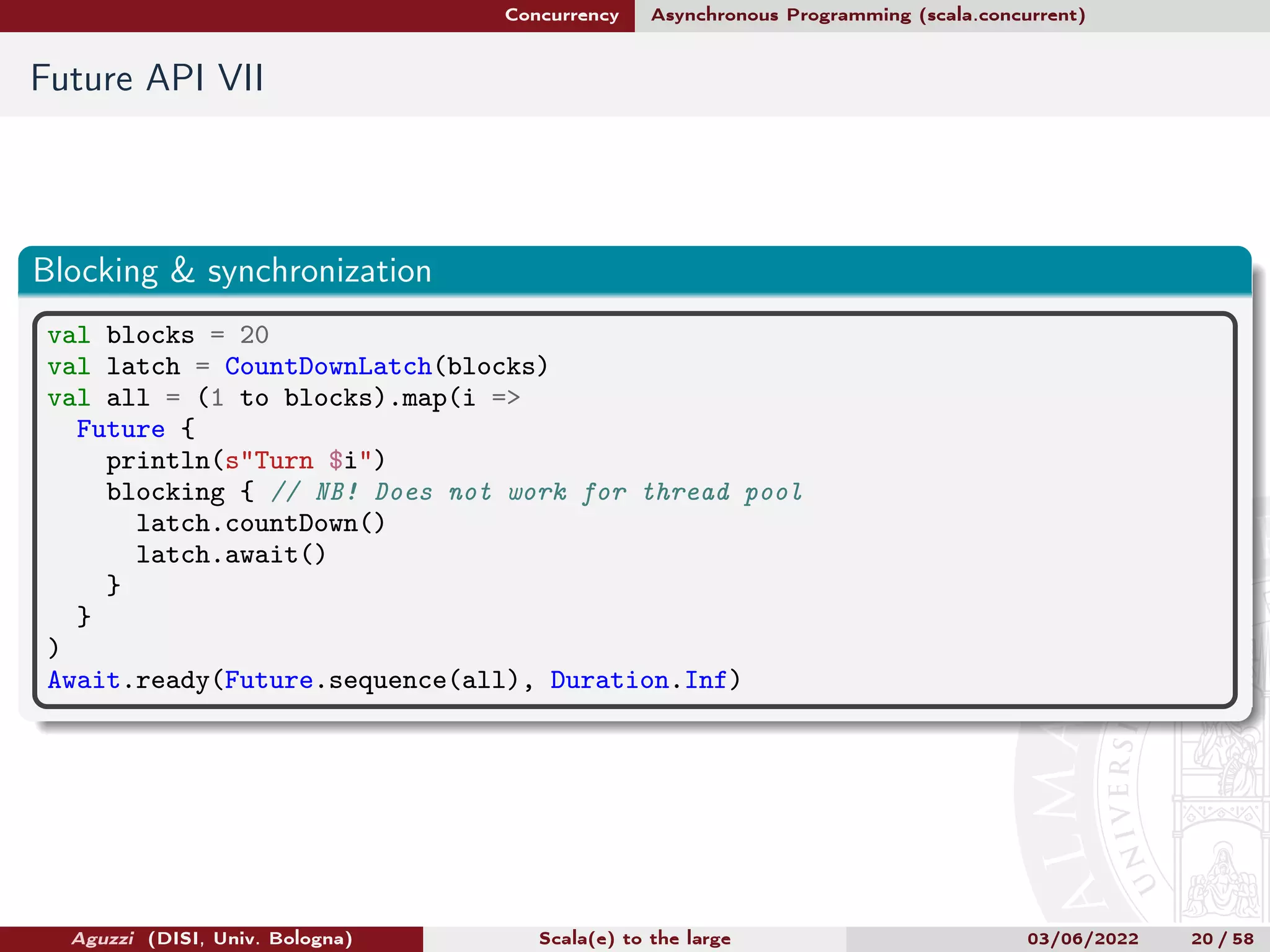

20. Concurrency Asynchronous Programming (scala.concurrent)
Future API VII
Blocking & synchronization
val blocks = 20
val latch = CountDownLatch(blocks)
val all = (1 to blocks).map(i =>
Future {
println(s"Turn $i")
blocking { // NB! Does not work for thread pool
latch.countDown()
latch.await()
}
}
)
Await.ready(Future.sequence(all), Duration.Inf)
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 20 / 58

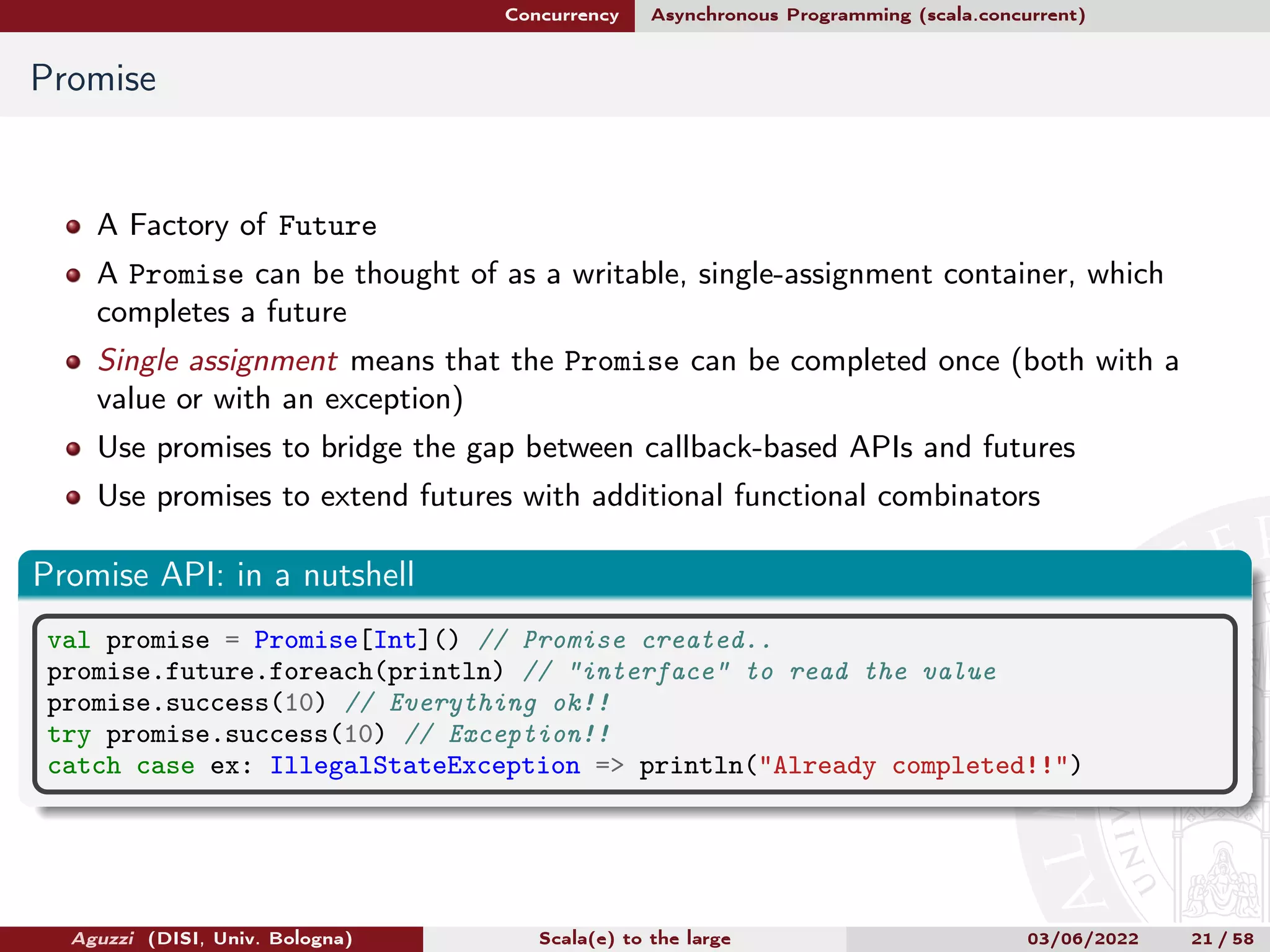

21. Concurrency Asynchronous Programming (scala.concurrent)
Promise
A Factory of Future
A Promise can be thought of as a writable, single-assignment container, which
completes a future
Single assignment means that the Promise can be completed once (both with a
value or with an exception)
Use promises to bridge the gap between callback-based APIs and futures
Use promises to extend futures with additional functional combinators
Promise API: in a nutshell
val promise = Promise[Int]() // Promise created..
promise.future.foreach(println) // "interface" to read the value
promise.success(10) // Everything ok!!
try promise.success(10) // Exception!!
catch case ex: IllegalStateException => println("Already completed!!")
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 21 / 58
22. Concurrency Asynchronous Programming (scala.concurrent)

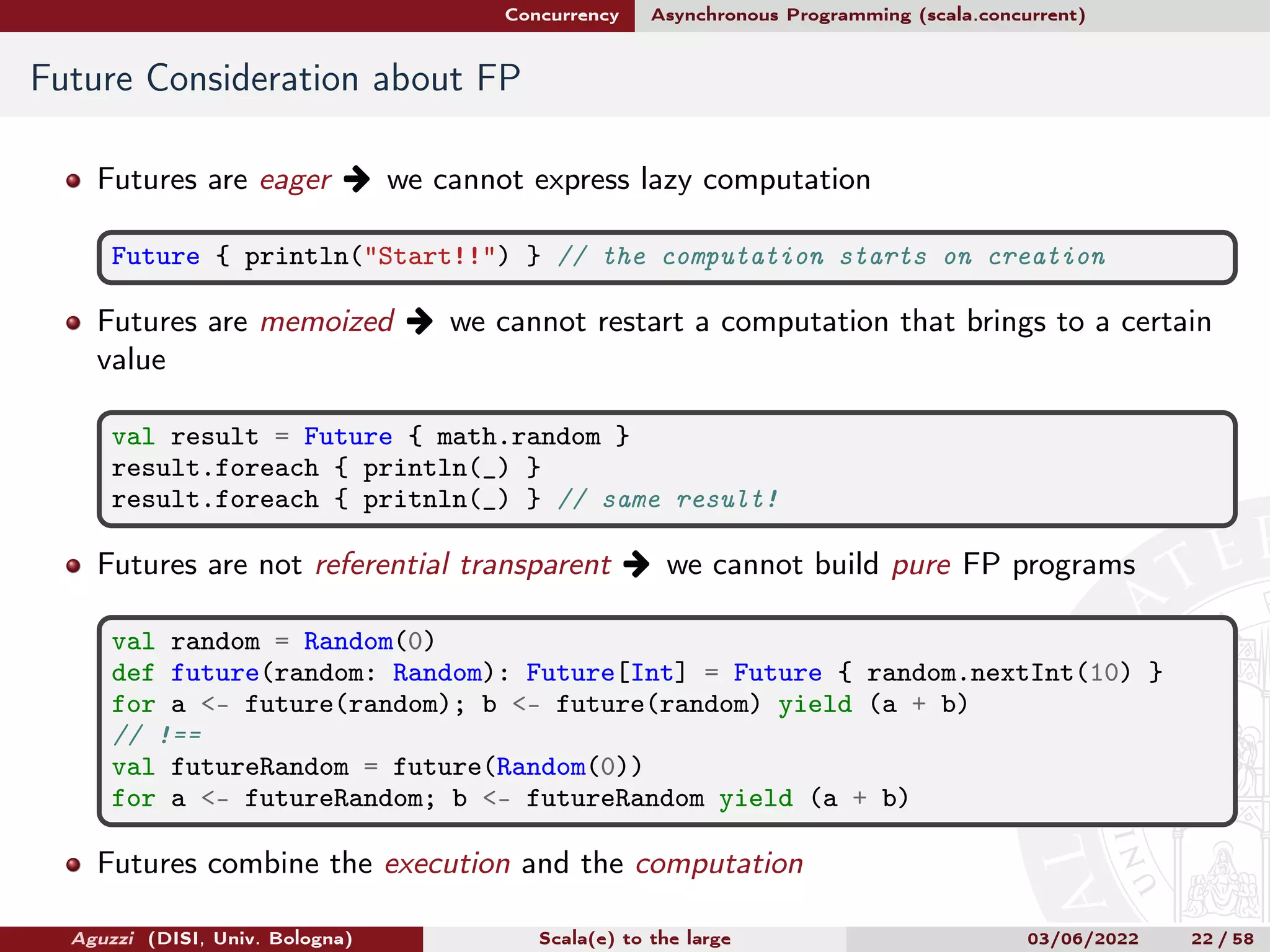

Future Consideration about FP
Futures are eager ú we cannot express lazy computation
Future { println("Start!!") } // the computation starts on creation
Futures are memoized ú we cannot restart a computation that brings to a certain
value
val result = Future { math.random }
result.foreach { println(_) }
result.foreach { pritnln(_) } // same result!
Futures are not referential transparent ú we cannot build pure FP programs
val random = Random(0)
def future(random: Random): Future[Int] = Future { random.nextInt(10) }
for a <- future(random); b <- future(random) yield (a + b)
// !==
val futureRandom = future(Random(0))
for a <- futureRandom; b <- futureRandom yield (a + b)
Futures combine the execution and the computation
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 22 / 58

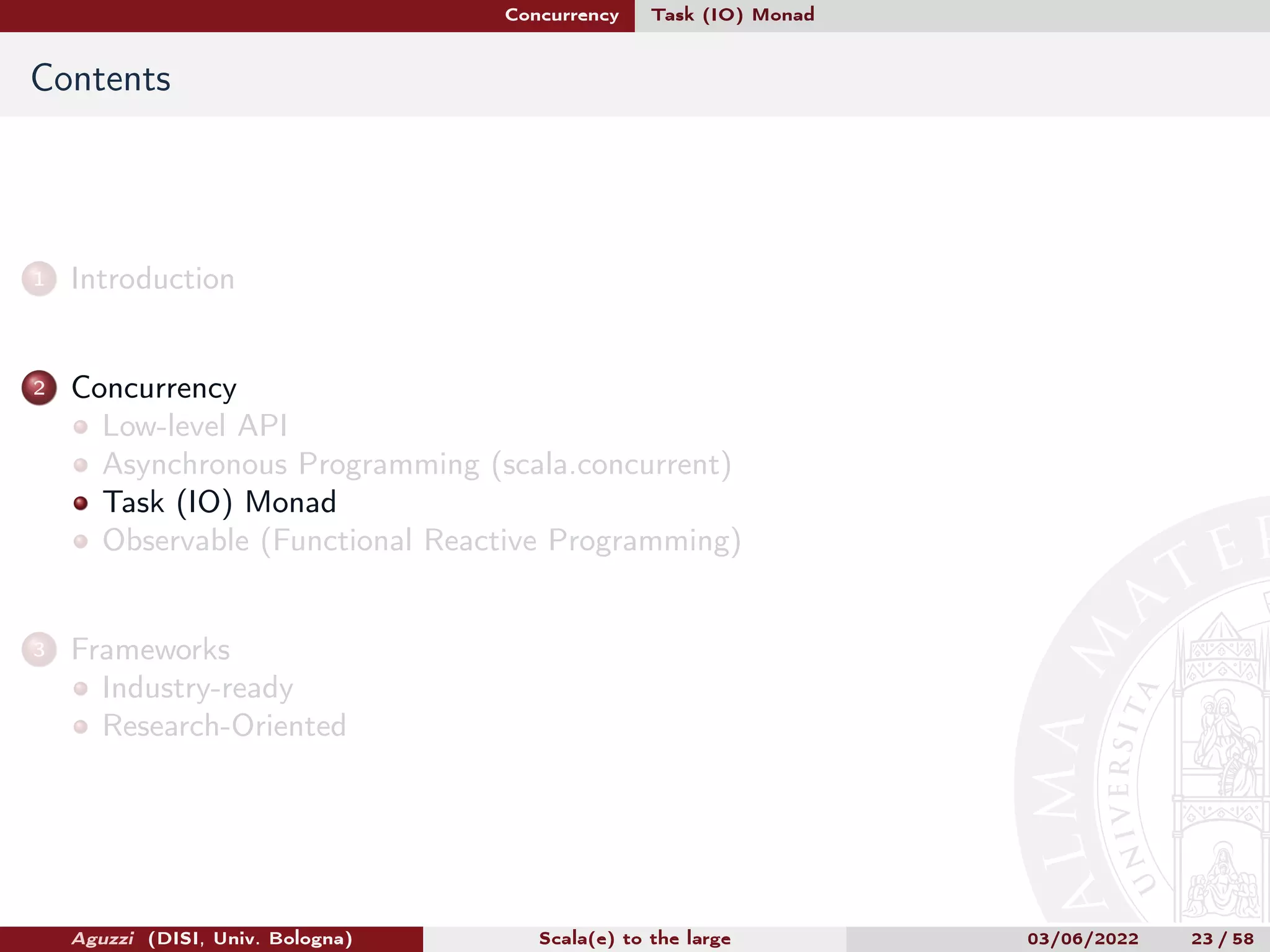

23. Concurrency Task (IO) Monad
Contents
1 Introduction
2 Concurrency
Low-level API
Asynchronous Programming (scala.concurrent)
Task (IO) Monad
Observable (Functional Reactive Programming)
3 Frameworks
Industry-ready
Research-Oriented
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 23 / 58
24. Concurrency Task (IO) Monad

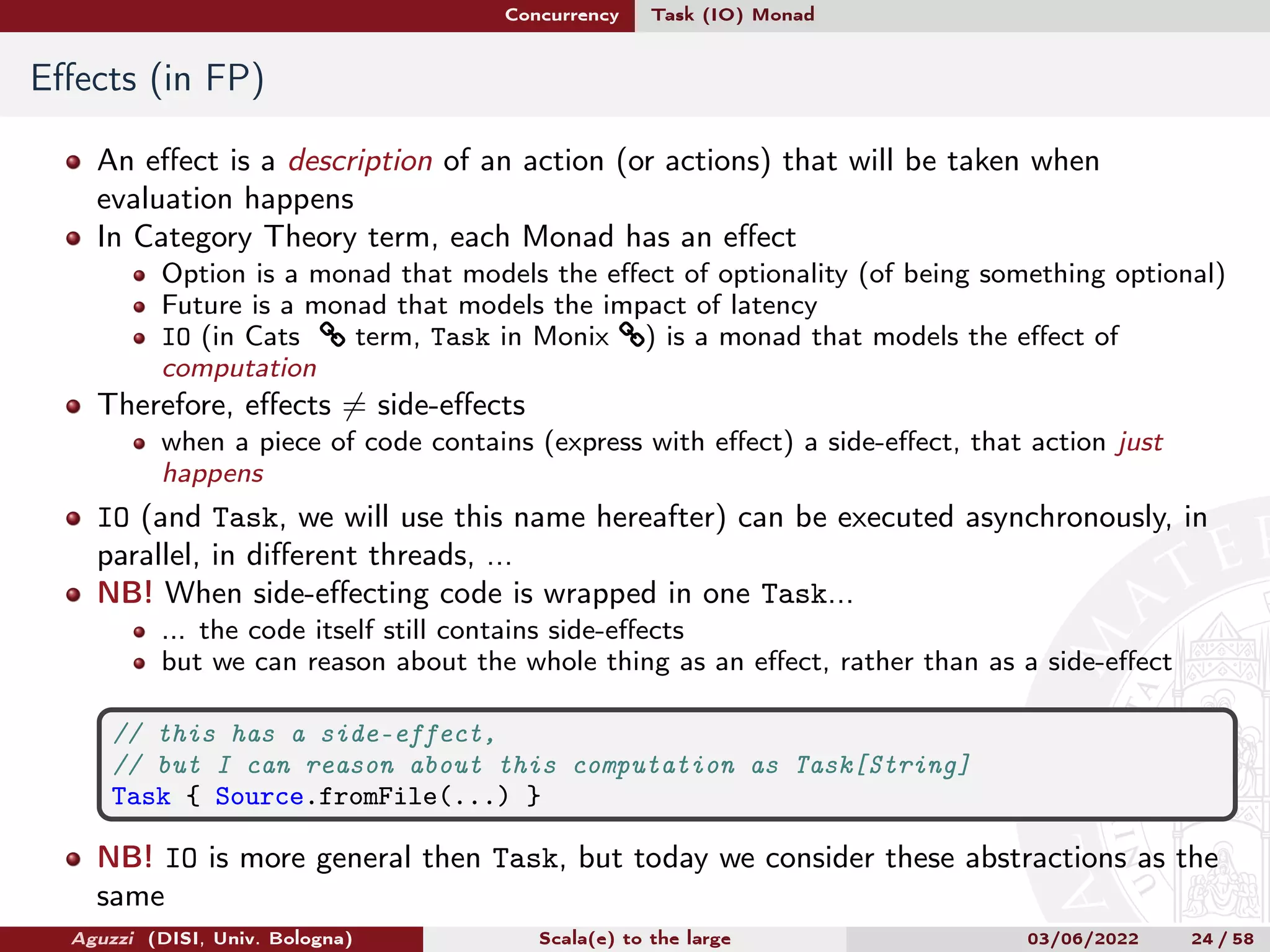

Effects (in FP)
An effect is a description of an action (or actions) that will be taken when
evaluation happens
In Category Theory term, each Monad has an effect
Option is a monad that models the effect of optionality (of being something optional)
Future is a monad that models the impact of latency
IO (in Cats ® term, Task in Monix ®) is a monad that models the effect of
computation
Therefore, effects 6= side-effects
when a piece of code contains (express with effect) a side-effect, that action just
happens
IO (and Task, we will use this name hereafter) can be executed asynchronously, in
parallel, in different threads, ...
NB! When side-effecting code is wrapped in one Task...
... the code itself still contains side-effects
but we can reason about the whole thing as an effect, rather than as a side-effect
// this has a side-effect,
// but I can reason about this computation as Task[String]
Task { Source.fromFile(...) }
NB! IO is more general then Task, but today we consider these abstractions as the
same
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 24 / 58

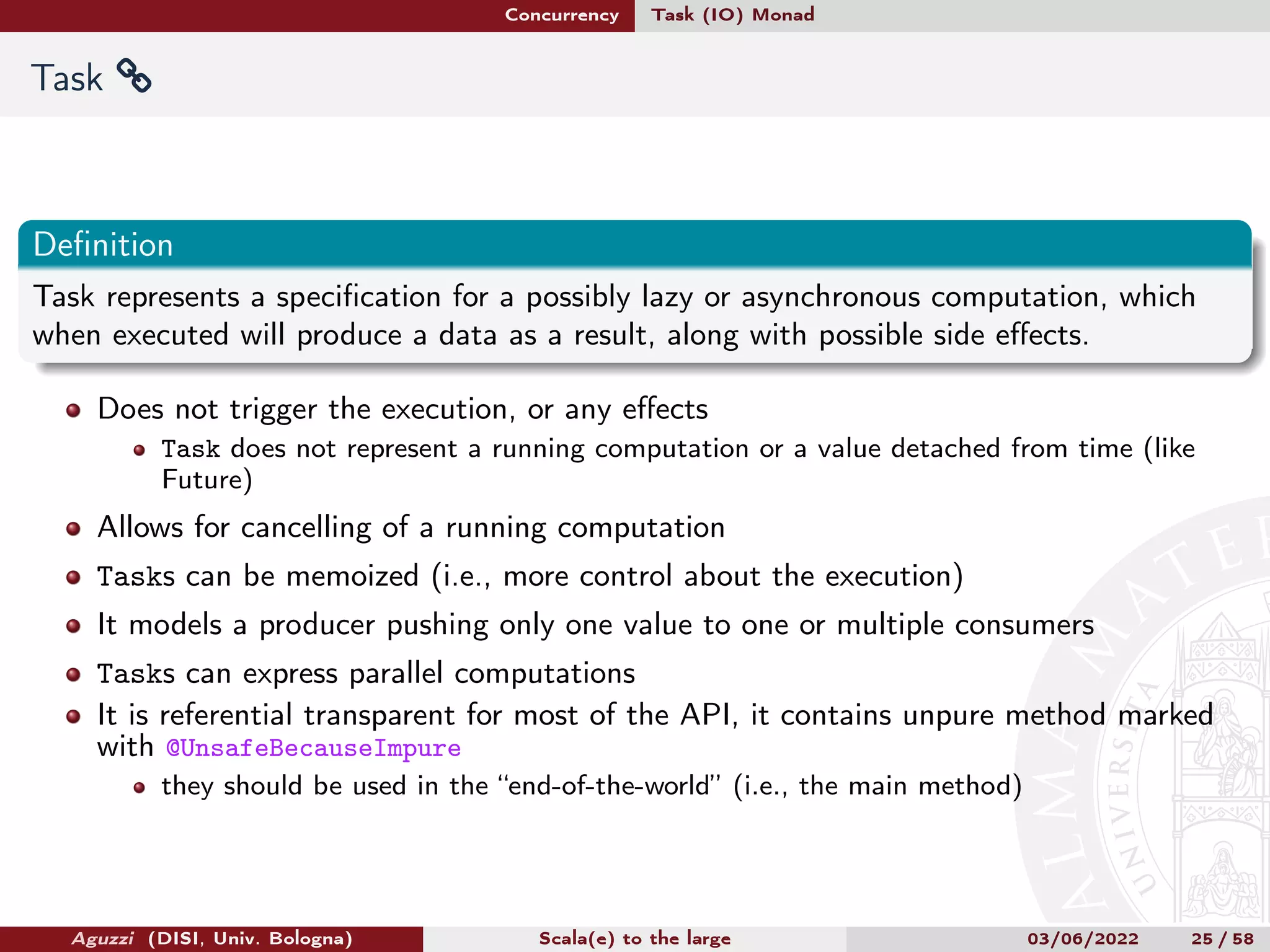

25. Concurrency Task (IO) Monad
Task ®
Definition
Task represents a specification for a possibly lazy or asynchronous computation, which
when executed will produce a data as a result, along with possible side effects.
Does not trigger the execution, or any effects
Task does not represent a running computation or a value detached from time (like
Future)
Allows for cancelling of a running computation
Tasks can be memoized (i.e., more control about the execution)
It models a producer pushing only one value to one or multiple consumers
Tasks can express parallel computations
It is referential transparent for most of the API, it contains unpure method marked
with @UnsafeBecauseImpure
they should be used in the “end-of-the-world” (i.e., the main method)
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 25 / 58

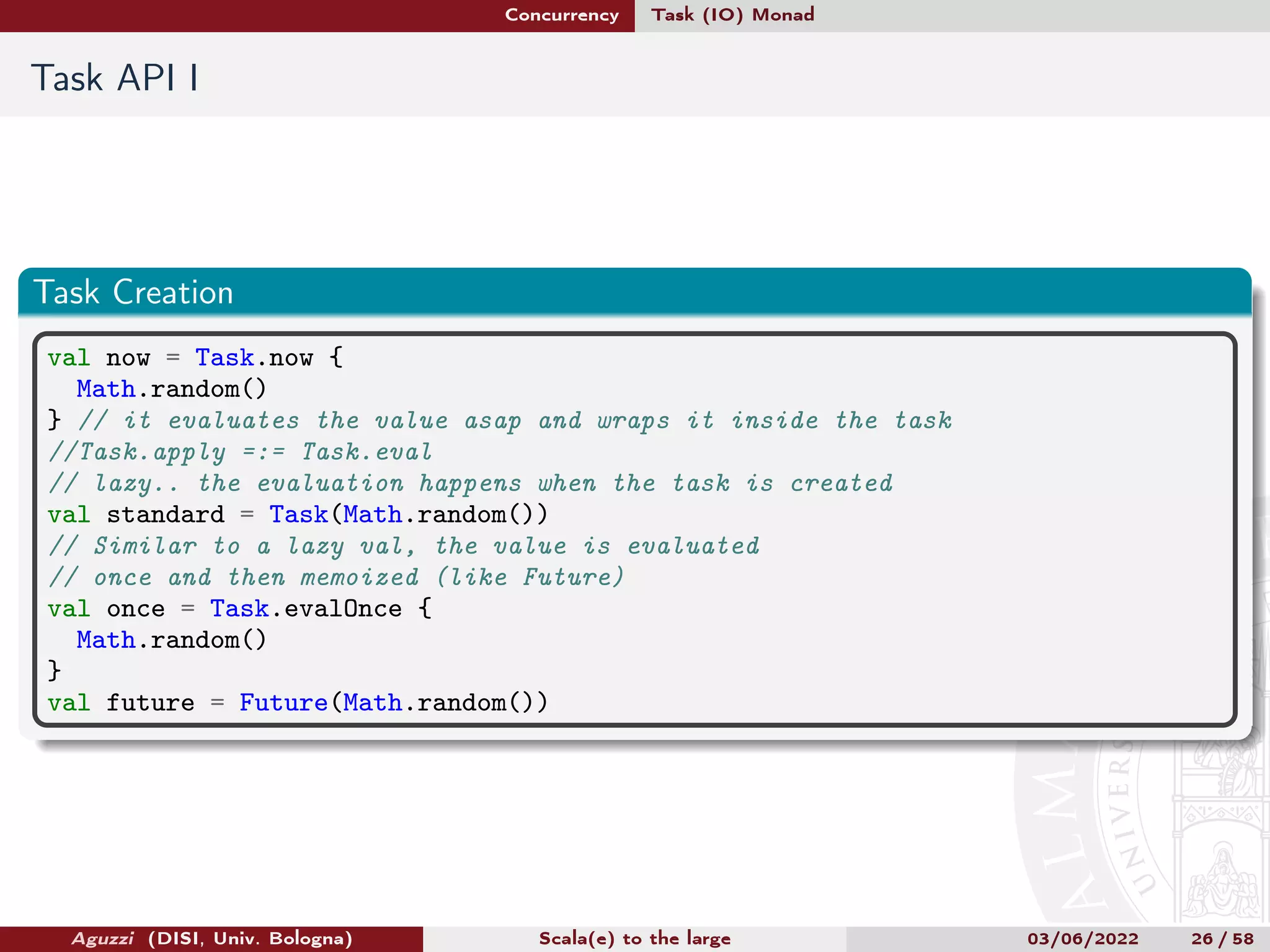

26. Concurrency Task (IO) Monad
Task API I
Task Creation
val now = Task.now {
Math.random()
} // it evaluates the value asap and wraps it inside the task
//Task.apply =:= Task.eval
// lazy.. the evaluation happens when the task is created
val standard = Task(Math.random())
// Similar to a lazy val, the value is evaluated
// once and then memoized (like Future)
val once = Task.evalOnce {
Math.random()
}
val future = Future(Math.random())
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 26 / 58
27. Concurrency Task (IO) Monad

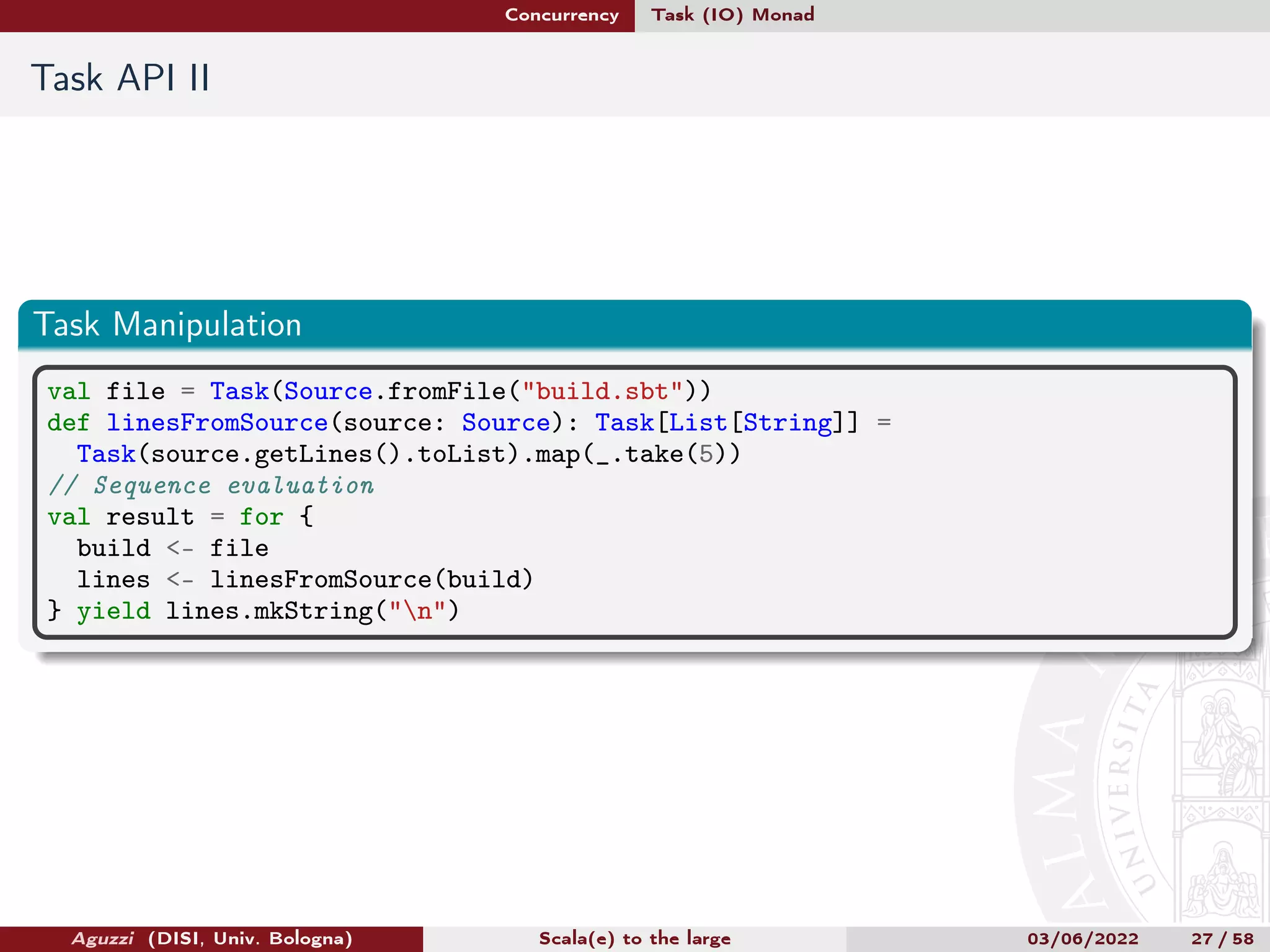

Task API II
Task Manipulation
val file = Task(Source.fromFile("build.sbt"))
def linesFromSource(source: Source): Task[List[String]] =
Task(source.getLines().toList).map(_.take(5))
// Sequence evaluation
val result = for {
build <- file
lines <- linesFromSource(build)
} yield lines.mkString("n")
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 27 / 58

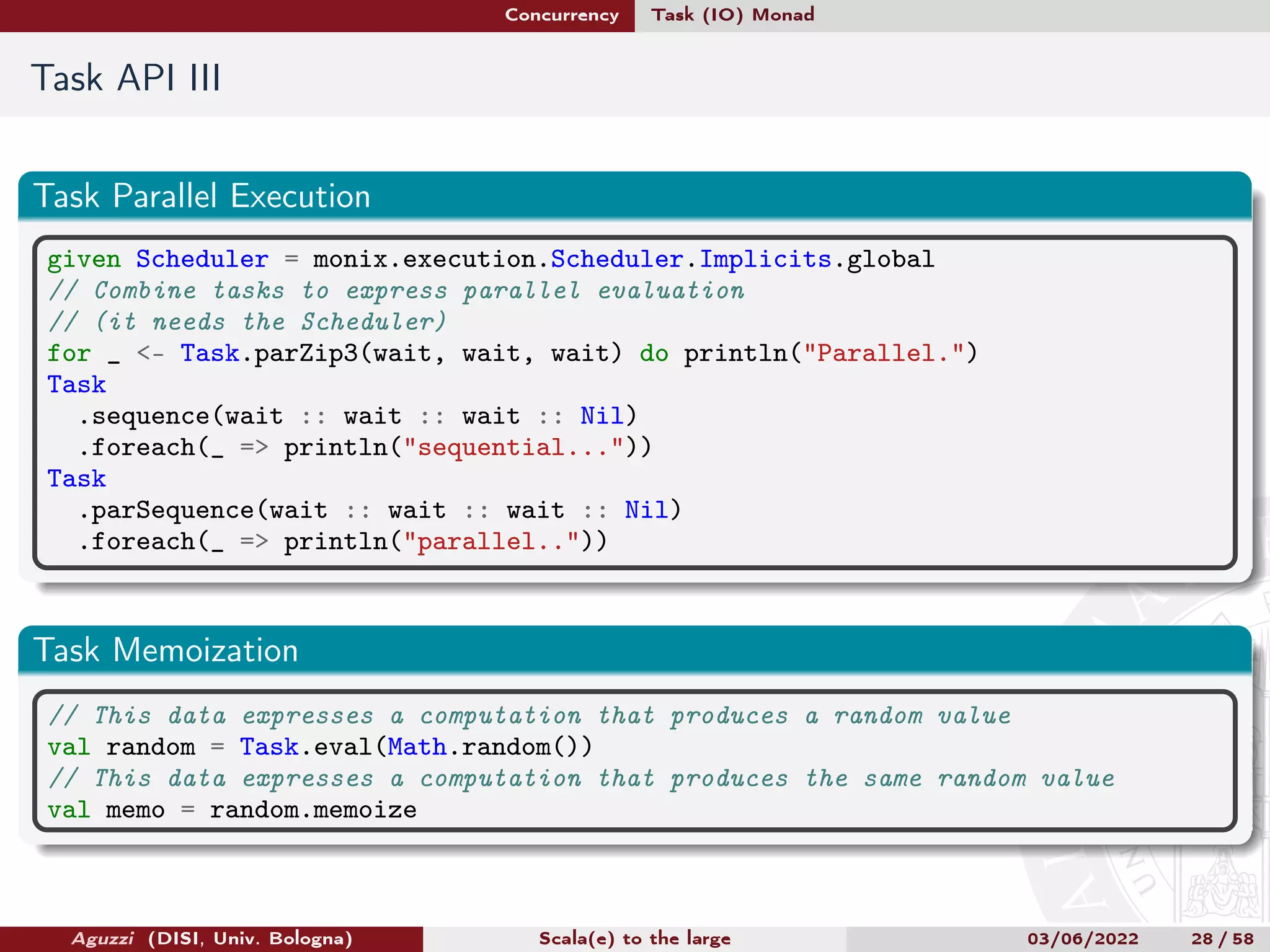

28. Concurrency Task (IO) Monad
Task API III
Task Parallel Execution
given Scheduler = monix.execution.Scheduler.Implicits.global
// Combine tasks to express parallel evaluation
// (it needs the Scheduler)
for _ <- Task.parZip3(wait, wait, wait) do println("Parallel.")
Task
.sequence(wait :: wait :: wait :: Nil)
.foreach(_ => println("sequential..."))
Task
.parSequence(wait :: wait :: wait :: Nil)
.foreach(_ => println("parallel.."))
Task Memoization
// This data expresses a computation that produces a random value
val random = Task.eval(Math.random())
// This data expresses a computation that produces the same random value
val memo = random.memoize
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 28 / 58

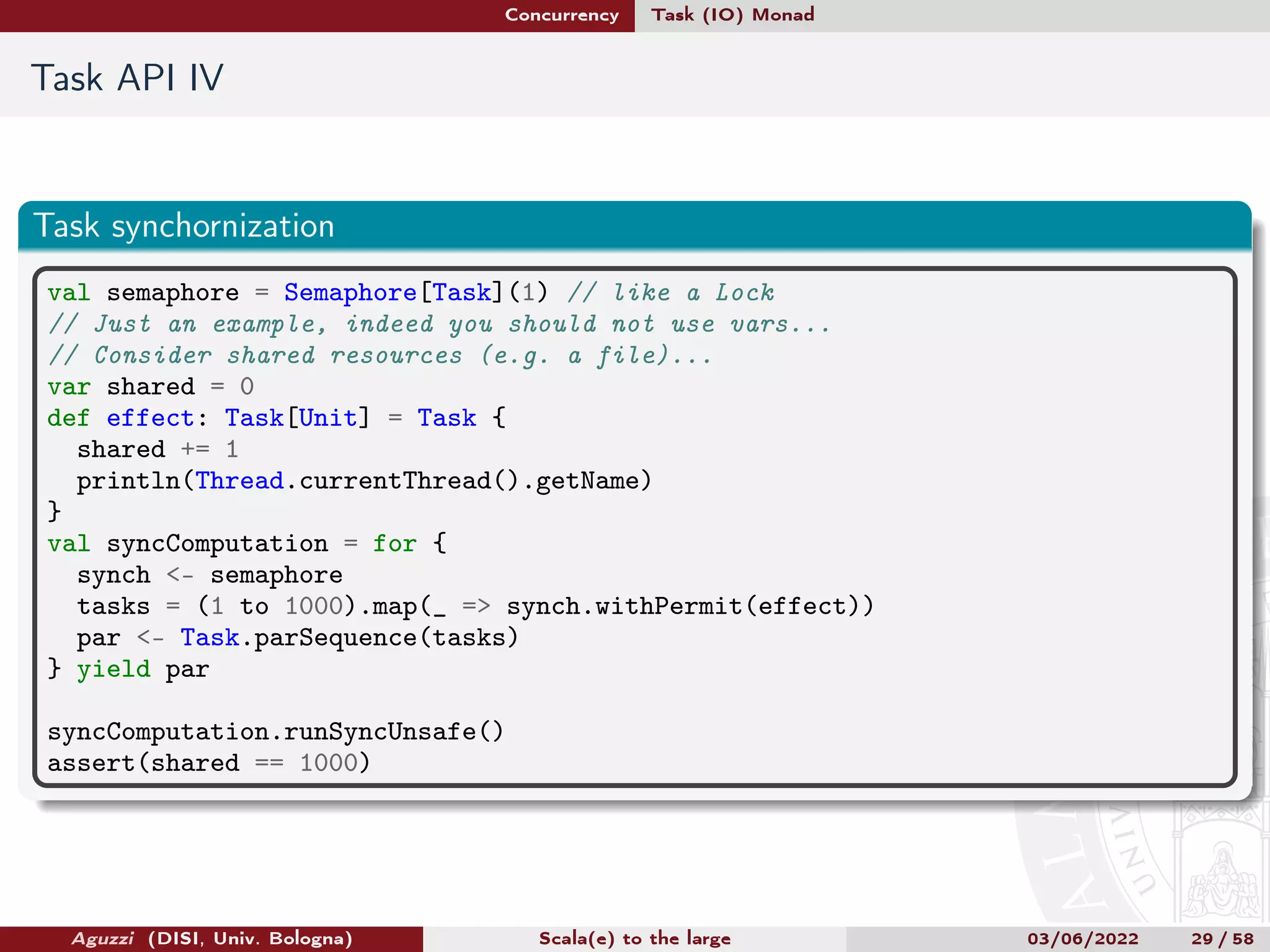

29. Concurrency Task (IO) Monad
Task API IV
Task synchornization
val semaphore = Semaphore[Task](1) // like a Lock
// Just an example, indeed you should not use vars...
// Consider shared resources (e.g. a file)...
var shared = 0
def effect: Task[Unit] = Task {
shared += 1
println(Thread.currentThread().getName)
}
val syncComputation = for {
synch <- semaphore
tasks = (1 to 1000).map(_ => synch.withPermit(effect))
par <- Task.parSequence(tasks)
} yield par
syncComputation.runSyncUnsafe()
assert(shared == 1000)
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 29 / 58

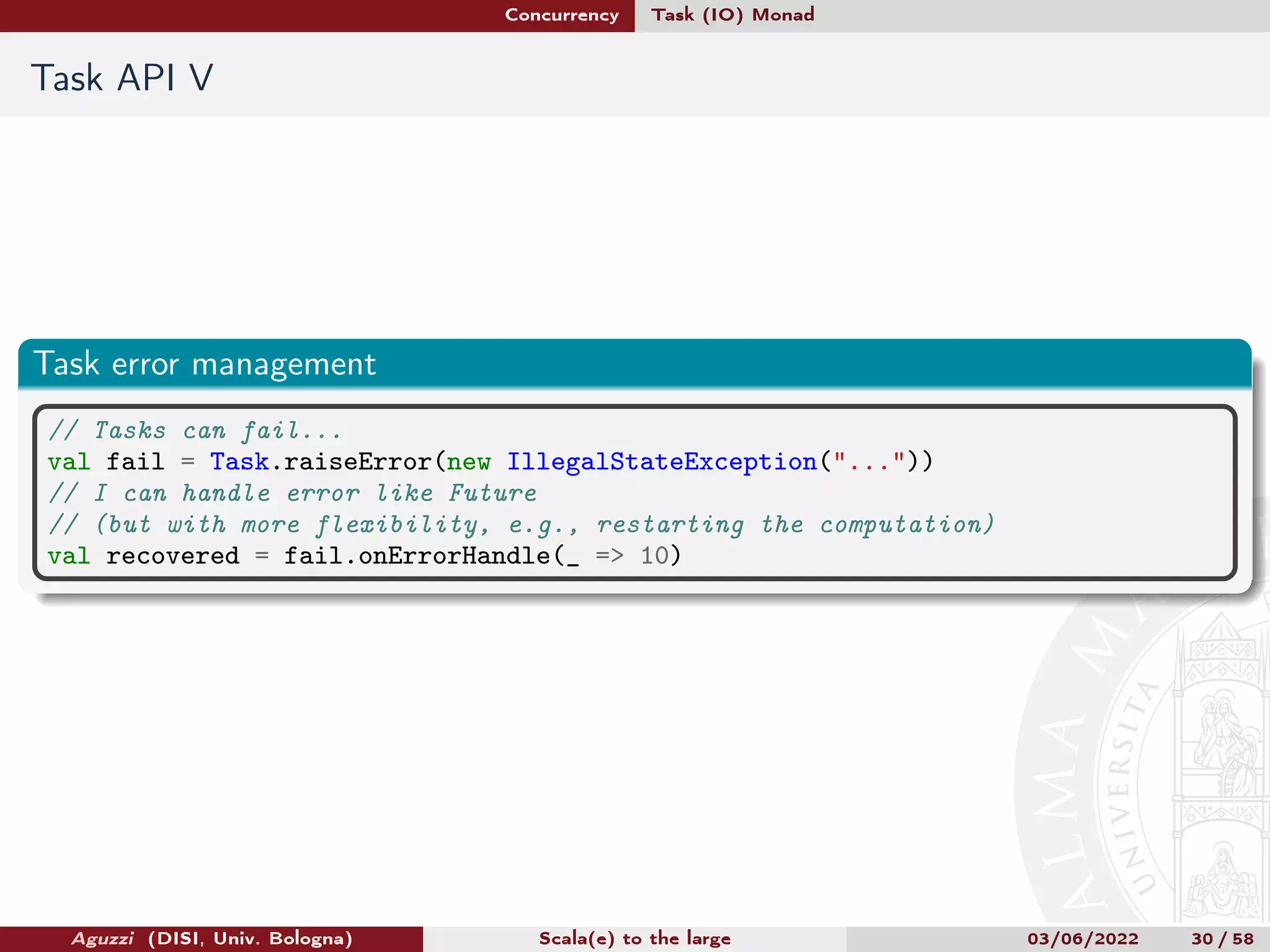

30. Concurrency Task (IO) Monad
Task API V
Task error management
// Tasks can fail...
val fail = Task.raiseError(new IllegalStateException("..."))
// I can handle error like Future
// (but with more flexibility, e.g., restarting the computation)
val recovered = fail.onErrorHandle(_ => 10)
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 30 / 58

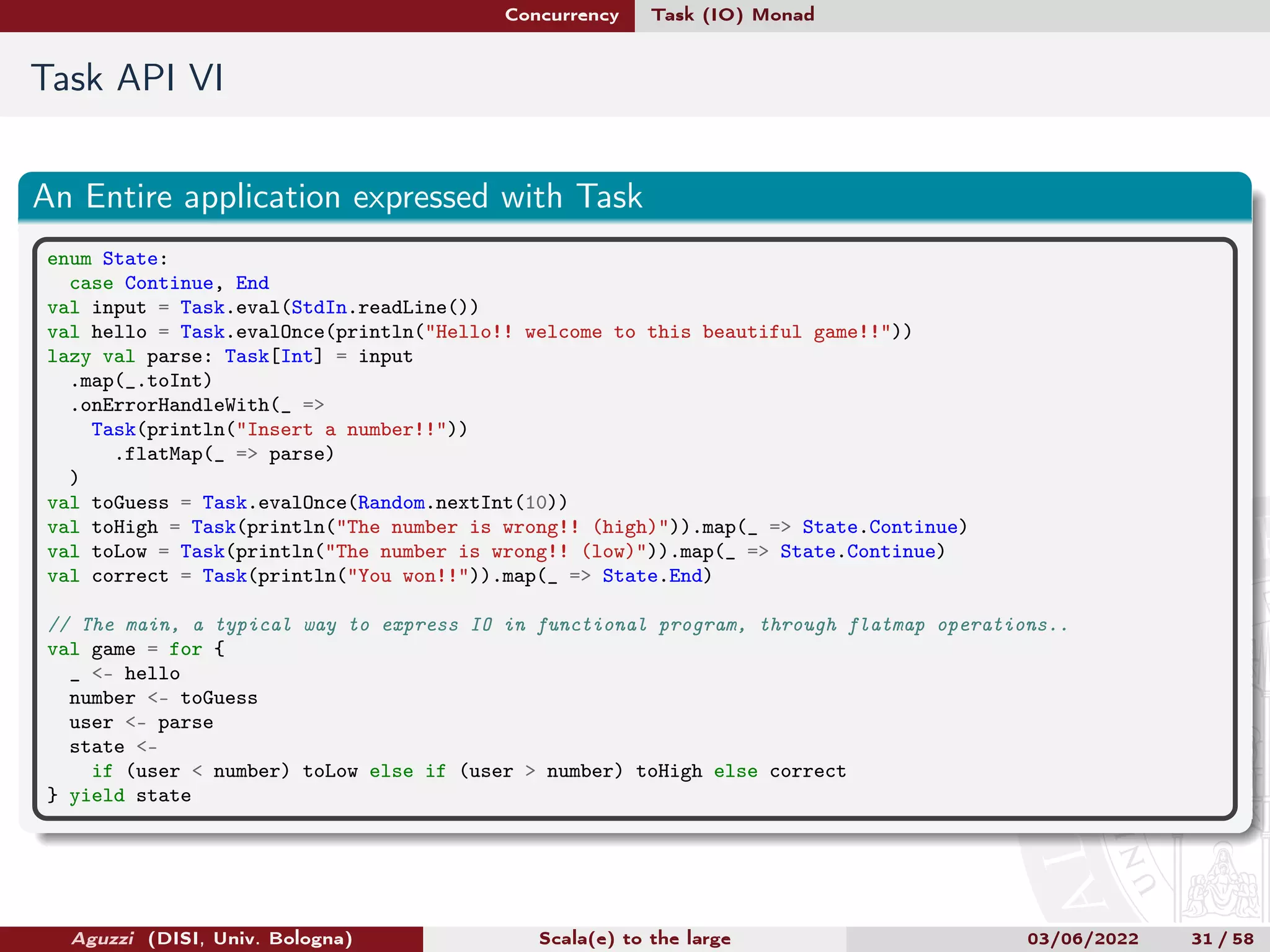

31. Concurrency Task (IO) Monad
Task API VI
An Entire application expressed with Task
enum State:
case Continue, End
val input = Task.eval(StdIn.readLine())
val hello = Task.evalOnce(println("Hello!! welcome to this beautiful game!!"))
lazy val parse: Task[Int] = input
.map(_.toInt)
.onErrorHandleWith(_ =>
Task(println("Insert a number!!"))
.flatMap(_ => parse)
)
val toGuess = Task.evalOnce(Random.nextInt(10))
val toHigh = Task(println("The number is wrong!! (high)")).map(_ => State.Continue)
val toLow = Task(println("The number is wrong!! (low)")).map(_ => State.Continue)
val correct = Task(println("You won!!")).map(_ => State.End)
// The main, a typical way to express IO in functional program, through flatmap operations..
val game = for {
_ <- hello
number <- toGuess
user <- parse
state <-
if (user < number) toLow else if (user > number) toHigh else correct
} yield state
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 31 / 58

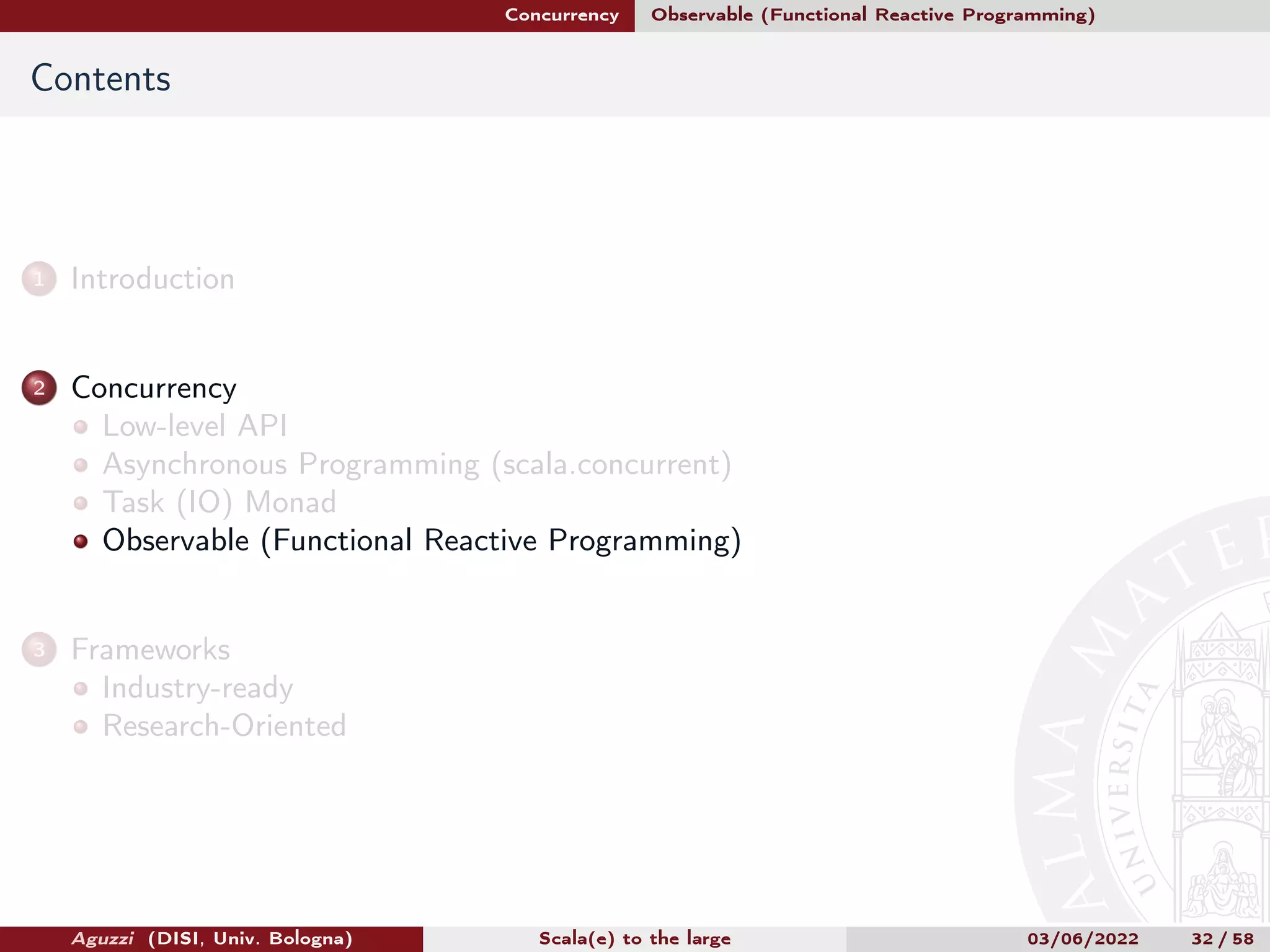

32. Concurrency Observable (Functional Reactive Programming)
Contents
1 Introduction
2 Concurrency
Low-level API
Asynchronous Programming (scala.concurrent)
Task (IO) Monad
Observable (Functional Reactive Programming)
3 Frameworks
Industry-ready
Research-Oriented
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 32 / 58
33. Concurrency Observable (Functional Reactive Programming)

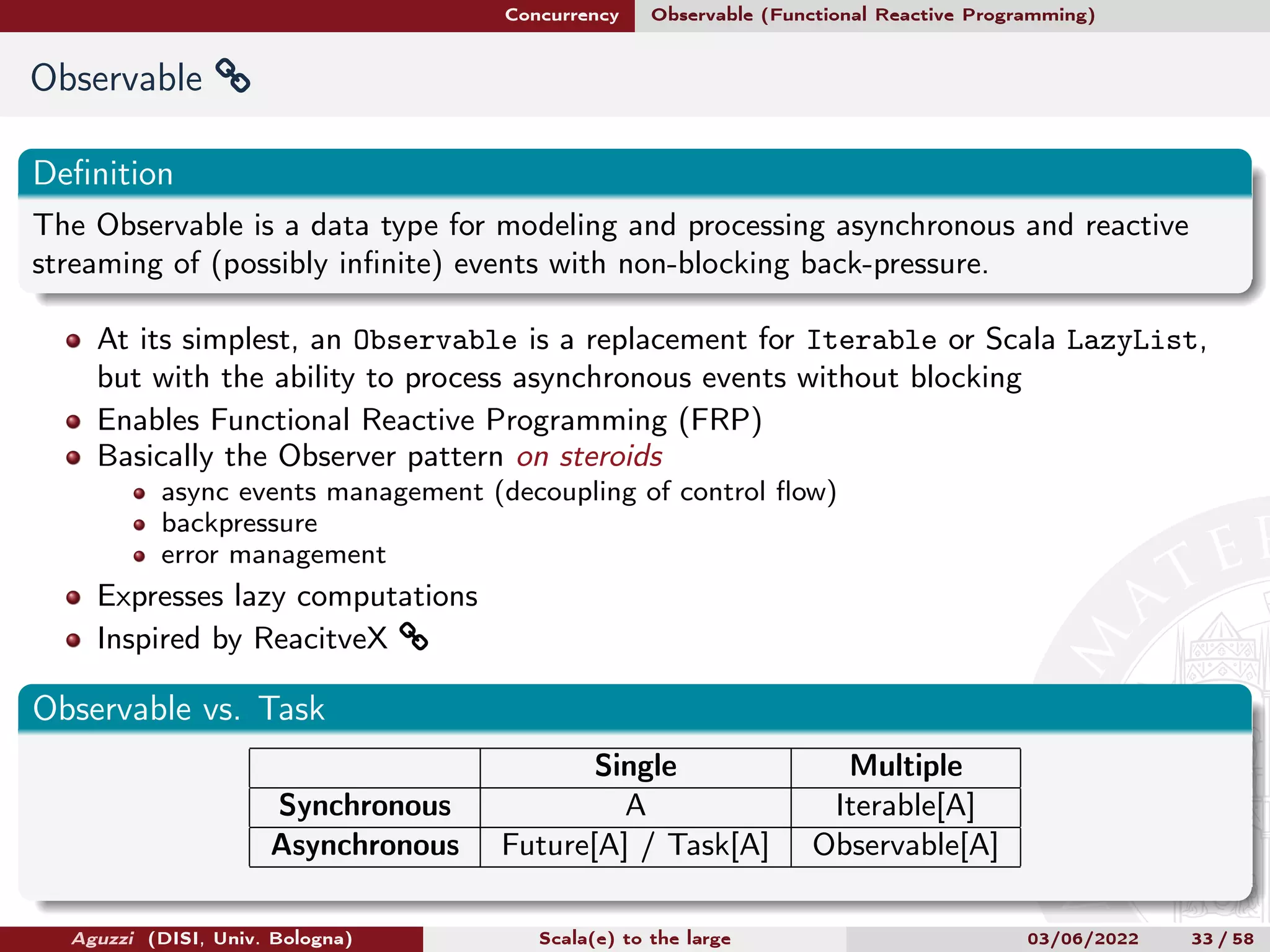

Observable ®
Definition
The Observable is a data type for modeling and processing asynchronous and reactive
streaming of (possibly infinite) events with non-blocking back-pressure.
At its simplest, an Observable is a replacement for Iterable or Scala LazyList,
but with the ability to process asynchronous events without blocking
Enables Functional Reactive Programming (FRP)
Basically the Observer pattern on steroids
async events management (decoupling of control flow)
backpressure
error management
Expresses lazy computations
Inspired by ReacitveX ®
Observable vs. Task
Single Multiple
Synchronous A Iterable[A]
Asynchronous Future[A] / Task[A] Observable[A]
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 33 / 58
34. Concurrency Observable (Functional Reactive Programming)

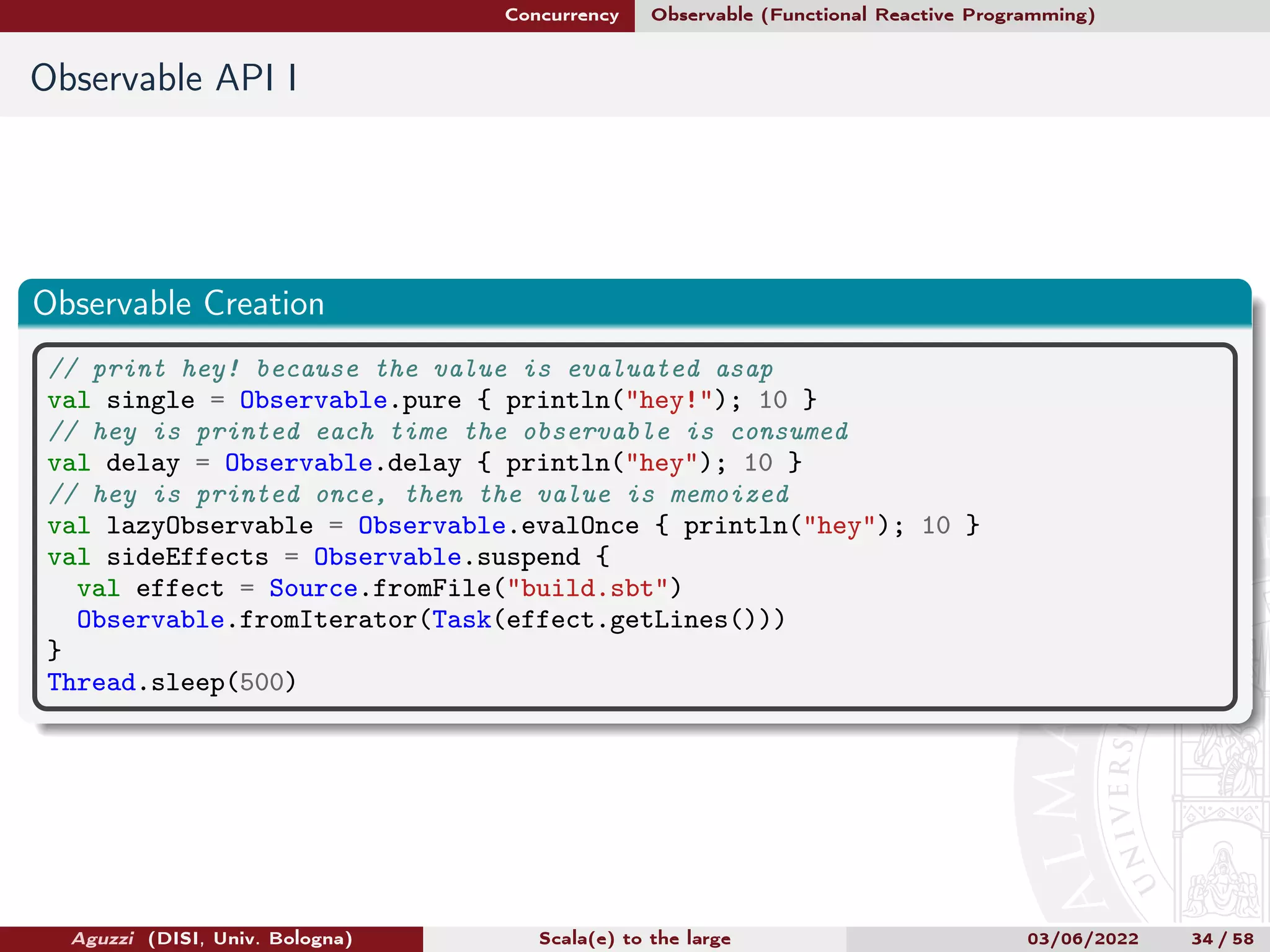

Observable API I
Observable Creation
// print hey! because the value is evaluated asap
val single = Observable.pure { println("hey!"); 10 }
// hey is printed each time the observable is consumed
val delay = Observable.delay { println("hey"); 10 }
// hey is printed once, then the value is memoized
val lazyObservable = Observable.evalOnce { println("hey"); 10 }
val sideEffects = Observable.suspend {
val effect = Source.fromFile("build.sbt")
Observable.fromIterator(Task(effect.getLines()))
}
Thread.sleep(500)
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 34 / 58
35. Concurrency Observable (Functional Reactive Programming)

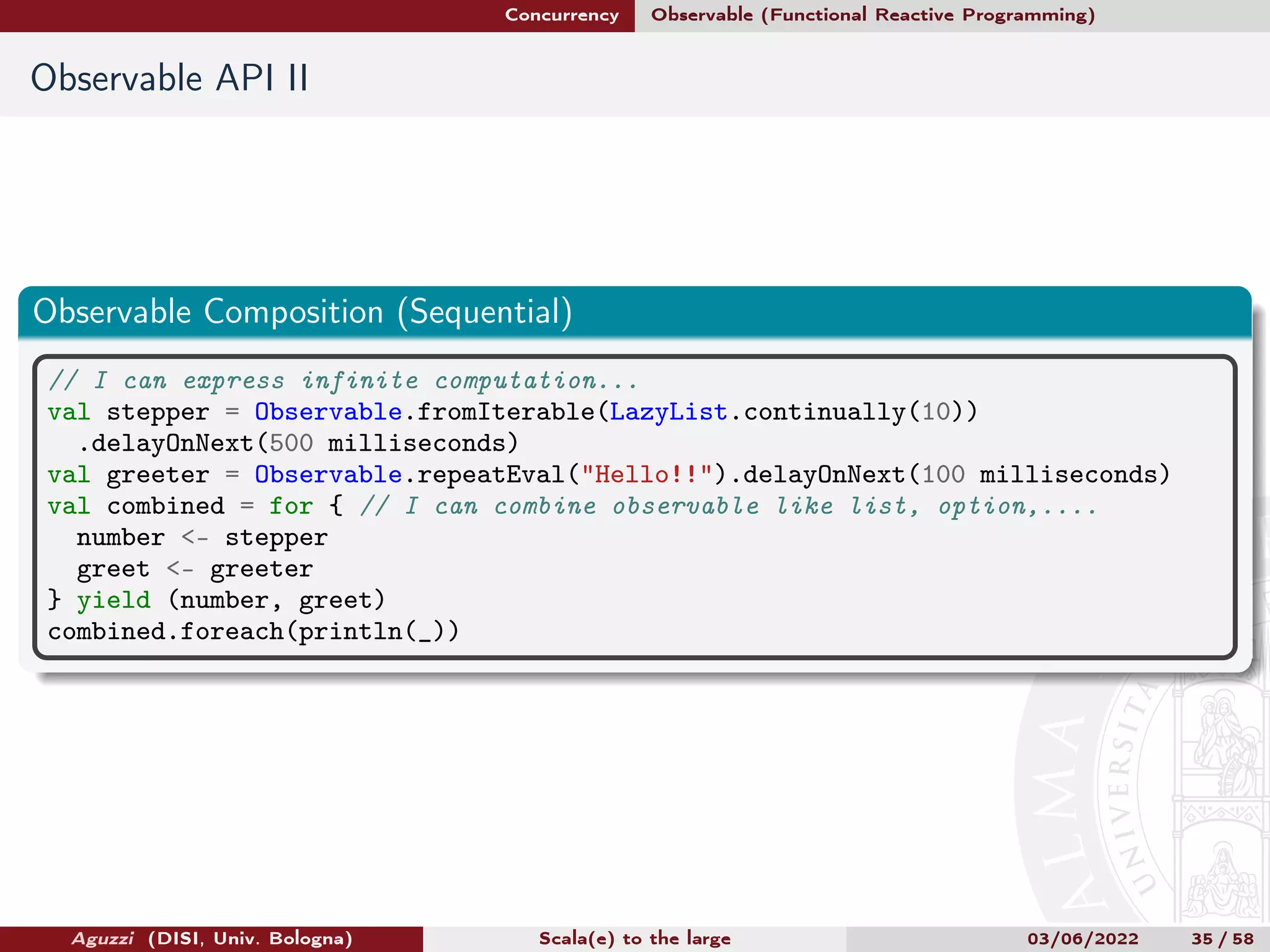

Observable API II
Observable Composition (Sequential)
// I can express infinite computation...
val stepper = Observable.fromIterable(LazyList.continually(10))
.delayOnNext(500 milliseconds)
val greeter = Observable.repeatEval("Hello!!").delayOnNext(100 milliseconds)
val combined = for { // I can combine observable like list, option,....
number <- stepper
greet <- greeter
} yield (number, greet)
combined.foreach(println(_))
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 35 / 58

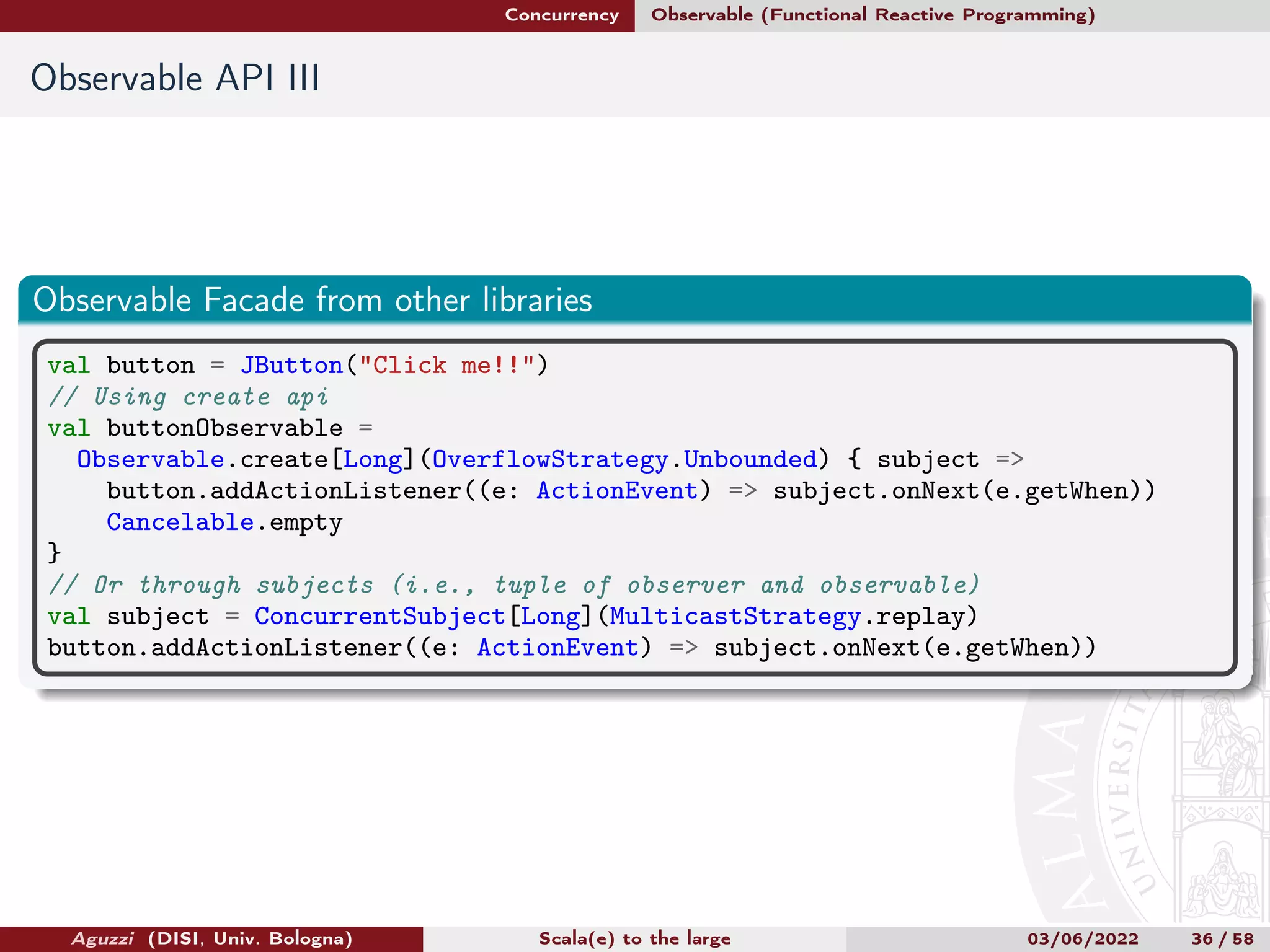

36. Concurrency Observable (Functional Reactive Programming)
Observable API III
Observable Facade from other libraries
val button = JButton("Click me!!")
// Using create api
val buttonObservable =
Observable.create[Long](OverflowStrategy.Unbounded) { subject =>
button.addActionListener((e: ActionEvent) => subject.onNext(e.getWhen))
Cancelable.empty
}
// Or through subjects (i.e., tuple of observer and observable)
val subject = ConcurrentSubject[Long](MulticastStrategy.replay)
button.addActionListener((e: ActionEvent) => subject.onNext(e.getWhen))
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 36 / 58

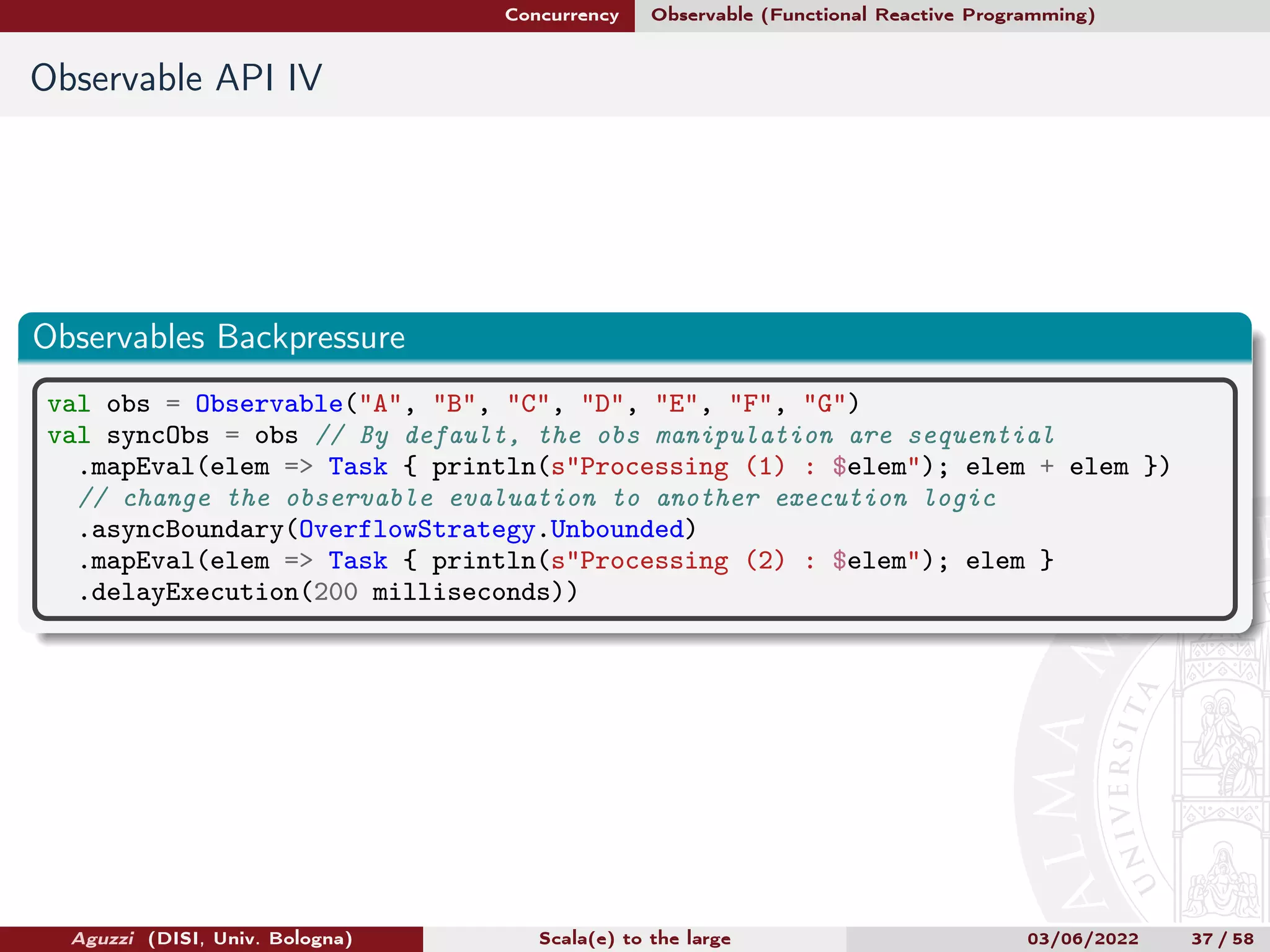

37. Concurrency Observable (Functional Reactive Programming)
Observable API IV
Observables Backpressure
val obs = Observable("A", "B", "C", "D", "E", "F", "G")
val syncObs = obs // By default, the obs manipulation are sequential
.mapEval(elem => Task { println(s"Processing (1) : $elem"); elem + elem })
// change the observable evaluation to another execution logic
.asyncBoundary(OverflowStrategy.Unbounded)
.mapEval(elem => Task { println(s"Processing (2) : $elem"); elem }
.delayExecution(200 milliseconds))
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 37 / 58
38. Concurrency Observable (Functional Reactive Programming)

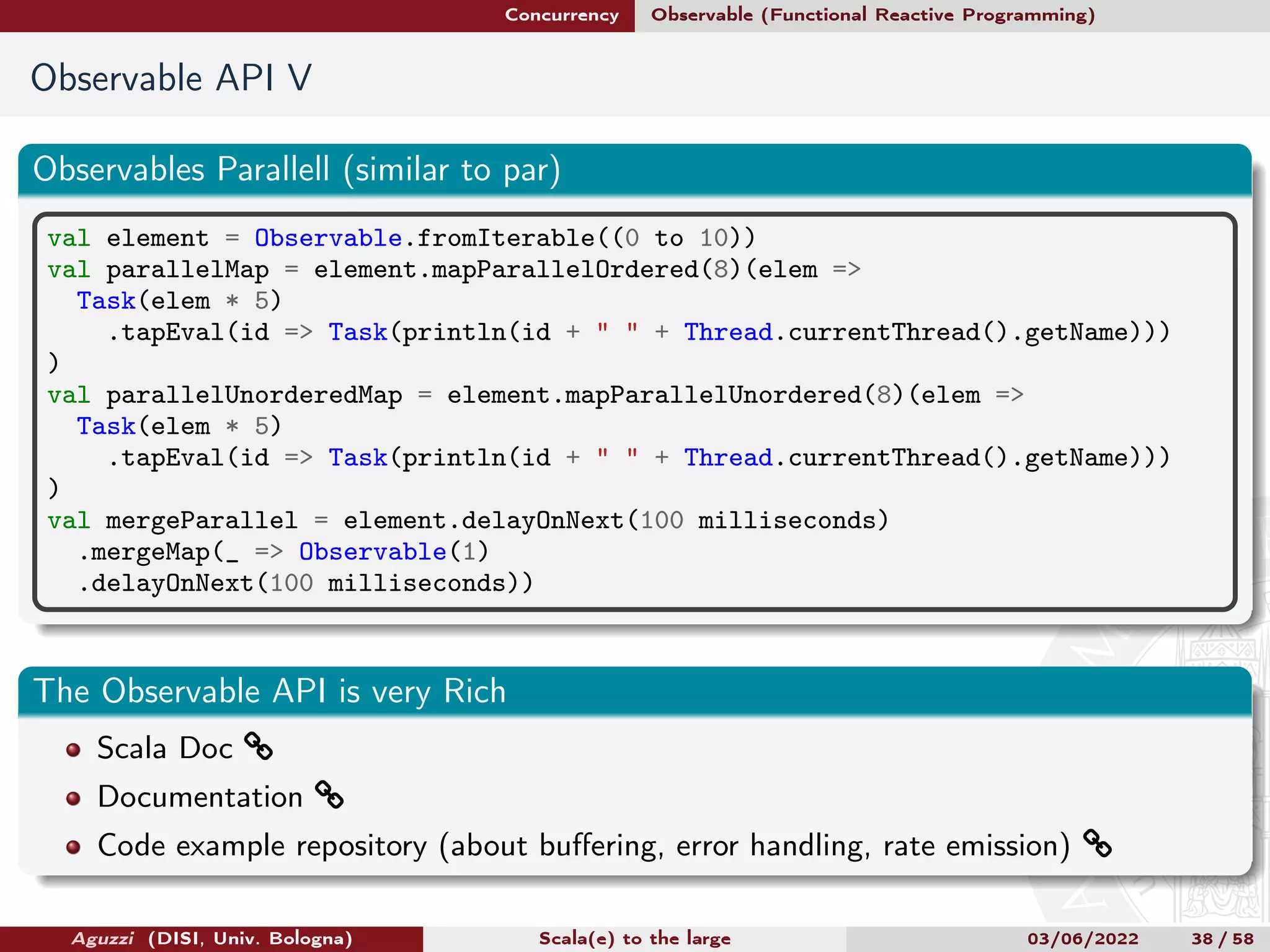

Observable API V
Observables Parallell (similar to par)
val element = Observable.fromIterable((0 to 10))
val parallelMap = element.mapParallelOrdered(8)(elem =>
Task(elem * 5)
.tapEval(id => Task(println(id + " " + Thread.currentThread().getName)))
)
val parallelUnorderedMap = element.mapParallelUnordered(8)(elem =>
Task(elem * 5)
.tapEval(id => Task(println(id + " " + Thread.currentThread().getName)))
)
val mergeParallel = element.delayOnNext(100 milliseconds)
.mergeMap(_ => Observable(1)
.delayOnNext(100 milliseconds))
The Observable API is very Rich
Scala Doc ®
Documentation ®
Code example repository (about buffering, error handling, rate emission) ®
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 38 / 58

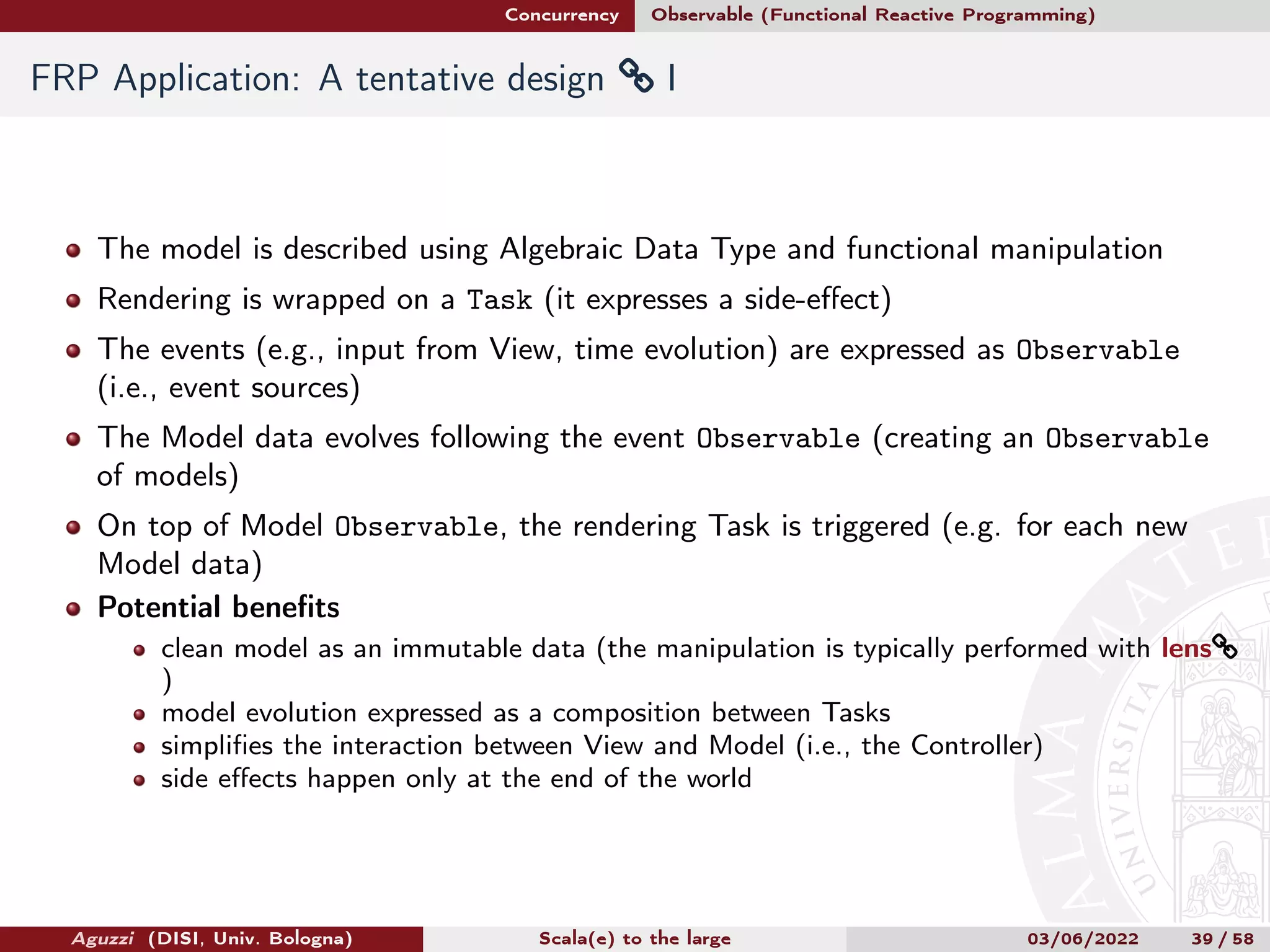

39. Concurrency Observable (Functional Reactive Programming)
FRP Application: A tentative design ® I
The model is described using Algebraic Data Type and functional manipulation
Rendering is wrapped on a Task (it expresses a side-effect)
The events (e.g., input from View, time evolution) are expressed as Observable
(i.e., event sources)
The Model data evolves following the event Observable (creating an Observable
of models)
On top of Model Observable, the rendering Task is triggered (e.g. for each new
Model data)
Potential benefits
clean model as an immutable data (the manipulation is typically performed with lens®
)
model evolution expressed as a composition between Tasks
simplifies the interaction between View and Model (i.e., the Controller)
side effects happen only at the end of the world
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 39 / 58

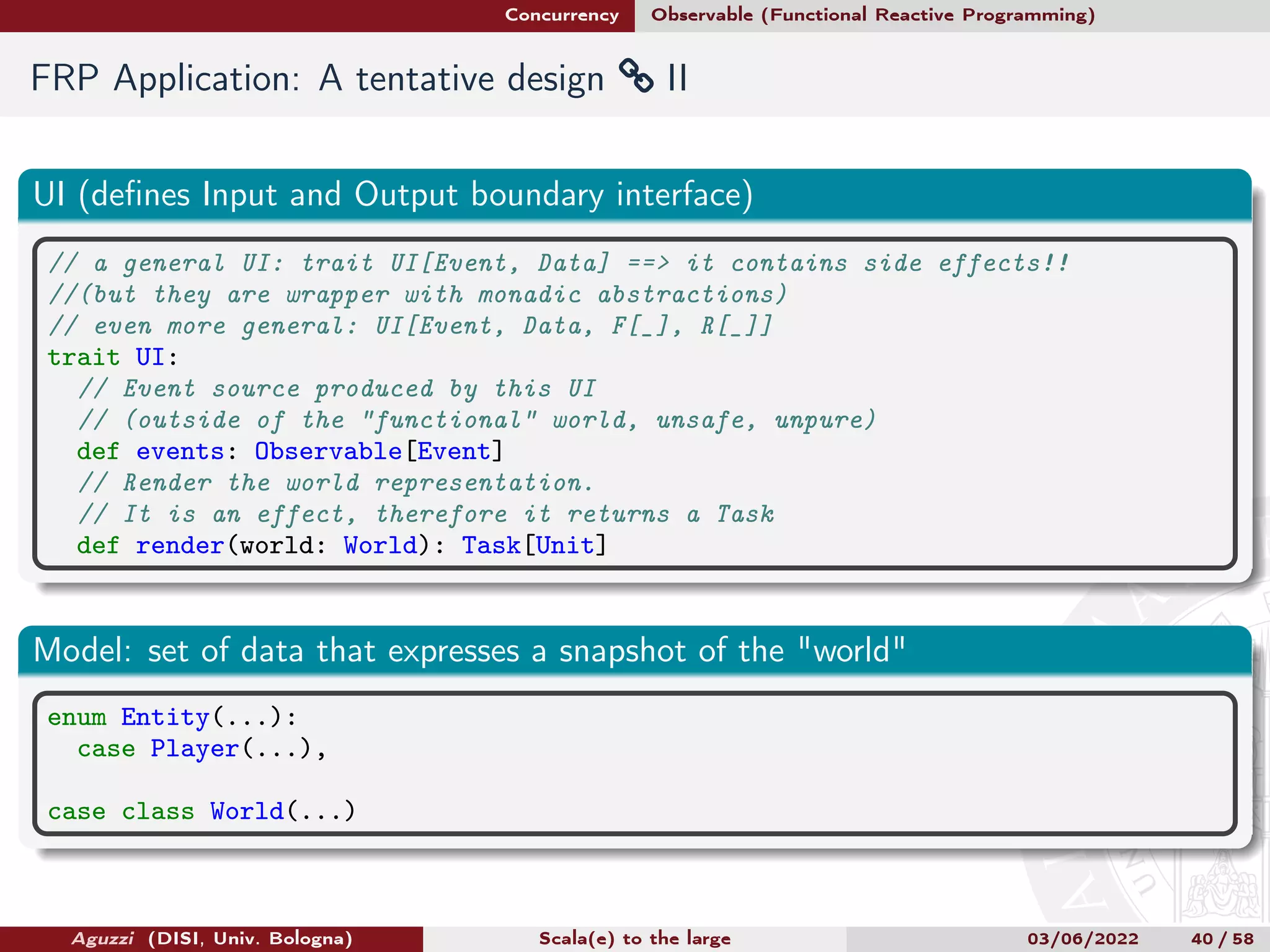

40. Concurrency Observable (Functional Reactive Programming)
FRP Application: A tentative design ® II
UI (defines Input and Output boundary interface)
// a general UI: trait UI[Event, Data] ==> it contains side effects!!
//(but they are wrapper with monadic abstractions)
// even more general: UI[Event, Data, F[_], R[_]]
trait UI:
// Event source produced by this UI
// (outside of the "functional" world, unsafe, unpure)
def events: Observable[Event]
// Render the world representation.
// It is an effect, therefore it returns a Task
def render(world: World): Task[Unit]
Model: set of data that expresses a snapshot of the "world"
enum Entity(...):
case Player(...),
case class World(...)
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 40 / 58
41. Concurrency Observable (Functional Reactive Programming)

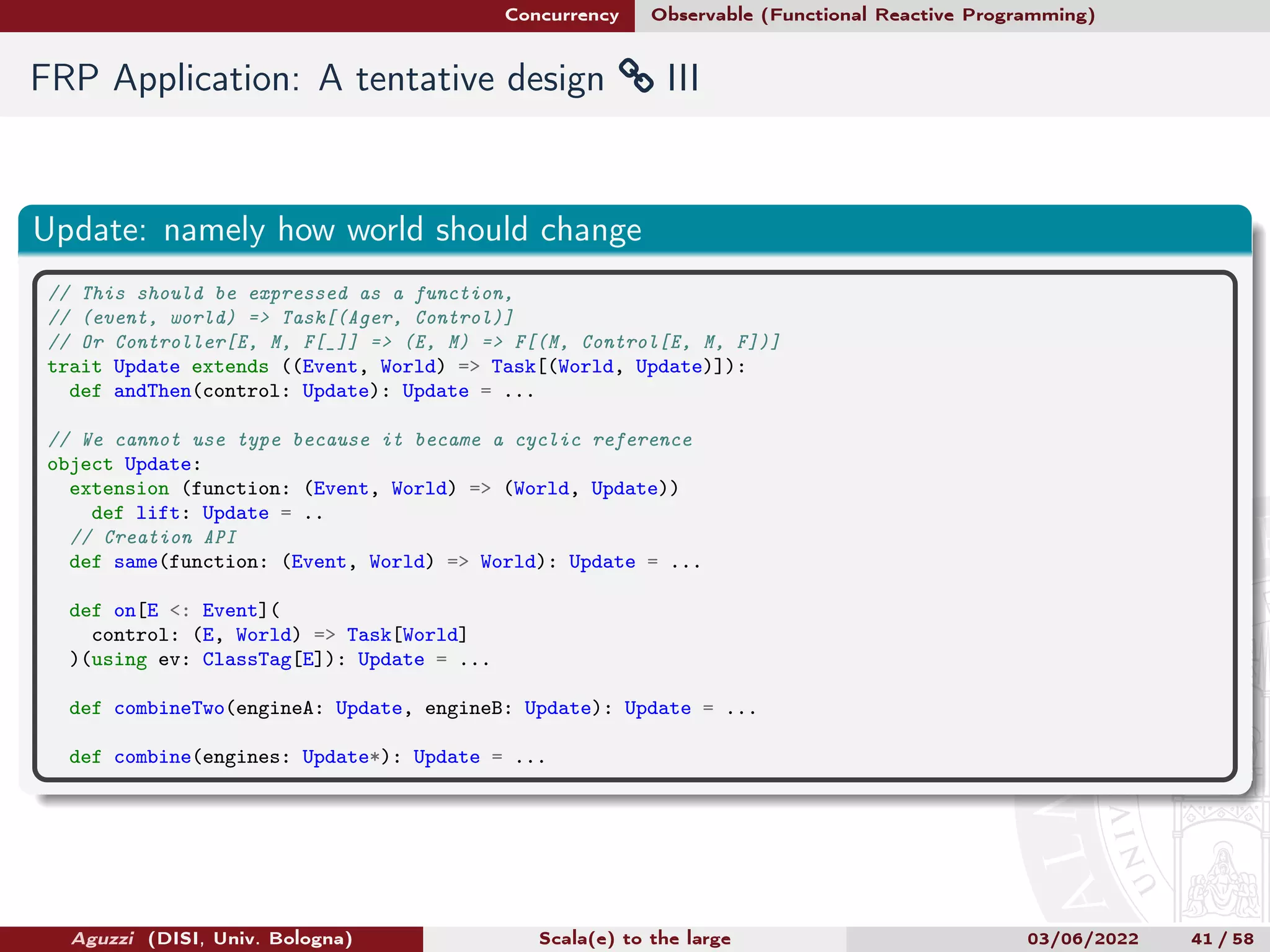

FRP Application: A tentative design ® III
Update: namely how world should change
// This should be expressed as a function,
// (event, world) => Task[(Ager, Control)]
// Or Controller[E, M, F[_]] => (E, M) => F[(M, Control[E, M, F])]
trait Update extends ((Event, World) => Task[(World, Update)]):
def andThen(control: Update): Update = ...
// We cannot use type because it became a cyclic reference
object Update:
extension (function: (Event, World) => (World, Update))
def lift: Update = ..
// Creation API
def same(function: (Event, World) => World): Update = ...
def on[E <: Event](
control: (E, World) => Task[World]
)(using ev: ClassTag[E]): Update = ...
def combineTwo(engineA: Update, engineB: Update): Update = ...
def combine(engines: Update*): Update = ...
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 41 / 58
42. Concurrency Observable (Functional Reactive Programming)

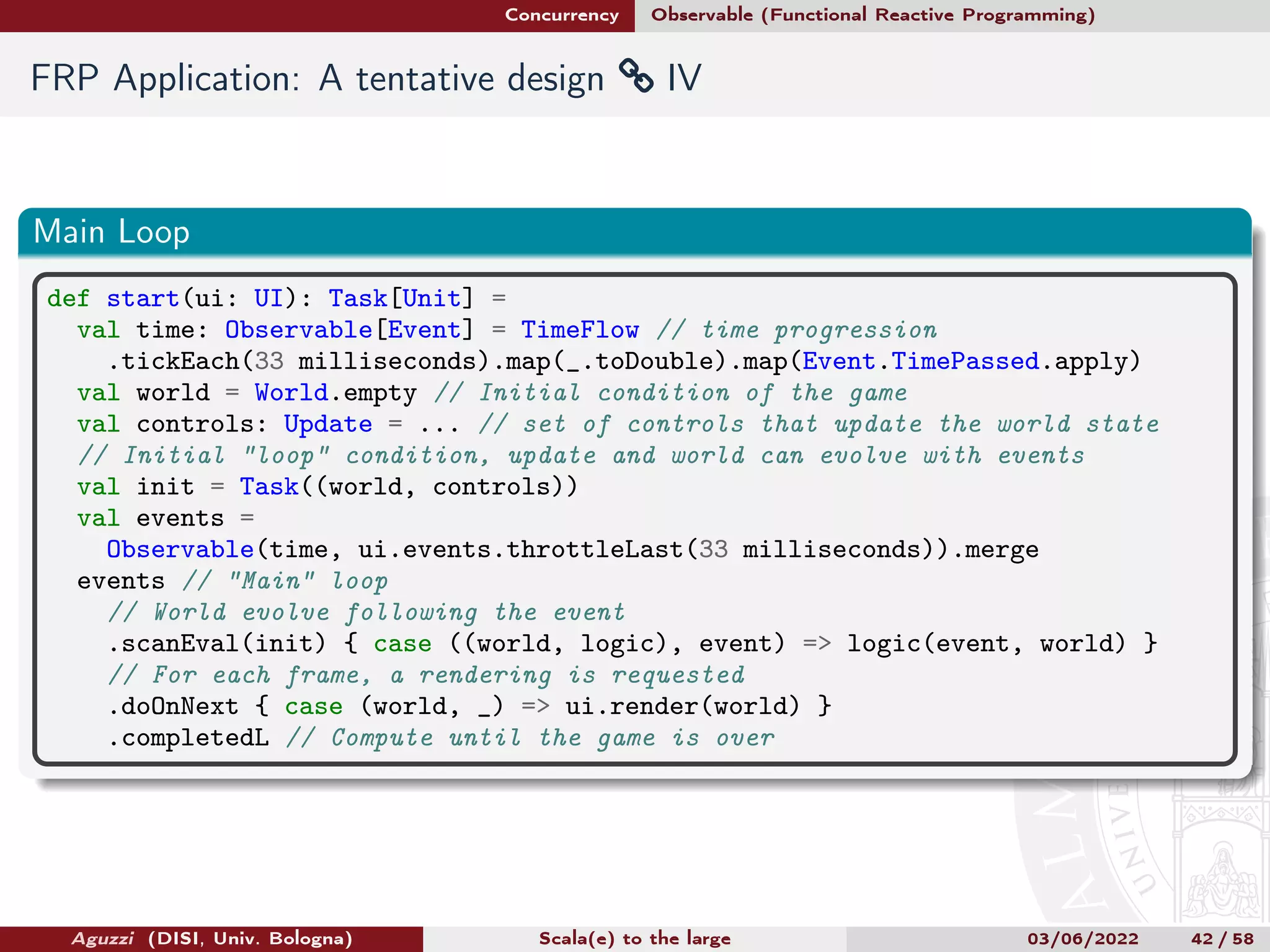

FRP Application: A tentative design ® IV
Main Loop
def start(ui: UI): Task[Unit] =
val time: Observable[Event] = TimeFlow // time progression
.tickEach(33 milliseconds).map(_.toDouble).map(Event.TimePassed.apply)
val world = World.empty // Initial condition of the game
val controls: Update = ... // set of controls that update the world state
// Initial "loop" condition, update and world can evolve with events
val init = Task((world, controls))
val events =
Observable(time, ui.events.throttleLast(33 milliseconds)).merge
events // "Main" loop
// World evolve following the event
.scanEval(init) { case ((world, logic), event) => logic(event, world) }
// For each frame, a rendering is requested
.doOnNext { case (world, _) => ui.render(world) }
.completedL // Compute until the game is over
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 42 / 58
43. Concurrency Observable (Functional Reactive Programming)

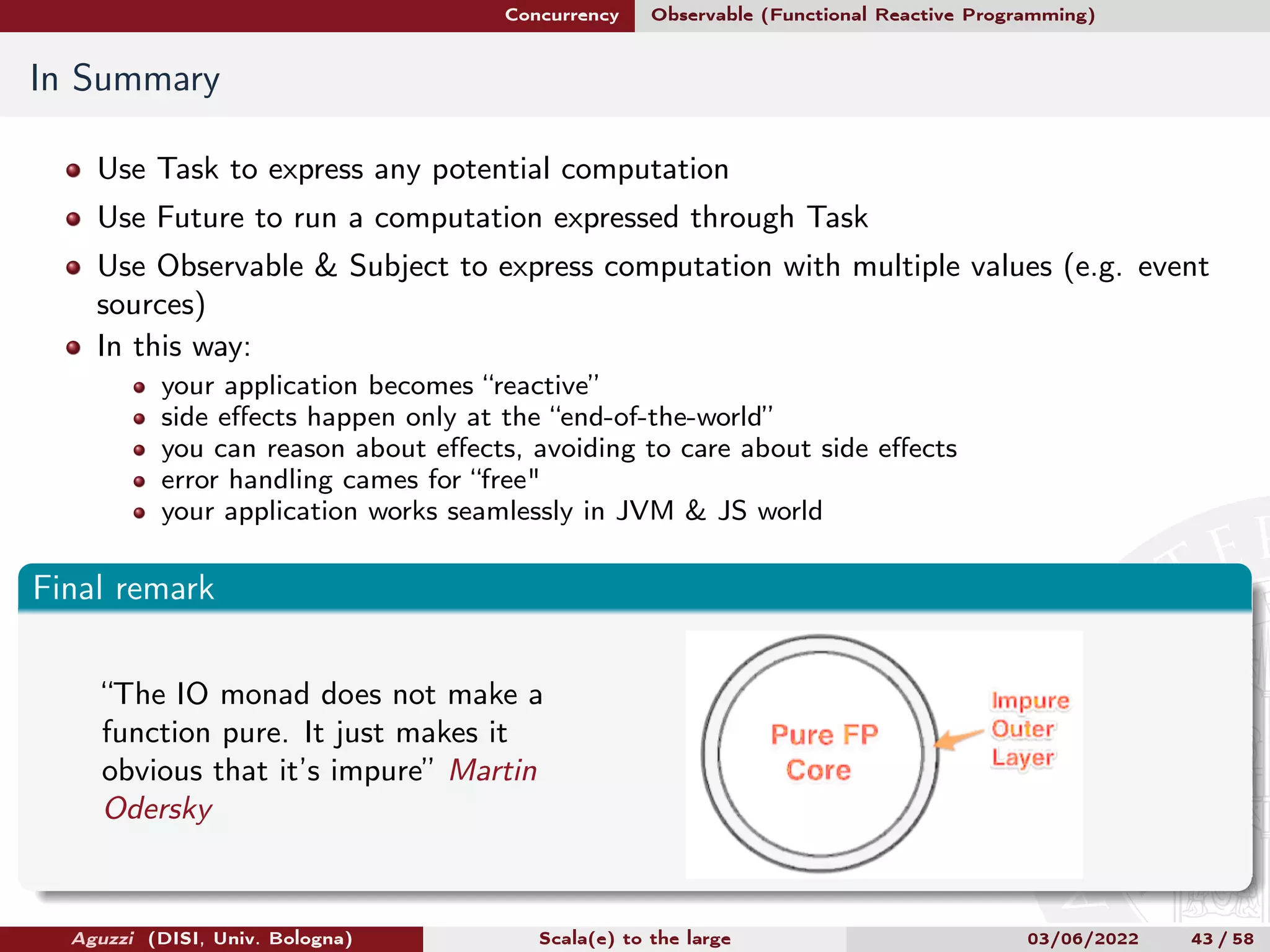

In Summary
Use Task to express any potential computation
Use Future to run a computation expressed through Task
Use Observable & Subject to express computation with multiple values (e.g. event
sources)
In this way:
your application becomes “reactive”
side effects happen only at the “end-of-the-world”
you can reason about effects, avoiding to care about side effects
error handling cames for “free"
your application works seamlessly in JVM & JS world
Final remark
“The IO monad does not make a
function pure. It just makes it
obvious that it’s impure” Martin
Odersky
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 43 / 58

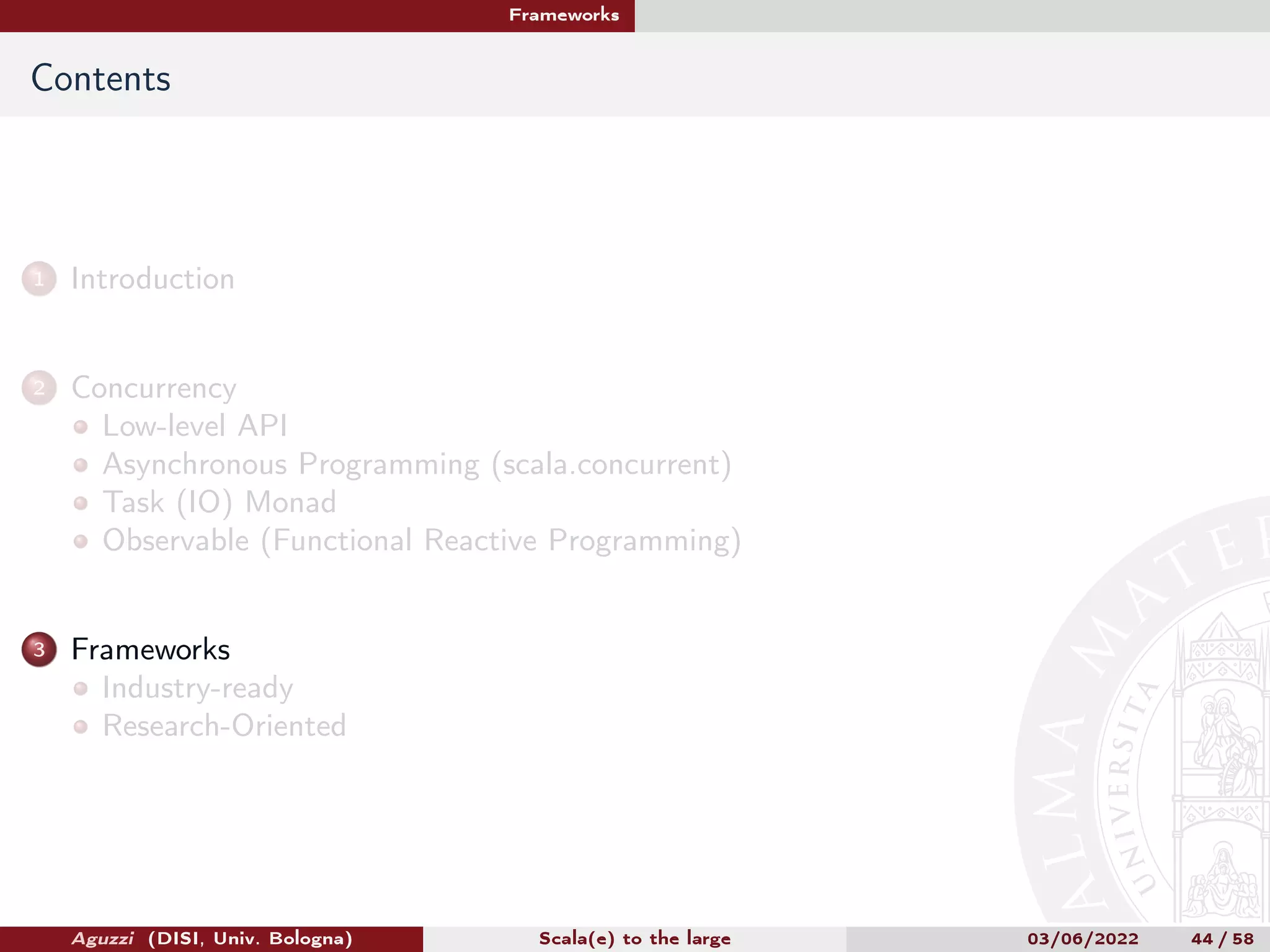

44. Frameworks
Contents
1 Introduction
2 Concurrency
Low-level API
Asynchronous Programming (scala.concurrent)
Task (IO) Monad
Observable (Functional Reactive Programming)
3 Frameworks
Industry-ready
Research-Oriented
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 44 / 58
45. Frameworks

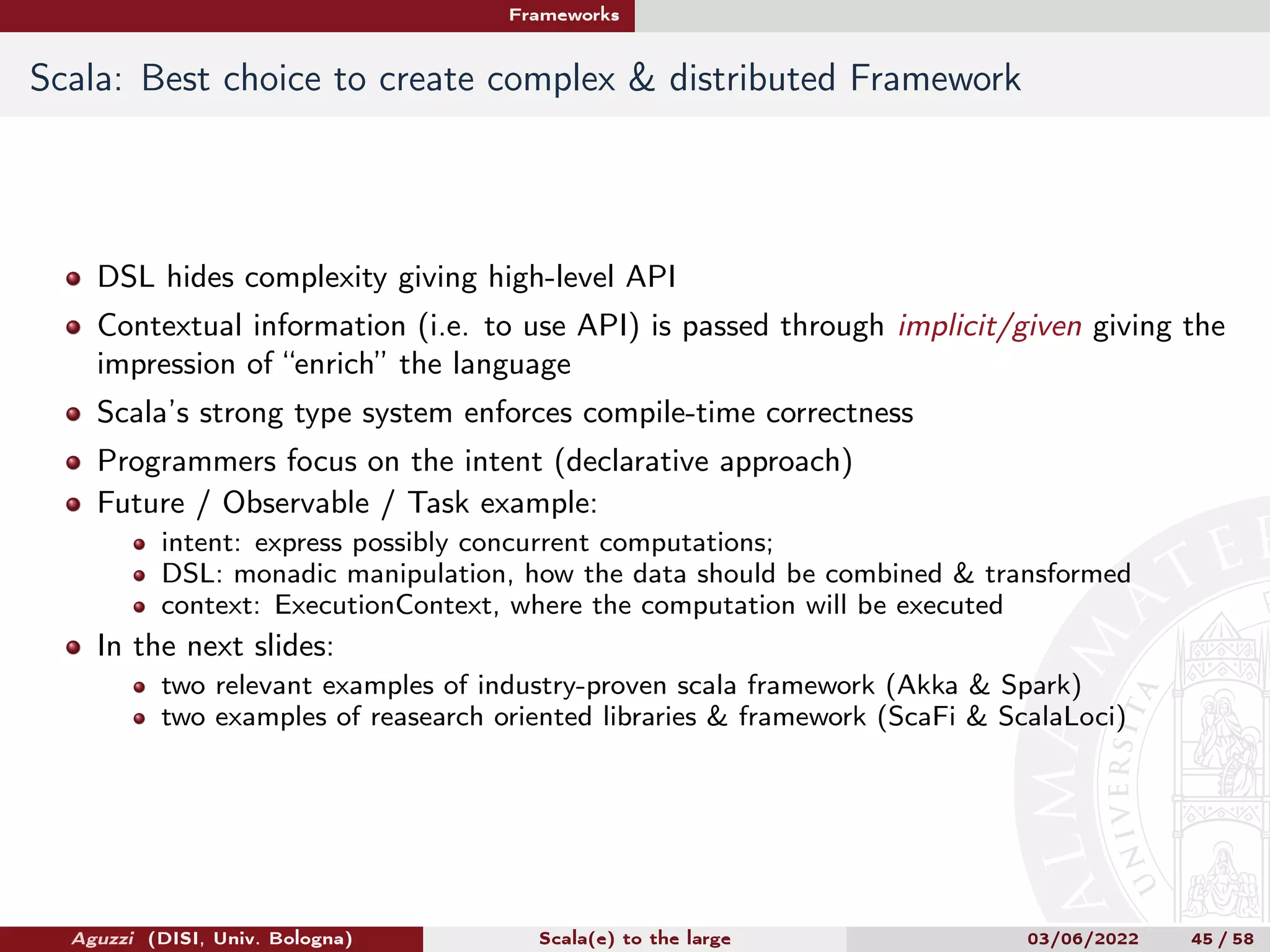

Scala: Best choice to create complex & distributed Framework
DSL hides complexity giving high-level API
Contextual information (i.e. to use API) is passed through implicit/given giving the
impression of “enrich” the language
Scala’s strong type system enforces compile-time correctness
Programmers focus on the intent (declarative approach)
Future / Observable / Task example:
intent: express possibly concurrent computations;
DSL: monadic manipulation, how the data should be combined & transformed
context: ExecutionContext, where the computation will be executed
In the next slides:
two relevant examples of industry-proven scala framework (Akka & Spark)
two examples of reasearch oriented libraries & framework (ScaFi & ScalaLoci)
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 45 / 58
46. Frameworks Industry-ready
Contents
1 Introduction
2 Concurrency
Low-level API
Asynchronous Programming (scala.concurrent)
Task (IO) Monad
Observable (Functional Reactive Programming)
3 Frameworks
Industry-ready
Research-Oriented
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 46 / 58

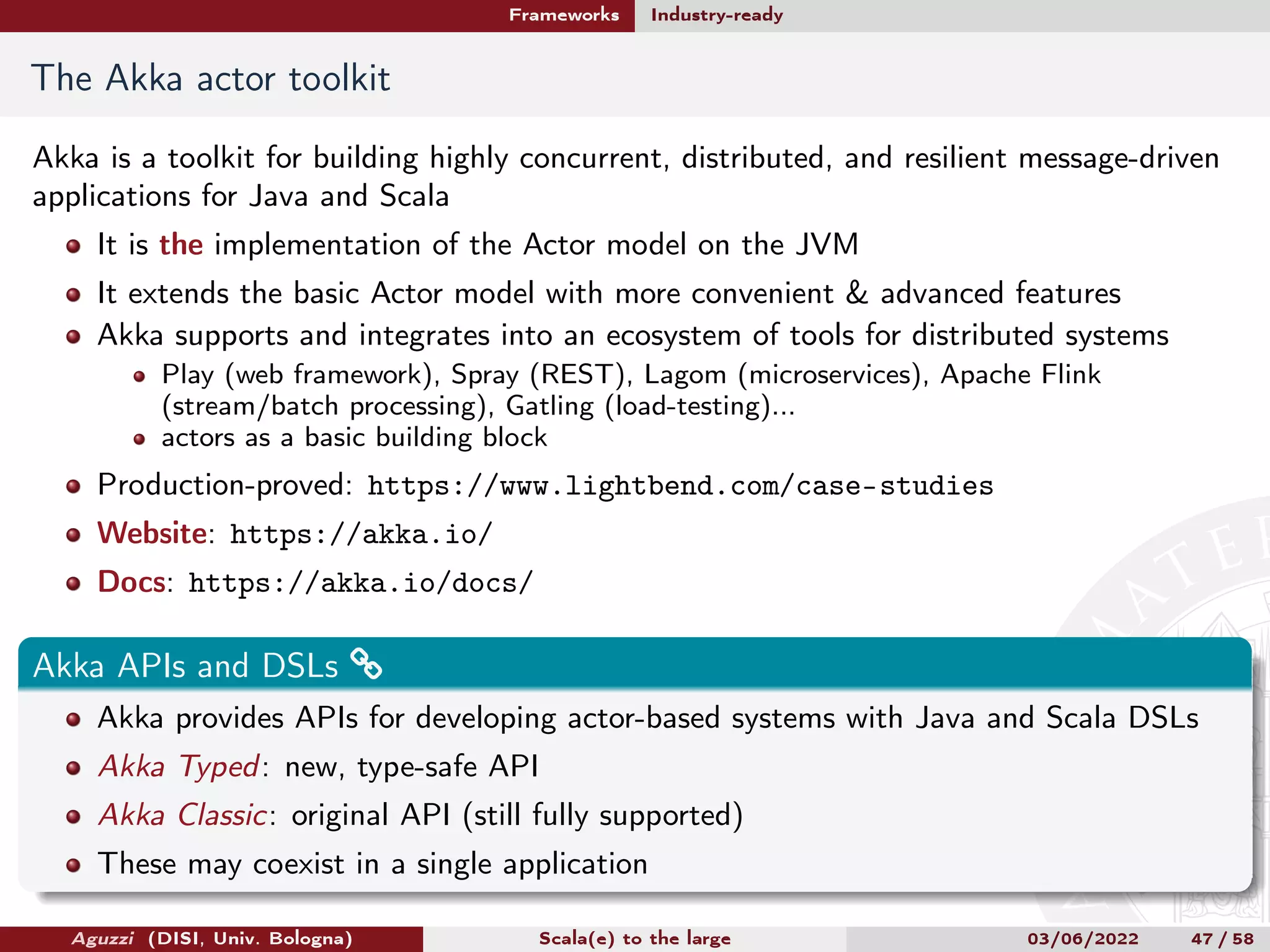

47. Frameworks Industry-ready
The Akka actor toolkit
Akka is a toolkit for building highly concurrent, distributed, and resilient message-driven
applications for Java and Scala
It is the implementation of the Actor model on the JVM
It extends the basic Actor model with more convenient & advanced features
Akka supports and integrates into an ecosystem of tools for distributed systems
Play (web framework), Spray (REST), Lagom (microservices), Apache Flink
(stream/batch processing), Gatling (load-testing)...
actors as a basic building block
Production-proved: https://www.lightbend.com/case-studies
Website: https://akka.io/
Docs: https://akka.io/docs/
Akka APIs and DSLs ®
Akka provides APIs for developing actor-based systems with Java and Scala DSLs
Akka Typed: new, type-safe API
Akka Classic: original API (still fully supported)
These may coexist in a single application
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 47 / 58

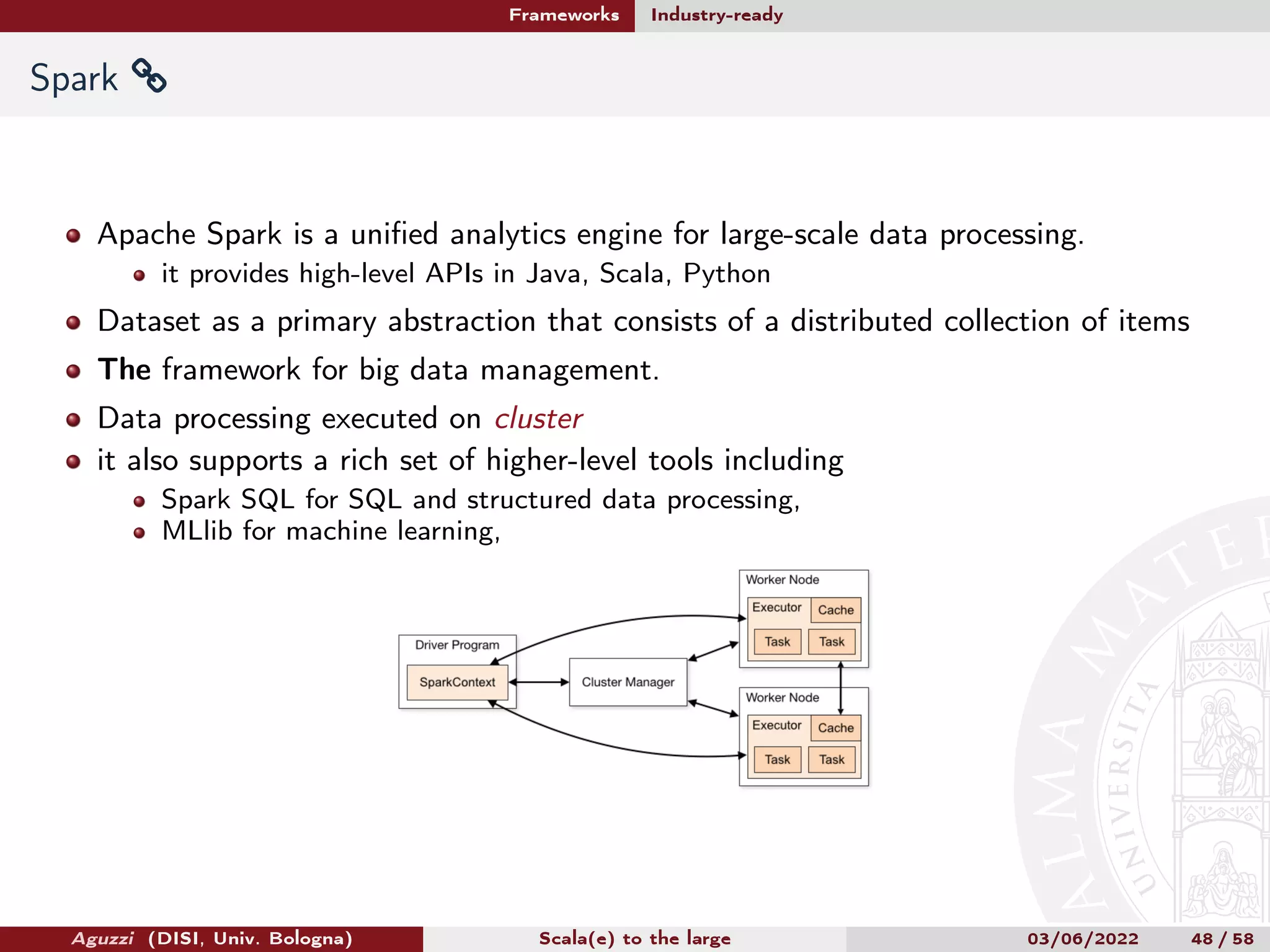

48. Frameworks Industry-ready
Spark ®
Apache Spark is a unified analytics engine for large-scale data processing.
it provides high-level APIs in Java, Scala, Python
Dataset as a primary abstraction that consists of a distributed collection of items
The framework for big data management.
Data processing executed on cluster
it also supports a rich set of higher-level tools including
Spark SQL for SQL and structured data processing,
MLlib for machine learning,
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 48 / 58

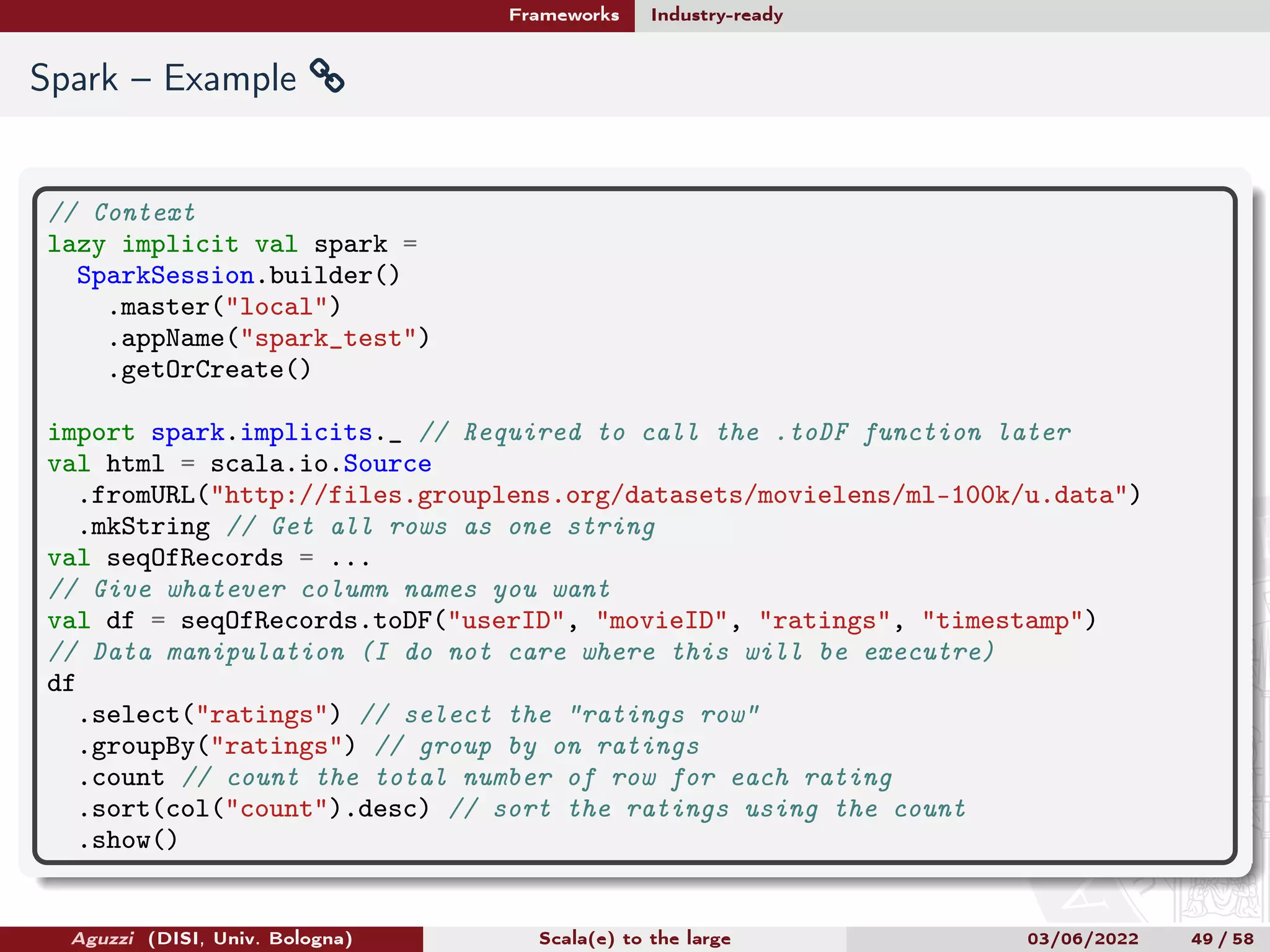

49. Frameworks Industry-ready
Spark – Example ®
// Context
lazy implicit val spark =
SparkSession.builder()
.master("local")
.appName("spark_test")
.getOrCreate()
import spark.implicits._ // Required to call the .toDF function later
val html = scala.io.Source
.fromURL("http://files.grouplens.org/datasets/movielens/ml-100k/u.data")
.mkString // Get all rows as one string
val seqOfRecords = ...
// Give whatever column names you want
val df = seqOfRecords.toDF("userID", "movieID", "ratings", "timestamp")
// Data manipulation (I do not care where this will be executre)
df
.select("ratings") // select the "ratings row"
.groupBy("ratings") // group by on ratings
.count // count the total number of row for each rating
.sort(col("count").desc) // sort the ratings using the count
.show()
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 49 / 58

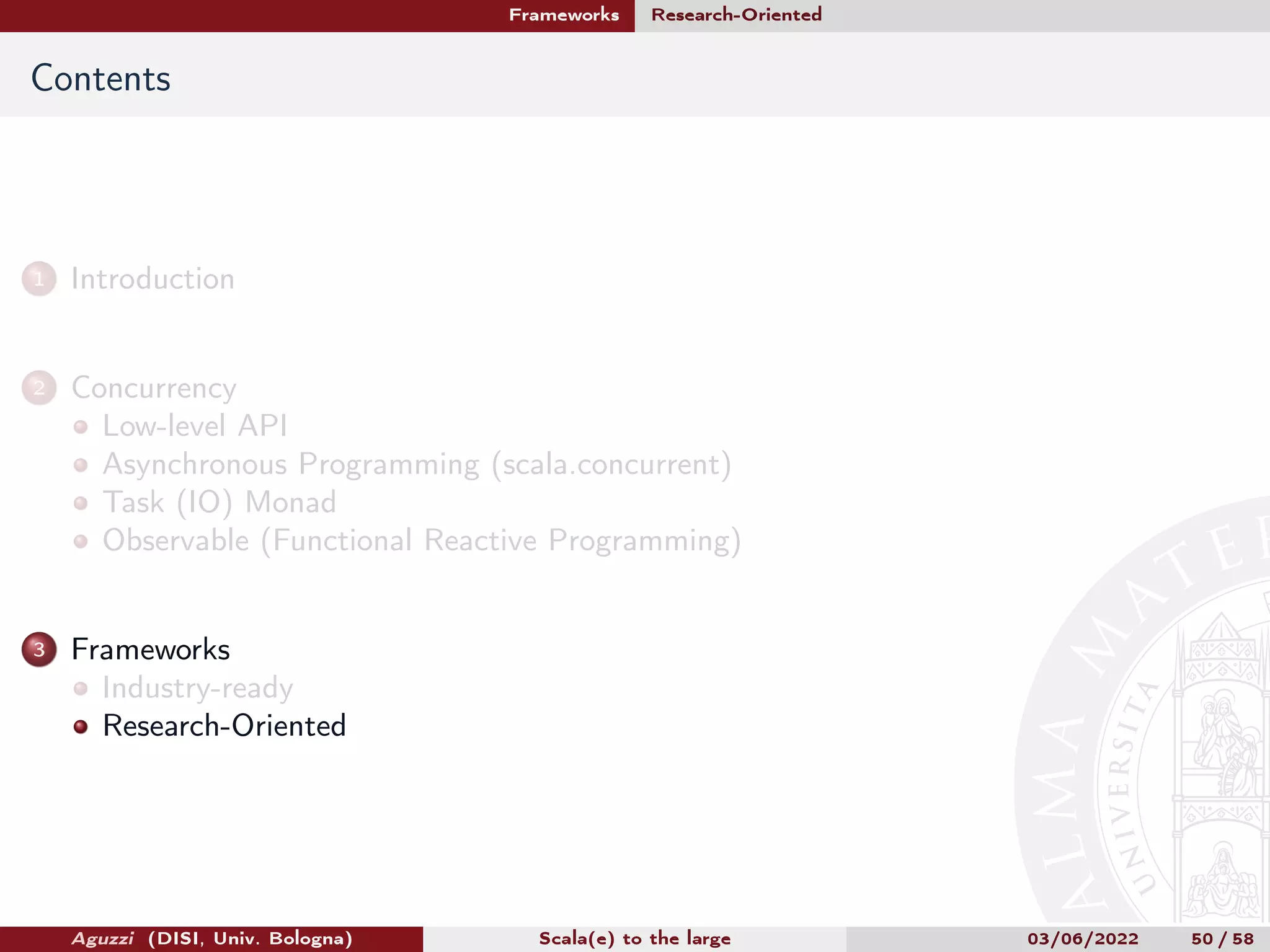

50. Frameworks Research-Oriented
Contents
1 Introduction
2 Concurrency
Low-level API
Asynchronous Programming (scala.concurrent)
Task (IO) Monad
Observable (Functional Reactive Programming)
3 Frameworks
Industry-ready
Research-Oriented
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 50 / 58
51. Frameworks Research-Oriented

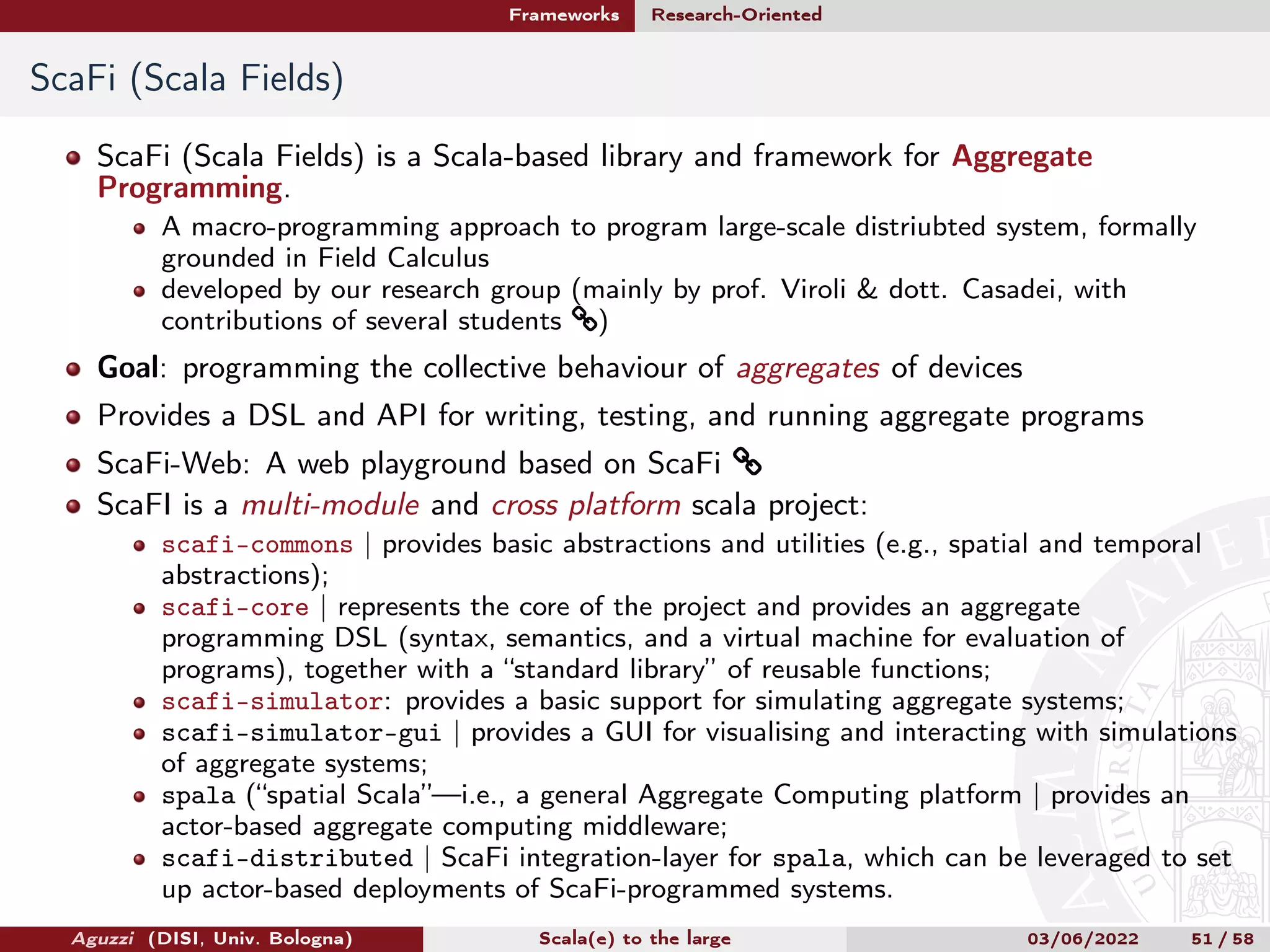

ScaFi (Scala Fields)
ScaFi (Scala Fields) is a Scala-based library and framework for Aggregate
Programming.
A macro-programming approach to program large-scale distriubted system, formally
grounded in Field Calculus
developed by our research group (mainly by prof. Viroli & dott. Casadei, with
contributions of several students ®)
Goal: programming the collective behaviour of aggregates of devices
Provides a DSL and API for writing, testing, and running aggregate programs
ScaFi-Web: A web playground based on ScaFi ®
ScaFI is a multi-module and cross platform scala project:
scafi-commons | provides basic abstractions and utilities (e.g., spatial and temporal
abstractions);
scafi-core | represents the core of the project and provides an aggregate
programming DSL (syntax, semantics, and a virtual machine for evaluation of
programs), together with a “standard library” of reusable functions;
scafi-simulator: provides a basic support for simulating aggregate systems;
scafi-simulator-gui | provides a GUI for visualising and interacting with simulations
of aggregate systems;
spala (“spatial Scala”—i.e., a general Aggregate Computing platform | provides an
actor-based aggregate computing middleware;
scafi-distributed | ScaFi integration-layer for spala, which can be leveraged to set
up actor-based deployments of ScaFi-programmed systems.
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 51 / 58
52. Frameworks Research-Oriented

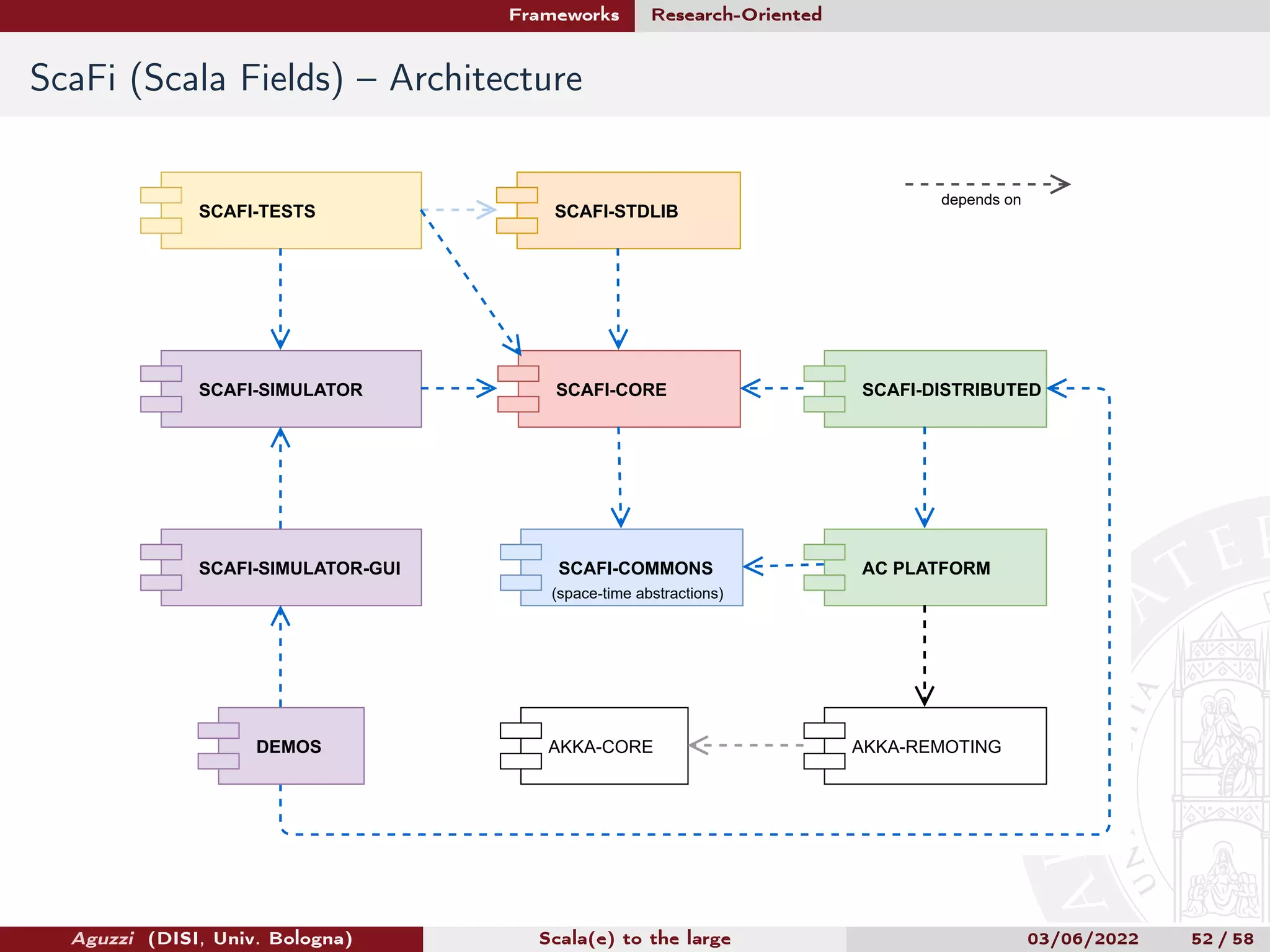

ScaFi (Scala Fields) – Architecture
SCAFI-CORE
AC PLATFORM
SCAFI-TESTS
AKKA-CORE AKKA-REMOTING
SCAFI-SIMULATOR
SCAFI-SIMULATOR-GUI
SCAFI-STDLIB
SCAFI-DISTRIBUTED
SCAFI-COMMONS
(space-time abstractions)
DEMOS
depends on
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 52 / 58
53. Frameworks Research-Oriented

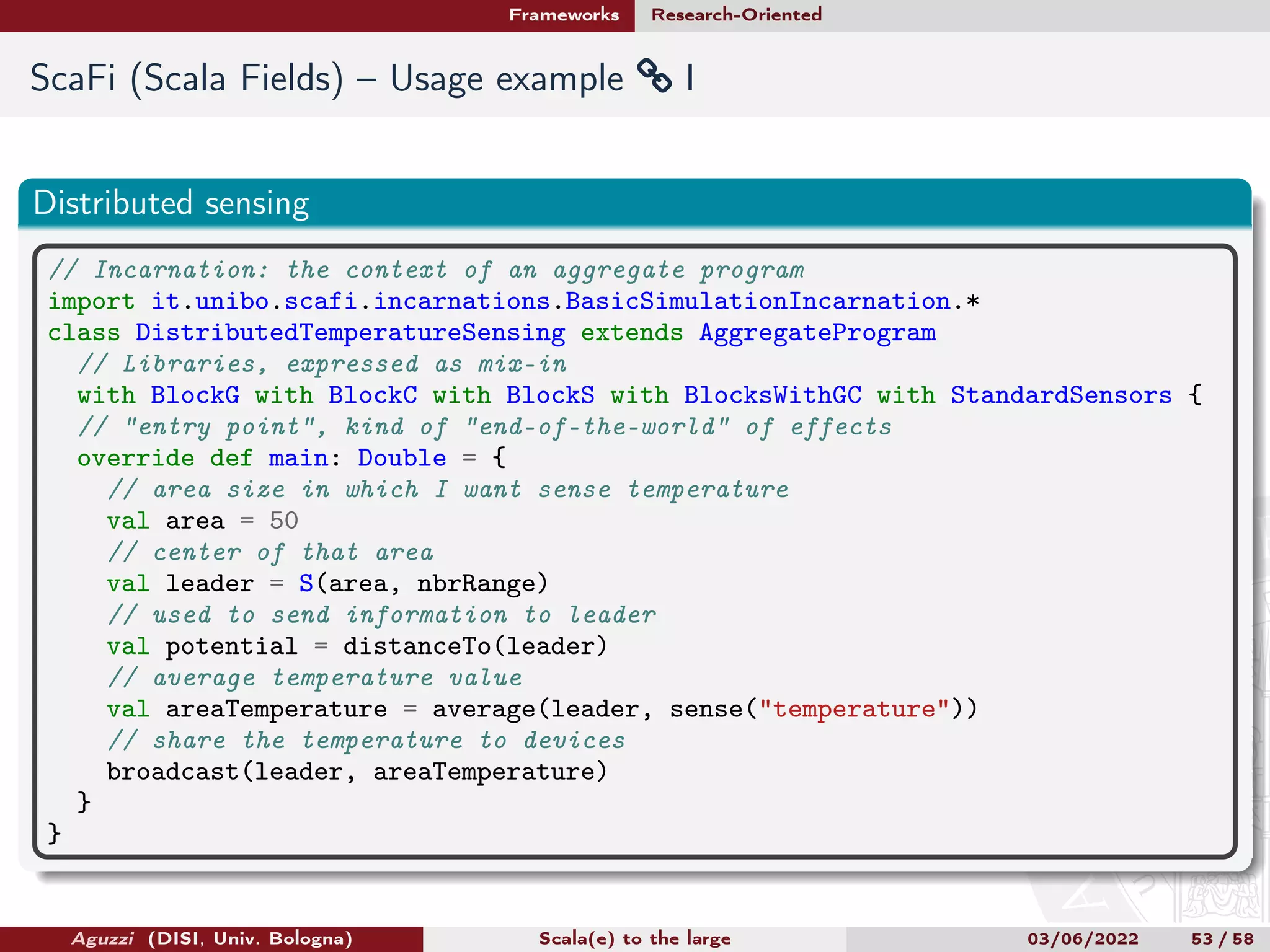

ScaFi (Scala Fields) – Usage example ® I
Distributed sensing
// Incarnation: the context of an aggregate program
import it.unibo.scafi.incarnations.BasicSimulationIncarnation.*
class DistributedTemperatureSensing extends AggregateProgram
// Libraries, expressed as mix-in
with BlockG with BlockC with BlockS with BlocksWithGC with StandardSensors {
// "entry point", kind of "end-of-the-world" of effects
override def main: Double = {
// area size in which I want sense temperature
val area = 50
// center of that area
val leader = S(area, nbrRange)
// used to send information to leader
val potential = distanceTo(leader)
// average temperature value
val areaTemperature = average(leader, sense("temperature"))
// share the temperature to devices
broadcast(leader, areaTemperature)
}
}
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 53 / 58
54. Frameworks Research-Oriented

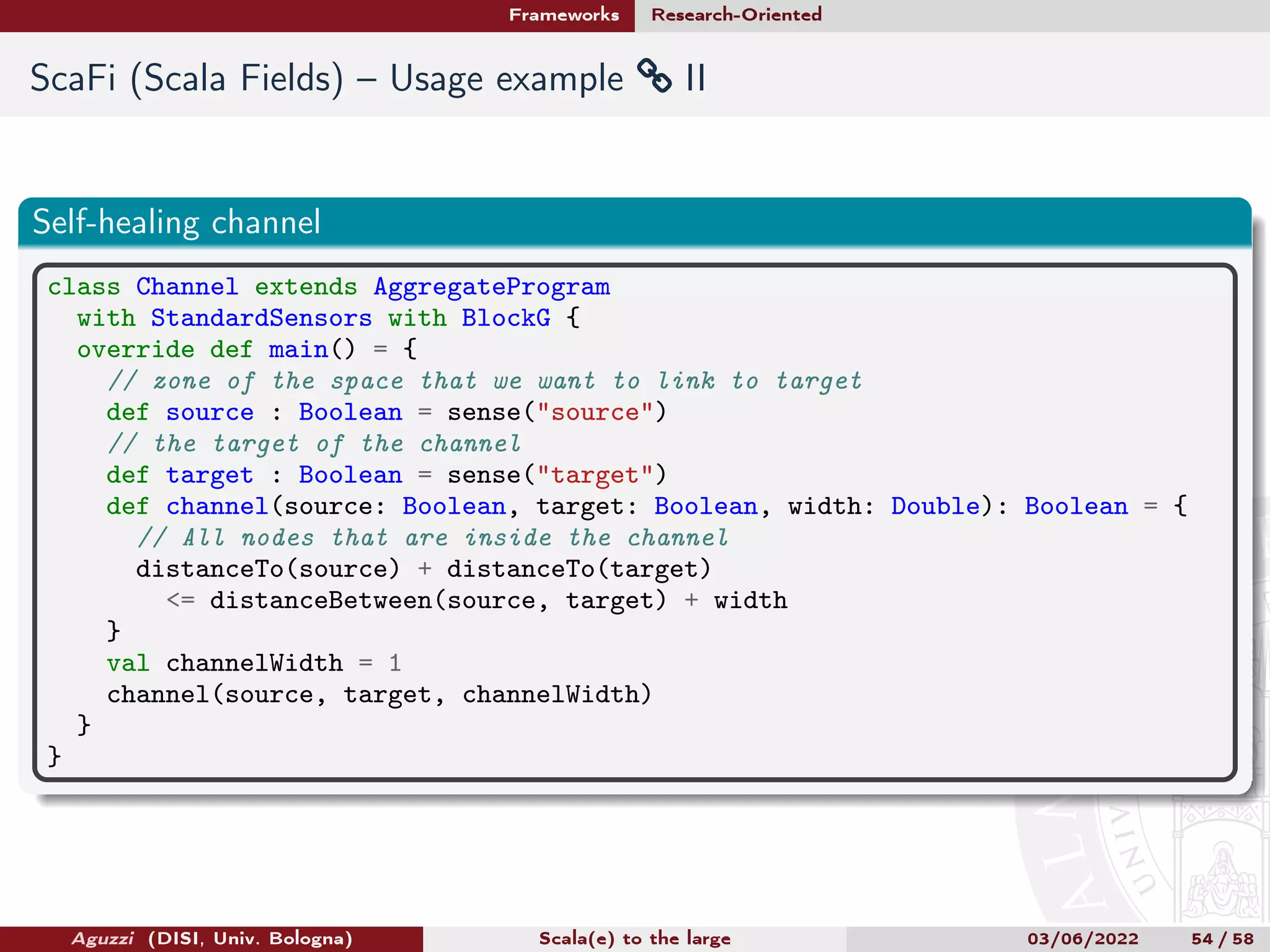

ScaFi (Scala Fields) – Usage example ® II
Self-healing channel
class Channel extends AggregateProgram
with StandardSensors with BlockG {
override def main() = {
// zone of the space that we want to link to target
def source : Boolean = sense("source")
// the target of the channel
def target : Boolean = sense("target")
def channel(source: Boolean, target: Boolean, width: Double): Boolean = {
// All nodes that are inside the channel
distanceTo(source) + distanceTo(target)
<= distanceBetween(source, target) + width
}
val channelWidth = 1
channel(source, target, channelWidth)
}
}
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 54 / 58
56. Frameworks Research-Oriented

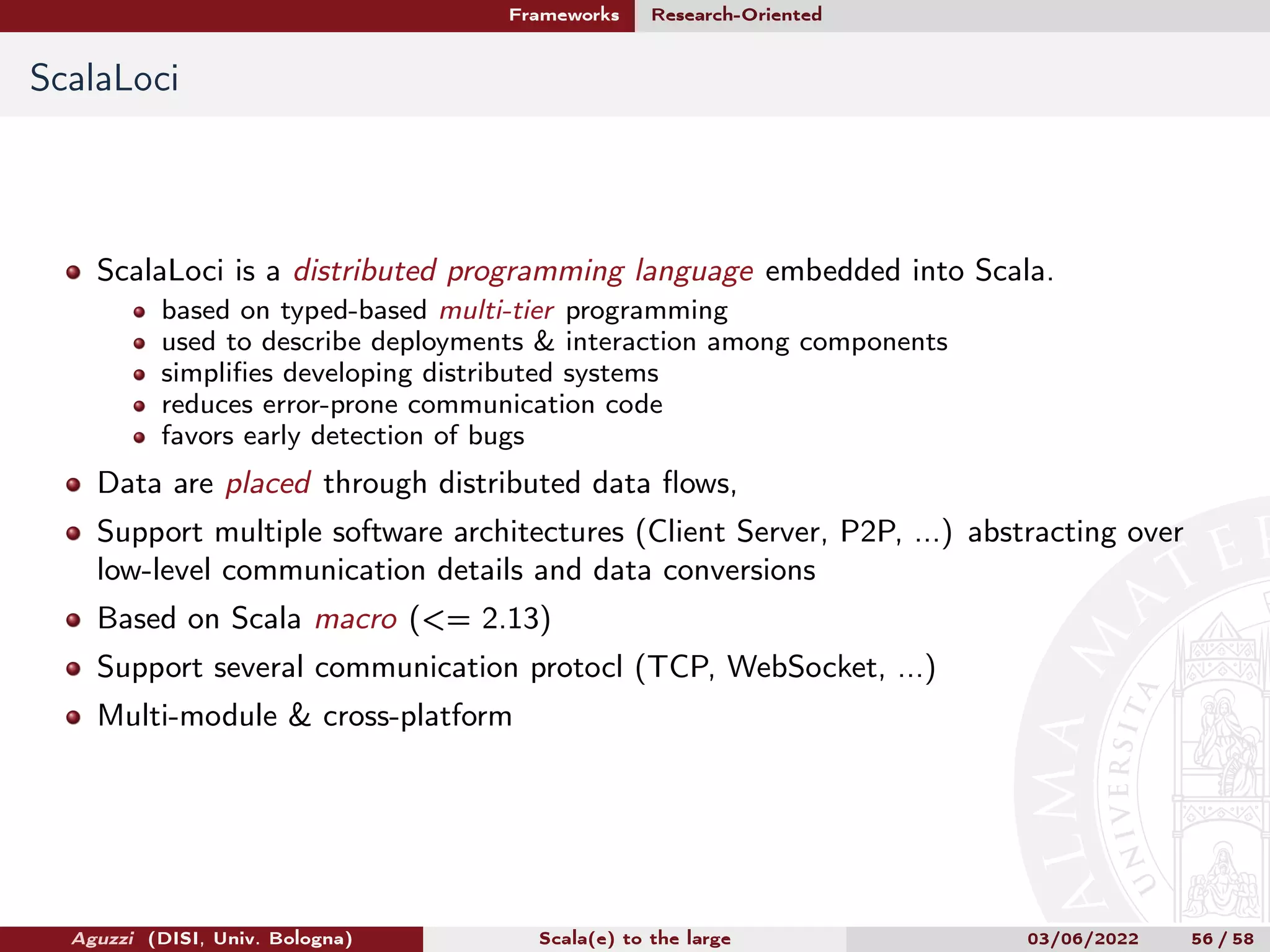

ScalaLoci
ScalaLoci is a distributed programming language embedded into Scala.
based on typed-based multi-tier programming
used to describe deployments & interaction among components
simplifies developing distributed systems
reduces error-prone communication code
favors early detection of bugs
Data are placed through distributed data flows,
Support multiple software architectures (Client Server, P2P, ...) abstracting over
low-level communication details and data conversions
Based on Scala macro (<= 2.13)
Support several communication protocl (TCP, WebSocket, ...)
Multi-module & cross-platform
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 56 / 58
57. Frameworks Research-Oriented

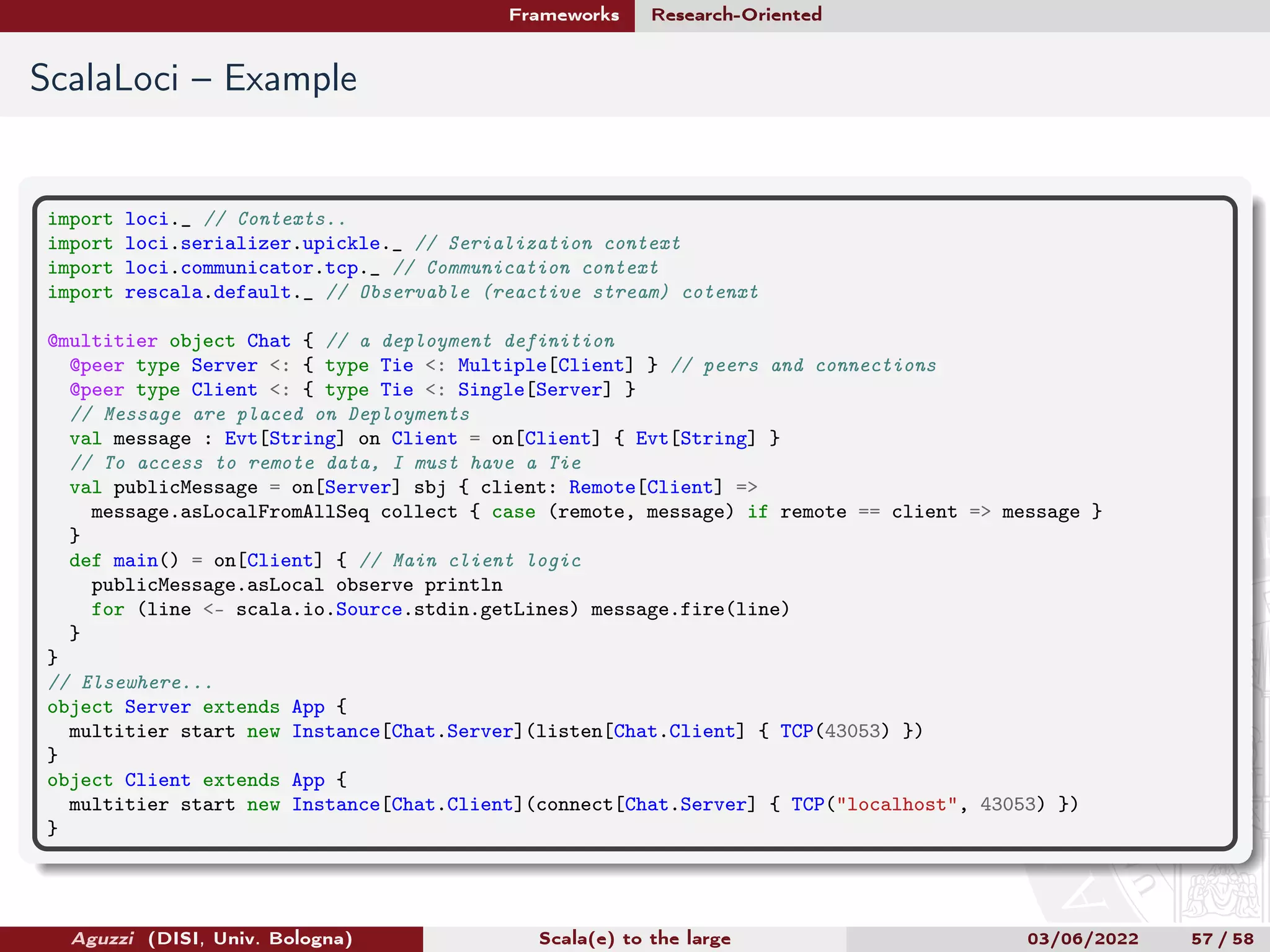

ScalaLoci – Example
import loci._ // Contexts..
import loci.serializer.upickle._ // Serialization context
import loci.communicator.tcp._ // Communication context
import rescala.default._ // Observable (reactive stream) cotenxt
@multitier object Chat { // a deployment definition
@peer type Server <: { type Tie <: Multiple[Client] } // peers and connections
@peer type Client <: { type Tie <: Single[Server] }
// Message are placed on Deployments
val message : Evt[String] on Client = on[Client] { Evt[String] }
// To access to remote data, I must have a Tie
val publicMessage = on[Server] sbj { client: Remote[Client] =>
message.asLocalFromAllSeq collect { case (remote, message) if remote == client => message }
}
def main() = on[Client] { // Main client logic
publicMessage.asLocal observe println
for (line <- scala.io.Source.stdin.getLines) message.fire(line)
}
}
// Elsewhere...
object Server extends App {
multitier start new Instance[Chat.Server](listen[Chat.Client] { TCP(43053) })
}
object Client extends App {
multitier start new Instance[Chat.Client](connect[Chat.Server] { TCP("localhost", 43053) })
}
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 57 / 58
58. Frameworks Research-Oriented
Scala(e) to the large
Concurrent programming in Scala and relevant Frameworks
Gianluca Aguzzi gianluca.aguzzi@unibo.it
Dipartimento di Informatica – Scienza e Ingegneria (DISI)
Alma Mater Studiorum – Università di Bologna
Talk @ Paradigmi di Progettazione e Sviluppo
03/06/2022
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022 58 / 58
59. References

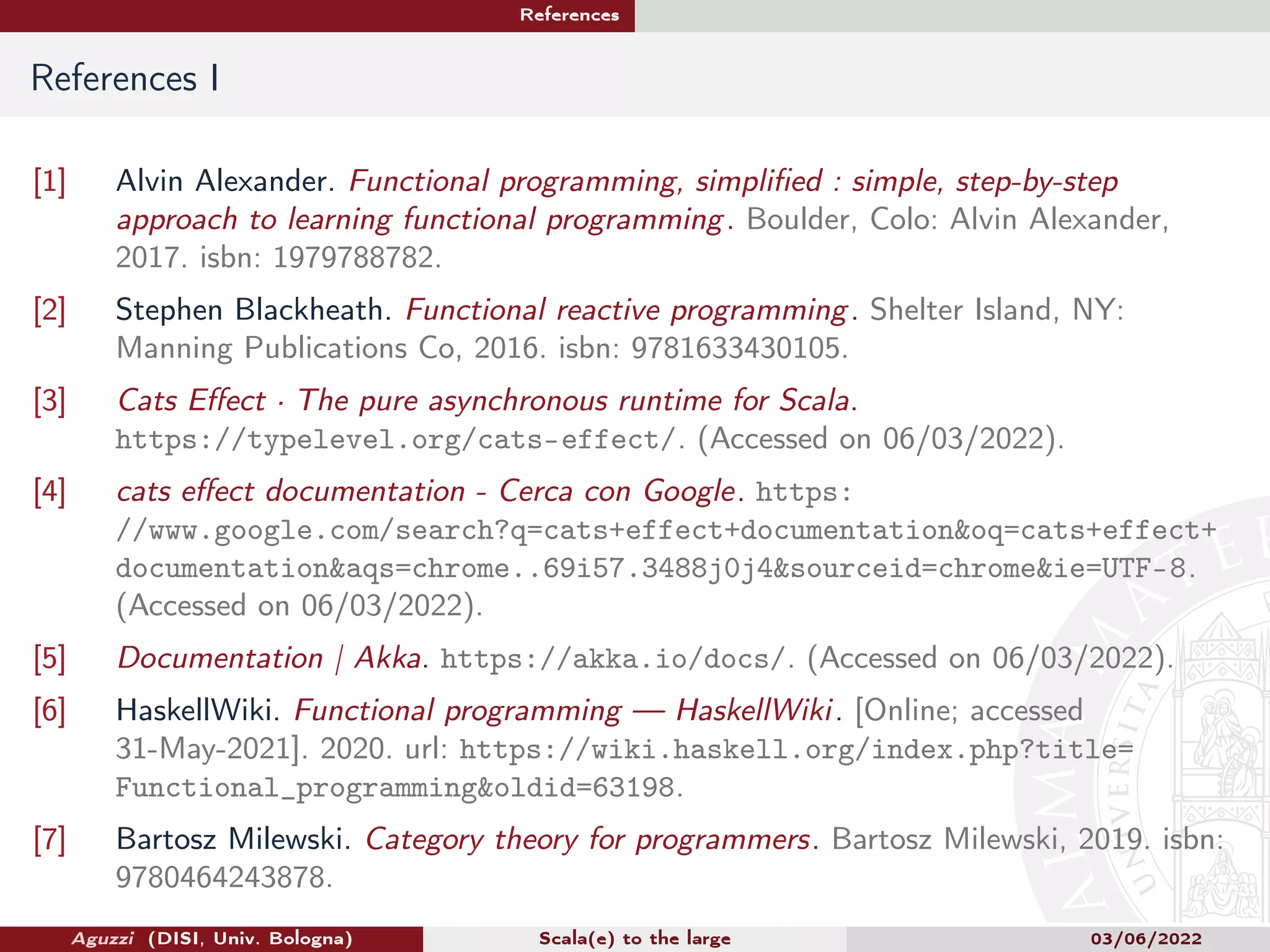

References I
[1] Alvin Alexander. Functional programming, simplified : simple, step-by-step
approach to learning functional programming. Boulder, Colo: Alvin Alexander,
2017. isbn: 1979788782.
[2] Stephen Blackheath. Functional reactive programming. Shelter Island, NY:
Manning Publications Co, 2016. isbn: 9781633430105.
[3] Cats Effect · The pure asynchronous runtime for Scala.
https://typelevel.org/cats-effect/. (Accessed on 06/03/2022).
[4] cats effect documentation - Cerca con Google. https:
//www.google.com/search?q=cats+effect+documentation&oq=cats+effect+
documentation&aqs=chrome..69i57.3488j0j4&sourceid=chrome&ie=UTF-8.
(Accessed on 06/03/2022).
[5] Documentation | Akka. https://akka.io/docs/. (Accessed on 06/03/2022).
[6] HaskellWiki. Functional programming — HaskellWiki. [Online; accessed
31-May-2021]. 2020. url: https://wiki.haskell.org/index.php?title=
Functional_programming&oldid=63198.
[7] Bartosz Milewski. Category theory for programmers. Bartosz Milewski, 2019. isbn:
9780464243878.
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022
60. References

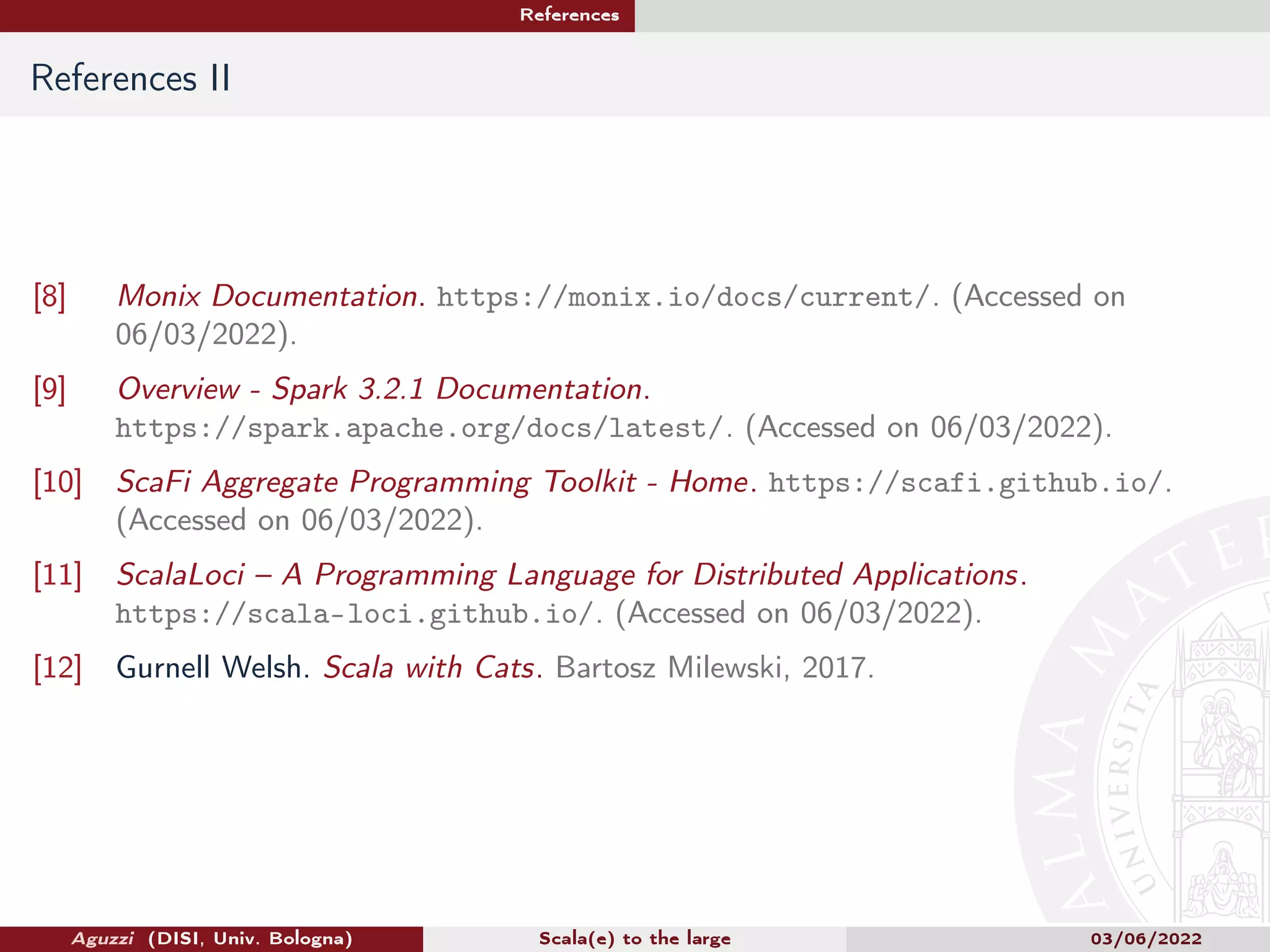

References II
[8] Monix Documentation. https://monix.io/docs/current/. (Accessed on
06/03/2022).
[9] Overview - Spark 3.2.1 Documentation.
https://spark.apache.org/docs/latest/. (Accessed on 06/03/2022).
[10] ScaFi Aggregate Programming Toolkit - Home. https://scafi.github.io/.
(Accessed on 06/03/2022).
[11] ScalaLoci – A Programming Language for Distributed Applications.
https://scala-loci.github.io/. (Accessed on 06/03/2022).
[12] Gurnell Welsh. Scala with Cats. Bartosz Milewski, 2017.
Aguzzi (DISI, Univ. Bologna) Scala(e) to the large 03/06/2022
