Scalable Service Architectures
Lessons learned
Zoltán Németh
Engineering Manager, Core Systems

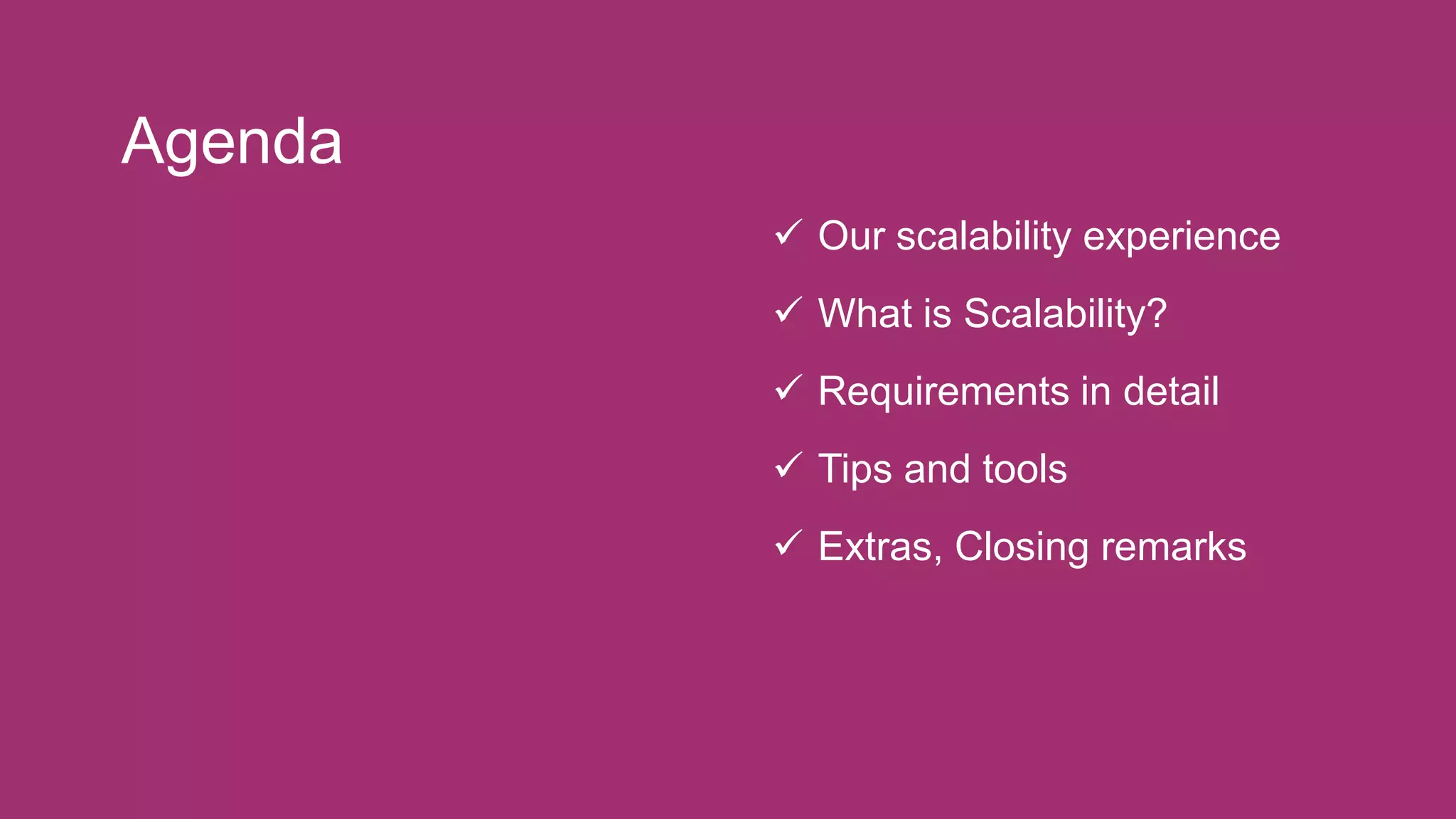

Agenda
 Our scalability experience
 What is Scalability?
 Requirements in detail
 Tips and tools
 Extras, Closing remarks

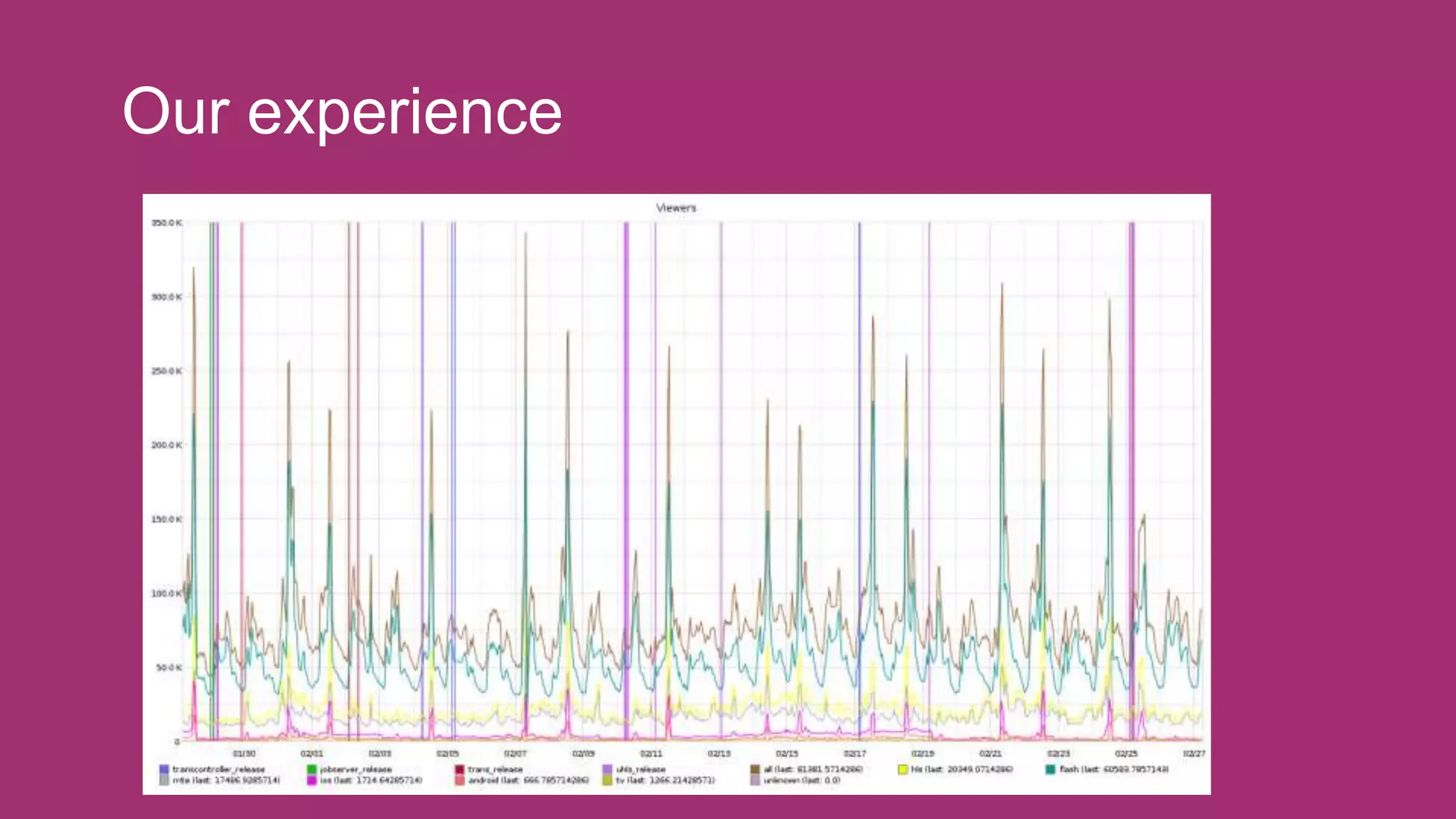

Our experience

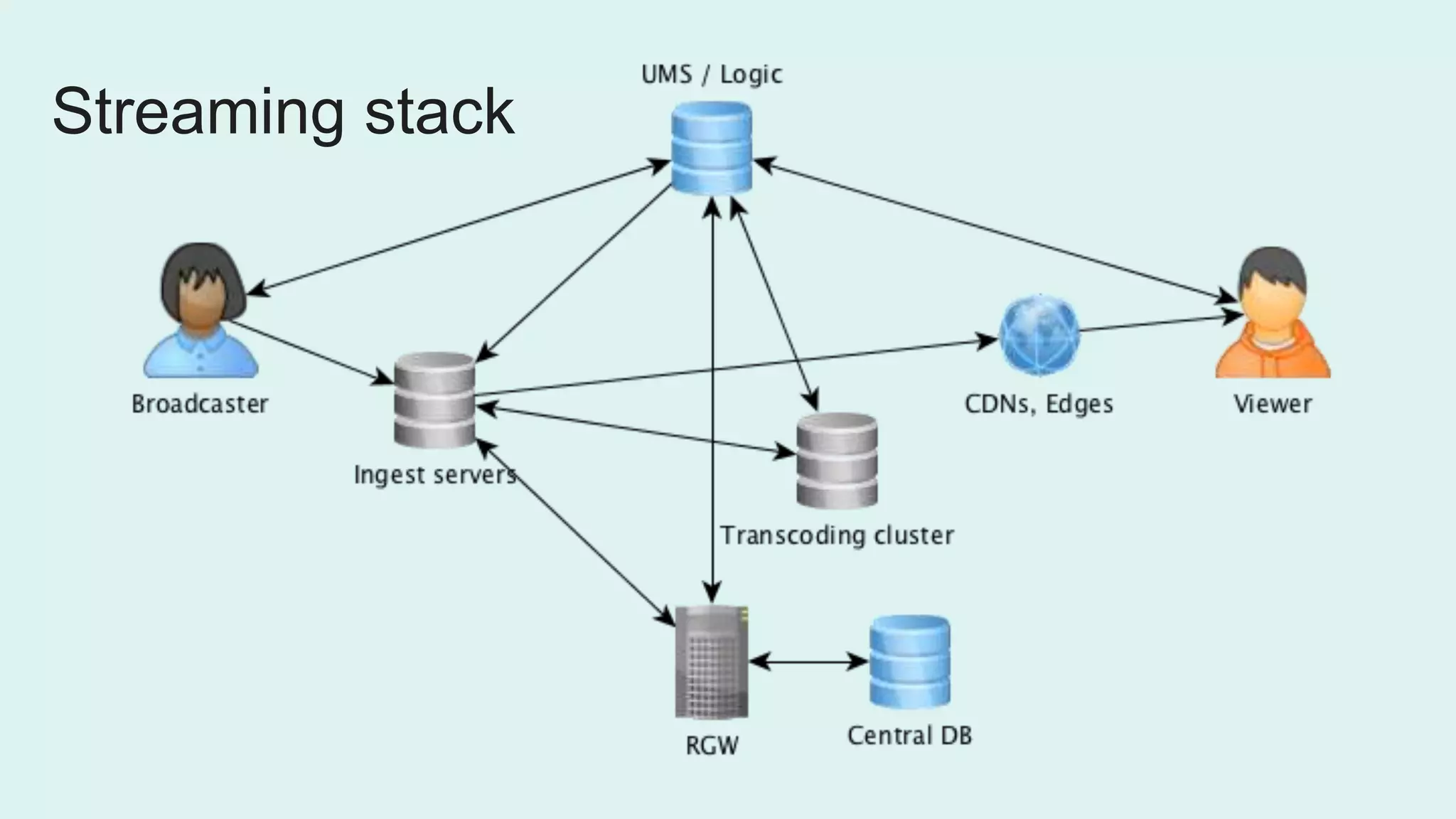

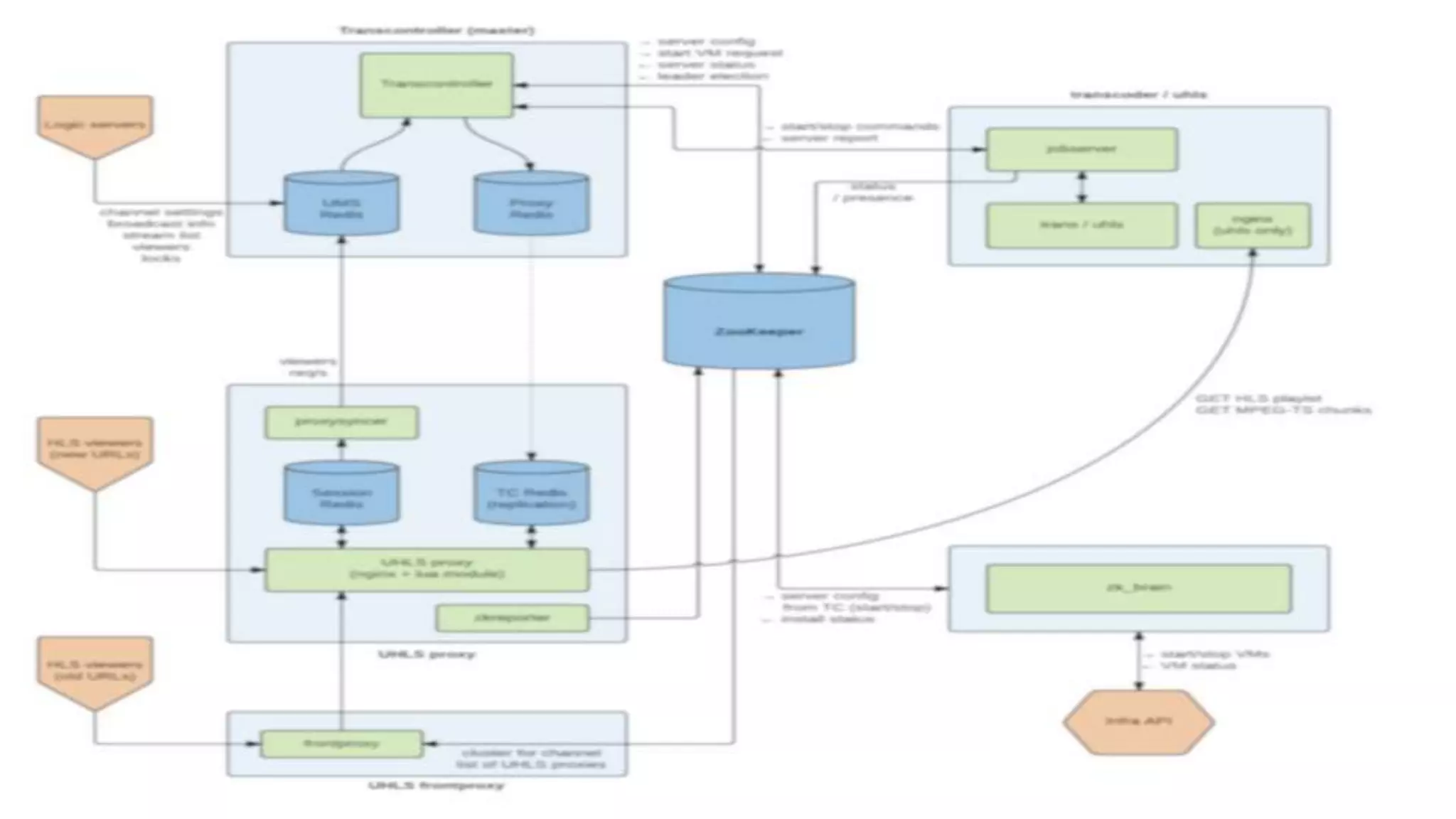

Streaming stack

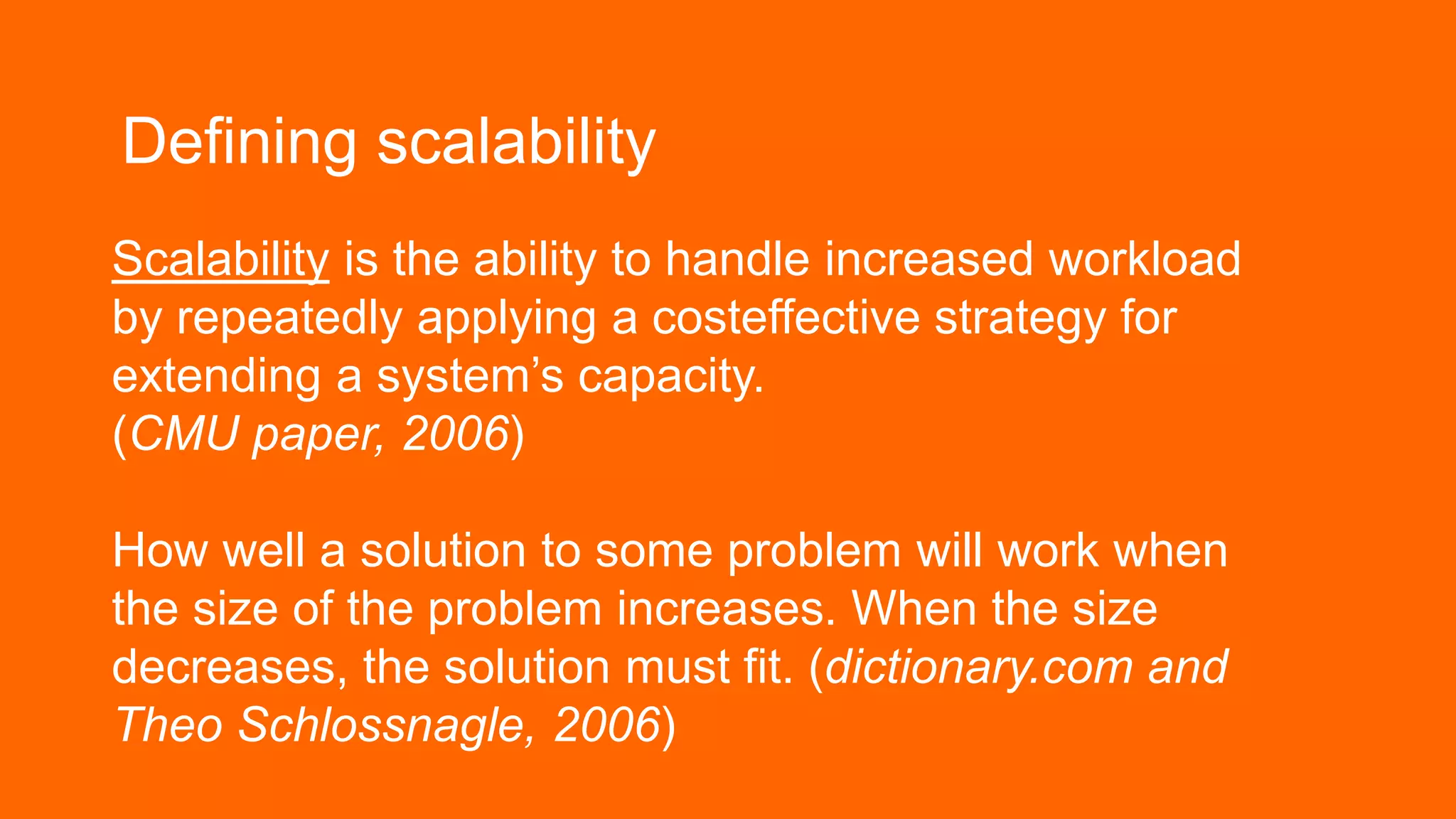

Defining scalability
Scalability is the ability to handle increased workload
by repeatedly applying a costeffective strategy for
extending a system’s capacity.
(CMU paper, 2006)
How well a solution to some problem will work when
the size of the problem increases. When the size
decreases, the solution must fit. (dictionary.com and
Theo Schlossnagle, 2006)

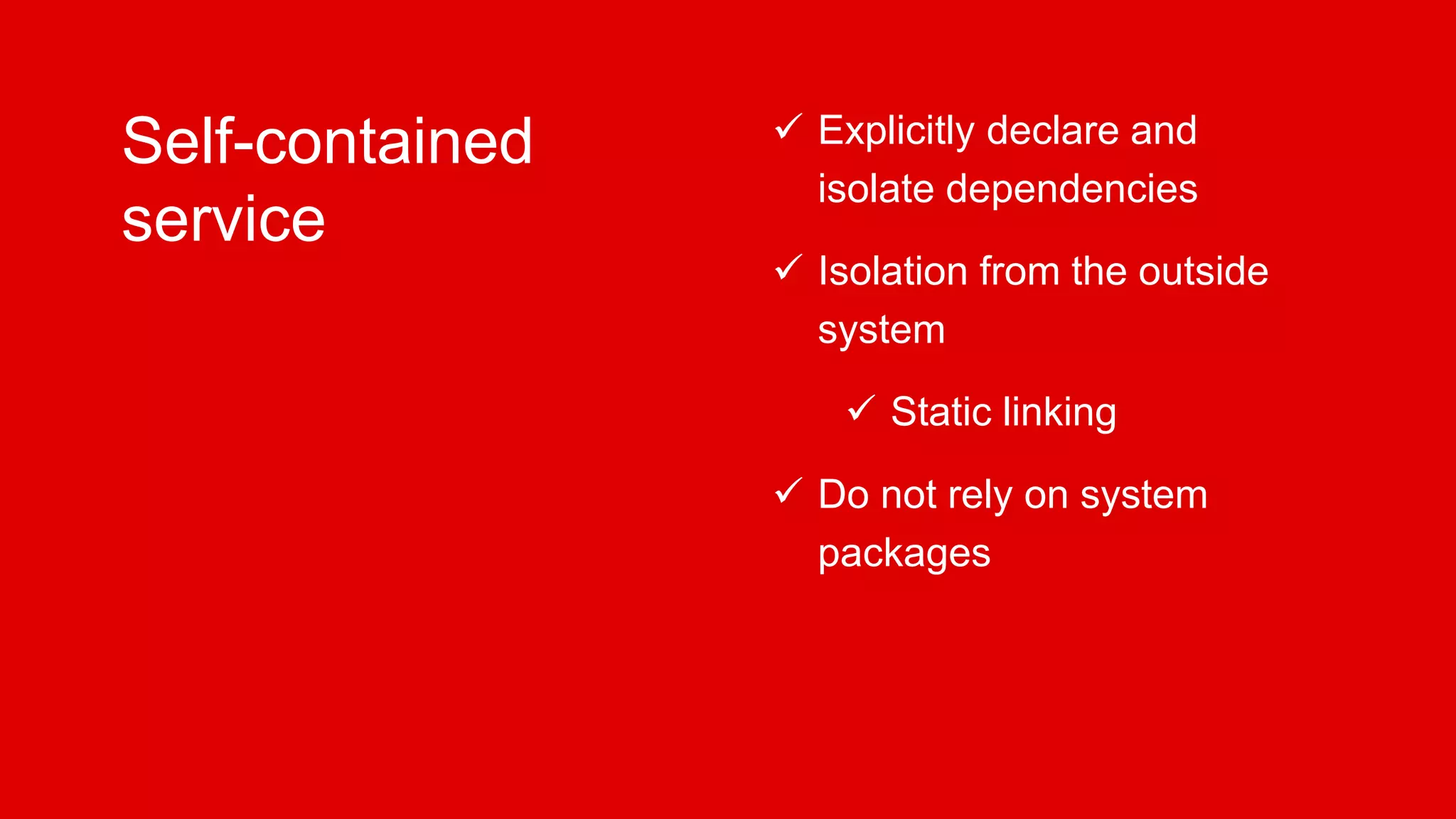

Self-contained
service
 Explicitly declare and
isolate dependencies
 Isolation from the outside
system
 Static linking
 Do not rely on system
packages

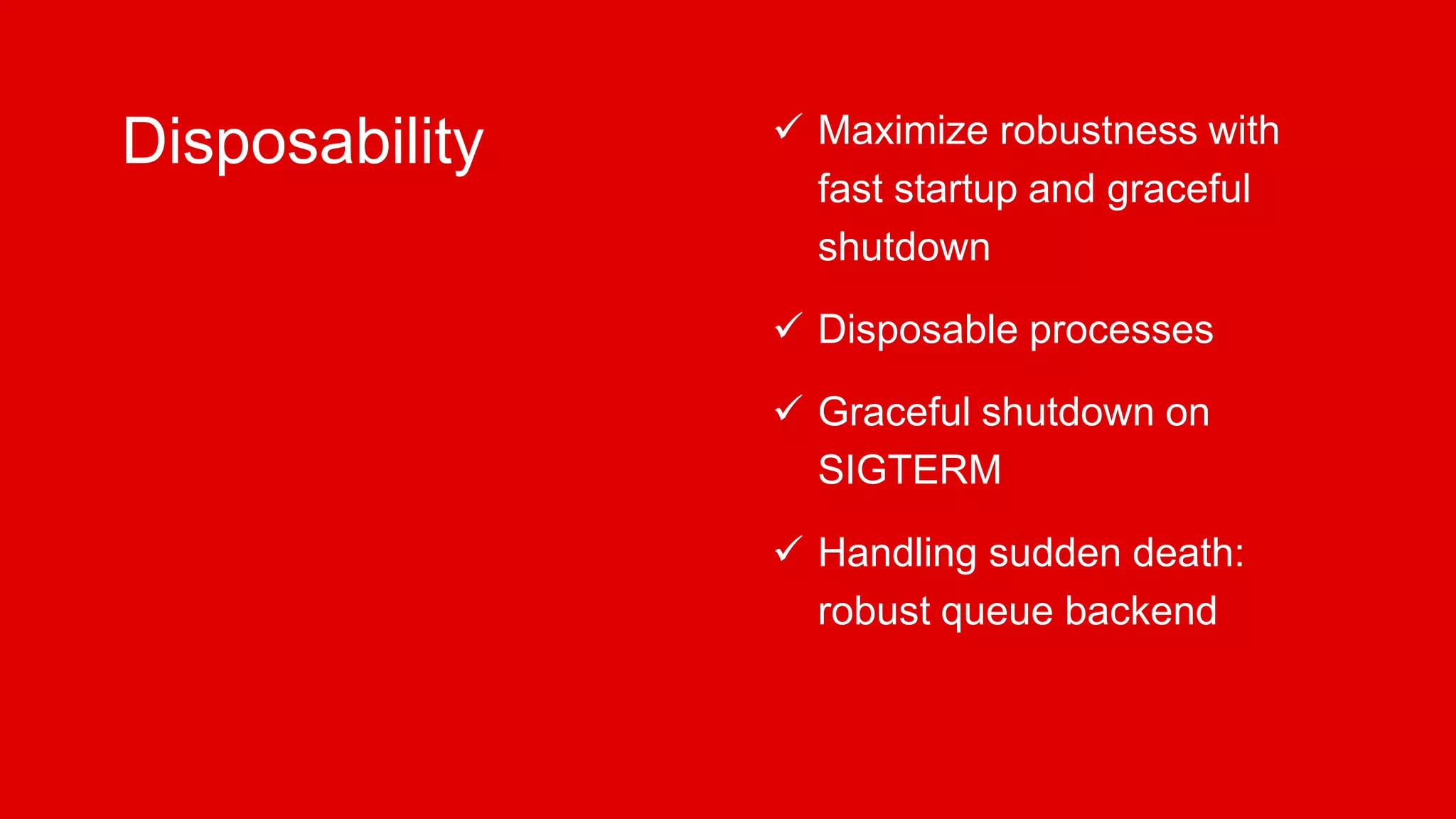

Disposability  Maximize robustness with
fast startup and graceful
shutdown
 Disposable processes
 Graceful shutdown on
SIGTERM
 Handling sudden death:
robust queue backend

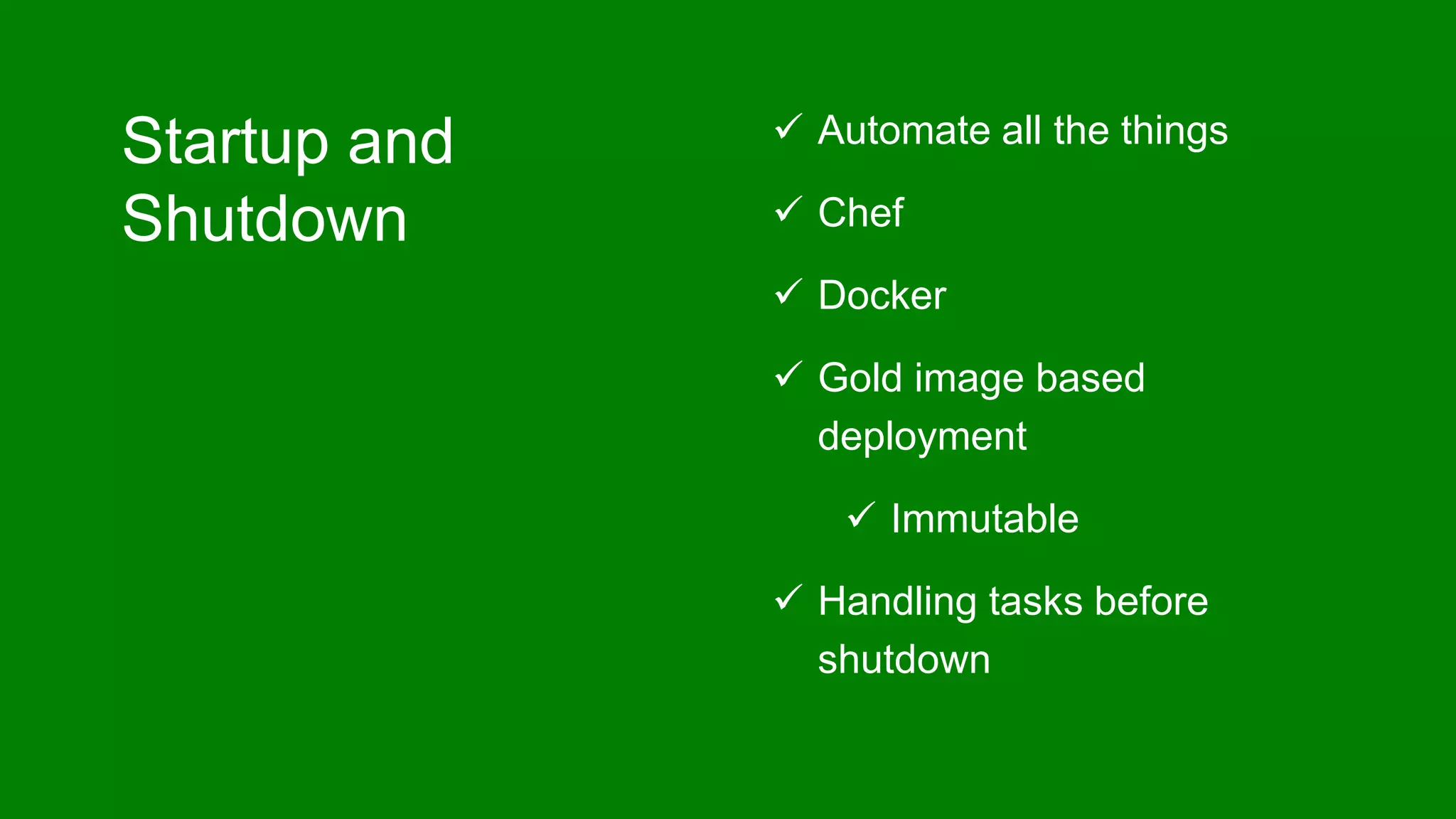

Startup and
Shutdown
 Automate all the things
 Chef
 Docker
 Gold image based
deployment
 Immutable
 Handling tasks before
shutdown

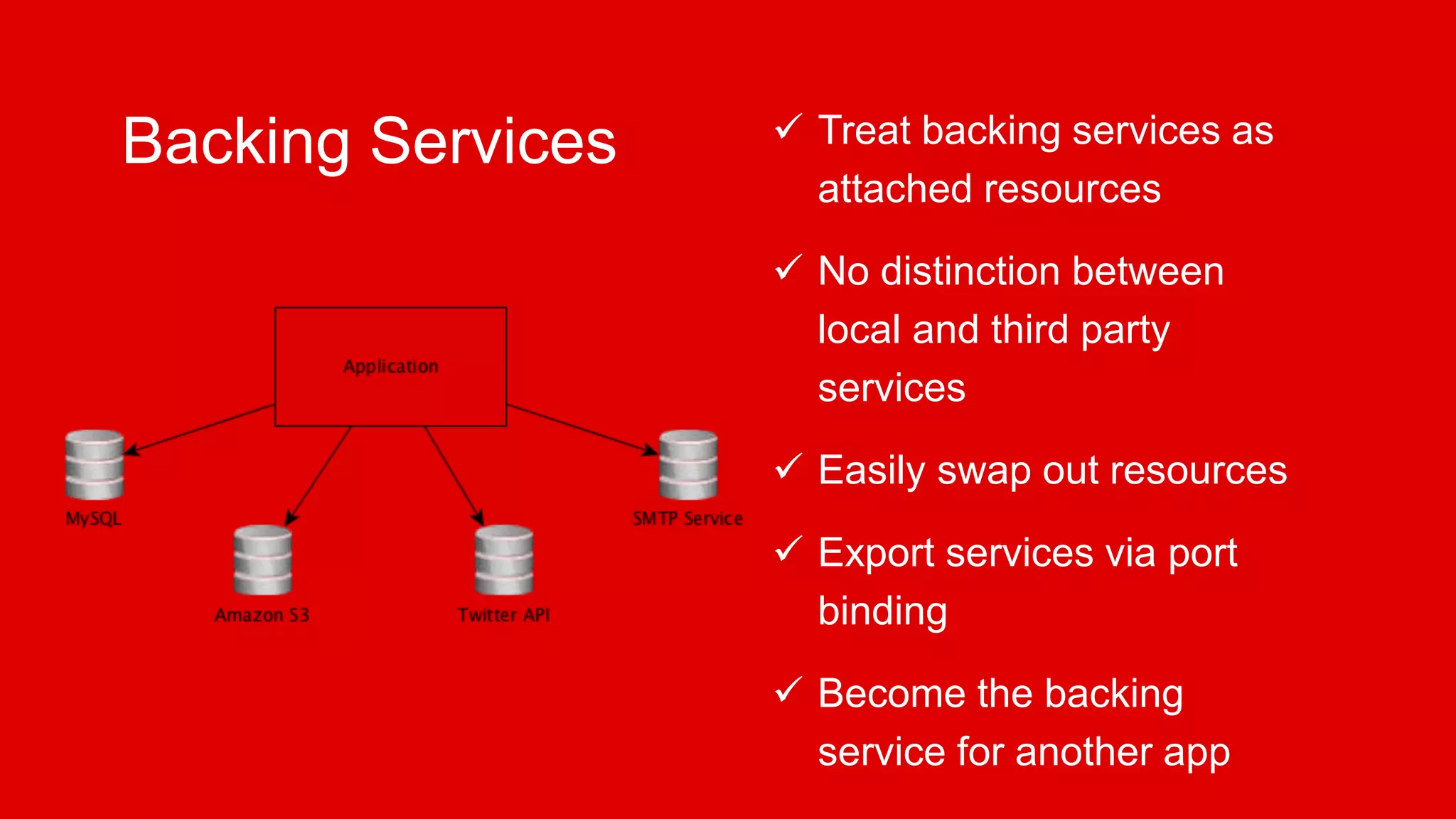

Backing Services  Treat backing services as
attached resources
 No distinction between
local and third party
services
 Easily swap out resources
 Export services via port
binding
 Become the backing
service for another app
Processes,
concurrency
 Stateless processes (not
even sticky sessions)
 Process types by work type
 We <3 linux process
 Shared-nothing  adding
concurrency is safe
 Process distribution
spanning machines

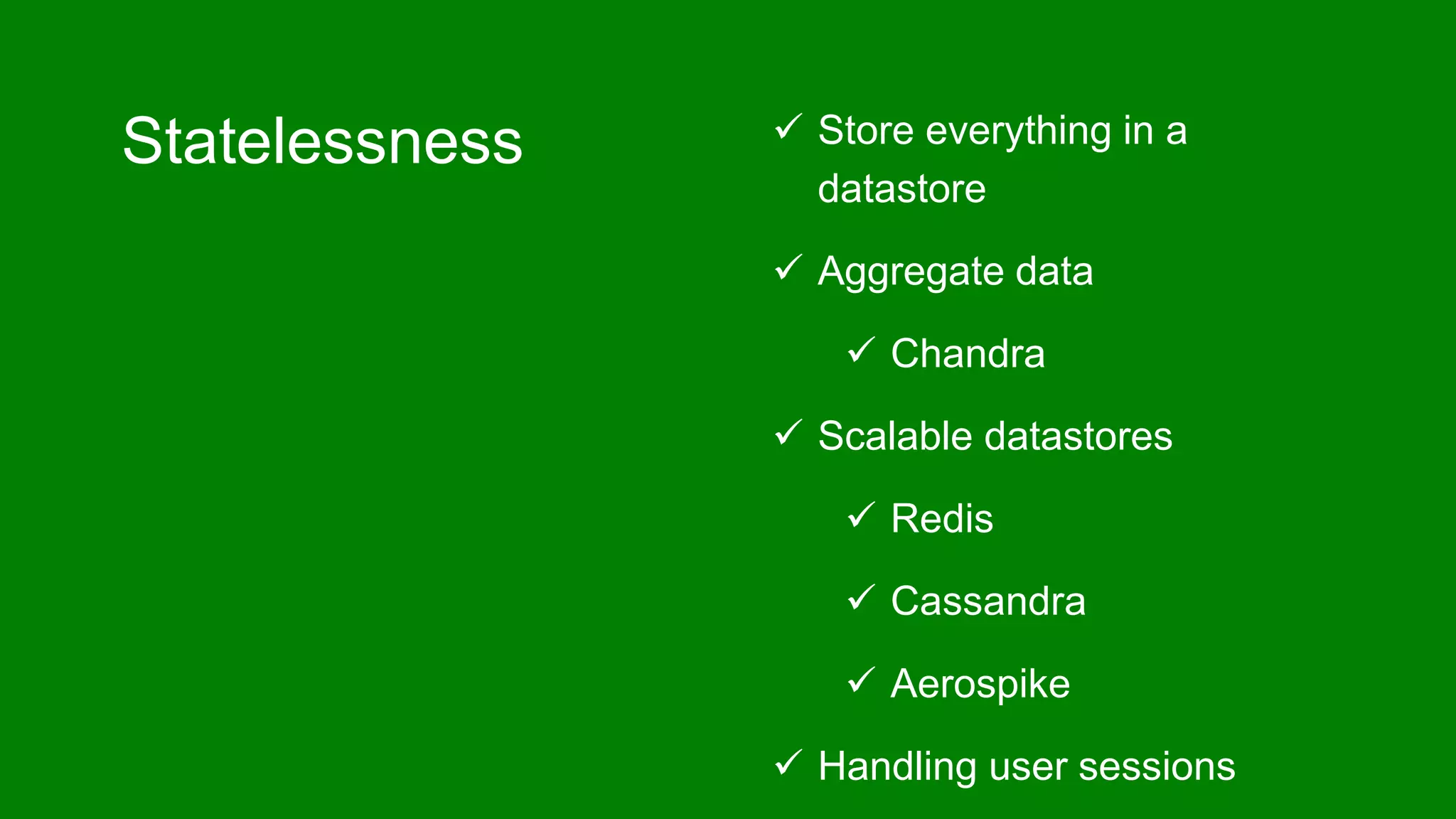

Statelessness  Store everything in a
datastore
 Aggregate data
 Chandra
 Scalable datastores
 Redis
 Cassandra
 Aerospike
 Handling user sessions

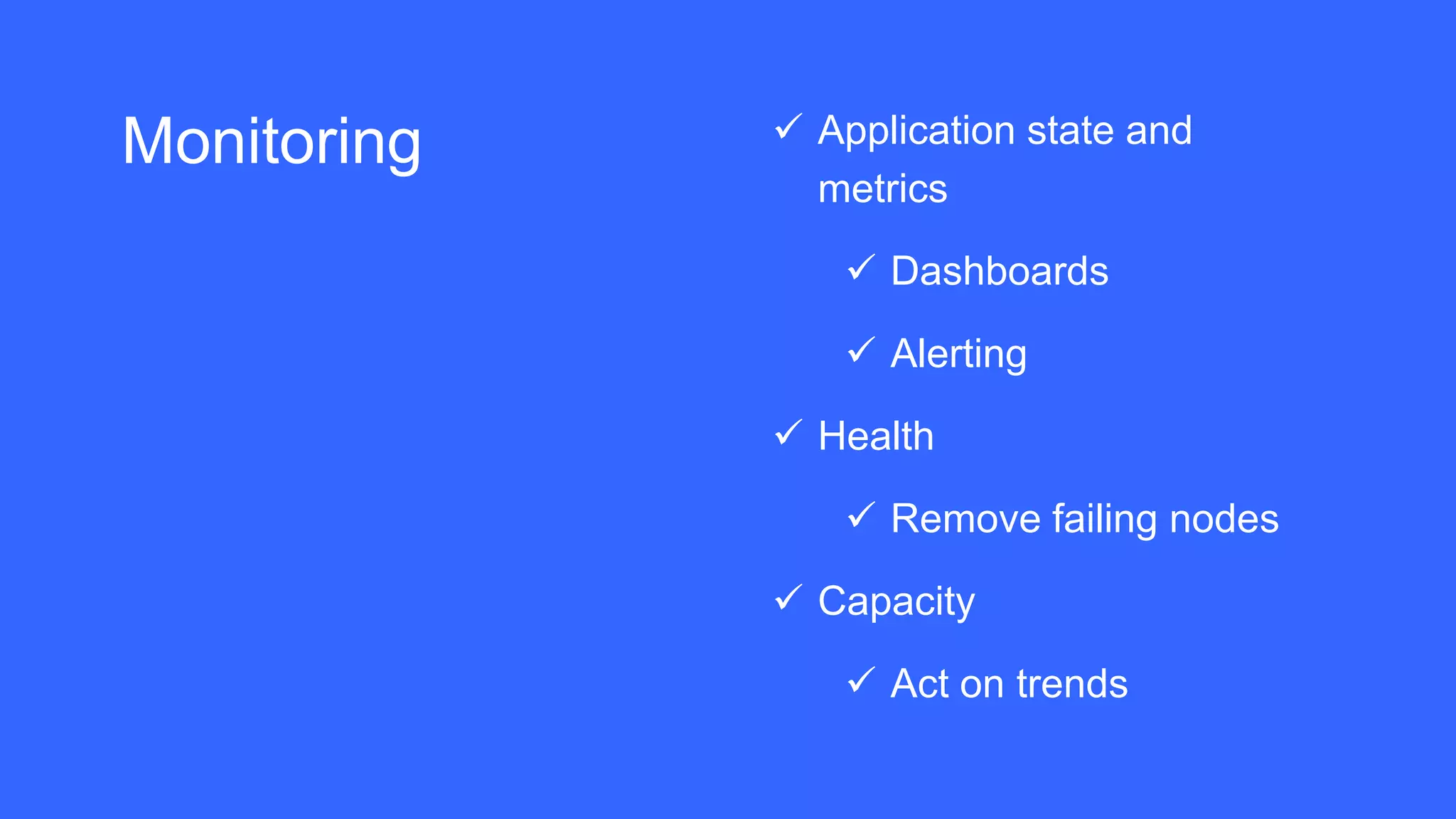

Monitoring  Application state and
metrics
 Dashboards
 Alerting
 Health
 Remove failing nodes
 Capacity
 Act on trends

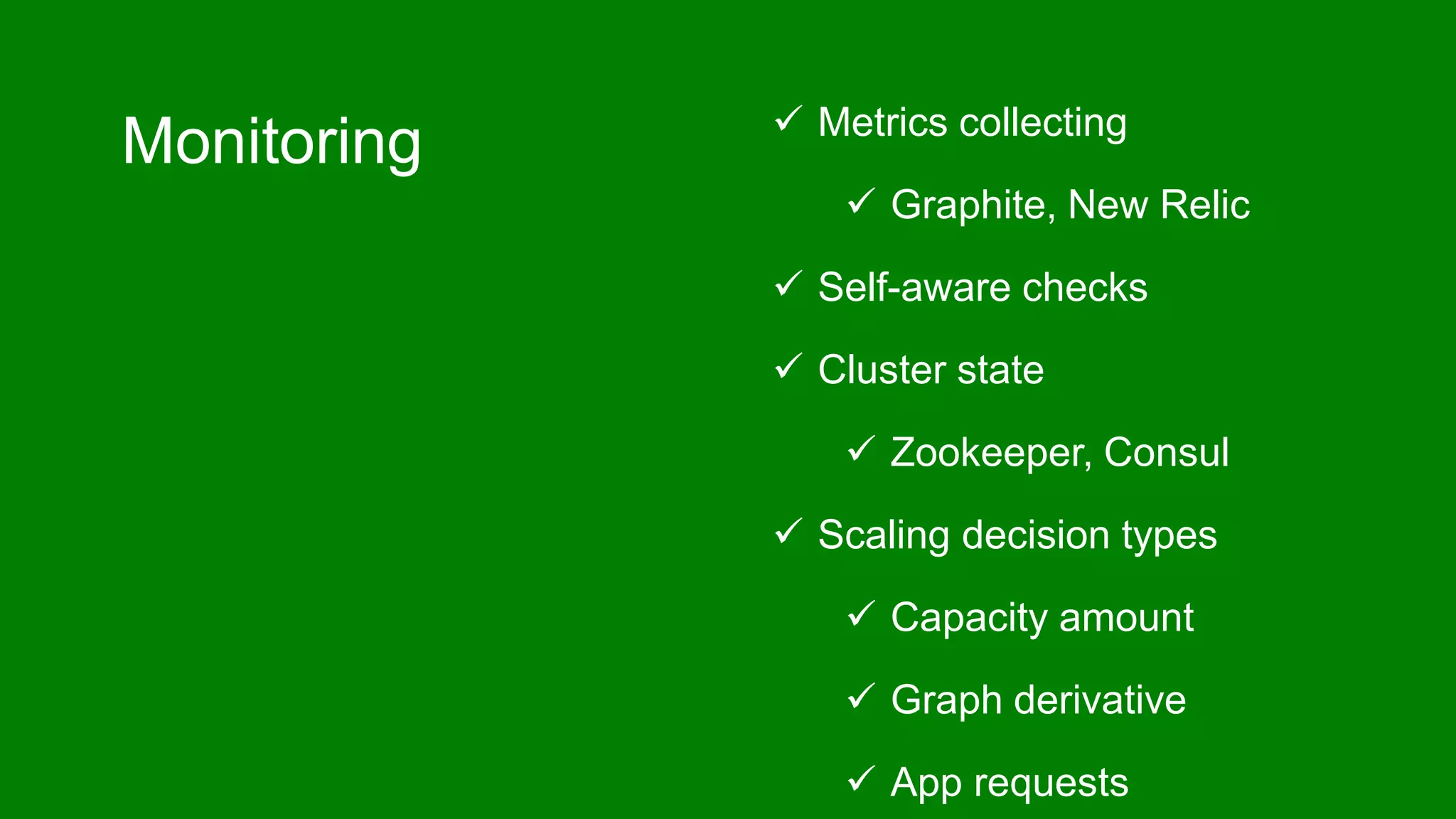

Monitoring  Metrics collecting
 Graphite, New Relic
 Self-aware checks
 Cluster state
 Zookeeper, Consul
 Scaling decision types
 Capacity amount
 Graph derivative
 App requests

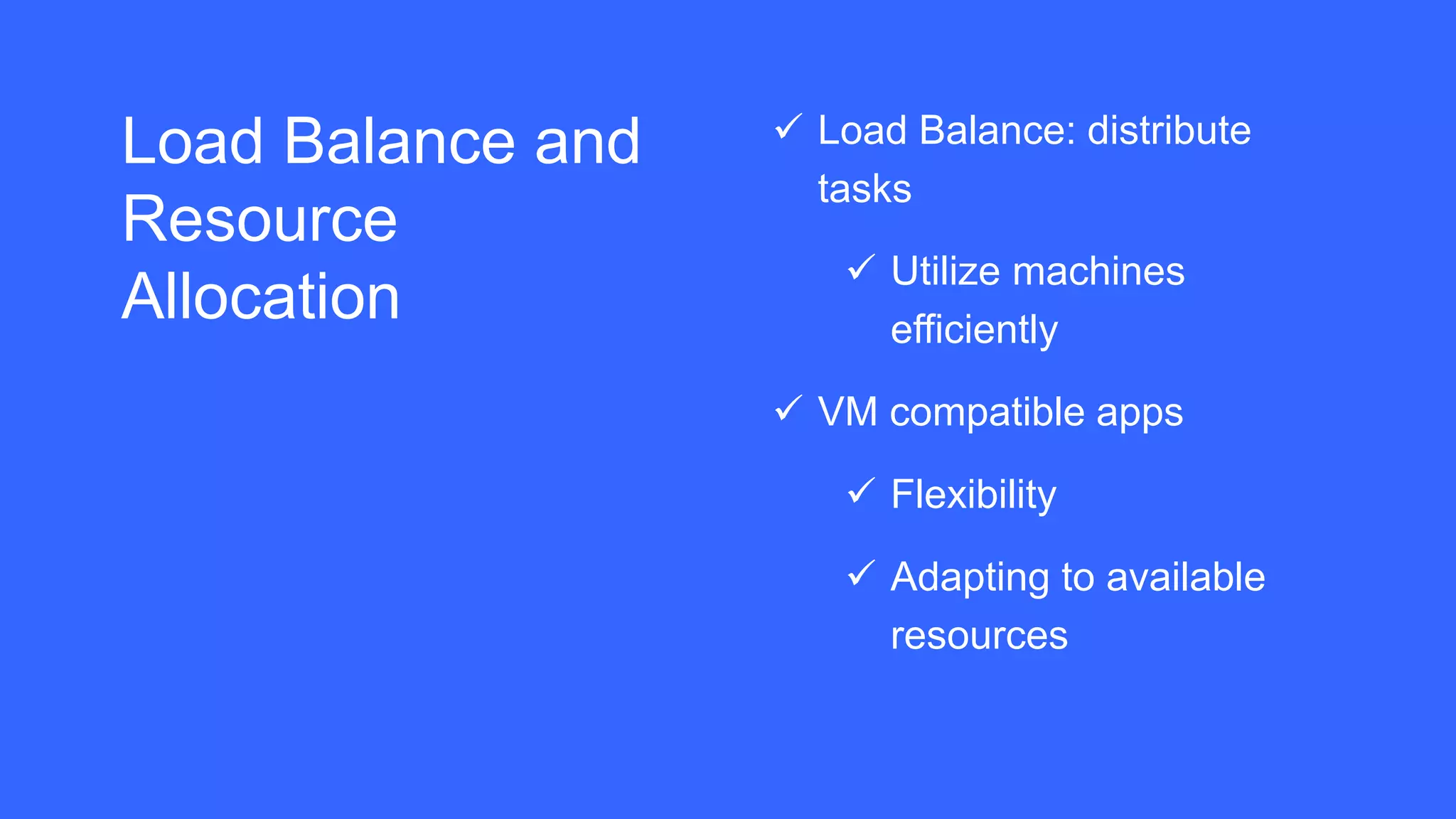

Load Balance and
Resource
Allocation
 Load Balance: distribute
tasks
 Utilize machines
efficiently
 VM compatible apps
 Flexibility
 Adapting to available
resources

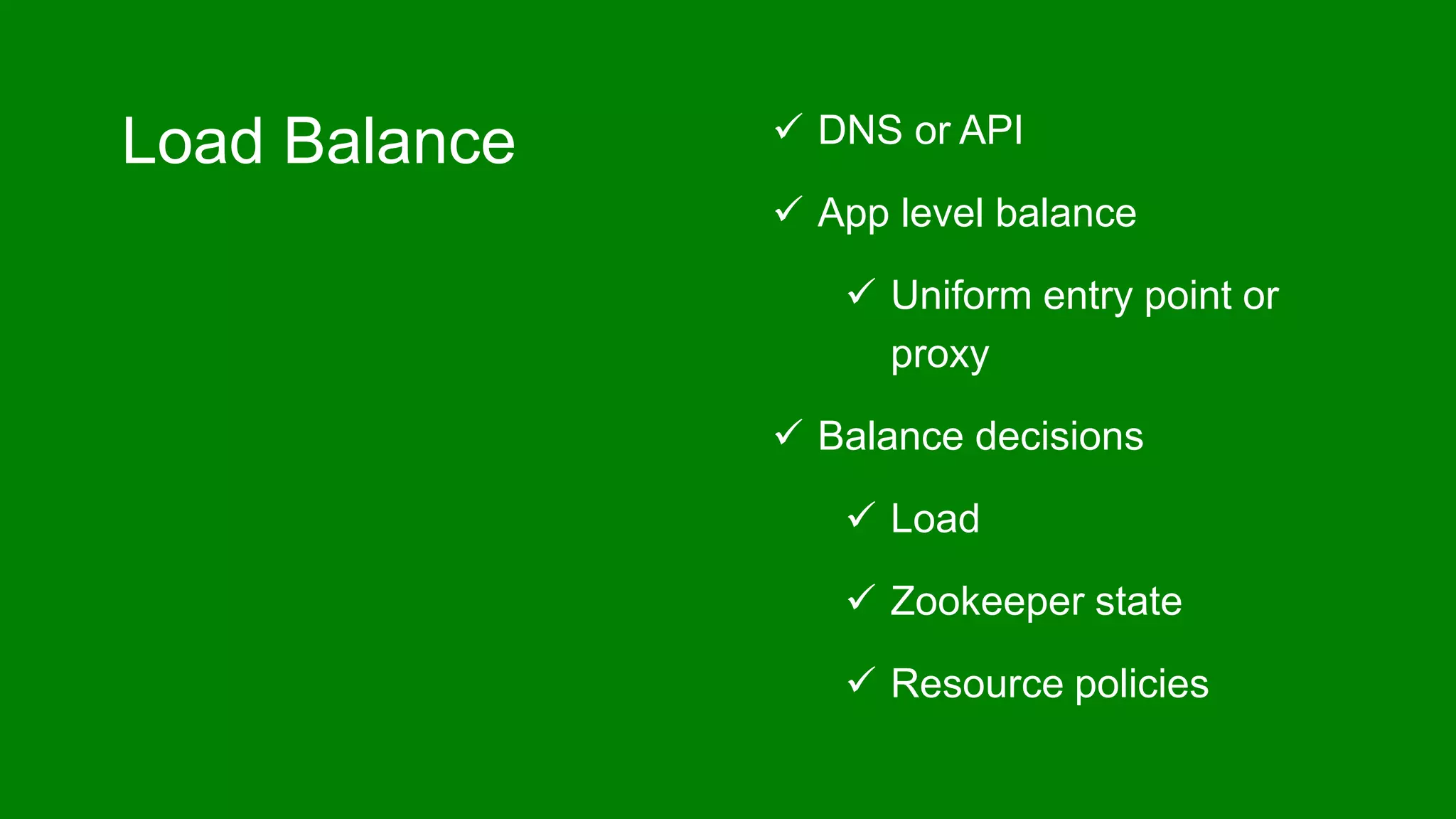

Load Balance  DNS or API
 App level balance
 Uniform entry point or
proxy
 Balance decisions
 Load
 Zookeeper state
 Resource policies

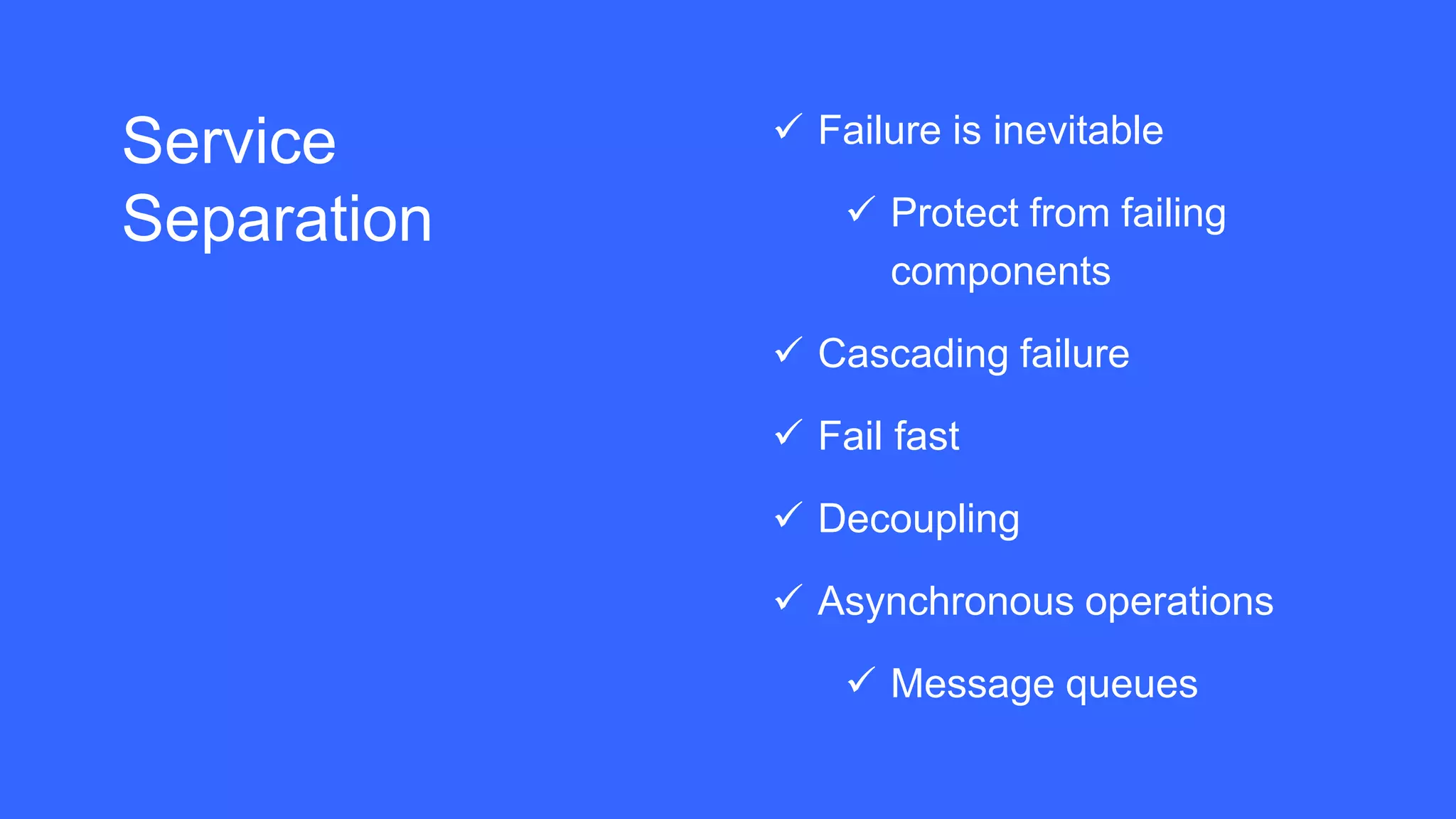

Service
Separation
 Failure is inevitable
 Protect from failing
components
 Cascading failure
 Fail fast
 Decoupling
 Asynchronous operations
 Message queues

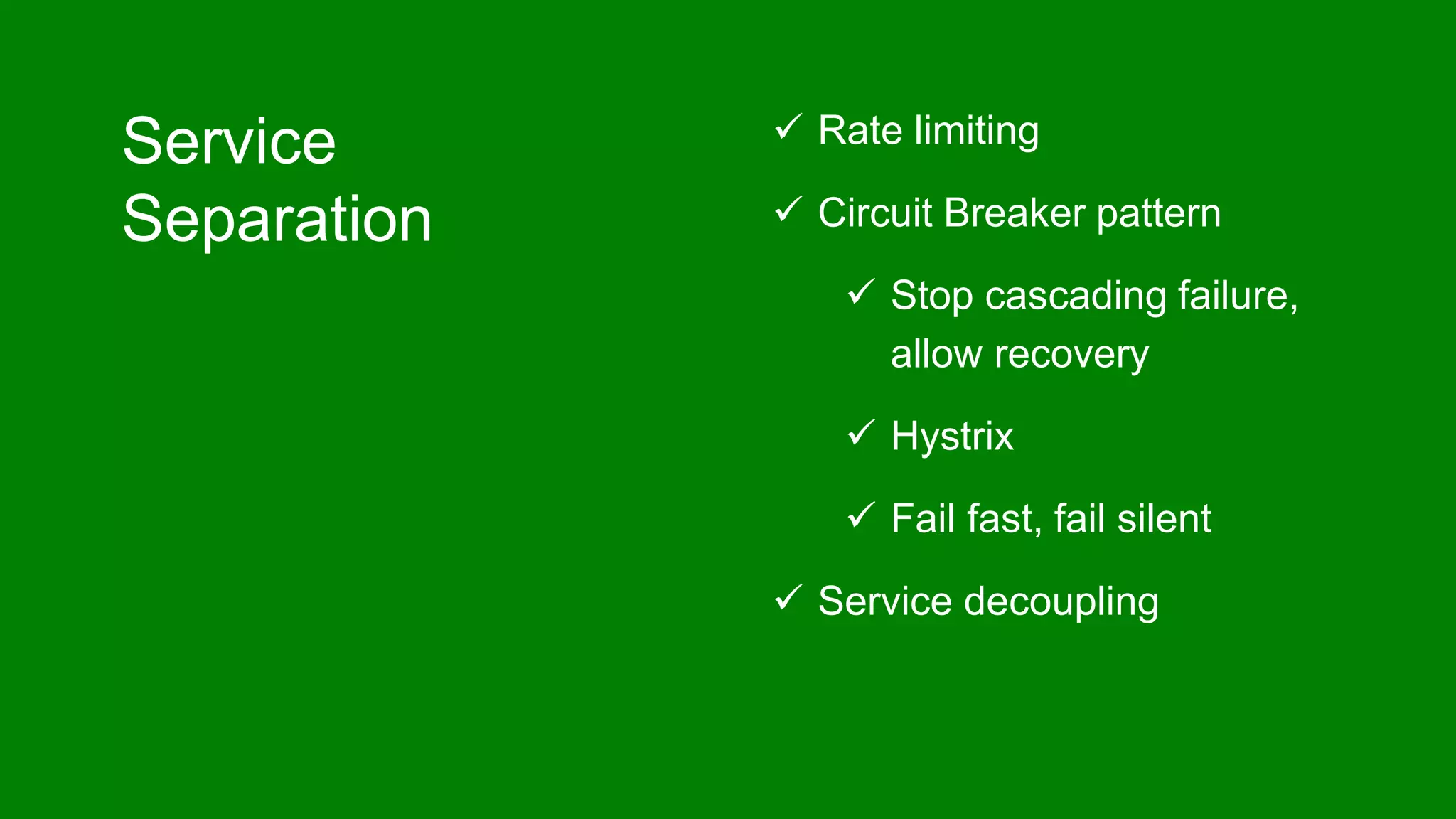

Service
Separation
 Rate limiting
 Circuit Breaker pattern
 Stop cascading failure,
allow recovery
 Hystrix
 Fail fast, fail silent
 Service decoupling

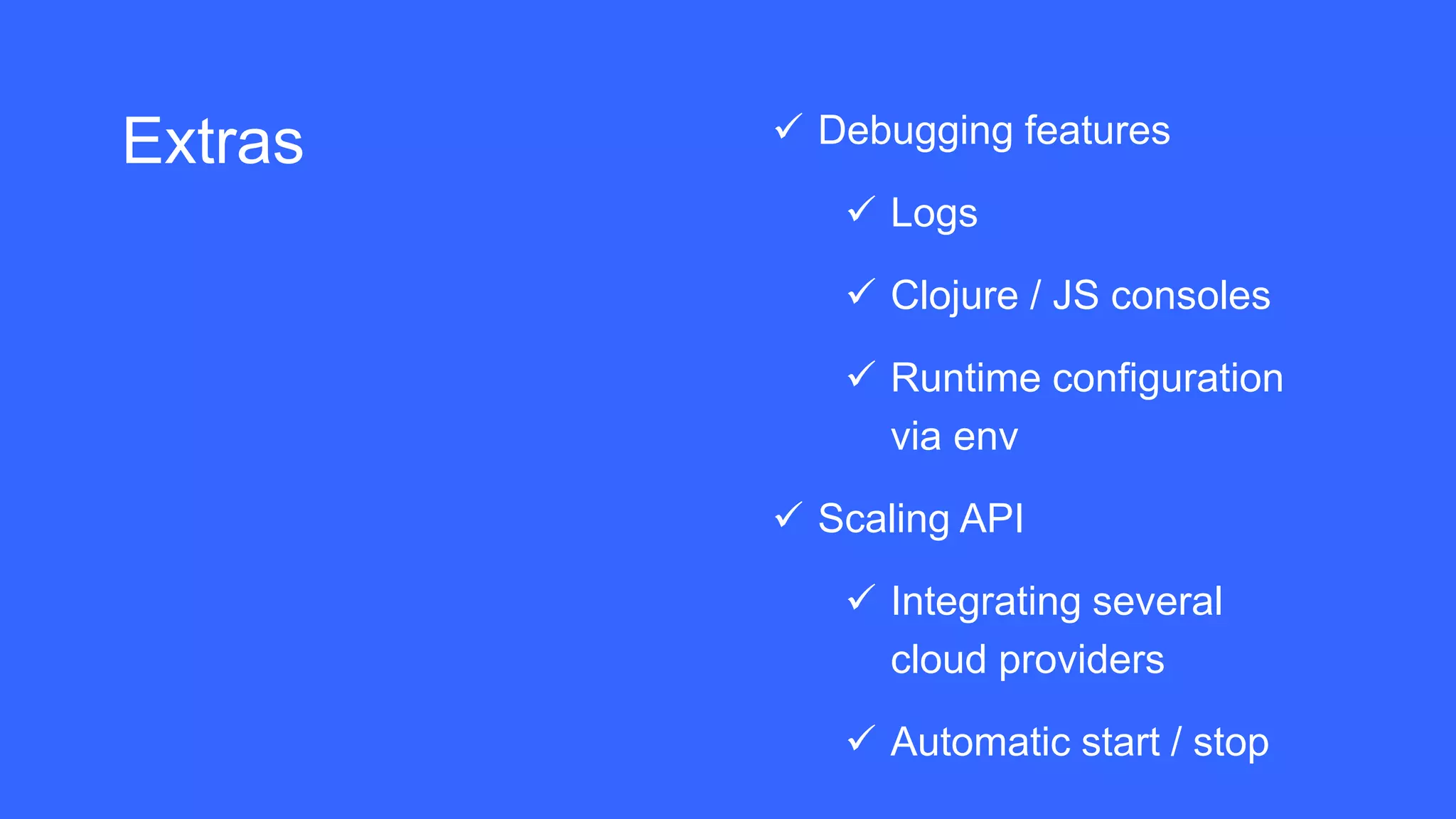

Extras  Debugging features
 Logs
 Clojure / JS consoles
 Runtime configuration
via env
 Scaling API
 Integrating several
cloud providers
 Automatic start / stop

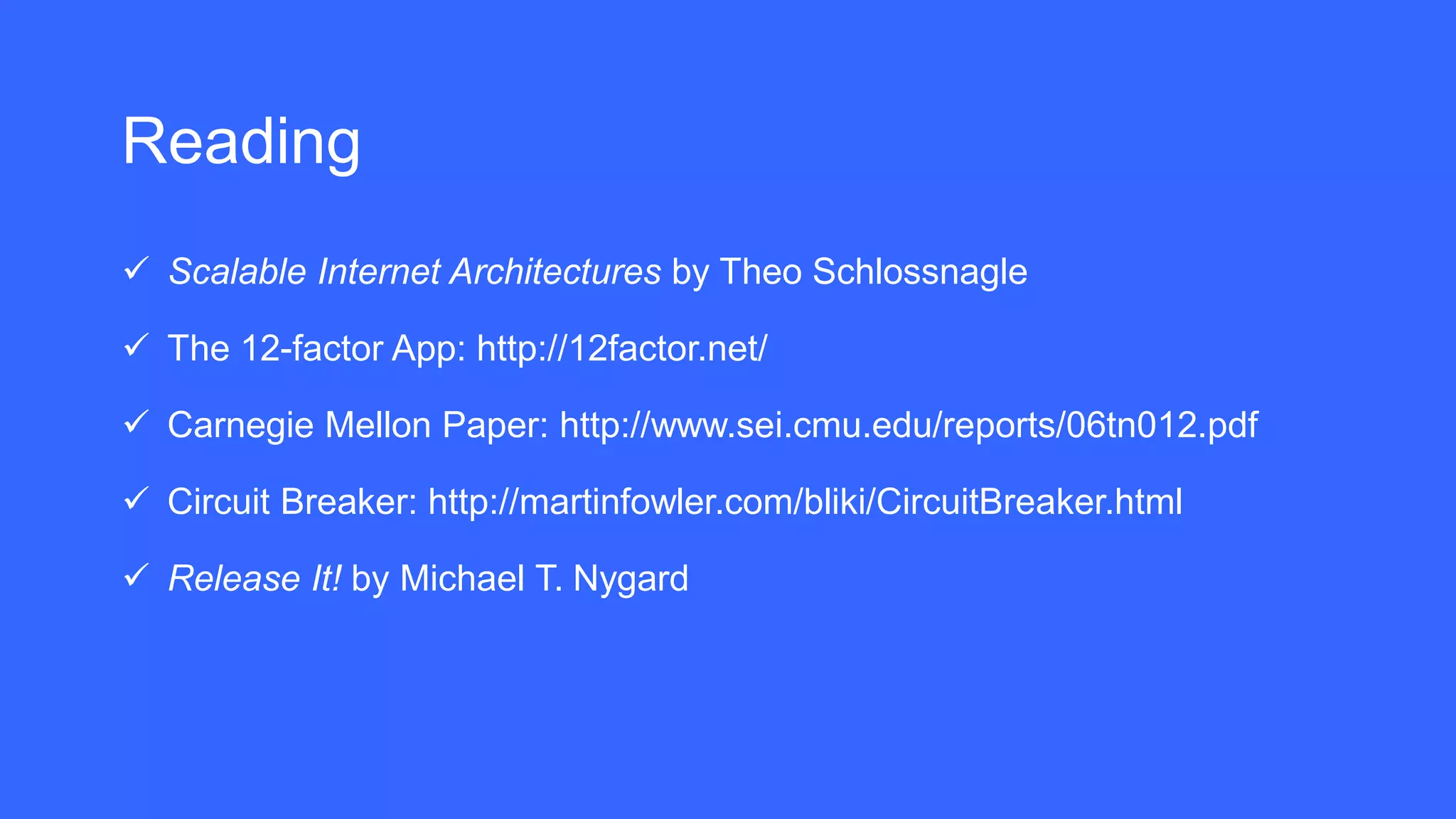

Reading
 Scalable Internet Architectures by Theo Schlossnagle
 The 12-factor App: http://12factor.net/
 Carnegie Mellon Paper: http://www.sei.cmu.edu/reports/06tn012.pdf
 Circuit Breaker: http://martinfowler.com/bliki/CircuitBreaker.html
 Release It! by Michael T. Nygard

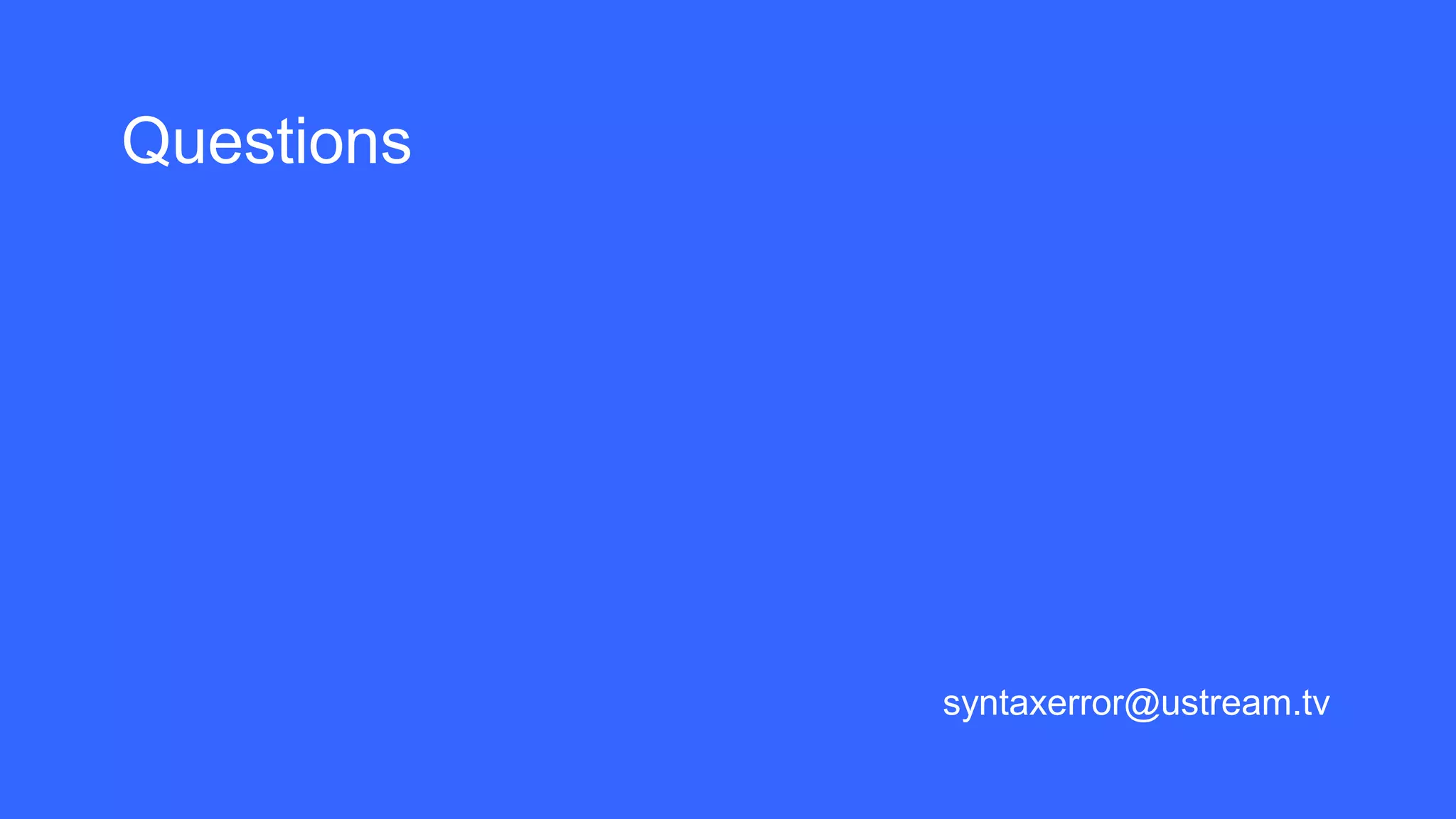

Questions
syntaxerror@ustream.tv
