- 1. Jim Mimlitz, P.E. SCADAmetrics ConnectingSensus Flow Meters to SCADA, Telemetry, and Building Automation Systems. Core and Main Training | 09 July 2024 | Wildwood, Missouri 0 1 0 0 1 0 1 1 1 0 0 1 1 1 0 0
- 2. • Founded 1995in Wildwood, Missouri • Focused on Instrumentation Design & Manufacturing • Support the Municipal Water Utility Industry • Our Products Connect Meters to SCADA, Telemetry and Building Management Systems for the Purpose of Automation & Control SCADAmetrics Wildwood, Missouri USA
- 3. Engineer Outside theComfort Zone… “Don’t be this guy!” – advice from my first boss, 1st day on the job, right out of college.
- 4. (“Don’t re-invent thewheel!”) Extend the Usefulness of That Which Already Exists…

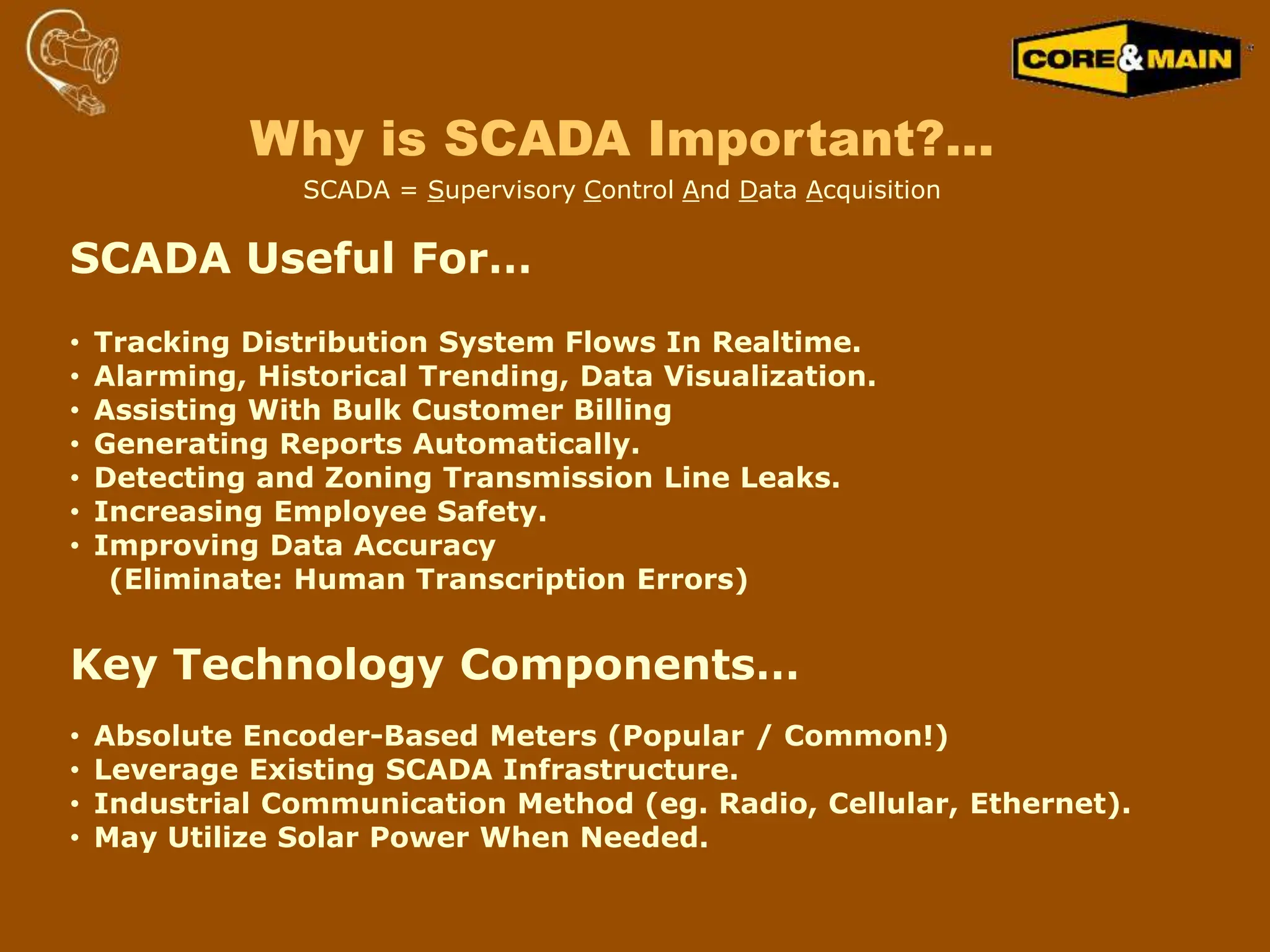

- 5. SCADA Useful For… •Tracking Distribution System Flows In Realtime. • Alarming, Historical Trending, Data Visualization. • Assisting With Bulk Customer Billing • Generating Reports Automatically. • Detecting and Zoning Transmission Line Leaks. • Increasing Employee Safety. • Improving Data Accuracy (Eliminate: Human Transcription Errors) Key Technology Components… • Absolute Encoder-Based Meters (Popular / Common!) • Leverage Existing SCADA Infrastructure. • Industrial Communication Method (eg. Radio, Cellular, Ethernet). • May Utilize Solar Power When Needed. Why is SCADA Important?… SCADA = Supervisory Control And Data Acquisition

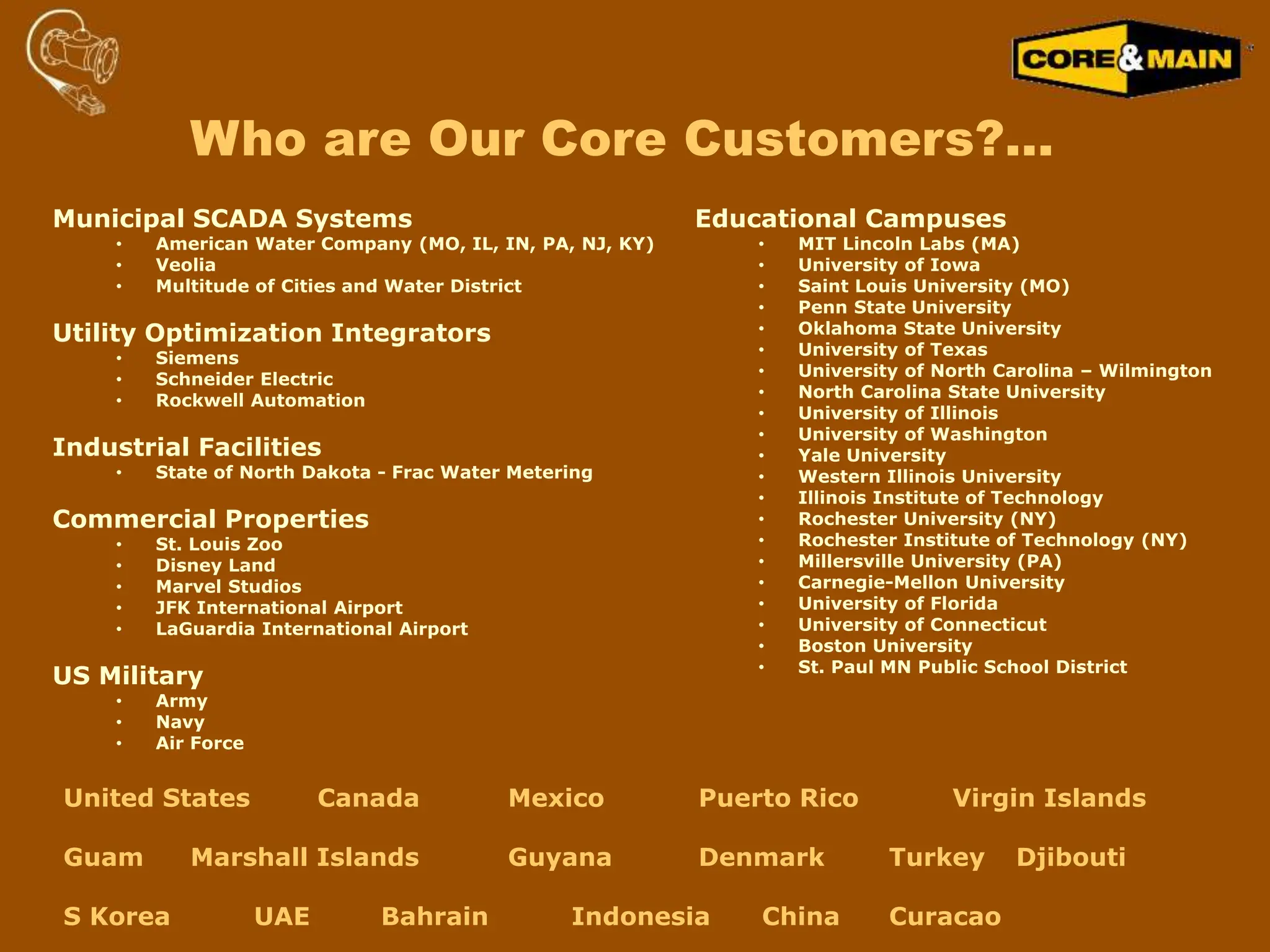

- 6. Municipal SCADA Systems •American Water Company (MO, IL, IN, PA, NJ, KY) • Veolia • Multitude of Cities and Water District Utility Optimization Integrators • Siemens • Schneider Electric • Rockwell Automation Industrial Facilities • State of North Dakota - Frac Water Metering Commercial Properties • St. Louis Zoo • Disney Land • Marvel Studios • JFK International Airport • LaGuardia International Airport US Military • Army • Navy • Air Force Who are Our Core Customers?... Educational Campuses • MIT Lincoln Labs (MA) • University of Iowa • Saint Louis University (MO) • Penn State University • Oklahoma State University • University of Texas • University of North Carolina – Wilmington • North Carolina State University • University of Illinois • University of Washington • Yale University • Western Illinois University • Illinois Institute of Technology • Rochester University (NY) • Rochester Institute of Technology (NY) • Millersville University (PA) • Carnegie-Mellon University • University of Florida • University of Connecticut • Boston University • St. Paul MN Public School District United States Canada Mexico Puerto Rico Virgin Islands Guam Marshall Islands Guyana Denmark Turkey Djibouti S Korea UAE Bahrain Indonesia China Curacao

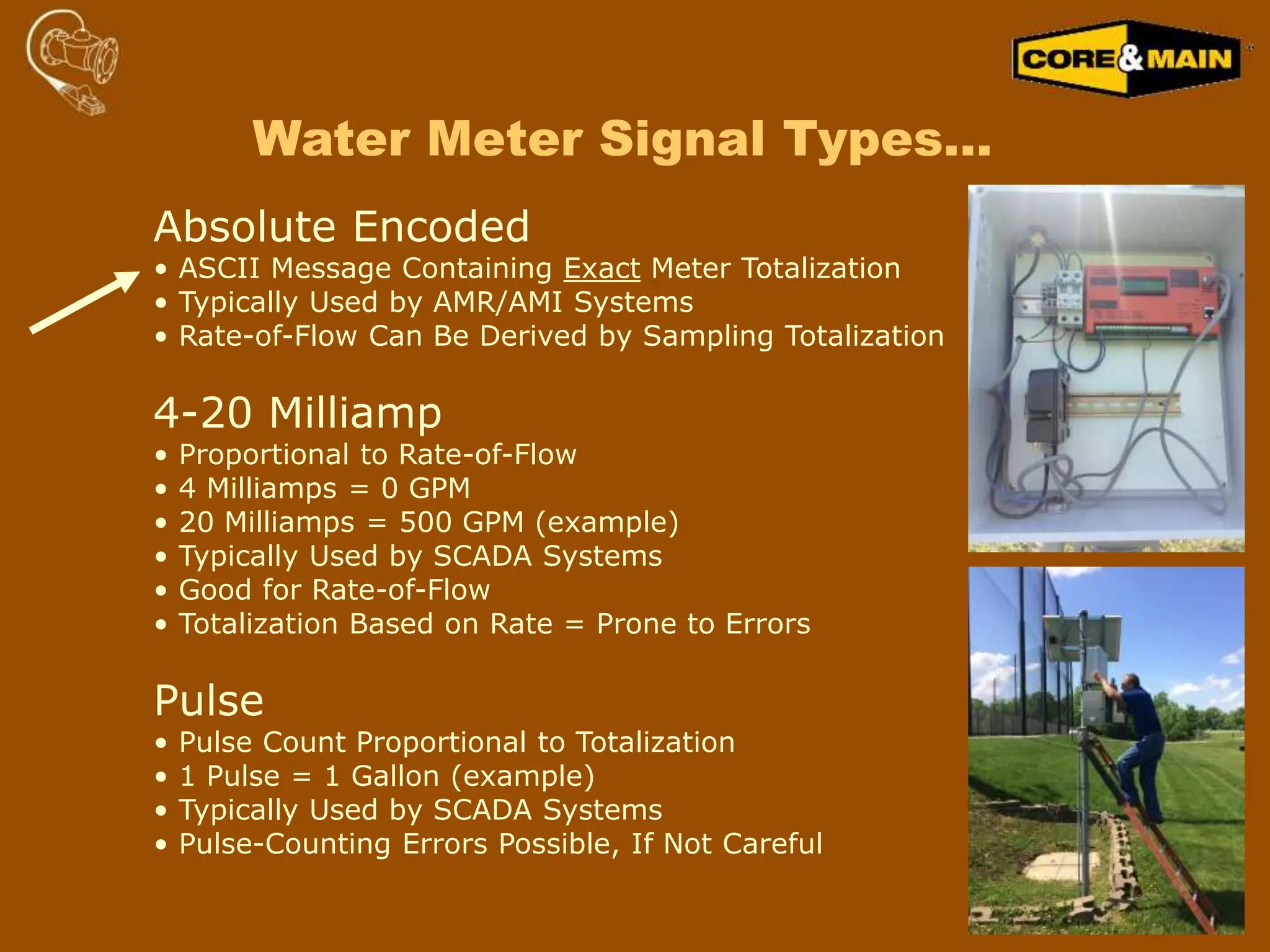

- 7. Water Meter SignalTypes… Absolute Encoded • ASCII Message Containing Exact Meter Totalization • Typically Used by AMR/AMI Systems • Rate-of-Flow Can Be Derived by Sampling Totalization 4-20 Milliamp • Proportional to Rate-of-Flow • 4 Milliamps = 0 GPM • 20 Milliamps = 500 GPM (example) • Typically Used by SCADA Systems • Good for Rate-of-Flow • Totalization Based on Rate = Prone to Errors Pulse • Pulse Count Proportional to Totalization • 1 Pulse = 1 Gallon (example) • Typically Used by SCADA Systems • Pulse-Counting Errors Possible, If Not Careful
- 8. Model EM.100 EtherMeter® Models SDAand SDAW Duplexers Model EMP Signalizer™ Model TMD TheMeterDisplay™ Model UDA Universal Duplexer Model MBE Modbus Encodalizer™ Model APK.PLUS Analog/Pulse Kit Model APK Analog/Pulse Kit Our Tools That Extend Sensus Meters… Model PTE Pulse Encodalizer™

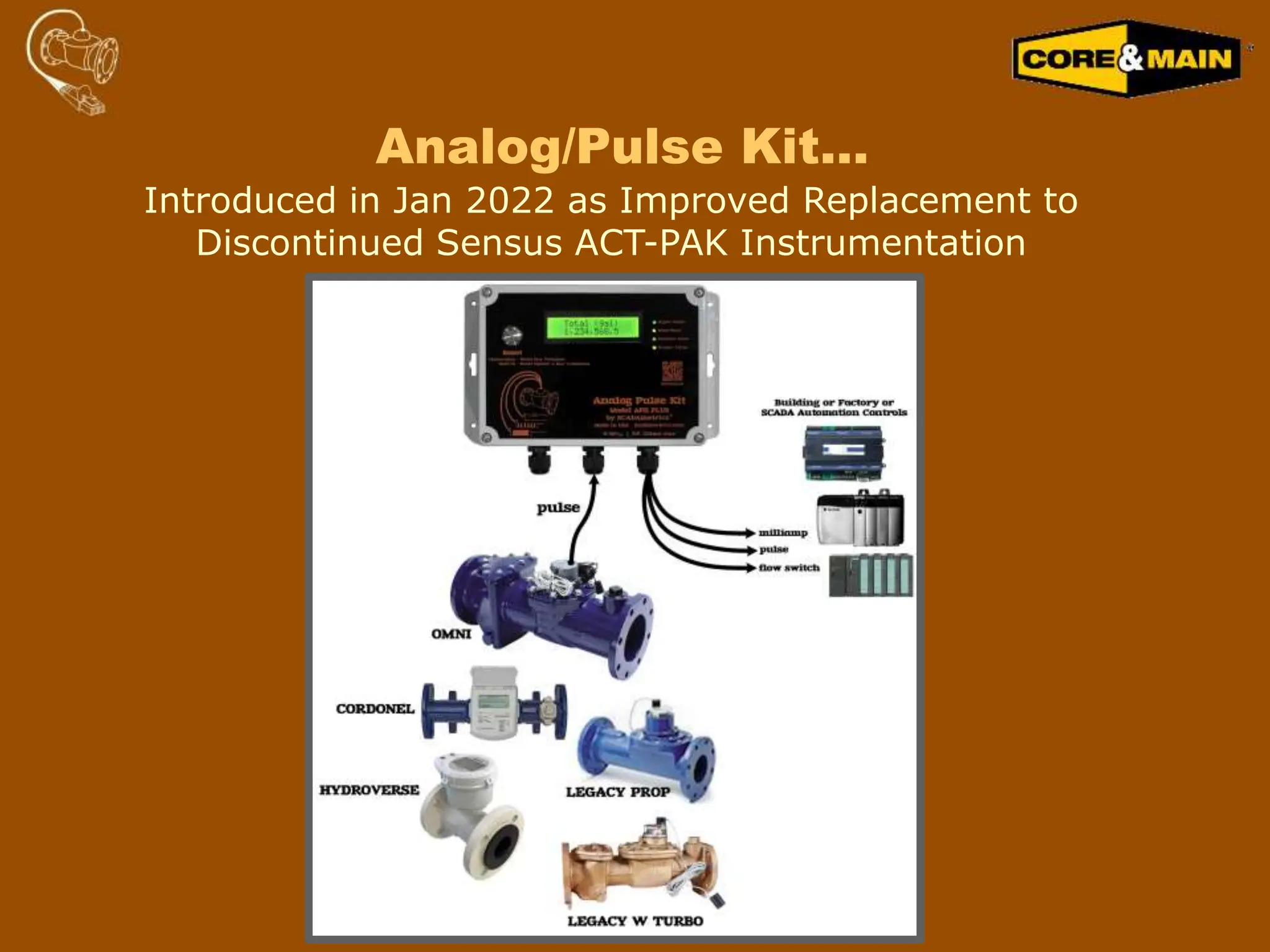

- 9. Analog/Pulse Kit… Introduced inJan 2022 as Improved Replacement to Discontinued Sensus ACT-PAK Instrumentation

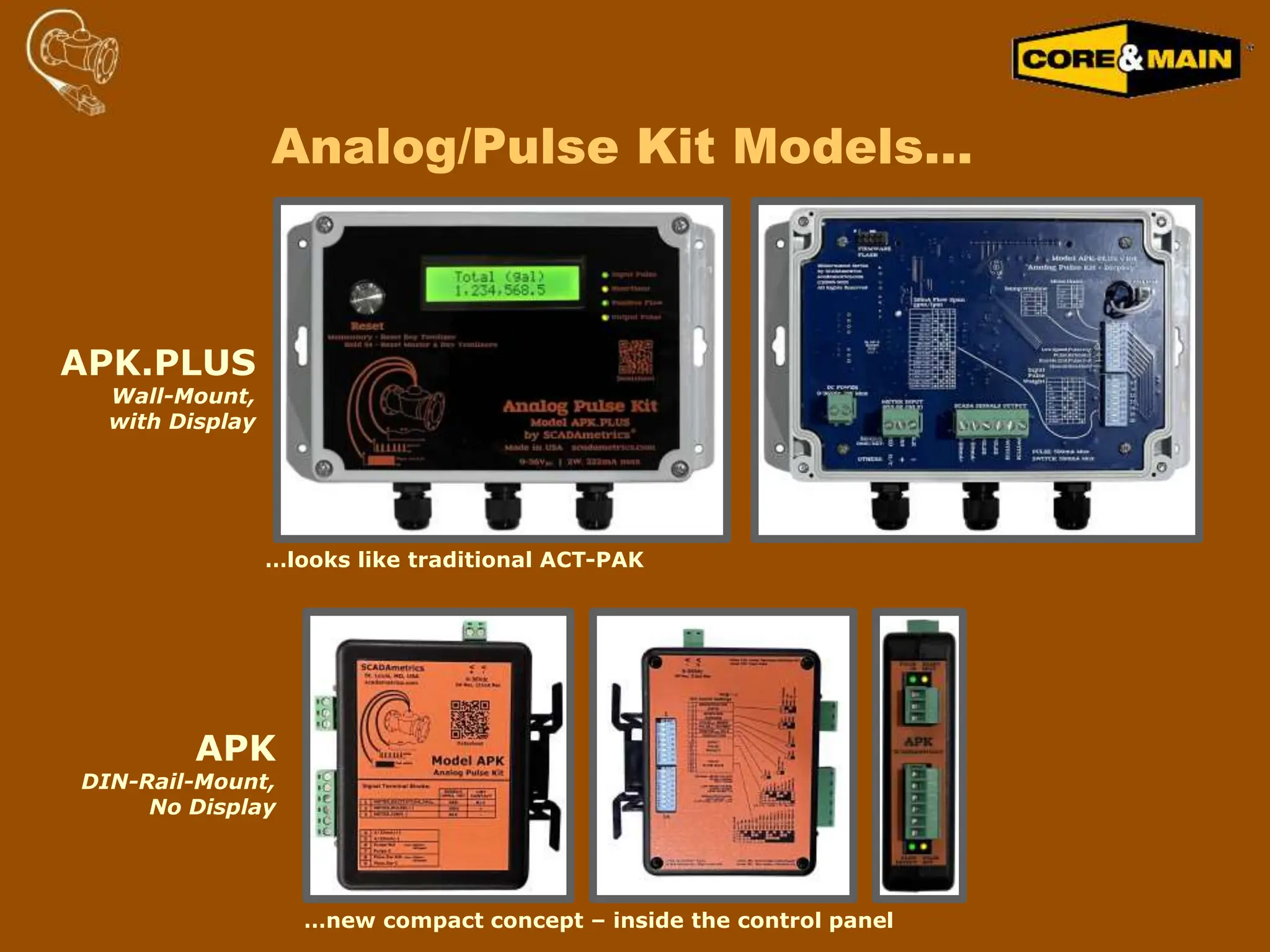

- 10. Analog/Pulse Kit Models… APK.PLUS Wall-Mount, withDisplay APK DIN-Rail-Mount, No Display …looks like traditional ACT-PAK …new compact concept – inside the control panel

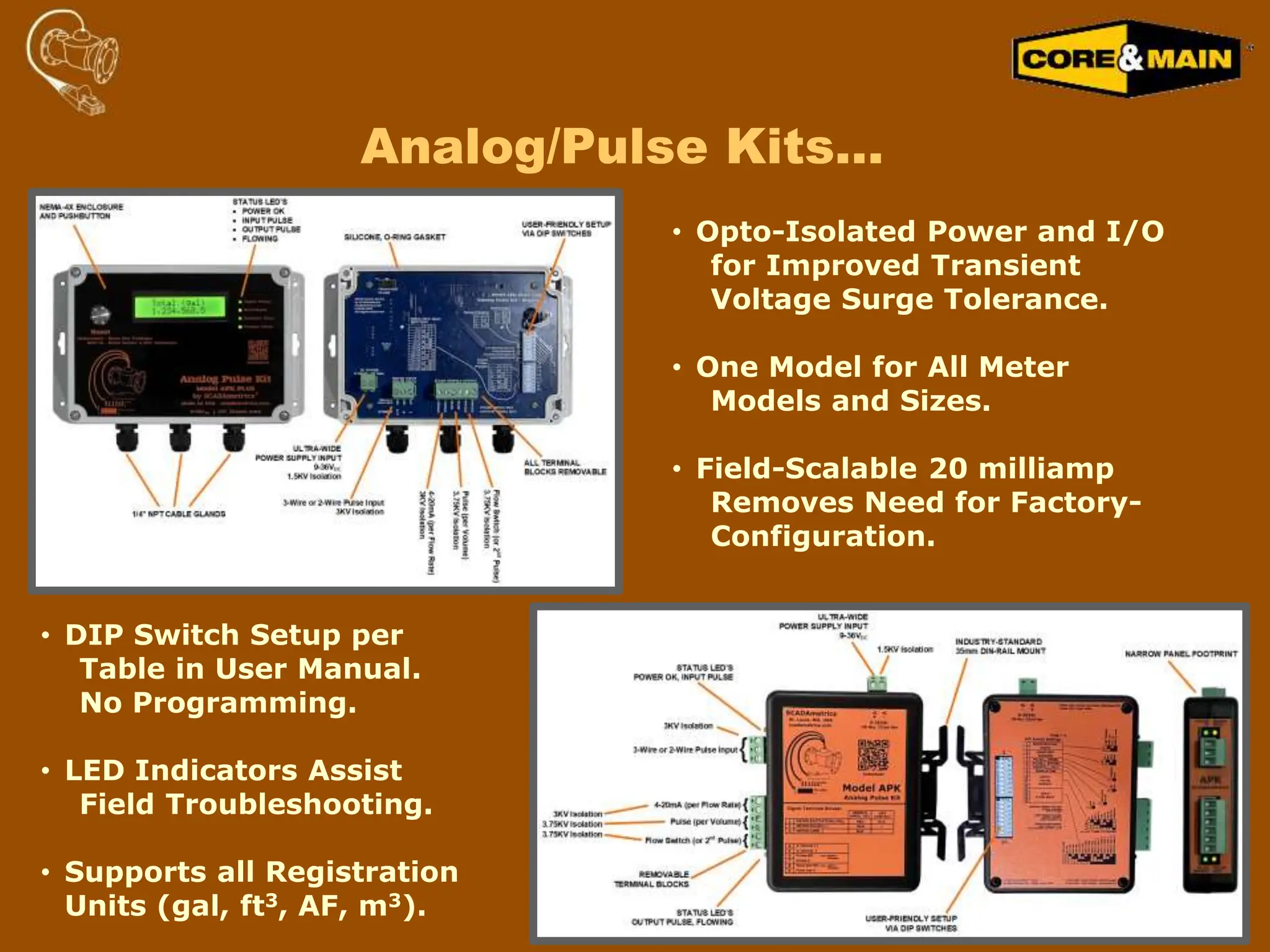

- 11. Analog/Pulse Kits… • Opto-IsolatedPower and I/O for Improved Transient Voltage Surge Tolerance. • One Model for All Meter Models and Sizes. • Field-Scalable 20 milliamp Removes Need for Factory- Configuration. • DIP Switch Setup per Table in User Manual. No Programming. • LED Indicators Assist Field Troubleshooting. • Supports all Registration Units (gal, ft3, AF, m3).

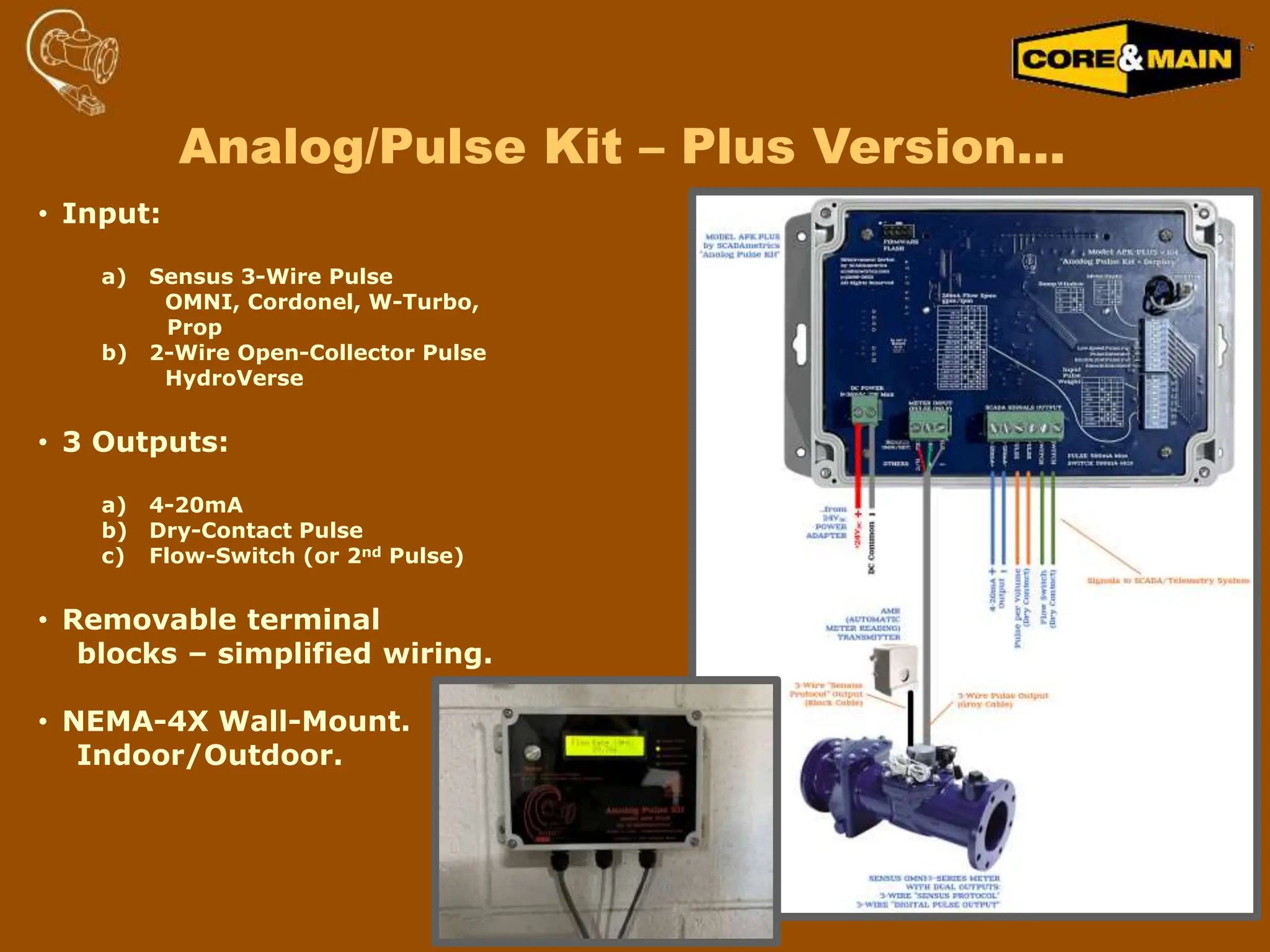

- 12. Analog/Pulse Kit –Plus Version… • Input: a) Sensus 3-Wire Pulse OMNI, Cordonel, W-Turbo, Prop b) 2-Wire Open-Collector Pulse HydroVerse • 3 Outputs: a) 4-20mA b) Dry-Contact Pulse c) Flow-Switch (or 2nd Pulse) • Removable terminal blocks – simplified wiring. • NEMA-4X Wall-Mount. Indoor/Outdoor.

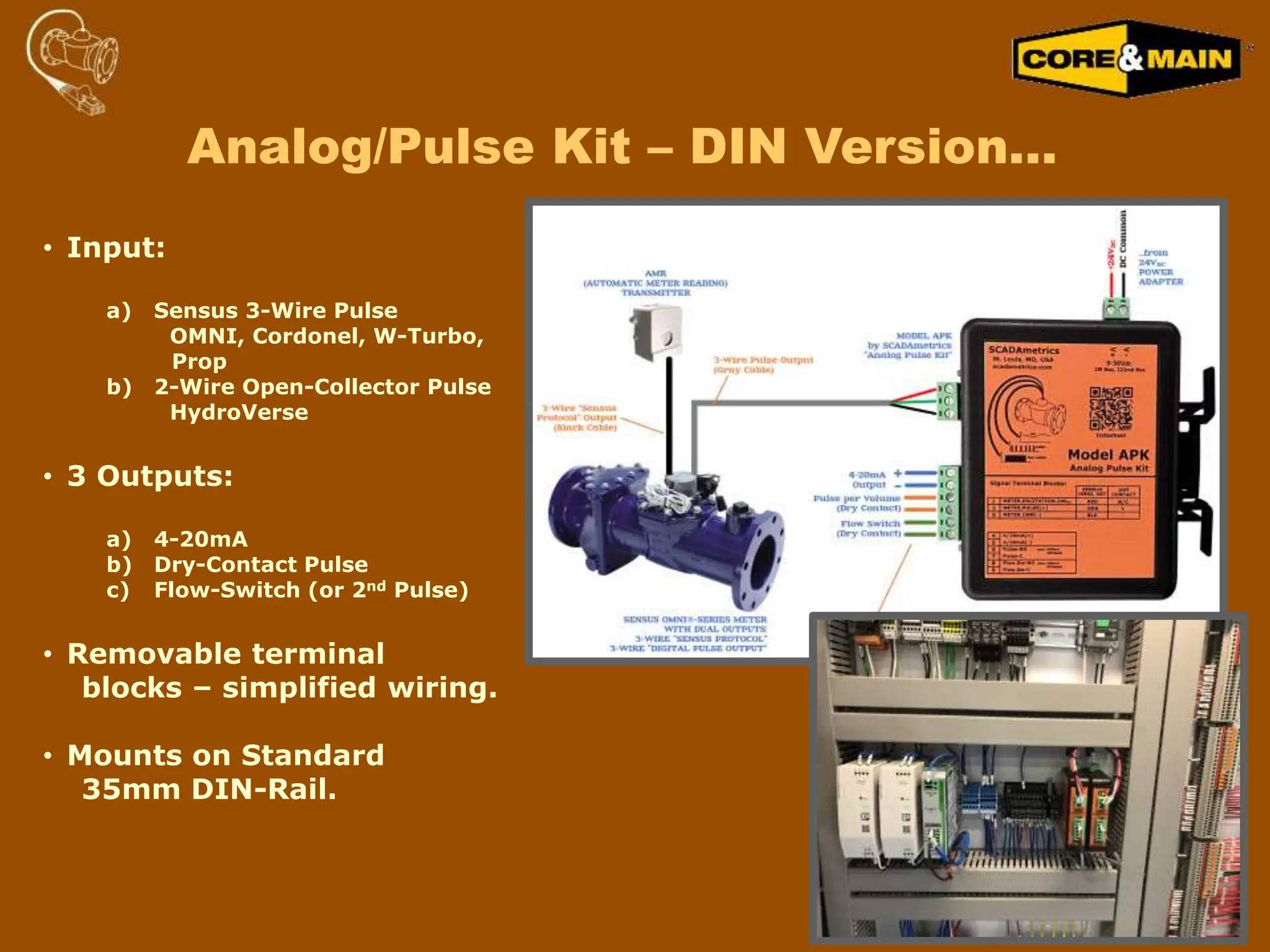

- 13. Analog/Pulse Kit –DIN Version… • Input: a) Sensus 3-Wire Pulse OMNI, Cordonel, W-Turbo, Prop b) 2-Wire Open-Collector Pulse HydroVerse • 3 Outputs: a) 4-20mA b) Dry-Contact Pulse c) Flow-Switch (or 2nd Pulse) • Removable terminal blocks – simplified wiring. • Mounts on Standard 35mm DIN-Rail.

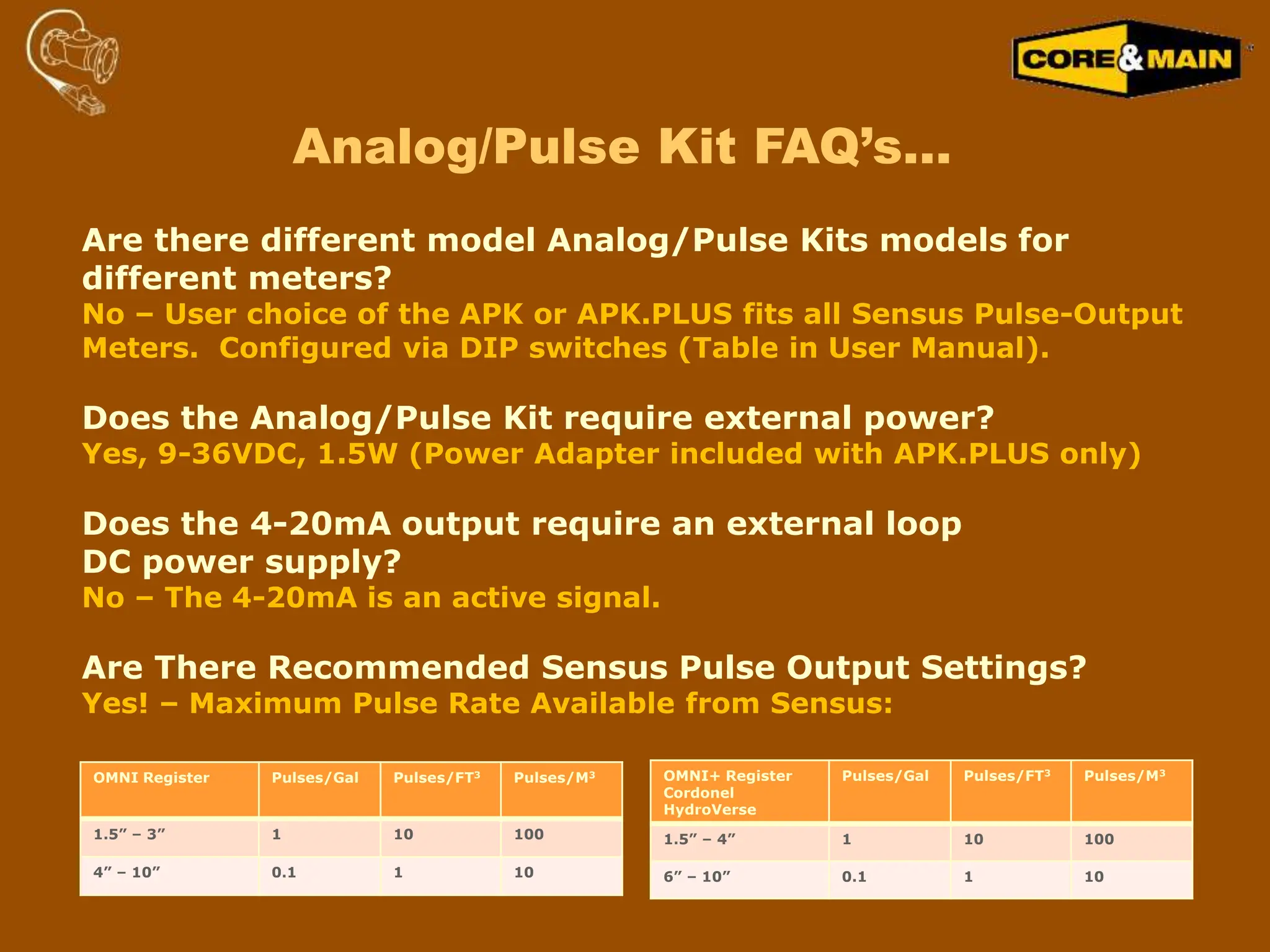

- 14. Analog/Pulse Kit FAQ’s… Arethere different model Analog/Pulse Kits models for different meters? No – User choice of the APK or APK.PLUS fits all Sensus Pulse-Output Meters. Configured via DIP switches (Table in User Manual). Does the Analog/Pulse Kit require external power? Yes, 9-36VDC, 1.5W (Power Adapter included with APK.PLUS only) Does the 4-20mA output require an external loop DC power supply? No – The 4-20mA is an active signal. Are There Recommended Sensus Pulse Output Settings? Yes! – Maximum Pulse Rate Available from Sensus: OMNI Register Pulses/Gal Pulses/FT3 Pulses/M3 1.5” – 3” 1 10 100 4” – 10” 0.1 1 10 OMNI+ Register Cordonel HydroVerse Pulses/Gal Pulses/FT3 Pulses/M3 1.5” – 4” 1 10 100 6” – 10” 0.1 1 10
- 15. Signalizer™… Introduced in Dec2020 as a SCADA/BMS Interface for Encoder-Only Flow Meters.
- 16. Signalizer™… model EMP “DIN-Rail-Mount, No Display” …compactconcept – inside the control panel

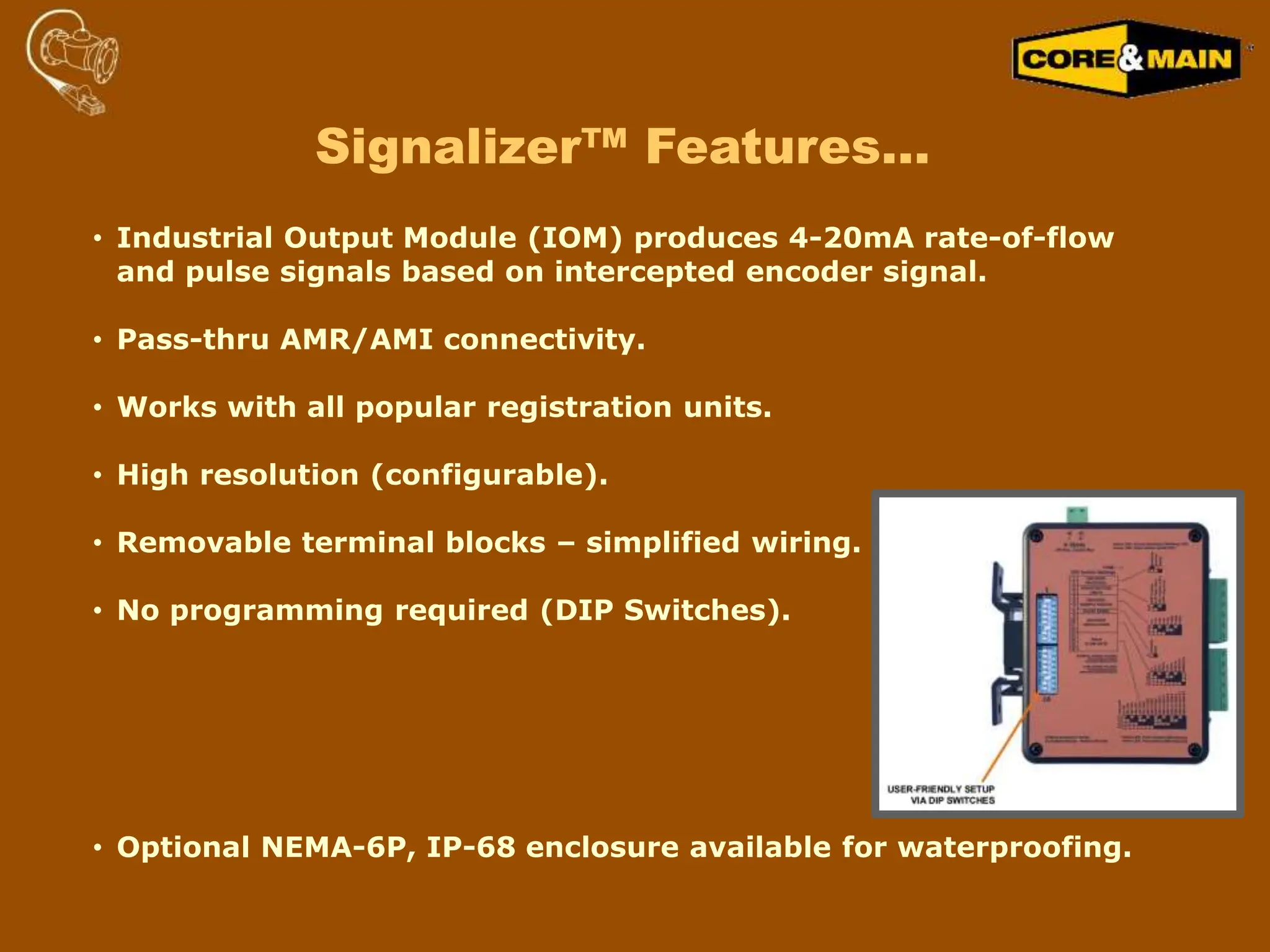

- 17. • Industrial OutputModule (IOM) produces 4-20mA rate-of-flow and pulse signals based on intercepted encoder signal. • Pass-thru AMR/AMI connectivity. • Works with all popular registration units. • High resolution (configurable). • Removable terminal blocks – simplified wiring. • No programming required (DIP Switches). • Optional NEMA-6P, IP-68 enclosure available for waterproofing. Signalizer™ Features…
- 18. Signalizer™ FAQ’s… Are theredifferent Signalizer models for different meters? No – one model fits all encoder meters. Configured via DIP switches. Does the Signalizer require external power? Yes, 9-36VDC, 1.5W (optional power adapter available, not included) Does the 4-20mA output require an external loop DC power supply? No – The 4-20mA is an active signal. Does AMR/AMI pass-thru work if DC Power is removed? Yes! Does the Signalizer work with a 2-wire-only encoded Meter (touch-coupler only)? No – The Signalizer requires a 3-wire encoder signal. However, the AMI pass-thru port may be either 2-wire or 3-wire.

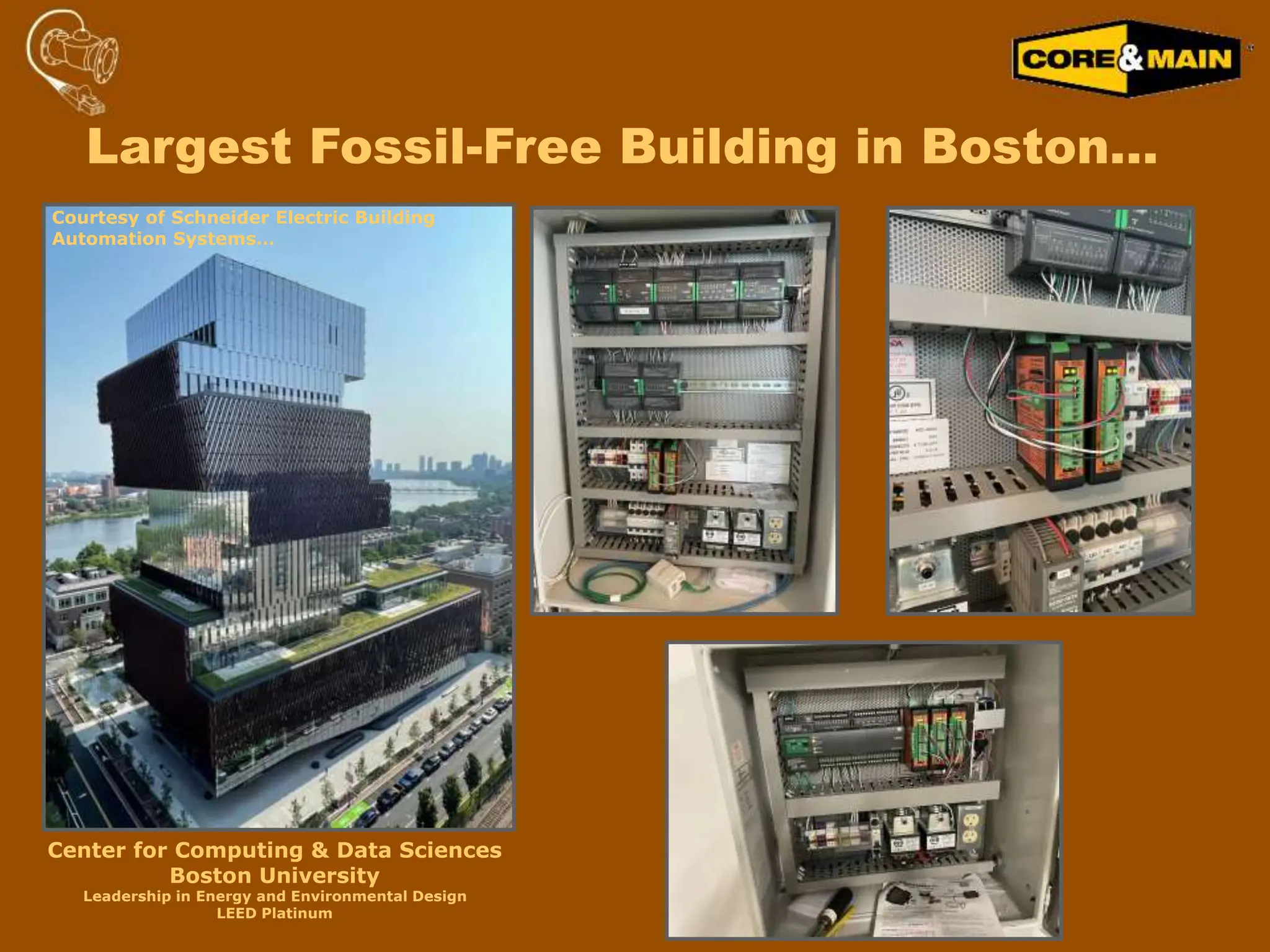

- 19. Largest Fossil-Free Buildingin Boston… Center for Computing & Data Sciences Boston University Leadership in Energy and Environmental Design LEED Platinum Courtesy of Schneider Electric Building Automation Systems…
- 20. Concurrent Basic SCADAand AMI… ANALOG/PULSE KIT Excellent Solution for… • Well Stations • Pump Stations • Custody-Transfer Meter or Pump Stations. • Commercial Building Sub-Meters • Commercial and Industrial Buildings, where Building Owner desires to Co-Meter Utility-Owned Water Meter via its BMS system, without requiring installation of a new shadow meter. • Does Not Interfere with Utility AMI System! Connect a Sensus Meter to an Automation System and AMI
- 21. Concurrent Basic SCADA,AMI, & Remote Display… ANALOG/PULSE KIT & TheMeterDisplay™ Excellent Solution for… • Custody-Transfer Meter or Pump Stations. • Commercial and Industrial Buildings.
- 22. Advanced SCADA… ETHERMETER® Excellent Solutionfor… • Custody-Transfer Meter, Valve, or Pump Stations, Where Revenue-Grade Accuracy is of Paramount Importance. • Military Bases. • Educational Facilities and Campuses. Connect Sensus Meter to Advanced Automation System Airport Energy/Utility Management System JFK International Airport (New York City, NY

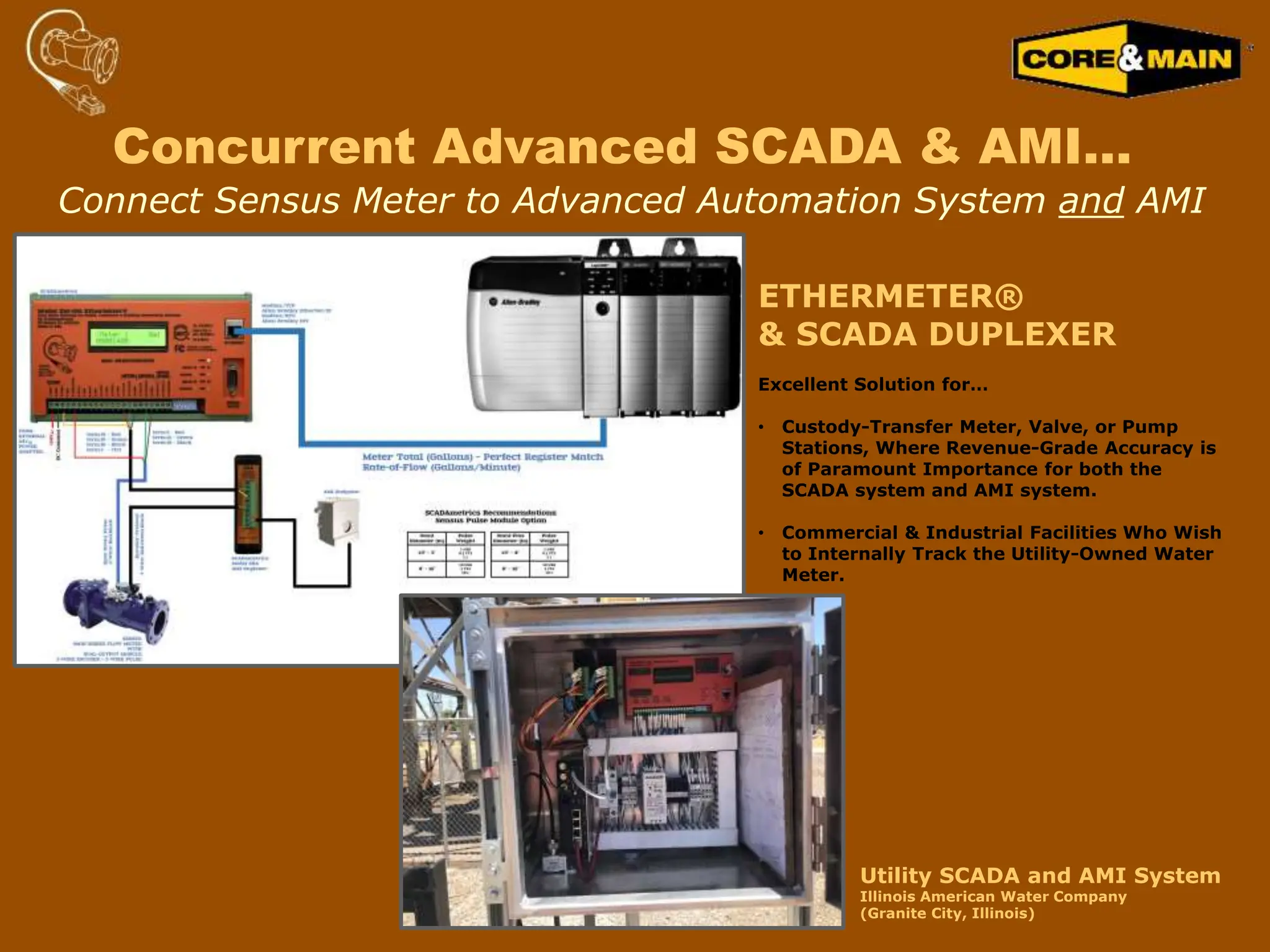

- 23. Concurrent Advanced SCADA& AMI… ETHERMETER® & SCADA DUPLEXER Excellent Solution for… • Custody-Transfer Meter, Valve, or Pump Stations, Where Revenue-Grade Accuracy is of Paramount Importance for both the SCADA system and AMI system. • Commercial & Industrial Facilities Who Wish to Internally Track the Utility-Owned Water Meter. Connect Sensus Meter to Advanced Automation System and AMI Utility SCADA and AMI System Illinois American Water Company (Granite City, Illinois)

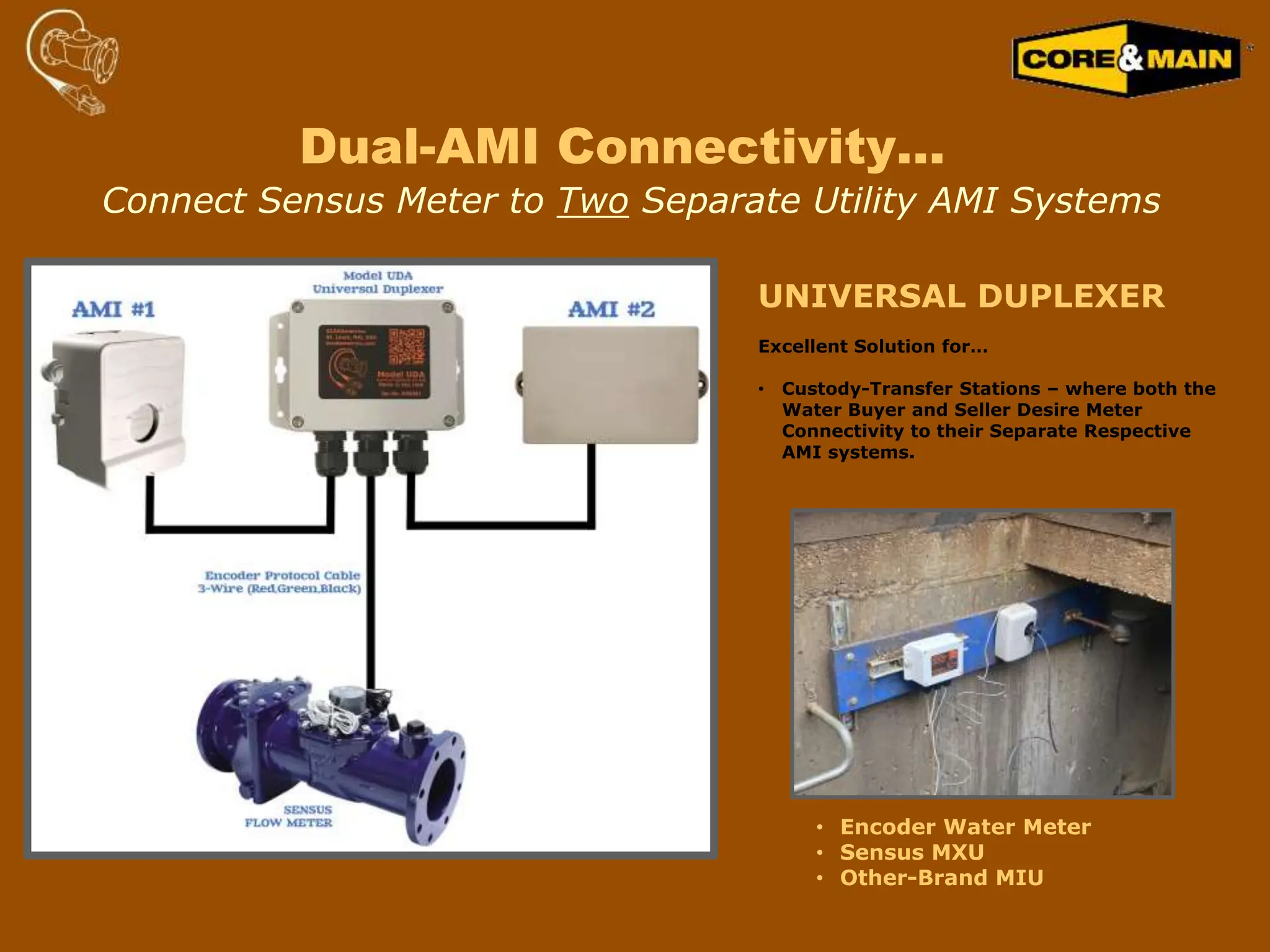

- 24. Dual-AMI Connectivity… UNIVERSAL DUPLEXER ExcellentSolution for… • Custody-Transfer Stations – where both the Water Buyer and Seller Desire Meter Connectivity to their Separate Respective AMI systems. Connect Sensus Meter to Two Separate Utility AMI Systems • Encoder Water Meter • Sensus MXU • Other-Brand MIU
- 25. Concurrent AMI andRemote Display… THE METER DISPLAY™ Excellent Solution for… • Utility-Owned Water Meters at Commercial and Industrial Buildings, where the Building Owner Desires a Meter Reading Without Requiring Entry to a Vault or Confined- Space. • Handheld Troubleshooting Tool for Water Meters and AMI Endpoints. Below-Grade Meter Vault Above-Grade Remote Display Courtesy of Milliken Nurseries, Chichester, NH Connect Sensus Meter to AMI and Out-of-Vault Visual Display

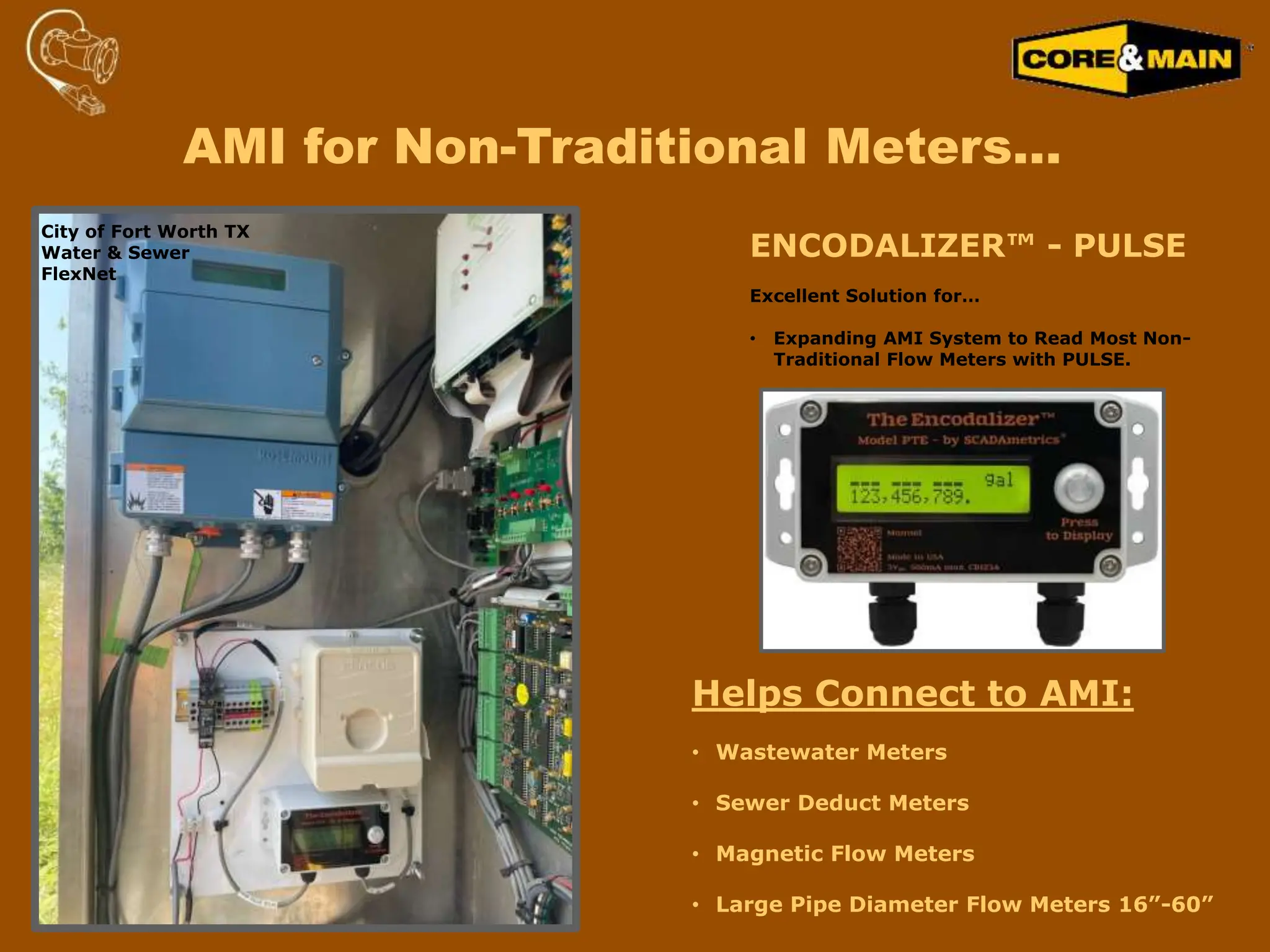

- 26. AMI for Non-TraditionalMeters… ENCODALIZER™ - PULSE Excellent Solution for… • Expanding AMI System to Read Most Non- Traditional Flow Meters with PULSE. Helps Connect to AMI: • Wastewater Meters • Sewer Deduct Meters • Magnetic Flow Meters • Large Pipe Diameter Flow Meters 16”-60” City of Fort Worth TX Water & Sewer FlexNet
- 27. AMI for Non-TraditionalMeters… ENCODALIZER™ - MODBUS Excellent Solution for… • Expanding AMI System to Read Certain Pre- Qualified, Non-Traditional Flow Meters with MODBUS. Helps Connect to AMI: • Wastewater Meters • Sewer Deduct Meters • Magnetic Flow Meters • Large Pipe Diameter Flow Meters 16”-60”
- 28.
- 29. Jim Mimlitz, P.E. SCADAmetrics Wildwood,Missouri scadametrics.com jim@scadametrics.com cell: 314.308.1710 …Please send me a Linkedin Invite!
