Saral scrumusermanual v0.3.3

saralScrum
Version 0.3.3

User Manual

Ritesh M. Tamrakar

2009.06.25

User Manual - saralScrum v0.3.3

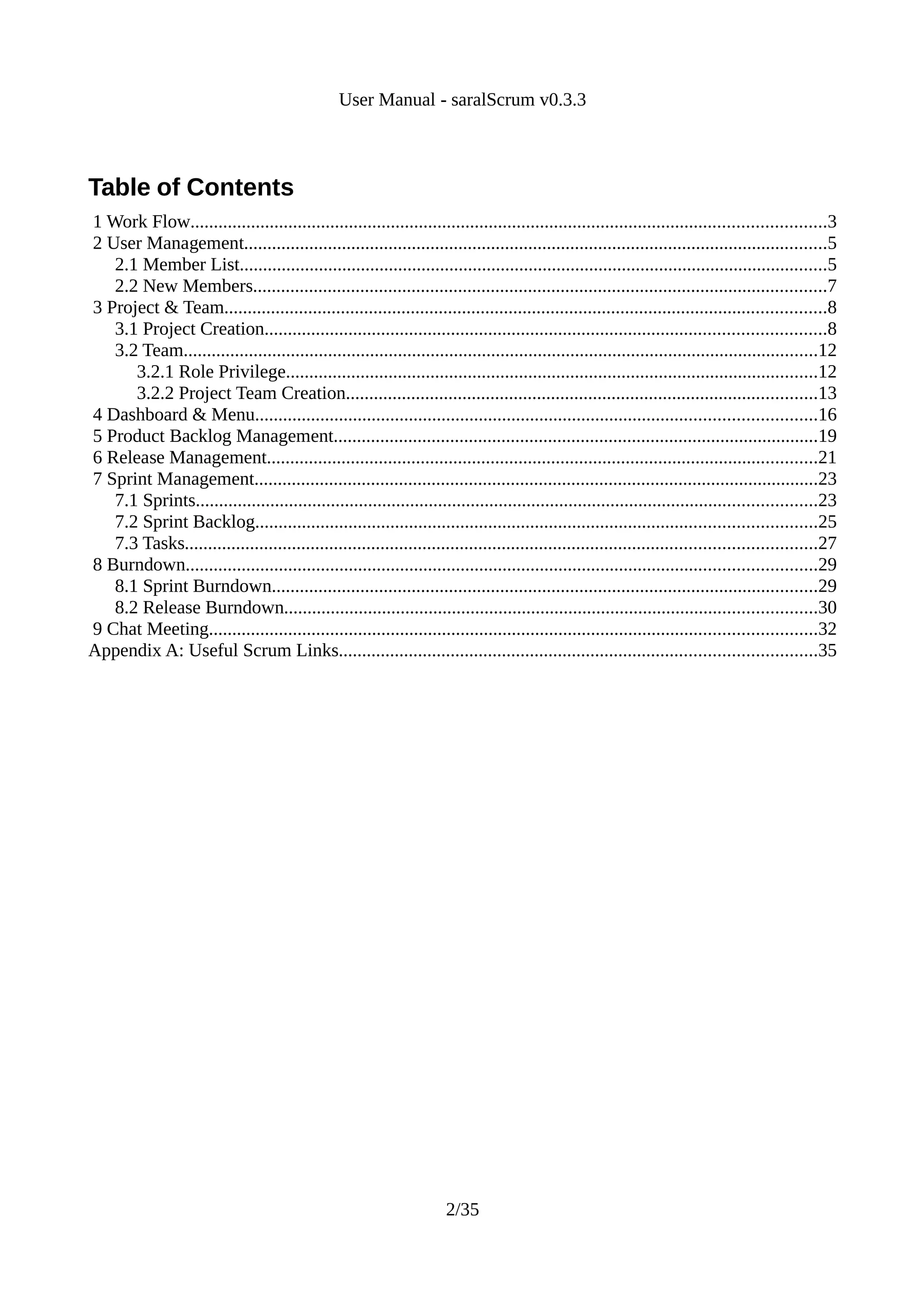

Table of Contents
1 Work Flow........................................................................................................................................3
2 User Management.............................................................................................................................5
2.1 Member List..............................................................................................................................5
2.2 New Members...........................................................................................................................7
3 Project & Team.................................................................................................................................8
3.1 Project Creation........................................................................................................................8
3.2 Team........................................................................................................................................12
3.2.1 Role Privilege..................................................................................................................12
3.2.2 Project Team Creation.....................................................................................................13

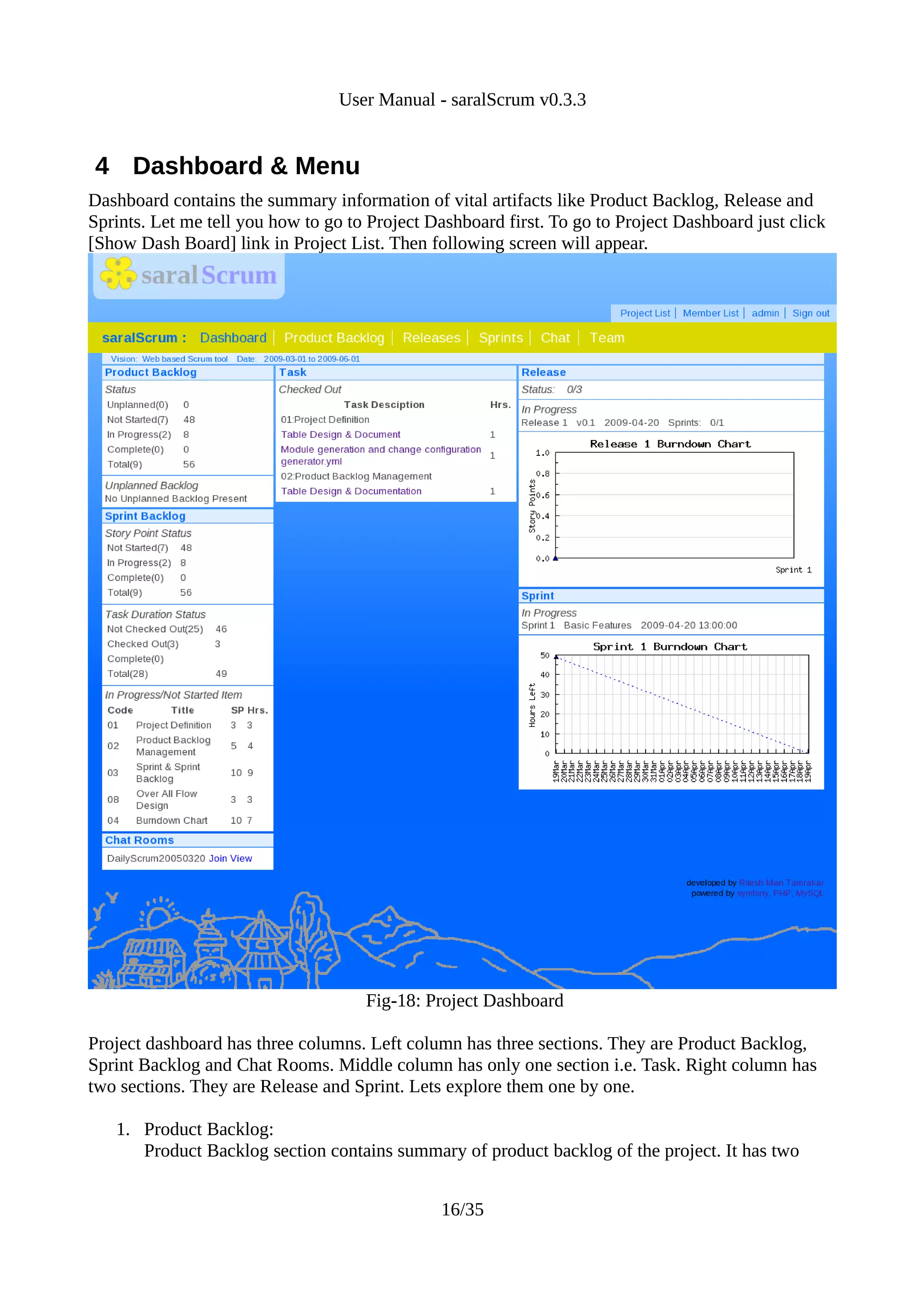

4 Dashboard & Menu........................................................................................................................16

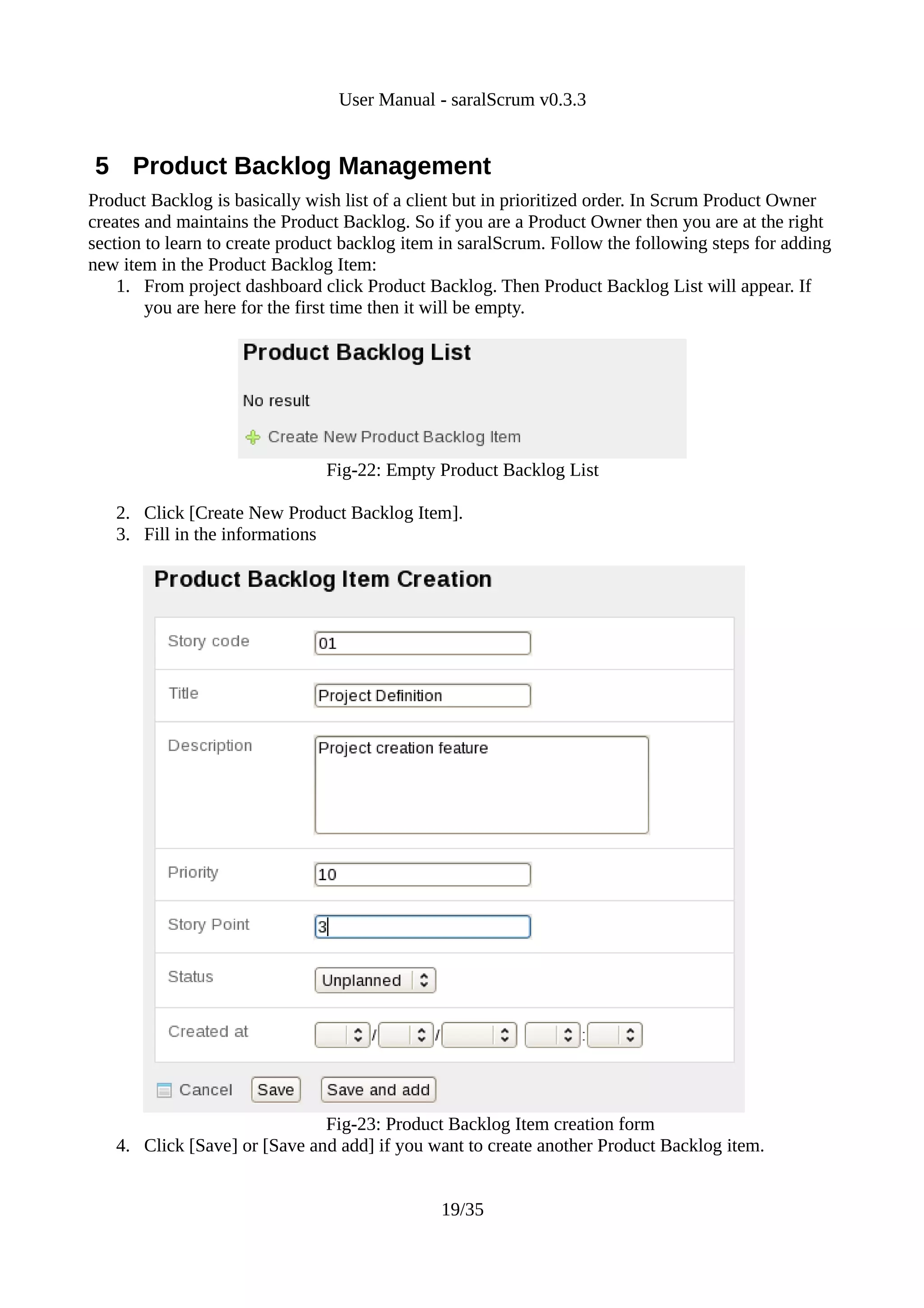

5 Product Backlog Management........................................................................................................19

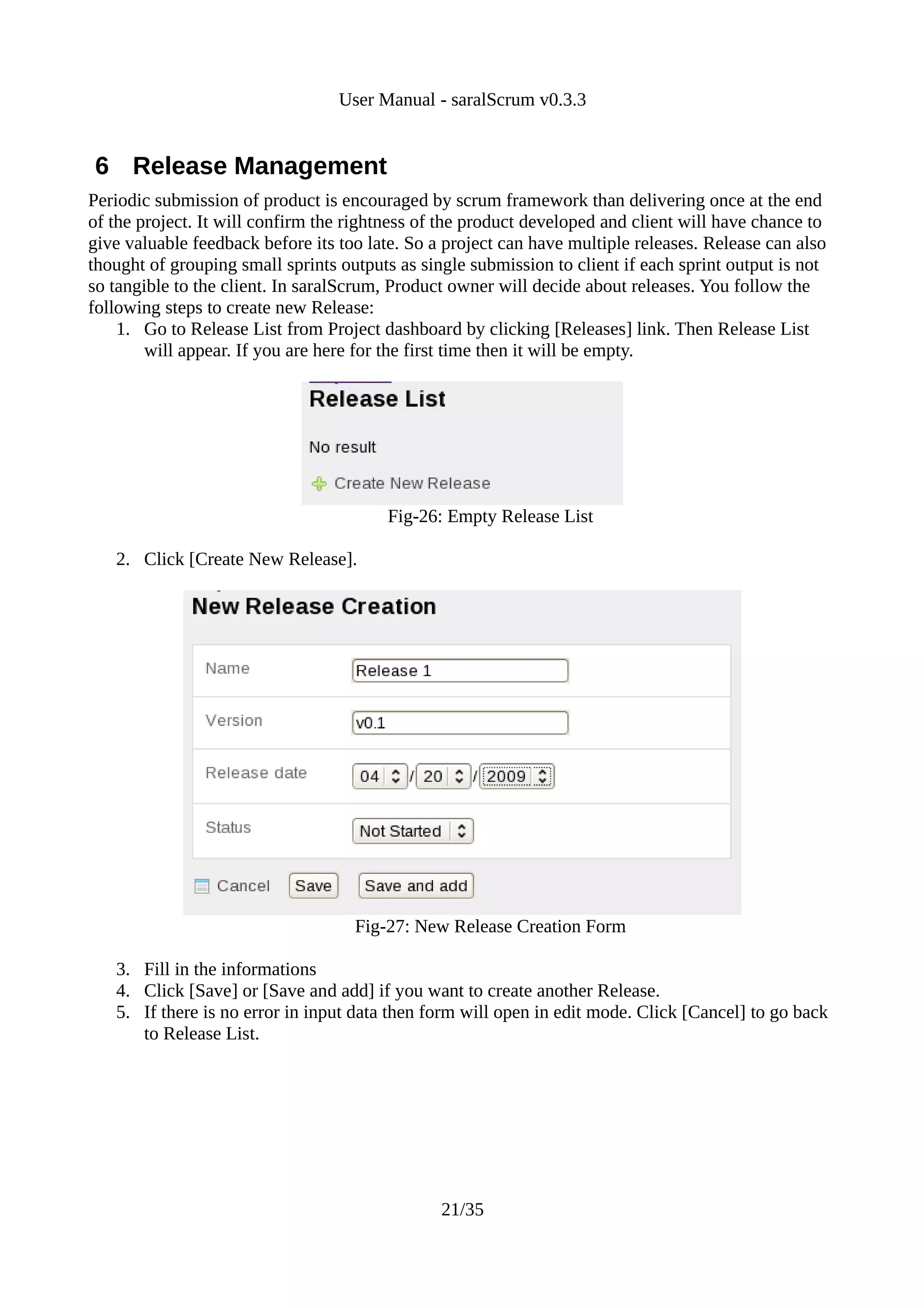

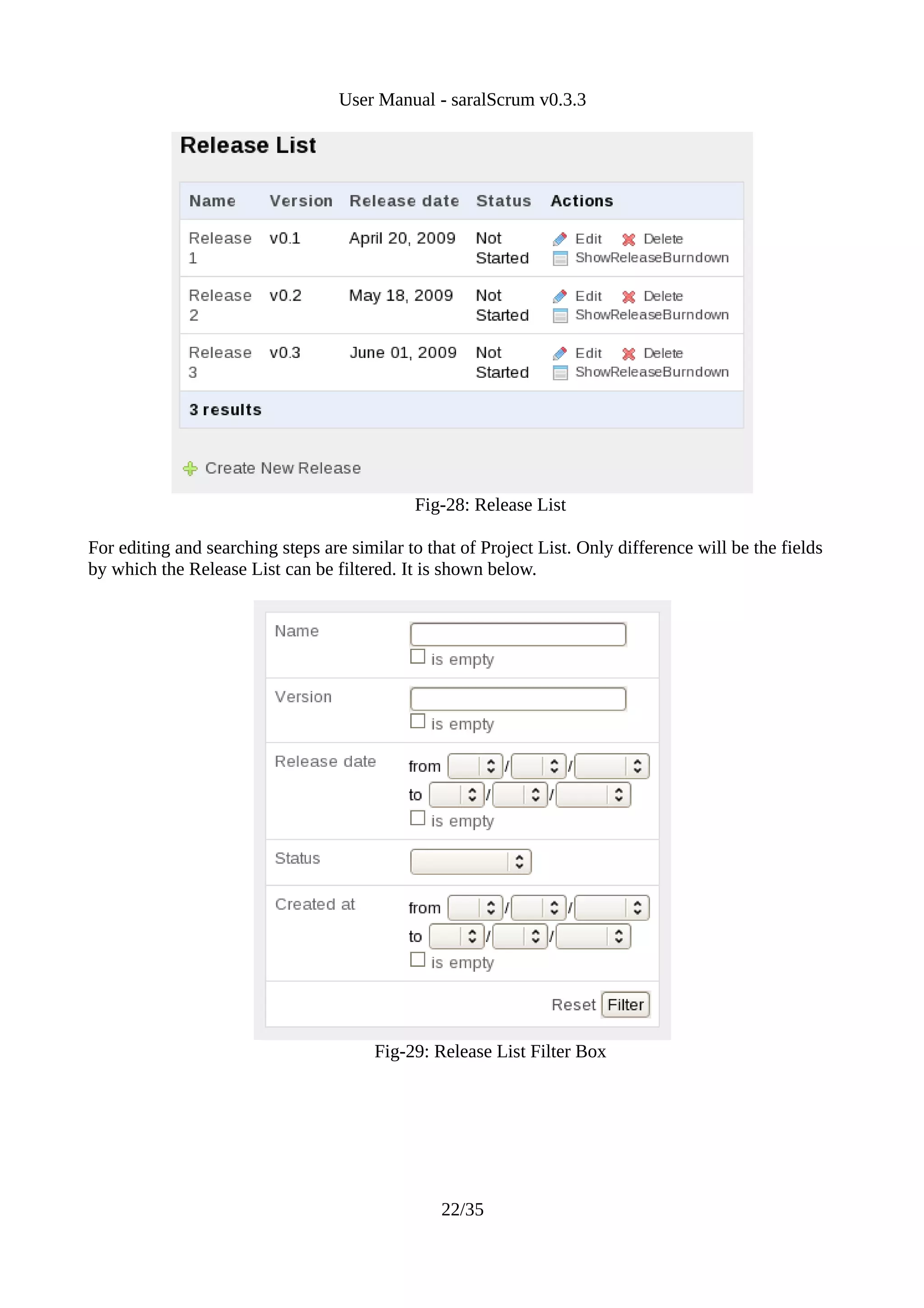

6 Release Management......................................................................................................................21

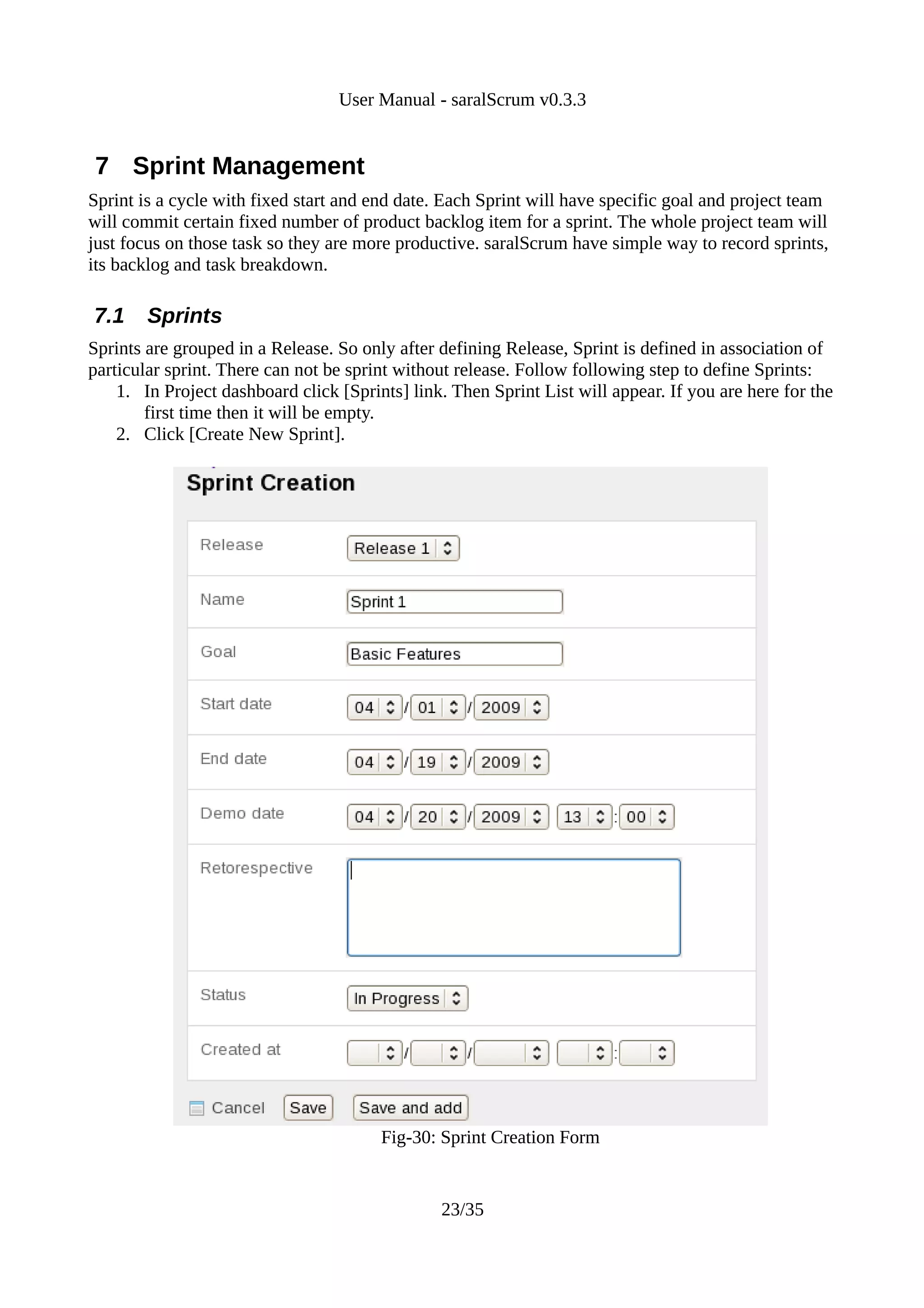

7 Sprint Management.........................................................................................................................23
7.1 Sprints.....................................................................................................................................23

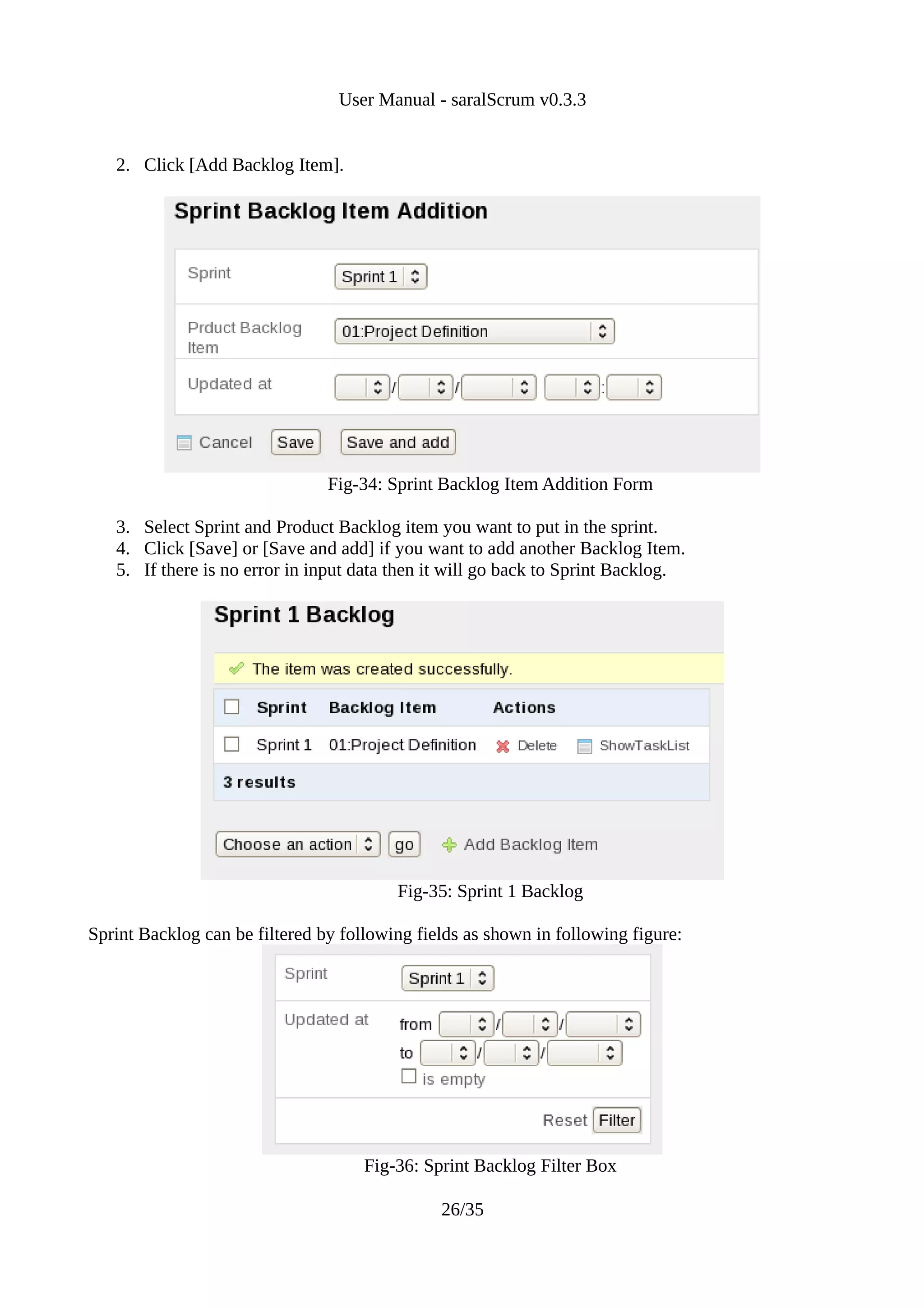

7.2 Sprint Backlog........................................................................................................................25

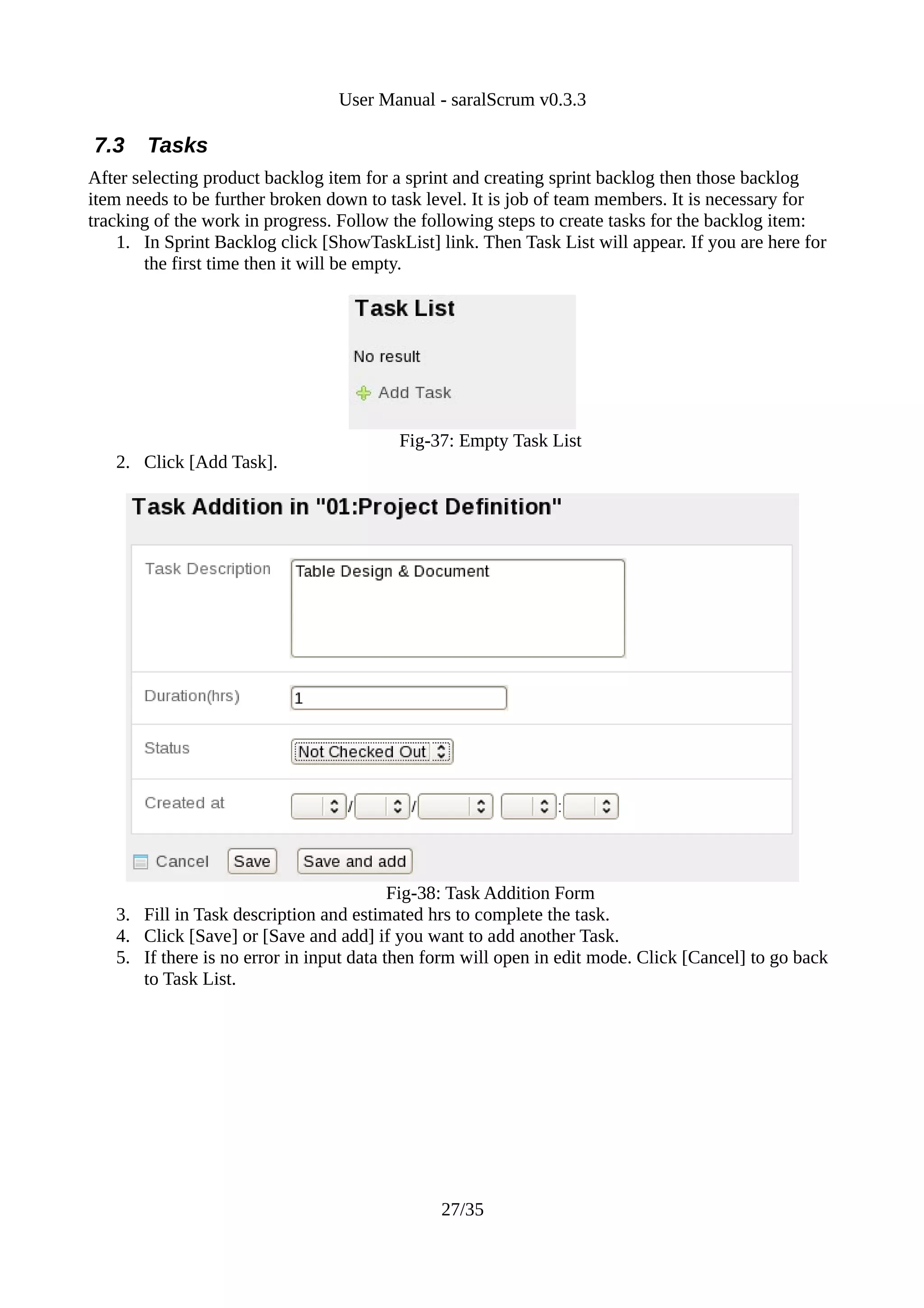

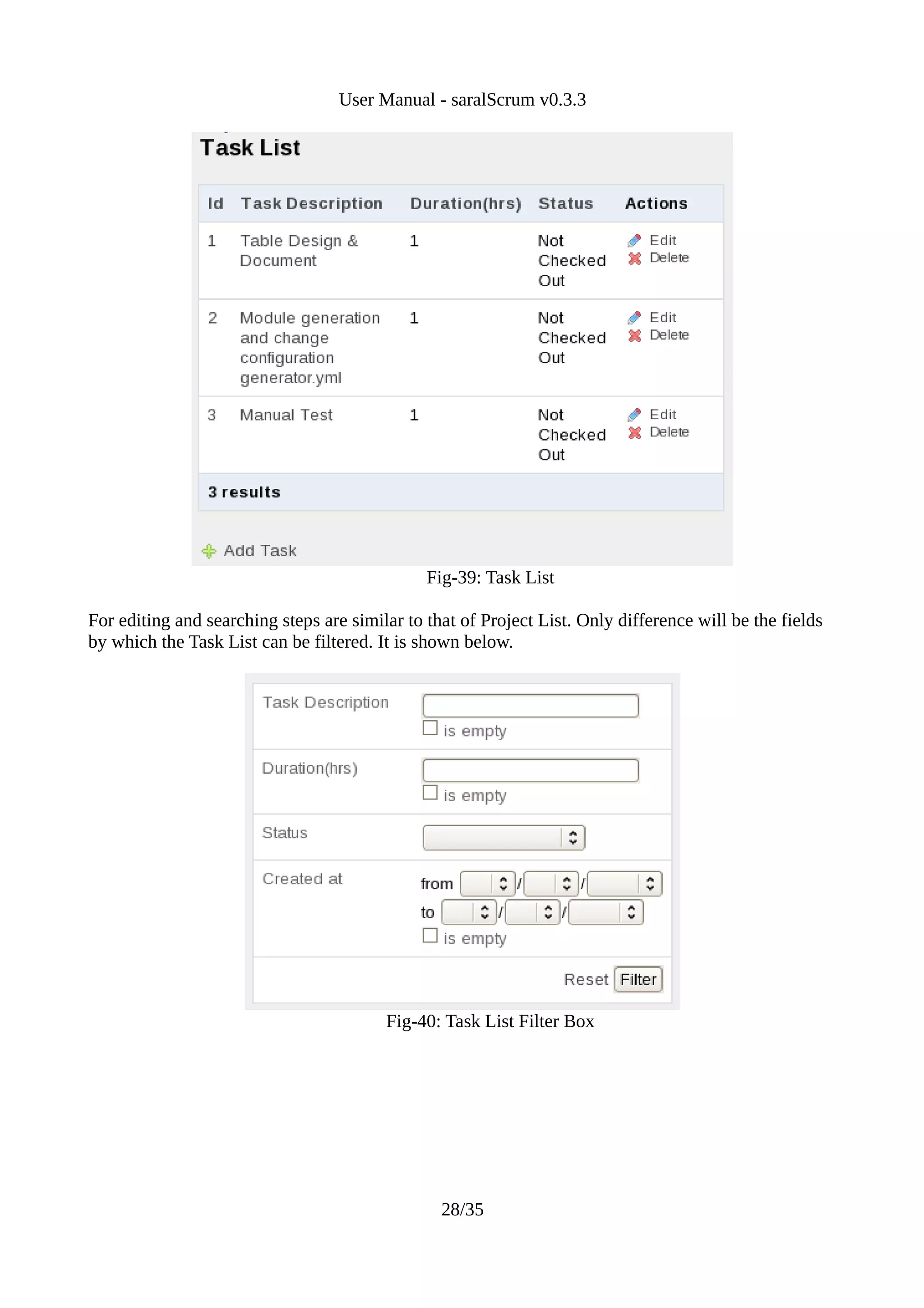

7.3 Tasks.......................................................................................................................................27

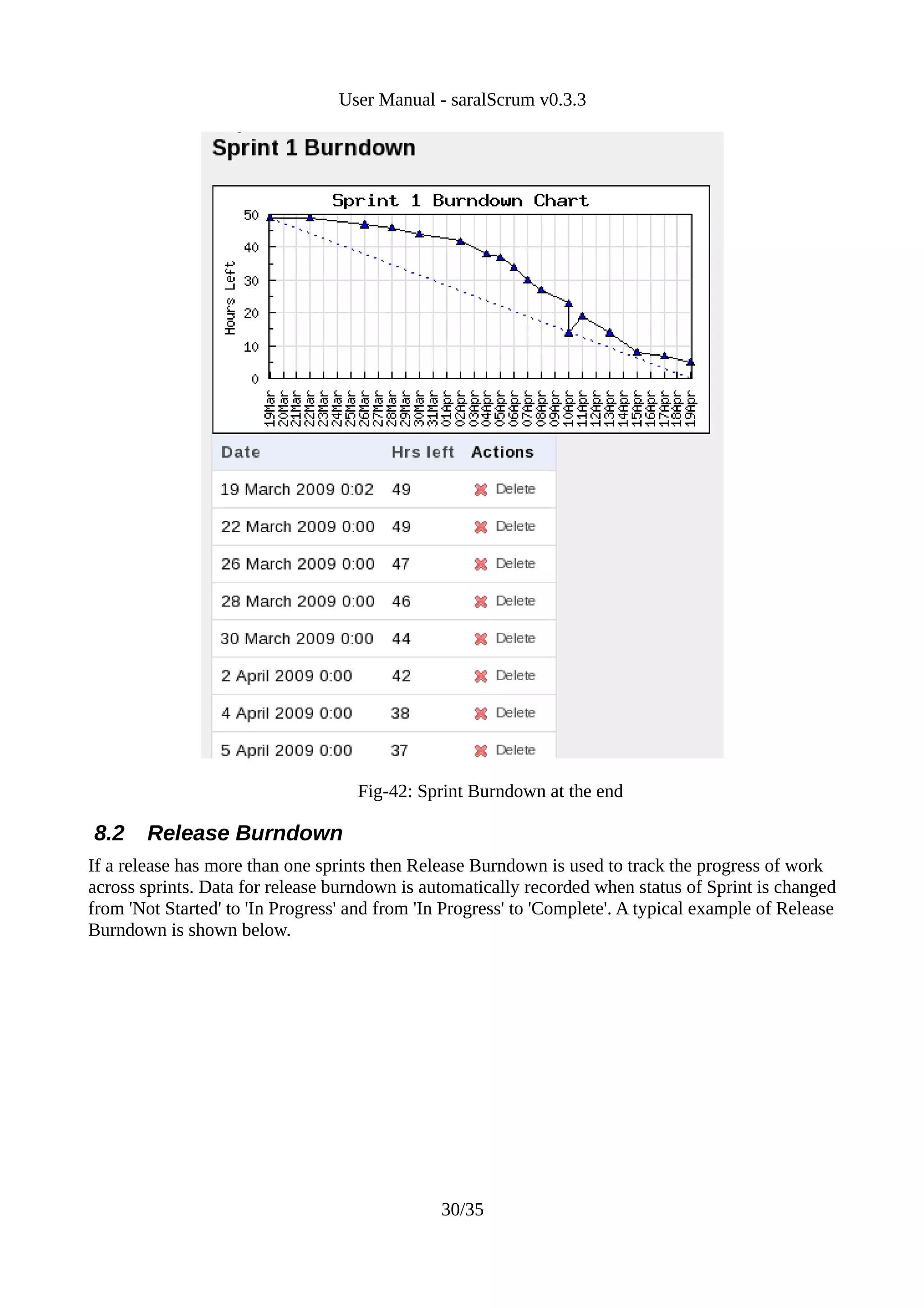

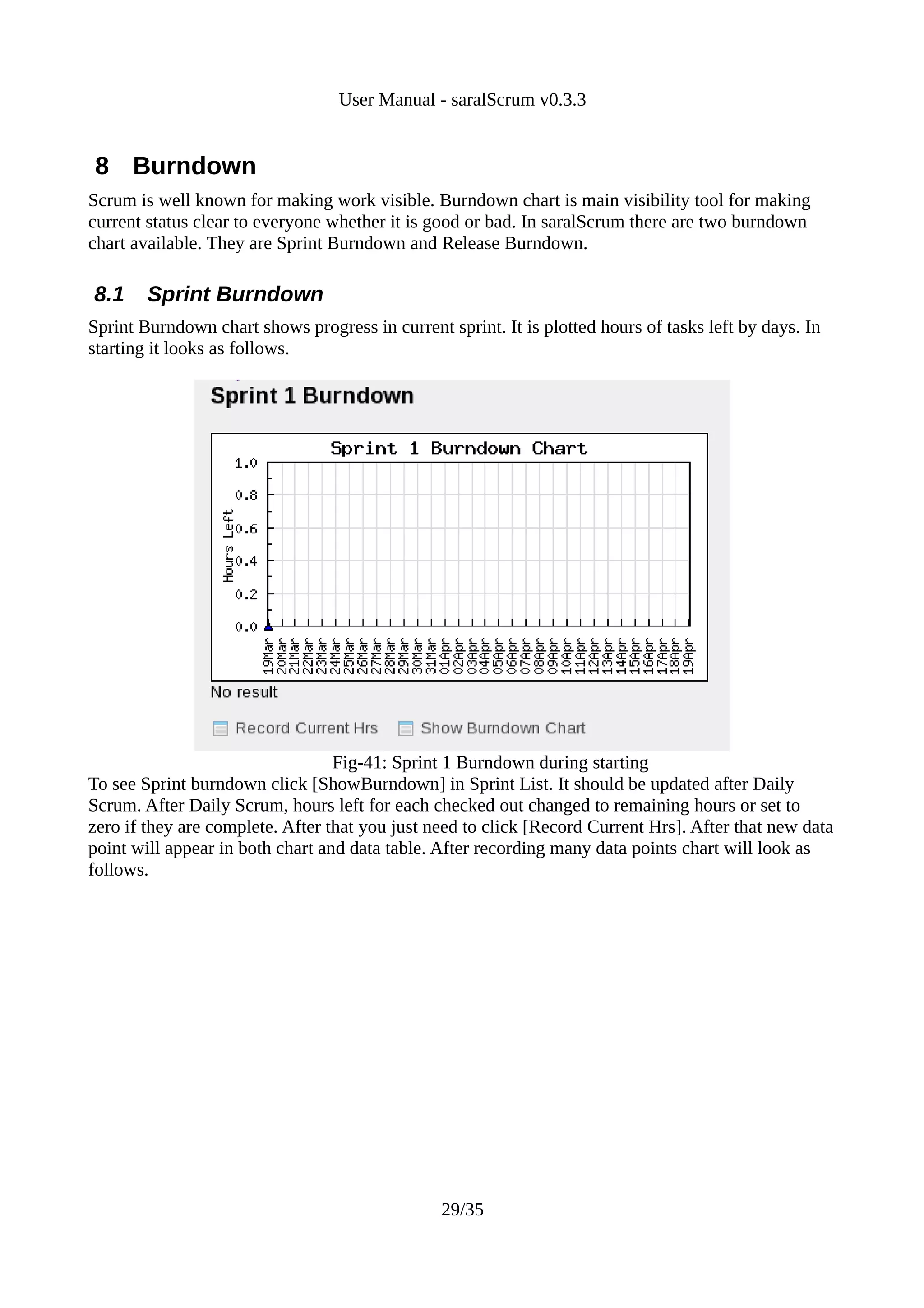

8 Burndown.......................................................................................................................................29
8.1 Sprint Burndown.....................................................................................................................29

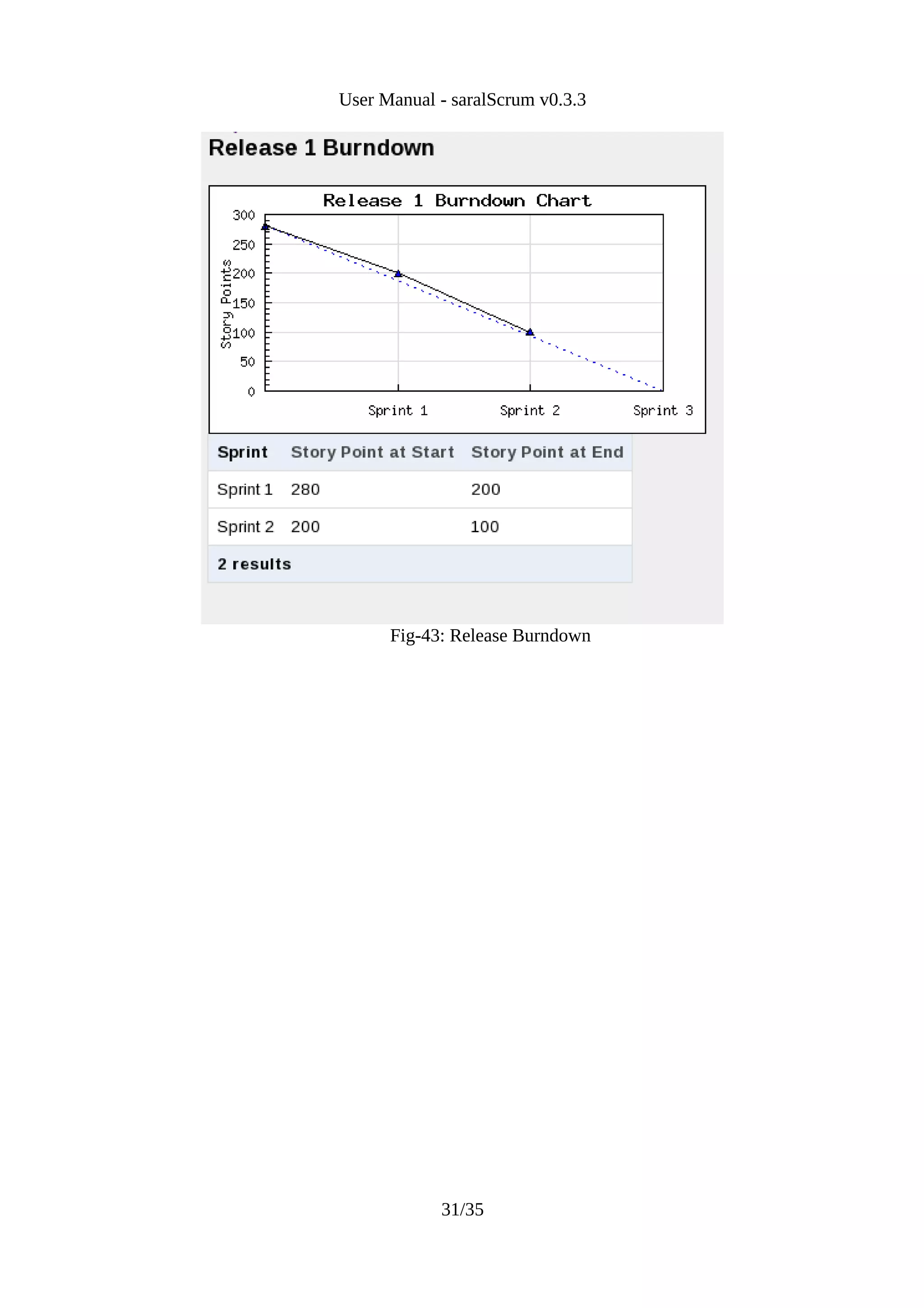

8.2 Release Burndown..................................................................................................................30

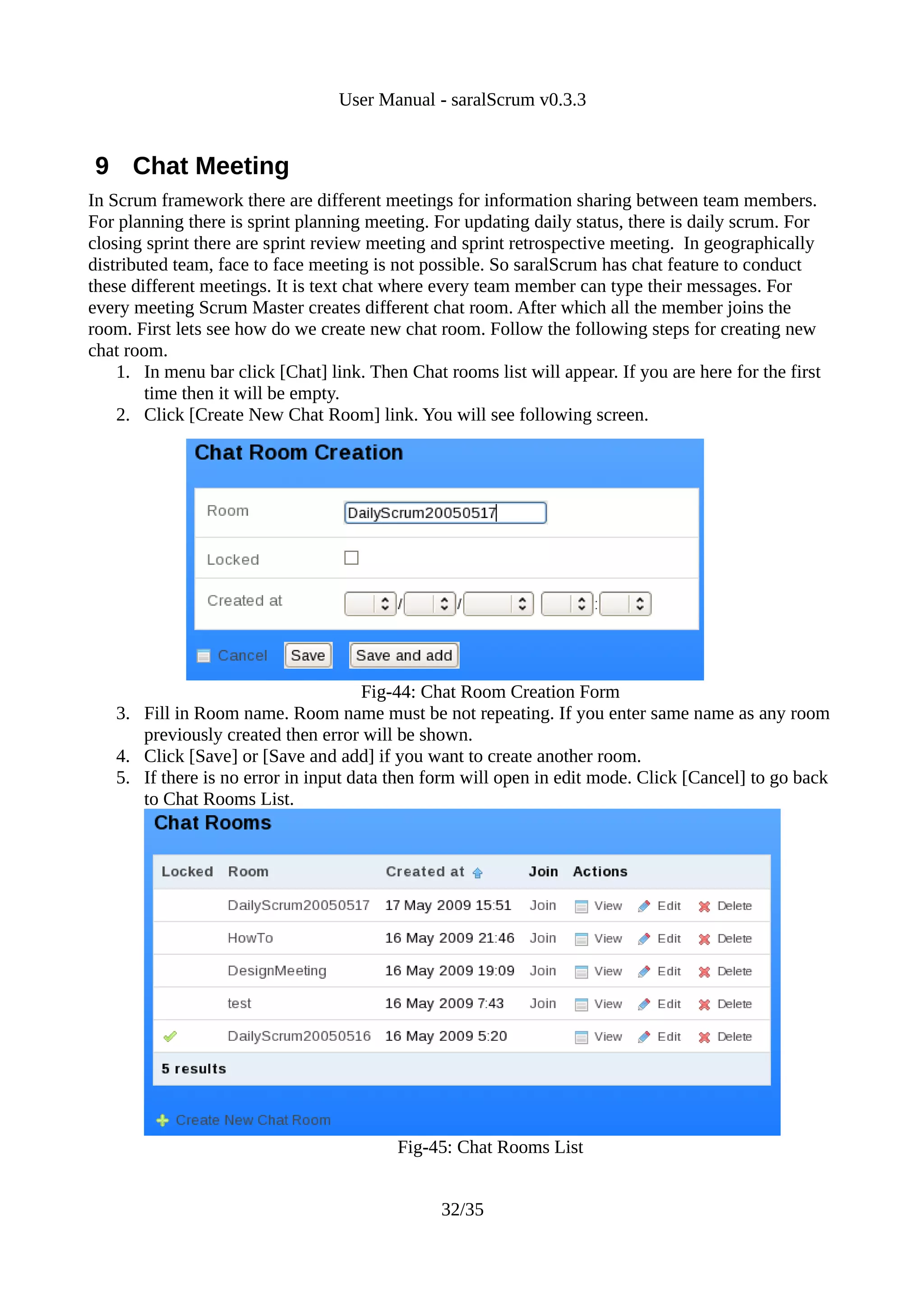

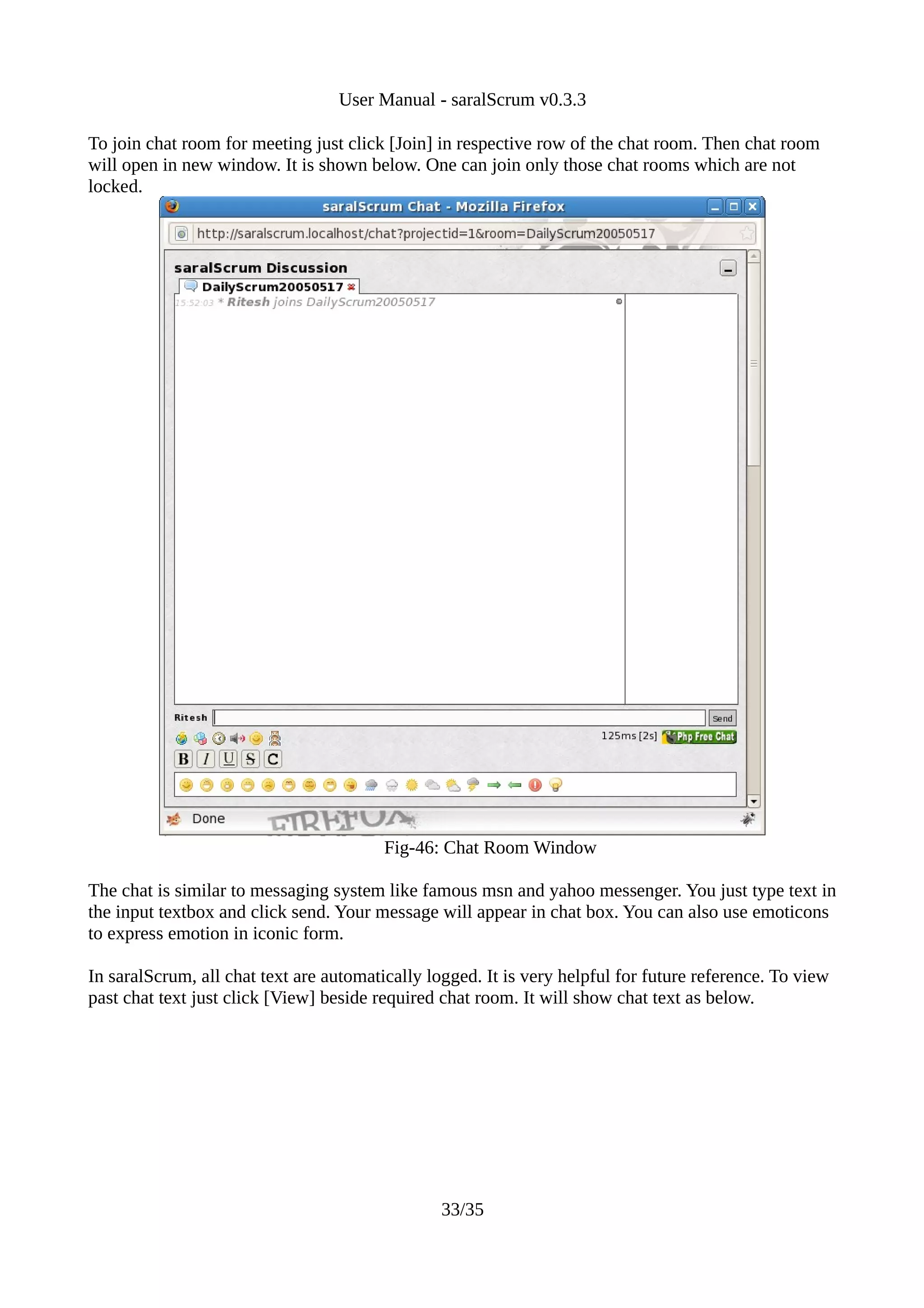

9 Chat Meeting..................................................................................................................................32

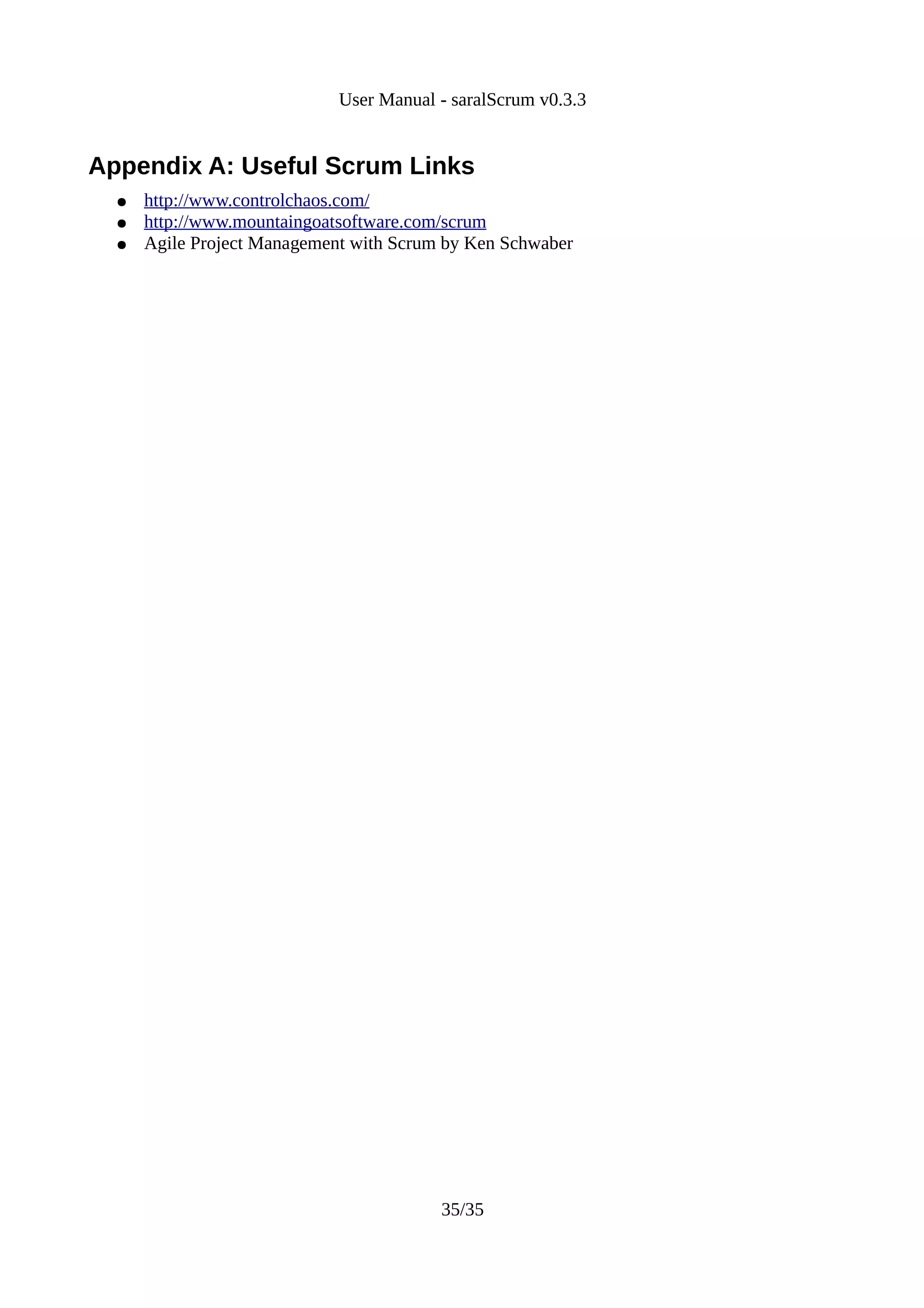

Appendix A: Useful Scrum Links......................................................................................................35

2/35


1 Work Flow
saralScrum is totally based on Scrum framework. So for using saralScrum prior knowledge of
Scrum will be beneficial but not mandatory. This user manual will guide you for how a project can
be managed from start to end using saralScrum. This manual is intended for a person who wants to
follow Scrum framework for his/her project using saralScrum. He/she could be in any role in the
project like product owner, scrum master or team member. Oops i have spilled some scrum terms. If
you are not aware of those terms then i can say he/she could be project manager managing project
or part of development team. For more information about Scrum please check the Appendix A for
useful links for learning Scrum. For now lets start with work flow we have to follow while using
saralScrum.

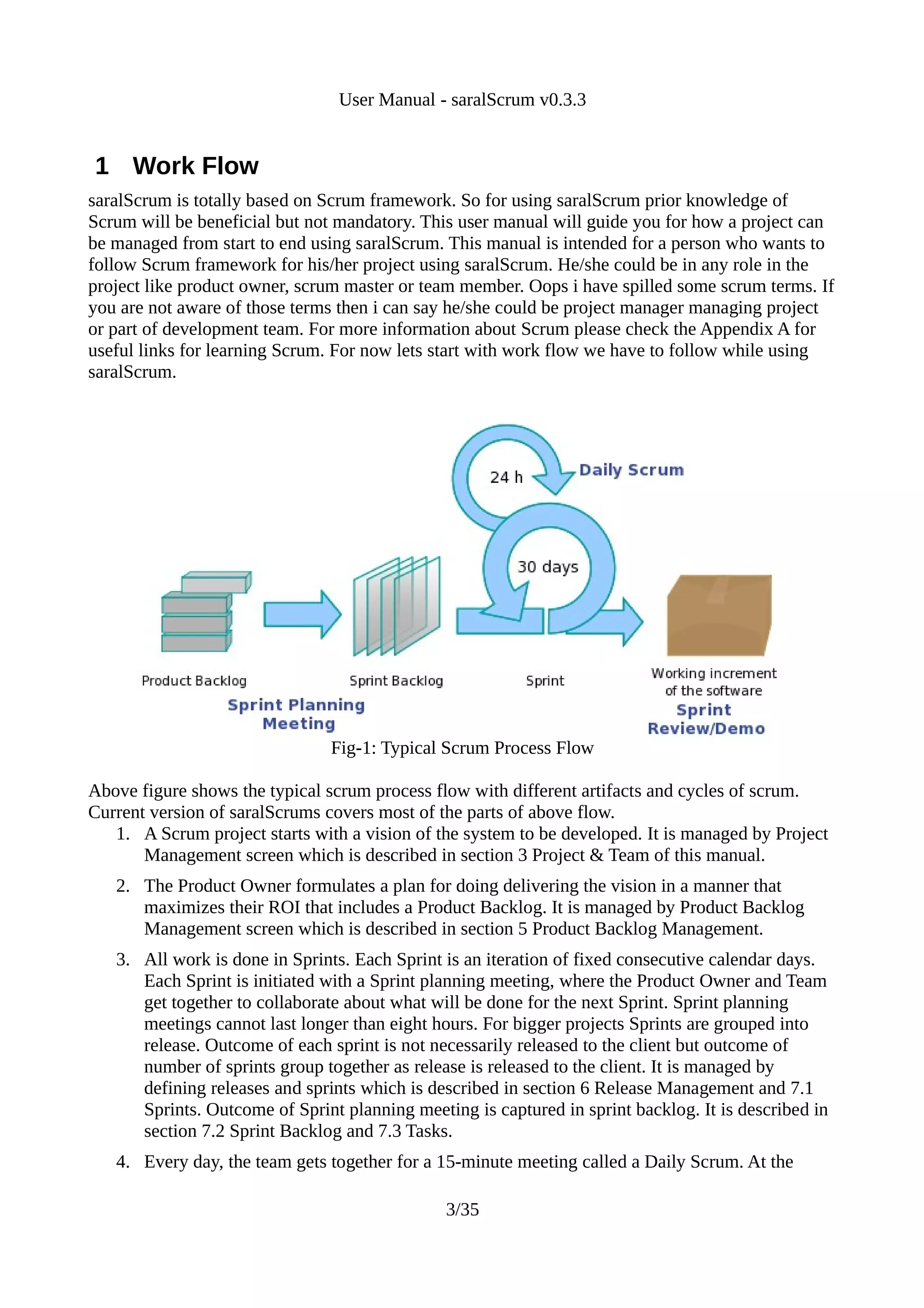

Fig-1: Typical Scrum Process Flow

Above figure shows the typical scrum process flow with different artifacts and cycles of scrum.
Current version of saralScrums covers most of the parts of above flow.
1. A Scrum project starts with a vision of the system to be developed. It is managed by Project
Management screen which is described in section 3 Project & Team of this manual.
2. The Product Owner formulates a plan for doing delivering the vision in a manner that
maximizes their ROI that includes a Product Backlog. It is managed by Product Backlog
Management screen which is described in section 5 Product Backlog Management.
3. All work is done in Sprints. Each Sprint is an iteration of fixed consecutive calendar days.
Each Sprint is initiated with a Sprint planning meeting, where the Product Owner and Team
get together to collaborate about what will be done for the next Sprint. Sprint planning
meetings cannot last longer than eight hours. For bigger projects Sprints are grouped into
release. Outcome of each sprint is not necessarily released to the client but outcome of
number of sprints group together as release is released to the client. It is managed by
defining releases and sprints which is described in section 6 Release Management and 7.1
Sprints. Outcome of Sprint planning meeting is captured in sprint backlog. It is described in
section 7.2 Sprint Backlog and 7.3 Tasks.
4. Every day, the team gets together for a 15-minute meeting called a Daily Scrum. At the

3/35

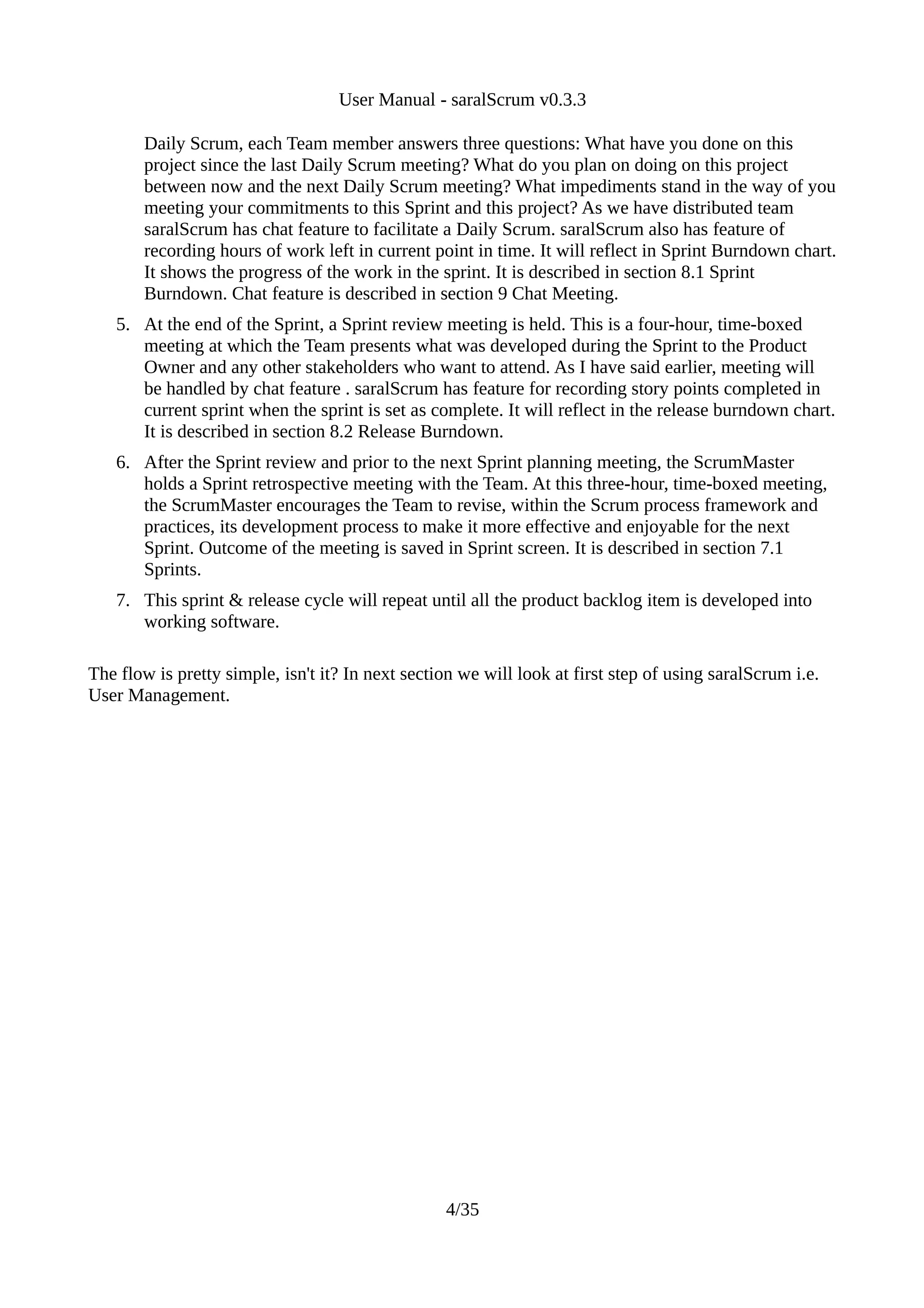

Daily Scrum, each Team member answers three questions: What have you done on this
project since the last Daily Scrum meeting? What do you plan on doing on this project
between now and the next Daily Scrum meeting? What impediments stand in the way of you
meeting your commitments to this Sprint and this project? As we have distributed team
saralScrum has chat feature to facilitate a Daily Scrum. saralScrum also has feature of
recording hours of work left in current point in time. It will reflect in Sprint Burndown chart.
It shows the progress of the work in the sprint. It is described in section 8.1 Sprint
Burndown. Chat feature is described in section 9 Chat Meeting.
5. At the end of the Sprint, a Sprint review meeting is held. This is a four-hour, time-boxed
meeting at which the Team presents what was developed during the Sprint to the Product
Owner and any other stakeholders who want to attend. As I have said earlier, meeting will
be handled by chat feature . saralScrum has feature for recording story points completed in
current sprint when the sprint is set as complete. It will reflect in the release burndown chart.
It is described in section 8.2 Release Burndown.
6. After the Sprint review and prior to the next Sprint planning meeting, the ScrumMaster
holds a Sprint retrospective meeting with the Team. At this three-hour, time-boxed meeting,
the ScrumMaster encourages the Team to revise, within the Scrum process framework and
practices, its development process to make it more effective and enjoyable for the next
Sprint. Outcome of the meeting is saved in Sprint screen. It is described in section 7.1
Sprints.
7. This sprint & release cycle will repeat until all the product backlog item is developed into
working software.

The flow is pretty simple, isn't it? In next section we will look at first step of using saralScrum i.e.
User Management.

4/35


2 User Management
In saralScrum, only authorized person is allowed to view and change the artifacts of the project.
First screen you seen when you visit the saralScrum system is login screen as shown in the
following picture.

Fig-2: Login Screen

Now just type Username and Password and click [sign in] button to login. If you are using
saralScrum for the first time then you have to use a default admin user to log into the system. For
that use following values:
Username: admin
Password: nimda

After successful login, Project List is shown. It is discussed in detail in section 3 Project & Team.

2.1 Member List
To see the current members of the system just click [Member List] in top right basic menu bar. The
link is visible to the user with superadmin privilage. It is not visible to normal user.

Fig-3: System basic menu bar

5/35

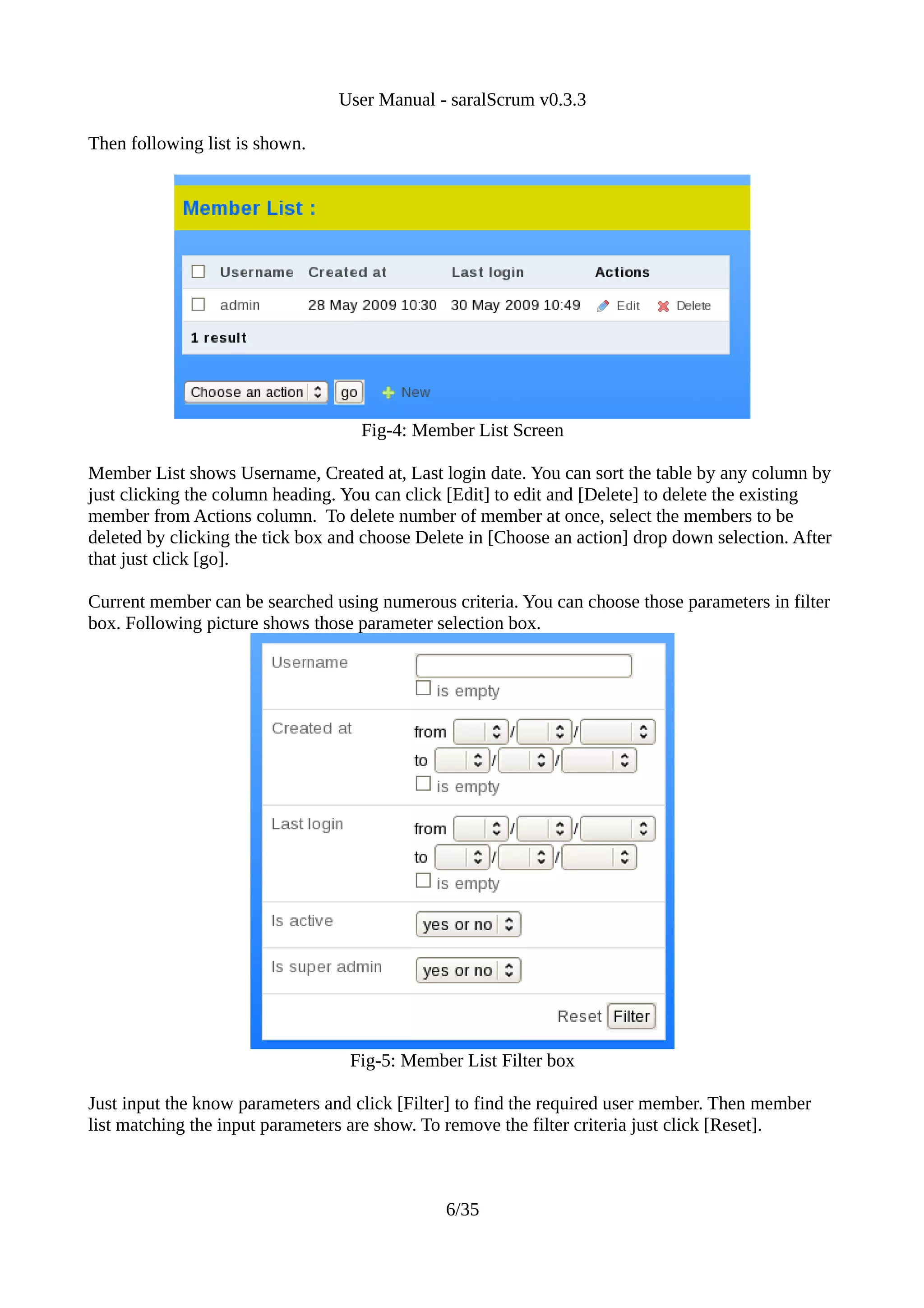

Then following list is shown.

Fig-4: Member List Screen

Member List shows Username, Created at, Last login date. You can sort the table by any column by
just clicking the column heading. You can click [Edit] to edit and [Delete] to delete the existing
member from Actions column. To delete number of member at once, select the members to be
deleted by clicking the tick box and choose Delete in [Choose an action] drop down selection. After
that just click [go].

Current member can be searched using numerous criteria. You can choose those parameters in filter
box. Following picture shows those parameter selection box.

Fig-5: Member List Filter box

Just input the know parameters and click [Filter] to find the required user member. Then member
list matching the input parameters are show. To remove the filter criteria just click [Reset].

6/35

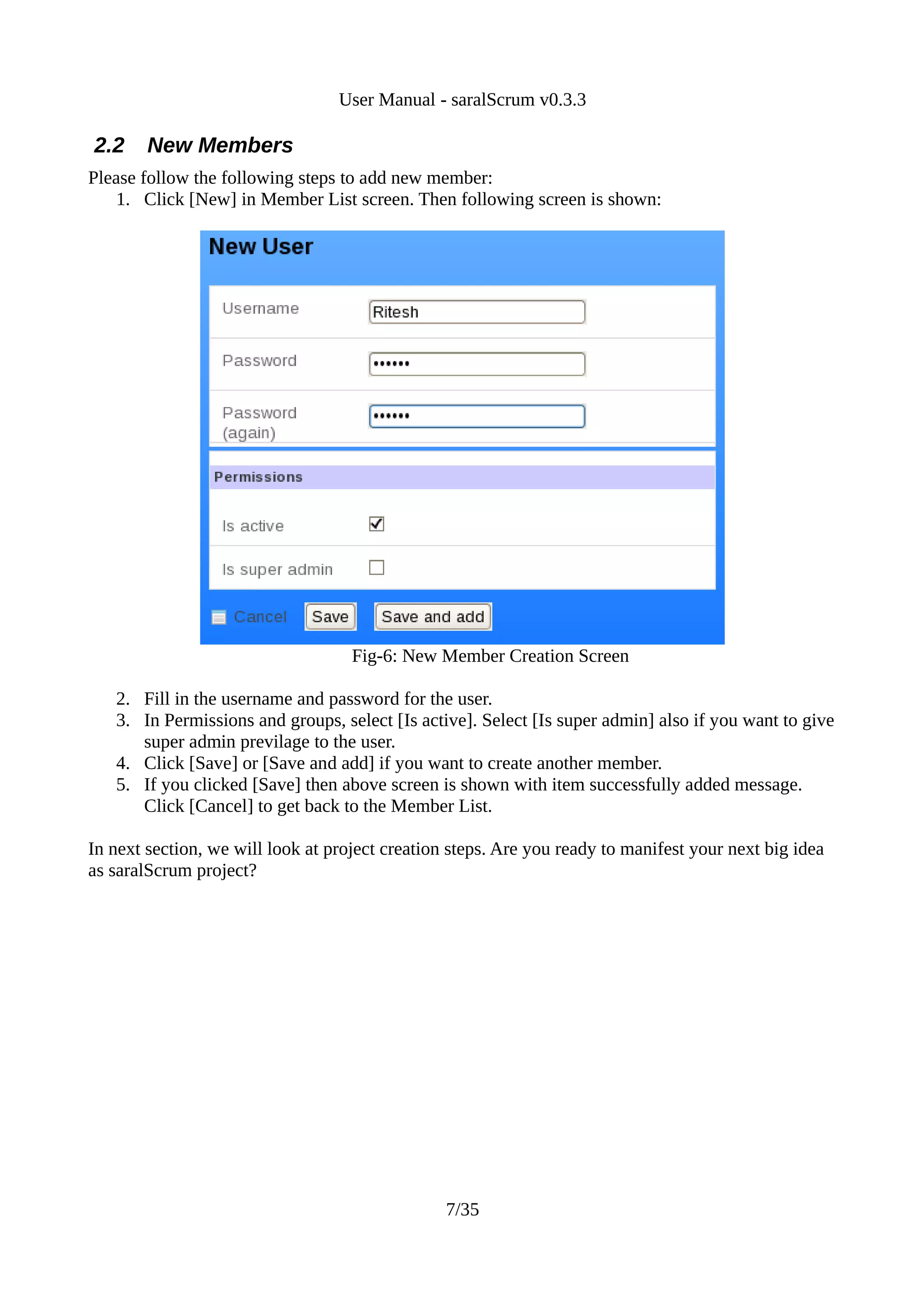

2.2 New Members
Please follow the following steps to add new member:
1. Click [New] in Member List screen. Then following screen is shown:

Fig-6: New Member Creation Screen

2. Fill in the username and password for the user.
3. In Permissions and groups, select [Is active]. Select [Is super admin] also if you want to give
super admin previlage to the user.
4. Click [Save] or [Save and add] if you want to create another member.
5. If you clicked [Save] then above screen is shown with item successfully added message.
Click [Cancel] to get back to the Member List.

In next section, we will look at project creation steps. Are you ready to manifest your next big idea
as saralScrum project?

7/35


3 Project & Team

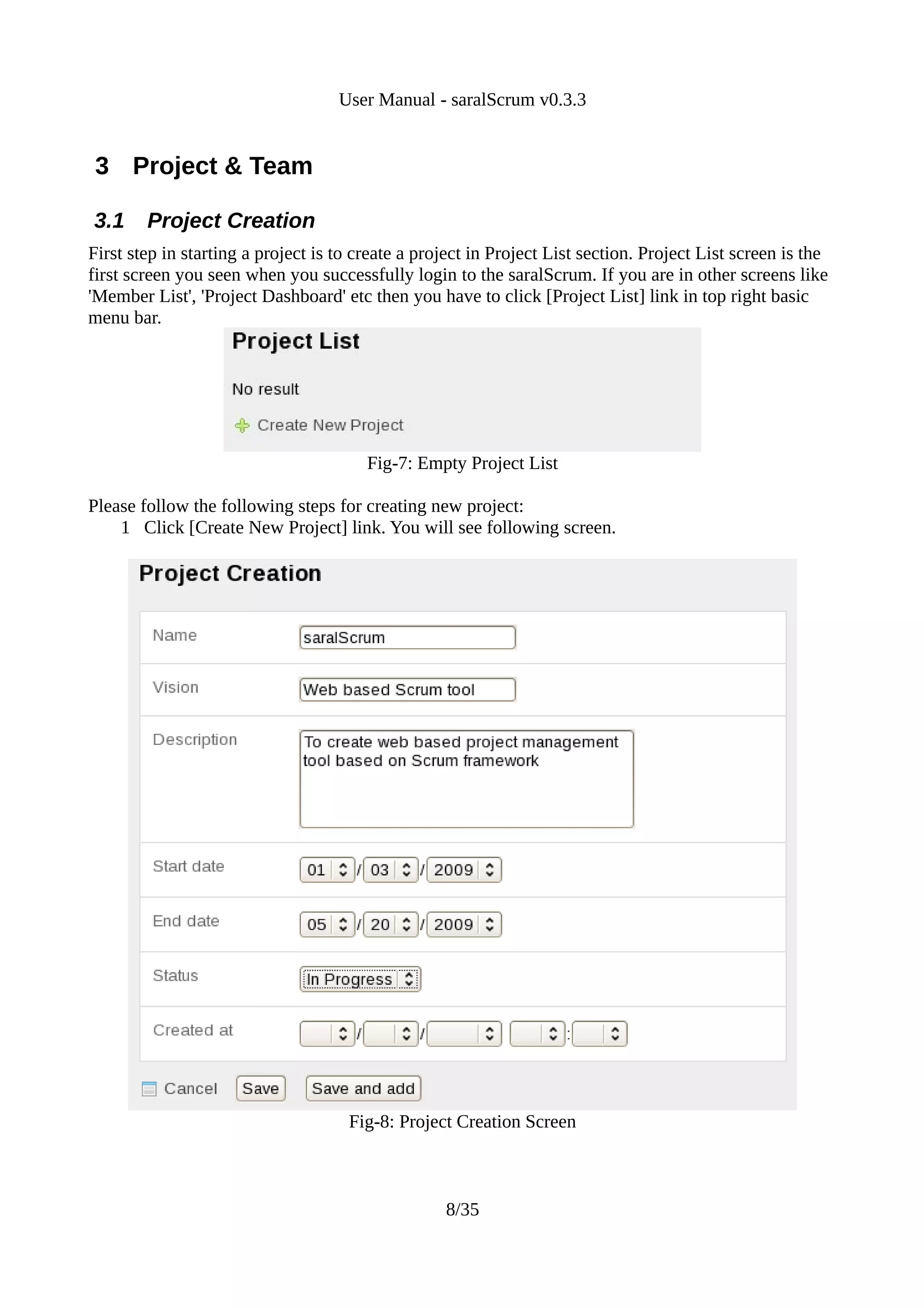

3.1 Project Creation
First step in starting a project is to create a project in Project List section. Project List screen is the
first screen you seen when you successfully login to the saralScrum. If you are in other screens like
'Member List', 'Project Dashboard' etc then you have to click [Project List] link in top right basic
menu bar.

Fig-7: Empty Project List

Please follow the following steps for creating new project:
1 Click [Create New Project] link. You will see following screen.

Fig-8: Project Creation Screen

8/35

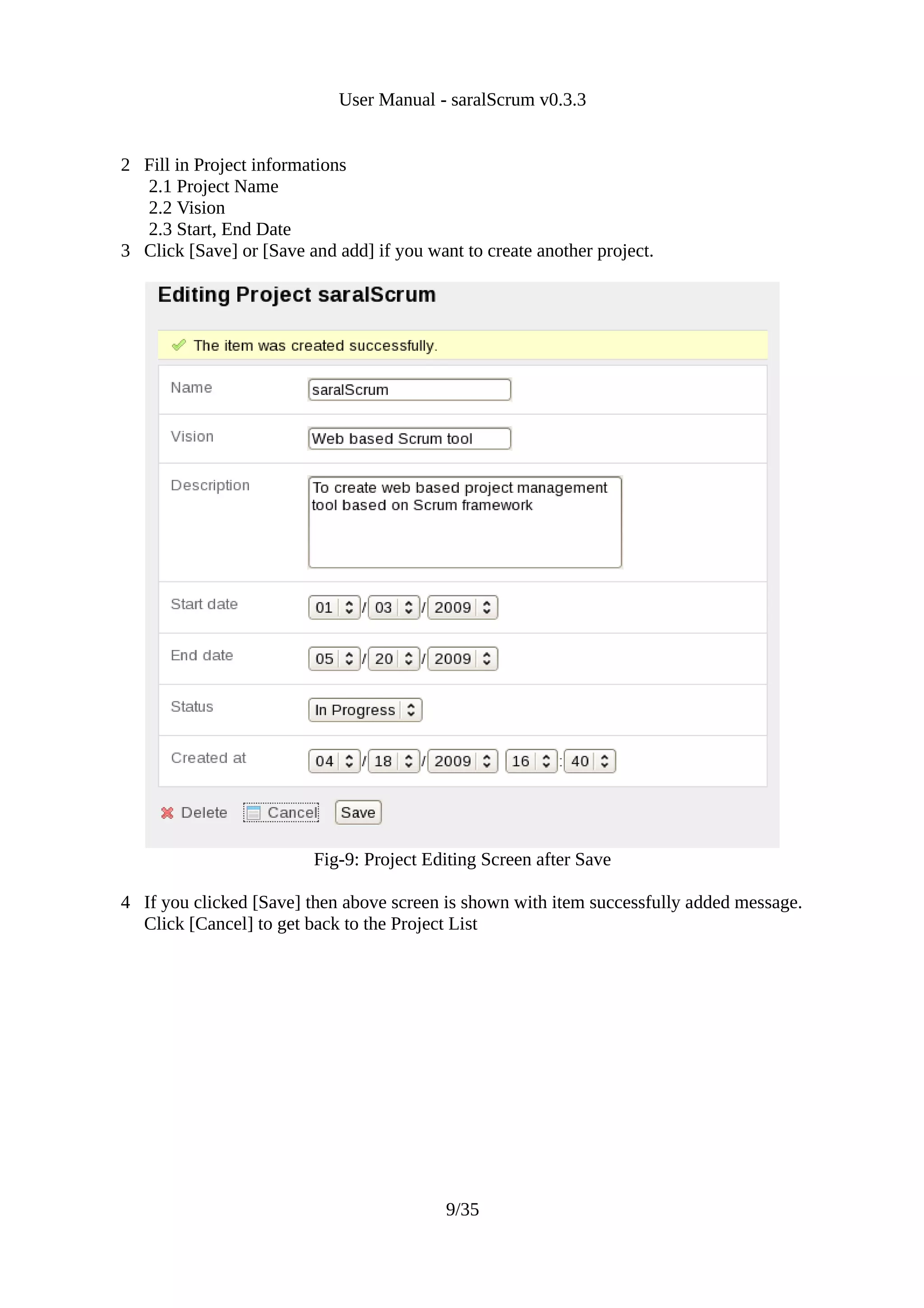

2 Fill in Project informations
2.1 Project Name
2.2 Vision
2.3 Start, End Date
3 Click [Save] or [Save and add] if you want to create another project.

Fig-9: Project Editing Screen after Save

4 If you clicked [Save] then above screen is shown with item successfully added message.
Click [Cancel] to get back to the Project List

9/35

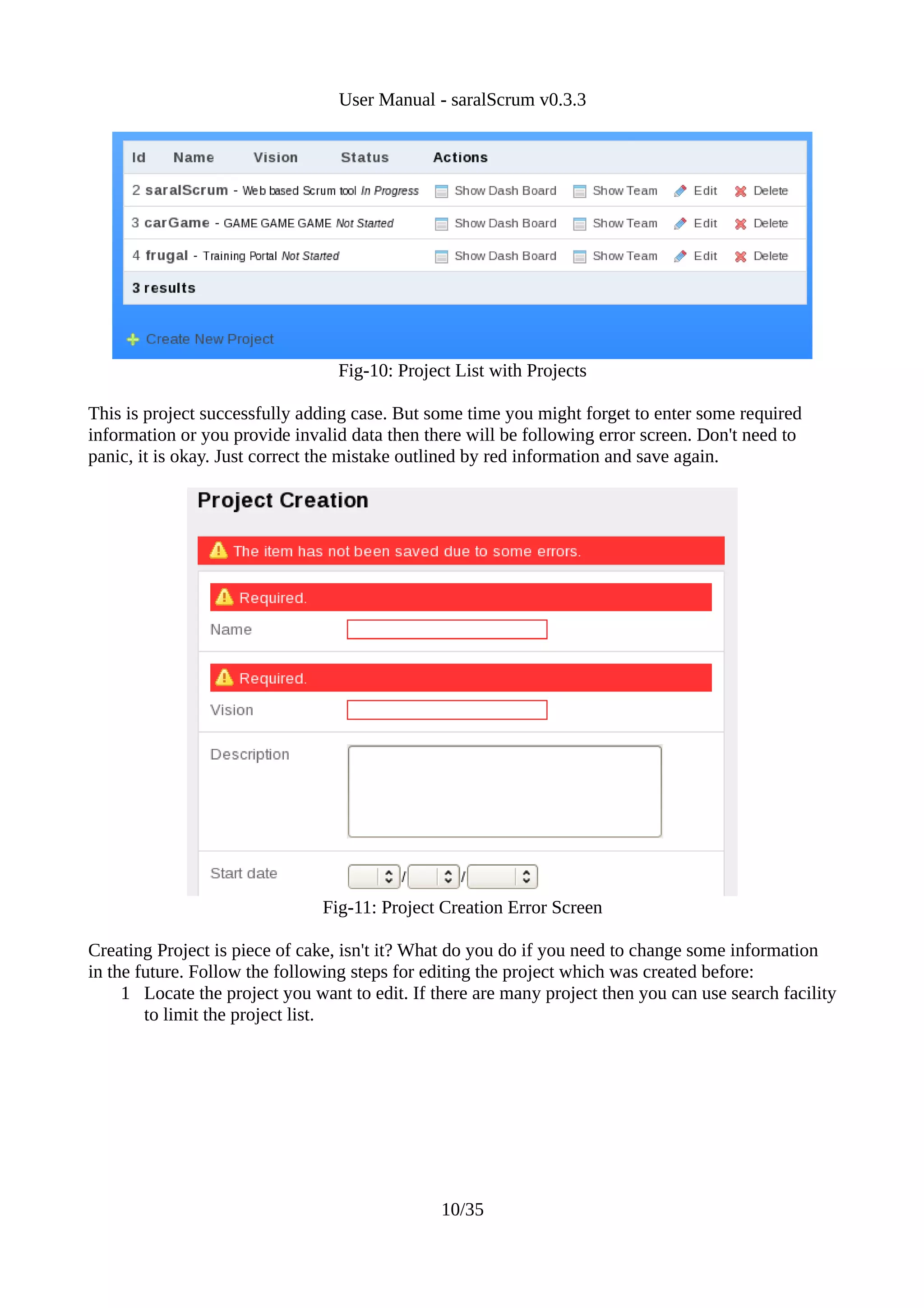

Fig-10: Project List with Projects

This is project successfully adding case. But some time you might forget to enter some required
information or you provide invalid data then there will be following error screen. Don't need to
panic, it is okay. Just correct the mistake outlined by red information and save again.

Fig-11: Project Creation Error Screen

Creating Project is piece of cake, isn't it? What do you do if you need to change some information
in the future. Follow the following steps for editing the project which was created before:
1 Locate the project you want to edit. If there are many project then you can use search facility
to limit the project list.

10/35

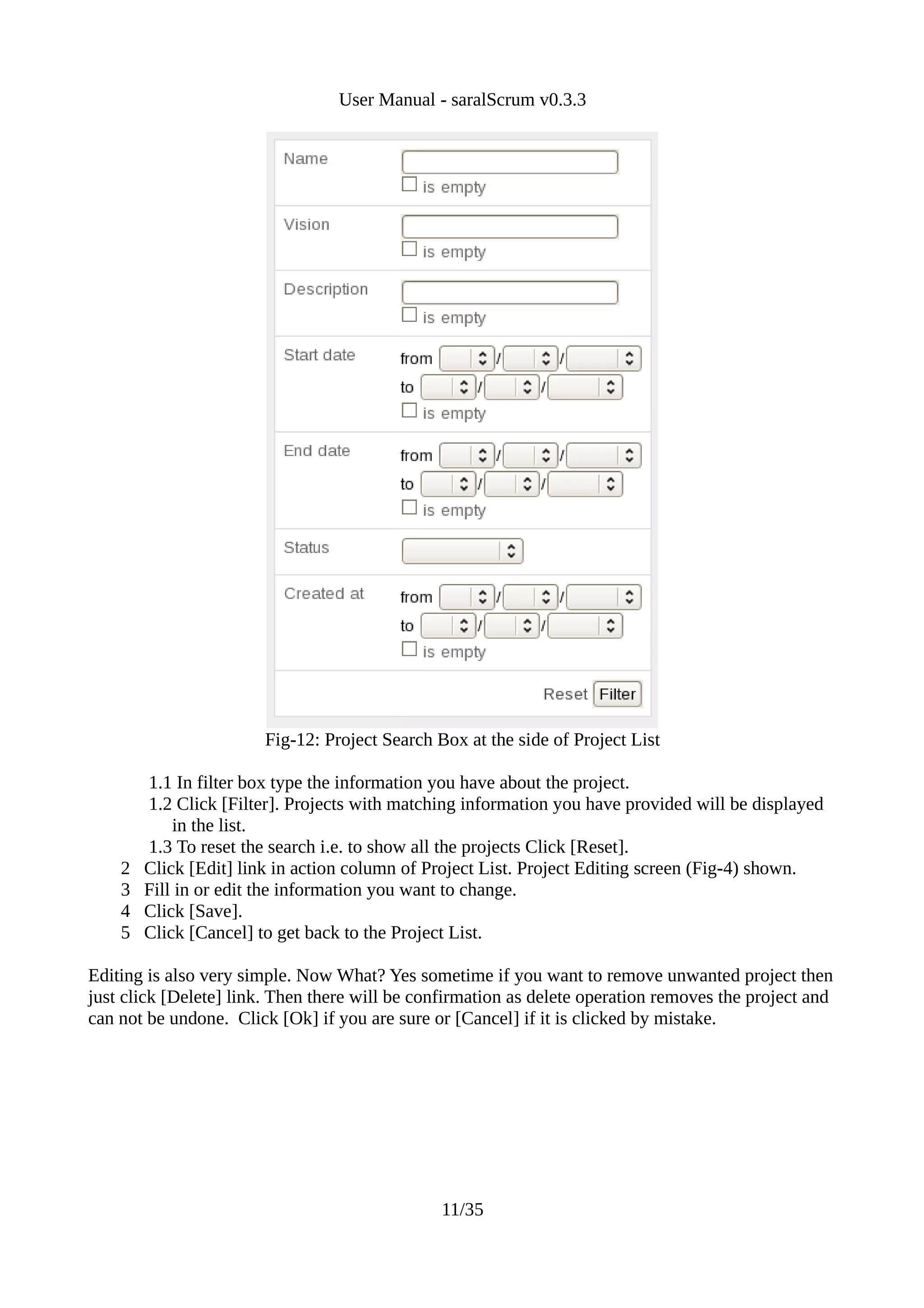

Fig-12: Project Search Box at the side of Project List

1.1 In filter box type the information you have about the project.
1.2 Click [Filter]. Projects with matching information you have provided will be displayed
in the list.
1.3 To reset the search i.e. to show all the projects Click [Reset].
2 Click [Edit] link in action column of Project List. Project Editing screen (Fig-4) shown.
3 Fill in or edit the information you want to change.
4 Click [Save].
5 Click [Cancel] to get back to the Project List.

Editing is also very simple. Now What? Yes sometime if you want to remove unwanted project then
just click [Delete] link. Then there will be confirmation as delete operation removes the project and
can not be undone. Click [Ok] if you are sure or [Cancel] if it is clicked by mistake.

11/35

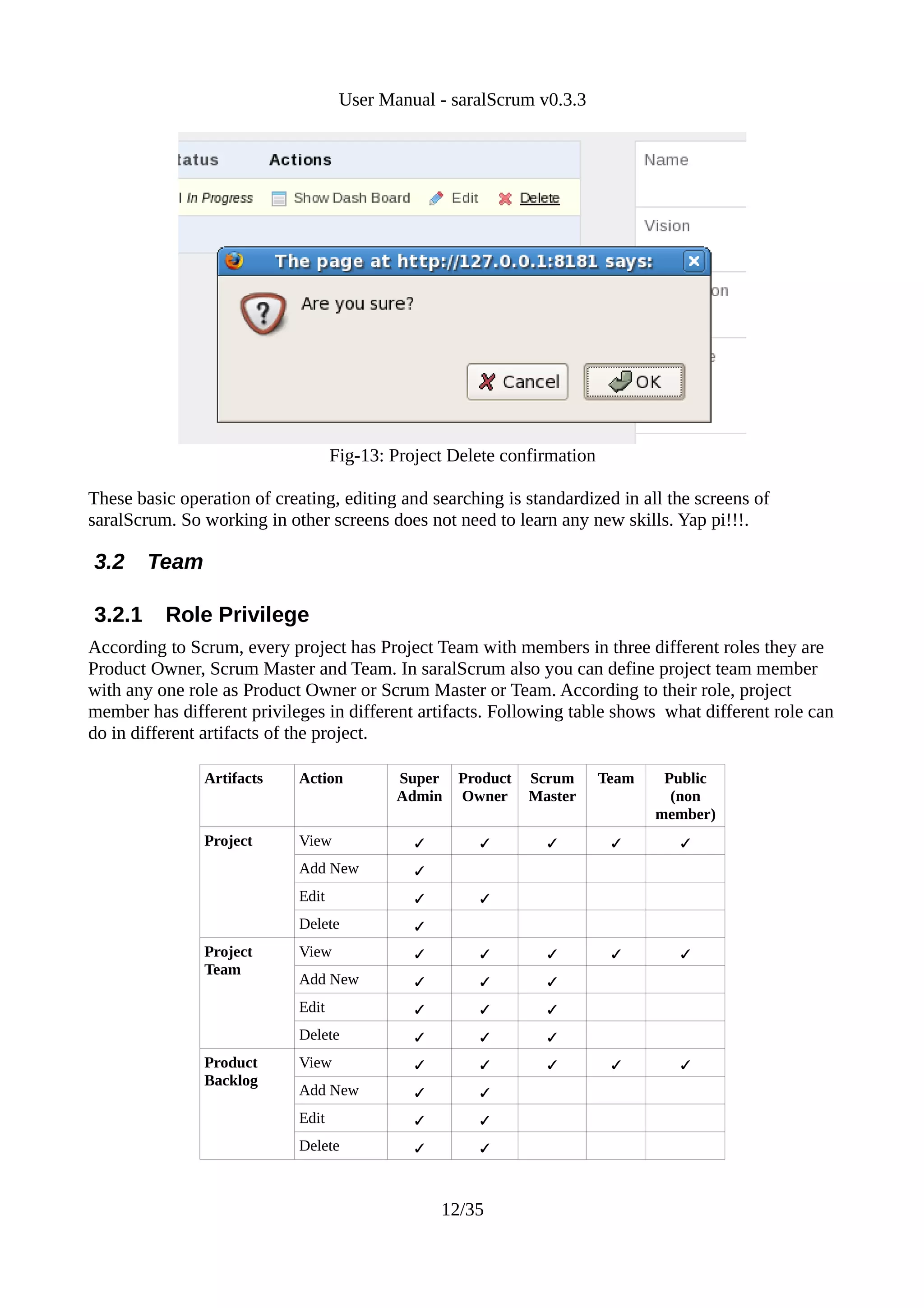

Fig-13: Project Delete confirmation

These basic operation of creating, editing and searching is standardized in all the screens of
saralScrum. So working in other screens does not need to learn any new skills. Yap pi!!!.

3.2 Team

3.2.1 Role Privilege
According to Scrum, every project has Project Team with members in three different roles they are
Product Owner, Scrum Master and Team. In saralScrum also you can define project team member
with any one role as Product Owner or Scrum Master or Team. According to their role, project
member has different privileges in different artifacts. Following table shows what different role can
do in different artifacts of the project.

Artifacts Action Super Product Scrum Team Public
Admin Owner Master (non
member)
Project View     
Add New 
Edit  
Delete 
Project View     
Team
Add New   
Edit   
Delete   
Product View     
Backlog
Add New  
Edit  
Delete  

12/35

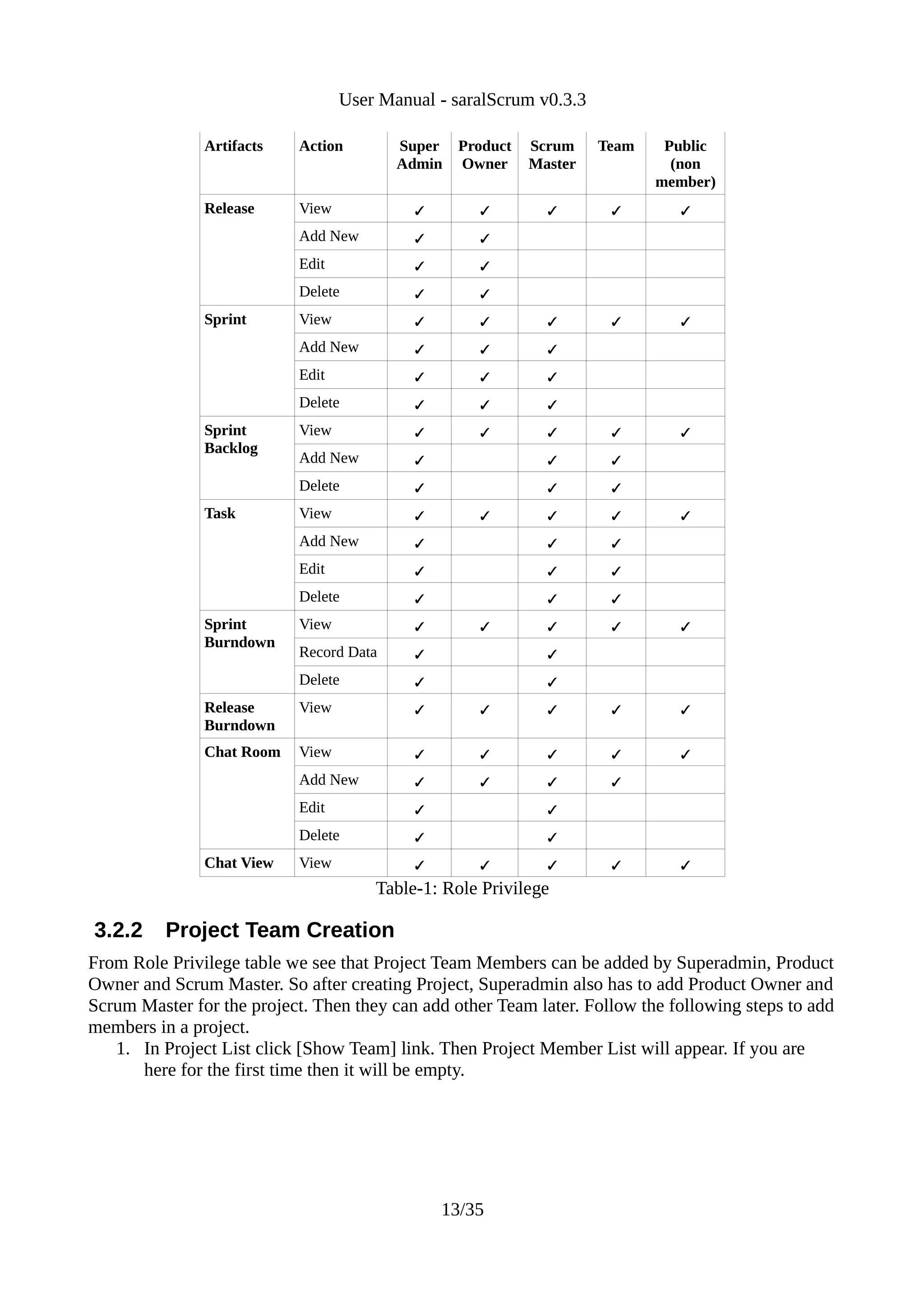

Artifacts Action Super Product Scrum Team Public
Admin Owner Master (non
member)
Release View     
Add New  
Edit  
Delete  
Sprint View     
Add New   
Edit   
Delete   
Backlog
Add New   
Delete   
Task View     
Add New   
Edit   
Delete   
Burndown
Record Data  
Delete  
Release View     
Burndown
Chat Room View     
Add New    
Edit  
Delete  
Chat View View     
Table-1: Role Privilege

3.2.2 Project Team Creation
From Role Privilege table we see that Project Team Members can be added by Superadmin, Product
Owner and Scrum Master. So after creating Project, Superadmin also has to add Product Owner and
Scrum Master for the project. Then they can add other Team later. Follow the following steps to add
members in a project.
1. In Project List click [Show Team] link. Then Project Member List will appear. If you are
here for the first time then it will be empty.

13/35

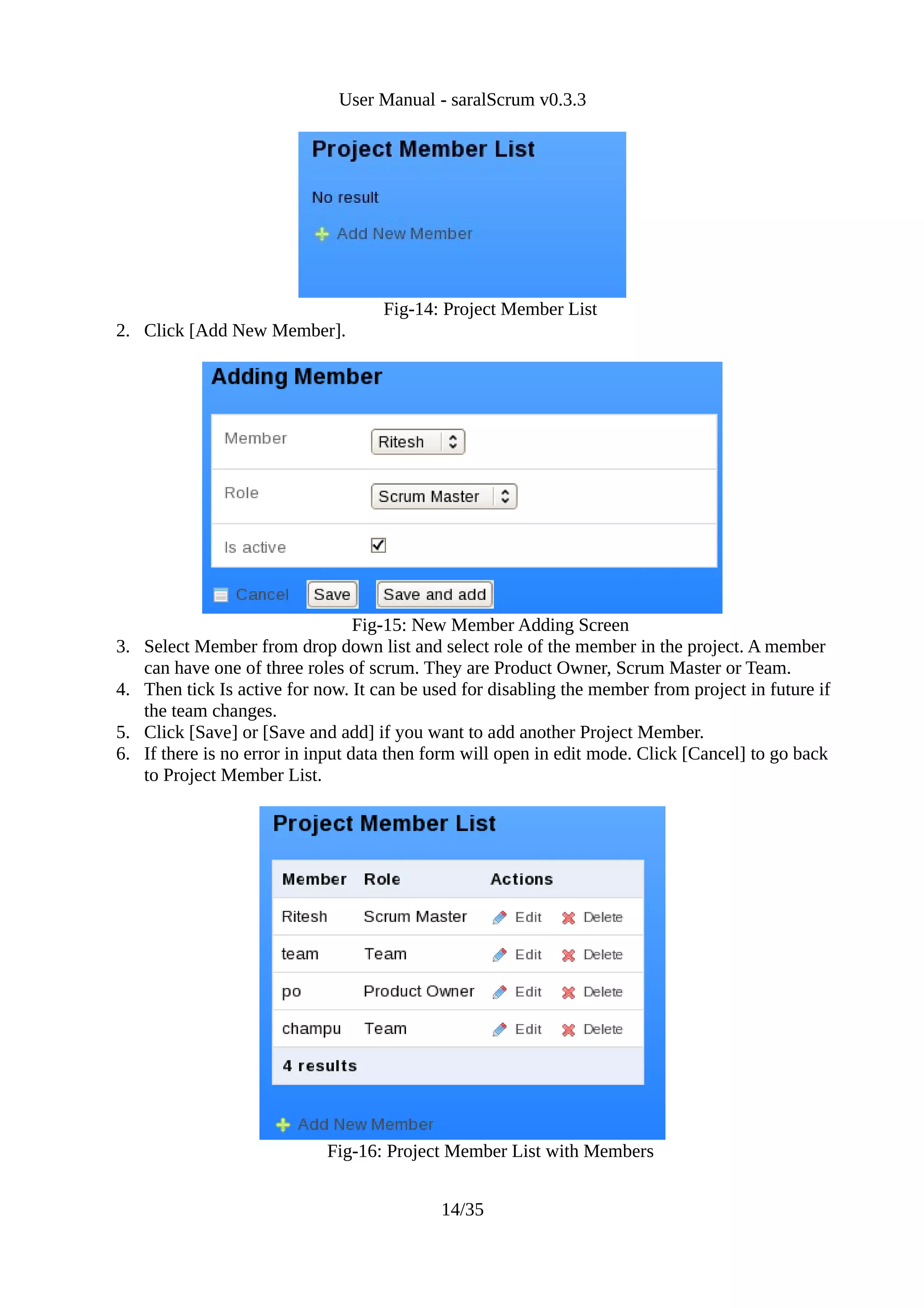

Fig-14: Project Member List
2. Click [Add New Member].

Fig-15: New Member Adding Screen
3. Select Member from drop down list and select role of the member in the project. A member
can have one of three roles of scrum. They are Product Owner, Scrum Master or Team.
4. Then tick Is active for now. It can be used for disabling the member from project in future if
the team changes.
5. Click [Save] or [Save and add] if you want to add another Project Member.
6. If there is no error in input data then form will open in edit mode. Click [Cancel] to go back
to Project Member List.

Fig-16: Project Member List with Members

14/35

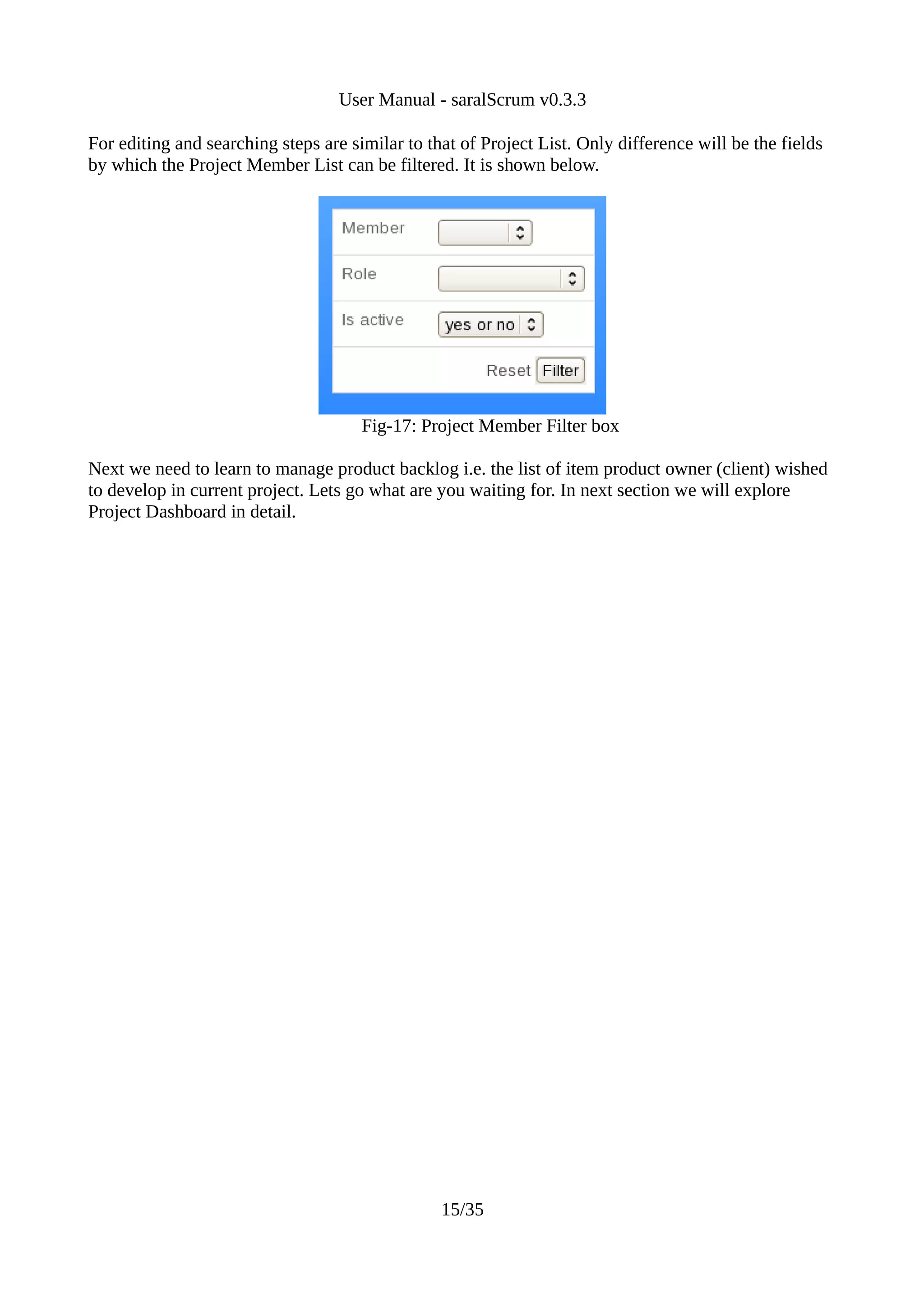

For editing and searching steps are similar to that of Project List. Only difference will be the fields
by which the Project Member List can be filtered. It is shown below.

Fig-17: Project Member Filter box

Next we need to learn to manage product backlog i.e. the list of item product owner (client) wished
to develop in current project. Lets go what are you waiting for. In next section we will explore
Project Dashboard in detail.

15/35


4 Dashboard & Menu
Dashboard contains the summary information of vital artifacts like Product Backlog, Release and
Sprints. Let me tell you how to go to Project Dashboard first. To go to Project Dashboard just click
[Show Dash Board] link in Project List. Then following screen will appear.

Fig-18: Project Dashboard

Project dashboard has three columns. Left column has three sections. They are Product Backlog,
Sprint Backlog and Chat Rooms. Middle column has only one section i.e. Task. Right column has
two sections. They are Release and Sprint. Lets explore them one by one.

1. Product Backlog:
Product Backlog section contains summary of product backlog of the project. It has two

16/35

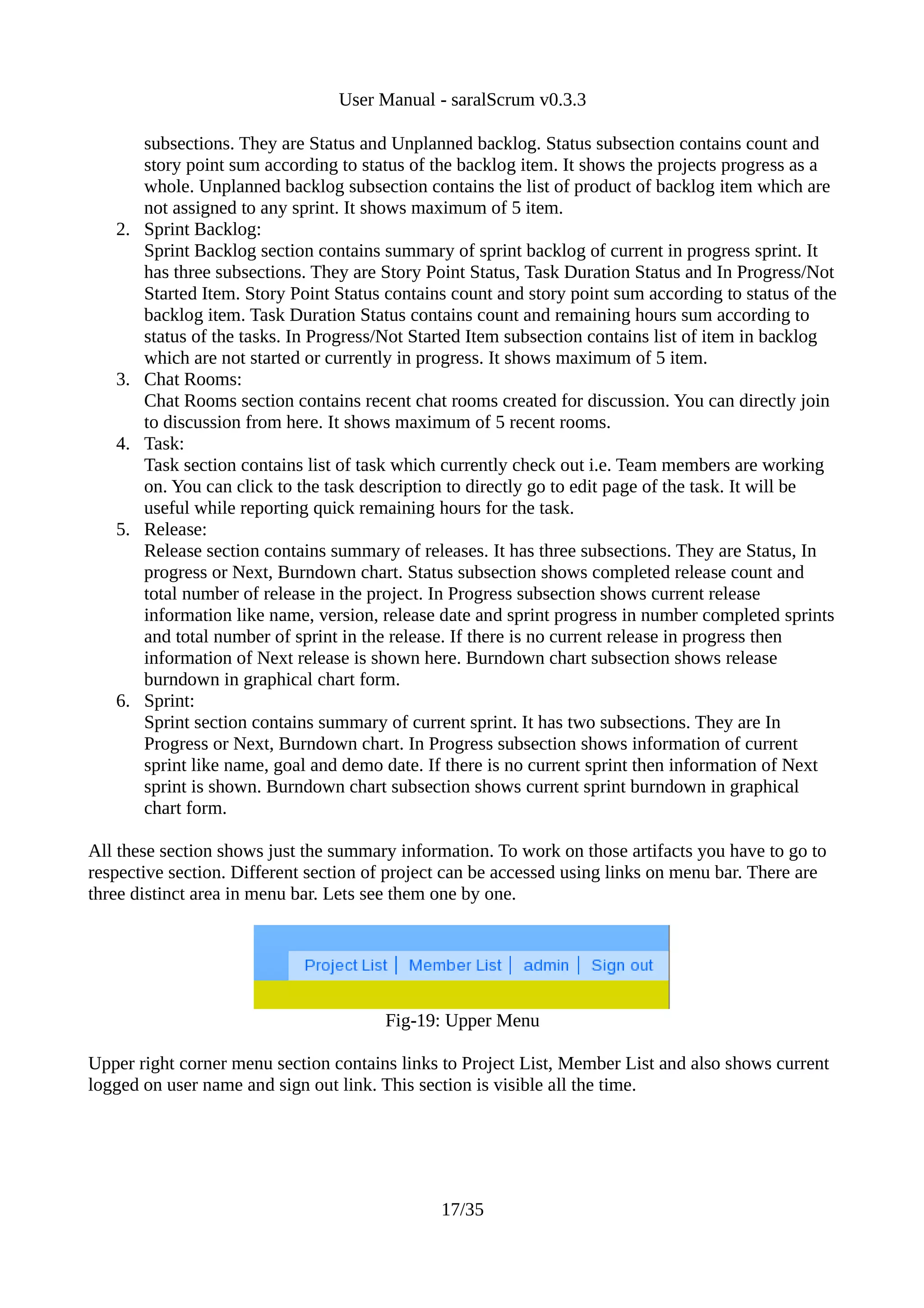

subsections. They are Status and Unplanned backlog. Status subsection contains count and
story point sum according to status of the backlog item. It shows the projects progress as a
whole. Unplanned backlog subsection contains the list of product of backlog item which are
not assigned to any sprint. It shows maximum of 5 item.
2. Sprint Backlog:
Sprint Backlog section contains summary of sprint backlog of current in progress sprint. It
has three subsections. They are Story Point Status, Task Duration Status and In Progress/Not
Started Item. Story Point Status contains count and story point sum according to status of the
backlog item. Task Duration Status contains count and remaining hours sum according to
status of the tasks. In Progress/Not Started Item subsection contains list of item in backlog
which are not started or currently in progress. It shows maximum of 5 item.
3. Chat Rooms:
Chat Rooms section contains recent chat rooms created for discussion. You can directly join
to discussion from here. It shows maximum of 5 recent rooms.
4. Task:
Task section contains list of task which currently check out i.e. Team members are working
on. You can click to the task description to directly go to edit page of the task. It will be
useful while reporting quick remaining hours for the task.
5. Release:
Release section contains summary of releases. It has three subsections. They are Status, In
progress or Next, Burndown chart. Status subsection shows completed release count and
total number of release in the project. In Progress subsection shows current release
information like name, version, release date and sprint progress in number completed sprints
and total number of sprint in the release. If there is no current release in progress then
information of Next release is shown here. Burndown chart subsection shows release
burndown in graphical chart form.
6. Sprint:
Sprint section contains summary of current sprint. It has two subsections. They are In
Progress or Next, Burndown chart. In Progress subsection shows information of current
sprint like name, goal and demo date. If there is no current sprint then information of Next
sprint is shown. Burndown chart subsection shows current sprint burndown in graphical
chart form.

All these section shows just the summary information. To work on those artifacts you have to go to
respective section. Different section of project can be accessed using links on menu bar. There are
three distinct area in menu bar. Lets see them one by one.

Fig-19: Upper Menu

Upper right corner menu section contains links to Project List, Member List and also shows current
logged on user name and sign out link. This section is visible all the time.

17/35

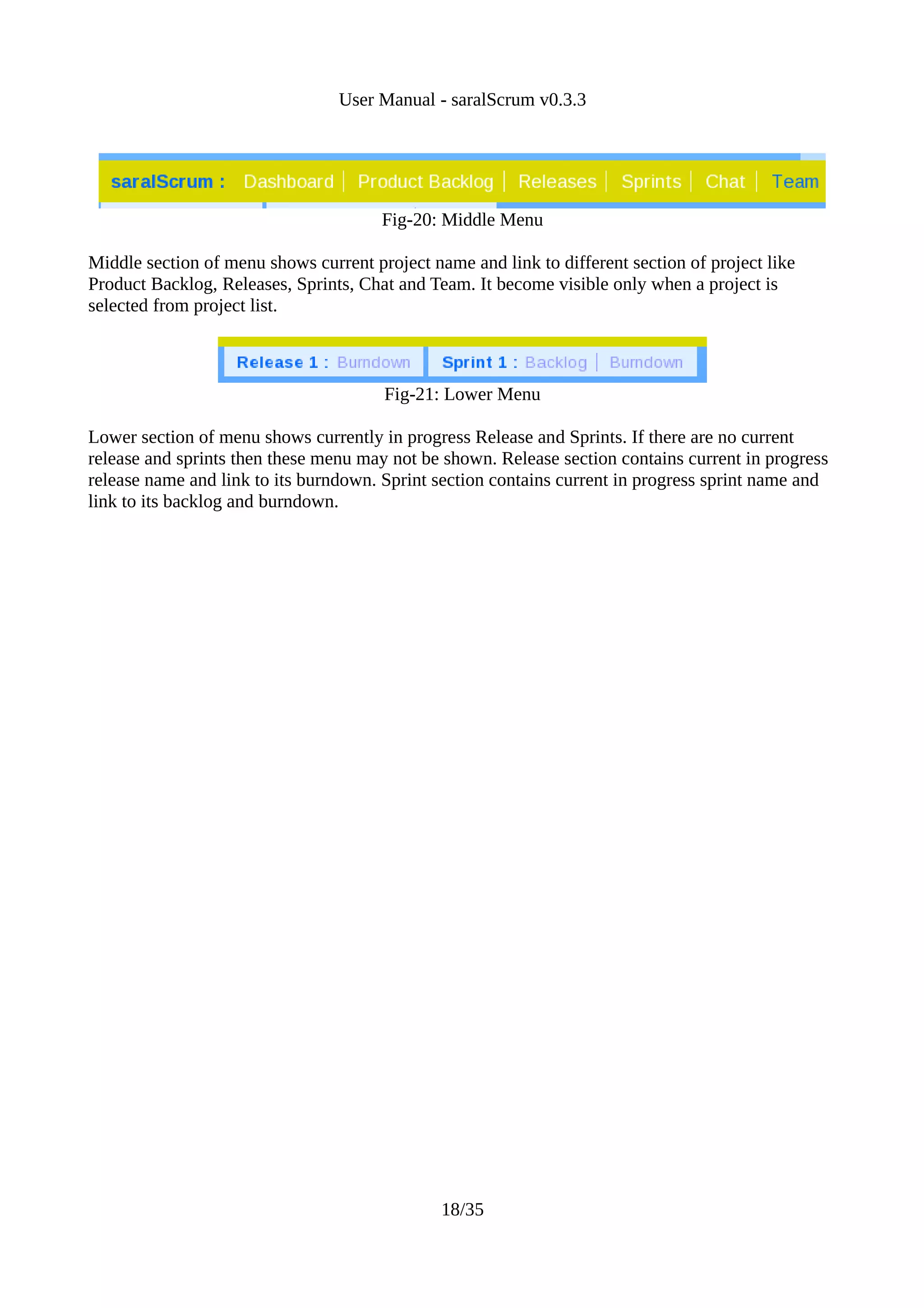

Fig-20: Middle Menu

Middle section of menu shows current project name and link to different section of project like
Product Backlog, Releases, Sprints, Chat and Team. It become visible only when a project is
selected from project list.

Fig-21: Lower Menu

Lower section of menu shows currently in progress Release and Sprints. If there are no current
release and sprints then these menu may not be shown. Release section contains current in progress
release name and link to its burndown. Sprint section contains current in progress sprint name and
link to its backlog and burndown.

18/35


5 Product Backlog Management
Product Backlog is basically wish list of a client but in prioritized order. In Scrum Product Owner
creates and maintains the Product Backlog. So if you are a Product Owner then you are at the right
section to learn to create product backlog item in saralScrum. Follow the following steps for adding
new item in the Product Backlog Item:
1. From project dashboard click Product Backlog. Then Product Backlog List will appear. If
you are here for the first time then it will be empty.

Fig-22: Empty Product Backlog List

2. Click [Create New Product Backlog Item].
3. Fill in the informations

Fig-23: Product Backlog Item creation form
4. Click [Save] or [Save and add] if you want to create another Product Backlog item.

19/35


to Product Backlog List.

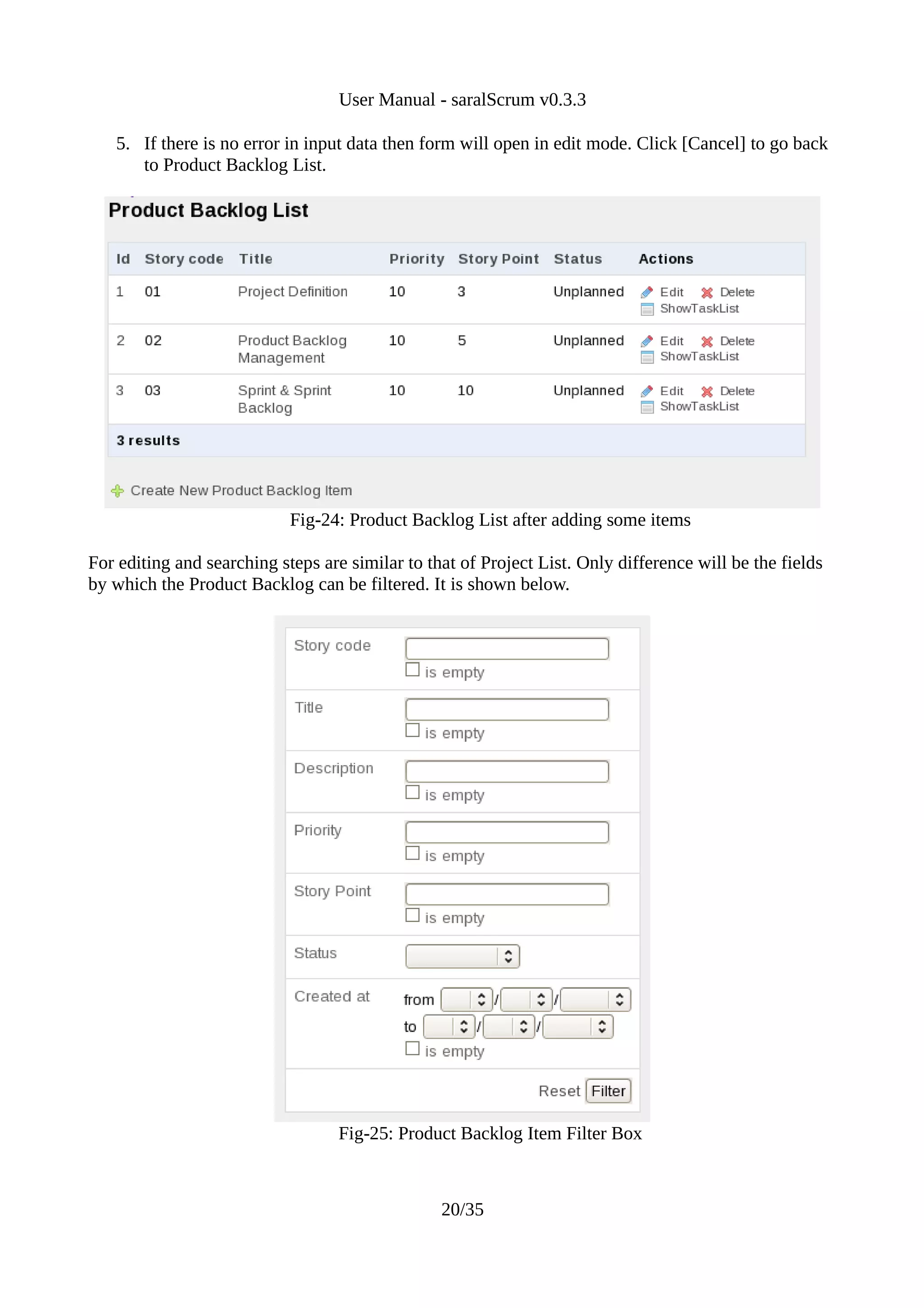

Fig-24: Product Backlog List after adding some items

by which the Product Backlog can be filtered. It is shown below.

Fig-25: Product Backlog Item Filter Box

20/35


6 Release Management
Periodic submission of product is encouraged by scrum framework than delivering once at the end
of the project. It will confirm the rightness of the product developed and client will have chance to
give valuable feedback before its too late. So a project can have multiple releases. Release can also
thought of grouping small sprints outputs as single submission to client if each sprint output is not
so tangible to the client. In saralScrum, Product owner will decide about releases. You follow the
following steps to create new Release:
1. Go to Release List from Project dashboard by clicking [Releases] link. Then Release List
will appear. If you are here for the first time then it will be empty.

Fig-26: Empty Release List

2. Click [Create New Release].

Fig-27: New Release Creation Form

3. Fill in the informations
4. Click [Save] or [Save and add] if you want to create another Release.
to Release List.

21/35


Fig-28: Release List

by which the Release List can be filtered. It is shown below.

Fig-29: Release List Filter Box

22/35


7 Sprint Management
Sprint is a cycle with fixed start and end date. Each Sprint will have specific goal and project team
will commit certain fixed number of product backlog item for a sprint. The whole project team will
just focus on those task so they are more productive. saralScrum have simple way to record sprints,
its backlog and task breakdown.

7.1 Sprints
Sprints are grouped in a Release. So only after defining Release, Sprint is defined in association of
particular sprint. There can not be sprint without release. Follow following step to define Sprints:
1. In Project dashboard click [Sprints] link. Then Sprint List will appear. If you are here for the
first time then it will be empty.
2. Click [Create New Sprint].

Fig-30: Sprint Creation Form

23/35

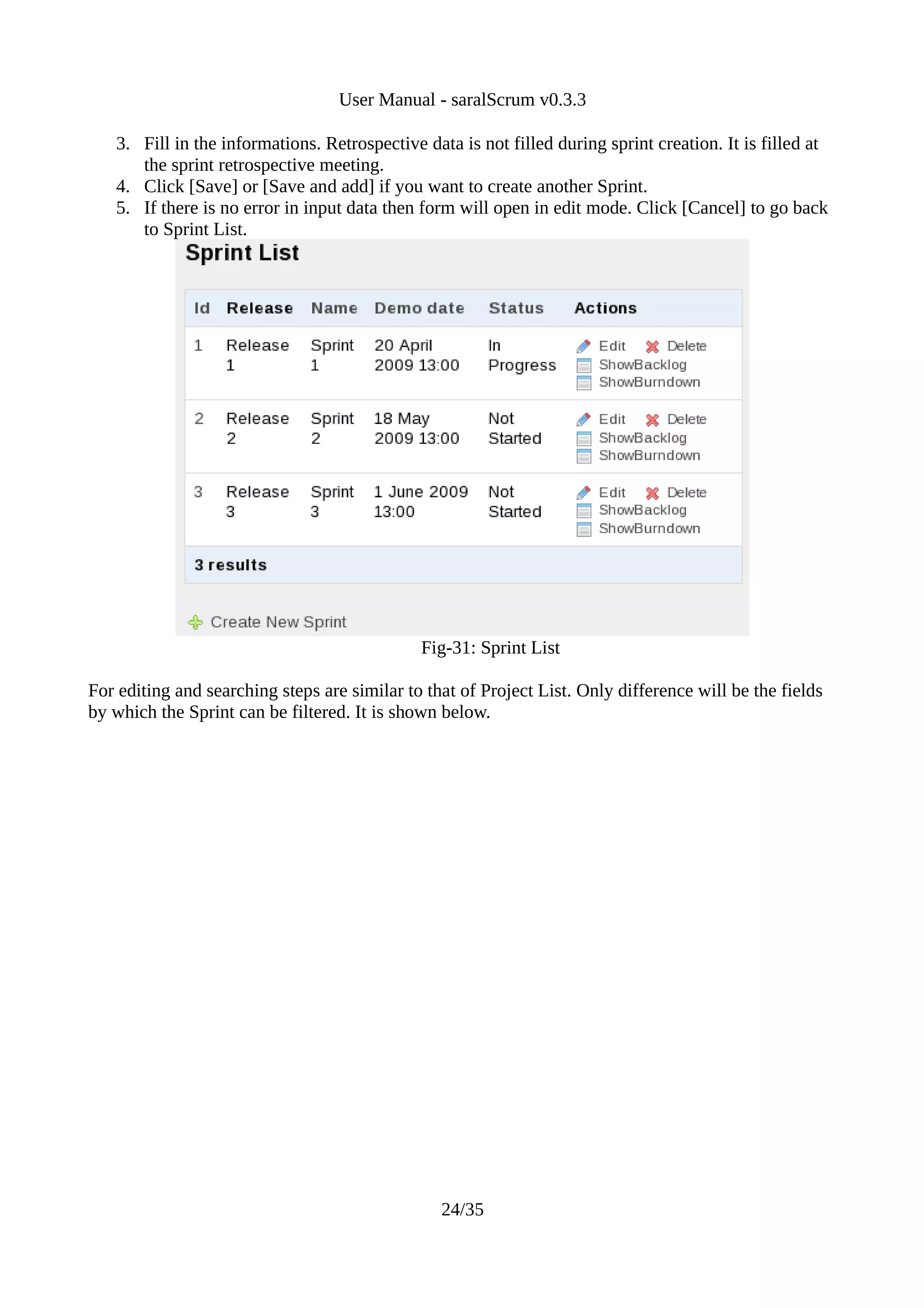

3. Fill in the informations. Retrospective data is not filled during sprint creation. It is filled at
the sprint retrospective meeting.
4. Click [Save] or [Save and add] if you want to create another Sprint.
to Sprint List.

Fig-31: Sprint List

by which the Sprint can be filtered. It is shown below.

24/35

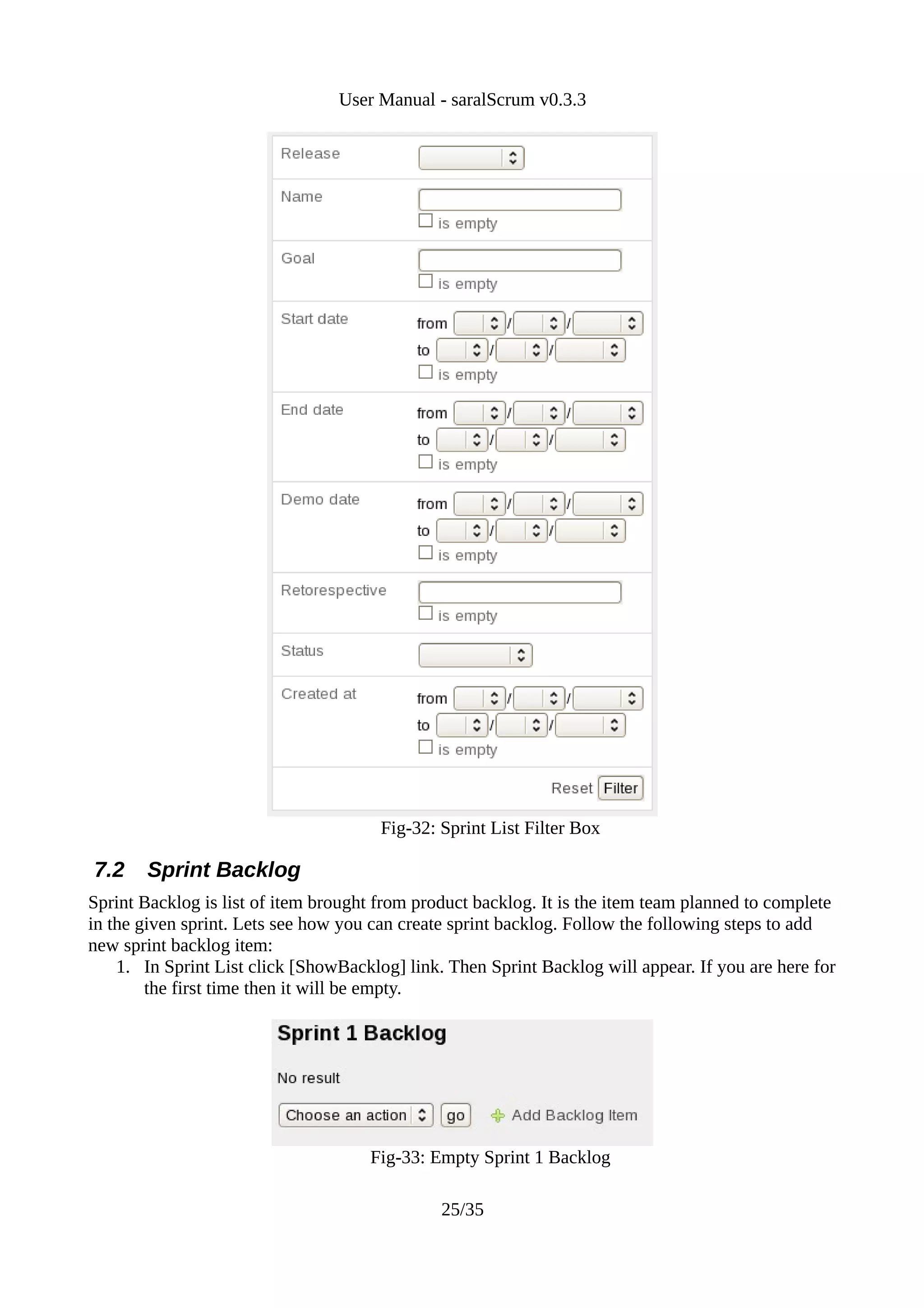

Fig-32: Sprint List Filter Box

7.2 Sprint Backlog
Sprint Backlog is list of item brought from product backlog. It is the item team planned to complete
in the given sprint. Lets see how you can create sprint backlog. Follow the following steps to add
new sprint backlog item:
1. In Sprint List click [ShowBacklog] link. Then Sprint Backlog will appear. If you are here for
the first time then it will be empty.

Fig-33: Empty Sprint 1 Backlog

25/35


2. Click [Add Backlog Item].

Fig-34: Sprint Backlog Item Addition Form

3. Select Sprint and Product Backlog item you want to put in the sprint.
4. Click [Save] or [Save and add] if you want to add another Backlog Item.
5. If there is no error in input data then it will go back to Sprint Backlog.

Fig-35: Sprint 1 Backlog

Sprint Backlog can be filtered by following fields as shown in following figure:

Fig-36: Sprint Backlog Filter Box

26/35


7.3 Tasks
After selecting product backlog item for a sprint and creating sprint backlog then those backlog
item needs to be further broken down to task level. It is job of team members. It is necessary for
tracking of the work in progress. Follow the following steps to create tasks for the backlog item:
1. In Sprint Backlog click [ShowTaskList] link. Then Task List will appear. If you are here for
the first time then it will be empty.

Fig-37: Empty Task List
2. Click [Add Task].

Fig-38: Task Addition Form
3. Fill in Task description and estimated hrs to complete the task.
4. Click [Save] or [Save and add] if you want to add another Task.
to Task List.

27/35


Fig-39: Task List

by which the Task List can be filtered. It is shown below.

Fig-40: Task List Filter Box

28/35


8 Burndown
Scrum is well known for making work visible. Burndown chart is main visibility tool for making
current status clear to everyone whether it is good or bad. In saralScrum there are two burndown
chart available. They are Sprint Burndown and Release Burndown.

8.1 Sprint Burndown
Sprint Burndown chart shows progress in current sprint. It is plotted hours of tasks left by days. In
starting it looks as follows.

Fig-41: Sprint 1 Burndown during starting
To see Sprint burndown click [ShowBurndown] in Sprint List. It should be updated after Daily
Scrum. After Daily Scrum, hours left for each checked out changed to remaining hours or set to
zero if they are complete. After that you just need to click [Record Current Hrs]. After that new data
point will appear in both chart and data table. After recording many data points chart will look as
follows.

29/35


Fig-42: Sprint Burndown at the end

8.2 Release Burndown
If a release has more than one sprints then Release Burndown is used to track the progress of work
across sprints. Data for release burndown is automatically recorded when status of Sprint is changed
from 'Not Started' to 'In Progress' and from 'In Progress' to 'Complete'. A typical example of Release
Burndown is shown below.

30/35


Fig-43: Release Burndown

31/35


9 Chat Meeting
In Scrum framework there are different meetings for information sharing between team members.
For planning there is sprint planning meeting. For updating daily status, there is daily scrum. For
closing sprint there are sprint review meeting and sprint retrospective meeting. In geographically
distributed team, face to face meeting is not possible. So saralScrum has chat feature to conduct
these different meetings. It is text chat where every team member can type their messages. For
every meeting Scrum Master creates different chat room. After which all the member joins the
room. First lets see how do we create new chat room. Follow the following steps for creating new
chat room.
1. In menu bar click [Chat] link. Then Chat rooms list will appear. If you are here for the first
time then it will be empty.
2. Click [Create New Chat Room] link. You will see following screen.

Fig-44: Chat Room Creation Form
3. Fill in Room name. Room name must be not repeating. If you enter same name as any room
previously created then error will be shown.
4. Click [Save] or [Save and add] if you want to create another room.
to Chat Rooms List.

Fig-45: Chat Rooms List

32/35


To join chat room for meeting just click [Join] in respective row of the chat room. Then chat room
will open in new window. It is shown below. One can join only those chat rooms which are not
locked.

Fig-46: Chat Room Window

The chat is similar to messaging system like famous msn and yahoo messenger. You just type text in
the input textbox and click send. Your message will appear in chat box. You can also use emoticons
to express emotion in iconic form.

In saralScrum, all chat text are automatically logged. It is very helpful for future reference. To view
past chat text just click [View] beside required chat room. It will show chat text as below.

33/35

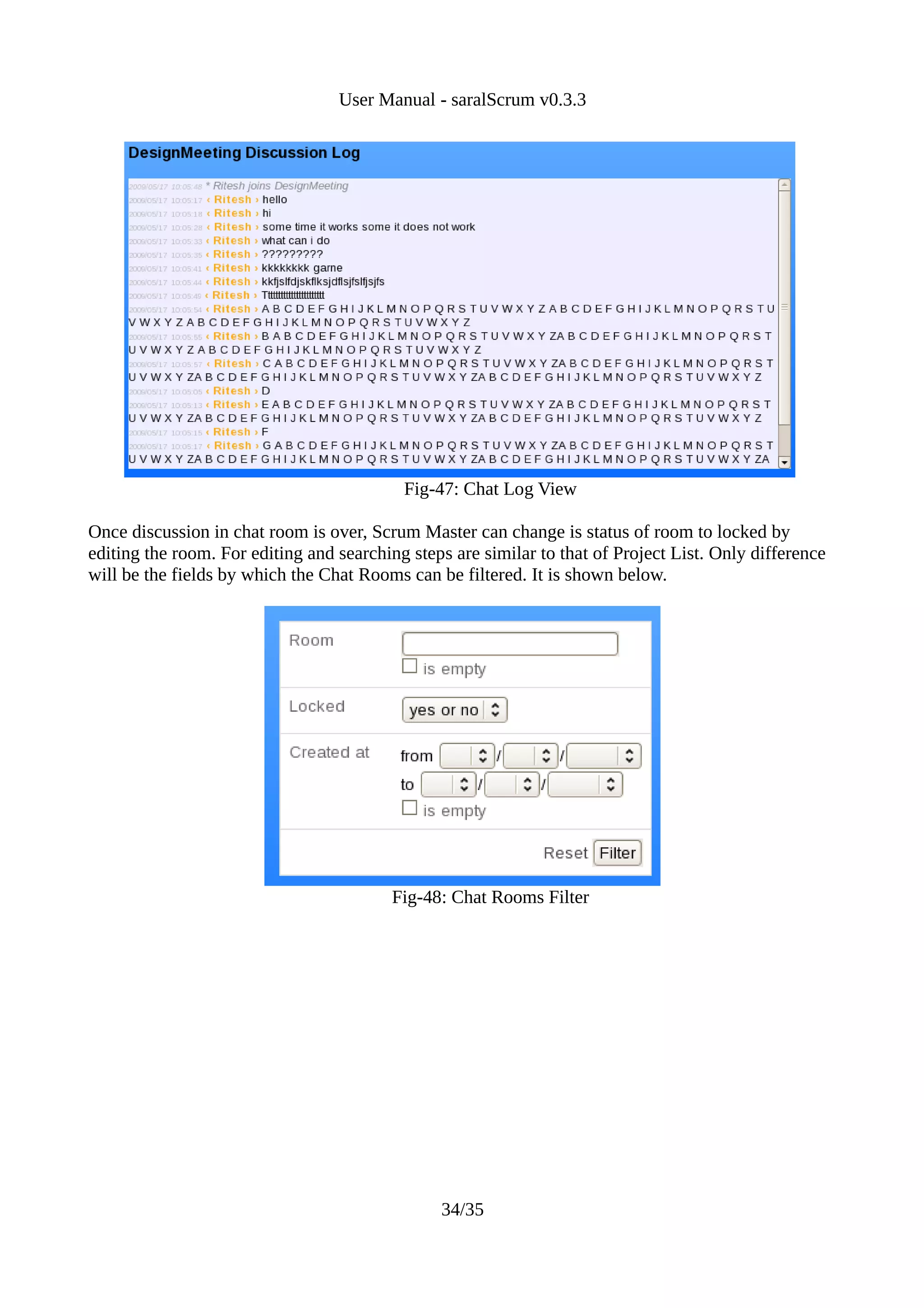

Fig-47: Chat Log View

Once discussion in chat room is over, Scrum Master can change is status of room to locked by
editing the room. For editing and searching steps are similar to that of Project List. Only difference
will be the fields by which the Chat Rooms can be filtered. It is shown below.

Fig-48: Chat Rooms Filter

34/35


Appendix A: Useful Scrum Links
● http://www.controlchaos.com/
● http://www.mountaingoatsoftware.com/scrum
● Agile Project Management with Scrum by Ken Schwaber

35/35

Saral scrumusermanual v0.3.3

More Related Content

Similar to Saral scrumusermanual v0.3.3

Recently uploaded

Saral scrumusermanual v0.3.3
