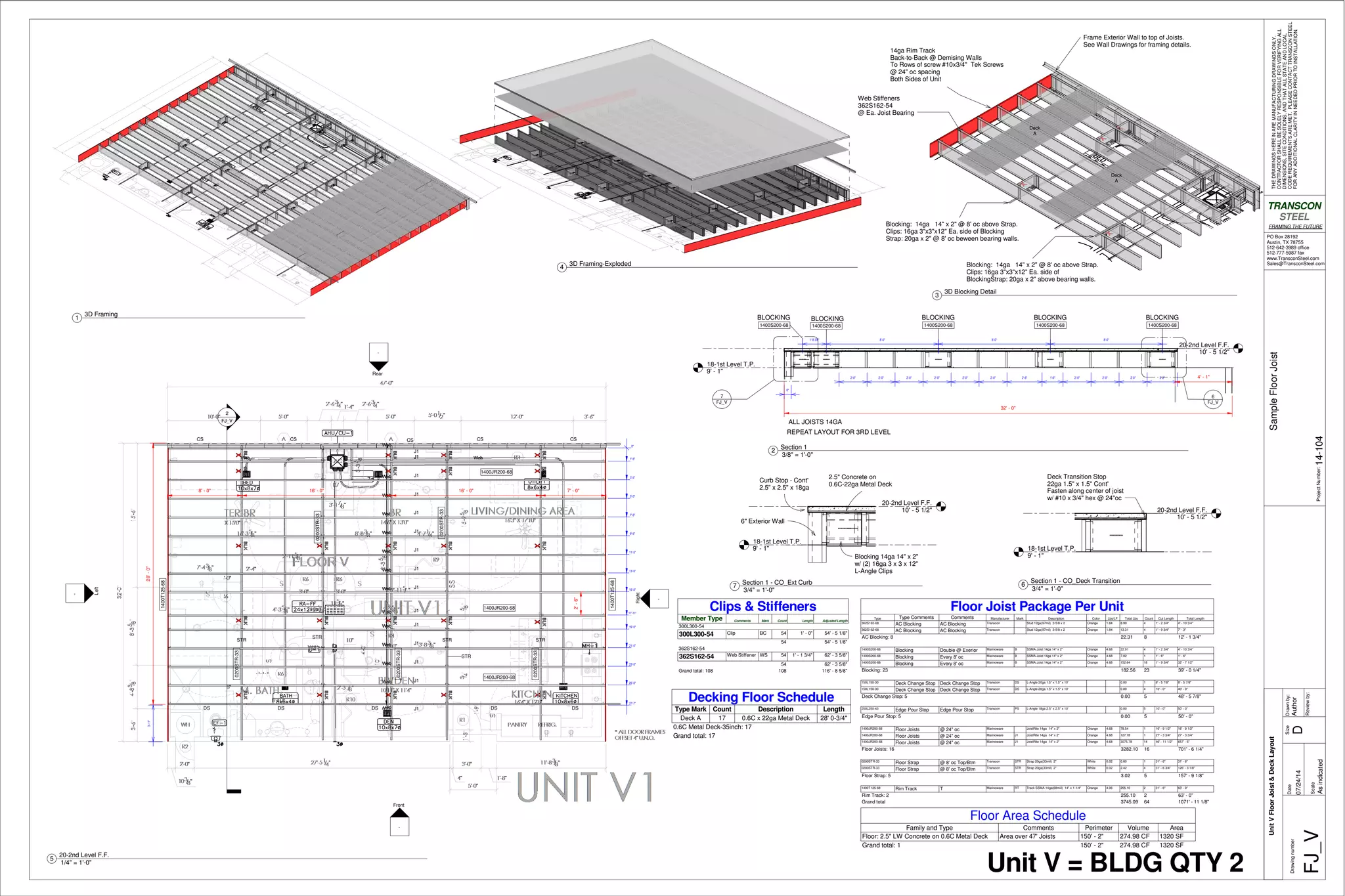

This document provides framing details for unit V, including floor joist layout and materials. It includes two levels of floor framing at heights of 10' 5-1/2" and 9' 1" respectively. Floor joists are 14 gauge and spaced 24 inches on center. Blocking is placed between bearing walls and at 8 foot intervals. Rim tracks and strapping are also specified. A deck transition and curb stop are detailed. The floor area is 1320 square feet over 47 foot joists. A bill of materials is provided listing member sizes, materials, quantities and lengths.

1. 20-2nd Level F.F.
10' - 5 1/2"
18-1st Level T.P.
9' - 1"
6"
2'-0" 2'-0" 2'-0" 2'-0" 2'-0" 2'-0" 2'-6" 1'-6" 2'-0" 2'-0" 2'-0" 2'-2" 4' - 1"
1400S200-68 1400S200-681400S200-681400S200-681400S200-68
1'-8 3/8" 8'-0" 8'-0" 8'-0"
REPEAT LAYOUT FOR 3RD LEVEL
ALL JOISTS 14GA
BLOCKING BLOCKING BLOCKING BLOCKING BLOCKING
32' - 0"
FJ_V
7
FJ_V
6
14ga Rim Track
Back-to-Back @ Demising Walls
To Rows of screw #10x3/4" Tek Screws
@ 24" oc spacing
Both Sides of Unit
Frame Exterior Wall to top of Joists.
See Wall Drawings for framing details.
Blocking: 14ga 14" x 2" @ 8' oc above Strap.
Clips: 16ga 3"x3"x12" Ea. side of Blocking
Strap: 20ga x 2" @ 8' oc beween bearing walls.
Blocking: 14ga 14" x 2" @ 8' oc above Strap.
Clips: 16ga 3"x3"x12" Ea. side of
BlockingStrap: 20ga x 2" above bearing walls.
Deck
A
Deck
A
Web Stiffeners
362S162-54
@ Ea. Joist Bearing
-
Front
-
-
-
Left
Right
Rear
8' - 0" 16' - 0" 16' - 0" 7' - 0"
2
FJ_V
3'-11"28'-0"
STR
DS DSDS J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1
J1J1
CS CS CS CS CS
DS DS
STR
STR
STR STR
1400T125-68
1400T125-68
1400JR200-68
1400JR200-68
1400JR200-68
0200STR-33
0200STR-33
0200STR-33
0200STR-33
0200STR-33
0"
1'-5"
3'-5"
5'-5"
7'-5"
9'-5"
11'-5"
13'-5"
15'-5"
17'-11"
19'-5"
21'-5"
23'-5"
25'-5"
27'-7"
J1
2'-6"
20-2nd Level F.F.
10' - 5 1/2"
18-1st Level T.P.
9' - 1"
Deck Transition Stop
22ga 1.5" x 1.5" Cont'
Fasten along center of joist
w/ #10 x 3/4" hex @ 24"oc
20-2nd Level F.F.
10' - 5 1/2"
18-1st Level T.P.
9' - 1"
Curb Stop - Cont'
2.5" x 2.5" x 18ga
2.5" Concrete on
0.6C-22ga Metal Deck
Blocking 14ga 14" x 2"
w/ (2) 16ga 3 x 3 x 12"
L-Angle Clips
6" Exterior Wall
Scale
ProjectNumber:
DateDrawnby:Size
D
STEEL
Drawingnumber
Reviewby:
TRANSCON
THEDRAWINGSHEREINAREMANUFACTURINGDRAWINGSONLY.
CONTRACTORSHALLBESOLELYRESPONSIBLEFORVERIFYINGALL
DIMENSIONS,SITECONDITIONS,ANDTHATALLSTATEANDLOCAL
CODEREQUIREMENTSAREMET.PLEASECONTACTTRANSCONSTEEL
FORANYADDITIONALCLARITYINNEEDEDPRIORTOINSTALLATION.
FRAMING THE FUTURE
PO Box 28192
Austin, TX 78755
512-642-3989 office
512-777-5987 fax
www.TransconSteel.com
Sales@TransconSteel.com
Asindicated
FJ_V
UnitVFloorJoist&DeckLayout
14-104
SampleFloorJoist
07/24/14
Author
1
3D Framing
Floor Joist Package Per Unit
Type Type Comments Comments Manufacturer Mark Description Color Lbs/LF Total Lbs Count Cut Length Total Length
362S162-68 AC Blocking AC Blocking Transcon Stud 12ga(97mil) 3-5/8 x 2 Orange 1.84 8.99 4 1' - 2 3/4" 4' - 10 3/4"
362S162-68 AC Blocking AC Blocking Transcon Stud 12ga(97mil) 3-5/8 x 2 Orange 1.84 13.31 4 1' - 9 3/4" 7' - 3"
AC Blocking: 8 22.31 8 12' - 1 3/4"
1400S200-68 Blocking Double @ Exerior Marinoware B SSMA Joist 14ga 14" x 2" Orange 4.68 22.91 4 1' - 2 3/4" 4' - 10 3/4"
1400S200-68 Blocking Every 8' oc Marinoware B SSMA Joist 14ga 14" x 2" Orange 4.68 7.02 1 1' - 6" 1' - 6"
1400S200-68 Blocking Every 8' oc Marinoware B SSMA Joist 14ga 14" x 2" Orange 4.68 152.64 18 1' - 9 3/4" 32' - 7 1/2"
Blocking: 23 182.56 23 39' - 0 1/4"
150L150-30 Deck Change Stop Deck Change Stop Transcon DS L-Angle 20ga 1.5" x 1.5" x 10' 0.00 1 8' - 5 7/8" 8' - 5 7/8"
150L150-30 Deck Change Stop Deck Change Stop Transcon DS L-Angle 20ga 1.5" x 1.5" x 10' 0.00 4 10' - 0" 40' - 0"
Deck Change Stop: 5 0.00 5 48' - 5 7/8"
250L250-43 Edge Pour Stop Edge Pour Stop Transcon PS L-Angle 18ga 2.5" x 2.5" x 10' 0.00 5 10' - 0" 50' - 0"
Edge Pour Stop: 5 0.00 5 50' - 0"
1400JR200-68 Floor Joists @ 24" oc Marinoware JoistRite 14ga 14" x 2" Orange 4.68 78.54 1 16' - 9 1/2" 16' - 9 1/2"
1400JR200-68 Floor Joists @ 24" oc Marinoware J1 JoistRite 14ga 14" x 2" Orange 4.68 127.78 1 27' - 3 3/4" 27' - 3 3/4"
1400JR200-68 Floor Joists @ 24" oc Marinoware J1 JoistRite 14ga 14" x 2" Orange 4.68 3075.78 14 46' - 11 1/2" 657' - 5"
Floor Joists: 16 3282.10 16 701' - 6 1/4"
0200STR-33 Floor Strap @ 8' oc Top/Btm Transcon STR Strap 20ga(33mil) 2" White 0.02 0.60 1 31' - 6" 31' - 6"
0200STR-33 Floor Strap @ 8' oc Top/Btm Transcon STR Strap 20ga(33mil) 2" White 0.02 2.42 4 31' - 6 3/4" 126' - 3 1/8"
Floor Strap: 5 3.02 5 157' - 9 1/8"
1400T125-68 Rim Track T Marinoware RT Track SSMA 14ga(68miil) 14" x 1-1/4" Orange 4.06 255.10 2 31' - 6" 63' - 0"
Rim Track: 2 255.10 2 63' - 0"
Grand total 3745.09 64 1071' - 11 1/8"
Decking Floor Schedule
Type Mark Count Description Length
Deck A 17 0.6C x 22ga Metal Deck 28' 0-3/4"
0.6C Metal Deck-35inch: 17
Grand total: 17
3/8" = 1'-0"
2
Section 1
3
3D Blocking Detail
4
3D Framing-Exploded
1/4" = 1'-0"
5
20-2nd Level F.F.
Unit V = BLDG QTY 2
3/4" = 1'-0"
6
Section 1 - CO_Deck Transition
3/4" = 1'-0"
7
Section 1 - CO_Ext Curb
Floor Area Schedule
Family and Type Comments Perimeter Volume Area
Floor: 2.5" LW Concrete on 0.6C Metal Deck Area over 47' Joists 150' - 2" 274.98 CF 1320 SF
Grand total: 1 150' - 2" 274.98 CF 1320 SF
Clips & Stiffeners
Member Type Comments Mark Count Length Adjusted Length
300L300-54
300L300-54 Clip BC 54 1' - 0" 54' - 5 1/8"
54 54' - 5 1/8"
362S162-54
362S162-54 Web Stiffener WS 54 1' - 1 3/4" 62' - 3 5/8"
54 62' - 3 5/8"
Grand total: 108 108 116' - 8 5/8"
