The document summarizes a rotating brush system for cleaning surfaces. The system consists of a 1.5mm stainless steel cover with spray nozzles mounted to a plastic housing. It comes in widths of 30, 56, or 104 cm with interchangeable brushes. When used with an A(S)1 machine, the system can be operated remotely using tap water, mineral-free water, or chemicals to intensively clean surfaces with less physical strain.

1. Rotating
brush
12V 24V

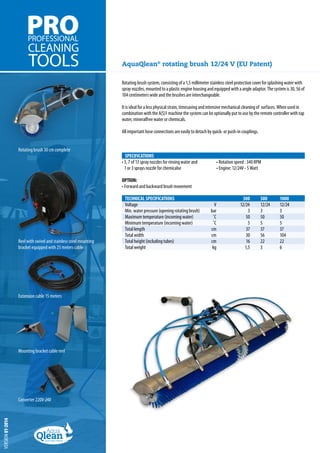

2. AquaQlean® rotating brush 12/24 V (EU Patent)
Rotating brush system, consisting of a 1,5 millimeter stainless steel protection cover for splashing water with
spray nozzles, mounted to a plastic engine housing and equipped with a angle adaptor. The system is 30, 56 of
104 centimeters wide and the brushes are interchangeable.
It is ideal for a less physical strain, timesaving and intensive mechanical cleaning of surfaces. When used in
combination with the A(S)1 machine the system can be optionally put to use by the remote controller with tap
water, mineralfree water or chemicals.
All important hose connections are easily to detach by quick- or push-in couplings.
Rotating brush 30 cm complete
SPECIFICATIONS
• 5, 7 of 13 spray nozzles for rinsing water and
1 or 3 sprays nozzle for chemicalse
• Rotation speed : 340 RPM
• Engine: 12/24V - 5 Watt
OPTION:
• Forward and backward brush movement
Reel with swivel and stainless steel mounting
bracket equipped with 25 meters cable
Extension cable 15 meters
Mounting bracket cable reel
versiON 01-2014
Converter 220V-24V
TECHNICAL SPECIFICATIONS
300
500
1000
Voltage V 12/24 12/24 12/24
Min. water pressure (opening rotating brush) bar
3 3
3
Maximum temperature (incoming water) ˚C 50 50 50
Minimum temperature (incoming water) ˚C
5
5
5
Total length cm 37 37
37
Total width cm 30 56
104
Total height (including tubes) cm 16 22 22
Total weight kg 1,5 3
6
