1. Salesforce Console Deep Dive
Salesforce Console for Sales & Service
Chad Kelly, Salesforce.com, Technical Solution Architect
@chadforce
Clement Tussiot, Salesforce.com, Senior Solution Architect
@ctussiot

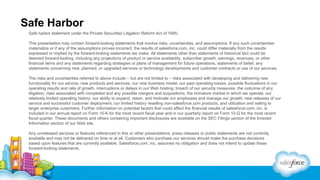

2. Safe Harbor
Safe harbor statement under the Private Securities Litigation Reform Act of 1995:
This presentation may contain forward-looking statements that involve risks, uncertainties, and assumptions. If any such uncertainties
materialize or if any of the assumptions proves incorrect, the results of salesforce.com, inc. could differ materially from the results
expressed or implied by the forward-looking statements we make. All statements other than statements of historical fact could be
deemed forward-looking, including any projections of product or service availability, subscriber growth, earnings, revenues, or other
financial items and any statements regarding strategies or plans of management for future operations, statements of belief, any
statements concerning new, planned, or upgraded services or technology developments and customer contracts or use of our services.
The risks and uncertainties referred to above include – but are not limited to – risks associated with developing and delivering new
functionality for our service, new products and services, our new business model, our past operating losses, possible fluctuations in our
operating results and rate of growth, interruptions or delays in our Web hosting, breach of our security measures, the outcome of any
litigation, risks associated with completed and any possible mergers and acquisitions, the immature market in which we operate, our
relatively limited operating history, our ability to expand, retain, and motivate our employees and manage our growth, new releases of our
service and successful customer deployment, our limited history reselling non-salesforce.com products, and utilization and selling to
larger enterprise customers. Further information on potential factors that could affect the financial results of salesforce.com, inc. is
included in our annual report on Form 10-K for the most recent fiscal year and in our quarterly report on Form 10-Q for the most recent
fiscal quarter. These documents and others containing important disclosures are available on the SEC Filings section of the Investor
Information section of our Web site.
Any unreleased services or features referenced in this or other presentations, press releases or public statements are not currently
available and may not be delivered on time or at all. Customers who purchase our services should make the purchase decisions
based upon features that are currently available. Salesforce.com, inc. assumes no obligation and does not intend to update these
forward-looking statements.

3. Chad Kelly
Technical Solution Architect
@chadforce

4. Clemont Tussiot
Senior Solution Architect
@ctussiot

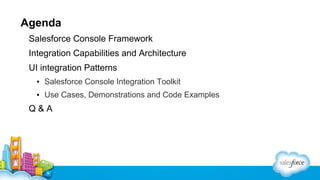

5. Agenda
Salesforce Console Framework
Integration Capabilities and Architecture
UI integration Patterns
▪ Salesforce Console Integration Toolkit
▪ Use Cases, Demonstrations and Code Examples
Q&A

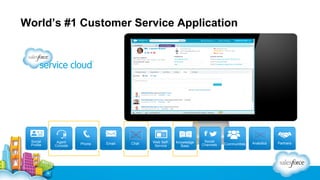

6. World’s #1 Customer Service Application
Social
Profile
Agent
Console
Phone
Email
Chat
Web SelfService
Knowledge
Base
Social
Channels
Communities
Analytics
Partners

7. Leveraged Web Technologies
Force .com Canvas
Aura UI

8. Salesforce Console Architecture
App Header & Global Search
Highlight Panel / Workspace Component
Header Component
Pinned
List
Left
Sideb
ar
Left
Sideb
ar
Detail Record
Right
Sideb
ar
Detail Footer Component
Highlight Panel / Workspace Component
Footer / Bottom Bar
Right
Sideb
ar

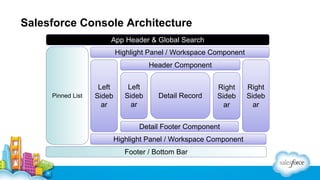

9. Salesforce Console Architecture
App Header & Global Search
Highlight Panel / Workspace Component
Header Component
Pinned List
Left
Sideb
ar
Left
Sideb
ar
Detail Record
Right
Sideb
ar
Detail Footer Component
Highlight Panel / Workspace Component
Footer / Bottom Bar
Right
Sideb
ar

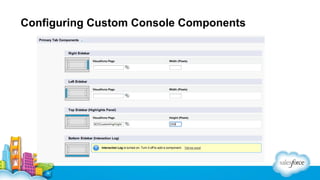

10. Configuring Custom Console Components

11. Standard
Objects
Reports/
Dashboards
Visualforce
Open CTI
Custom
Objects
Live Agent
3rd Party web
pages/ web tabs
Canvas Apps
Chatter
Standard
Components
Salesforce Console Integration Toolkit
Component Framework – Primary Tabs, Subtabs, Navigation Tab, Footer, Sidebar Components
Keyboard Shortcuts, Push
Notifications
Salesforce Console Integration Capabilities

12. Out of the Box UI Integration Patterns
Approach
Pros
Cons
Push Notifications
• Managed via Configuration
• Can subscribe by object/field
• 10K events in a given 24 hours
governor

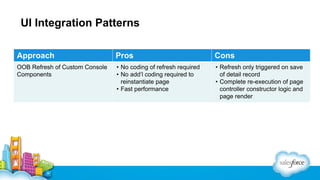

13. UI Integration Patterns
Approach
Pros
Cons
OOB Refresh of Custom Console
Components
• No coding of refresh required
• No add’l coding required to
reinstantiate page
• Fast performance
• Refresh only triggered on save
of detail record
• Complete re-execution of page
controller constructor logic and
page render

14. UI Integration Patterns
Approach
Pros
Cons
Salesforce database persistence
• Easy to Code
• Data persists forever
• Record Storage Required
• Presentation on another screen
requires DML query

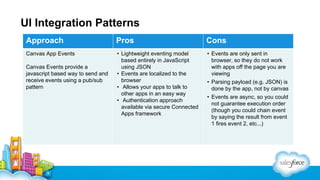

15. UI Integration Patterns
Approach
Pros
Cons
Canvas App Events
• Lightweight eventing model
based entirely in JavaScript
using JSON
• Events are localized to the
browser
• Allows your apps to talk to
other apps in an easy way
• Authentication approach
available via secure Connected
Apps framework
• Events are only sent in
browser, so they do not work
with apps off the page you are
viewing
Canvas Events provide a
javascript based way to send and
receive events using a pub/sub
pattern
• Parsing payload (e.g. JSON) is
done by the app, not by canvas
• Events are async, so you could
not guarantee execution order
(though you could chain event
by saying the result from event
1 fires event 2, etc...)

16. Salesforce Console Integration Toolkit
▪ What is the Salesforce Console Integration Toolkit?
▪ Why is it cool?
▪ What does it do?
What Does it Do?
Primary Tabs and
Subtabs
Computer-Telephony
Integration
Communication b/t
components
openPrimaryTab()
sendCTIEvent()
fireEvent()
addEventListener()

17. Integration Toolkit Customer Use Cases
Challenge The solution must render a custom screen pop with
several sub tabs
Solution Use the salesforce console integration toolkit
openPrimaryTab() method to launch one primary tab and use the
openSubTab() method to launch one or many sub tabs within that
console

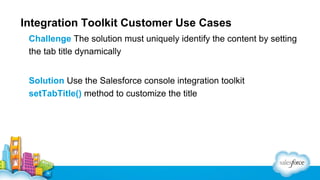

18. Integration Toolkit Customer Use Cases
Challenge The solution must uniquely identify the content by setting
the tab title dynamically
Solution Use the Salesforce console integration toolkit
setTabTitle() method to customize the title

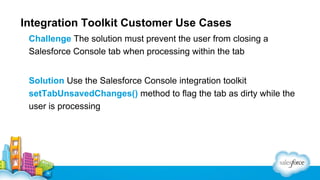

19. Integration Toolkit Customer Use Cases
Challenge The solution must prevent the user from closing a
Salesforce Console tab when processing within the tab
Solution Use the Salesforce Console integration toolkit
setTabUnsavedChanges() method to flag the tab as dirty while the
user is processing

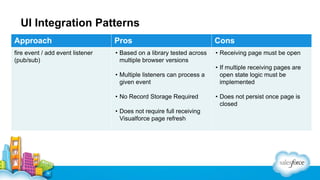

20. UI Integration Patterns
Approach
Pros
Cons
fire event / add event listener
(pub/sub)
• Based on a library tested across
multiple browser versions
• Receiving page must be open
• Multiple listeners can process a
given event
• No Record Storage Required
• Does not require full receiving
Visualforce page refresh
• If multiple receiving pages are
open state logic must be
implemented
• Does not persist once page is
closed

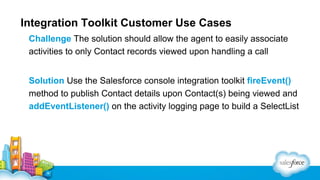

21. Integration Toolkit Customer Use Cases
Challenge The solution should allow the agent to easily associate
activities to only Contact records viewed upon handling a call
Solution Use the Salesforce console integration toolkit fireEvent()
method to publish Contact details upon Contact(s) being viewed and
addEventListener() on the activity logging page to build a SelectList

22. Integration Toolkit Customer Use Cases
Challenge When a change is made in one area of the application
the solution must automatically refresh other area(s) of the solution
Solution Use the Salesforce console integration toolkit fireEvent()
method to publish a request triggered by the desired behavior and
addEventListener() to refresh the target component(s)

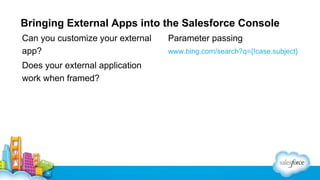

23. Bringing External Apps into the Salesforce Console
Can you customize your external
app?
Does your external application
work when framed?
Parameter passing
www.bing.com/search?q={!case.subject}

24. Gotchas
No initial type check on Javascript upon saving
Test on multiple browsers
Use alerts e.g. alert(’is this working?');
Don’t forget to include the resource in your visualforce page and mind
the API version <apex:includeScript value="/support/console/28.0/integration.
js"/>
Leverage Google Chrome developer tools to debug javascript
▪ Ctrl + Shift + I (Mac: ⌥⌘I) keys to open

25. UI Integration Patterns
Approach
Pros
Cons
Browser Session storage
persistence
• Fast (No server script)
• No Record Storage Required
• Requires logic to manage state
to determine which primary tab
is applicable
• Does not require receiving page
to be open
• Persists globally regardless of
page close

26. Standard
Objects
Reports/
Dashboards
Visualforce
Open CTI
Custom
Objects
Live Agent
3rd Party web
pages/ web tabs
Canvas Apps
Chatter
Standard
Components
Salesforce Console Integration Toolkit
Component Framework – Primary Tabs, Subtabs, Navigation Tab, Footer, Sidebar Components
Keyboard Shortcuts, Push
Notifications
Salesforce Console Integration Capabilities

27. Resources
• Salesforce Console Integration Toolkit Developers Guide
http://www.salesforce.com/us/developer/docs/api_console/index.htm
• w3 Schools Javascript Reference
http://www.w3schools.com/js
• Canvas Developer Guide
http://www.salesforce.com/us/developer/docs/platform_connectpre/canvas_framework.pdf
