HandsFree Power Hatch Lift
Roof Hatch Safety Rails
Perimeter / Edge Rail Systems
Roof Hatches

OSHA Compliant, 360° Guard
Rails are Guaranteed to Last for
20 Years
Self-Closing Gate Doubles as a
Built-In Extension to the Ladder
Save on Installation Cost: Attach
4 Steel Sides to Any Hatch Size/
Brand
U.S. Patent Number: 5,726,577
CONTACT US TODAY FOR A FREE QUOTE! 877.723.3570
WWW.SAFEPROSAFETY.COM
Ability to Customize and Retro-Fit to any Hatch

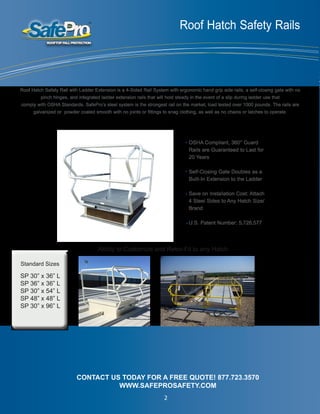

Roof Hatch Safety Rail wtih Ladder Extension is a 4-Sided Rail System with ergonomic hand grip side rails, a self-closing gate with no
pinch hinges, and integrated ladder extension rails that will hold steady in the event of a slip during ladder use that
comply with OSHA Standards. SafePro’s steel system is the strongest rail on the market, load tested over 1000 pounds. The rails are
galvanized or powder coated smooth with no joints or fittings to snag clothing, as well as no chains or latches to operate.
Standard Sizes
SP 30” x 36” L
SP 36” x 36” L
SP 30” x 54” L
SP 48” x 48” L
SP 30” x 96” L
2

Data Sheet
Product Description: Roof Hatch Fall Protection Safety Rail System with Ladder Extension by
SafePro™ provides an ergonomically correct grip with an upright egress and ingress through roof
hatches in addition to protection from accidental falls through roof opening while roof hatch is open.
Includes a wrap around self-closing gate mounted on heavy duty non-pinch hinges acting as a ladder
extension. Meets and exceeds OSHA standard CFR29 1910.23 and CFR 29 1910.27. Railing is 42” high
when mounted per instructions on standard cap flashing. Meets and exceeds Cal-OSHA §3212 Floor
Openings, Floor Holes and Roofs and §3209 Standard Guidelines.
Product Selection Criteria: For standard 30” x 36” Model SP-3036 and 36” x 36” Model SP-3636 (in
stock) and all/any other sizes (custom built) hatches with hatchway ladder mounted on opposite hatch
hinge lid.
Type of Installation: New or retrofit permanent bolt on mounting of right and left handed integrated,
prefabricated horizontal mounting rails, ergonomic forward protruding stanchions, guard railings, mid rail
sections and rear stanchions and quick hang gravity gate as per supplied installation instructions and
mounting hardware.
Materials:
Mounting System: Integrated stanchions, no fittings. Mounting holes predrilled for 3/8” diameter through
bolts. Rail is mounted to extended cap flashing holes per SafePro Installation Instructions.
Tubing: 1 ½” OD .083 wall hot-rolled electric welded (HREW) steel.
Finish: Galvanized or powder-coated safety yellow; other colors available on request.
Gate System: Gravity self-closing with spring assist, non-collapsible full wrap-around 1 ½” tubing grab
hold (welded – no fittings). Heavy duty hinges with 5/8” hinge pin with built-in pinch-less gate stop and
pull up full opening positioning. Wraps around forward protruding ergonomic hand grip stanchions.
Hinged on left side – standard; right hand swing open – special order.
Back Cross Support Rail: Standard equipment 1 ½” steel tubing (HREW) smooth saddle joint bolt-on
with 3/8” x 3” bolts and 3/8” tubing connector nuts. ASTM 316 SS
Tube Terminal End Plugs: UV resistant Low Density Polyethylene (LDPE). Head Diameter 1.5 in; plug
length 0.511 in, fits cleanly at tube ends keeping out water, pests and debris.
Bolts and Washers: ASTM 316 Grade Stainless Steel hex head bolts 3/8” x 2 ½”, nylon locking hex nut,
flat washers for counter flashing and outside mounting rail. NOTE: 316 Grade Stainless Steel (Marine
grade) offers the highest corrosion resistance available for construction fasteners in or near salt water;
recommended within 5 land miles of any salt water body. MIL NAS Military grade available upon request.
Labels: Safety warnings, manufacturer’s identification including patent numbers. Made in the United
States.
Installation: SafePro Roof Hatch Safety Rail System and Ladder Extension Installation Instructions
included with each system. To reduce liability and insure proper installation SafePro has certified
professional installers nationwide.
Warranty: 20 year manufacturer’s parts only. One year limited finish warranty
U.S. Patent Number: 5,726,577
Manufactured by: SafePro™
3

§1910.23(a)(1) require that any hatch, hinged and/or has ladder
access, must have either a permanent or removable safety rail.
(Fines up to $250k)
§1910.23(a)(2) Every ladderway floor opening or platform shall be
guarded by a standard railing with standard toeboard on all exposed
sides (except at entrance to opening), with the passage through the
railing either provided with a swinging gate or so offset that a person
cannot walk directly into the opening.
§1910.23(e) “Railing, toe boards, and cover specifications.”
§1910.23(e)(1) A standard railing shall consist of top rail,
intermediate rail, and posts, and shall have a vertical height of 42
inches nominal from upper surface of top rail to floor, platform,
runway, or ramp level. The top rail shall be smooth-surfaced
throughout the length of the railing. The intermediate rail shall be
approximately halfway between the top rail and the floor, platform,
runway, or ramp. The ends of the rails shall not overhang the
terminal posts except where such overhang does not constitute a
projection hazard.
§1910.23(e)(2) A stair railing shall be of construction similar to a
standard railing but the vertical height shall be not more than 34
inches nor less than 30 inches from upper surface of top rail to
surface of tread in line with face of riser at forward edge of tread.
§1910.23(e)(3)(ii) For pipe railings, posts and top and intermediate
railings shall be at least 1 1/2 inches nominal diameter with posts
spaced not more than 8 feet on centers.
§1910.23(e)(5)(ii) The height of handrails shall be not more than 34
inches nor less than 30 inches from upper surface of handrail to
surface of tread in line with face of riser or to surface of ramp.
§1910.23(e)(5)(iv) The mounting of handrails shall be such that the
completed structure is capable of withstanding a load of at least 200
pounds applied in any direction at any point on the rail.

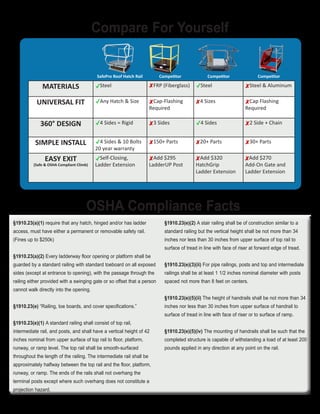

OSHA Compliance Facts
4
MATERIALS Steel FRP (Fiberglass) Steel Steel & Aluminum
UNIVERSAL FIT Any Hatch & Size Cap-Flashing
Required
4 Sizes Cap Flashing
Required
360° DESIGN 4 Sides = Rigid 3 Sides 4 Sides 2 Side + Chain
SIMPLE INSTALL 4 Sides & 10 Bolts
20 year warranty
150+ Parts 20+ Parts 30+ Parts
EASY EXIT
(Safe & OSHA Compliant Climb)
Self-Closing,
Ladder Extension
Add $295
LadderUP Post
Add $320
HatchGrip
Ladder Extension
Add $270
Add-On Gate and
Ladder Extension
SafePro Roof Hatch Rail Competitor Competitor Competitor
Compare For Yourself

5
Roof Hatch Safety Rail Assessment Form
Project Name Project Address
I. HATCH INFORMATION
II. VISUAL ORIENTATION
Hatch Manufacturer:
Bilco
Babcock-Davis
Dur-Red
Elmdor
Lane-Aire
Milcor
Nystrom
Other:
Hatch Construction:
Steel Aluminum
Hatch Condition:
New Hatch - Model #
Existing Hatch (Please attach pictures)
If installing on an exhisting hatch, is the hatch
able to withstand the 200 lbs. of force required
by OSHA standards:
Yes (Current hatch is in good working order)
No (Hatch will need replacement
Other Observations:
III. AGREEMENT
The SafePro™ Roof Hatch Assessment Form is required for all orders. A separate form is required for each hatch. All rails are made to specifications
and measurements defined above, guaranteed to fit your roof hatch properly if the form is completed correctly. If SafePro™ is found to be in error
when manufacturing your rail, SafePro™ will replace or fix the problem at no cost. If you make an error in defining the correct measurements on this
form, SafePro™ will remake the rail at your cost. For this reason, SafePro™ recommends you indicate your measurements correctly on this form. By
signing this form, you acknowledge and agree to all of the above terms and conditions.
Name, Title Company
Signature Date
”
”
Mark:
1. Place an X on the L to identify ladder
2. Gate hinge with “G”
3. Side A and B measurements
4. Ladder Height for RiskPro: ____ft.
Tips:
* Measure just above the drip edge
where rail will mount
* Always hinge gate to open towards
roof edge
*For stairs rail hinge is typically on
hatch hinge side
* View measuring video on Youtube
Choose Roof Hatch Rail Finishing:
Galvanized Yellow Powder Coating
Custom Color:
A
B
L L
L

OSHA / CAL-OSHA compliant
Hands-free open / close / lock / unlock
Retrofit to any size hatch
Restrict unauthorized rooftop access
Track approved users & access
duration
Solar-powered features
Integrate with your existing security
system

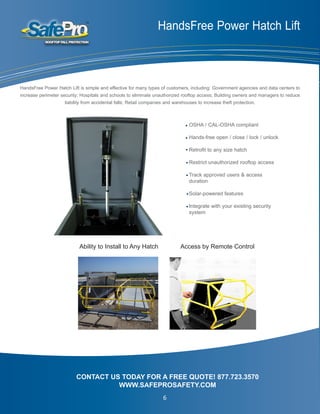

HandsFree Power Hatch Lift is simple and effective for many types of customers, including: Government agencies and data centers to
increase perimeter security; Hospitals and schools to eliminate unauthorized rooftop access; Building owners and managers to reduce
liability from accidental falls; Retail companies and warehouses to increase theft protection.
Ability to Install to Any Hatch Access by Remote Control
6

Data Sheet
Product Description: HandsFree Power Hatch Lift System Standard Options: Solar or 110V by
SafePro™ provides fall protection by unlocking/locking and lifting the hatch lid from the safety of
ground level providing a safe ladder climb and egress/ ingress through the roof access hatch. The
system also provides protection from accidental falls through a roof opening by push button closure of
hatch lid, eliminating open hole violations per OSHA Regulation 1910.23. Assists end user with
compliance of OSHA CFR 1910.23.
Product Selection Criteria: Fits all brands and a variety of roof hatch sizes with hatchway hinge lid.
Type of Installation: New or retrofit permanent bolt on mounting on hatch curb back wall (hinged side)
and hatch cover with turnbuckle connector attached to standard hatch manufacturer’s latching
mechanism as per supplied instructions and provided mounting hardware.
Materials:
Mounting System: Bracing back bracket actuator base: heavy duty, hot rolled steel (HREW), 18” x 5” x
3 ½” with pre-bored adjustable mounting slots for 5/16” x 3/4” body bolts painted black finish,
repositioning pre-bored pivot holes for 3/8” zinc plated bolt.
Hatch Lid Pivot Bracket Locking Assembly: Hatch Lid Pivot Bracket Locking Assembly: repositioning
pre-bored pivot holes and stops for 3/8” actuator pivot pin, pivot plates and 3/8” bolts, zinc plated.
Mounted per SafePro’s Installation Instructions.
Finish: Powder-coated black.
Lift System: SafePro™ Hatch Lift Actuator AC/DC permanent magnet motor, 5A interrupt time: 2 min/10
min high-strength housing protecting motor and gears. Built-in limit switches (non-adjustable) CE
certified, RoHS compliant.
SafePro™ Solar Power Lift Control Power Supply: 10 Watt maintenance-free solar panel
and 12 Volt, 9.0 ah, Sealed Lead Acid battery or SafePro 110V Power Lift
Control Power Supply with Trickle Charger: Input: AC120Volt/60Hz Output: 12VDC/5A rating
OPP: Overpower (overload) Protection
Plug Connection: 1-linear actuator and 1 wired keypad/remote with 30’ cable
Handheld Wireless Remote Control: Standard
Wired Wall Mounted Keypad, Backlit: Standard Wired Wall Mounted Remote Control
with (2) proximity cards
Color: Black and natural anodized Aluminum
Hardware: Flat washers, emergency release actuator head clevis pin, 3/8” x 16 x 3-1/4” carriage bolts;
3/8” x 16 lock nuts; 5/16” x ¾” body bolts; 5/16” clevis pin, 3/8” cotter pin; nylon spacers; 1/4” x ¾”
self-tapping screws; two-hole clevis plate; three-hole pivot plates.
Labels: Safety warnings, manufacturer’s identification including patent numbers. Made in the United
States.
Installation: SafePro™ HandsFree Power Hatch Lift System Installation Instructions included with each
system. To reduce liability and insure proper installation SafePro™ has certified professional installers
nationwide.
Warranty: One year manufacturer’s parts only warranty. One year limited finish warranty.
7

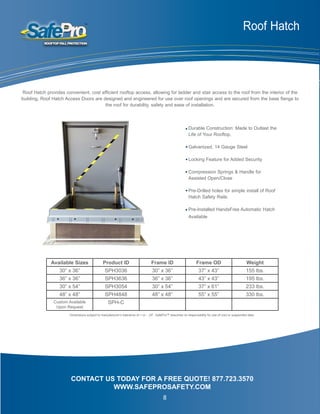

Roof Hatch
Durable Construction: Made to Outlast the
Life of Your Rooftop.
Galvanized, 14 Gauge Steel
Locking Feature for Added Security
Compression Springs & Handle for
Assisted Open/Close
Pre-Drilled holes for simple install of Roof
Hatch Safety Rails
Pre-Installed HandsFree Automatic Hatch
Available
Roof Hatch provides convenient, cost efficient rooftop access, allowing for ladder and stair access to the roof from the interior of the
building. Roof Hatch Access Doors are designed and engineered for use over roof openings and are secured from the base flange to
the roof for durability, safety and ease of installation.
Available Sizes Product ID Frame ID Frame OD Weight
30” x 36” SPH3036 30” x 36” 37” x 43” 155 lbs.
36” x 36” SPH3636 36” x 36” 43” x 43” 195 lbs.
30” x 54” SPH3054 30” x 54” 37” x 61” 233 lbs.
48” x 48” SPH4848 48” x 48” 55” x 55” 330 lbs.
Custom Available
Upon Request
SPH-C
Dimensions subject to manufacturer’s tolerance of + or - .25”. SafePro™ assumes no responsibility for use of void or suspended data.
8

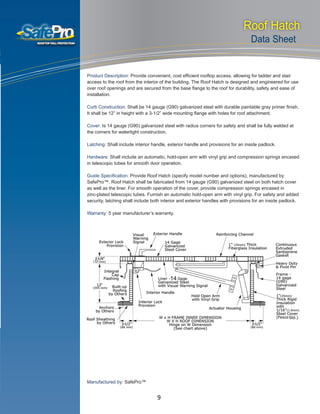

SERVICES AVAILABLE
Technical Support
Installation and Setup
Maintenance
Application Support
Hardware Support
Guaranteed Warranty
Roof Hatch
Data Sheet
Product Description: Provide convenient, cost efficient rooftop access, allowing for ladder and stair
access to the roof from the interior of the building. The Roof Hatch is designed and engineered for use
over roof openings and are secured from the base flange to the roof for durability, safety and ease of
installation.
Curb Construction: Shall be 14 gauge (G90) galvanized steel with durable paintable gray primer finish.
It shall be 12” in height with a 3-1/2” wide mounting flange with holes for roof attachment.
Cover: Is 14 gauge (G90) galvanized steel with radius corners for safety and shall be fully welded at
the corners for watertight construction.
Latching: Shall include interior handle, exterior handle and provisions for an inside padlock.
Hardware: Shall include an automatic, hold-open arm with vinyl grip and compression springs encased
in telescopic tubes for smooth door operation.
Guide Specification: Provide Roof Hatch (specify model number and options), manufactured by
SafePro™. Roof Hatch shall be fabricated from 14 gauge (G90) galvanized steel on both hatch cover
as well as the liner. For smooth operation of the cover, provide compression springs encased in
zinc-plated telescopic tubes. Furnish an automatic hold-open arm with vinyl grip. For safety and added
security, latching shall include both interior and exterior handles with provisions for an inside padlock.
Warranty: 5 year manufacturer’s warranty.
9

Bundled Options
Safety Hatch HandsFree Hatch RiskPro Premium
A + B+C
+ Pre-Assembled + Extended Warranty
A + B
+ Pre-Assembled + Extended Warranty
SafePro™ offers discounted Bundled Packages
A B C
A + C
SafeGuard Starter Bundle
(10) 10’ Railings + 11 Bases
(all hardware included)
SAVE
$100
SAVE
$500
SAVE
$1000
RiskPro
B + C
SAVE
$300
SAVE
$500
Roof Hatch HandsFree Power Hatch Lift Roof Hatch Safety Rail
10

RiskPro
RiskPro
Combination for a High-Risk Hatch Solution
OSHA Compliant, 360° Guard Rails
are Guaranteed to Last for 20 Years
Self-Closing Gate Doubles as a Built-
In Extension to the Ladder
Save on Installation Cost: Attach 4
Steel Sides to Any Hatch Size/Brand
OSHA / CAL-OSHA compliant
Attach to any size hatch to
automatically open/close and lock/
unlock
Restrict unauthorized rooftop access
Track approved users & access
duration with magnetic card reader
Solar-powered option features
integrate with your existing security
system
RiskPro Roof Hatch Fall Protection System combines both the HandsFree Power Hatch Lift (Fall Protection) System and the Roof
Hatch Safety Rail with Integrated Ladder Extension System into one complete solution.
Ability to Install to Any Size HatchWireless Remote and Keypad Access
11

SafeGuard
10’, 8’, 6’ & 4’ Steel Rails & Weighted
Bases/Non-Penetrating Protection
Multi-Purpose Configurations:
Short/Long-Term, Indoor/Outdoor Usage
Exceeds OSHA Standards/Saves Time &
Cost v. Other Safety Precautions
Standard Colors: Galvanized or Safety
Yellow Powder-coat
SafeGuard serves as a temporary hazard barricade during rooftop construction or for long term applications. Ballasted,
Non-Penetrating Steel Bases are built to last and will not void existing rooftop warranty. SafeGuard can be configured as a 4-sided
structure to guard skylights and other rooftop fall hazards, open holes, or ground-level for multiple uses.
Available in 10’, 8’, 6’ & 4’ Sections Bases with Locking Pin
12

SafeGuard
Data Sheet
Product Description: Guard rail system by SafePro™ provides strength and stability for rooftop
protection. SafeGuard system assembled is compliant with OSHA CFR 1926, OSHA CFR 1910.23, and
Cal-OSHA 3212 & 3209 standards to meet and exceed minimum strength and stability requirements.
Application: Serves as a temporary hazard barricade during rooftop construction or for long term
applications. Ballasted, Non-Penetrating steel design is constructed to last and will not void existing
rooftop warranty. Can be configured as a 4-sided structure to guard skylights and other rooftop fall
hazards, roof edge or ground-level for multiple uses.
Product Selection Criteria: Free Standing 10’,8’,6’ and 4’ guard rails, all or any size come with ballasted
base and pins for installation. Non-penetrating guard rail systems are composed of 1.5” OD diameter
round steel tube railing sections and are attached to weighted steel bases. Assembled, the system
measures nominally 42” in height with a single mid-rail at mid-height.
Materials:
A. Guard Rails available in 10’,8’,6’ and 4’ sections and are composed of 1.5” OD .083 wall
galvanized or powder-coated steel tubing. Assembled, the system measures nominally 42”
in height with a single mid-rail at mid-height to meet and/or exceed minimum strength
requirements for compliance with OSHA 1926, OSHA 1910.23, and Cal-OSHA 3212 & 3209
standards.
B. Base weighs 90 lbs.
i. .5” powder-coated or galvanized steel
ii. Measures 20” x 20”
iii. Two (2) .5” diameter steel carrying handles for easy transportation
iv. Two (2) extensions rods for attachment to rails measuring 5.5” in length / tall and
1.0625” in diameter with .5” predrilled holes to securely attach rails to base using
two (2) .25” locking pins
Installation: Railing sections are joined together by sliding directly onto steel base extension rods for
easy set up and break down for use on either permanent or short term configurations. Instructions
included. SafePro™ reccommends the use of toe boards and outriggers for stability safety.
Finish: Galvanized or Powder-coated safety yellow; other colors available upon request.
Warranty: 20 year manufacturer’s parts only on permanent installations. One year limited finish
warranty. For applicable opportunities and details visit www.safeprosafety.com or contact SafePro™ at
877.723.3570
Manufactured by: SafePro™. Engineer Tested. Official Document available upon request.
13

High Risk Hatches
When to Consider a HandsFree Power Hatch Lift:
High Risk Hatches require HandsFree solutions: Automatic Open, Close & Lock Hatch before ascending ladder.
Hatch Location
Lighting
Access Issues
No Cage
Over 11 feet
Impeded or interrupted
No Hassle with padlock
Hatch
Ladder
Access
Rooftop
Security
Theft by access
Children access
High level secuirty
Pad Lock being used
High Risk
Location
High
Traffic
Hatches
Access by vendors or
employees
4 times/ yr = Active Roof
Roof
Weather
Conditions
Hatch
Size
Sizes over 36” x 36”
becomes safety concern
Wind, snow, rain, ice or
high temperatures
14

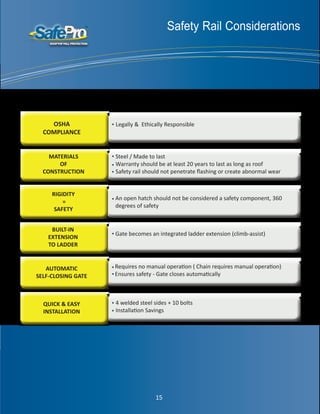

An open hatch should not be considered a safety component, 360
degrees of safety
Safety Rail Considerations
OSHA
COMPLIANCE
Legally & Ethically Responsible
Steel / Made to last
Warranty should be at least 20 years to last as long as roof
Safety rail should not penetrate flashing or create abnormal wear
MATERIALS
OF
CONSTRUCTION
RIGIDITY
=
SAFETY
Gate becomes an integrated ladder extension (climb-assist)
BUILT-IN
EXTENSION
TO LADDER
AUTOMATIC
SELF-CLOSING GATE
Requires no manual operation ( Chain requires manual operation)
Ensures safety - Gate closes automatically
QUICK & EASY
INSTALLATION
4 welded steel sides + 10 bolts
Installation Savings
Considerations when choosing a Roof Hatch Safety Rail:
15

CONTACT US
1357 N Walton Walker
Dallas, Texas 75211
(877) 723-3570
www.safeprosafety.com
SafePro™ is a national manufacturer of roof top safety and security products designed by roofing
experts with 30+ years of experience. Falls from 11+ feet have a 50% survival rate, roof hatch protection is not just an OSHA
requirement, it’s the right thing to do.

SafeProCatalogV21162014

More Related Content

What's hot

Viewers also liked

Similar to SafeProCatalogV21162014

SafeProCatalogV21162014
