This document summarizes the new features and goals of RxJS version 5, which aims to improve the modularity, performance, debugging, and extensibility of the RxJS library. Key changes include making RxJS fully modular, improving performance by reducing allocations and call stack sizes, enhancing debugging with simpler operator implementations, and allowing better extensibility through subclassing Observables and maintaining Subject bi-directionality. Simpler unit tests using marble diagrams are also highlighted.

1. RXJS EVOLVED

2. PAUL TAYLOR
@trxcllnt
UI PLATFORM TEAM
@

3. OBSERVABLE

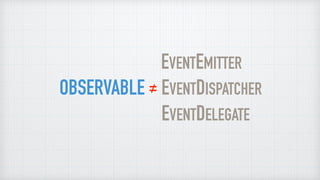

4. EVENTEMITTER.....
OBSERVABLE ≠ EVENTDISPATCHER
EVENTDELEGATE...

5. “The idea of future values
— maybe.”
–ME

6. SINGLE MULTIPLE
SYNCHRONOUS Function Enumerable
ASYNCHRONOUS Promise Observable
THE OTHER “IDEAS” OF VALUES

7. SINGLE MULTIPLE
PULL Function Enumerable
PUSH Promise Observable
THE OTHER “IDEAS” OF VALUES

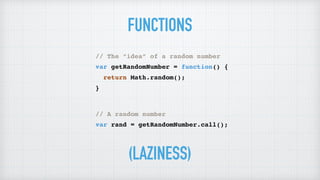

8. FUNCTIONS
// The “idea” of a random number
var getRandomNumber = function() {
return Math.random();
}
// A random number
var rand = getRandomNumber.call();
(LAZINESS)

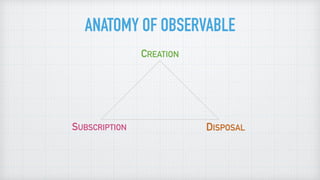

9. ANATOMY OF OBSERVABLE
CREATION
SUBSCRIPTION DISPOSAL

10. var randomNumbers = Observable.create((s) => {
var i = setTimeout(() => {
s.next(Math.random());
s.complete();
}, 1000);
return () => clearTimeout(i);
});
var sub = randomNumbers.subscribe({
next(x) { console.log(x); },
error(e) { console.error(e); },
complete() { console.log(“done”); }
});
var randomNumbers = Observable.create((s) => {
var i = setTimeout(() => {
s.next(Math.random());
s.complete();
}, 1000);
return () => clearTimeout(i);
});
var randomNumbers = Observable.create((s) => {
var i = setTimeout(() => {
s.next(Math.random());
s.complete();
}, 1000);

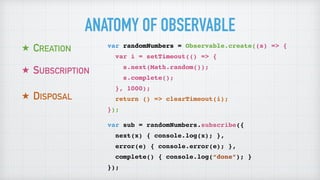

ANATOMY OF OBSERVABLE
★ CREATION
★ SUBSCRIPTION
★ DISPOSAL
var randomNumbers = Observable.create(

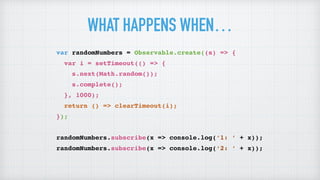

11. WHAT HAPPENS WHEN…
var randomNumbers = Observable.create((s) => {
var i = setTimeout(() => {
s.next(Math.random());
s.complete();
}, 1000);
return () => clearTimeout(i);
});
randomNumbers.subscribe(x => console.log(‘1: ’ + x));
randomNumbers.subscribe(x => console.log(‘2: ’ + x));

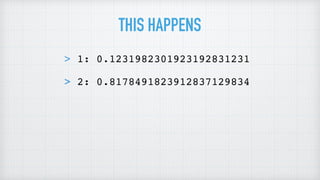

12. >
> 1: 0.1231982301923192831231
> 2: 0.8178491823912837129834
>
THIS HAPPENS

13. EVENTEMITTER.....
OBSERVABLE ≠ EVENTDISPATCHER
EVENTDELEGATE...
OBSERVABLE = FUNCTION...........

14. “Observable is a function that,
when invoked, returns 0-∞ values
between now and the end of time.”
–ME

15. OPERATORS

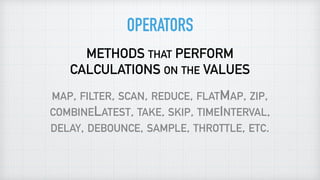

16. OPERATORS
METHODS THAT PERFORM
CALCULATIONS ON THE VALUES
MAP, FILTER, SCAN, REDUCE, FLATMAP, ZIP,
COMBINELATEST, TAKE, SKIP, TIMEINTERVAL,
DELAY, DEBOUNCE, SAMPLE, THROTTLE, ETC.

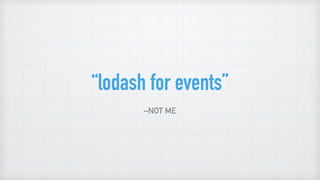

17. “lodash for events”
–NOT ME

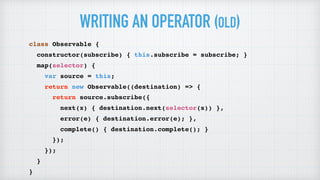

18. WRITING AN OPERATOR (OLD)
class Observable {
constructor(subscribe) { this.subscribe = subscribe; }
map(selector) {
var source = this;
return new Observable((destination) => {
return source.subscribe({
next(x) { destination.next(selector(x)) },
error(e) { destination.error(e); },
complete() { destination.complete(); }
});
});
}
}

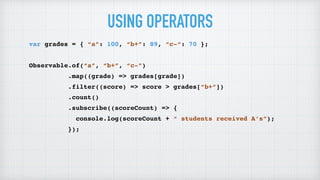

19. USING OPERATORS
var grades = { “a”: 100, “b+”: 89, “c-“: 70 };
Observable.of(“a”, “b+”, “c-”)
.map((grade) => grades[grade])
.filter((score) => score > grades[“b+”])
.count()
.subscribe((scoreCount) => {
console.log(scoreCount + “ students received A’s”);
});

20. SCHEDULERS

21. SCHEDULERS
CENTRALIZED DISPATCHERS TO
CONTROL CONCURRENCY
IMMEDIATE
TIMEOUT
REQUESTANIMATIONFRAME

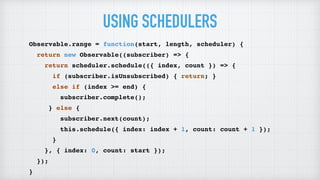

22. USING SCHEDULERS
Observable.range = function(start, length, scheduler) {
return new Observable((subscriber) => {
return scheduler.schedule(({ index, count }) => {
if (subscriber.isUnsubscribed) { return; }
else if (index >= end) {
subscriber.complete();
} else {
subscriber.next(count);
this.schedule({ index: index + 1, count: count + 1 });
}
}, { index: 0, count: start });
});
}

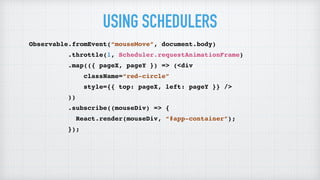

23. USING SCHEDULERS
Observable.fromEvent(“mouseMove”, document.body)
.throttle(1, Scheduler.requestAnimationFrame)
.map(({ pageX, pageY }) => (<div
className=“red-circle”
style={{ top: pageX, left: pageY }} />
))
.subscribe((mouseDiv) => {
React.render(mouseDiv, “#app-container”);
});

24. RXJS NEXT (v5.0.0-alpha)
github.com/ReactiveX/RxJS

25. CONTRIBUTORS
BEN LESH ANDRÈ STALTZ OJ KWON

26. github.com/ReactiveX/RxJS/graphs/contributors

27. PRIMARY GOALS
★ MODULARITY
★ PERFORMANCE
★ DEBUGGING
★ EXTENSIBILITY
★ SIMPLER UNIT TESTS

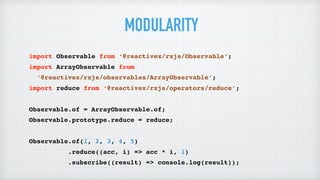

28. import Observable from ‘@reactivex/rxjs/Observable’;
import ArrayObservable from
‘@reactivex/rxjs/observables/ArrayObservable’;
import reduce from ‘@reactivex/rxjs/operators/reduce’;
Observable.of = ArrayObservable.of;
Observable.prototype.reduce = reduce;
Observable.of(1, 2, 3, 4, 5)
.reduce((acc, i) => acc * i, 1)
.subscribe((result) => console.log(result));
MODULARITY

29. SPEED
4.3X* FASTER
*AVERAGE
(UP TO 11X)

30. 50-90% FEWER
ALLOCATIONS
MEMORY

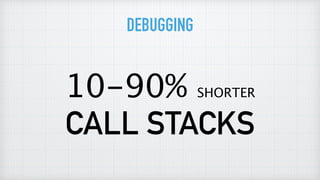

31. 10-90% SHORTER
CALL STACKS
DEBUGGING

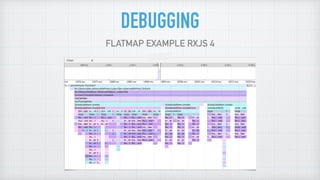

32. DEBUGGING
FLATMAP EXAMPLE RXJS 4

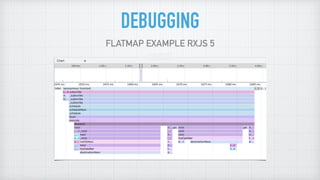

33. DEBUGGING
FLATMAP EXAMPLE RXJS 5

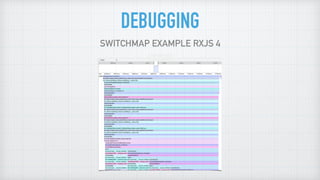

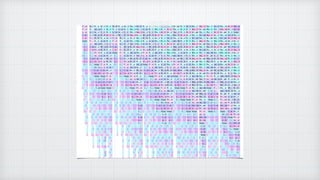

34. DEBUGGING
SWITCHMAP EXAMPLE RXJS 4

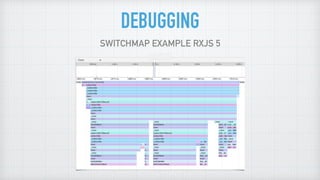

38. DEBUGGING
SWITCHMAP EXAMPLE RXJS 5

39. PERFORMANCE + DEBUGGING
★ SCHEDULERS OVERHAUL
★ CLASS-BASED OPERATORS (“LIFT”)
★ UNIFIED OBSERVER + SUBSCRIPTION
★ FLATTENED DISPOSABLE TREE
★ REMOVE TRY-CATCH FROM INTERNALS

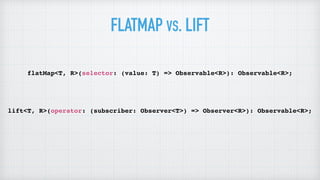

40. FLATMAP VS. LIFT
flatMap<T, R>(selector: (value: T) => Observable<R>): Observable<R>;
lift<T, R>(operator: (subscriber: Observer<T>) => Observer<R>): Observable<R>;

41. FLATMAP
Observable.prototype.map = function map(project) {
var source = this;
return new Observable(function (observer) {
return source.subscribe(
(x) => observer.next(project(x)),
(e) => observer.error(e),
( ) => observer.complete()
);
});
}
★ CLOSURE SCOPE
★ INFLEXIBLE TYPE
★ CLOSURES SHOULD
BE ON A PROTOTYPE

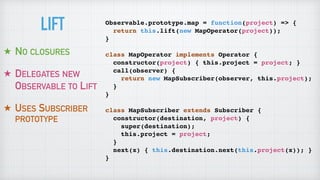

42. Observable.prototype.map = function(project) => {
return this.lift(new MapOperator(project));
}
class MapOperator implements Operator {
constructor(project) { this.project = project; }
call(observer) {
return new MapSubscriber(observer, this.project);
}
}
class MapSubscriber extends Subscriber {
constructor(destination, project) {
super(destination);
this.project = project;
}
next(x) { this.destination.next(this.project(x)); }
}
★ NO CLOSURES
★ DELEGATES NEW
OBSERVABLE TO LIFT
★ USES SUBSCRIBER
PROTOTYPE
LIFT

43. EXTENSIBILITY
★ ALLOW SUBCLASSING OBSERVABLE
★ MAINTAIN SUBJECT BI-DIRECTIONALITY
★ FUTURE BACK-PRESSURE SUPPORT?

44. SUBCLASS OBSERVABLE
class MouseObservable extends Observable {
constructor(source, operator) {
this.source = source;
this.operator = operator || ((x) => x);
}
lift(operator) { return new MouseObservable(this, operator); }
trackVelocity() {
return this.lift((destination) => {
return new VelocityScanningSubscriber(destination);
});
}
concatFrictionEvents(coefficientOfKineticFriction) { ... }
}

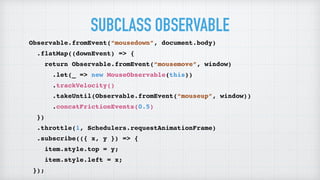

45. SUBCLASS OBSERVABLE
Observable.fromEvent(“mousedown”, document.body)
.flatMap((downEvent) => {
return Observable.fromEvent(“mousemove”, window)
.let(_ => new MouseObservable(this))
.trackVelocity()
.takeUntil(Observable.fromEvent(“mouseup”, window))
.concatFrictionEvents(0.5)
})
.throttle(1, Schedulers.requestAnimationFrame)
.subscribe(({ x, y }) => {
item.style.top = y;
item.style.left = x;
});

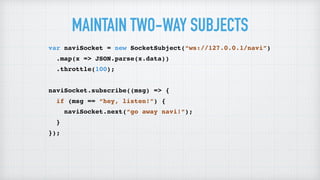

46. MAINTAIN TWO-WAY SUBJECTS
var naviSocket = new SocketSubject(“ws://127.0.0.1/navi”)
.map(x => JSON.parse(x.data))
.throttle(100);
naviSocket.subscribe((msg) => {
if (msg == “hey, listen!”) {
naviSocket.next(“go away navi!”);
}
});

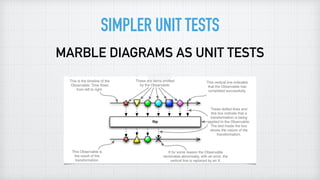

47. SIMPLER UNIT TESTS
MARBLE DIAGRAMS AS UNIT TESTS

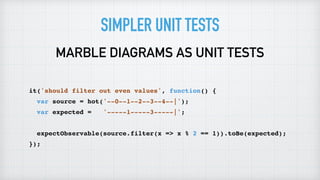

48. SIMPLER UNIT TESTS
MARBLE DIAGRAMS AS UNIT TESTS
it('should filter out even values', function() {
var source = hot('--0--1--2--3--4--|');
var expected = '-----1-----3-----|';
expectObservable(source.filter(x => x % 2 == 1)).toBe(expected);
});

49. RXJS NEXT (v5.0.0-alpha)
github.com/ReactiveX/RxJS
