Run your code serverlessly on Google's open cloud

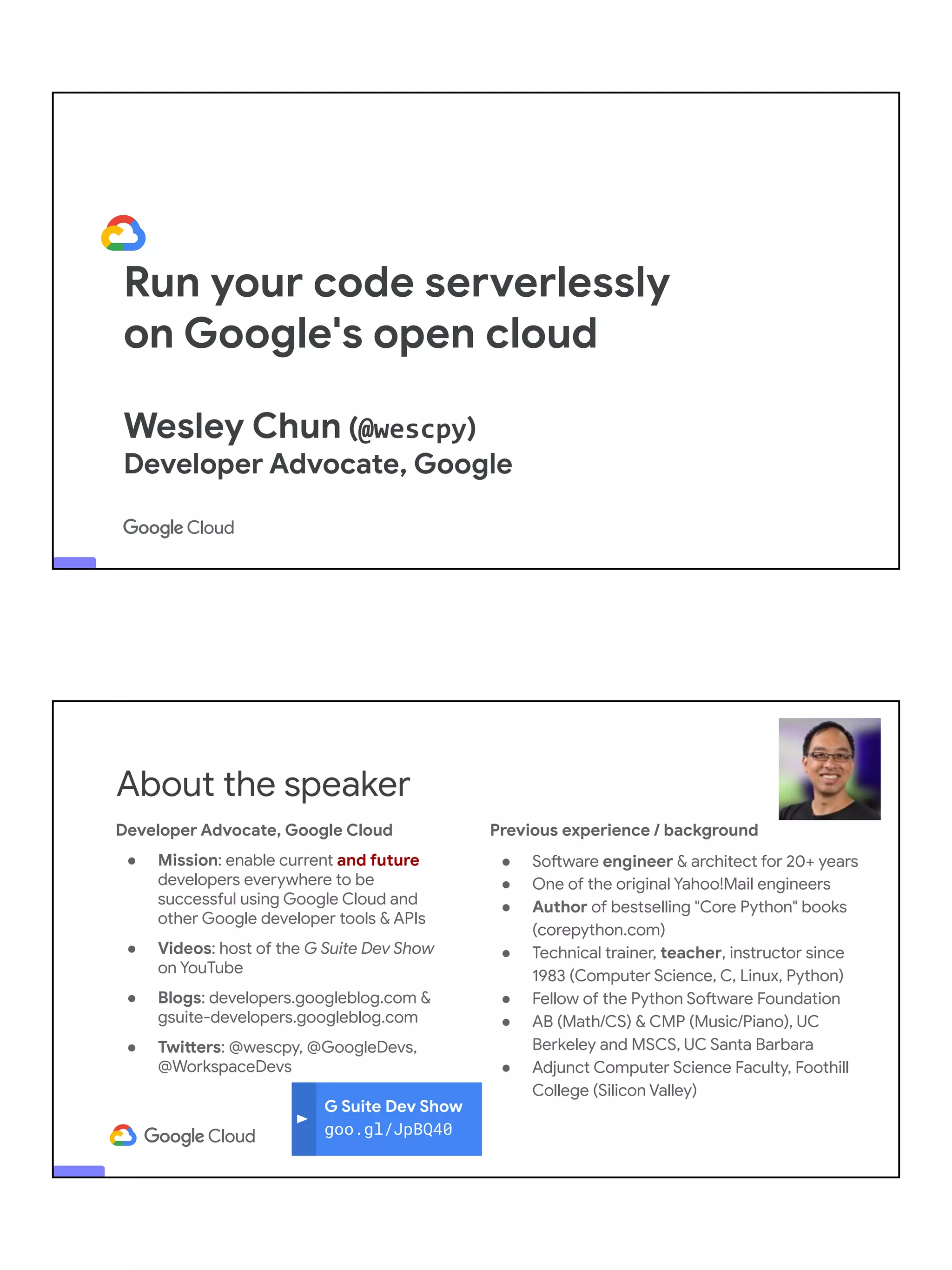

1. Run your code serverlessly
on Google's open cloud
Wesley Chun (@wescpy)
Developer Advocate, Google
Developer Advocate, Google Cloud
● Mission: enable current and future
developers everywhere to be
successful using Google Cloud and
other Google developer tools & APIs
● Videos: host of the G Suite Dev Show
on YouTube
● Blogs: developers.googleblog.com &
gsuite-developers.googleblog.com
● Twitters: @wescpy, @GoogleDevs,
@WorkspaceDevs
G Suite Dev Show
goo.gl/JpBQ40
About the speaker
Previous experience / background
● Software engineer & architect for 20+ years
● One of the original Yahoo!Mail engineers
● Author of bestselling "Core Python" books
(corepython.com)
● Technical trainer, teacher, instructor since
1983 (Computer Science, C, Linux, Python)
● Fellow of the Python Software Foundation
● AB (Math/CS) & CMP (Music/Piano), UC
Berkeley and MSCS, UC Santa Barbara
● Adjunct Computer Science Faculty, Foothill
College (Silicon Valley)

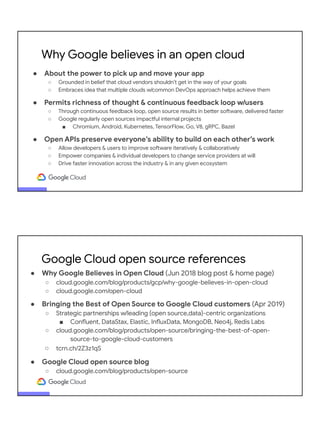

3. ● About the power to pick up and move your app
○ Grounded in belief that cloud vendors shouldn’t get in the way of your goals
○ Embraces idea that multiple clouds w/common DevOps approach helps achieve them
● Permits richness of thought & continuous feedback loop w/users
○ Through continuous feedback loop, open source results in better software, delivered faster
○ Google regularly open sources impactful internal projects
■ Chromium, Android, Kubernetes, TensorFlow, Go, V8, gRPC, Bazel
● Open APIs preserve everyone’s ability to build on each other’s work
○ Allow developers & users to improve software iteratively & collaboratively
○ Empower companies & individual developers to change service providers at will
○ Drive faster innovation across the industry & in any given ecosystem
Why Google believes in an open cloud
● Why Google Believes in Open Cloud (Jun 2018 blog post & home page)
○ cloud.google.com/blog/products/gcp/why-google-believes-in-open-cloud
○ cloud.google.com/open-cloud
● Bringing the Best of Open Source to Google Cloud customers (Apr 2019)
○ Strategic partnerships w/leading {open source,data}-centric organizations
■ Confluent, DataStax, Elastic, InfluxData, MongoDB, Neo4j, Redis Labs
○ cloud.google.com/blog/products/open-source/bringing-the-best-of-open-
source-to-google-cloud-customers
○ tcrn.ch/2Z3z1qS
● Google Cloud open source blog
○ cloud.google.com/blog/products/open-source
Google Cloud open source references
4. ● Mission
○ Bringing all the value of open source to Google and all the
resources of Google to open source.
● Open Source Programs Office (OSPO) home page
○ opensource.google
● OSPO open source project interactive browser
○ opensource.google/projects
● OSPO open source projects in Cloud
○ opensource.google/projects/list/cloud
Google's Open Source Programs Office
02
Cloud
computing
review
All you need to know
about the cloud
5. What is cloud computing?
spar
Google Compute Engine, Google Cloud Storage
AWS EC2 & S3; Rackspace; Joyent
Cloud service levels/"pillars"
SaaS
Software as a Service
PaaS
Platform as a Service
IaaS
Infrastructure as a Service
Google BigQuery, Cloud SQL,
Cloud Datastore, NL, Vision, Pub/Sub
AWS Kinesis, RDS; Windows Azure SQL, Docker
Google Apps Script
Salesforce1/force.com
Google Workspace (was G Suite/Google Apps)
Yahoo!Mail, Hotmail, Salesforce, Netsuite, Office 365
Google App Engine, Cloud Functions
Heroku, Cloud Foundry, Engine Yard, AWS Lambda

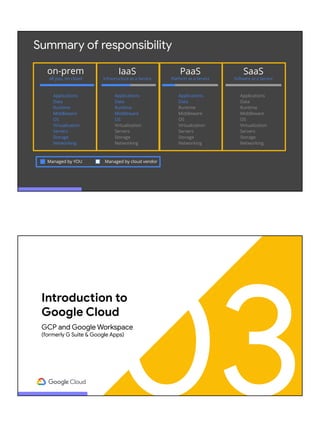

6. Summary of responsibility
SaaS
Software as a Service
Applications
Data
Runtime
Middleware
OS
Virtualization
Servers
Storage
Networking
Applications
Data
Runtime
Middleware
OS
Virtualization
Servers
Storage
Networking
IaaS
Infrastructure as a Service
Applications
Data
Runtime
Middleware
OS
Virtualization
Servers
Storage
Networking
PaaS
Platform as a Service
Managed by YOU Managed by cloud vendor
Applications
Data
Runtime
Middleware
OS
Virtualization
Servers
Storage
Networking
on-prem
all you, no cloud
03
Introduction to
Google Cloud
GCP and Google Workspace
(formerly G Suite & Google Apps)
7. formerly
( )
Google Compute Engine, Google Cloud Storage
AWS EC2 & S3; Rackspace; Joyent
SaaS
Software as a Service
PaaS
Platform as a Service
IaaS
Infrastructure as a Service
Google Apps Script
Salesforce1/force.com
Google Workspace (was G Suite/Google Apps)
Yahoo!Mail, Hotmail, Salesforce, Netsuite, Office 365
Google App Engine, Cloud Functions
Heroku, Cloud Foundry, Engine Yard, AWS Lambda
Google BigQuery, Cloud SQL,
Cloud Datastore, NL, Vision, Pub/Sub
AWS Kinesis, RDS; Windows Azure SQL, Docker
Google Cloud Platform vs. Google Workspace
Workspace
APIs
GCP
APIs
8. cloud.google.com/hosting-options#hosting-options
GCP compute option spectrum
Compute
Engine
Kubernetes
Engine (GKE)
Cloud Run
on Anthos
Cloud Run
(fully-mgd)
App Engine
(Flexible)
App Engine
(Standard)
Cloud
Functions
04
Google Cloud
serverless
GCP: Google App Engine ,
Cloud Functions, Cloud Run
Google Workspace (formerly
G Suite): Google Apps Script
9. > Google Compute Engine configurable
VMs of all shapes & sizes, from
"micro" to 416 vCPUs, 11.776 TB
RAM, 256 TB HDD/SSD plus Google
Cloud Storage for data lake "blobs"
(Debian, CentOS, CoreOS, SUSE, Red Hat Enterprise Linux,
Ubuntu, FreeBSD; Windows Server 2008 R2, 2012 R2, 2016, 1803,
1809, 1903/2019, 1909)
cloud.google.com/compute
cloud.google.com/storage
Yeah, we got VMs & big disk… but why*?
Serverless: what & why
● What is serverless?
○ Misnomer
○ "No worries"
○ Developers focus on writing code & solving business problems*
● Why serverless?
○ Fastest growing segment of cloud... per analyst research*:
■ $1.9B (2016) and $4.25B (2018) ⇒ $7.7B (2021) and $14.93B (2023)
○ What if you go viral? Autoscaling: your new best friend
○ What if you don't? Code not running? You're not paying.
* in USD; source:Forbes (May 2018), MarketsandMarkets™ & CB Insights (Aug 2018)
10. Google Compute Engine, Google Cloud Storage
AWS EC2 & S3; Rackspace; Joyent
SaaS
Software as a Service
PaaS
Platform as a Service
IaaS
Infrastructure as a Service
Google Workspace (was G Suite/Google Apps)
Yahoo!Mail, Hotmail, Salesforce, Netsuite, Office 365
Google App Engine, Cloud Functions
Heroku, Cloud Foundry, Engine Yard, AWS Lambda
Google BigQuery, Cloud SQL,
Cloud Datastore, NL, Vision, Pub/Sub
AWS Kinesis, RDS; Windows Azure SQL, Docker
Serverless: PaaS-y compute/processing
Google Apps Script
Salesforce1/force.com
Google App Engine
App-hosting in the cloud
11. Why does App Engine exist?
● Focus on app not DevOps
○ Web app
○ Mobile backend
○ Cloud service
● Enhance productivity
● Deploy globally
● Fully-managed
● Auto-scaling
● Pay-per-use
● Familiar languages
Hello World (Python "MVP")
app.yaml
runtime: python37
main.py
from flask import Flask
app = Flask(__name__)
@app.route('/')
def hello():
return 'Hello World!'
requirements.txt
Flask>=1.0.2
Deploy:
$ gcloud app deploy
Access globally:
PROJECT_ID.appspot.com
cloud.google.com/appengine/docs/standard/python3/quickstart
12. Popular App Engine Use Cases
● Mobile/Tablet
○ App backends
○ Cloud persistence
● Social/Mobile Games
○ Speed, scale
○ API integrations
○ Personals/dating
● Consumer Web Apps
○ Unpredictable traffic
○ Scale (up or down)
● Apps in Academia
○ Any course where students
build web or mobile apps
○ Research projects
○ IT/Operational apps
● Business Apps
○ Enterprise
○ Java runtime
○ IT/Operational apps
○ Web or Mobile
Google Cloud Functions
Function-hosting in the cloud
13. Why does Cloud Functions exist?
● Don't have entire app?
○ No framework "overhead" (LAMP, MEAN...)
○ Deploy microservices
● Event-driven
○ Triggered via HTTP or background events
■ Pub/Sub, Cloud Storage, Firebase, etc.
○ Auto-scaling & highly-available; pay per use
● Flexible development environment
○ Cmd-line or developer console (in-browser)
● Cloud Functions for Firebase
○ Mobile app use-cases
● Available runtimes
○ JS/Node.js 8, 10, 12
○ Python 3.7, 3.8
○ Go 1.11, 1.13
○ Java 11
main.py
def hello_world(request):
return 'Hello World!'
Deploy:
$ gcloud functions deploy hello --runtime python37 --trigger-http
Access globally (curl):
curl -X POST https://GCP_REGION-PROJECT_ID.cloudfunctions.net/hello
-H "Content-Type:application/json"
Access globally (browser):
GCP_REGION-PROJECT_ID.cloudfunctions.net/hello
Hello World (Python "MVP")
cloud.google.com/functions/docs/quickstart-python
14. Google Cloud Run
Container-hosting in the cloud
The rise of containers... ● Any language
● Any library
● Any binary
● Ecosystem of base images
● Industry standard
FLEXIBILITY
15. “We can’t be locked in.”
“How can we use
existing binaries?”
“Why do I have to choose between
containers and serverless?”
“Can you support language _______ ?”
Serverless inaccessible for some...
CONVENIENCE
Cloud Run: code, build, deploy
.js .rb .go
.sh.py ...
● Any language, library, binary
○ HTTP port, stateless
● Bundle into container
○ Build w/Docker OR
○ Google Cloud Build
○ Image ⇒ Container Registry
● Deploy to Cloud Run (managed or GKE)
StateHTTP
CONT_NAME-RANDOM_HASH-
uREGION.a.run.app
17. ● Build containers easily & securely without creating/managing Dockerfiles
● Open source, open standard; based on CNCF Buildpacks spec v3
● Supports most common development tools
○ Go 1.10+
○ Node.js 10+
○ Python 3.7+
○ Java 8 & 11
○ .NET Core 3.1 +
● Blog post
○ cloud.google.com/blog/products/containers-kubernetes/google-cloud-
now-supports-buildpacks
Google Cloud buildpacks
$ ls
index.js package.json
$ gcloud alpha builds submit --pack
image=gcr.io/my-project/my-nodejs-app
$ gcloud run deploy --image
gcr.io/my-project/my-nodejs-app
github.com/GoogleCloudPlatform/buildpacks
Google Apps Script
Customized serverless JS runtime for automation, and extension
and integration with Google Workspace (formerly G Suite) and
other Google & external services
19. What can you do with this?
Accessing maps from
spreadsheets?!?
goo.gl/oAzBN9
This… with help from Google Maps & Gmail
function sendMap() {
var sheet = SpreadsheetApp.getActiveSheet();
var address = sheet.getRange("A2").getValue();
var map = Maps.newStaticMap().addMarker(address);
GmailApp.sendEmail('friend@example.com', 'Map',
'See below.', {attachments:[map]});
}
JS
g.co/codelabs/apps-script-intro
22. Gmail message processing with GCP
Gmail
Cloud
Pub/Sub
Cloud
Functions
Cloud
Vision
Workspace
(formerly G Suite)
GCP
Star
message
Message
notification
Trigger
function
Extract
images
Categorize
images
Inbox augmented with Cloud Function
23. ● Gmail API: sets up notification forwarding to Cloud Pub/Sub
● developers.google.com/gmail/api/guides/push
● Pub/Sub: triggers logic hosted by Cloud Functions
● cloud.google.com/functions/docs/calling/pubsub
● Cloud Functions: "orchestrator" accessing GCP (and Google Workspace/G Suite) APIs
● Combine all of the above to add custom intelligence to Gmail
● Deep dive code blog post
● cloud.google.com/blog/products/application-development/
adding-custom-intelligence-to-gmail-with-serverless-on-gcp
● Application source code
● github.com/GoogleCloudPlatform/cloud-functions-gmail-nodejs
App summary

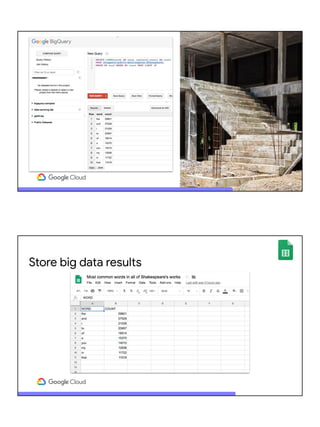

Big data analysis to slide presentation
Access GCP tools from Google Workspace (formerly G Suite)
27. Supercharge Workspace (G Suite) with GCP
Workspace (G Suite) GCP
BigQuery
Apps Script
Slides Sheets
Application
request
Big data
analytics
App summary
● Leverage GCP and build the "final mile" with Google Workspace (formerly G Suite)
● Driven by Google Apps Script
● Google BigQuery for data analysis
● Google Sheets for visualization
● Google Slides for presentable results
● "Glued" together w/Google Workspace (formerly G Suite) serverless
● Build this app (codelab): g.co/codelabs/bigquery-sheets-slides
● Video and blog post: bit.ly/2OcptaG
● Application source code: github.com/googlecodelabs/bigquery-sheets-slides
● Presented at Google Cloud NEXT (Jul 2018 [DEV229] & Apr 2019 [DEV212])
● cloud.withgoogle.com/next18/sf/sessions/session/156878
● cloud.withgoogle.com/next/sf/sessions?session=DEV212
28. 06
Online
resources &
summary
References to follow-up
Cost of Google Cloud serverless tools
● What is free in Google Cloud overall?
○ Free Trial (credit card required; expires)
■ $300USD credit good for first 90 days
○ Always Free tier (credit card required; no expiration; subject to change)
■ Independent of Free Trial & education grants (more below)
■ Some GCP products free up to usage limits
○ cloud.google.com/free
● Serverless Always Free tier (monthly)
○ App Engine (28 hours/day)
○ Cloud Functions & Cloud Run (2M calls/month)
● Higher education (teaching & research) grants
○ cloud.google.com/edu (credit card NOT required; expires)
○ Provides "free" usage for coursework and initial research
$$ FREE $$
29. Cloud computing session summary
● Why go cloud?
○ Cloud computing has taken the world by storm
○ You're behind if you're not already using it… it's not too late!
○ Help train the next generation cloud-ready workforce!
● Google Cloud and why serverless?
○ Many features: compute, storage, AI/ML, NW, data processing, etc.
○ Serverless lets users focus on just their logic (apps or functions)
○ Interesting possibilities using all of Google Cloud (GCP + Workspace)
Other Google APIs & platforms
● Google Workspace (G Suite) (code Gmail, Drive, Docs, Sheets, Slides!)
○ developers.google.com/gsuite
● Firebase (mobile development platform + RT DB)
○ firebase.google.com
● Google Data Studio (data visualization, dashboards, etc.)
○ datastudio.google.com/overview
● Actions on Google/Assistant/DialogFlow (voice apps)
○ developers.google.com/actions
● YouTube (Data, Analytics, and Livestreaming APIs)
○ developers.google.com/youtube
● Google Maps (Maps, Routes, and Places APIs)
○ developers.google.com/maps
● Flutter (native apps [Android, iOS, web] w/1 code base[!])
○ flutter.dev
30. ● Documentation
○ GCP: cloud.google.com/{docs,appengine,functions,run,vision,automl,translate,language,
speech,texttospeech,video-intelligence,firestore,bigquery,compute,storage,gpu,tpu}
○ G Suite: developers.google.com/{gsuite,drive,calendar,gmail,docs,sheets,slides,apps-script}
● Introductory "codelabs" (free, online, self-paced, hands-on tutorials [Python])
○ App Engine: codelabs.developers.google.com/codelabs/cloud-app-engine-python
○ Cloud Functions: codelabs.developers.google.com/codelabs/cloud-starting-cloudfunctions
○ Cloud Run: codelabs.developers.google.com/codelabs/cloud-run-hello-python3
● Other codelabs: gcplab.me (GCP) and codelabs.developers.google.com/?cat=G+Suite (G Suite)
● Videos: youtube.com/GoogleCloudPlatform (GCP) and goo.gl/JpBQ40 (G Suite)
● Code samples: github.com/GoogleCloudPlatform (GCP) and github.com/gsuitedevs (G Suite)
● Know AWS/Azure? Compare w/GCP at cloud.google.com/docs/compare/{aws,azure}
● Google Cloud serverless products: cloud.google.com/serverless
● Python on Google Cloud: cloud.google.com/python
Google Cloud references
Thank you! Questions?
Wesley Chun
@wescpy
