RSF-Equipment Catalog 2016 English

2016
catalog
WORKSHOP
PRODUCT
LINE
quality
installation
counseling
maintenance
design

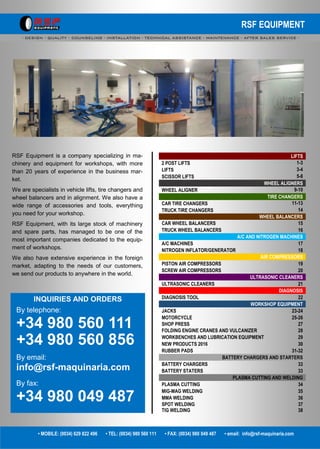

RSF EQUIPMENT
- DESIGN - QUALITY - COUNSELING - INSTALLATION - TECHNICAL ASSISTANCE - MAINTENANCE - AFTER SALES SERVICE -
RSF Equipment is a company specializing in ma-
chinery and equipment for workshops, with more
than 20 years of experience in the business mar-
ket.
We are specialists in vehicle lifts, tire changers and
wheel balancers and in alignment. We also have a
wide range of accessories and tools, everything
you need for your workshop.
RSF Equipment, with its large stock of machinery
and spare parts, has managed to be one of the
most important companies dedicated to the equip-
ment of workshops.
We also have extensive experience in the foreign
market, adapting to the needs of our customers,
we send our products to anywhere in the world.
INQUIRIES AND ORDERS
By telephone:
+34 980 560 111
+34 980 560 856
By email:
info@rsf-maquinaria.com
By fax:
+34 980 049 487
• MOBILE: (0034) 629 822 496 • TEL: (0034) 980 560 111 • FAX: (0034) 980 049 487 • email: info@rsf-maquinaria.com
LIFTS
2 POST LIFTS 1-3
LIFTS 3-4
SCISSOR LIFTS 5-8
WHEEL ALIGNERS
WHEEL ALIGNER 9-10
TIRE CHANGERS

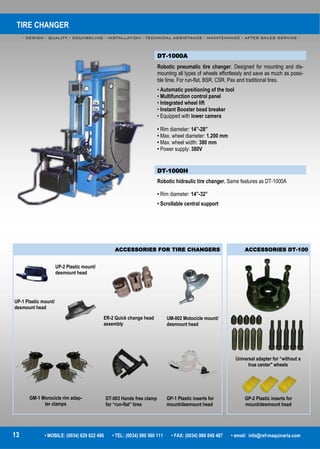

CAR TIRE CHANGERS 11-13

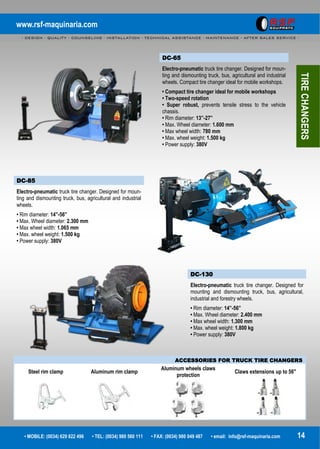

TRUCK TIRE CHANGERS 14

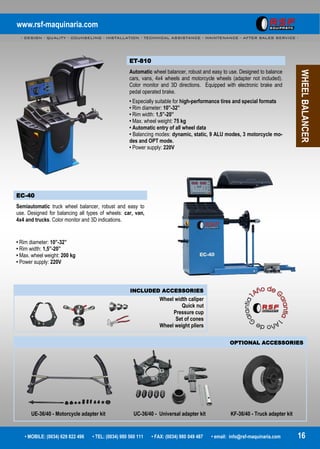

WHEEL BALANCERS

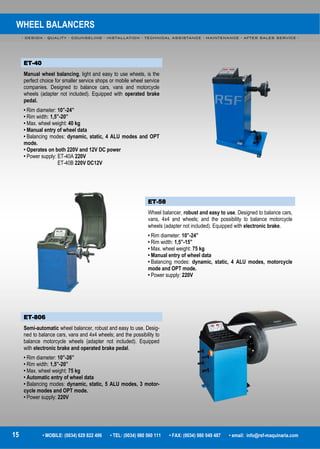

CAR WHEEL BALANCERS 15
TRUCK WHEEL BALANCERS 16
A/C AND NITROGEN MACHINES
A/C MACHINES 17
NITROGEN INFLATOR/GENERATOR 18
AIR COMPRESSORS

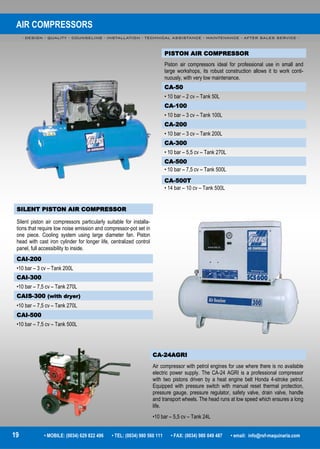

PISTON AIR COMPRESSORS 19

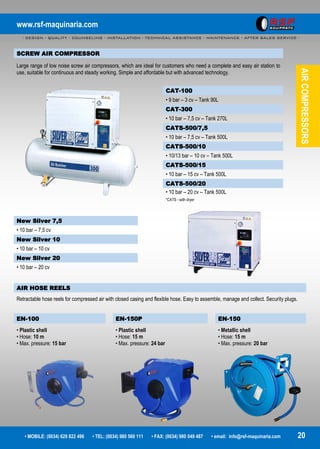

SCREW AIR COMPRESSORS 20
ULTRASONIC CLEANERS

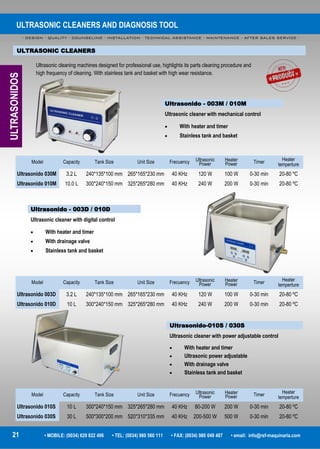

ULTRASONIC CLEANERS 21
DIAGNOSIS

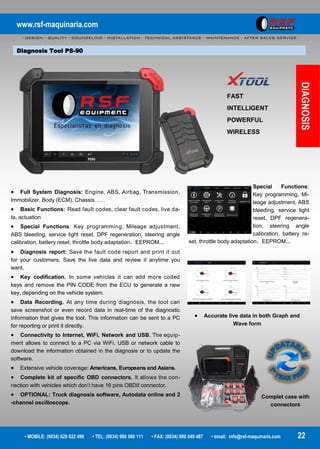

DIAGNOSIS TOOL 22
WORKSHOP EQUIPMENT

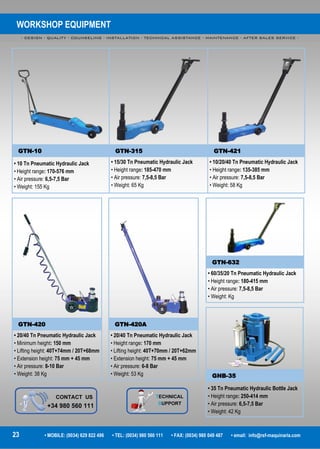

JACKS 23-24

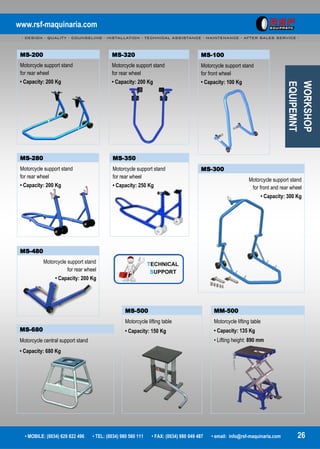

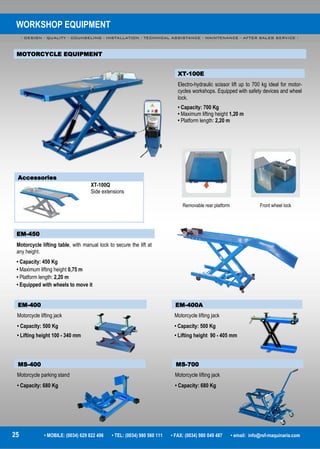

MOTORCYCLE 25-26
SHOP PRESS 27

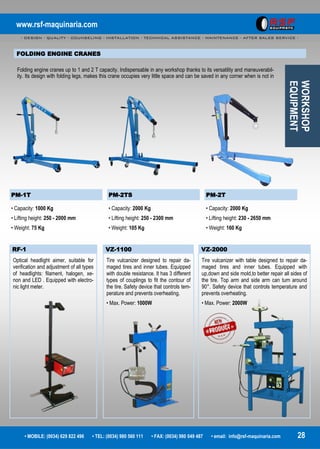

FOLDING ENGINE CRANES AND VULCANIZER 28

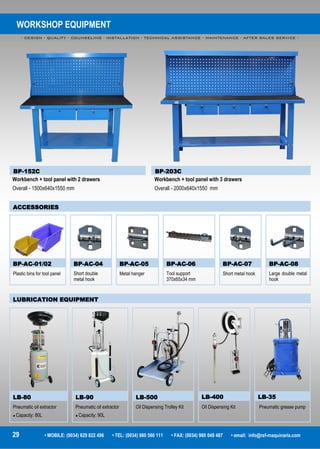

WORKBENCHES AND LUBRICATION EQUIPMENT 29

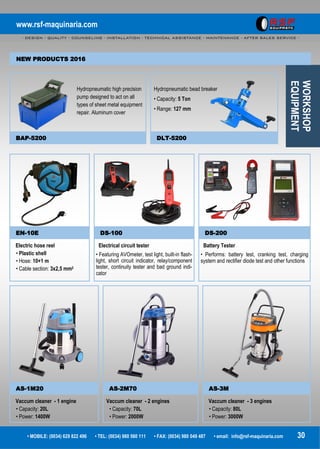

NEW PRODUCTS 2016 30

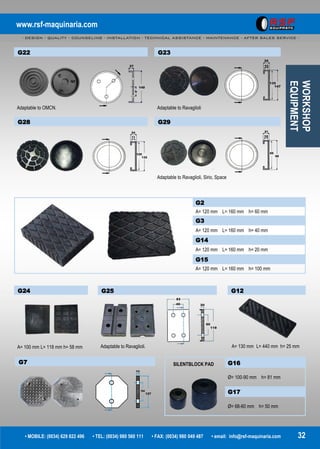

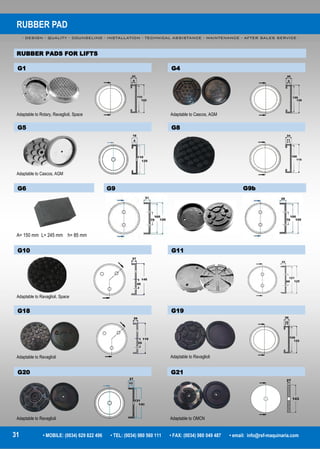

RUBBER PADS 31-32

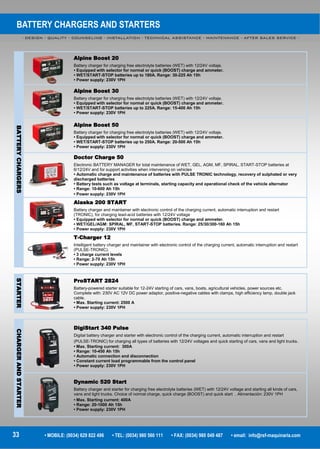

BATTERY CHARGERS AND STARTERS
BATTERY CHARGERS 33
BATTERY STATERS 33

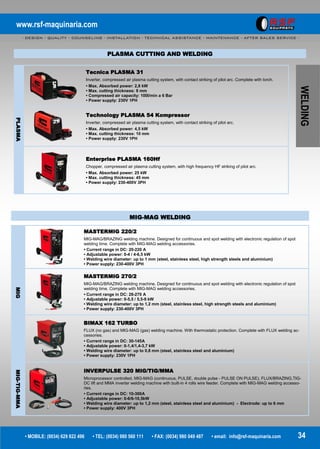

PLASMA CUTTING AND WELDING
PLASMA CUTTING 34

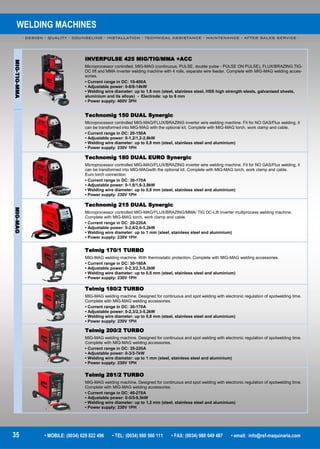

MIG-MAG WELDING 35

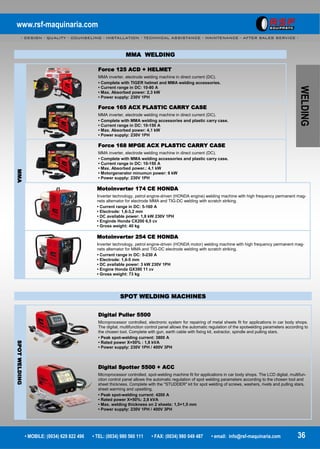

MMA WELDING 36
SPOT WELDING 37

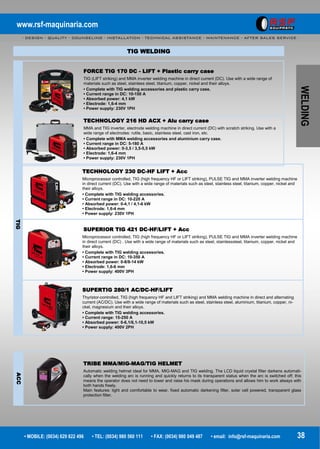

TIG WELDING 38

www.rsf-maquinaria.com
• MOBILE: (0034) 629 822 496 • TEL: (0034) 980 560 111 • FAX: (0034) 980 049 487 • email: info@rsf-maquinaria.com 0
RSF Equipmet reserves the right to modify the characteristics of the materials and prices of this catalog without notice. Prices without V.A.T. The images, text, trademarks, logos and general
content of the catalog are protected by Spanish and international laws on intellectual property protection. any unauthorized reproduction is prohibited. The images shown in this catalog are
merely descriptive and may suffer some variation from the final product supplied.
ALL TYPES OF LIFTS
SPECIALISTS IN ALIGNMENT
WHEEL BALACERS
TIRE CHANGERS

TWO POST LIFTS
1 • MOBILE: (0034) 629 822 496 • TEL: (0034) 980 560 111 • FAX: (0034) 980 049 487 • email: info@rsf-maquinaria.com
HP-35
Electro-hydraulic 2 post lift synchronize using steel cables.
Safety devices and manual single point lock release. Asymmetric
arms with minimum height above ground of 95 mm. Track width
2.60 m and distance between columns 2.80 m .
•Capacity 3.500 Kg
•Maximum lifting height 1,90 m
•Manual lock release
HP-40A
Electro-hydraulic 2 post lift synchronize using steel ca-
bles. Safety devices and automatic lock release. Asymme-
tric arms with minimum height above ground of 110 mm.
Track width 2.60 m and distance between columns 2.80 m.
•Capacity: 4.000 Kg
•Automatic lock release
HP-40B
Same features as HP-40A
•Lower baseplate
HP-40C
Same features as HP-40A
•Equipped with overhead beam
“U” SUPPORT ARM
NOT INCLUDED
TRUCK ADAPTER SET HP-35 H-55 MM
TRUCK ADAPTER SET HP-40
NOT INCLUDED
110 MM70 MM
NOT INCLUDED
ACCESSORIES

TRUCK ADAPTER SET HP-50
INCLUDED
LIFTS
HP-50
Electro-hydraulic 2 post lift with 3 stages symmetric arms.
Track width 2.50 m and distance between columns 2.80 m.
• Capacity: 5.000 Kg
• Maximum lifting height 1,90 m
• Automatic lock release
• Specially designed for vans and light trucks thanks to its len-
gth of arms, 4 m between points
HP-45A
4 post lift specially designed for alignment. Track width
2.63 m and length of platforms 4.80 m. Moreover, each lifting
platform has a ramp to facilitate access of low vehicles.
Secondary lift 2,5 T
Slide rear plates
Turntables can be placed in
different positions
AP-200
Electro-hydraulic 2 post parking lift, allowed to park 2 vehicles in
the same space where previously only can park one. Triple sa-
fety device.
SECONDARY LIFT
INCLUDED

LIFTS

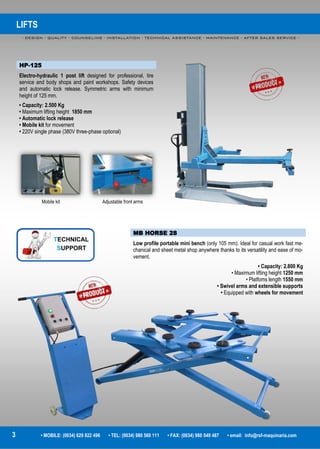

HP-125
Electro-hydraulic 1 post lift designed for professional, tire
service and body shops and paint workshops. Safety devices
and automatic lock release. Symmetric arms with minimum
height of 125 mm.
• Maximum lifting height 1850 mm
• Mobile kit for movement
• 220V single phase (380V three-phase optional)
MB HORSE 28
Low profile portable mini bench (only 105 mm). Ideal for casual work fast me-
chanical and sheet metal shop anywhere thanks to its versatility and ease of mo-
vement.
• Platfoms length 1550 mm
• Swivel arms and extensible supports
• Equipped with wheels for movement
Mobile kit Adjustable front arms

LIFTS

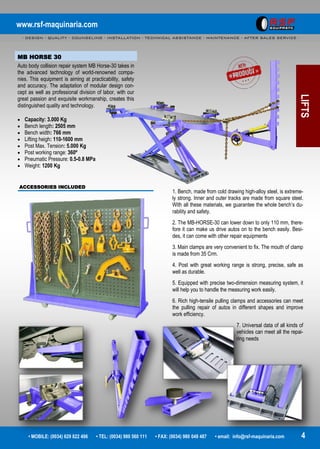

MB HORSE 30
Auto body collision repair system MB Horse-30 takes in
the advanced technology of world-renowned compa-
nies. This equipment is aiming at practicability, safety
and accuracy. The adaptation of modular design con-
cept as well as professional division of labor, with our
great passion and exquisite workmanship, creates this
distinguished quality and technology.
 Capacity: 3.000 Kg
 Bench length: 2505 mm
 Bench width: 766 mm
 Lifting heigh: 110-1600 mm
 Post Max. Tension: 5.000 Kg
 Post working range: 360º
 Pneumatic Pressure: 0.5-0.8 MPa
 Weight: 1200 Kg
ACCESSORIES INCLUDED
1. Bench, made from cold drawing high-alloy steel, is extreme-
ly strong. Inner and outer tracks are made from square steel.
With all these materials, we guarantee the whole bench’s du-
rability and safety.
2. The MB-HORSE-30 can lower down to only 110 mm, there-
fore it can make us drive autos on to the bench easily. Besi-
des, it can come with other repair equipments
3. Main clamps are very convenient to fix. The mouth of clamp
is made from 35 Crm.
4. Post with great working range is strong, precise, safe as
well as durable.
5. Equipped with precise two-dimension measuring system, it
will help you to handle the measuring work easily.
6. Rich high-tensile pulling clamps and accessories can meet
the pulling repair of autos in different shapes and improve
work efficiency.
7. Universal data of all kinds of
vehicles can meet all the repai-
ring needs

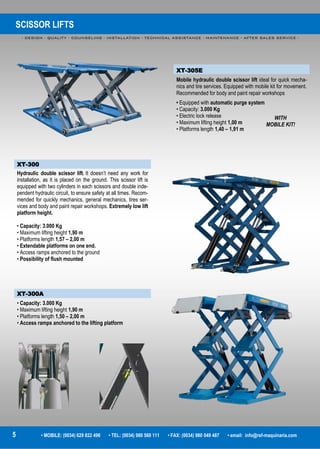

SCISSOR LIFTS
XT-305E
Mobile hydraulic double scissor lift ideal for quick mecha-
nics and tire services. Equipped with mobile kit for movement.
Recommended for body and paint repair workshops
• Equipped with automatic purge system
• Electric lock release
• Platforms length 1,40 – 1,91 m
XT-300
Hydraulic double scissor lift. It doesn’t need any work for
installation, as it is placed on the ground. This scissor lift is
equipped with two cylinders in each scissors and double inde-
pendent hydraulic circuit, to ensure safety at all times. Recom-
mended for quickly mechanics, general mechanics, tires ser-
vices and body and paint repair workshops. Extremely low lift
platform height.
• Extendable platforms on one end.
• Access ramps anchored to the ground
• Possibility of flush mounted
XT-300A
• Access ramps anchored to the lifting platform
WITH
MOBILE KIT!

LIFTS

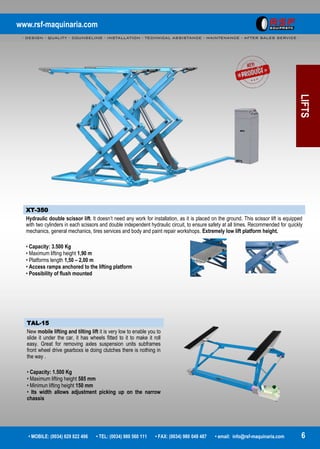

XT-350
Hydraulic double scissor lift. It doesn’t need any work for installation, as it is placed on the ground. This scissor lift is equipped
with two cylinders in each scissors and double independent hydraulic circuit, to ensure safety at all times. Recommended for quickly
mechanics, general mechanics, tires services and body and paint repair workshops. Extremely low lift platform height.
• Access ramps anchored to the lifting platform
• Possibility of flush mounted
TAL-15
New mobile lifting and tilting lift it is very low to enable you to
slide it under the car, it has wheels fitted to it to make it roll
easy. Great for removing axles suspension units subframes
front wheel drive gearboxs ie doing clutches there is nothing in
the way .
• Minimun lifting height 150 mm
• Its width allows adjustment picking up on the narrow
chassis

SCISSOR LIFTS

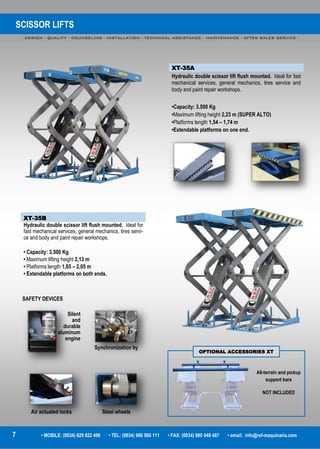

XT-35A
Hydraulic double scissor lift flush mounted. Ideal for fast
mechanical services, general mechanics, tires service and
body and paint repair workshops.
•Maximum lifting height 2,23 m (SUPER ALTO)
•Platforms length 1,54 – 1,74 m
•Extendable platforms on one end.
XT-35B
Hydraulic double scissor lift flush mounted. Ideal for
fast mechanical services, general mechanics, tires servi-
ce and body and paint repair workshops.
• Extendable platforms on both ends.
All-terrain and pickup
support bars
NOT INCLUDED
OPTIONAL ACCESSORIES XT
Silent
and
durable
aluminum
engine
Synchronization by
Air actuated locks Steel wheels
SAFETY DEVICES

LIFTS

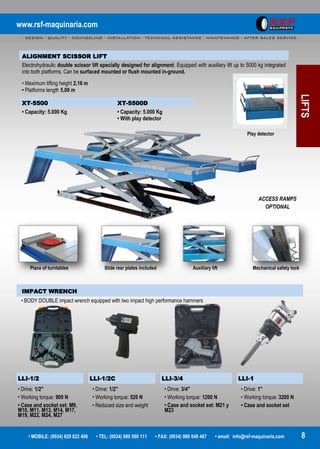

ALIGNMENT SCISSOR LIFT
Electrohydraulic double scissor lift specially designed for alignment. Equipped with auxiliary lift up to 5000 kg integrated
into both platforms. Can be surfaced mounted or flush mounted in-ground.
• Platforms length 5,00 m
XT-5500 XT-5500D
• Capacity: 5.000 Kg • Capacity: 5.000 Kg
• With play detector
Play detector
Place of turntables Slide rear plates included Auxiliary lift Mechanical safety lock
ACCESS RAMPS
OPTIONAL
IMPACT WRENCH
LLI-1/2 LLI-1/2C LLI-3/4 LLI-1
• Drive: 1/2"
• Working torque: 900 N
• Case and socket set: M9,
M10, M11, M13, M14, M17,
M19, M22, M24, M27
• Drive: 1/2"
• Reduced size and weight
• Drive: 3/4"
• Case and socket set: M21 y
M23
• Drive: 1"
• Case and socket set
• BODY DOUBLE impact wrench equipped with two impact high performance hammers

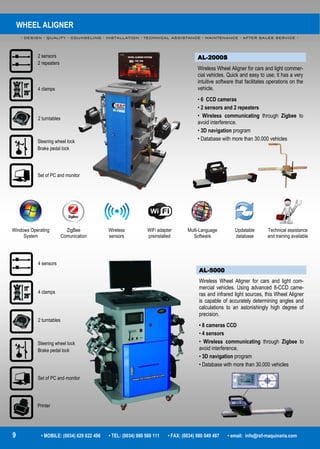

WHEEL ALIGNER
AL-2000S
Wireless Wheel Aligner for cars and light commer-
cial vehicles. Quick and easy to use; It has a very
intuitive software that facilitates operations on the
vehicle.
• 6 CCD cameras
• 2 sensors and 2 repeaters
• Wireless communicating through Zigbee to
avoid interference.
• 3D navigation program
• Database with more than 30.000 vehicles
AL-5000
Wireless Wheel Aligner for cars and light com-
mercial vehicles. Using advanced 8-CCD came-
ras and infrared light sources, this Wheel Aligner
is capable of accurately determining angles and
calculations to an astonishingly high degree of
precision.
• 8 cameras CCD
• 4 sensors
• Wireless communicating through Zigbee to
avoid interference.
• 3D navigation program
• Database with more than 30.000 vehicles
Windows Operating
System
ZigBee
Comunication
Wireless
sensors
WiFi adapter
preinstalled
Multi-Language
Software
Updatable
database
Technical assistance
and training available
2 sensors
2 repeaters
4 clamps
2 turntables
Steering wheel lock
Brake pedal lock
Set of PC and monitor
4 sensors
4 clamps
2 turntables
Steering wheel lock
Brake pedal lock
Set of PC and monitor
Printer

ALIGNERS

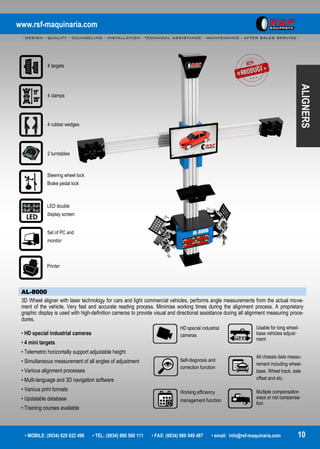

AL-8000
3D Wheel aligner with laser technology for cars and light commercial vehicles, performs angle measurements from the actual move-
ment of the vehicle. Very fast and accurate reading process. Minimise working times during the alignment process. A proprietary
graphic display is used with high-definition cameras to provide visual and directional assistance during all alignment measuring proce-
dures.
• HD special industrial cameras
• 4 mini targets
• Telemetric horizontally support adjustable height
• Simultaneous measurement of all angles of adjustment
• Various alignment processes
• Multi-language and 3D navigation software
• Various print formats
• Updatable database
• Training courses available
4 targets
4 clamps
2 turntables
Steering wheel lock
Brake pedal lock
Set of PC and
monitor
Printer
4 rubber wedges
LED double
display screen
HD special industrial
cameras
Self-diagnosis and
correction function
Working efficiency
management function
Usable for long wheel-
base vehicles adjust-
ment
All chassis data measu-
rement including wheel-
base, Wheel track, axle
offset and etc.
Multiple compensation
ways or not compensa-
tion

TIRE CHANGER
DT-90
Simple and robust semi-automatic tire changer. Designed for mounting
and dismounting tires of car, van and motorcycle. Optional assist arm
for run-flat tires.
• Rim diameter: 10”-22”
• Max. wheel diameter: 1.000 mm
• Max. wheel width: 330 mm
• Power supply: 220V
• Opcional assist arm
DT-704
Automatic tire changer with right assist arm optional. Designed for
mounting and dismounting tires of car, van and motorcycle. Powerful
bead breaker.
• Opcional assist arm
OPCIONAL
ASSIST ARM
OPCIONAL
ASSIST ARM

DT-95
Automatic tire changer with right assist arm for run-flat tires. De-
signed for mounting and dismounting run-flat tires and alloy rims as
well as tires of car, van and motorcycle. Powerful bead breaker.
• Power supply: 220V-380V
• Included assist arm
• Inflation jets, quick inflation device for tubeless tires in clamps
TIRECHANGERS
Super jets
DT-100
Automatic tire changer with center post system and leverless dis-
mounting tool. Equipped with right assist arm. Designed for mounting
and dismounting tires of cars, SUV, 4x4 y vans.
• Power supply: 3ph / 380V
• UP-DOWN head, which reduces the pressure applied to the tire during
mounting and dismounting thereof, with pneumatic control.
• Included assist arm
• LOCK-AIR self-centering system fast axial locking chuck
• Pneumatic folding working arm
• Equipped with double speed engine

TIRE CHANGER
DT-1000A
Robotic pneumatic tire changer. Designed for mounting and dis-
mounting all types of wheels effortlessly and save as much as possi-
ble time. For run-flat, BSR, CSR, Pax and traditional tires.
• Automatic positioning of the tool
• Multifunction control panel
• Integrated wheel lift
• Instant Booster bead breaker
• Equipped with lower camera
DT-1000H
Robotic hidraulic tire changer. Same features as DT-1000A
• Scrollable central support
ACCESSORIES DT-100ACCESSORIES FOR TIRE CHANGERS
UP-2 Plastic mount/
desmount head
UP-1 Plastic mount/
desmount head
ER-2 Quick change head
assembly
UM-002 Motocicle mount/
desmount head
GP-1 Plastic inserts for
mount/desmount head
DT-003 Hands free clamp
for “run-flat” tires
GM-1 Morocicle rim adap-
ter clamps
Universal adapter for “without a
true center" wheels
GP-2 Plastic inserts for
mount/desmount head

DC-65
Electro-pneumatic truck tire changer. Designed for moun-
ting and dismounting truck, bus, agricultural and industrial
wheels. Compact tire changer ideal for mobile workshops.
• Compact tire changer ideal for mobile workshops
• Two-speed rotation
• Super robust, prevents tensile stress to the vehicle
chassis.
• Max. Wheel diameter: 1.600 mm
• Max wheel width: 780 mm
• Max. wheel weight: 1.500 kg
DC-85
Electro-pneumatic truck tire changer. Designed for moun-
ting and dismounting truck, bus, agricultural and industrial
wheels.
• Max wheel width: 1.065 mm
DC-130
Electro-pneumatic truck tire changer. Designed for
mounting and dismounting truck, bus, agricultural,
industrial and forestry wheels.
• Max wheel width: 1.300 mm
TIRECHANGERS
ACCESSORIES FOR TRUCK TIRE CHANGERS
Steel rim clamp Aluminum rim clamp
Aluminum wheels claws
protection
Claws extensions up to 56"

WHEEL BALANCERS
ET-58
Wheel balancer, robust and easy to use. Designed to balance cars,
vans, 4x4 and wheels; and the possibility to balance motorcycle
wheels (adapter not included). Equipped with electronic brake.
• Rim width: 1,5”-15”
• Max. wheel weight: 75 kg
• Manual entry of wheel data
• Balancing modes: dynamic, static, 4 ALU modes, motorcycle
mode and OPT mode.
ET-806
Semi-automatic wheel balancer, robust and easy to use. Desig-
ned to balance cars, vans and 4x4 wheels; and the possibility to
balance motorcycle wheels (adapter not included). Equipped
with electronic brake and operated brake pedal.
• Rim width: 1,5”-20”
• Automatic entry of wheel data
• Balancing modes: dynamic, static, 5 ALU modes, 3 motor-
cycle modes and OPT mode.
ET-40
Manual wheel balancing, light and easy to use wheels, is the
perfect choice for smaller service shops or mobile wheel service
companies. Designed to balance cars, vans and motorcycle
wheels (adapter not included). Equipped with operated brake
pedal.
• Rim width: 1,5”-20”
• Manual entry of wheel data
• Balancing modes: dynamic, static, 4 ALU modes and OPT
mode.
• Operates on both 220V and 12V DC power
• Power supply: ET-40A 220V
ET-40B 220V DC12V

WHEELBALANCER
EC-40
Semiautomatic truck wheel balancer, robust and easy to
use. Designed for balancing all types of wheels: car, van,
4x4 and trucks. Color monitor and 3D indications.
• Rim width: 1,5”-20”
INCLUDED ACCESSORIES
Wheel width caliper
Quick nut
Pressure cup
Set of cones
Wheel weight pliers
OPTIONAL ACCESSORIES
UE-36/40 - Motorcycle adapter kit UC-36/40 - Universal adapter kit KF-36/40 - Truck adapter kit
ET-810
Automatic wheel balancer, robust and easy to use. Designed to balance
cars, vans, 4x4 wheels and motorcycle wheels (adapter not included).
Color monitor and 3D directions. Equipped with electronic brake and
pedal operated brake.
• Especially suitable for high-performance tires and special formats
• Rim width: 1,5”-20”
• Automatic entry of all wheel data
• Balancing modes: dynamic, static, 9 ALU modes, 3 motorcycle mo-
des and OPT mode.

A/C MACHINES
A/C Recover, Recycle, Evacuate and Recharge A/C System
AC-280 AC-280N AC-380
• Up for cars and vans
• Refrigerant R134a
• Up for cars and vans
• Refrigerant R1234
• Up for cars, trucks and buses
• Refrigerant R134a
DF-01
A/C leak detection kit. It includes:
• Needle charger
• 6 leak discovery dye for R12 y R134a systems
• 2 bottles of 30 ml leak discovery dye for R12 y R134a systems
• Cleaner bottle 105 ml.
• Pipe charger, quick coupler, one-way valve and accesories
• Protective glasses (UVS-40)
• Led lamp
• Case and user manual
A/CMAQUINES
Fully automatic air conditioning stations designed to recover
and recharge the refrigerant gas in the vehicles' AC system.
It recovers, recycles, evacuates, leak tests, and recharges
refrigerant gas quickly and accurately. Fully automatic fun-
ction lets you recover, vacuum, leak test, charge, and then
walk away.
• Automatic Dye Inject gives the user the ability to use the
machine to inject UV dye into a vehicle's A/C system.
• Automatic oil measure and inject
• A/C System Flush - flushes a vehicle's A/C system with
refrigerant eliminating any residual oil or other liquid conta-
minants from the system.
• Printer: Save and Print Before and After Service Data
• Indicator light and notification alarm notifies the user when
service is complete, or if a problem has occurred.
• Updatable
• Data base
• Self-calibration
• HP and LP hoses 2.5 m each one.
• Vessels for new and used oil

NITROGEN INFLATOR/GENERATOR
Advantages of tire inflation with nitrogen:
• Constant tire pressure
• Extends the life of tires
• Reduce fuel consumption
• Increased reliability on the road
• It prevents oxidation of rims and tires
GN-700S
Nitrogen generator and inflator designed to inflate tires with
nitrogen instead of air.
• Automatic process
• Use: cars and light commercial vehicles
• Hose: 10 m
• Nitrogen Purity 95-99,5%
• Pressure up to 10 bar
GN-1000
Nitrogen generator and inflator designed to inflate tires with nitrogen
instead of air. Large LED display and simplified control panel. Automa-
tic diagnosis system. Last adjustment record. Internal nitrogen tank
with outlet to external tank.
• Automatic process
• Use: cars and light and heavy commercial vehicles
• Hose: 10 m
• Nitrogen Purity 97-99%
• Pressure up to 10,5 bar
A/CANDNITROGEN
MACHINES

AIR COMPRESSORS
PISTON AIR COMPRESSOR
Piston air compressors ideal for professional use in small and
large workshops, its robust construction allows it to work conti-
nuously, with very low maintenance.
CA-50
• 10 bar – 2 cv – Tank 50L
CA-100
• 10 bar – 3 cv – Tank 100L
CA-200
• 10 bar – 3 cv – Tank 200L
CA-300
• 10 bar – 5,5 cv – Tank 270L
CA-500
• 10 bar – 7,5 cv – Tank 500L
CA-500T
• 14 bar – 10 cv – Tank 500L
SILENT PISTON AIR COMPRESSOR
Silent piston air compressors particularly suitable for installa-
tions that require low noise emission and compressor-pot set in
one piece. Cooling system using large diameter fan. Piston
head with cast iron cylinder for longer life, centralized control
panel, full accessibility to inside.
CAI-200
•10 bar – 3 cv – Tank 200L
CAI-300
•10 bar – 7,5 cv – Tank 270L
CAIS-300 (with dryer)
•10 bar – 7,5 cv – Tank 270L
CAI-500
•10 bar – 7,5 cv – Tank 500L
CA-24AGRI
Air compressor with petrol engines for use where there is no available
electric power supply. The CA-24 AGRI is a professional compressor
with two pistons driven by a heat engine belt Honda 4-stroke petrol.
Equipped with pressure switch with manual reset thermal protection,
pressure gauge, pressure regulator, safety valve, drain valve, handle
and transport wheels. The head runs at low speed which ensures a long
life.
•10 bar – 5,5 cv – Tank 24L

AIRCOMPRESSORS
SCREW AIR COMPRESSOR
Large range of low noise screw air compressors, which are ideal for customers who need a complete and easy air station to
use, suitable for continuous and steady working. Simple and affordable but with advanced technology.
CAT-100
• 9 bar – 3 cv – Tank 90L
CAT-300
• 10 bar – 7,5 cv – Tank 270L
CATS-500/7,5
• 10 bar – 7,5 cv – Tank 500L
CATS-500/10
• 10/13 bar – 10 cv – Tank 500L
CATS-500/15
• 10 bar – 15 cv – Tank 500L
CATS-500/20
• 10 bar – 20 cv – Tank 500L
*CATS - with dryer
AIR HOSE REELS
Retractable hose reels for compressed air with closed casing and flexible hose. Easy to assemble, manage and collect. Security plugs.
EN-100 EN-150P EN-150
• Plastic shell
• Hose: 10 m
• Max. pressure: 15 bar
• Plastic shell
• Hose: 15 m
• Metallic shell
• Hose: 15 m
New Silver 7,5
• 10 bar – 7,5 cv
New Silver 10
• 10 bar – 10 cv
New Silver 20
• 10 bar – 20 cv

ULTRASONIC CLEANERS AND DIAGNOSIS TOOL
ULTRASONIC CLEANERS
Ultrasonido - 003M / 010M
Ultrasonic cleaner with mechanical control
 With heater and timer
 Stainless tank and basket
Ultrasonic cleaning machines designed for professional use, highlights its parts cleaning procedure and
high frequency of cleaning. With stainless tank and basket with high wear resistance.
Ultrasonido - 003D / 010D
Ultrasonic cleaner with digital control
 With drainage valve
Ultrasonido-010S / 030S
Ultrasonic cleaner with power adjustable control
 Ultrasonic power adjustable
 With drainage valve
ULTRASONIDOS
Model Capacity Tank Size Frecuency Ultrasonic
Power
Heater
Power Timer Heater
tempertureUnit Size
Ultrasonido 030M 3.2 L 240*135*100 mm 40 KHz 120 W 100 W 0-30 min 20-80 ºC265*165*230 mm
Ultrasonido 010M 10.0 L 300*240*150 mm 40 KHz 240 W 200 W 0-30 min 20-80 ºC325*265*280 mm
Power
Heater
Power Timer Heater
tempertureUnit Size
Ultrasonido 003D 3.2 L 240*135*100 mm 40 KHz 120 W 100 W 0-30 min 20-80 ºC265*165*230 mm
Ultrasonido 010D 10 L 300*240*150 mm 40 KHz 240 W 200 W 0-30 min 20-80 ºC325*265*280 mm
Power
Heater
Power Timer Heater
tempertureUnit Size
Ultrasonido 010S 10 L 300*240*150 mm 40 KHz 80-200 W 200 W 0-30 min 20-80 ºC325*265*280 mm
Ultrasonido 030S 30 L 500*300*200 mm 40 KHz 200-500 W 500 W 0-30 min 20-80 ºC520*310*335 mm

Diagnosis Tool PS-90
DIAGNOSIS
FAST
INTELLIGENT
POWERFUL
WIRELESS
 Accurate live data in both Graph and
Wave form
Special Functions:
Key programming, Mi-
leage adjustment, ABS
bleeding, service light
reset, DPF regenera-
tion, steering angle
calibration, battery re-
set, throttle body adaptation，EEPROM...
Complet case with
connectors
 Full System Diagnosis: Engine, ABS, Airbag, Transmission,
Immobilizer, Body (ECM), Chassis……
 Basic Functions: Read fault codes, clear fault codes, live da-
ta, actuation
 Special Functions: Key programming, Mileage adjustment,
ABS bleeding, service light reset, DPF regeneration, steering angle
calibration, battery reset, throttle body adaptation，EEPROM...
 Diagnosis report: Save the fault code report and print it out
for your customers. Save the live data and review it anytime you
want.
 Key codification. In some vehicles it can add more coded
keys and remove the PIN CODE from the ECU to generate a new
key, depending on the vehicle system.
 Data Recording. At any time during diagnosis, the tool can
save screenshot or even record data in real-time of the diagnostic
information that gives the tool. This information can be sent to a PC
for reporting or print it directly.
 Connectivity to Internet, WiFi, Network and USB. The equip-
ment allows to connect to a PC via WiFi, USB or network cable to
download the information obtained in the diagnosis or to update the
software.
 Extensive vehicle coverage: Americans, Europeans and Asians.
 Complete kit of specific OBD connectors. It allows the con-
nection with vehicles which don’t have 16 pins OBDII connector.
 OPTIONAL: Truck diagnosis software, Autodata online and 2
-channel oscilloscope.

WORKSHOP EQUIPMENT
GTN-10 GTN-315 GTN-421
• 10 Tn Pneumatic Hydraulic Jack
• Height range: 170-576 mm
• Air pressure: 6,5-7,5 Bar
• Weight: 155 Kg
• 15/30 Tn Pneumatic Hydraulic Jack
• Weight: 65 Kg
• 10/20/40 Tn Pneumatic Hydraulic Jack
• Weight: 58 Kg
GNB-35
• 35 Tn Pneumatic Hydraulic Bottle Jack
• Weight: 42 Kg
GTN-632
• 60/35/20 Tn Pneumatic Hydraulic Jack
• Weight: Kg
GTN-420
• Minimum height: 150 mm
• Lifting height: 40T+74mm / 20T+68mm
• Extension height: 75 mm + 45 mm
• Air pressure: 8-10 Bar
• Weight: 38 Kg
GTN-420A
• Height range: 170 mm
• Lifting height: 40T+70mm / 20T+62mm
• Extension height: 75 mm + 45 mm
• Air pressure: 6-8 Bar
• Weight: 53 Kg

JACK STANDS
WORKSHOP
EQUIPEMNT
GT-2T GT-3T GT-5T
2 Tn Low profile floor jack
• Lifting range: 76-510 mm
• Weight: 42 Kg
3 Tn Extra long floor jack
• Weight: 50 Kg
5 Tn Extra long floor jack
• Weight: 30 Kg
GS-500
500 Kg Transmission Jack
• Min. height: 1.135 mm
• Max. height: 1.950 mm
• Weight: 31 Kg
GS-1500
1.500 Kg Transmission Jack
• Min. height: 1.195 mm
• Max. height: 1.985 mm
• Weight: 59 Kg
GT-20A GT-30F GTC-500
2 Tn Aluminum Floor Jack
• Lifting range: 130-500mm
• Weight: 21 Kg
3 Tn Floor jack
• Weight: 38 Kg
4 Tn(end) 5 Tn (post) Forklift Jack
• Min. height: 70mm(end) 320mm (post)
• Max. height: 365mm (end) 415 mm (post)
• Weight: 45 Kg
ST-30
• Capacity 3 T
• Lifting range:
295-415 mm
ST-60
• Capacity 6 T
• Lifting range:
465-715 mm
ST-120
• Capacity 12 T
• Lifting range:
465-715 mm
ST-120
• Capacity 12 T
• Lifting range:
456-710 mm
ST-200
• Capacity 20 T
• Lifting range:
420-680 mm

WORKSHOP EQUIPMENT
MOTORCYCLE EQUIPMENT
EM-450
Motorcycle lifting table, with manual lock to secure the lift at
any height.
• Capacity: 450 Kg
• Platform length: 2,20 m
• Equipped with wheels to move it
XT-100E
Electro-hydraulic scissor lift up to 700 kg ideal for motor-
cycles workshops. Equipped with safety devices and wheel
lock.
• Platform length: 2,20 m
Accessories
XT-100Q
Side extensions
Removable rear platform
EM-400
Motorcycle lifting jack
• Lifting height 100 - 340 mm
EM-400A
• Lifting height 90 - 405 mm
MS-700
MS-400
Motorcycle parking stand
Front wheel lock

MS-680
Motorcycle central support stand
MS-200
Motorcycle support stand
for rear wheel
MS-300
for front and rear wheel
WORKSHOP
EQUIPEMNT
MM-500
Motorcycle lifting table
• Lifting height: 890 mm
MS-500
Motorcycle lifting table
MS-100
for front wheel
MS-280
for rear wheel
MS-320
for rear wheel
MS-350
for rear wheel
MS-480
for rear wheel

WORKSHOP EQUIPMENT
SHOP PRESS
PS-15T
Bench shop press up to 15 tons with movable head and adjus-
table height bed, is ideal for quick jobs. Includes two heel blo-
cks.
PS-30
Hydraulic shop press up to 30 Ton with movable head and adjustable
height bed, designed for automotive, truck, implement, fleet and industrial
repair shops where pressing, bending, straightening, forming, holding is
required. Includes two heel blocks.V
PSA-25
Kit 8 mandrels for shop press
PS-75T
Electro-hydraulic shop press up to 75 tons. It has movable head (rapid
rise and fall) for user comfort and adjustable height bed frame. Head with
overload protection. It includes two heavy-duty heel blocks.

PM-1T PM-2TS PM-2T
• Lifting height: 250 - 2000 mm
• Weight: 75 Kg
• Weight: 105 Kg
• Weight: 160 Kg
WORKSHOP
EQUIPMENT
FOLDING ENGINE CRANES
Folding engine cranes up to 1 and 2 T capacity. Indispensable in any workshop thanks to its versatility and maneuverabil-
ity. Its design with folding legs, makes this crane occupies very little space and can be saved in any corner when is not in
RF-1
Optical headlight aimer, suitable for
verification and adjustment of all types
of headlights: filament, halogen, xe-
non and LED . Equipped with electro-
nic light meter.
VZ-1100 VZ-2000
Tire vulcanizer designed to repair da-
maged tires and inner tubes. Equipped
with double resistance. It has 3 different
types of couplings to fit the contour of
the tire. Safety device that controls tem-
perature and prevents overheating.
• Max. Power: 1000W
Tire vulcanizer with table designed to repair da-
maged tires and inner tubes. Equipped with
up,down and side mold,to better repair all sides of
the tire. Top arm and side arm can turn around
90°. Safety device that controls temperature and
prevents overheating.
• Max. Power: 2000W

WORKSHOP EQUIPMENT
BP-AC-01/02 BP-AC-04 BP-AC-05 BP-AC-06 BP-AC-07 BP-AC-08
Plastic bins for tool panel Short double
metal hook
Metal hanger Tool support
370x65x34 mm
Short metal hook Large double metal
hook
ACCESSORIES
BP-152C BP-203C
Workbench + tool panel with 2 drawers
Overall - 1500x640x1550 mm
Workbench + tool panel with 3 drawers
Overall - 2000x640x1550 mm
LUBRICATION EQUIPMENT
LB-80 LB-90 LB-500 LB-400 LB-35
Pneumatic oil extractor
● Capacity: 80L
Pneumatic oil extractor
● Capacity: 90L
Oil Dispensing Trolley Kit Oil Dispensing Kit Pneumatic grease pump

WORKSHOP
EQUIPMENT
EN-10E DS-100 DS-200
Electric hose reel
• Plastic shell
• Hose: 10+1 m
• Cable section: 3x2,5 mm2
Electrical circuit tester
• Featuring AVOmeter, test light, built-in flash-
light, short circuit indicator, relay/component
tester, continuity tester and bad ground indi-
cator
Battery Tester
• Performs: battery test, cranking test, charging
system and rectifier diode test and other functions
Hydropneumatic high precision
pump designed to act on all
types of sheet metal equipment
repair. Aluminum cover
Hydropneumatic bead breaker
• Capacity: 5 Ton
• Range: 127 mm
BAP-5200 DLT-5200
AS-1M20 AS-2M70 AS-3M
Vaccum cleaner - 1 engine
• Capacity: 20L
• Power: 1400W
Vaccum cleaner - 2 engines
• Capacity: 70L
• Power: 2000W
Vaccum cleaner - 3 engines
• Capacity: 80L
• Power: 3000W
NEW PRODUCTS 2016

RUBBER PAD
RUBBER PADS FOR LIFTS
G6
A= 150 mm L= 245 mm h= 85 mm
G9 G9b
G1
Adaptable to Rotary, Ravaglioli, Space
G4
Adaptable to Cascos, AGM
G5
Adaptable to Cascos, AGM
G8
G10
Adaptable to Ravaglioli, Space
G11
G18
Adaptable to Ravaglioli
G19
G20
G21
Adaptable to OMCN

G12
A= 130 mm L= 440 mm h= 25 mm
G2
A= 120 mm L= 160 mm h= 60 mm
G3
A= 120 mm L= 160 mm h= 40 mm
G14
A= 120 mm L= 160 mm h= 20 mm
G15
A= 120 mm L= 160 mm h= 100 mm
G22
Adaptable to OMCN.
G24
A= 100 mm L= 118 mm h= 58 mm
G25
Adaptable to Ravaglioli.
CONSUMIBLES
G7 G16
Ø= 100-90 mm h= 81 mm
G17
Ø= 68-60 mm h= 50 mm
G23
G28 G29
Adaptable to Ravaglioli, Sirio, Space
SILENTBLOCK PAD
WORKSHOP
EQUIPMENT

BATTERY CHARGERS AND STARTERS
BATTERYCHARGERS
Alpine Boost 20
Battery charger for charging free electrolyte batteries (WET) with 12/24V voltaje.
• Equipped with selector for normal or quick (BOOST) charge and ammeter.
• WET/START-STOP batteries up to 180A. Range: 30-225 Ah 15h
• Power supply: 230V 1PH
Alpine Boost 30
Alpine Boost 50
Doctor Charge 50
Electronic BATTERY MANAGER for total maintenance of WET, GEL, AGM, MF, SPIRAL, START-STOP batteries at
6/12/24V and for support activities when intervening on vehicles
• Automatic charge and maintenance of batteries with PULSE TRONIC technology, recovery of sulphated or very
discharged batteries
• Battery tests such as voltage at terminals, starting capacity and operational check of the vehicle alternator
• Range: 10-600 Ah 15h
Alaska 200 START
Battery charger and maintainer with electronic control of the charging current, automatic interruption and restart
(TRONIC), for charging lead-acid batteries with 12/24V voltage
• WET/GEL/AGM: SPIRAL, MF, START-STOP batteries. Range: 25/30/300-160 Ah 15h
T-Charger 12
Intelligent battery charger and maintainer with electronic control of the charging current, automatic interruption and restart
(PULSE-TRONIC).
• 3 charge current levels
• Range: 2-70 Ah 15h
STARTER
ProSTART 2824
Battery-powered starter suitable for 12-24V starting of cars, vans, boats, agricultural vehicles, power sources etc.
Complete with: 230V AC 12V DC power adaptor, positive-negative cables with clamps, high efficiency lamp, double jack
cable.
• Max. Starting current: 2500 A
CHARGERANDSTARTER
DigiStart 340 Pulse
Digital battery charger and starter with electronic control of the charging current, automatic interruption and restart
(PULSE-TRONIC) for charging all types of batteries with 12/24V voltages and quick starting of cars, vans and light trucks.
• Max. Starting current: 300A
• Range: 10-450 Ah 15h
• Automatic connection and disconnection
• Constant current load programmable from the control panel
Dynamic 520 Start
Battery charger and starter for charging free electrolyte batteries (WET) with 12/24V voltage and starting all kinds of cars,
vans and light trucks. Choice of normal charge, quick charge (BOOST) and quick start . Alimentación: 230V 1PH
• Max. Starting current: 400A
• Range: 20-1000 Ah 15h

WELDING
PLASMA
Tecnica PLASMA 31
Inverter, compressed air plasma cutting system, with contact striking of pilot arc. Complete with torch.
• Max. Absorbed power: 2,8 kW
• Max. cutting thickness: 8 mm
• Compressed air capacity: 100l/min a 6 Bar
Technology PLASMA 54 Kompressor
Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Enterprise PLASMA 160Hf
Chopper, compressed air plasma cutting system, with high frequency HF striking of pilot arc.
• Max. Absorbed power: 25 kW
• Power supply: 230-400V 3PH
PLASMA CUTTING AND WELDING
MIG-MAG WELDING
MIG
MASTERMIG 220/2
MIG-MAG/BRAZING welding machine. Designed for continuous and spot welding with electronic regulation of spot
welding time. Complete with MIG-MAG welding accessories.
• Current range in DC: 20-220 A
• Adjustable power: 0-4 / 4-6,5 kW
• Welding wire diameter: up to 1 mm (steel, stainless steel, high strength steels and aluminium)
MASTERMIG 270/2
MIG-MAG/BRAZING welding machine. Designed for continuous and spot welding with electronic regulation of spot
welding time. Complete with MIG-MAG welding accessories.
• Adjustable power: 0-5,5 / 5,5-9 kW
• Welding wire diameter: up to 1,2 mm (steel, stainless steel, high strength steels and aluminium)
BIMAX 162 TURBO
FLUX (no gas) and MIG-MAG (gas) welding machine. With thermostatic protection. Complete with FLUX welding ac-
cessories.
• Current range in DC: 30-145A
• Adjustable power: 0-1,4/1,4-3,7 kW
• Welding wire diameter: up to 0,8 mm (steel, stainless steel and aluminium)
MIG-TIG-MMA
INVERPULSE 320 MIG/TIG/MMA
Microprocessor controlled, MIG-MAG (continuous, PULSE, double pulse - PULSE ON PULSE), FLUX/BRAZING,TIG-
DC lift and MMA inverter welding machine with built-in 4 rolls wire feeder. Complete with MIG-MAG welding accesso-
ries.
• Adjustable power: 0-6/6-10,5kW
• Welding wire diameter: up to 1,2 mm (steel, stainless steel and aluminium) - Electrode: up to 6 mm

WELDING MACHINES
MIG-TIG-MMA
INVERPULSE 425 MIG/TIG/MMA +ACC
Microprocessor controlled, MIG-MAG (continuous, PULSE, double pulse - PULSE ON PULSE), FLUX/BRAZING,TIG-
DC lift and MMA inverter welding machine with 4 rolls, separate wire feeder. Complete with MIG-MAG welding acces-
sories.
• Adjustable power: 0-8/8-14kW
• Welding wire diameter: up to 1,6 mm (steel, stainless steel, HSS high strength steels, galvanised sheets,
aluminium and its alloys) - Electrode: up to 6 mm
Technomig 150 DUAL Synergic
Microprocessor controlled MIG-MAG/FLUX/BRAZING inverter wire welding machine. Fit for NO GAS/Flux welding, it
can be transformed into MIG-MAG with the optional kit. Complete with MIG-MAG torch, work clamp and cable.
• Adjustable power: 0-1,2/1,2-2,8kW
Technomig 180 DUAL EURO Synergic
Microprocessor controlled MIG-MAG/FLUX/BRAZING inverter wire welding machine. Fit for NO GAS/Flux welding, it
can be transformed into MIG-MAGwith the optional kit. Complete with MIG-MAG torch, work clamp and cable.
Euro torch connection
MIG-MAG
Technomig 215 DUAL Synergic
Microprocessor controlled MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift inverter multiprocess welding machine.
Complete with MIG-MAG torch, work clamp and cable.
• Welding wire diameter: up to 1 mm (steel, stainless steel and aluminium)
Telmig 170/1 TURBO
MIG-MAG welding machine. With thermostatic protection. Complete with MIG-MAG welding accessories.
Telmig 180/2 TURBO
MIG-MAG welding machine. Designed for continuous and spot welding with electronic regulation of spotwelding time.
Complete with MIG-MAG welding accessories.
Telmig 200/2 TURBO
• Adjustable power: 0-3/3-7kW
• Welding wire diameter: up to 1 mm (steel, stainless steel and aluminium)
Telmig 281/2 TURBO
• Adjustable power: 0-5/5-9,5kW

WELDING
Motoinverter 174 CE HONDA
Inverter technology, petrol engine-driven (HONDA engine) welding machine with high frequency permanent mag-
nets alternator for electrode MMA and TIG-DC welding with scratch striking.
• Electrode: 1,6-3,2 mm
• DC available power: 1,8 kW 230V 1PH
• Enginde Honda CX200 6,5 cv
• Gross weight: 40 kg
Motoinverter 254 CE HONDA
Inverter technology, petrol engine-driven (HONDA motor) welding machine with high frequency permanent mag-
nets alternator for MMA and TIG-DC electrode welding with scratch striking.
• Electrode: 1,6-5 mm
• DC available power: 3 kW 230V 1PH
• Engine Honda GX390 11 cv
• Gross weight: 73 kg
MMA WELDING
MMA
Force 125 ACD + HELMET
MMA inverter, electrode welding machine in direct current (DC).
• Complete with TIGER helmet and MMA welding accessories.
Force 165 ACX PLASTIC CARRY CASE
• Complete with MMA welding accessories and plastic carry case.
Force 168 MPGE ACX PLASTIC CARRY CASE
• Complete with MMA welding accessories and plastic carry case.
• Max. Absorbed power.: 4,1 kW
• Motorgenerator minumun power: 6 kW
SPOT WELDING MACHINES
SPOTWELDING
Digital Puller 5500
Microprocessor controlled, electronic system for repairing of metal sheets fit for applications in car body shops.
The digital, multifunction control panel allows the automatic regulation of the spotwelding parameters according to
the chosen tool. Complete with gun, earth cable with fixing kit, extractor, spindle and pulling stars.
• Peak spot-welding current: 3800 A
• Rated power X=50% : 1,8 kVA
• Power supply: 230V 1PH / 400V 3PH
Digital Spotter 5500 + ACC
Microprocessor controlled, spot-welding machine fit for applications in car body shops. The LCD digital, multifun-
ction control panel allows the automatic regulation of spot welding parameters according to the chosen tool and
sheet thickness. Complete with the "STUDDER" kit for spot welding of screws, washers, rivets and pulling stars,
sheet warming and upsetting.
• Peak spot-welding current: 4200 A
• Rated power X=50%: 2,8 kVA
• Max. welding thickness on 2 sheets: 1,5+1,5 mm
• Power supply: 230V 1PH / 400V 3PH

WELDING MACHINES
SPOT WELDING MACHINES
Digital Spotter 7000 + ACC
Microprocessor controlled, electronic spot-welding machine suitable for use in the car body repair. The digital,
LCD, multifunction control panel allows the automatic regulation of spot welding parameters according to the
chosen tool and sheet thickness.
Equipped with air cooled pneumatic gun and trolley.
• Max. spot-welding current: 4500 A
• Rated power x=50%: 6,7 kW
• Max. welding thickness on 2 sheets: 1,5+1,5 mm
Inverspotter 12000
Medium frequency, direct current (MFDC) inverter technology, microprocessor controlled resistance (spot) wel-
ding machine with water-cooled clamp; suitable for body shop applications and industrial use.
Complete with water-cooled pneumatic clamp, water cooling unit, trolley and balancer.
• 192 standard programmes and possibility of 240 customised ones
• Rated power x=50%: 25 kW
• Max. welding thickness on 2 sheets: 3+3 mm
Approved by:
SPOTWELDING
Inverspotter 13500 Smart + Acc
Medium frequency, direct current (MFDC) inverter technology, microprocessor controlled resistance (spot) wel-
ding machine.
Complete with air-cooled pneumatic clamp and trolley.
• Automatic recognition of the materials and thickness.
• Rated power x=50%: 4,8 kW
• Max. welding thickness on 2 sheets: 3+3+3 mm
Inverspotter 14000 Smart Aqua + Acc
Medium frequency, direct current (MFDC) inverter technology, microprocessor controlled resistance welding
machine.
Complete with water-cooled pneumatic clamp and trolley.
• Automatic recognition of the materials and thickness.
• Rated power x=50%: 9 kW
• Max. welding thickness on 2 sheets: 3+3+3 mm
Approved by:

WELDING
TIG WELDING
FORCE TIG 170 DC - LIFT + Plastic carry case
TIG (LIFT striking) and MMA inverter welding machine in direct current (DC). Use with a wide range of
materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
• Complete with TIG welding accessories and plastic carry case.
• Absorbed power: 4,1 kW
TECHNOLOGY 216 HD ACX + Alu carry case
MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking. Use with a
wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
• Complete with MMA welding accessories and aluminium carry case.
• Absorbed power: 0-3,5 / 3,5-5,5 kW
TECHNOLOGY 230 DC-HF LIFT + Acc
Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine
in direct current (DC). Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and
their alloys.
• Complete with TIG welding accessories.
• Absorbed power: 0-4,1 / 4,1-6 kW
TIG
SUPERIOR TIG 421 DC-HF/LIFT + Acc
Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine
in direct current (DC) . Use with a wide range of materials such as steel, stainlesssteel, titanium, copper, nickel and
their alloys.
• Absorbed power: 0-8/8-14 kW
SUPERTIG 280/1 AC/DC-HF/LIFT
Thyristor-controlled, TIG (high frequency HF and LIFT striking) and MMA welding machine in direct and alternating
current (AC/DC). Use with a wide range of materials such as steel, stainless steel, aluminium, titanium, copper, ni-
ckel, magnesium and their alloys.
• Current range: 15-250 A
• Absorbed power: 0-6,1/6,1-10,5 kW
ACC
TRIBE MMA/MIG-MAG/TIG HELMET
Automatic welding helmet ideal for MMA, MIG-MAG and TIG welding. The LCD liquid crystal filter darkens automati-
cally when the welding arc is running and quickly returns to its transparent status when the arc is switched off; this
means the operator does not need to lower and raise his mask during operations and allows him to work always with
both hands freely.
Main features: light and comfortable to wear, fixed automatic darkening filter, solar cell powered, transparent glass
protection filter.

NOTES

COLLABORATION IN THE TV SHOW “EL HORMIGUERO”
AUDI R8 PRESENTATION AT CIRCUIT MONTEBLANCO (HUELVA)

RSF Maquinaria
C/Calvo Sotelo, 26 - 49700 Corrales del Vino (Zamora)
Tel: +0034 980 560 111 Fax: +0034 980 049 487
Email: info@rsf-maquinaria.com

RSF-Equipment Catalog 2016 English

Recommended

Recommended

More Related Content

What's hot

What's hot (6)

Viewers also liked

Viewers also liked (19)

Similar to RSF-Equipment Catalog 2016 English

Similar to RSF-Equipment Catalog 2016 English (20)

More from Enric Fogàs i Puig

More from Enric Fogàs i Puig (6)

Recently uploaded

Recently uploaded (17)

RSF-Equipment Catalog 2016 English
