1. Towards Service-based Business Process Modeling, Prototyping and Integration Ang Chen, Didier Buchs System Modeling and Verification Laboratory University of Geneva RISE 2005

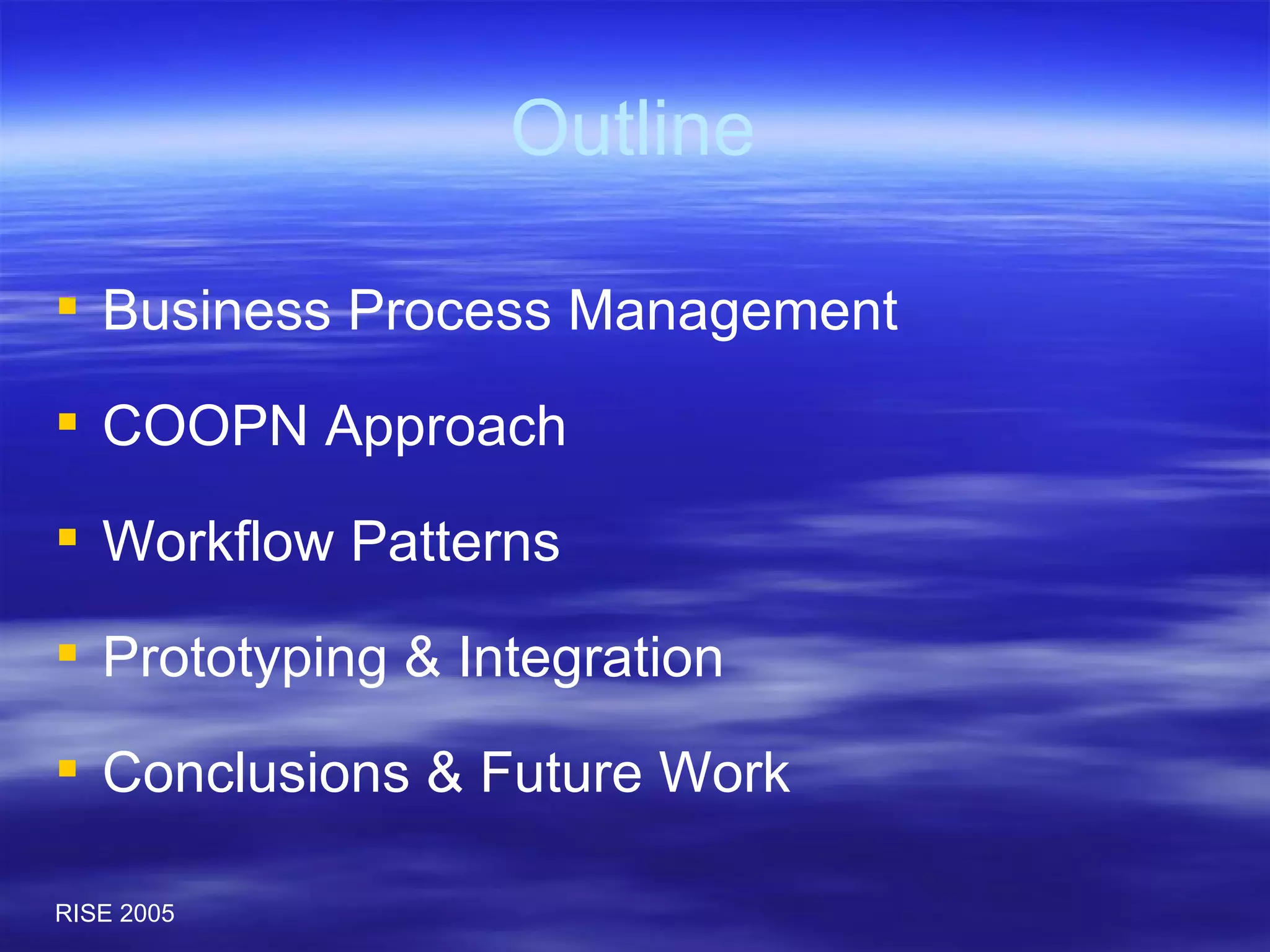

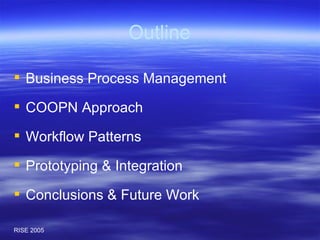

2. Outline Business Process Management COOPN Approach Workflow Patterns Prototyping & Integration Conclusions & Future Work

3. Business Process Management

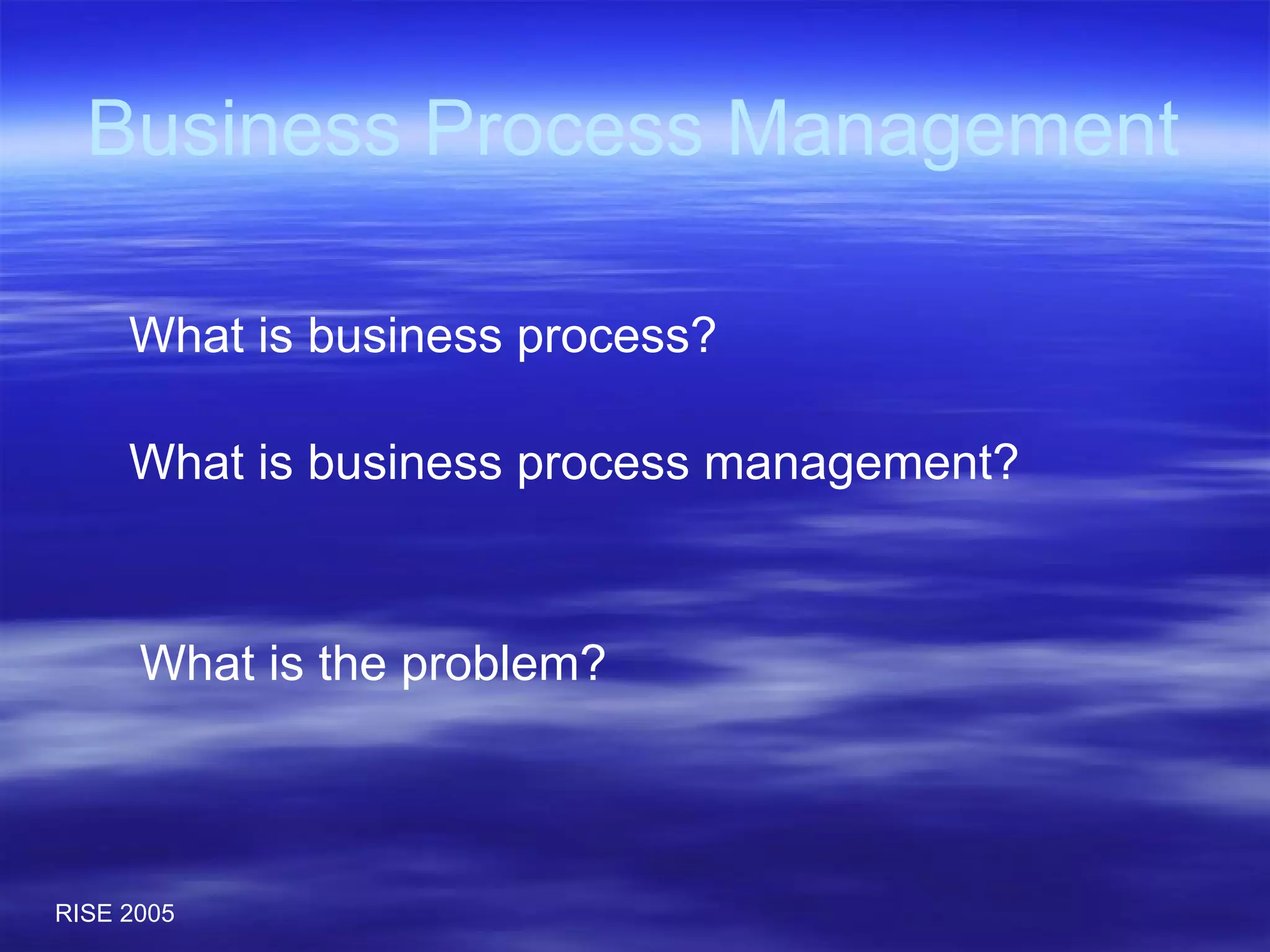

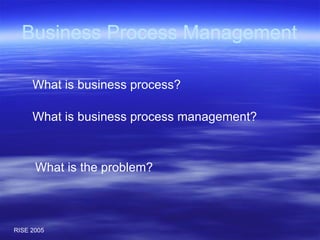

4. Business Process Management What is business process management? What is business process? What is the problem?

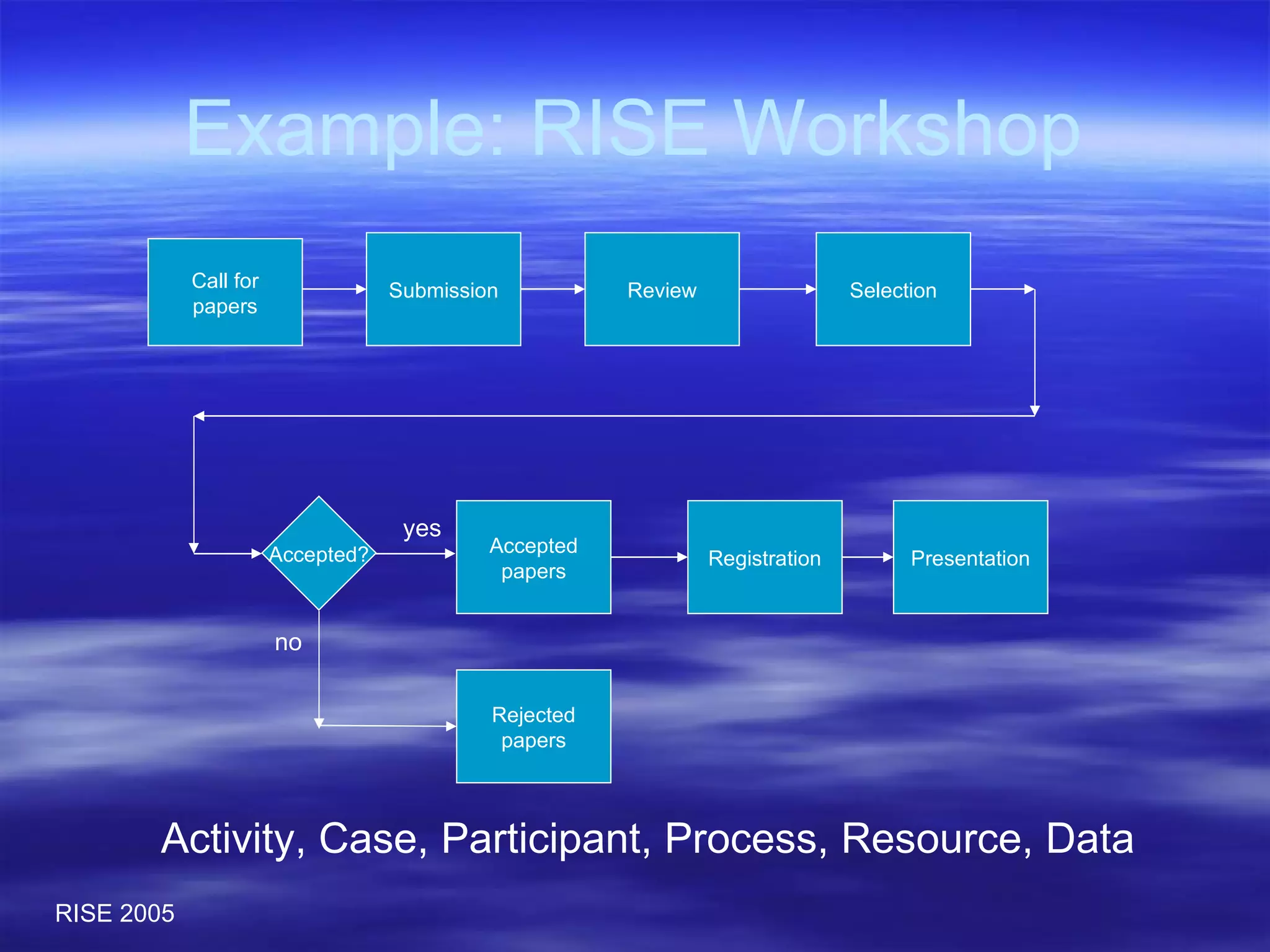

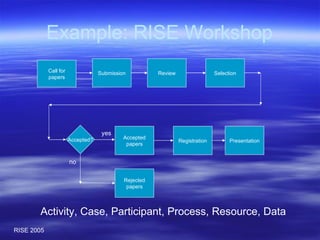

5. Example: RISE Workshop Activity, Case, Participant, Process, Resource, Data Call for papers Submission Review Selection Accepted? Accepted papers Rejected papers Registration Presentation yes no

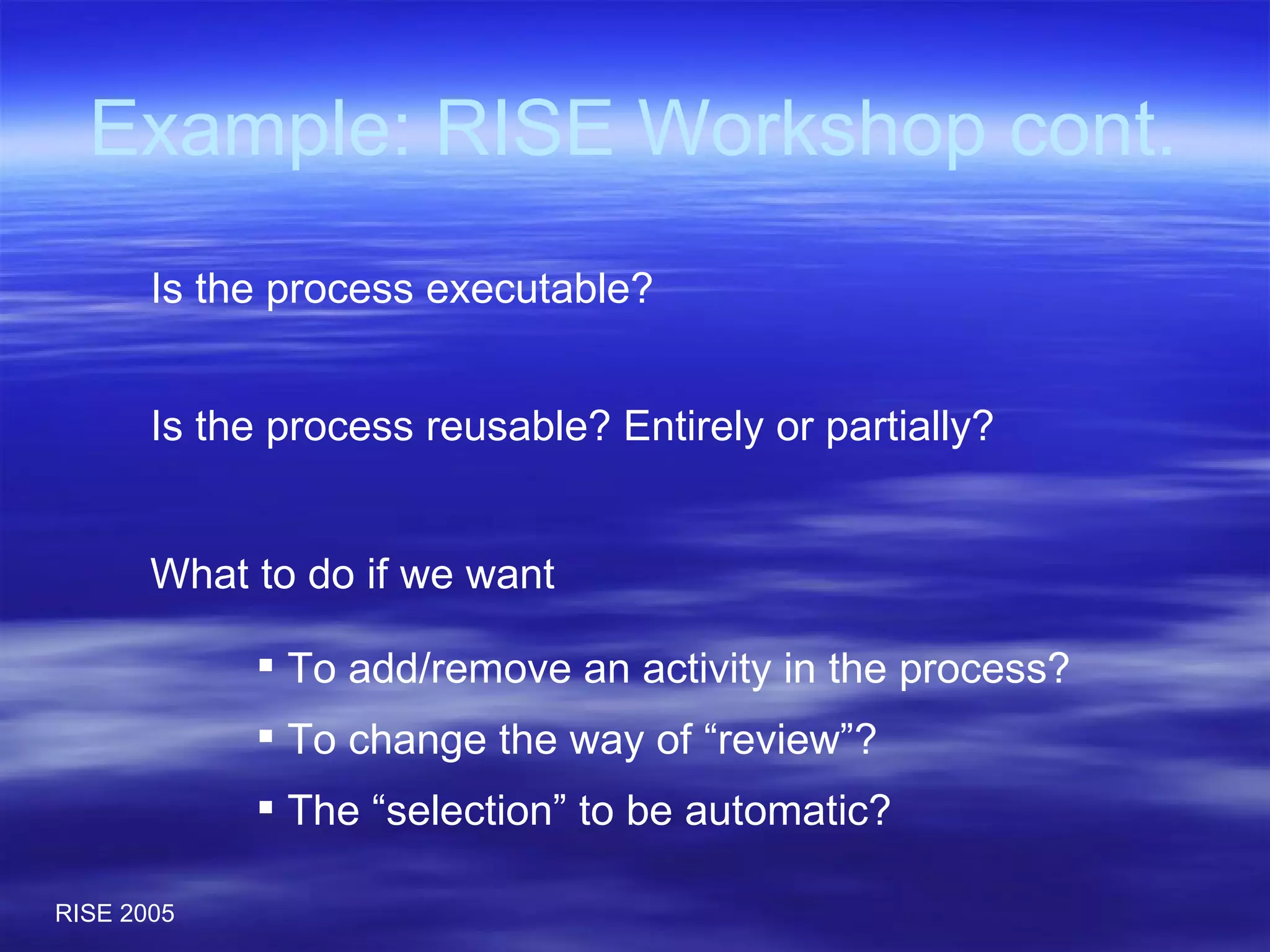

6. Example: RISE Workshop cont. What to do if we want To add/remove an activity in the process? To change the way of “review”? The “selection” to be automatic? Is the process reusable? Entirely or partially? Is the process executable?

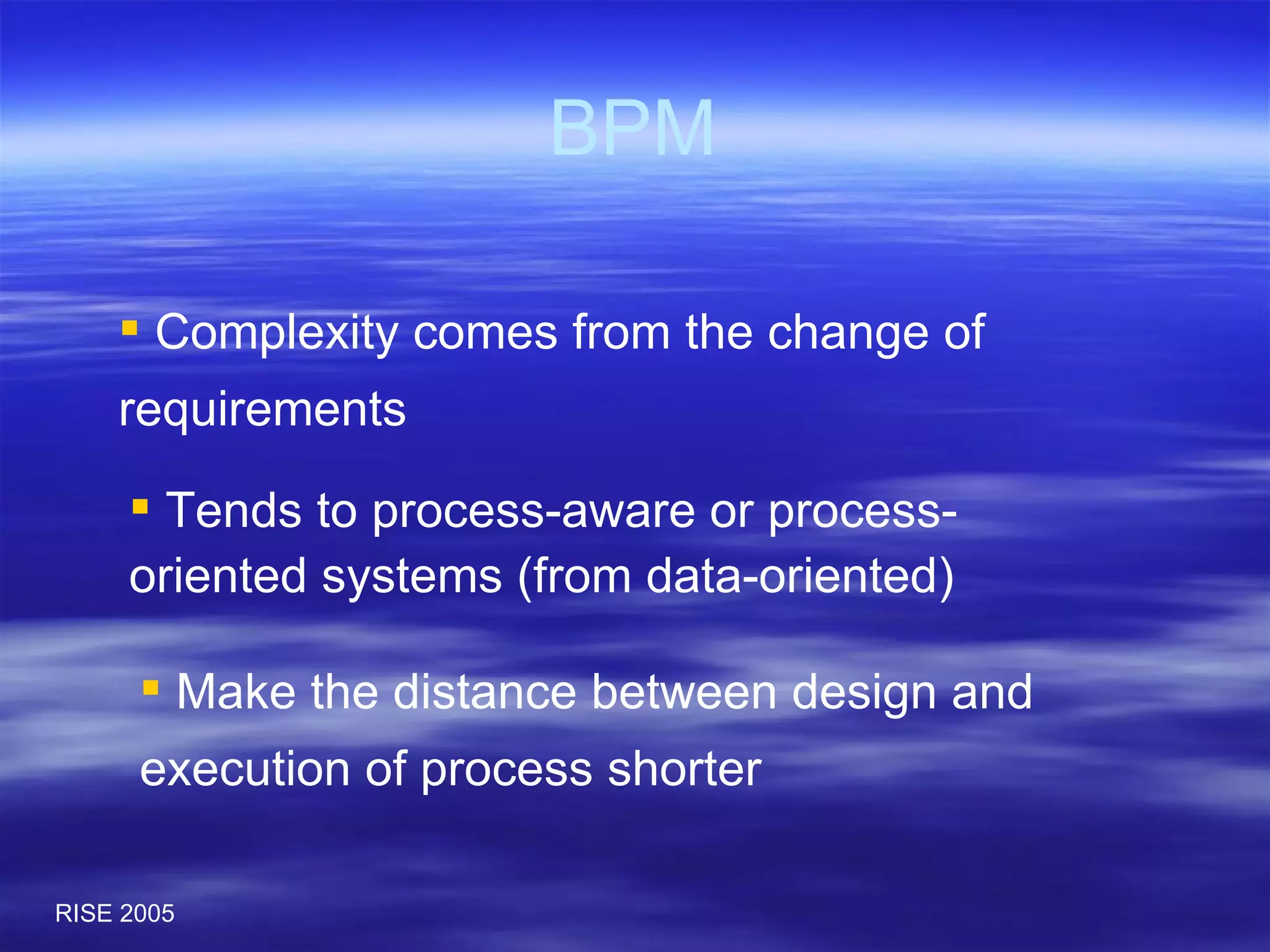

7. BPM Complexity comes from the change of requirements Tends to process-aware or process-oriented systems (from data-oriented) Make the distance between design and execution of process shorter

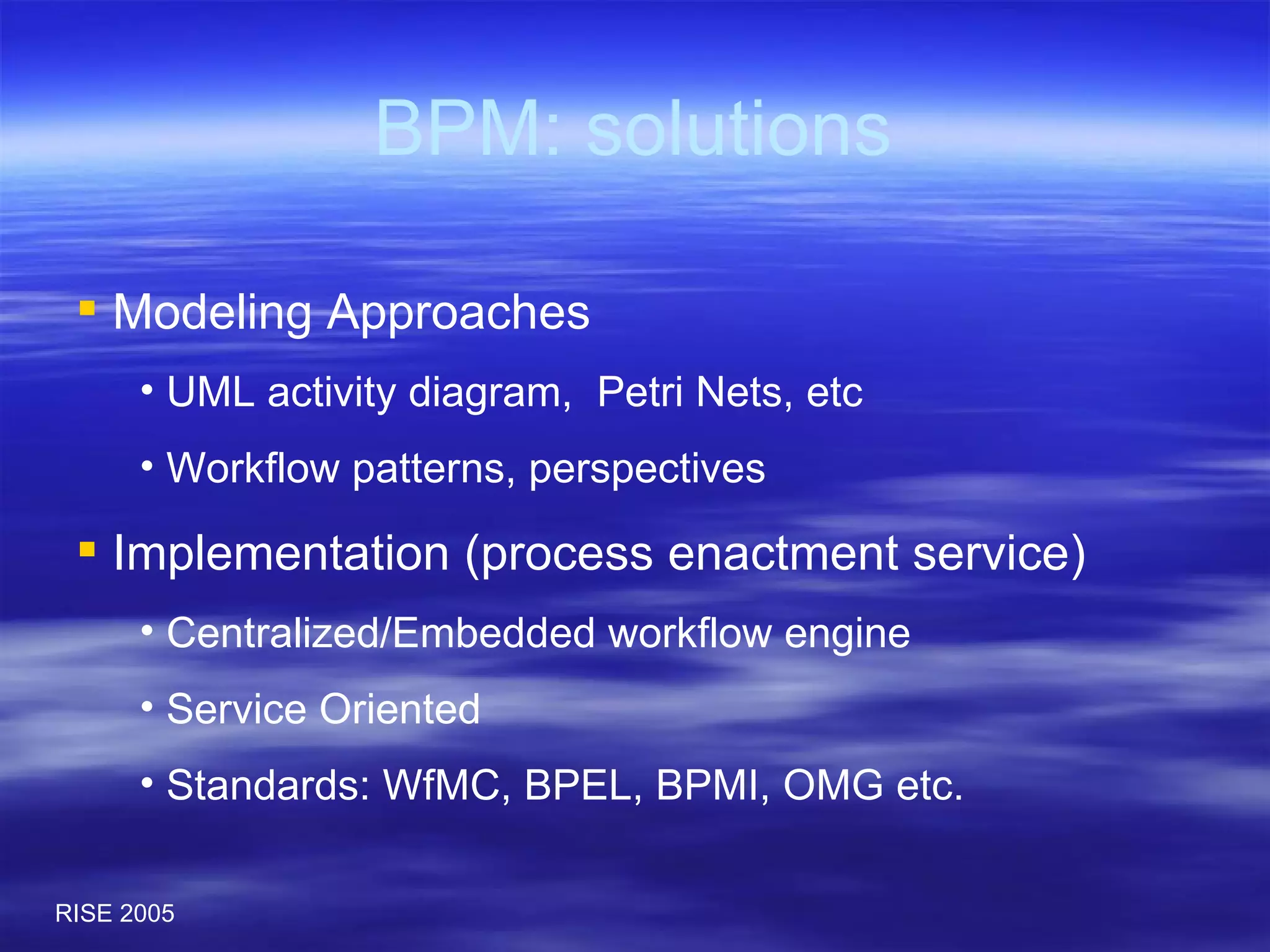

8. BPM: solutions Modeling Approaches UML activity diagram, Petri Nets, etc Workflow patterns, perspectives Implementation (process enactment service) Centralized/Embedded workflow engine Service Oriented Standards: WfMC, BPEL, BPMI, OMG etc.

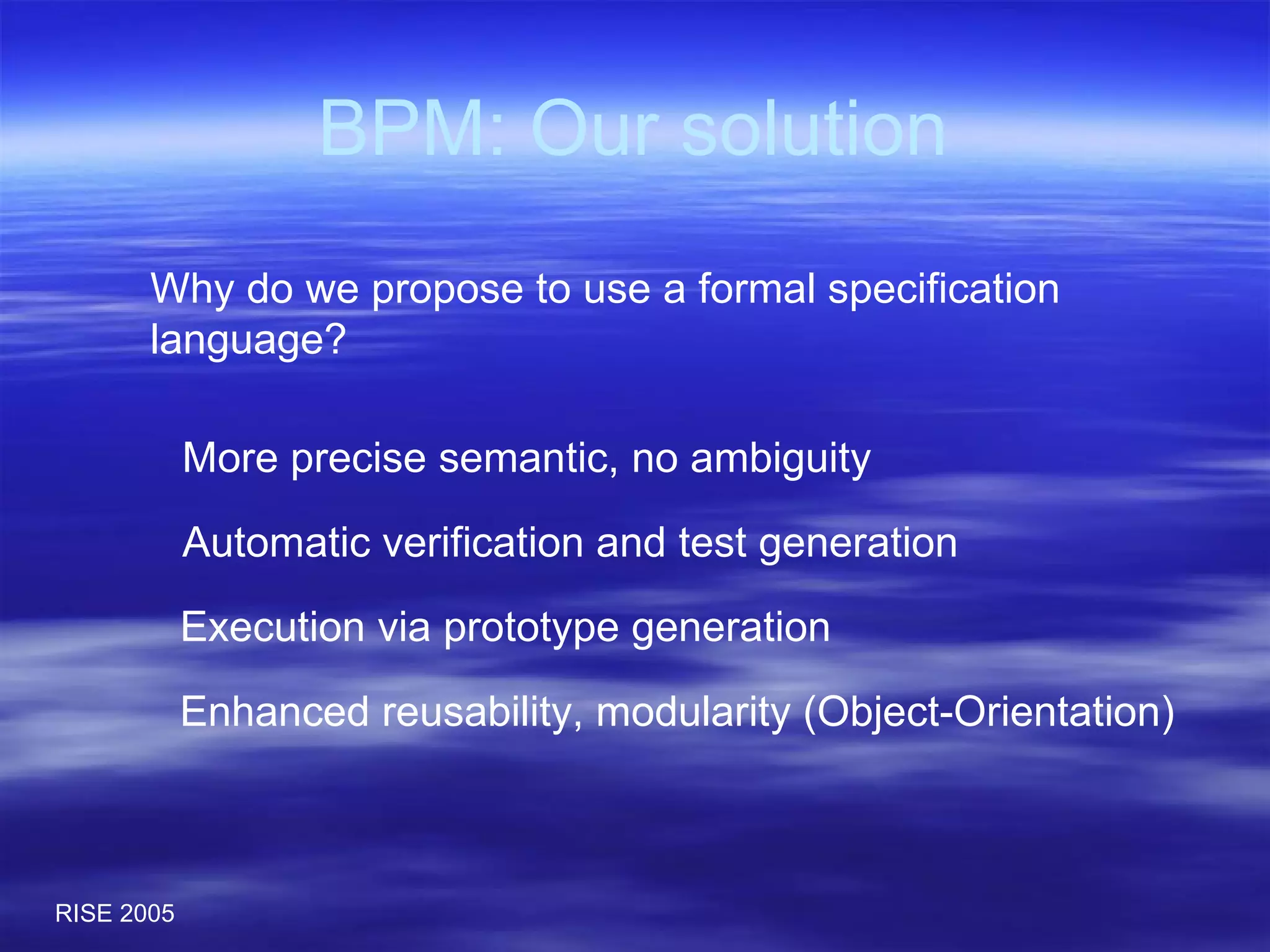

9. BPM: Our solution Why do we propose to use a formal specification language? More precise semantic, no ambiguity Automatic verification and test generation Execution via prototype generation Enhanced reusability, modularity (Object-Orientation)

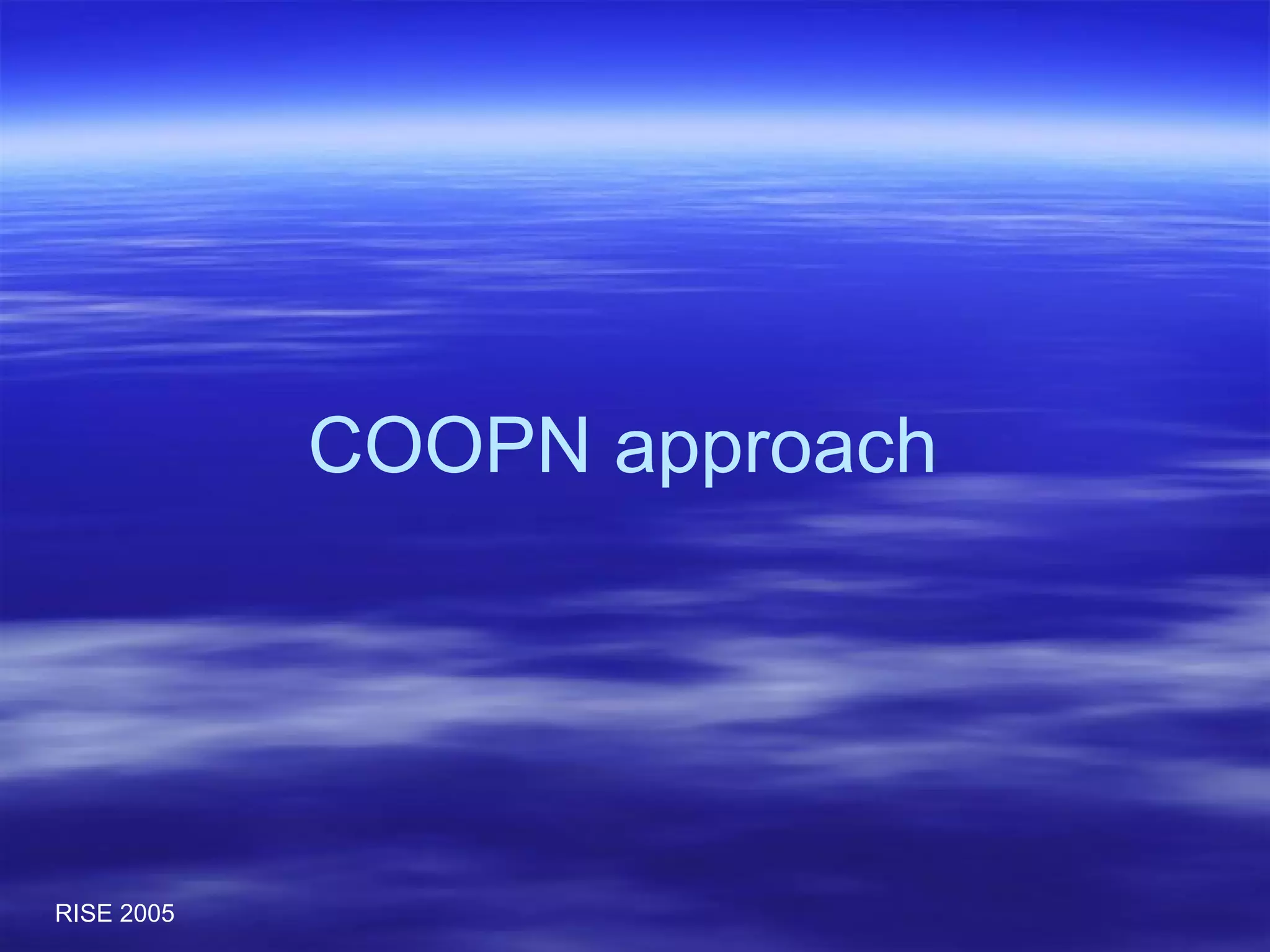

10. COOPN approach

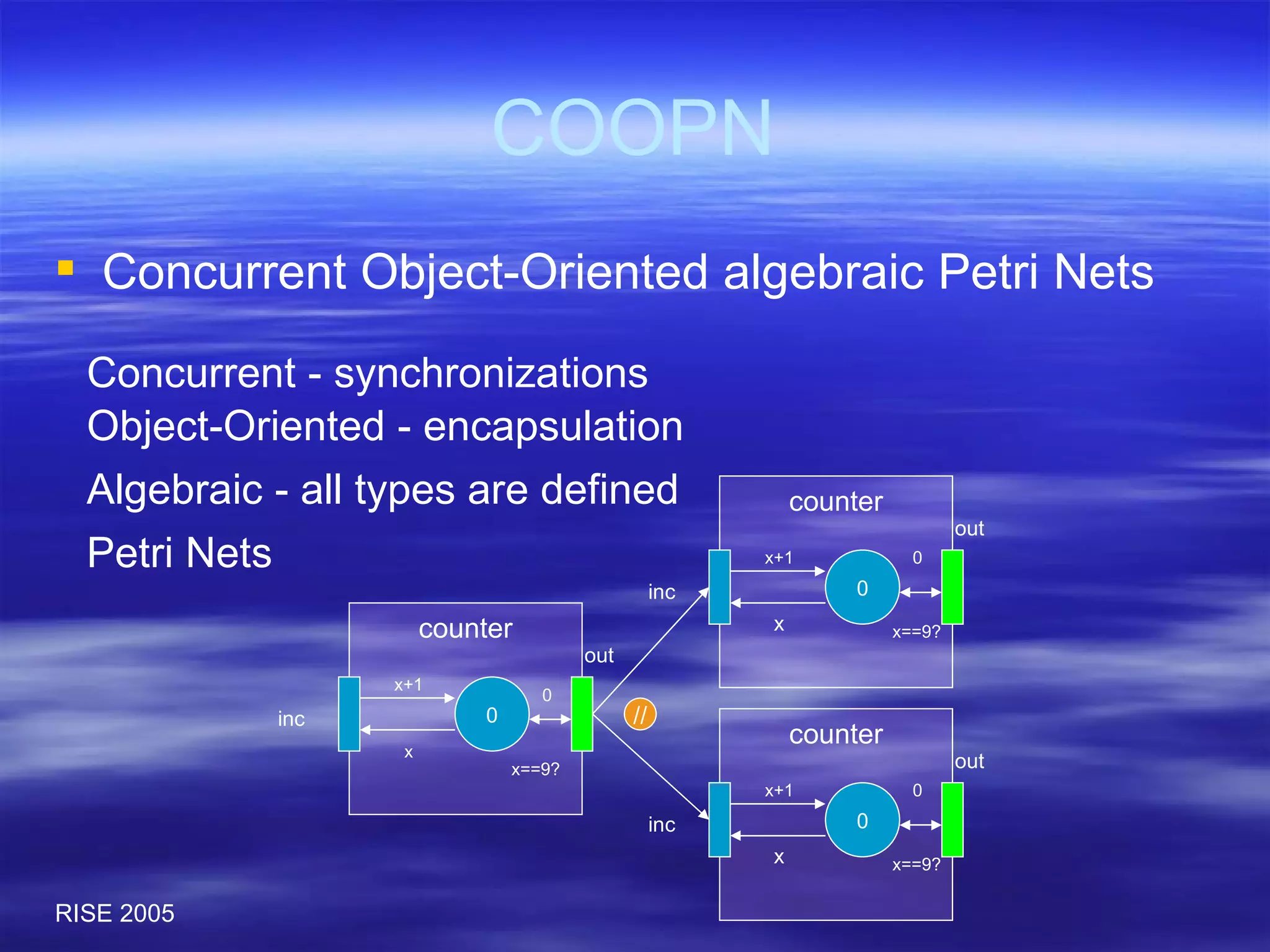

11. COOPN Concurrent Object-Oriented algebraic Petri Nets Petri Nets Algebraic - all types are defined Object-Oriented - encapsulation Concurrent - synchronizations counter 0 x x+1 x==9? inc out counter 0 x x+1 x==9? inc out counter 0 x x+1 x==9? inc out // 0 0 0

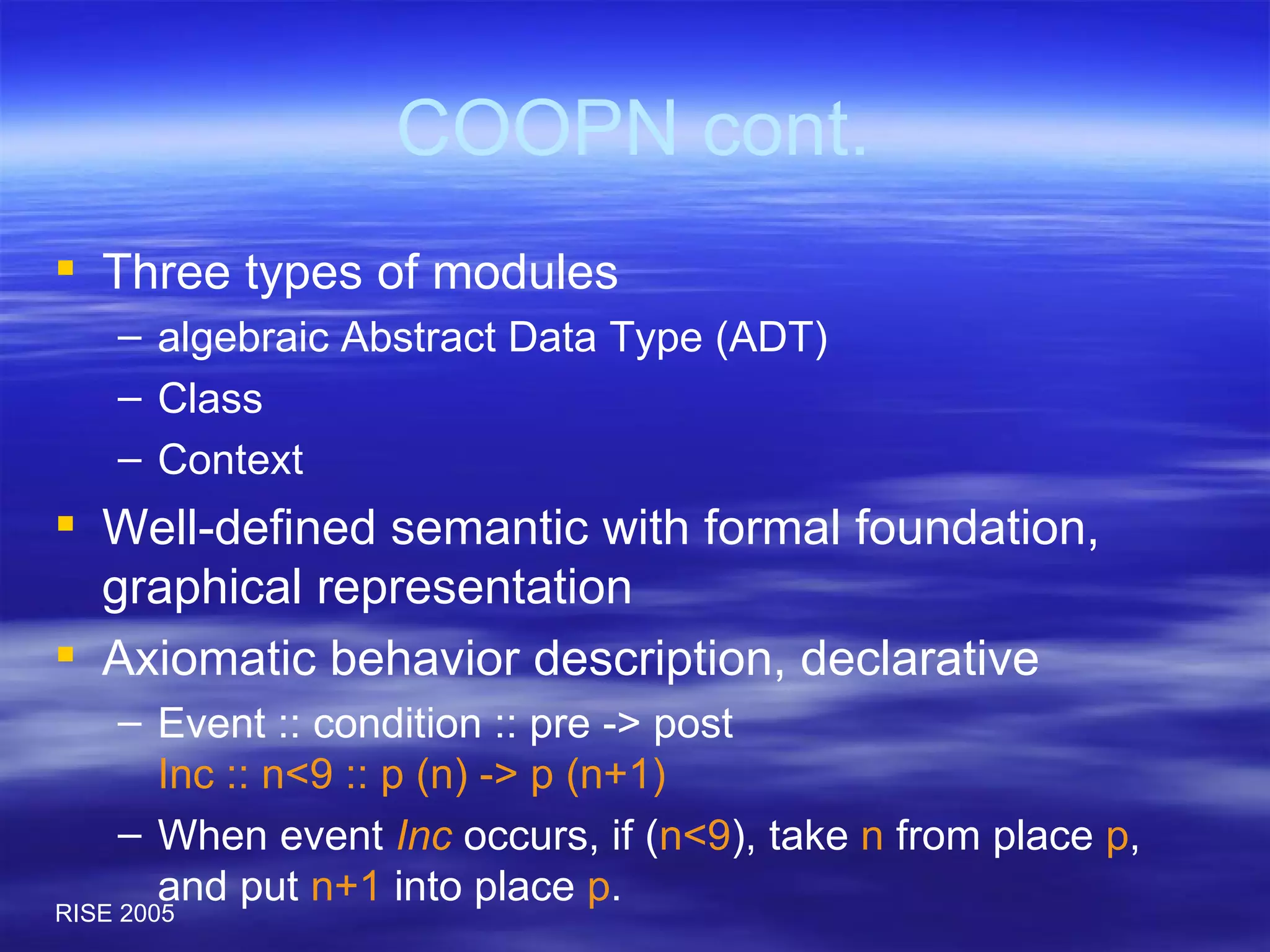

12. COOPN cont. Three types of modules algebraic Abstract Data Type (ADT) Class Context Well-defined semantic with formal foundation, graphical representation Axiomatic behavior description, declarative Event :: condition :: pre -> post Inc :: n<9 :: p (n) -> p (n+1) When event Inc occurs, if ( n<9 ), take n from place p , and put n+1 into place p .

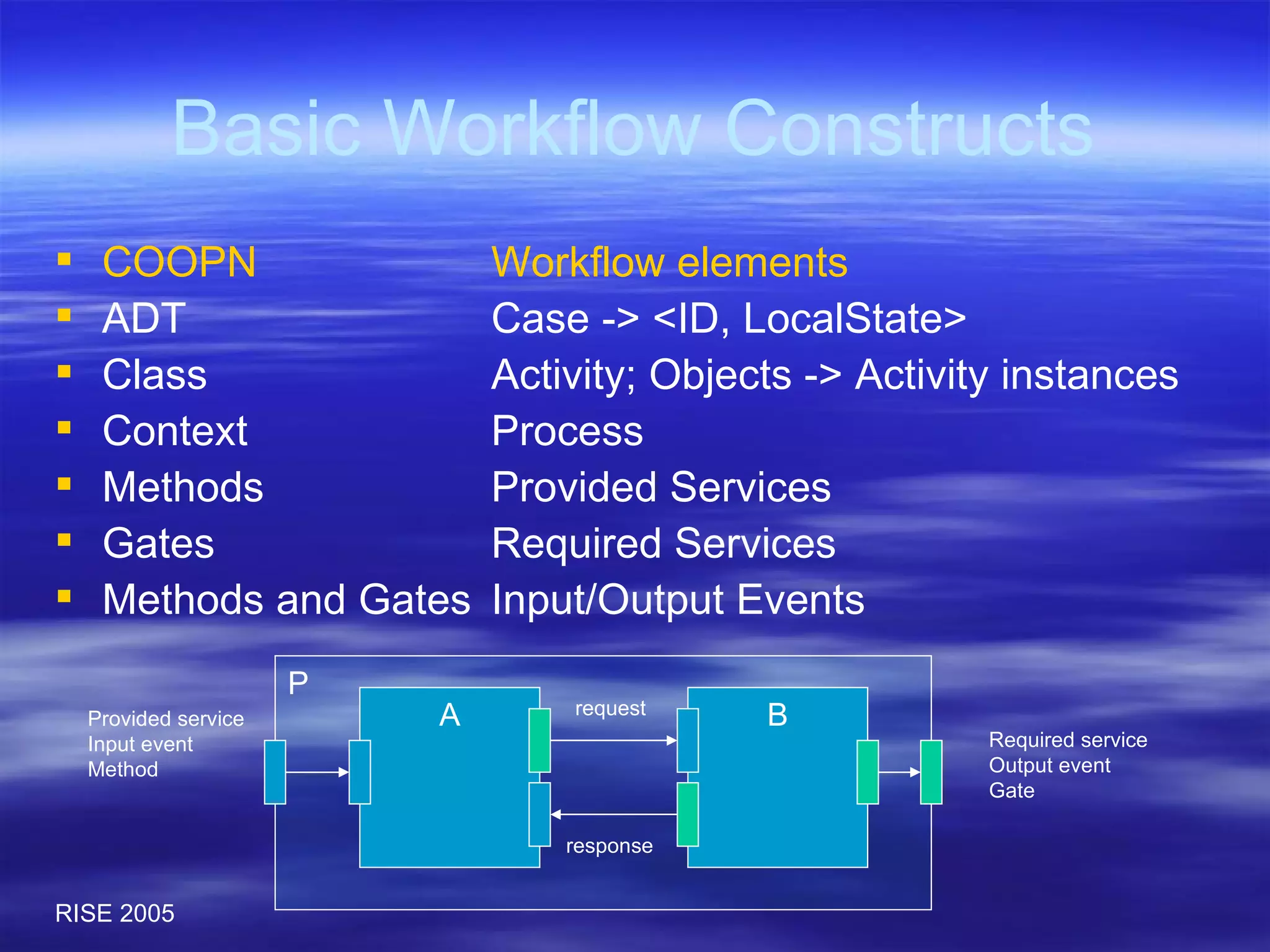

13. Basic Workflow Constructs COOPN Workflow elements ADT Case -> <ID, LocalState> Class Activity; Objects -> Activity instances Context Process Methods Provided Services Gates Required Services Methods and Gates Input/Output Events Required service Output event Gate P A Provided service Input event Method B request response

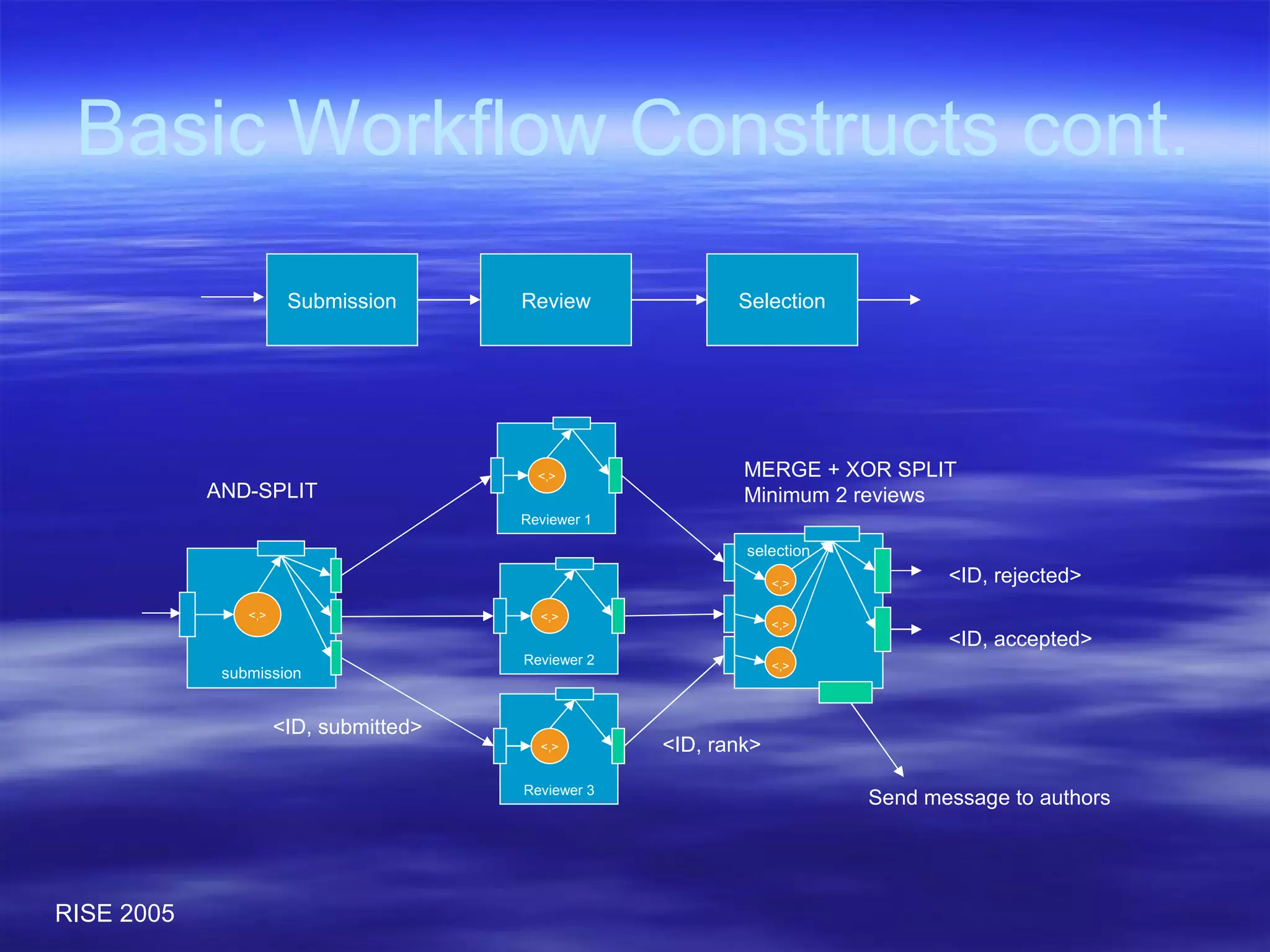

14. Basic Workflow Constructs cont. AND-SPLIT MERGE + XOR SPLIT Minimum 2 reviews Submission Review Selection submission <,> <ID, submitted> Reviewer 1 <,> Reviewer 2 <,> Reviewer 3 <,> <ID, rank> selection <,> <,> <,> <ID, rejected> <ID, accepted> Send message to authors

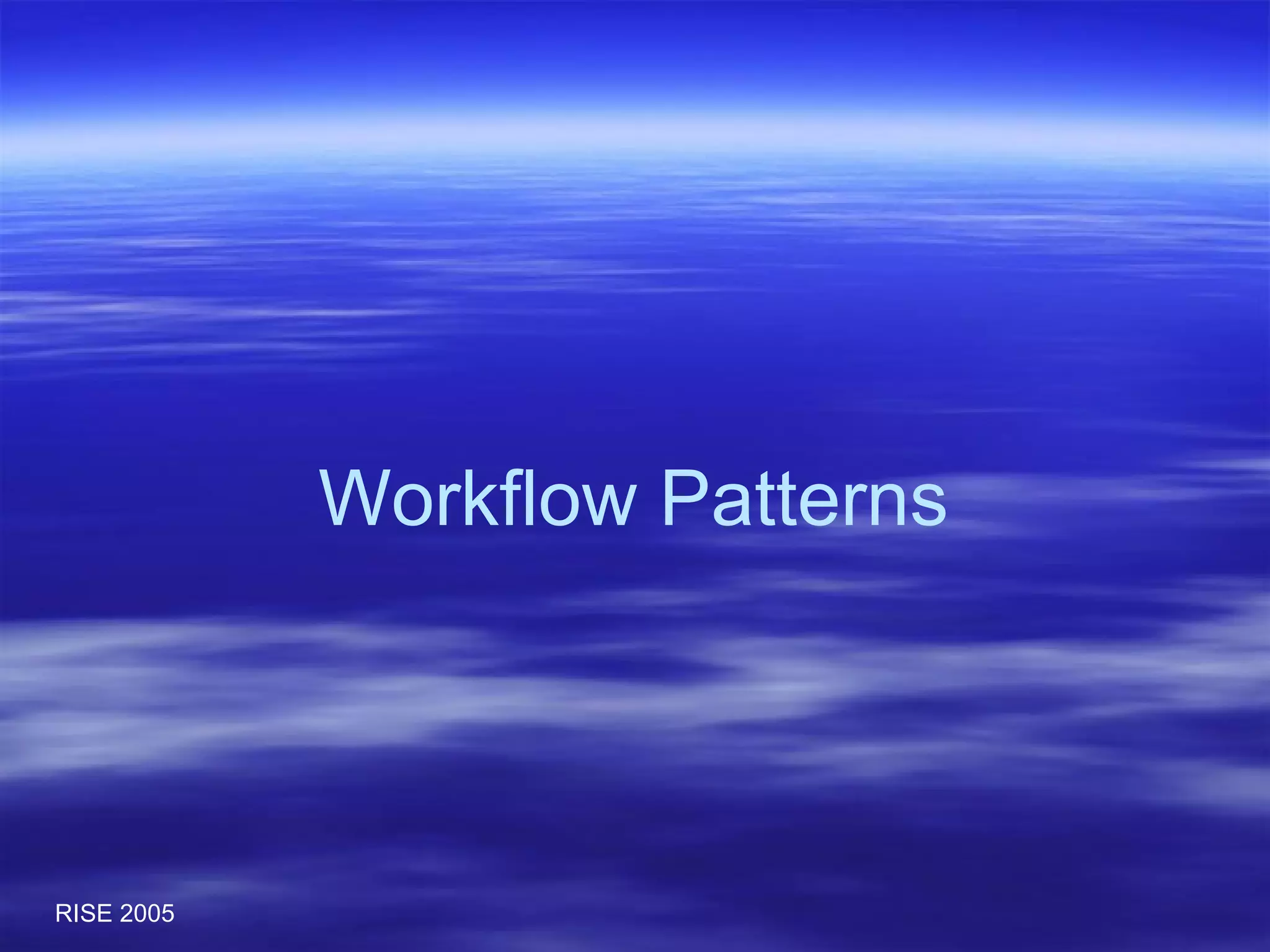

15. Workflow Patterns

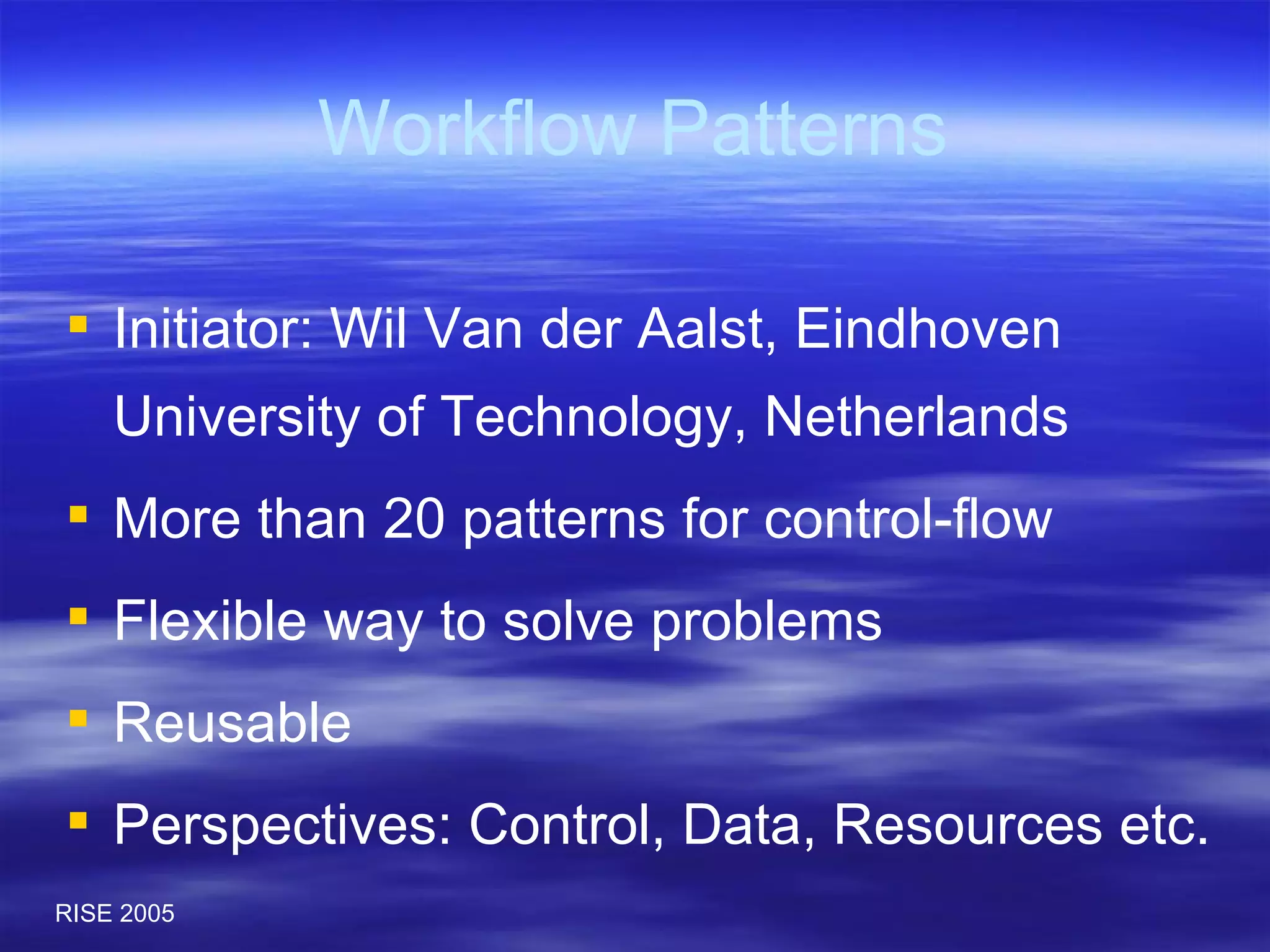

16. Workflow Patterns Initiator: Wil Van der Aalst, Eindhoven University of Technology, Netherlands More than 20 patterns for control-flow Flexible way to solve problems Reusable Perspectives: Control, Data, Resources etc.

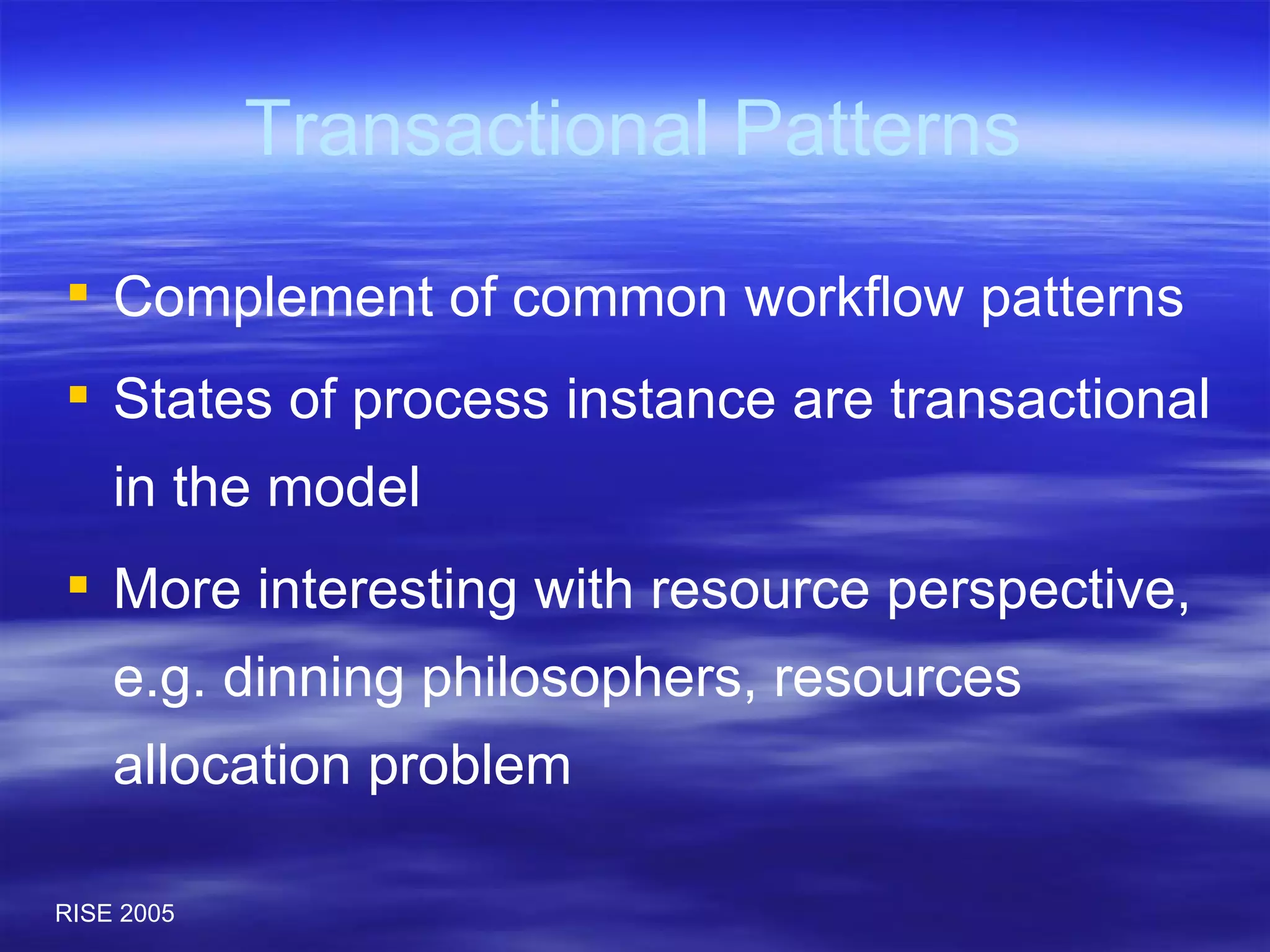

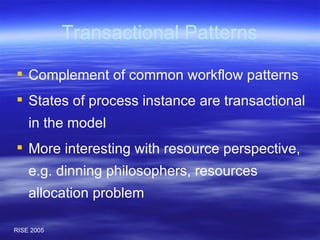

17. Transactional Patterns Complement of common workflow patterns States of process instance are transactional in the model More interesting with resource perspective, e.g. dinning philosophers, resources allocation problem

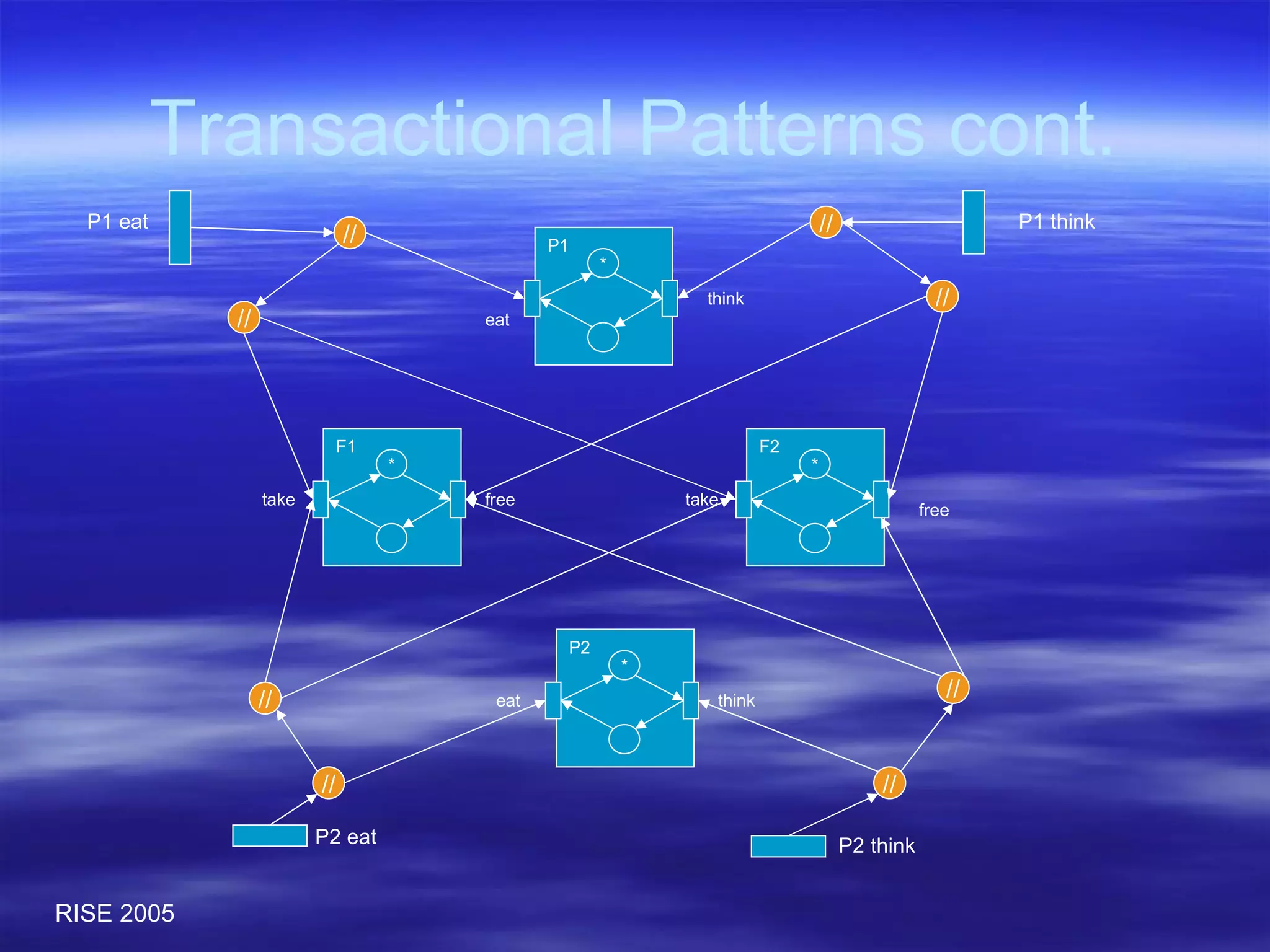

18. Transactional Patterns cont. take free // // // // // // // // P2 eat P2 think P1 eat P1 think F1 * P2 * eat think P1 * eat think F2 * take free

19. Prototyping & Integration

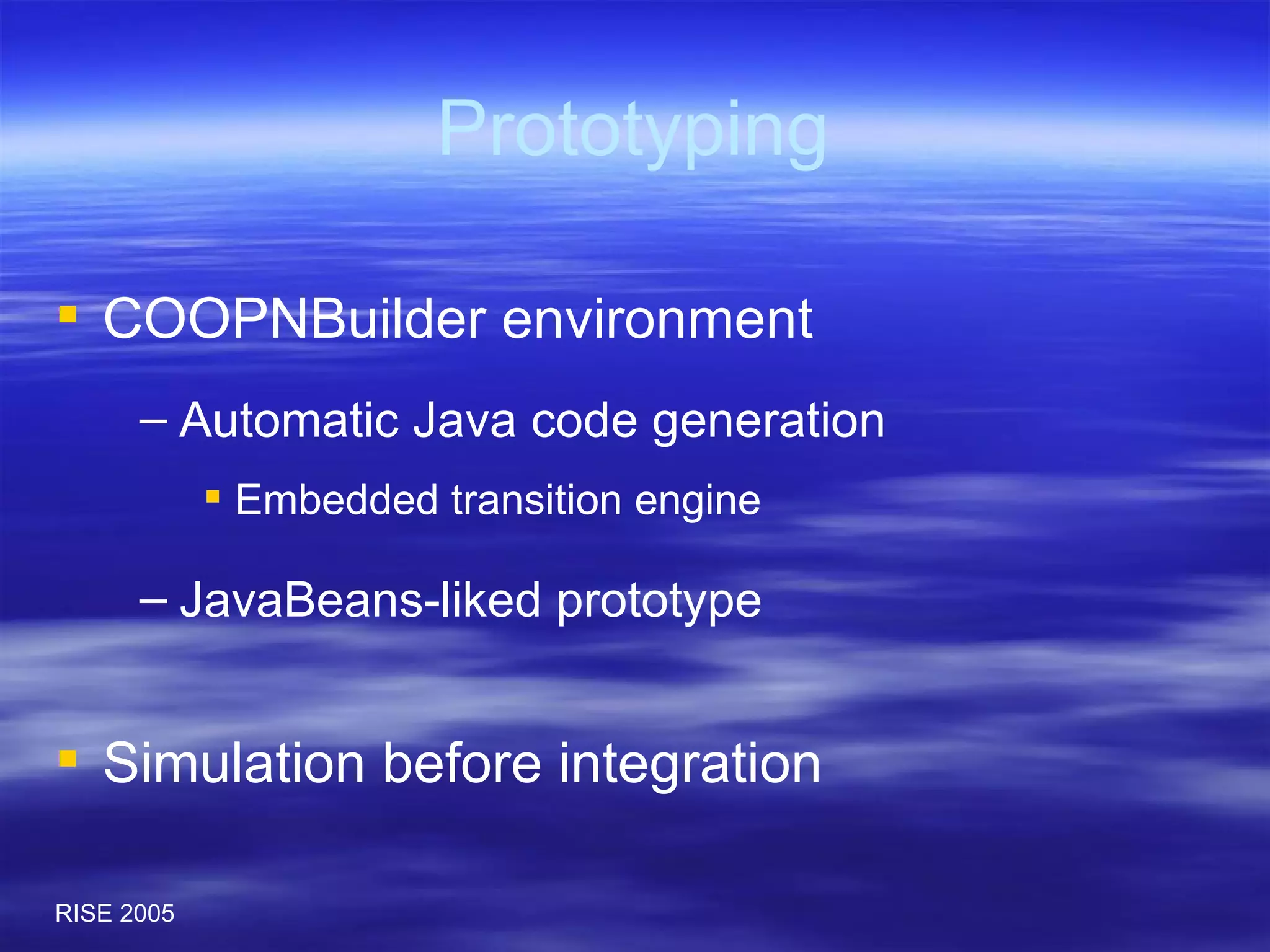

20. Prototyping Automatic Java code generation Embedded transition engine JavaBeans-liked prototype COOPNBuilder environment Simulation before integration

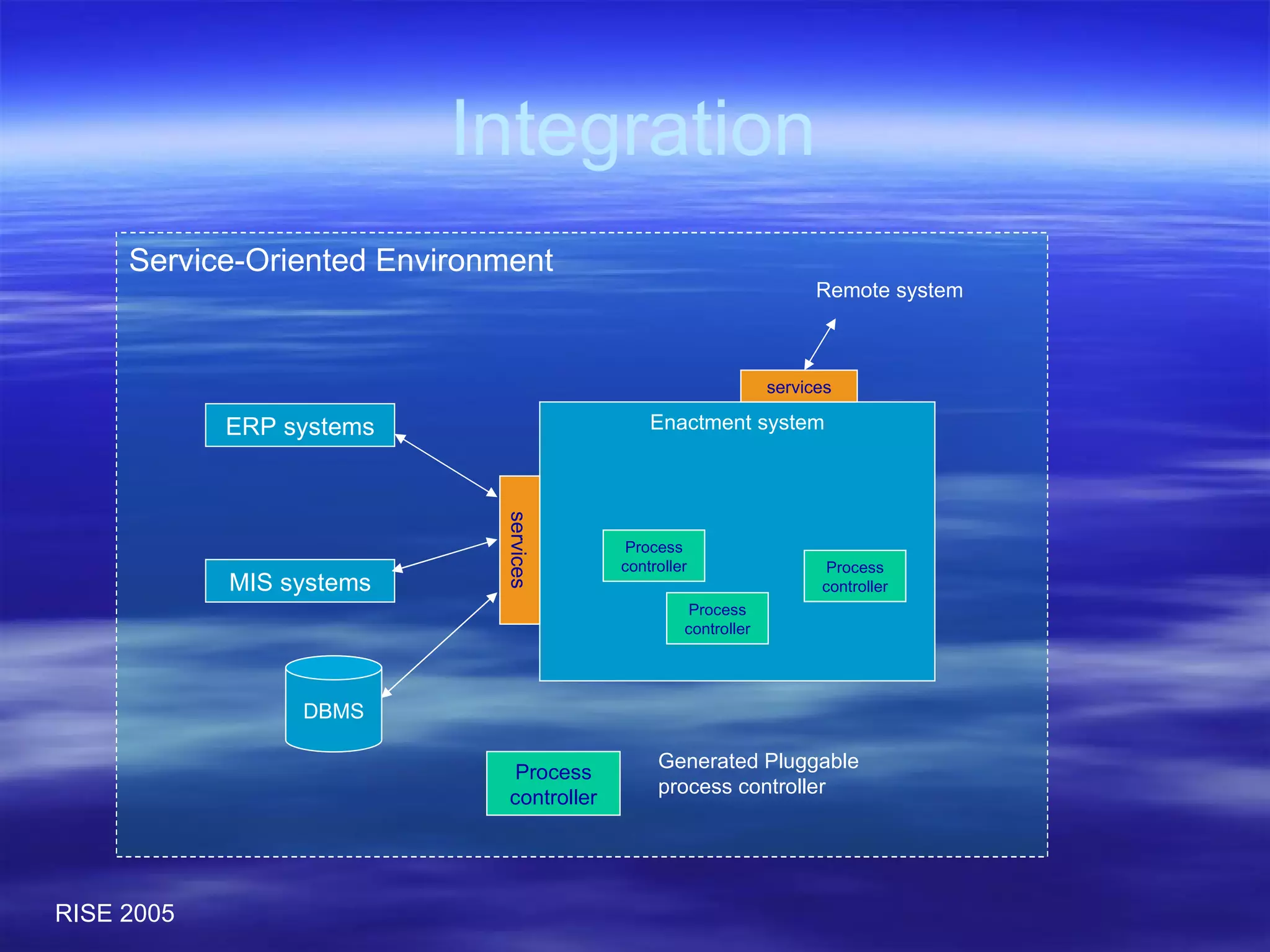

21. Integration Service-Oriented Environment Enactment system DBMS ERP systems MIS systems Process controller Remote system Generated Pluggable process controller services services Process controller Process controller Process controller

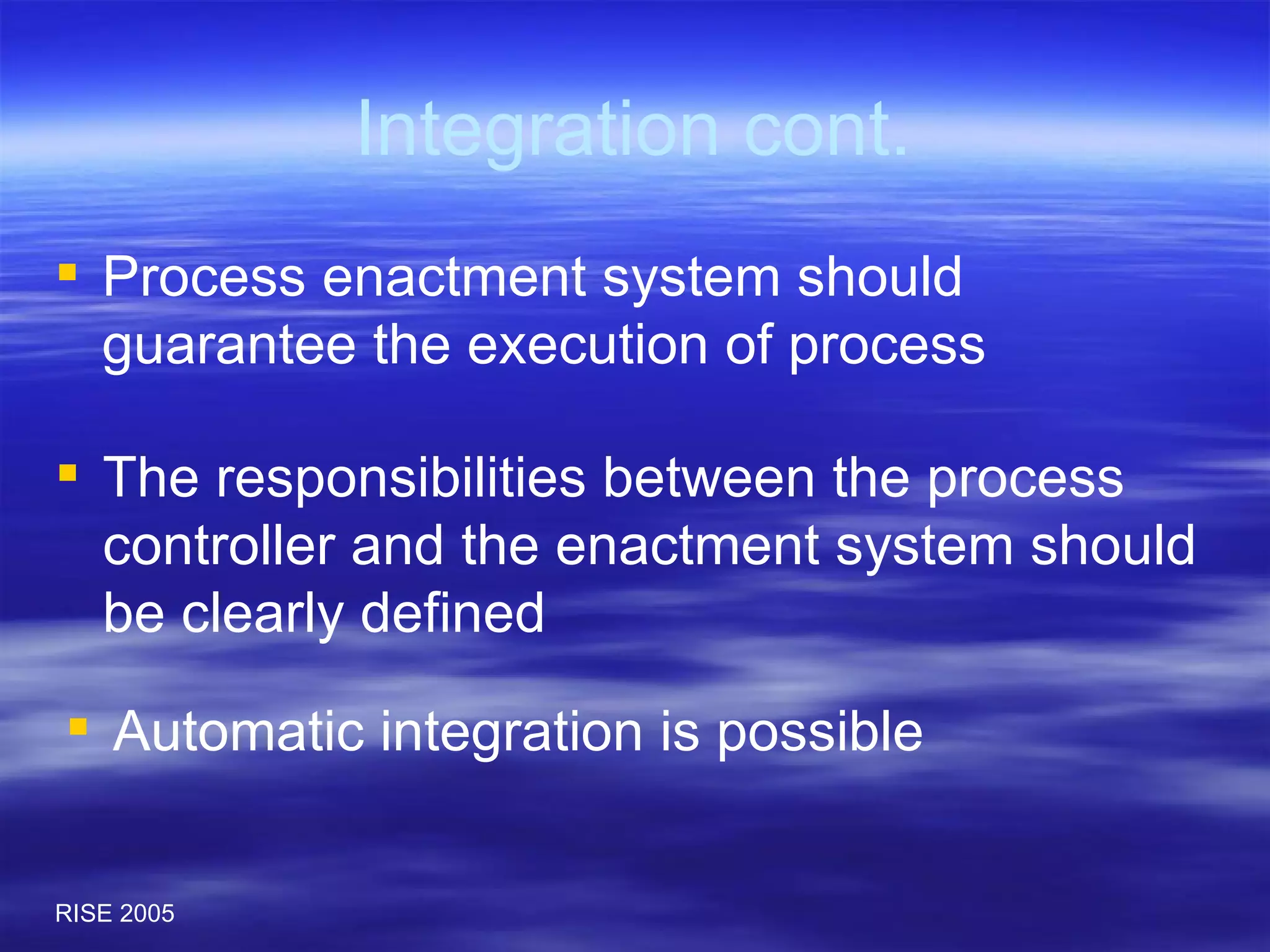

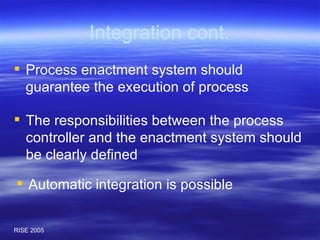

22. Integration cont. Process enactment system should guarantee the execution of process The responsibilities between the process controller and the enactment system should be clearly defined Automatic integration is possible

23. Conclusions & Future Work

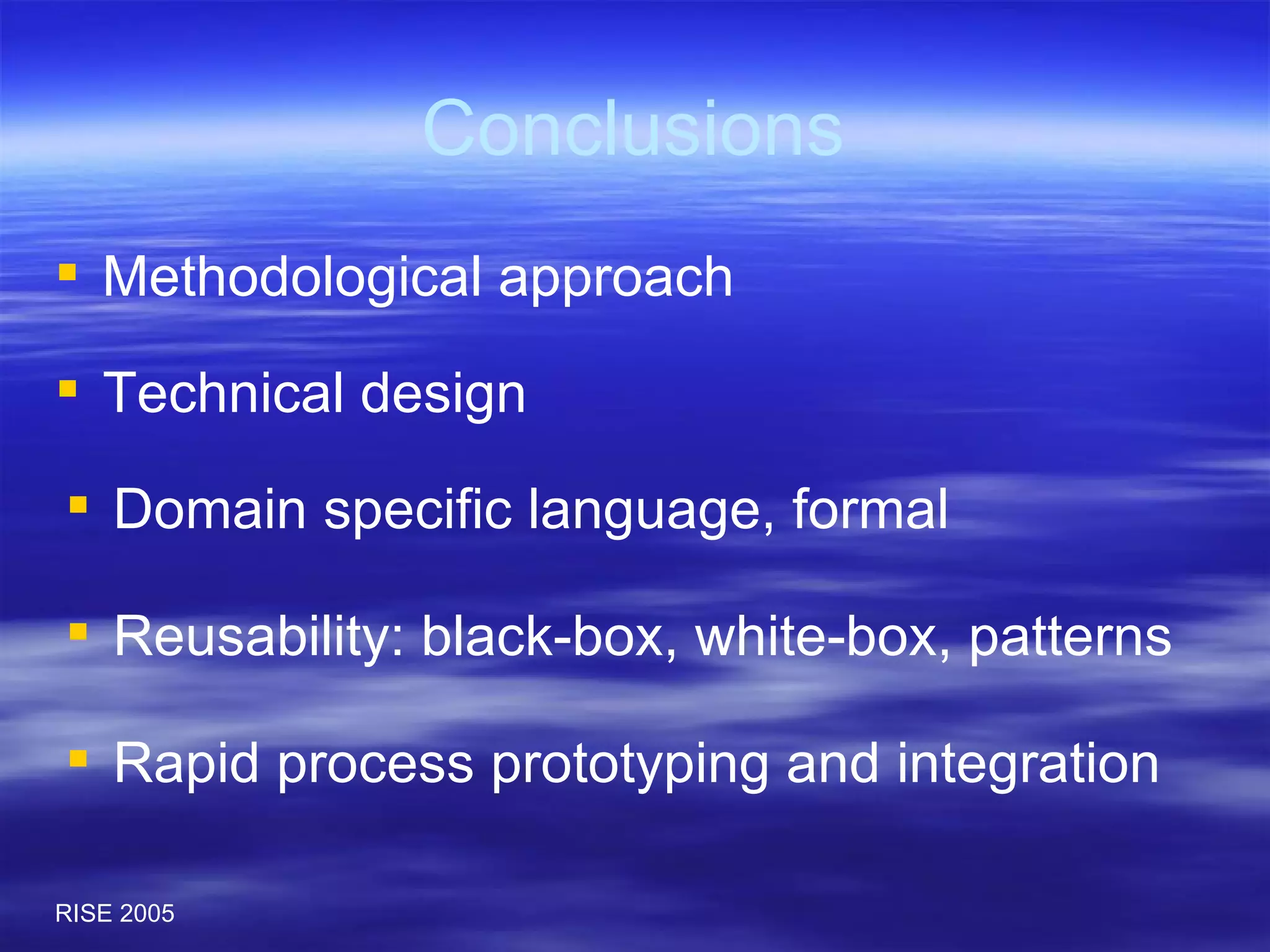

24. Conclusions Methodological approach Technical design Domain specific language, formal Reusability: black-box, white-box, patterns Rapid process prototyping and integration

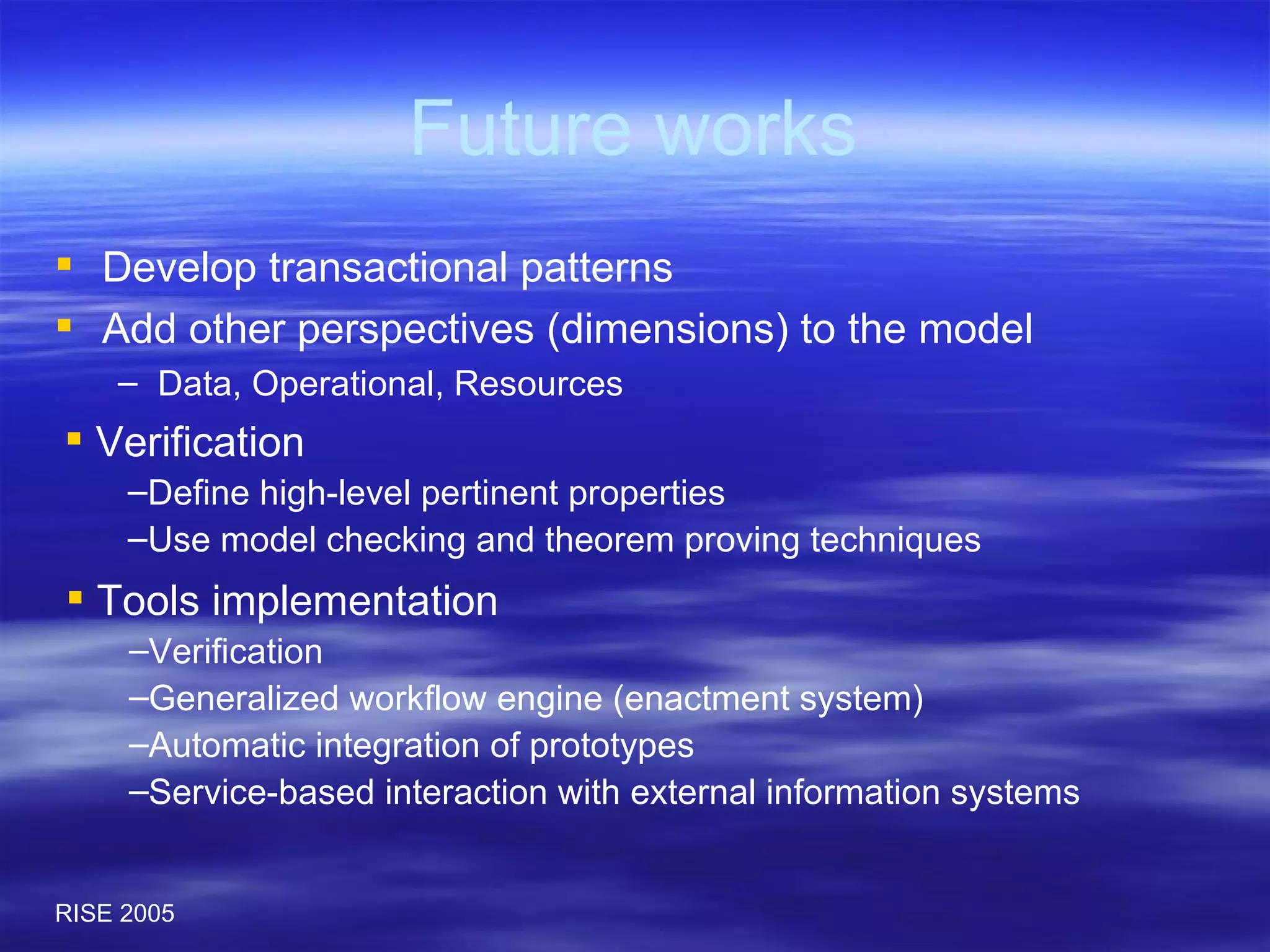

25. Future works Develop transactional patterns Add other perspectives (dimensions) to the model Data, Operational, Resources Verification Define high-level pertinent properties Use model checking and theorem proving techniques Tools implementation Verification Generalized workflow engine (enactment system) Automatic integration of prototypes Service-based interaction with external information systems

26. Thanks for your attention Questions?
