All change lists must be
reviewed. Period.
“Review your code like a Googler”
2013 Dariusz Łuksza
Dariusz Łuksza, CollabNet
dariusz@luksza.org
@dluksza
2013 Dariusz Łuksza

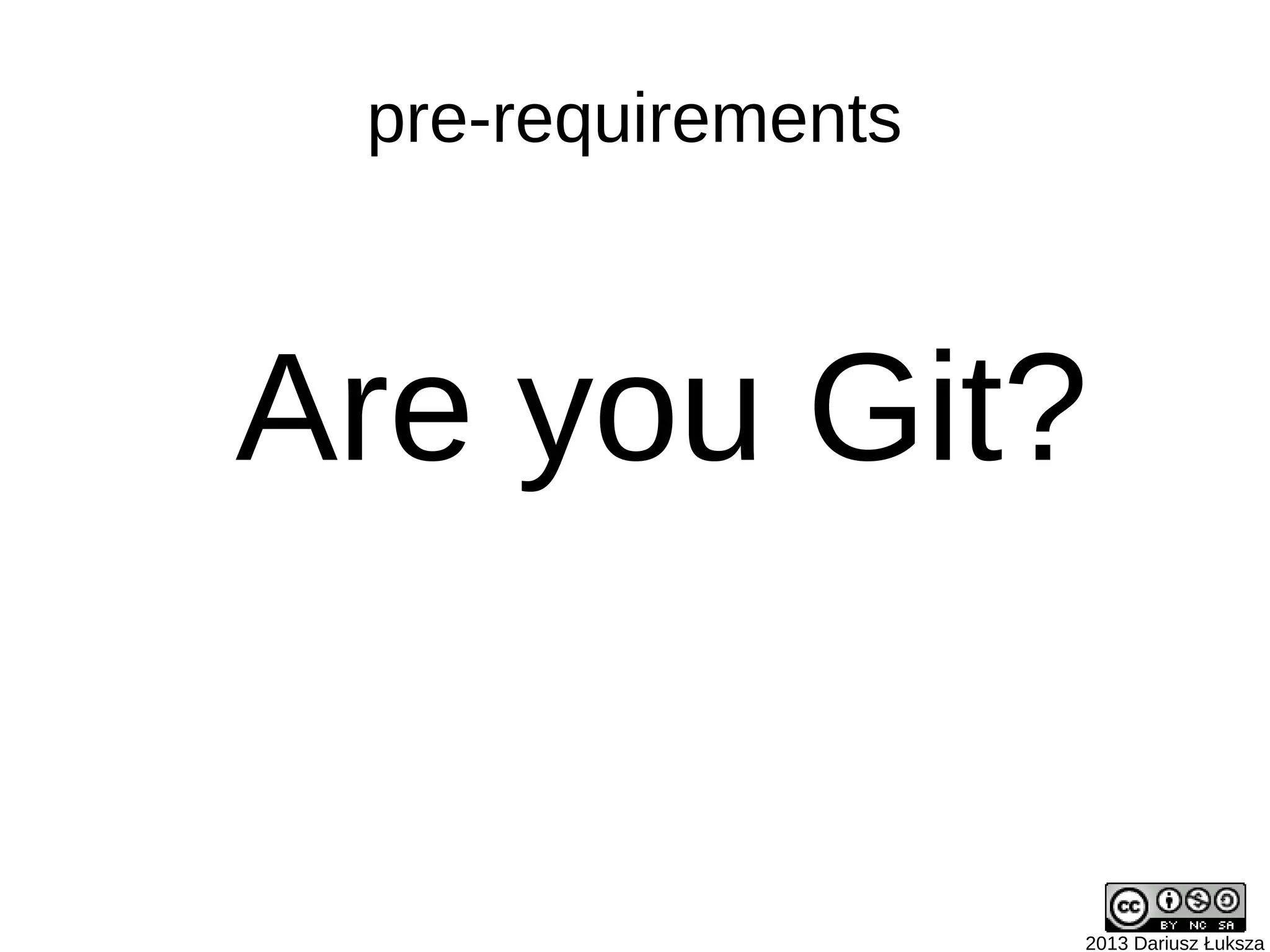

Are you Git?
pre-requirements
First rule of Code Review:
2013 Dariusz Łuksza
Your code is not your wife...
pre-requirements
First rule of Code Review
and OpenSource:
2013 Dariusz Łuksza
Your code is not your wife...
pre-requirements
2013 Dariusz Łuksza
Your code is not your wife...
you can share it!
pre-requirements
First rule of Code Review
and OpenSource:
2013 Dariusz Łuksza
I'm here for
You!
2013 Dariusz Łuksza

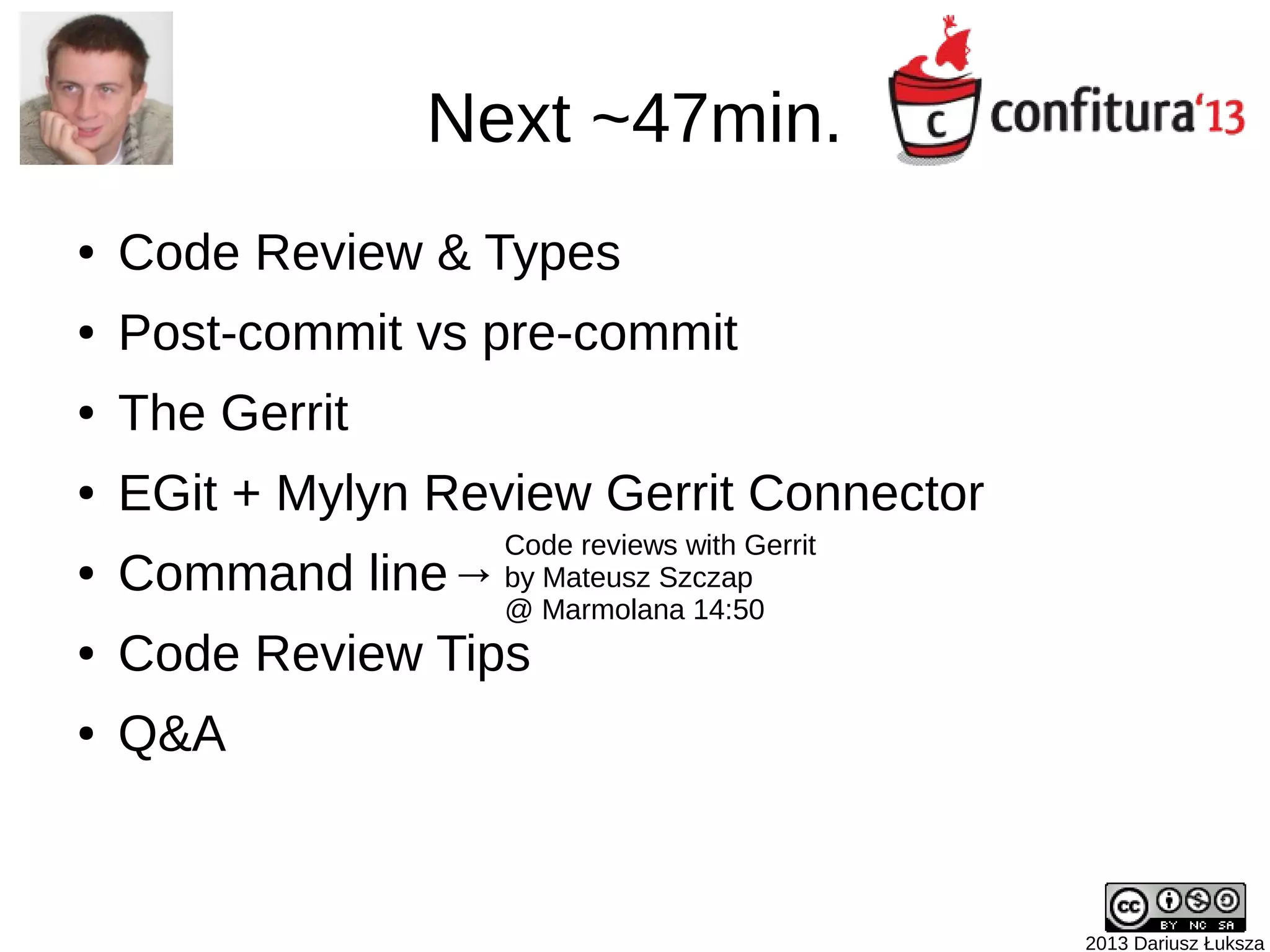

Next ~47min.
● Code Review & Types
● Post-commit vs pre-commit
● The Gerrit
● EGit + Mylyn Review Gerrit Connector
● Command line→
● Code Review Tips
● Gerrit++
● Q&A
Code reviews with Gerrit
by Mateusz Szczap
@ Marmolana 14:50
2013 Dariusz Łuksza
Code Review
post-commit review
(formal code review)
2013 Dariusz Łuksza
post-commit review
(formal code review)
2013 Dariusz Łuksza
2013 Dariusz Łuksza
Flickr: markcph
post-commit review
(formal code review)
2013 Dariusz Łuksza
Flickr: markcph
post-commit review
(formal code review)
Coffee, absolute
must have during
formal code
reviews
2013 Dariusz Łuksza
Flickr: sebastian_bergmann
post-commit review
(formal code review)
2013 Dariusz Łuksza
Flickr: bike
post-commit review
(formal code review)
2013 Dariusz Łuksza
review on request
(post- or pre-commit)
2013 Dariusz Łuksza
review on request
(post- or pre-commit)
90 min
later
OK, so where
I was before...
Hi Jeff, could you
review my changes
before I submit
I need a review...
OK, lets go!
Can I interrupt you
for a moment?You already
interrupted me...
Sure you can,
what is it?
this loop iterates
over… mhm... and then
it brakes...
if (req != null) {
for (i = 0; …
if (...) break;
...
I finished my task and need final
code review... would you like
to look on it?
emmmm … OK...
153 min
later
9 min
later
finally I can get
back to my task...
… and then...
2013 Dariusz Łuksza
asynchronous review
with Gerrit
(pre-commit)
2013 Dariusz Łuksza
Gerrit Code Review
this loop iterates
over… mhm... and then
it brakes...
if (req != null) {
for (i = 0; …
if (...) break;
...
found it!! HAHAHA
OK, so now,
commit and
push for review!
… step into...
step over...
… step over...
step over...
It's time to check others
review requests
I'm invincible!!
Great! There are requests
from Tom, Sara and Jim...
let me see...
post-commit
vs.
pre-commit
2013 Dariusz Łuksza
Flickr: bike
2013 Dariusz Łuksza
post-commit vs. pre-commit
Flickr: sriram
VS.
2013 Dariusz Łuksza
The Gerrit
The Gerrit
● Created for Android OpenSource project
● Designed to bring Google's code review feeling to
Android community
● Pure Java based
● Has vibrant community
● Used in many OpenSource project's and Enterprise
companies
● Can be used as regular Git server without code review
● Supports branch based permissions
● It is getting more and more extend-able
2013 Dariusz Łuksza
2013 Dariusz Łuksza
Who uses Gerrit?
2013 Dariusz Łuksza
let's play with
Gerrit
Demo Time!
Preconditions:
– You are joining new team with already existing
project
– Somebody already creates yours account in LDAP
– You already generated yours SSH key
– Already have Eclipse Kepler with EGit and Mylyn
Gerrit connector installed
2013 Dariusz Łuksza
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Meet Fred
First login into Gerrit
2013 Dariusz Łuksza
First login into Gerrit
2013 Dariusz Łuksza
fred

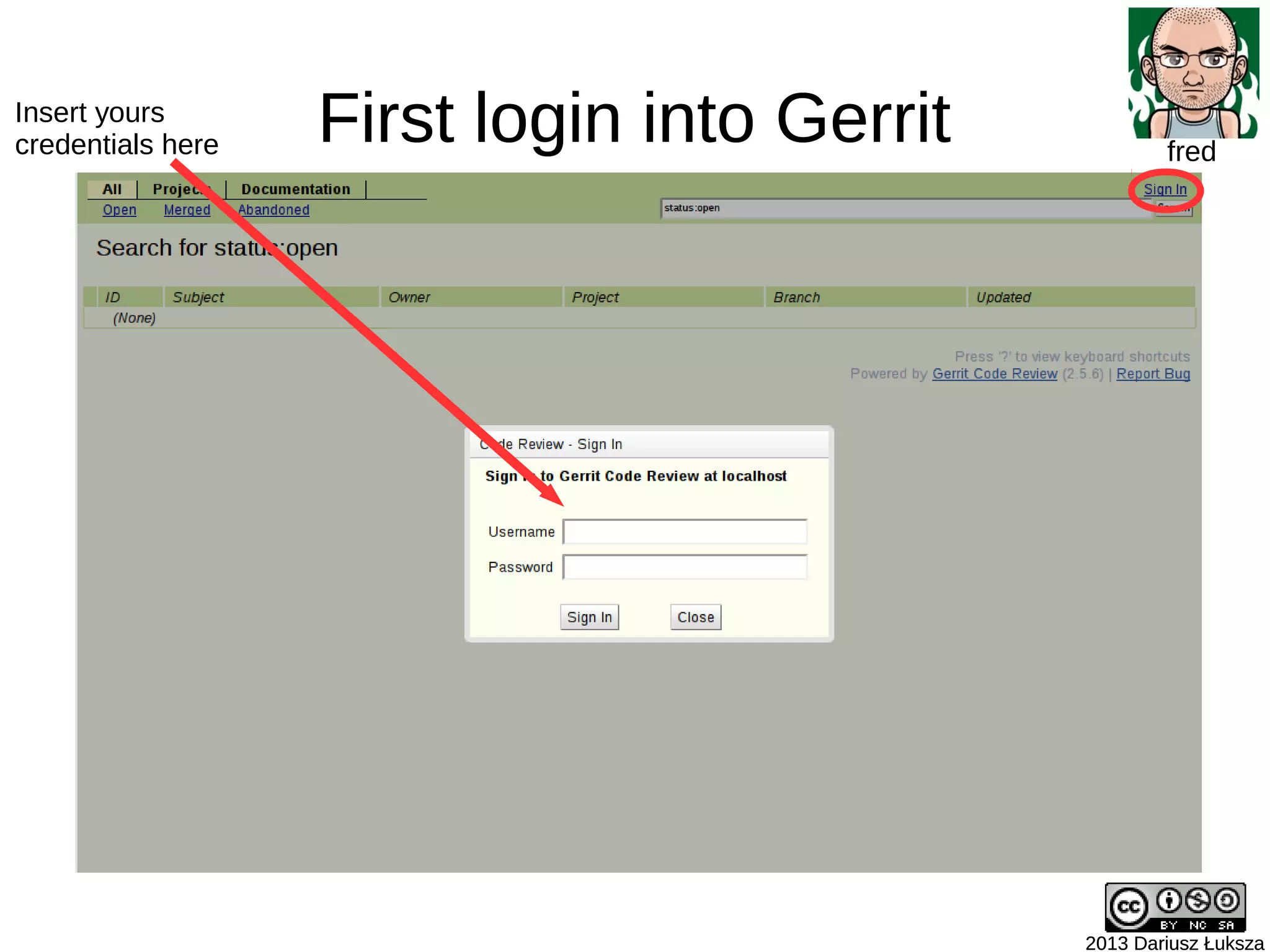

Insert yours
credentials here
First login into Gerrit
2013 Dariusz Łuksza
First login into Gerrit
2013 Dariusz Łuksza
fred
Yours SSH public
key goes here,
remember to
click 'Add'
First login into Gerrit
2013 Dariusz Łuksza
First login into Gerrit
2013 Dariusz Łuksza
fred
Finally, click
'Continue'
First login into Gerrit
2013 Dariusz Łuksza
First login into Gerrit
2013 Dariusz Łuksza
fred
You are logged in

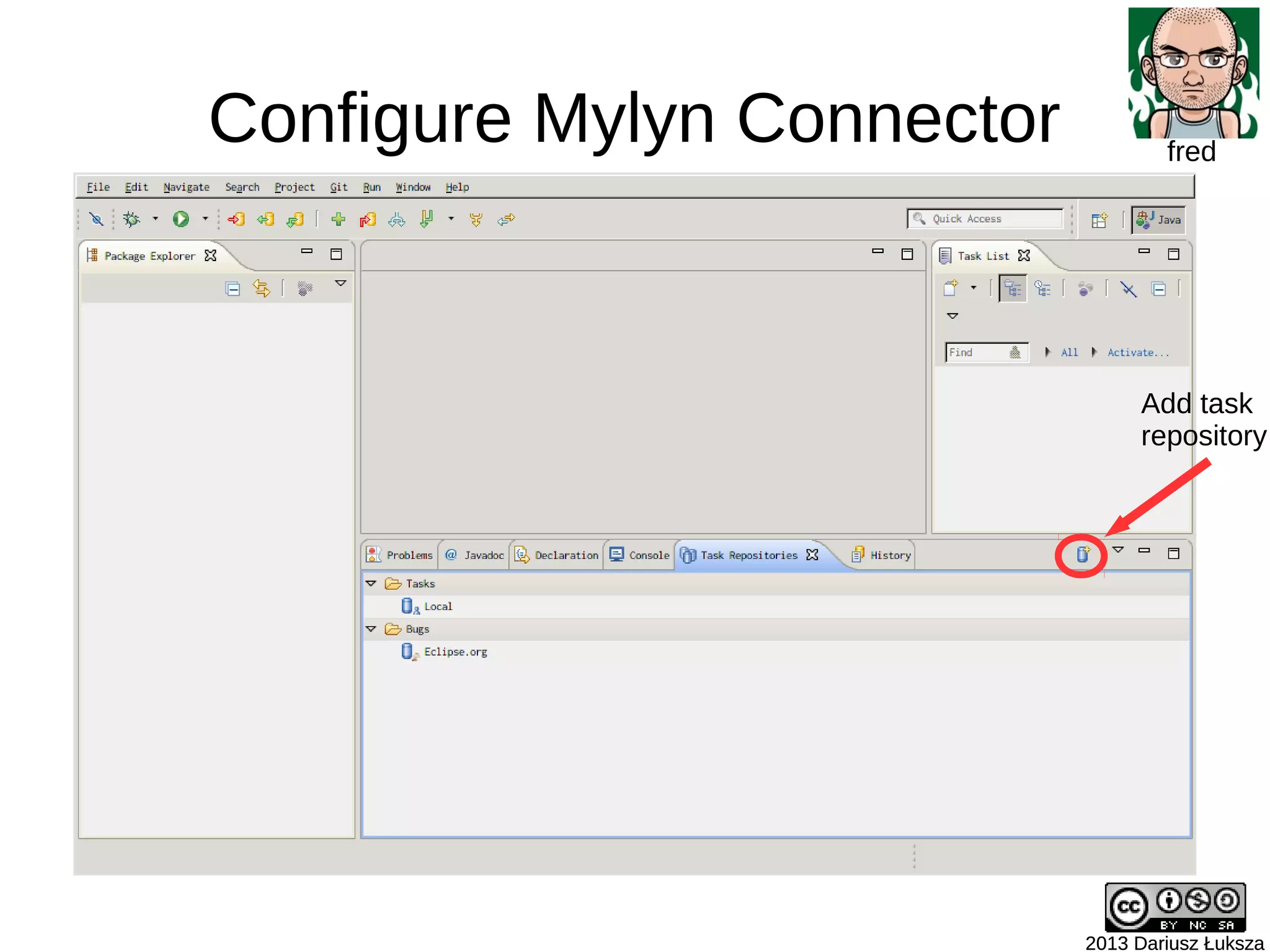

Configure Mylyn Connector
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Add task
repository
Configure Mylyn Connector
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
If you don't have
Gerrit connector on
the list, use 'Install
More Connectors'
button
Select Gerrit and
click 'Next'
Configure Mylyn Connector
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred

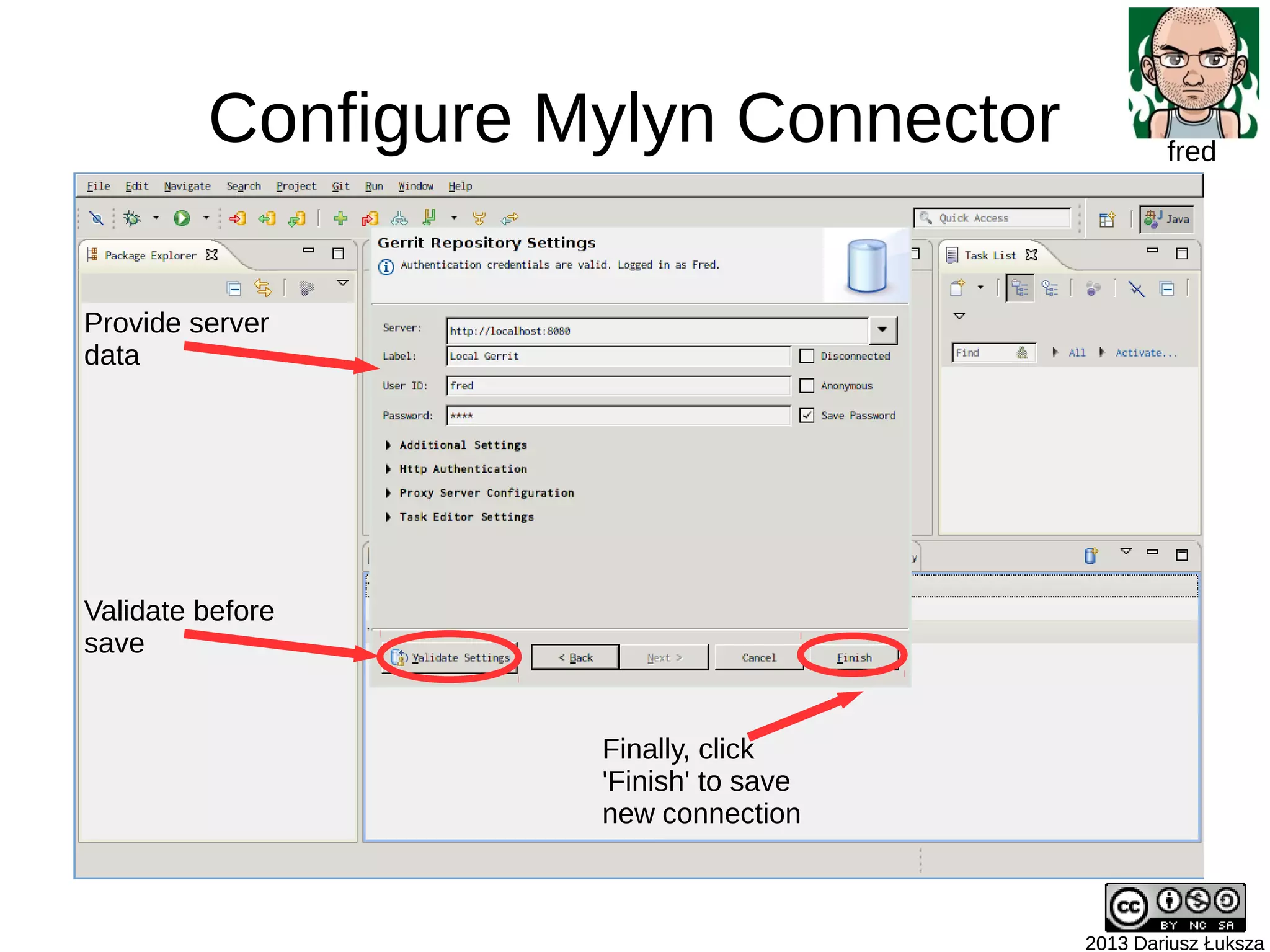

Provide server
data
Validate before
save
Finally, click
'Finish' to save
new connection

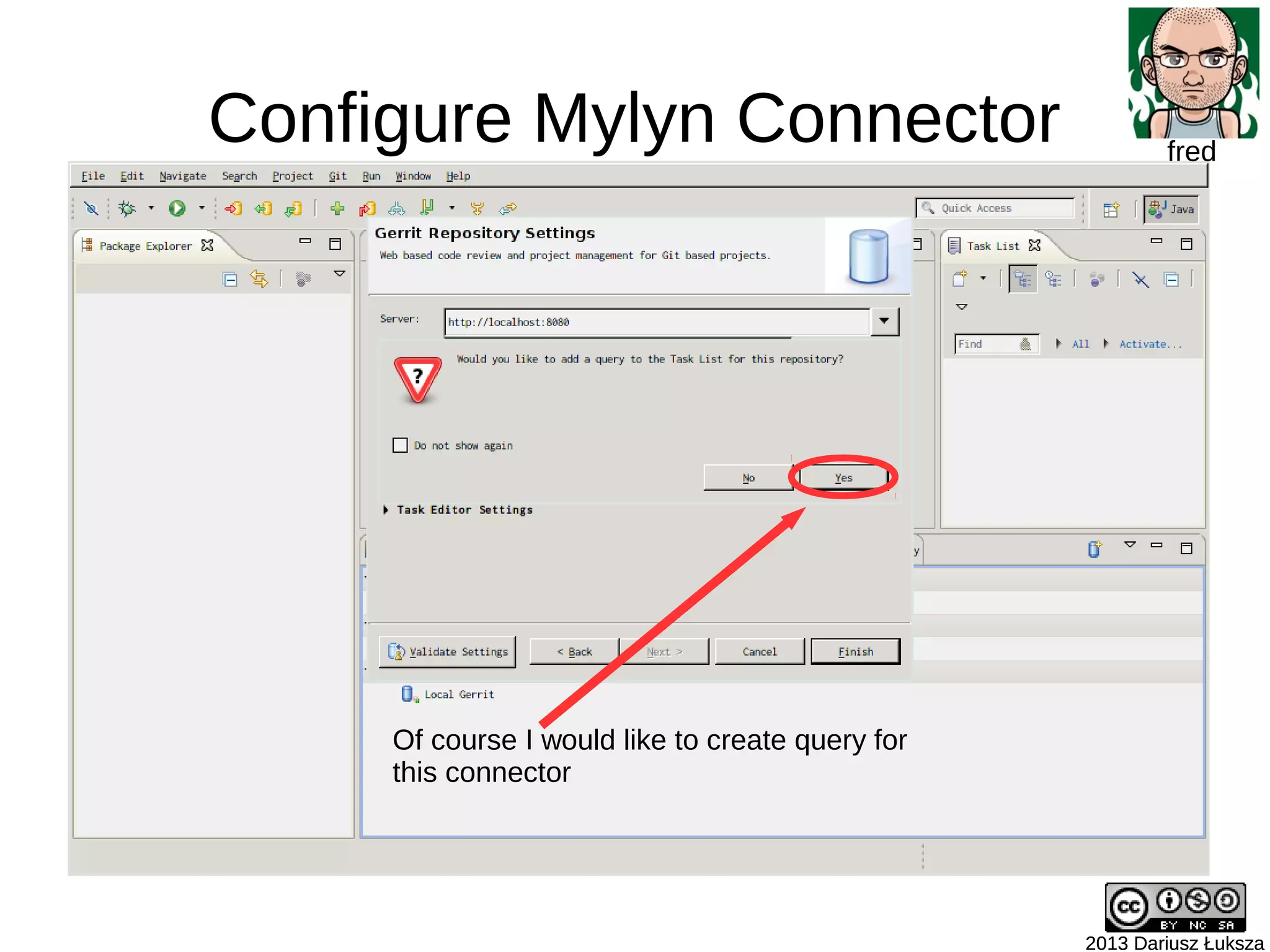

Configure Mylyn Connector
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Of course I would like to create query for
this connector
Configure Mylyn Connector
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Name the query
For our simple use case
'All open changes' will
be enough
Configure Mylyn Connector
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred

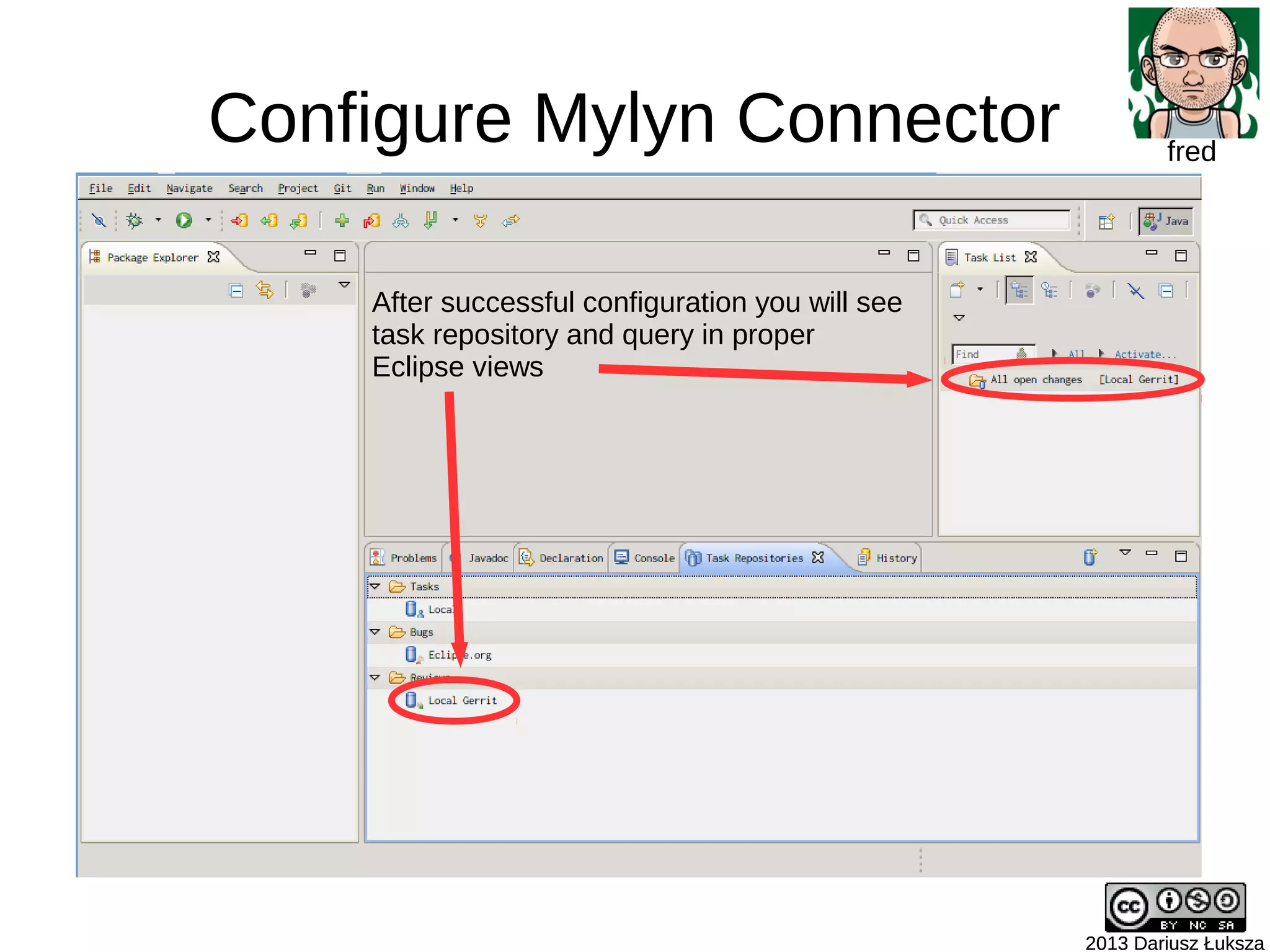

After successful configuration you will see
task repository and query in proper
Eclipse views

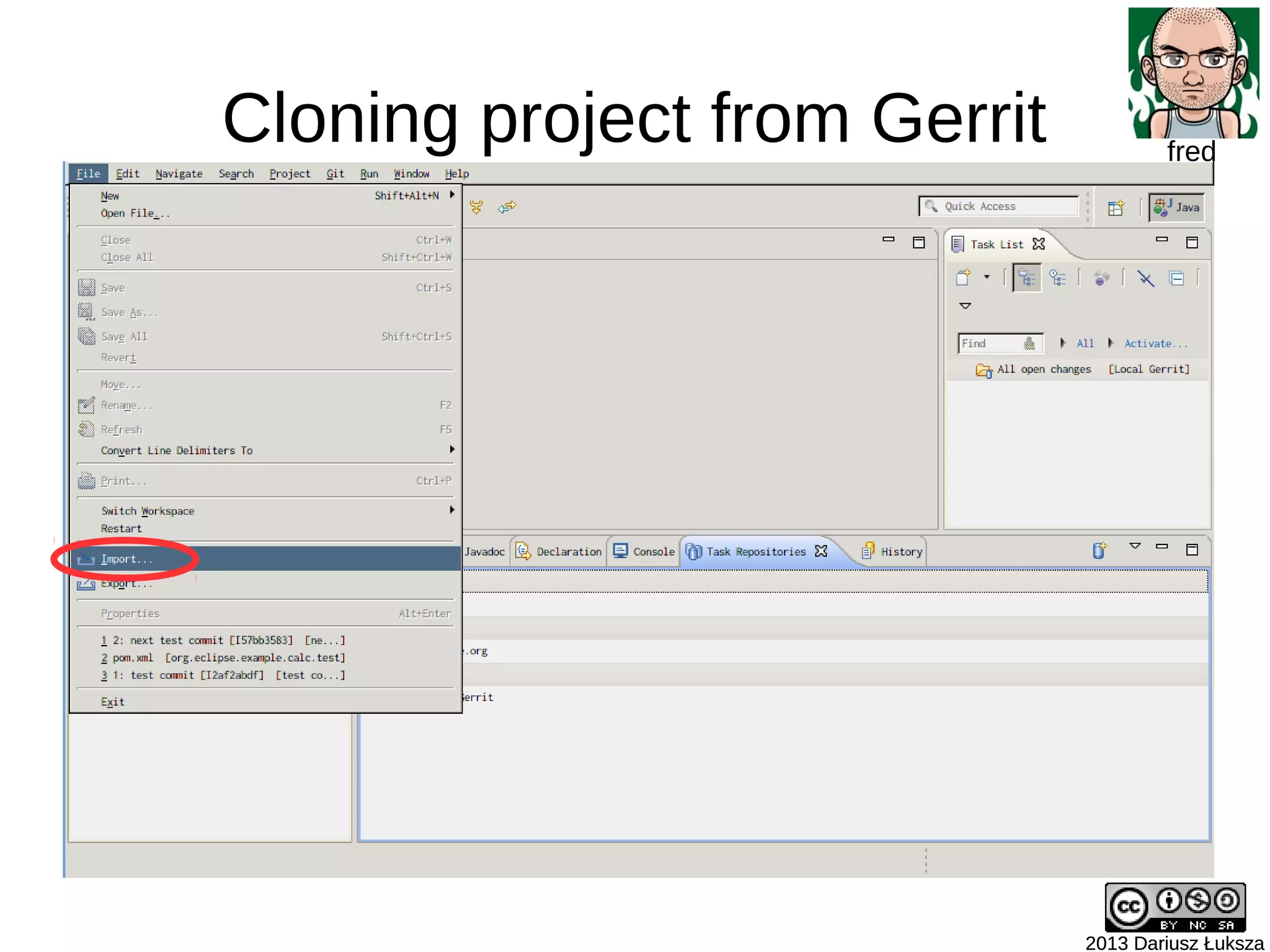

Cloning project from Gerrit
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred

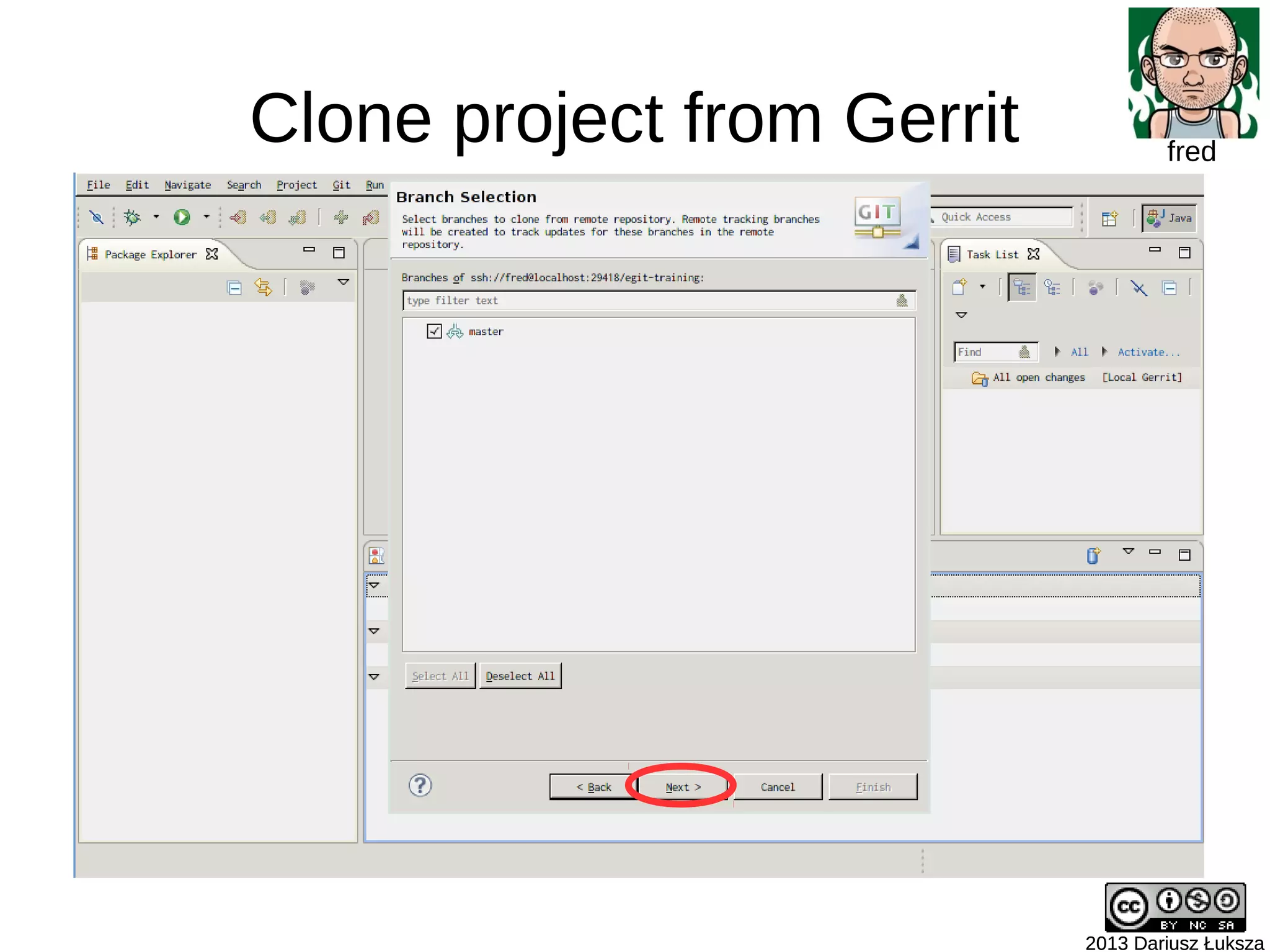

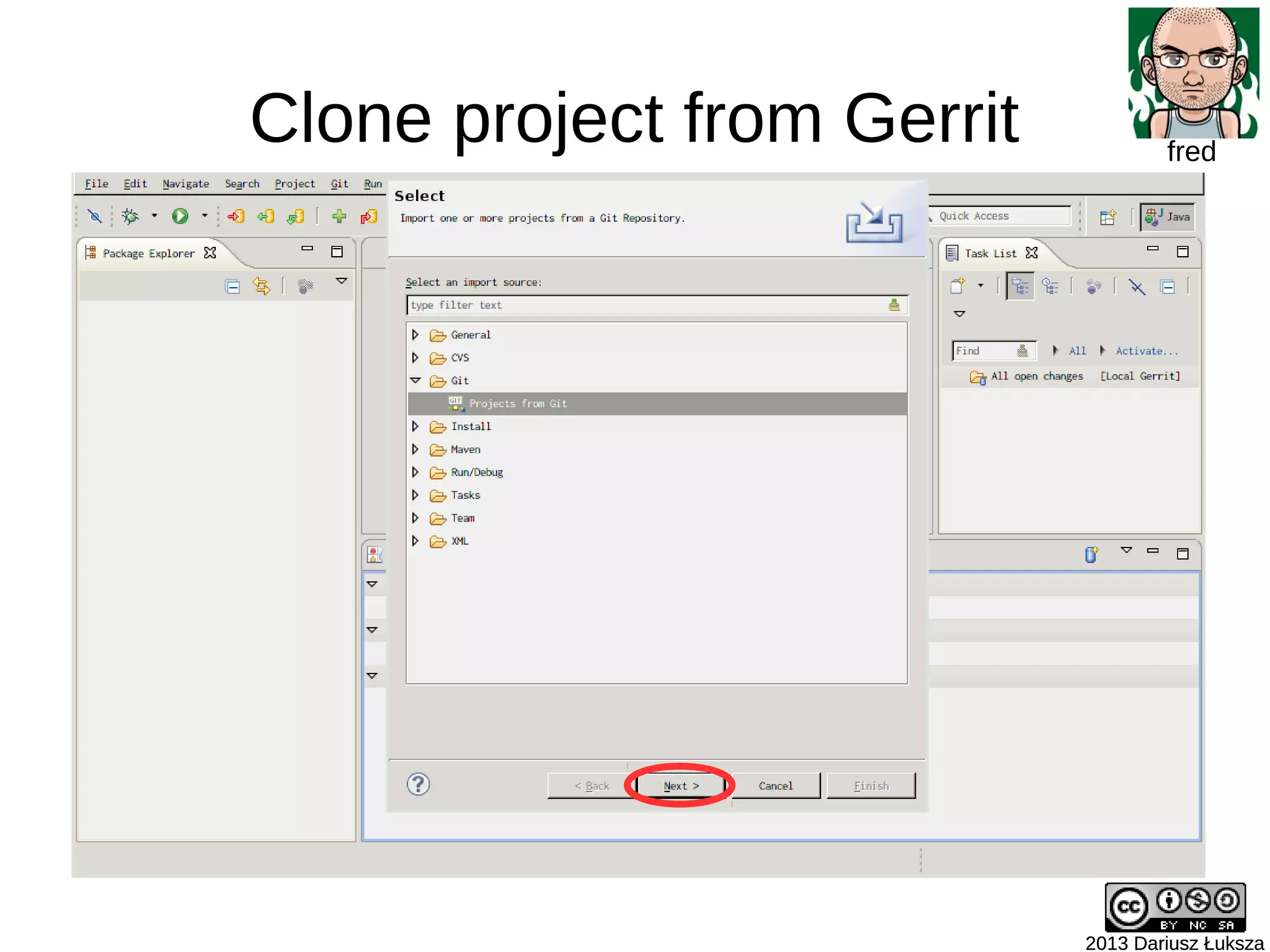

Clone project from Gerrit
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Clone project from Gerrit
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Clone project from Gerrit
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Clone project from Gerrit
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Clone project from Gerrit
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred

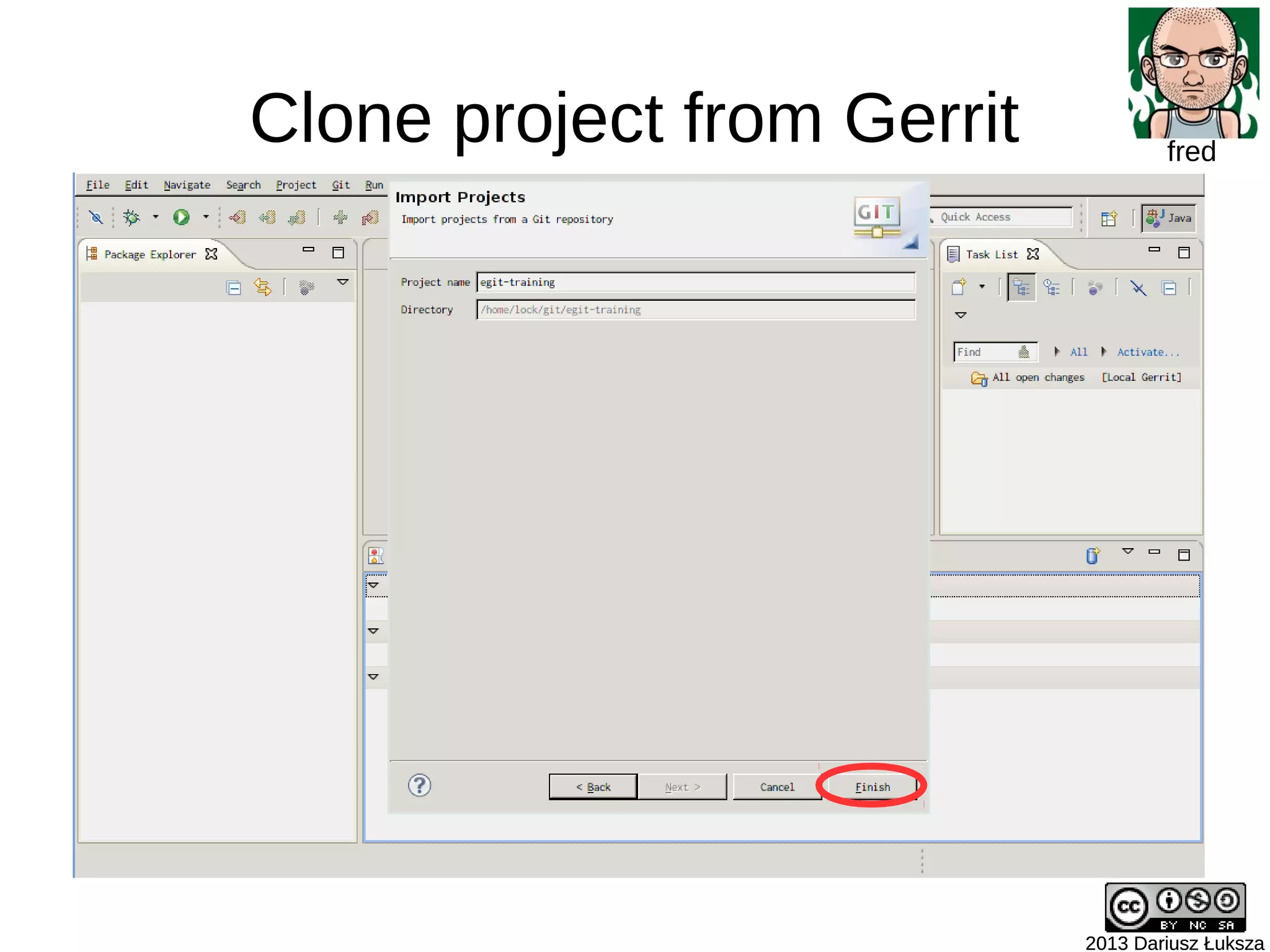

Clone project from Gerrit
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Because in git
repository there is no
Eclipse
configuration file (like
eg. .project) we need
to import it as
'general project'
Clone project from Gerrit
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Clone project from Gerrit
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred

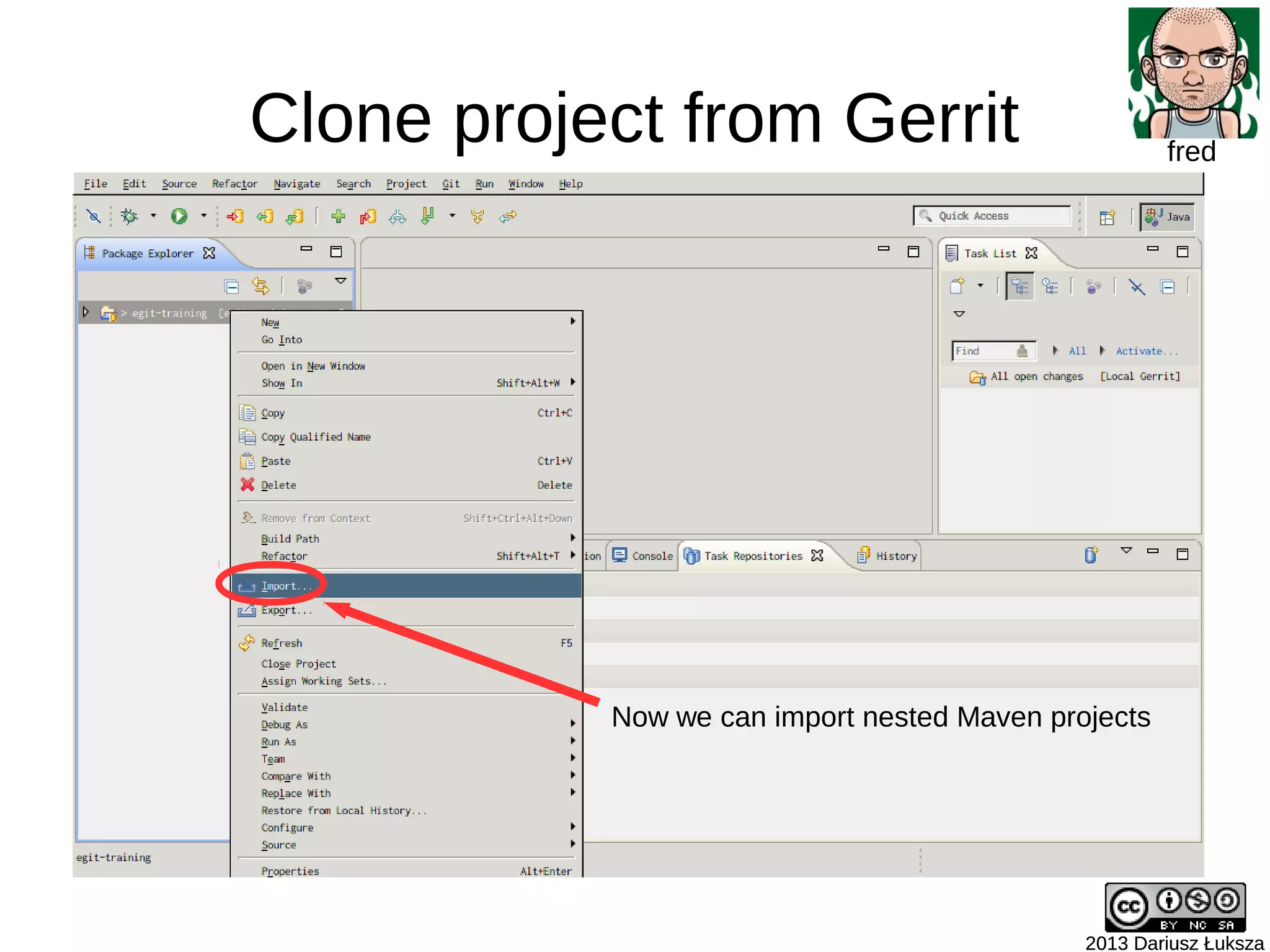

Now we can import nested Maven projects
Clone project from Gerrit
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred

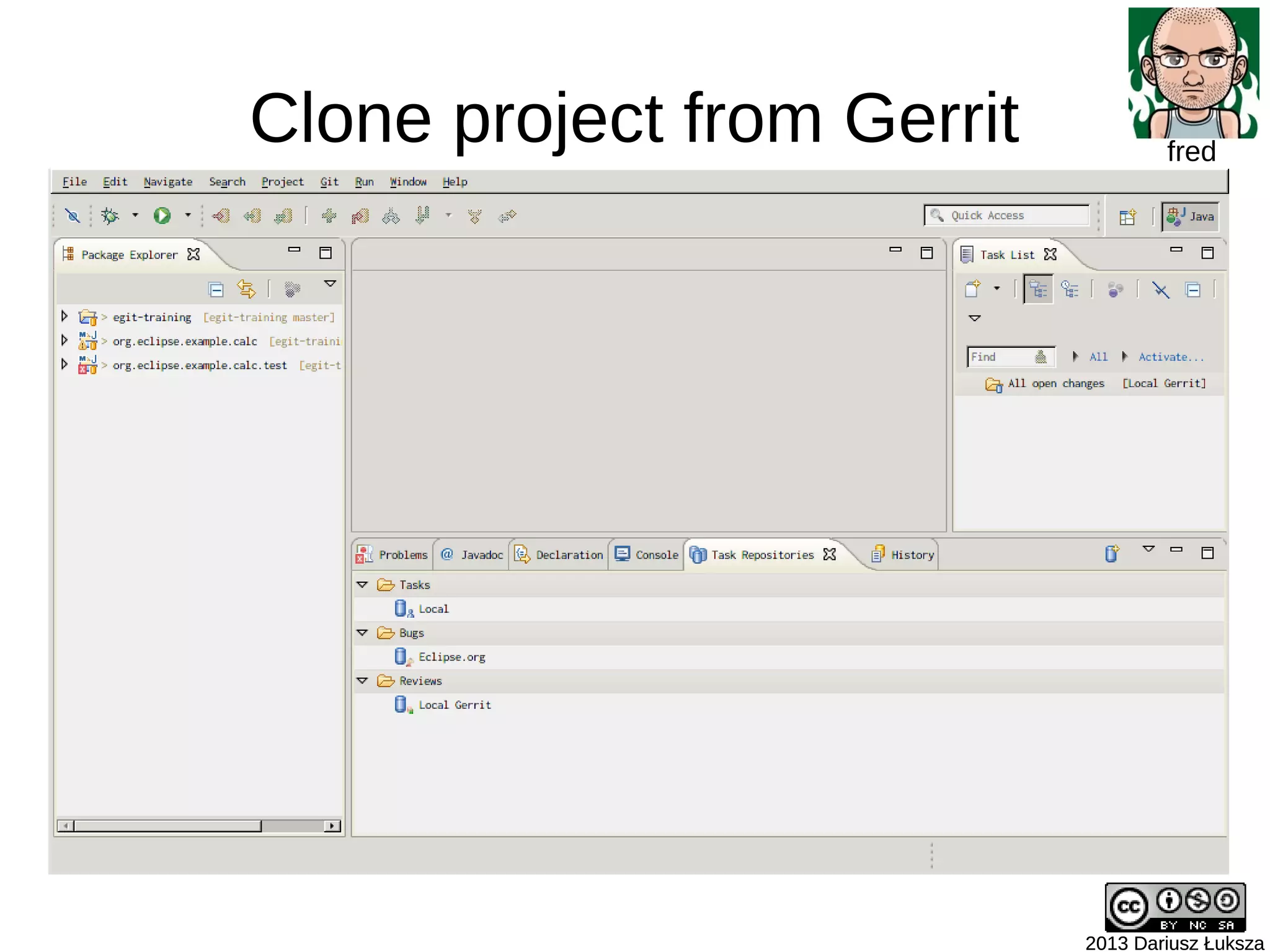

Clone project from Gerrit
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred

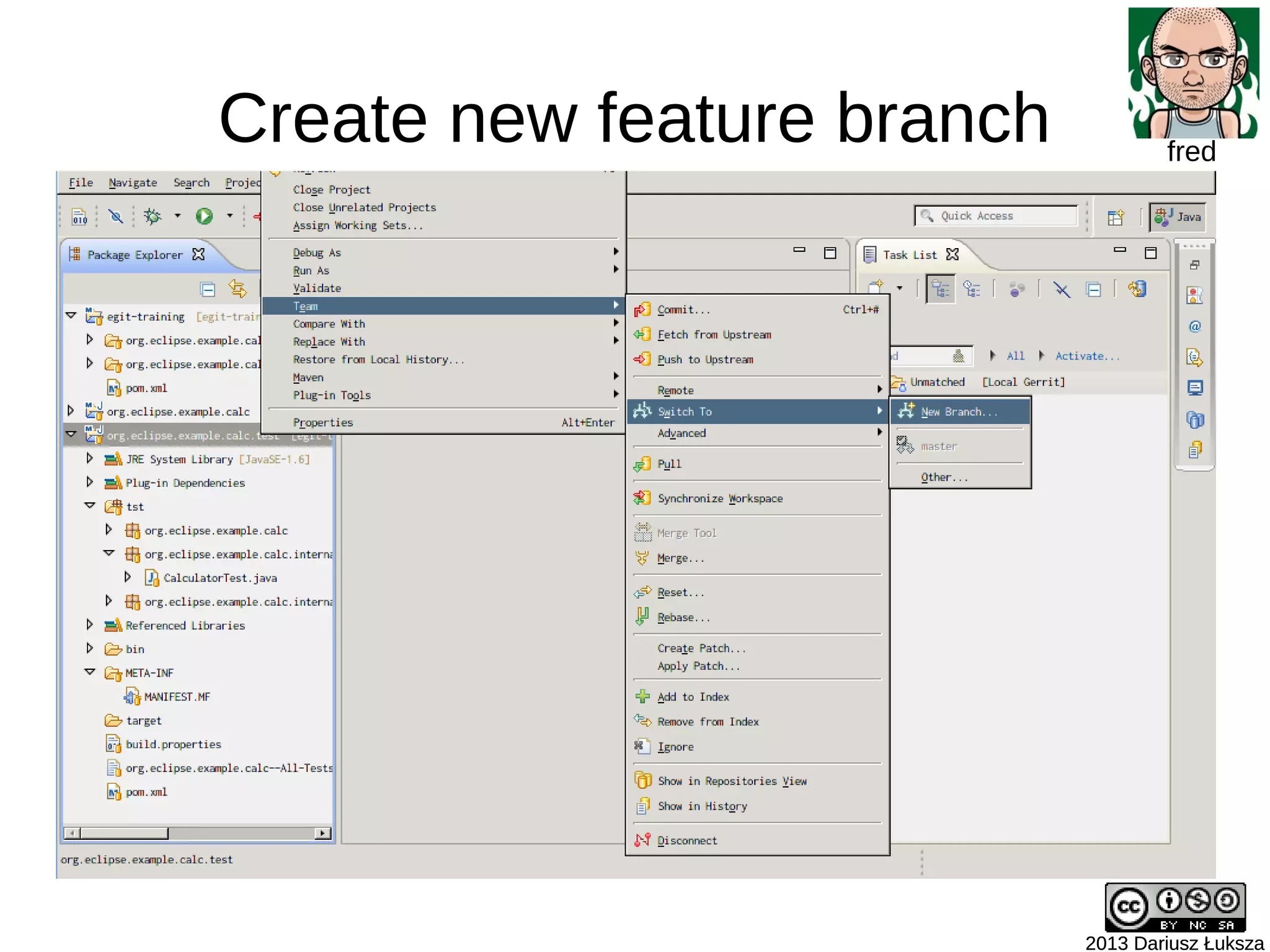

Create new feature branch
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Create new feature branch
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Create first change
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Change something in
repository

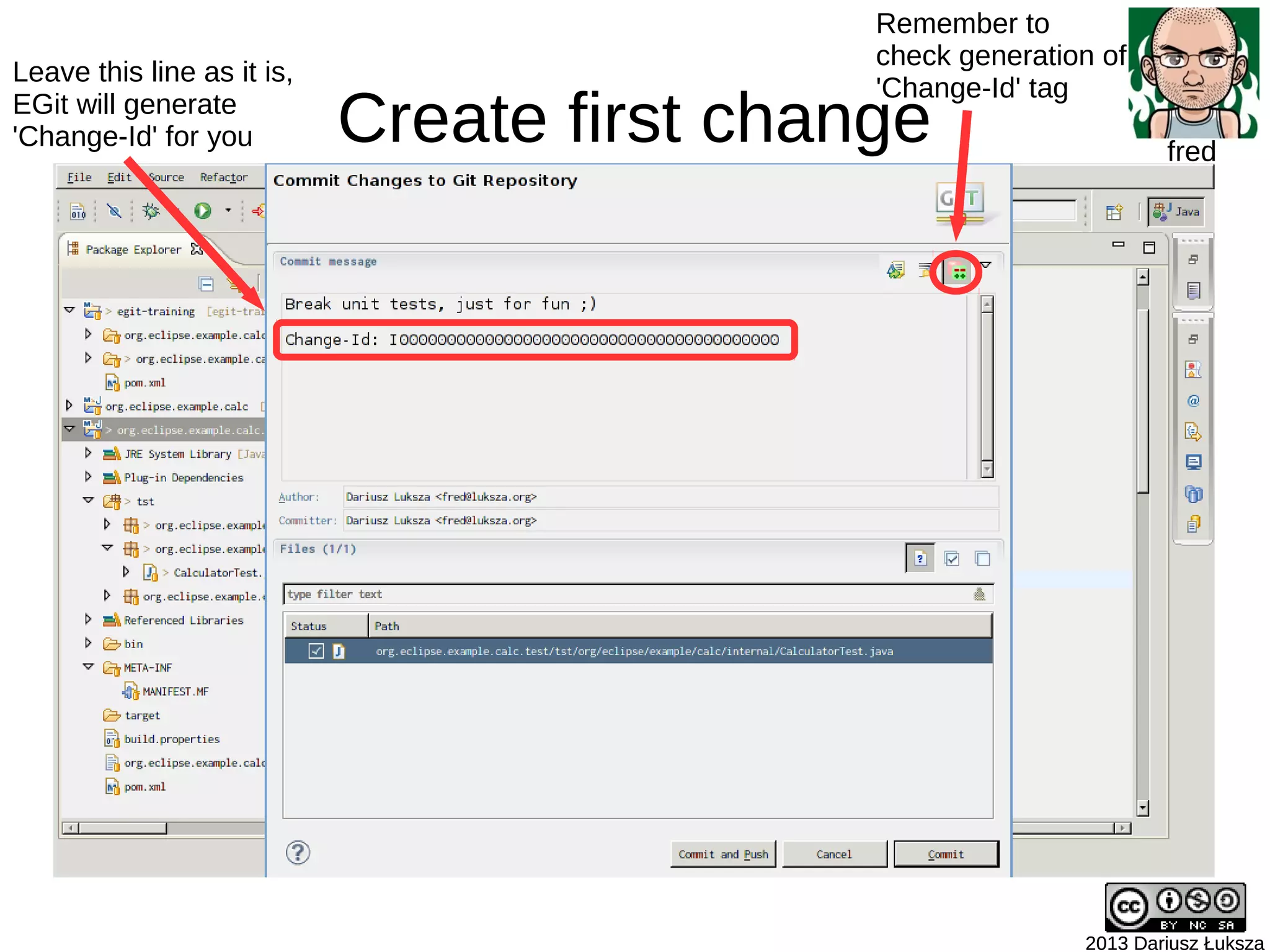

Create first change
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Remember to
check generation of
'Change-Id' tag
Leave this line as it is,
EGit will generate
'Change-Id' for you
Create first change
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred

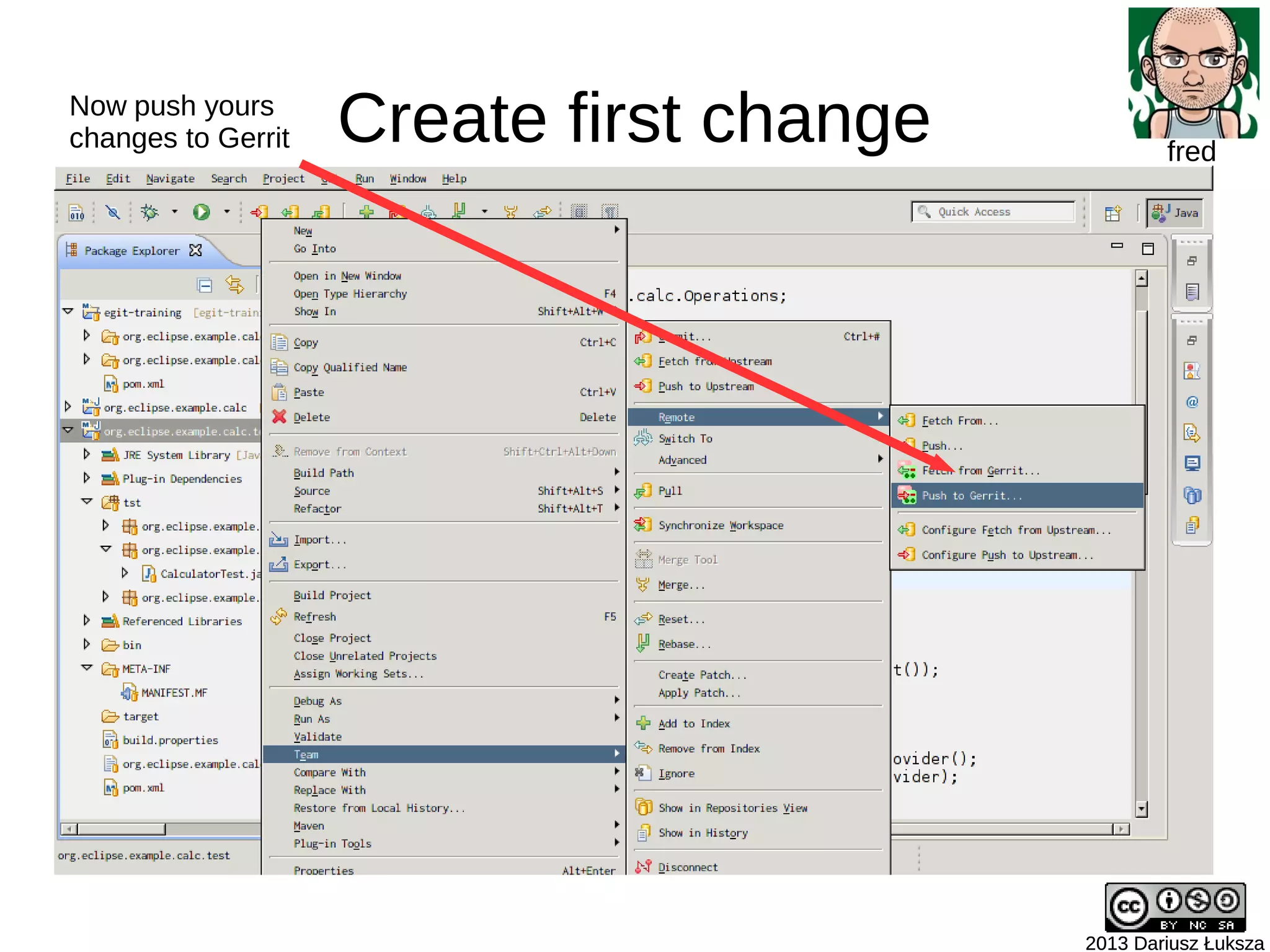

Now push yours
changes to Gerrit
Create first change
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred

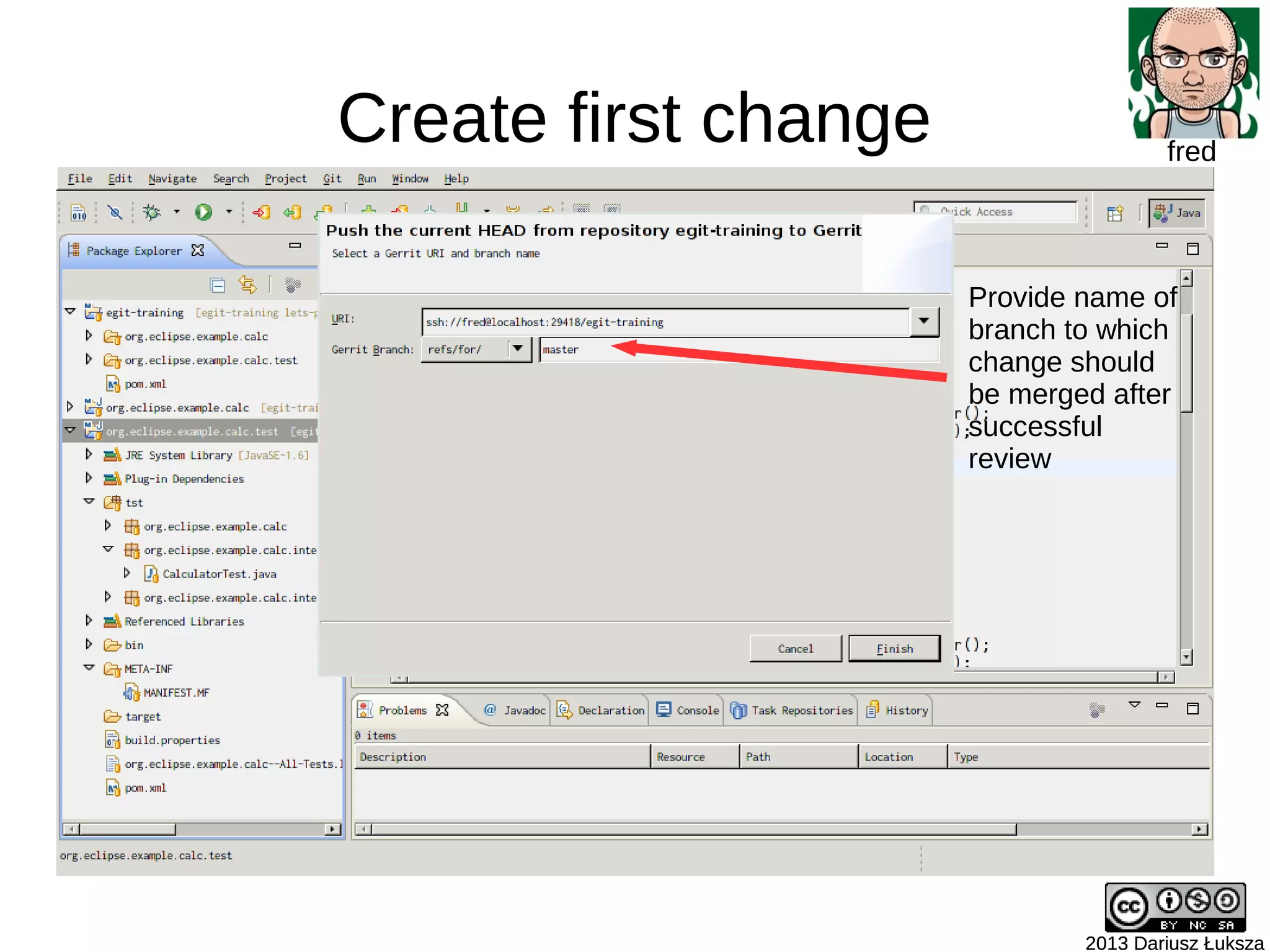

Provide name of
branch to which
change should
be merged after
successful
review
Create first change
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Create first change
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
After some time
you will see
yours change
on list of open
changes
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Meet Roman

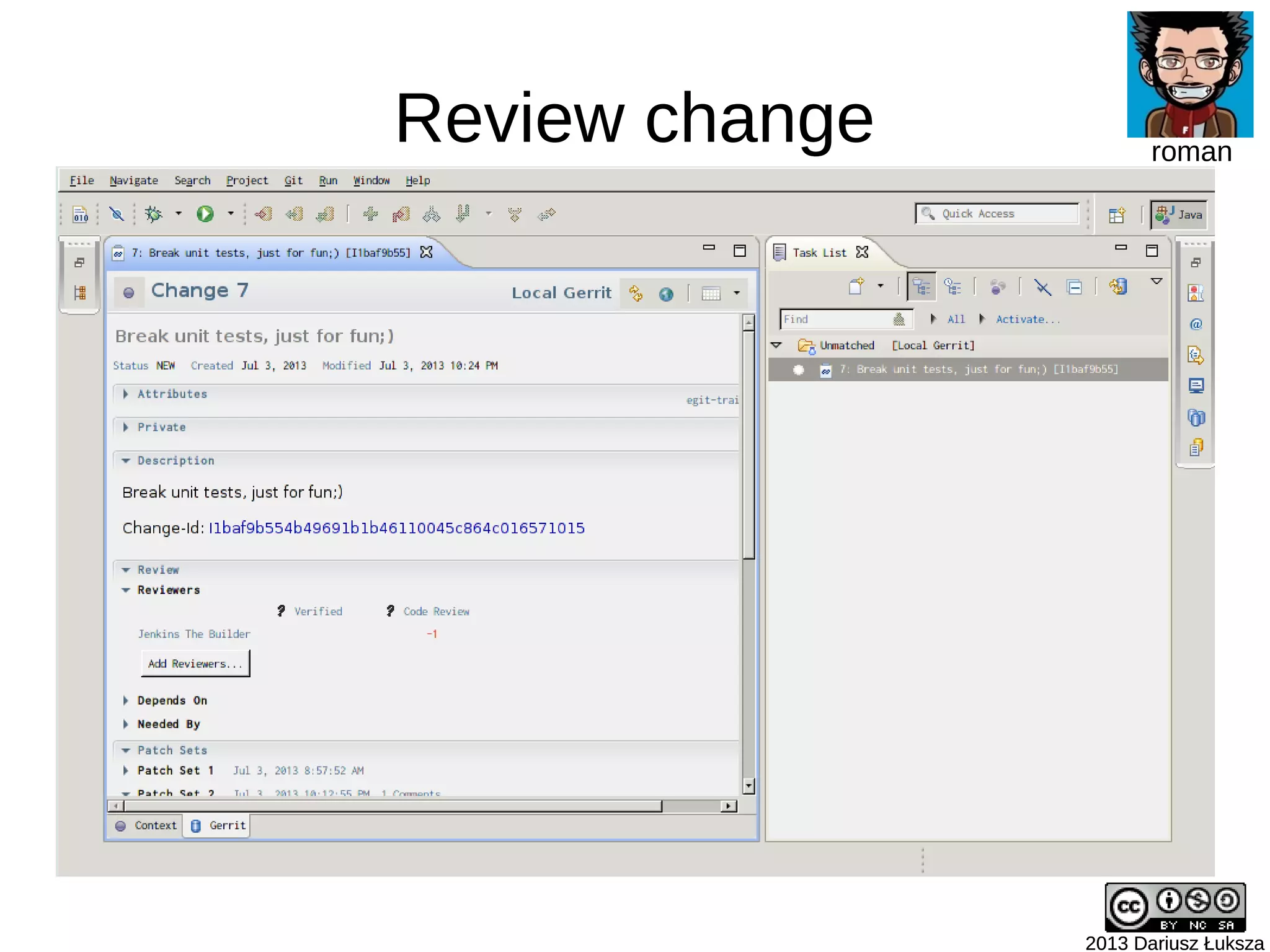

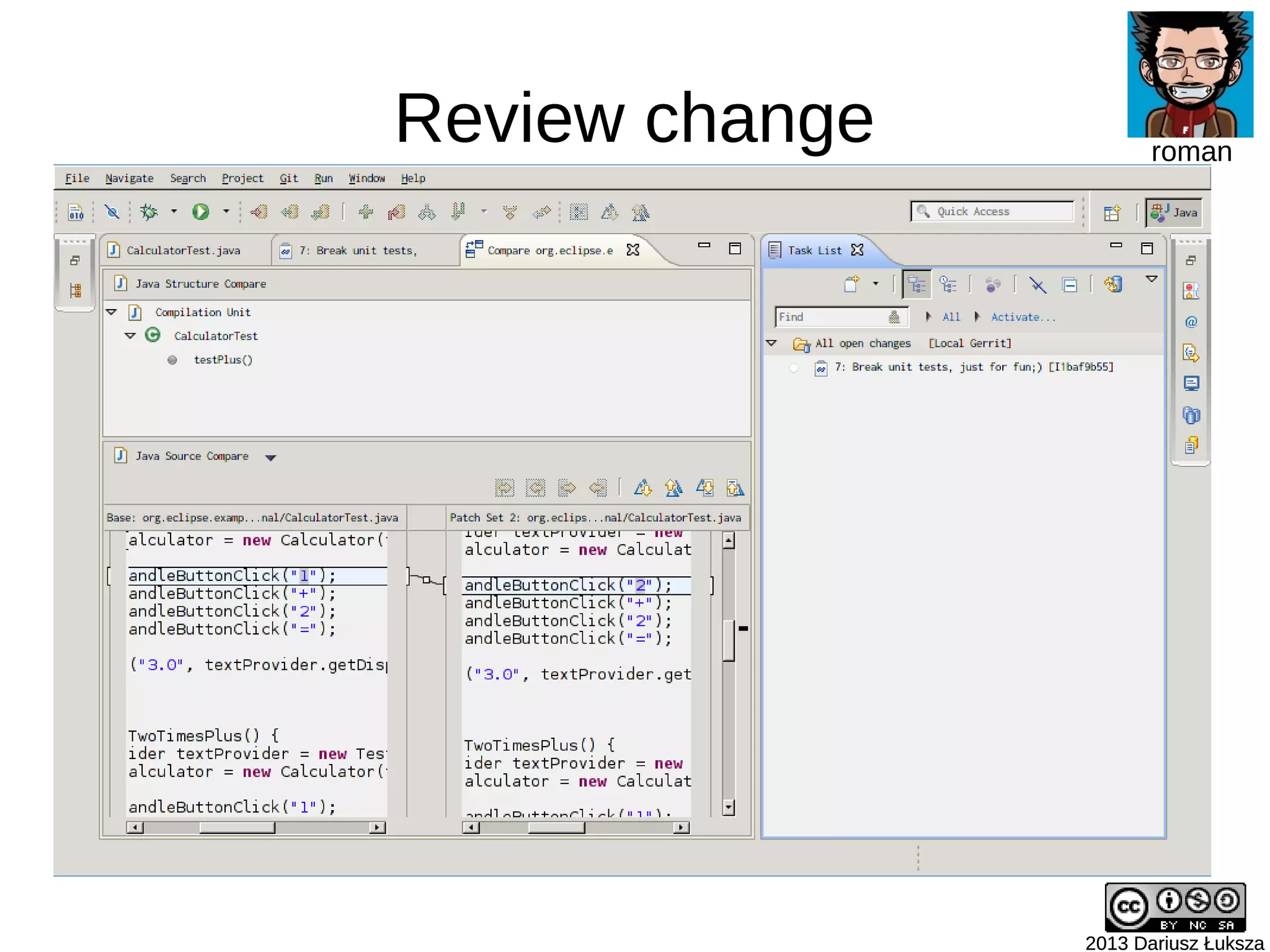

Review change
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Review change
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Double click on
file will open a
compare view
Review change
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Review change
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman

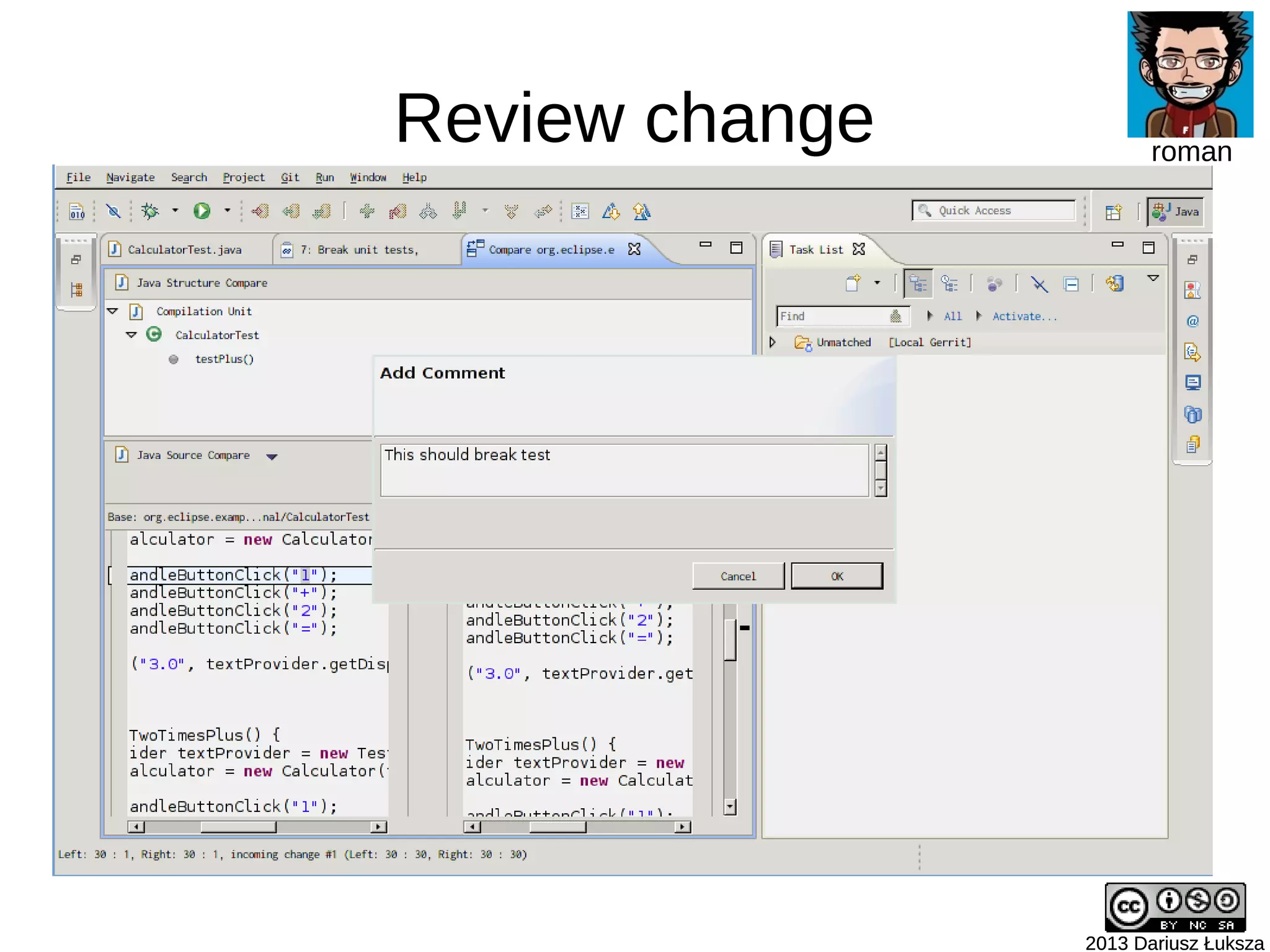

You can provide
comments directly
for each code line
Review change
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Review change
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Review change
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
As you see Jenkins
already have an
opinion about this
change
Review change
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
You can publish yours
comments using 'Publish
Comments...' button
Review change
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman

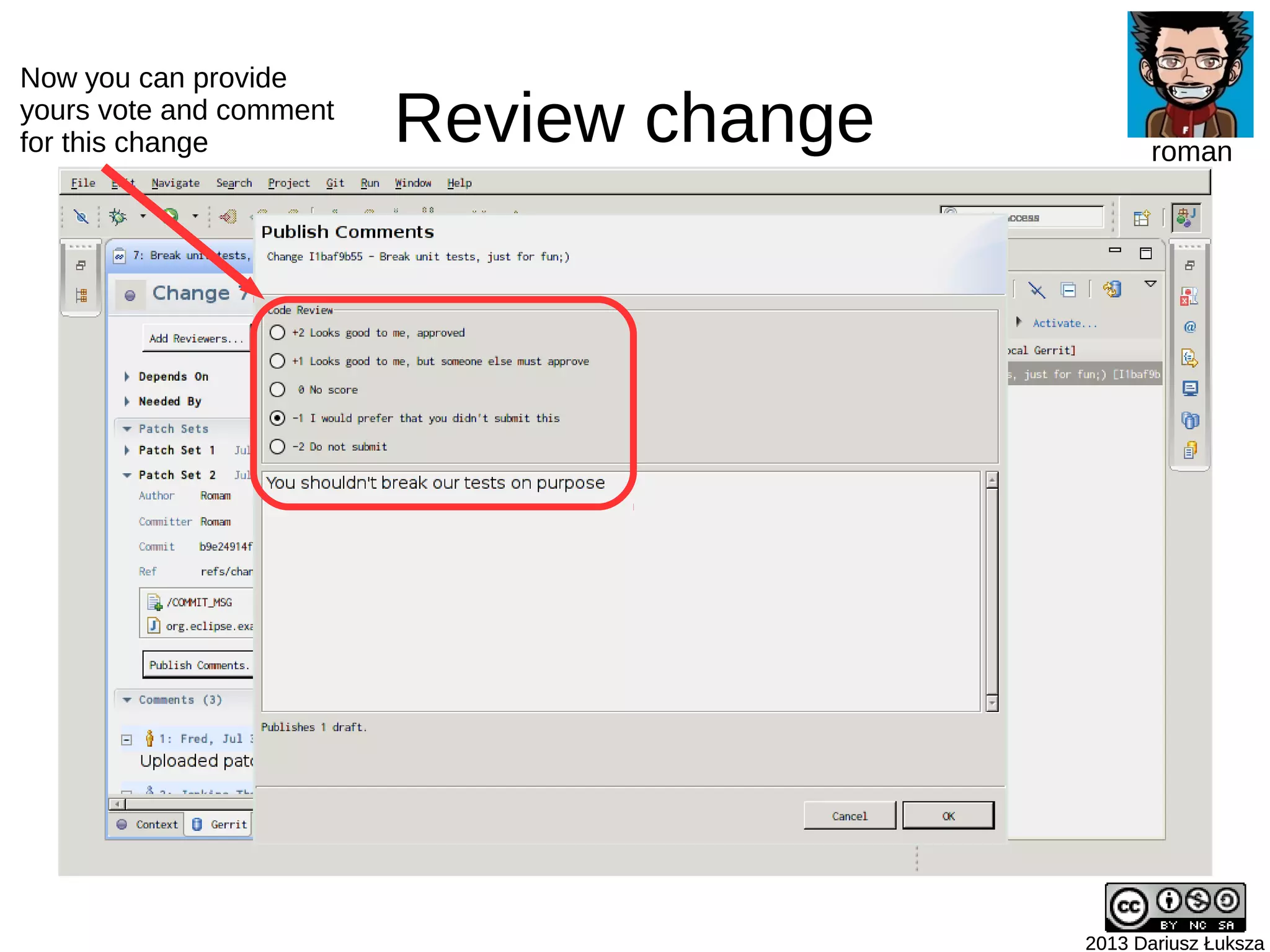

Now you can provide
yours vote and comment
for this change
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Switch back to Fred

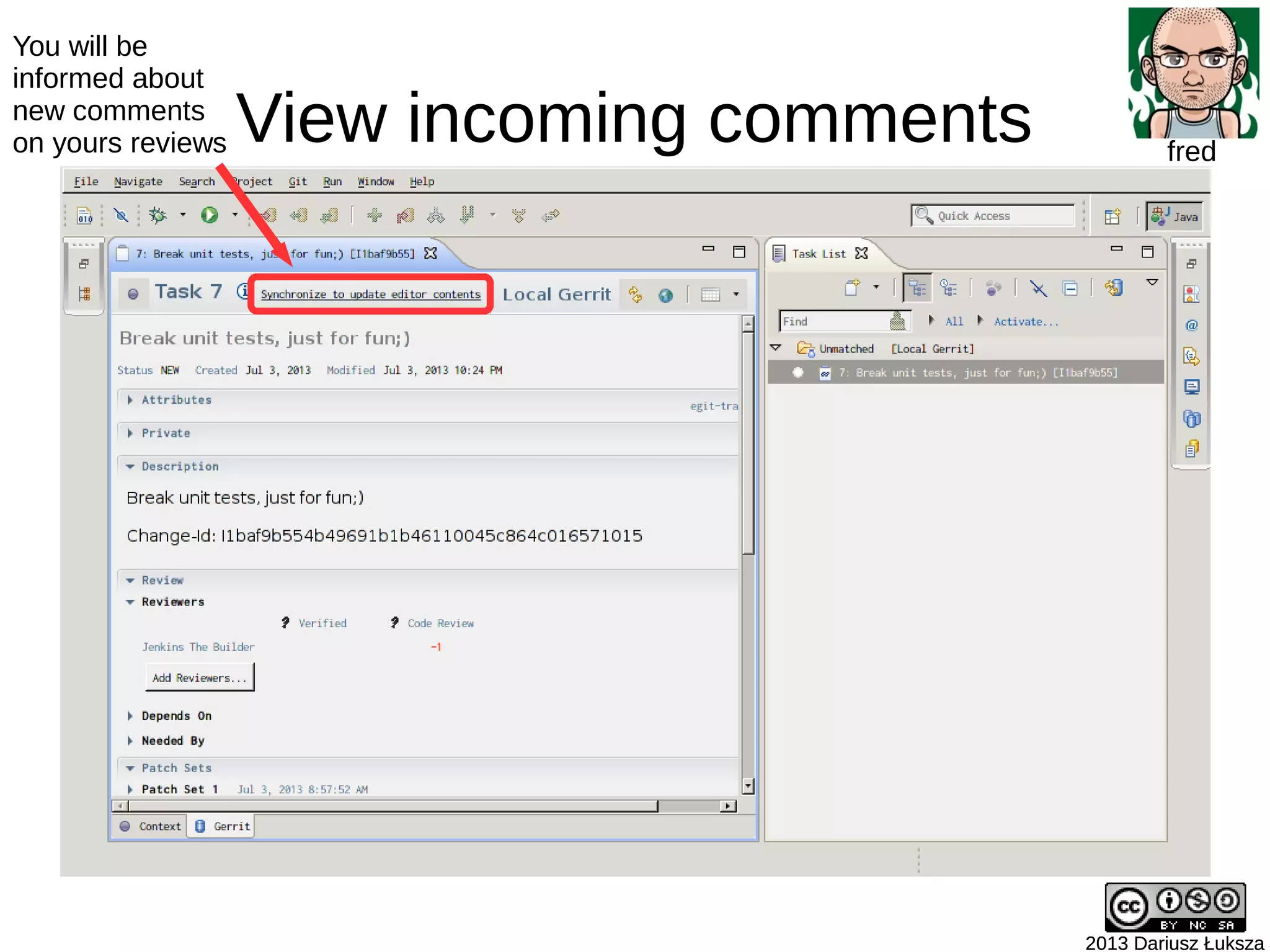

View incoming comments
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
You will be
informed about
new comments
on yours reviews

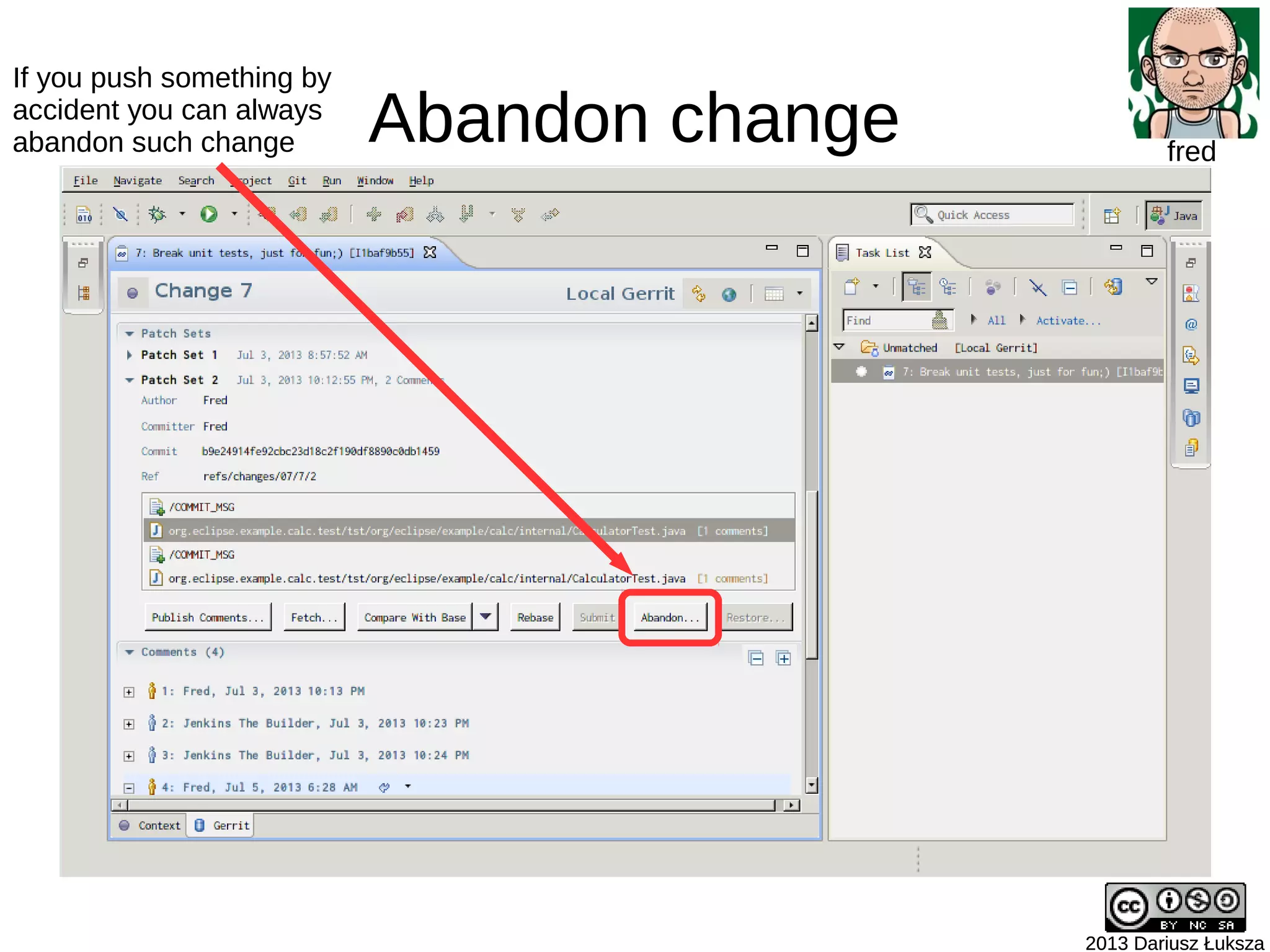

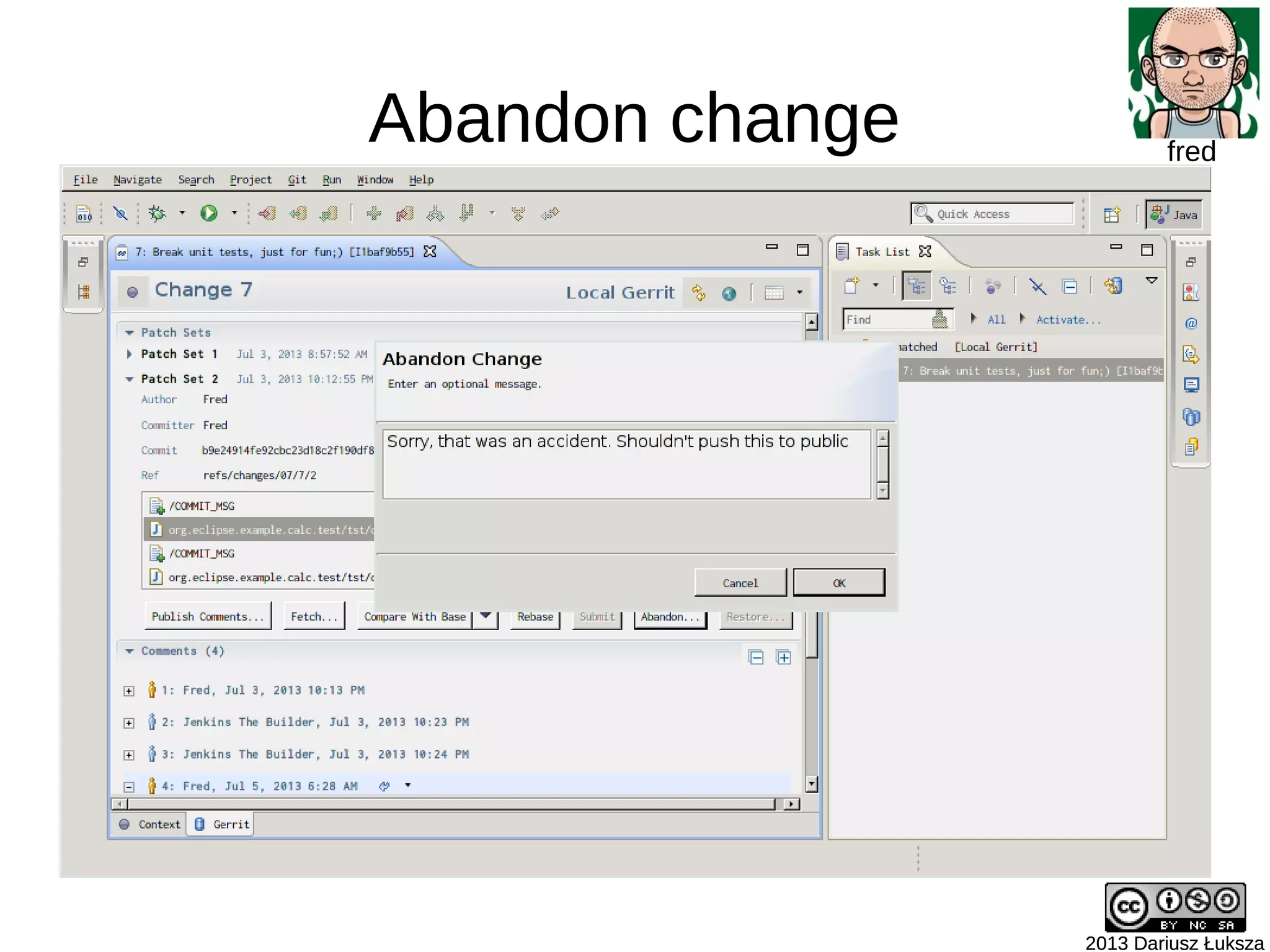

Abandon change
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
If you push something by
accident you can always
abandon such change
Abandon change
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Pushing multiple changes
Push multiple commits
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred

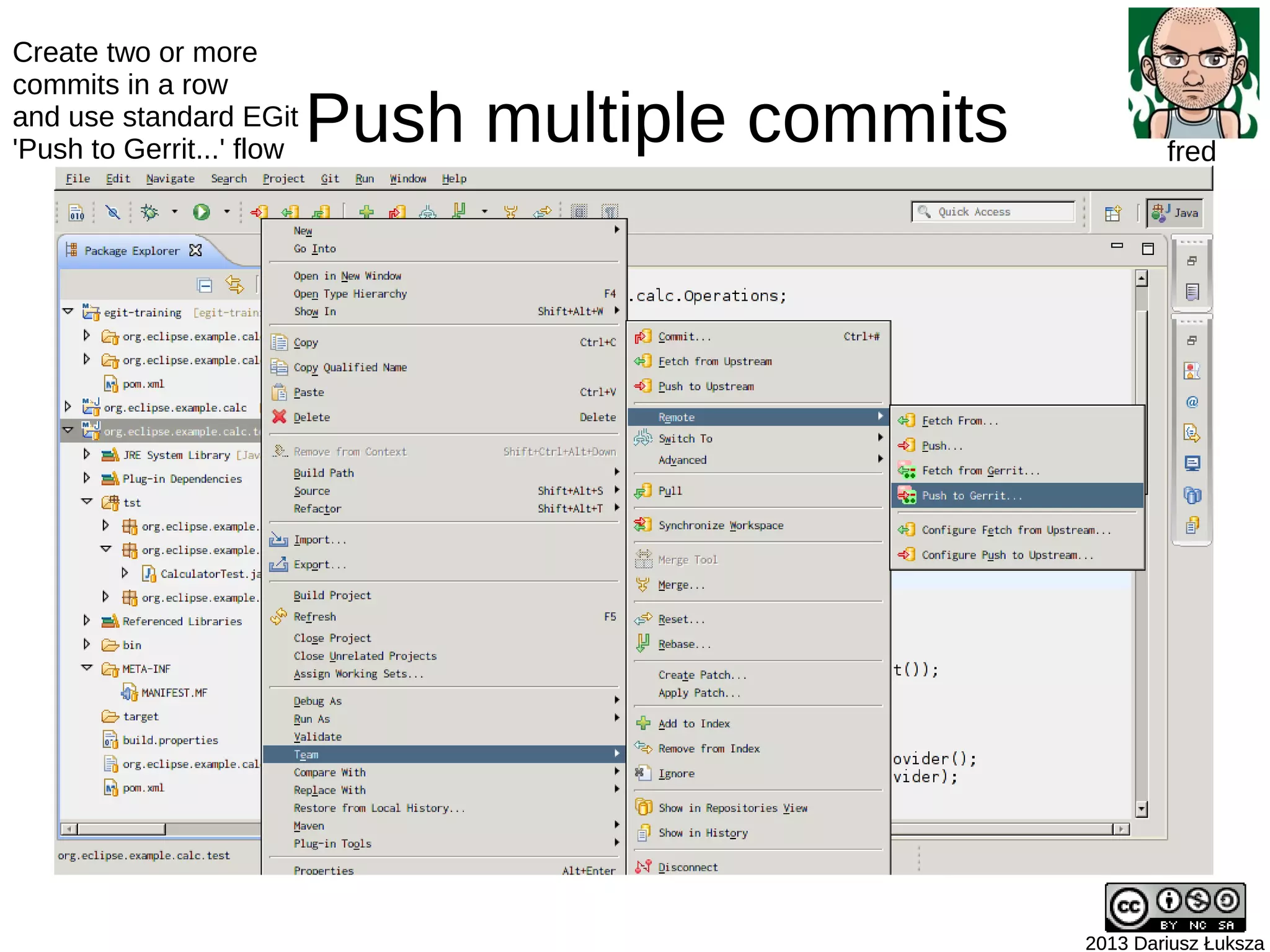

Create two or more
commits in a row
and use standard EGit
'Push to Gerrit...' flow

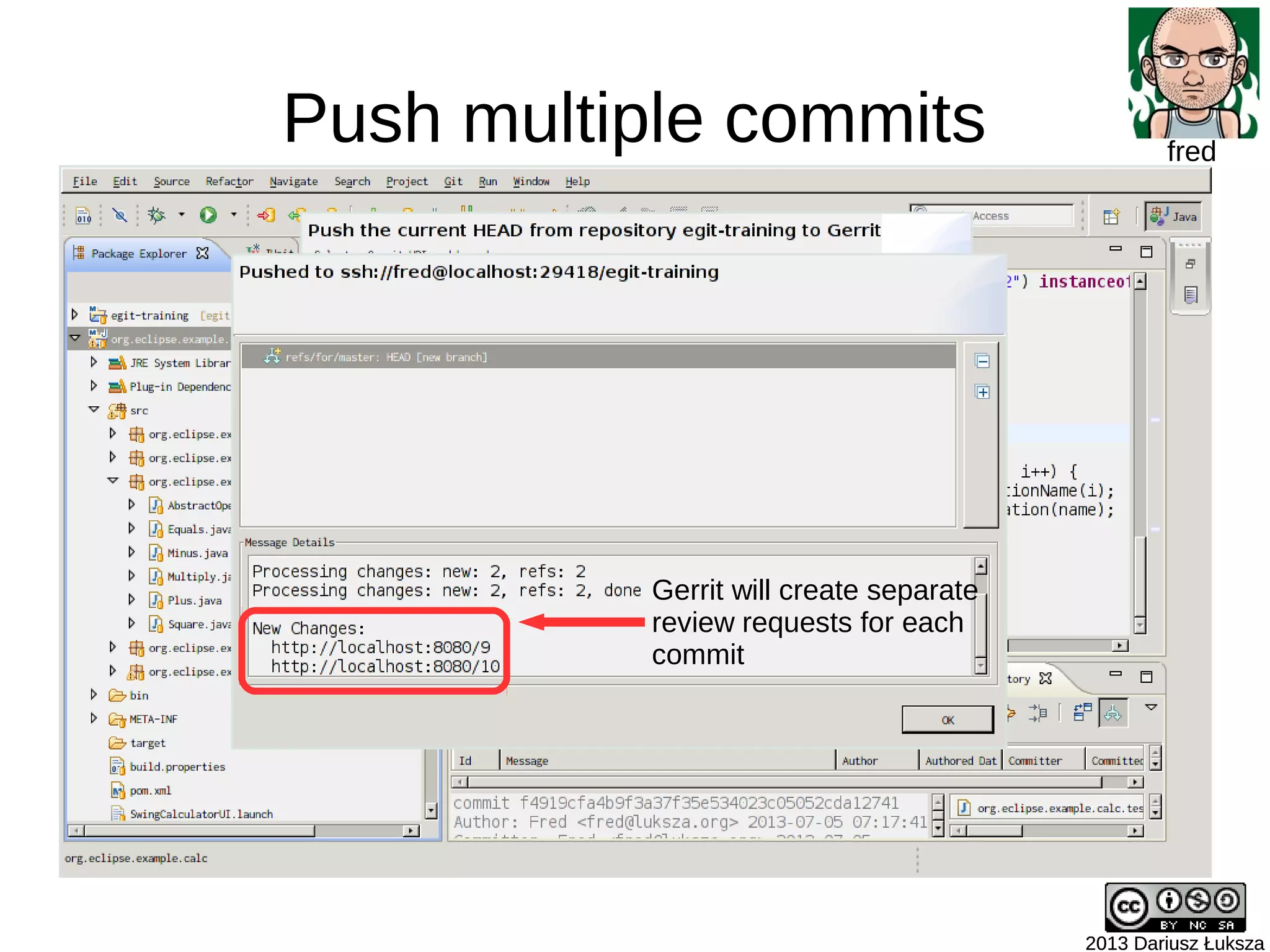

Push multiple commits
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Gerrit will create separate
review requests for each
commit
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Switch to Roman

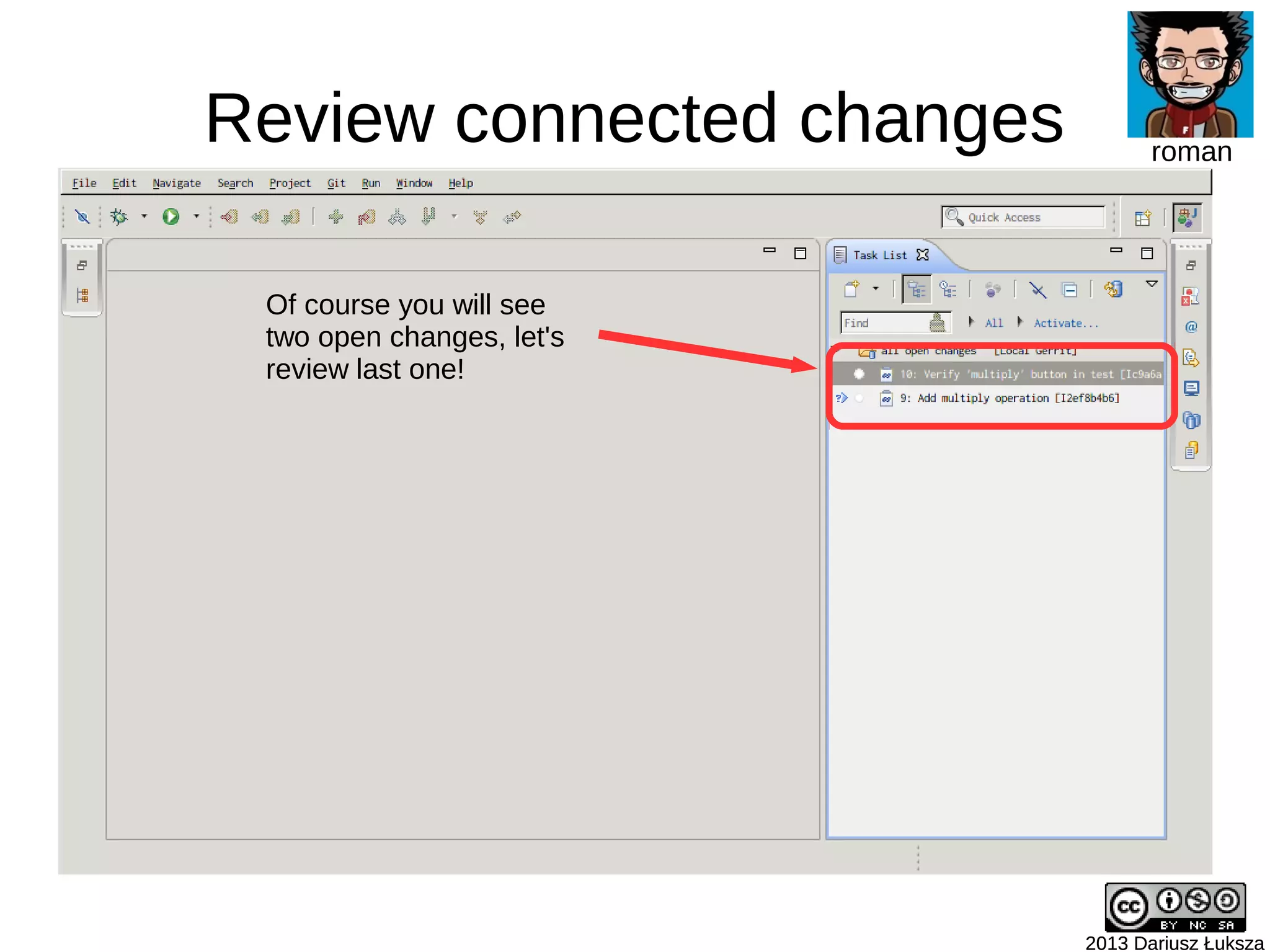

Review connected changes
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Of course you will see
two open changes, let's
review last one!
Review connected changes
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman

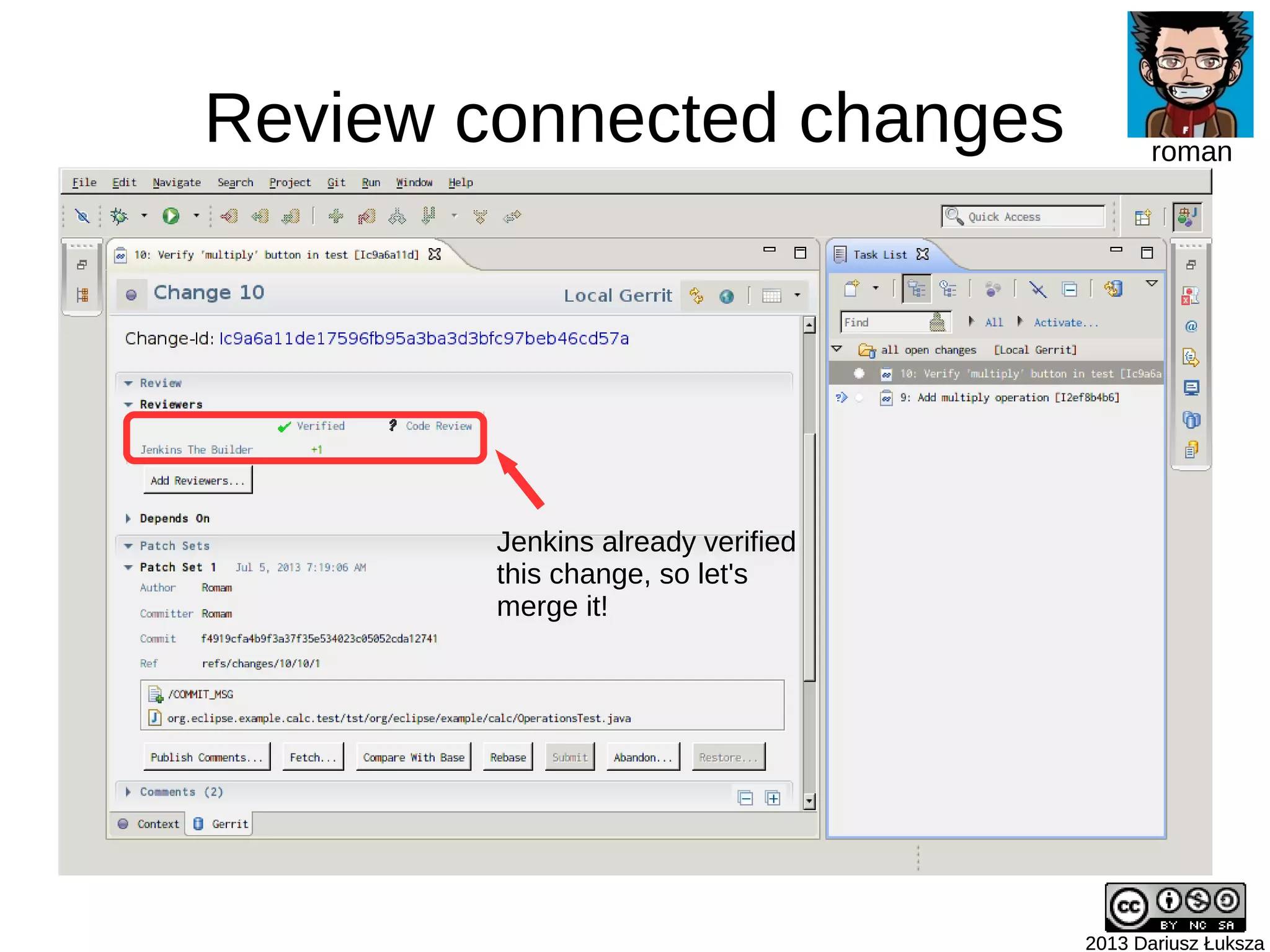

Jenkins already verified
this change, so let's
merge it!
Review connected changes
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Review connected changes
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Last step is to push
'Submit' button
Review connected changes
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Change was submitted,
but it is not merged
because it's parent change
is still under review. It will
be automatically merged
after parent will be
accepted
Review connected changes
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Let's review
second
change
Review connected changes
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Let's review
second
change

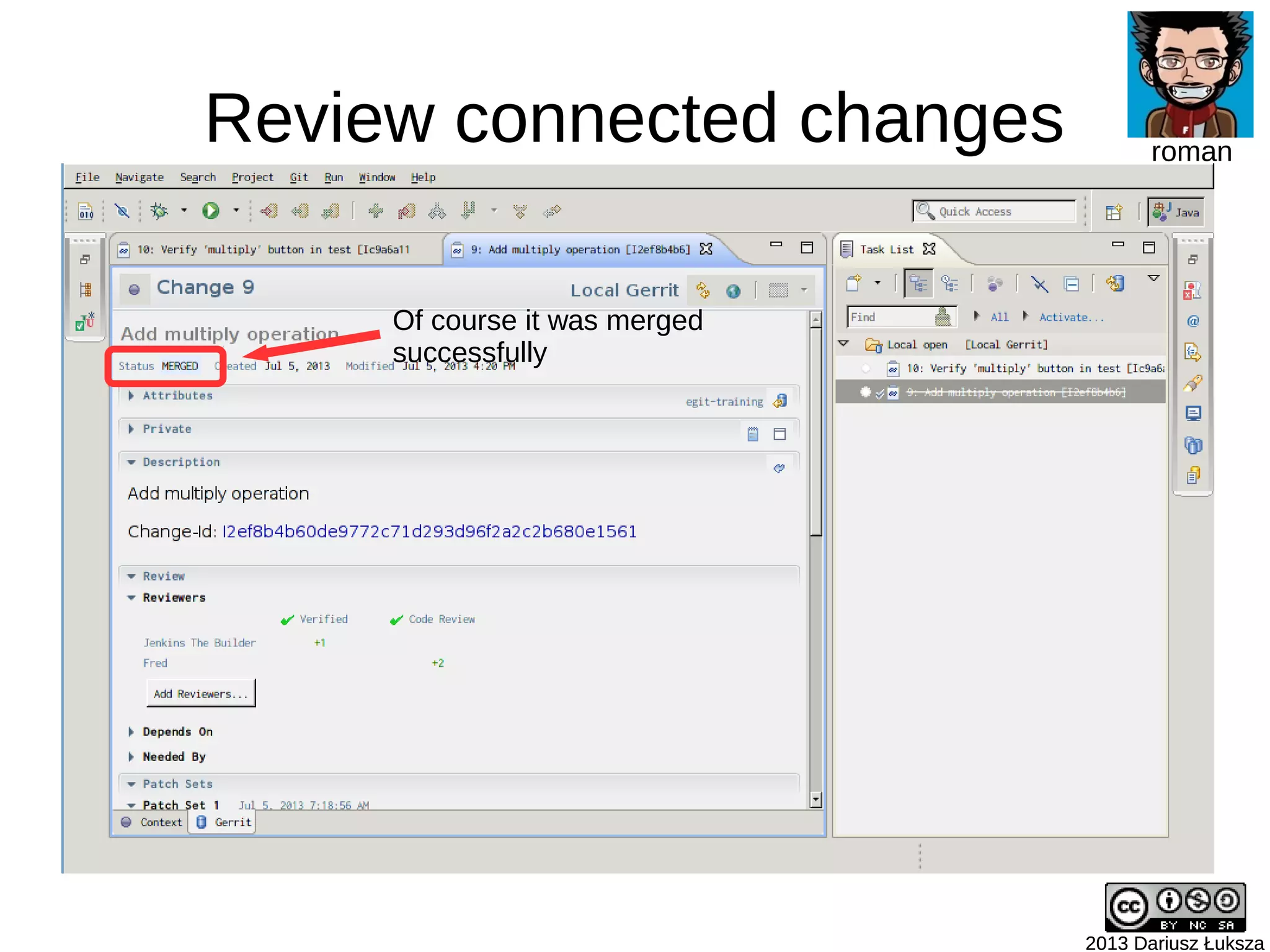

Review connected changes
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Of course it was merged
successfully
Review connected changes
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman

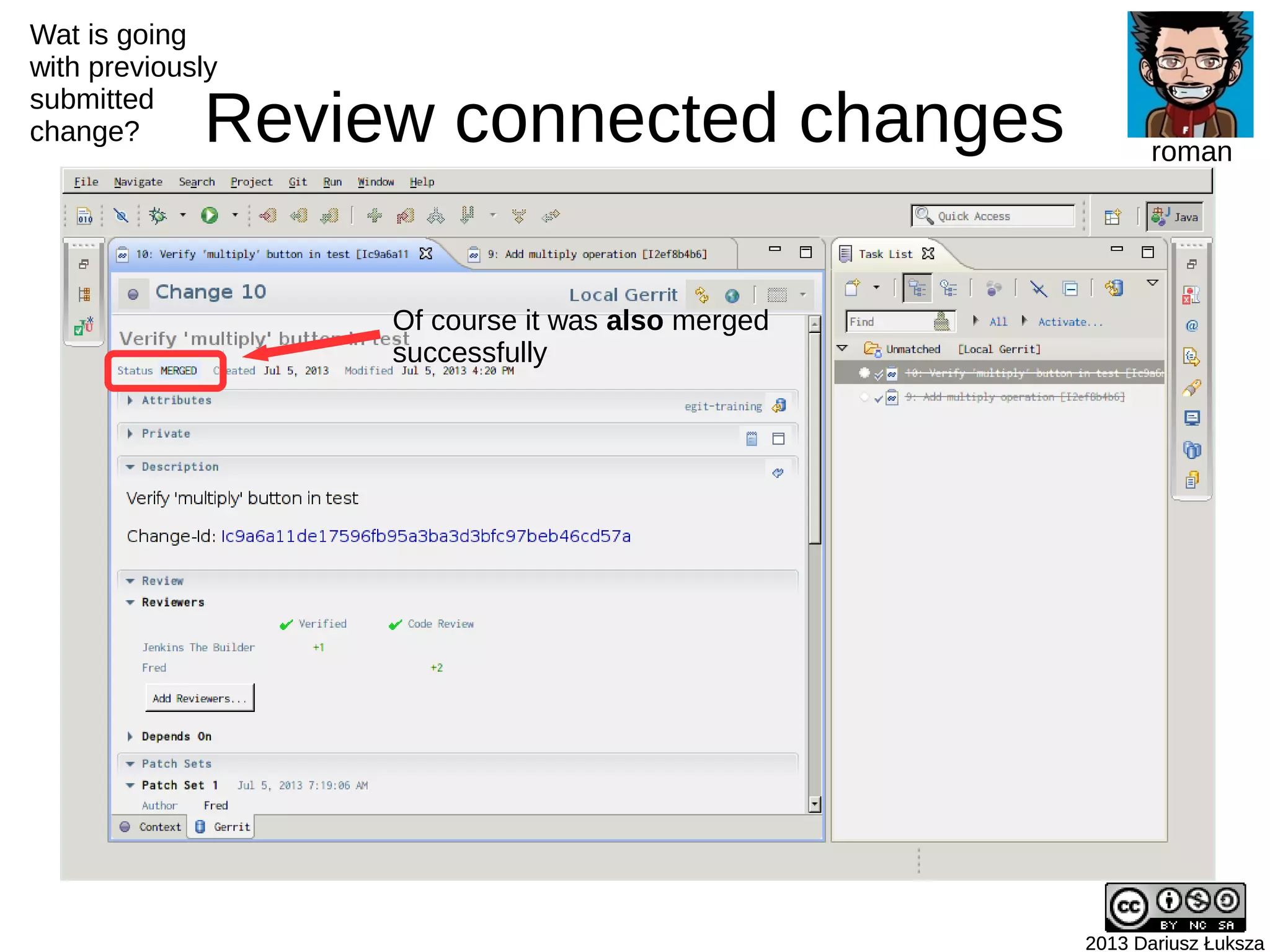

Of course it was also merged
successfully
Wat is going
with previously
submitted
change?
2013 Dariusz Łuksza2013 Dariusz Łuksza
roman
Roman goes to Bahama
(continue other's work)
Continue other's work
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
All changes are stored
in Gerrit, you can
fetch each patch set
version when ever
you want to
Continue other's work
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Provide meaningful
branch name and
click 'Finish'
Continue other's work
2013 Dariusz Łuksza2013 Dariusz Łuksza
fred
Done, you have
Roman's changes
locally and can
continue his work
Code Review Tips
● Be constructive, don't hate, always propose or point to
solution
● Don't take comments personally, they are only about
code and how you can improve, code and your skills
● Code review is like refactoring of code that you have
written long time ago … you need to understand
author's intention
● It's like TDD, review code before it hit main repository.
This will guarantee the best application quality
● Do code review on daily basis … remember when you
are not reviewing other's code then application is not
progressing
2013 Dariusz Łuksza
2013 Dariusz Łuksza
Dariusz Łuksza, CollabNet
dariusz@luksza.org
@dluksza
“Review your code like a Googler”
Q&A
2013 Dariusz Łuksza
BTW. Don't forget about DevCrowd
conference in Szczecin in 2014. More
info you can found at:
http://devcrowd.pl

More Related Content

More from Dariusz Łuksza

Guiding Diffy to the Enterprise land
Guiding Diffy to the Enterprise landGuiding Diffy to the Enterprise land
Guiding Diffy to the Enterprise land
Dariusz Łuksza

Git in Eclipse
Git in EclipseGit in Eclipse
Git in Eclipse
Dariusz Łuksza

Gerrit Code Review - The Introduction
Gerrit Code Review - The IntroductionGerrit Code Review - The Introduction
Gerrit Code Review - The Introduction
Dariusz Łuksza

Gerrit JavaScript Plugins
Gerrit JavaScript PluginsGerrit JavaScript Plugins
Gerrit JavaScript Plugins
Dariusz Łuksza

Eclipse of idleness and focus on current task (rev. 2)
Eclipse of idleness and focus on current task (rev. 2)Eclipse of idleness and focus on current task (rev. 2)
Eclipse of idleness and focus on current task (rev. 2)
Dariusz Łuksza


More from Dariusz Łuksza (6)

Guiding Diffy to the Enterprise land
Guiding Diffy to the Enterprise landGuiding Diffy to the Enterprise land
Guiding Diffy to the Enterprise land

Git in Eclipse
Git in EclipseGit in Eclipse
Git in Eclipse

Put more eyes on code
Put more eyes on codePut more eyes on code
Put more eyes on code

Gerrit Code Review - The Introduction
Gerrit Code Review - The IntroductionGerrit Code Review - The Introduction
Gerrit Code Review - The Introduction

Gerrit JavaScript Plugins
Gerrit JavaScript PluginsGerrit JavaScript Plugins
Gerrit JavaScript Plugins

Eclipse of idleness and focus on current task (rev. 2)
Eclipse of idleness and focus on current task (rev. 2)Eclipse of idleness and focus on current task (rev. 2)
Eclipse of idleness and focus on current task (rev. 2)


Recently uploaded

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead
Wask

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx
Brandon Minnick, MBA

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6
DianaGray10

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
IndexBug

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter
Daiki Mogmet Ito

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Jeffrey Haguewood

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany
innovationoecd

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
akankshawande

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Alpen-Adria-Universität

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations
kumardaparthi1024

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques
Postman

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024
Matthew Sinclair

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
saastr


Recently uploaded (20)

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...


Review your code like a Googler
