Resin Outperforms NginX
- 1. Resin Java WebServer Outperforms C-based NginX Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server
- 2. Open%Source,%Reliable%and%Lightweight% Java%EE%Applica;on%Server% RESIN PRO Web Profile Health System Cloud Support

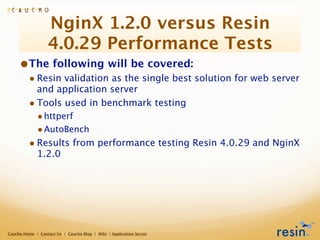

- 3. NginX 1.2.0 versusResin 4.0.29 Performance Tests •The following will be covered: • Resin validation as the single best solution for web server and application server • Tools used in benchmark testing • httperf • AutoBench • Results from performance testing Resin 4.0.29 and NginX 1.2.0 Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

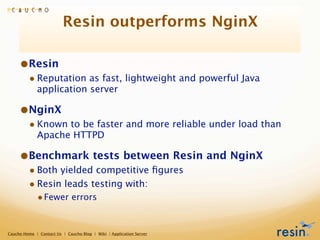

- 4. Resin outperforms NginX •Resin • Reputation as fast, lightweight and powerful Java application server •NginX • Known to be faster and more reliable under load than Apache HTTPD •Benchmark tests between Resin and NginX • Both yielded competitive figures • Resin leads testing with: • Fewer errors Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

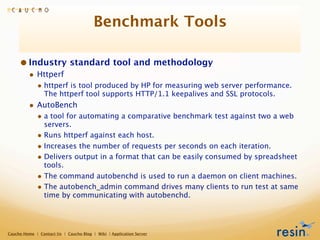

- 5. Benchmark Tools • Industry standard tool and methodology • Httperf • httperf is tool produced by HP for measuring web server performance. The httperf tool supports HTTP/1.1 keepalives and SSL protocols. • AutoBench • a tool for automating a comparative benchmark test against two a web servers. • Runs httperf against each host. • Increases the number of requests per seconds on each iteration. • Delivers output in a format that can be easily consumed by spreadsheet tools. • The command autobenchd is used to run a daemon on client machines. • The autobench_admin command drives many clients to run test at same time by communicating with autobenchd. Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

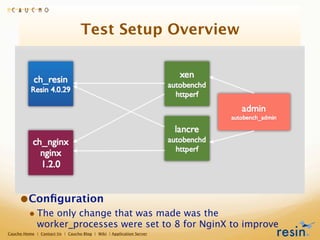

- 6. Test Setup Overview •Configuration • The only change that was made was the worker_processes were set to 8 for NginX to improve Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

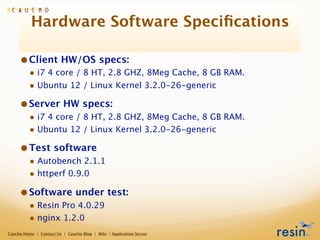

- 7. Hardware Software Specifications • Client HW/OS specs: • i7 4 core / 8 HT, 2.8 GHZ, 8Meg Cache, 8 GB RAM. • Ubuntu 12 / Linux Kernel 3.2.0-26-generic • Server HW specs: • i7 4 core / 8 HT, 2.8 GHZ, 8Meg Cache, 8 GB RAM. • Ubuntu 12 / Linux Kernel 3.2.0-26-generic • Test software • Autobench 2.1.1 • httperf 0.9.0 • Software under test: • Resin Pro 4.0.29 • nginx 1.2.0 Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server
- 8. 0K Test -Command Line Arguments 0k.sh ./admin.sh 300000 2000 20000 1000 0k admin.sh autobench_admin --clients xen:4600,lancre:4600 --uri1 /file_$5.html --host1 ch_resin --port1 8080 --uri2 /file_$5.html --host2 ch_nginx --port2 80 --num_conn $1 --num_call 10 --low_rate $2 --high_rate $3 --rate_step $4 --timeout 3 --file out_con$1_start$2_end$3_step$4_$5.tsv (Above is used to setup 300,000 connections at a rate of 20,000 to 200,000 requests per second. Each iteration increases the rate by 10,000 from 20,000 to 200,000.) 0k.html html> <body> <pre></pre> </body> </html> Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

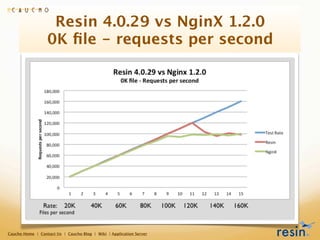

- 9. Resin 4.0.29 vsNginX 1.2.0 0K file - requests per second Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server
- 10. Resin 4.0.29 vsNginX 1.2.0 0K file - Response Time Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

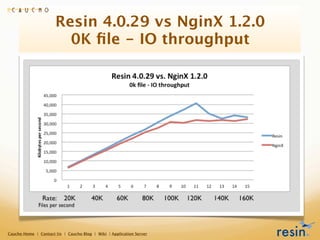

- 11. Resin 4.0.29 vsNginX 1.2.0 0K file - IO throughput Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

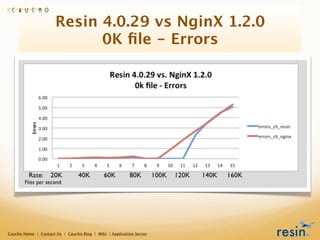

- 12. Resin 4.0.29 vsNginX 1.2.0 0K file - Errors Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

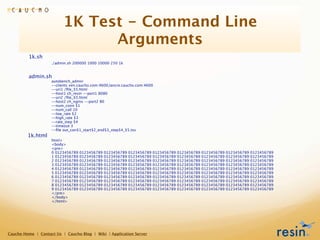

- 13. 1K Test -Command Line Arguments 1k.sh ./admin.sh 200000 1000 10000 250 1k admin.sh autobench_admin --clients xen.caucho.com:4600,lancre.caucho.com:4600 --uri1 /file_$5.html --host1 ch_resin --port1 8080 --uri2 /file_$5.html --host2 ch_nginx --port2 80 --num_conn $1 --num_call 10 --low_rate $2 --high_rate $3 --rate_step $4 --timeout 3 --file out_con$1_start$2_end$3_step$4_$5.tsv 1k.html html> <body> <pre> 0 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 1 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 2 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 3 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 4 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 5 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 6 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 7 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 8 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 9 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 0123456789 </pre> </body> </html> Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server
- 14. Resin 4.0.29 vsNginX 1.2.0 1K file - requests per second Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

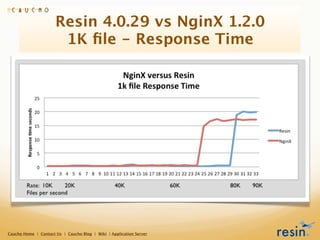

- 15. Resin 4.0.29 vsNginX 1.2.0 1K file - Response Time Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

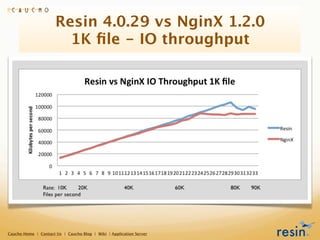

- 16. Resin 4.0.29 vsNginX 1.2.0 1K file - IO throughput Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server
- 17. Resin 4.0.29 vsNginX 1.2.0 1K file - Errors Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server
- 18. Resin 4.0.29 vsNginX 1.2.0 8K file - requests per second Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

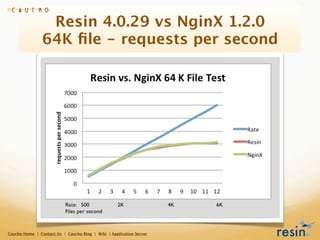

- 19. Resin 4.0.29 vsNginX 1.2.0 64K file - requests per second Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server

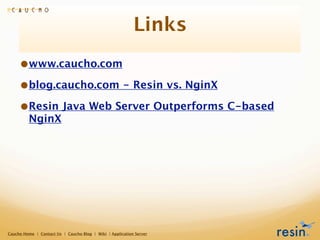

- 20. Links •www.caucho.com •blog.caucho.com - Resin vs. NginX •Resin Java Web Server Outperforms C-based NginX Caucho Home | Contact Us | Caucho Blog | Wiki | Application Server
