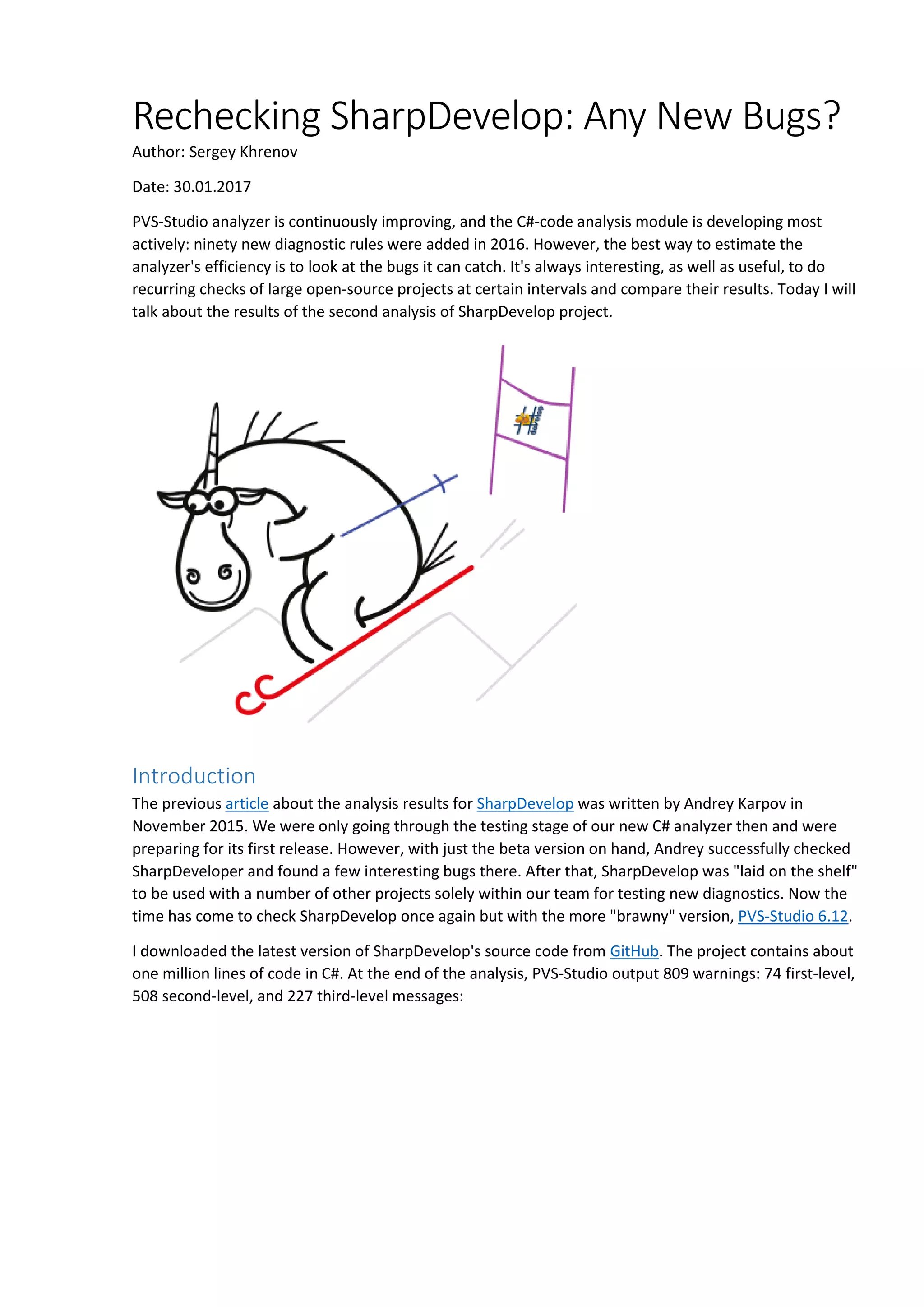

1. Rechecking SharpDevelop: Any New Bugs?
Author: Sergey Khrenov
Date: 30.01.2017
PVS-Studio analyzer is continuously improving, and the C#-code analysis module is developing most
actively: ninety new diagnostic rules were added in 2016. However, the best way to estimate the
analyzer's efficiency is to look at the bugs it can catch. It's always interesting, as well as useful, to do
recurring checks of large open-source projects at certain intervals and compare their results. Today I will
talk about the results of the second analysis of SharpDevelop project.
Introduction
The previous article about the analysis results for SharpDevelop was written by Andrey Karpov in
November 2015. We were only going through the testing stage of our new C# analyzer then and were
preparing for its first release. However, with just the beta version on hand, Andrey successfully checked
SharpDeveloper and found a few interesting bugs there. After that, SharpDevelop was "laid on the shelf"
to be used with a number of other projects solely within our team for testing new diagnostics. Now the
time has come to check SharpDevelop once again but with the more "brawny" version, PVS-Studio 6.12.
I downloaded the latest version of SharpDevelop's source code from GitHub. The project contains about
one million lines of code in C#. At the end of the analysis, PVS-Studio output 809 warnings: 74 first-level,
508 second-level, and 227 third-level messages:

2. I will skip the Low-level warnings because there is a high rate of false positives among those. About 40%
of the Medium- and High-level warnings (582 in total) were found to be genuine errors or highly
suspicious constructs, which corresponds to 233 warnings. In other words, PVS-Studio found an average
of 0.23 errors per 1000 lines of code. This rate indicates a very high quality of SharpDevelop project's
code. Many of the other projects show much worse results.
The new check revealed some of the bugs found and described by Andrey in his previous article, but
most of the errors are new. The most interesting ones are discussed below.
Analysis results
Canonical Copy-Paste bug
This error deserves its own standard in the International Bureau of Weights and Measures. It is also a
vivid example of how useful static analysis is and how dangerous Copy-Paste can be.
PVS-Studio diagnostic message: V3102 Suspicious access to element of 'method.SequencePoints' object
by a constant index inside a loop. CodeCoverageMethodTreeNode.cs 52
public override void ActivateItem()
{
if (method != null && method.SequencePoints.Count > 0) {
CodeCoverageSequencePoint firstSequencePoint =
method.SequencePoints[0];
....
for (int i = 1; i < method.SequencePoints.Count; ++i) {
CodeCoverageSequencePoint sequencePoint =
method.SequencePoints[0]; // <=
....
}
....

3. }
....
}
The zero-index element of the collection is accessed at each iteration of the for loop. I included the code
fragment immediately following the condition of the if statement on purpose to show where the line
used in the loop body was copied from. The programmer changed the variable name firstSequencePoint
to sequencePoint but forgot to change the expression indexing into the elements. This is what the fixed
version of the construct looks like:
public override void ActivateItem()
{
if (method != null && method.SequencePoints.Count > 0) {
CodeCoverageSequencePoint firstSequencePoint =
method.SequencePoints[0];
....
for (int i = 1; i < method.SequencePoints.Count; ++i) {
CodeCoverageSequencePoint sequencePoint =
method.SequencePoints[i];
....
}
....
}
....
}
"Find the 10 differences", or another Copy-Paste
PVS-Studio diagnostic message: V3021 There are two 'if' statements with identical conditional
expressions. The first 'if' statement contains method return. This means that the second 'if' statement is
senseless NamespaceTreeNode.cs 87
public int Compare(SharpTreeNode x, SharpTreeNode y)
{
....
if (typeNameComparison == 0) {
if (x.Text.ToString().Length < y.Text.ToString().Length) // <=
return -1;
if (x.Text.ToString().Length < y.Text.ToString().Length) // <=
return 1;
}

4. ....
}
Both if blocks use the same condition. I can't say for sure what exactly the correct version of the code
should look like in this case; it has to be decided by the program author.
Late null check
PVS-Studio diagnostic message: V3095 The 'position' object was used before it was verified against null.
Check lines: 204, 206. Task.cs 204
public void JumpToPosition()
{
if (hasLocation && !position.IsDeleted) // <=
....
else if (position != null)
....
}
The position variable is used without testing it for null. The check is done in another condition, in the
else block. This is what the fixed version could look like:
public void JumpToPosition()
{
if (hasLocation && position != null && !position.IsDeleted)
....
else if (position != null)
....
}
Skipped null check
PVS-Studio diagnostic message: V3125 The 'mainAssemblyList' object was used after it was verified
against null. Check lines: 304, 291. ClassBrowserPad.cs 304
void UpdateActiveWorkspace()
{
var mainAssemblyList = SD.ClassBrowser.MainAssemblyList;
if ((mainAssemblyList != null) && (activeWorkspace != null)) {
....
}
....
mainAssemblyList.Assemblies.Clear(); // <=
....

5. }
The mainAssemblyList variable is used without a prior null check, while such a check can be found in
another statement in this fragment. The fixed code:
void UpdateActiveWorkspace()
{
var mainAssemblyList = SD.ClassBrowser.MainAssemblyList;
if ((mainAssemblyList != null) && (activeWorkspace != null)) {
....
}
....
if (mainAssemblyList != null) {
mainAssemblyList.Assemblies.Clear();
}
....
}
Unexpected sorting result
PVS-Studio diagnostic message: V3078 Original sorting order will be lost after repetitive call to
'OrderBy' method. Use 'ThenBy' method to preserve the original sorting.
CodeCoverageMethodElement.cs 124
void Init()
{
....
this.SequencePoints.OrderBy(item => item.Line)
.OrderBy(item => item.Column); // <=
}
This code will sort the SequencePoints collection only by the Column field, which doesn't seem to be the
desired result. The problem with this code is that the second call to the OrderBy method will sort the
collection without taking into account the results of the previous sort. To fix this issue, method ThenBy
must be used instead of the second call to OrderBy:
void Init()
{
....
this.SequencePoints.OrderBy(item => item.Line)
.ThenBy(item => item.Column);
}
Possible division by zero

6. PVS-Studio diagnostic message: V3064 Potential division by zero. Consider inspecting denominator
'workAmount'. XamlSymbolSearch.cs 60
public XamlSymbolSearch(IProject project, ISymbol entity)
{
....
interestingFileNames = new List<FileName>();
....
foreach (var item in ....)
interestingFileNames.Add(item.FileName);
....
workAmount = interestingFileNames.Count;
workAmountInverse = 1.0 / workAmount; // <=
}
If the interestingFileNames collection is found to be empty, a division by zero will occur. I can't suggest a
ready solution for this code, but in any case, the authors need to improve the algorithm computing the
value of the workAmountInverse variable when the value of the workAmount variable is zero.
Repeated assignment
PVS-Studio diagnostic message: V3008 The 'ignoreDialogIdSelectedInTextEditor' variable is assigned
values twice successively. Perhaps this is a mistake. Check lines: 204, 201. WixDialogDesigner.cs 204
void OpenDesigner()
{
try {
ignoreDialogIdSelectedInTextEditor = true; // <=
WorkbenchWindow.ActiveViewContent = this;
} finally {
ignoreDialogIdSelectedInTextEditor = false; // <=
}
}
The ignoreDialogIdSelectedInTextEditor variable will be assigned with the value false regardless of the
result of executing the try block. Let's take a closer look at the variable declarations to make sure there
are no "pitfalls" there. This is the declaration of ignoreDialogIdSelectedInTextEditor:
bool ignoreDialogIdSelectedInTextEditor;
And here are the declarations of IWorkbenchWindow and ActiveViewContent:
public IWorkbenchWindow WorkbenchWindow {
get { return workbenchWindow; }
}

7. IViewContent ActiveViewContent {
get;
set;
}
As you can see, there are no legitimate reasons for assigning another value to the
ignoreDialogIdSelectedInTextEditor variable. Perhaps the correct version of this construct should use the
catch keyword instead of finally:
void OpenDesigner()
{
try {
ignoreDialogIdSelectedInTextEditor = true;
WorkbenchWindow.ActiveViewContent = this;
} catch {
ignoreDialogIdSelectedInTextEditor = false;
}
}
Incorrect search of a substring
PVS-Studio diagnostic message: V3053 An excessive expression. Examine the substrings '/debug' and
'/debugport'. NDebugger.cs 287
public bool IsKernelDebuggerEnabled {
get {
....
if (systemStartOptions.Contains("/debug") ||
systemStartOptions.Contains("/crashdebug") ||
systemStartOptions.Contains("/debugport") || // <=
systemStartOptions.Contains("/baudrate")) {
return true;
}
....
}
}
This code uses a serial search looking for the substring "/debug" or "/debugport" in the
systemStartOptions string. The problem with this fragment is that the "/debug" string is itself a substring
of "/debugport", so finding "/debug" makes further search of "/debugport" meaningless. It's not a bug,
but it won't harm to optimize the code:
public bool IsKernelDebuggerEnabled {

8. get {
....
if (systemStartOptions.Contains("/debug") ||
systemStartOptions.Contains("/crashdebug") ||
systemStartOptions.Contains("/baudrate")) {
return true;
}
....
}
}
Exception-handling error
PVS-Studio diagnostic message: V3052 The original exception object 'ex' was swallowed. Stack of
original exception could be lost. ReferenceFolderNodeCommands.cs 130
DiscoveryClientProtocol DiscoverWebServices(....)
{
try {
....
} catch (WebException ex) {
if (....) {
....
} else {
throw ex; // <=
}
}
....
}
Executing the throw ex call will result in overwriting the stack of the original exception, as the
intercepted exception will be generated anew. This is the fixed version:
DiscoveryClientProtocol DiscoverWebServices(....)
{
try {
....
} catch (WebException ex) {
if (....) {

9. ....
} else {
throw;
}
}
....
}
Using an uninitialized field in a class constructor
PVS-Studio diagnostic message: V3128 The 'contentPanel' field is used before it is initialized in
constructor. SearchResultsPad.cs 66
Grid contentPanel;
public SearchResultsPad()
{
....
defaultToolbarItems = ToolBarService
.CreateToolBarItems(contentPanel, ....); // <=
....
contentPanel = new Grid {....};
....
}
The contentPanel field is passed as one of the arguments to the CreateToolBarItems method in the
constructor of the SearchResultsPad class. However, this field is not initialized until it has been used. It's
not necessarily an error, given that the possibility of the contentPanel variable with the value of null is
taken into account in the body of the CreateToolBarItems method and further on in the stack. This code
still looks very suspicious and needs to be examined by the authors.
As I have already said, this article discusses far not all the bugs found by PVS-Studio in this project but
only those that seemed interesting to me. The project authors are welcome to contact us to get a
temporary license key for a more thorough analysis of their code.
Conclusion
PVS-Studio did well again and revealed new interesting bugs during the second check of SharpDevelop
project. It means the analyzer knows how to do its job and can help make the world a bit better.
Remember that you, too, can join us at any time by taking the opportunity of checking your own
projects with the free version of PVS-Studio static analyzer.
You can download PVS-Studio at http://www.viva64.com/en/pvs-studio/
Please email us if you have any questions regarding the purchase of a commercial license. You can also
contact us to ask for a temporary license for deeper exploration of PVS-Studio without the limitations of
the demo version.
