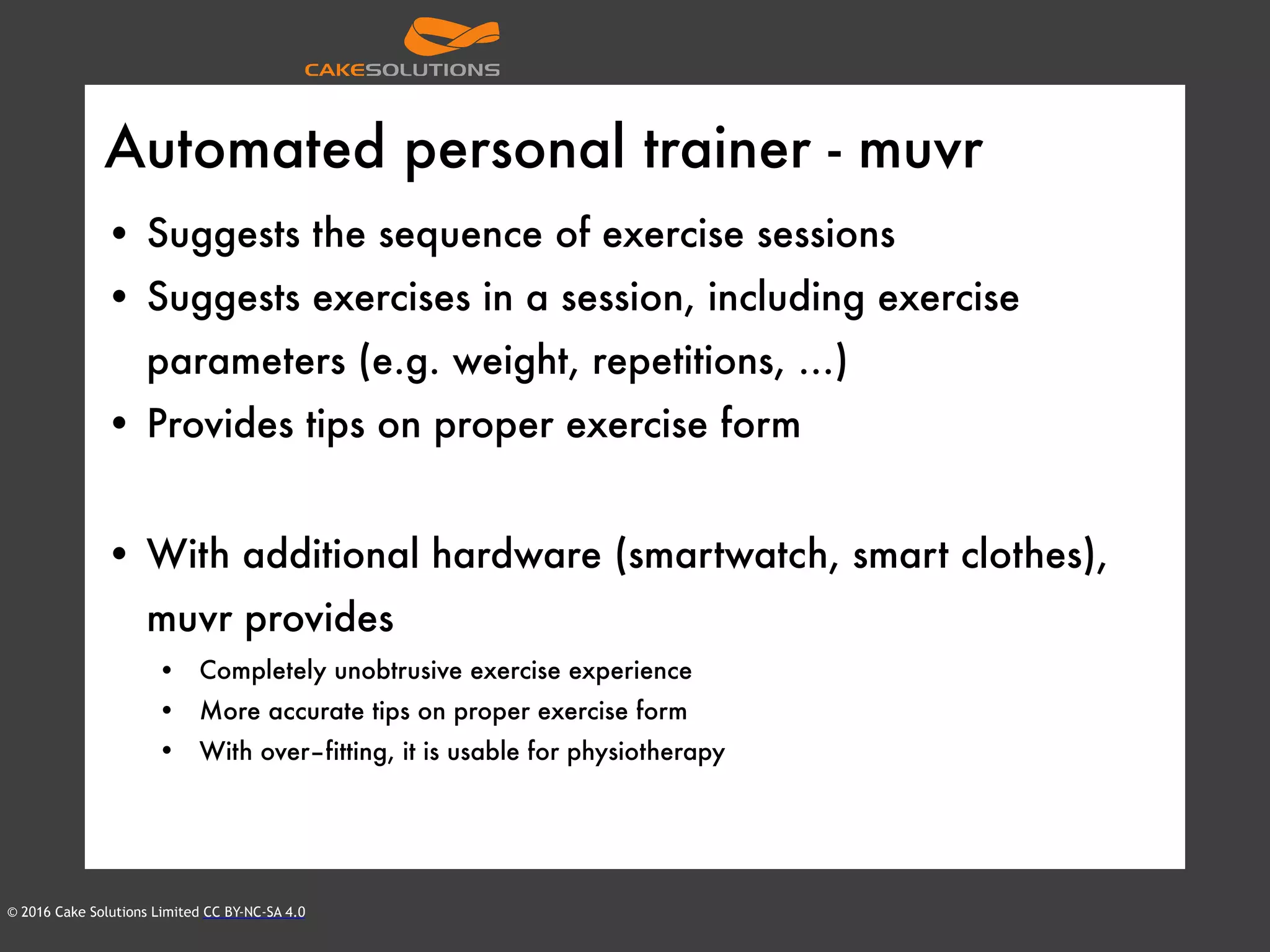

Automated personal trainer - muvr
• Suggests the sequence of exercise sessions
• Suggests exercises in a session, including exercise
parameters (e.g. weight, repetitions, …)
• Provides tips on proper exercise form
• With additional hardware (smartwatch, smart clothes),
muvr provides
• Completely unobtrusive exercise experience
• More accurate tips on proper exercise form
• With over–fitting, it is usable for physiotherapy

3. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

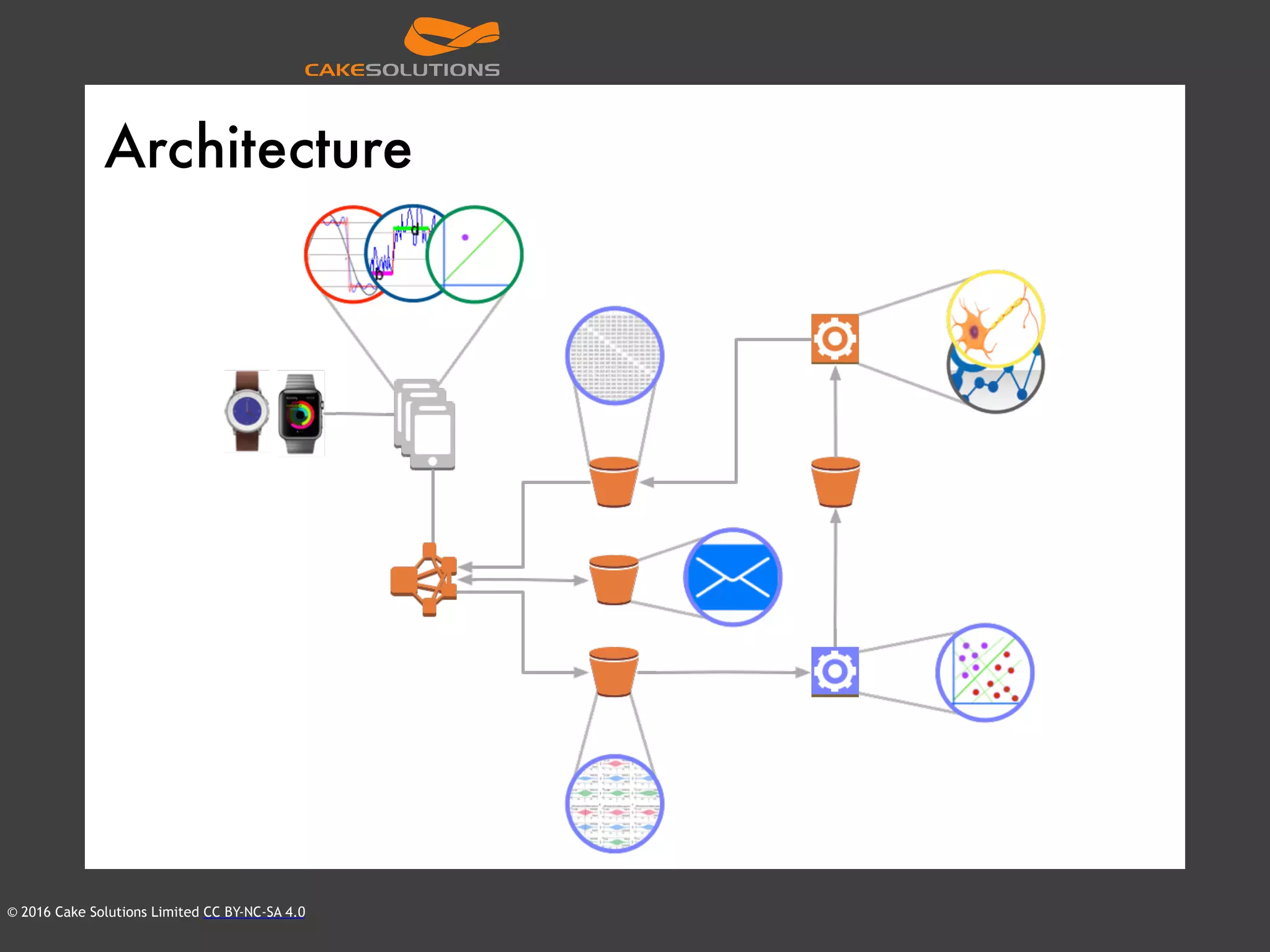

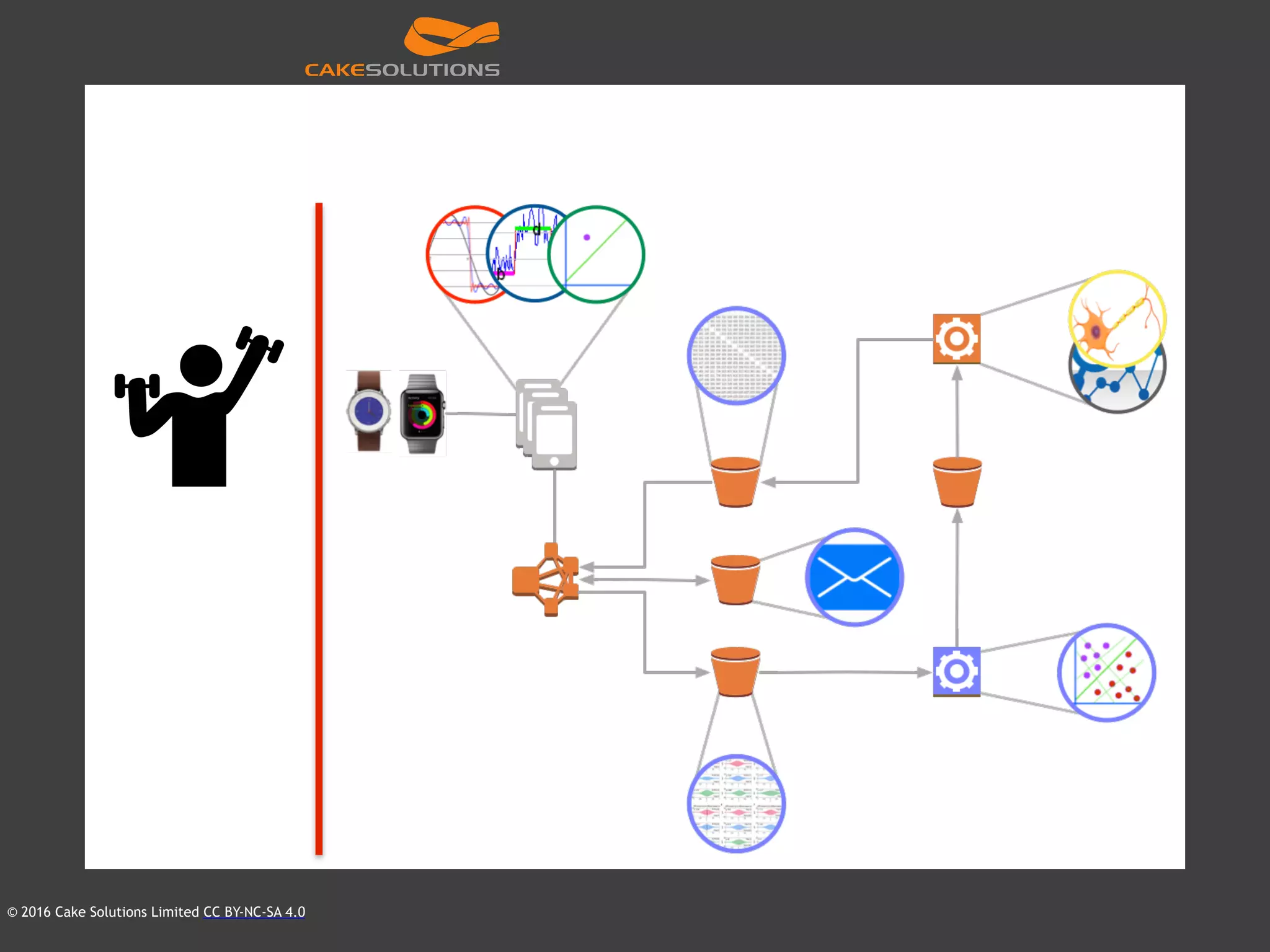

Architecture

4. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

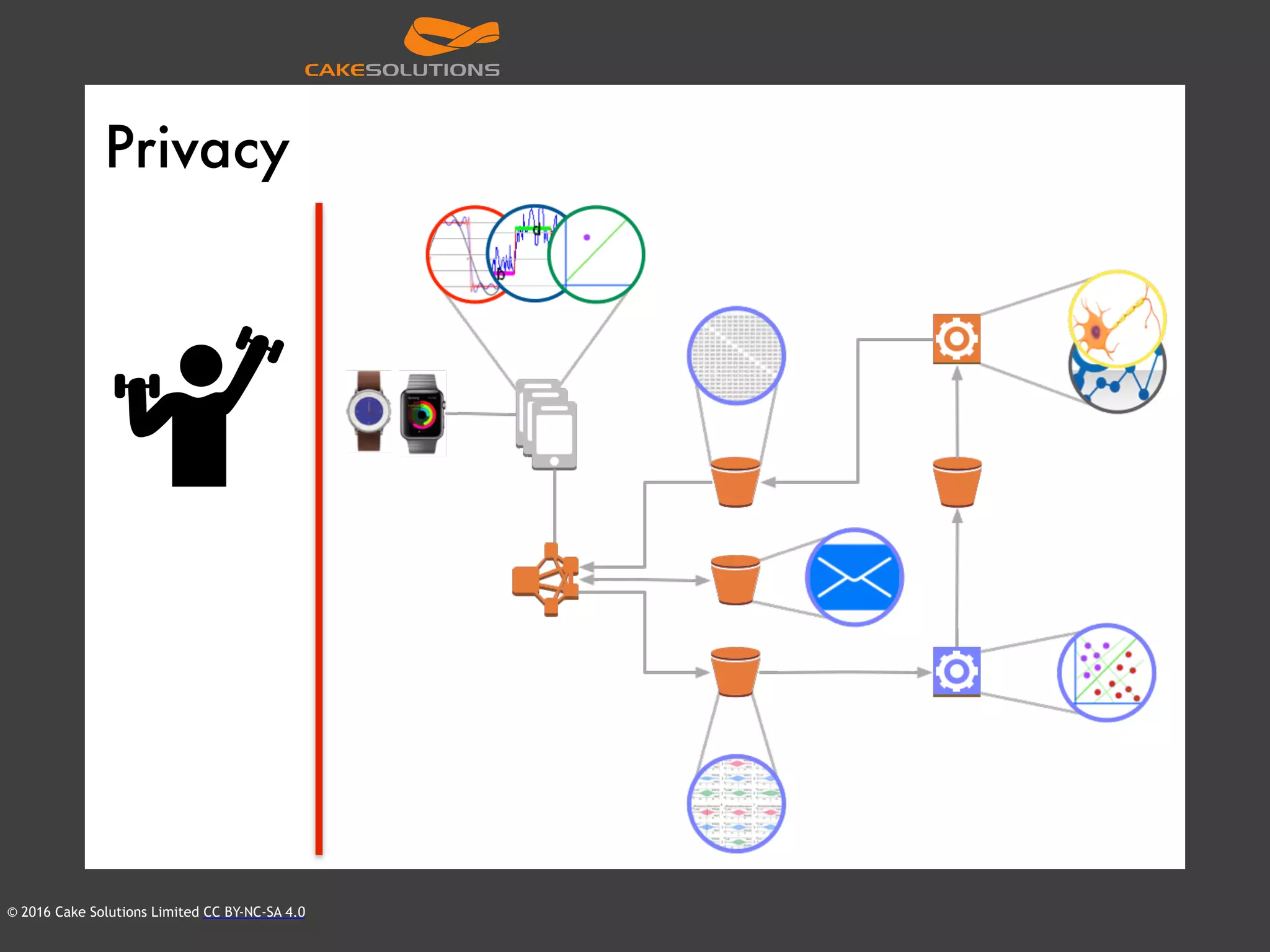

Privacy

5. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

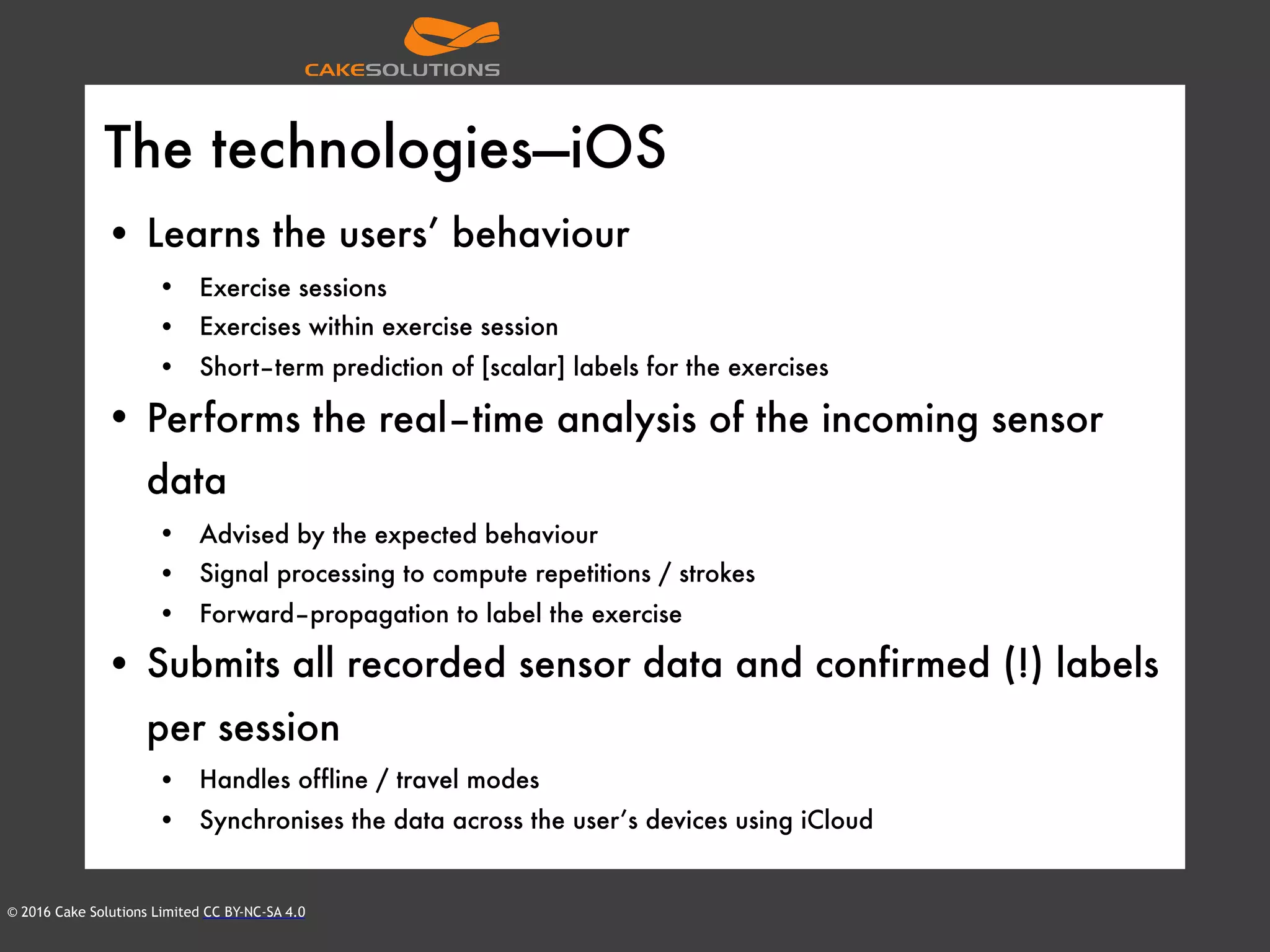

The technologies—iOS
• Learns the users’ behaviour
• Exercise sessions
• Exercises within exercise session
• Short–term prediction of [scalar] labels for the exercises
• Performs the real–time analysis of the incoming sensor
data
• Advised by the expected behaviour
• Signal processing to compute repetitions / strokes
• Forward–propagation to label the exercise
• Submits all recorded sensor data and confirmed (!) labels
per session
• Handles offline / travel modes
• Synchronises the data across the user’s devices using iCloud

6. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

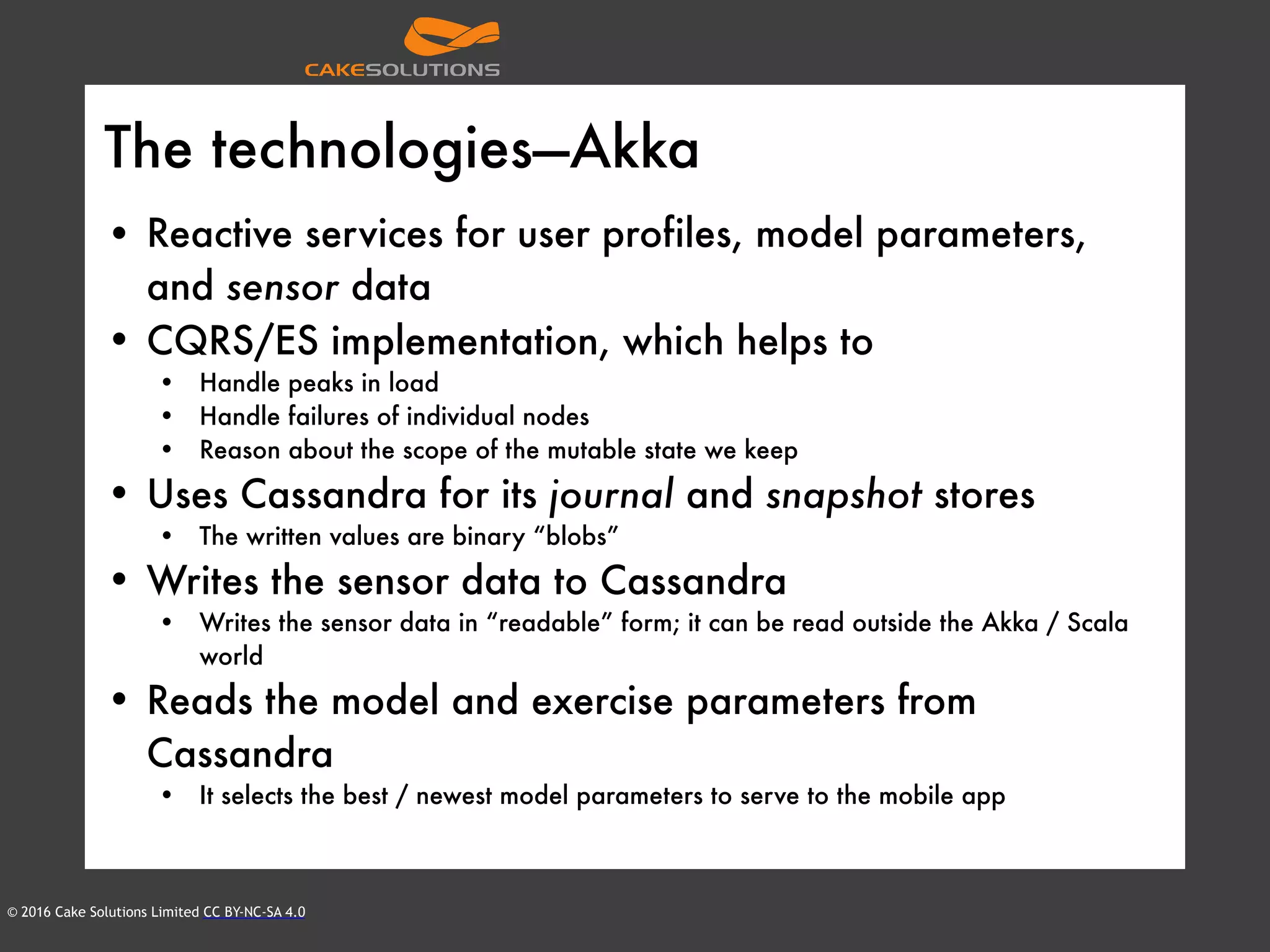

The technologies—Akka
• Reactive services for user profiles, model parameters,
and sensor data
• CQRS/ES implementation, which helps to
• Handle peaks in load
• Handle failures of individual nodes
• Reason about the scope of the mutable state we keep
• Uses Cassandra for its journal and snapshot stores
• The written values are binary “blobs”
• Writes the sensor data to Cassandra
• Writes the sensor data in “readable” form; it can be read outside the Akka / Scala
world
• Reads the model and exercise parameters from
Cassandra
• It selects the best / newest model parameters to serve to the mobile app

7. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

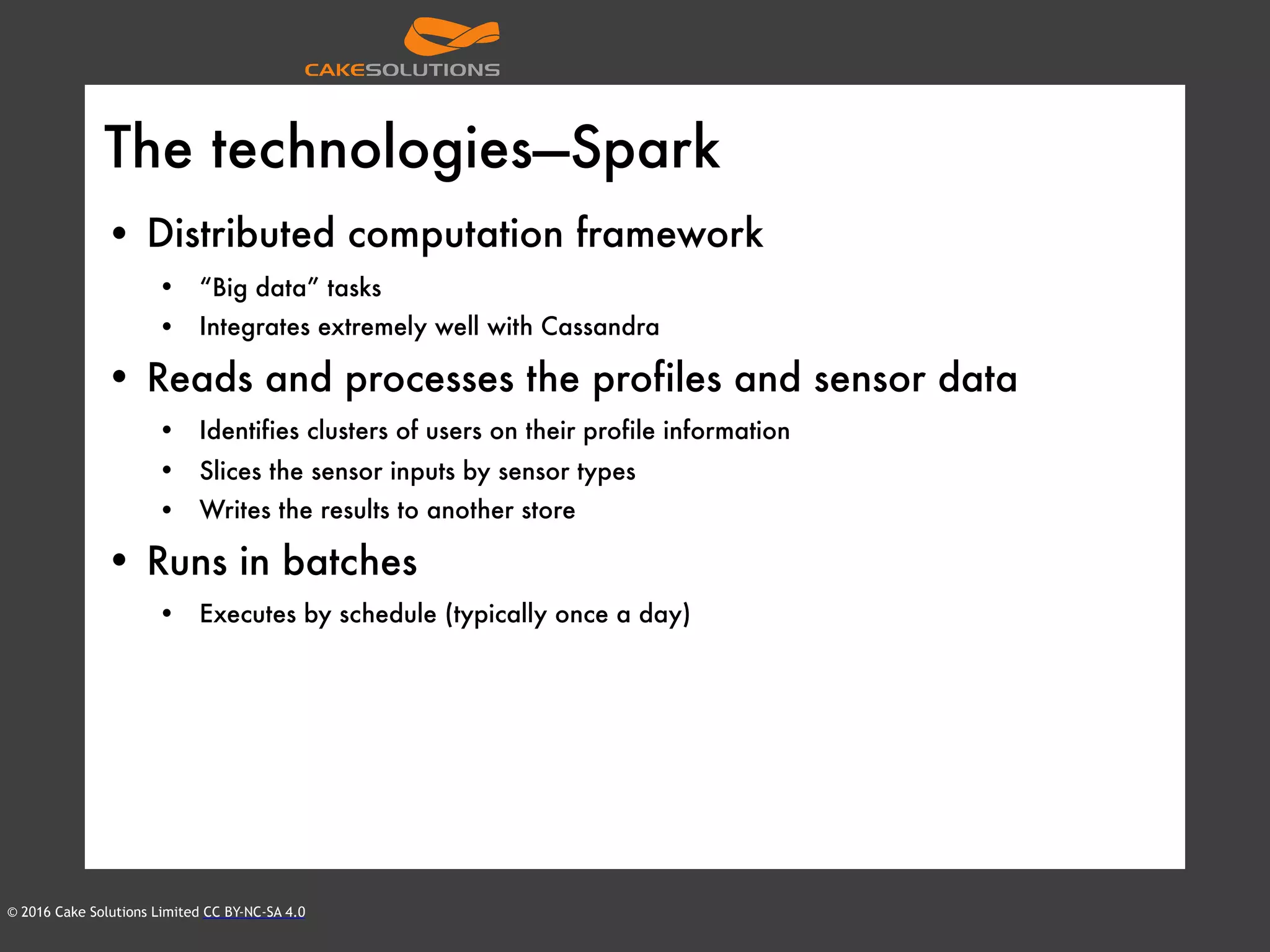

The technologies—Spark
• Distributed computation framework
• “Big data” tasks
• Integrates extremely well with Cassandra
• Reads and processes the profiles and sensor data
• Identifies clusters of users on their profile information
• Slices the sensor inputs by sensor types
• Writes the results to another store
• Runs in batches
• Executes by schedule (typically once a day)

8. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

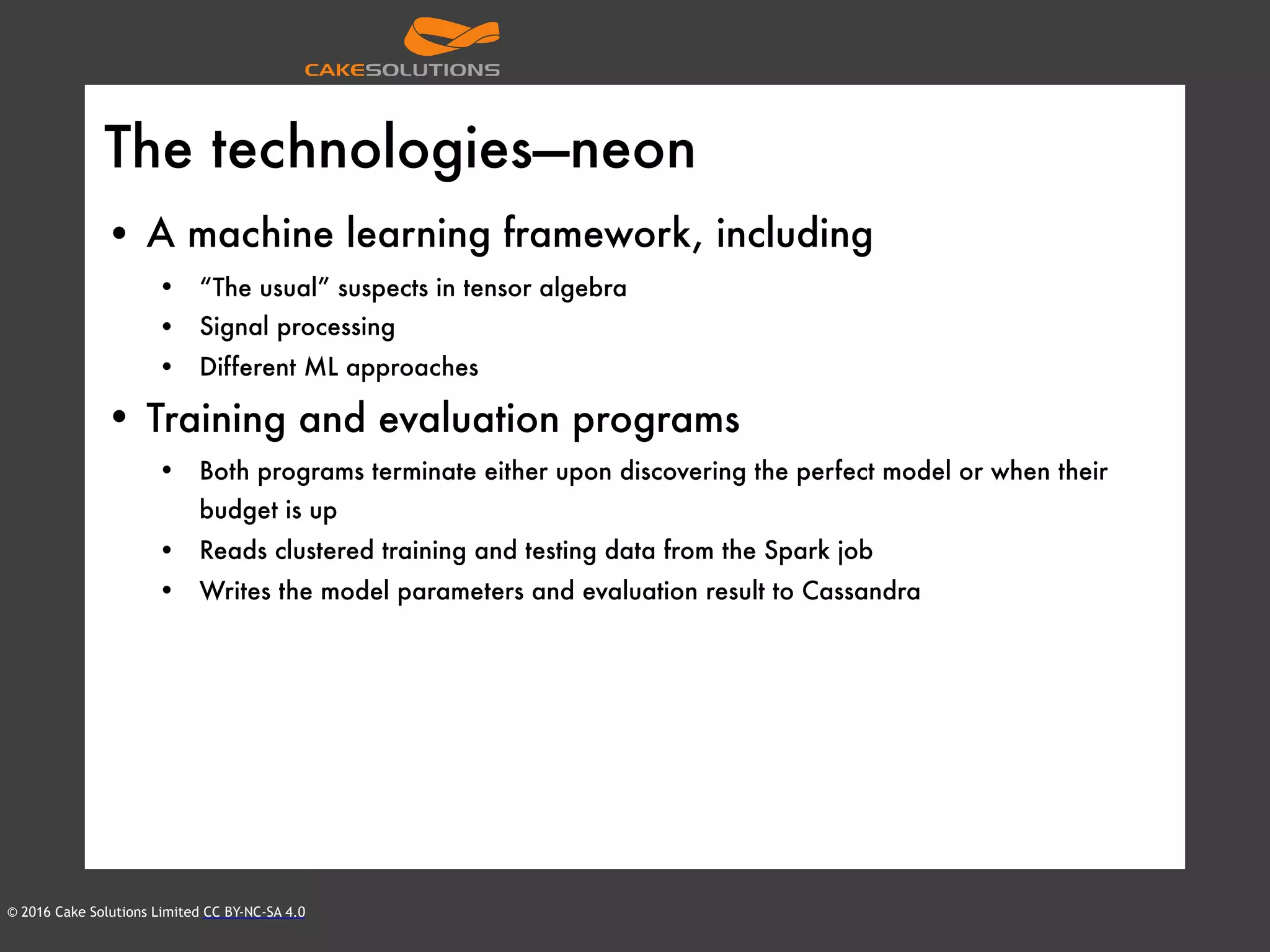

The technologies—neon
• A machine learning framework, including
• “The usual” suspects in tensor algebra
• Signal processing
• Different ML approaches
• Training and evaluation programs
• Both programs terminate either upon discovering the perfect model or when their
budget is up
• Reads clustered training and testing data from the Spark job
• Writes the model parameters and evaluation result to Cassandra

9. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

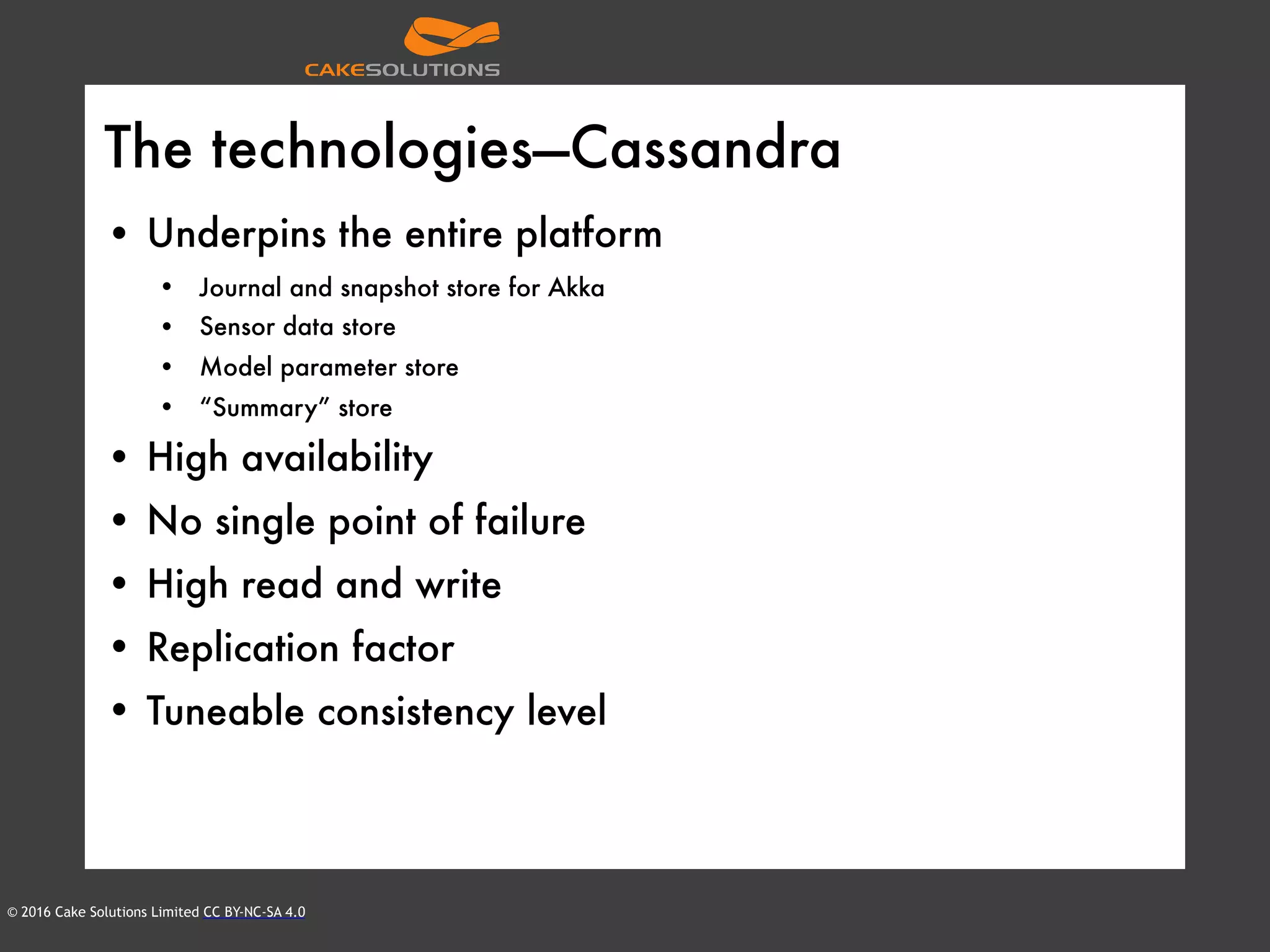

The technologies—Cassandra
• Underpins the entire platform
• Journal and snapshot store for Akka
• Sensor data store
• Model parameter store
• “Summary” store
• High availability
• No single point of failure
• High read and write
• Replication factor
• Tuneable consistency level

10. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

11. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

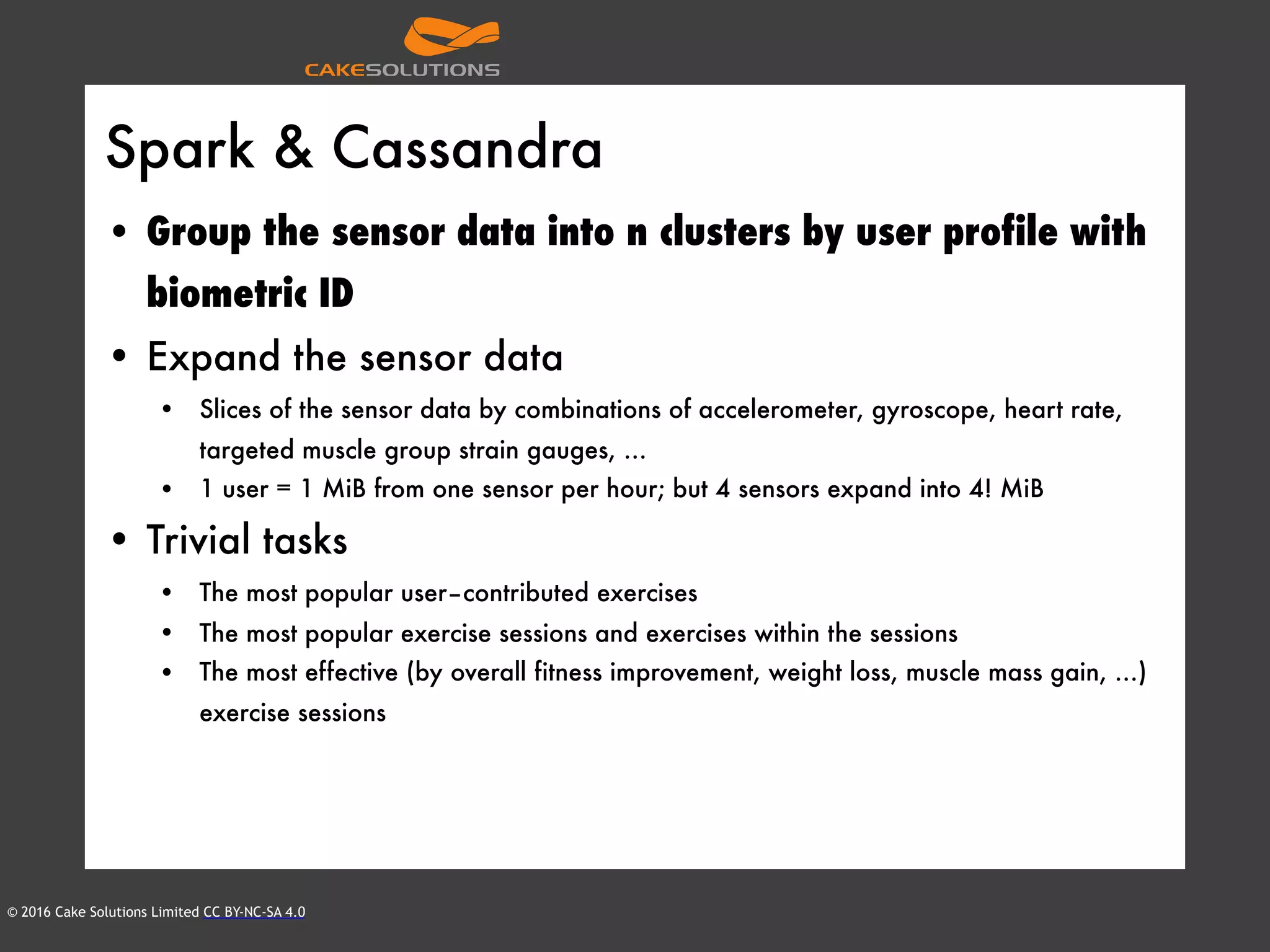

Spark & Cassandra
• Group the sensor data into n clusters by user profile with
biometric ID
• Expand the sensor data
• Slices of the sensor data by combinations of accelerometer, gyroscope, heart rate,
targeted muscle group strain gauges, …
• 1 user = 1 MiB from one sensor per hour; but 4 sensors expand into 4! MiB
• Trivial tasks
• The most popular user–contributed exercises
• The most popular exercise sessions and exercises within the sessions
• The most effective (by overall fitness improvement, weight loss, muscle mass gain, …)
exercise sessions

12. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

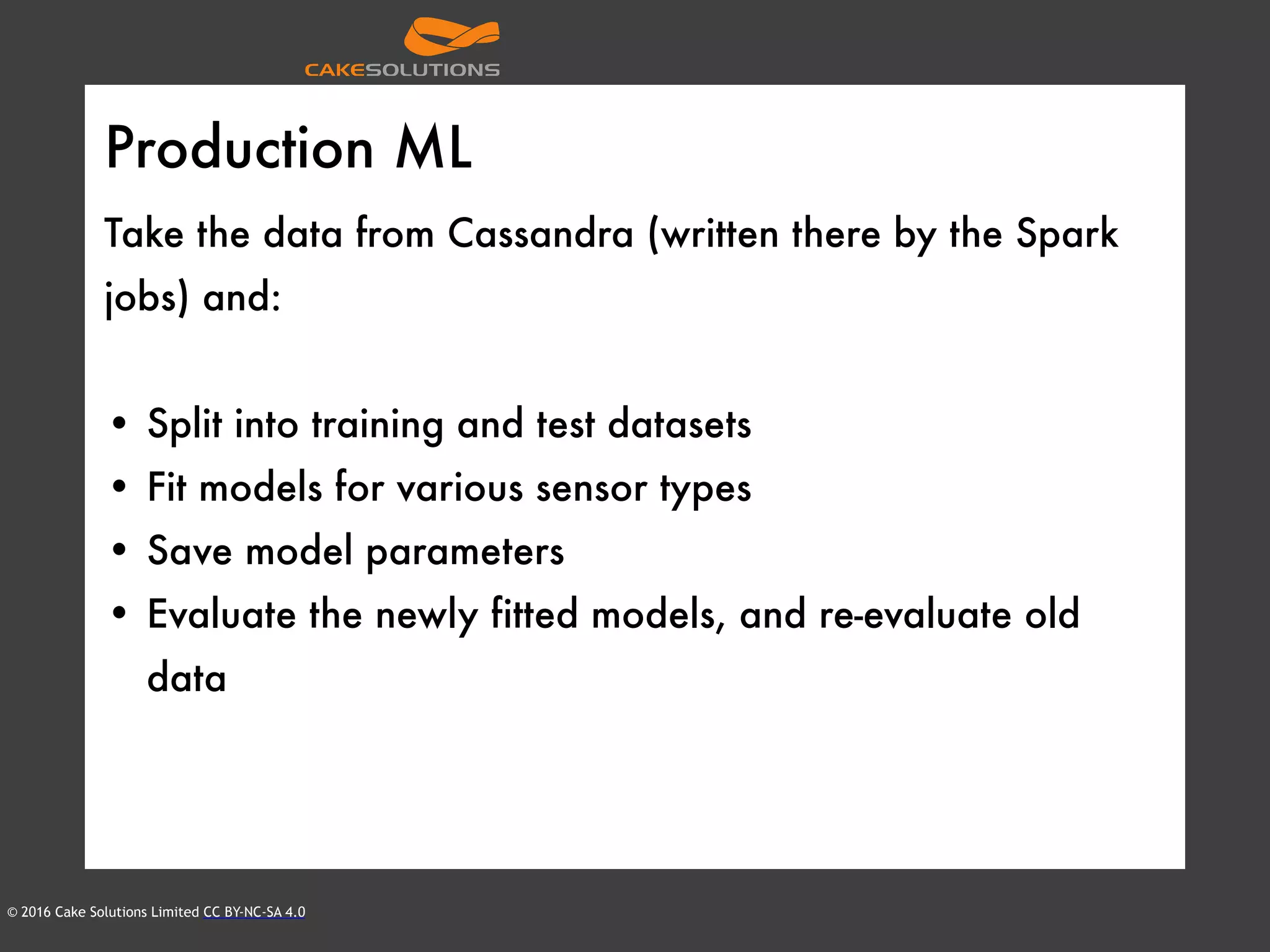

Production ML
Take the data from Cassandra (written there by the Spark
jobs) and:
• Split into training and test datasets
• Fit models for various sensor types
• Save model parameters
• Evaluate the newly fitted models, and re-evaluate old
data

13. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

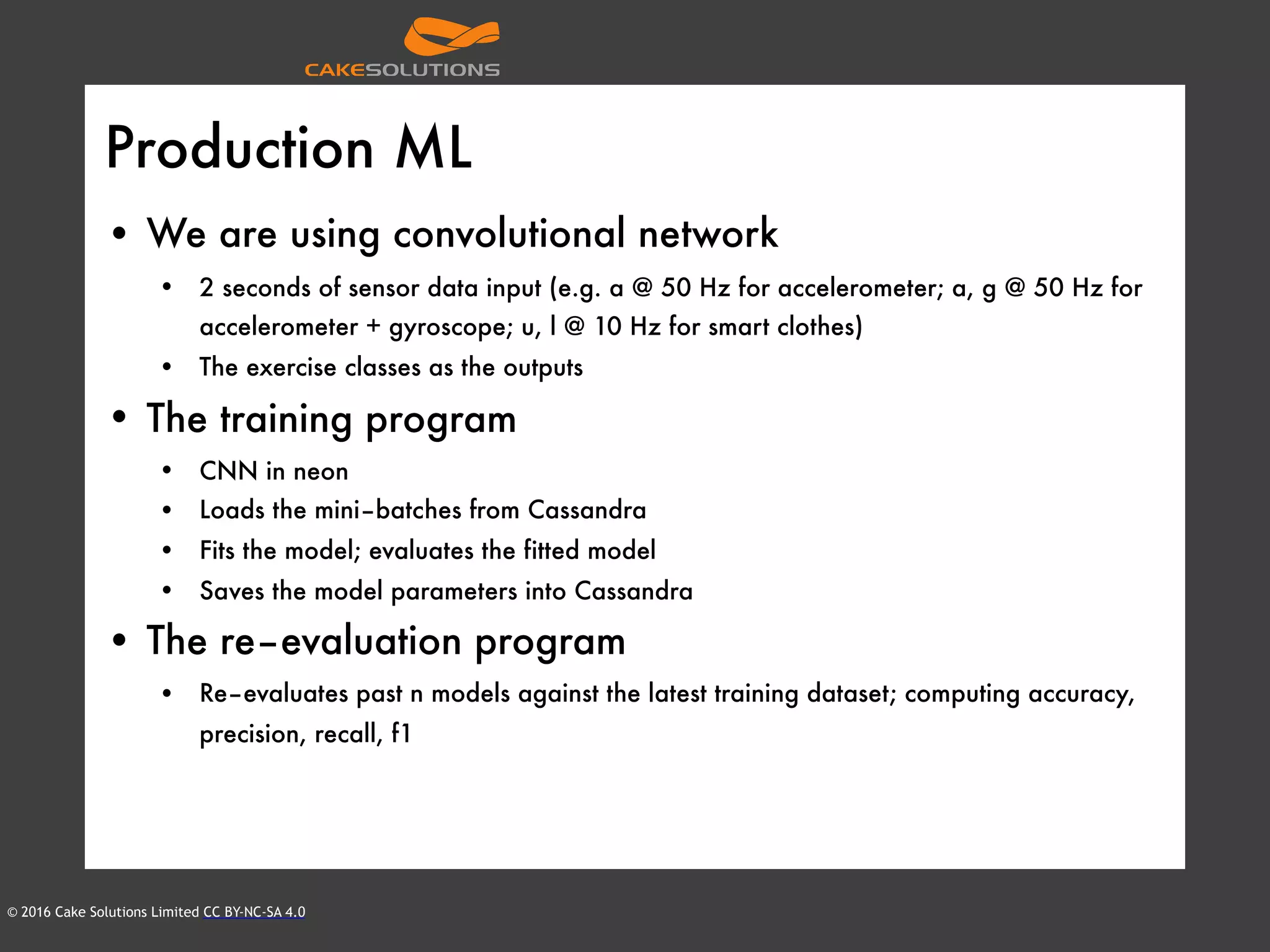

Production ML
• We are using convolutional network
• 2 seconds of sensor data input (e.g. a @ 50 Hz for accelerometer; a, g @ 50 Hz for
accelerometer + gyroscope; u, l @ 10 Hz for smart clothes)
• The exercise classes as the outputs
• The training program
• CNN in neon
• Loads the mini–batches from Cassandra
• Fits the model; evaluates the fitted model
• Saves the model parameters into Cassandra
• The re–evaluation program
• Re–evaluates past n models against the latest training dataset; computing accuracy,
precision, recall, f1

14. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

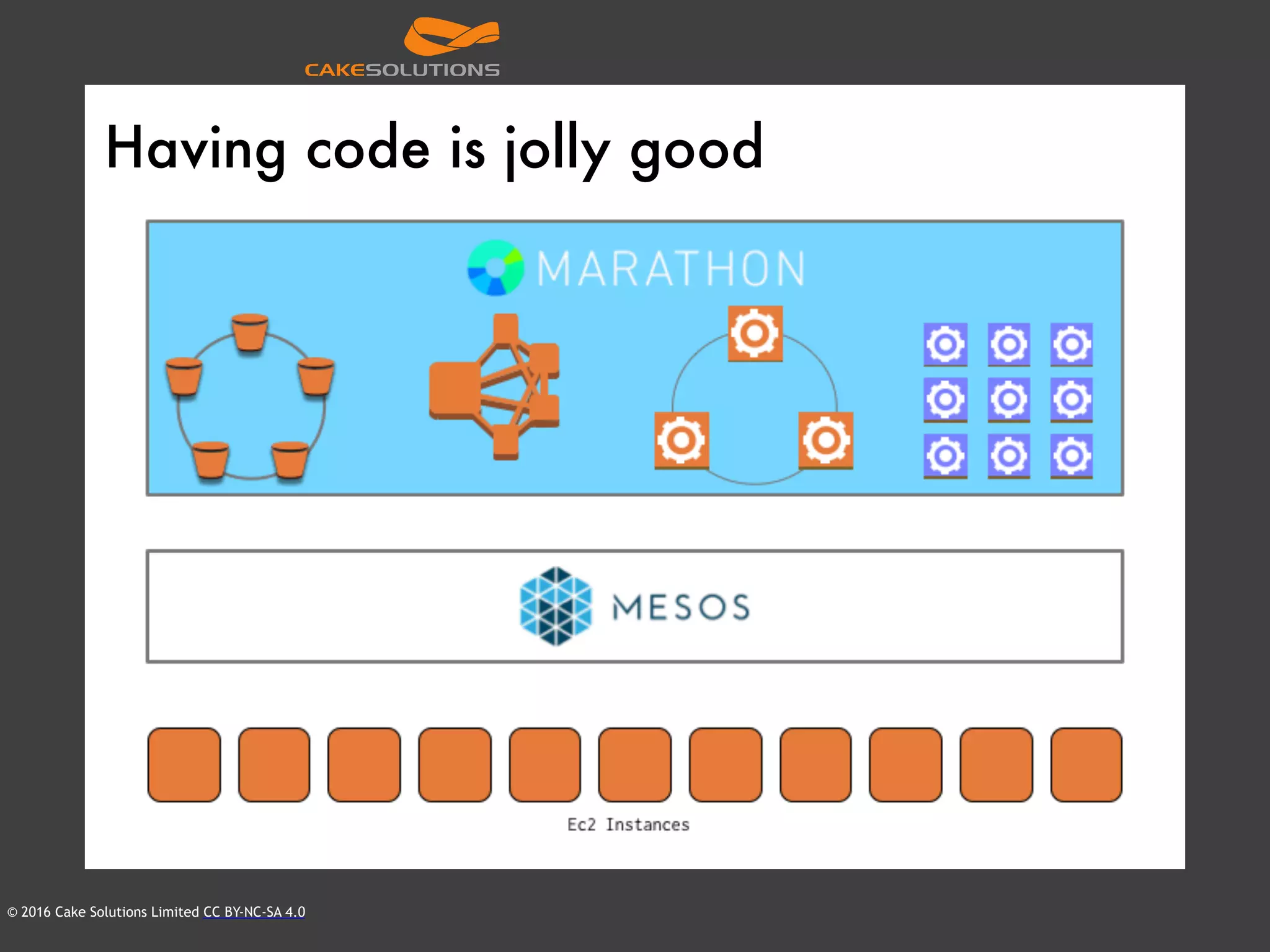

Having code is jolly good

15. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

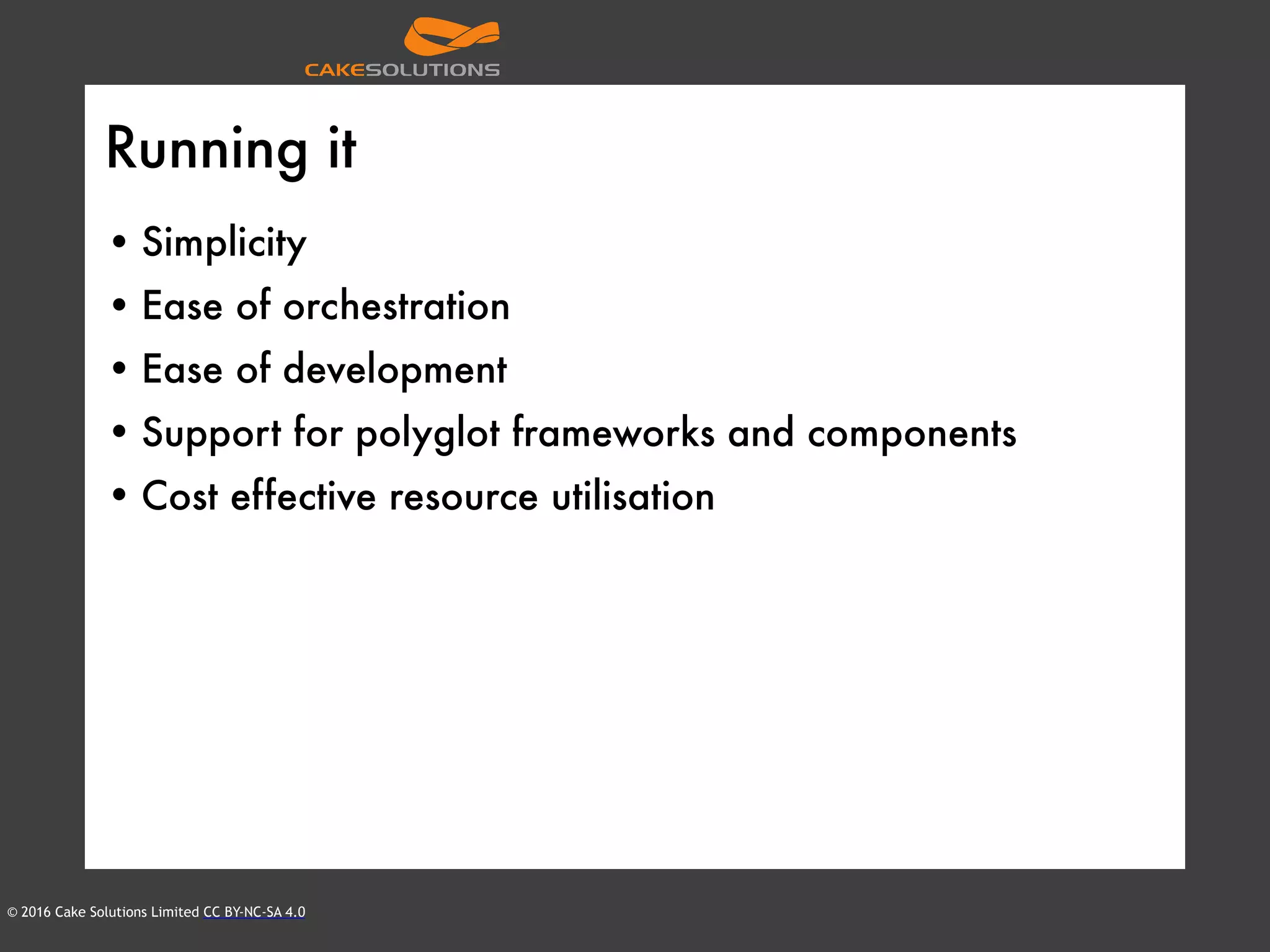

Running it
• Simplicity
• Ease of orchestration
• Ease of development
• Support for polyglot frameworks and components
• Cost effective resource utilisation

16. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

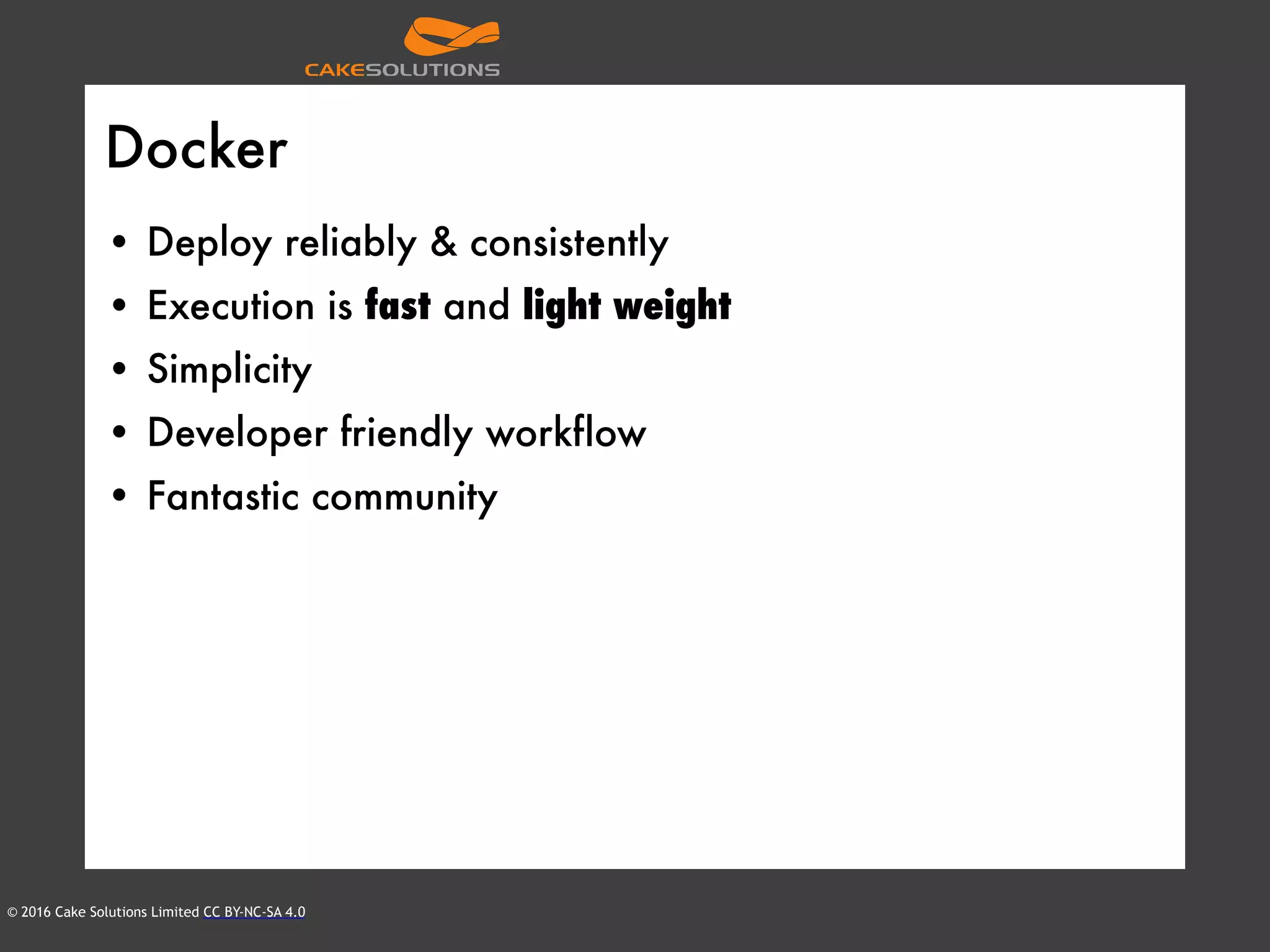

Docker
• Deploy reliably & consistently
• Execution is fast and light weight
• Simplicity
• Developer friendly workflow
• Fantastic community

17. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

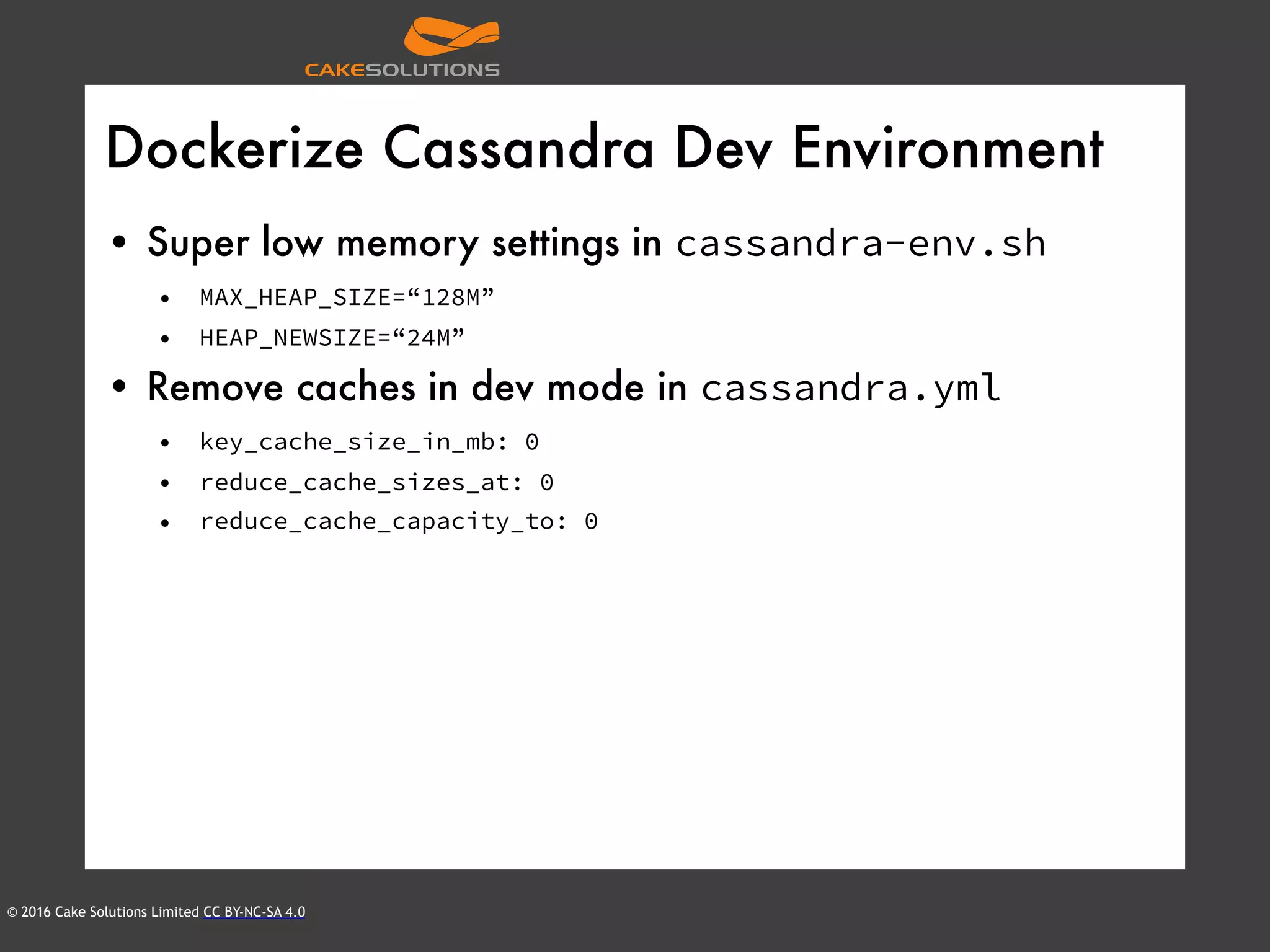

Dockerize Cassandra Dev Environment
• Super low memory settings in cassandra-env.sh
• MAX_HEAP_SIZE=“128M”
• HEAP_NEWSIZE=“24M”
• Remove caches in dev mode in cassandra.yml
• key_cache_size_in_mb: 0
• reduce_cache_sizes_at: 0
• reduce_cache_capacity_to: 0

18. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

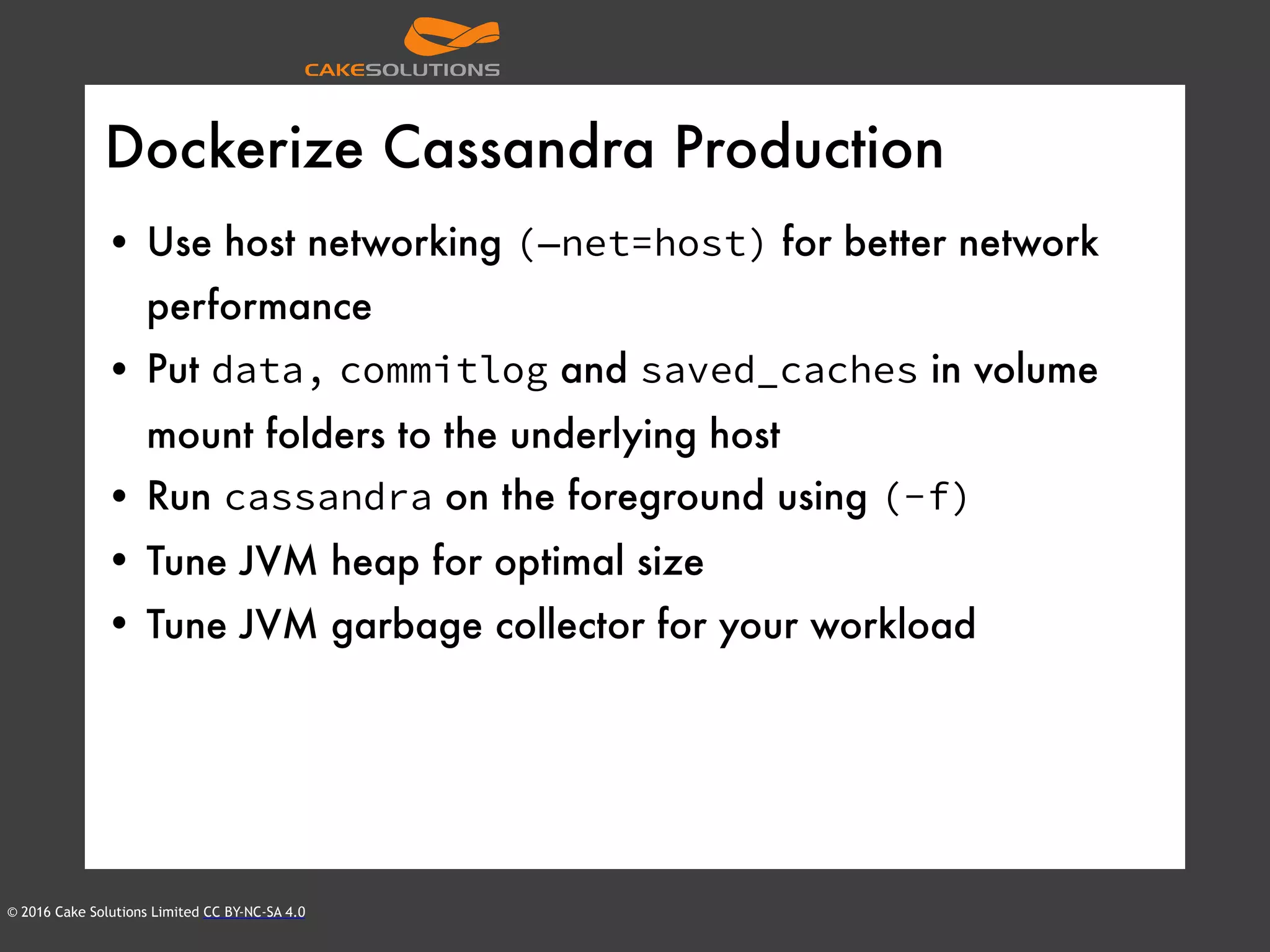

Dockerize Cassandra Production
• Use host networking (—net=host) for better network
performance
• Put data, commitlog and saved_caches in volume
mount folders to the underlying host
• Run cassandra on the foreground using (-f)
• Tune JVM heap for optimal size
• Tune JVM garbage collector for your workload

19. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

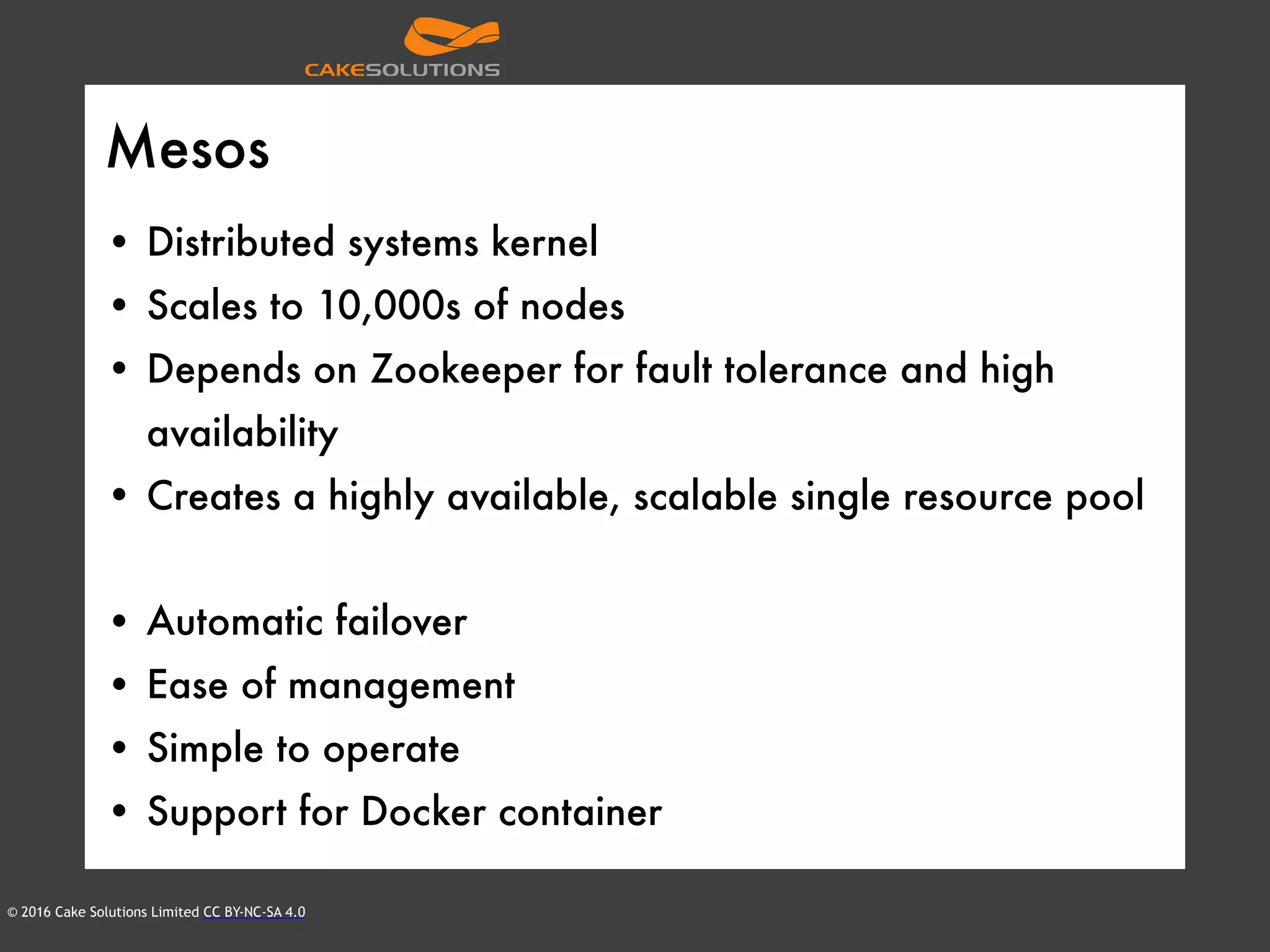

Mesos
• Distributed systems kernel
• Scales to 10,000s of nodes
• Depends on Zookeeper for fault tolerance and high
availability
• Creates a highly available, scalable single resource pool
• Automatic failover
• Ease of management
• Simple to operate
• Support for Docker container

20. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

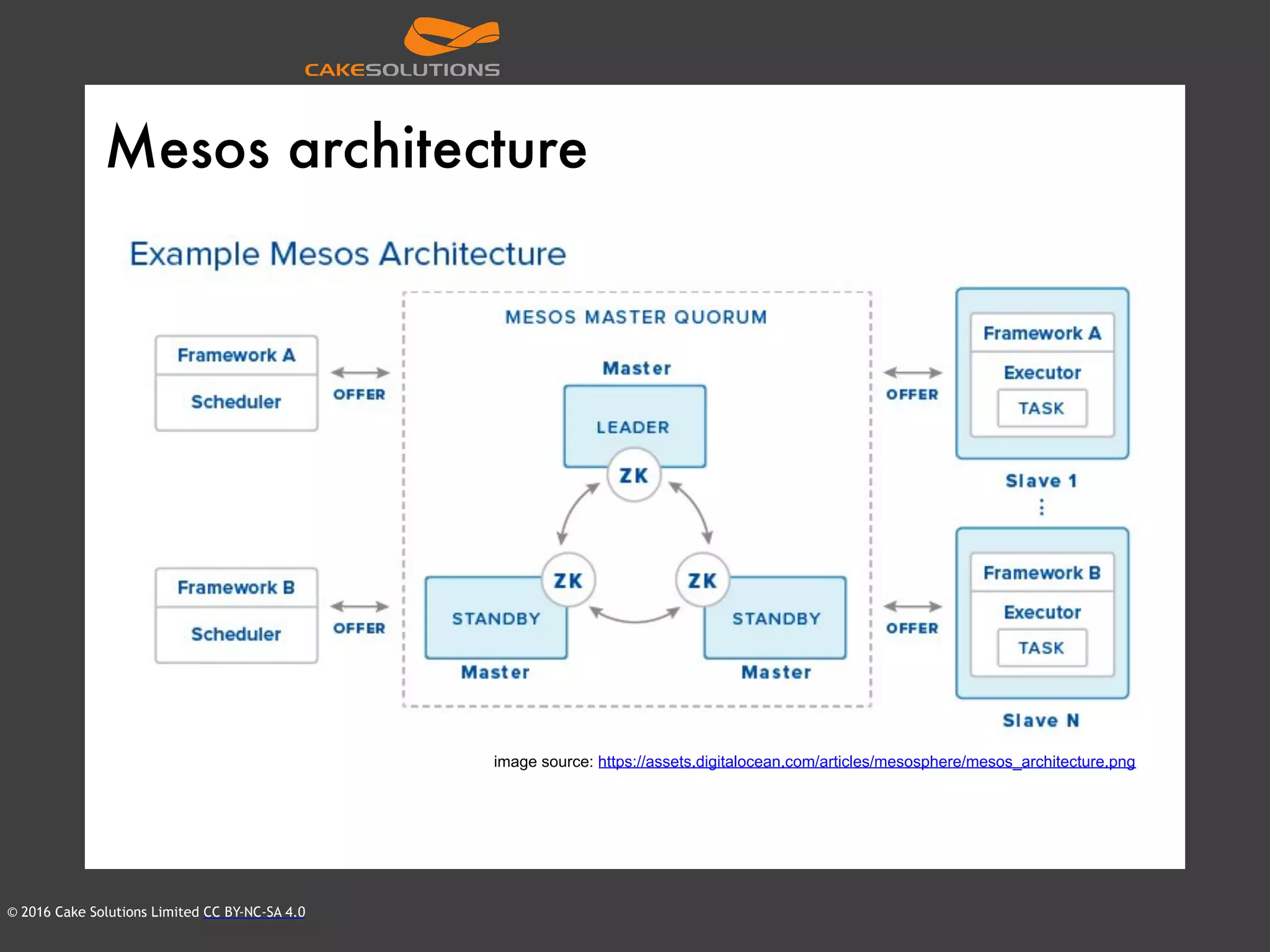

Mesos architecture
image source: https://assets.digitalocean.com/articles/mesosphere/mesos_architecture.png

21. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

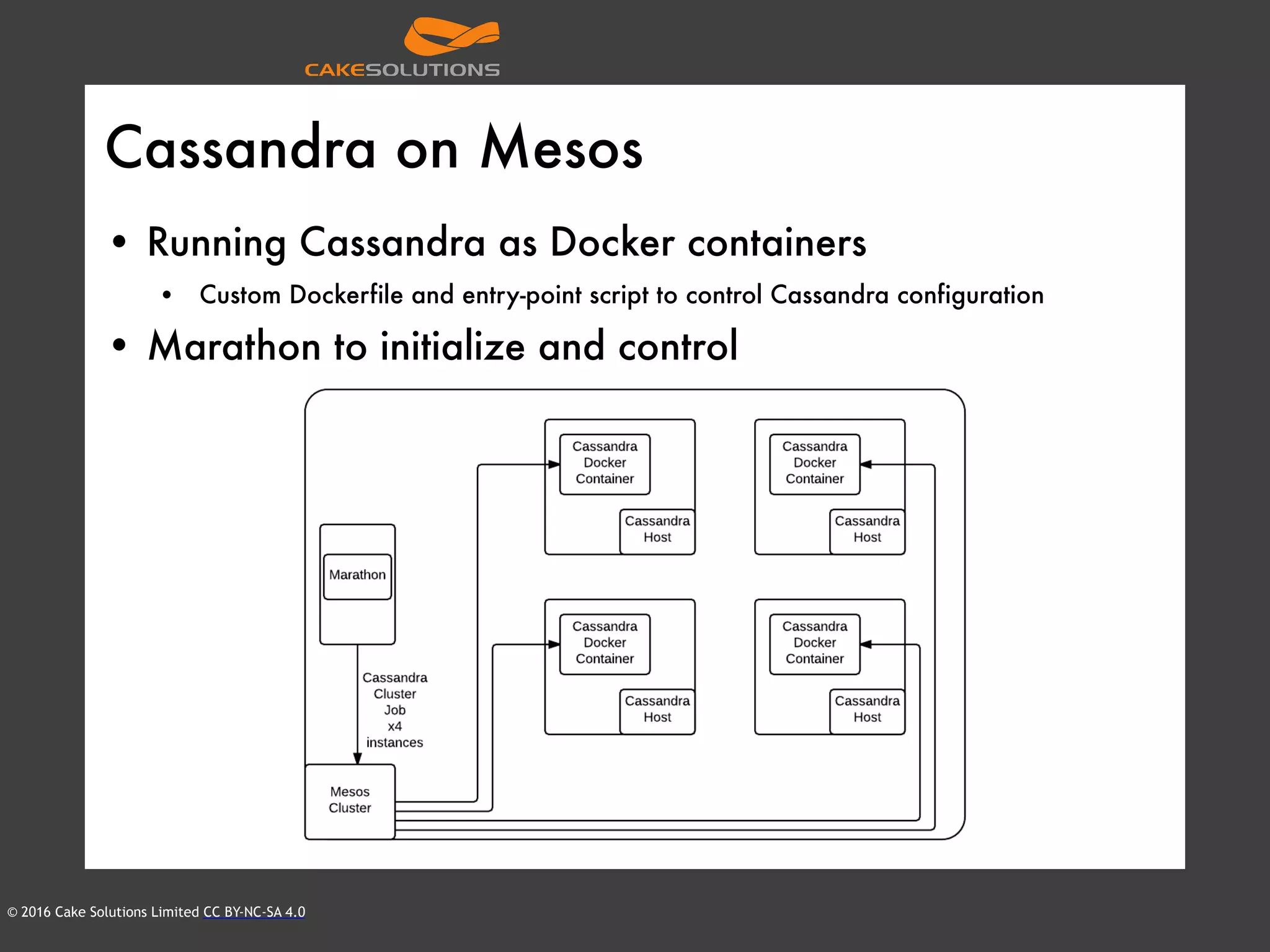

Cassandra on Mesos
• Running Cassandra as Docker containers
• Custom Dockerfile and entry-point script to control Cassandra configuration
• Marathon to initialize and control

22. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0

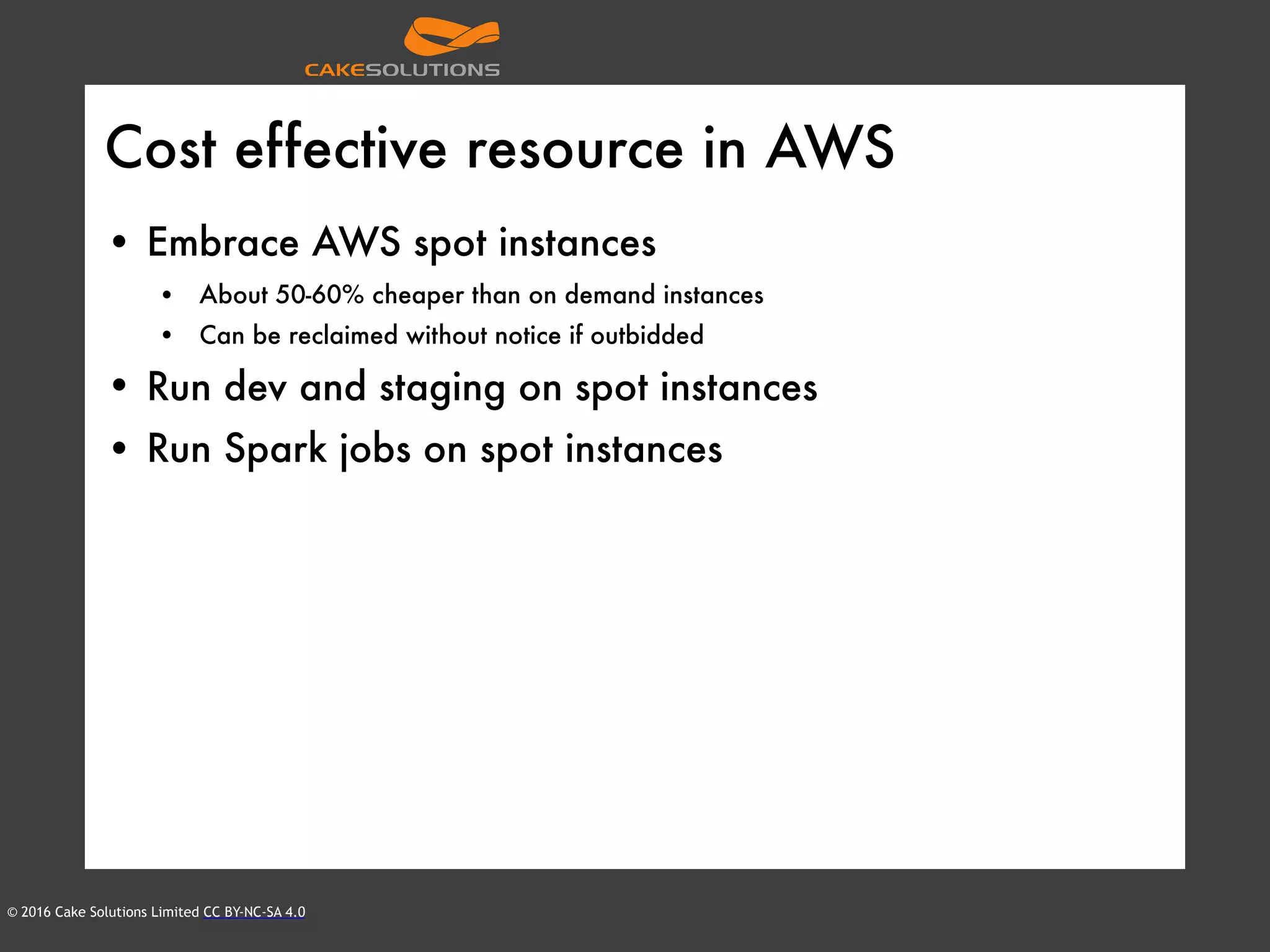

Cost effective resource in AWS
• Embrace AWS spot instances
• About 50-60% cheaper than on demand instances
• Can be reclaimed without notice if outbidded
• Run dev and staging on spot instances
• Run Spark jobs on spot instances

23. © 2016 Cake Solutions Limited CC BY-NC-SA 4.0
