Real Time Recommendations Using WebSockets and Redis - Ninad Divadkar, Inuit
The document discusses the integration of web sockets and Redis pub/sub in QuickBooks Self-Employed to enhance user experience by recommending rules based on user behavior. It highlights the efficient architecture supporting real-time communication, emphasizing the scalability of Redis over RabbitMQ for handling numerous dynamic channels. Additionally, the document outlines the workflow for users connecting their banks and receiving transaction recommendations via these technologies.
More Related Content
Similar to Real Time Recommendations Using WebSockets and Redis - Ninad Divadkar, Inuit
Real Time Recommendations Using WebSockets and Redis - Ninad Divadkar, Inuit
- 3.
- 4.
- 5.

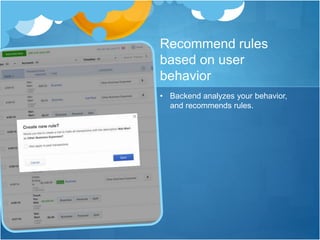

- 6. Recommend rules based onuser behavior • Backend analyzes your behavior, and recommends rules.

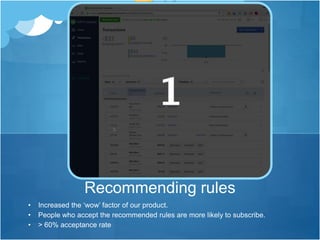

- 7. • Increased the‘wow’ factor of our product. • People who accept the recommended rules are more likely to subscribe. • > 60% acceptance rate Recommending rules
- 8. This is enabledby… Communication between: • Browser and app servers using Web sockets • Back end processes using Redis Pub/Sub

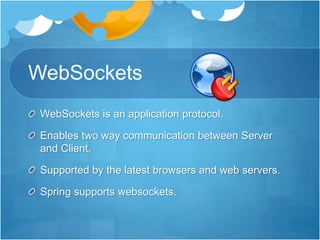

- 9. WebSockets WebSockets is anapplication protocol. Enables two way communication between Server and Client. Supported by the latest browsers and web servers. Spring supports websockets.

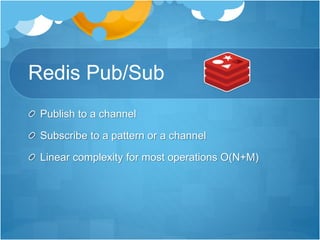

- 10. Redis Pub/Sub Publish toa channel Subscribe to a pattern or a channel Linear complexity for most operations O(N+M)
- 11.

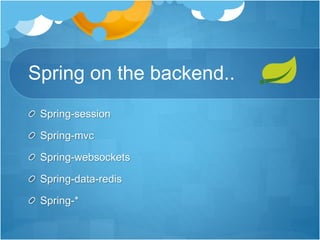

- 12. Spring on thebackend.. Spring-session Spring-mvc Spring-websockets Spring-data-redis Spring-*

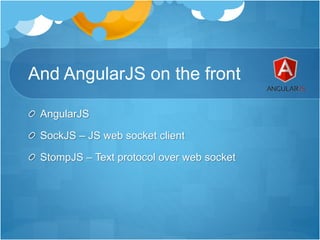

- 13. And AngularJS onthe front AngularJS SockJS – JS web socket client StompJS – Text protocol over web socket

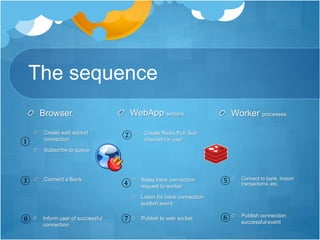

- 14. The sequence Browser WebAppservers Worker processes Create web socket connection Subscribe to queue Create Redis Pub Sub channel for user Connect a Bank Relay bank connection request to worker Listen for bank connection publish event Connect to bank, Import transactions, etc. Publish to web socketInform user of successful connection Publish connection successful event ① ② ③ ④ ⑤ ⑥⑦⑧
- 15. Why Redis forPub/Sub? Our use case – Create and close channels dynamically, 100s of times a minute. 1000s of channels (users) live at any given time. For our use case, RabbitMQ did not perform.
- 16.

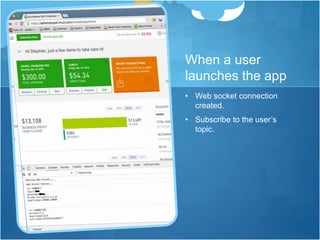

- 17. When a user launchesthe app • Web socket connection created. • Subscribe to the user’s topic.

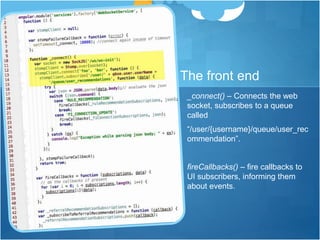

- 18. The front end _connect()– Connects the web socket, subscribes to a queue called “/user/{username}/queue/user_rec ommendation”. fireCallbacks() – fire callbacks to UI subscribers, informing them about events.

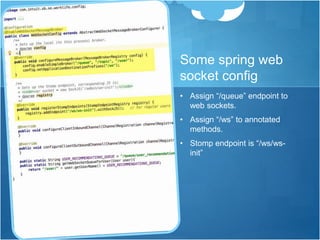

- 19. Some spring web socketconfig • Assign “/queue” endpoint to web sockets. • Assign “/ws” to annotated methods. • Stomp endpoint is “/ws/ws- init”

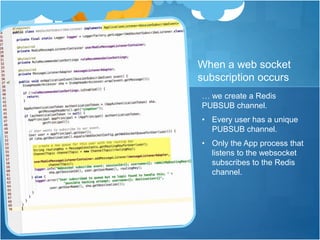

- 20. When a websocket subscription occurs … we create a Redis PUBSUB channel. • Every user has a unique PUBSUB channel. • Only the App process that listens to the websocket subscribes to the Redis channel.

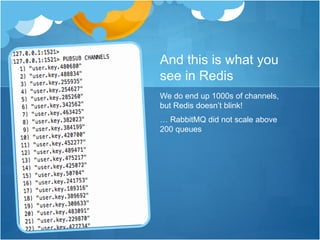

- 21. And this iswhat you see in Redis We do end up 1000s of channels, but Redis doesn’t blink! … RabbitMQ did not scale above 200 queues

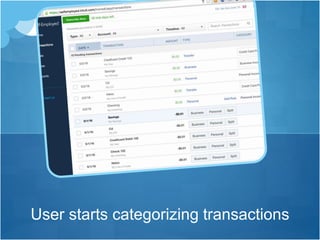

- 22. User starts categorizingtransactions

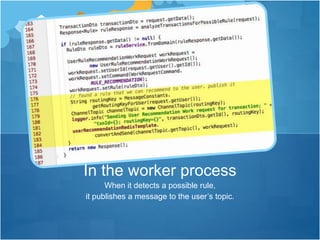

- 23. When it detectsa possible rule, it publishes a message to the user’s topic. In the worker process

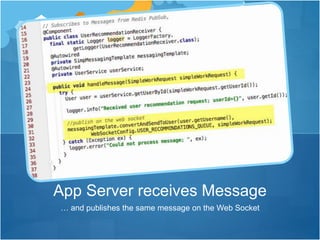

- 24. … and publishesthe same message on the Web Socket App Server receives Message

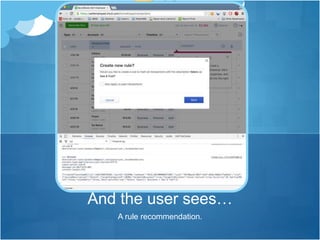

- 25. A rule recommendation. Andthe user sees…

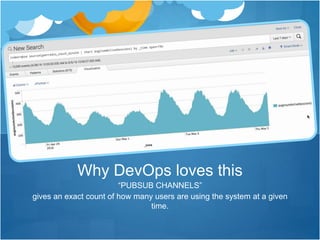

- 26. “PUBSUB CHANNELS” gives anexact count of how many users are using the system at a given time. Why DevOps loves this

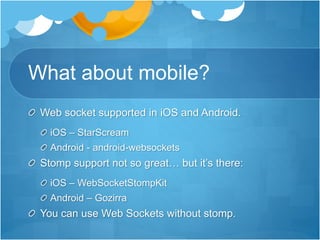

- 27. What about mobile? Websocket supported in iOS and Android. iOS – StarScream Android - android-websockets Stomp support not so great… but it’s there: iOS – WebSocketStompKit Android – Gozirra You can use Web Sockets without stomp.
- 28. iOS Demo • Heavylifting done by the back end. • Same User Experience across all devices.
- 29.

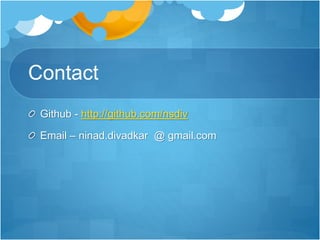

- 30. Contact Github - http://github.com/nsdiv Email– ninad.divadkar @ gmail.com
Editor's Notes
- #2 Hello everybody, thank you for coming and welcome to my presentation. My name is Ninad Divadkar, and I’m going to talk about Real time recommendations using Web Sockets and Redis.
- #3 A little bit about my self. I work for Intuit Inc in the QuickBooks Self Employed division. I’m a full stack developer, and although I have used quite a few different programming languages over the years, I’d say my backend expertise is in JAVA and .NET, and front end in AngularJS. I’m also a Spring contributor. My latest contribution is to the spring-data-redis project. Redis is introducing Geo commands in the next version, and I have added support for those in spring-data-redis. In addition, I am active on stackoverflow, mainly in JavaScript, Java and Spring topics.

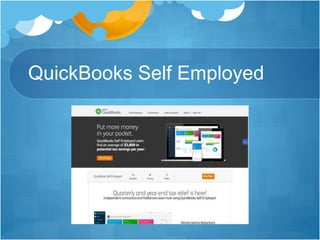

- #4 Before we dive into the presentation, let me tell you about QuickBooks Self Employed, because it will help us understand our use case better. QuickBooks Self Employed helps self employed people – like artists, dancers, uber drivers, etc find tax deductions and be complaint with IRS rules and regulations. We do that by connecting to their bank and importing the bank transactions. Users then categorize these transactions as business or personal. Anything transaction categorized as a business expense can be a tax deduction. We have an interface so that users can pay the IRS their estimated taxes directly through our software. And we integrate with TurboTax for hassle free filing. In addition to our web presence, our iOS and Android apps help self employed people do mileage tracking. We launched a year and a half ago in the US, and have also launched the product in the UK, with more countries to follow shortly.
- #5 Let me demo you our iOS app to show what the product does. Users categorize these transactions as business or personal. Users track their mileage, so, for example if they are working for Uber they can deduct the miles they drove their car for work. We give the users an overview of their finances, because many users do not have a great way of know whether they have a profit or not. And we integrate with TurboTax (which is also an Intuit product), so that users can easily file their taxes.
- #6 Now, I’m going to demo two workflows in QuickBooks Self Employed that demonstrate how we use web sockets and Redis Pub/Sub in tandem. I’m just going to demo the UI, and as go further into the presentation, I’ll show you the architecture and deeper layers of our product. The first workflow is the Bank Connection Flow. After launching the app, the user is led to the ‘connect a bank account’ screen. The user selects a bank and enters his credentials. We support 10,000 plus banks and credit unions in the US. Connecting to a bank takes anywhere from 30 seconds to 5 minutes. During this time we’re communicating with a backend service that actually logs in to the bank and downloads transactions. This is a critical process in the user flow, almost a make or break point. We need to WOW the user, and make sure the user understands the value of our product. At this moment, we want the UI to be updated with what stage the back end is at in the process of connecting a bank.
- #7 After the user has started categorizing transactions, the product learns from the categorization, and recommends rules to help the user save time. So if, for example, the user categorizes 3 Wal-mart transactions as business, we understand that he or she is going to categorize the rest as business as well. So the product pops up a recommendation to the user.
- #8 Recommending rules to user has made our users very happy. When they start using the product, they learn the value right away. We have an over 60% rate of acceptance with our rule recommendation engine, and it is going up all the time. Best of all, it is a unified experience across web and mobile. The web as well as mobile apps use web-sockets to get the recommendations.
- #9 These two workflows are enabled by….. Web Sockets for communicating between the front end (browser) and the back end. Redis Pub/Sub for communicating between back end processes.
- #10 Most of you may be familiar with what websockets are, but let me spend a couple of minutes explaining: WebSockets is a application protocol, that works over TCP. The idea behind the WebSocket protocol consists of reusing the established TCP connection between a Client and Server. After the HTTP handshake, the Client and Server start speaking WebSocket protocol by exchanging WebSocket envelopes. What this means for us is that it allows two way communication in the browser. This allows us to communicate with the browser in message bus type fashion. Before web socket support, we used to have long polling and other stop gap measures, but they are not required anymore.
- #11 Now, let’s move to Redis Pub/Sub. Most of us use Redis for caching, but Redis also has a very good pub/sub messaging framework built in. The terminology that Redis uses is a ‘channel’ instead of a ‘queue’ or a ‘topic’. A publisher publishes to a channel. A Subscriber subscribes to a channel or a pattern. These commands are super fast, and all of the pub/sub commands take linear time, O(n+m), where N is the number of clients subscribed directly to the channel and M is the number subscribed patterns.

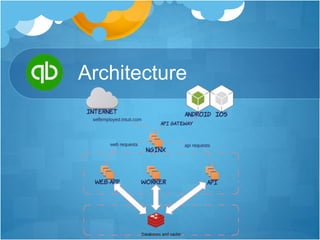

- #12 The architecture of our site. We have web app processes that serve requests coming in through our web app. We have API processes that serve API requests coming in through our mobile apps. We run embedded Tomcat 8 in both servers. We have worker processes who do the heavy lifting, allowing us to scale without having to increase our app and api processes. Intra process communication is done using Redis pub/sub, i.e. Web app and API processes communicate with the worker process using Redis Pub/Sub
