This document discusses using WebSockets and Redis pub/sub to create a real-time dashboard. It proposes an architecture where a client connects to a WebSocket server via WebSockets, which is connected to a Redis server that publishes and subscribes to channels, allowing real-time data transfer from an API server to update the dashboard in real-time. References are provided to learn more about WebSockets, Redis pub/sub, and building real-time applications.

1. WEB SOCKET
REDIS PUB/SUB

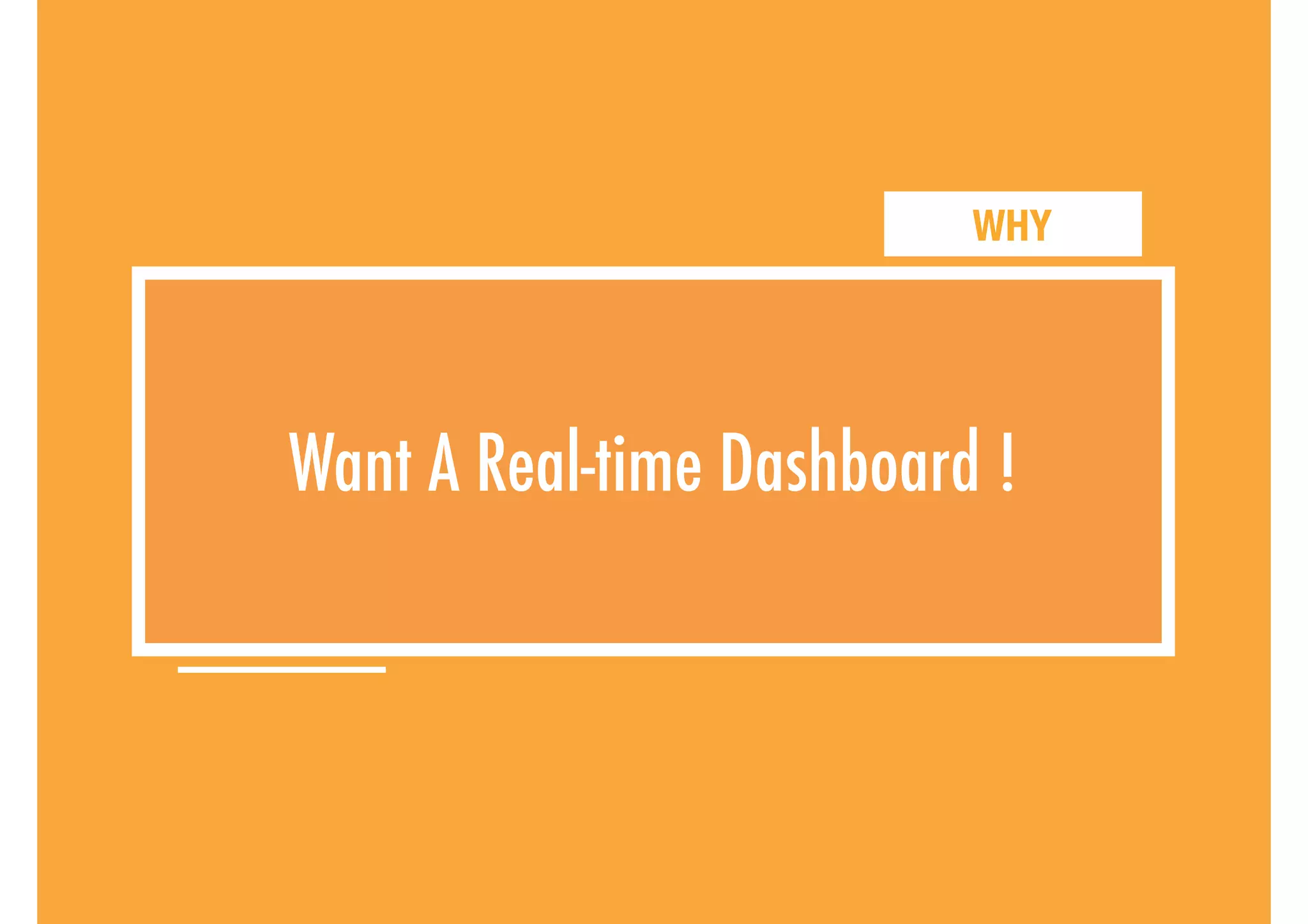

2. WHY
Want A Real-time Dashboard !

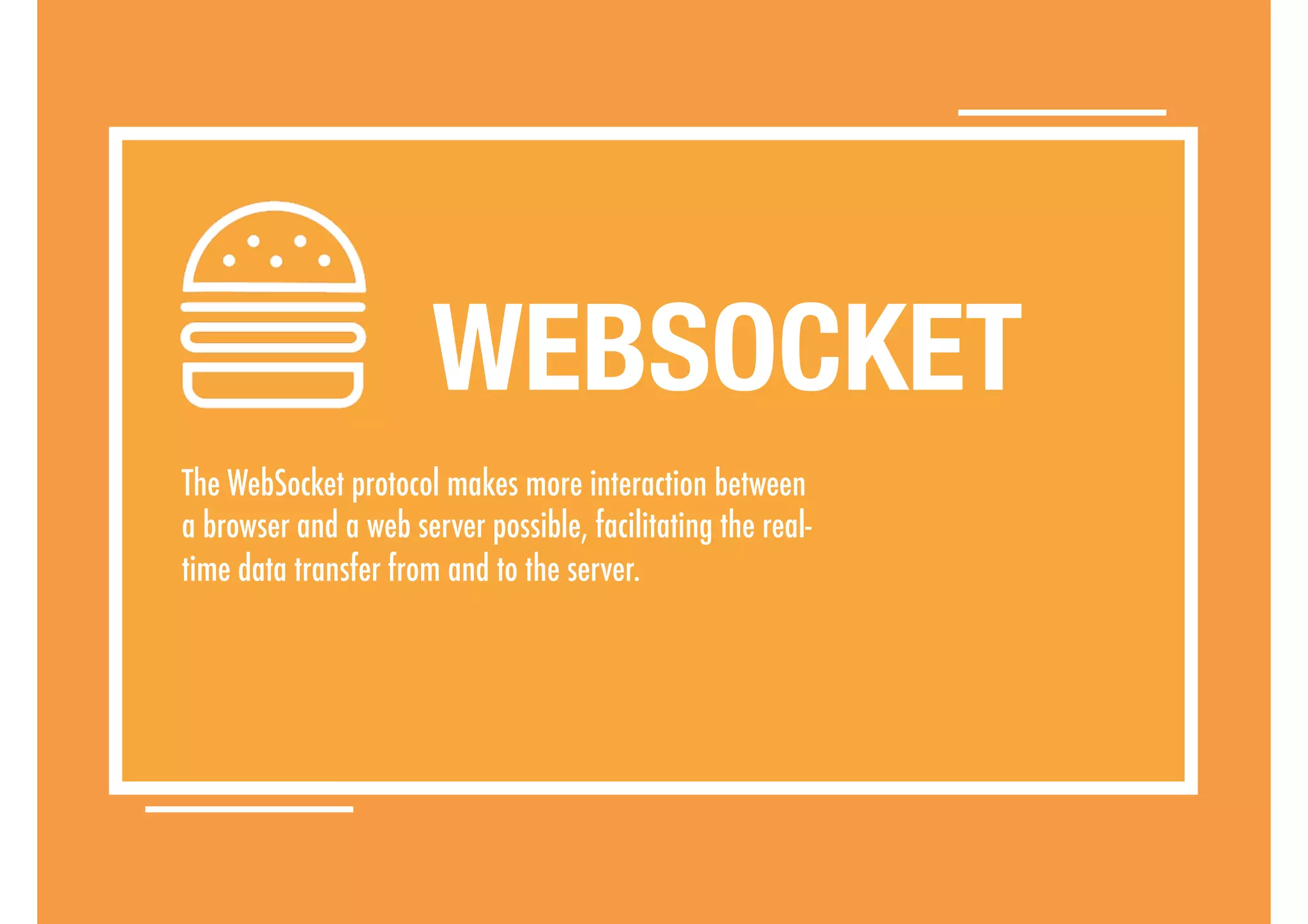

3. The WebSocket protocol makes more interaction between
a browser and a web server possible, facilitating the real-
time data transfer from and to the server.
WEBSOCKET

4. REDIS PUB/SUB

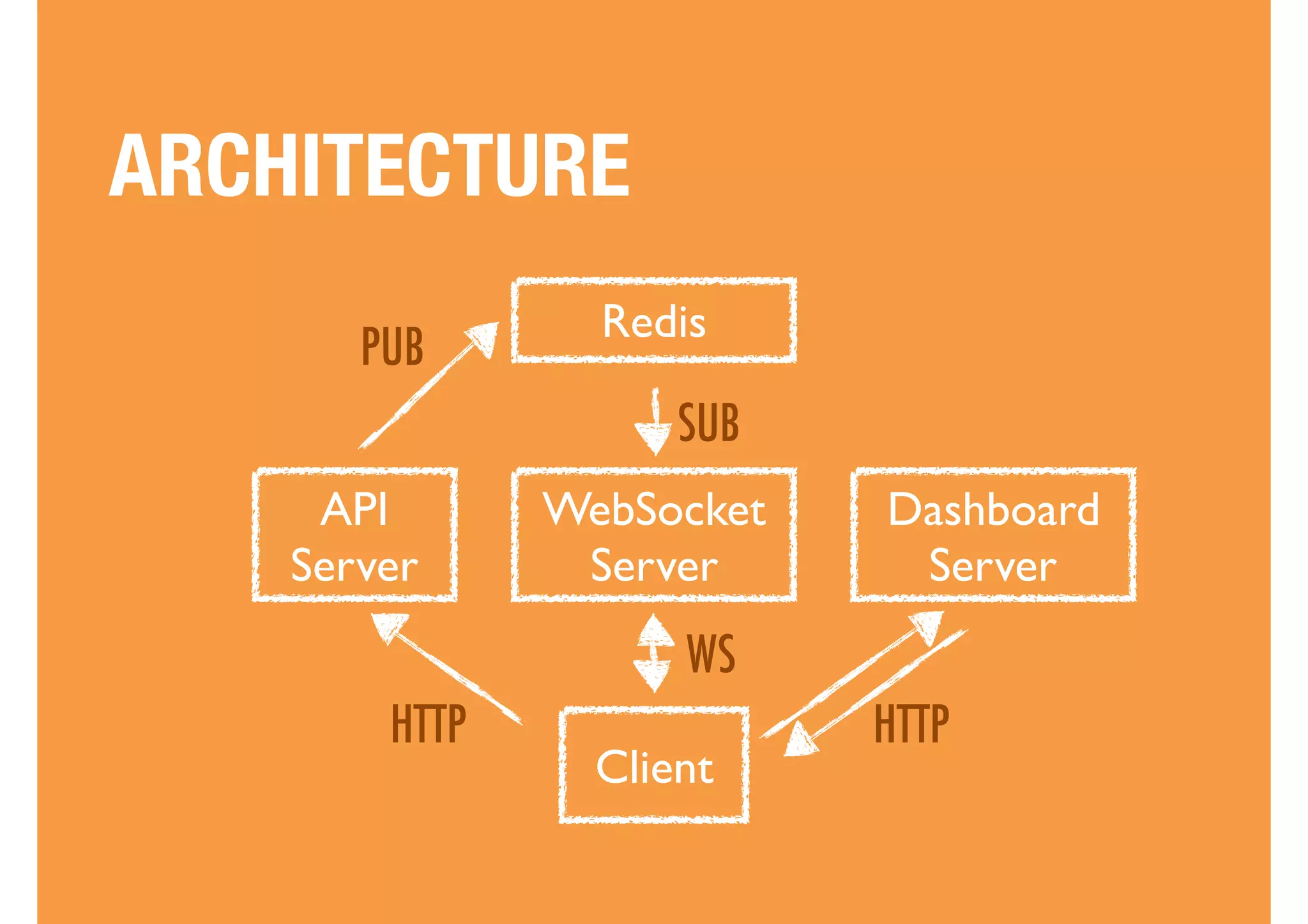

5. Client
API
Server
Dashboard
Server
WebSocket
Server
Redis
ARCHITECTURE
HTTPHTTP
WS
SUB
PUB

6. THANK
YOU

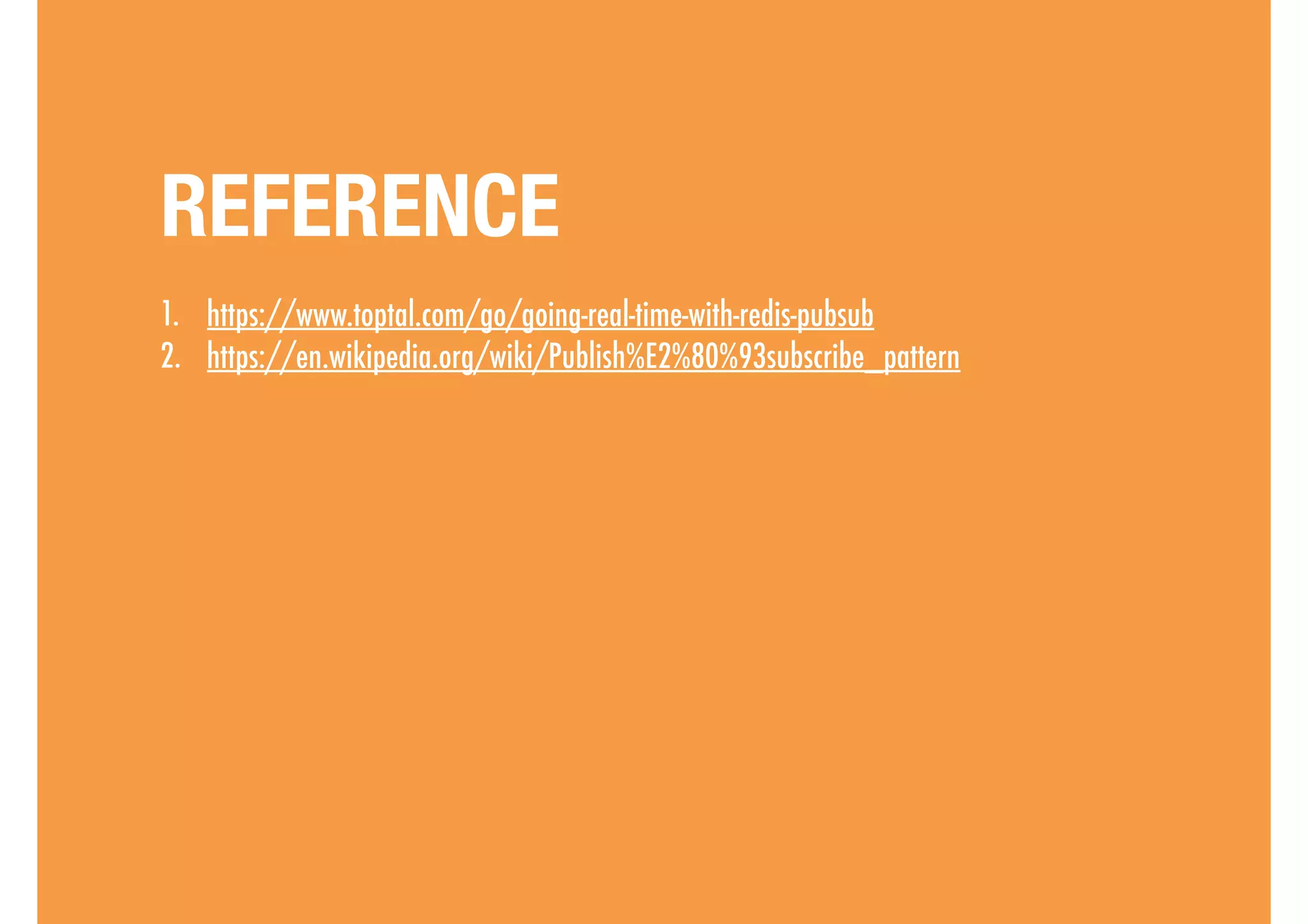

7. 1. https://www.toptal.com/go/going-real-time-with-redis-pubsub
2. https://en.wikipedia.org/wiki/Publish%E2%80%93subscribe_pattern
REFERENCE
