The Real Estate Management System allows real estate professionals to easily keep track of leads, manage listings, and market to prospects. It allows users to search for required properties, matches them to user requirements, and generates property and vendor details. The system was designed using Visual Paradigm and uses ASP.net for the front end, MS Access as the backend, and can run on Windows XP/7/8 operating systems. UML diagrams including use case, class, activity, state, sequence, collaboration, component, and deployment diagrams were created for the system.

1. Real Estate Management
System
Fivestarly Lathong
II MCA

2. INTRODUCTION
• Real Estate Management System is a user friendly
contact and property manager for real estate
professionals.
• Save time and sell more by empowering to easily
keep track of leads, manage listings and market to
new prospects, which normally composed of
buying and selling properties.

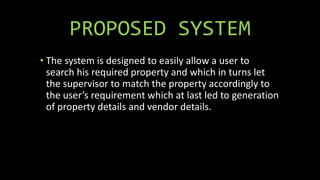

3. PROPOSED SYSTEM
• The system is designed to easily allow a user to
search his required property and which in turns let
the supervisor to match the property accordingly to
the user’s requirement which at last led to generation
of property details and vendor details.

4. SOFTWARE REQUIREMENTS
•Operating System : Windows xp/7/8.
•Front End : ASP.net
•Back End : Ms Access
•Software used : Visual Paradigm

5. UML DIAGRAMS

6. USE CASE DIAGRAM

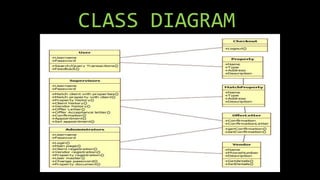

7. CLASS DIAGRAM

8. ACTIVITY DIAGRAM

9. STATE DIAGRAM

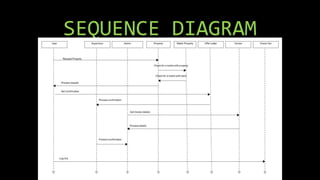

10. SEQUENCE DIAGRAM

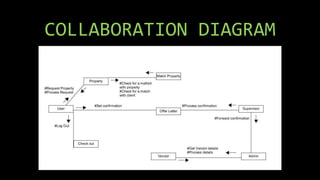

11. COLLABORATION DIAGRAM

12. COMPONENT DIAGRAM

13. DEPLOYMENT DIAGRAM

15. THANK YOU
