1. react-starter-kitで
とっとと始める
isomorphic開発
株式会社エクストーン 豊田陽一

2. agenda
● what is “isomorphic”?
● react-starter-kit (https://github.com/kriasoft/react-starter-kit)
● create test page
● check device

3. what is
isomorphic?

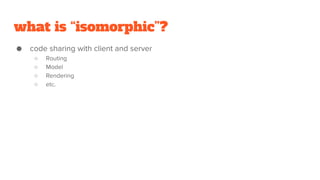

4. what is “isomorphic”?
● code sharing with client and server
○ Routing
○ Model
○ Rendering
○ etc.

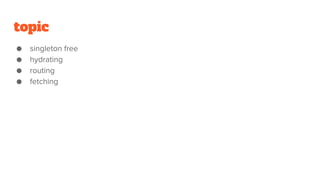

5. topic
● singleton free
● hydrating
● routing
● fetching

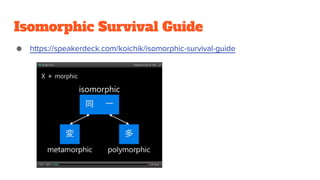

6. Isomorphic Survival Guide
● https://speakerdeck.com/koichik/isomorphic-survival-guide

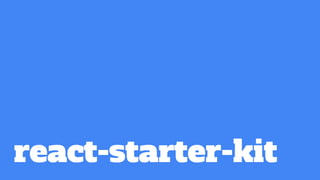

7. react-starter-kit

8. react-starter-kit
● "isomorphic" web app boilerplate
○ Node.js
○ Express
○ GraphQL
○ React
○ with modern web development tools
■ Webpack
■ Babel
■ Browsersync

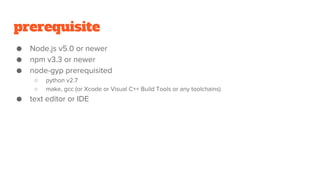

9. prerequisite
● Node.js v5.0 or newer
● npm v3.3 or newer
● node-gyp prerequisited
○ python v2.7
○ make, gcc (or Xcode or Visual C++ Build Tools or any toolchains)
● text editor or IDE

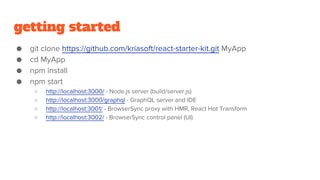

10. getting started
● git clone https://github.com/kriasoft/react-starter-kit.git MyApp
● cd MyApp
● npm install
● npm start
○ http://localhost:3000/ - Node.js server (build/server.js)
○ http://localhost:3000/graphql - GraphQL server and IDE
○ http://localhost:3001/ - BrowserSync proxy with HMR, React Hot Transform
○ http://localhost:3002/ - BrowserSync control panel (UI)

11. create test page

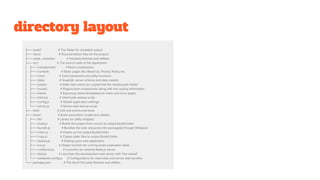

12. directory layout
.
├── /build/ # The folder for compiled output
├── /docs/ # Documentation files for the project
├── /node_modules/ # 3rd-party libraries and utilities
├── /src/ # The source code of the application
│ ├── /components/ # React components
│ ├── /content/ # Static pages like About Us, Privacy Policy etc.
│ ├── /core/ # Core framework and utility functions
│ ├── /data/ # GraphQL server schema and data models
│ ├── /public/ # Static files which are copied into the /build/public folder
│ ├── /routes/ # Page/screen components along with the routing information
│ ├── /views/ # Express.js views (templates) for index and error pages
│ ├── /client.js # Client-side startup script
│ ├── /config.js # Global application settings
│ └── /server.js # Server-side startup script
├── /test/ # Unit and end-to-end tests
├── /tools/ # Build automation scripts and utilities
│ ├── /lib/ # Library for utility snippets
│ ├── /build.js # Builds the project from source to output (build) folder
│ ├── /bundle.js # Bundles the web resources into package(s) through Webpack
│ ├── /clean.js # Cleans up the output (build) folder
│ ├── /copy.js # Copies static files to output (build) folder
│ ├── /deploy.js # Deploys your web application
│ ├── /run.js # Helper function for running build automation tasks
│ ├── /runServer.js # Launches (or restarts) Node.js server
│ ├── /start.js # Launches the development web server with "live reload"
│ └── /webpack.config.js # Configurations for client-side and server-side bundles
└── package.json # The list of 3rd party libraries and utilities

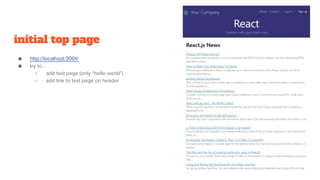

13. initial top page
● http://localhost:3001/
● try to…
○ add test page (only “hello world”)
○ add link to test page on header

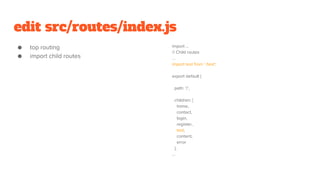

14. edit src/routes/index.js
● top routing
● import child routes
import ...
// Child routes
...
import test from './test';
export default {
path: '/',
children: [
home,
contact,
login,
register,
test,
content,
error
],
...

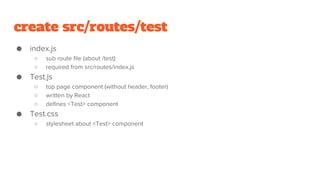

15. create src/routes/test
● index.js
○ sub route file (about /test)
○ required from src/routes/index.js
● Test.js
○ top page component (without header, footer)
○ written by React
○ defines <Test> component
● Test.css
○ stylesheet about <Test> component

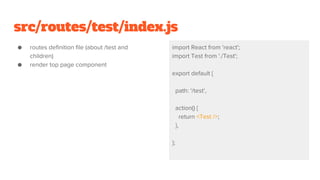

16. src/routes/test/index.js
● routes definition file (about /test and
children)
● render top page component
import React from 'react';
import Test from './Test';
export default {
path: '/test',
action() {
return <Test />;
},
};

17. src/routes/test/Test.js
● describes <Test> component’s definition import React, { PropTypes } from 'react';
import withStyles from 'isomorphic-style-loader/lib/withStyles';
import s from './Test.css';
const title = 'Hello world!';
function Test(props, context) {
context.setTitle(title);
return(
<div className={s.root}>
<div className={s.container}>
<h1>{title}</h1>
<p>This is test.</p>
</div>
</div>
);
}
Test.contextTypes = { setTitle: PropTypes.func.isRequired };
export default withStyles(s)(Test);

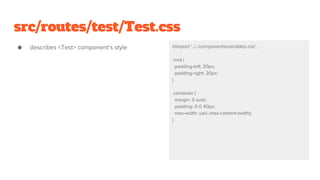

18. src/routes/test/Test.css
● describes <Test> component’s style @import '../../components/variables.css';
.root {
padding-left: 20px;
padding-right: 20px;
}
.container {
margin: 0 auto;
padding: 0 0 40px;
max-width: var(--max-content-width);
}

19. edit src/components/Navigation.js
● Navigation.js
○ React component <Navigation>
○ header navigation
● add link to test page
import ...
function Navigation({ className }) {
return (
<div className={cx(s.root, className)} role="navigation">
<Link className={s.link} to="/test">Test</Link>
<Link className={s.link} to="/about">About</Link>
<Link className={s.link} to="/contact">Contact</Link>
<span className={s.spacer}> | </span>
<Link className={s.link} to="/login">Log in</Link>
<span className={s.spacer}>or</span>
<Link className={cx(s.link, s.highlight)} to="/register">Sign up</Link>
</div>
);
}
Navigation.propTypes = {
className: PropTypes.string,
};
export default withStyles(s)(Navigation);

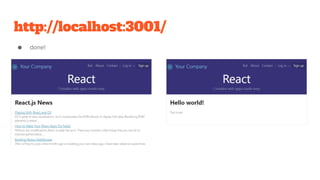

20. http://localhost:3001/
● done!

21. check device

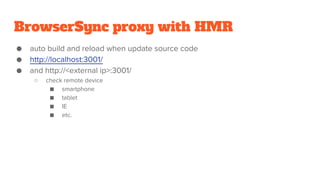

22. BrowserSync proxy with HMR
● auto build and reload when update source code
● http://localhost:3001/
● and http://<external ip>:3001/
○ check remote device
■ smartphone
■ tablet
■ IE
■ etc.

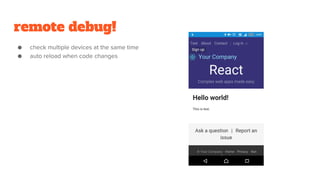

23. remote debug!
● check multiple devices at the same time
● auto reload when code changes
