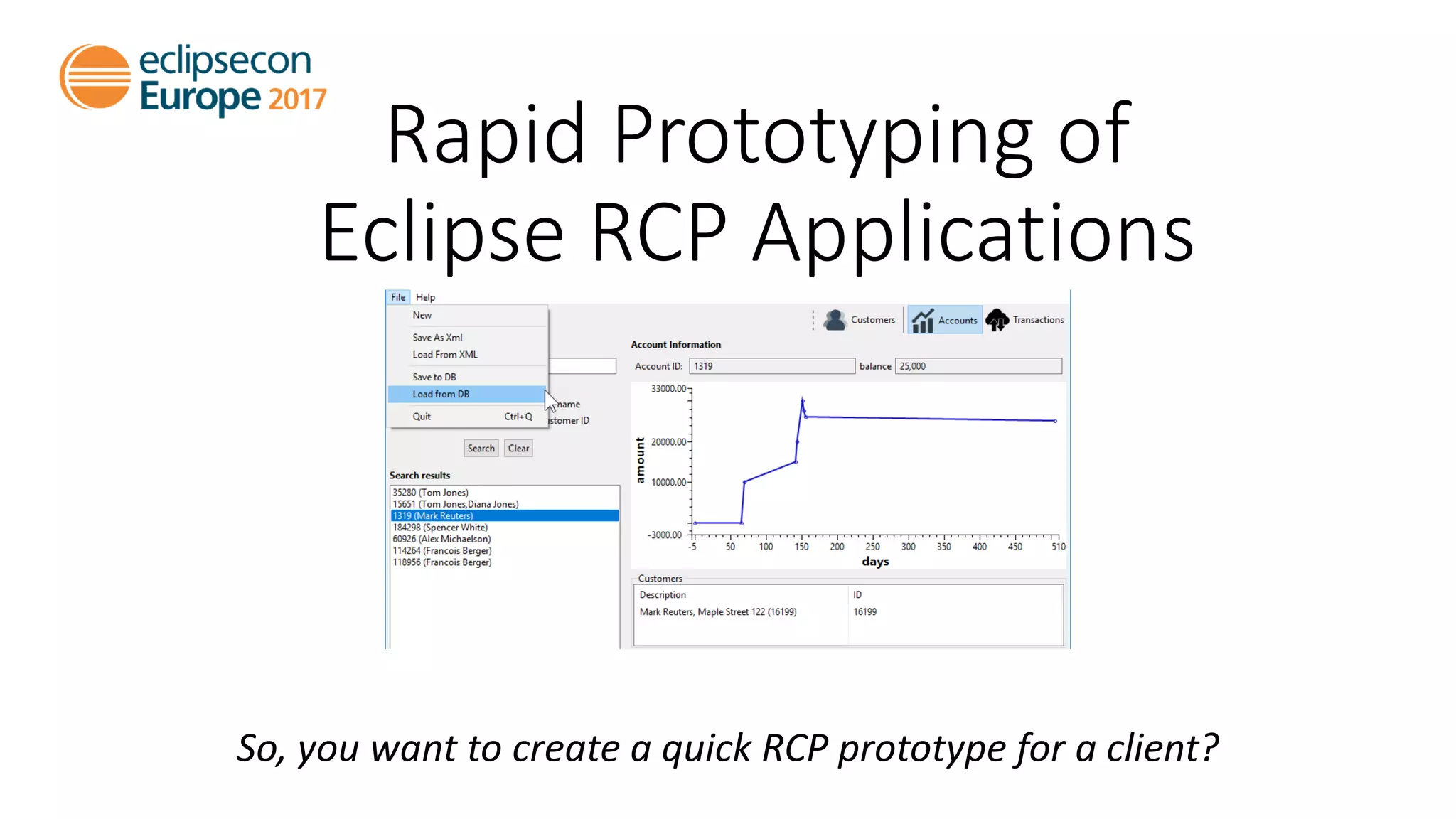

1. Rapid Prototyping of
Eclipse RCP Applications
So, you want to create a quick RCP prototype for a client?

2. About us
• Speaker
• Patrik Suzzi, www.itemis.ch
Software Engineer
Eclipse Platform Committer
• Audience
• Are you familiar with JAXB, JPA?
• Eclipse E4 and WindowBuilder?

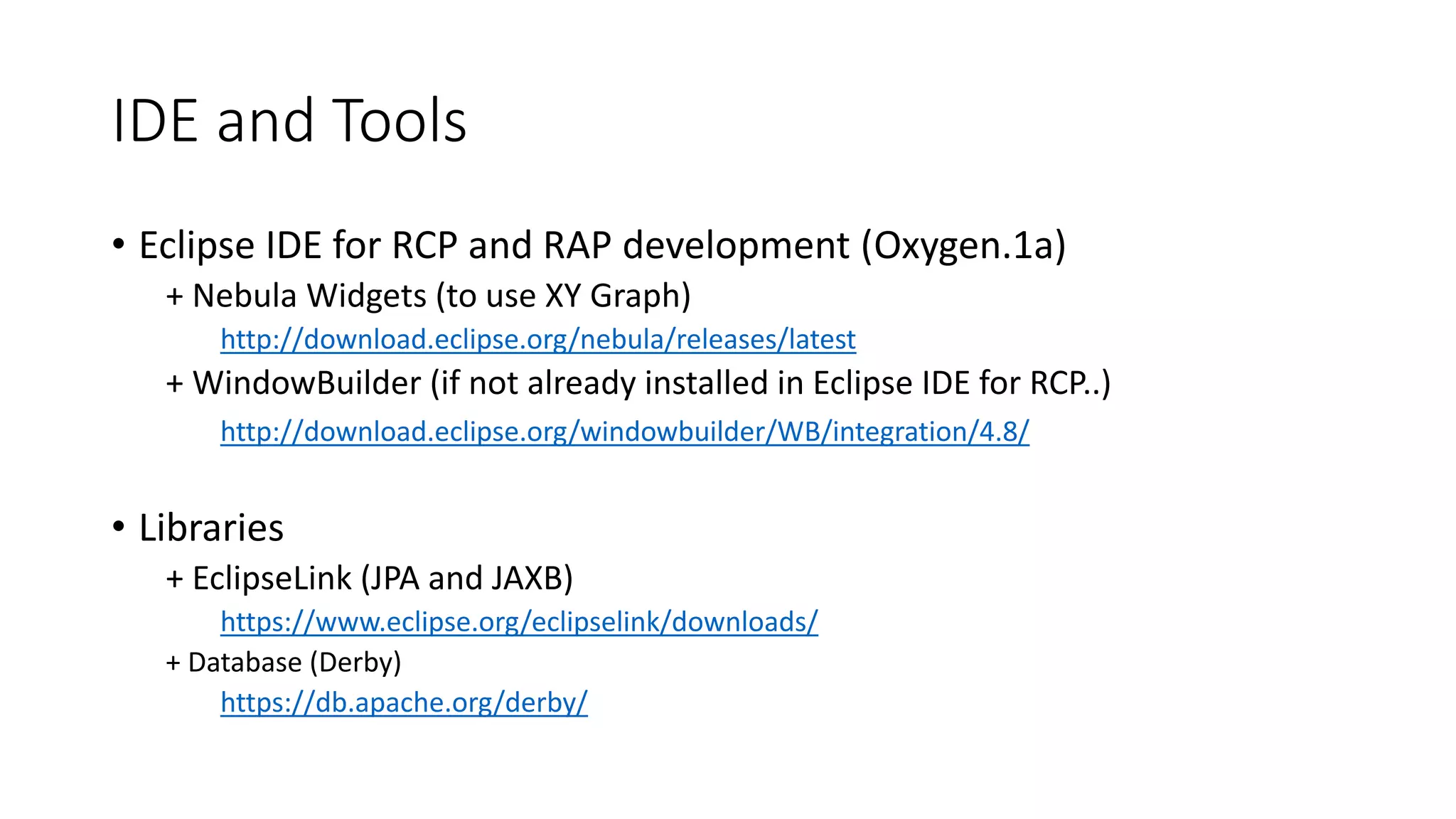

3. IDE and Tools
• Eclipse IDE for RCP and RAP development (Oxygen.1a)
+ Nebula Widgets (to use XY Graph)
http://download.eclipse.org/nebula/releases/latest
+ WindowBuilder (if not already installed in Eclipse IDE for RCP..)
http://download.eclipse.org/windowbuilder/WB/integration/4.8/
• Libraries
+ EclipseLink (JPA and JAXB)
https://www.eclipse.org/eclipselink/downloads/
+ Database (Derby)
https://db.apache.org/derby/

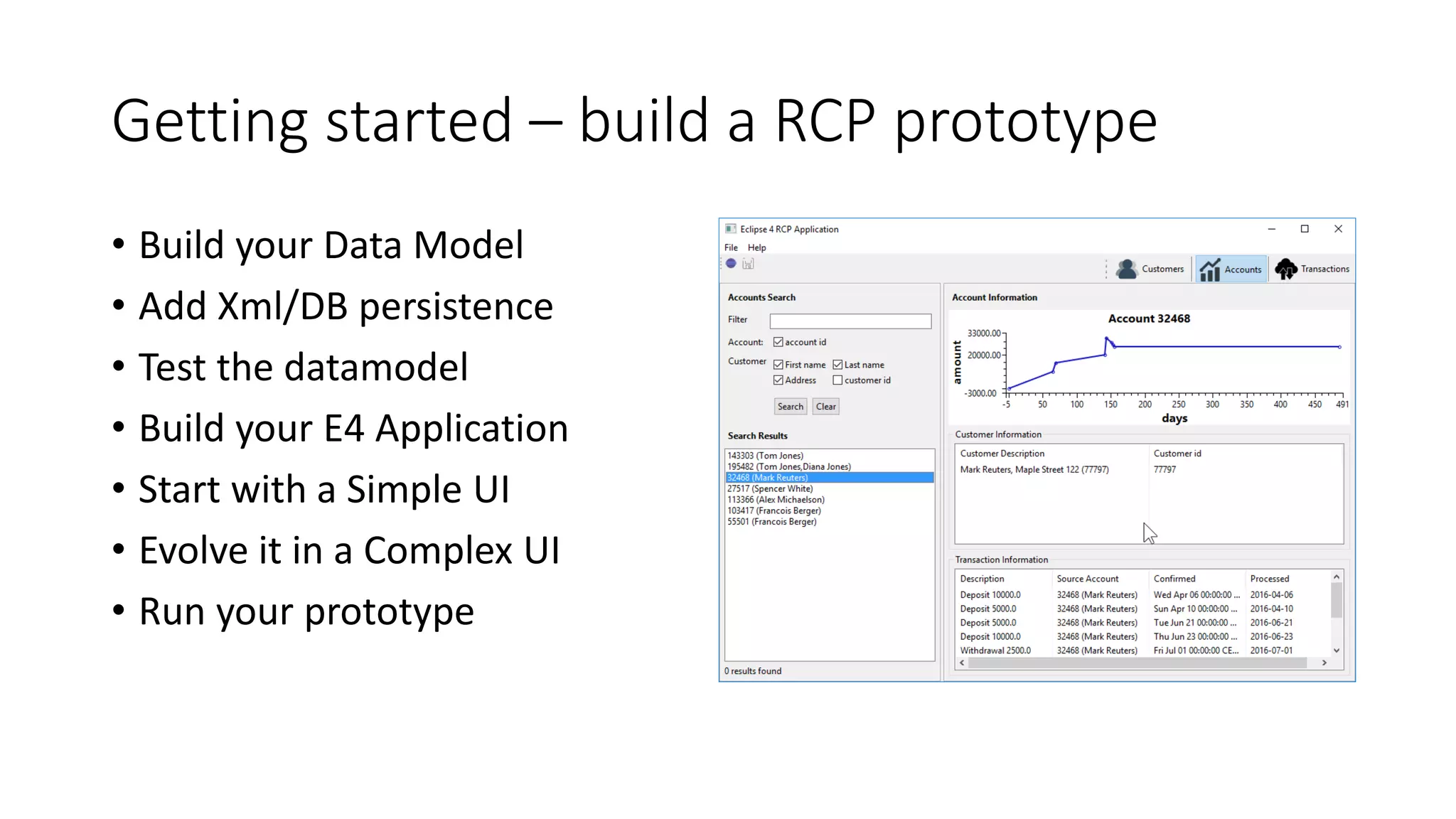

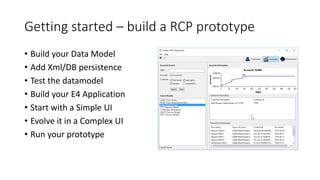

4. Getting started – build a RCP prototype
• Build your Data Model
• Add Xml/DB persistence
• Test the datamodel
• Build your E4 Application
• Start with a Simple UI
• Evolve it in a Complex UI
• Run your prototype

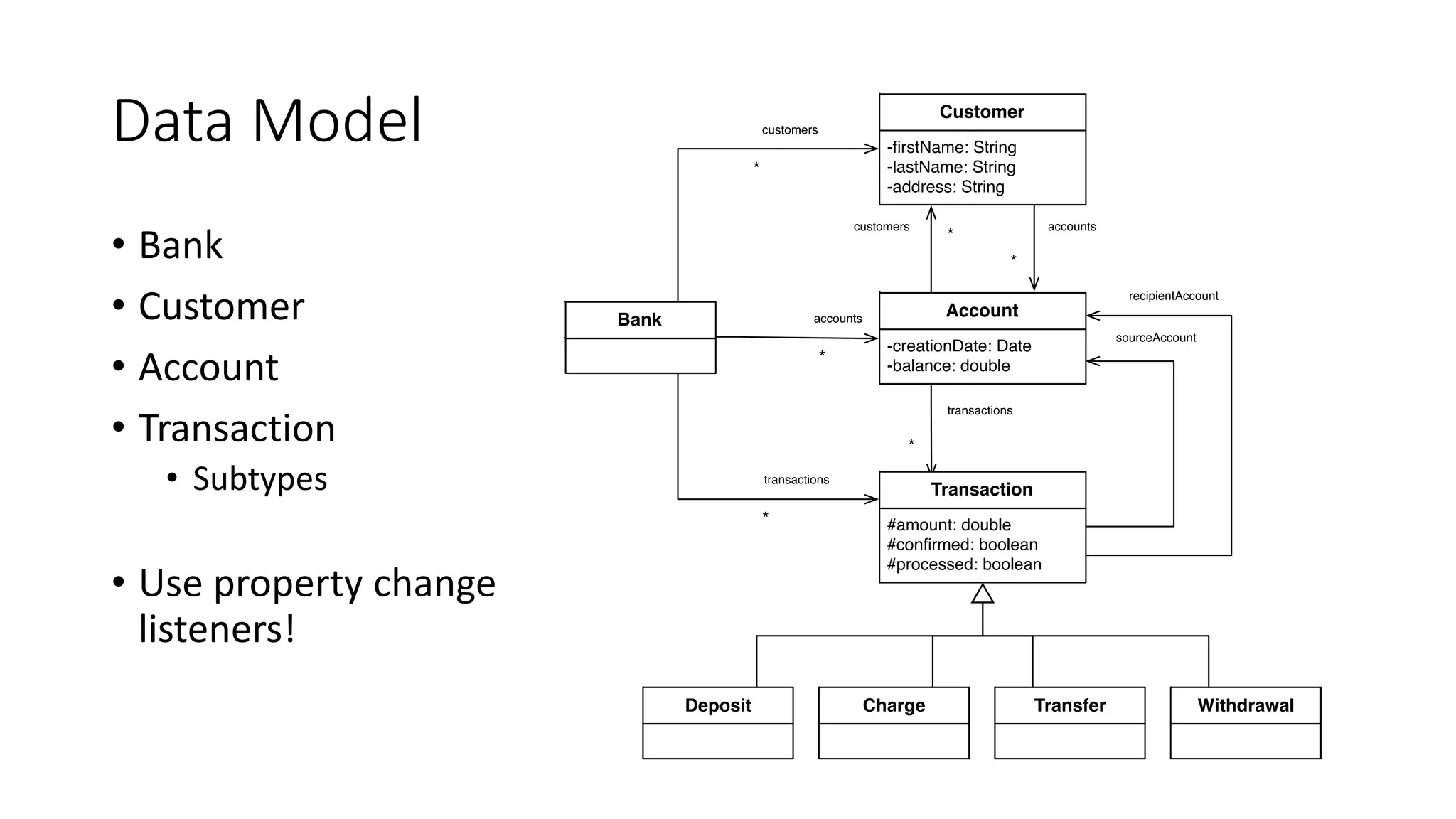

5. Data Model
• Bank
• Customer
• Account
• Transaction
• Subtypes
• Use property change
listeners!

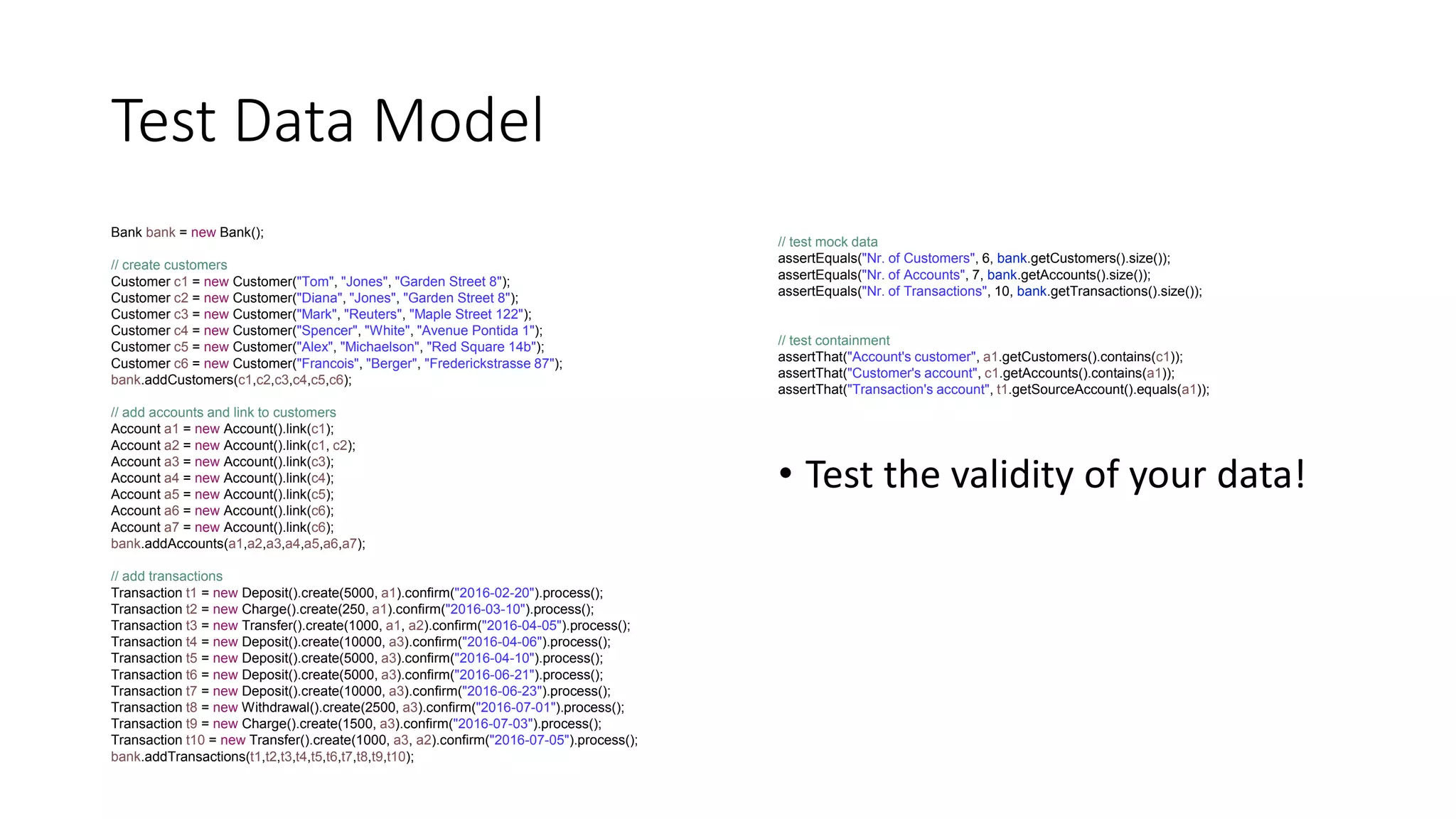

6. Test Data Model
Bank bank = new Bank();
// create customers
Customer c1 = new Customer("Tom", "Jones", "Garden Street 8");
Customer c2 = new Customer("Diana", "Jones", "Garden Street 8");
Customer c3 = new Customer("Mark", "Reuters", "Maple Street 122");
Customer c4 = new Customer("Spencer", "White", "Avenue Pontida 1");
Customer c5 = new Customer("Alex", "Michaelson", "Red Square 14b");
Customer c6 = new Customer("Francois", "Berger", "Frederickstrasse 87");
bank.addCustomers(c1,c2,c3,c4,c5,c6);
// add accounts and link to customers
Account a1 = new Account().link(c1);
Account a2 = new Account().link(c1, c2);
Account a3 = new Account().link(c3);
Account a4 = new Account().link(c4);
Account a5 = new Account().link(c5);
Account a6 = new Account().link(c6);
Account a7 = new Account().link(c6);
bank.addAccounts(a1,a2,a3,a4,a5,a6,a7);
// add transactions
Transaction t1 = new Deposit().create(5000, a1).confirm("2016-02-20").process();
Transaction t2 = new Charge().create(250, a1).confirm("2016-03-10").process();
Transaction t3 = new Transfer().create(1000, a1, a2).confirm("2016-04-05").process();
Transaction t4 = new Deposit().create(10000, a3).confirm("2016-04-06").process();
Transaction t5 = new Deposit().create(5000, a3).confirm("2016-04-10").process();
Transaction t6 = new Deposit().create(5000, a3).confirm("2016-06-21").process();
Transaction t7 = new Deposit().create(10000, a3).confirm("2016-06-23").process();
Transaction t8 = new Withdrawal().create(2500, a3).confirm("2016-07-01").process();
Transaction t9 = new Charge().create(1500, a3).confirm("2016-07-03").process();
Transaction t10 = new Transfer().create(1000, a3, a2).confirm("2016-07-05").process();
bank.addTransactions(t1,t2,t3,t4,t5,t6,t7,t8,t9,t10);
// test mock data
assertEquals("Nr. of Customers", 6, bank.getCustomers().size());
assertEquals("Nr. of Accounts", 7, bank.getAccounts().size());
assertEquals("Nr. of Transactions", 10, bank.getTransactions().size());
// test containment
assertThat("Account's customer", a1.getCustomers().contains(c1));
assertThat("Customer's account", c1.getAccounts().contains(a1));
assertThat("Transaction's account", t1.getSourceAccount().equals(a1));
• Test the validity of your data!

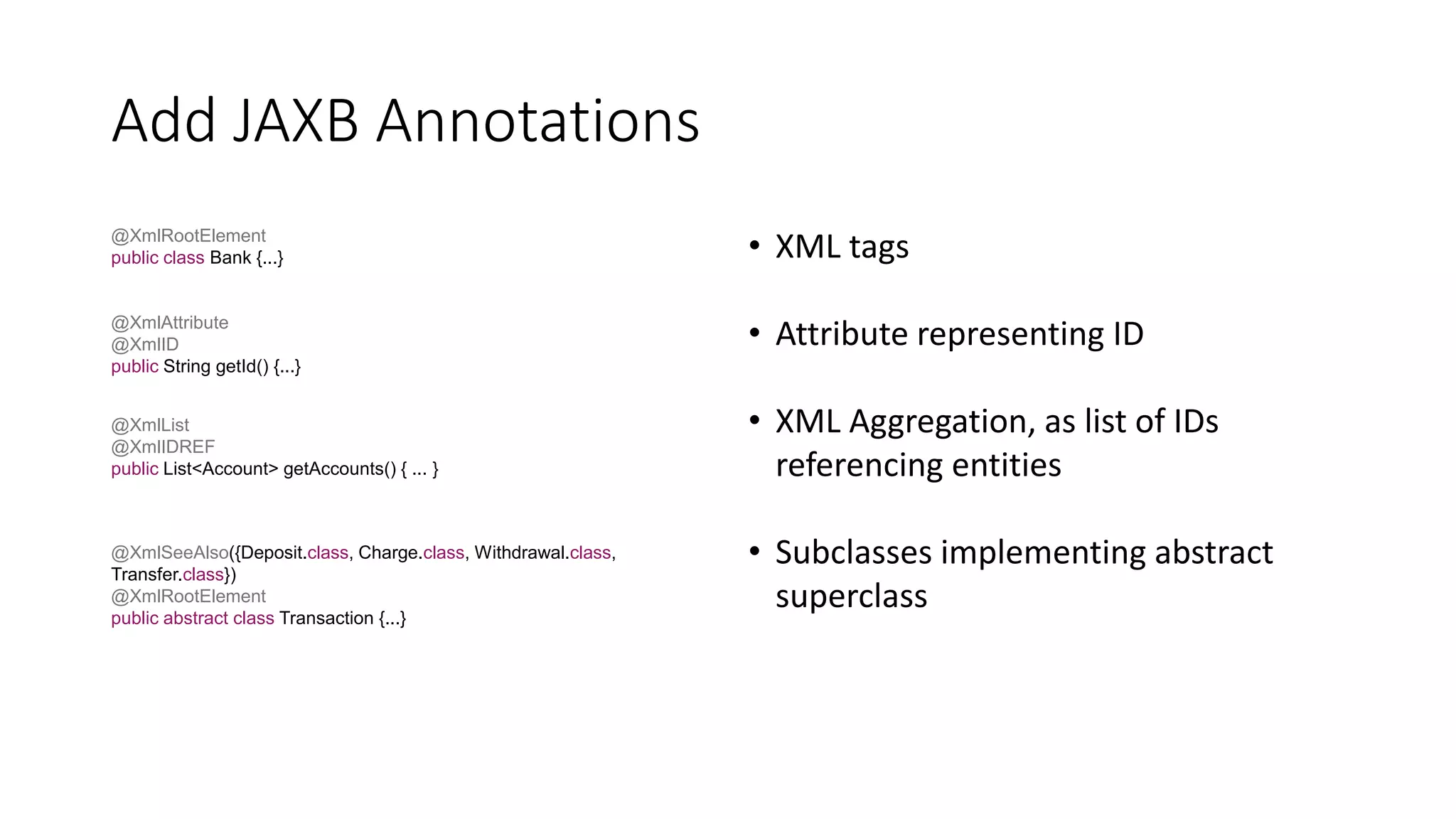

7. Add JAXB Annotations
@XmlRootElement
public class Bank {...}
@XmlAttribute
@XmlID
public String getId() {...}
@XmlList
@XmlIDREF
public List<Account> getAccounts() { ... }
• XML tags
• Attribute representing ID
• XML Aggregation, as list of IDs
referencing entities
• Subclasses implementing abstract
superclass
@XmlSeeAlso({Deposit.class, Charge.class, Withdrawal.class,
Transfer.class})
@XmlRootElement
public abstract class Transaction {...}

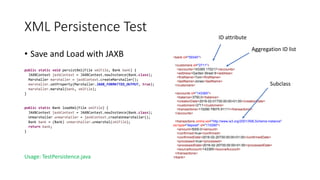

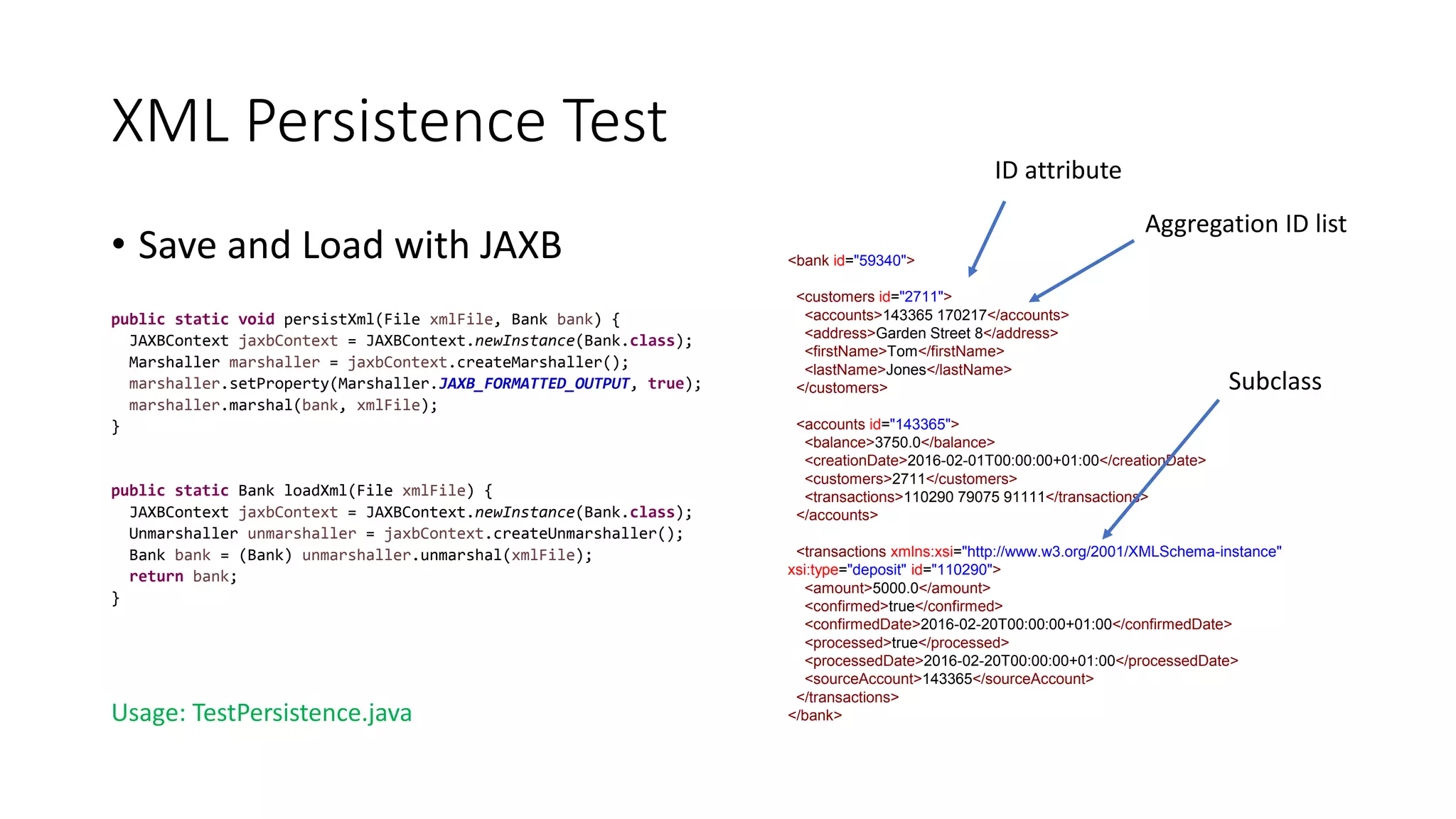

8. XML Persistence Test
• Save and Load with JAXB
public static void persistXml(File xmlFile, Bank bank) {
JAXBContext jaxbContext = JAXBContext.newInstance(Bank.class);
Marshaller marshaller = jaxbContext.createMarshaller();
marshaller.setProperty(Marshaller.JAXB_FORMATTED_OUTPUT, true);
marshaller.marshal(bank, xmlFile);
}
public static Bank loadXml(File xmlFile) {
JAXBContext jaxbContext = JAXBContext.newInstance(Bank.class);
Unmarshaller unmarshaller = jaxbContext.createUnmarshaller();
Bank bank = (Bank) unmarshaller.unmarshal(xmlFile);
return bank;
}
Usage: TestPersistence.java
<bank id="59340">
<customers id="2711">
<accounts>143365 170217</accounts>
<address>Garden Street 8</address>
<firstName>Tom</firstName>
<lastName>Jones</lastName>
</customers>
<accounts id="143365">
<balance>3750.0</balance>
<creationDate>2016-02-01T00:00:00+01:00</creationDate>
<customers>2711</customers>
<transactions>110290 79075 91111</transactions>
</accounts>
<transactions xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:type="deposit" id="110290">
<amount>5000.0</amount>
<confirmed>true</confirmed>
<confirmedDate>2016-02-20T00:00:00+01:00</confirmedDate>
<processed>true</processed>
<processedDate>2016-02-20T00:00:00+01:00</processedDate>
<sourceAccount>143365</sourceAccount>
</transactions>
</bank>
Aggregation ID list
ID attribute
Subclass

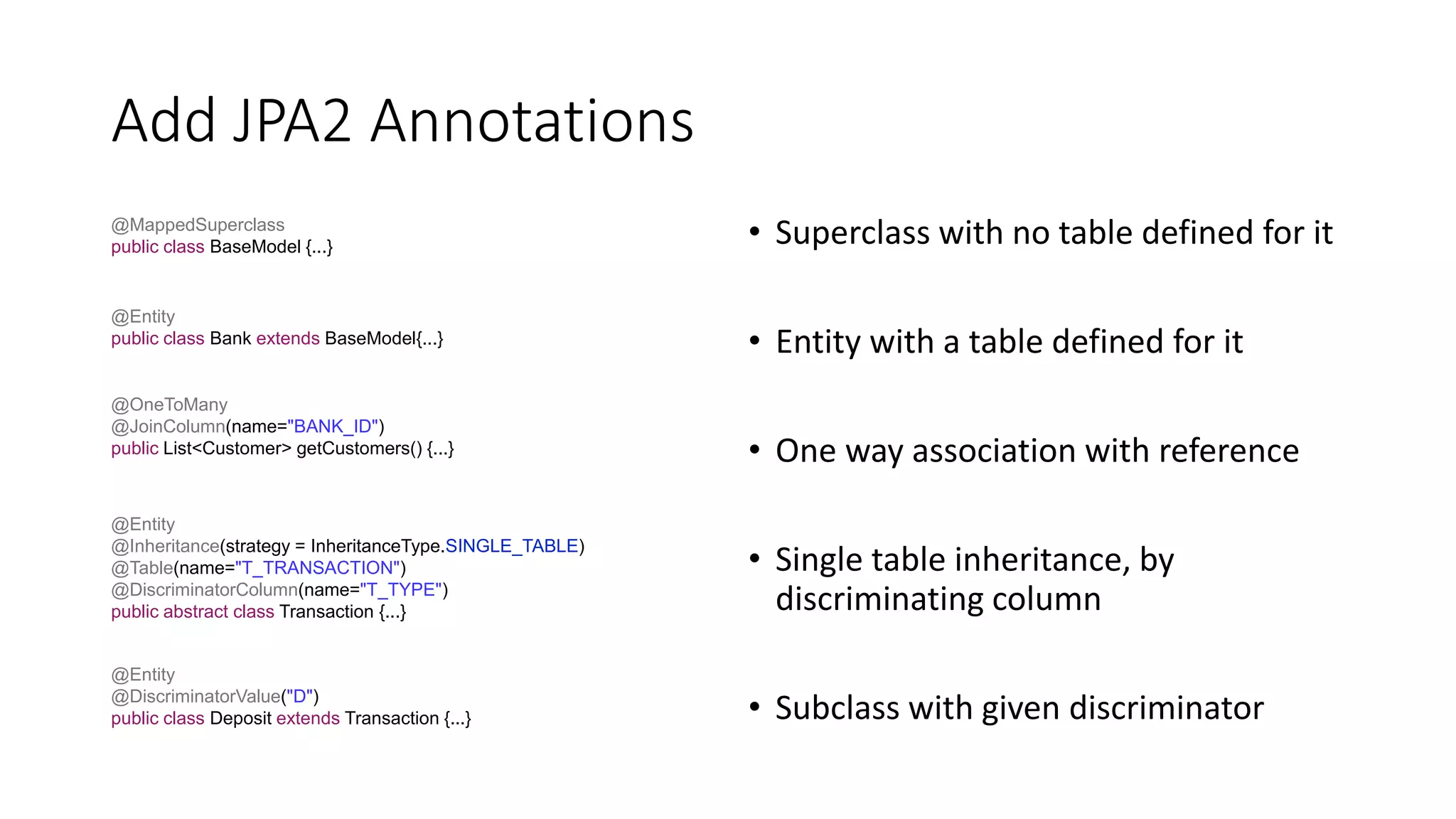

9. Add JPA2 Annotations
• Superclass with no table defined for it
• Entity with a table defined for it
• One way association with reference
• Single table inheritance, by
discriminating column
• Subclass with given discriminator
@MappedSuperclass
public class BaseModel {...}
@Entity
public class Bank extends BaseModel{...}
@OneToMany
@JoinColumn(name="BANK_ID")
public List<Customer> getCustomers() {...}
@Entity
@Inheritance(strategy = InheritanceType.SINGLE_TABLE)
@Table(name="T_TRANSACTION")
@DiscriminatorColumn(name="T_TYPE")
public abstract class Transaction {...}
@Entity
@DiscriminatorValue("D")
public class Deposit extends Transaction {...}

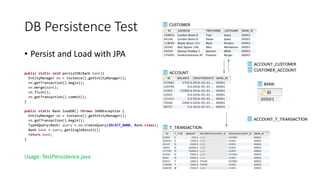

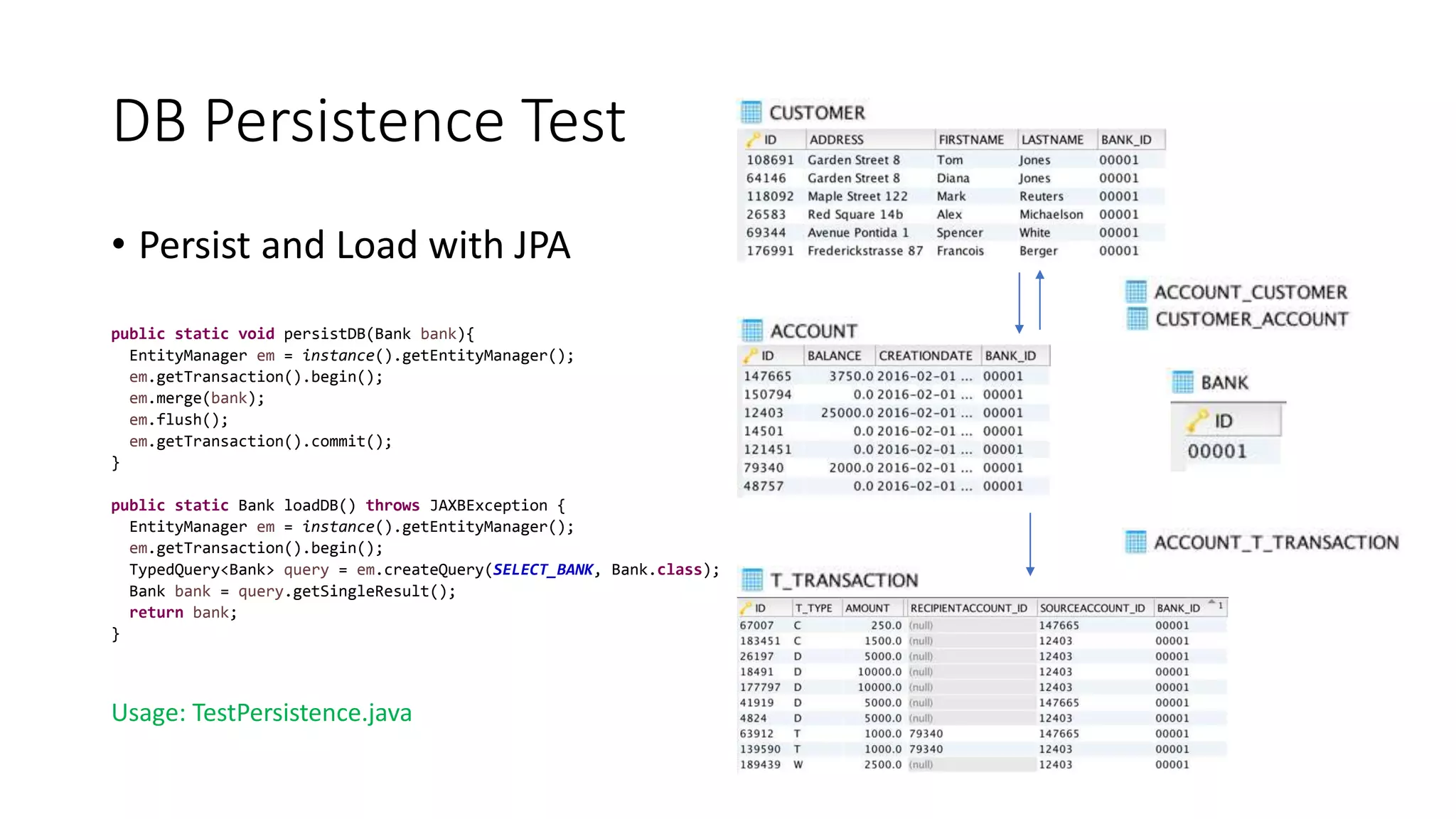

10. DB Persistence Test
• Persist and Load with JPA
public static void persistDB(Bank bank){
EntityManager em = instance().getEntityManager();
em.getTransaction().begin();
em.merge(bank);
em.flush();
em.getTransaction().commit();
}
public static Bank loadDB() throws JAXBException {
EntityManager em = instance().getEntityManager();
em.getTransaction().begin();
TypedQuery<Bank> query = em.createQuery(SELECT_BANK, Bank.class);
Bank bank = query.getSingleResult();
return bank;
}
Usage: TestPersistence.java

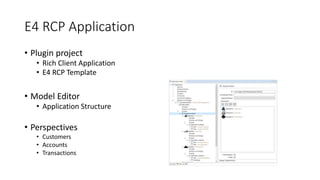

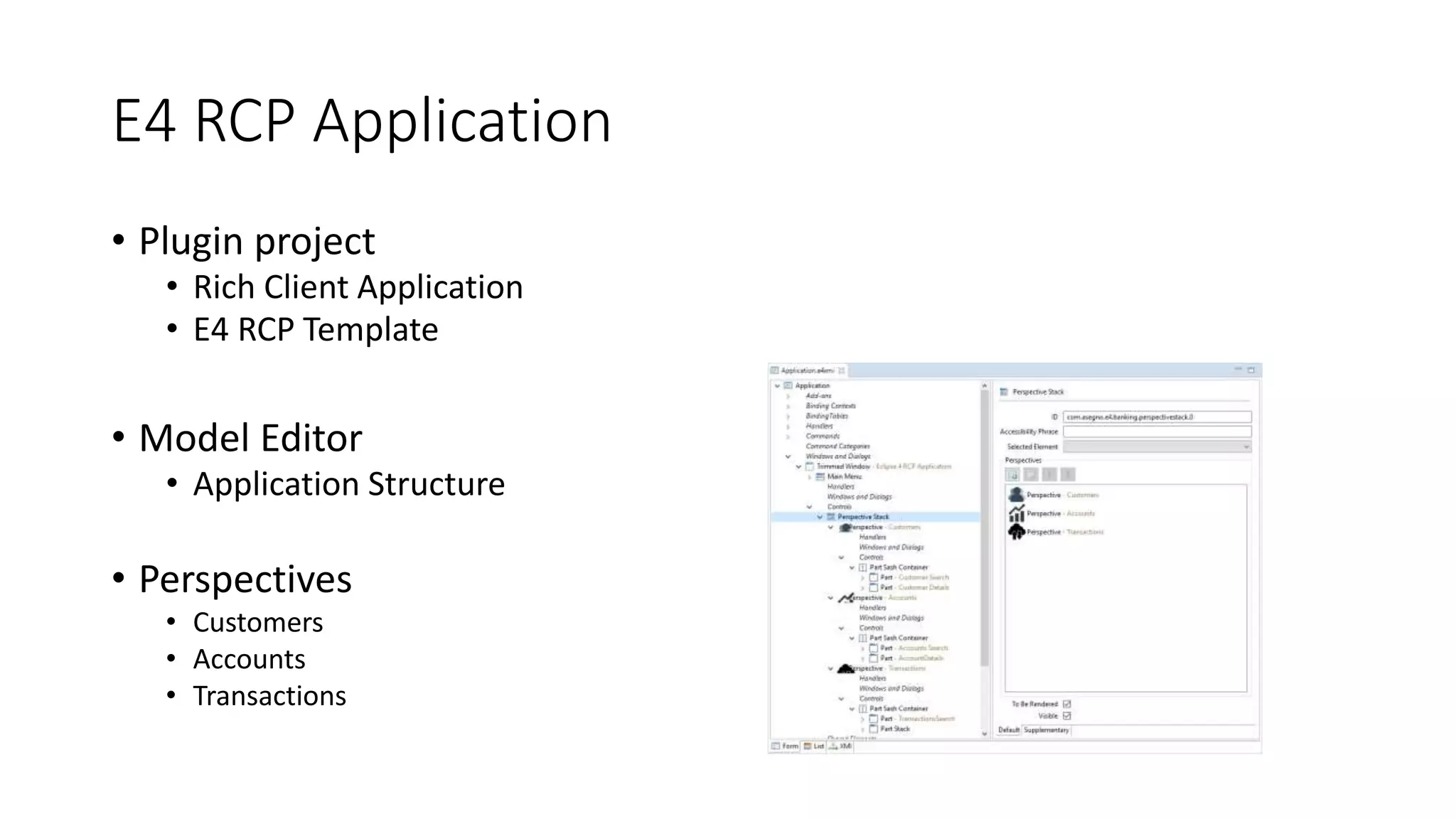

11. E4 RCP Application
• Plugin project
• Rich Client Application
• E4 RCP Template
• Model Editor
• Application Structure
• Perspectives
• Customers
• Accounts
• Transactions

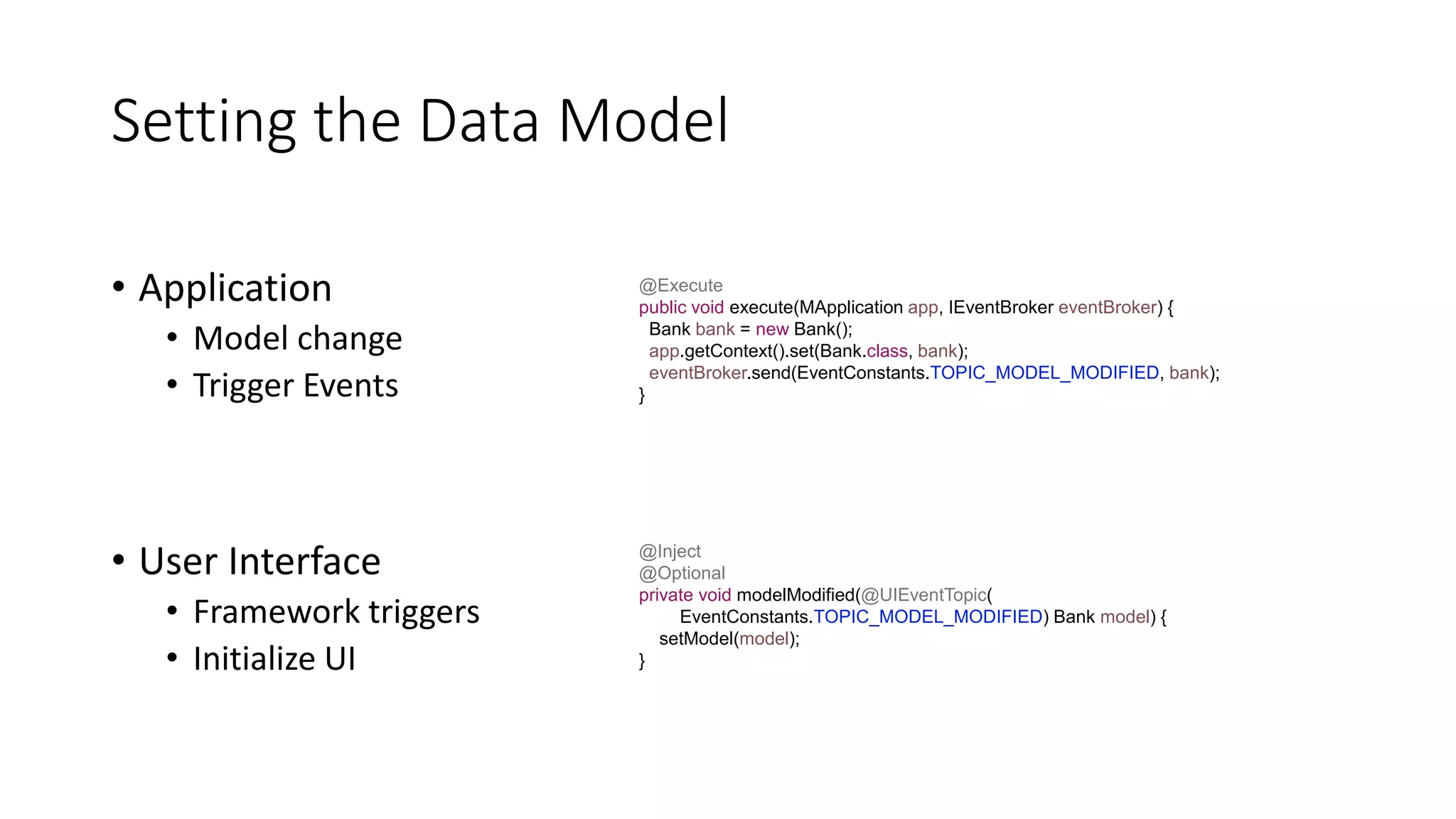

12. Setting the Data Model
• Application
• Model change
• Trigger Events
• User Interface
• Framework triggers
• Initialize UI
@Execute
public void execute(MApplication app, IEventBroker eventBroker) {
Bank bank = new Bank();
app.getContext().set(Bank.class, bank);
eventBroker.send(EventConstants.TOPIC_MODEL_MODIFIED, bank);
}
@Inject
@Optional
private void modelModified(@UIEventTopic(
EventConstants.TOPIC_MODEL_MODIFIED) Bank model) {
setModel(model);
}

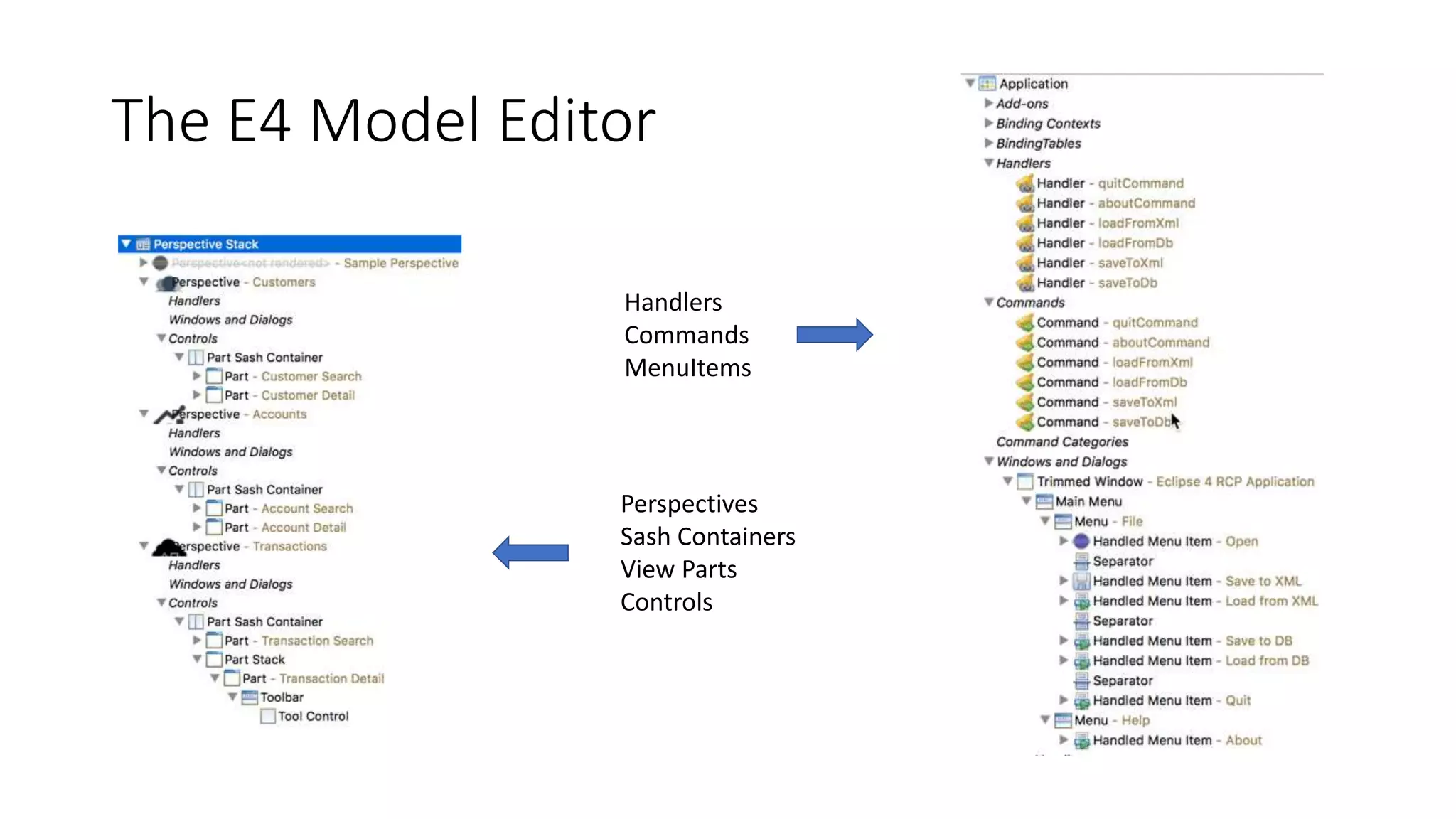

13. The E4 Model Editor
Handlers
Commands
MenuItems
Perspectives
Sash Containers
View Parts
Controls

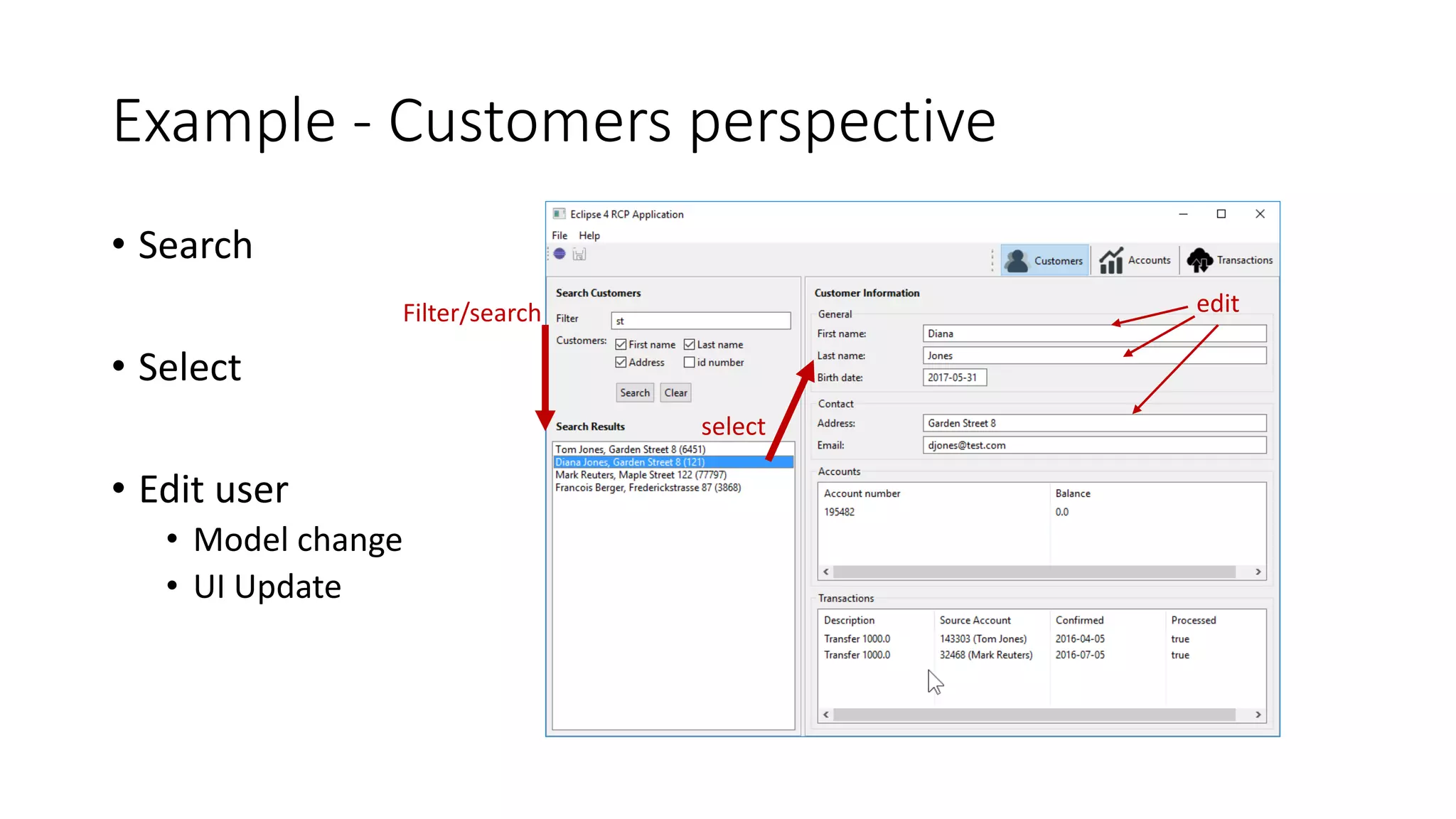

14. Example - Customers perspective
• Search
• Select
• Edit user
• Model change
• UI Update
Filter/search
select
edit

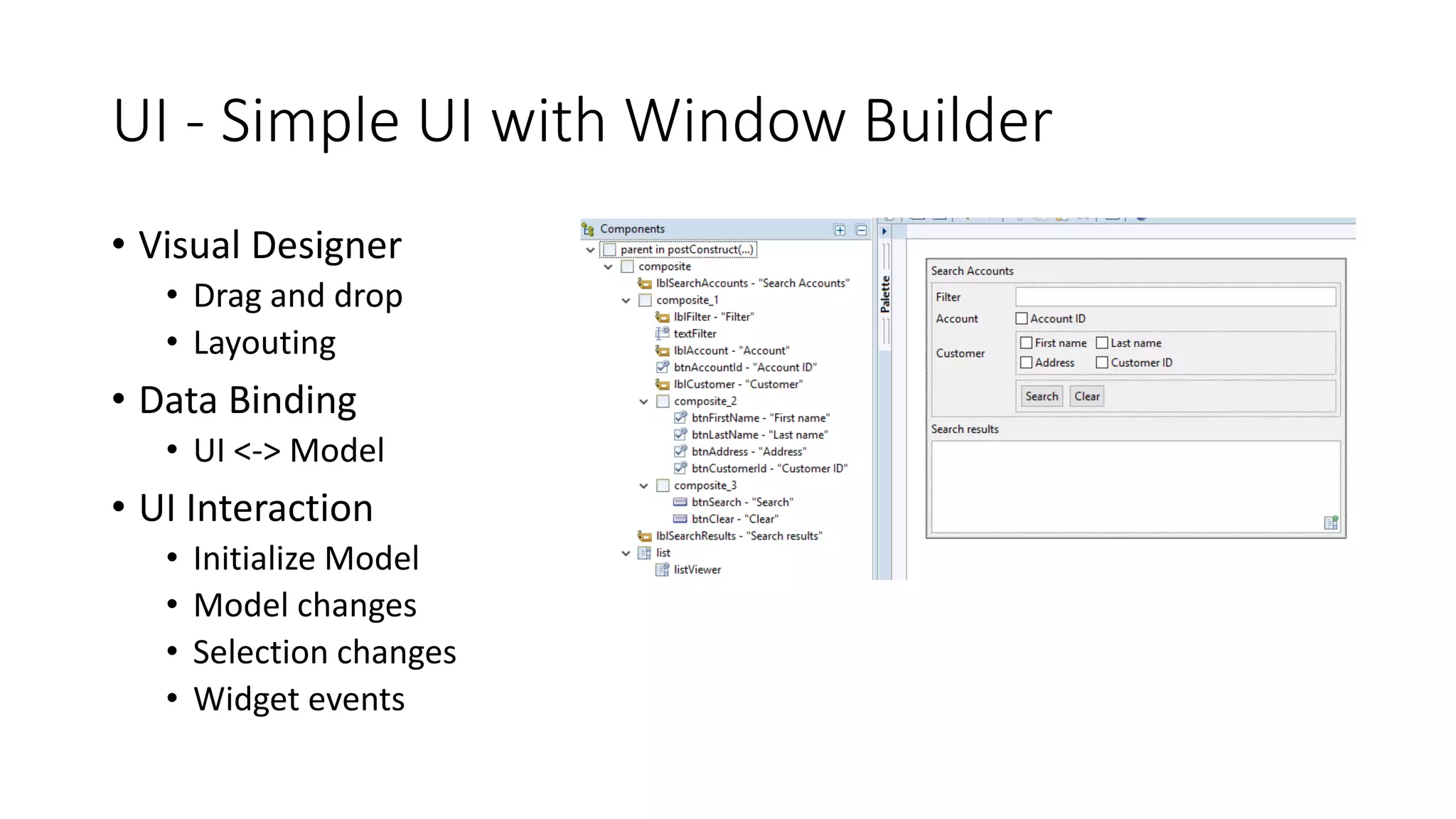

15. UI - Simple UI with Window Builder
• Visual Designer
• Drag and drop
• Layouting
• Data Binding
• UI <-> Model
• UI Interaction
• Initialize Model
• Model changes
• Selection changes
• Widget events

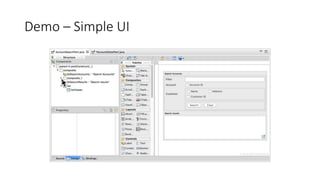

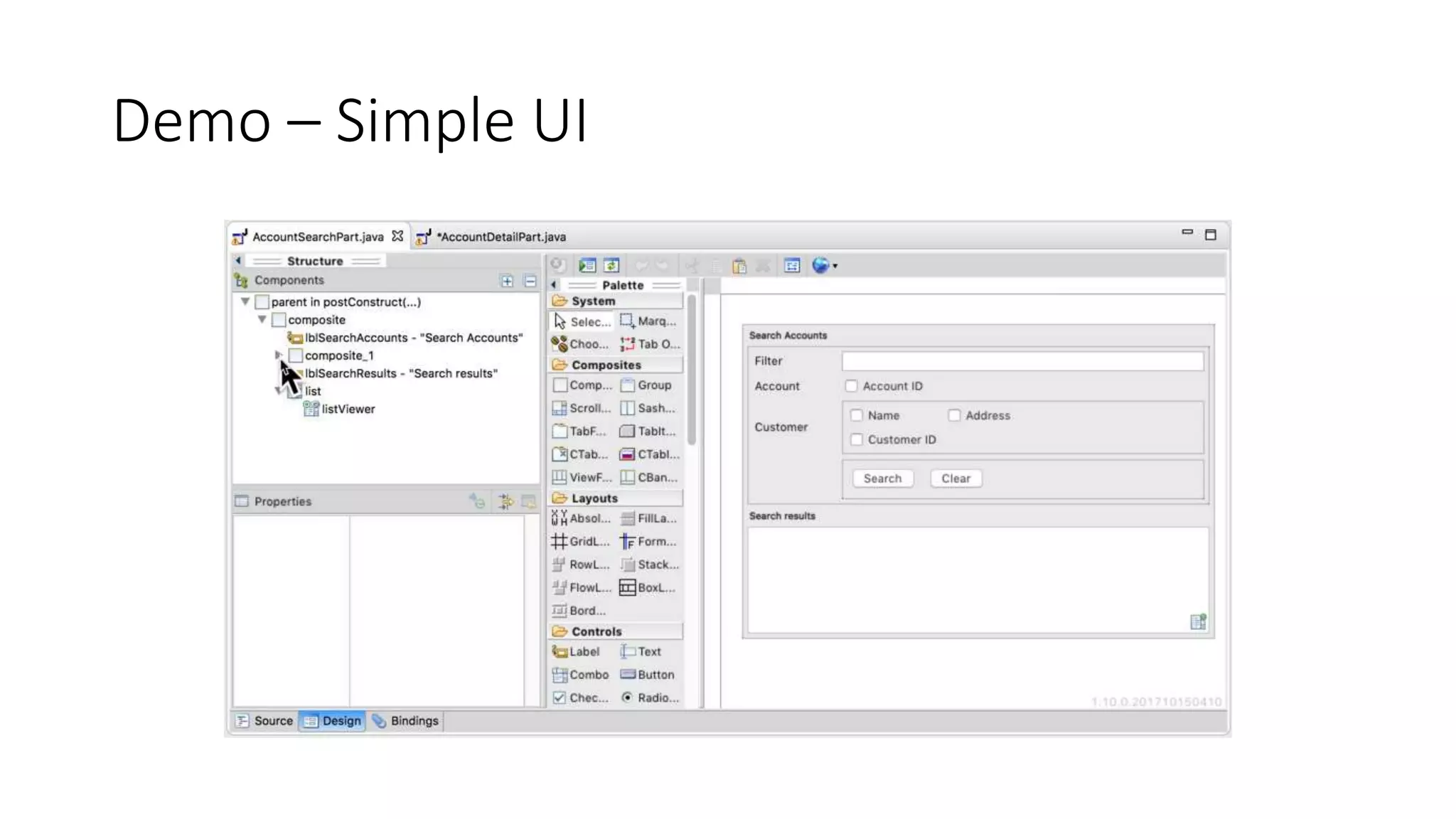

16. Demo – Simple UI

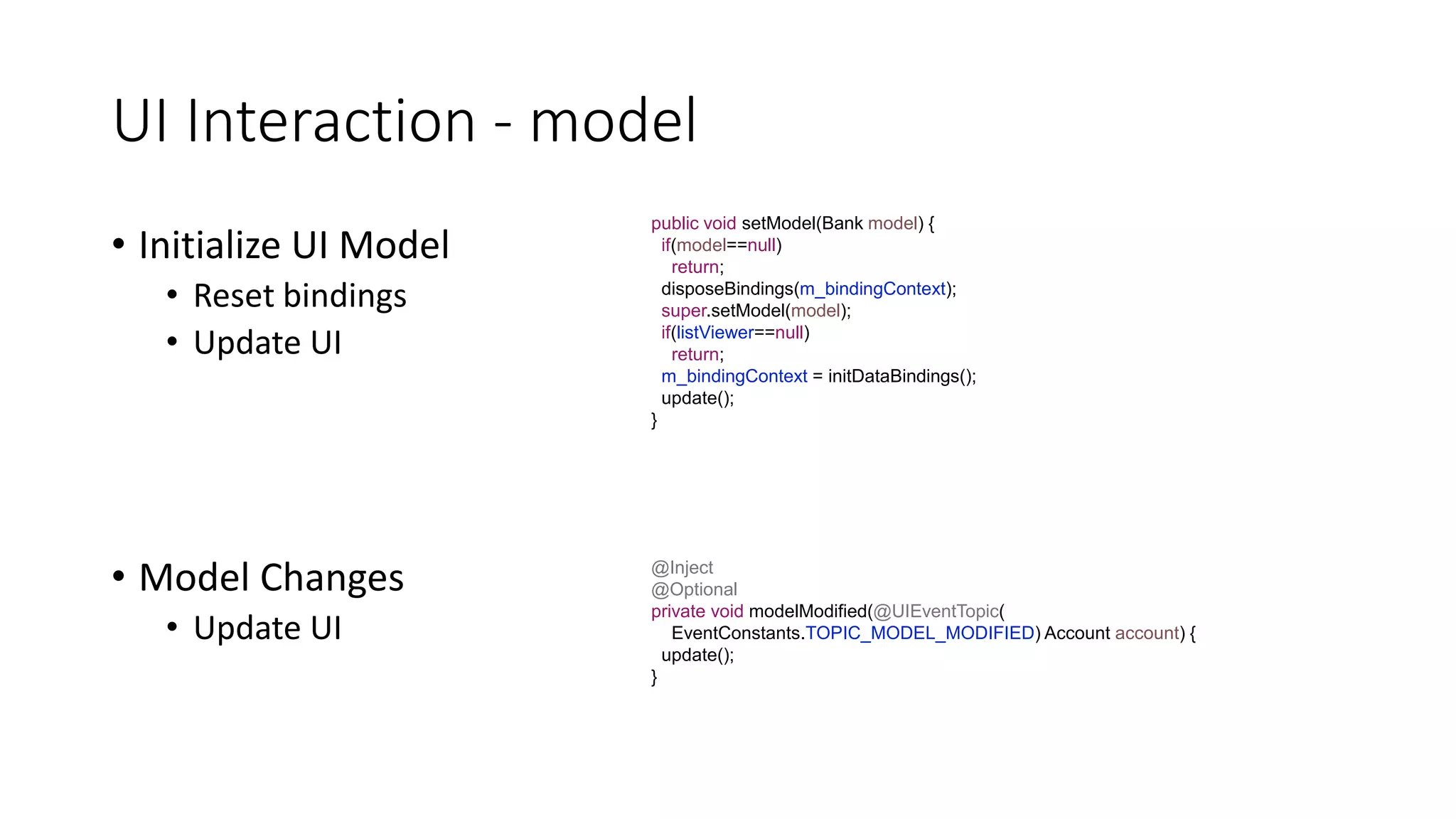

17. UI Interaction - model
• Initialize UI Model
• Reset bindings
• Update UI
public void setModel(Bank model) {
if(model==null)
return;
disposeBindings(m_bindingContext);
super.setModel(model);
if(listViewer==null)
return;
m_bindingContext = initDataBindings();
update();
}
@Inject
@Optional
private void modelModified(@UIEventTopic(
EventConstants.TOPIC_MODEL_MODIFIED) Account account) {
update();
}
• Model Changes
• Update UI

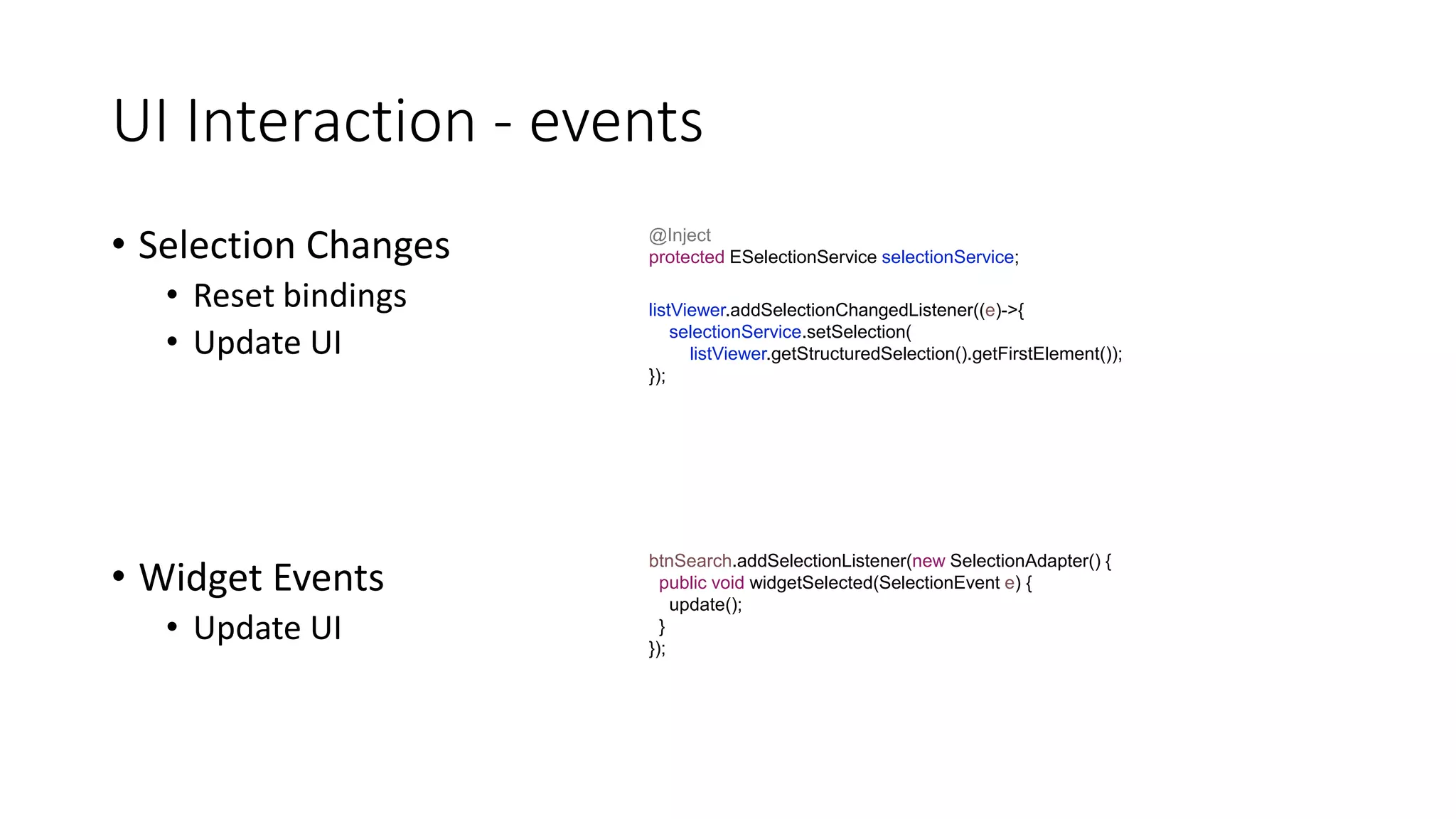

18. UI Interaction - events
• Selection Changes
• Reset bindings
• Update UI
• Widget Events
• Update UI
listViewer.addSelectionChangedListener((e)->{
selectionService.setSelection(
listViewer.getStructuredSelection().getFirstElement());
});
@Inject
protected ESelectionService selectionService;
btnSearch.addSelectionListener(new SelectionAdapter() {
public void widgetSelected(SelectionEvent e) {
update();
}
});

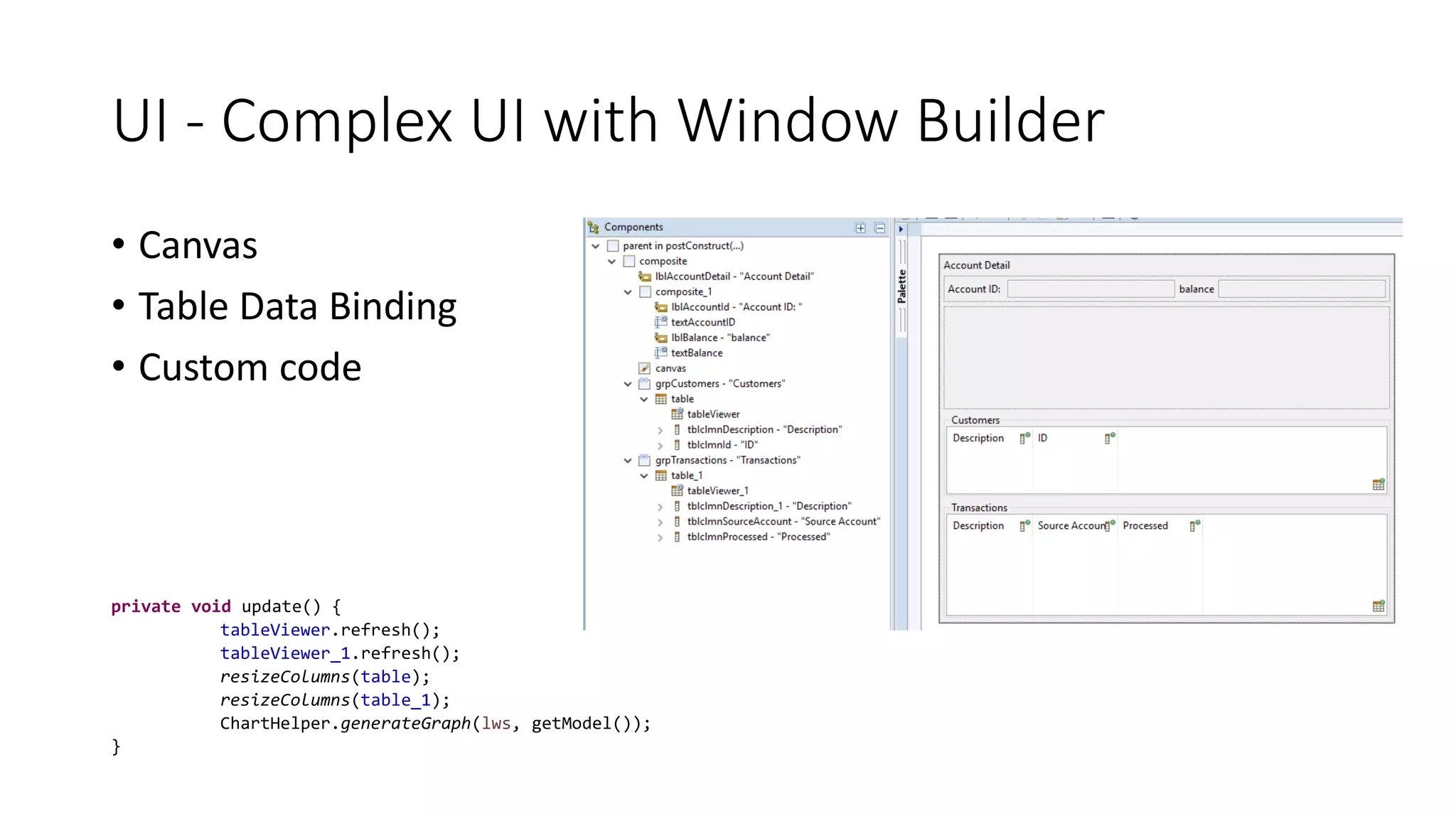

19. UI - Complex UI with Window Builder
• Canvas
• Table Data Binding
• Custom code
private void update() {
tableViewer.refresh();
tableViewer_1.refresh();
resizeColumns(table);
resizeColumns(table_1);
ChartHelper.generateGraph(lws, getModel());
}

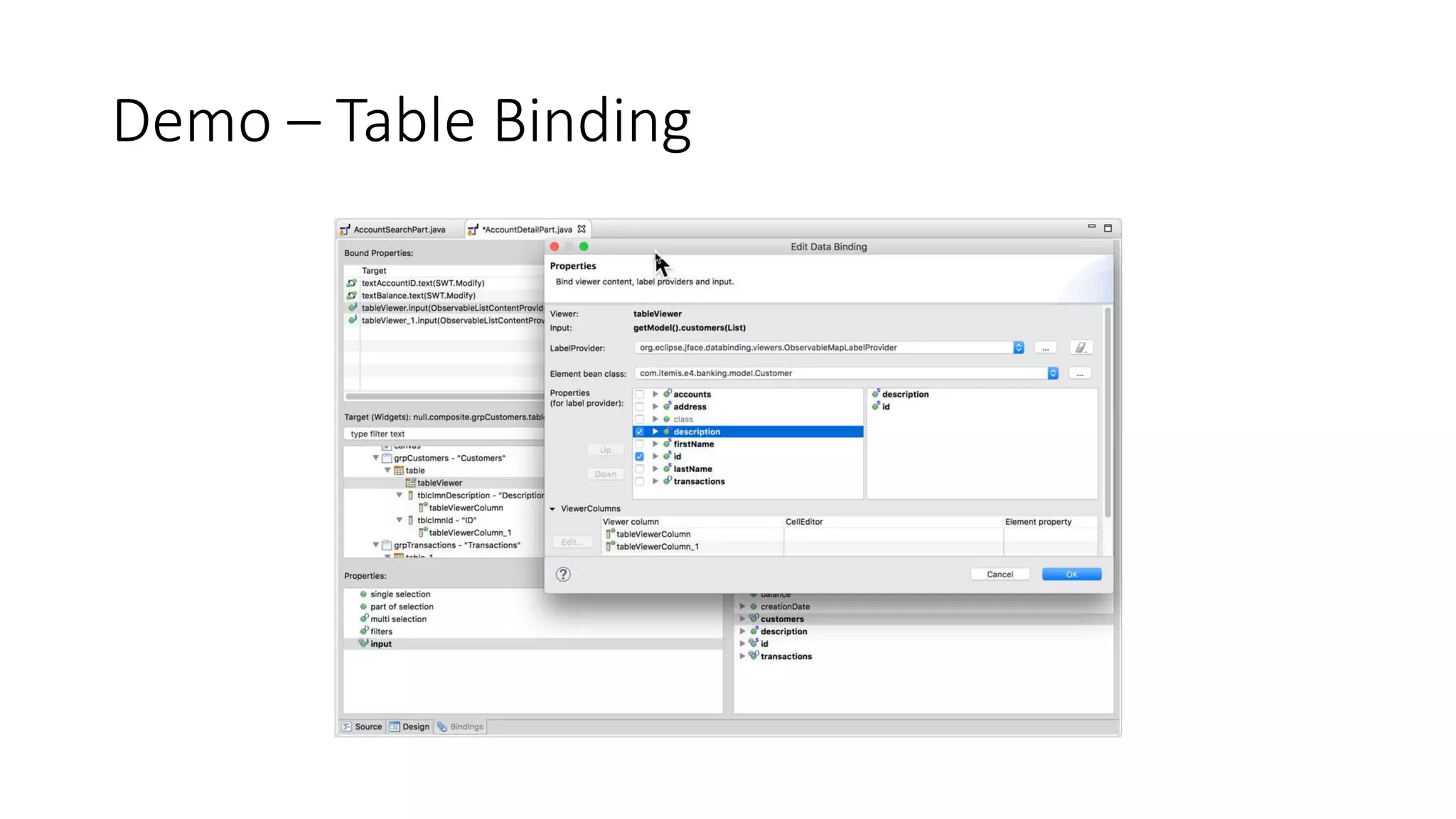

20. Demo – Table Binding

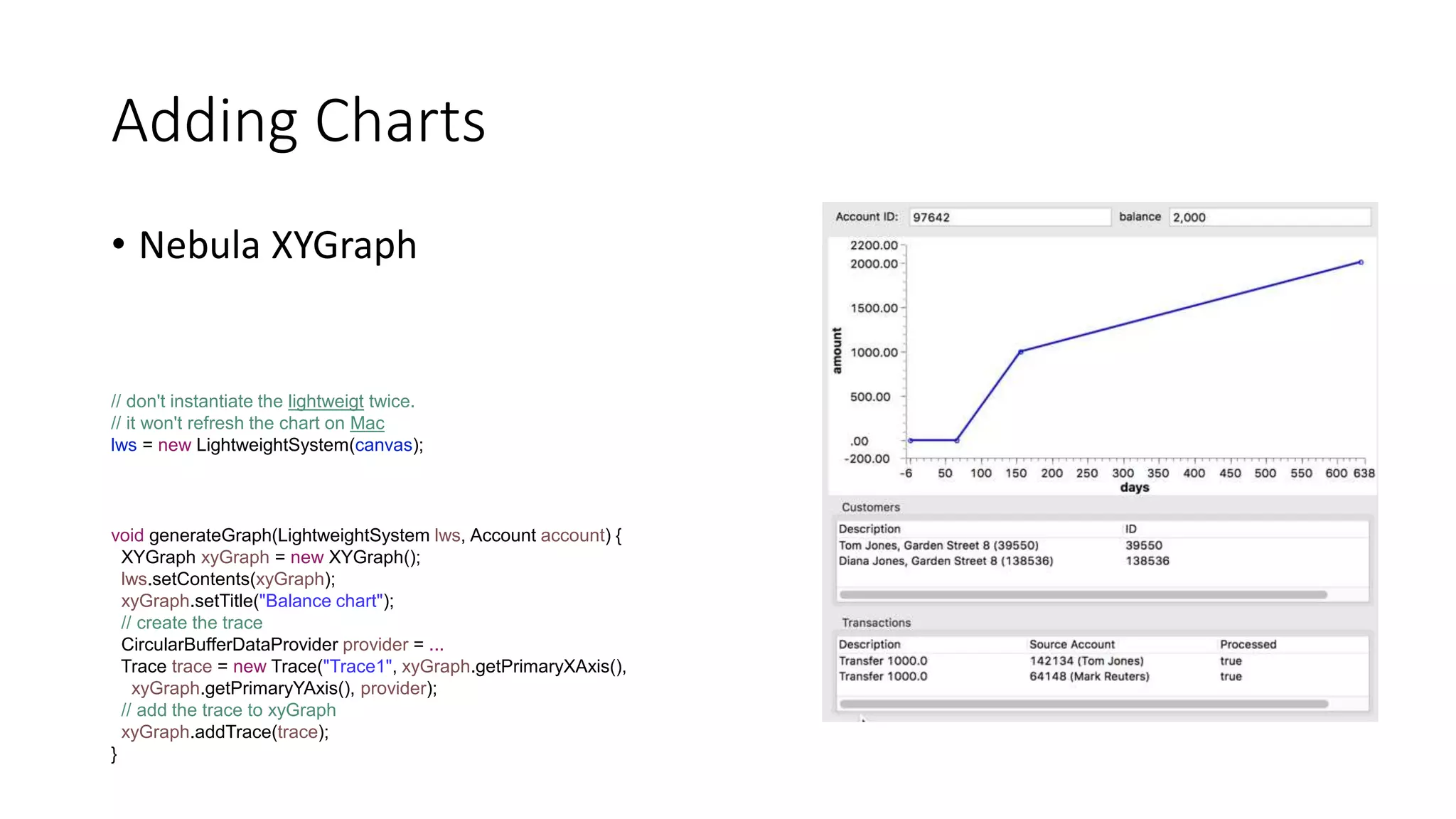

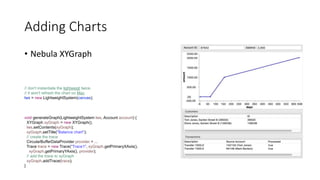

21. Adding Charts
• Nebula XYGraph
// don't instantiate the lightweigt twice.
// it won't refresh the chart on Mac
lws = new LightweightSystem(canvas);
void generateGraph(LightweightSystem lws, Account account) {
XYGraph xyGraph = new XYGraph();
lws.setContents(xyGraph);
xyGraph.setTitle("Balance chart");
// create the trace
CircularBufferDataProvider provider = ...
Trace trace = new Trace("Trace1", xyGraph.getPrimaryXAxis(),
xyGraph.getPrimaryYAxis(), provider);
// add the trace to xyGraph
xyGraph.addTrace(trace);
}

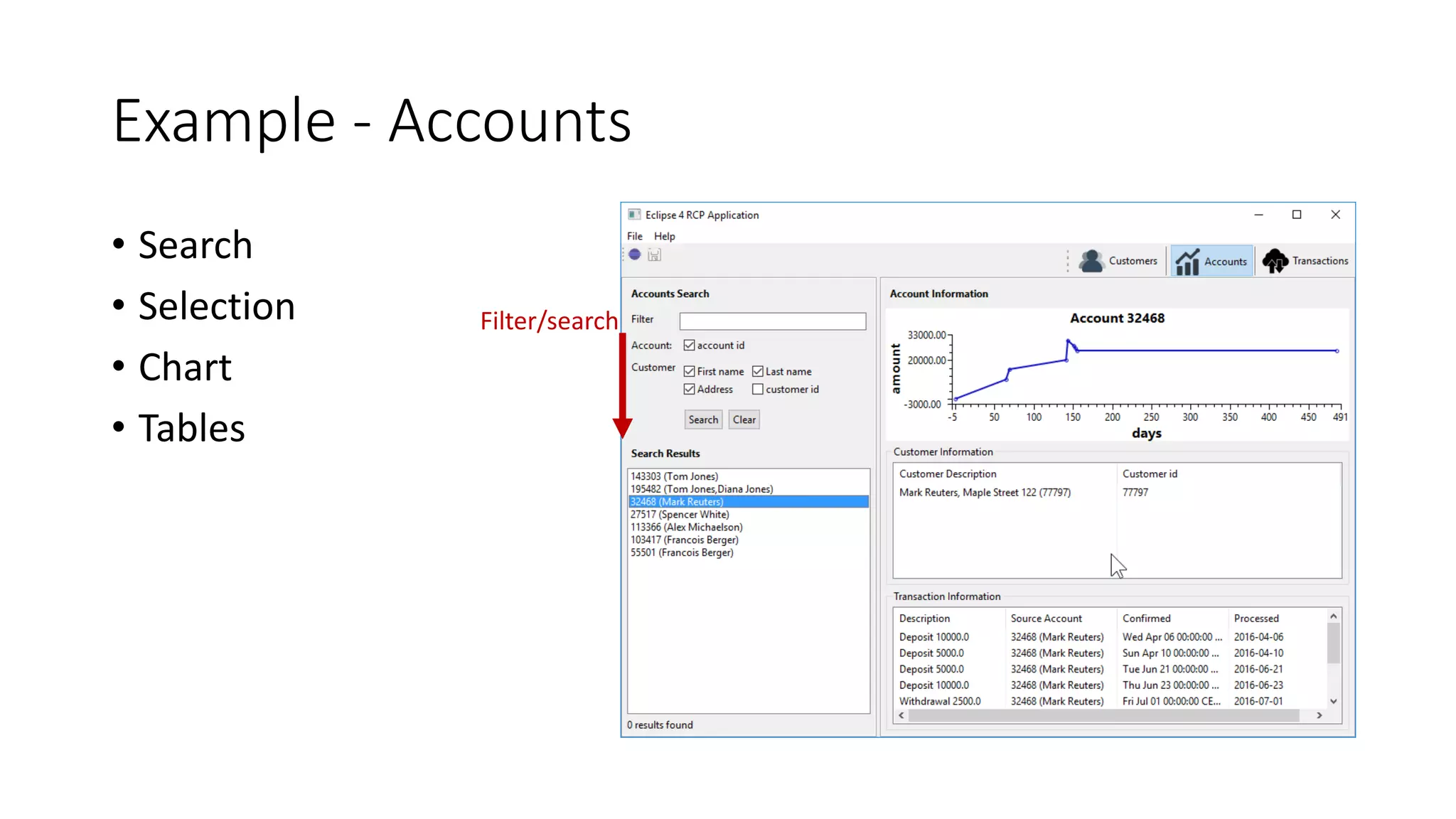

22. Example - Accounts
• Search
• Selection
• Chart
• Tables
Filter/search

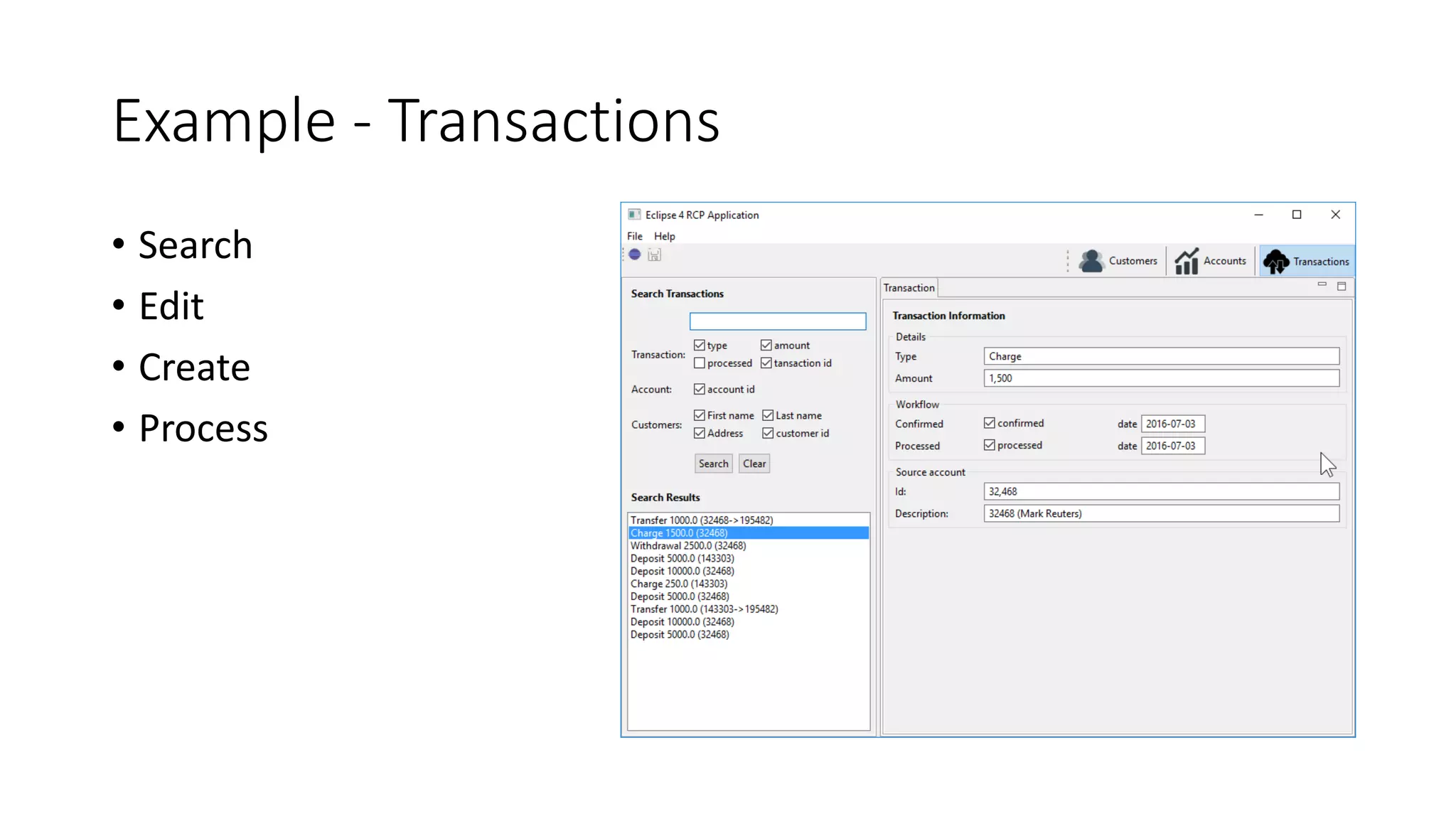

23. Example - Transactions
• Search
• Edit
• Create
• Process

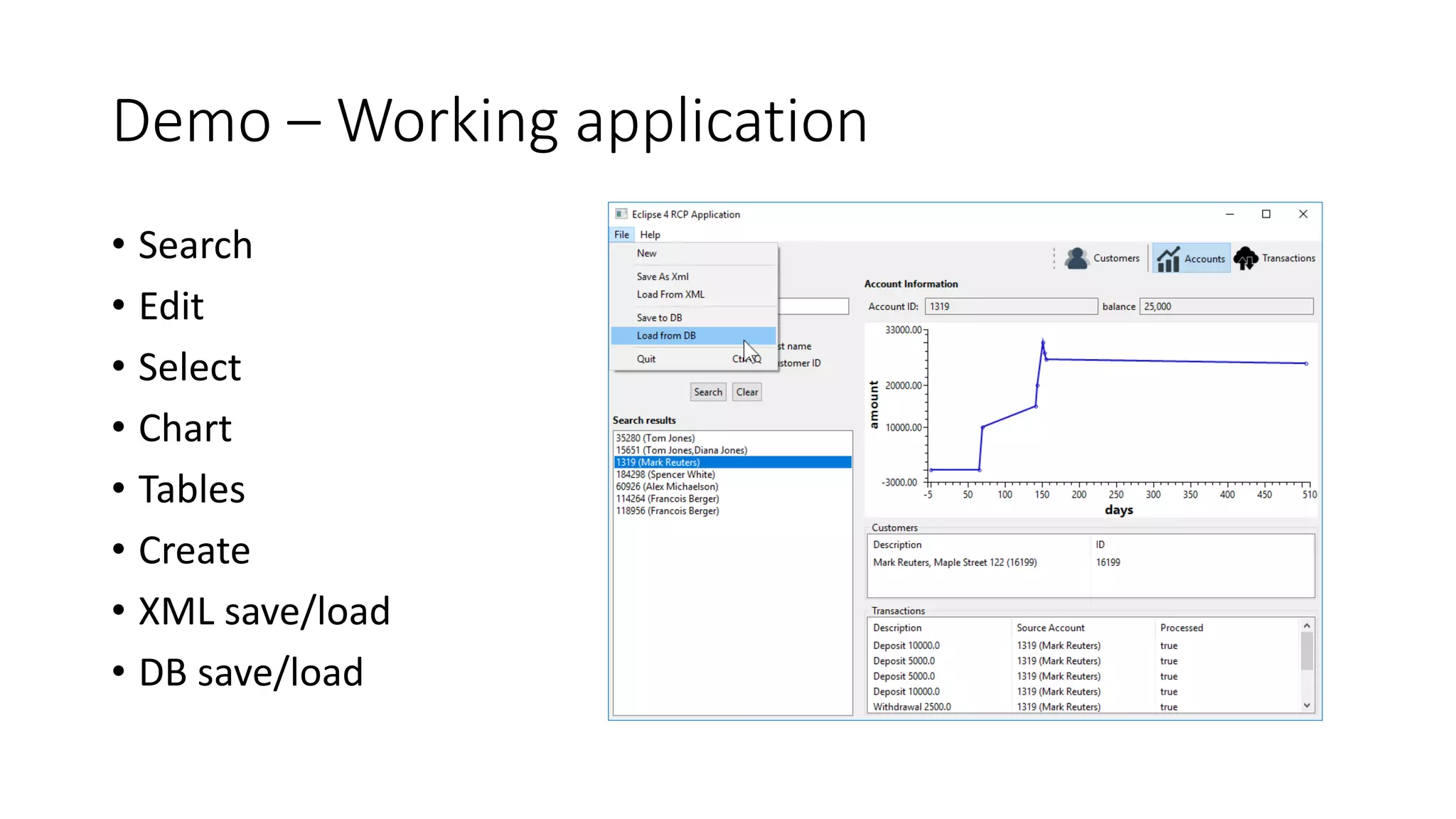

24. Demo – Working application
• Search
• Edit
• Select
• Chart
• Tables
• Create
• XML save/load
• DB save/load

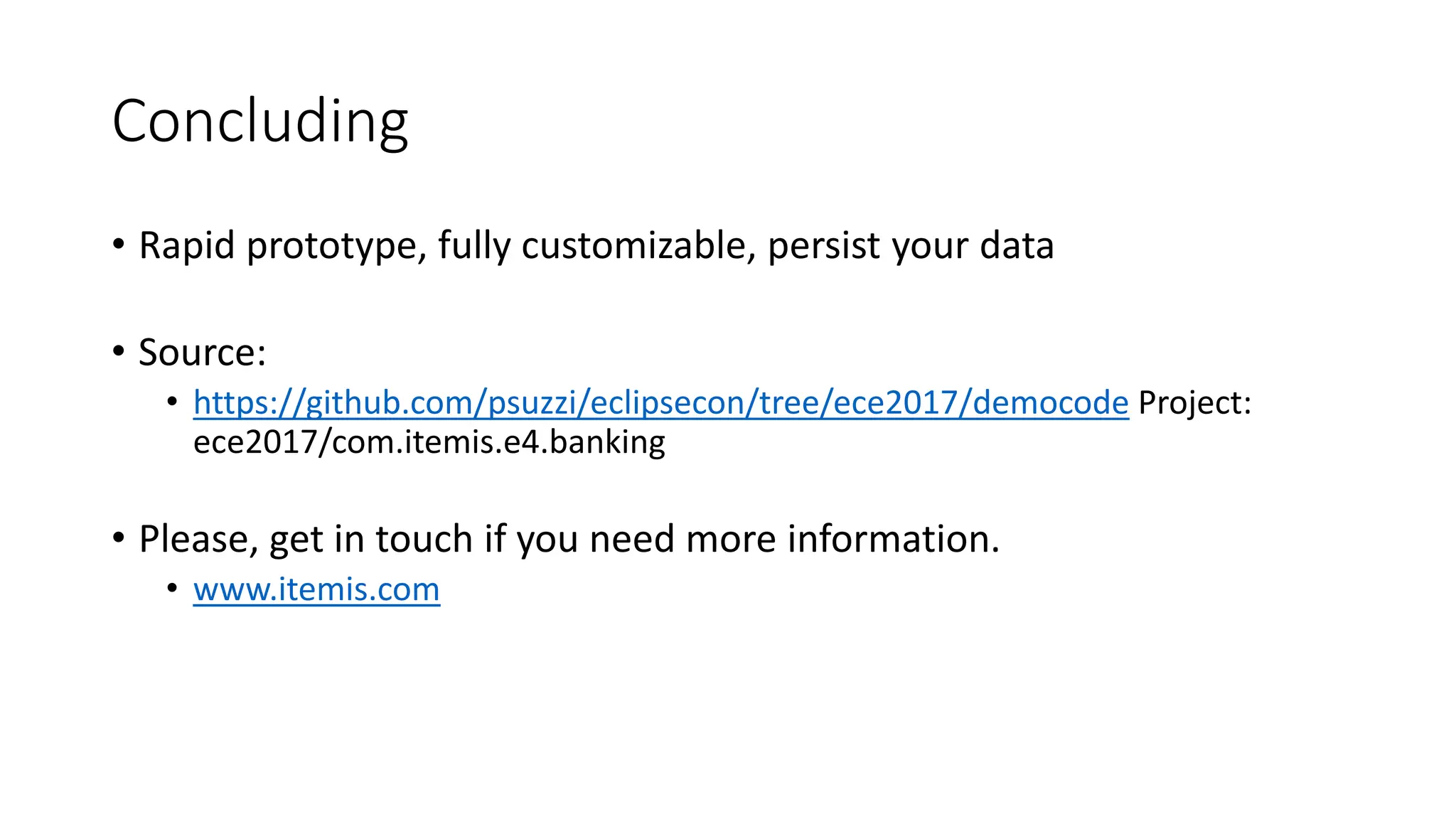

25. Concluding
• Rapid prototype, fully customizable, persist your data
• Source:
• https://github.com/psuzzi/eclipsecon/tree/ece2017/democode Project:
ece2017/com.itemis.e4.banking
• Please, get in touch if you need more information.
• www.itemis.com
