The document provides specifications for parking spaces, compound walls, and lighting/ventilation requirements for religious campus buildings. It lists minimum parking space dimensions of 3m x 6m for individual spaces and 2.75m x 5m for common spaces. The area for each parking space must be at least 23 sqm for open parking, 28 sqm for ground floor covered parking, and 32 sqm for basement parking. Compound walls can be up to 1.5m high or 2.4m high if the top 0.9m is open. Lighting and ventilation requirements specify a percentage of the floor area that must be provided, ranging from one-tenth to one-sixth depending on climate. It also lists

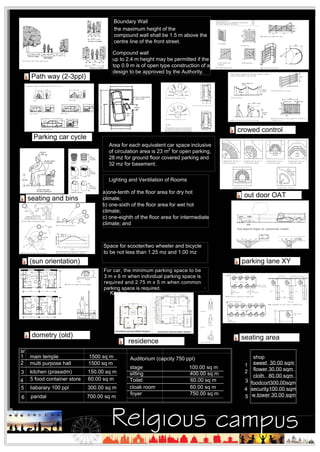

1. Relgious campus
OFF-STREET PARKING SPACES
For car, the minimum parking space to be
3 m x 6 m when individual parking space is
required and 2.75 m x 5 m when common
parking space is required.
Area for each equivalent car space inclusive
of circulation area is 23 m2
for open parking,
28 mz for ground floor covered parking and
32 mz for basement.
Kitchen
.
Boundary Wall
the maximum height of the
compound wall shall be 1.5 m above the
centre line of the front street.
Compound wall
up to 2.4 m height may be permitted if the
top 0.9 m is of open type construction of a
design to be approved by the Authority.
Lighting and Ventilation of Rooms
a)one-tenth of the floor area for dry hot
climate;
b) one-sixth of the floor area for wet hot
climate;
c) one-eighth of the floor area for intermediate
climate; and
sr
1
2
3
4
5
6
main temple 1500 sq m
multi purpose hall 1500 sq m
kitchen (prasadm) 150.00 sq m
5 food container store 60.00 sq m
Auditorium (capcity 750 ppl)
stage 100.00 sq m
sitting 400.00 sq m
Toilet 60.00 sq m
cloak room 60.00 sq m
foyer 750.00 sq m
liabarary 100 ppl 300.00 sq m
pandal 700.00 sq m
shop
sweet 30.00 sqm
flower 30.00 sqm
cloth 80.00 sqm
foodcort300.00sqm
security100.00 sqm
w.tower 30.00 sqm
1
2
3
4
5
Path way (2-3ppl)
crowed control
dometry (old)
(sun orientation)
seating and bins
seating area
residence
parking lane XY
out door OAT
Parking car cycle
Space for scooter/two wheeler and bicycle
to be not less than 1.25 mz and 1.00 mz
