1. Exploring the Differences Between RAM
and ROM
In the realm of computing, two fundamental components play pivotal roles in
ensuring seamless functionality and data management – RAM (Random Access
Memory) and ROM (Read-Only Memory).
While both are types of computer memory, they serve distinct purposes and
exhibit contrasting characteristics.
In this article, we’ll examine the key differences between RAM and ROM,
highlighting their unique attributes and contributions to a computing system’s
overall performance.
RAM: The Swift and Volatile Workhorse
Random Access Memory, commonly known as RAM, is a type of volatile memory
that stores data and machine code currently being used and processed by the
computer’s CPU (Central Processing Unit).
2. The term “random access” implies that any storage location in RAM can be
directly accessed, allowing for swift read and write operations.
Here are some key characteristics of RAM:
1. Volatility: RAM is volatile memory, meaning that its contents are
erased when the power is turned off. This characteristic makes it
ideal for temporary storage and quick data access during the
computer’s operation.
2. Speed: RAM is significantly faster than other types of storage, such
as hard drives or solid-state drives. This speed ensures quick
retrieval of data for active processes, contributing to the system’s
overall performance and responsiveness.
3. Usage: RAM is used to store data that the CPU needs to access
quickly and frequently. This includes running applications, operating
system processes, and actively used files.
4. Capacity: The capacity of RAM is typically measured in gigabytes
(GB) or terabytes (TB). Modern computers usually have several
gigabytes of RAM to accommodate the demands of
resource-intensive applications.
Types of RAM
1. Static RAM: Static RAM, abbreviated as SRAM, employs a
six-transistor memory cell to store a single bit of data.
2. Dynamic RAM: In contrast, Dynamic RAM, known as DRAM, utilizes a
different approach. It stores a bit of data through a combination of
transistors and capacitors, forming a DRAM memory cell.
ROM: The Immutable Foundation
Read-only memory, or ROM, is a non-volatile memory that stores data
permanently and is primarily used to store firmware and essential system
instructions. Unlike RAM, ROM retains its contents even when the power is
turned off.
Here are the key features of ROM:
3. 1. Non-volatility: ROM is non-volatile, making it ideal for storing critical
instructions and firmware needed to boot up the computer. The data
in ROM remains intact even when the system is powered down.
2. Immutability: ROM contents are generally read-only, meaning they
cannot be easily modified or overwritten. This ensures that the
fundamental instructions and data required for the system’s
operation remain unchanged.
3. Usage: ROM is often used to store a computer’s BIOS (Basic
Input/Output System) or firmware, which is essential for the system
to initiate and load the operating system during startup.
4. Types of ROM: There are different types of ROM, including PROM
(Programmable Read-Only Memory), EPROM (Erasable
Programmable Read-Only Memory), and EEPROM (Electrically
Erasable Programmable Read-Only Memory), each with varying
levels of programmability and reusability.
Types of ROM
1. Programmable ROM: Programmable ROM, or PRO, is a category of
Read-Only Memory in which data is written after the memory chip’s
creation and maintains its non-volatile nature.
2. Erasable Programmable ROM: Erasable Programmable ROM, known
as EPROM, is another type of ROM. The data stored on this
non-volatile memory chip can be erased by exposing it to
high-intensity UV light, providing a degree of flexibility in data
modification.
3. Electrically Erasable Programmable ROM: Electrically Erasable
Programmable ROM, or EEPROM, is a distinct form of ROM. In this
non-volatile memory chip, data can be electrically erased through
field electron emission, offering a more convenient method
compared to UV light exposure.
4. Mask ROM: It is a specific type of ROM where the data is
permanently written during the manufacturing of the memory chip.
Unlike the programmable and erasable variants, Mask ROM’s data
remains fixed, providing a stable and unalterable storage solution.
RAM ROM
4. Definition of RAM is Random
Access Memory
Definition of ROM is Read-only
Memory
RAM (Random Access Memory) is
expensive when compared to ROM
ROM is cheaper when compared to
RAM.
The speed of RAM (Random
Access Memory) is higher when
compared to ROM
The speed of Read-only Memory
(ROM) is slower when compared to
RAM.
RAM (Random Access Memory)
has a higher capacity when
compared to ROM
ROM has a lower capacity compared
to RAM
Data in RAM can be modified,
erased, or read.
Data in ROM can only be read, it
cannot be modified or erased.
The data stored in RAM is used by
the CPU (Central Processing Unit)
to process current instructions
The data stored in ROM is used to
bootstrap the computer.
Data stored on RAM can be
accessed by the Central
Processing Unit.
If the CPU (Central Processing Unit)
needs to access the data on ROM,
first the data must be transferred to
RAM, and then the CPU(Central
Processing Unit) will be able to
access the data.
5. Data of RAM is very volatile, it will
exist as long as there is no
interruption in power.
Data present in Read-Only Memory
(ROM) is not volatile, it is permanent.
Data will remain unchanged even
when there is a disruption in the
power supply.
Static RAM vs. Dynamic RAM
SRAM and DRAM, both falling under the category of volatile memory, face data
loss in the event of a power outage. Despite this commonality, these two memory
types exhibit significant distinctions, primarily rooted in their construction.
In the case of SRAM, a flip-flop circuit is employed for each data bit’s storage.
This circuit produces two stable states, denoted as 1 or 0, with the storage
process requiring six transistors.
Four transistors store the bit, while the remaining two manage access to the cell.
Due to the multitude of transistors, SRAM chips exhibit a considerably lower
capacity compared to DRAM chips of similar size.
On the other hand, DRAM necessitates only one transistor and one capacitor for
bit storage. The capacitor retains electrons, determining whether the bit is a 0 or
1, while the transistor serves as a switch for reading and altering the capacitor’s
state.
However, DRAM capacitors tend to leak electrons, leading to a loss of charge. As
a result, periodic refreshing is essential to preserve data, impacting access
speeds and increasing power consumption.
Despite the architectural disparities, SRAM generally outperforms DRAM in terms
of performance and power efficiency, especially during periods of inactivity.
However, the trade-off lies in SRAM’s inability to store as much data as DRAM
and its higher cost. The ensuing table highlights key differences between SRAM
and DRAM.
Feature SRAM DRAM
6. Data
Retention
Retains data without the
need for refreshing
Requires periodic refreshing
to retain data
Constructi
on
Uses a flip-flop circuit for
each data bit
Utilizes one transistor and one
capacitor per bit
Stability More stable due to the
flip-flop circuit
Less stable; capacitors may
leak electrons leading to data
loss
Transistor
Count
Requires six transistors
per bit
Requires one transistor per bit
Access
Speed
Faster access times Slower access times, affected
by refreshing
Power
Consumpt
ion
Generally lower power
consumption, especially
when idle
Higher power consumption,
especially during refresh
cycles
Capacity Lower capacity compared
to DRAM of similar size
Higher capacity for a given
chip size
Cost More expensive Typically less expensive
Conclusion:
In essence, RAM and ROM are integral components of a computer’s memory
hierarchy, each serving a distinct purpose in facilitating the seamless operation
of a computing system.

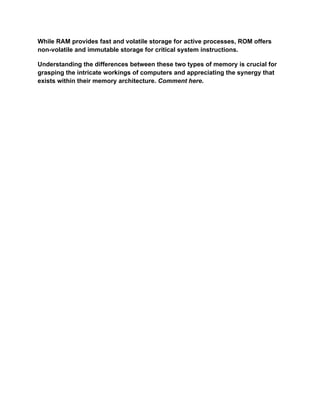

7. While RAM provides fast and volatile storage for active processes, ROM offers
non-volatile and immutable storage for critical system instructions.
Understanding the differences between these two types of memory is crucial for
grasping the intricate workings of computers and appreciating the synergy that
exists within their memory architecture. Comment here.
