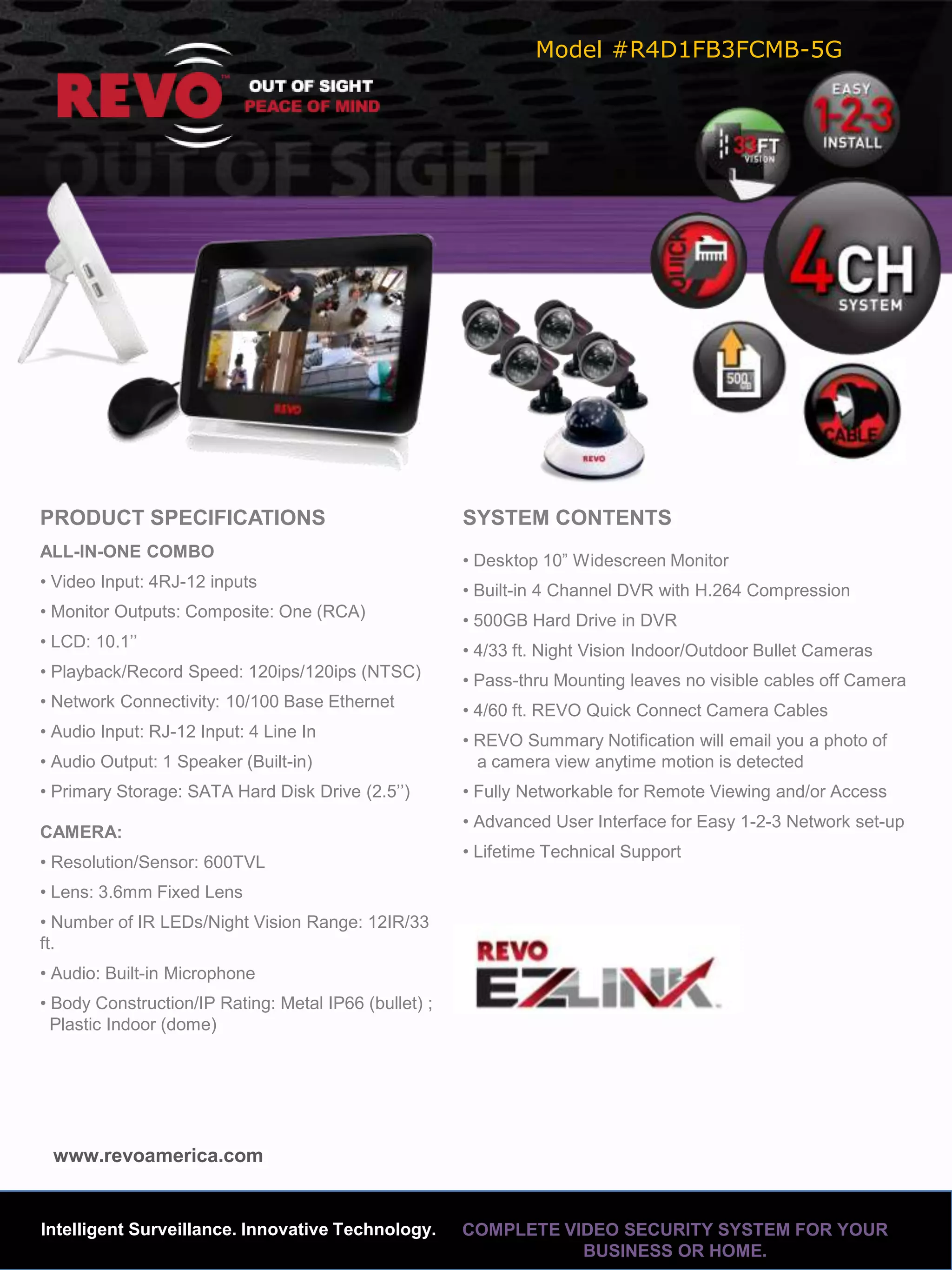

This document provides product specifications for an all-in-one combo video security system that includes a 10-inch widescreen monitor, built-in 4-channel DVR with 500GB hard drive and H.264 compression, 4 indoor/outdoor bullet cameras with night vision up to 33 feet, camera cables, and advanced network capabilities for remote viewing and access. The system offers 120ips playback and recording speed, 4 RJ-12 video inputs, composite and Ethernet connectivity, and lifetime technical support.

1. Model #R4D1FB3FCMB-5G
PRODUCT SPECIFICATIONS SYSTEM CONTENTS
ALL-IN-ONE COMBO
• Desktop 10” Widescreen Monitor
• Video Input: 4RJ-12 inputs • Built-in 4 Channel DVR with H.264 Compression
• Monitor Outputs: Composite: One (RCA)
• 500GB Hard Drive in DVR
• LCD: 10.1’’
• 4/33 ft. Night Vision Indoor/Outdoor Bullet Cameras
• Playback/Record Speed: 120ips/120ips (NTSC) • Pass-thru Mounting leaves no visible cables off Camera
• Network Connectivity: 10/100 Base Ethernet
• 4/60 ft. REVO Quick Connect Camera Cables
• Audio Input: RJ-12 Input: 4 Line In
• REVO Summary Notification will email you a photo of
• Audio Output: 1 Speaker (Built-in) a camera view anytime motion is detected
• Primary Storage: SATA Hard Disk Drive (2.5’’) • Fully Networkable for Remote Viewing and/or Access
• Advanced User Interface for Easy 1-2-3 Network set-up
CAMERA:
• Lifetime Technical Support
• Resolution/Sensor: 600TVL
• Lens: 3.6mm Fixed Lens
• Number of IR LEDs/Night Vision Range: 12IR/33
ft.
• Audio: Built-in Microphone
• Body Construction/IP Rating: Metal IP66 (bullet) ;
Plastic Indoor (dome)
www.revoamerica.com
Intelligent Surveillance. Innovative Technology. COMPLETE VIDEO SECURITY SYSTEM FOR YOUR
BUSINESS OR HOME.
