1. Visit: http://qtp12.blogspot.com/

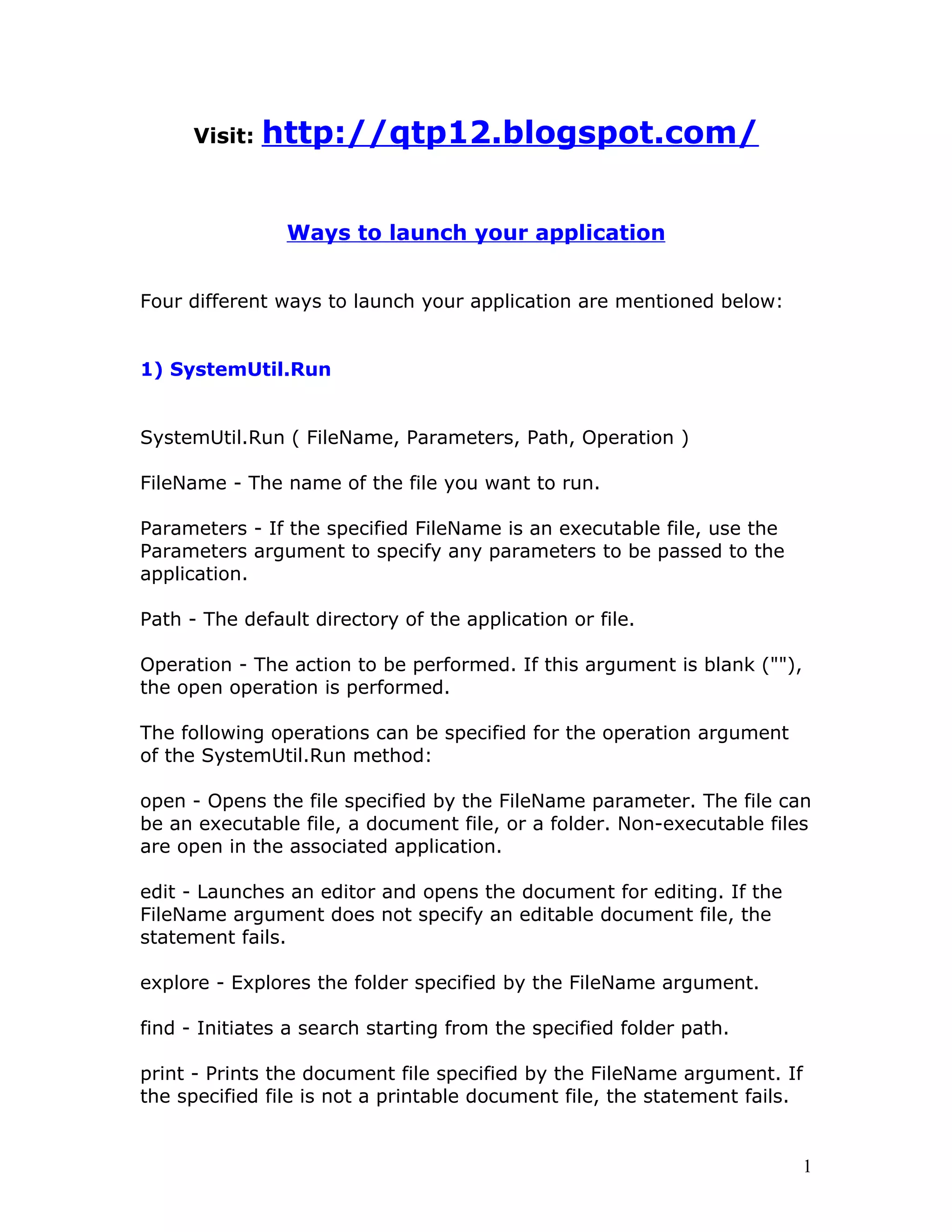

Ways to launch your application
Four different ways to launch your application are mentioned below:
1) SystemUtil.Run
SystemUtil.Run ( FileName, Parameters, Path, Operation )
FileName - The name of the file you want to run.
Parameters - If the specified FileName is an executable file, use the
Parameters argument to specify any parameters to be passed to the
application.
Path - The default directory of the application or file.
Operation - The action to be performed. If this argument is blank (""),
the open operation is performed.
The following operations can be specified for the operation argument
of the SystemUtil.Run method:
open - Opens the file specified by the FileName parameter. The file can
be an executable file, a document file, or a folder. Non-executable files
are open in the associated application.
edit - Launches an editor and opens the document for editing. If the
FileName argument does not specify an editable document file, the
statement fails.
explore - Explores the folder specified by the FileName argument.
find - Initiates a search starting from the specified folder path.
print - Prints the document file specified by the FileName argument. If
the specified file is not a printable document file, the statement fails.
1

2. Example:SystemUtil.Run "D:My MusicBreathe.mp3","","D:My Music
Details","open"
2) InvokeApplication
This command is now mainly used for the backward compatability ie to
use with the lower versions(below QTP 6.0) of QTP.
InvokeApplication("Full URL as Parameter")
Example:InvokeApplication "C:Program FilesInternet
ExplorerIEXPLORE.EXE http://www.yahoo.com"
3) VBscript to invoke application
1. Create a "WScript.shell" object.
2. Use the "run" object to launch the application. If the path to your
executable contains spaces, use Chr(34) to ensure the path is
contained within double quotes.
3. When done, set the shell object to nothing to release it.
Example:
Dim oShellSet oShell = CreateObject ("Wscript.shell")'
Example 1 - run a batch file:oShell.run
"F:jdk1.3.1demojfcSwingSet2.bat"'
Example 2 - run a Java jar file:oShell.run "java -jar F:jdk1.3.1demo
2

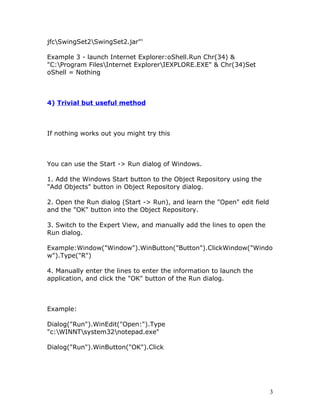

3. jfcSwingSet2SwingSet2.jar"'
Example 3 - launch Internet Explorer:oShell.Run Chr(34) &
"C:Program FilesInternet ExplorerIEXPLORE.EXE" & Chr(34)Set
oShell = Nothing
4) Trivial but useful method
If nothing works out you might try this
You can use the Start -> Run dialog of Windows.
1. Add the Windows Start button to the Object Repository using the
"Add Objects" button in Object Repository dialog.
2. Open the Run dialog (Start -> Run), and learn the "Open" edit field
and the "OK" button into the Object Repository.
3. Switch to the Expert View, and manually add the lines to open the
Run dialog.
Example:Window("Window").WinButton("Button").ClickWindow("Windo
w").Type("R")
4. Manually enter the lines to enter the information to launch the
application, and click the "OK" button of the Run dialog.
Example:
Dialog("Run").WinEdit("Open:").Type
"c:WINNTsystem32notepad.exe"
Dialog("Run").WinButton("OK").Click
3

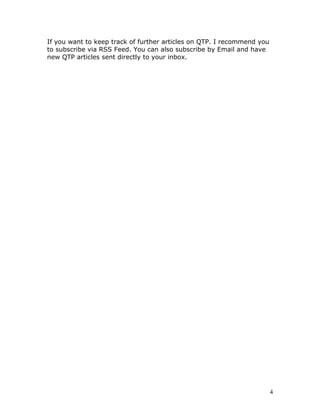

4. If you want to keep track of further articles on QTP. I recommend you
