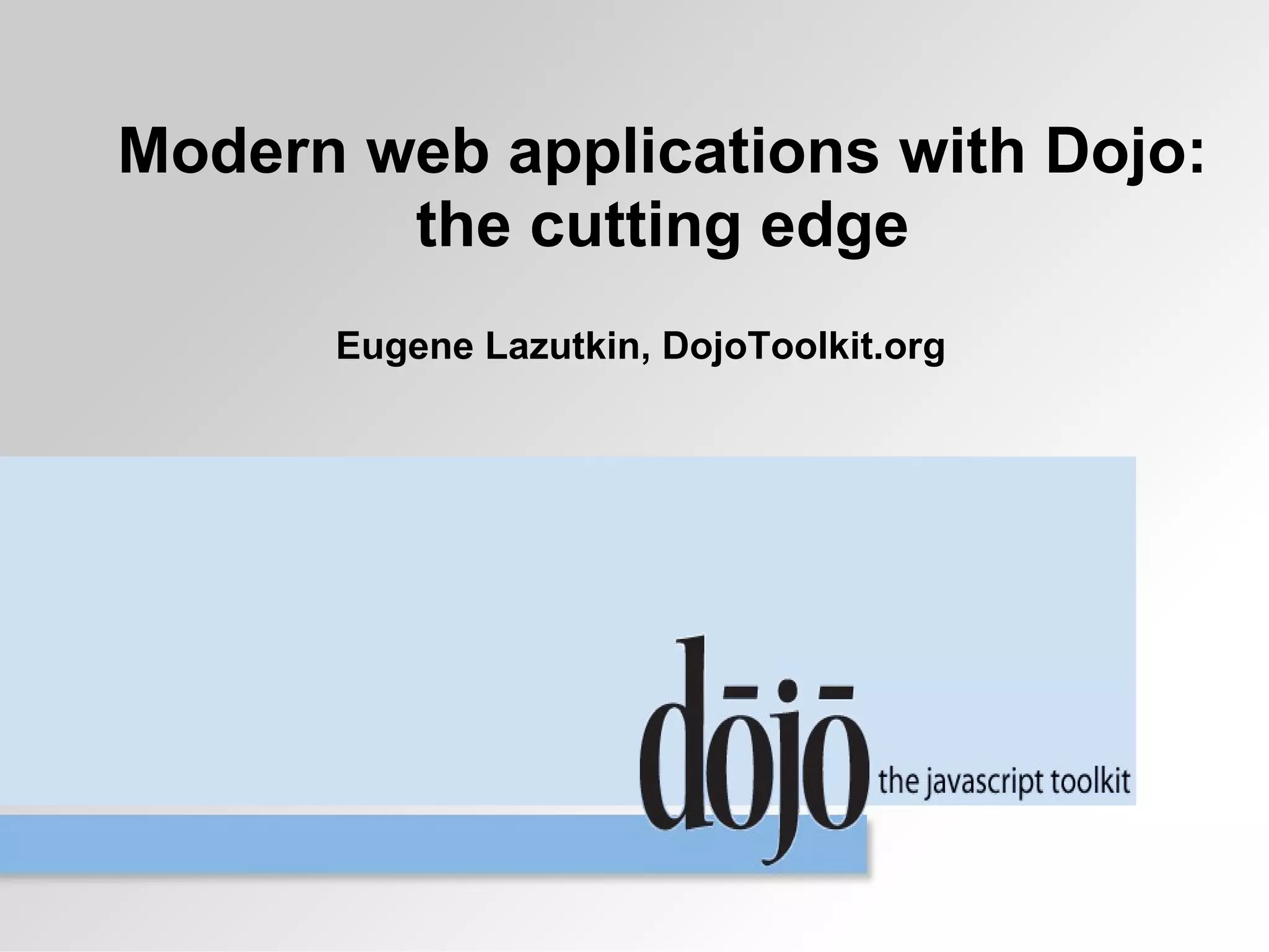

1. Modern web applications with Dojo:
the cutting edge
Eugene Lazutkin, DojoToolkit.org

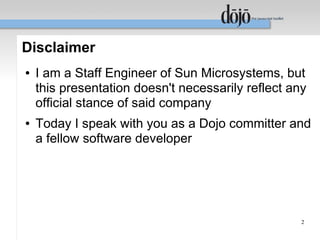

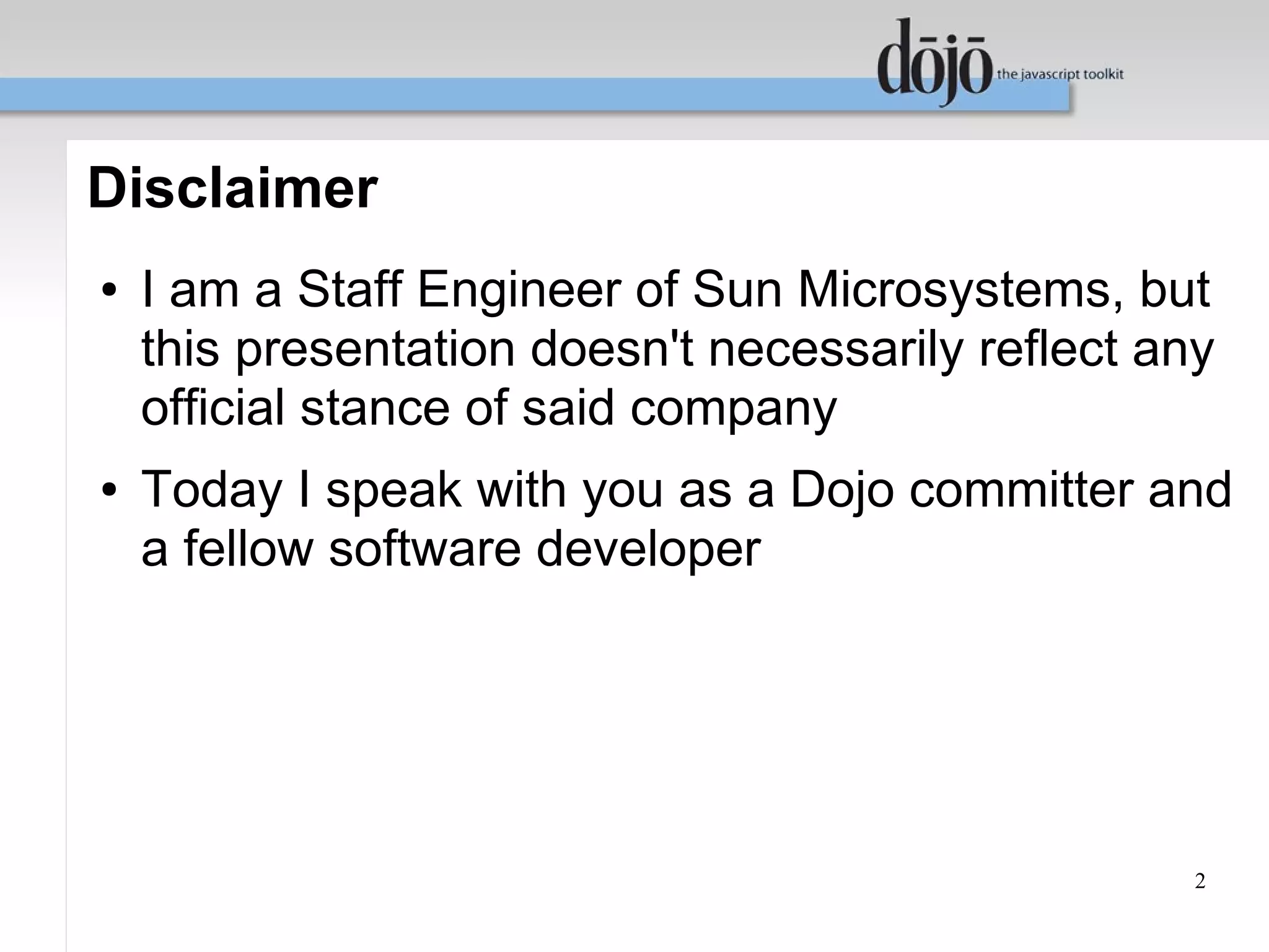

2. Disclaimer
● I am a Staff Engineer of Sun Microsystems, but
this presentation doesn't necessarily reflect any
official stance of said company
● Today I speak with you as a Dojo committer and
a fellow software developer
2

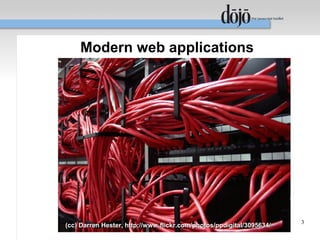

3. Modern web applications
3
(cc) Darren Hester, http://www.flickr.com/photos/ppdigital/3095634/

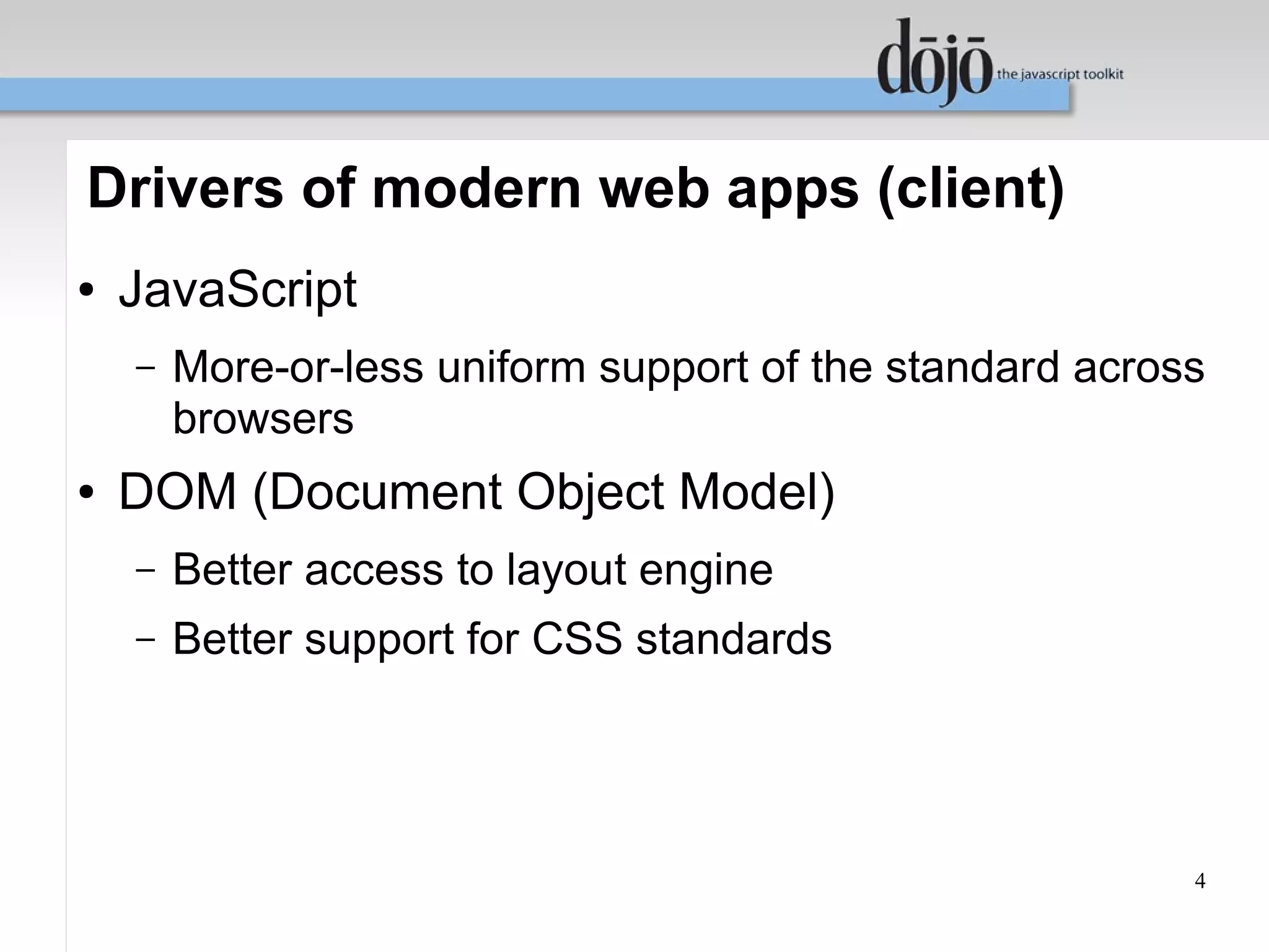

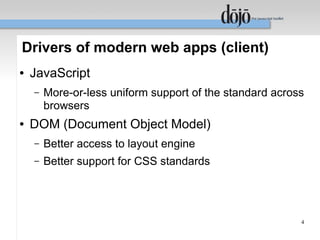

4. Drivers of modern web apps (client)
● JavaScript
– More-or-less uniform support of the standard across
browsers
● DOM (Document Object Model)
– Better access to layout engine
– Better support for CSS standards
4

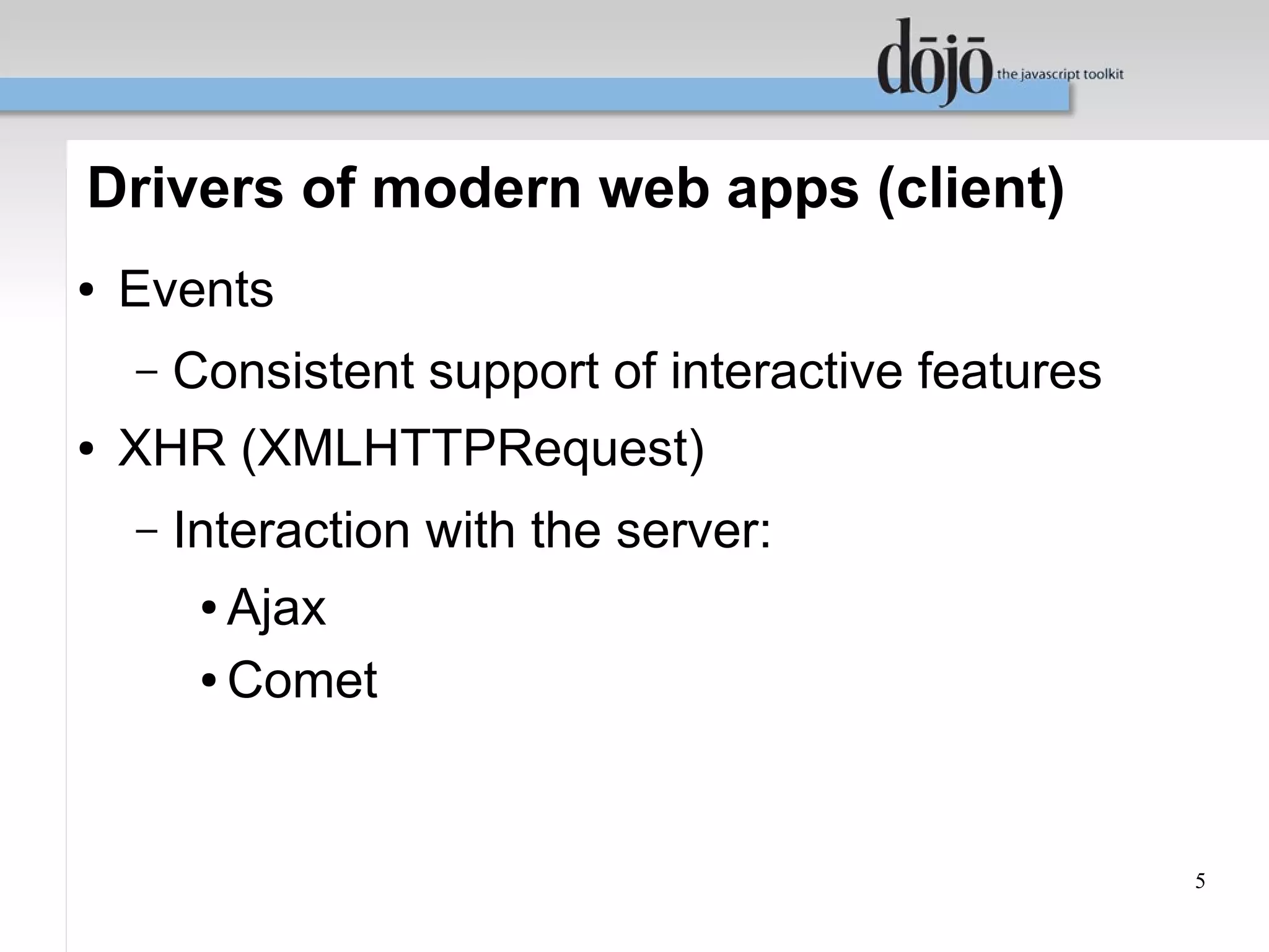

5. Drivers of modern web apps (client)
● Events
– Consistent support of interactive features
● XHR (XMLHTTPRequest)
– Interaction with the server:
● Ajax
● Comet
5

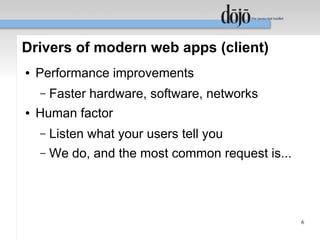

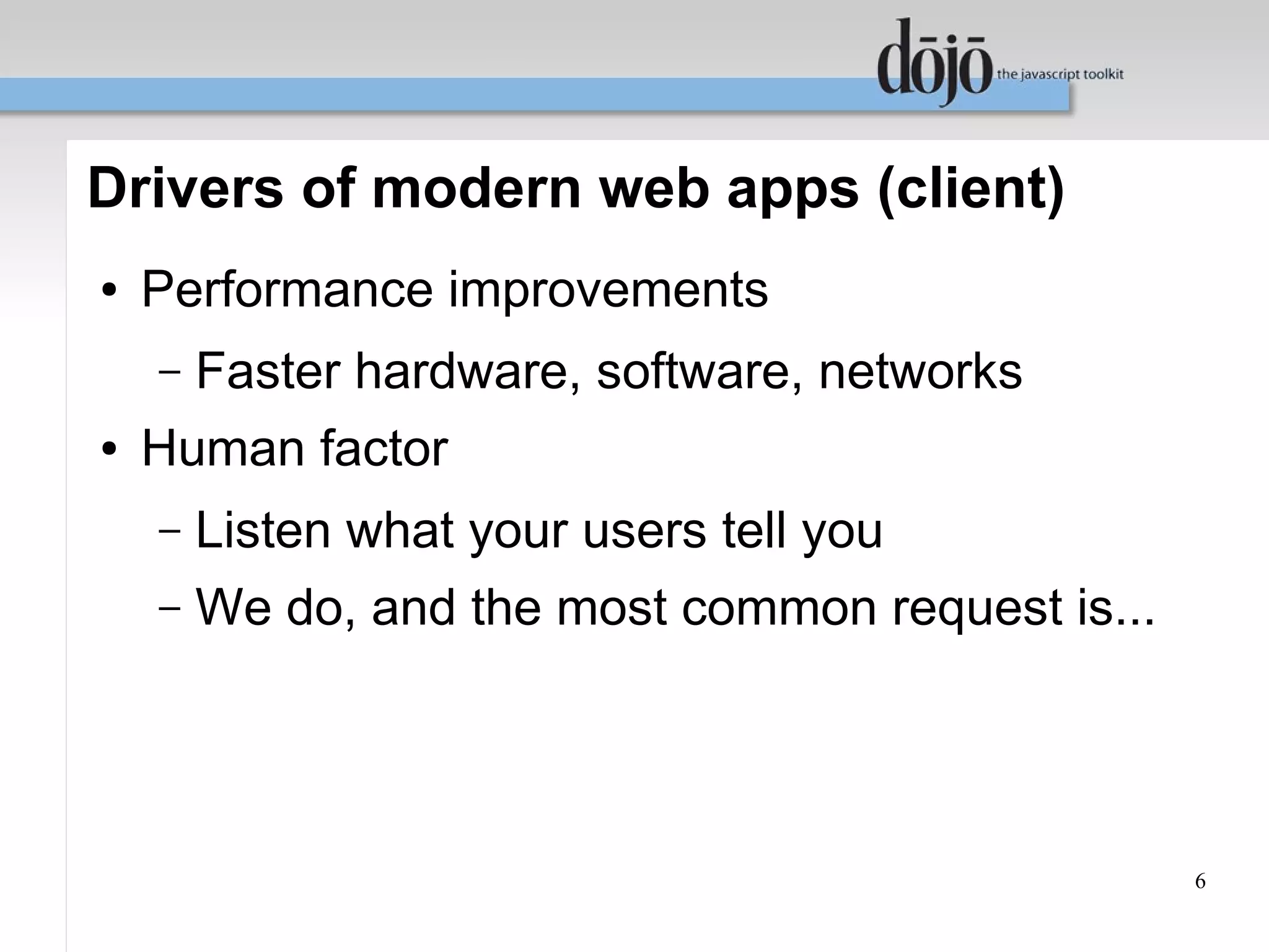

6. Drivers of modern web apps (client)
● Performance improvements
– Faster hardware, software, networks
● Human factor
– Listen what your users tell you
– We do, and the most common request is...
6

7. “We want better user experience!”
(cc) Jacob Appelbaum, http://www.flickr.com/photos/ioerror/407491823/ 7
Zombie Mob (San Francisco, CA, USA)

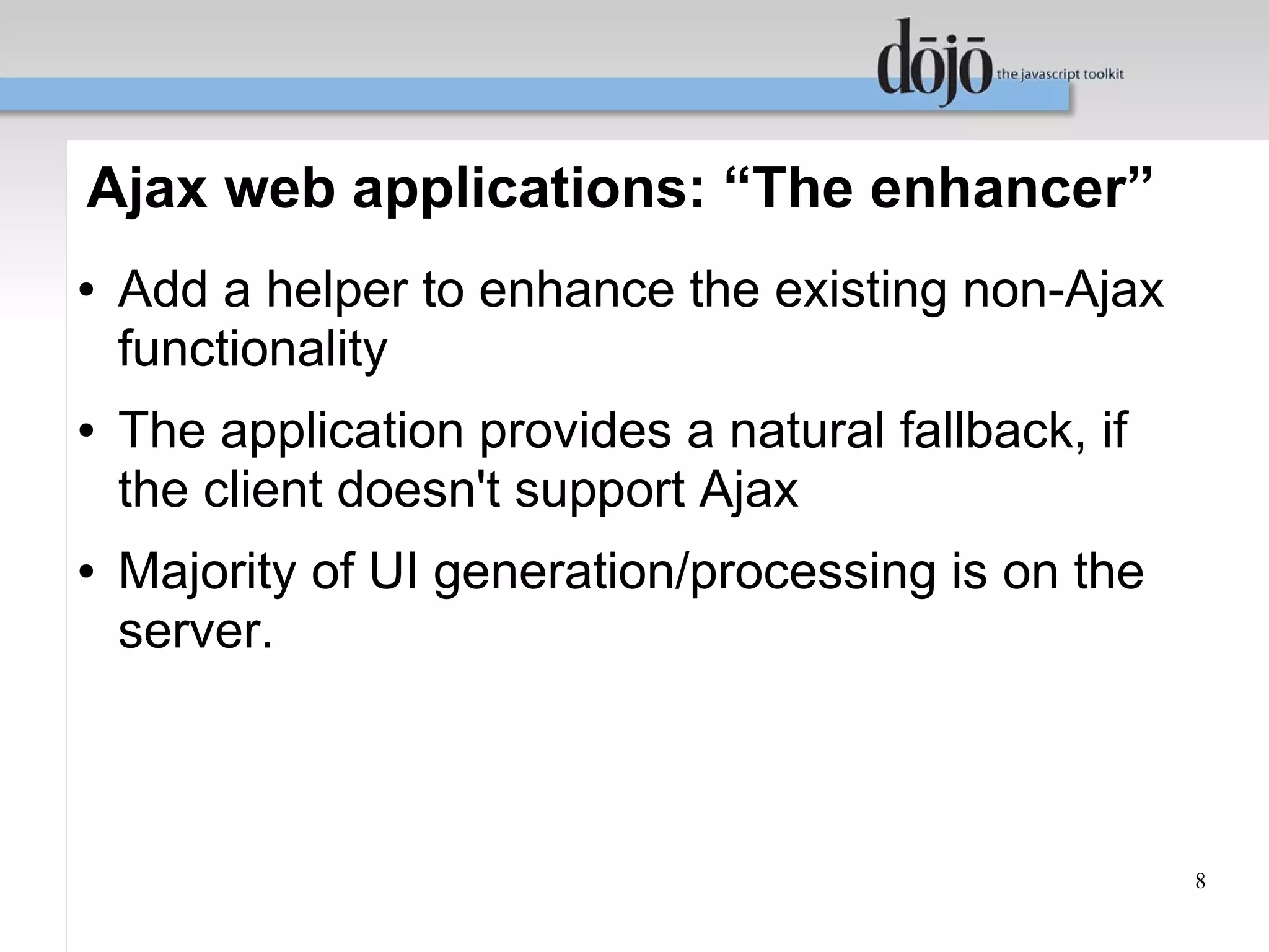

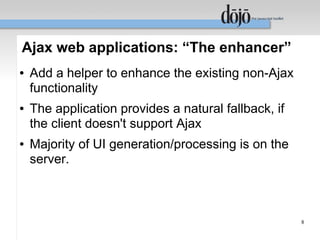

8. Ajax web applications: “The enhancer”
● Add a helper to enhance the existing non-Ajax
functionality
● The application provides a natural fallback, if
the client doesn't support Ajax
● Majority of UI generation/processing is on the
server.
8

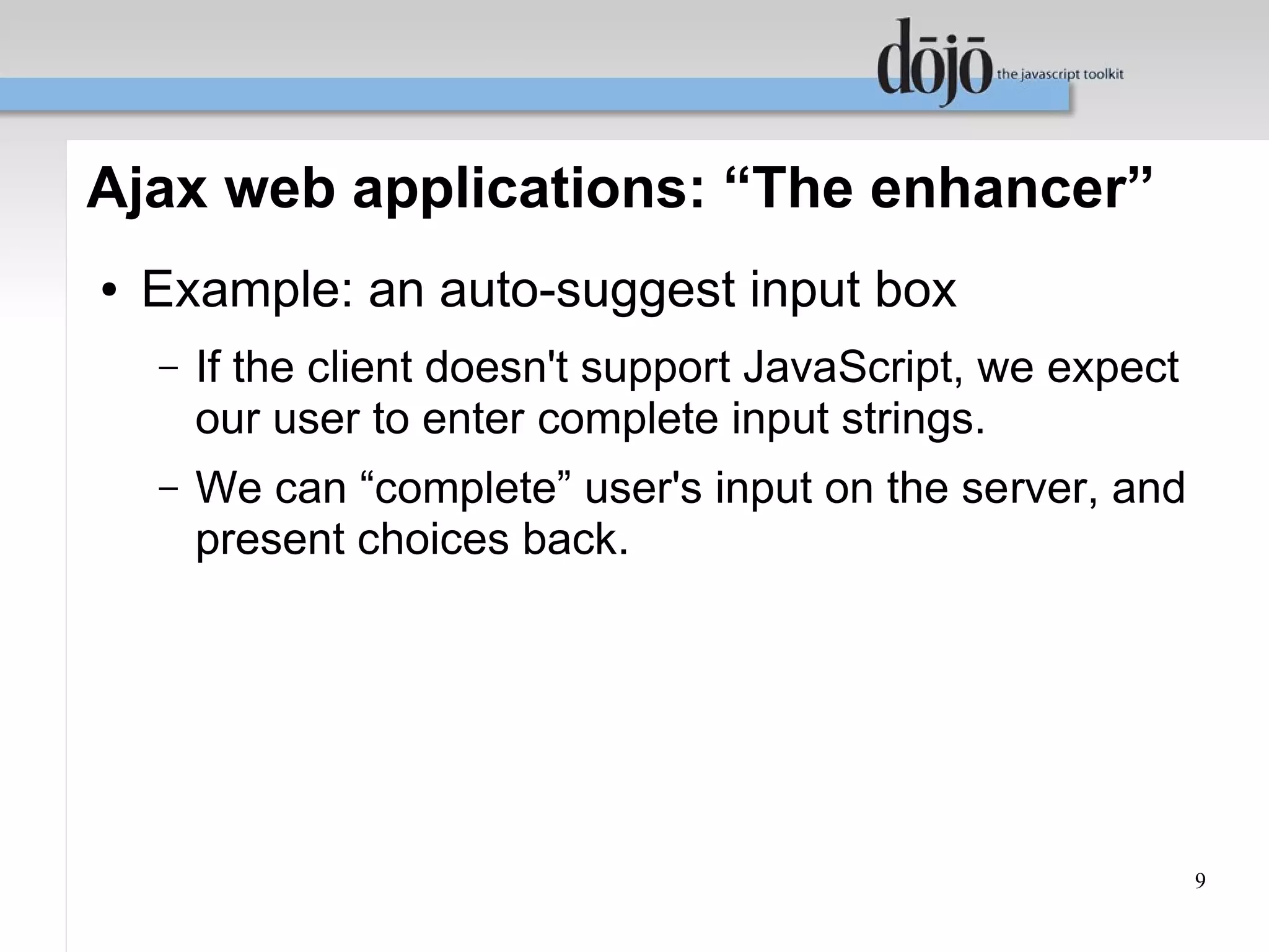

9. Ajax web applications: “The enhancer”
● Example: an auto-suggest input box
– If the client doesn't support JavaScript, we expect
our user to enter complete input strings.
– We can “complete” user's input on the server, and
present choices back.
9

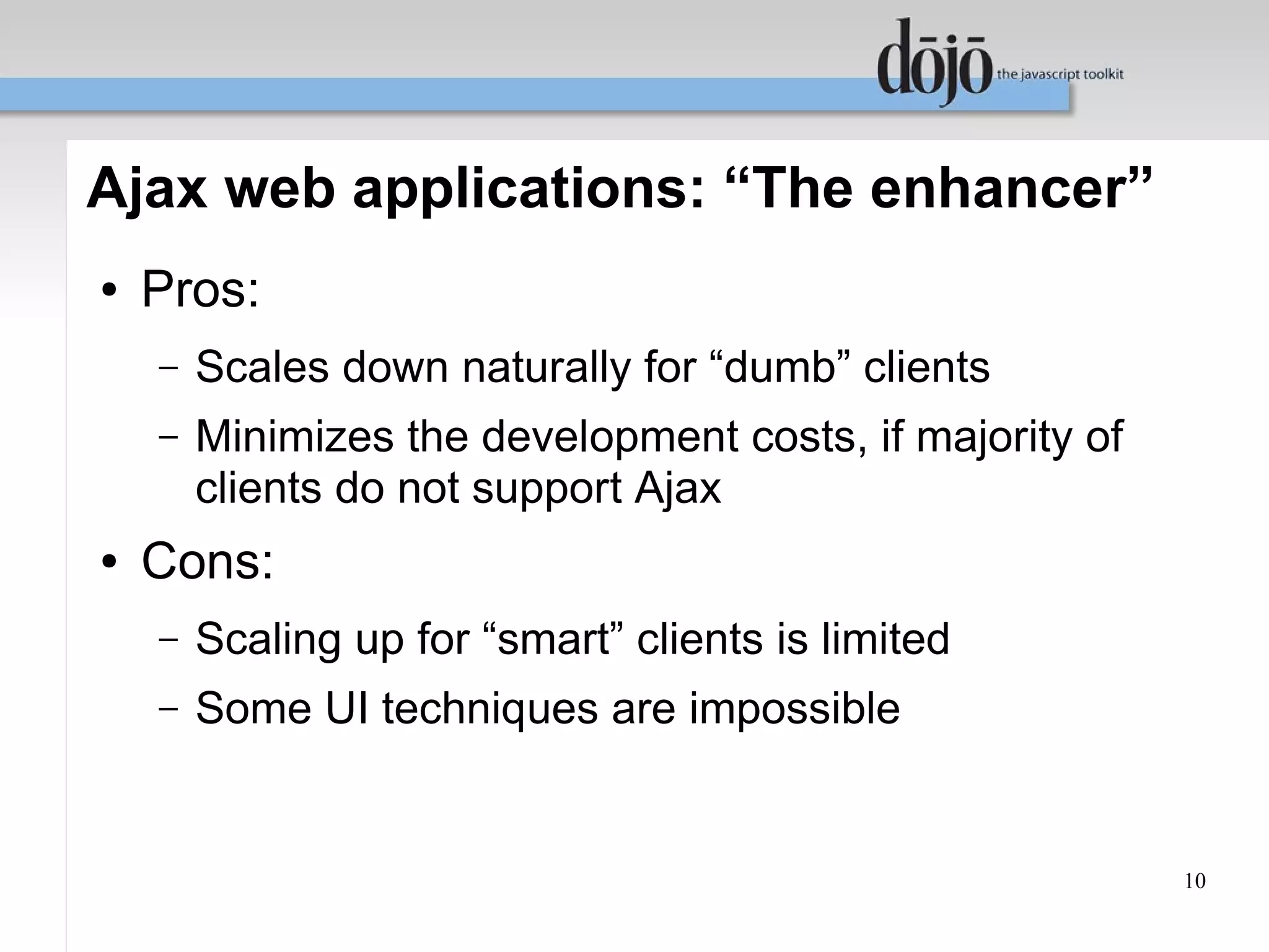

10. Ajax web applications: “The enhancer”
● Pros:
– Scales down naturally for “dumb” clients
– Minimizes the development costs, if majority of
clients do not support Ajax
● Cons:
– Scaling up for “smart” clients is limited
– Some UI techniques are impossible
10

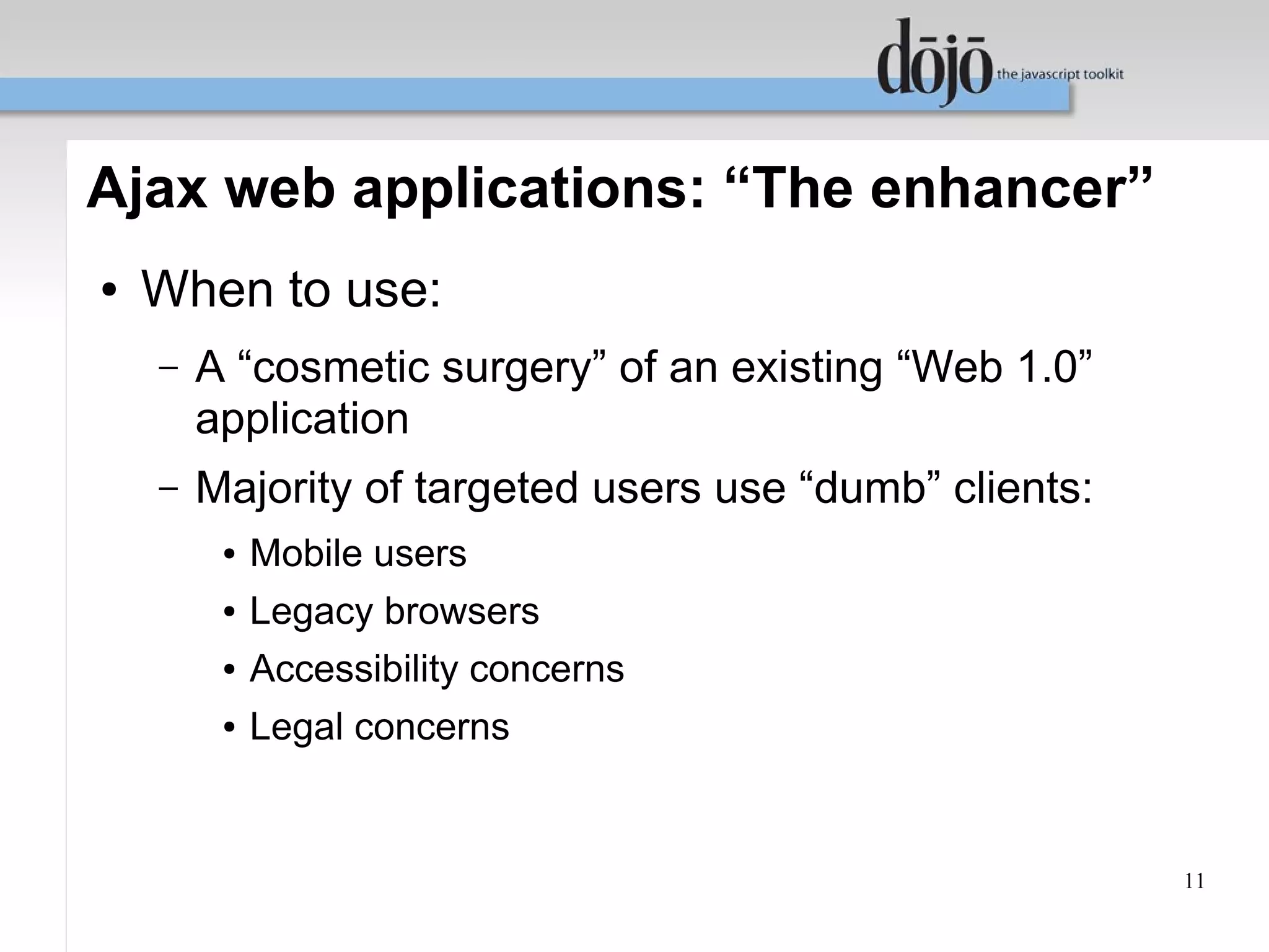

11. Ajax web applications: “The enhancer”
● When to use:
– A “cosmetic surgery” of an existing “Web 1.0”
application
– Majority of targeted users use “dumb” clients:
● Mobile users
● Legacy browsers
● Accessibility concerns
● Legal concerns
11

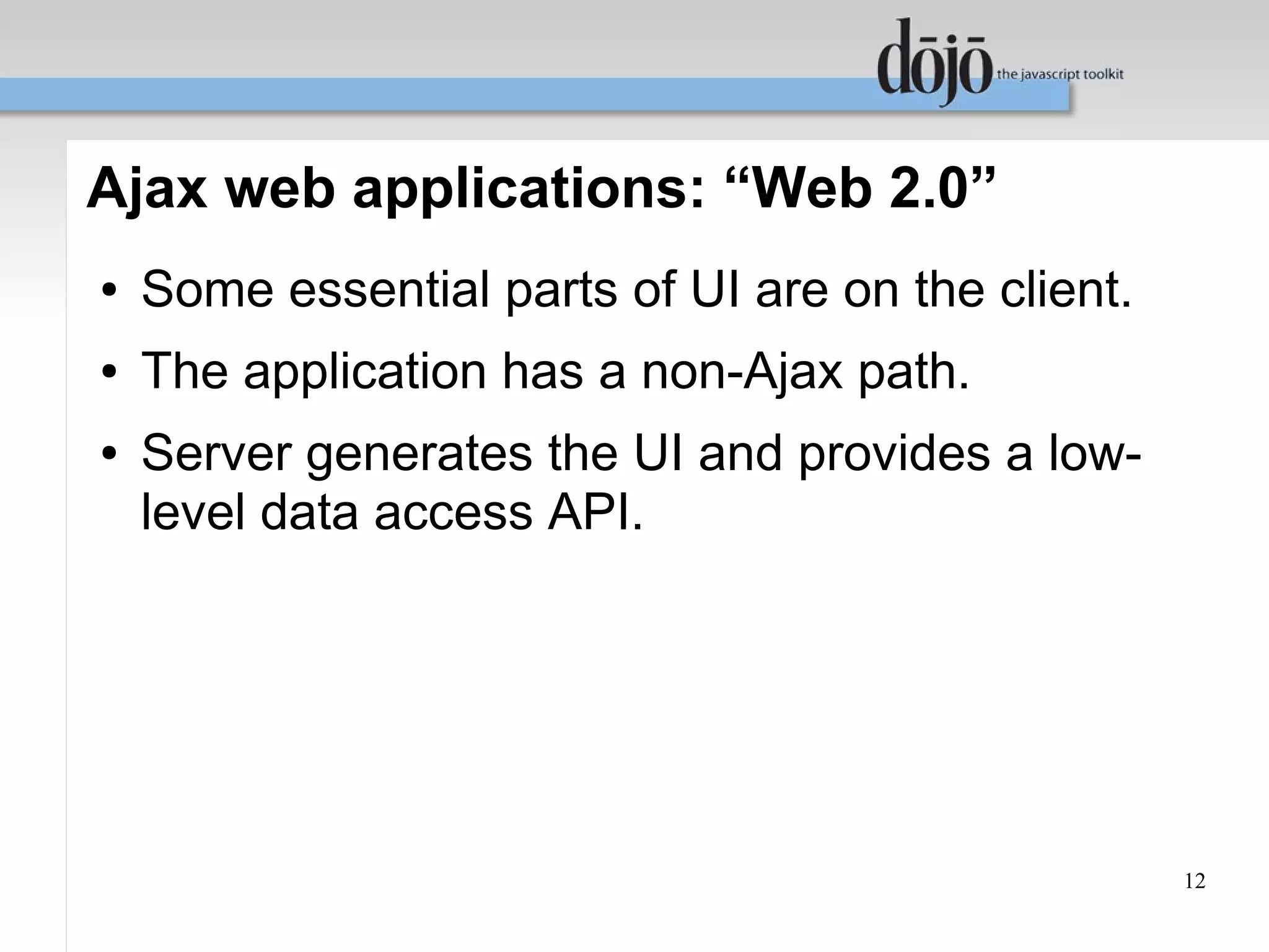

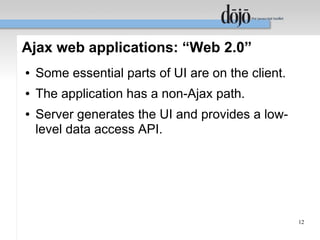

12. Ajax web applications: “Web 2.0”
● Some essential parts of UI are on the client.
● The application has a non-Ajax path.
● Server generates the UI and provides a low-
level data access API.
12

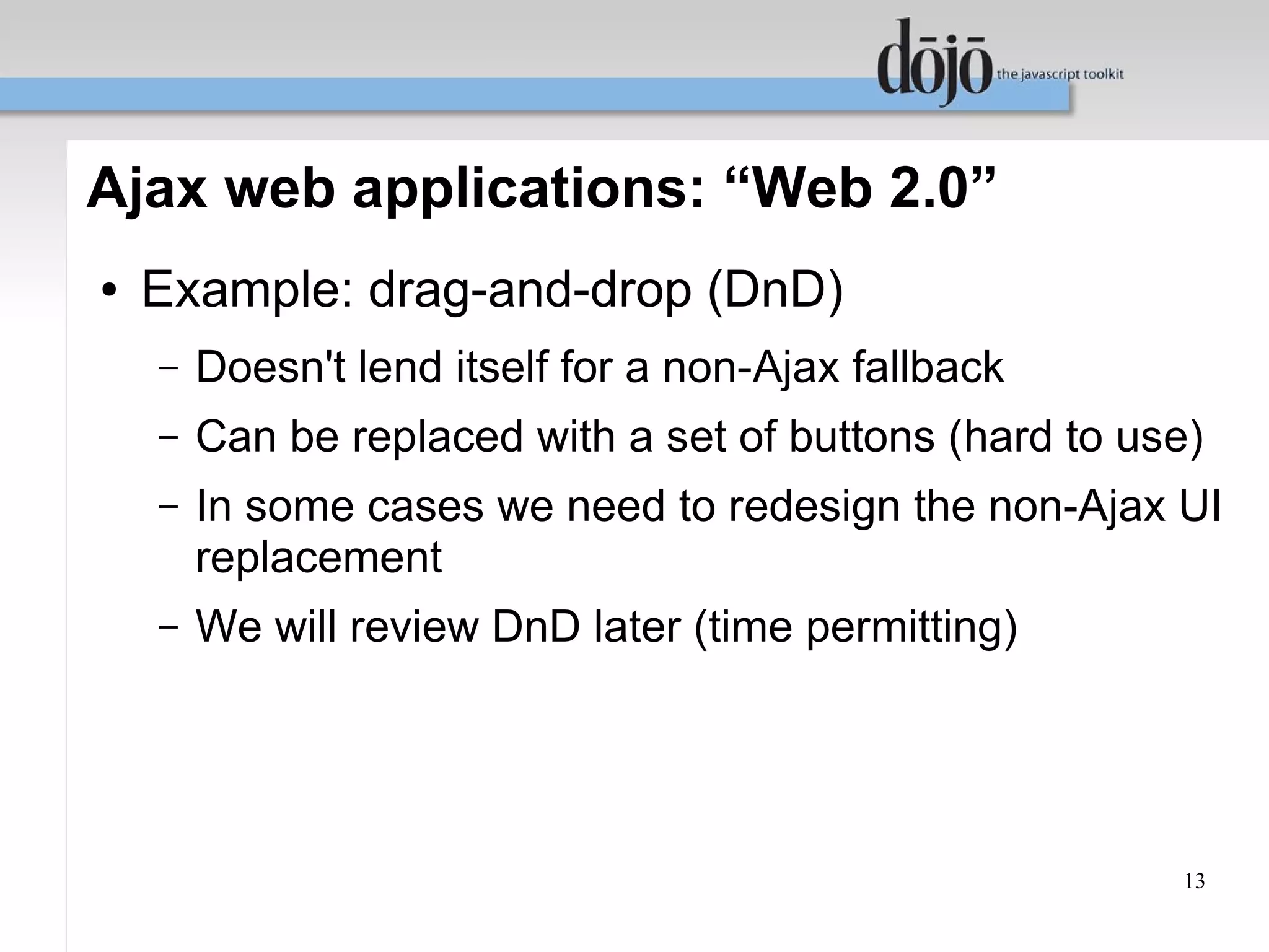

13. Ajax web applications: “Web 2.0”
● Example: drag-and-drop (DnD)
– Doesn't lend itself for a non-Ajax fallback
– Can be replaced with a set of buttons (hard to use)
– In some cases we need to redesign the non-Ajax UI
replacement
– We will review DnD later (time permitting)
13

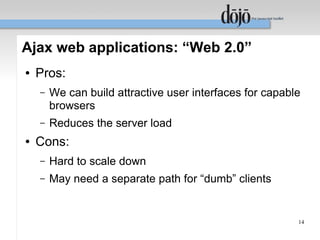

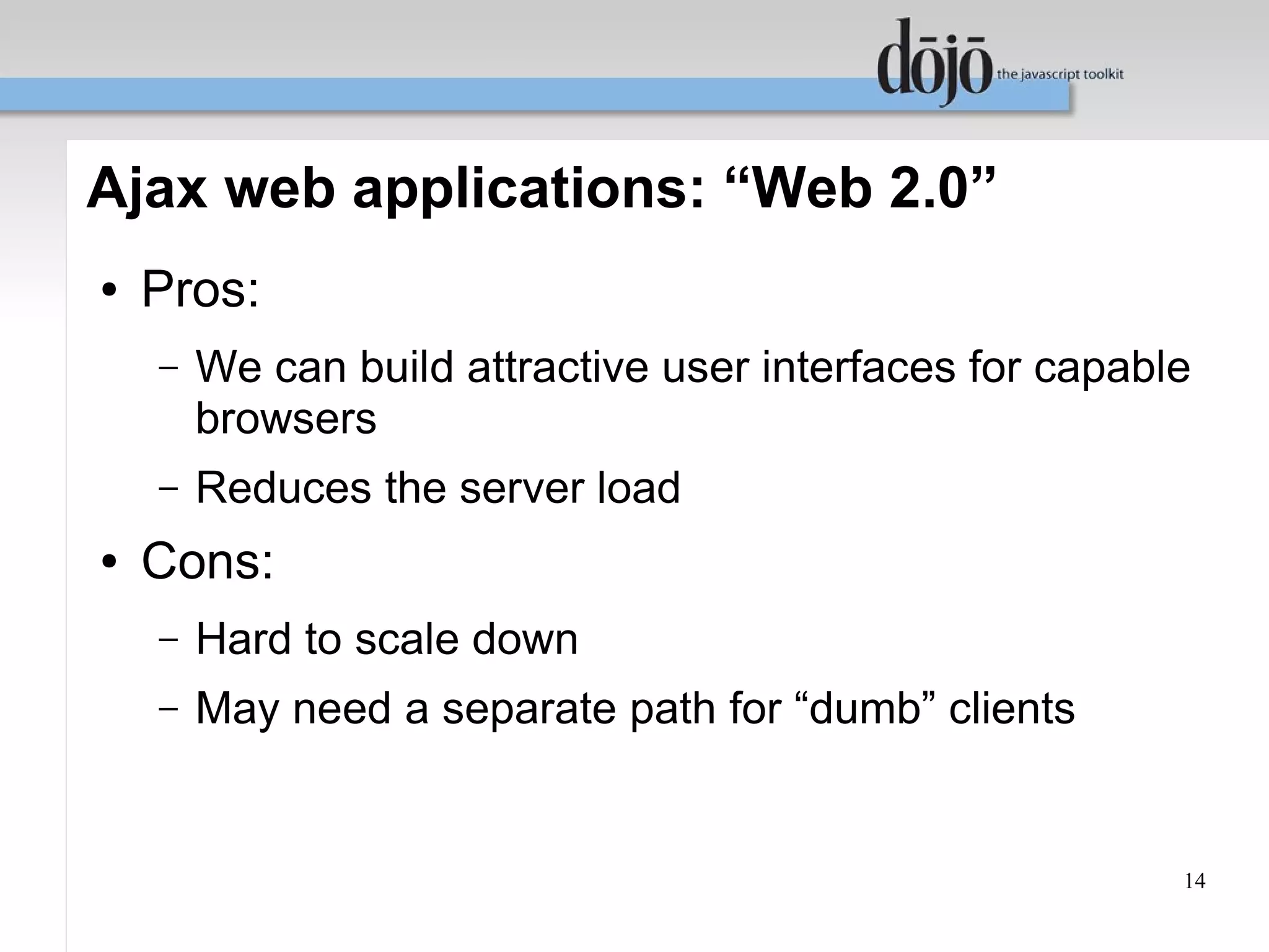

14. Ajax web applications: “Web 2.0”
● Pros:
– We can build attractive user interfaces for capable
browsers
– Reduces the server load
● Cons:
– Hard to scale down
– May need a separate path for “dumb” clients
14

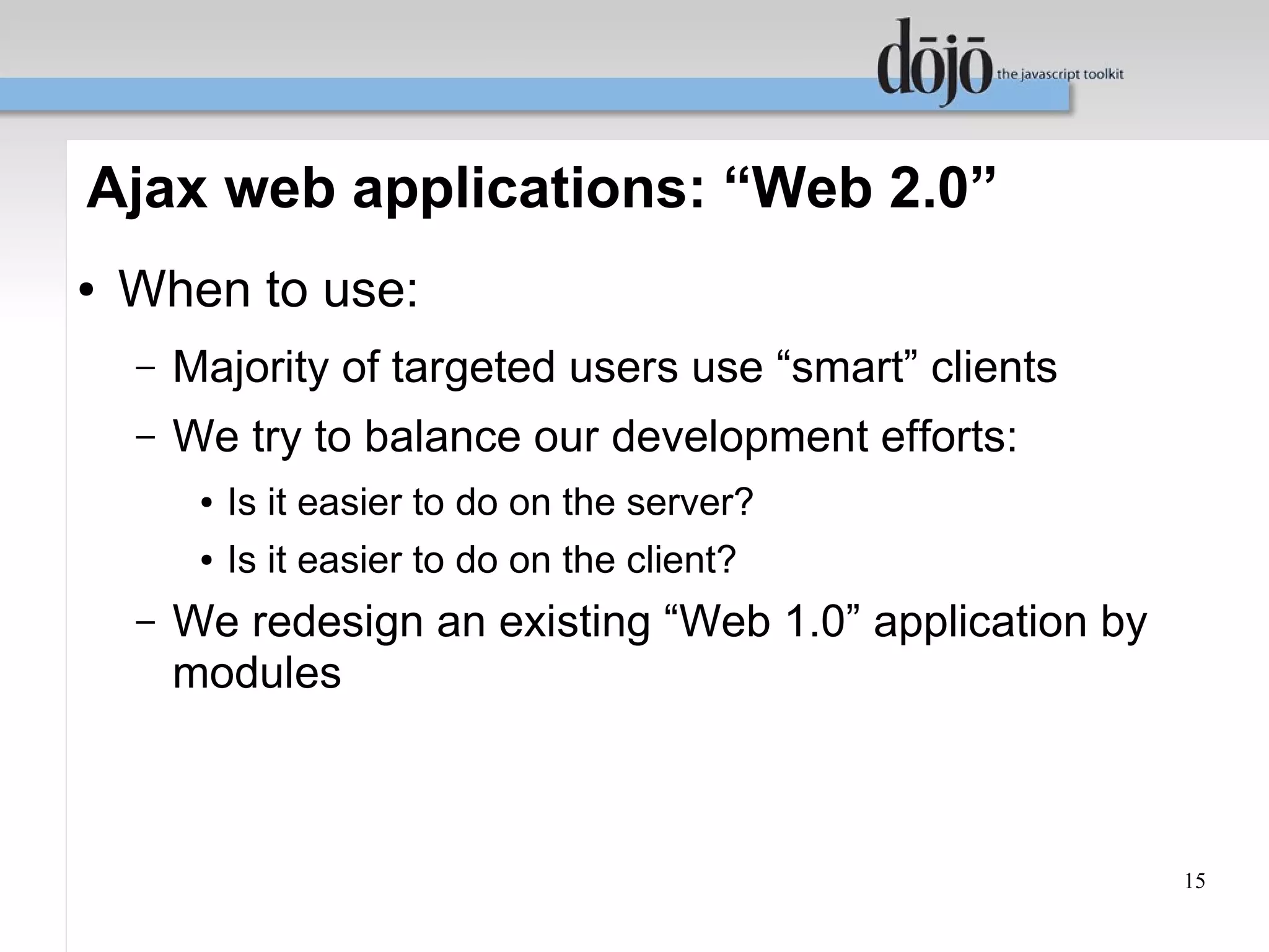

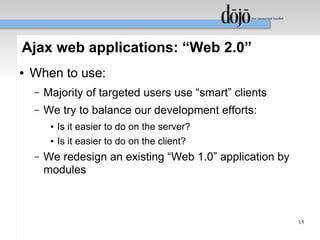

15. Ajax web applications: “Web 2.0”
● When to use:
– Majority of targeted users use “smart” clients
– We try to balance our development efforts:
● Is it easier to do on the server?
● Is it easier to do on the client?
– We redesign an existing “Web 1.0” application by
modules
15

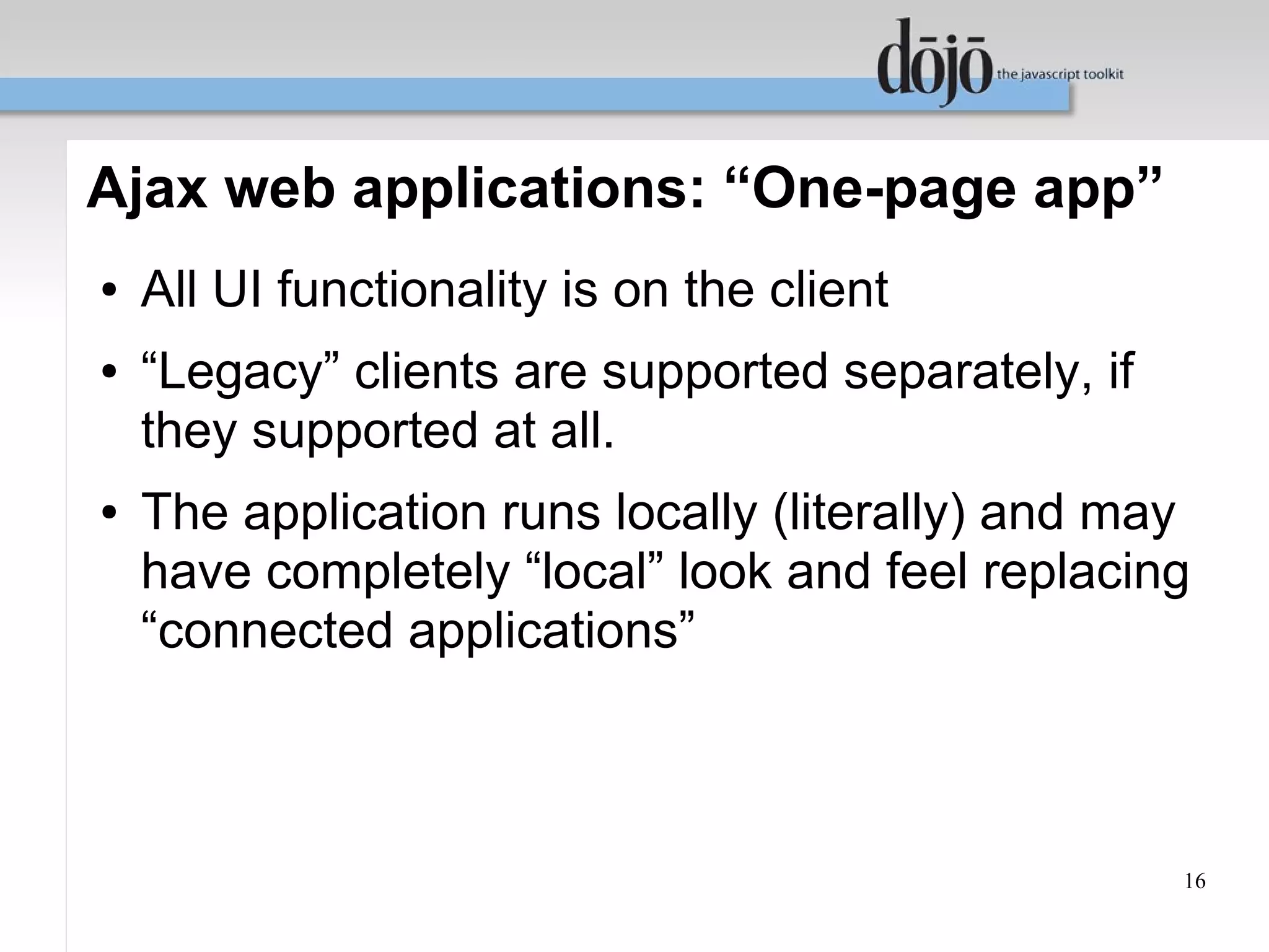

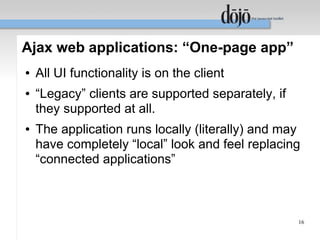

16. Ajax web applications: “One-page app”
● All UI functionality is on the client
● “Legacy” clients are supported separately, if
they supported at all.
● The application runs locally (literally) and may
have completely “local” look and feel replacing
“connected applications”
16

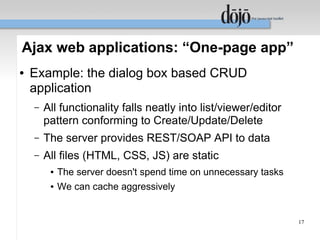

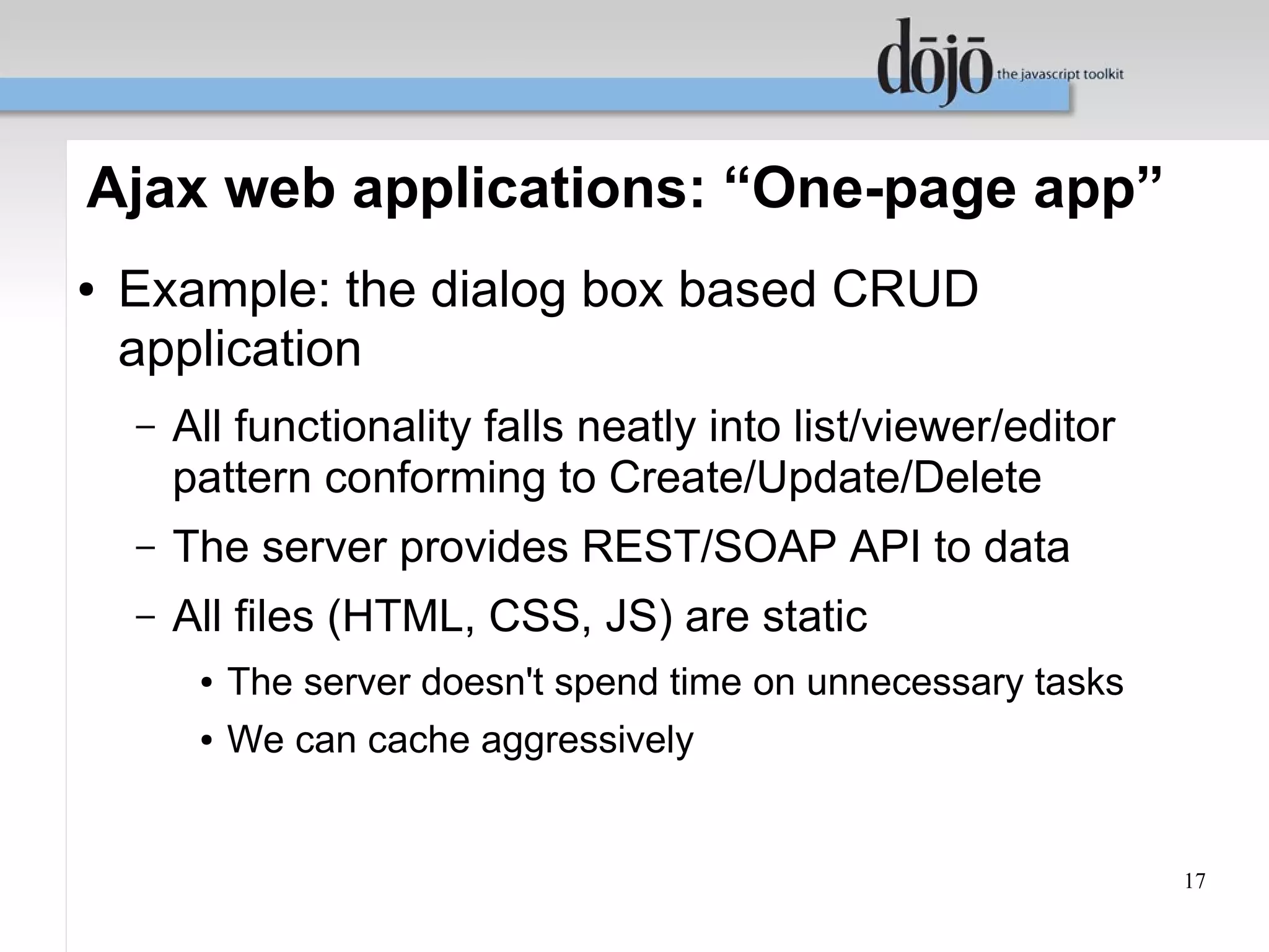

17. Ajax web applications: “One-page app”
● Example: the dialog box based CRUD
application
– All functionality falls neatly into list/viewer/editor
pattern conforming to Create/Update/Delete
– The server provides REST/SOAP API to data
– All files (HTML, CSS, JS) are static
● The server doesn't spend time on unnecessary tasks
● We can cache aggressively
17

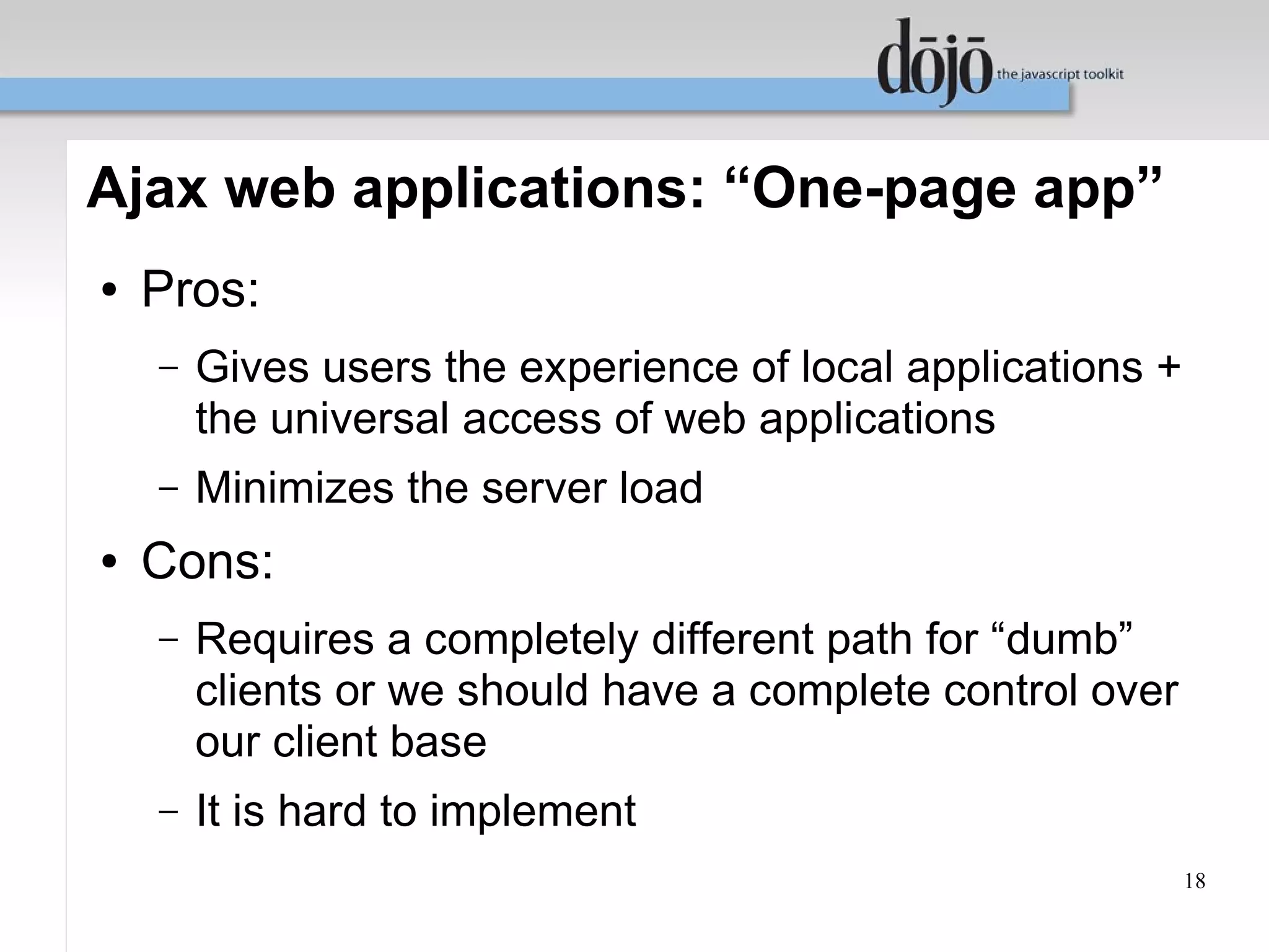

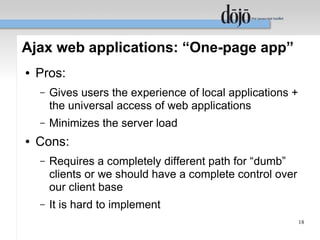

18. Ajax web applications: “One-page app”
● Pros:
– Gives users the experience of local applications +
the universal access of web applications
– Minimizes the server load
● Cons:
– Requires a completely different path for “dumb”
clients or we should have a complete control over
our client base
– It is hard to implement
18

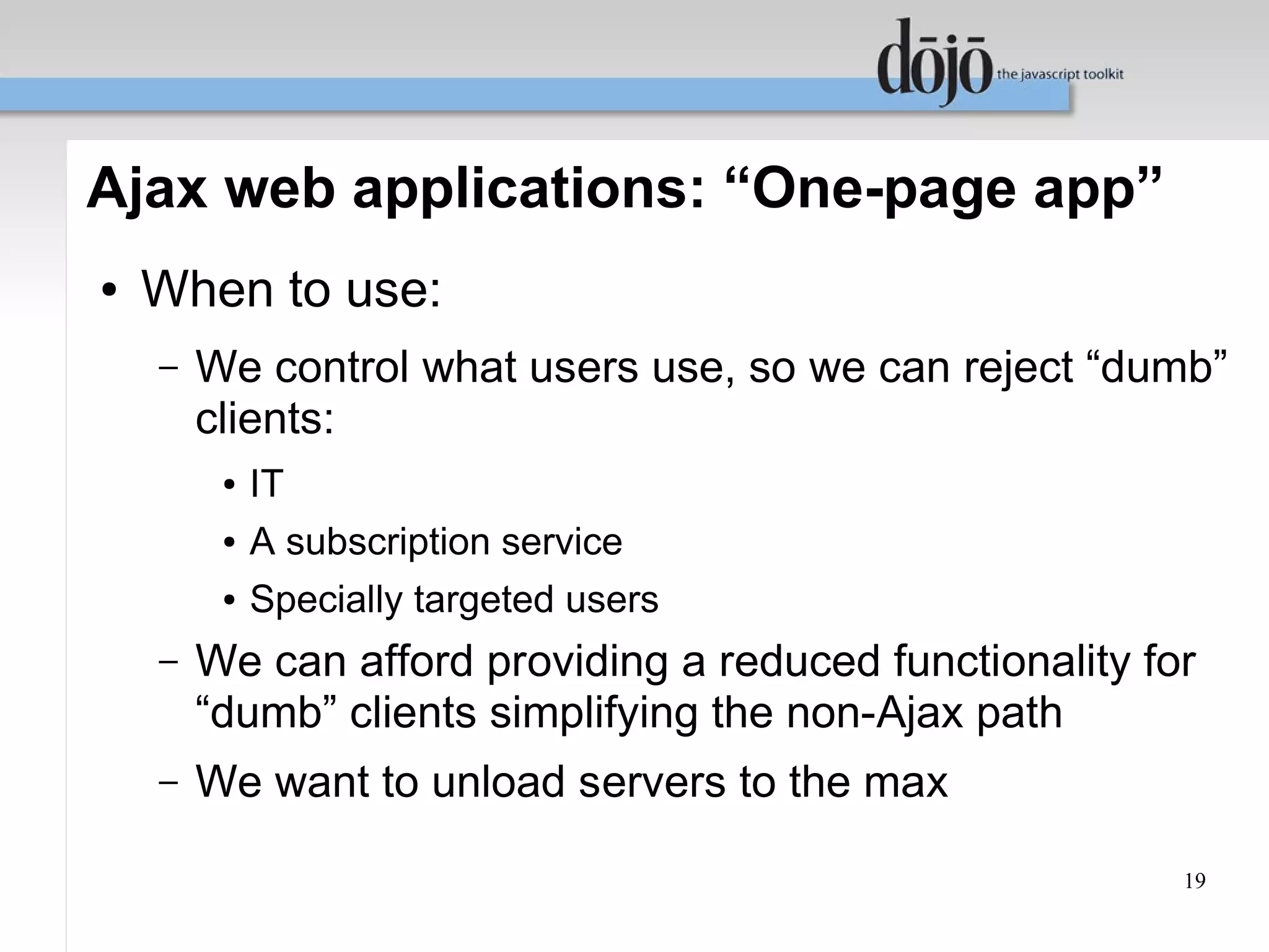

19. Ajax web applications: “One-page app”
● When to use:
– We control what users use, so we can reject “dumb”
clients:
● IT
● A subscription service
● Specially targeted users
– We can afford providing a reduced functionality for
“dumb” clients simplifying the non-Ajax path
– We want to unload servers to the max
19

20. The way of Dojo: helping hands
20

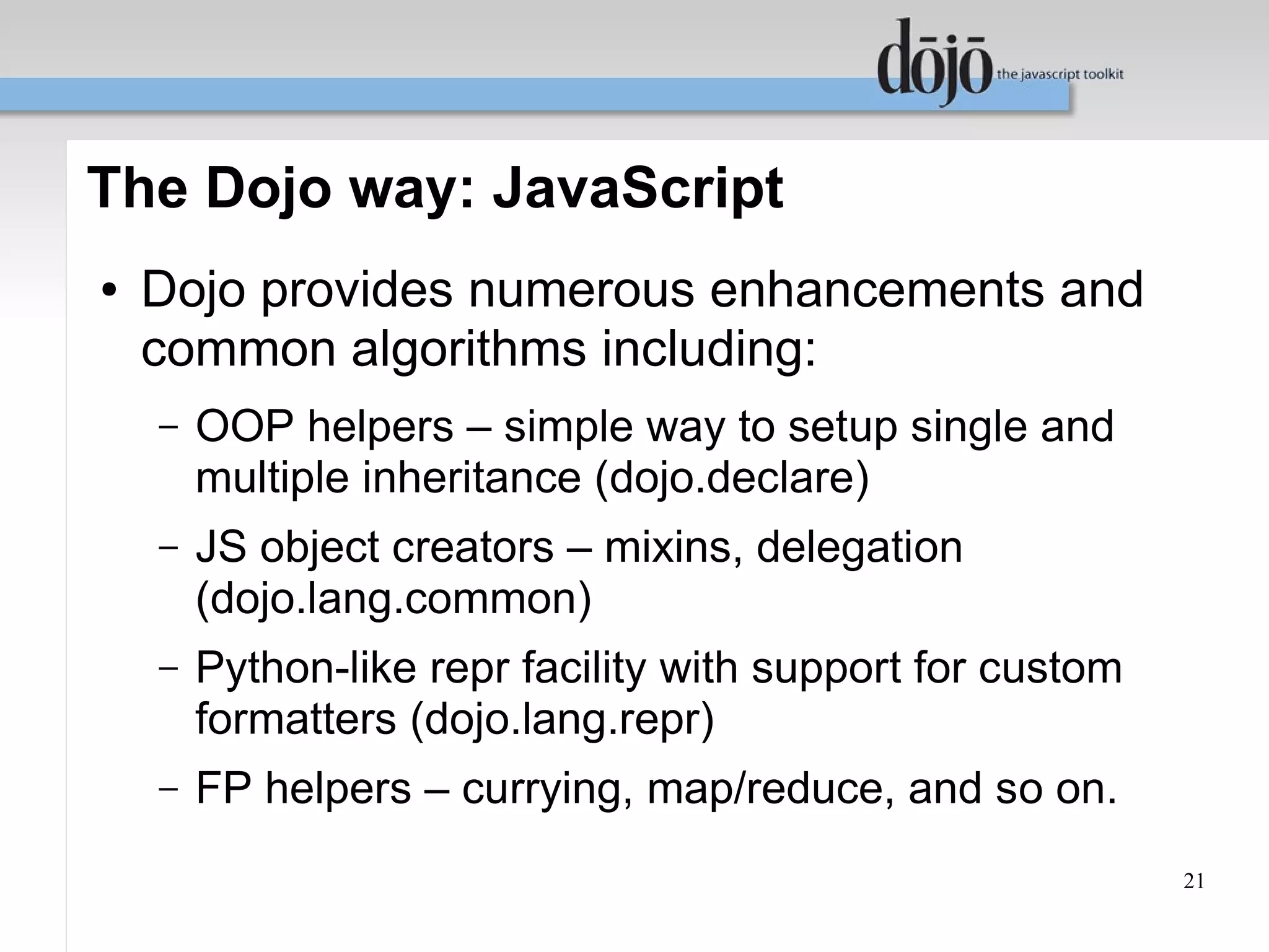

21. The Dojo way: JavaScript
● Dojo provides numerous enhancements and
common algorithms including:
– OOP helpers – simple way to setup single and
multiple inheritance (dojo.declare)
– JS object creators – mixins, delegation
(dojo.lang.common)
– Python-like repr facility with support for custom
formatters (dojo.lang.repr)
– FP helpers – currying, map/reduce, and so on.
21

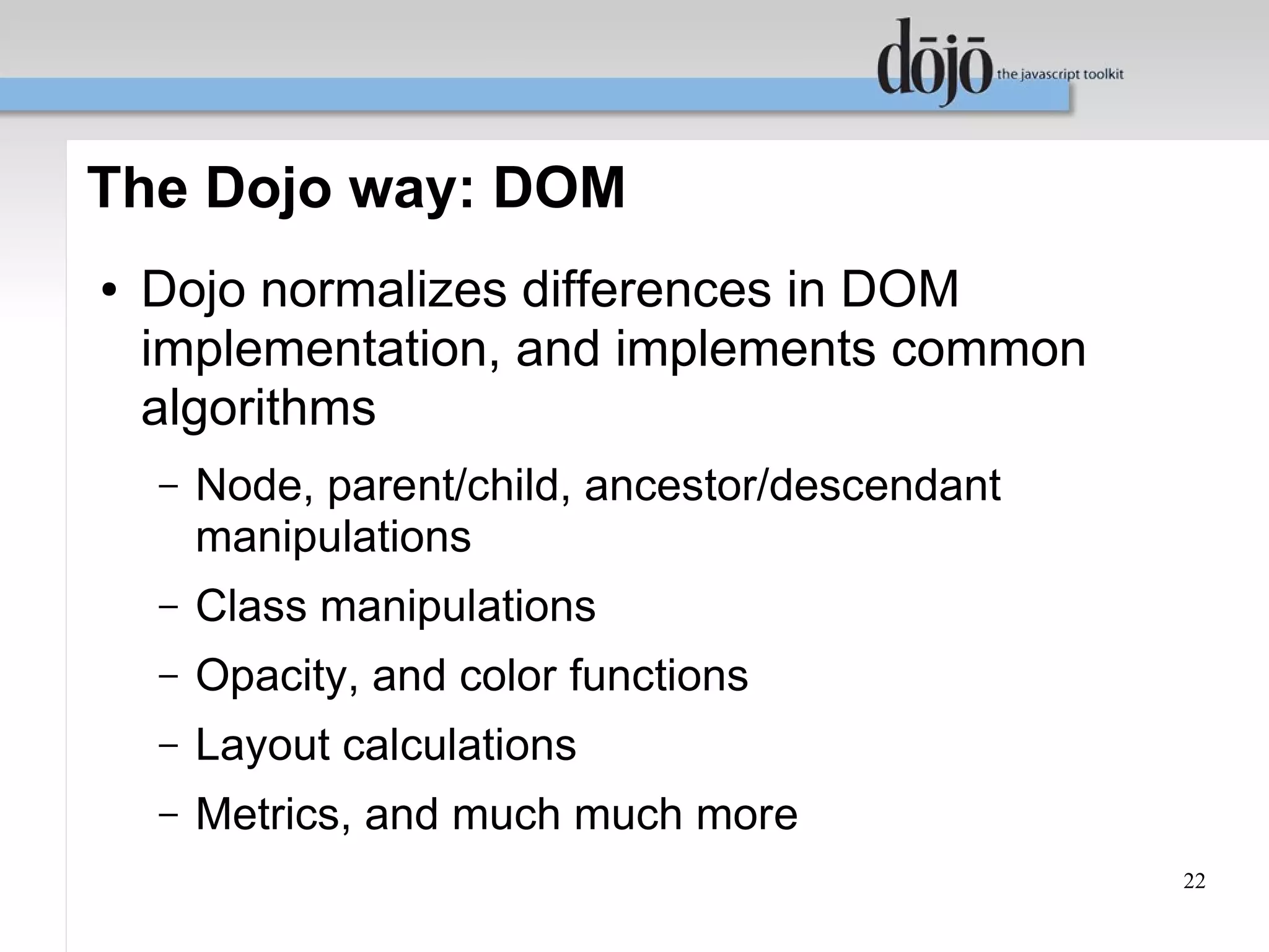

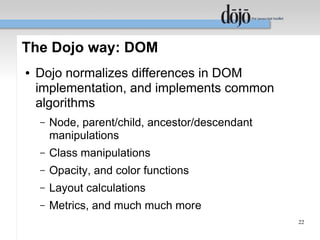

22. The Dojo way: DOM
● Dojo normalizes differences in DOM
implementation, and implements common
algorithms
– Node, parent/child, ancestor/descendant
manipulations
– Class manipulations
– Opacity, and color functions
– Layout calculations
– Metrics, and much much more
22

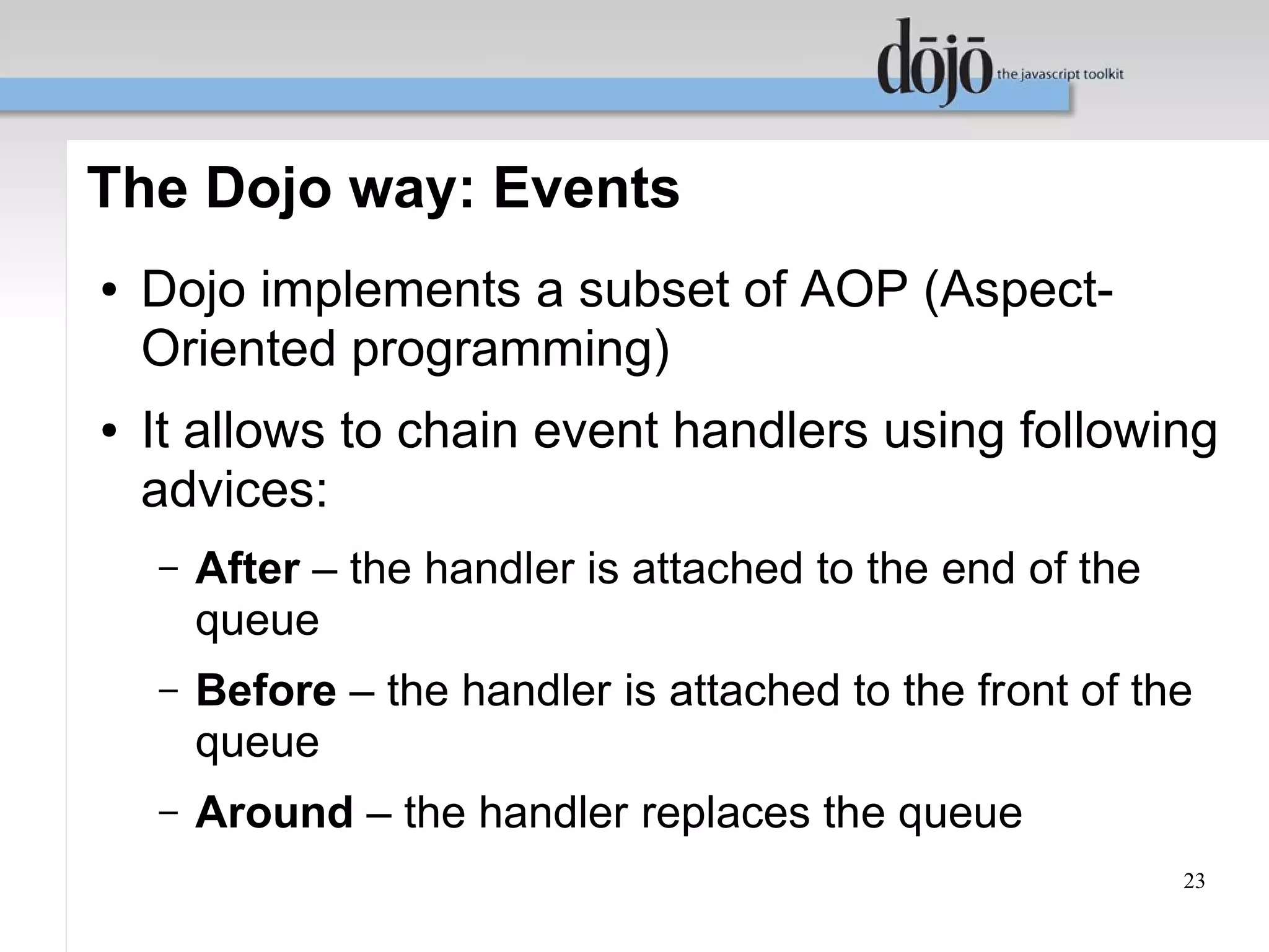

23. The Dojo way: Events
● Dojo implements a subset of AOP (Aspect-
Oriented programming)
● It allows to chain event handlers using following
advices:
– After – the handler is attached to the end of the
queue
– Before – the handler is attached to the front of the
queue
– Around – the handler replaces the queue
23

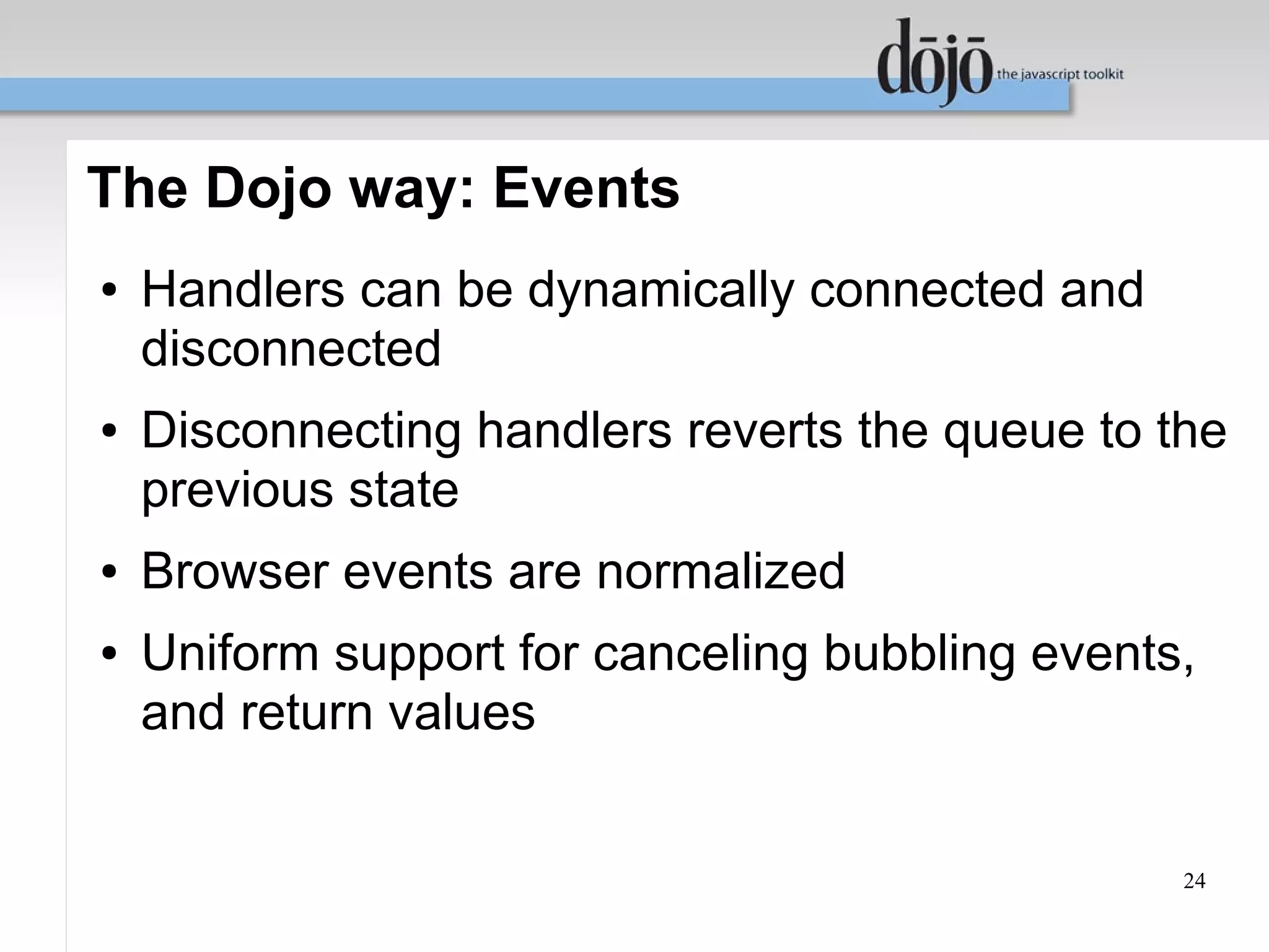

24. The Dojo way: Events
● Handlers can be dynamically connected and
disconnected
● Disconnecting handlers reverts the queue to the
previous state
● Browser events are normalized
● Uniform support for canceling bubbling events,
and return values
24

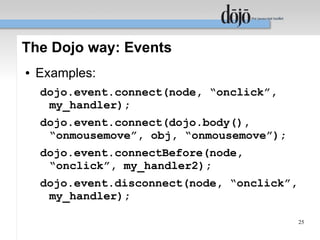

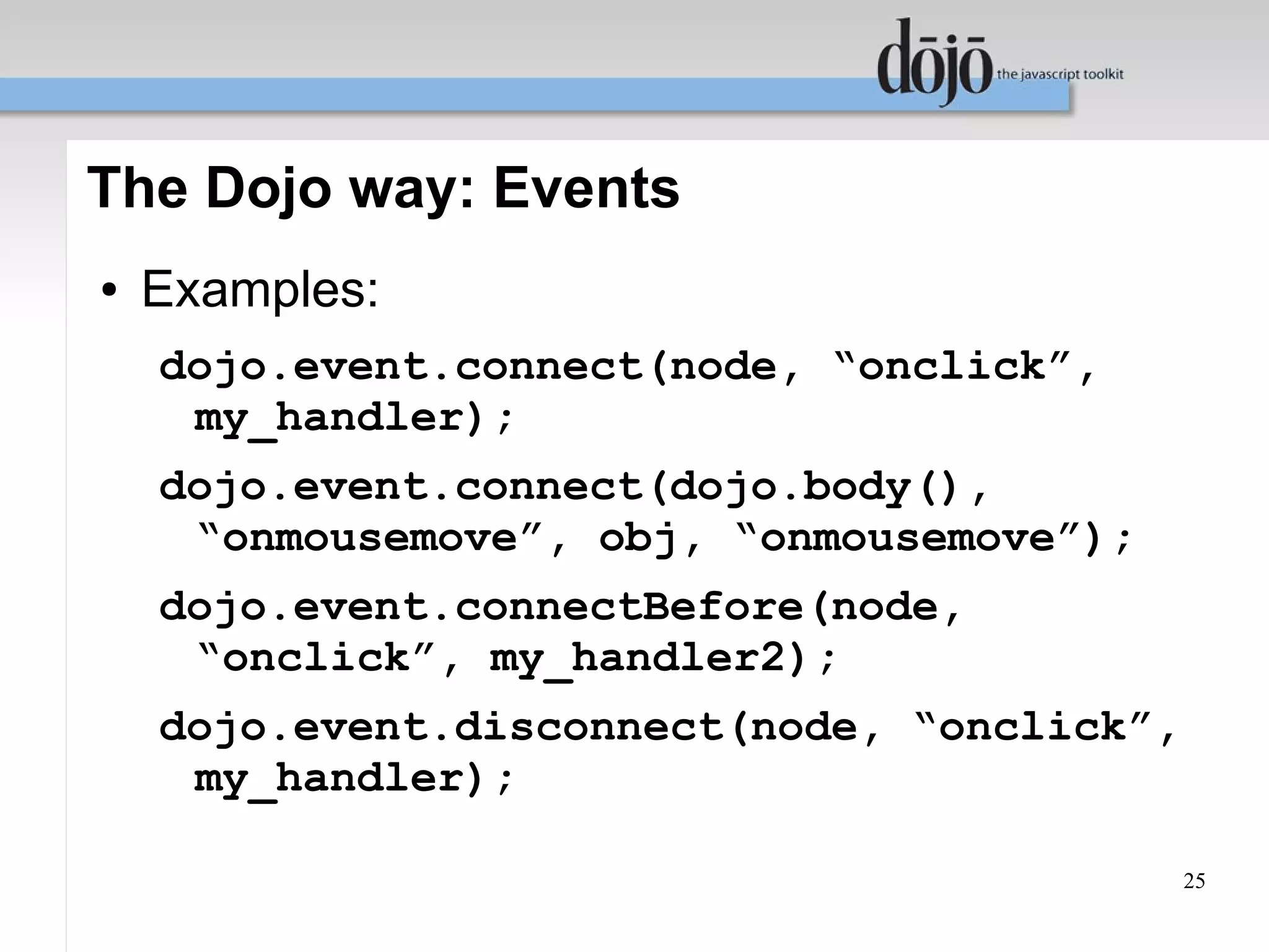

25. The Dojo way: Events
● Examples:
dojo.event.connect(node, “onclick”,
my_handler);
dojo.event.connect(dojo.body(),
“onmousemove”, obj, “onmousemove”);
dojo.event.connectBefore(node,
“onclick”, my_handler2);
dojo.event.disconnect(node, “onclick”,
my_handler);
25

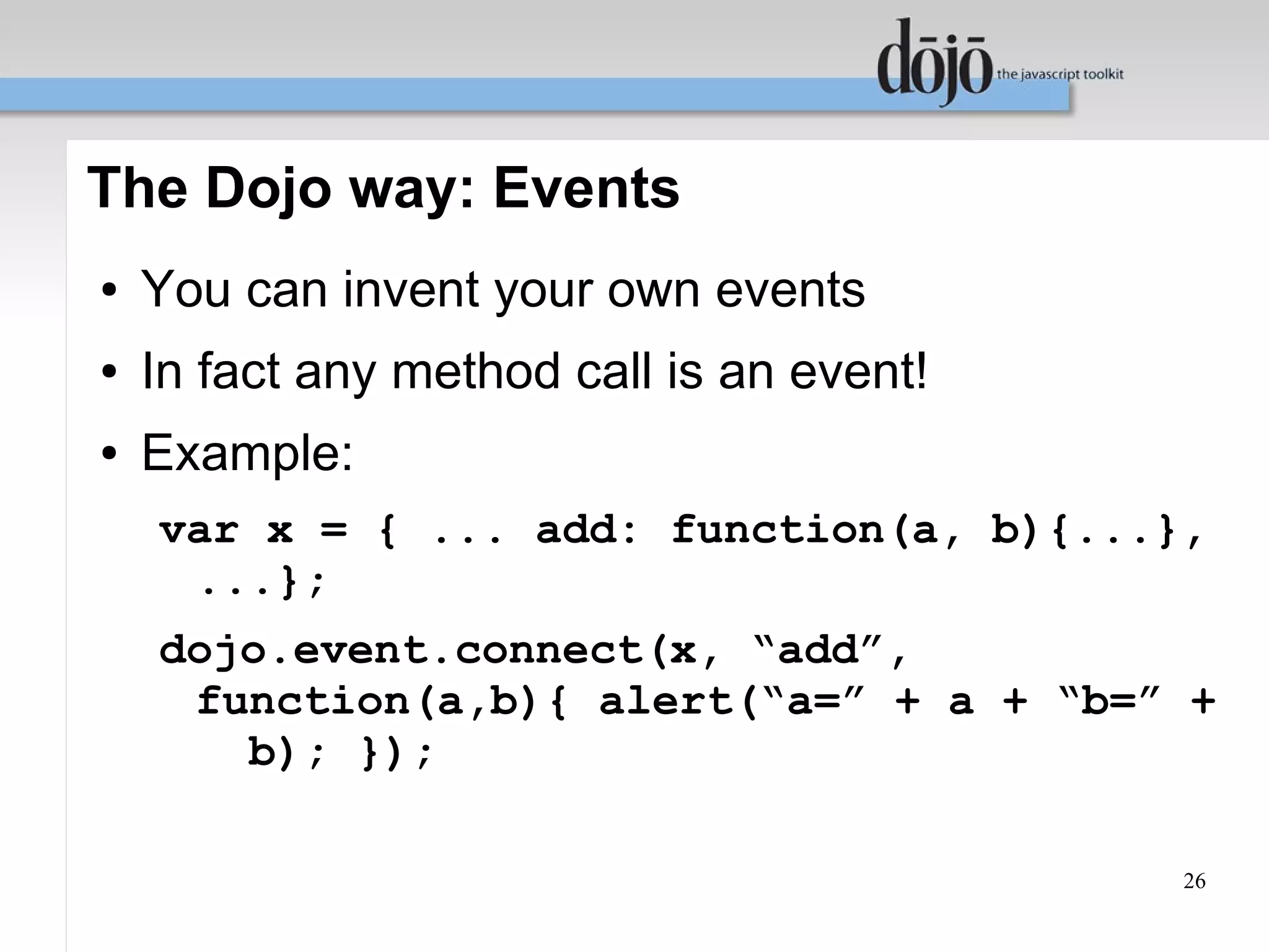

26. The Dojo way: Events
● You can invent your own events
● In fact any method call is an event!
● Example:
var x = { ... add: function(a, b){...},
...};
dojo.event.connect(x, “add”,
function(a,b){ alert(“a=” + a + “b=” +
b); });
26

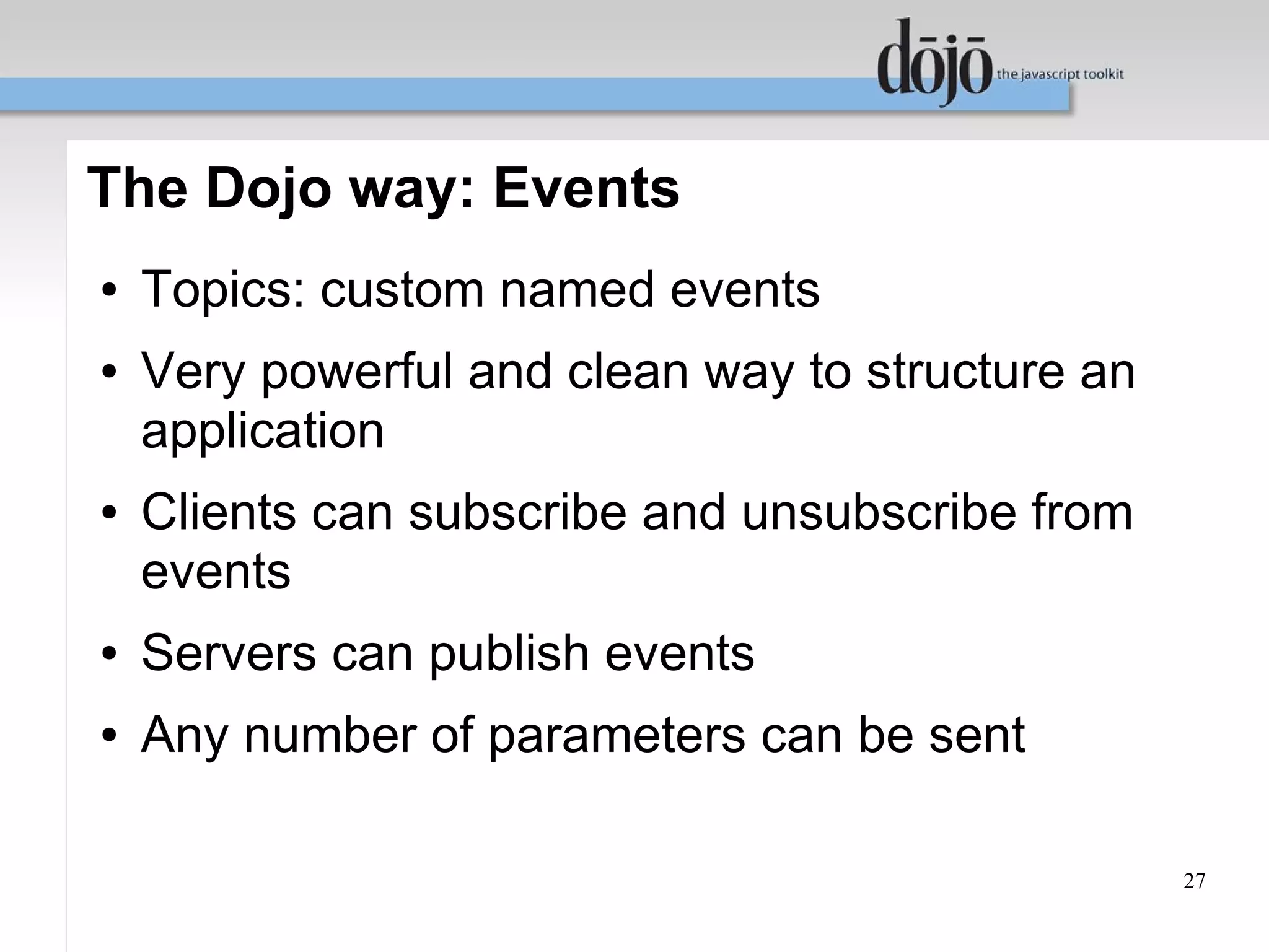

27. The Dojo way: Events
● Topics: custom named events
● Very powerful and clean way to structure an
application
● Clients can subscribe and unsubscribe from
events
● Servers can publish events
● Any number of parameters can be sent
27

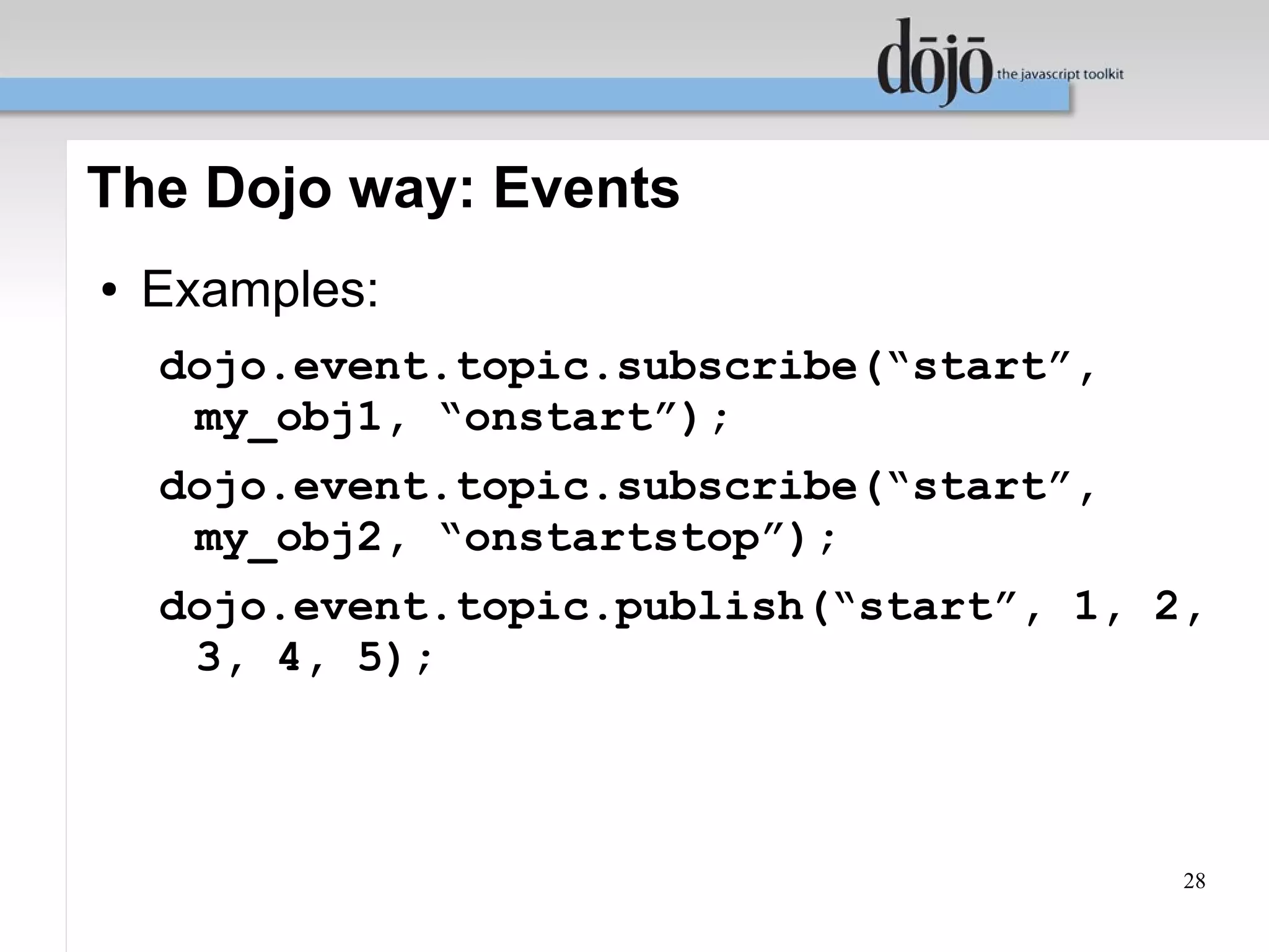

28. The Dojo way: Events
● Examples:
dojo.event.topic.subscribe(“start”,
my_obj1, “onstart”);
dojo.event.topic.subscribe(“start”,
my_obj2, “onstartstop”);
dojo.event.topic.publish(“start”, 1, 2,
3, 4, 5);
28

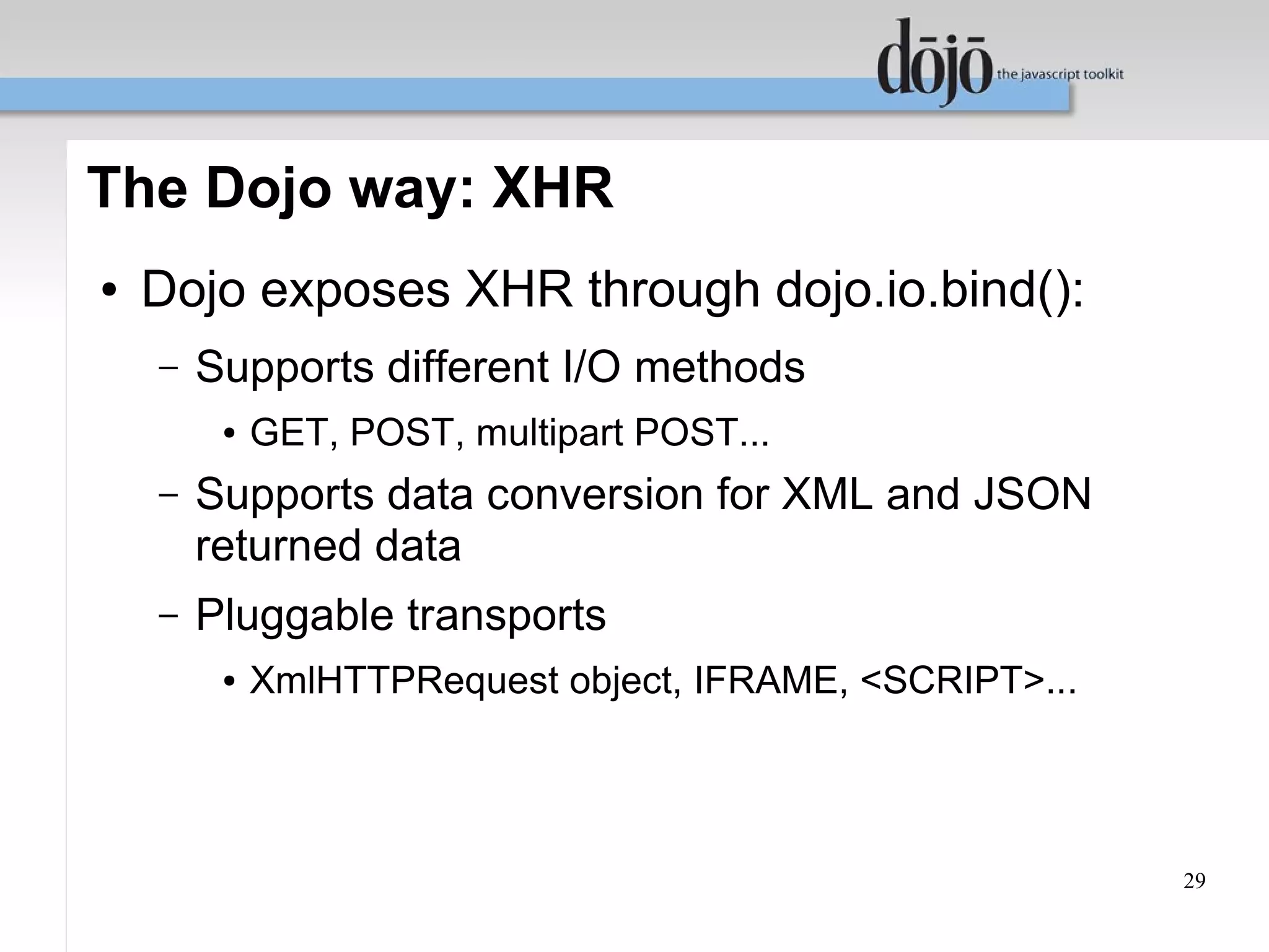

29. The Dojo way: XHR
● Dojo exposes XHR through dojo.io.bind():
– Supports different I/O methods
● GET, POST, multipart POST...
– Supports data conversion for XML and JSON
returned data
– Pluggable transports
● XmlHTTPRequest object, IFRAME, <SCRIPT>...
29

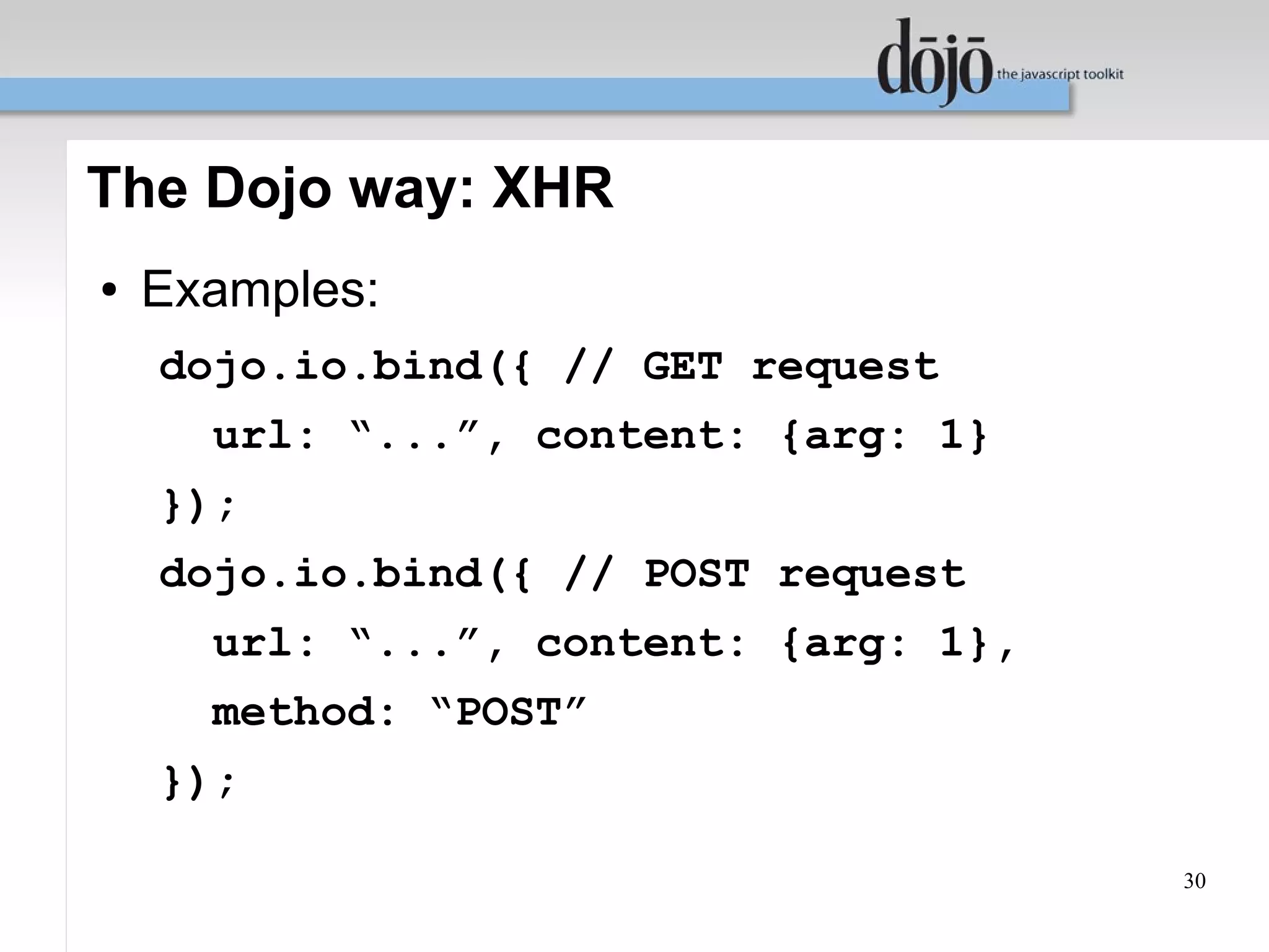

30. The Dojo way: XHR
● Examples:
dojo.io.bind({ // GET request
url: “...”, content: {arg: 1}
});
dojo.io.bind({ // POST request
url: “...”, content: {arg: 1},
method: “POST”
});
30

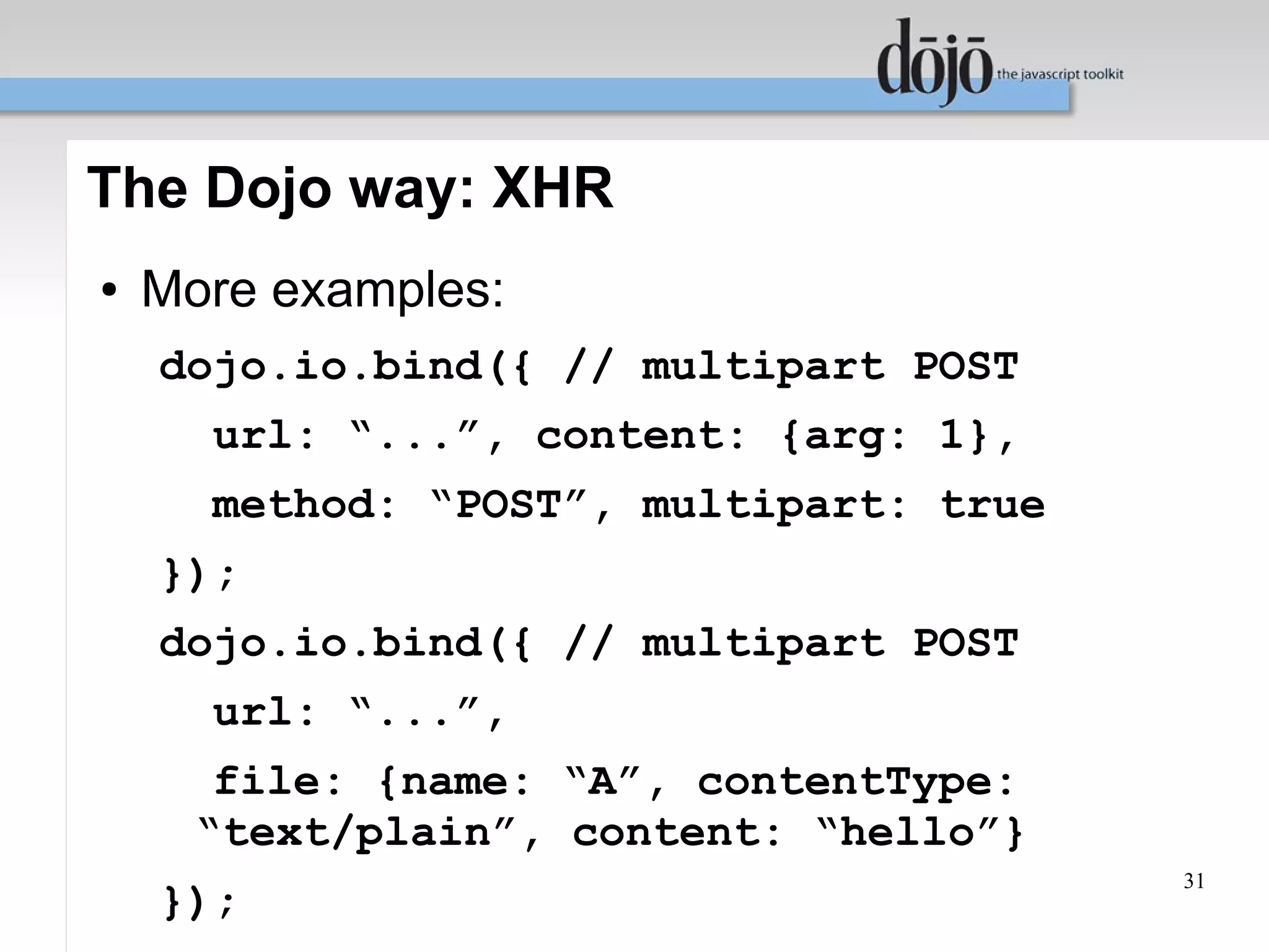

31. The Dojo way: XHR
● More examples:
dojo.io.bind({ // multipart POST
url: “...”, content: {arg: 1},
method: “POST”, multipart: true
});
dojo.io.bind({ // multipart POST
url: “...”,
file: {name: “A”, contentType:
“text/plain”, content: “hello”}
31
});

32. That was easy!
32

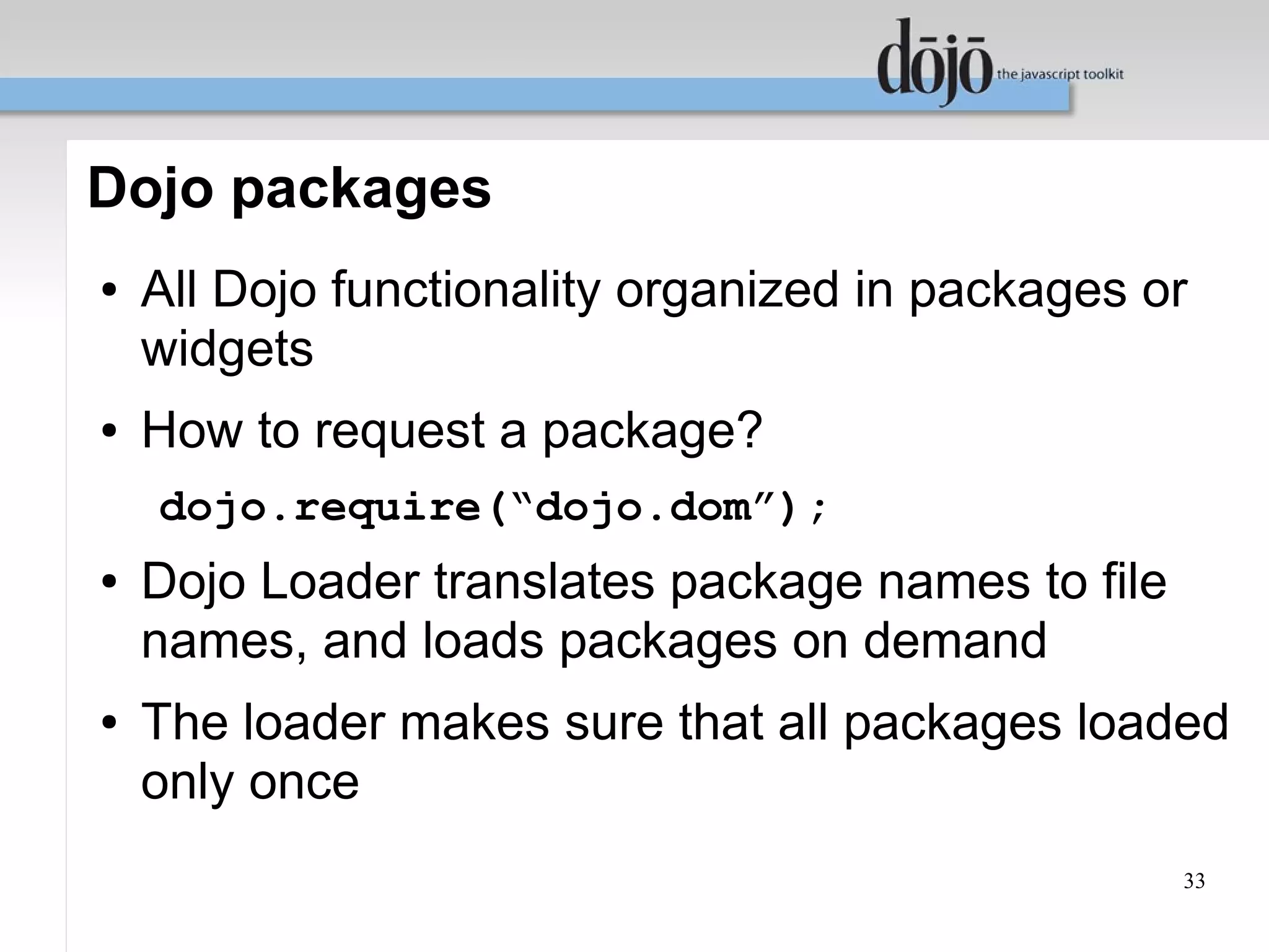

33. Dojo packages
● All Dojo functionality organized in packages or
widgets
● How to request a package?
dojo.require(“dojo.dom”);
● Dojo Loader translates package names to file
names, and loads packages on demand
● The loader makes sure that all packages loaded
only once
33

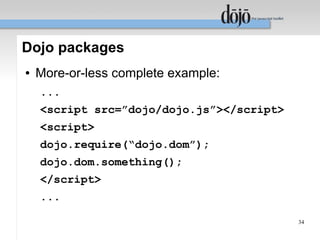

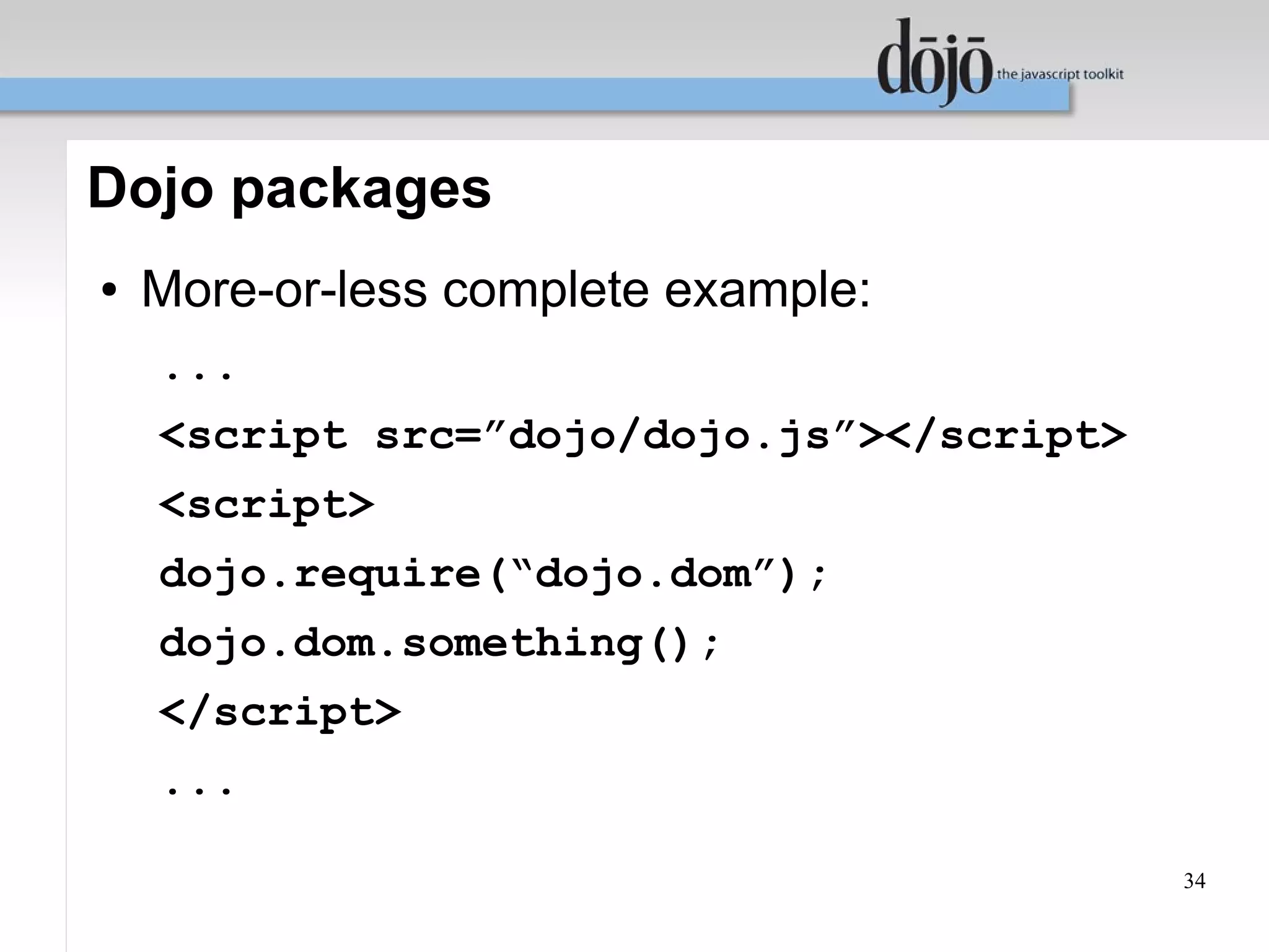

34. Dojo packages
● More-or-less complete example:
...
<script src=”dojo/dojo.js”></script>
<script>
dojo.require(“dojo.dom”);
dojo.dom.something();
</script>
...
34

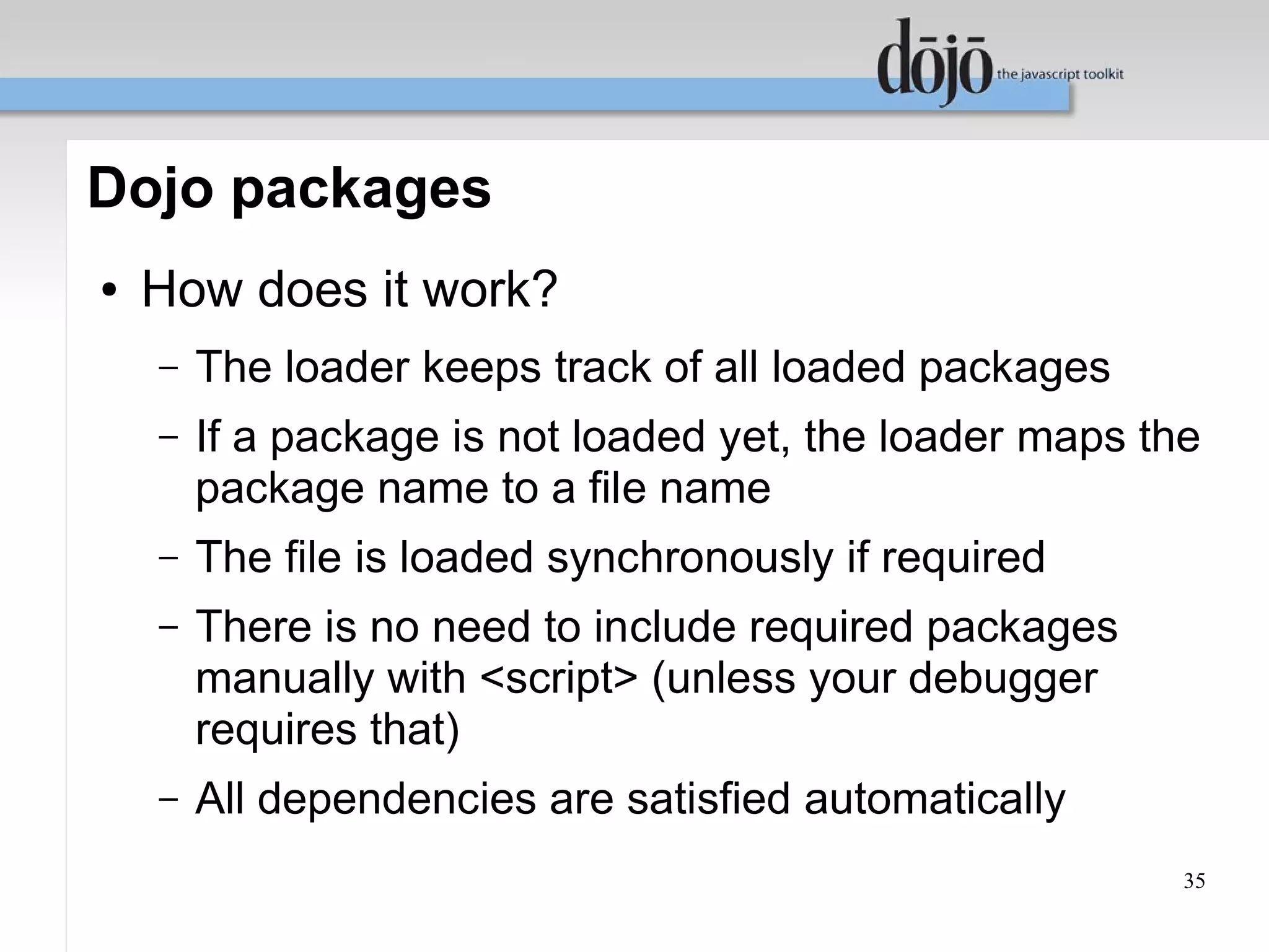

35. Dojo packages
● How does it work?
– The loader keeps track of all loaded packages
– If a package is not loaded yet, the loader maps the
package name to a file name
– The file is loaded synchronously if required
– There is no need to include required packages
manually with <script> (unless your debugger
requires that)
– All dependencies are satisfied automatically
35

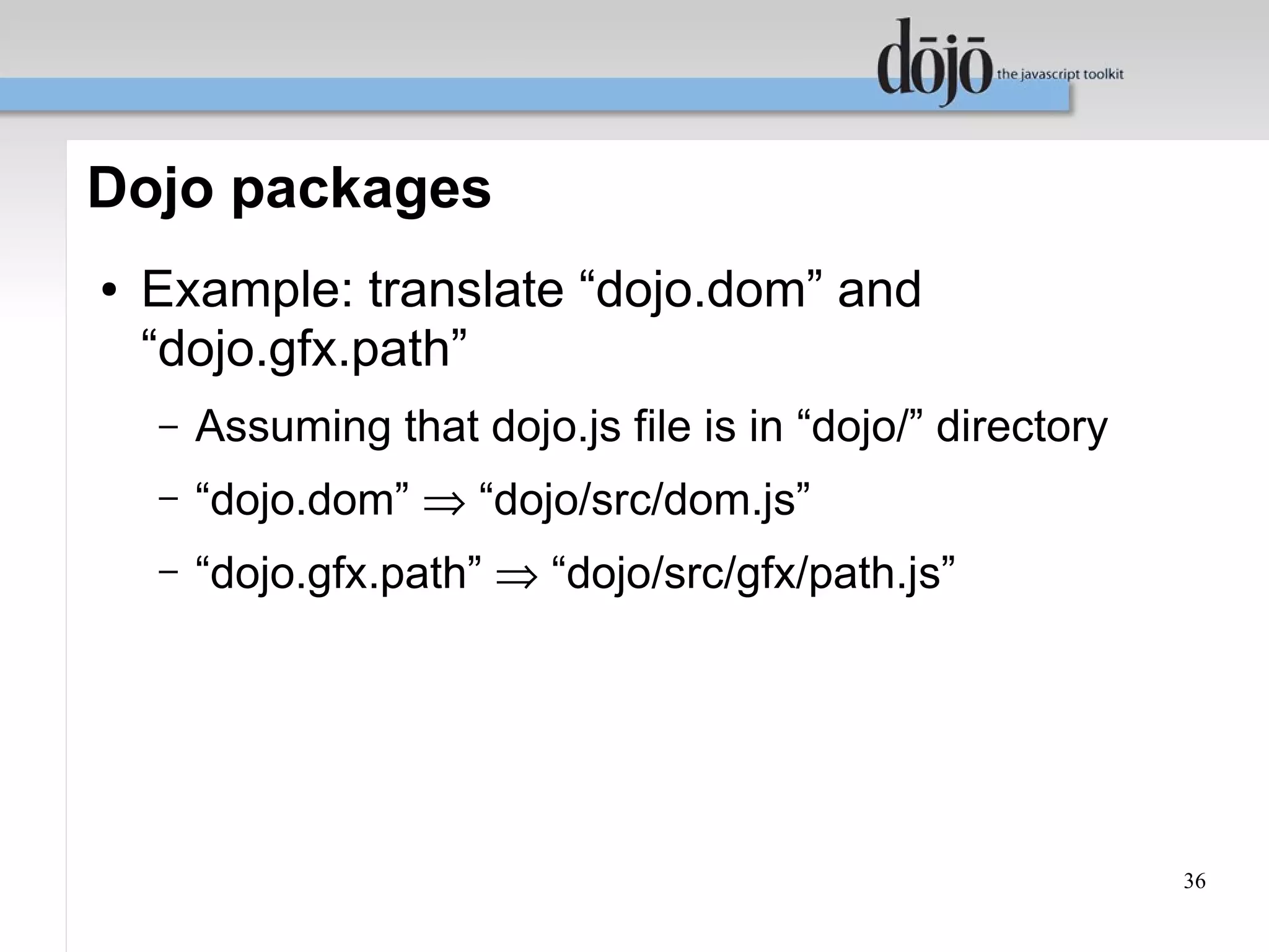

36. Dojo packages
● Example: translate “dojo.dom” and
“dojo.gfx.path”
– Assuming that dojo.js file is in “dojo/” directory
– “dojo.dom” ⇒ “dojo/src/dom.js”
– “dojo.gfx.path” ⇒ “dojo/src/gfx/path.js”
36

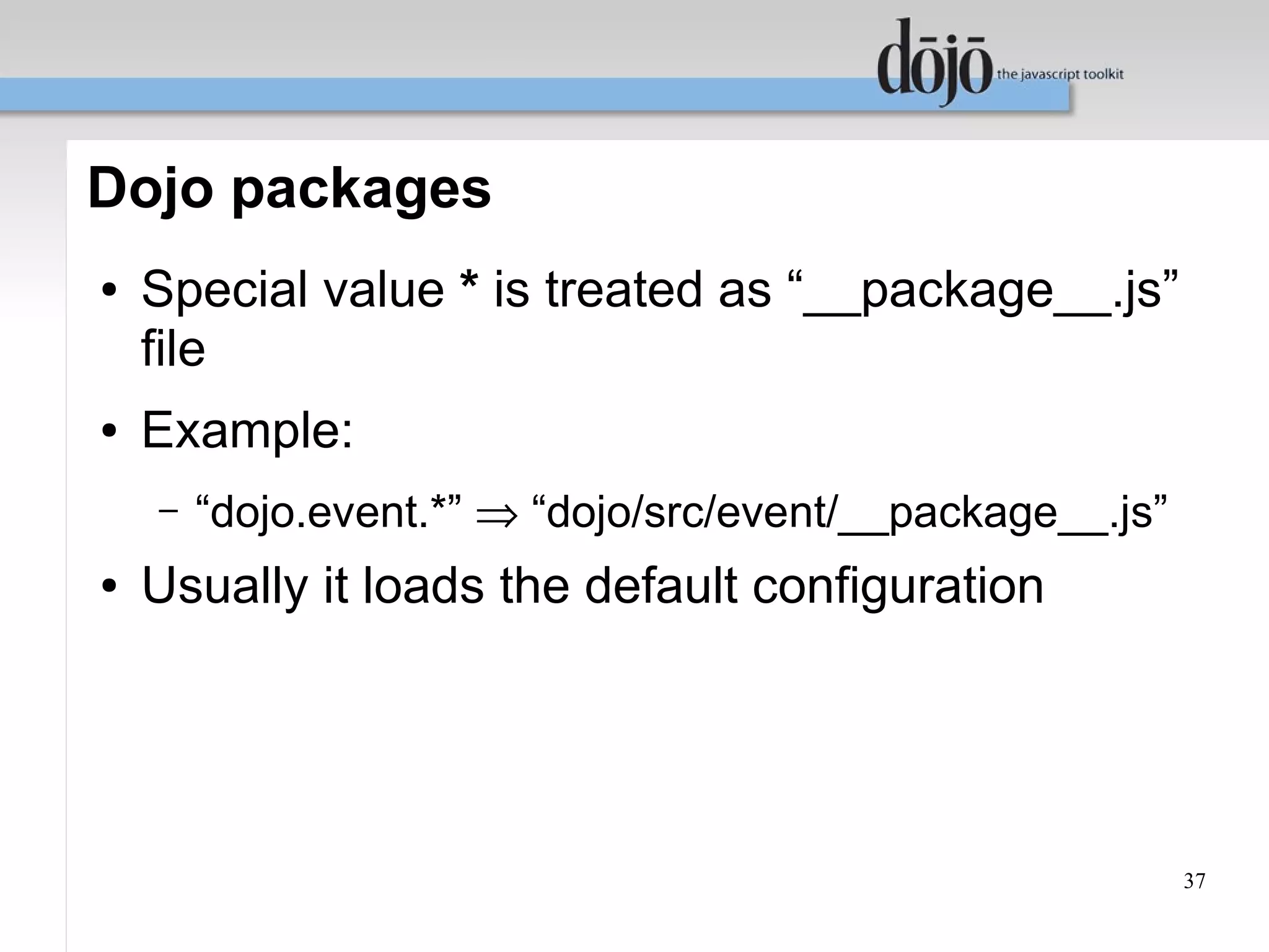

37. Dojo packages
● Special value * is treated as “__package__.js”
file
● Example:
– “dojo.event.*” ⇒ “dojo/src/event/__package__.js”
● Usually it loads the default configuration
37

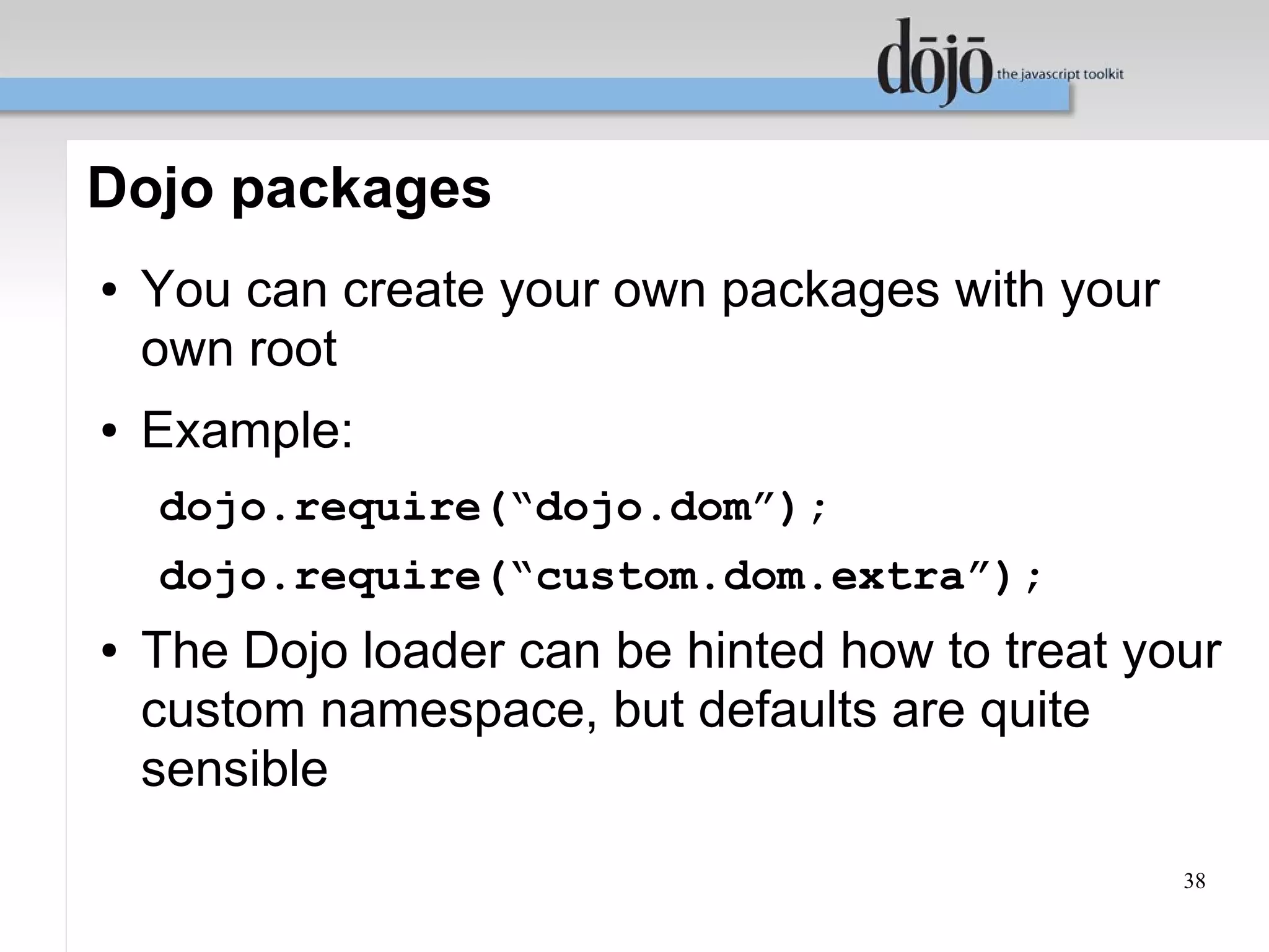

38. Dojo packages
● You can create your own packages with your
own root
● Example:
dojo.require(“dojo.dom”);
dojo.require(“custom.dom.extra”);
● The Dojo loader can be hinted how to treat your
custom namespace, but defaults are quite
sensible
38

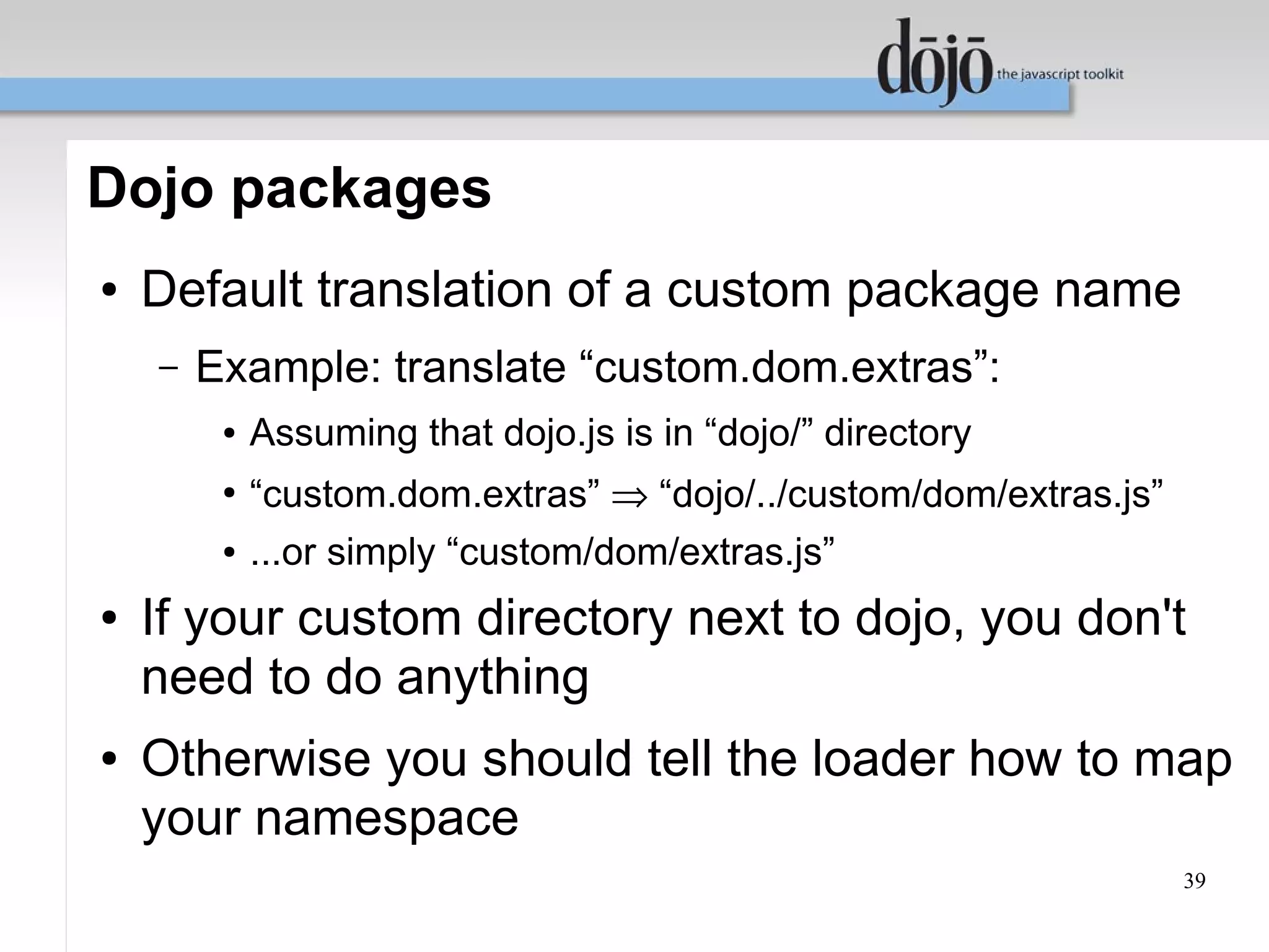

39. Dojo packages
● Default translation of a custom package name
– Example: translate “custom.dom.extras”:
● Assuming that dojo.js is in “dojo/” directory
●
“custom.dom.extras” ⇒ “dojo/../custom/dom/extras.js”
● ...or simply “custom/dom/extras.js”
● If your custom directory next to dojo, you don't
need to do anything
● Otherwise you should tell the loader how to map
your namespace
39

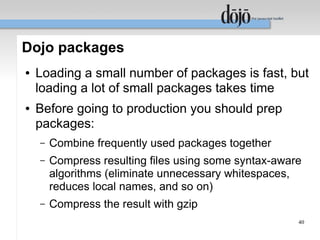

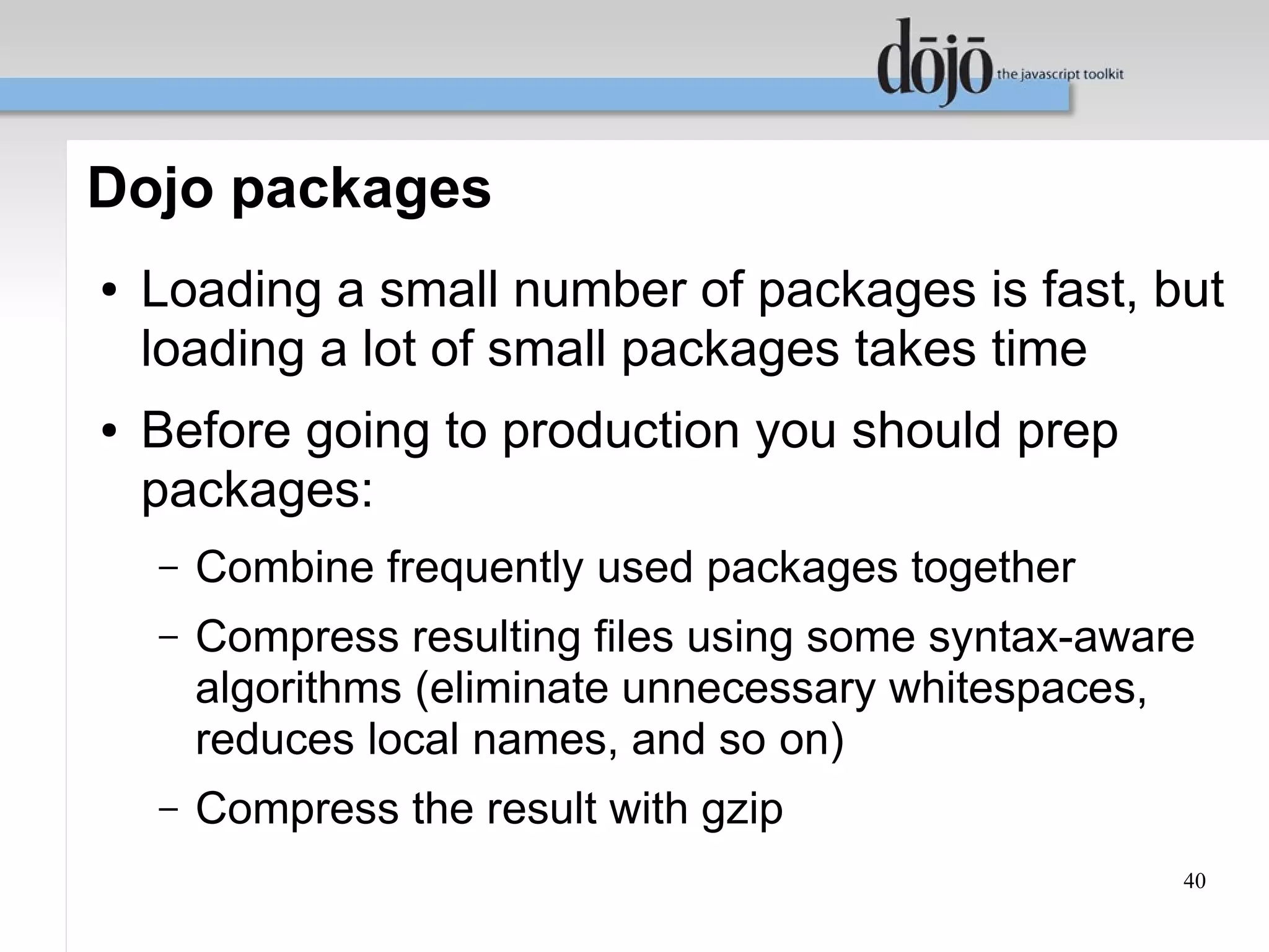

40. Dojo packages
● Loading a small number of packages is fast, but
loading a lot of small packages takes time
● Before going to production you should prep
packages:
– Combine frequently used packages together
– Compress resulting files using some syntax-aware
algorithms (eliminate unnecessary whitespaces,
reduces local names, and so on)
– Compress the result with gzip
40

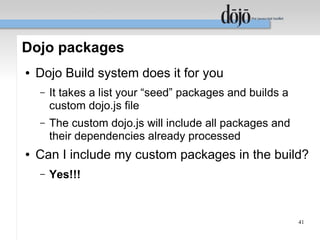

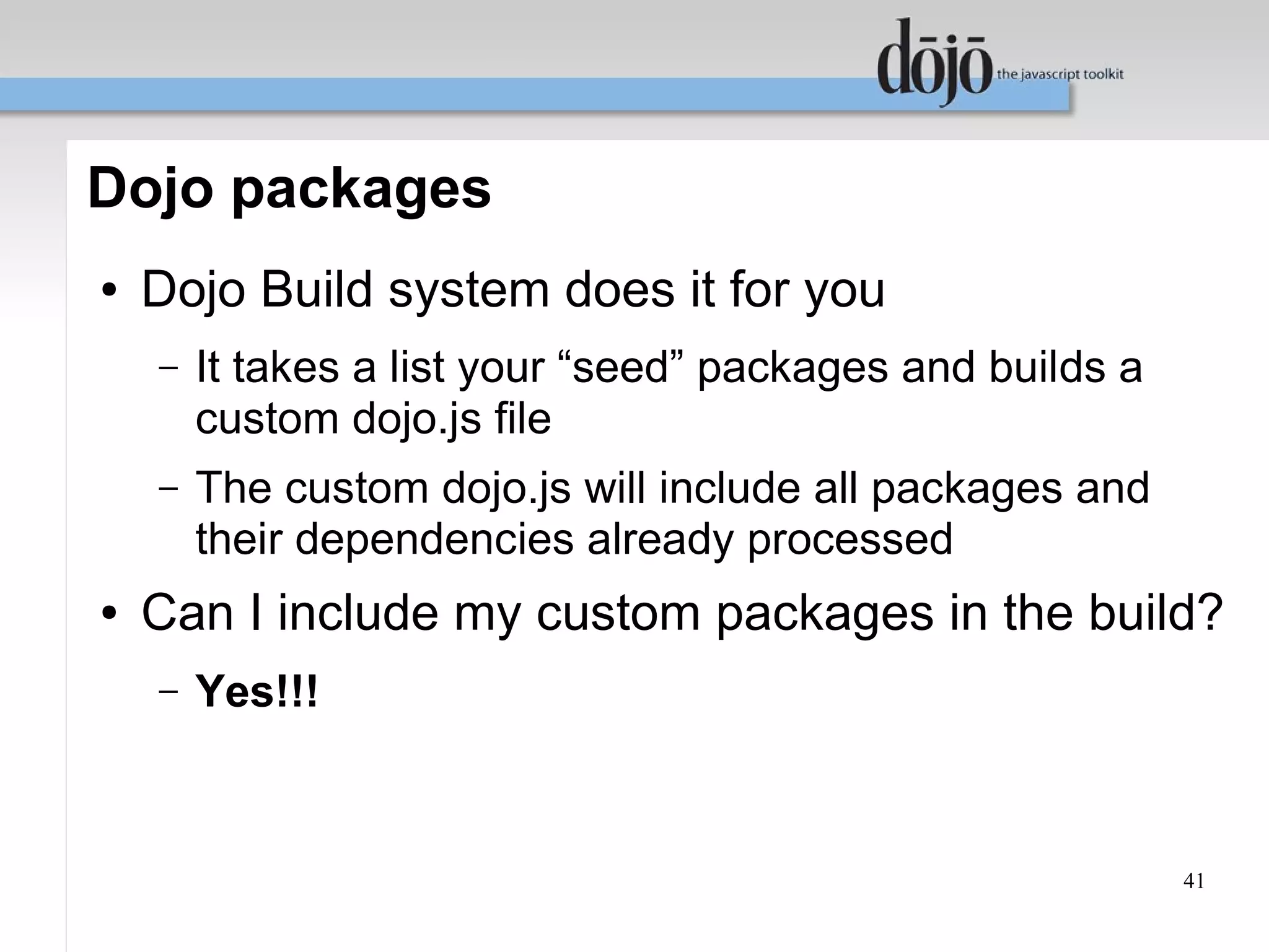

41. Dojo packages
● Dojo Build system does it for you
– It takes a list your “seed” packages and builds a
custom dojo.js file
– The custom dojo.js will include all packages and
their dependencies already processed
● Can I include my custom packages in the build?
– Yes!!!
41

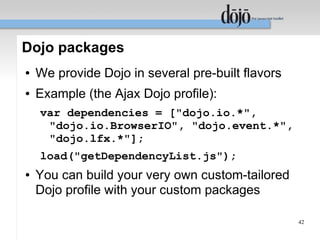

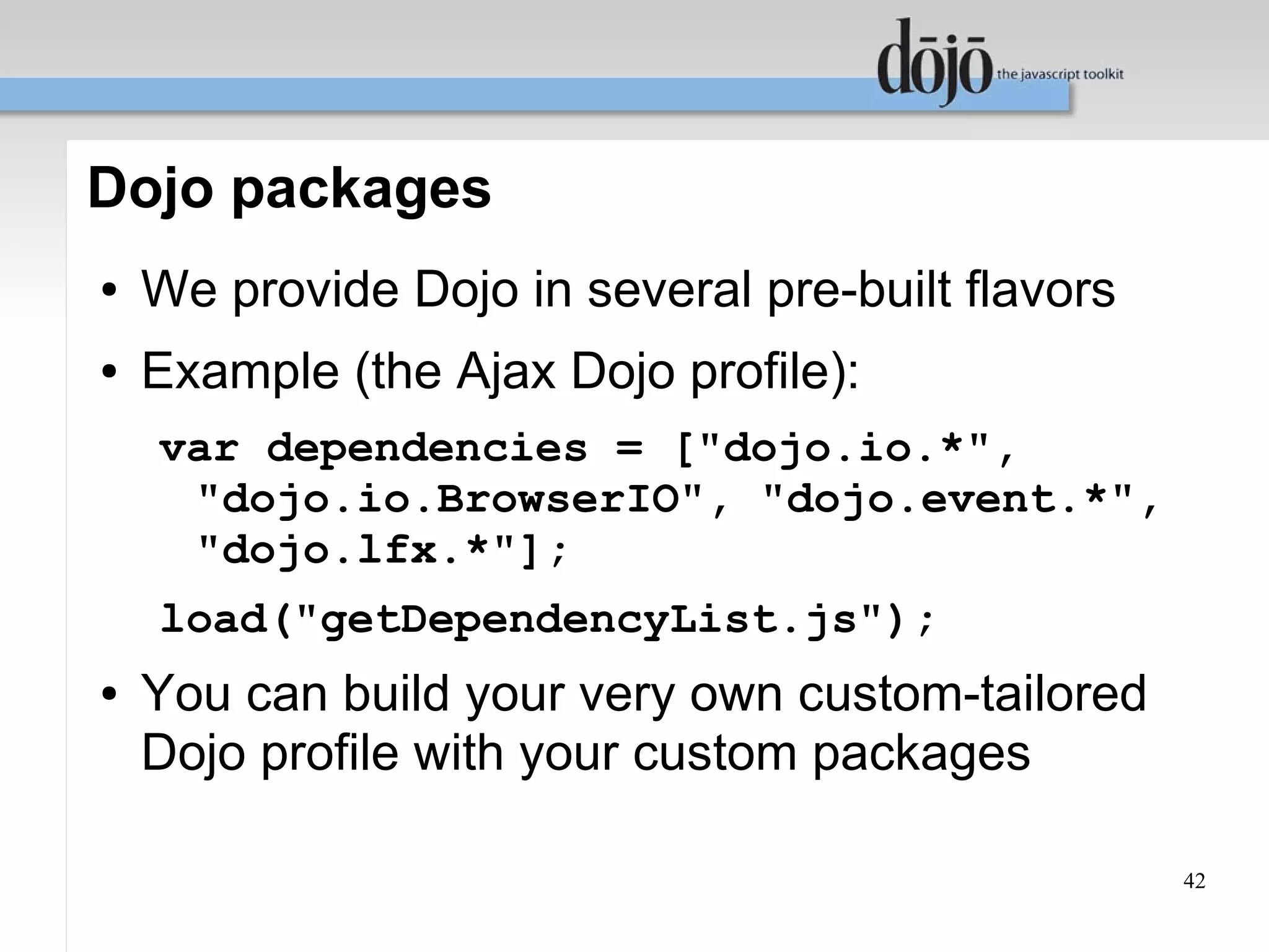

42. Dojo packages
● We provide Dojo in several pre-built flavors
● Example (the Ajax Dojo profile):
var dependencies = ["dojo.io.*",
"dojo.io.BrowserIO", "dojo.event.*",
"dojo.lfx.*"];
load("getDependencyList.js");
● You can build your very own custom-tailored
Dojo profile with your custom packages
42

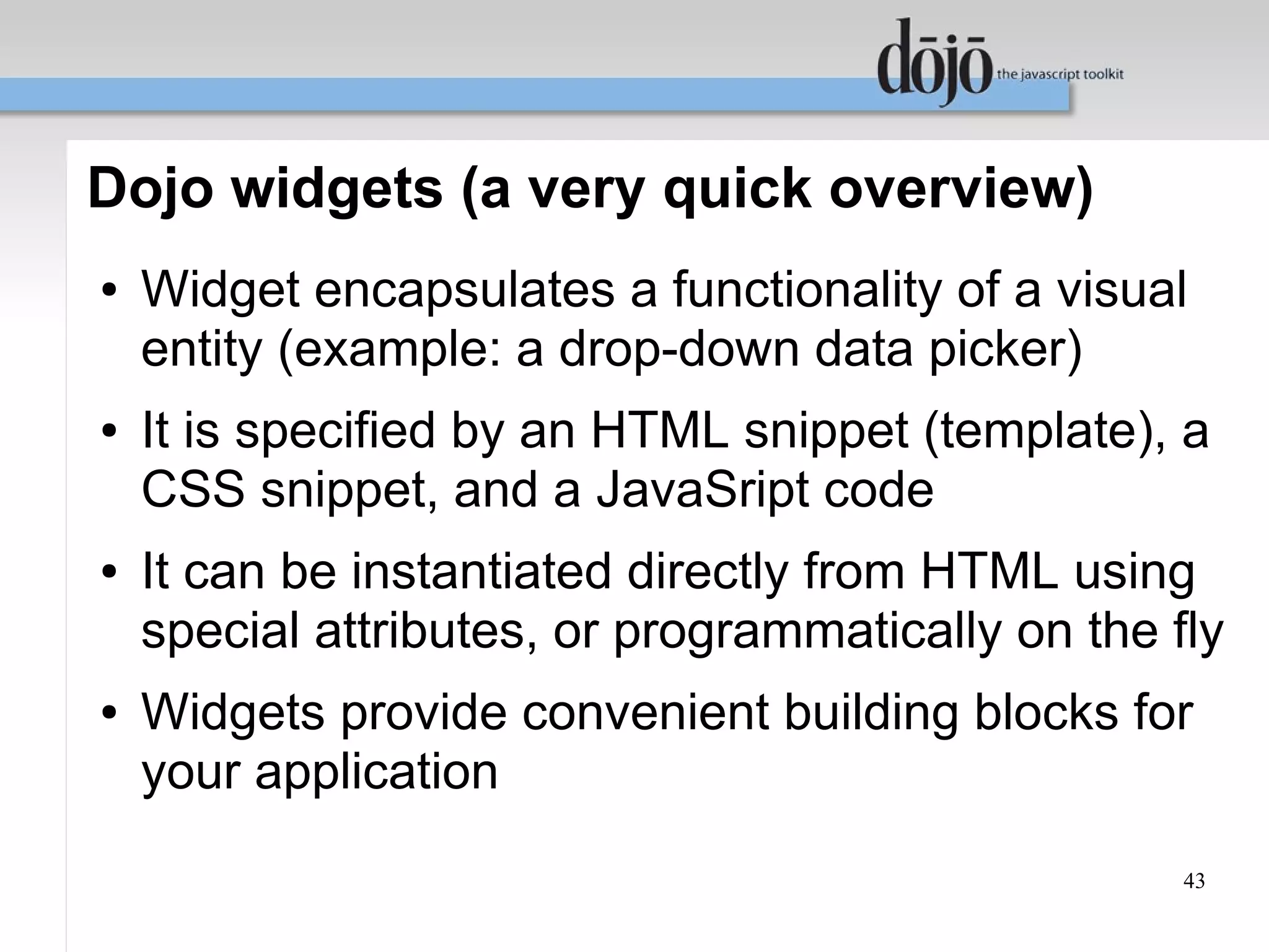

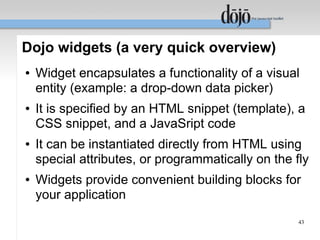

43. Dojo widgets (a very quick overview)
● Widget encapsulates a functionality of a visual
entity (example: a drop-down data picker)
● It is specified by an HTML snippet (template), a
CSS snippet, and a JavaSript code
● It can be instantiated directly from HTML using
special attributes, or programmatically on the fly
● Widgets provide convenient building blocks for
your application
43

44. “Fresh from the shed” Dojo
(cc) Stanislav Lvovsky, http://www.flickr.com/photos/lvovsky/142611807/
Istanbul, Turkey 44

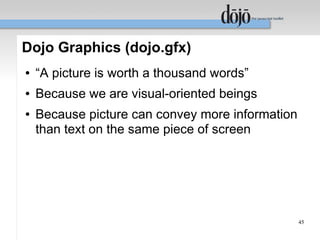

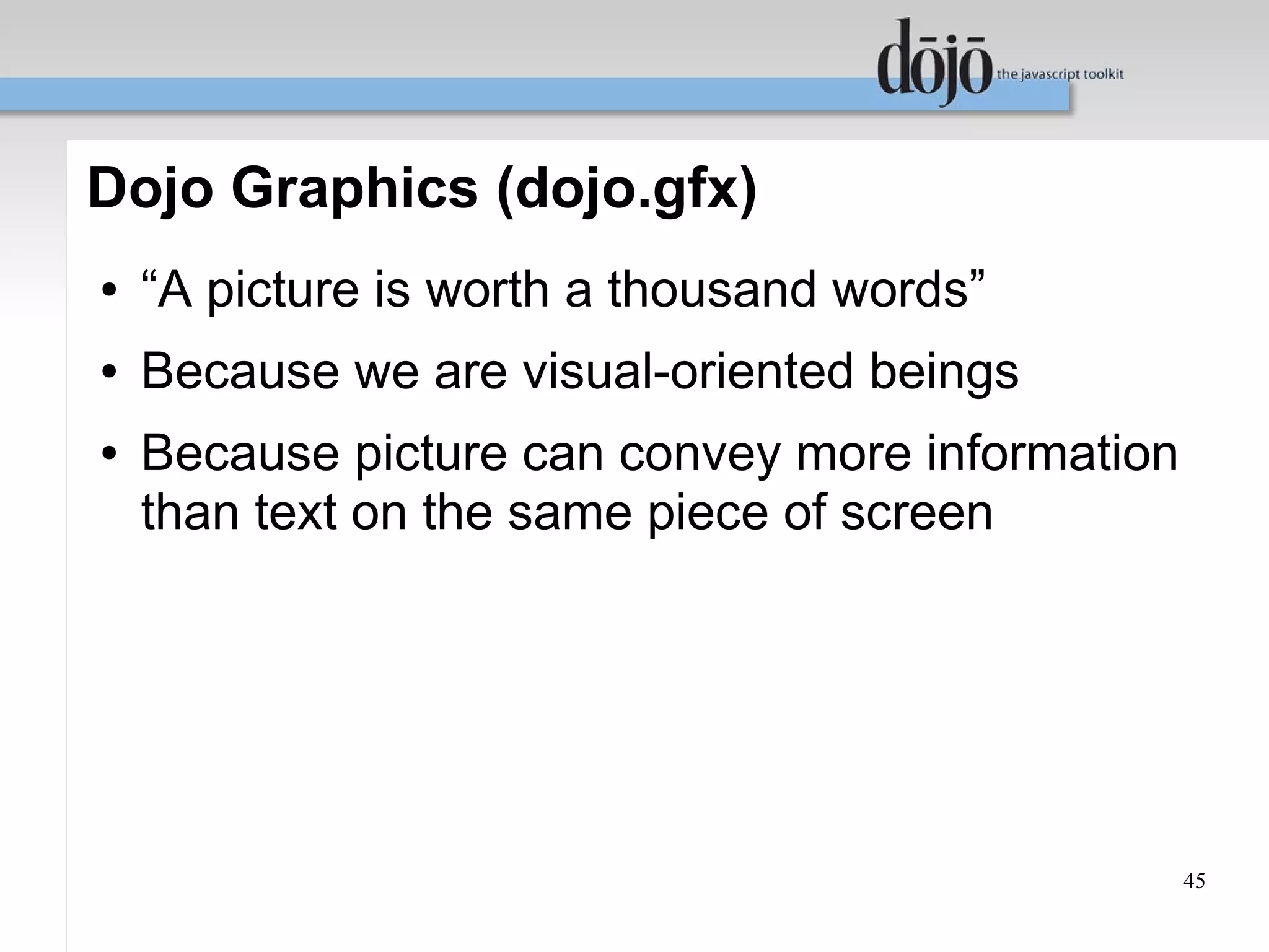

45. Dojo Graphics (dojo.gfx)
● “A picture is worth a thousand words”
● Because we are visual-oriented beings
● Because picture can convey more information
than text on the same piece of screen
45

46. Dojo Graphics (dojo.gfx)
● Implements DOM-based vector graphics
● Supported shapes:
– Path, polyline/polygon, rectangle, ellipse, circle, line,
image, text, textpath
● Supported fills:
– Solid color fill (with opacity), linear gradient, radial
gradient
● Supports different strokes, fonts
46

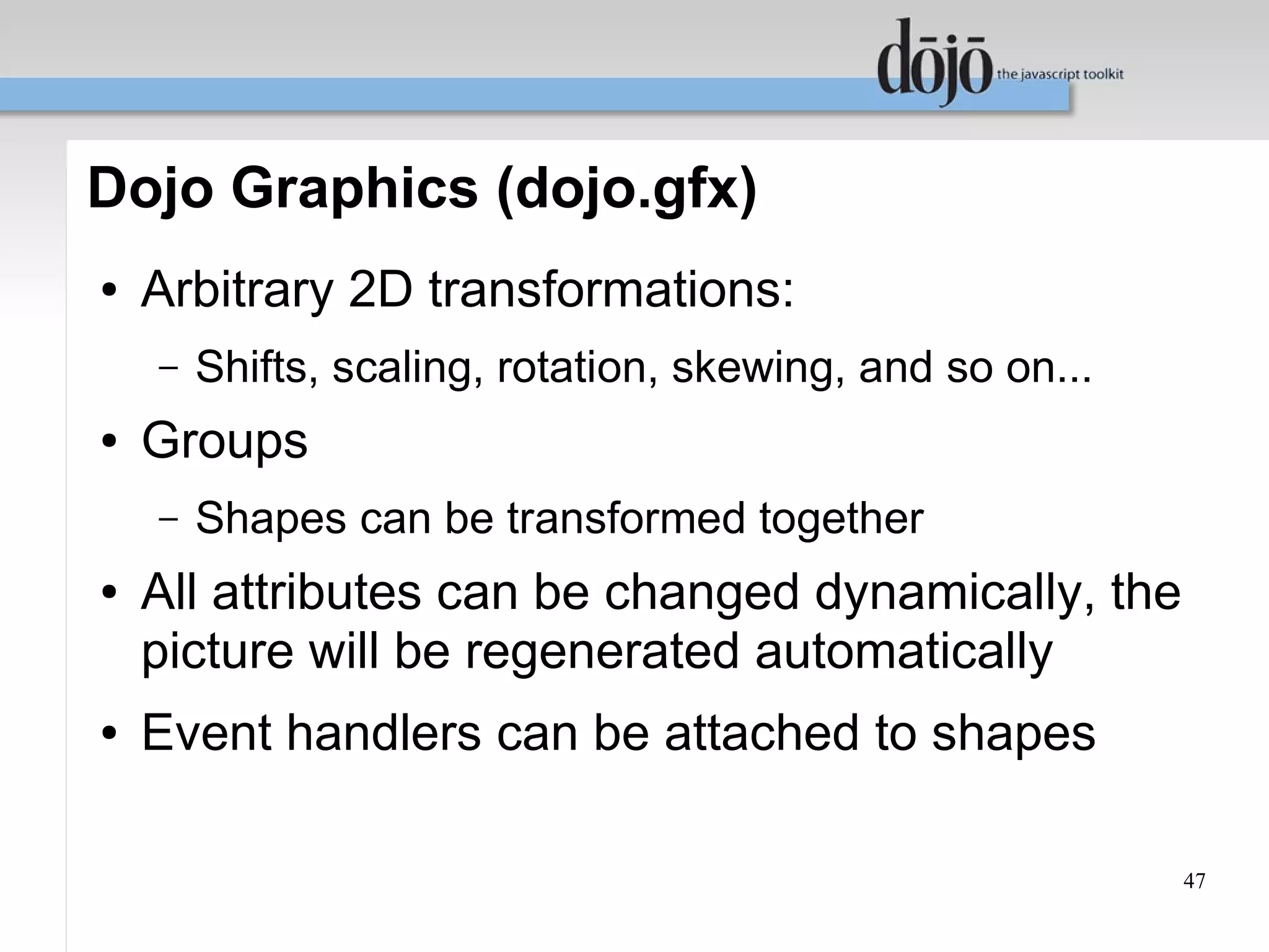

47. Dojo Graphics (dojo.gfx)
● Arbitrary 2D transformations:
– Shifts, scaling, rotation, skewing, and so on...
● Groups
– Shapes can be transformed together
● All attributes can be changed dynamically, the
picture will be regenerated automatically
● Event handlers can be attached to shapes
47

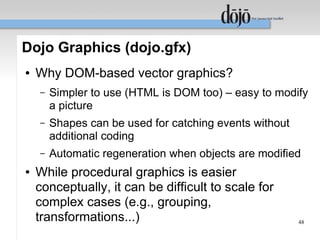

48. Dojo Graphics (dojo.gfx)
● Why DOM-based vector graphics?
– Simpler to use (HTML is DOM too) – easy to modify
a picture
– Shapes can be used for catching events without
additional coding
– Automatic regeneration when objects are modified
● While procedural graphics is easier
conceptually, it can be difficult to scale for
complex cases (e.g., grouping,
transformations...) 48

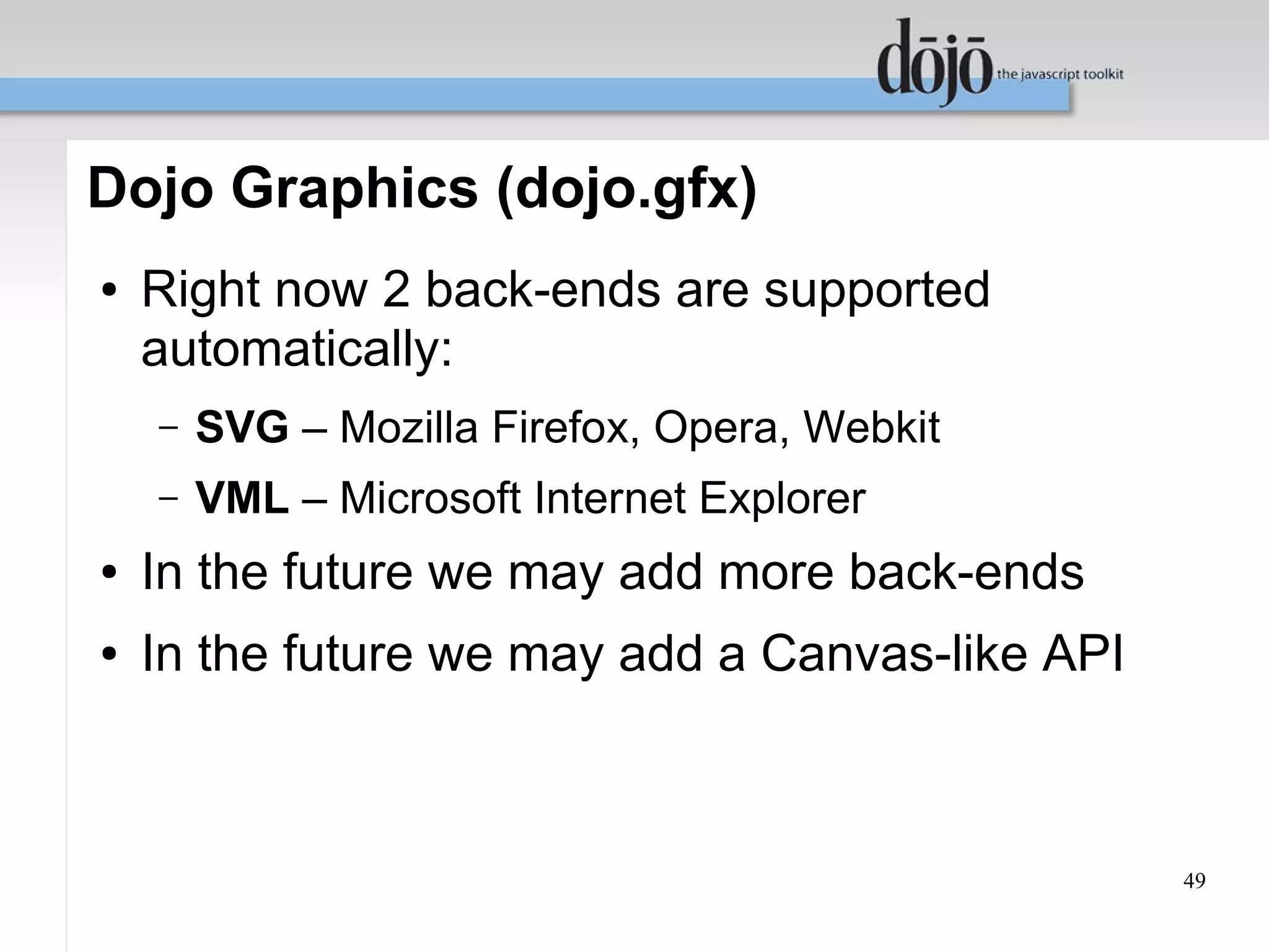

49. Dojo Graphics (dojo.gfx)
● Right now 2 back-ends are supported
automatically:
– SVG – Mozilla Firefox, Opera, Webkit
– VML – Microsoft Internet Explorer
● In the future we may add more back-ends
● In the future we may add a Canvas-like API
49

50. Everybody loves charts...
(cc) Brendan Dolan-Gavitt,
http://www.flickr.com/photos/moyix/174053226/
50
New Hampshire, USA

51. ...in both camps
Uncensored original: (cc) J Clark, http://www.flickr.com/photos/idledesigns/14795430/
51

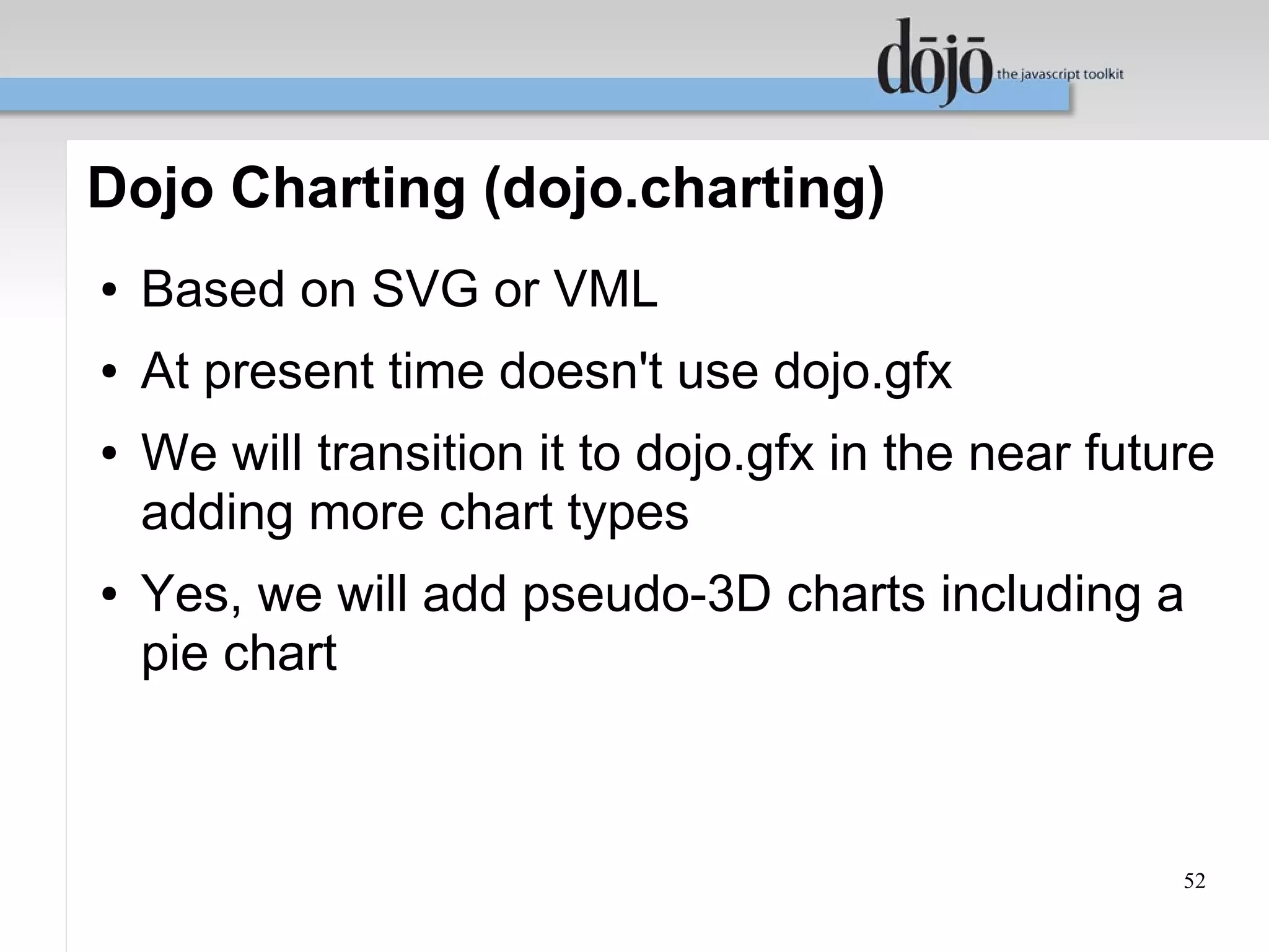

52. Dojo Charting (dojo.charting)
● Based on SVG or VML
● At present time doesn't use dojo.gfx
● We will transition it to dojo.gfx in the near future
adding more chart types
● Yes, we will add pseudo-3D charts including a
pie chart
52

53. Offline applications
53
(cc) Michael Randall, http://www.flickr.com/photos/pigpogm/40889785/

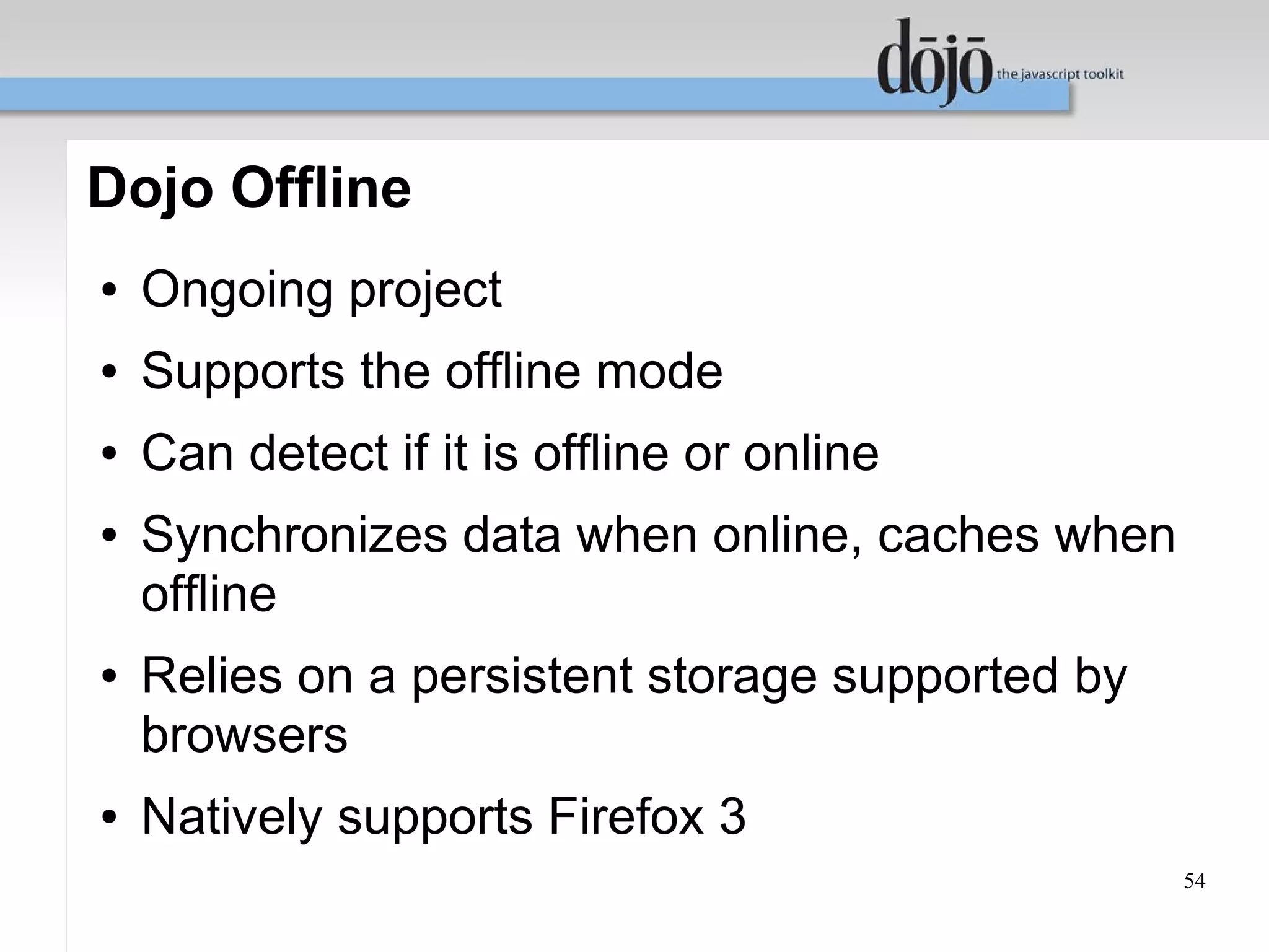

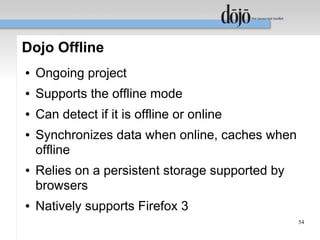

54. Dojo Offline
● Ongoing project
● Supports the offline mode
● Can detect if it is offline or online
● Synchronizes data when online, caches when
offline
● Relies on a persistent storage supported by
browsers
● Natively supports Firefox 3
54

55. The way ahead
55

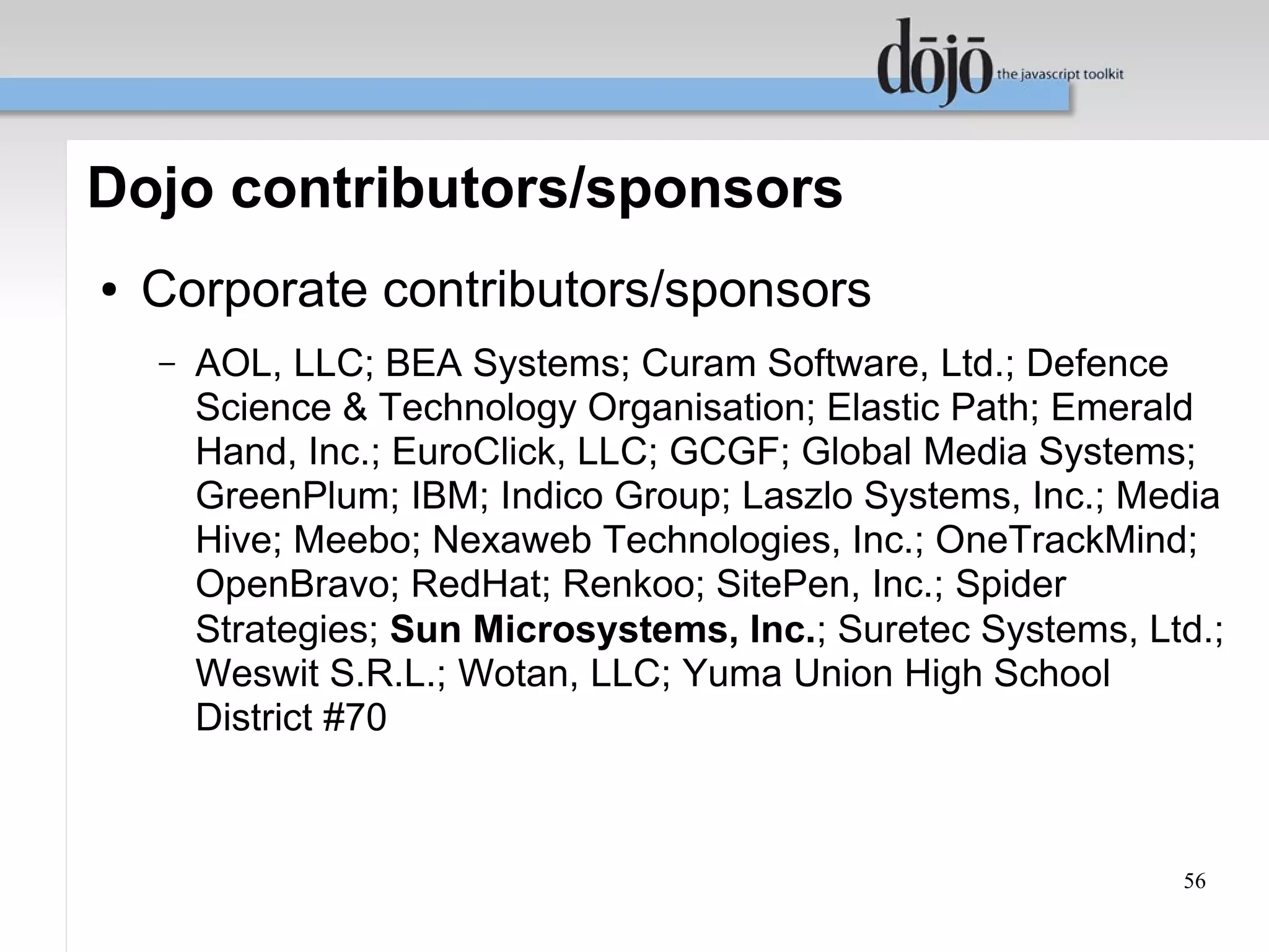

56. Dojo contributors/sponsors
● Corporate contributors/sponsors
– AOL, LLC; BEA Systems; Curam Software, Ltd.; Defence
Science & Technology Organisation; Elastic Path; Emerald
Hand, Inc.; EuroClick, LLC; GCGF; Global Media Systems;
GreenPlum; IBM; Indico Group; Laszlo Systems, Inc.; Media
Hive; Meebo; Nexaweb Technologies, Inc.; OneTrackMind;
OpenBravo; RedHat; Renkoo; SitePen, Inc.; Spider
Strategies; Sun Microsystems, Inc.; Suretec Systems, Ltd.;
Weswit S.R.L.; Wotan, LLC; Yuma Union High School
District #70
56

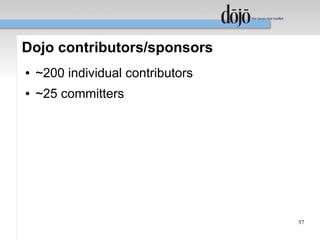

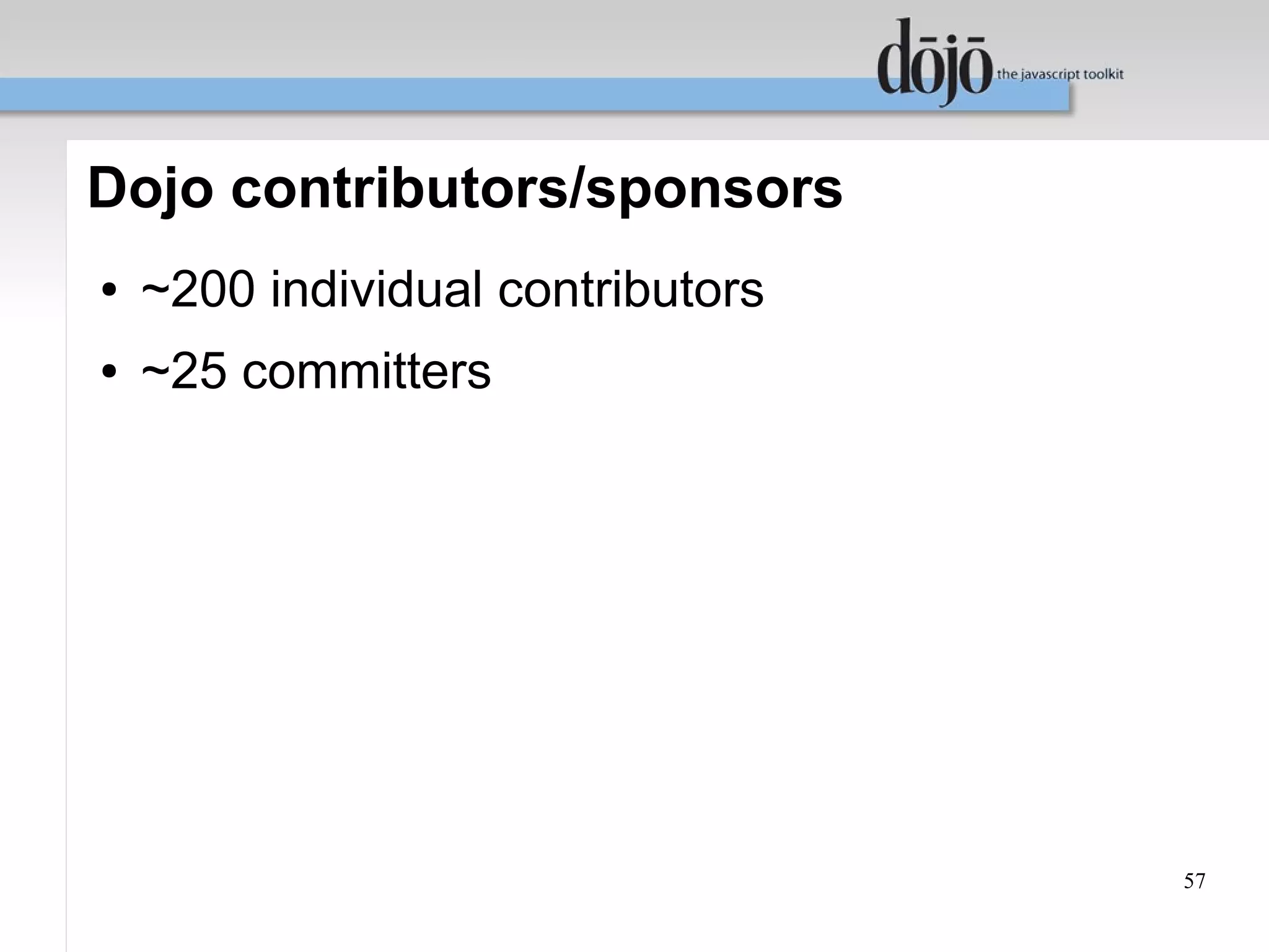

57. Dojo contributors/sponsors
● ~200 individual contributors
● ~25 committers
57

58. In case you didn't see warnings...
58

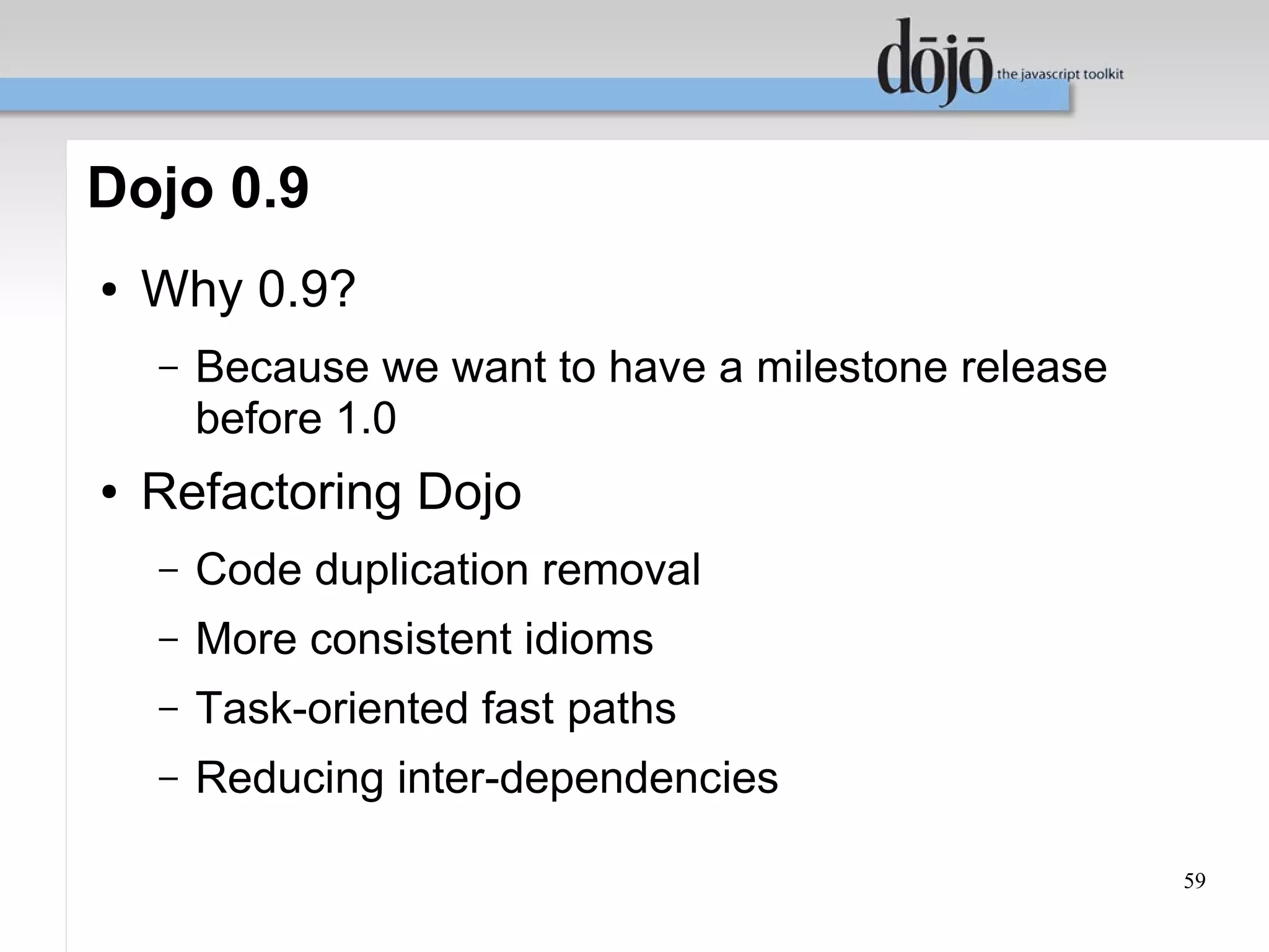

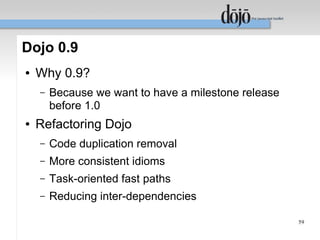

59. Dojo 0.9
● Why 0.9?
– Because we want to have a milestone release
before 1.0
● Refactoring Dojo
– Code duplication removal
– More consistent idioms
– Task-oriented fast paths
– Reducing inter-dependencies
59

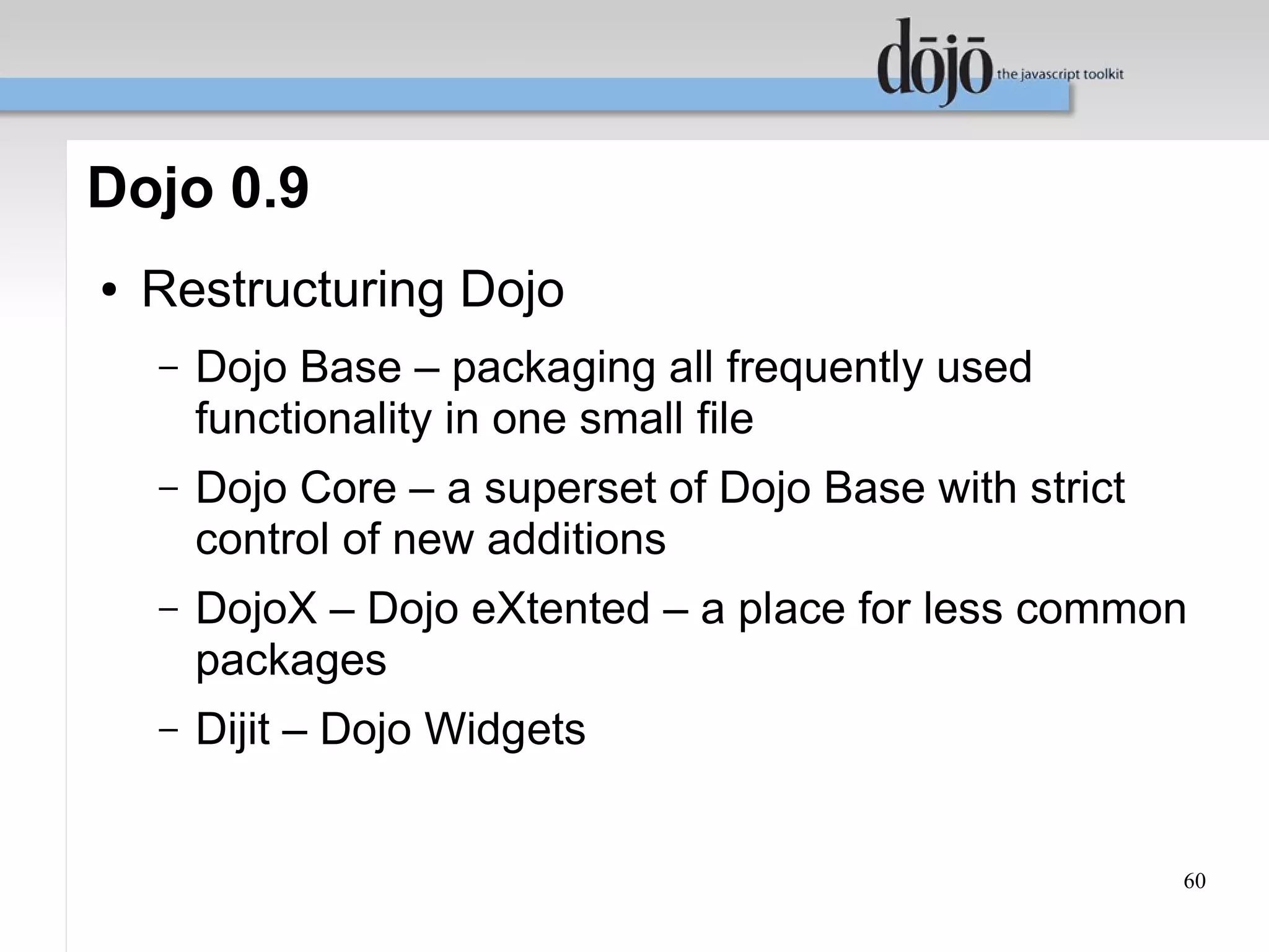

60. Dojo 0.9
● Restructuring Dojo
– Dojo Base – packaging all frequently used
functionality in one small file
– Dojo Core – a superset of Dojo Base with strict
control of new additions
– DojoX – Dojo eXtented – a place for less common
packages
– Dijit – Dojo Widgets
60

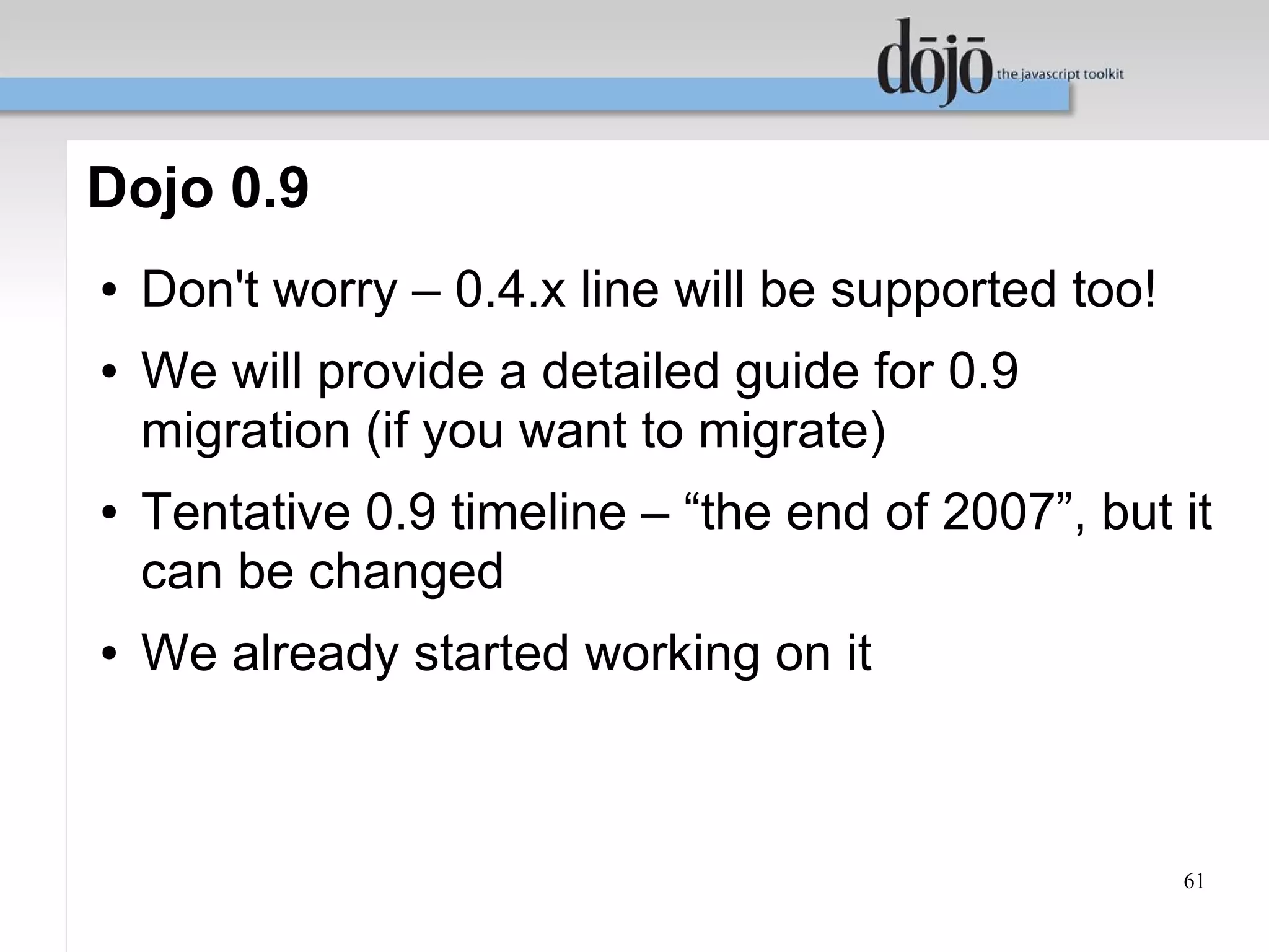

61. Dojo 0.9
● Don't worry – 0.4.x line will be supported too!
● We will provide a detailed guide for 0.9
migration (if you want to migrate)
● Tentative 0.9 timeline – “the end of 2007”, but it
can be changed
● We already started working on it
61

62. The end
62
(cc) Su Neko, http://www.flickr.com/photos/suneko/373310729/

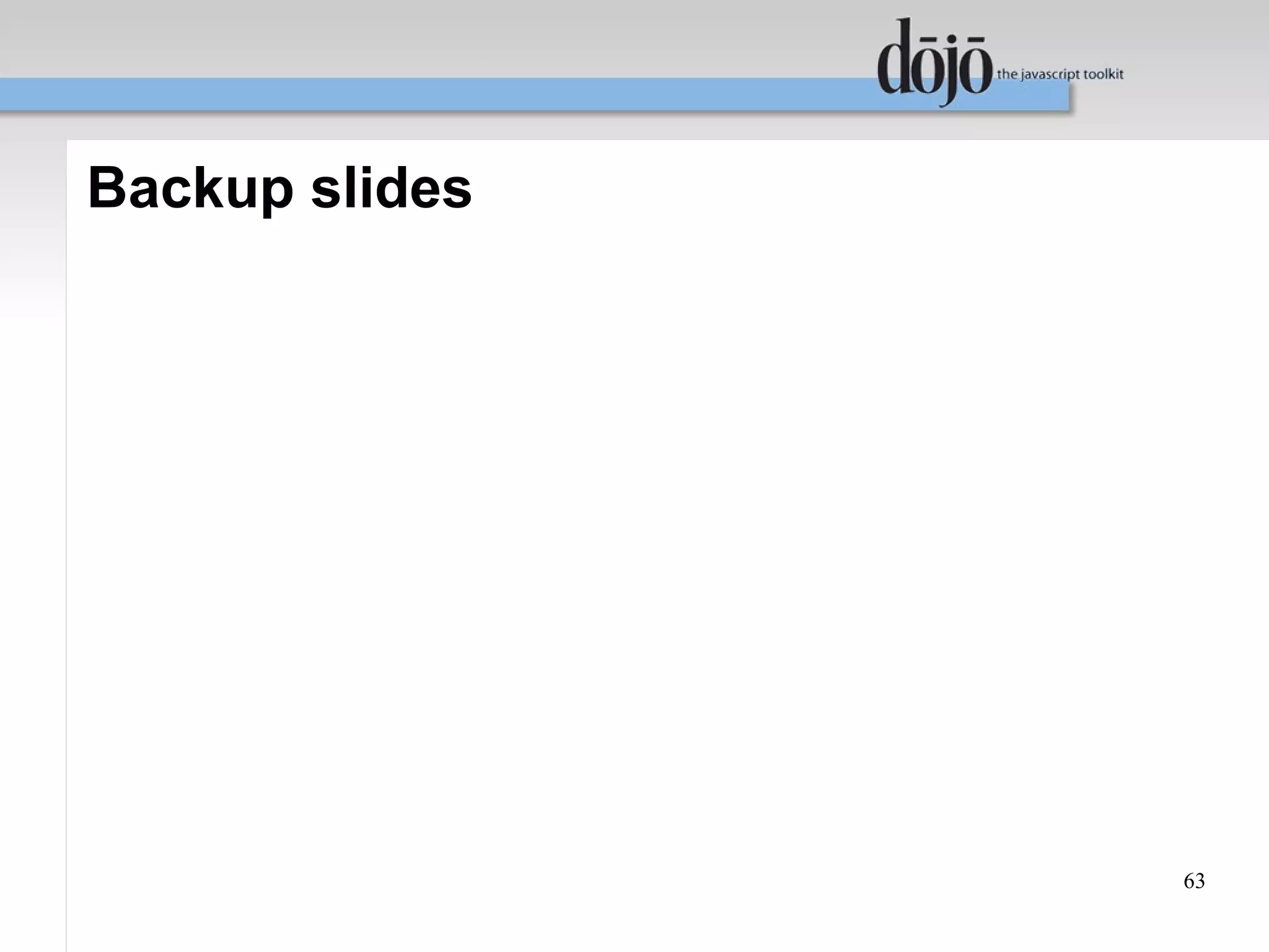

63. Backup slides
63

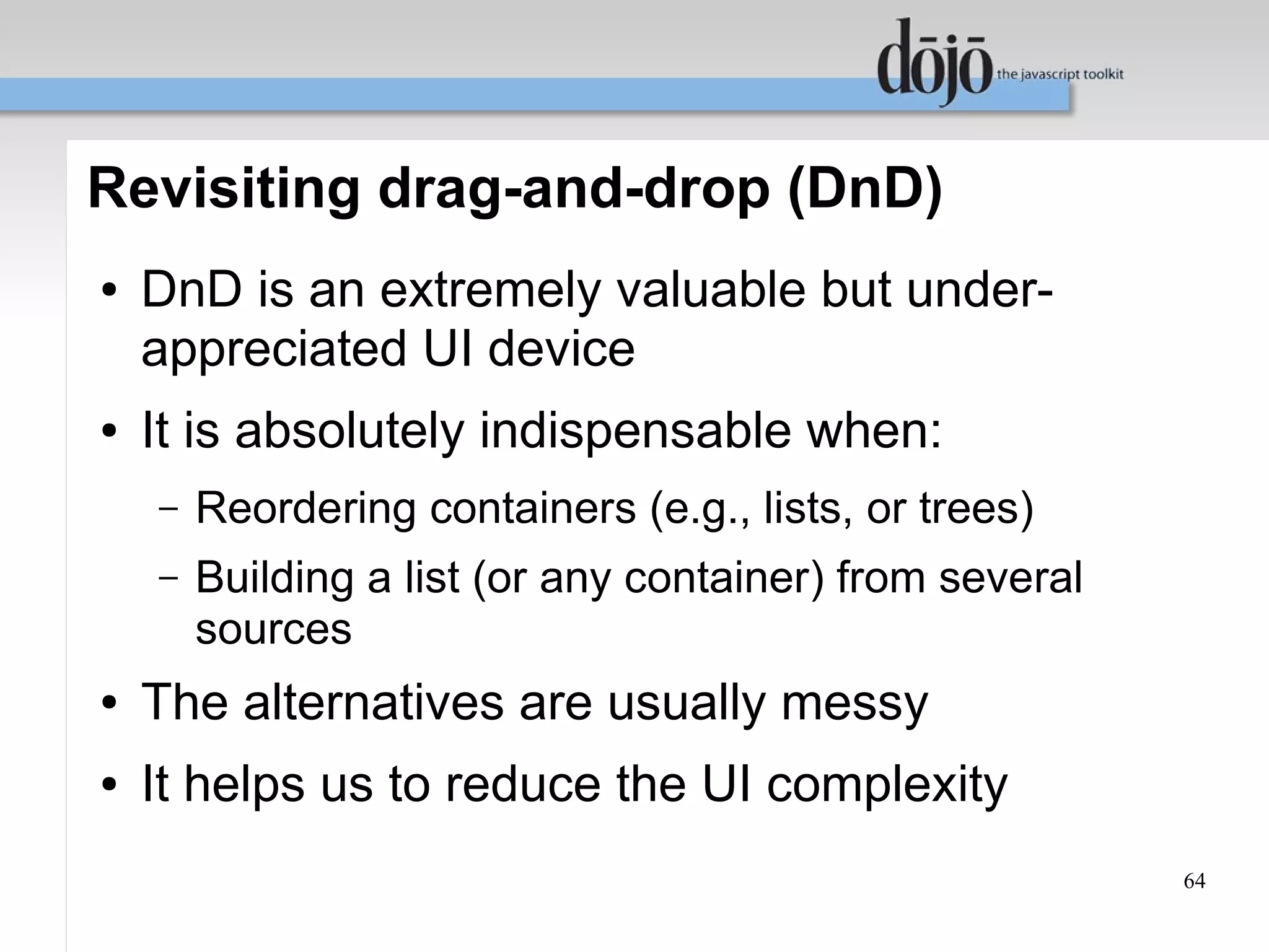

64. Revisiting drag-and-drop (DnD)
● DnD is an extremely valuable but under-
appreciated UI device
● It is absolutely indispensable when:
– Reordering containers (e.g., lists, or trees)
– Building a list (or any container) from several
sources
● The alternatives are usually messy
● It helps us to reduce the UI complexity
64

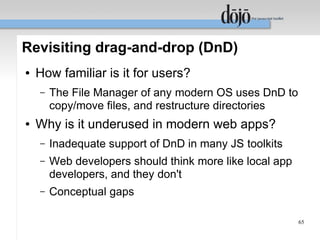

65. Revisiting drag-and-drop (DnD)
● How familiar is it for users?
– The File Manager of any modern OS uses DnD to
copy/move files, and restructure directories
● Why is it underused in modern web apps?
– Inadequate support of DnD in many JS toolkits
– Web developers should think more like local app
developers, and they don't
– Conceptual gaps
65

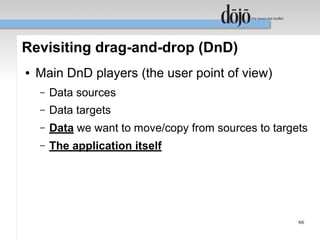

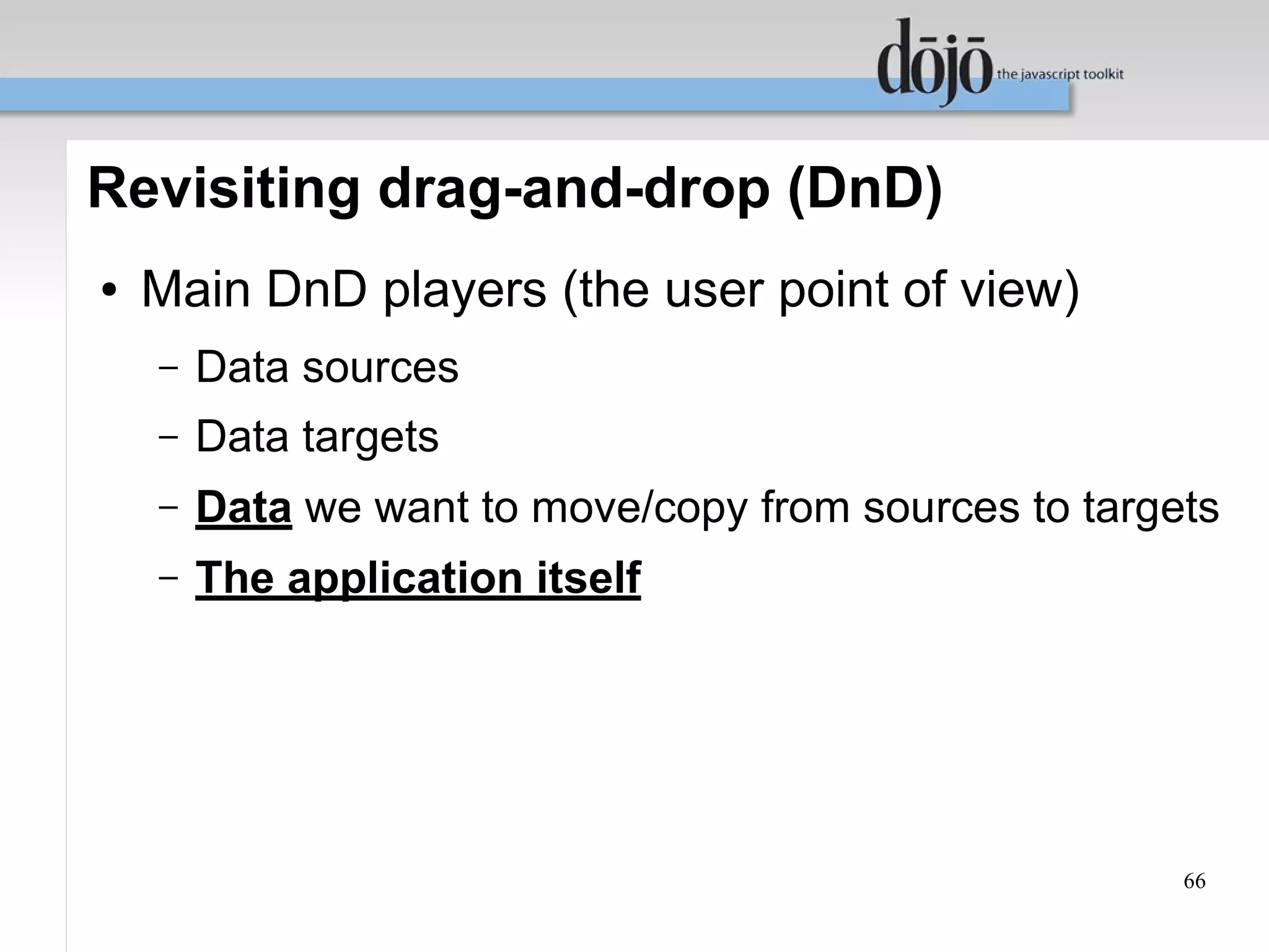

66. Revisiting drag-and-drop (DnD)
● Main DnD players (the user point of view)
– Data sources
– Data targets
– Data we want to move/copy from sources to targets
– The application itself
66

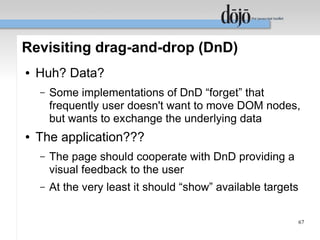

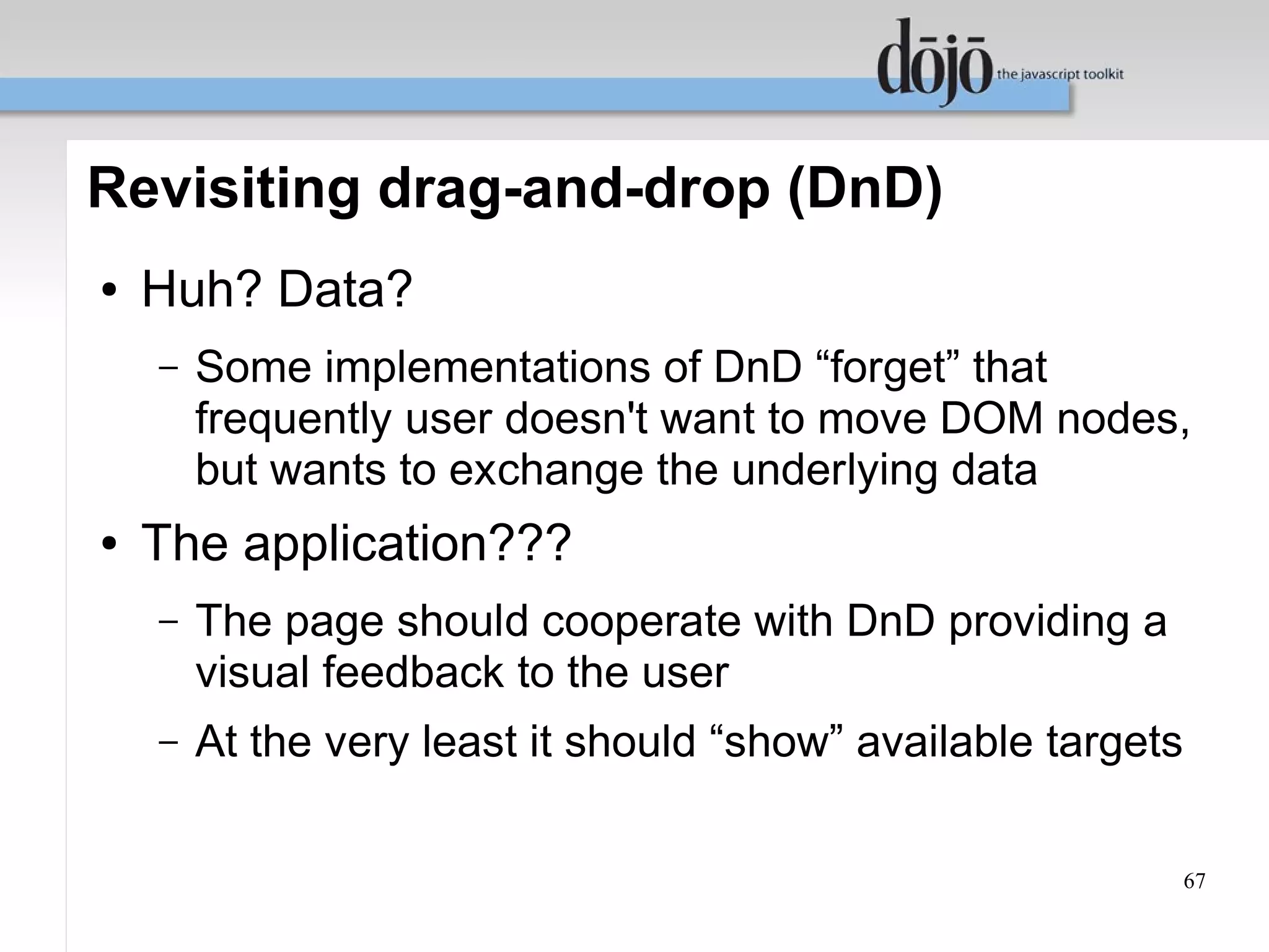

67. Revisiting drag-and-drop (DnD)
● Huh? Data?
– Some implementations of DnD “forget” that
frequently user doesn't want to move DOM nodes,
but wants to exchange the underlying data
● The application???
– The page should cooperate with DnD providing a
visual feedback to the user
– At the very least it should “show” available targets
67
