1. Enabling Android for Mobile Solutions
Jason Bremner
March 2009
PAGE 1 | QUALCOMM CONFIDENTIAL & PROPRIETARY | RESTRICTED DISTRIBUTION

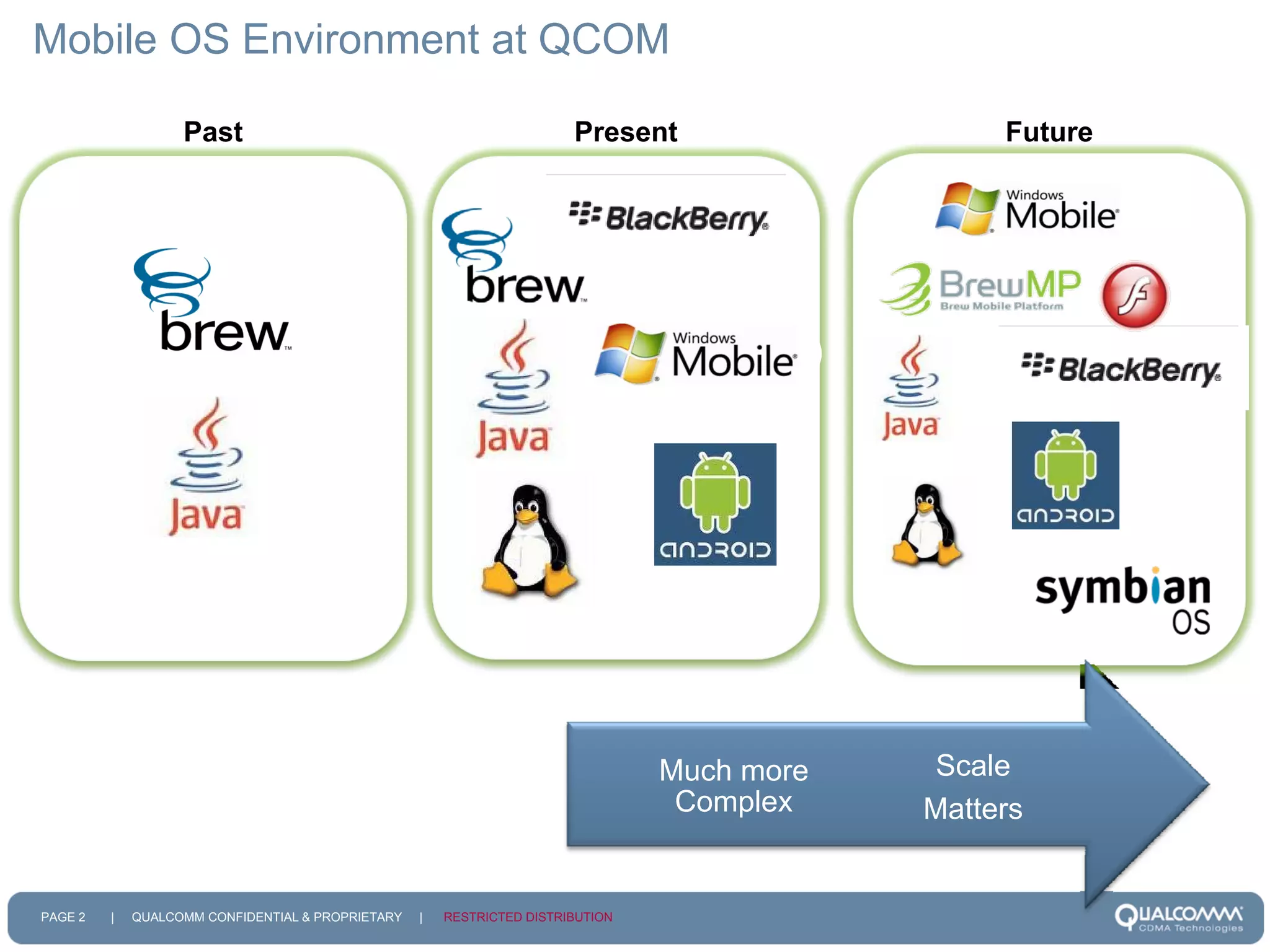

2. Mobile OS Environment at QCOM
Past Present Future
Scale
Much more
Complex Matters
PAGE 2 | QUALCOMM CONFIDENTIAL & PROPRIETARY | RESTRICTED DISTRIBUTION

3. World’s First Android Handsets
PAGE 3 | QUALCOMM CONFIDENTIAL & PROPRIETARY | RESTRICTED DISTRIBUTION

4. Industry’s Broadest Chipset Support for Android
1GHz Mobile Internet Devices
QSD8650 • Up to WXGA display
• 30fps 720p HD multimedia
• 3D & 2D Graphics acceleration
• GPS
Multimedia/Graphics Centric PDAs
• 528Mhz ARM11
MSM7600
• Up to WVGA display
• 30fps WVGA Video
• 3D & 2D Graphics acceleration
• GPS
Low Cost Smartphone
MSM7627
• Sub $150 handsets
• 528Mhz ARM11
• Up to VGA display
• 30fps VGA Video
• GPS
PAGE 4 | QUALCOMM CONFIDENTIAL & PROPRIETARY | RESTRICTED DISTRIBUTION

5. Working with the Android Platform
Advantages:
1. Pace of innovation
2. Flexibility of the architecture
3. Ability to leverage third parties
Challenges:
1. Open Source GPL Terms
2. Google growing pains
3. Software quality control
4. Scaling the platform beyond the “Super OEMs”
PAGE 5 | QUALCOMM CONFIDENTIAL & PROPRIETARY | RESTRICTED DISTRIBUTION

6. Scaling Android
1. Delivering the Complete Integrated Solution
Fully integrated and tested Android platform:
– Integrated BSP, drivers and GMS apps…all tested to QCOM QA standards.
– Verify compliance with standards such as GCF
– Provide power and performance optimizations
Reduces the development effort and time to market for OEMs
Provide consistent quality
Single, standard multimode RIL commercialized through top Operators
worldwide
Allows OEMs to focus on differentiation
PAGE 6 | QUALCOMM CONFIDENTIAL & PROPRIETARY | RESTRICTED DISTRIBUTION

7. Android Top Level Software Stack
QCOM provides a complete Android solution
Integrated and test the complete package…drivers, Android apps and BSP
App Space
Dialer
Media Camera LBS
Graphics
App /
Player App App
App Q
Contacts
Telephony
Manager
User Space
GPS
Camera
OpenCore rild
HAL
HAL
QCRIL
Communication Stack
OpenGLES
GPS ONCRPC
OpenMAX Qcamera
OpenVG
REX Emulation Layer
IPC Handler
Kernel Space
Linux OS 2.6.x
L4/Iguana RTOS
RPC/SMEM
Device Drivers Driver
(Google Blended)
Driver Driver
Boot Loader
SMEMRPC Driver Driver
ARM1136 or Scorpion Applications Processor ARM926 Communications Processor
MSM or QSD Converged Silicon Solution
PAGE 7 | QUALCOMM CONFIDENTIAL & PROPRIETARY | RESTRICTED DISTRIBUTION

8. Scaling Android
2. Enable lower cost Android devices
Provide QVGA support on lower tiered chipset platforms
3. Enable MID and Netbook Android devices
WVGA+ resolution support
Mouse events / pointer framework
Connection / file manager
Full Chrome Browser support.
4. Enhance Android Application Offering with QCOM IP
CDMA Support
MFLO Client
Fluence – Noise Cancellation
PAGE 8 | QUALCOMM CONFIDENTIAL & PROPRIETARY | RESTRICTED DISTRIBUTION
