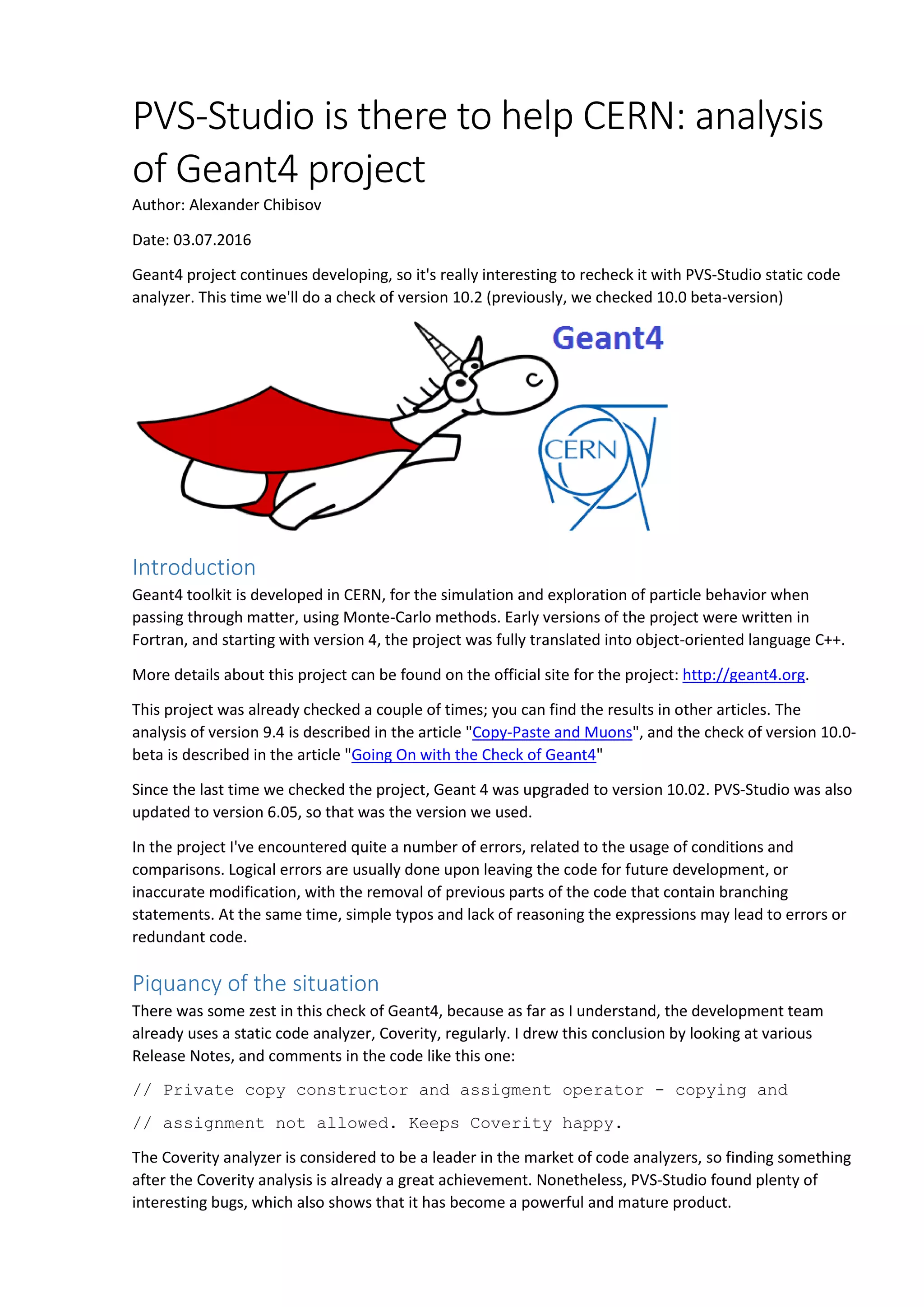

PVS-Studio is there to help CERN: analysis of Geant4 project

PVS-Studio is there to help CERN: analysis
of Geant4 project
Author: Alexander Chibisov
Date: 03.07.2016
Geant4 project continues developing, so it's really interesting to recheck it with PVS-Studio static code
analyzer. This time we'll do a check of version 10.2 (previously, we checked 10.0 beta-version)
Introduction
Geant4 toolkit is developed in CERN, for the simulation and exploration of particle behavior when
passing through matter, using Monte-Carlo methods. Early versions of the project were written in
Fortran, and starting with version 4, the project was fully translated into object-oriented language C++.
More details about this project can be found on the official site for the project: http://geant4.org.
This project was already checked a couple of times; you can find the results in other articles. The
analysis of version 9.4 is described in the article "Copy-Paste and Muons", and the check of version 10.0-
beta is described in the article "Going On with the Check of Geant4"
Since the last time we checked the project, Geant 4 was upgraded to version 10.02. PVS-Studio was also
updated to version 6.05, so that was the version we used.
In the project I've encountered quite a number of errors, related to the usage of conditions and
comparisons. Logical errors are usually done upon leaving the code for future development, or
inaccurate modification, with the removal of previous parts of the code that contain branching
statements. At the same time, simple typos and lack of reasoning the expressions may lead to errors or
redundant code.
Piquancy of the situation
There was some zest in this check of Geant4, because as far as I understand, the development team
already uses a static code analyzer, Coverity, regularly. I drew this conclusion by looking at various
Release Notes, and comments in the code like this one:
// Private copy constructor and assigment operator - copying and
// assignment not allowed. Keeps Coverity happy.
The Coverity analyzer is considered to be a leader in the market of code analyzers, so finding something
after the Coverity analysis is already a great achievement. Nonetheless, PVS-Studio found plenty of
interesting bugs, which also shows that it has become a powerful and mature product.

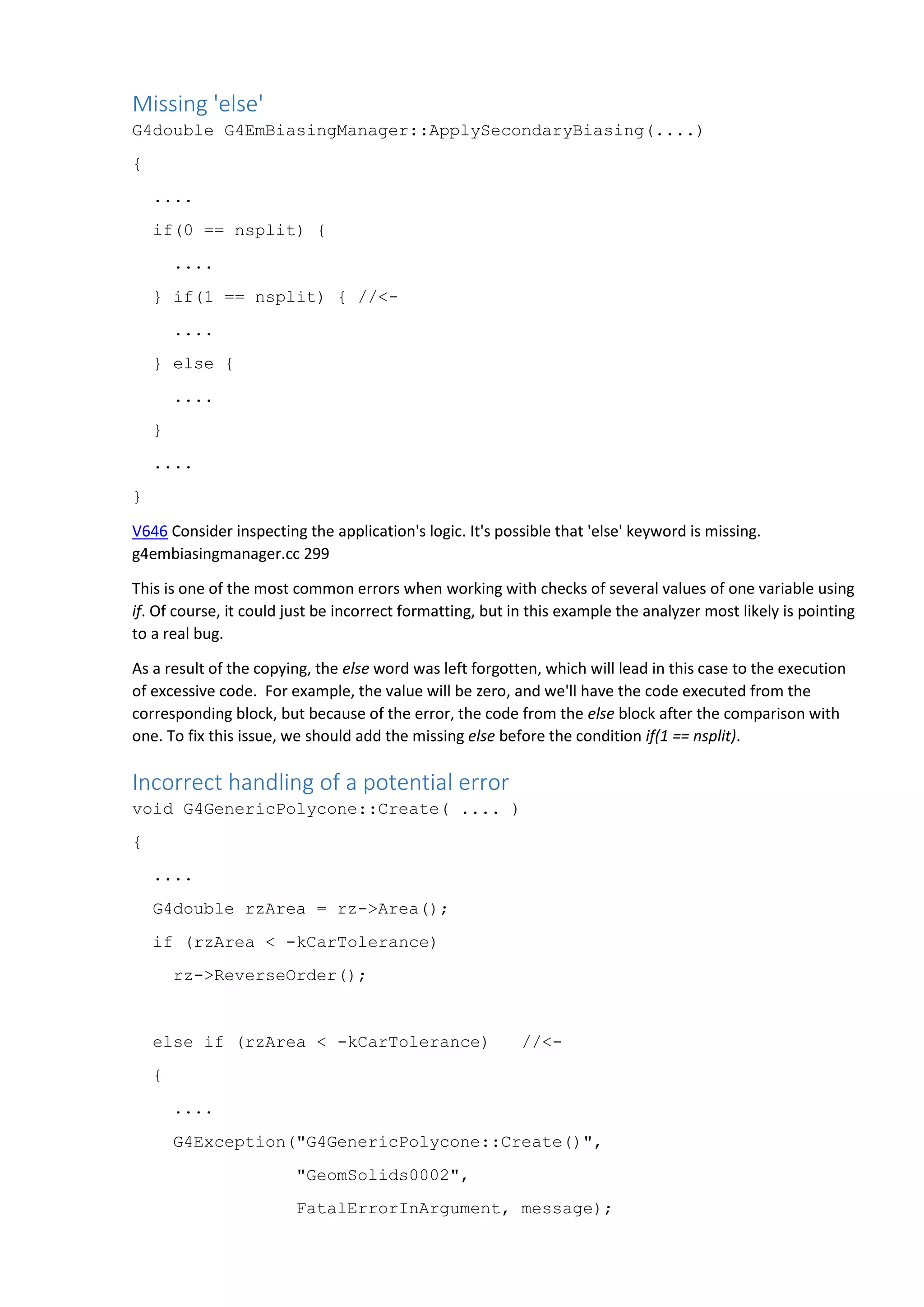

Missing 'else'
G4double G4EmBiasingManager::ApplySecondaryBiasing(....)
{
....
if(0 == nsplit) {
....
} if(1 == nsplit) { //<-
....
} else {
....
}
....
}
V646 Consider inspecting the application's logic. It's possible that 'else' keyword is missing.
g4embiasingmanager.cc 299
This is one of the most common errors when working with checks of several values of one variable using
if. Of course, it could just be incorrect formatting, but in this example the analyzer most likely is pointing
to a real bug.
As a result of the copying, the else word was left forgotten, which will lead in this case to the execution
of excessive code. For example, the value will be zero, and we'll have the code executed from the
corresponding block, but because of the error, the code from the else block after the comparison with
one. To fix this issue, we should add the missing else before the condition if(1 == nsplit).
Incorrect handling of a potential error
void G4GenericPolycone::Create( .... )
{
....
G4double rzArea = rz->Area();
if (rzArea < -kCarTolerance)
rz->ReverseOrder();
else if (rzArea < -kCarTolerance) //<-
{
....
G4Exception("G4GenericPolycone::Create()",
"GeomSolids0002",
FatalErrorInArgument, message);

}
....
}
V517 The use of 'if (A) {...} else if (A) {...}' pattern was detected. There is a probability of logical error
presence. Check lines: 102, 105. g4genericpolycone.cc 102
We can only assume what this code was meant for. It is very likely that this fragment is intended for
catching and forming the error message, but in the cast of an incorrect condition, there will be no error
message. It's unclear how the program will behave later on. Perhaps the handler will catch the bug in
some different place, but there is a chance that the program will continue working without an error, but
will output an incorrect result. It's quite hard to say exactly, what is the cause of this problem, as it can
be both in one of the conditional expressions, as well as in the excessive else keyword. But judging by
the formatting, we can safely assume that both conditional blocks are correct, and we should just
remove else before the second conditional block.
Thanks to copy-paste this error was duplicated and was found in three more fragments:
 V517 The use of 'if (A) {...} else if (A) {...}' pattern was detected. There is a probability of logical
error presence. Check lines: 193, 196. g4polycone.cc 193
error presence. Check lines: 219, 222. g4polyhedra.cc 219
error presence. Check lines: 207, 211. g4persistencycentermessenger.cc 207
Null pointer dereference
G4double * theShells;
G4double * theGammas;
void G4ParticleHPPhotonDist::InitAngular(....)
{
....
if ( theGammas != NULL )
{
for ( i = 0 ; i < nDiscrete ; i++ )
{
vct_gammas_par.push_back( theGammas[ i ] );
vct_shells_par.push_back( theShells[ i ] );
....
}
}
if ( theGammas == NULL ) theGammas = new G4double[nDiscrete2];
if ( theShells == NULL ) theShells = new G4double[nDiscrete2];

....
}
V595 The 'theShells' pointer was utilized before it was verified against nullptr. Check lines: 147, 156.
g4particlehpphotondist.cc 147
We see errors related to pointer handling quite often in programs. In this case we have a situation
where two objects are handled simultaneously, but only one is checked for correctness. This error may
remain unnoticed for a long time, but if the pointer to the theShells turns out to be a null one, it will lead
to undefined program behavior. To fix this, you need to change the condition as follows:
if ( theGammas != NULL && theShells != NULL) ....
One more fragment where the check of the pointer is missing.
 V595 The 'fCurrentProcess' pointer was utilized before it was verified against nullptr. Check
lines: 303, 307. g4steppingmanager2.cc 303
Null pointer usage
G4hhElastic::G4hhElastic(....)
: G4HadronElastic("HadrHadrElastic")
{
....
fTarget = target; // later vmg
fProjectile = projectile;
....
fTarget = G4Proton::Proton(); // later vmg
fProjectile = 0; //<-
fMassTarg = fTarget->GetPDGMass();
fMassProj = fProjectile->GetPDGMass(); //<-
....
}
V522 Dereferencing of the null pointer 'fProjectile' might take place. g4hhelastic.cc 184
This fragment is similar to the previous one. But here's a pointer explicitly assigned with a zero value,
and after that the variable is used for the initialization of other variables. The programmer may have
intended to use the variable value from the first assignment, so the second is simply unnecessary.
Perhaps, 0 was supposed to be assigned to a different variable. The true reasons for this assignment are
known only by the developers of the project. In any case such initialization is not correct, and this code
fragment is worth reviewing.
Invalid bitwise operation
#define dependentAxis 1
#define allowByRegion 2

static enum xDataTOM_interpolationFlag
xDataTOM_interpolation_getFromString( .... ) {
....
if( flag | allowByRegion ) {....} //<-
if( flag | dependentAxis ) {....} //<-
....
}
 V617 Consider inspecting the condition. The '2' argument of the '|' bitwise operation contains a
non-zero value. xdatatom_interpolation.cc 85
 V617 Consider inspecting the condition. The '1' argument of the '|' bitwise operation contains a
non-zero value. xdatatom_interpolation.cc 88
The analyzer issued a warning for two neighboring strings of a function. We have bitwise OR with a non-
zero constant inside a condition. The result of such an expression will always be non-zero, which leads to
incorrect logic in the program. Such errors often occur because of typos. Also in the condition, instead of
the bitwise OR, another bitwise operation should be used. I suppose that in this case, the author meant
to use bitwise AND, so it should look as follows:
if( flag & allowByRegion ) {....}
if( flag & dependentAxis ) {....}
Extra assignment
G4ThreeVector G4GenericTrap::SurfaceNormal(....) const
{
....
if ( noSurfaces == 0 )
{
....
sumnorm=apprnorm;
}
else if ( noSurfaces == 1 ) { sumnorm = sumnorm; } //<-
else { sumnorm = sumnorm.unit(); }
....
}
V570 The 'sumnorm' variable is assigned to itself. g4generictrap.cc 515
In this code fragment we see a logic error that is in the redundant condition statment. One of the
variants of what was meant to be here: during the verification against one, the variable was to be
assigned with a different variable, whose name is also similar with sumnorm. But as in there were no

such variables noticed in the checked part of the code, I will hazard a guess that this is just a redundant
check. To fix this, let's simplify the condition in the following way:
if ( noSurfaces == 0 )
{
....
sumnorm=apprnorm;
}
else if ( noSurfaces != 1 ) { sumnorm = sumnorm.unit(); }
Another suspicious fragment:
void G4UImanager::StoreHistory(G4bool historySwitch,....)
{
if(historySwitch)
{
if(saveHistory)
{ historyFile.close(); }
historyFile.open((char*)fileName);
saveHistory = true;
}
else
{
historyFile.close();
saveHistory = false;
}
saveHistory = historySwitch;
}
V519 The 'saveHistory' variable is assigned values twice successively. Perhaps this is a mistake. Check
lines: 541, 543. g4uimanager.cc 543
Here we also see a logic error. The code inside the function, depending on the value of historySwitch,
changes the saveHistory flag, and carries out an operation with the file; the result of which is reported
by the flag. But after all the operations, the variable saveHistory is just assigned with a value
historySwitch. This is strange because the value in the condition was already set, and we have messed it
up. Most likely it's a redundant assignment, and it should be removed.
There is a similar error in another fragment:
 V519 The 'lvl' variable is assigned values twice successively. Perhaps this is a mistake. Check
lines: 277, 283. g4iontable.cc 283

Multiple check of a single expression
bool parse(....)
{
....
if( (word0=="line_pattern") ||
(word0=="line_pattern") ) { .... }
....
}
V501 There are identical sub-expressions '(word0 == "line_pattern")' to the left and right of the '||'
operator. style_parser 1172
Most often this occurs when testing multiple variables of the same type within the same condition, and
using Copy-Paste for its composition.
The example has quite a small code fragment where you can clearly see the error. In this case it is just a
typo and it is most likely caused by the code being copied. But this does not mean that it's easy to detect
it doing simple check. This condition was taken from a long tree of various checks. The analyzer is
especially useful in the detection of such constructions, and prevents errors during code refactoring.
Even if it's not an error, the code requires fixing, so that the double check doesn't confuse the person
who will maintain this code.
Similar fragments were found in other parts of the project.
 V501 There are identical sub-expressions to the left and to the right of the '||' operator: ITTU-
>size() != np || ITTU->size() != np g4peneloperayleighmodel.cc 11563
 V501 There are identical sub-expressions '(ptwXY1->interpolation == ptwXY_interpolationFlat)'
to the left and to the right of the '||' operator. ptwxy_binaryoperators.cc 301
Refactoring issue
G4ReactionProduct * G4ParticleHPLabAngularEnergy::Sample(....)
{
....
//if ( it == 0 || it == nEnergies-1 )
if ( it == 0 )
{
if(it==0) ....
....
}
....
}
V571 Recurring check. The 'if (it == 0)' condition was already verified in line 123.
g4particlehplabangularenergy.cc 125

Sometimes during the process of refactoring, you may have fragments that remain unchanged. This is
exactly what happened in this example. The old message was commented, the new one became the
same as the additional check inside. To fix this you need to more carefully consider the correction of the
code block, or just remove the extra check inside conditions.
Fragments with similar issues:
 V571 Recurring check. The 'if (proj_momentum >= 10.)' condition was already verified in line
809. g4componentgghadronnucleusxsc.cc 815
869. g4componentgghadronnucleusxsc.cc 875
568. g4componentggnuclnuclxsc.cc 574
1868. g4nuclnucldiffuseelastic.cc 1875
An expression that was already checked
void GFlashHitMaker::make(....)
{
....
if( gflashSensitive )
{
gflashSensitive->Hit(&theSpot);
}
else if ( (!gflashSensitive ) &&
( pSensitive ) &&
(....)
){....}
....
}
V560 A part of conditional expression is always true: (!gflashSensitive). gflashhitmaker.cc 102
In the given block, the condition in the else section is redundant. The prerequisite for the entrance to
the else block is already a false value of gflashSensitive variable, so it doesn't need to be checked once
more.
Another similar fragment:
void UseWorkArea( T* newOffset )
{
....
if( offset && offset!=newOffset )
{

if( newOffset != offset ) {....}
else {....}
}
....
}
V571 Recurring check. The 'newOffset != offset' condition was already verified in line 154.
g4geomsplitter.hh 156
The same variable is checked in the inner condition block. This check will always generate a positive
result because it was a condition for the entry to the inner condition block. As a result, the code will
never be executed in the inner else block.
The same redundant check was found in several other fragments in the project. Oh, this Copy-Paste:
 V571 Recurring check. The 'newOffset != offset' condition was already verified in line 113.
g4pdefsplitter.hh 115
 V571 Recurring check. The 'newOffset != offset' condition was already verified in line 141.
g4vuplsplitter.hh 143
Useless condition
void G4XXXStoredViewer::DrawView() {
....
if (kernelVisitWasNeeded) {
DrawFromStore();
} else {
DrawFromStore();
}
....
}
V523 The 'then' statement is equivalent to the 'else' statement. g4xxxstoredviewer.cc 85
The code inside the two branches is identical, which makes the condition useless, as the same code will
be executed regardless of it. Analyzer messages of this kind might signal code that wasn't properly
catered for, or typos when copying various constants or functions having similar names. In this case it's
not clear what this block was made for, but it clearly needs to be reviewed and fixed.
There was another similar fragment:
 V523 The 'then' statement is equivalent to the 'else' statement. g4xxxsgviewer.cc 84
Redundant condition
Void G4VTwistSurface::CurrentStatus::ResetfDone(....)
{
if (validate == fLastValidate && p && *p == fLastp)

{
if (!v || (v && *v == fLastv)) return;
}
....
}
V728 An excessive check can be simplified. The '||' operator is surrounded by opposite expressions '!v'
and 'v'. g4vtwistsurface.cc 1198
This code fragment doesn't have an error, but it can be simplified in the following way:
if (!v || *v == fLastv) return;
Several more similar fragments:
 V728 An excessive check can be simplified. The '||' operator is surrounded by opposite
expressions '!a_cut' and 'a_cut'. array 168
expressions 'p == 0' and 'p != 0'. g4emmodelactivator.cc 216
Incorrect constructor call
class G4PhysicsModelCatalog
{
private:
....
G4PhysicsModelCatalog();
....
static modelCatalog* catalog;
....
};
G4PhysicsModelCatalog::G4PhysicsModelCatalog()
{ if(!catalog) {
static modelCatalog catal;
catalog = &catal;
}
}

G4int G4PhysicsModelCatalog::Register(const G4String& name)
{
G4PhysicsModelCatalog();
....
}
V603 The object was created but it is not being used. If you wish to call constructor, 'this-
>G4PhysicsModelCatalog::G4PhysicsModelCatalog(....)' should be used. g4physicsmodelcatalog.cc 51
Instead of accessing the current object, a new temporary object is created and then immediately
destroyed. As a result, the fields of the object will not be initialized. If you need to use field initialization
outside the constructor, it's better to create a separate function and access it. But if you want to call the
constructor, you should access the constructor using the word this. If you use C++11, the most graceful
decision would be to use a delegate constructor. More details about these errors, and the ways to fix
them, can be found in this book (see section 19, "How to properly call one constructor from another").
A typo during initialization
static const G4String name[numberOfMolecula] = {
....
"(CH_3)_2S", "N_2O",
"C_5H_10O" "C_8H_6", "(CH_2)_N",
....
};
V653 A suspicious string consisting of two parts is used for array initialization. It is possible that a comma
is missing. Consider inspecting this literal: "C_5H_10O" "C_8H_6". g4hparametrisedlossmodel.cc 324
Here we have an error in an array initialization with the constants. As the result of the typo, a comma is
missing. There are several troubles at the same time:
 There will be a concatenation of two string constants in one. And we get one of the formulas as
"C_5H_10OC_8H_6". An unprecedented type of alcohol.
 Accessing the array by index, we can get some unexpected formula.
 And the last - we may have array index out of bounds.
Forgotten throw
class G4HadronicException : public std::exception {....}
void G4CrossSectionDataStore::ActivateFastPath( ....)
{
....
if ( requests.insert( { key , min_cutoff } ).second ) {
....
G4HadronicException(__FILE__,__LINE__,msg.str());

}
}
V596 The object was created but it is not being used. The 'throw' keyword could be missing: throw
G4HadronicException(FOO); g4crosssectiondatastore.cc 542
The major part of the function does the forming of a message to create an exception. But because of a
missing throw, there will be an unused exception created. The program will continue working, which can
lead to undefined behavior, or to incorrect evaluations.
The error was repeated in another parts of the project.
 V596 The object was created but it is not being used. The 'throw' keyword could be missing:
throw G4HadronicException(FOO); g4generalphasespacedecay.hh 126
throw G4HadronicException(FOO); g4particlehpthermalscattering.cc 515
Output error
bool G4GMocrenIO::storeData2() {
....
ofile.write("GRAPE ", 8);
....
}
V666 Consider inspecting second argument of the function 'write'. It is possible that the value does not
correspond with the length of a string which was passed with the first argument. g4gmocrenio.cc 1351
This error is caused by the mismatch of actual string length, and the argument that specifies the length
inside the function. In this case an error occurred due to the formation of a particular indent created by
spaces, at first glance it's hard to say how many of them are there. Perhaps this error wasn't taken into
account, as it is still there from the last time we checked the project. This bug was included in the
database of examples for V666 diagnostic.
Conclusion
Perhaps not all the listed errors are really dangerous, but a lot of minor bugs can lead to more serious
consequences in the future. This is why you should regularly check your projects to detect errors during
the early stages, before they lead to serious consequences. The analyzer is of great help in finding and
fixing the trickiest bugs, and detecting hazardous places in the project before they turn into bugs. I
suggest downloading and trying out PVS-Studio analyzer on your project.
http://www.viva64.com/en/pvs-studio-download/.

PVS-Studio is there to help CERN: analysis of Geant4 project

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to PVS-Studio is there to help CERN: analysis of Geant4 project

Similar to PVS-Studio is there to help CERN: analysis of Geant4 project (20)

Recently uploaded

Recently uploaded (20)

PVS-Studio is there to help CERN: analysis of Geant4 project
