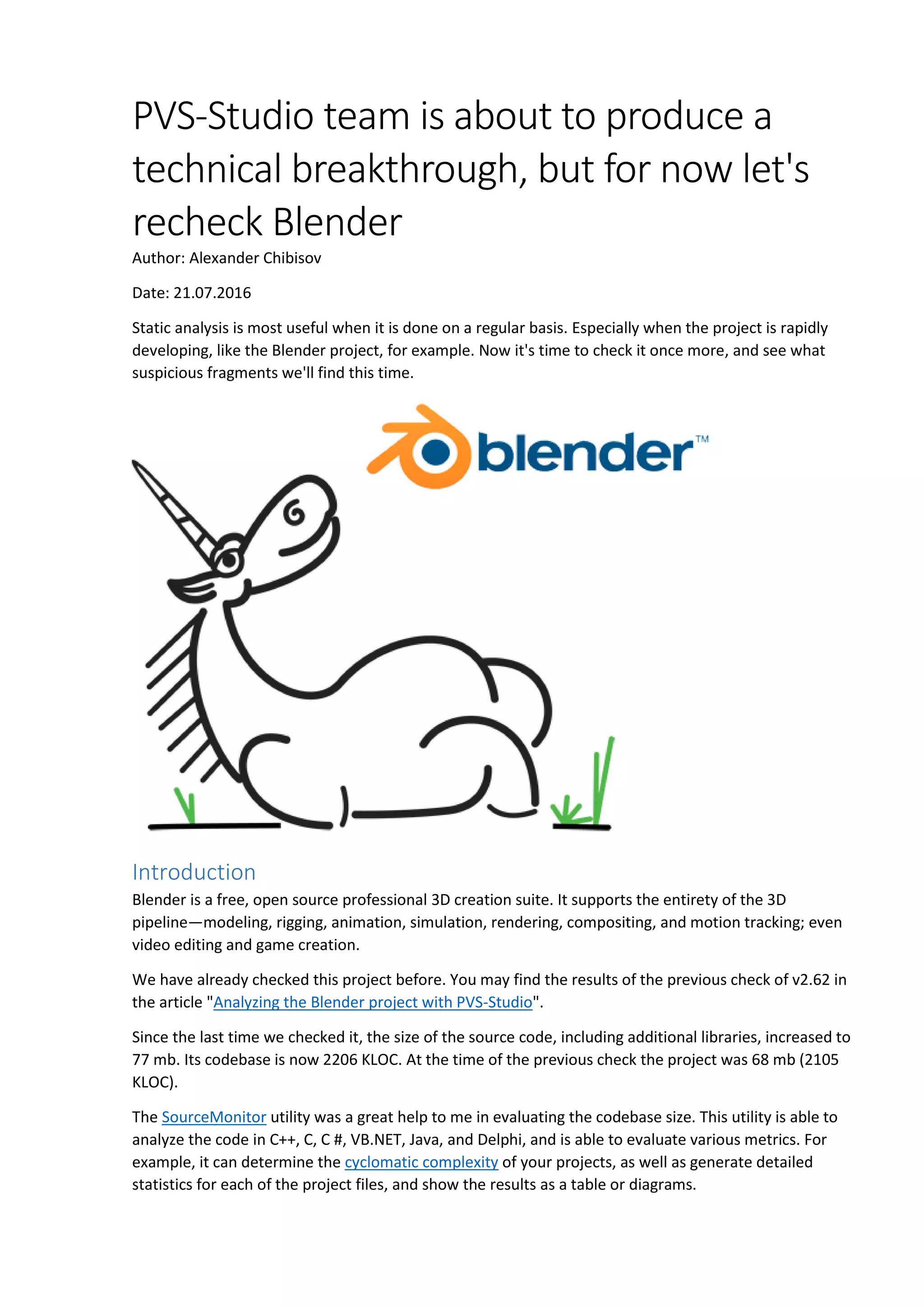

PVS-Studio team is about to produce a technical breakthrough, but for now let's recheck Blender

PVS-Studio team is about to produce a
technical breakthrough, but for now let's
recheck Blender
Author: Alexander Chibisov
Date: 21.07.2016
Static analysis is most useful when it is done on a regular basis. Especially when the project is rapidly
developing, like the Blender project, for example. Now it's time to check it once more, and see what
suspicious fragments we'll find this time.
Introduction
Blender is a free, open source professional 3D creation suite. It supports the entirety of the 3D
pipeline—modeling, rigging, animation, simulation, rendering, compositing, and motion tracking; even
video editing and game creation.
We have already checked this project before. You may find the results of the previous check of v2.62 in
the article "Analyzing the Blender project with PVS-Studio".
Since the last time we checked it, the size of the source code, including additional libraries, increased to
77 mb. Its codebase is now 2206 KLOC. At the time of the previous check the project was 68 mb (2105
KLOC).
The SourceMonitor utility was a great help to me in evaluating the codebase size. This utility is able to
analyze the code in C++, C, C #, VB.NET, Java, and Delphi, and is able to evaluate various metrics. For
example, it can determine the cyclomatic complexity of your projects, as well as generate detailed
statistics for each of the project files, and show the results as a table or diagrams.

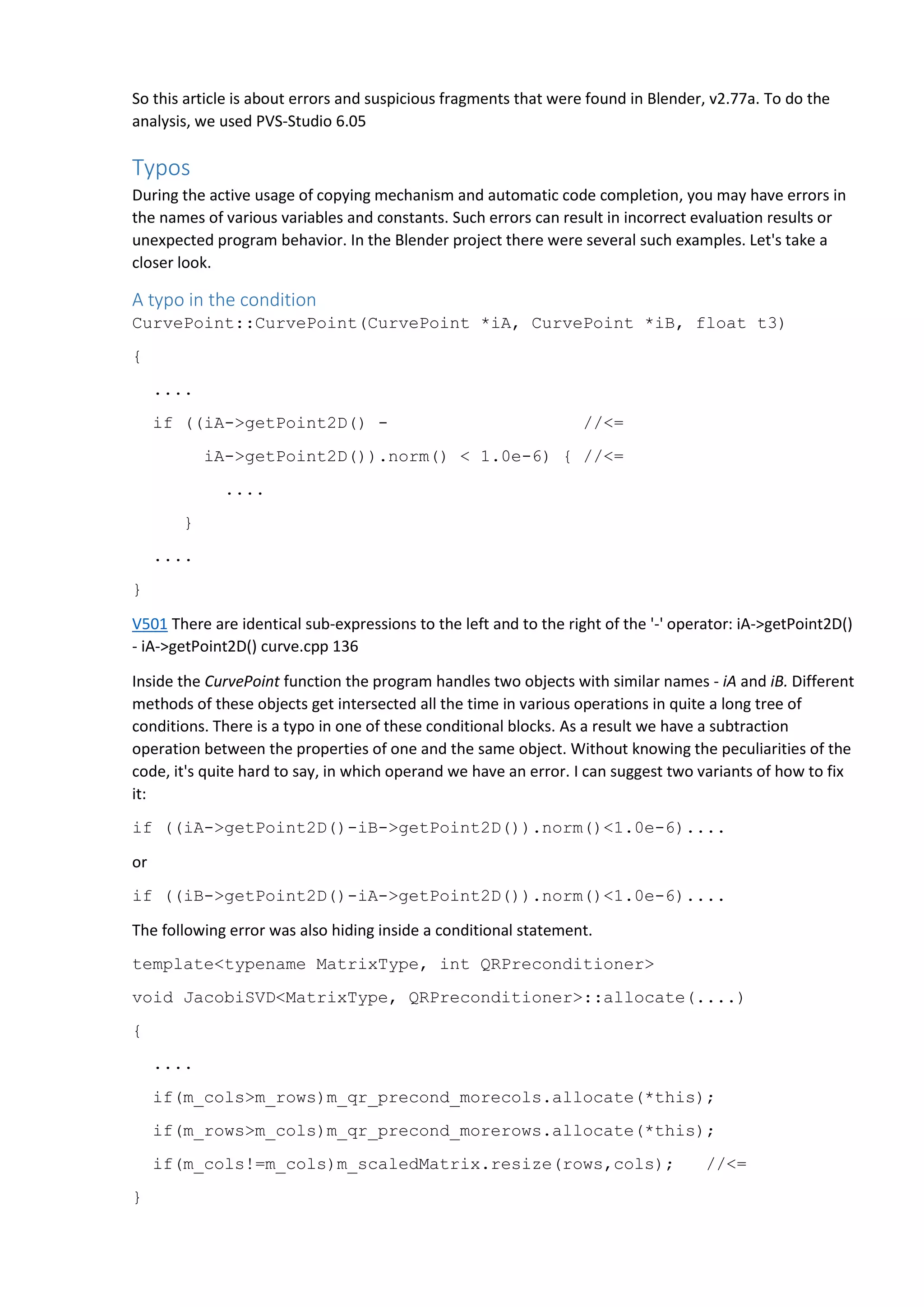

So this article is about errors and suspicious fragments that were found in Blender, v2.77a. To do the
analysis, we used PVS-Studio 6.05
Typos
During the active usage of copying mechanism and automatic code completion, you may have errors in
the names of various variables and constants. Such errors can result in incorrect evaluation results or
unexpected program behavior. In the Blender project there were several such examples. Let's take a
closer look.
A typo in the condition
CurvePoint::CurvePoint(CurvePoint *iA, CurvePoint *iB, float t3)
{
....
if ((iA->getPoint2D() - //<=
iA->getPoint2D()).norm() < 1.0e-6) { //<=
....
}
....
}
V501 There are identical sub-expressions to the left and to the right of the '-' operator: iA->getPoint2D()
- iA->getPoint2D() curve.cpp 136
Inside the CurvePoint function the program handles two objects with similar names - iA and iB. Different
methods of these objects get intersected all the time in various operations in quite a long tree of
conditions. There is a typo in one of these conditional blocks. As a result we have a subtraction
operation between the properties of one and the same object. Without knowing the peculiarities of the
code, it's quite hard to say, in which operand we have an error. I can suggest two variants of how to fix
it:
if ((iA->getPoint2D()-iB->getPoint2D()).norm()<1.0e-6)....
or
if ((iB->getPoint2D()-iA->getPoint2D()).norm()<1.0e-6)....
The following error was also hiding inside a conditional statement.
template<typename MatrixType, int QRPreconditioner>
void JacobiSVD<MatrixType, QRPreconditioner>::allocate(....)
{
....
if(m_cols>m_rows)m_qr_precond_morecols.allocate(*this);
if(m_rows>m_cols)m_qr_precond_morerows.allocate(*this);
if(m_cols!=m_cols)m_scaledMatrix.resize(rows,cols); //<=
}

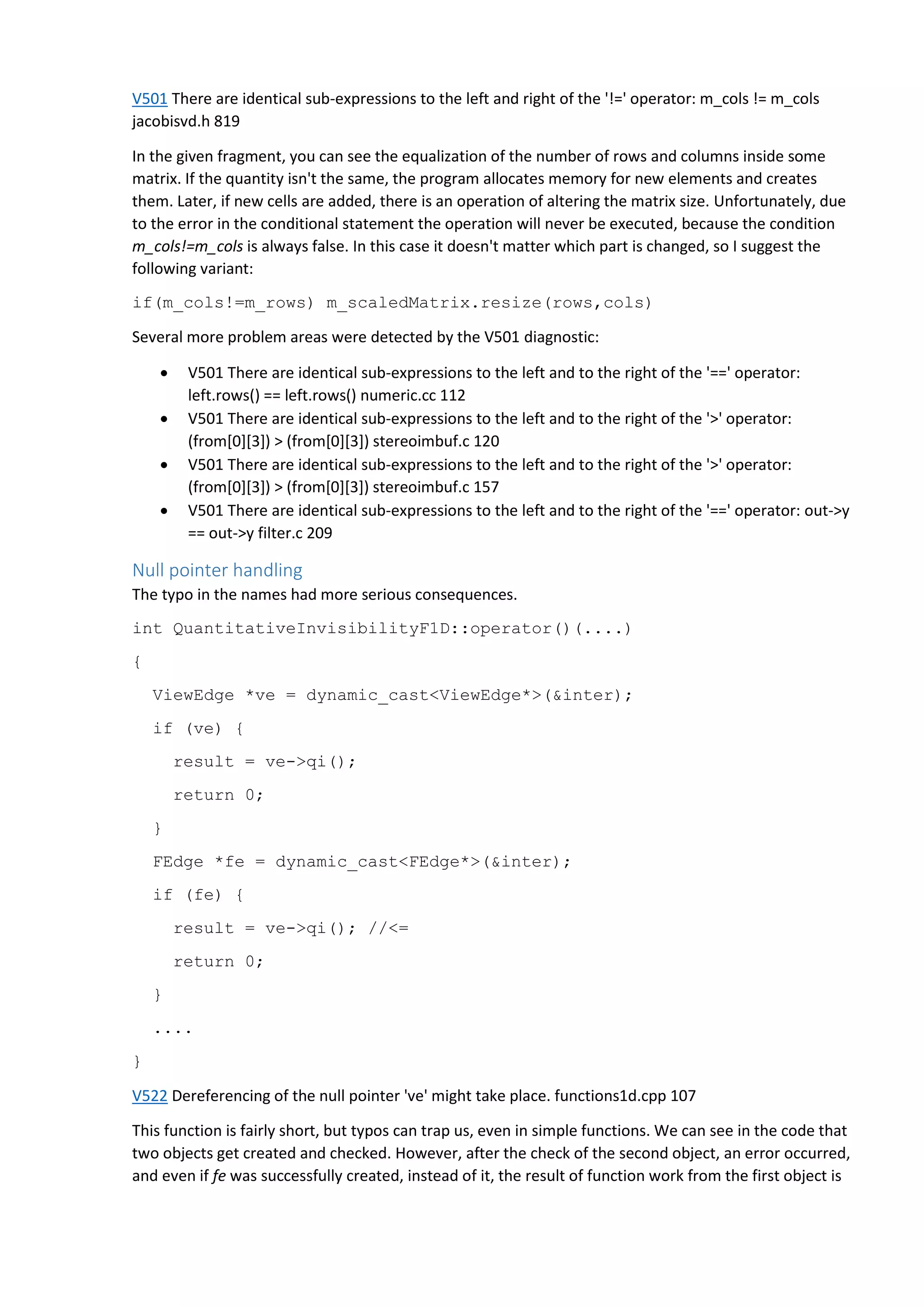

V501 There are identical sub-expressions to the left and right of the '!=' operator: m_cols != m_cols
jacobisvd.h 819
In the given fragment, you can see the equalization of the number of rows and columns inside some
matrix. If the quantity isn't the same, the program allocates memory for new elements and creates
them. Later, if new cells are added, there is an operation of altering the matrix size. Unfortunately, due
to the error in the conditional statement the operation will never be executed, because the condition
m_cols!=m_cols is always false. In this case it doesn't matter which part is changed, so I suggest the
following variant:
if(m_cols!=m_rows) m_scaledMatrix.resize(rows,cols)
Several more problem areas were detected by the V501 diagnostic:
 V501 There are identical sub-expressions to the left and to the right of the '==' operator:
left.rows() == left.rows() numeric.cc 112
 V501 There are identical sub-expressions to the left and to the right of the '>' operator:
(from[0][3]) > (from[0][3]) stereoimbuf.c 120
 V501 There are identical sub-expressions to the left and to the right of the '>' operator:
(from[0][3]) > (from[0][3]) stereoimbuf.c 157
 V501 There are identical sub-expressions to the left and to the right of the '==' operator: out->y
== out->y filter.c 209
Null pointer handling
The typo in the names had more serious consequences.
int QuantitativeInvisibilityF1D::operator()(....)
{
ViewEdge *ve = dynamic_cast<ViewEdge*>(&inter);
if (ve) {
result = ve->qi();
return 0;
}
FEdge *fe = dynamic_cast<FEdge*>(&inter);
if (fe) {
result = ve->qi(); //<=
return 0;
}
....
}
V522 Dereferencing of the null pointer 've' might take place. functions1d.cpp 107
This function is fairly short, but typos can trap us, even in simple functions. We can see in the code that
two objects get created and checked. However, after the check of the second object, an error occurred,
and even if fe was successfully created, instead of it, the result of function work from the first object is

written to the result; according to the previous conditions, this object wasn't created at all. This will
most likely lead to a crash of the program if this exception isn't caught by a handler of a higher level.

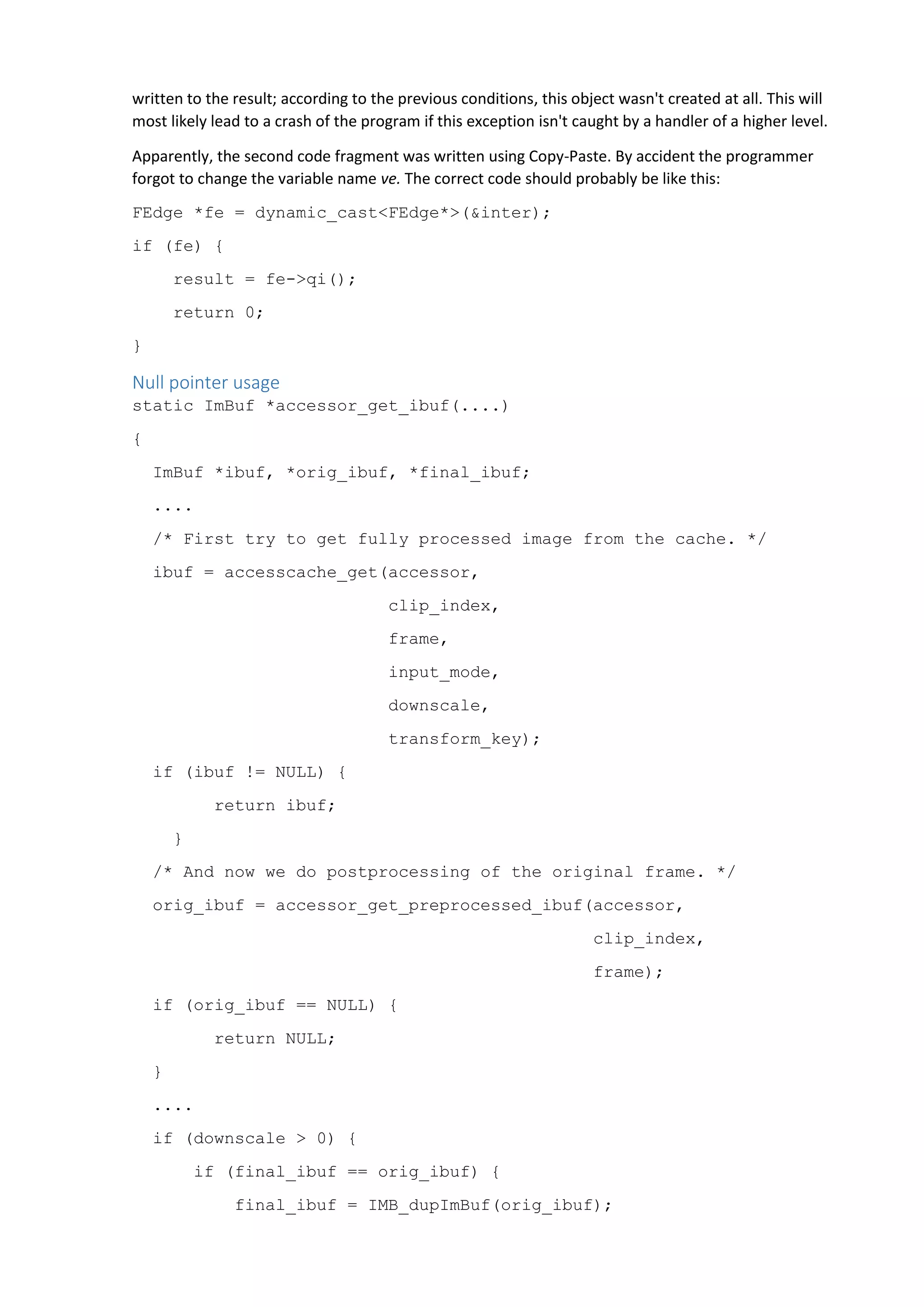

Apparently, the second code fragment was written using Copy-Paste. By accident the programmer
forgot to change the variable name ve. The correct code should probably be like this:
FEdge *fe = dynamic_cast<FEdge*>(&inter);
if (fe) {
result = fe->qi();
return 0;
}
Null pointer usage
static ImBuf *accessor_get_ibuf(....)
{
ImBuf *ibuf, *orig_ibuf, *final_ibuf;
....
/* First try to get fully processed image from the cache. */
ibuf = accesscache_get(accessor,
clip_index,
frame,
input_mode,
downscale,
transform_key);
if (ibuf != NULL) {
return ibuf;
}
/* And now we do postprocessing of the original frame. */
orig_ibuf = accessor_get_preprocessed_ibuf(accessor,
clip_index,
frame);
if (orig_ibuf == NULL) {
return NULL;
}
....
if (downscale > 0) {
if (final_ibuf == orig_ibuf) {
final_ibuf = IMB_dupImBuf(orig_ibuf);

}

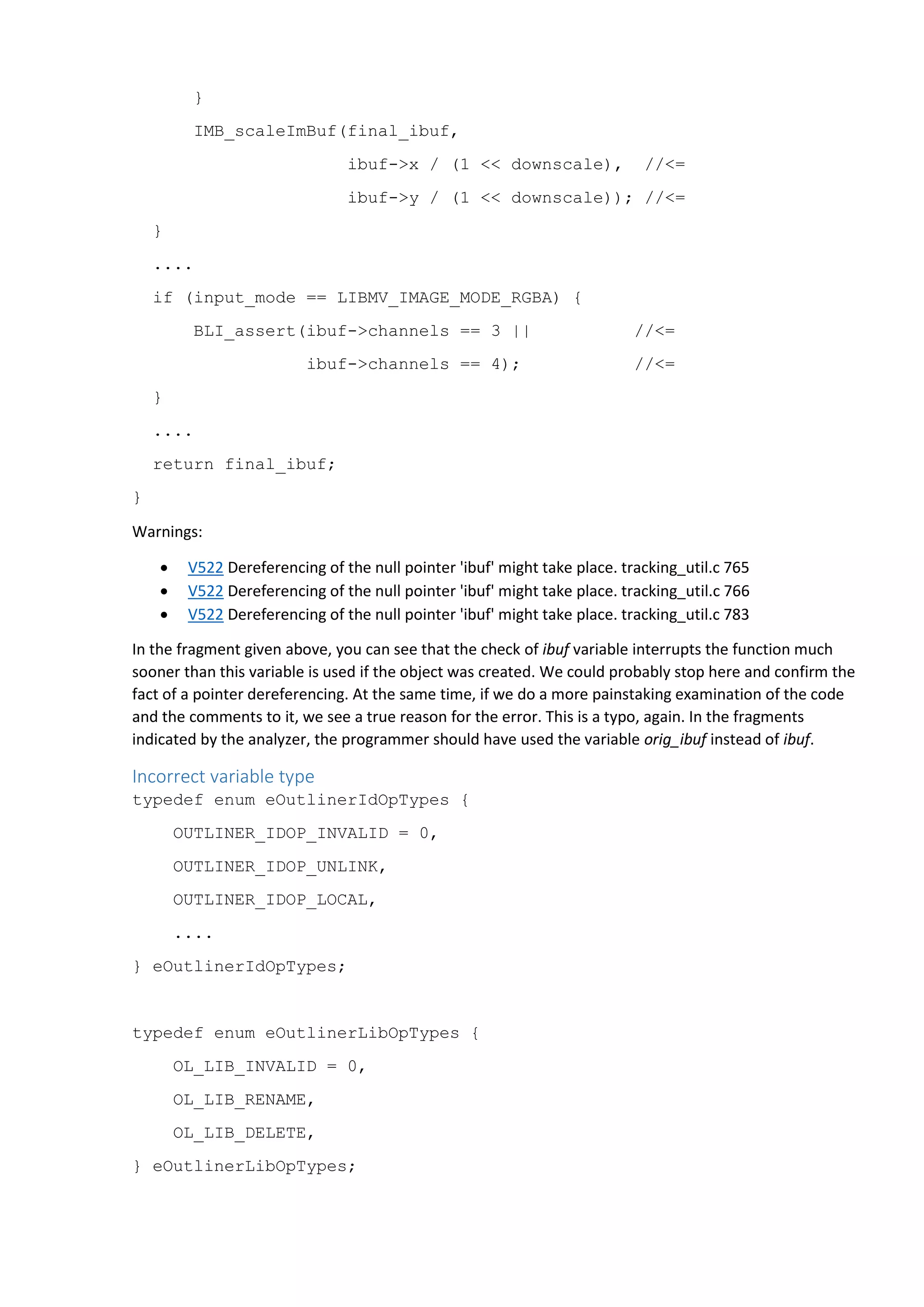

IMB_scaleImBuf(final_ibuf,
ibuf->x / (1 << downscale), //<=
ibuf->y / (1 << downscale)); //<=
}
....
if (input_mode == LIBMV_IMAGE_MODE_RGBA) {
BLI_assert(ibuf->channels == 3 || //<=
ibuf->channels == 4); //<=
}
....
return final_ibuf;
}
Warnings:
 V522 Dereferencing of the null pointer 'ibuf' might take place. tracking_util.c 765
In the fragment given above, you can see that the check of ibuf variable interrupts the function much
sooner than this variable is used if the object was created. We could probably stop here and confirm the
fact of a pointer dereferencing. At the same time, if we do a more painstaking examination of the code
and the comments to it, we see a true reason for the error. This is a typo, again. In the fragments
indicated by the analyzer, the programmer should have used the variable orig_ibuf instead of ibuf.
Incorrect variable type
typedef enum eOutlinerIdOpTypes {
OUTLINER_IDOP_INVALID = 0,
OUTLINER_IDOP_UNLINK,
OUTLINER_IDOP_LOCAL,
....
} eOutlinerIdOpTypes;
typedef enum eOutlinerLibOpTypes {
OL_LIB_INVALID = 0,
OL_LIB_RENAME,
OL_LIB_DELETE,
} eOutlinerLibOpTypes;

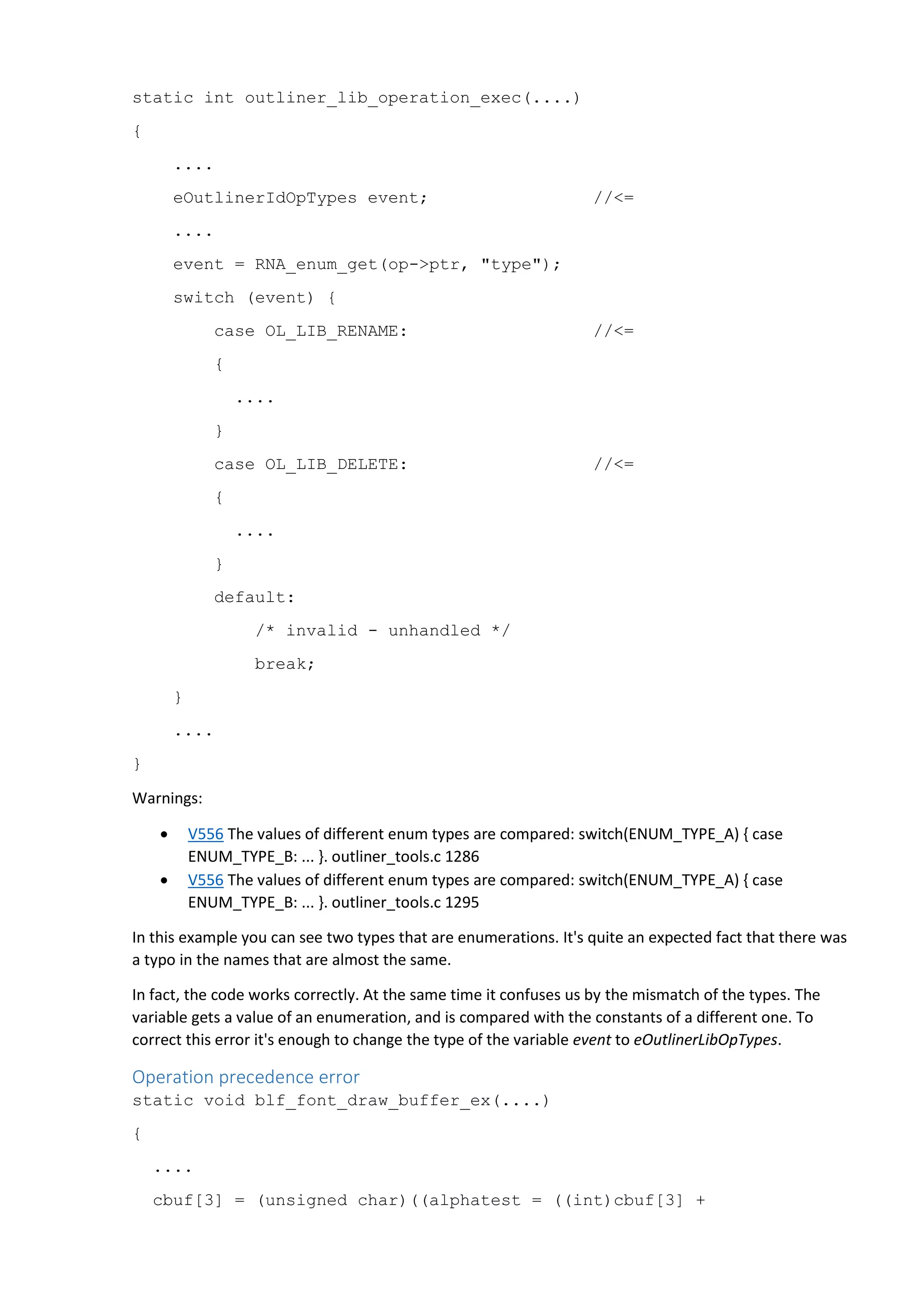

static int outliner_lib_operation_exec(....)
{
....
eOutlinerIdOpTypes event; //<=
....
event = RNA_enum_get(op->ptr, "type");
switch (event) {
case OL_LIB_RENAME: //<=
{
....
}
case OL_LIB_DELETE: //<=
{
....
}
default:
/* invalid - unhandled */
break;
}
....
}
Warnings:
 V556 The values of different enum types are compared: switch(ENUM_TYPE_A) { case
ENUM_TYPE_B: ... }. outliner_tools.c 1286
 V556 The values of different enum types are compared: switch(ENUM_TYPE_A) { case
ENUM_TYPE_B: ... }. outliner_tools.c 1295
In this example you can see two types that are enumerations. It's quite an expected fact that there was
a typo in the names that are almost the same.
In fact, the code works correctly. At the same time it confuses us by the mismatch of the types. The
variable gets a value of an enumeration, and is compared with the constants of a different one. To
correct this error it's enough to change the type of the variable event to eOutlinerLibOpTypes.
Operation precedence error
static void blf_font_draw_buffer_ex(....)
{
....
cbuf[3] = (unsigned char)((alphatest = ((int)cbuf[3] +

(int)(a * 255)) < 255) ? alphatest : 255);
....
}

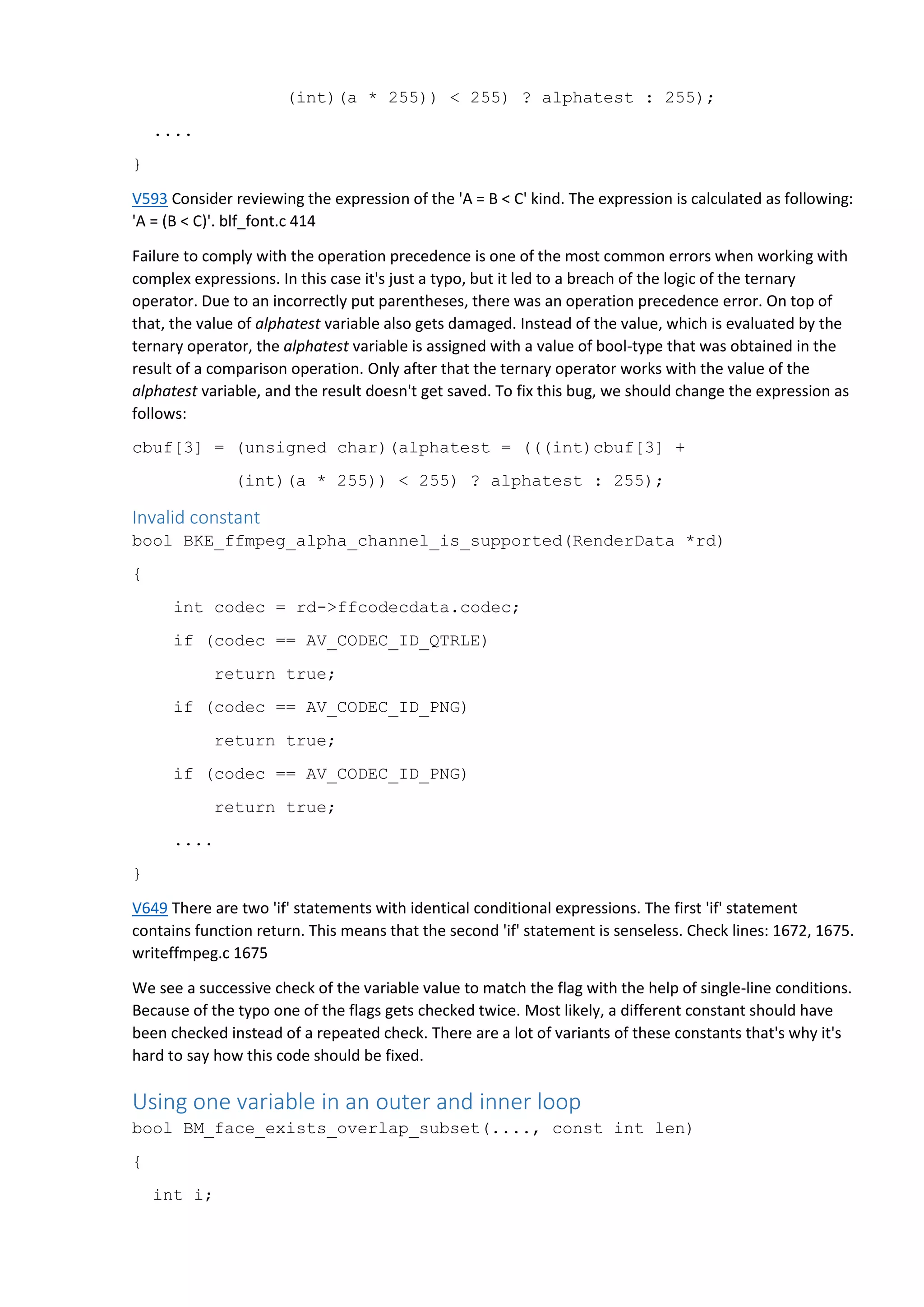

V593 Consider reviewing the expression of the 'A = B < C' kind. The expression is calculated as following:
'A = (B < C)'. blf_font.c 414
Failure to comply with the operation precedence is one of the most common errors when working with
complex expressions. In this case it's just a typo, but it led to a breach of the logic of the ternary
operator. Due to an incorrectly put parentheses, there was an operation precedence error. On top of
that, the value of alphatest variable also gets damaged. Instead of the value, which is evaluated by the
ternary operator, the alphatest variable is assigned with a value of bool-type that was obtained in the
result of a comparison operation. Only after that the ternary operator works with the value of the
alphatest variable, and the result doesn't get saved. To fix this bug, we should change the expression as
follows:
cbuf[3] = (unsigned char)(alphatest = (((int)cbuf[3] +
(int)(a * 255)) < 255) ? alphatest : 255);
Invalid constant
bool BKE_ffmpeg_alpha_channel_is_supported(RenderData *rd)
{
int codec = rd->ffcodecdata.codec;
if (codec == AV_CODEC_ID_QTRLE)
return true;
if (codec == AV_CODEC_ID_PNG)
return true;
if (codec == AV_CODEC_ID_PNG)
return true;
....
}
V649 There are two 'if' statements with identical conditional expressions. The first 'if' statement
contains function return. This means that the second 'if' statement is senseless. Check lines: 1672, 1675.
writeffmpeg.c 1675
We see a successive check of the variable value to match the flag with the help of single-line conditions.
Because of the typo one of the flags gets checked twice. Most likely, a different constant should have
been checked instead of a repeated check. There are a lot of variants of these constants that's why it's
hard to say how this code should be fixed.

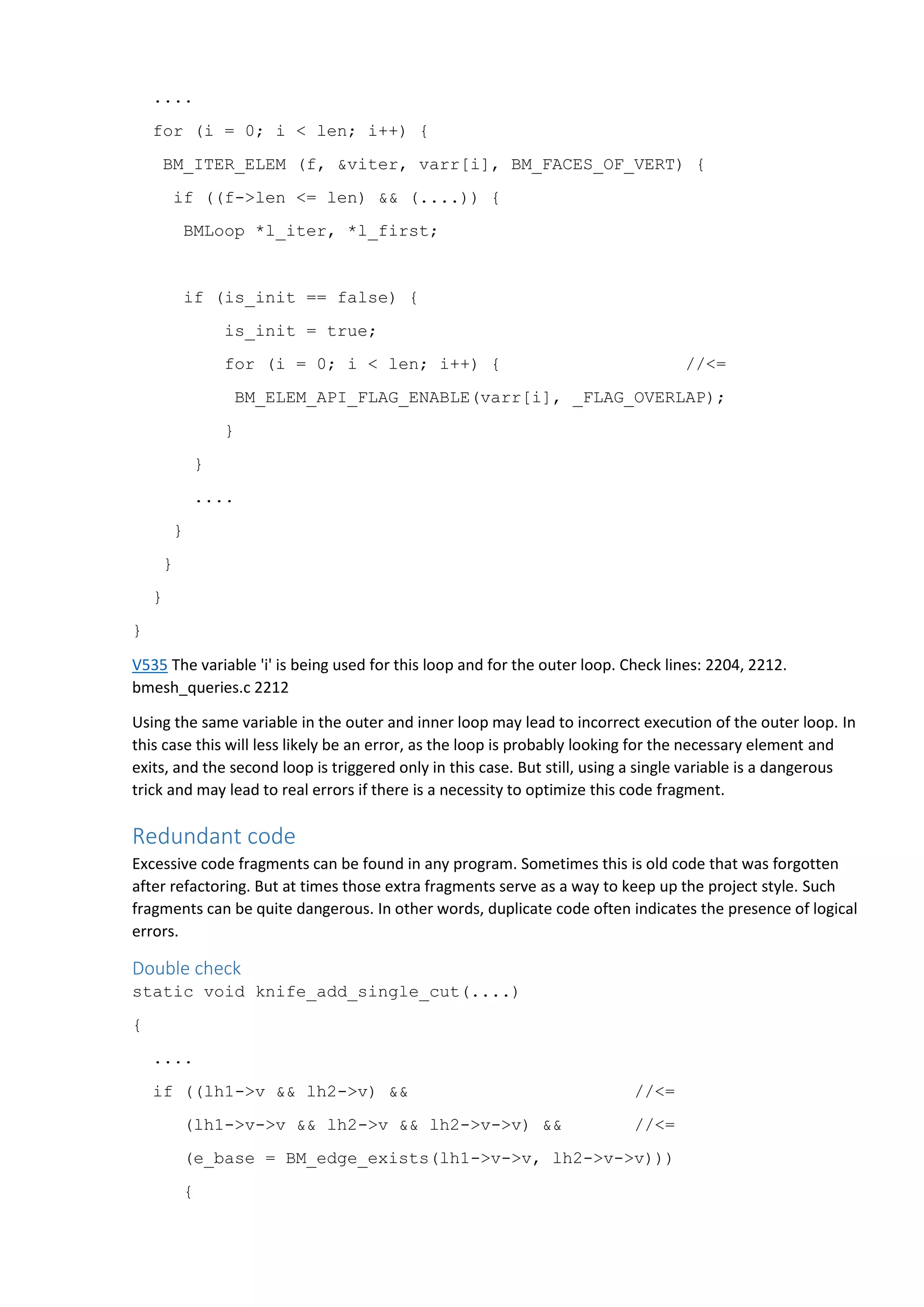

Using one variable in an outer and inner loop
bool BM_face_exists_overlap_subset(...., const int len)
{
int i;

....
for (i = 0; i < len; i++) {
BM_ITER_ELEM (f, &viter, varr[i], BM_FACES_OF_VERT) {
if ((f->len <= len) && (....)) {
BMLoop *l_iter, *l_first;
if (is_init == false) {
is_init = true;
for (i = 0; i < len; i++) { //<=
BM_ELEM_API_FLAG_ENABLE(varr[i], _FLAG_OVERLAP);
}
}
....
}
}
}
}
V535 The variable 'i' is being used for this loop and for the outer loop. Check lines: 2204, 2212.
bmesh_queries.c 2212
Using the same variable in the outer and inner loop may lead to incorrect execution of the outer loop. In
this case this will less likely be an error, as the loop is probably looking for the necessary element and
exits, and the second loop is triggered only in this case. But still, using a single variable is a dangerous
trick and may lead to real errors if there is a necessity to optimize this code fragment.
Redundant code
Excessive code fragments can be found in any program. Sometimes this is old code that was forgotten
after refactoring. But at times those extra fragments serve as a way to keep up the project style. Such
fragments can be quite dangerous. In other words, duplicate code often indicates the presence of logical
errors.
Double check
static void knife_add_single_cut(....)
{
....
if ((lh1->v && lh2->v) && //<=
(lh1->v->v && lh2->v && lh2->v->v) && //<=
(e_base = BM_edge_exists(lh1->v->v, lh2->v->v)))
{

....
return;
}
....
}

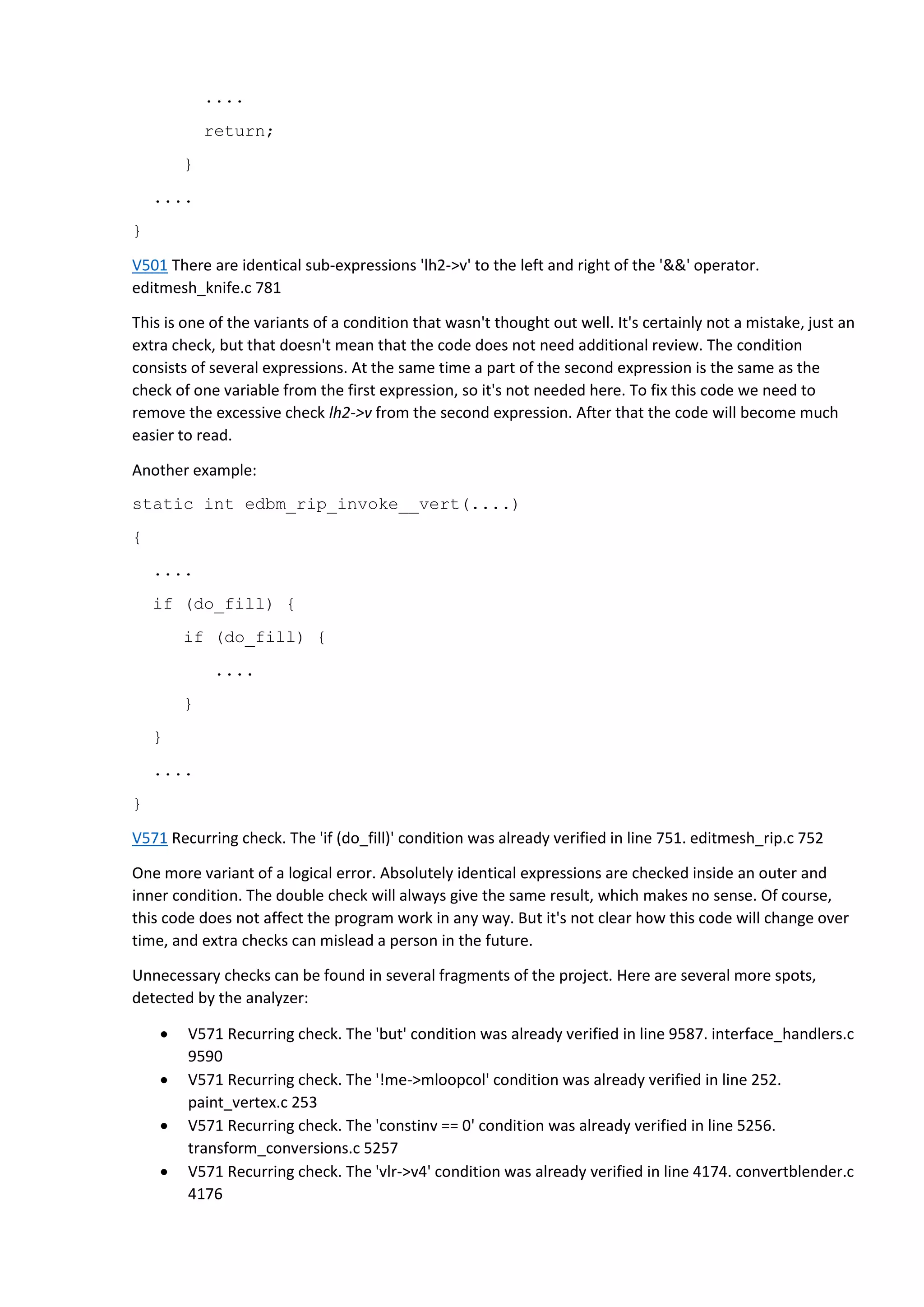

V501 There are identical sub-expressions 'lh2->v' to the left and right of the '&&' operator.
editmesh_knife.c 781
This is one of the variants of a condition that wasn't thought out well. It's certainly not a mistake, just an
extra check, but that doesn't mean that the code does not need additional review. The condition
consists of several expressions. At the same time a part of the second expression is the same as the
check of one variable from the first expression, so it's not needed here. To fix this code we need to
remove the excessive check lh2->v from the second expression. After that the code will become much
easier to read.
Another example:
static int edbm_rip_invoke__vert(....)
{
....
if (do_fill) {
if (do_fill) {
....
}
}
....
}
V571 Recurring check. The 'if (do_fill)' condition was already verified in line 751. editmesh_rip.c 752
One more variant of a logical error. Absolutely identical expressions are checked inside an outer and
inner condition. The double check will always give the same result, which makes no sense. Of course,
this code does not affect the program work in any way. But it's not clear how this code will change over
time, and extra checks can mislead a person in the future.
Unnecessary checks can be found in several fragments of the project. Here are several more spots,
detected by the analyzer:
 V571 Recurring check. The 'but' condition was already verified in line 9587. interface_handlers.c
9590
 V571 Recurring check. The '!me->mloopcol' condition was already verified in line 252.
paint_vertex.c 253
 V571 Recurring check. The 'constinv == 0' condition was already verified in line 5256.
transform_conversions.c 5257
 V571 Recurring check. The 'vlr->v4' condition was already verified in line 4174. convertblender.c
4176

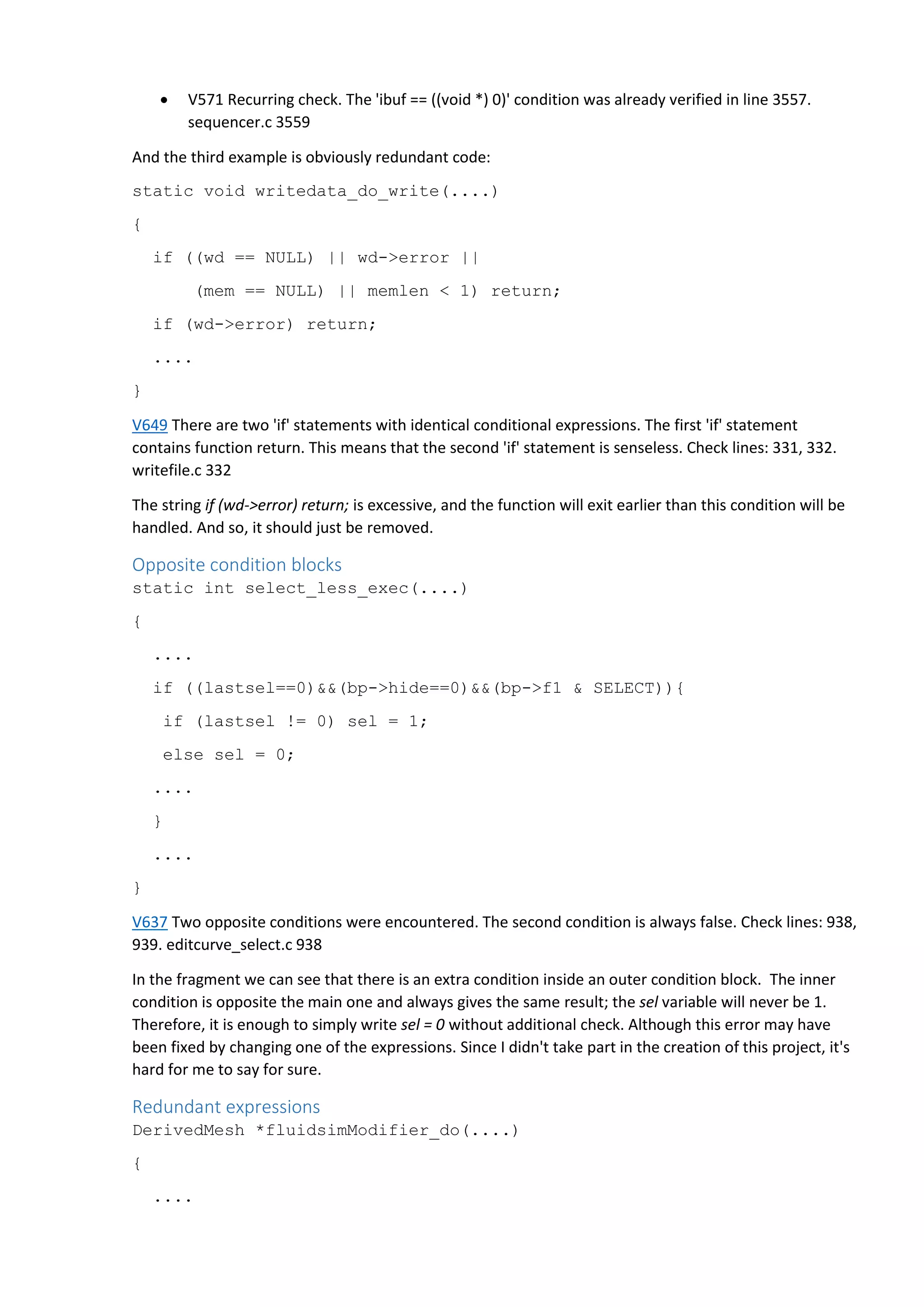

 V571 Recurring check. The 'ibuf == ((void *) 0)' condition was already verified in line 3557.
sequencer.c 3559
And the third example is obviously redundant code:
static void writedata_do_write(....)
{
if ((wd == NULL) || wd->error ||
(mem == NULL) || memlen < 1) return;
if (wd->error) return;
....
}
V649 There are two 'if' statements with identical conditional expressions. The first 'if' statement
contains function return. This means that the second 'if' statement is senseless. Check lines: 331, 332.
writefile.c 332
The string if (wd->error) return; is excessive, and the function will exit earlier than this condition will be
handled. And so, it should just be removed.
Opposite condition blocks
static int select_less_exec(....)
{
....
if ((lastsel==0)&&(bp->hide==0)&&(bp->f1 & SELECT)){
if (lastsel != 0) sel = 1;
else sel = 0;
....
}
....
}
V637 Two opposite conditions were encountered. The second condition is always false. Check lines: 938,
939. editcurve_select.c 938
In the fragment we can see that there is an extra condition inside an outer condition block. The inner
condition is opposite the main one and always gives the same result; the sel variable will never be 1.
Therefore, it is enough to simply write sel = 0 without additional check. Although this error may have
been fixed by changing one of the expressions. Since I didn't take part in the creation of this project, it's
hard for me to say for sure.
Redundant expressions

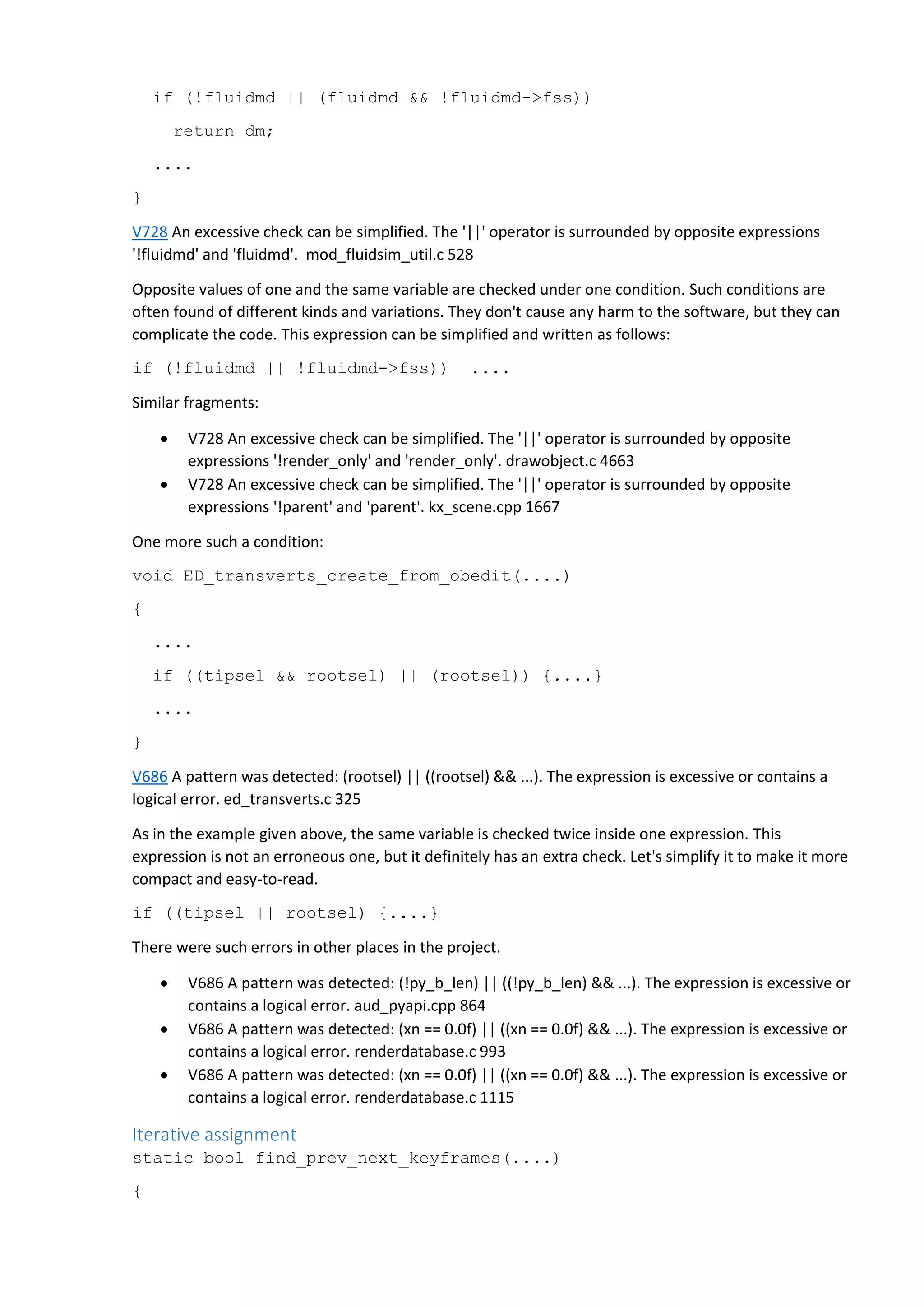

DerivedMesh *fluidsimModifier_do(....)
{
....

if (!fluidmd || (fluidmd && !fluidmd->fss))
return dm;
....
}
V728 An excessive check can be simplified. The '||' operator is surrounded by opposite expressions
'!fluidmd' and 'fluidmd'. mod_fluidsim_util.c 528
Opposite values of one and the same variable are checked under one condition. Such conditions are
often found of different kinds and variations. They don't cause any harm to the software, but they can
complicate the code. This expression can be simplified and written as follows:
if (!fluidmd || !fluidmd->fss)) ....
Similar fragments:
 V728 An excessive check can be simplified. The '||' operator is surrounded by opposite
expressions '!render_only' and 'render_only'. drawobject.c 4663
 V728 An excessive check can be simplified. The '||' operator is surrounded by opposite
expressions '!parent' and 'parent'. kx_scene.cpp 1667
One more such a condition:
void ED_transverts_create_from_obedit(....)
{
....
if ((tipsel && rootsel) || (rootsel)) {....}
....
}
V686 A pattern was detected: (rootsel) || ((rootsel) && ...). The expression is excessive or contains a
logical error. ed_transverts.c 325
As in the example given above, the same variable is checked twice inside one expression. This
expression is not an erroneous one, but it definitely has an extra check. Let's simplify it to make it more
compact and easy-to-read.
if ((tipsel || rootsel) {....}
There were such errors in other places in the project.
 V686 A pattern was detected: (!py_b_len) || ((!py_b_len) && ...). The expression is excessive or
contains a logical error. aud_pyapi.cpp 864
 V686 A pattern was detected: (xn == 0.0f) || ((xn == 0.0f) && ...). The expression is excessive or
contains a logical error. renderdatabase.c 993
 V686 A pattern was detected: (xn == 0.0f) || ((xn == 0.0f) && ...). The expression is excessive or
contains a logical error. renderdatabase.c 1115

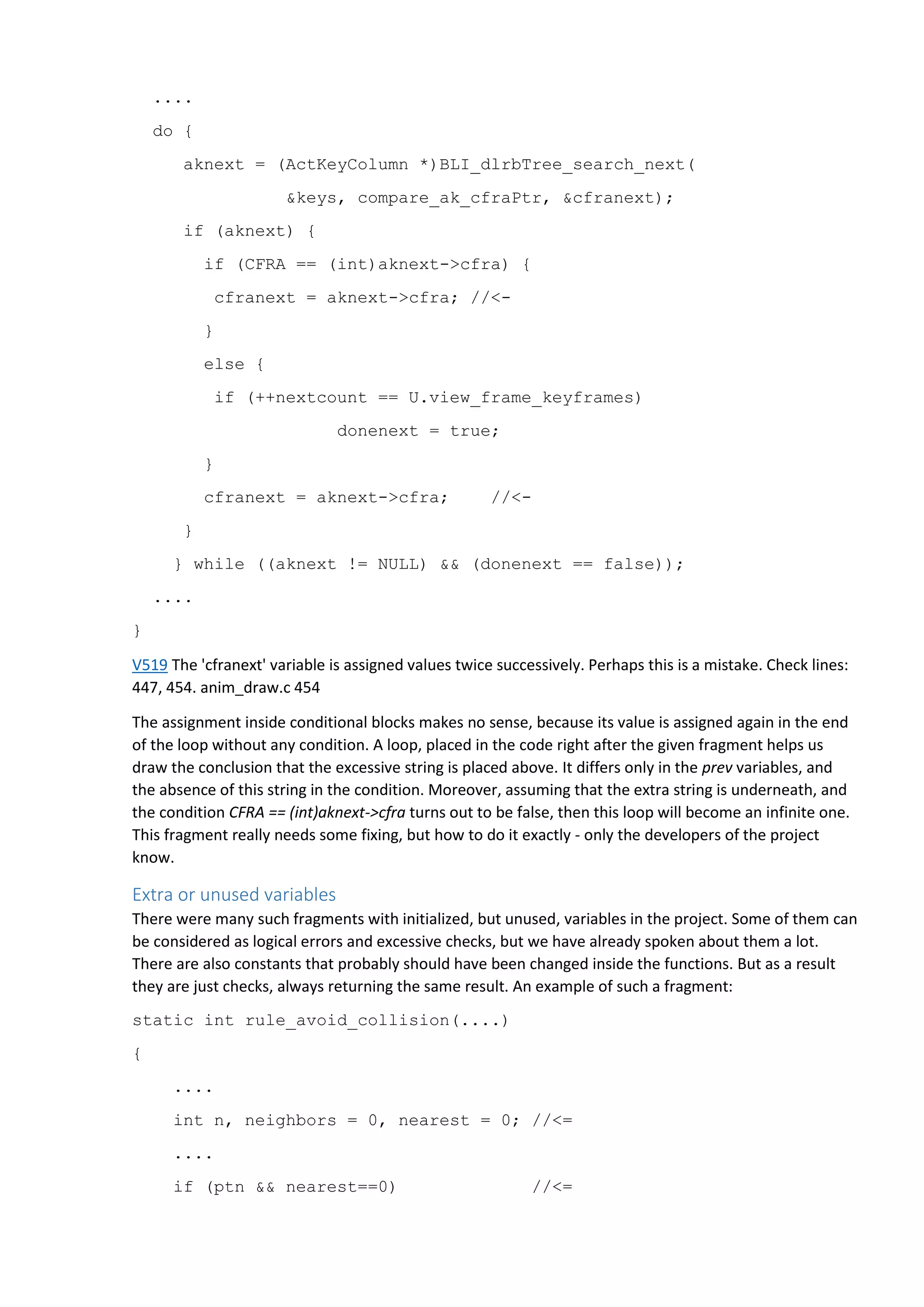

Iterative assignment
static bool find_prev_next_keyframes(....)
{

....
do {
aknext = (ActKeyColumn *)BLI_dlrbTree_search_next(
&keys, compare_ak_cfraPtr, &cfranext);
if (aknext) {
if (CFRA == (int)aknext->cfra) {
cfranext = aknext->cfra; //<-
}
else {
if (++nextcount == U.view_frame_keyframes)
donenext = true;
}
cfranext = aknext->cfra; //<-
}
} while ((aknext != NULL) && (donenext == false));
....
}
V519 The 'cfranext' variable is assigned values twice successively. Perhaps this is a mistake. Check lines:
447, 454. anim_draw.c 454
The assignment inside conditional blocks makes no sense, because its value is assigned again in the end
of the loop without any condition. A loop, placed in the code right after the given fragment helps us
draw the conclusion that the excessive string is placed above. It differs only in the prev variables, and
the absence of this string in the condition. Moreover, assuming that the extra string is underneath, and
the condition CFRA == (int)aknext->cfra turns out to be false, then this loop will become an infinite one.
This fragment really needs some fixing, but how to do it exactly - only the developers of the project
know.
Extra or unused variables
There were many such fragments with initialized, but unused, variables in the project. Some of them can
be considered as logical errors and excessive checks, but we have already spoken about them a lot.
There are also constants that probably should have been changed inside the functions. But as a result
they are just checks, always returning the same result. An example of such a fragment:
static int rule_avoid_collision(....)
{
....
int n, neighbors = 0, nearest = 0; //<=
....
if (ptn && nearest==0) //<=

MEM_freeN(ptn);
return ret;
}

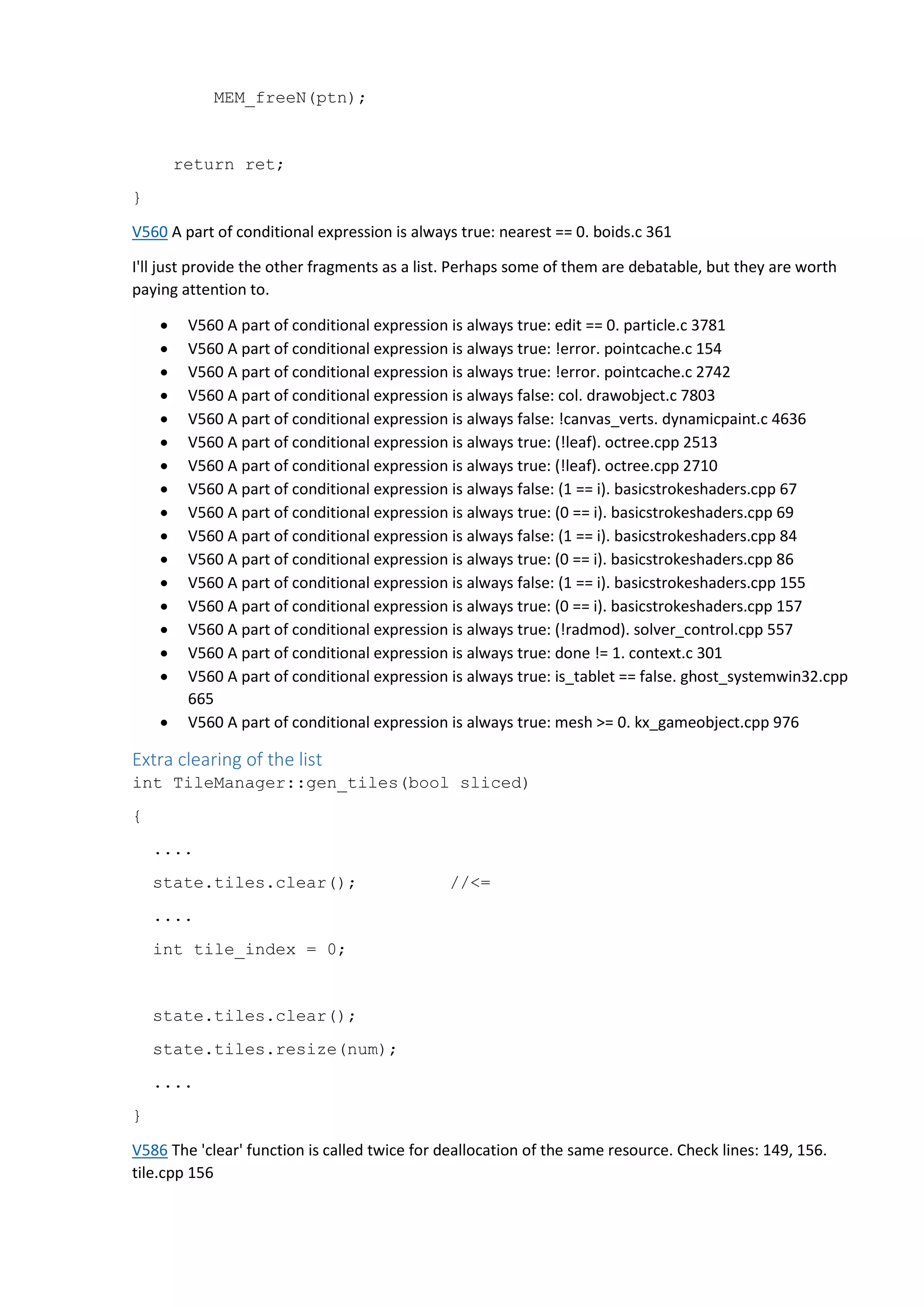

V560 A part of conditional expression is always true: nearest == 0. boids.c 361
I'll just provide the other fragments as a list. Perhaps some of them are debatable, but they are worth
paying attention to.
 V560 A part of conditional expression is always true: edit == 0. particle.c 3781
 V560 A part of conditional expression is always true: !error. pointcache.c 154
 V560 A part of conditional expression is always true: !error. pointcache.c 2742
 V560 A part of conditional expression is always false: col. drawobject.c 7803
 V560 A part of conditional expression is always false: !canvas_verts. dynamicpaint.c 4636
 V560 A part of conditional expression is always true: (!leaf). octree.cpp 2513
 V560 A part of conditional expression is always true: (!leaf). octree.cpp 2710
 V560 A part of conditional expression is always false: (1 == i). basicstrokeshaders.cpp 67
 V560 A part of conditional expression is always true: (0 == i). basicstrokeshaders.cpp 69
 V560 A part of conditional expression is always true: (!radmod). solver_control.cpp 557
 V560 A part of conditional expression is always true: done != 1. context.c 301
 V560 A part of conditional expression is always true: is_tablet == false. ghost_systemwin32.cpp
665
 V560 A part of conditional expression is always true: mesh >= 0. kx_gameobject.cpp 976
Extra clearing of the list
int TileManager::gen_tiles(bool sliced)
{
....
state.tiles.clear(); //<=
....
int tile_index = 0;
state.tiles.clear();
state.tiles.resize(num);
....
}
V586 The 'clear' function is called twice for deallocation of the same resource. Check lines: 149, 156.
tile.cpp 156

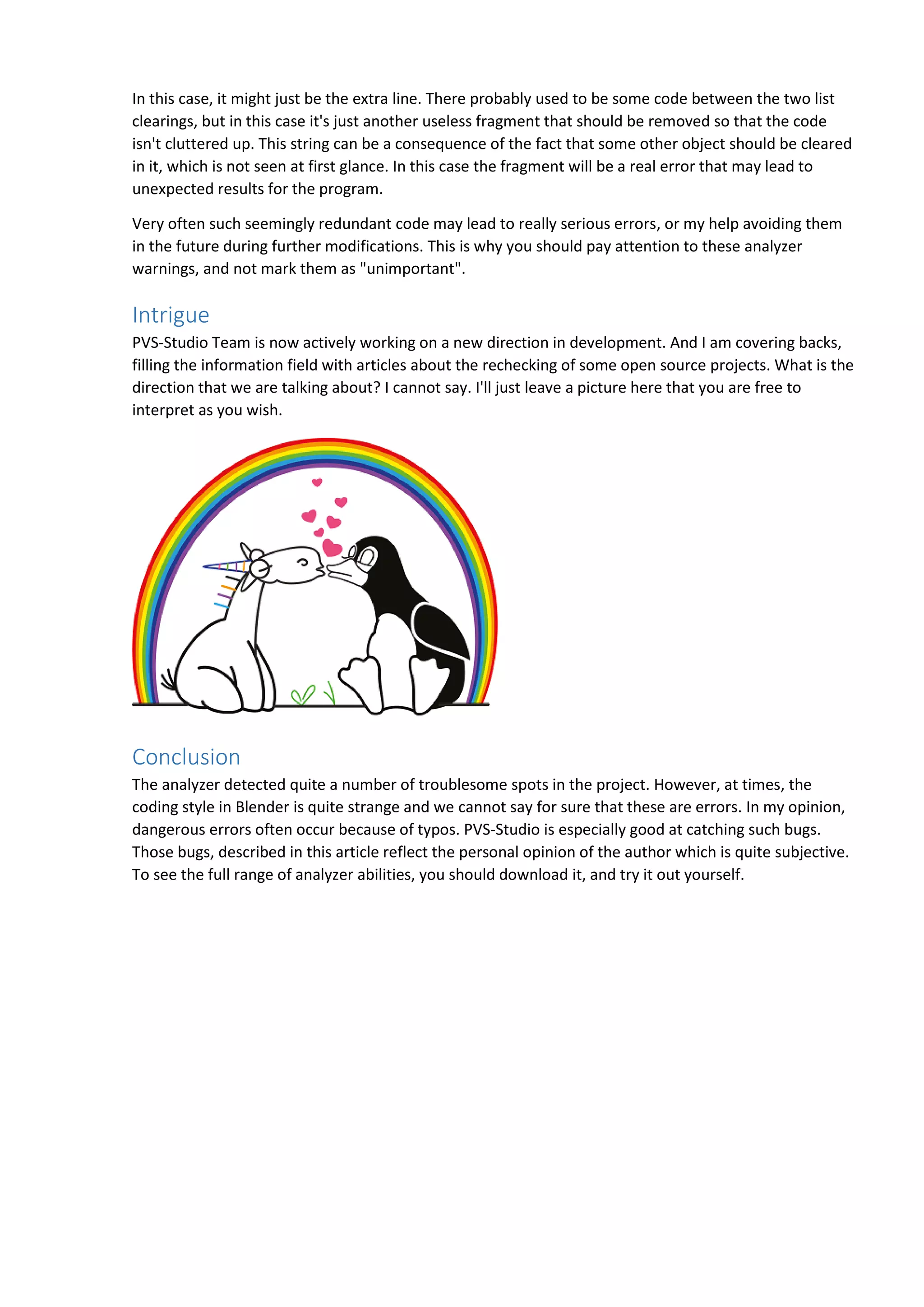

In this case, it might just be the extra line. There probably used to be some code between the two list
clearings, but in this case it's just another useless fragment that should be removed so that the code
isn't cluttered up. This string can be a consequence of the fact that some other object should be cleared
in it, which is not seen at first glance. In this case the fragment will be a real error that may lead to
unexpected results for the program.
Very often such seemingly redundant code may lead to really serious errors, or my help avoiding them
in the future during further modifications. This is why you should pay attention to these analyzer
warnings, and not mark them as "unimportant".
Intrigue
PVS-Studio Team is now actively working on a new direction in development. And I am covering backs,
filling the information field with articles about the rechecking of some open source projects. What is the
direction that we are talking about? I cannot say. I'll just leave a picture here that you are free to
interpret as you wish.
Conclusion
The analyzer detected quite a number of troublesome spots in the project. However, at times, the
coding style in Blender is quite strange and we cannot say for sure that these are errors. In my opinion,
dangerous errors often occur because of typos. PVS-Studio is especially good at catching such bugs.
Those bugs, described in this article reflect the personal opinion of the author which is quite subjective.
To see the full range of analyzer abilities, you should download it, and try it out yourself.

PVS-Studio team is about to produce a technical breakthrough, but for now let's recheck Blender

More Related Content

What's hot

Similar to PVS-Studio team is about to produce a technical breakthrough, but for now let's recheck Blender

Recently uploaded

PVS-Studio team is about to produce a technical breakthrough, but for now let's recheck Blender
