1. Property­Based TPM Virtualization
Ahmad­Reza Sadeghi, Christian Stüble*, Marcel Winandy
Horst Görtz Institute for IT Security
Ruhr­University Bochum, Germany
* Sirrix AG security technologies
Bochum, Germany
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 1

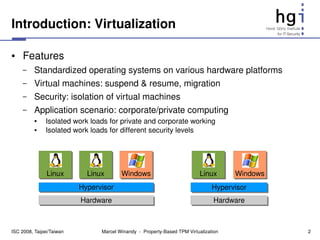

2. Introduction: Virtualization
● Features
– Standardized operating systems on various hardware platforms
– Virtual machines: suspend & resume, migration
– Security: isolation of virtual machines
– Application scenario: corporate/private computing
● Isolated work loads for private and corporate working
● Isolated work loads for different security levels
Linux Linux Windows Linux Windows
Hypervisor Hypervisor
Hardware Hardware
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 2

3. Introduction: Trusted Computing (TPM)
– TPM: cheap, tamper­evident hardware security module
● Cryptographic functions (RSA, SHA­1, key generation, RNG)
● Protected storage for small data (e.g. keys)
● Special keys: Endorsement Key (EK) and Storage Root Key (SRK)
– Authenticated Boot (recording integrity measurements)
● Measurements stored in Platform Configuration Registers (PCRs)
● Each component measures next component (chain of trust)
hash Apps
store hash
hash OS TPM
Boot Loader store hash
hash PCRs
BIOS store hash SRK
hash store hash EK
CRTM
– Attestation and Sealing
● Attestation Identity Key (AIK) signs PCRs for (remote) attestation
● Binding key is used to encrypt data to the current PCR values (decrypting only
possible with same PCR states)
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 3

4. Introduction: Virtual TPM (vTPM)
● Each VM should be able to use TPM
– Providing protected storage and crypto coprocessor
– Assurance about the booted hypervisor and virtual machines
– Support for migration
Private Working Unclassified Corporate Classified Corporate
Environment Environment Environment
VM VM VM
Hypervisor
TPM Hardware
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 4

5. Introduction: Virtual TPM (vTPM)
● Each VM should be able to use TPM
– Providing protected storage and crypto coprocessor
– Assurance about the booted hypervisor and virtual machines
– Support for migration
● Virtualization of the TPM
– Emulation in software, but binding to VM and hardware TPM
Private Working Unclassified Corporate Classified Corporate
Environment Environment Environment
VM VM VM
TPM Driver TPM Driver TPM Driver
vTPM vTPM vTPM
Hypervisor
TPM Hardware
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 5

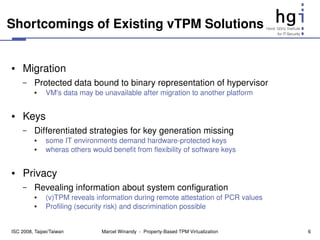

6. Shortcomings of Existing vTPM Solutions
● Migration
– Protected data bound to binary representation of hypervisor
● VM's data may be unavailable after migration to another platform
● Keys
– Differentiated strategies for key generation missing
● some IT environments demand hardware­protected keys
● wheras others would benefit from flexibility of software keys
● Privacy
– Revealing information about system configuration
● (v)TPM reveals information during remote attestation of PCR values
● Profiling (security risk) and discrimination possible
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 6

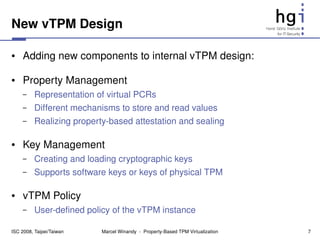

7. New vTPM Design
● Adding new components to internal vTPM design:
● Property Management
– Representation of virtual PCRs
– Different mechanisms to store and read values
– Realizing property­based attestation and sealing
● Key Management
– Creating and loading cryptographic keys
– Supports software keys or keys of physical TPM
● vTPM Policy
– User­defined policy of the vTPM instance
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 7

8. Flexible vTPM Architecture
VM
TPM Driver
TPM_CreateWrapKey() TPM_Extend(i, m) TPM_PCRRead(i)
vTPM Interface Management Interface
CreateKey() Extend(i, m) PCRRead(i) crypto... migrate()
Key Property Cryptographic Migration
Management Management Functions Controller
PropertyFilter
Software Key PropertyProvider 1
Hardware Key PropertyProvider 2 vTPM
...
...
...
PropertyProvider N
vTPM Policy
Hypervisor
TPM Key TPM Novel components for vTPM
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 8

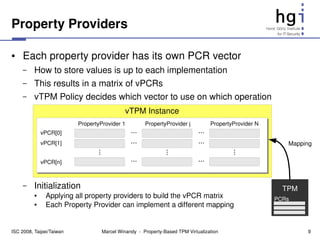

9. Property Providers
● Each property provider has its own PCR vector
– How to store values is up to each implementation
– This results in a matrix of vPCRs
– vTPM Policy decides which vector to use on which operation
vTPM Instance
PropertyProvider 1 PropertyProvider j PropertyProvider N
vPCR[0] ... ...
vPCR[1] ... ... Mapping
...
...
...
vPCR[n] ... ...
– Initialization TPM
● Applying all property providers to build the vPCR matrix PCRs
● Each Property Provider can implement a different mapping
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 9

10. Changing the Measurement Function
● PCR extension function of the TPM:
Extend(i, m): PCRi ← SHA1(PCRi || m)
● Generalizing this for each Providerj:
Providerj.Extend(i,m): vPCRi,j← translatej(vPCRi,j,m)
● Examples:
– translatehash() is hashing like in hardware TPM
– translatecert() looks for a certificate and stores the public key
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 10

11. PCR Extension: Example
VM­OS measures a file and wants to extend the measurement in PCR 10 of the vTPM
TPM_Extend(10, f572d396fae9206628714fb2ce00f72e94f2258f)
Property Management of vTPM instance calls each Property Provider
vPCR10,hash of Providerhash vPCR10,cert of Providercert
09d2af8dd22201dd8d48e5dcfcaed281ff9422c7 PKcertA
vPCR10,hash := SHA1(vPCR10,hash || Look for cert for hash f572d....
f572d396fae9206628714fb2ce00f72e94f2258f) If found one (e.g., certB), add its PK
vPCR10,hash : vPCR10,cert :
3a2fdfb2e10d4286a56715952340177c508b173c PKcertA , PKcertB
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 11

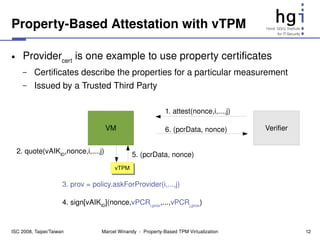

12. Property­Based Attestation with vTPM
● Providercert is one example to use property certificates
– Certificates describe the properties for a particular measurement
– Issued by a Trusted Third Party
1. attest(nonce,i,...,j)
VM 6. (pcrData, nonce) Verifier
2. quote(vAIKID,nonce,i,...,j) 5. (pcrData, nonce)
vTPM
3. prov = policy.askForProvider(i,...,j)
4. sign[vAIKID](nonce,vPCRi,prov,...,vPCRj,prov)
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 12

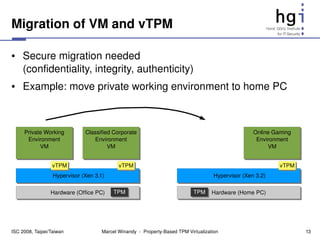

13. Migration of VM and vTPM
● Secure migration needed
(confidentiality, integrity, authenticity)
● Example: move private working environment to home PC
Private Working Classified Corporate Online Gaming
Environment Environment Environment
VM VM VM
vTPM vTPM vTPM
Hypervisor (Xen 3.1) Hypervisor (Xen 3.2)
Hardware (Office PC) TPM TPM Hardware (Home PC)
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 13

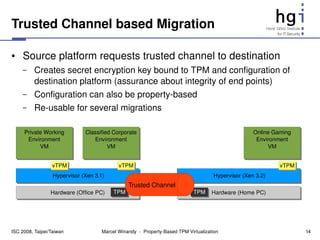

14. Trusted Channel based Migration
● Source platform requests trusted channel to destination
– Creates secret encryption key bound to TPM and configuration of
destination platform (assurance about integrity of end points)
– Configuration can also be property­based
– Re­usable for several migrations
Private Working Classified Corporate Online Gaming
Environment Environment Environment
VM VM VM
vTPM vTPM vTPM
Hypervisor (Xen 3.1) Hypervisor (Xen 3.2)
Trusted Channel
Hardware (Office PC) TPM TPM Hardware (Home PC)
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 14

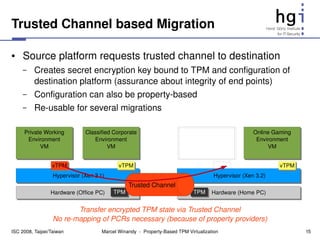

15. Trusted Channel based Migration
● Source platform requests trusted channel to destination
– Creates secret encryption key bound to TPM and configuration of
destination platform (assurance about integrity of end points)
– Configuration can also be property­based
– Re­usable for several migrations
Private Working Classified Corporate Online Gaming
Environment Environment Environment
VM VM VM
vTPM vTPM vTPM
Hypervisor (Xen 3.1) Hypervisor (Xen 3.2)
Trusted Channel
Hardware (Office PC) TPM TPM Hardware (Home PC)
Transfer encrypted TPM state via Trusted Channel
No re­mapping of PCRs necessary (because of property providers)
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 15

16. Trusted Channel based Migration
● Source platform requests trusted channel to destination
– Creates secret encryption key bound to TPM and configuration of
destination platform (assurance about integrity of end points)
– Configuration can also be property­based
– Re­usable for several migrations
Classified Corporate Private Working Online Gaming
Environment Environment Environment
VM VM VM
vTPM vTPM vTPM
Hypervisor (Xen 3.1) Hypervisor (Xen 3.2)
Trusted Channel
Hardware (Office PC) TPM TPM Hardware (Home PC)
Transfer encrypted TPM state via Trusted Channel
No re­mapping of PCRs necessary (because of property providers)
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 16

17. Summary
VM
New vTPM Design
TPM Driver
TPM_CreateWrapKey() TPM_Extend(i, m) TPM_PCRRead(i)
vTPM Interface Management Interface
CreateKey() Extend(i, m) PCRRead(i) crypto... migrate()
Key Property Cryptographic Migration
Management Management Functions Controller
­ Property Providers
PropertyFilter
Software Key PropertyProvider 1
vTPM
­ Key Management
Hardware Key PropertyProvider 2
...
...
...
PropertyProvider N
vTPM Policy
­ vTPM Policy
TPM Key TPM Novel components for vTPM
● Allows to link hypervisor to vTPM based on properties
– Data availability after migration or software updates
– Trusted Migration protocol ensures binding to trustworthy platform
● More flexibility in key usage
– Key Management can delegate key requests to hardware TPM
● User­defined policy decides which information to reveal
– Policy defines which Property Provider to use on attestation
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 17

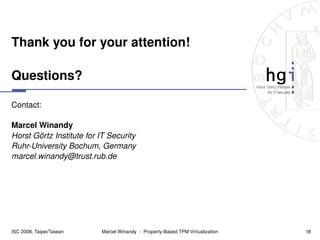

18. Thank you for your attention!
Questions?
Contact:
Marcel Winandy
Horst Görtz Institute for IT Security
Ruhr­University Bochum, Germany
marcel.winandy@trust.rub.de
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 18

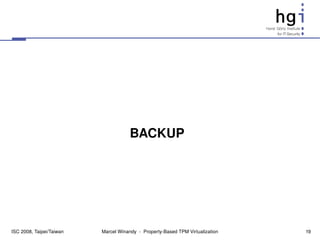

19. BACKUP
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 19

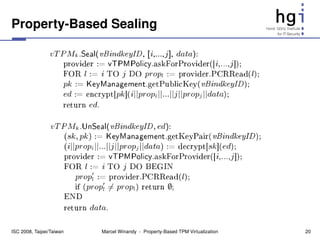

20. Property­Based Sealing
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 20

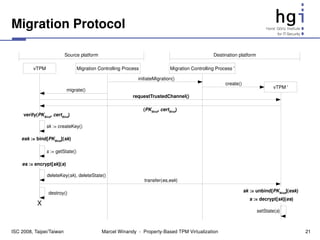

21. Migration Protocol
Source platform Destination platform
vTPM Migration Controlling Process Migration Controlling Process '
initiateMigration()
create()
vTPM '
migrate()
requestTrustedChannel()
(PKBind, certBind)
verify(PKBind, certBind)
sk := createKey()
esk := bind[PKBind](sk)
s := getState()
es := encrypt[sk](s)
deleteKey(sk), deleteState()
transfer(es,esk)
destroy() sk := unbind[PKBind](esk)
s := decrypt[sk](es)
X
setState(s)
ISC 2008, Taipei/Taiwan Marcel Winandy ­ Property­Based TPM Virtualization 21
