1. The document provides programming style guidelines for writing clear, readable, and maintainable code. It discusses topics like naming conventions, file organization, writing statements, and documentation. 2. Specific guidelines include using lowercase names for variables and functions, uppercase names for constants, and prefix conventions. It also recommends organizing code into modular files with meaningful input/output, writing comments to explain the code, and using consistent indentation and formatting. 3. The document stresses the importance of writing code that is easy to understand even after some time has passed, and providing documentation on what the code is intended to do and how it works through header comments and external documentation files.

1. Programming Style GuidelinesNhat ‘Rich’ NguyenFuture Computing LabFebruary 2010

2. 2“You got to know the rules before you can break them. Otherwise it’s no fun.”Sonny Crockett (Miami Vice)

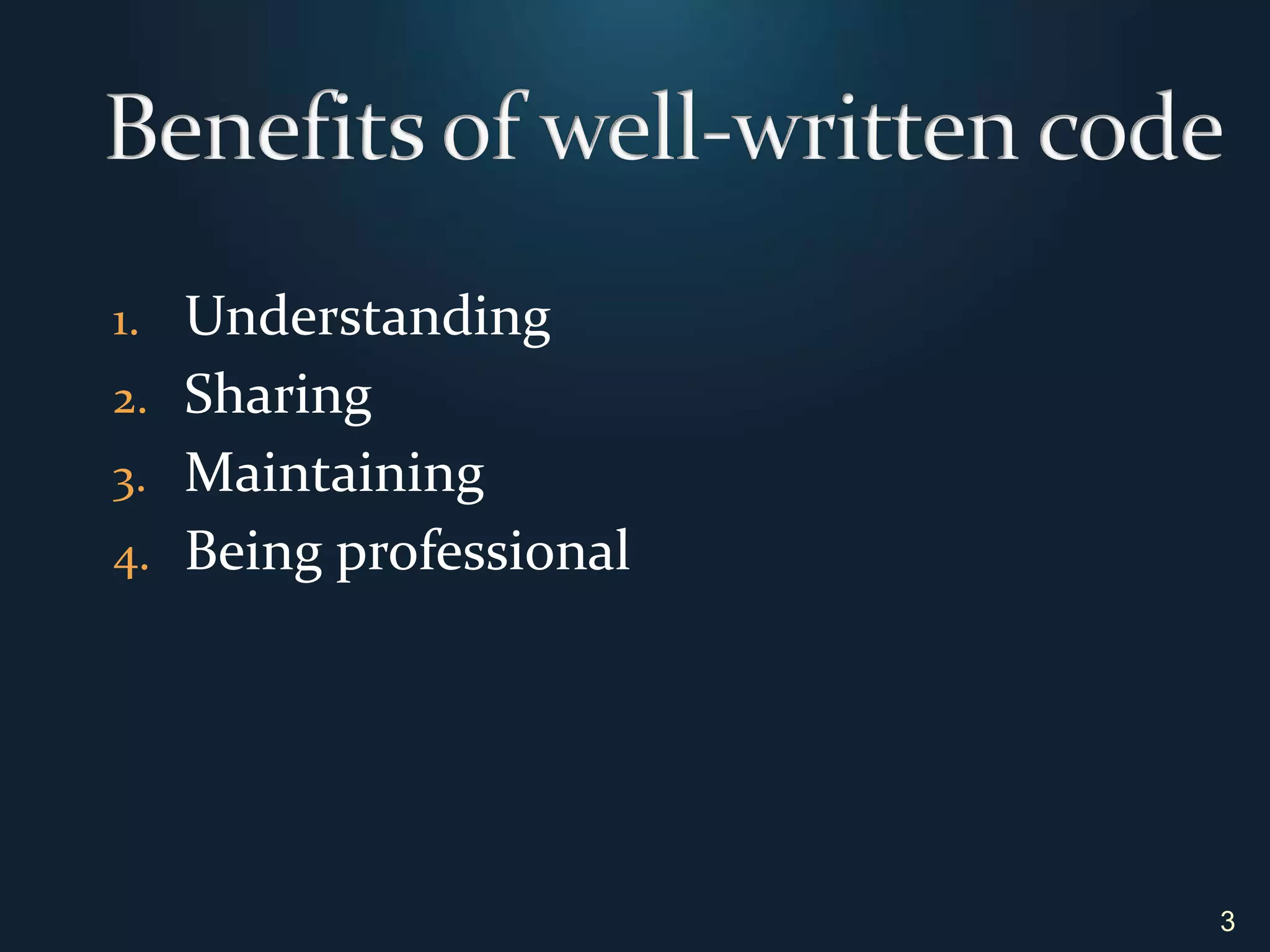

3. Benefits of well-written codeUnderstandingSharingMaintainingBeing professional3

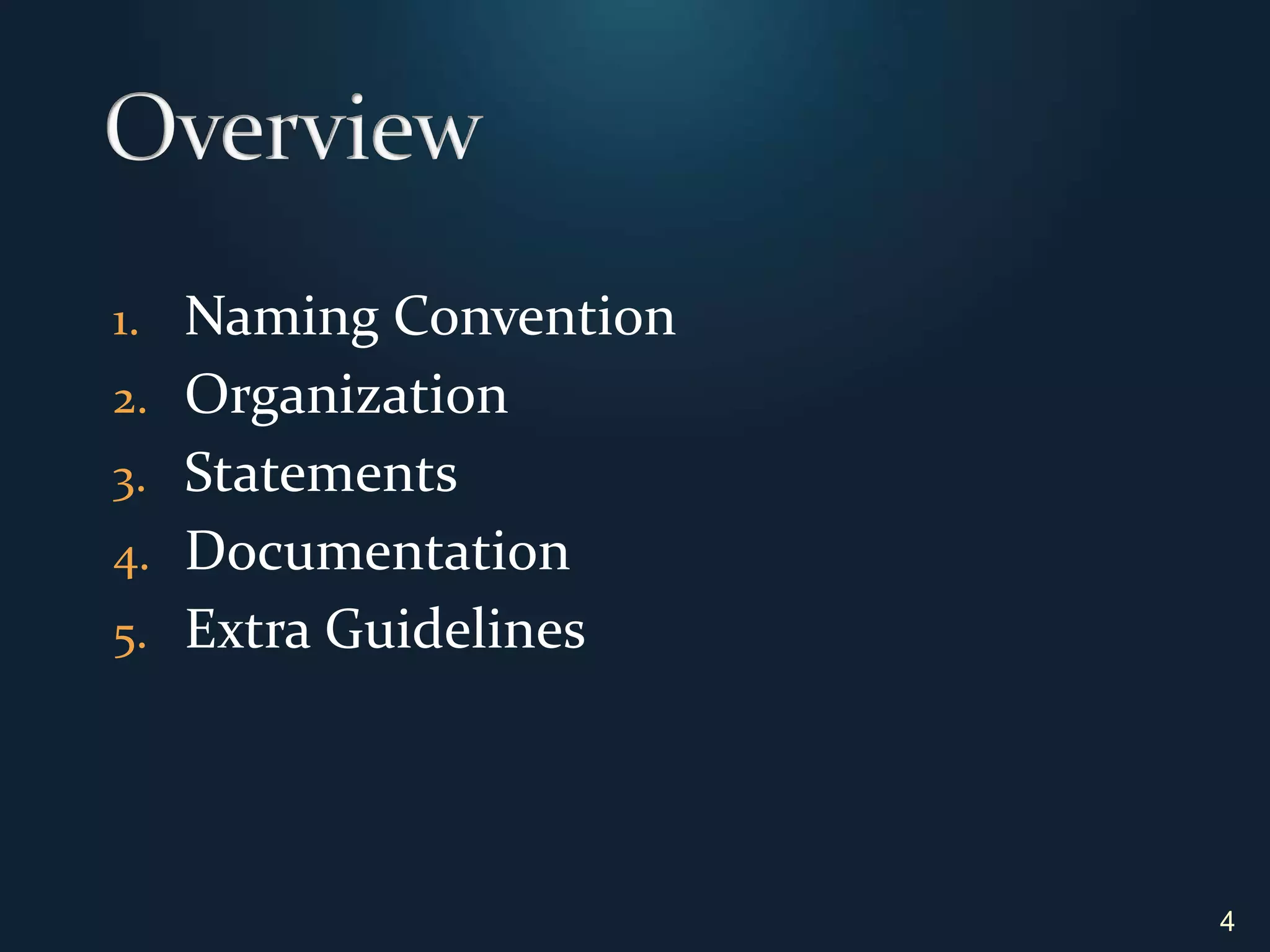

4. OverviewNaming ConventionOrganizationStatementsDocumentationExtra Guidelines4

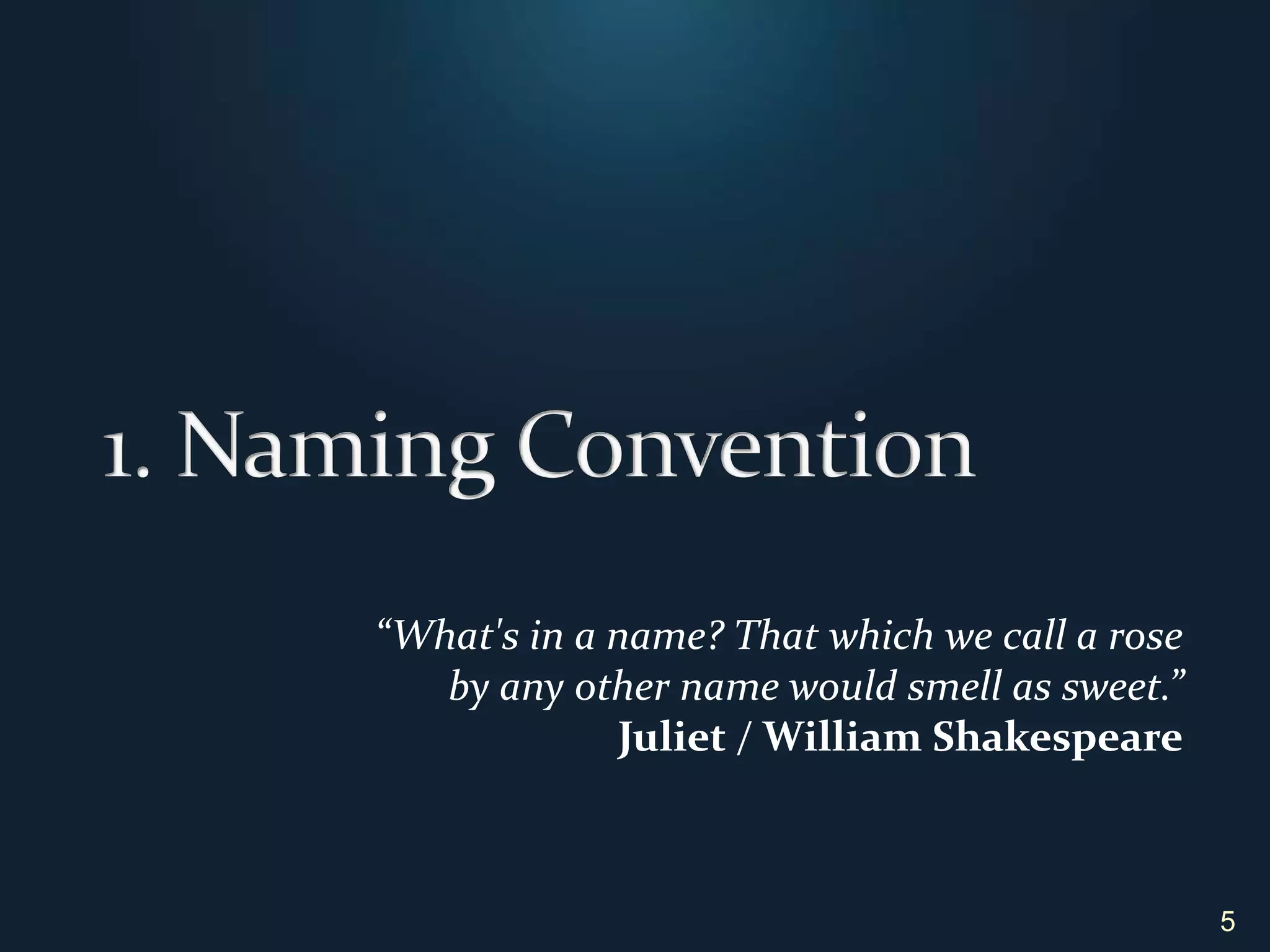

5. 1. Naming Convention5“What's in a name? That which we call a roseby any other name would smell as sweet.” Juliet / WilliamShakespeare

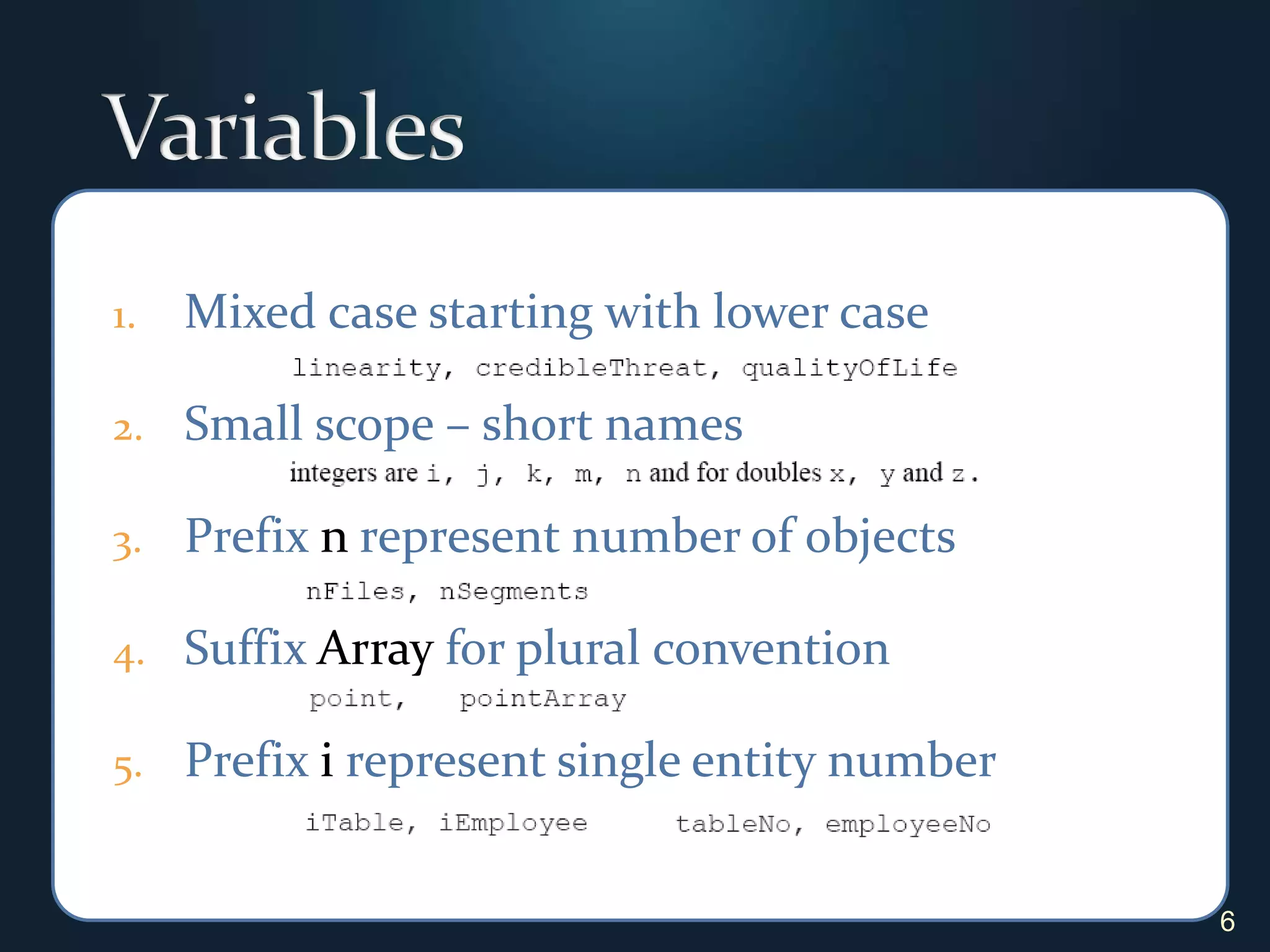

6. VariablesMixed case starting with lower case Small scope – short namesPrefix n represent number of objectsSuffix Array for plural conventionPrefix i represent single entity number 6

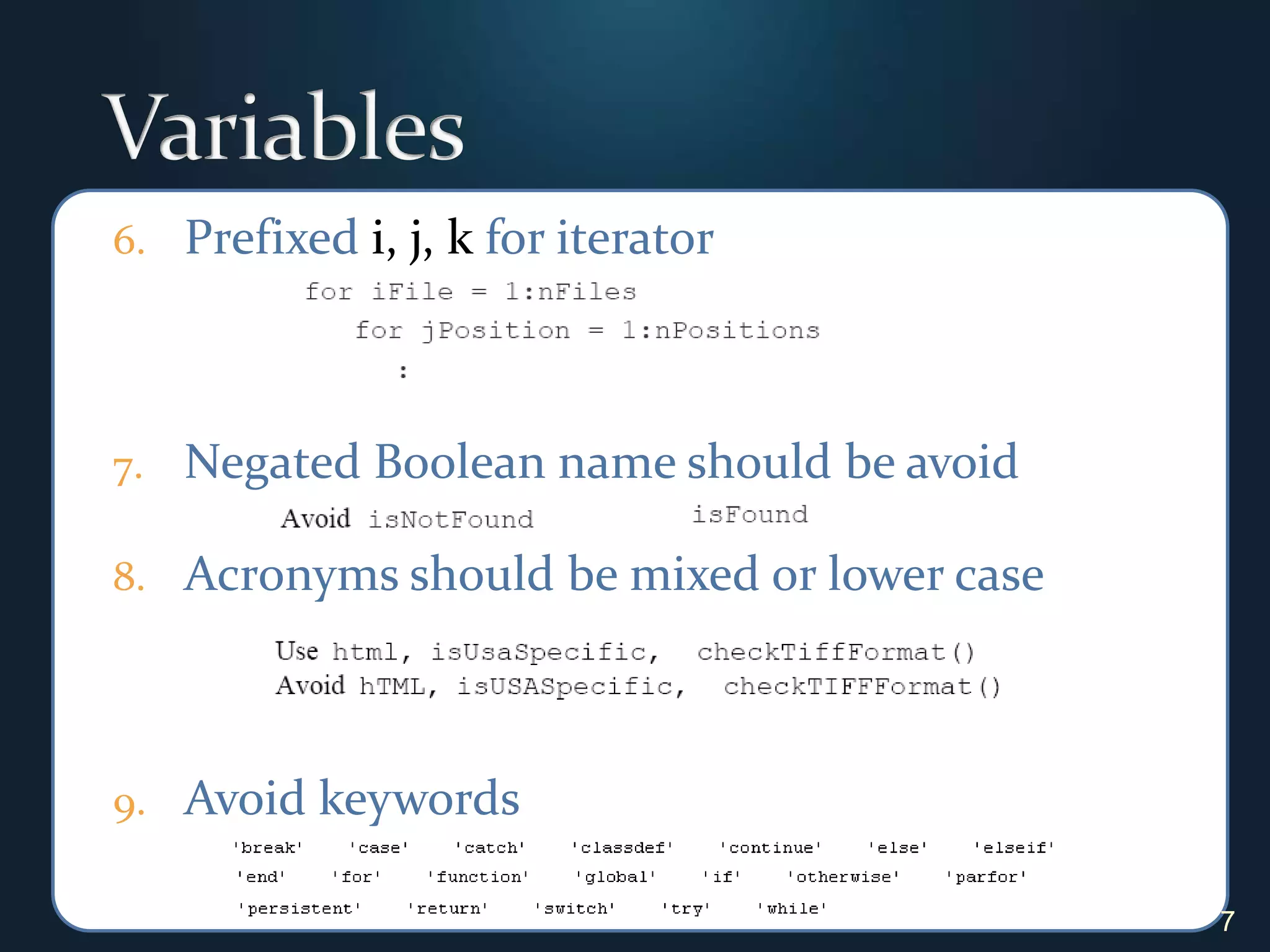

7. VariablesPrefixed i, j, k for iteratorNegated Boolean name should be avoidAcronyms should be mixed or lower caseAvoid keywords7

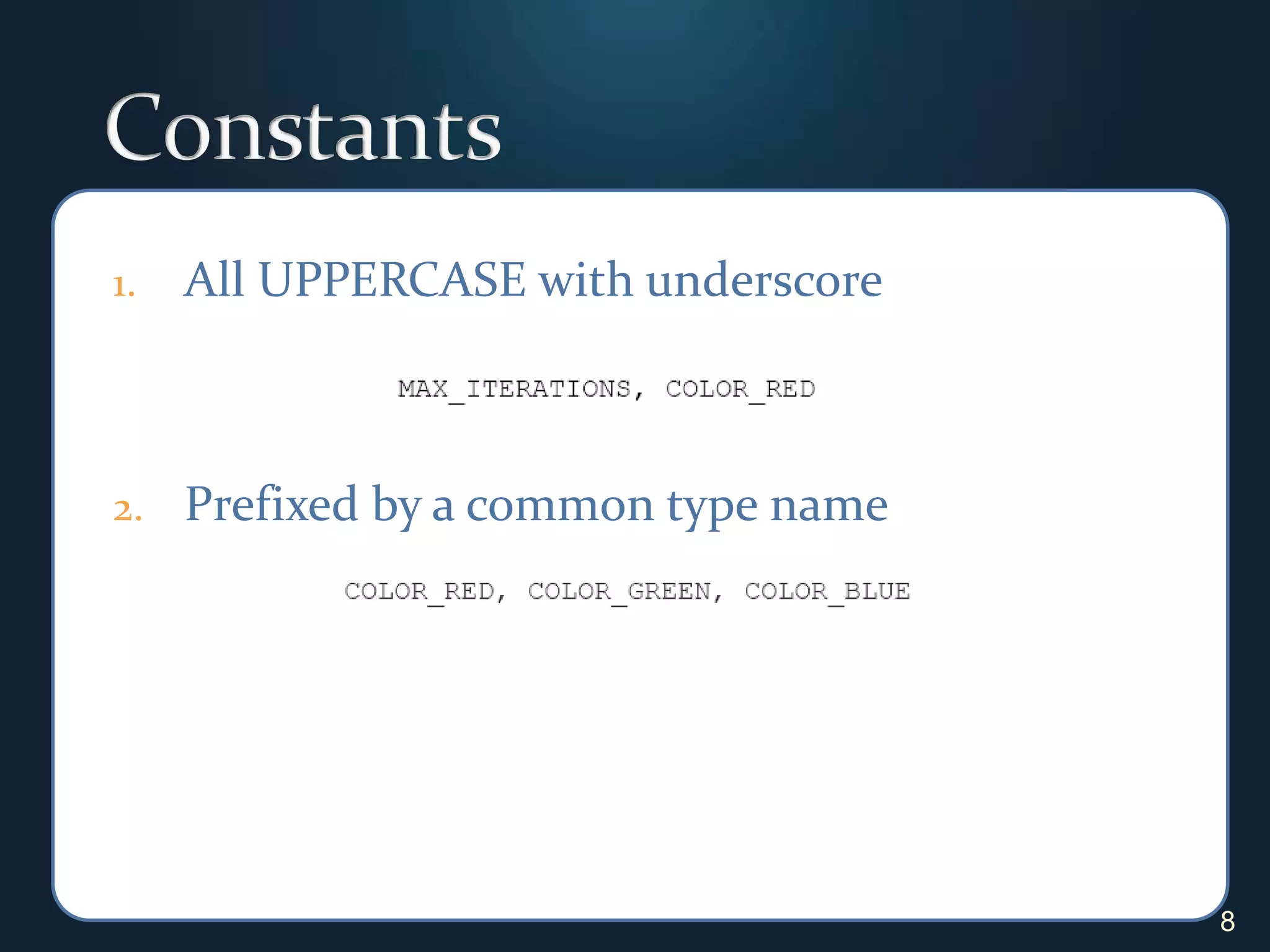

8. ConstantsAll UPPERCASE with underscore Prefixed by a common type name8

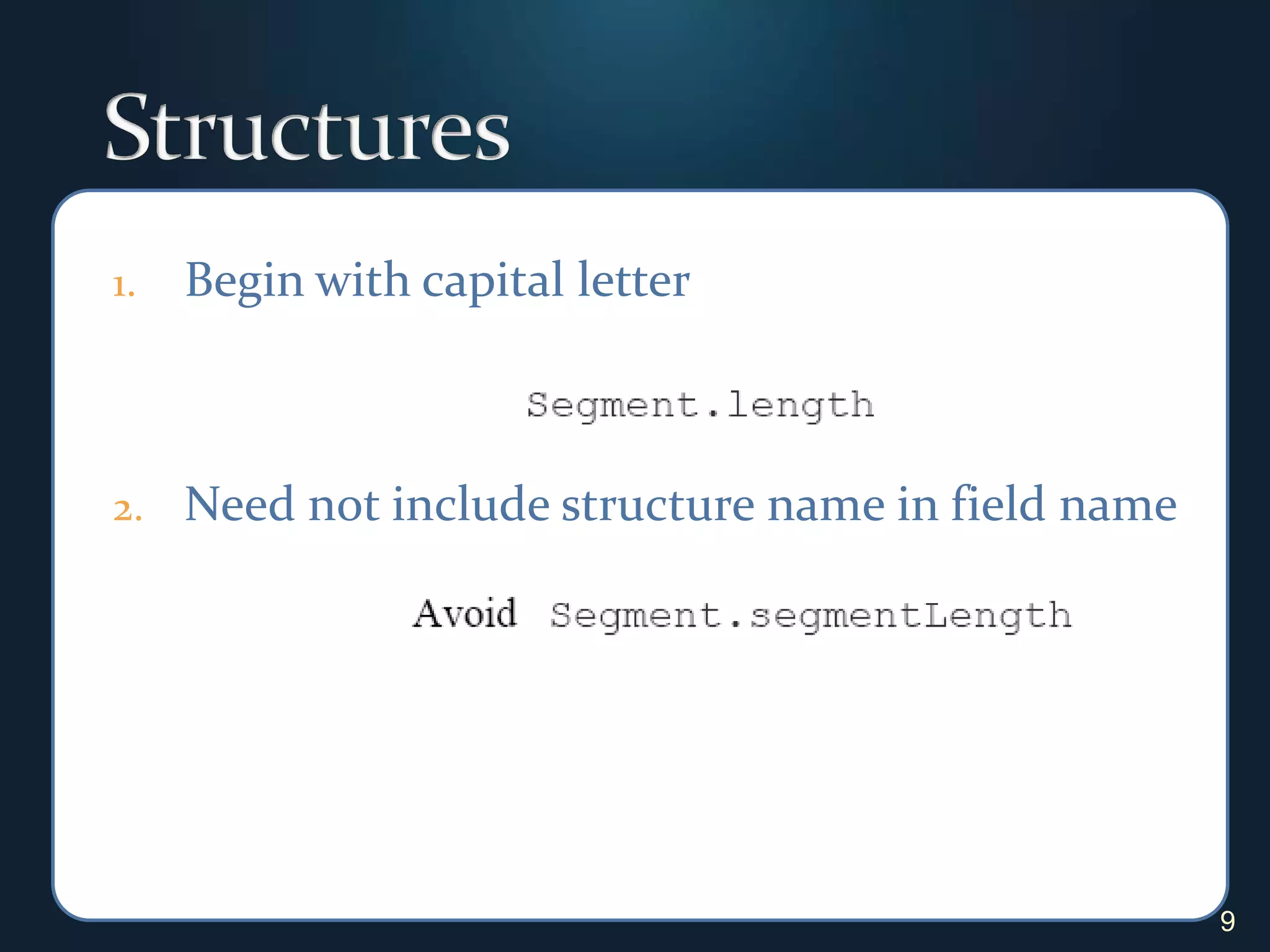

9. StructuresBegin with capital letterNeed not include structure name in field name9

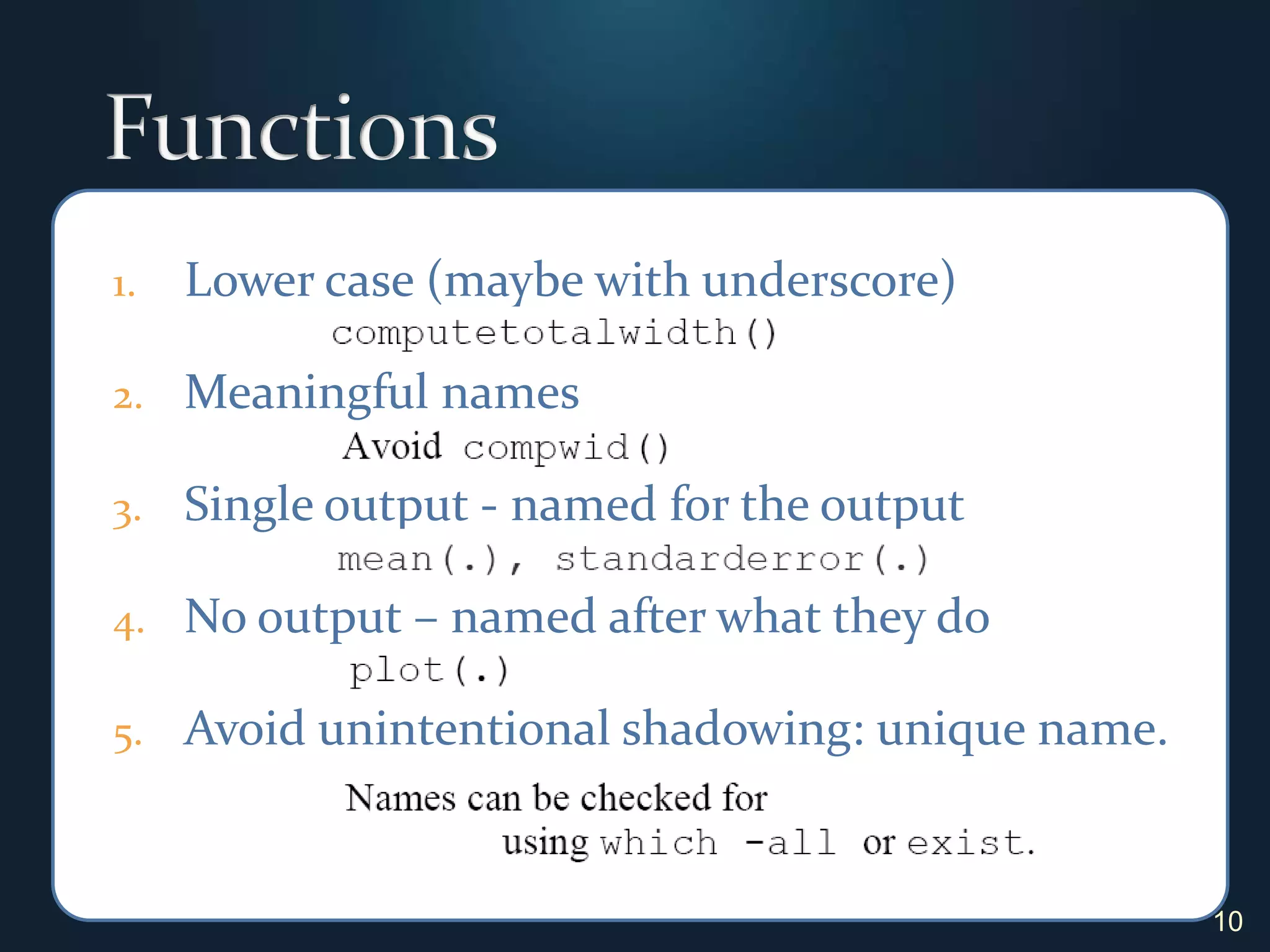

10. FunctionsLower case (maybe with underscore)Meaningful namesSingle output - named for the outputNo output – named after what they doAvoid unintentional shadowing: unique name.10

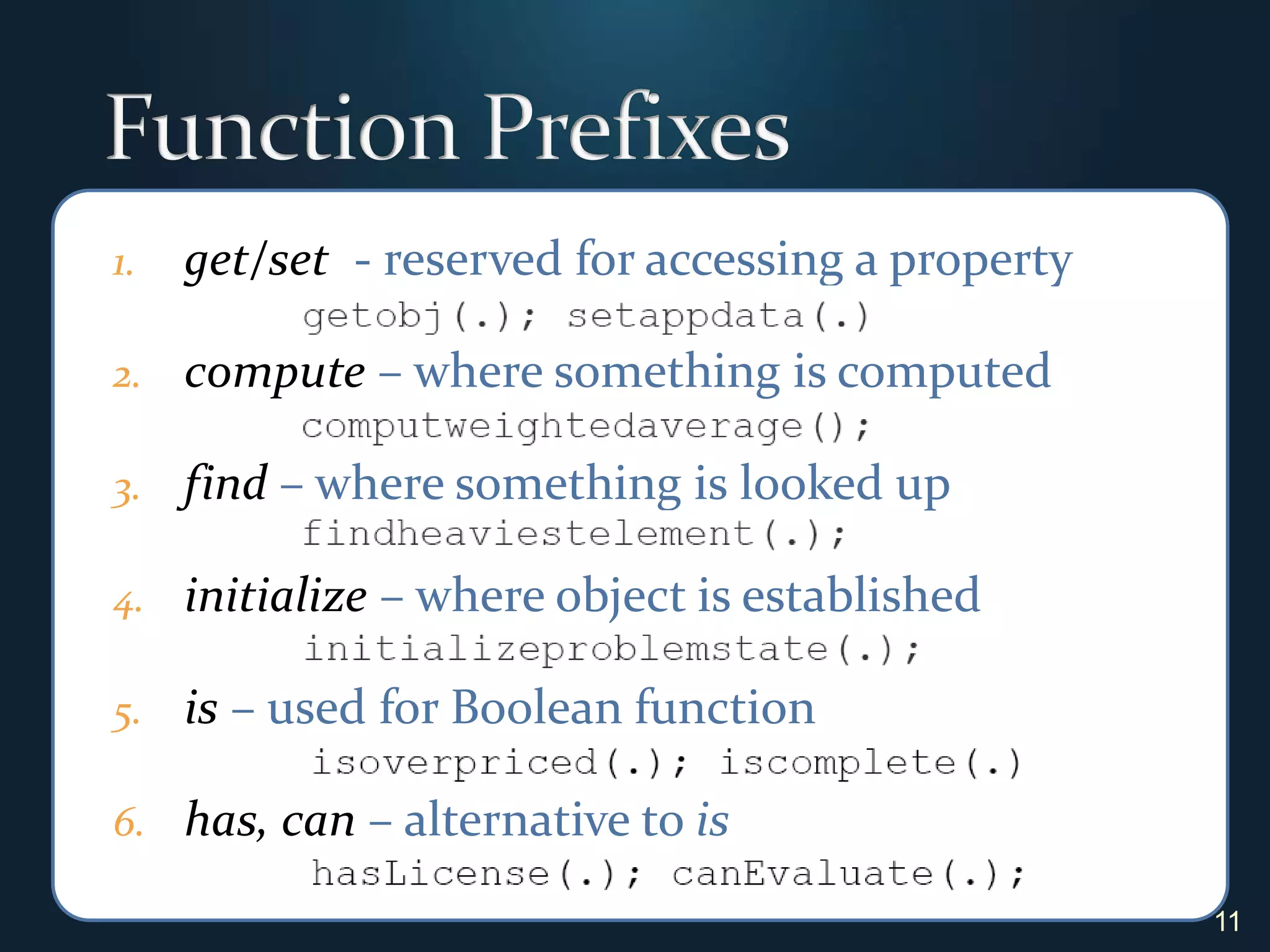

11. Function Prefixesget/set - reserved for accessing a property compute – where something is computedfind– where something is looked upinitialize – where object is establishedis – used for Boolean functionhas, can – alternative to is11

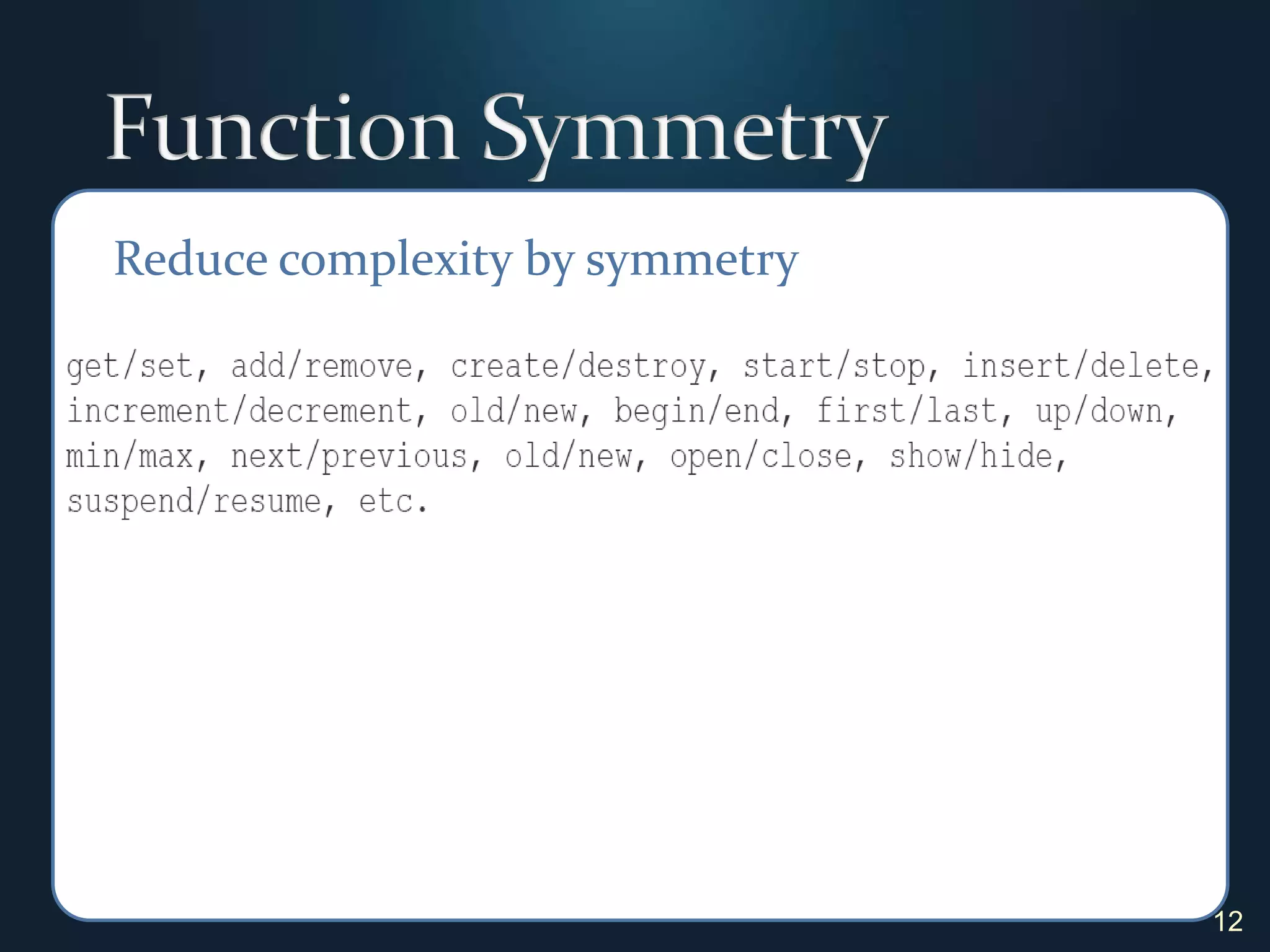

12. Function Symmetry12Reduce complexity by symmetry

13. 2. Organization13"A place for everything, everything in its place." Benjamin Franklin

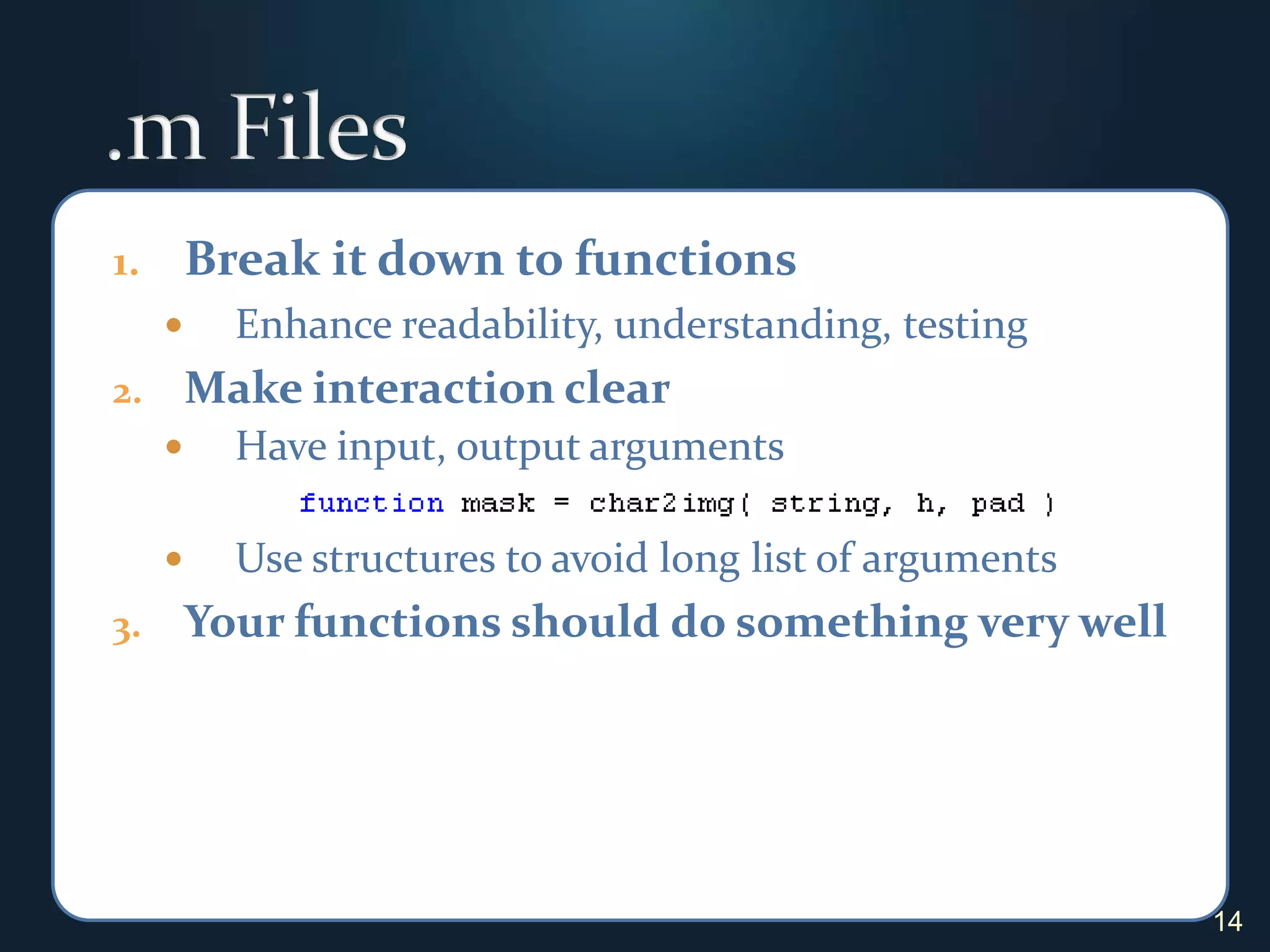

14. .m FilesBreak it down to functionsEnhance readability, understanding, testingMake interaction clearHave input, output argumentsUse structures to avoid long list of argumentsYour functions should do something very well14

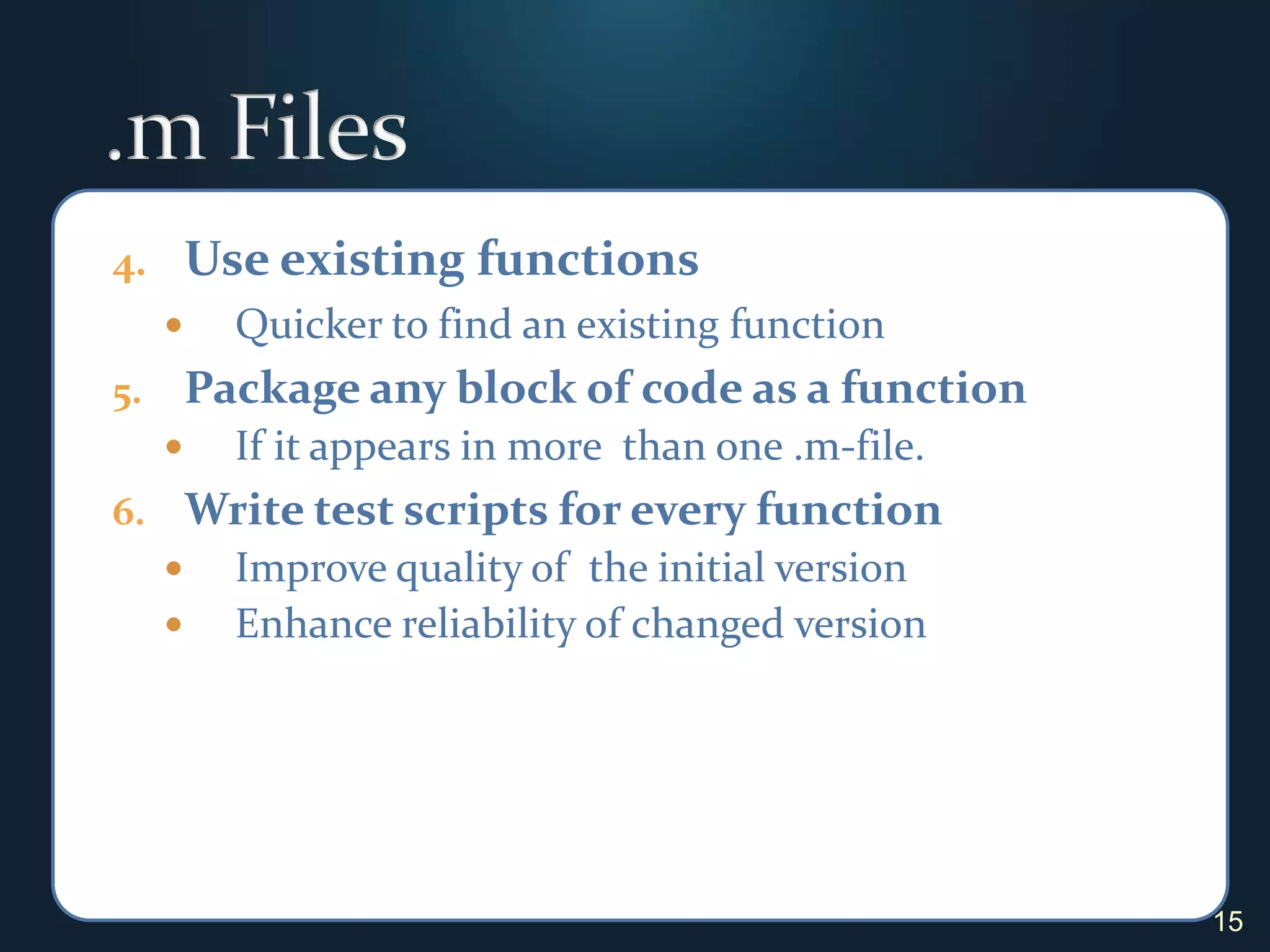

15. .m FilesUse existing functionsQuicker to find an existing functionPackage any block of code as a function If it appears in more than one .m-file.Write test scripts for every functionImprove quality of the initial versionEnhance reliability of changed version15

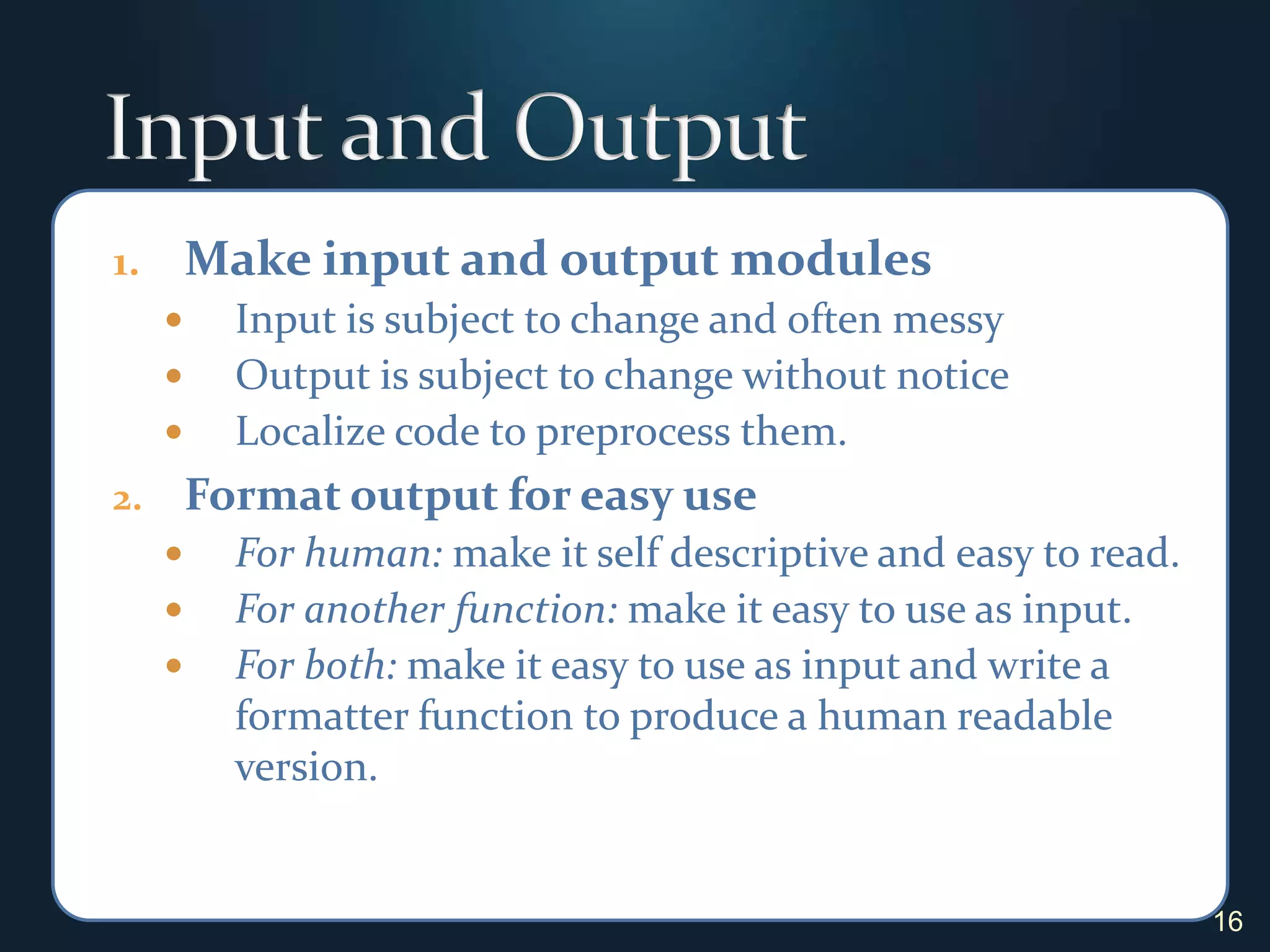

16. Input and OutputMake input and output modulesInput is subject to change and often messyOutput is subject to change without noticeLocalize code to preprocess them.Format output for easy useFor human: make it self descriptive and easy to read.For another function: make it easy to use as input.For both: make it easy to use as input and write a formatter function to produce a human readable version.16

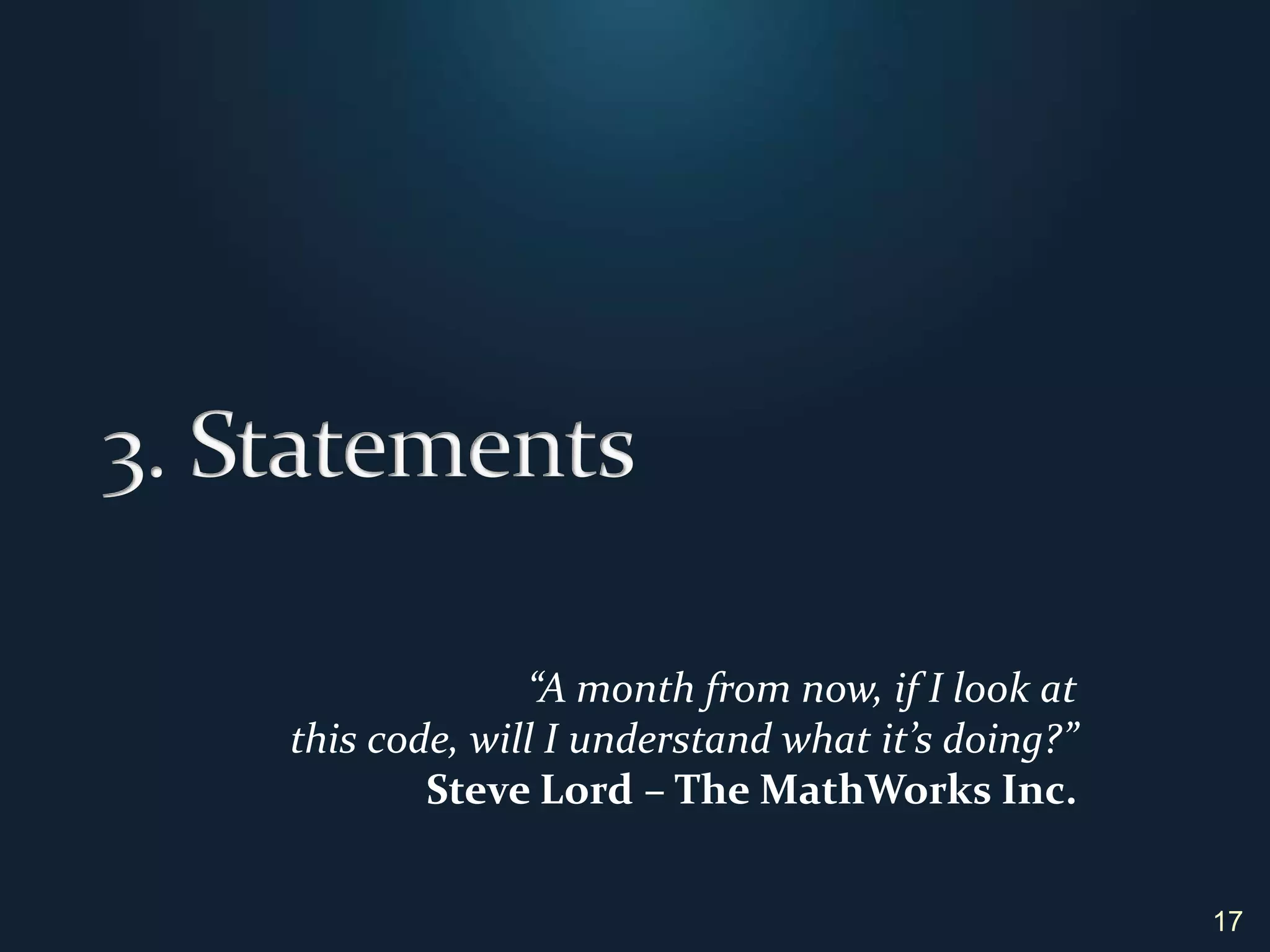

17. 3. Statements17“A month from now, if I look atthis code, will I understand what it’s doing?” Steve Lord – The MathWorks Inc.

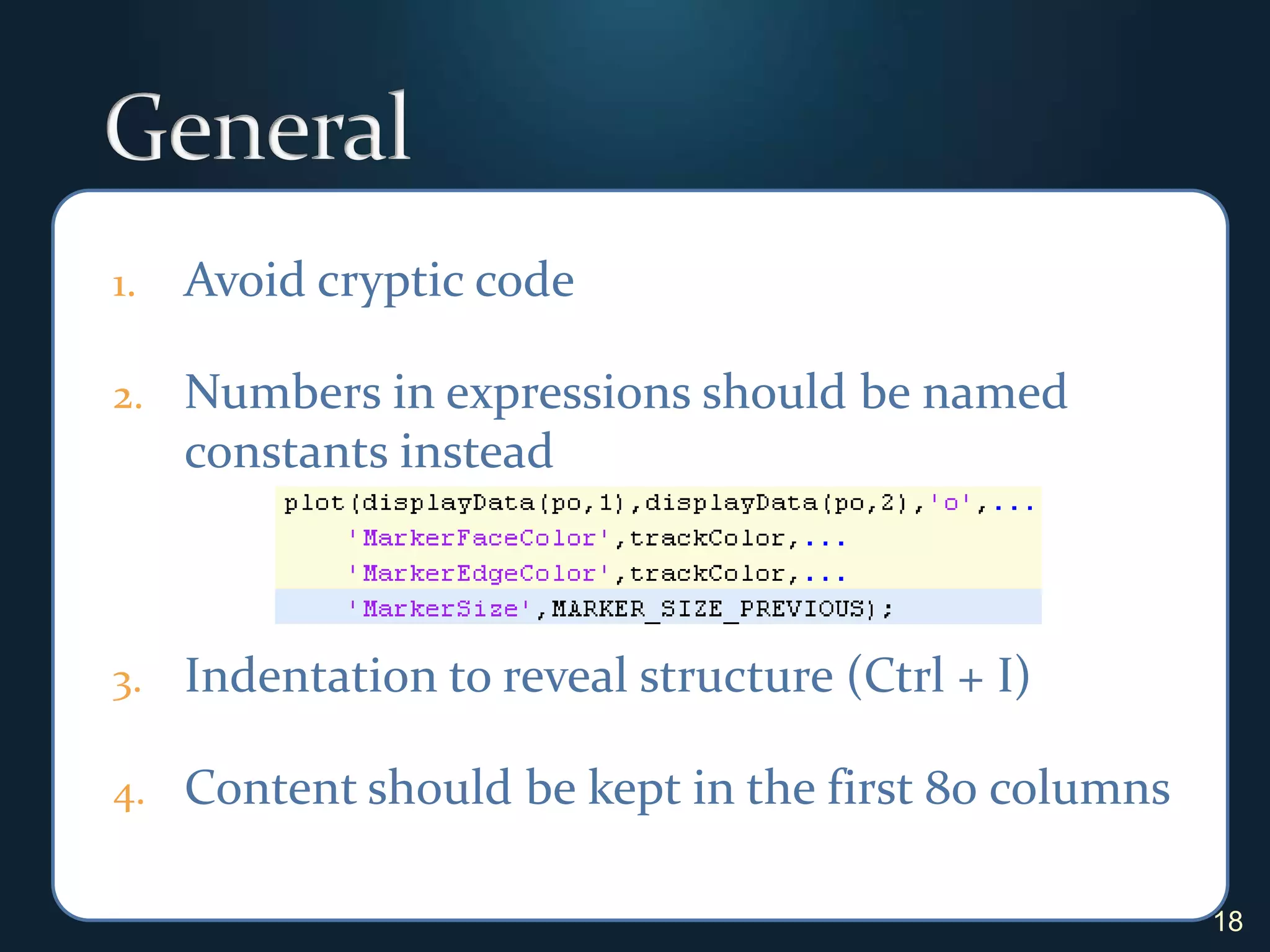

18. GeneralAvoid cryptic codeNumbers in expressions should be named constants insteadIndentation to reveal structure (Ctrl + I)Content should be kept in the first 80 columns18

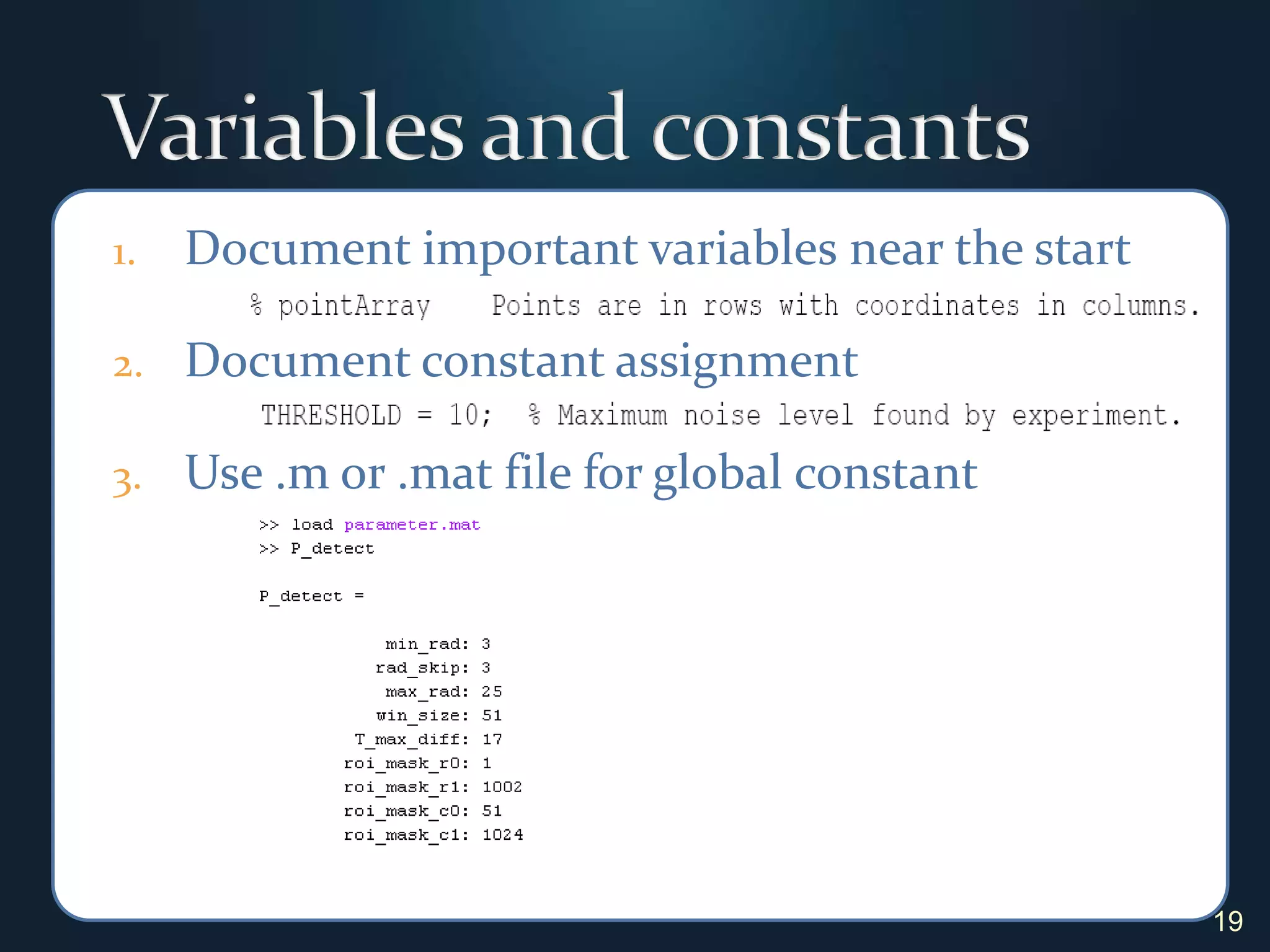

19. Variables and constantsDocument important variables near the startDocument constant assignmentUse .m or .mat file for global constant19

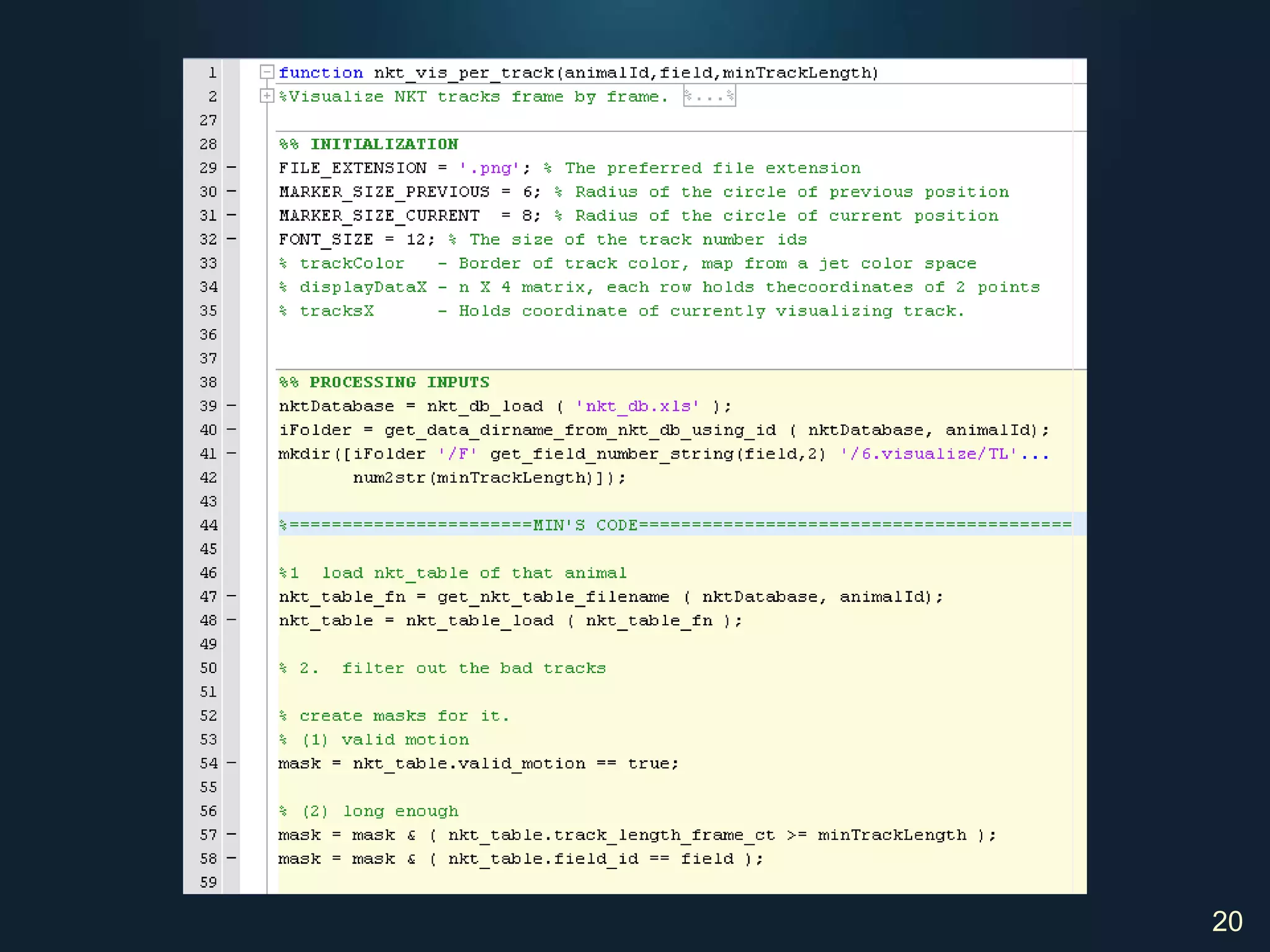

20. 20

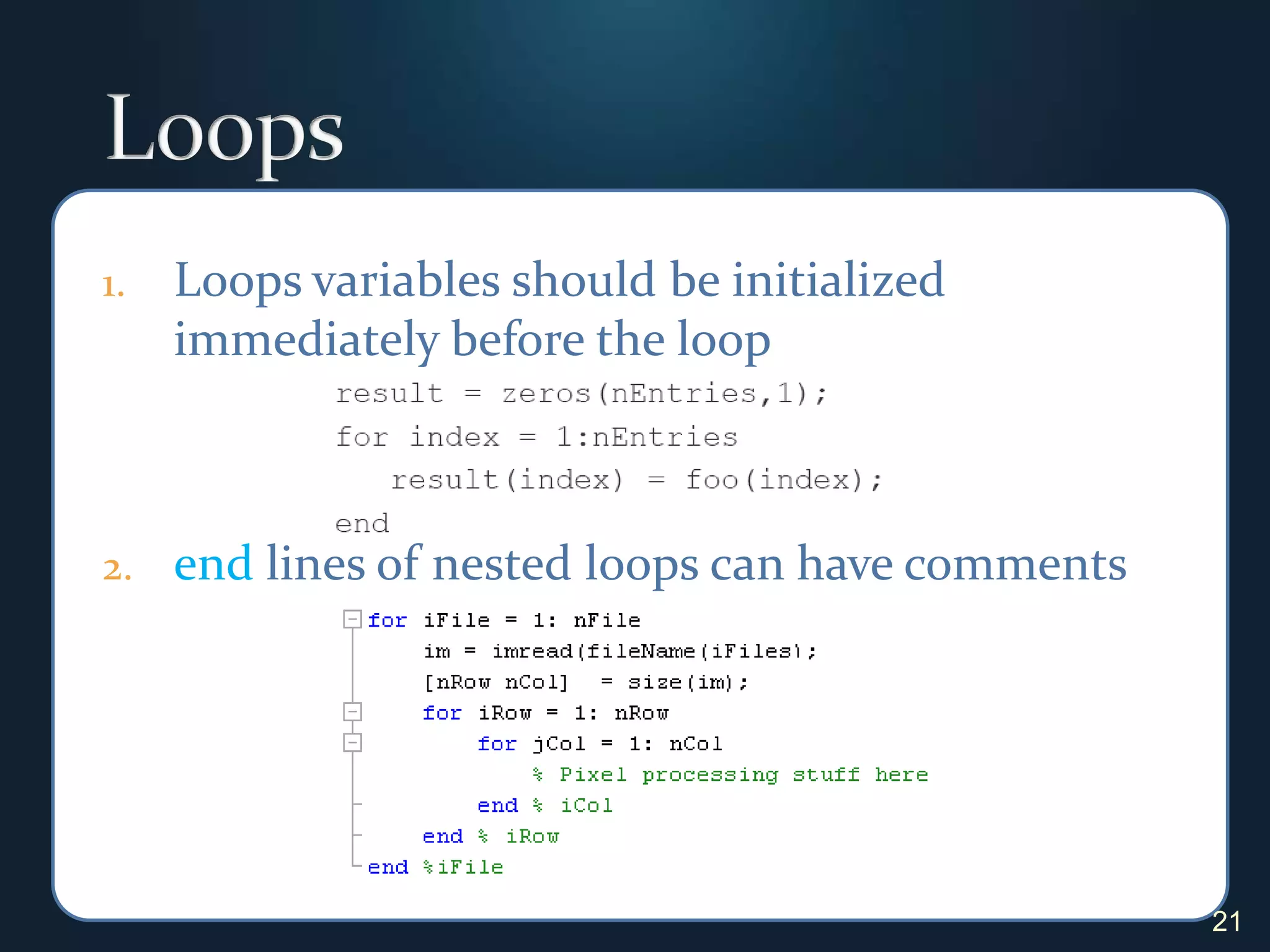

21. LoopsLoops variables should be initialized immediately before the loopend lines of nested loops can have comments21

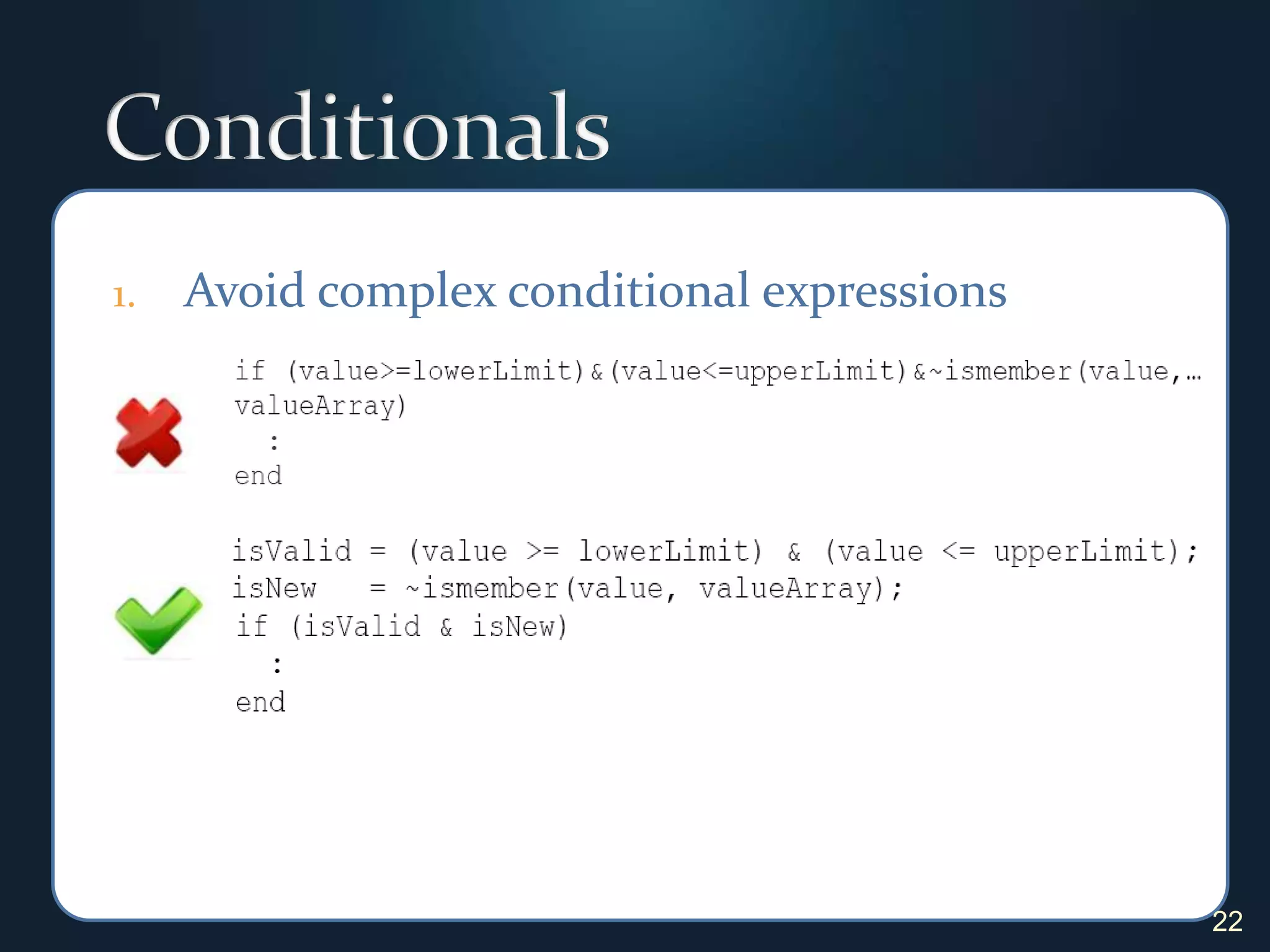

22. ConditionalsAvoid complex conditional expressions22

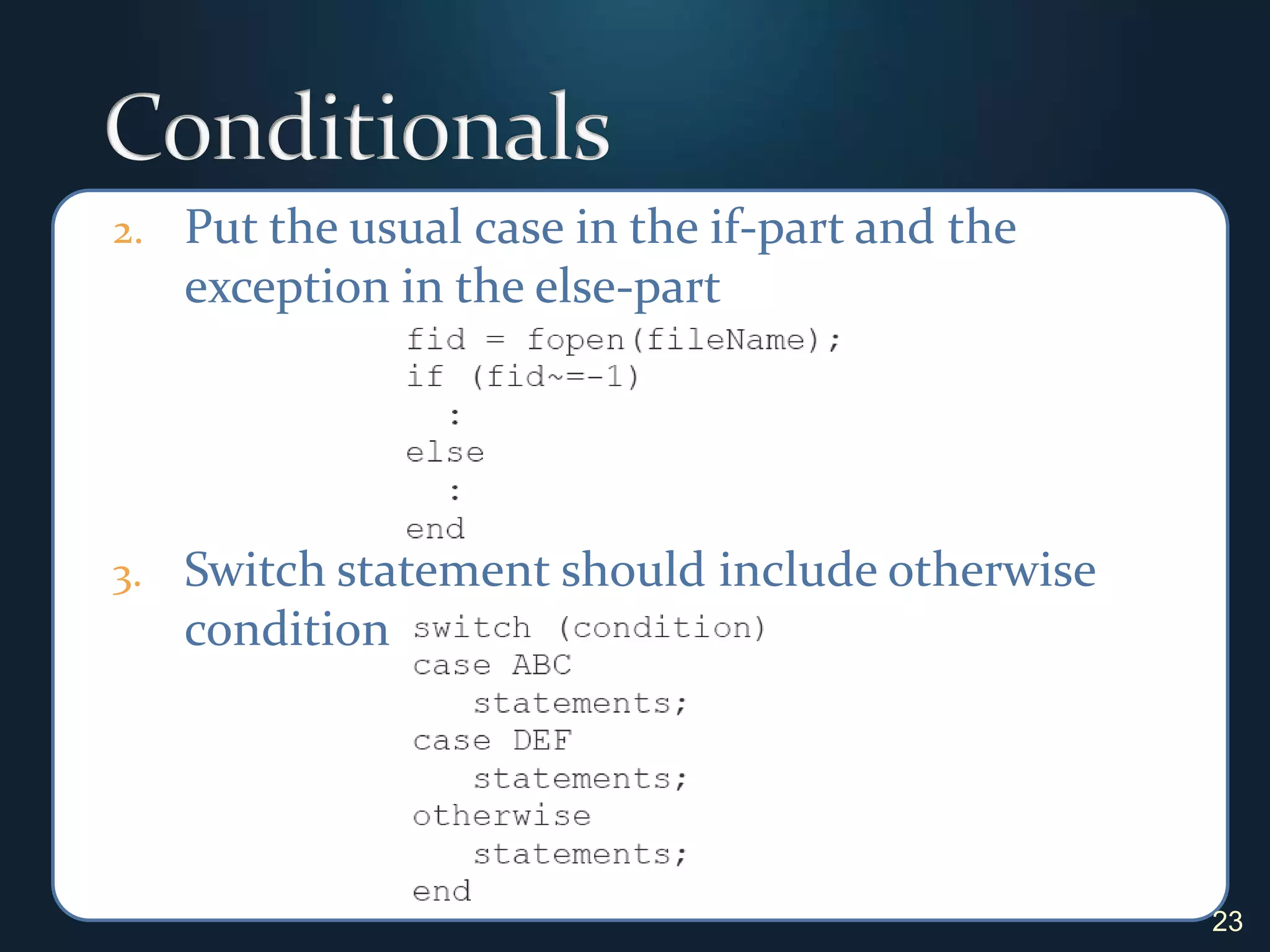

23. ConditionalsPut the usual case in the if-part and the exception in the else-partSwitch statement should include otherwise condition23

24. 4. Documentation24“Good documentation is a sign of the professional pride a programmer puts into a program.” Steve McConnell

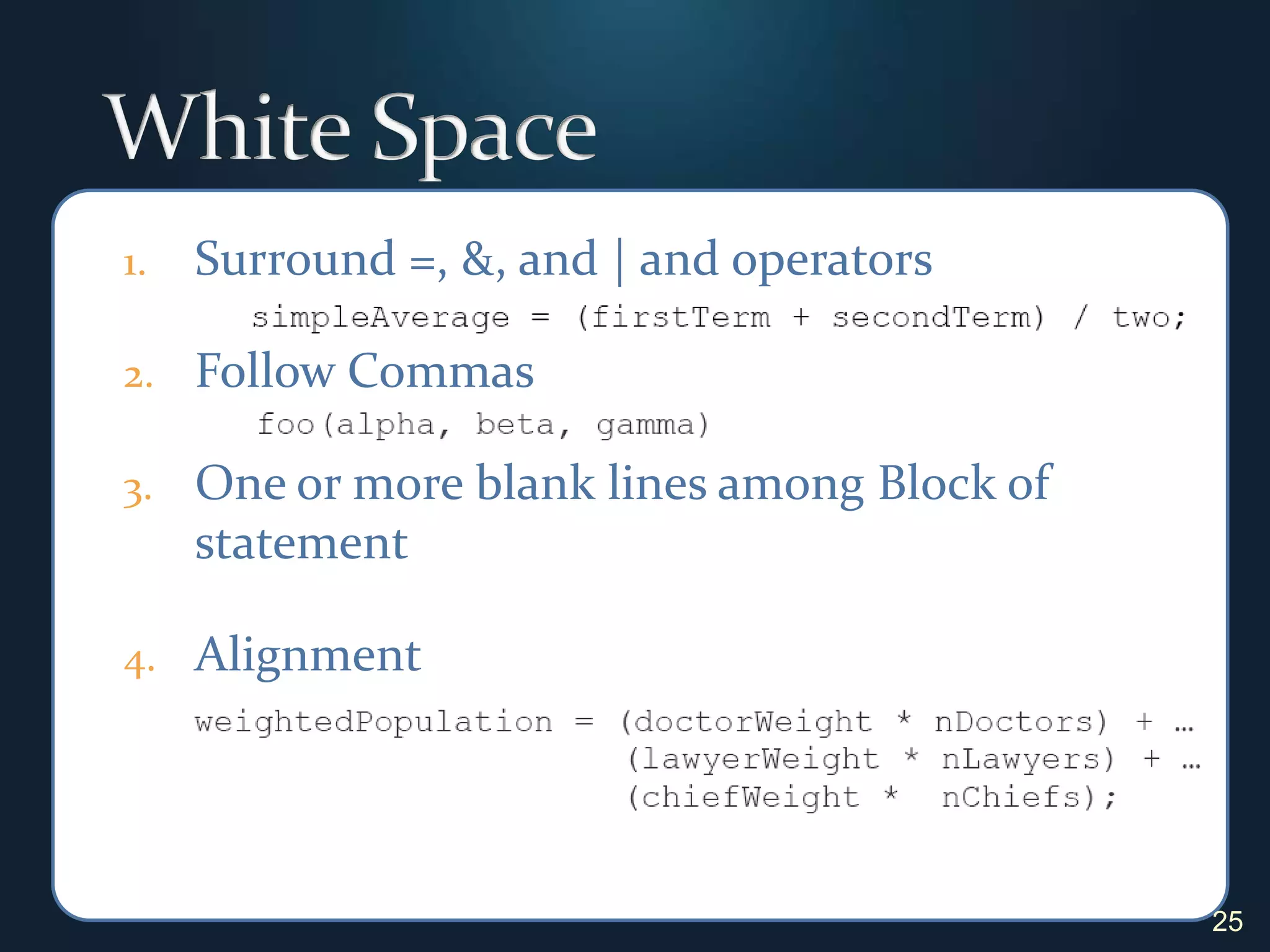

25. White SpaceSurround =, &, and | and operatorsFollow CommasOne or more blank lines among Block of statement Alignment25

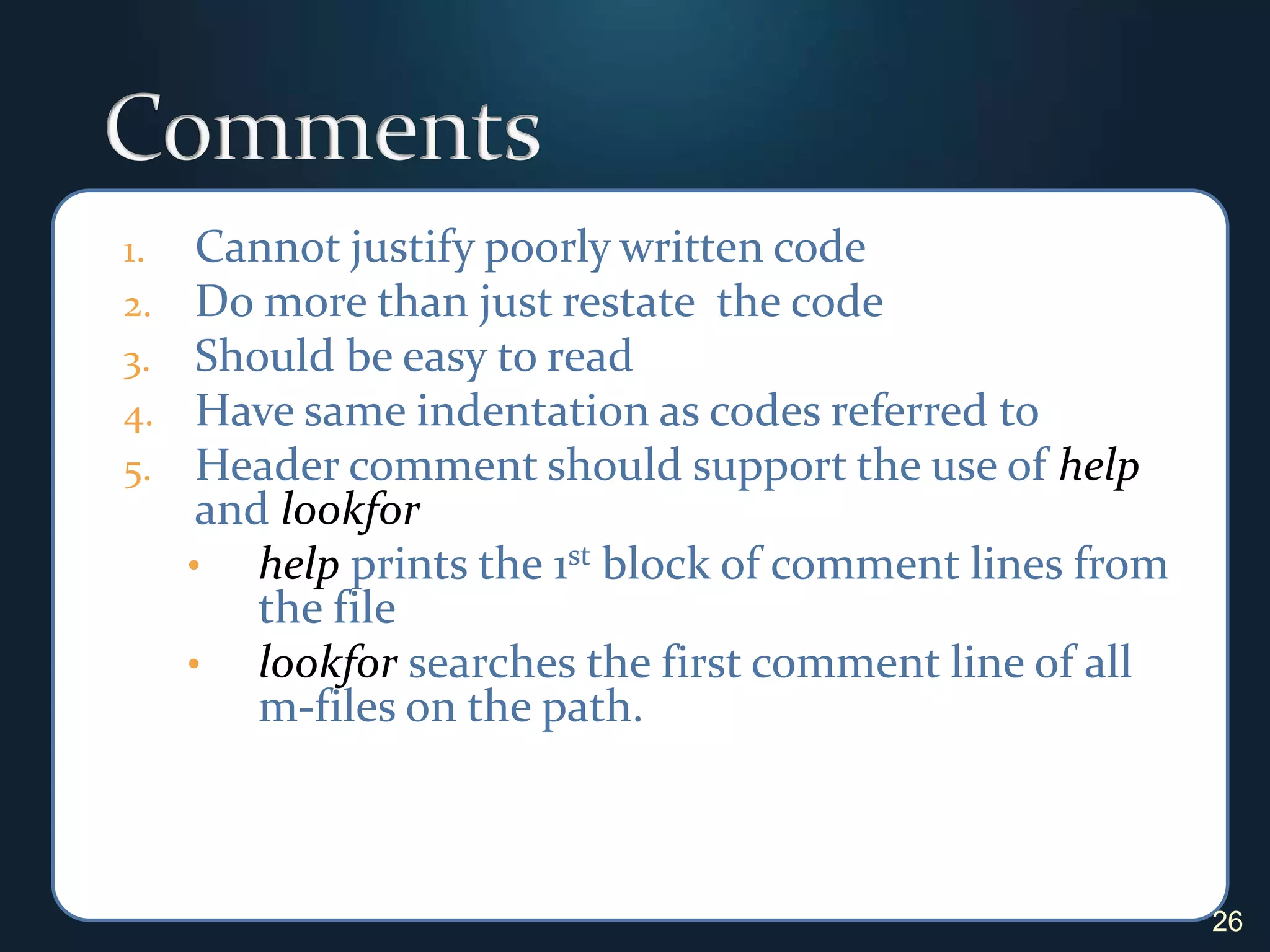

26. CommentsCannot justify poorly written codeDo more than just restate the codeShould be easy to readHave same indentation as codes referred toHeader comment should support the use of help and lookforhelp prints the 1st block of comment lines from the file

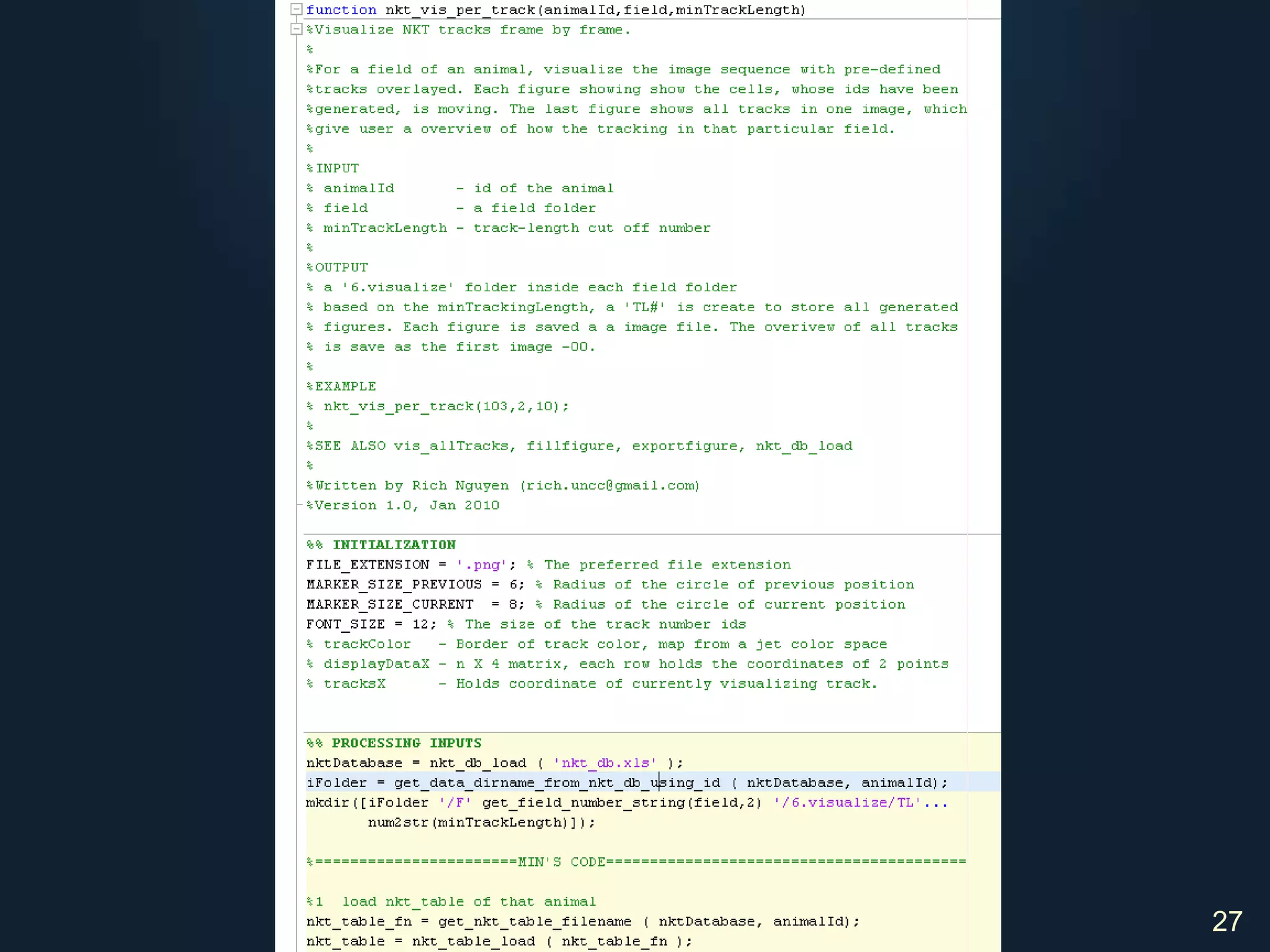

27. lookforsearches the first comment line of all m-files on the path. 26

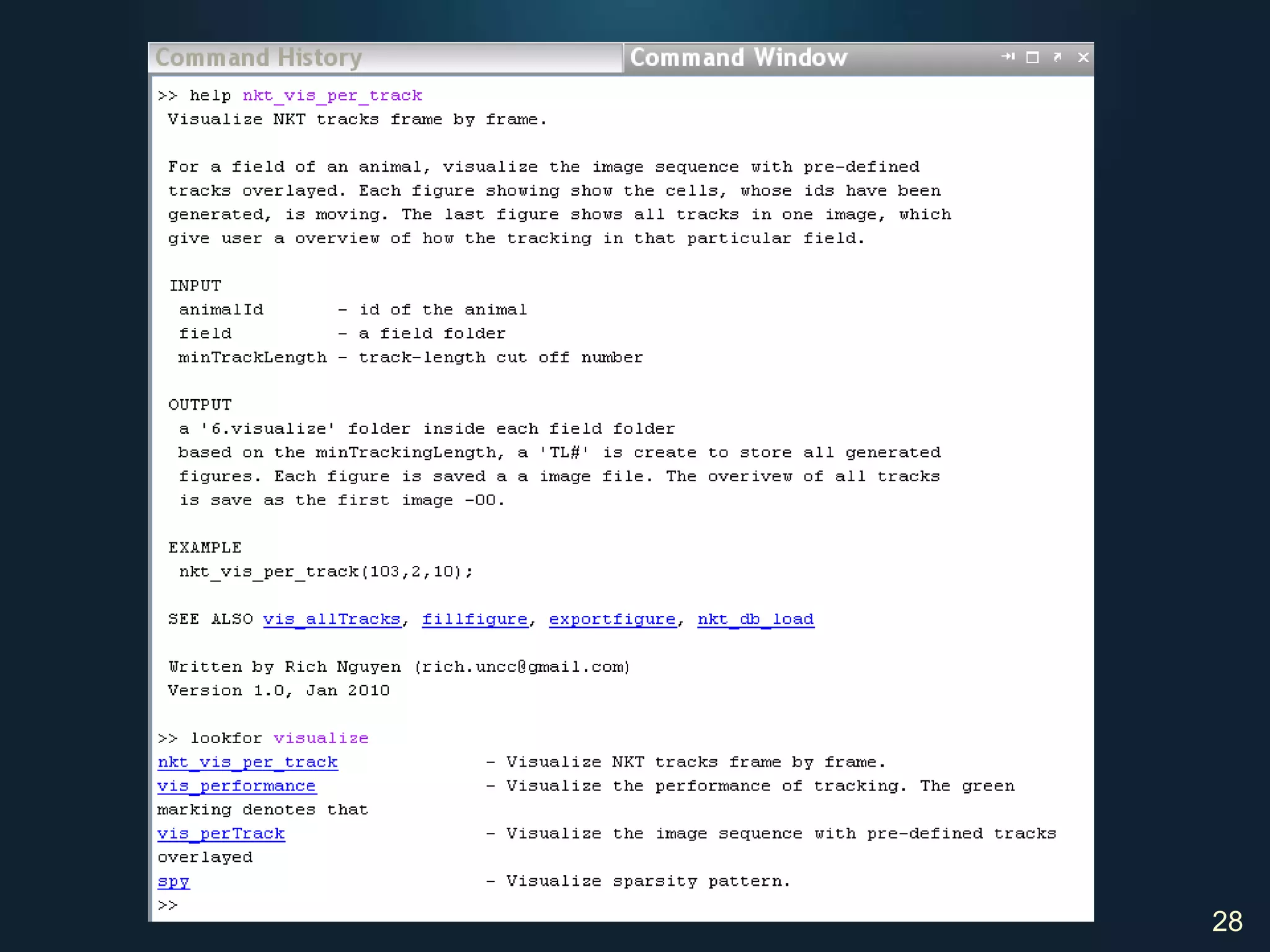

28. 27

29. 28

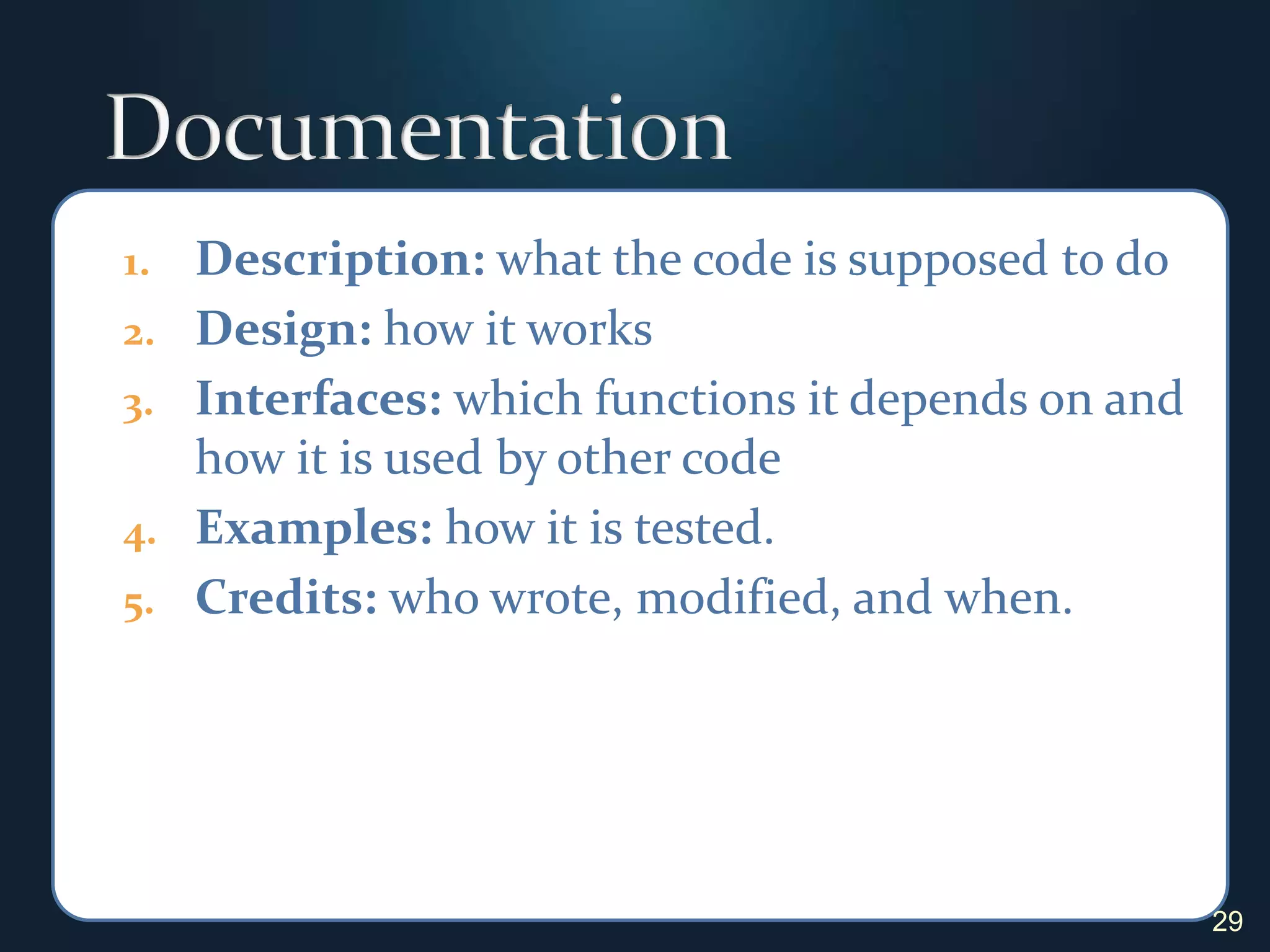

30. DocumentationDescription: what the code is supposed to do Design: how it worksInterfaces: which functions it depends on and how it is used by other codeExamples: how it is tested.Credits:who wrote, modified, and when.29

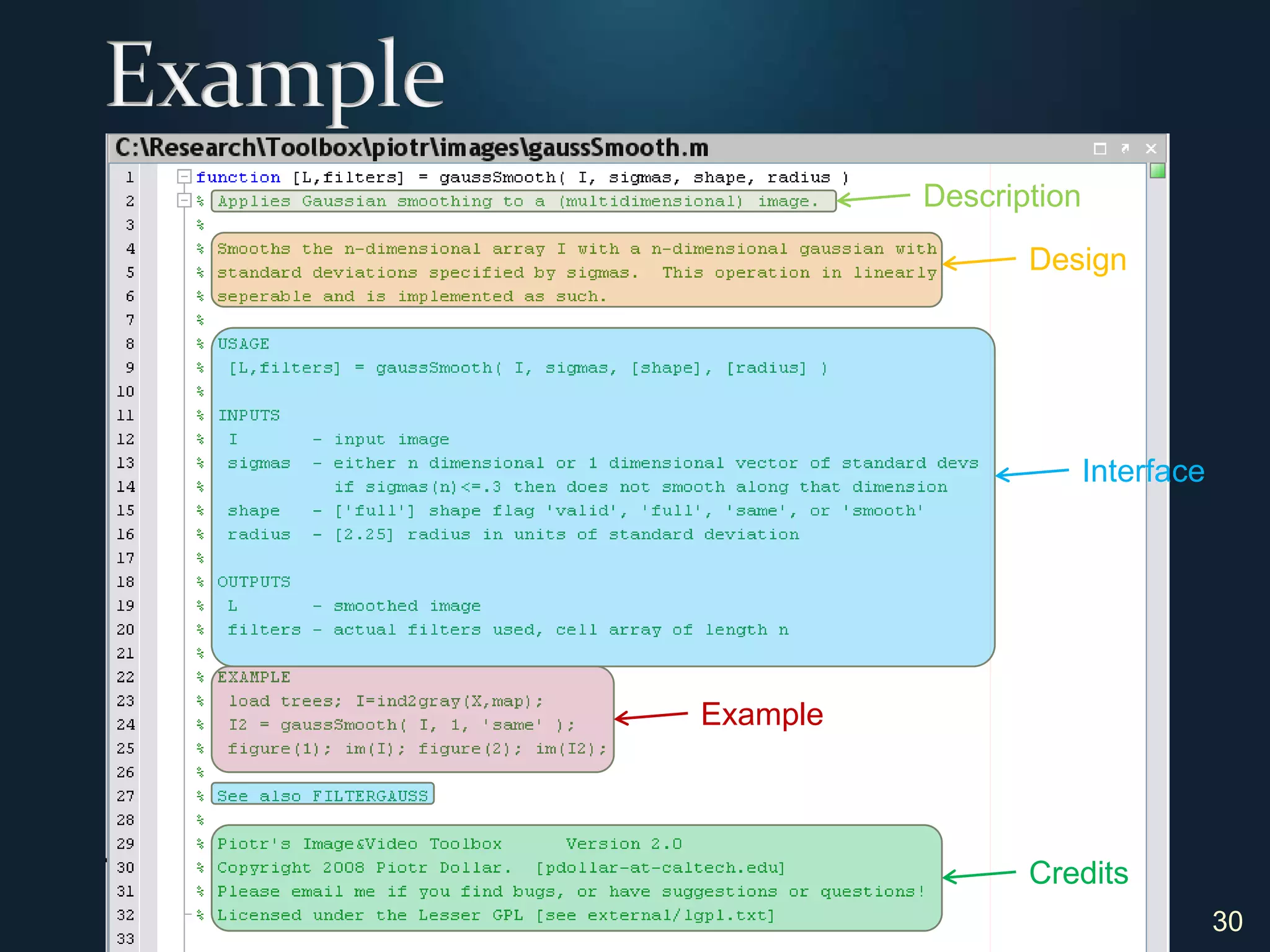

31. 30ExampleDescriptionDesignInterfaceExampleCredits

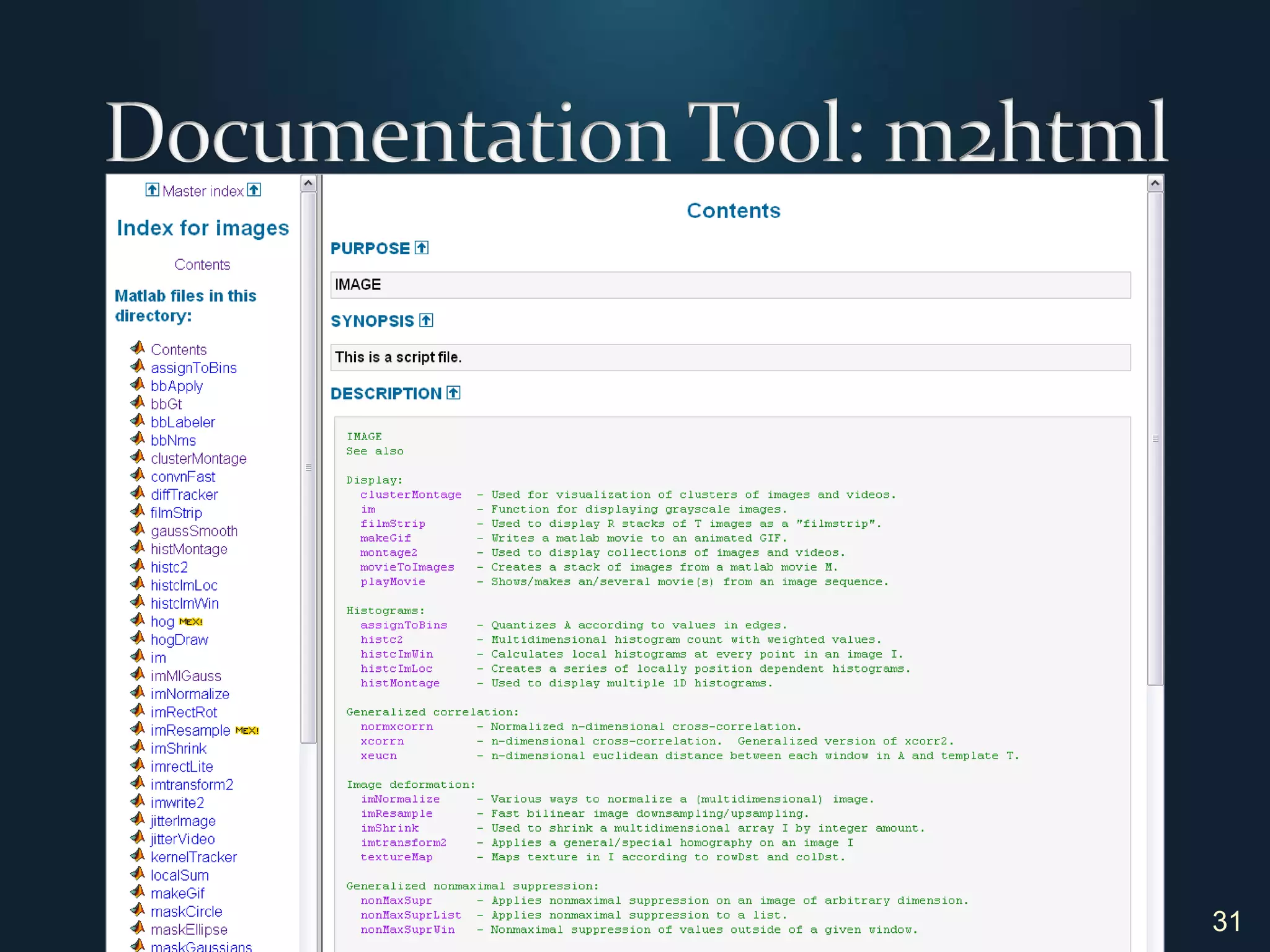

32. Documentation Tool: m2html31

33. 5. Extra Guidelines32“Measuring programming progress by lines of code is like measuring aircraft building progress by weight.”Bill Gates

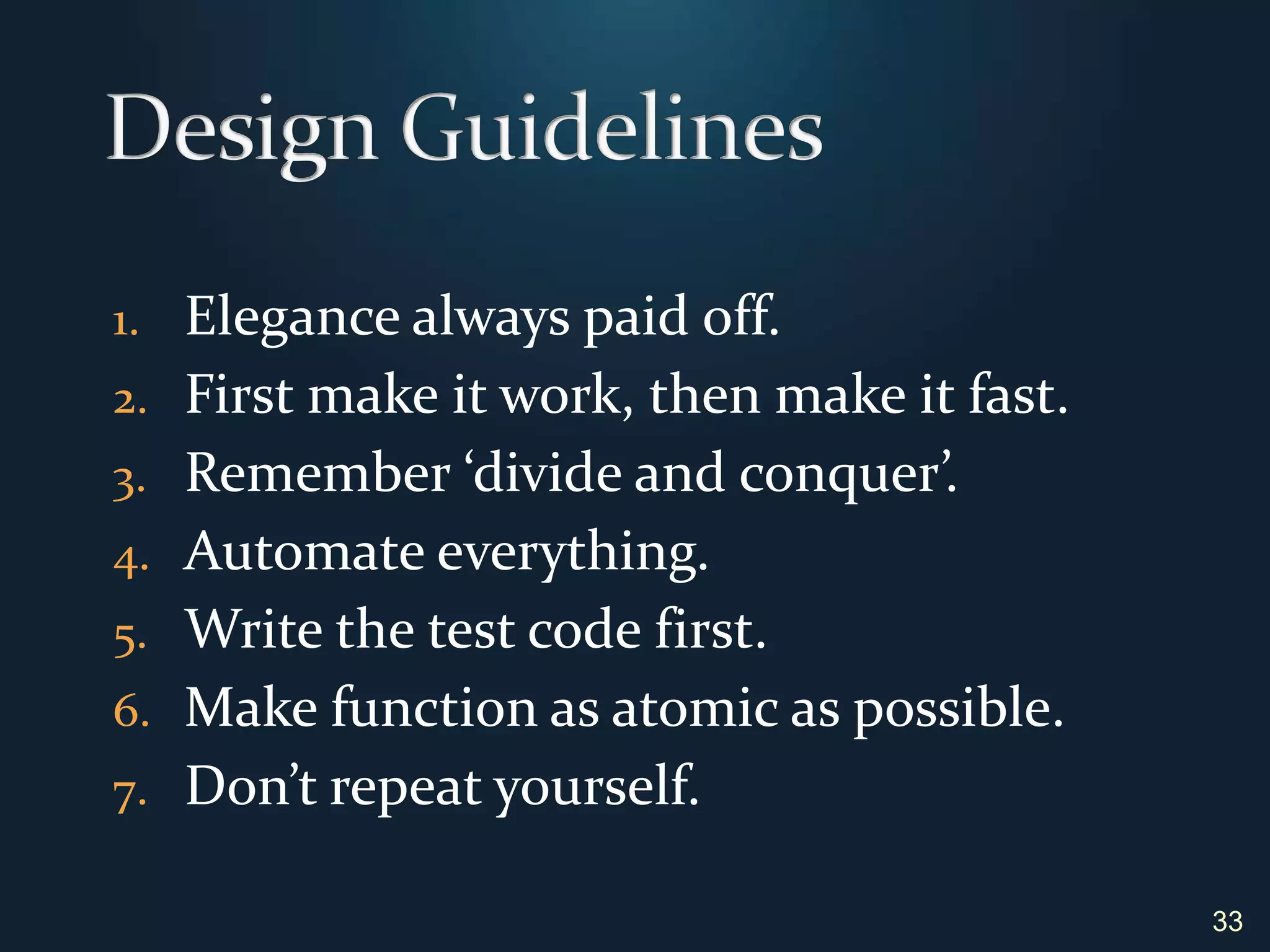

34. Design Guidelines Elegance always paid off.First make it work, then make it fast.Remember ‘divide and conquer’.Automate everything.Write the test code first.Make function as atomic as possible.Don’t repeat yourself.33

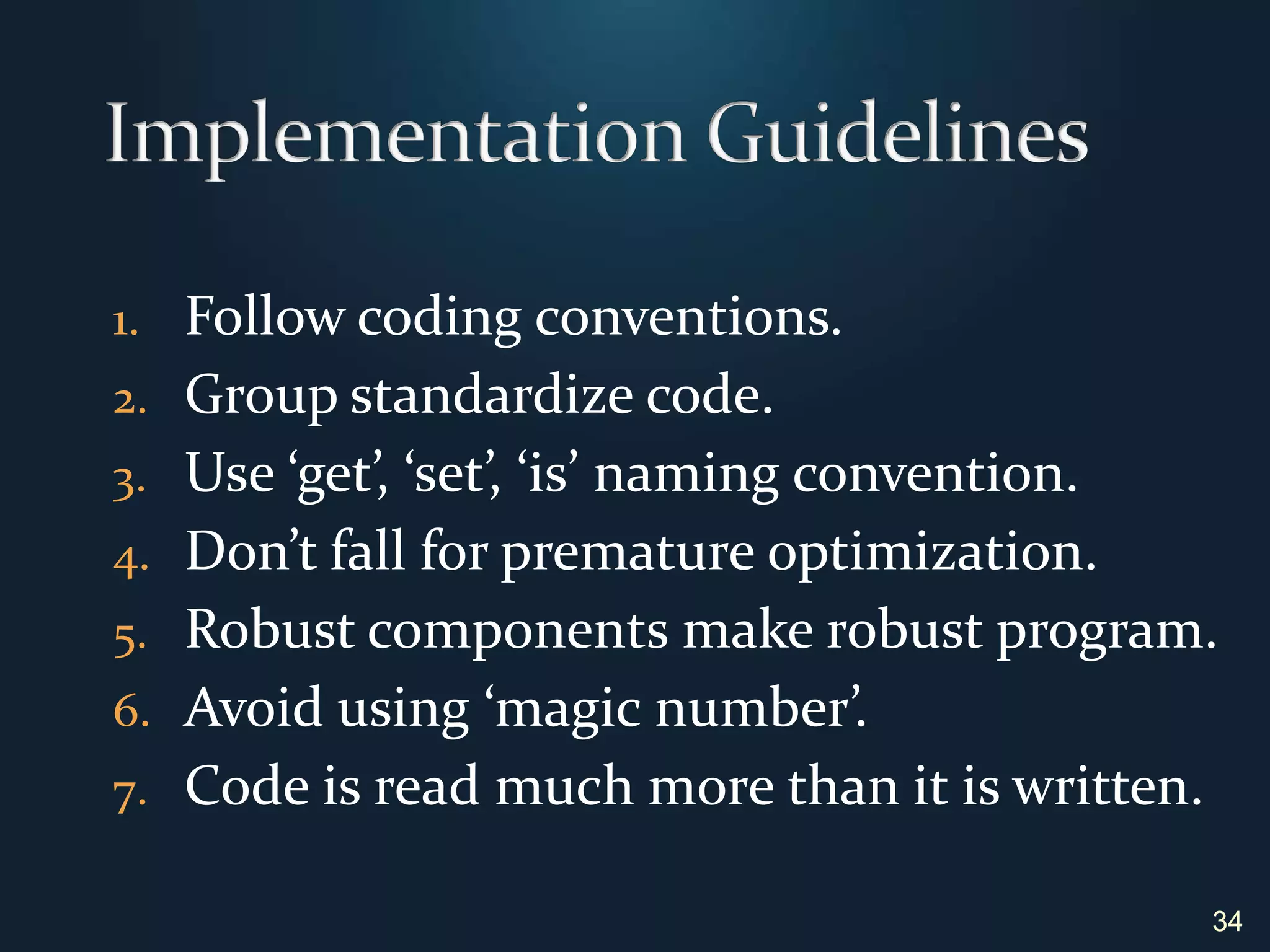

35. Implementation Guidelines Follow coding conventions.Group standardize code.Use ‘get’, ‘set’, ‘is’ naming convention. Don’t fall for premature optimization.Robust components make robust program.Avoid using ‘magic number’.Code is read much more than it is written.34

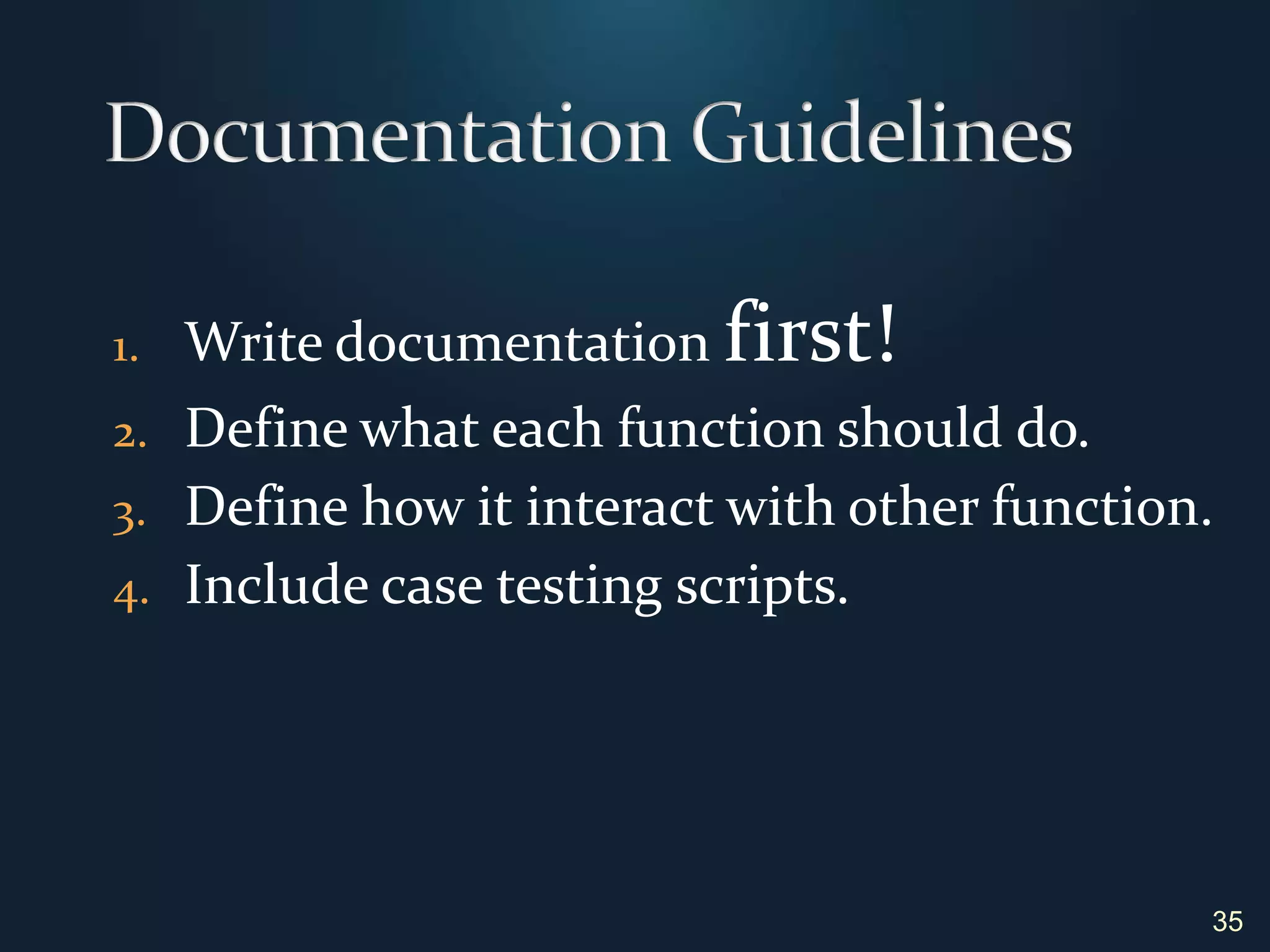

36. Documentation Guidelines Write documentation first!Define what each function should do. Define how it interact with other function.Include case testing scripts.35

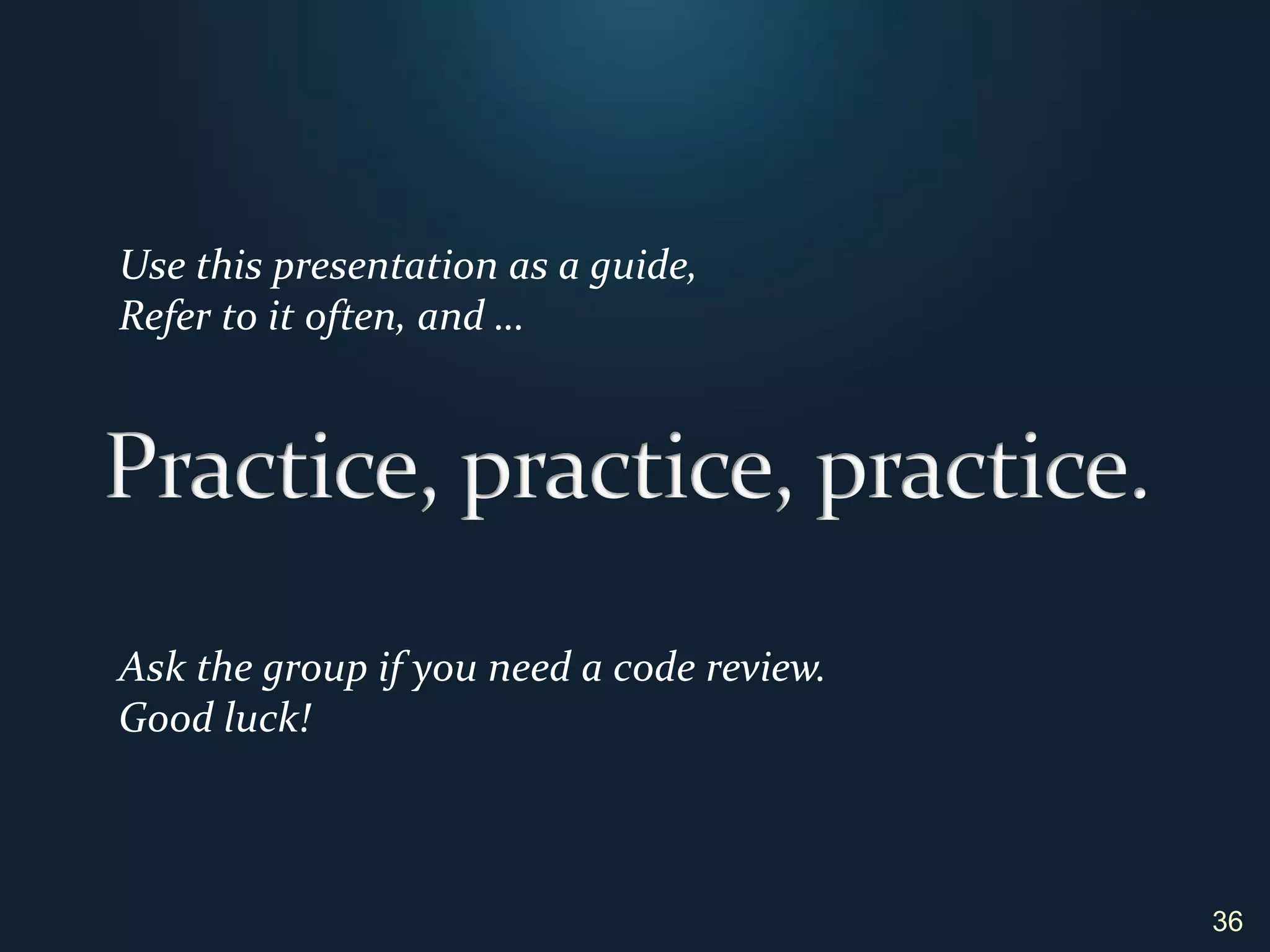

37. Use this presentation as a guide, Refer to it often, and …Practice, practice, practice.Ask the group if you need a code review. Good luck!36

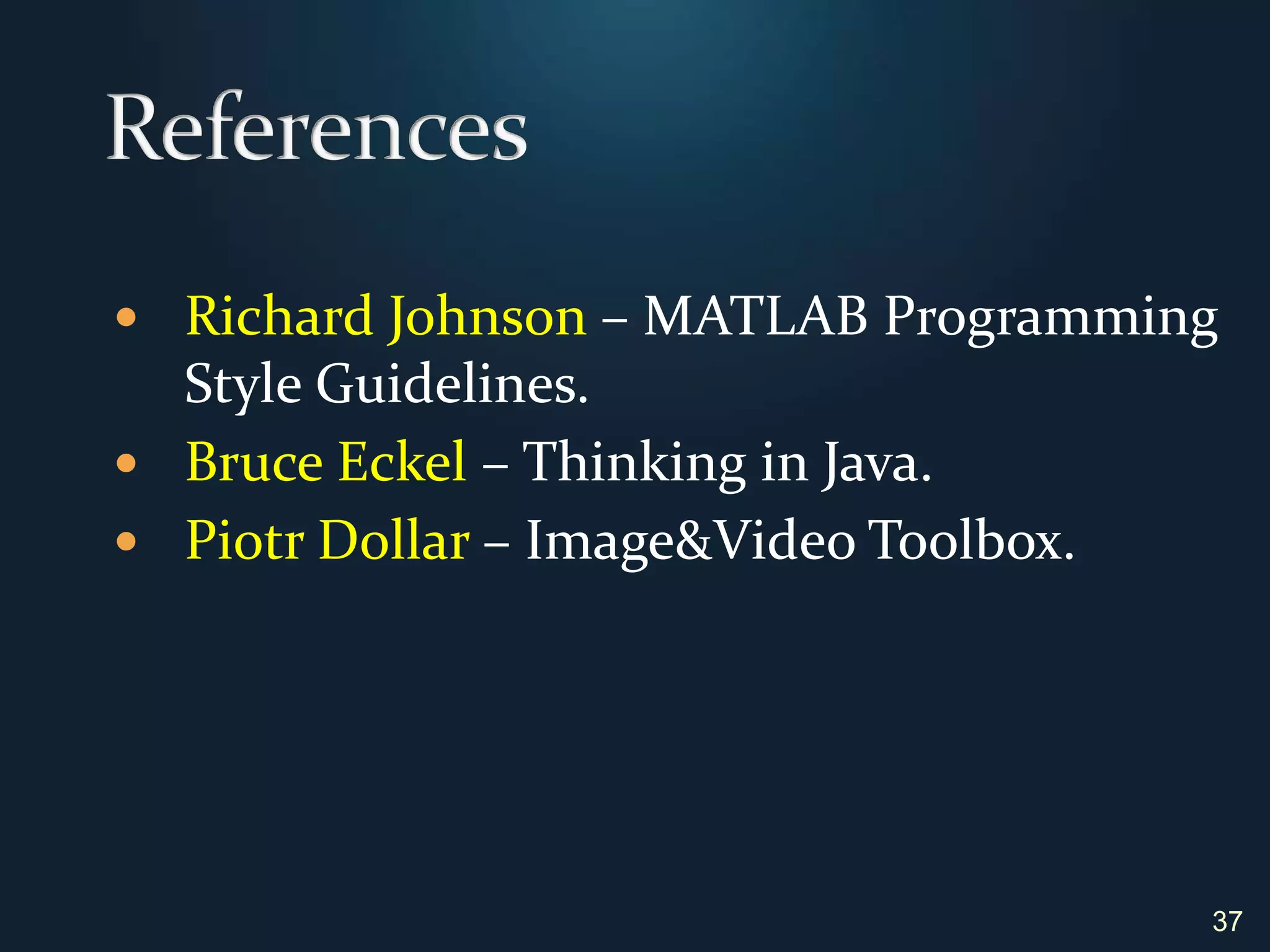

38. ReferencesRichard Johnson – MATLAB Programming Style Guidelines.Bruce Eckel– Thinking in Java.Piotr Dollar – Image&Video Toolbox.37
