PRO-E Examples

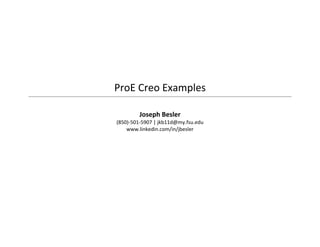

- 1. ProE Creo Examples JosephBesler (850)-501-5907 | jkb11d@my.fsu.edu www.linkedin.com/in/jbesler

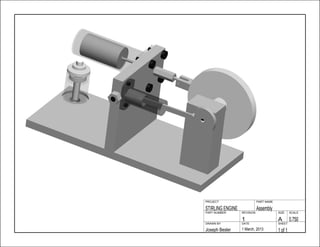

- 2. 1 of 11March, 2013Joseph Besler SHEETDATEDRAWN BY 0.750A1 SCALESIZEREVISIONPART NUMBER AssemblySTIRLING ENGINE PART NAMEPROJECT
- 3. 1 of 11MARCH, 2013Joseph Besler SHEETDATEDRAWN BY 0.550A1 SCALESIZEREVISIONPART NUMBER EXPLODESTIRLING ENGINE PART NAMEPROJECT 1 2 3 5 7 8 9 10 11 13 14 15 16 17 18 12 20 21 2223 24 25 26 27 28 29 30 31 32 33 34 6 35 19 4

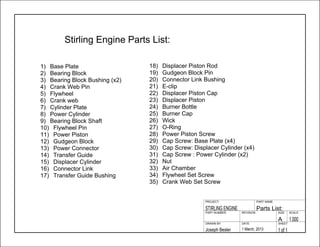

- 4. 1 of 11March, 2013Joseph Besler SHEETDATEDRAWN BY 1.000A SCALESIZEREVISIONPART NUMBER Parts List:STIRLING ENGINE PART NAMEPROJECT 1) Base Plate 2) Bearing Block 3) Bearing Block Bushing (x2) 4) Crank Web Pin 5) Flywheel 6) Crank web 7) Cylinder Plate 8) Power Cylinder 9) Bearing Block Shaft 10) Flywheel Pin 11) Power Piston 12) Gudgeon Block 13) Power Connector 14) Transfer Guide 15) Displacer Cylinder 16) Connector Link 17) Transfer Guide Bushing 18) Displacer Piston Rod 19) Gudgeon Block Pin 20) Connector Link Bushing 21) E-clip 22) Displacer Piston Cap 23) Displacer Piston 24) Burner Bottle 25) Burner Cap 26) Wick 27) O-Ring 28) Power Piston Screw 29) Cap Screw: Base Plate (x4) 30) Cap Screw: Displacer Cylinder (x4) 31) Cap Screw : Power Cylinder (x2) 32) Nut 33) Air Chamber 34) Flywheel Set Screw 35) Crank Web Set Screw Stirling Engine Parts List:

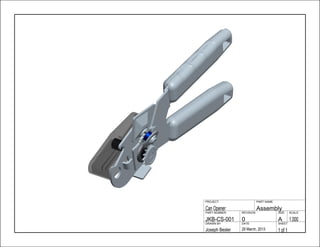

- 5. 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 1.000A0JKB-CS-001 SCALESIZEREVISIONPART NUMBER AssemblyCan Opener PART NAMEPROJECT

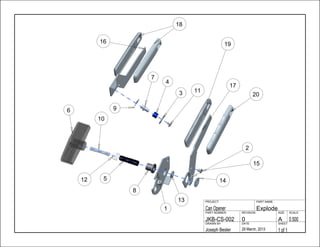

- 6. 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 0.500A0JKB-CS-002 SCALESIZEREVISIONPART NUMBER ExplodeCan Opener PART NAMEPROJECT 1 2 3 4 5 6 7 8 9 10 11 12 14 15 13 16 18 17 19 20

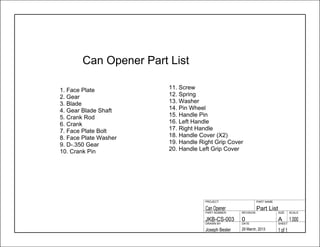

- 7. 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 1.000A0JKB-CS-003 SCALESIZEREVISIONPART NUMBER Part ListCan Opener PART NAMEPROJECT 1. Face Plate 2. Gear 3. Blade 4. Gear Blade Shaft 5. Crank Rod 6. Crank 7. Face Plate Bolt 8. Face Plate Washer 9. D-.350 Gear 10. Crank Pin 11. Screw 12. Spring 13. Washer 14. Pin Wheel 15. Handle Pin 16. Left Handle 17. Right Handle 18. Handle Cover (X2) 19. Handle Right Grip Cover 20. Handle Left Grip Cover Can Opener Part List

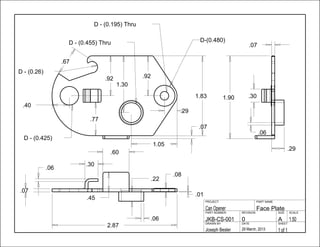

- 8. 1.83 .07 .45 .22 .29 .06 1.90 .30 2.87 .60 .30 .06 .06 .67 .07 .08 .01 1.30 .92.92 .77 .07 .40 .29 1.05 1 of129 March, 2013Joseph Besler SHEETDATEDRAWN BY 1.50A0JKB-CS-001 SCALESIZEREVISIONPART NUMBER Face PlateCan Opener PART NAMEPROJECT D-(0.480) D - (0.195) Thru D - (0.455) Thru D - (0.26) D - (0.425)
- 9. .240 .105 .080 .05 .725 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 5.000A0JKB-CS-002 SCALESIZEREVISIONPART NUMBER GearCan Opener PART NAMEPROJECT D - (0.750) R. (0.02) [12 Spokes] Cut Thru
- 10. .080 .06 .02 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 4.00A0JKB-CS-003 SCALESIZEREVISIONPART NUMBER BladeCan Opener PART NAMEPROJECT D - (0.35) Thru D - (0.59) D - (0.745) R. (0.05)

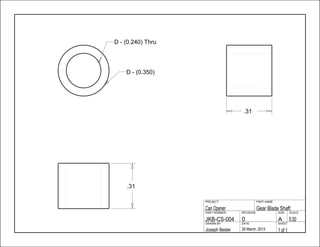

- 11. .31 .31 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 5.00A0JKB-CS-004 SCALESIZEREVISIONPART NUMBER Gear Blade ShaftCan Opener PART NAMEPROJECT D - (0.240) Thru D - (0.350)

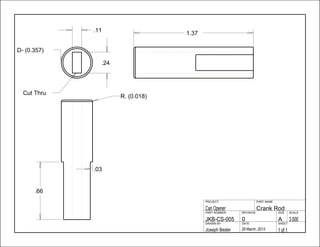

- 12. .11 .24 1.37 .03 .66 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 3.000A0JKB-CS-005 SCALESIZEREVISIONPART NUMBER Crank RodCan Opener PART NAMEPROJECT D- (0.357) Cut Thru R. (0.018)
- 13. .290 1.110.040 .250 1.110 .443 .820 1.347 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 1.500A0JKB-CS-006 SCALESIZEREVISIONPART NUMBER CrankCan Opener PART NAMEPROJECT R. 0.040 Unless Specified 0.040 shell R. (0.250) D - (0.660) D - (0.411) D - (0.540) 0.45

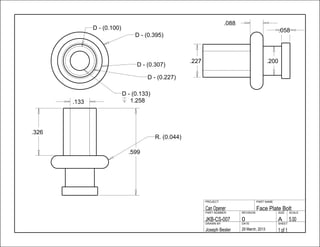

- 14. .599 .133 .326 .088 .058 .227 .200 1 of129 March, 2013Joseph Besler SHEETDATEDRAWN BY 5.00A0JKB-CS-007 SCALESIZEREVISIONPART NUMBER Face Plate BoltCan Opener PART NAMEPROJECT D - (0.395) D - (0.307) D - (0.227) D - (0.133) 1.258 D - (0.100) R. (0.044)

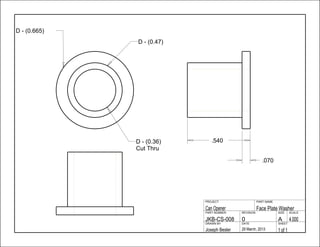

- 15. .540 .070 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 4.000A0JKB-CS-008 SCALESIZEREVISIONPART NUMBER Face Plate WasherCan Opener PART NAMEPROJECT D - (0.47) D - (0.36) Cut Thru D - (0.665)

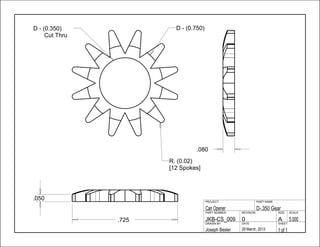

- 16. .080 .725 .050 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 5.000A0JKB-CS_009 SCALESIZEREVISIONPART NUMBER D-.350 GearCan Opener PART NAMEPROJECT D - (0.350) Cut Thru D - (0.750) R. (0.02) [12 Spokes]

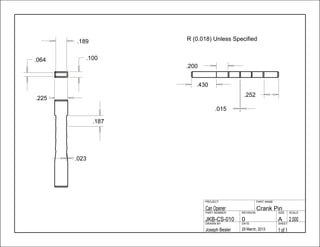

- 17. .200 .015 .430 .252 .100.064 .189 .225 .187 .023 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 2.000A0JKB-CS-010 SCALESIZEREVISIONPART NUMBER Crank PinCan Opener PART NAMEPROJECT R (0.018) Unless Specified

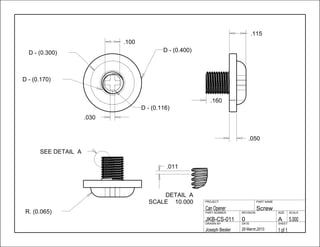

- 18. .050 .115 .160 .011 .030 .100 1 of 129March,2013Joseph Besler SHEETDATEDRAWN BY 5.000A0JKB-CS-011 SCALESIZEREVISIONPART NUMBER ScrewCan Opener PART NAMEPROJECT D - (0.400)D - (0.300) D - (0.170) D - (0.116) SEE DETAIL A R. (0.065) 10.000SCALE ADETAIL

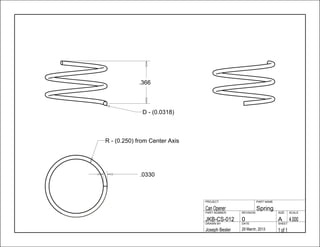

- 19. .366 .0330 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 4.000A0JKB-CS-012 SCALESIZEREVISIONPART NUMBER SpringCan Opener PART NAMEPROJECT D - (0.0318) R - (0.250) from Center Axis

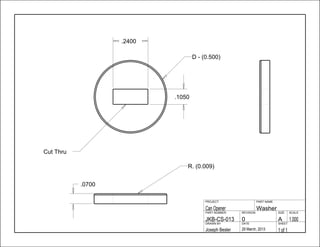

- 20. .2400 .1050 .0700 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 1.000A0JKB-CS-013 SCALESIZEREVISIONPART NUMBER WasherCan Opener PART NAMEPROJECT D - (0.500) Cut Thru R. (0.009)

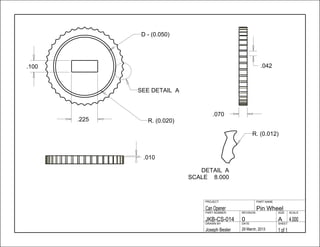

- 21. .070 .010 .225 .100 .042 1 of129 March, 2013Joseph Besler SHEETDATEDRAWN BY 4.000A0JKB-CS-014 SCALESIZEREVISIONPART NUMBER Pin WheelCan Opener PART NAMEPROJECT SEE DETAIL A D - (0.050) R. (0.020) 8.000SCALE ADETAIL R. (0.012)

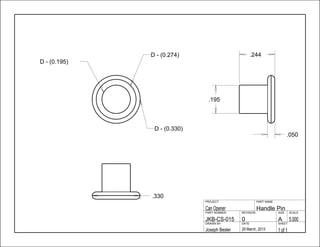

- 22. .195 .330 .050 .244 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 5.000A0JKB-CS-015 SCALESIZEREVISIONPART NUMBER Handle PinCan Opener PART NAMEPROJECT D - (0.330) D - (0.274) D - (0.195)
- 23. .964 1.900 .423 1.150 .750 .535 1.000 .070 .140 1.200 .483 .101 .302 .800 .055 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 1.000A0JKB-CS-016 SCALESIZEREVISIONPART NUMBER Left HandleCan Opener PART NAMEPROJECT R. (0.080) Unless Specified D - (0.195) Thru 0.070 shell

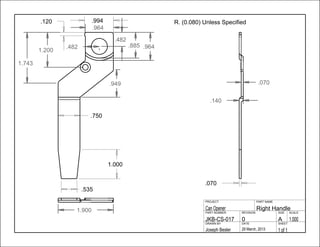

- 24. .070 .140 .070 .750 .964 1.000 .535 .482 .482 .964.885 1.200 1.900 .949 1.743 .994.120 1 of129 March, 2013Joseph Besler SHEETDATEDRAWN BY 1.000A0JKB-CS-017 SCALESIZEREVISIONPART NUMBER Right HandleCan Opener PART NAMEPROJECT R. (0.080) Unless Specified

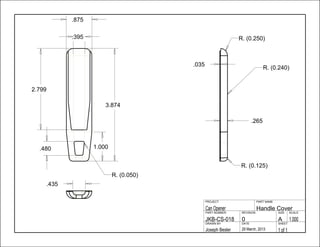

- 25. .265 .875 3.874 2.799 .480 .435 .395 1.000 .035 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 1.000A0JKB-CS-018 SCALESIZEREVISIONPART NUMBER Handle CoverCan Opener PART NAMEPROJECT R. (0.050) R. (0.250) R. (0.125) R. (0.240)

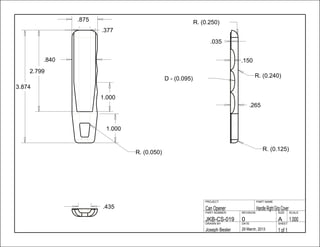

- 26. .265 .150.840 .377 .875 1.000 .435 1.000 3.874 2.799 .035 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 1.000A0JKB-CS-019 SCALESIZEREVISIONPART NUMBER HandleRightGripCoverCan Opener PART NAMEPROJECT R. (0.050) R. (0.250) D - (0.095) R. (0.125) R. (0.240)

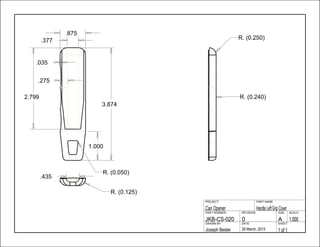

- 27. 3.874 1.000 .275 .377 .875 2.799 .435 .035 1 of 129March, 2013Joseph Besler SHEETDATEDRAWN BY 1.000A0JKB-CS-020 SCALESIZEREVISIONPART NUMBER HandleLeftGripCoverCan Opener PART NAMEPROJECT R. (0.050) R. (0.250) R. (0.240) R. (0.125)
