The user experience process of redesigning a web application feature, from identifying the problem through delivery of mockups to development.

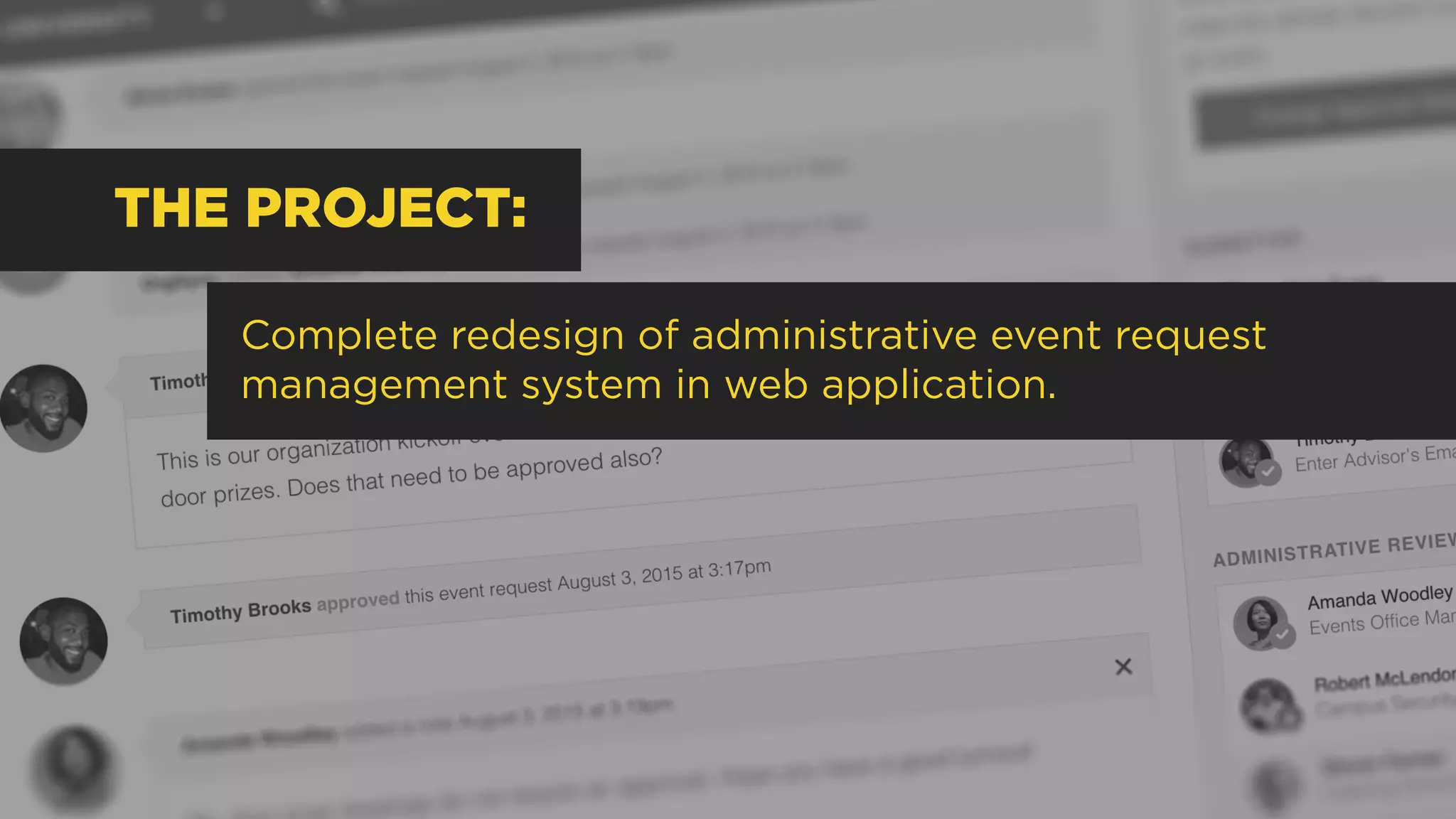

1. THE PROJECT:
Complete redesign of administrative event request
management system in web application.

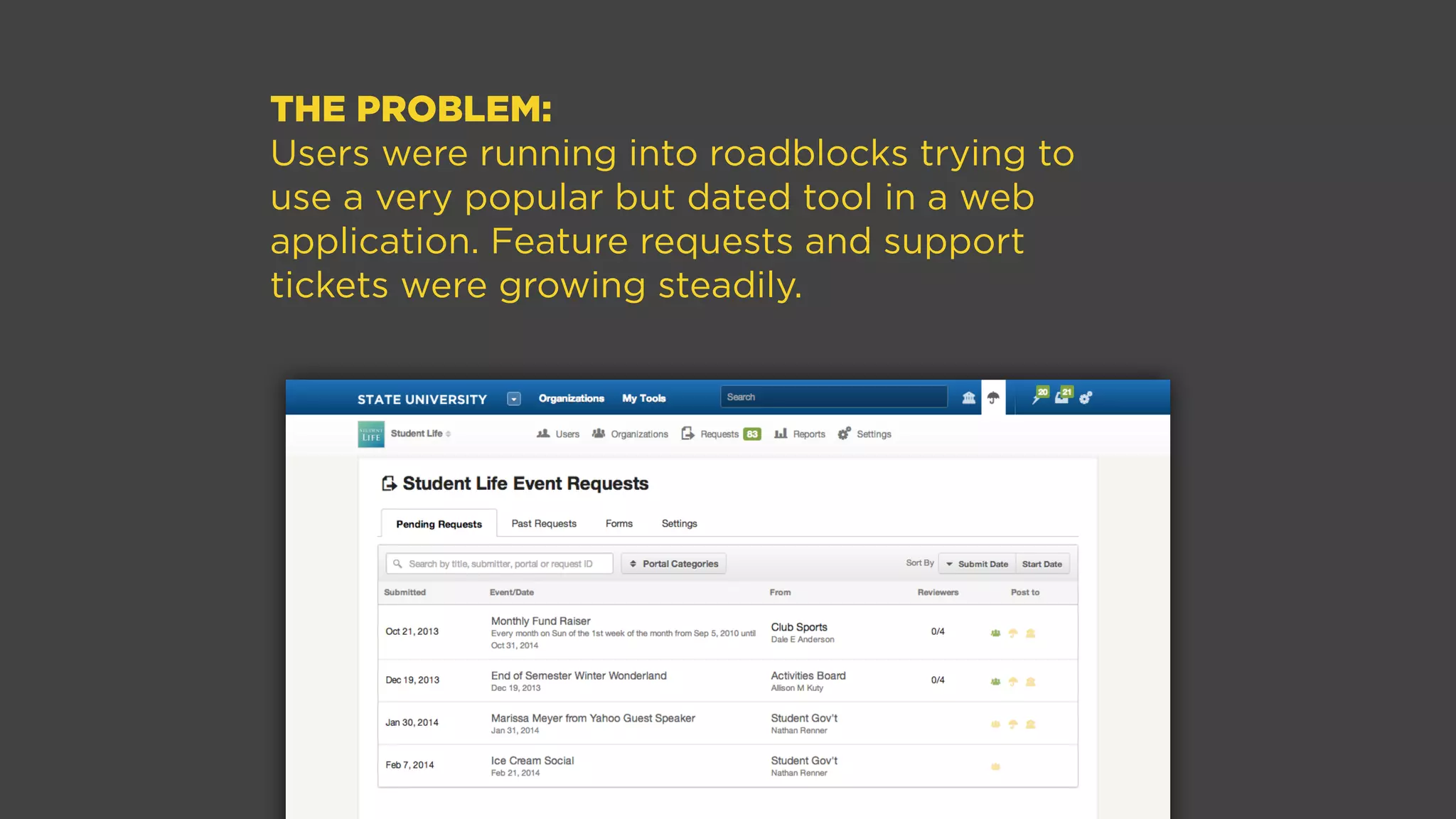

2. THE PROBLEM:
Users were running into roadblocks trying to
use a very popular but dated tool in a web
application. Feature requests and support
tickets were growing steadily.

3. THE SOLUTION:
Development time was slated to rework the tool
from the ground up, to make the tool easy to use
and learn, while meeting the needs of a varied
customer base.

4. STEP 1:
Establish project goals.

5. between admins,
admin reviewers,
reviewer element reviewers,
and the requestor (student)
COMMUNICATION
improve
1STEP 1:
Establish project goals.

6. between admins,
admin reviewers,
reviewer element reviewers,
and the requestor (student)
COMMUNICATION
improve
1
HISTORY
2to maintain and convey
actions and comments
on the request
record
STEP 1:
Establish project goals.

7. STEP 2:
Define the users who would
be interacting with the tool.

8. STEP 2:
Define the users who would
be interacting with the tool.
Umbrella
Admins

9. STEP 2:
Define the users who would
be interacting with the tool.
Umbrella
Admins
Administrative
Reviewers

10. STEP 2:
Define the users who would
be interacting with the tool.
Umbrella
Admins
Administrative
Reviewers
Reviewer Element
Reviewers

11. STEP 2:
Define the users who would
be interacting with the tool.
Umbrella
Admins
Administrative
Reviewers
Reviewer Element
Reviewers
Students
(Requestor)

12. STEP 3:
Interview current
customers to gather their
feedback, wants, and
needs for a better system.

13. STEP 3:
Interview current
customers to gather their
feedback, wants, and
needs for a better system.
16 form reviewers
• not ordered
•not sent automatically on
submission
3 notified admins
1 Reviewer-element reviewer
(sometimes)
UMBRELLA ADMIN VIEW

14. STEP 3:
Interview current
customers to gather their
feedback, wants, and
needs for a better system.
16 form reviewers
• not ordered
•not sent automatically on
submission
3 notified admins
1 Reviewer-element reviewer
(sometimes)
UMBRELLA ADMIN VIEW
0 form reviewers
2 notified admins
1 Reviewer-element review
(sometimes)
UMBRELLA ADMIN VIEW

15. STEP 3:
Interview current
customers to gather their
feedback, wants, and
needs for a better system.
16 form reviewers
• not ordered
•not sent automatically on
submission
3 notified admins
1 Reviewer-element reviewer
(sometimes)
UMBRELLA ADMIN VIEW
0 form reviewers
2 notified admins
1 Reviewer-element review
(sometimes)
UMBRELLA ADMIN VIEWUMBRELLA AD
3 form revie
✓ ordere
✓ start o
1 notified ad
1 Reviewer-

16. STEP 4:
Run complete heuristic
evaluation of the current
tool, acting as each
defined user.

17. STEP 4:
Run complete heuristic
evaluation of the current
tool, acting as each
defined user.

18. STEP 4:
Run complete heuristic
evaluation of the current
tool, acting as each
defined user.
I want someone to review
event requests. Why did I
have to go to a form builder?
I should be adding event
request reviewers.

19. STEP 5:
Compile results from
• heuristic testing
• direct user feedback
• support tickets
• idea board requests
and create extensive list of
desired system behavior.

20. STEP 5:
Compile results from
• heuristic testing
• direct user feedback
• support tickets
• idea board requests
and create extensive list of
desired system behavior.

21. STEP 5:
Compile results from
• heuristic testing
• direct user feedback
• support tickets
• idea board requests
and create extensive list of
desired system behavior.

22. STEP 5:
Compile results from
• heuristic testing
• direct user feedback
• support tickets
• idea board requests
and create extensive list of
desired system behavior.

23. STEP 5:
Compile results from
• heuristic testing
• direct user feedback
• support tickets
• idea board requests
and create extensive list of
desired system behavior.

24. STEP 6:
Develop use cases for a
variety of scenarios and
involved users.
Include user behaviors
that could throw
roadblocks into the flow.

25. STEP 6:
Develop use cases for a
variety of scenarios and
involved users.
Include user behaviors
that could throw
roadblocks into the flow.

26. STEP 6:
Develop use cases for a
variety of scenarios and
involved users.
Include user behaviors
that could throw
roadblocks into the flow.

27. STEP 6:
Develop use cases for a
variety of scenarios and
involved users.
Include user behaviors
that could throw
roadblocks into the flow.

28. STEP 6:
Develop use cases for a
variety of scenarios and
involved users.
Include user behaviors
that could throw
roadblocks into the flow.

29. STEP 6:
Develop use cases for a
variety of scenarios and
involved users.
Include user behaviors
that could throw
roadblocks into the flow.

30. STEP 7:
Build wireframes and
user flows to depict
interaction for specific
use cases.

31. STEP 7:
Build mockups and
user flows to depict
interaction for specific
use cases.

32. STEP 7:
Build mockups and
user flows to depict
interaction for specific
use cases.

33. STEP 7:
Build mockups and
user flows to depict
interaction for specific
use cases.

34. STEP 7:
Build mockups and
user flows to depict
interaction for specific
use cases.

35. STEP 7:
Build mockups and
user flows to depict
interaction for specific
use cases.
