1. Prfm Programming
Language #2
yllan
Tuesday, June 25, 13

2. Recaphttp://youtu.be/_pjoep6U3tg
Tuesday, June 25, 13

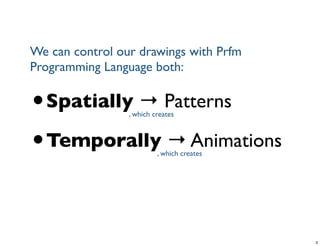

3. •Spatially → Patterns
•Temporally → Animations
Tuesday, June 25, 13

4. • Position → [translate 500 100]
• Size → [scale 0.5]
• Orientation → [rotate 3.14159]
• Brush → [brush 3]
Spatially
Tuesday, June 25, 13

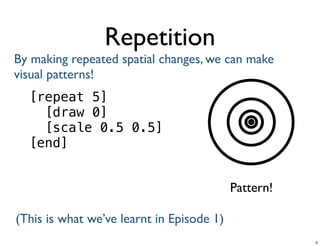

5. Repetition
[repeat 5]
[draw 0]
[scale 0.5 0.5]
[end]
Pattern!
Tuesday, June 25, 13

6. How the language really
works
Tuesday, June 25, 13

7. Stack
Tuesday, June 25, 13

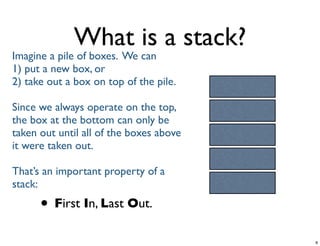

8. What is a stack?
• First In, Last Out.
Tuesday, June 25, 13

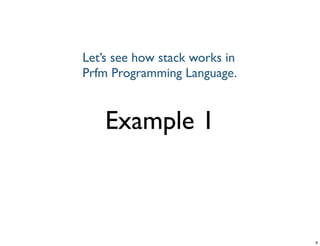

9. Example 1
Tuesday, June 25, 13

10. [4]
[2]
[3]
[add]
Tuesday, June 25, 13

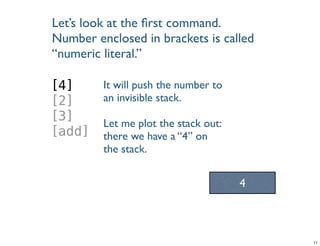

11. [4]
[2]
[3]
[add]
4
Tuesday, June 25, 13

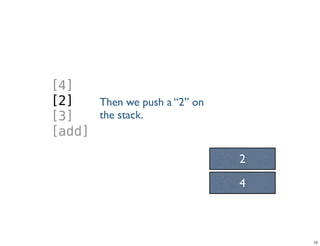

12. [4]
[2]
[3]
[add]
4
2
Tuesday, June 25, 13

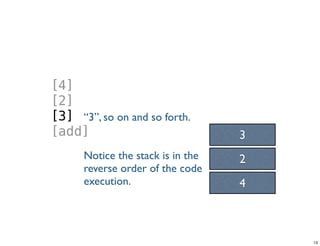

13. [4]
[2]
[3]
[add]
4
2
3
Tuesday, June 25, 13

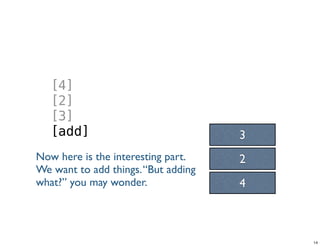

14. [4]
[2]
[3]
[add]
4
2
3
Tuesday, June 25, 13

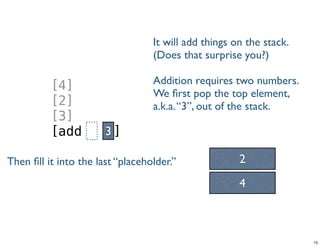

15. [4]
[2]
[3]
[add ]
4
2
3
Tuesday, June 25, 13

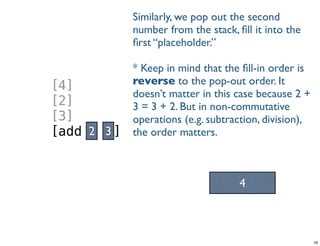

16. [4]
[2]
[3]
[add ]
4
2 3
Tuesday, June 25, 13

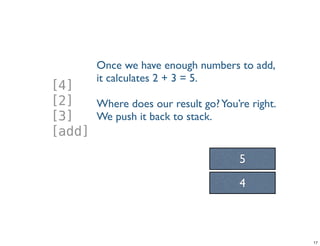

17. [4]
[2]
[3]
[add]
4
5
Tuesday, June 25, 13

18. Example 2
Tuesday, June 25, 13

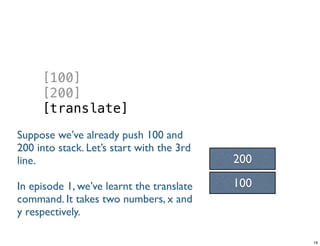

19. [100]
[200]
[translate]
100
200
Tuesday, June 25, 13

20. [100]
[200]
[translate ]
100
200
Tuesday, June 25, 13

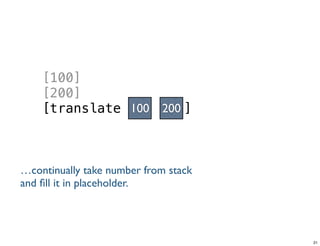

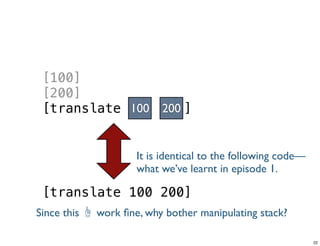

21. [100]
[200]
[translate ]100 200
Tuesday, June 25, 13

22. [100]
[200]
[translate ]100 200
[translate 100 200]
Tuesday, June 25, 13

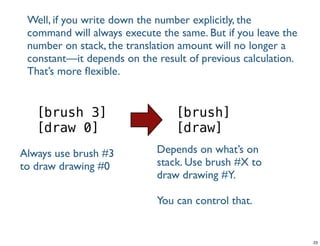

23. [brush 3]
[draw 0]
[brush]
[draw]
Tuesday, June 25, 13

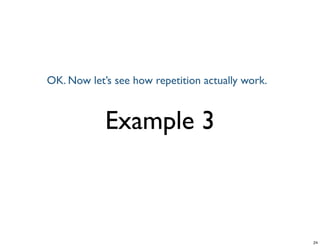

24. Example 3
Tuesday, June 25, 13

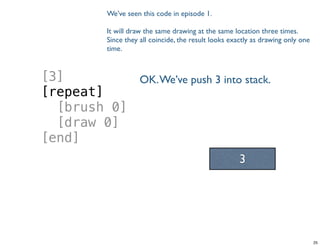

25. [3]
[repeat]
[brush 0]
[draw 0]
[end]
3
Tuesday, June 25, 13

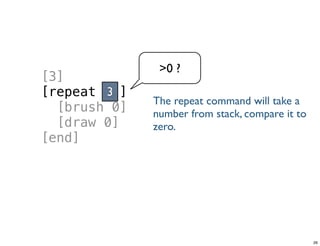

26. [3]
[repeat ]
[brush 0]
[draw 0]
[end]
3
>0 ?
Tuesday, June 25, 13

27. [3]
[repeat]
[brush 0]
[draw 0]
[end]
2
Tuesday, June 25, 13

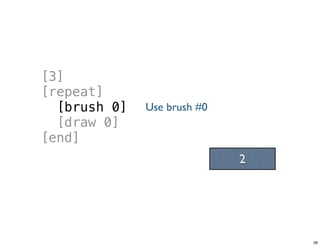

28. [3]
[repeat]
[brush 0]
[draw 0]
[end]
2
Tuesday, June 25, 13

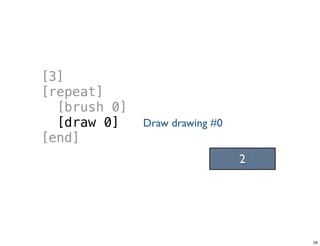

29. [3]
[repeat]
[brush 0]
[draw 0]
[end]
2
Tuesday, June 25, 13

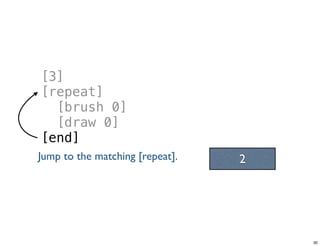

30. [3]
[repeat]
[brush 0]
[draw 0]
[end]
2
Tuesday, June 25, 13

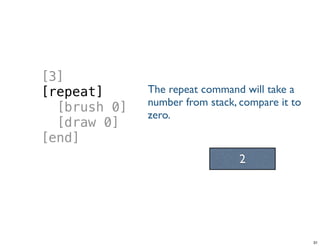

31. [3]
[repeat]
[brush 0]
[draw 0]
[end]
2
Tuesday, June 25, 13

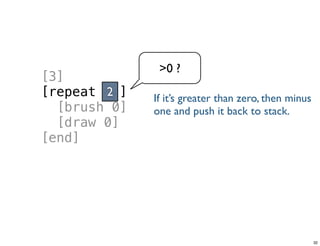

32. [3]
[repeat ]
[brush 0]
[draw 0]
[end]
2
>0 ?
Tuesday, June 25, 13

33. [3]
[repeat]
[brush 0]
[draw 0]
[end]
1
Tuesday, June 25, 13

34. [3]
[repeat]
[brush 0]
[draw 0]
[end]
1
Tuesday, June 25, 13

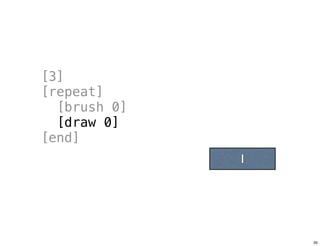

35. [3]
[repeat]
[brush 0]
[draw 0]
[end]
1
Tuesday, June 25, 13

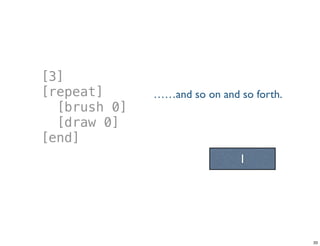

36. [3]
[repeat]
[brush 0]
[draw 0]
[end]
1
Tuesday, June 25, 13

37. [3]
[repeat]
[brush 0]
[draw 0]
[end]
1
Tuesday, June 25, 13

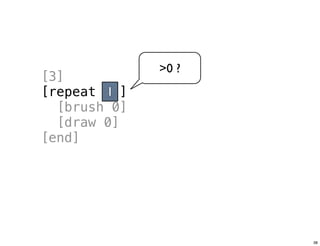

38. [3]
[repeat ]
[brush 0]
[draw 0]
[end]
1
>0 ?
Tuesday, June 25, 13

39. [3]
[repeat]
[brush 0]
[draw 0]
[end]
0
Tuesday, June 25, 13

40. [3]
[repeat]
[brush 0]
[draw 0]
[end]
0
Tuesday, June 25, 13

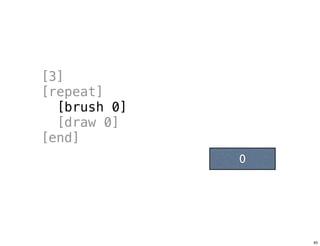

41. [3]
[repeat]
[brush 0]
[draw 0]
[end]
0
Tuesday, June 25, 13

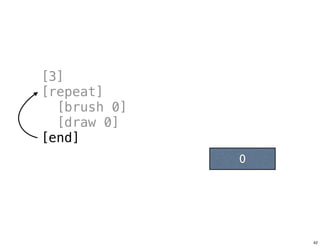

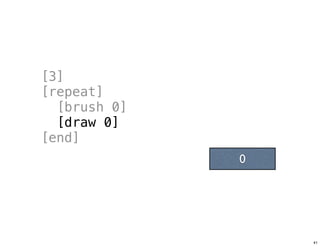

42. [3]
[repeat]
[brush 0]
[draw 0]
[end]
0
Tuesday, June 25, 13

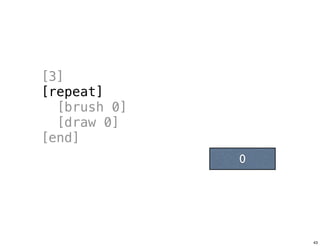

43. [3]
[repeat]
[brush 0]
[draw 0]
[end]
0
Tuesday, June 25, 13

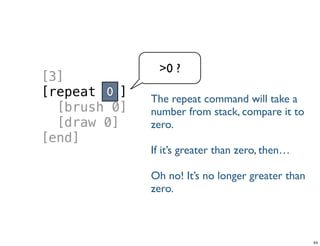

44. [3]
[repeat ]
[brush 0]
[draw 0]
[end]
0
>0 ?
Tuesday, June 25, 13

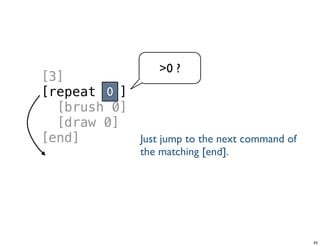

45. [3]
[repeat ]
[brush 0]
[draw 0]
[end]
0
>0 ?
Tuesday, June 25, 13

46. [3]
[repeat]
[brush 0]
[draw 0]
[end]
Tuesday, June 25, 13

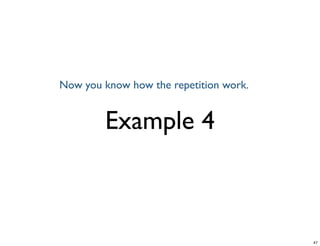

47. Example 4
Tuesday, June 25, 13

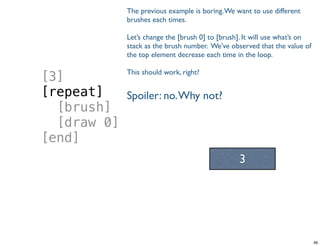

48. [3]
[repeat]
[brush]
[draw 0]
[end]
3
Tuesday, June 25, 13

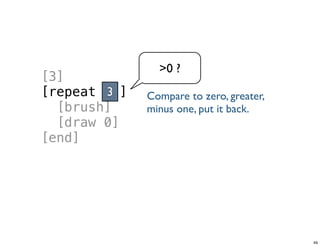

49. [3]
[repeat ]
[brush]
[draw 0]
[end]
3
>0 ?
Tuesday, June 25, 13

50. [3]
[repeat]
[brush]
[draw 0]
[end]
2
Tuesday, June 25, 13

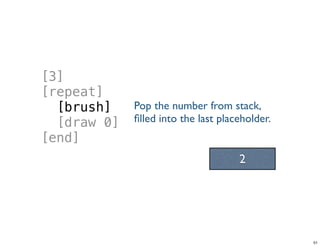

51. [3]
[repeat]
[brush]
[draw 0]
[end]
2
Tuesday, June 25, 13

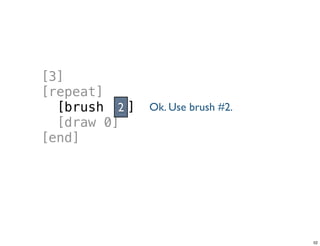

52. [3]
[repeat]
[brush ]
[draw 0]
[end]
2
Tuesday, June 25, 13

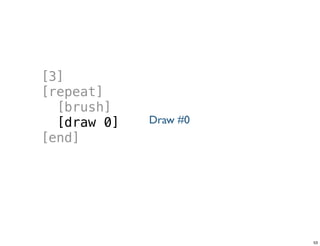

53. [3]
[repeat]
[brush]
[draw 0]
[end]
Tuesday, June 25, 13

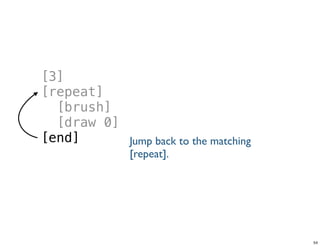

54. [3]
[repeat]
[brush]
[draw 0]
[end]
Tuesday, June 25, 13

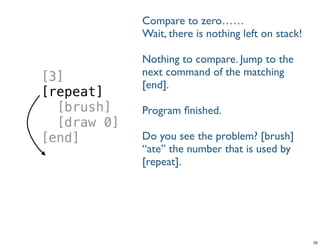

55. [3]
[repeat]
[brush]
[draw 0]
[end]
Tuesday, June 25, 13

56. ref / remove
Tuesday, June 25, 13

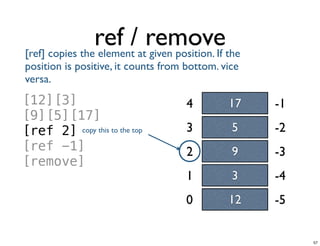

57. ref / remove
12
3
9
5
17
0
1
2
3
4 -1
-2
-3
-4
-5
[12][3]
[9][5][17]
[ref 2]
[ref -1]
[remove]
Tuesday, June 25, 13

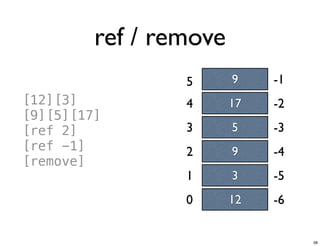

58. ref / remove
12
3
9
5
17
0
1
2
3
4
-1
-2
-3
-4
-5
[12][3]
[9][5][17]
[ref 2]
[ref -1]
[remove]
95
-6
Tuesday, June 25, 13

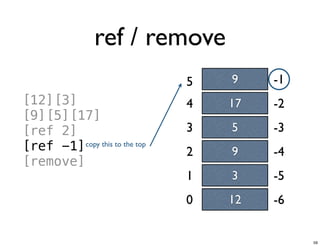

59. ref / remove
12
3
9
5
17
0
1
2
3
4
-1
-2
-3
-4
-5
[12][3]
[9][5][17]
[ref 2]
[ref -1]
[remove]
95
-6
Tuesday, June 25, 13

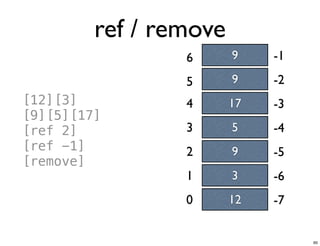

60. ref / remove
12
3
9
5
17
0
1
2
3
4
-1
-2
-3
-4
-5
[12][3]
[9][5][17]
[ref 2]
[ref -1]
[remove]
95
-6
96
-7
Tuesday, June 25, 13

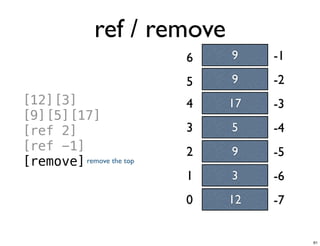

61. ref / remove
12
3
9
5
17
0
1
2
3
4
-1
-2
-3
-4
-5
[12][3]
[9][5][17]
[ref 2]
[ref -1]
[remove]
95
-6
96
-7
Tuesday, June 25, 13

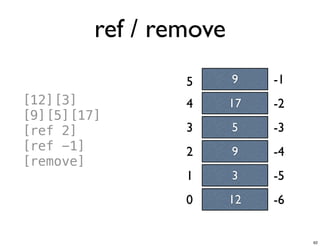

62. ref / remove
[12][3]
[9][5][17]
[ref 2]
[ref -1]
[remove]
12
3
9
5
17
0
1
2
3
4
-1
-2
-3
-4
-5
95
-6
Tuesday, June 25, 13

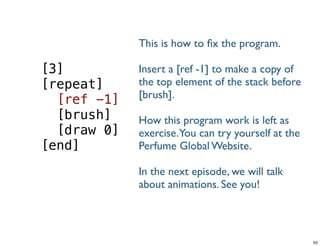

63. [3]
[repeat]
[ref -1]
[brush]
[draw 0]
[end]
Tuesday, June 25, 13
