The document discusses using Erector as an alternative to ERB views in Rails. Erector views are classes that allow for modular decomposition, inheritance of nested layouts, and consistent semantics. Views are testable in isolation and Erector handles escaping HTML and closing tags automatically. The document provides examples of refactoring ERB views to use Erector, demonstrating improved encapsulation and organization through extracting logic into view classes and subclasses.

1. Advanced Views with Erector
A builder view framework
Jeff Dean

2. ERB views kinda suck

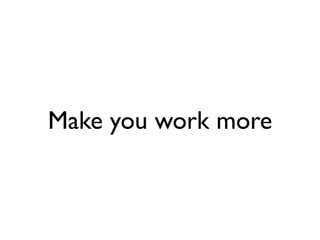

3. Make you work more

4. No encapsulation

5. Refactoring can be hard

6. We need something that...

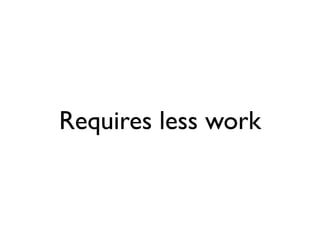

7. Requires less work

8. Respects encapsulation

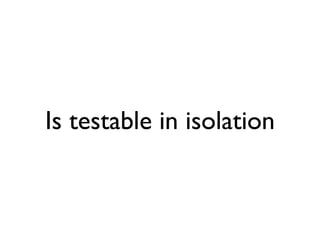

9. Is testable in isolation

10. Erector to the rescue!

11. Views are classes

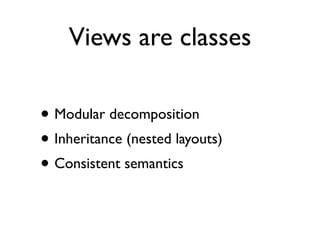

12. Views are classes
• Modular decomposition
• Inheritance (nested layouts)
• Consistent semantics

13. Views are classes
class Views::Articles::Show < Erector::RailsWidget
def content
div :class => "content" do
p "Hello <script> World!", :class => "sidebar"
end
end
end

14. Does the right thing

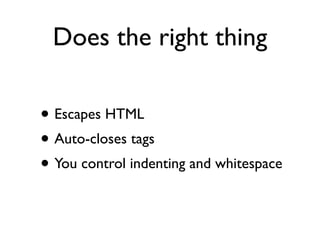

15. Does the right thing
• Escapes HTML
• Auto-closes tags
• You control indenting and whitespace

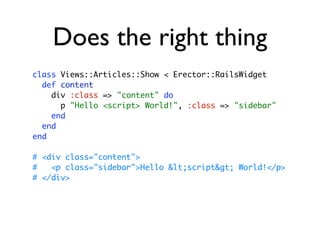

16. Does the right thing
class Views::Articles::Show < Erector::RailsWidget
def content
div :class => "content" do
p "Hello <script> World!", :class => "sidebar"
end
end
end
# <div class="content">
# <p class="sidebar">Hello &lt;script&gt; World!</p>
# </div>

17. ERB Refactoring

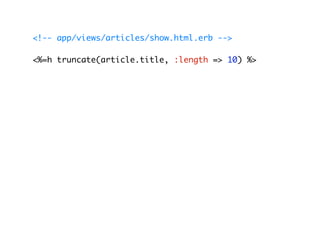

18. <!-- app/views/articles/show.html.erb -->
<%=h truncate(article.title, :length => 10) %>

19. <!-- app/views/articles/show.html.erb -->
<%=h display_name(article) %>
# app/helpers/articles.rb
def display_name(article)
truncate(article.title, :length => 10)
end

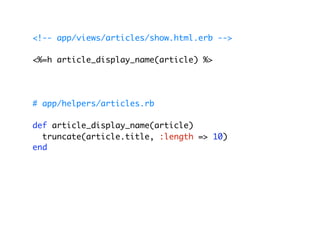

20. <!-- app/views/articles/show.html.erb -->
<%=h article_display_name(article) %>
# app/helpers/articles.rb
def article_display_name(article)
truncate(article.title, :length => 10)
end

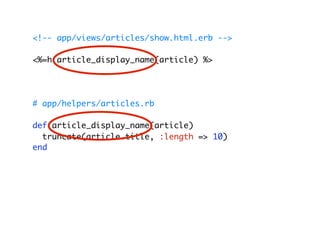

21. <!-- app/views/articles/show.html.erb -->
<%=h article_display_name(article) %>
# app/helpers/articles.rb
def article_display_name(article)
truncate(article.title, :length => 10)
end

22. <!-- app/views/articles/show.html.erb -->
<%= article_display_name(article) %>
# app/helpers/articles.rb
def article_display_name(article)
content_tag :span,
h(truncate(article.title, :length => 10)),
:title => article.title
end

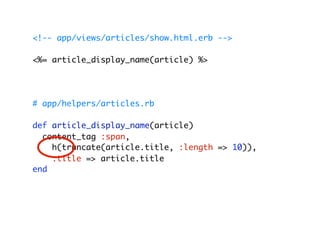

23. <!-- app/views/articles/show.html.erb -->
<%= article_display_name(article) %>
# app/helpers/articles.rb
def article_display_name(article)
content_tag :span,
h(truncate(article.title, :length => 10)),
:title => article.title
end

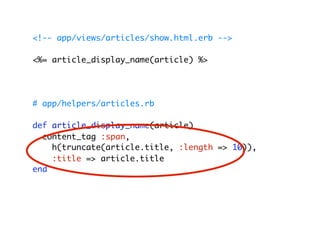

24. <!-- app/views/articles/show.html.erb -->
<%= article_display_name(article) %>
# app/helpers/articles.rb
def article_display_name(article)
content_tag :span,
h(truncate(article.title, :length => 10)),
:title => article.title
end

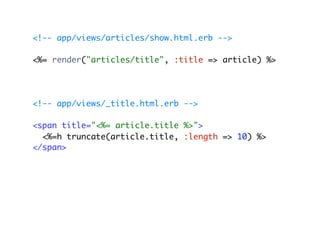

25. <!-- app/views/articles/show.html.erb -->
<%= render("articles/title", :title => article) %>
<!-- app/views/_title.html.erb -->
<span title="<%= article.title %>">
<%=h truncate(article.title, :length => 10) %>
</span>

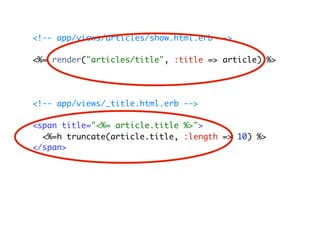

26. <!-- app/views/articles/show.html.erb -->
<%= render("articles/title", :title => article) %>
<!-- app/views/_title.html.erb -->
<span title="<%= article.title %>">
<%=h truncate(article.title, :length => 10) %>
</span>

27. Erector Refactoring

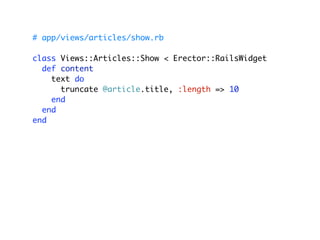

28. # app/views/articles/show.rb
class Views::Articles::Show < Erector::RailsWidget
def content
text do
truncate @article.title, :length => 10
end
end
end

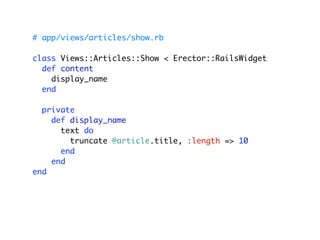

29. # app/views/articles/show.rb
class Views::Articles::Show < Erector::RailsWidget
def content
display_name
end
private
def display_name
text do
truncate @article.title, :length => 10
end
end
end

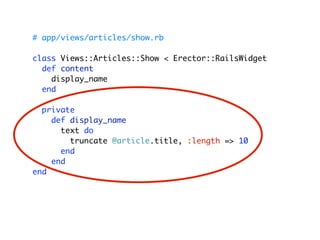

30. # app/views/articles/show.rb
class Views::Articles::Show < Erector::RailsWidget
def content
display_name
end
private
def display_name
text do
truncate @article.title, :length => 10
end
end
end

31. # app/views/articles/show.rb
class Views::Articles::Show < Erector::RailsWidget
def content
display_name
end
private
def display_name
span :title => @article.title do
truncate @article.title, :length => 10
end
end
end

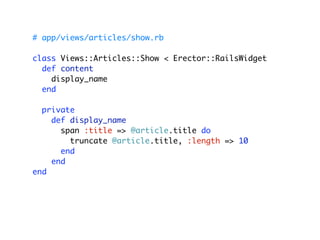

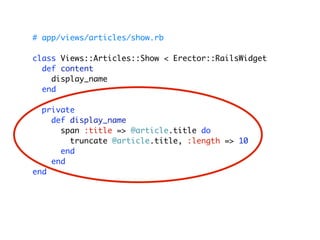

32. # app/views/articles/show.rb
class Views::Articles::Show < Erector::RailsWidget
def content
display_name
end
private
def display_name
span :title => @article.title do
truncate @article.title, :length => 10
end
end
end

33. # app/views/articles/show.rb
class Views::Articles::Show < Views::Articles::Base
def content
display_name
end
end
# app/views/articles/base.rb
class Views::Articles::Base < Erector::RailsWidget
def display_name
span :title => @article.title do
truncate @article.title, :length => 10
end
end
end

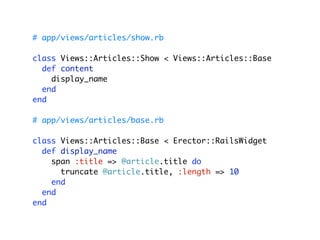

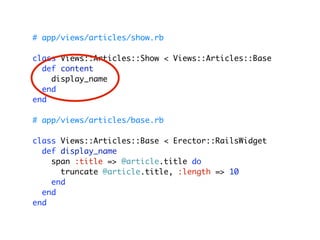

34. # app/views/articles/show.rb
class Views::Articles::Show < Views::Articles::Base
def content
display_name
end
end
# app/views/articles/base.rb
class Views::Articles::Base < Erector::RailsWidget
def display_name
span :title => @article.title do
truncate @article.title, :length => 10
end
end
end

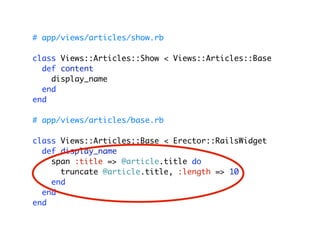

35. # app/views/articles/show.rb
class Views::Articles::Show < Views::Articles::Base
def content
display_name
end
end
# app/views/articles/base.rb
class Views::Articles::Base < Erector::RailsWidget
def display_name
span :title => @article.title do
truncate @article.title, :length => 10
end
end
end

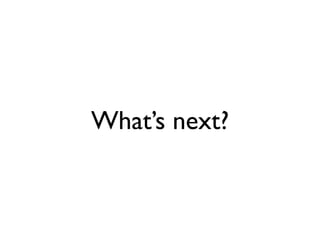

37. What’s next?

38. more rails helpers

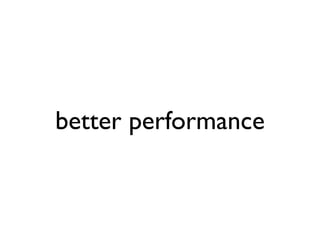

39. better performance

40. rails 3

41. erector.rubyforge.org
github.com/pivotal/erector
jdean@pivotallabs.com

42. Questions
