Support cages provide a framework to hold filter bags and are made of stainless steel or galvanized iron rods arranged in a circular, oval, diamond, flat, or star shape configuration. The cages have shapes like circles or ovals and contain 6 to 24 wires of 3 to 6 mm diameter attached from top to bottom for support. They are applicable in industrial filtration processes where a strong frame is needed to support a filter bag.

1. PRESENTATION ON
SUPPORT CAGES

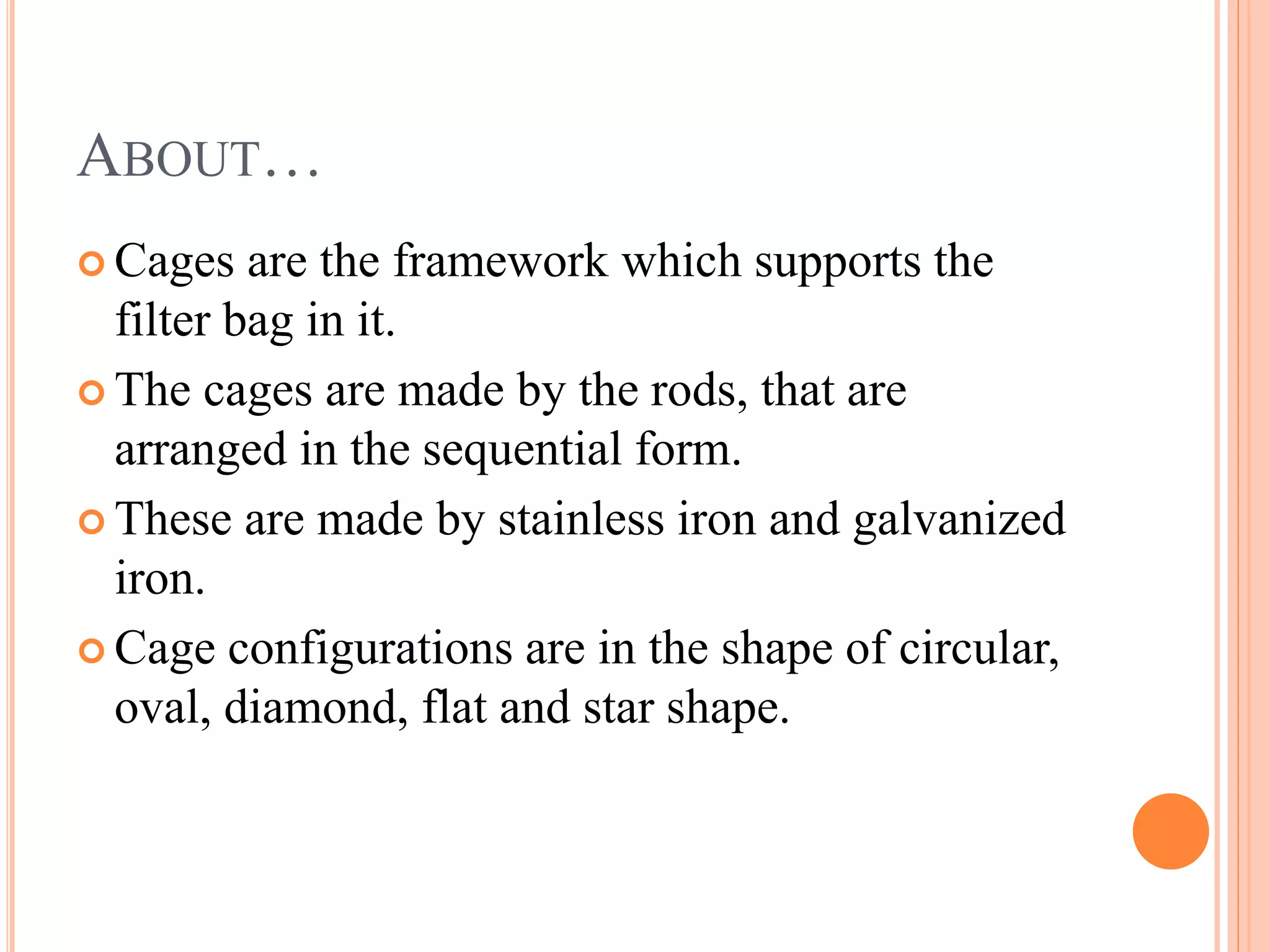

2. ABOUT…
 Cages are the framework which supports the
filter bag in it.
 The cages are made by the rods, that are
arranged in the sequential form.
 These are made by stainless iron and galvanized
iron.
 Cage configurations are in the shape of circular,
oval, diamond, flat and star shape.

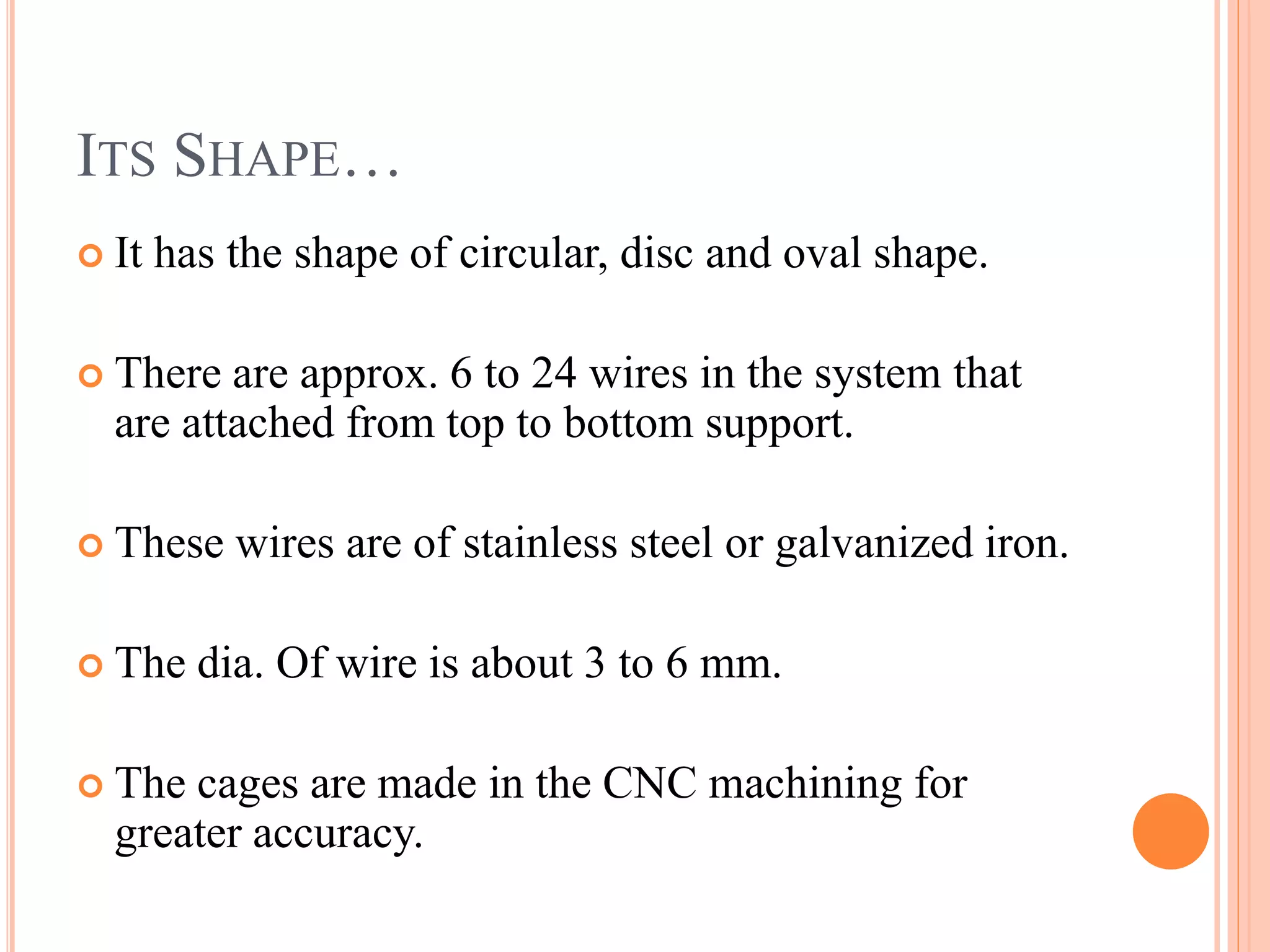

3. ITS SHAPE…
 It has the shape of circular, disc and oval shape.
 There are approx. 6 to 24 wires in the system that
are attached from top to bottom support.
 These wires are of stainless steel or galvanized iron.
 The dia. Of wire is about 3 to 6 mm.
 The cages are made in the CNC machining for
greater accuracy.

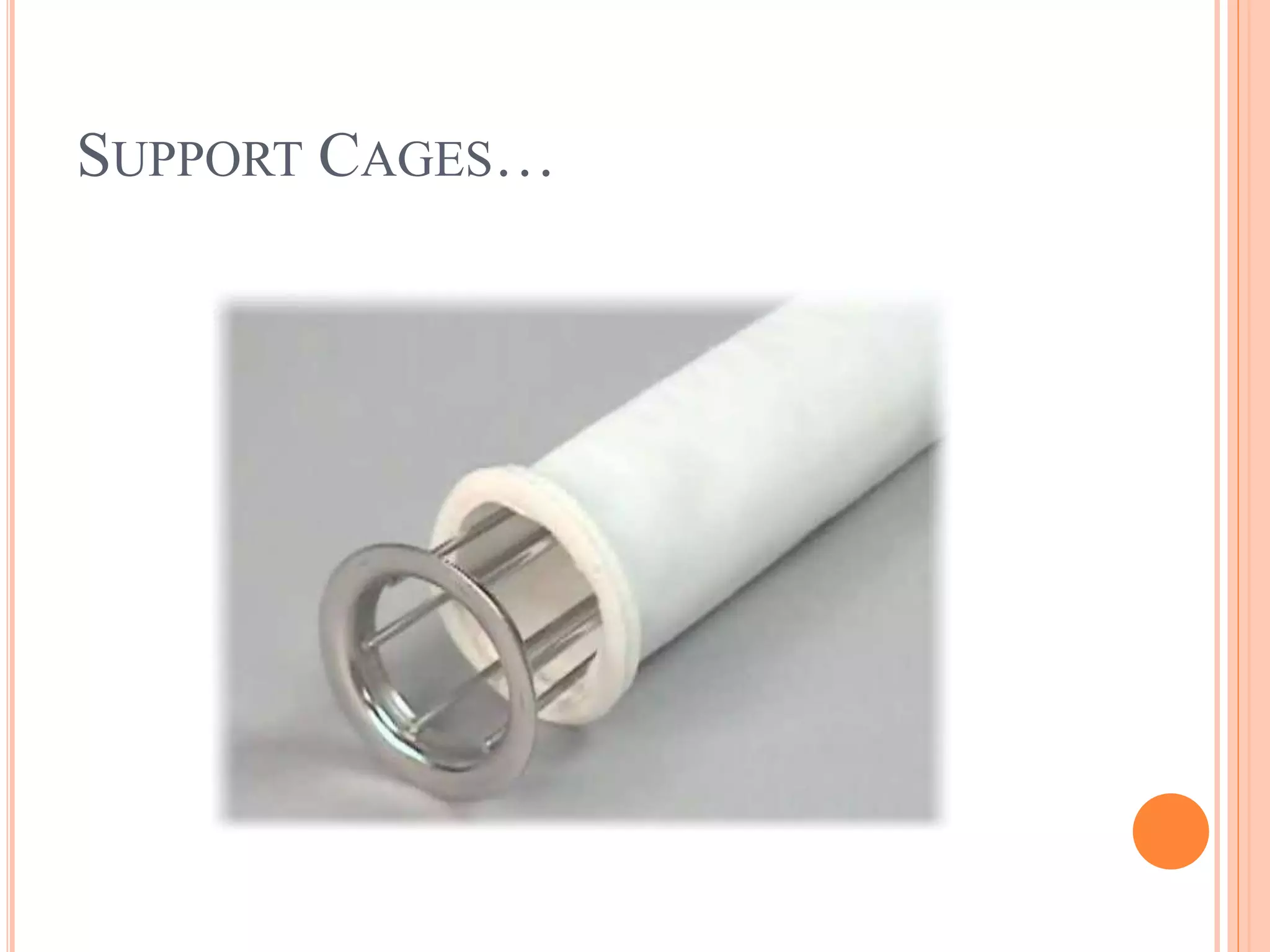

4. SUPPORT CAGES…

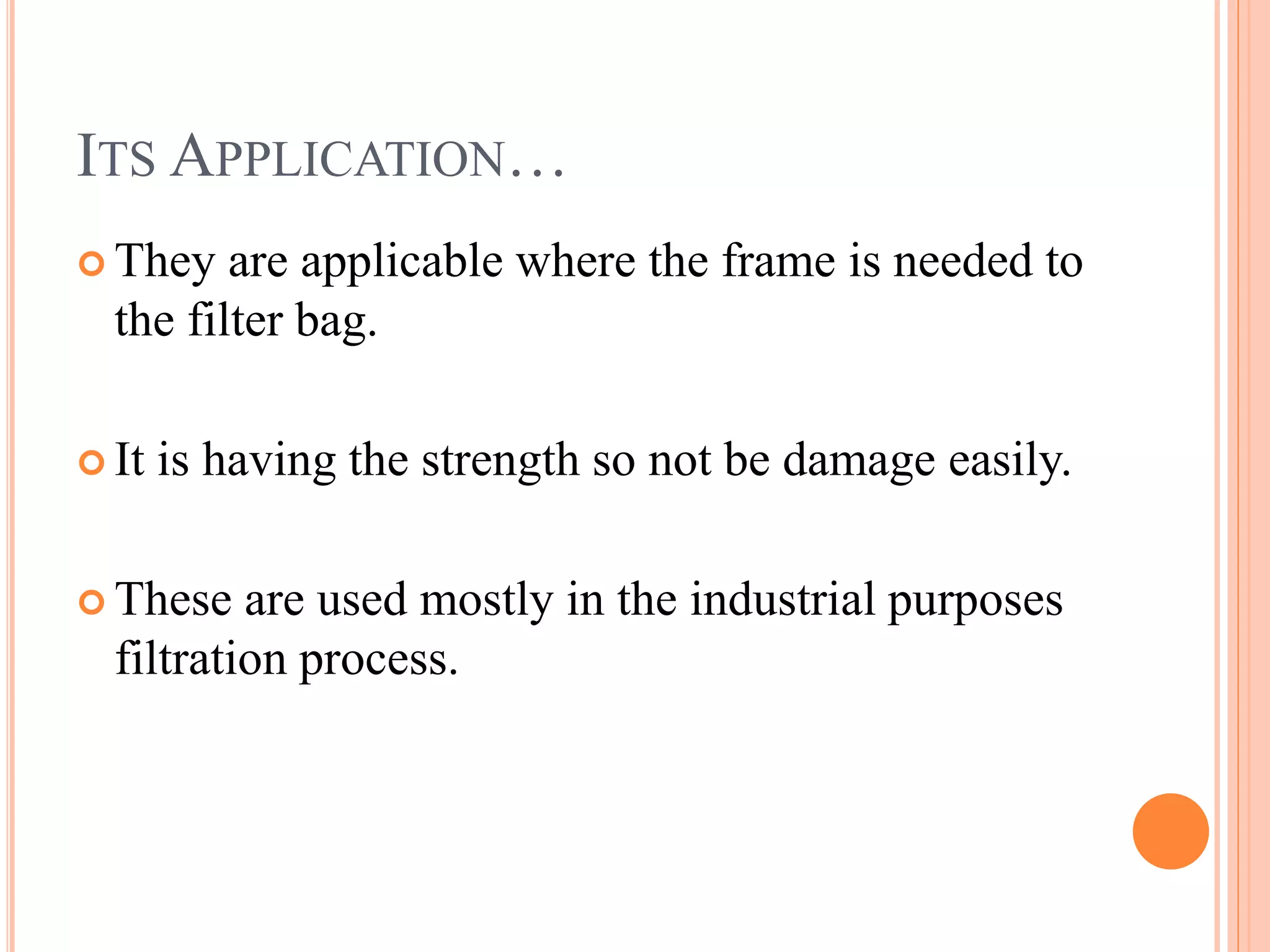

5. ITS APPLICATION…
 They are applicable where the frame is needed to
the filter bag.
 It is having the strength so not be damage easily.
 These are used mostly in the industrial purposes
filtration process.
