This document summarizes the works and challenges of construction projects in Arctic regions for Total E&P Russie. It outlines the typical work process and key challenges like extreme cold temperatures, sensitive environments, and limited local contractors. It also describes the engineering, civil and earth works, piping, structural, electrical and instrumentation works conducted. Specific projects highlighted include refurbishing accommodation buildings, reinforcing flowlines, and constructing a school in Naryan-Mar through sponsorship.

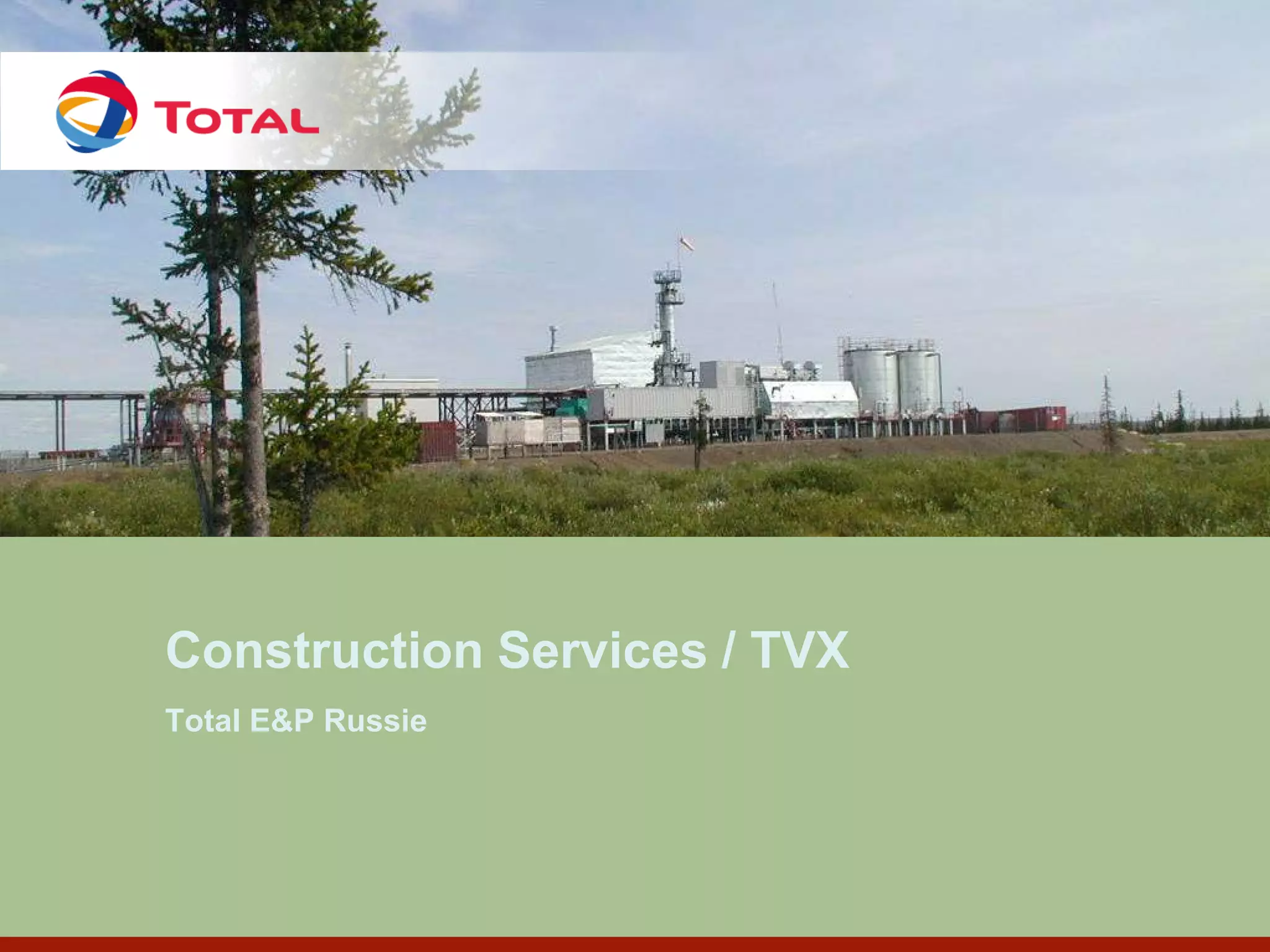

1. Construction Services / TVX
Total E&P Russie

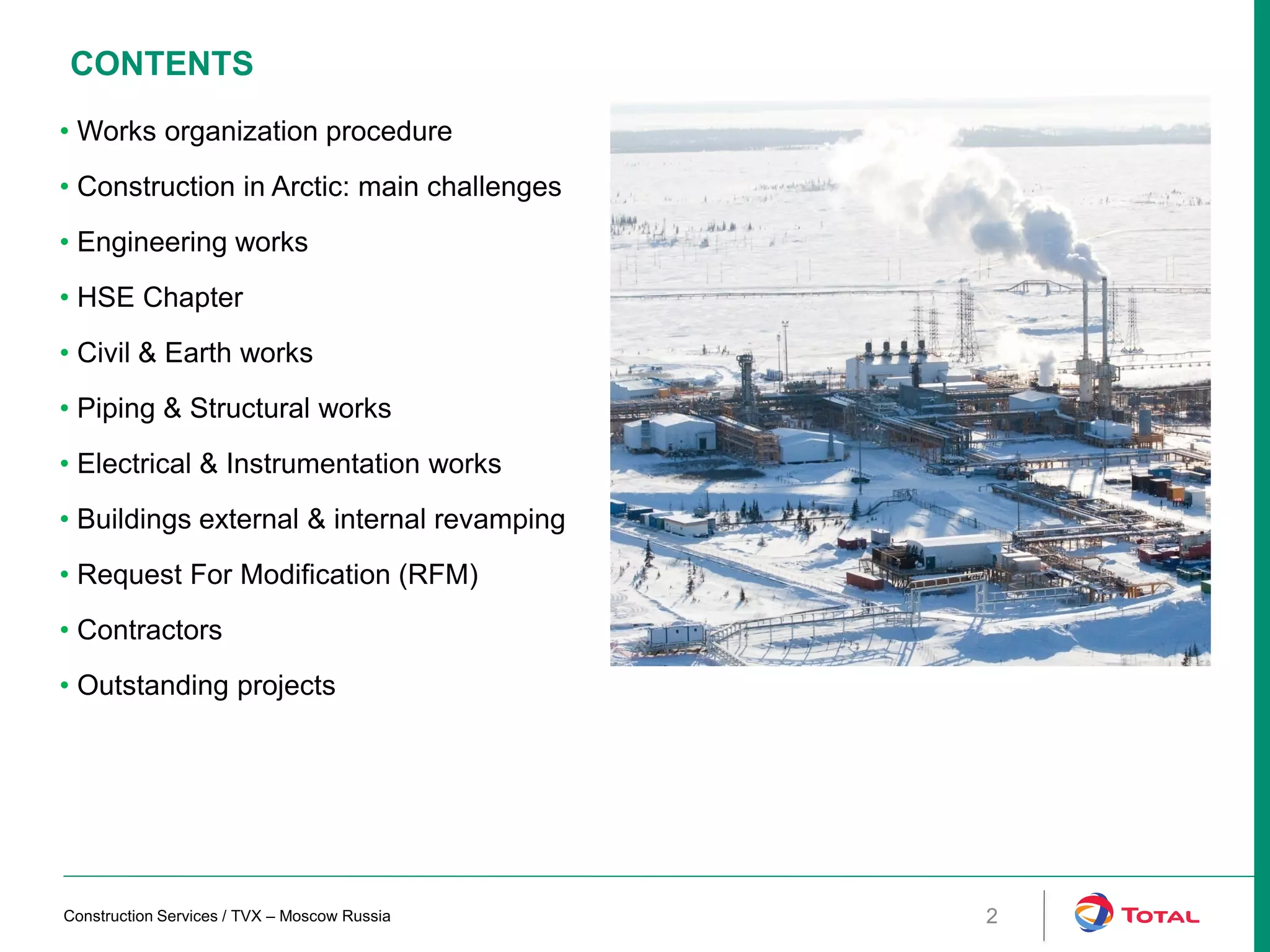

2. CONTENTS
• Works organization procedure
• Construction in Arctic: main challenges
• Engineering works
• HSE Chapter
• Civil & Earth works
• Piping & Structural works
• Electrical & Instrumentation works
• Buildings external & internal revamping
• Request For Modification (RFM)
• Contractors
• Outstanding projects
2Construction Services / TVX – Moscow Russia

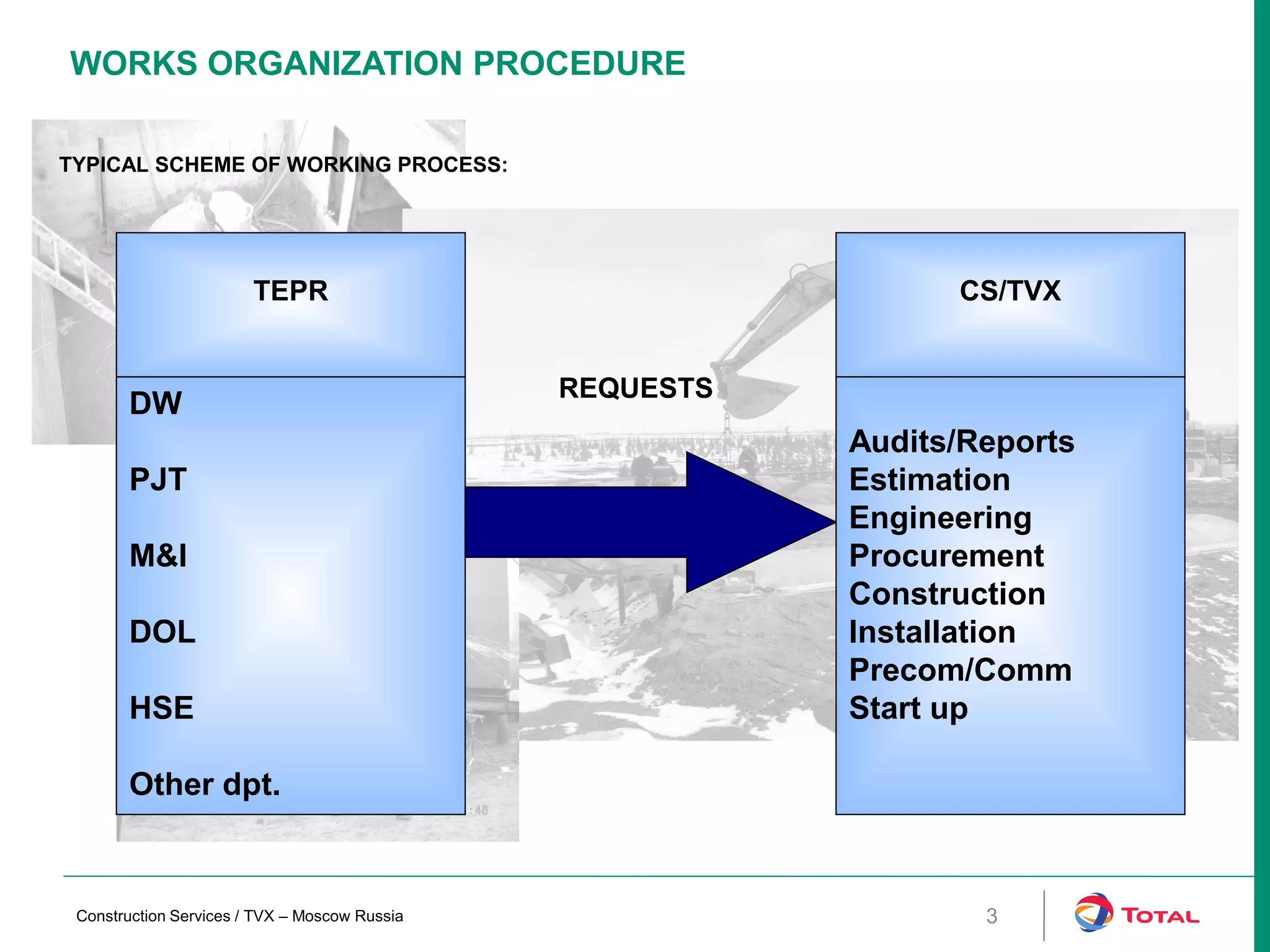

3. WORKS ORGANIZATION PROCEDURE
3
TYPICAL SCHEME OF WORKING PROCESS:
DW
PJT
M&I
DOL
HSE
Other dpt.
TEPR
Audits/Reports
Estimation
Engineering
Procurement
Construction
Installation
Precom/Comm
Start up
CS/TVX
REQUESTS
Construction Services / TVX – Moscow Russia

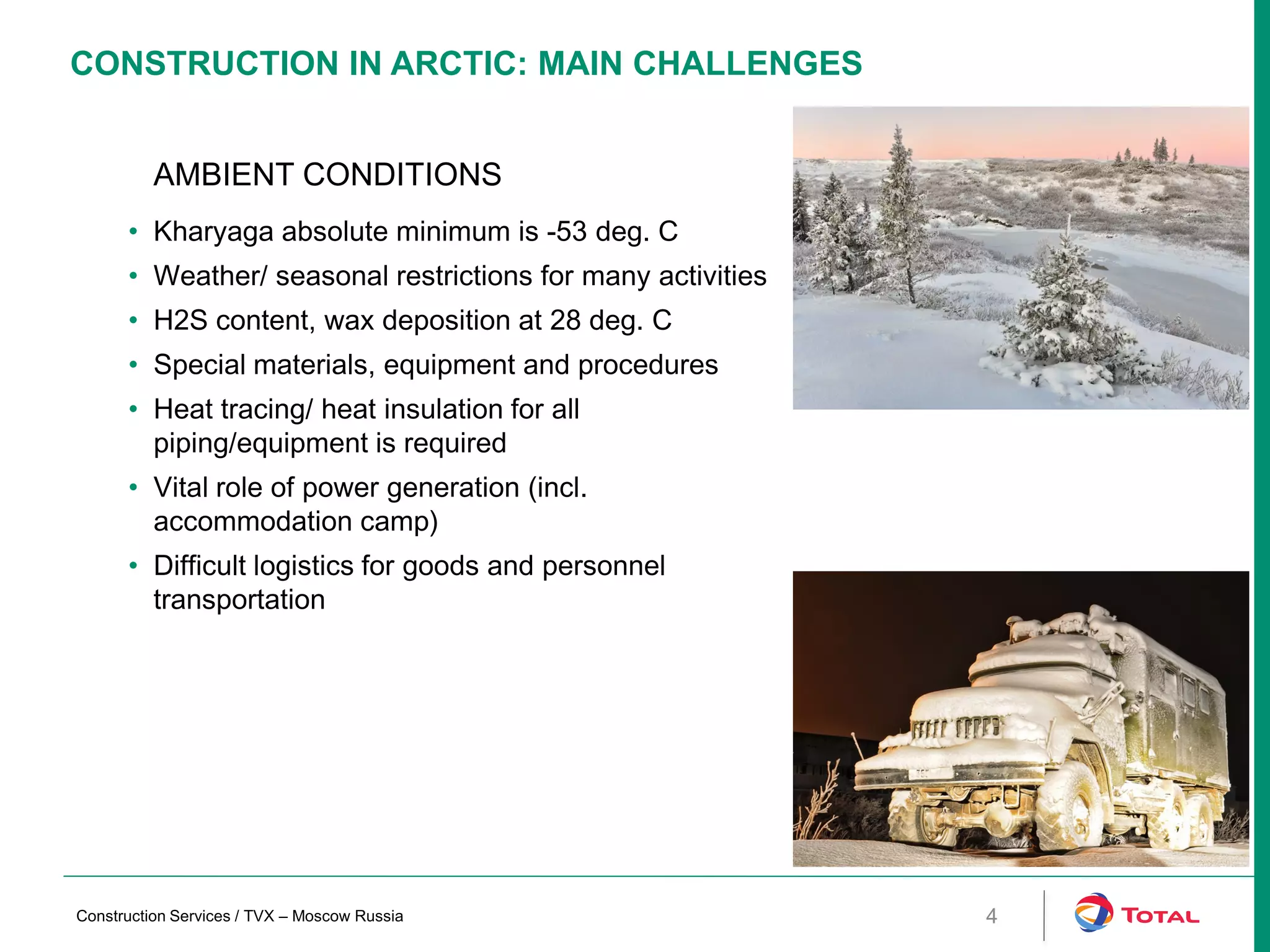

4. CONSTRUCTION IN ARCTIC: MAIN CHALLENGES
4
AMBIENT CONDITIONS
• Kharyaga absolute minimum is -53 deg. C
• Weather/ seasonal restrictions for many activities
• H2S content, wax deposition at 28 deg. C
• Special materials, equipment and procedures
• Heat tracing/ heat insulation for all
piping/equipment is required
• Vital role of power generation (incl.
accommodation camp)
• Difficult logistics for goods and personnel
transportation
Construction Services / TVX – Moscow Russia

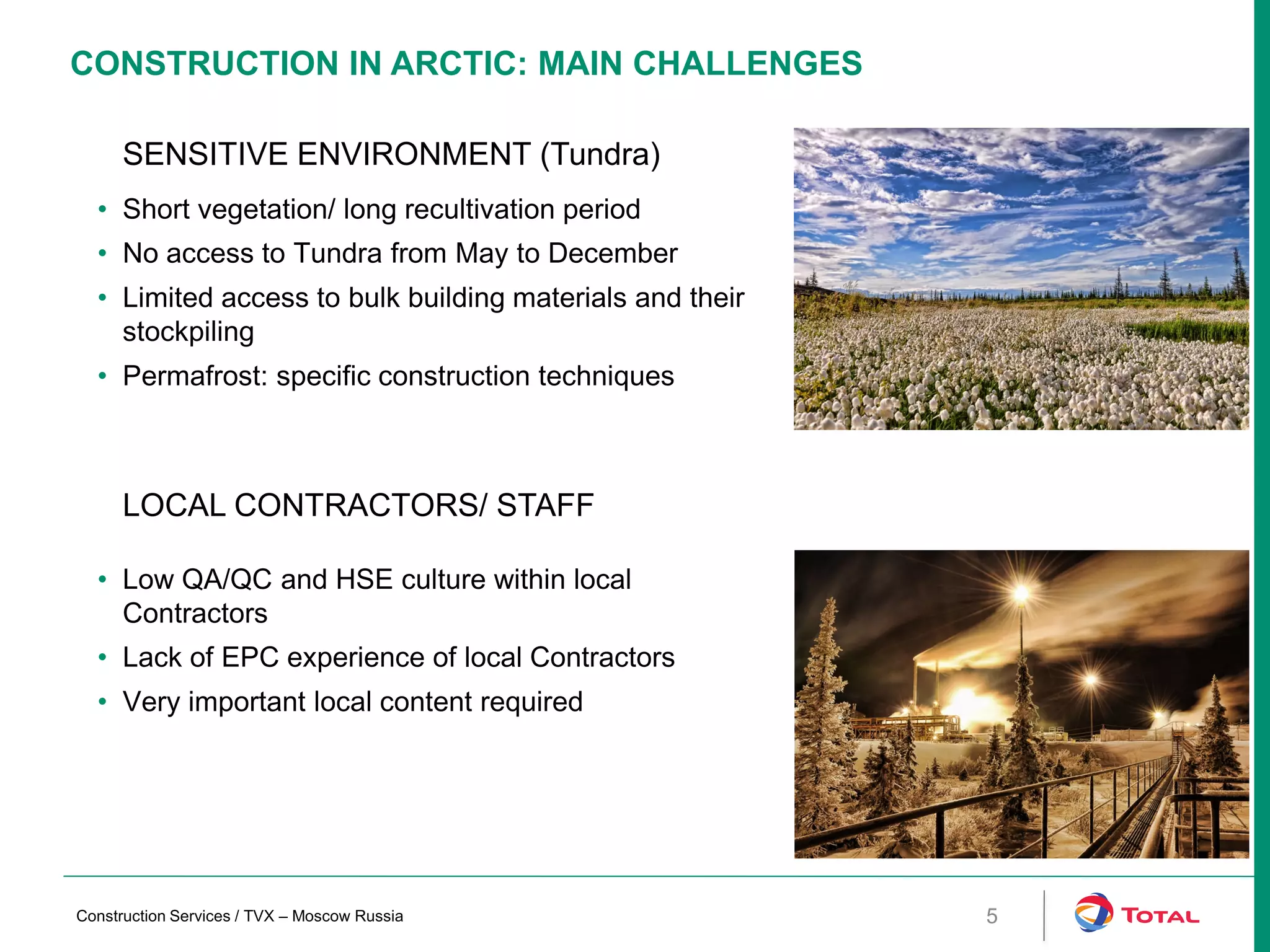

5. CONSTRUCTION IN ARCTIC: MAIN CHALLENGES
5
SENSITIVE ENVIRONMENT (Tundra)
• Short vegetation/ long recultivation period
• No access to Tundra from May to December
• Limited access to bulk building materials and their
stockpiling
• Permafrost: specific construction techniques
LOCAL CONTRACTORS/ STAFF
• Low QA/QC and HSE culture within local
Contractors
• Lack of EPC experience of local Contractors
• Very important local content required
Construction Services / TVX – Moscow Russia

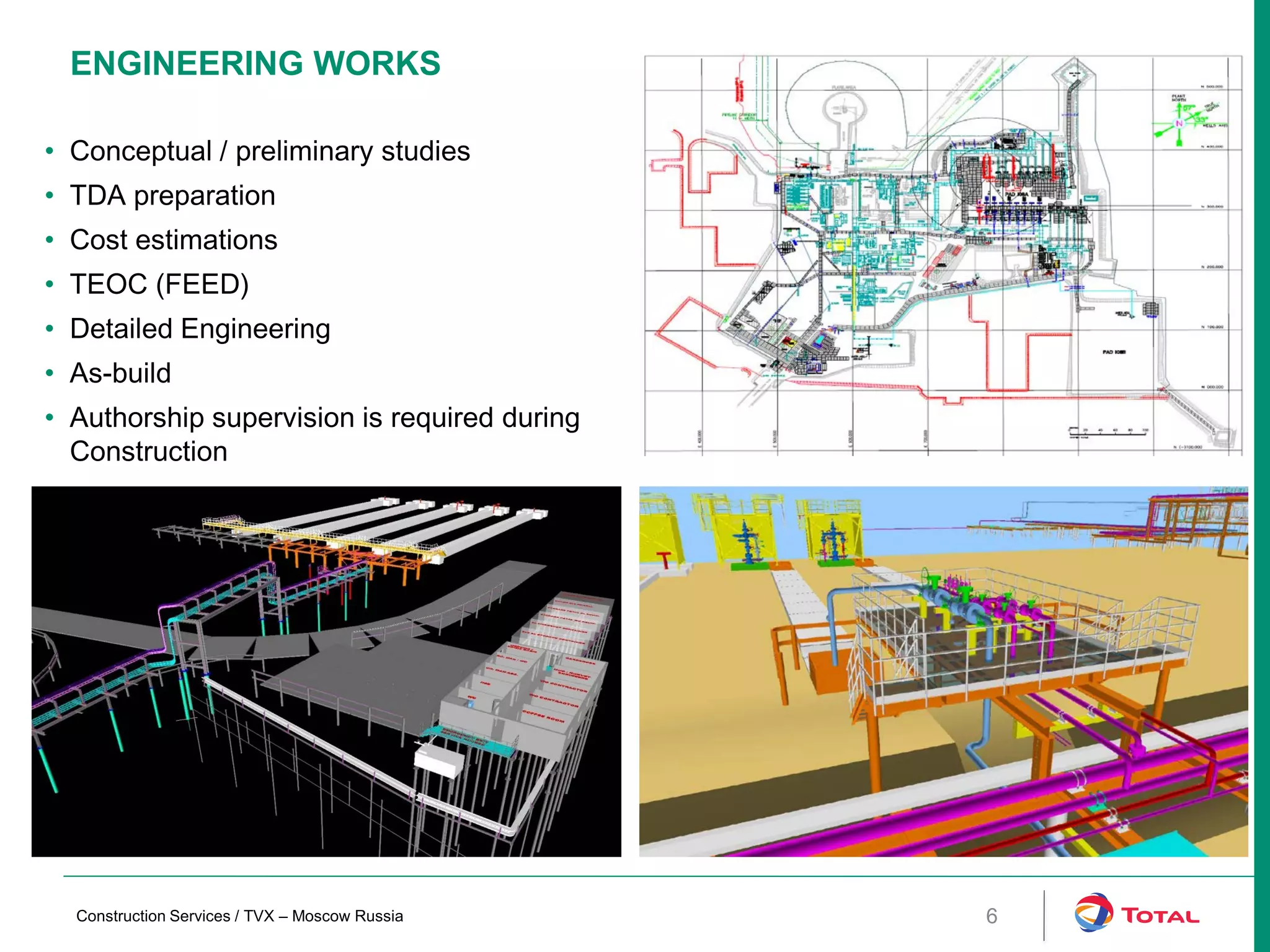

6. ENGINEERING WORKS
6
• Conceptual / preliminary studies
• TDA preparation
• Cost estimations
• TEOC (FEED)
• Detailed Engineering
• As-build
• Authorship supervision is required during
Construction
Construction Services / TVX – Moscow Russia

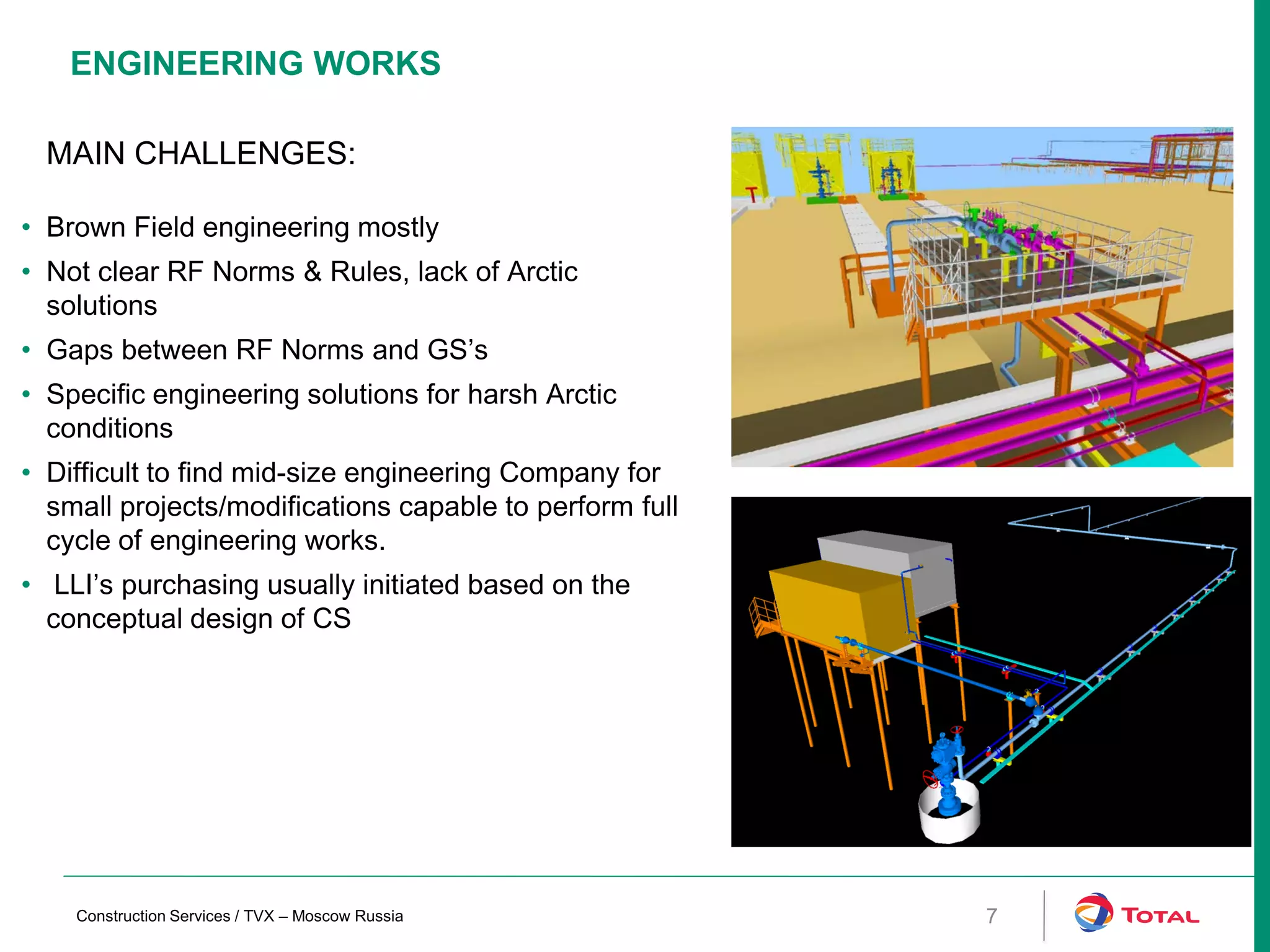

7. ENGINEERING WORKS
7
MAIN CHALLENGES:
• Brown Field engineering mostly
• Not clear RF Norms & Rules, lack of Arctic
solutions
• Gaps between RF Norms and GS’s
• Specific engineering solutions for harsh Arctic
conditions
• Difficult to find mid-size engineering Company for
small projects/modifications capable to perform full
cycle of engineering works.
• LLI’s purchasing usually initiated based on the
conceptual design of CS
Construction Services / TVX – Moscow Russia

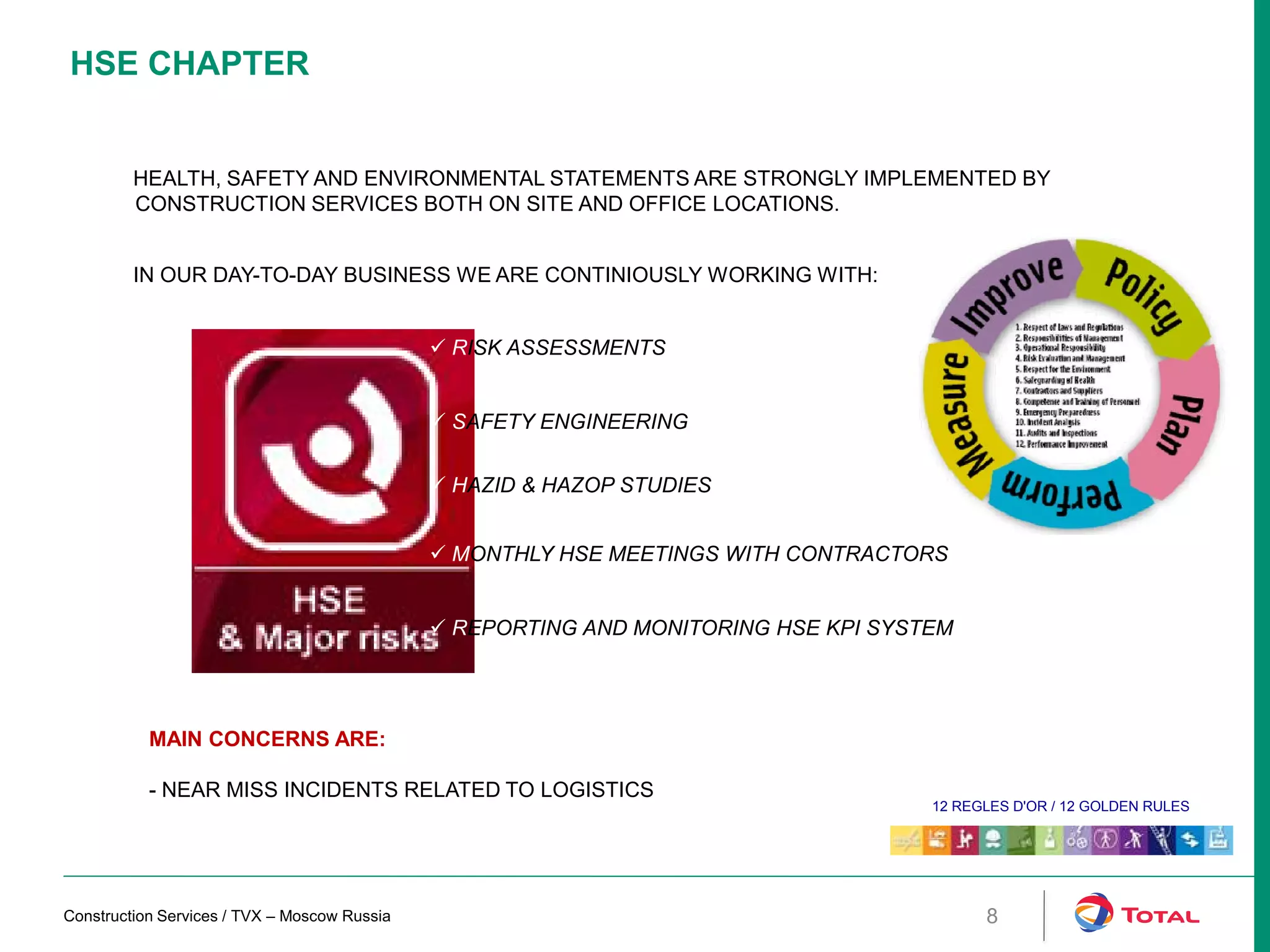

8. HSE CHAPTER
HEALTH, SAFETY AND ENVIRONMENTAL STATEMENTS ARE STRONGLY IMPLEMENTED BY
CONSTRUCTION SERVICES BOTH ON SITE AND OFFICE LOCATIONS.
IN OUR DAY-TO-DAY BUSINESS WE ARE CONTINIOUSLY WORKING WITH:
 MONTHLY HSE MEETINGS WITH CONTRACTORS
 REPORTING AND MONITORING HSE KPI SYSTEM
 HAZID & HAZOP STUDIES
 RISK ASSESSMENTS
 SAFETY ENGINEERING
MAIN CONCERNS ARE:
- NEAR MISS INCIDENTS RELATED TO LOGISTICS
12 REGLES D'OR / 12 GOLDEN RULES
Construction Services / TVX – Moscow Russia 8

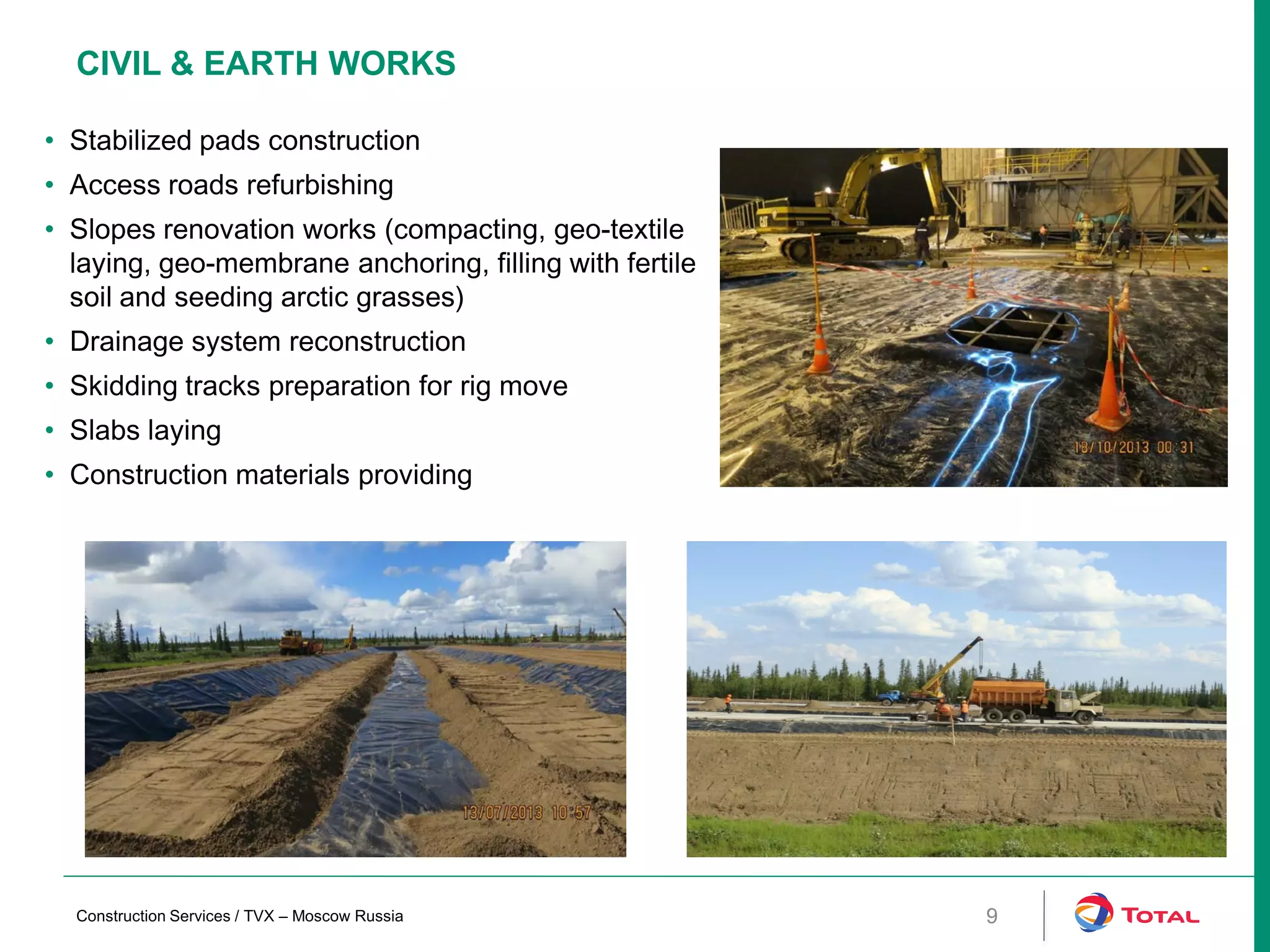

9. CIVIL & EARTH WORKS
• Stabilized pads construction
• Access roads refurbishing
• Slopes renovation works (compacting, geo-textile
laying, geo-membrane anchoring, filling with fertile
soil and seeding arctic grasses)
• Drainage system reconstruction
• Skidding tracks preparation for rig move
• Slabs laying
• Construction materials providing
Construction Services / TVX – Moscow Russia 9

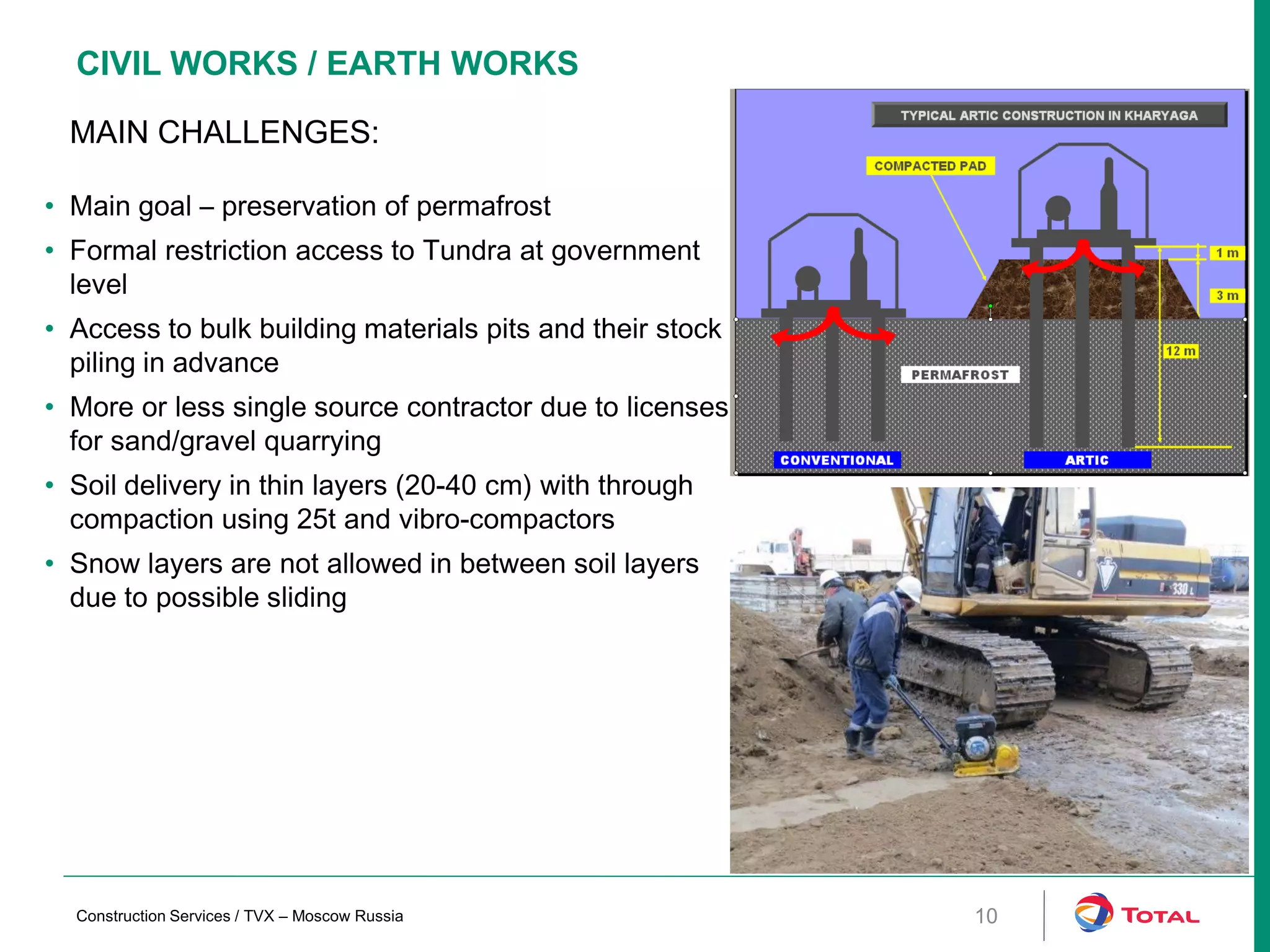

10. MAIN CHALLENGES:
• Main goal – preservation of permafrost
• Formal restriction access to Tundra at government
level
• Access to bulk building materials pits and their stock
piling in advance
• More or less single source contractor due to licenses
for sand/gravel quarrying
• Soil delivery in thin layers (20-40 cm) with through
compaction using 25t and vibro-compactors
• Snow layers are not allowed in between soil layers
due to possible sliding
Construction Services / TVX – Moscow Russia 10

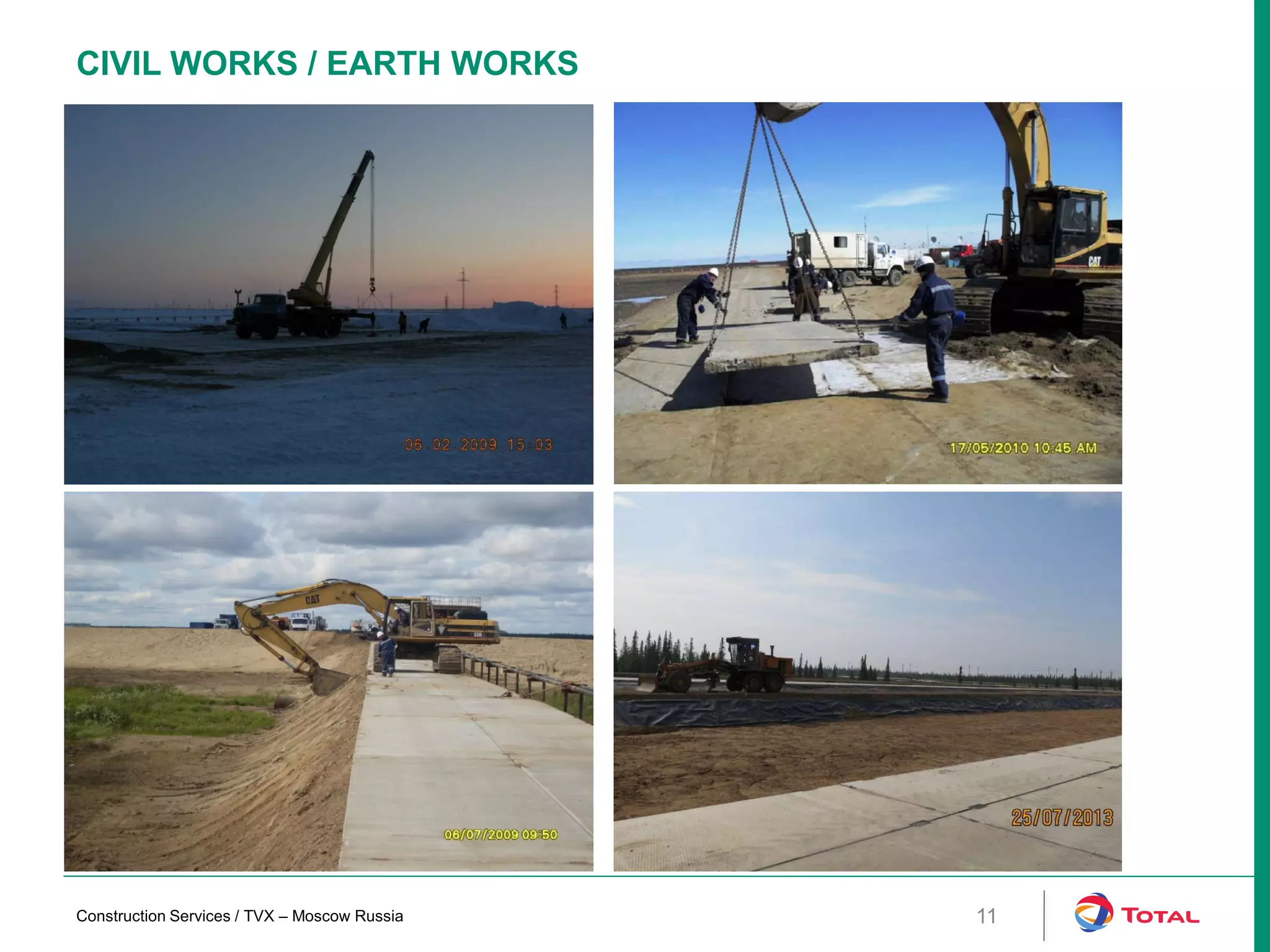

CIVIL WORKS / EARTH WORKS

11. 11
CIVIL WORKS / EARTH WORKS
Construction Services / TVX – Moscow Russia

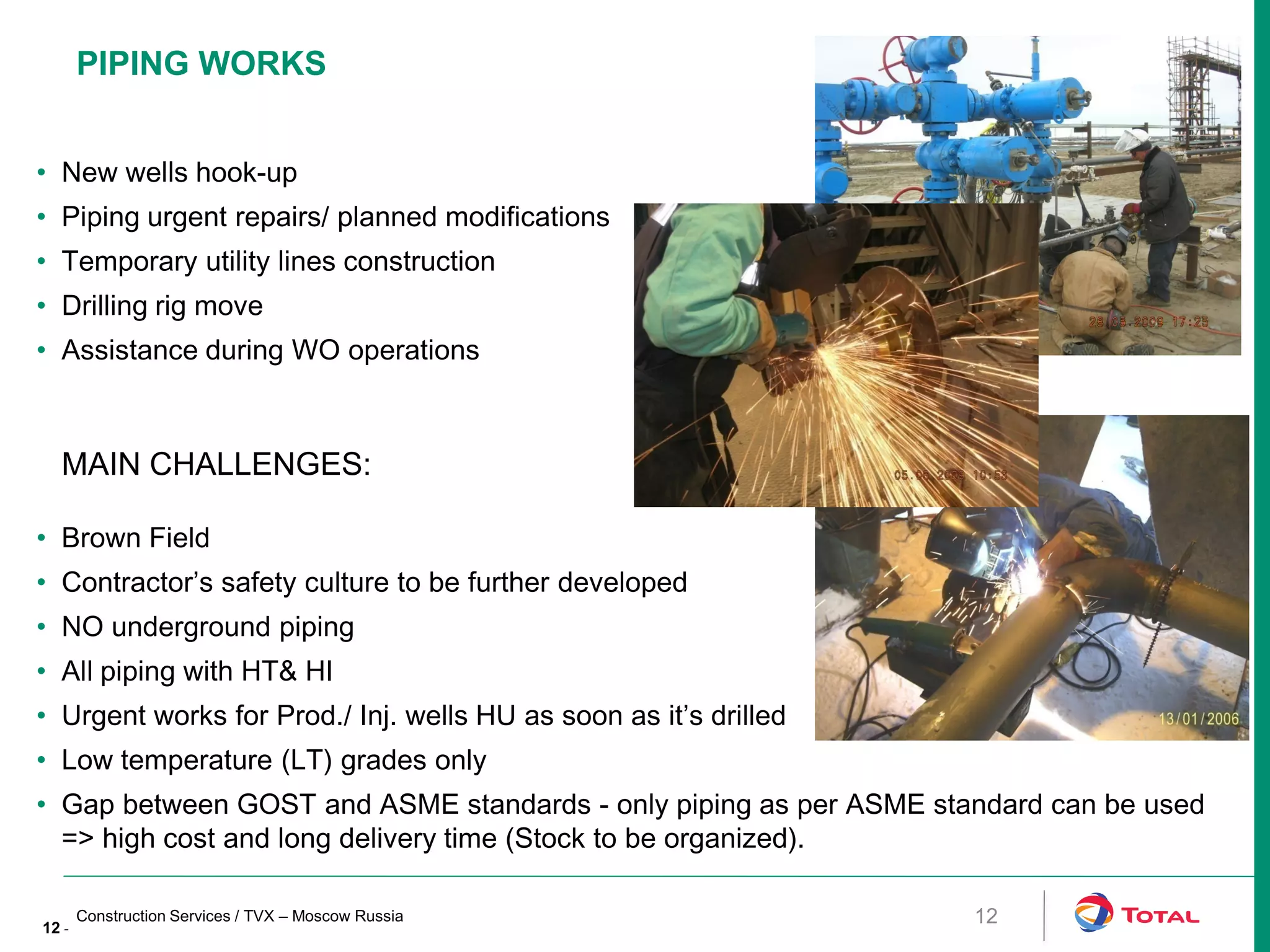

12. 12 -
MAIN CHALLENGES:
• Brown Field
• Contractor’s safety culture to be further developed
• NO underground piping
• All piping with HT& HI
• Urgent works for Prod./ Inj. wells HU as soon as it’s drilled
• Low temperature (LT) grades only
• Gap between GOST and ASME standards - only piping as per ASME standard can be used
=> high cost and long delivery time (Stock to be organized).
• New wells hook-up
• Piping urgent repairs/ planned modifications
• Temporary utility lines construction
• Drilling rig move
• Assistance during WO operations
Construction Services / TVX – Moscow Russia
PIPING WORKS
12

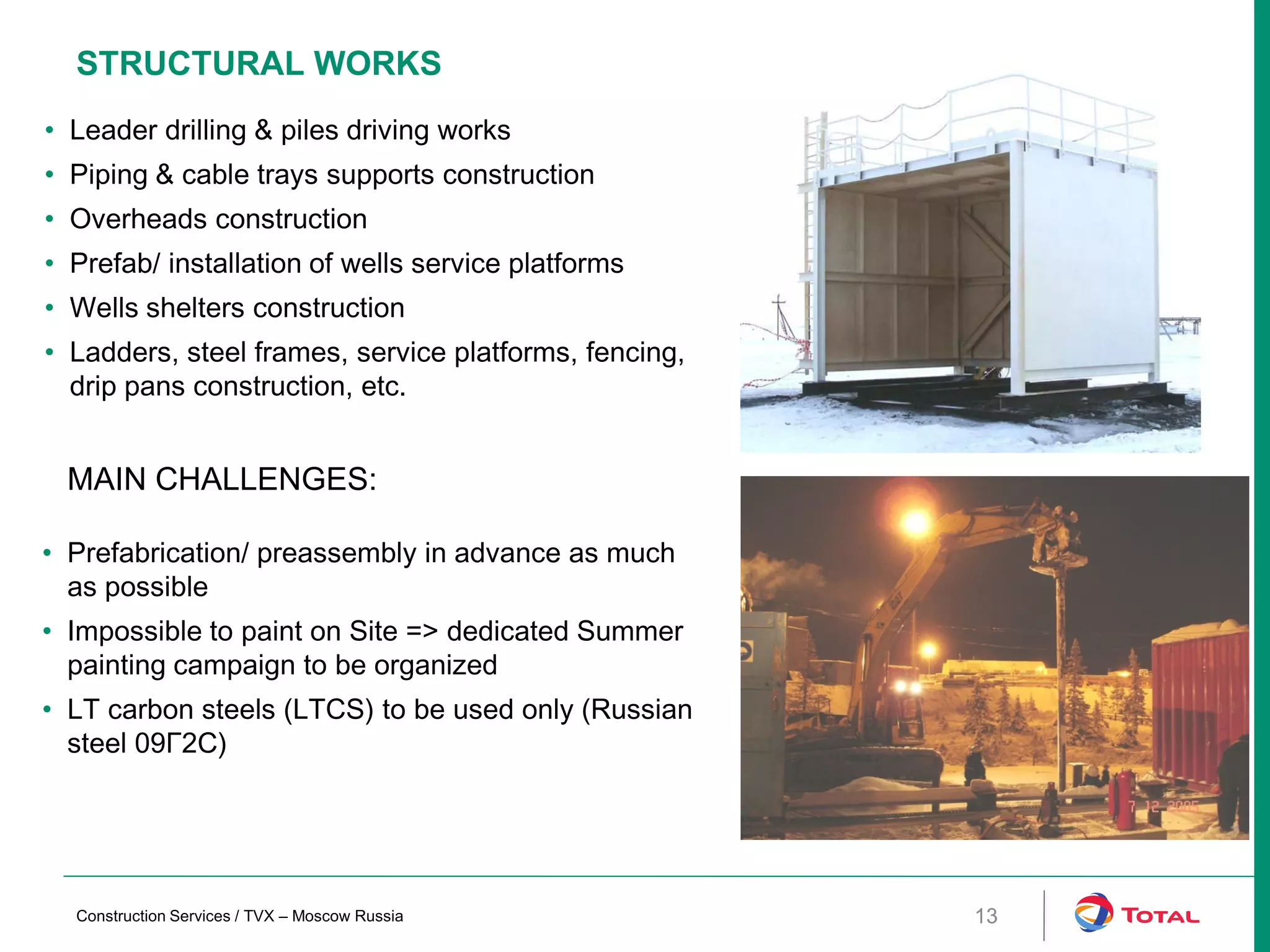

13. STRUCTURAL WORKS
MAIN CHALLENGES:
• Prefabrication/ preassembly in advance as much
as possible
• Impossible to paint on Site => dedicated Summer
painting campaign to be organized
• LT carbon steels (LTCS) to be used only (Russian
steel 09Г2С)
• Leader drilling & piles driving works
• Piping & cable trays supports construction
• Overheads construction
• Prefab/ installation of wells service platforms
• Wells shelters construction
• Ladders, steel frames, service platforms, fencing,
drip pans construction, etc.
13Construction Services / TVX – Moscow Russia

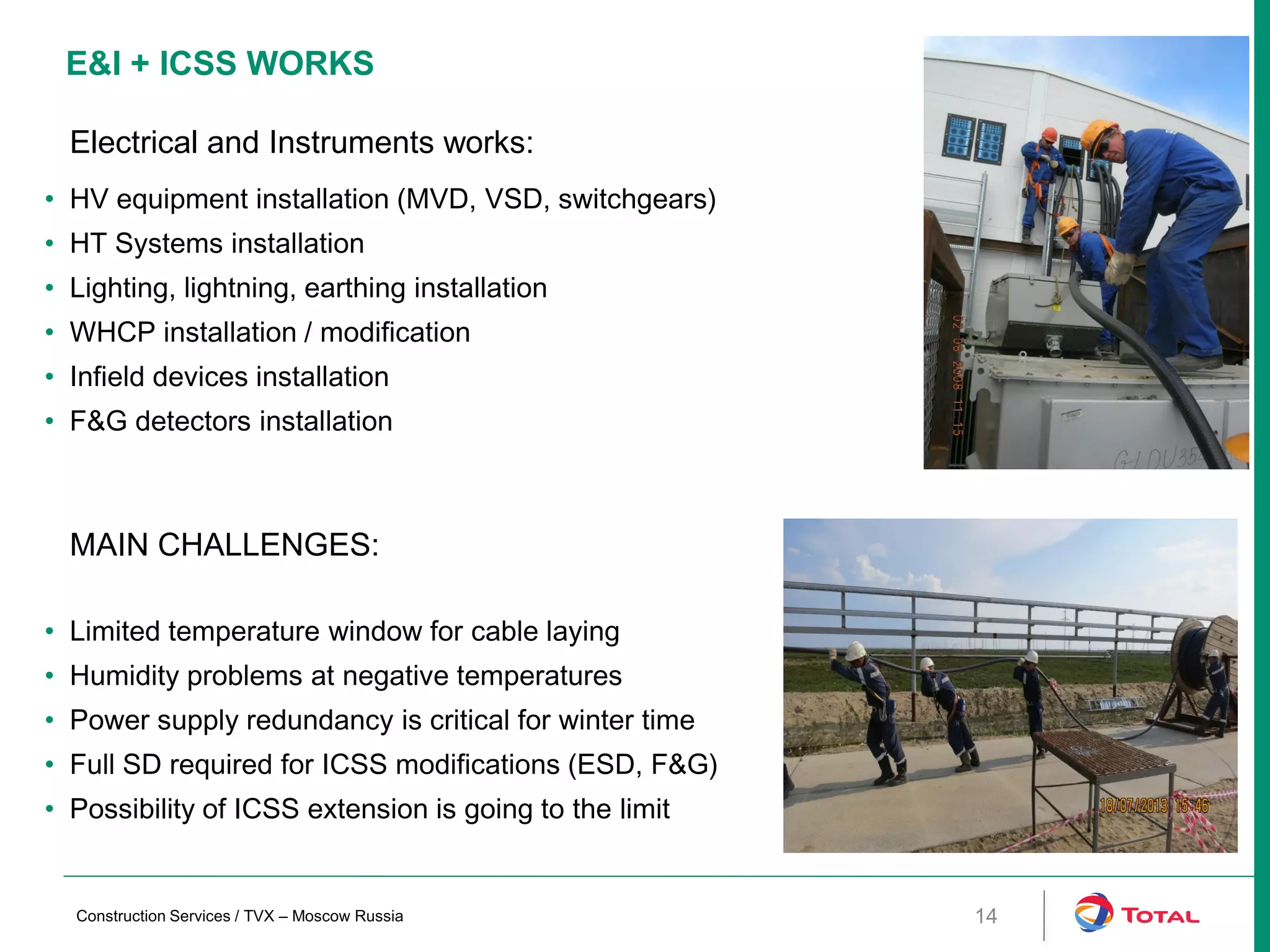

14. E&I + ICSS WORKS
MAIN CHALLENGES:
• Limited temperature window for cable laying
• Humidity problems at negative temperatures
• Power supply redundancy is critical for winter time
• Full SD required for ICSS modifications (ESD, F&G)
• Possibility of ICSS extension is going to the limit
Electrical and Instruments works:
• HV equipment installation (MVD, VSD, switchgears)
• HT Systems installation
• Lighting, lightning, earthing installation
• WHCP installation / modification
• Infield devices installation
• F&G detectors installation
14Construction Services / TVX – Moscow Russia

15. 15

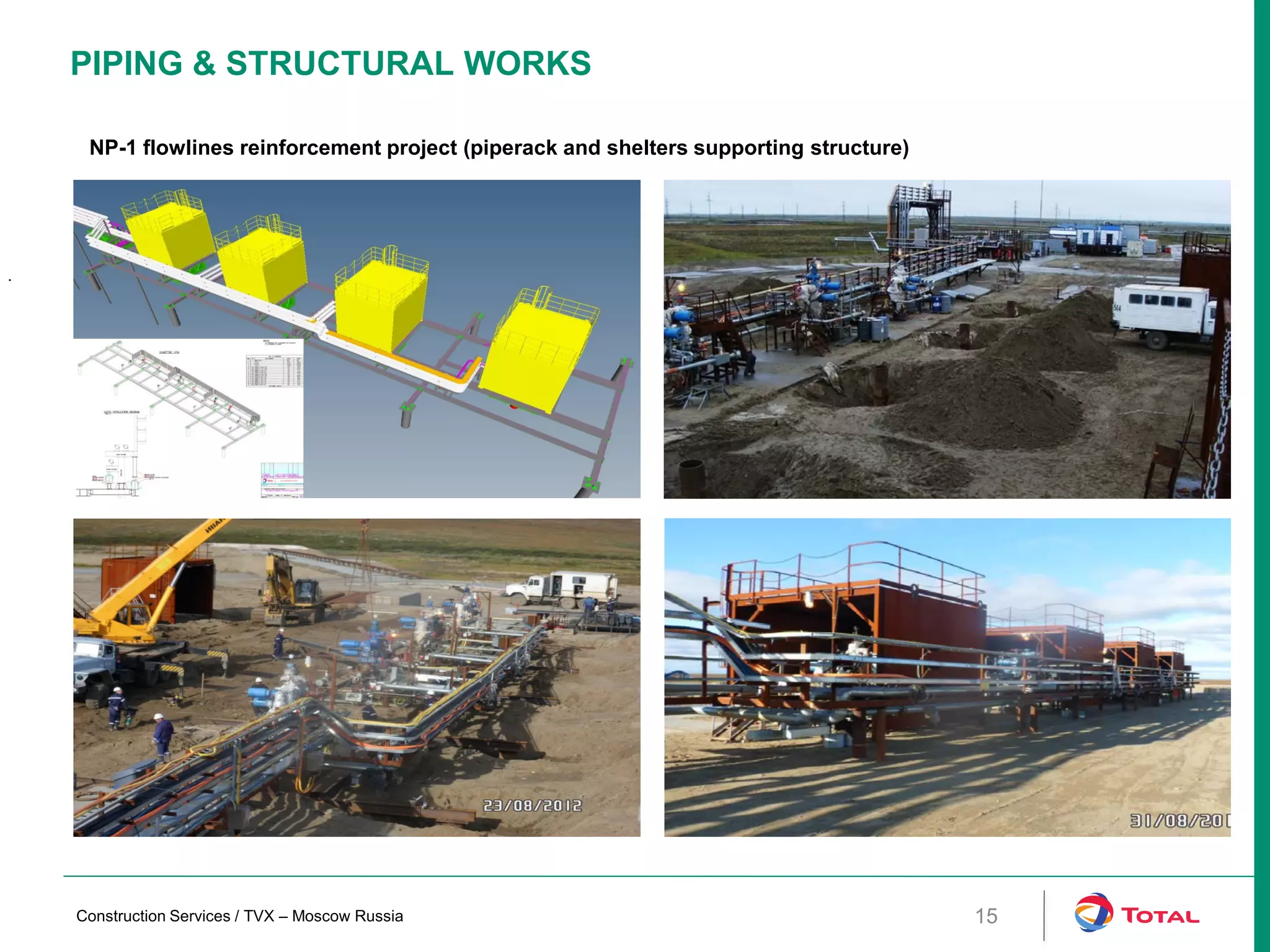

PIPING & STRUCTURAL WORKS
NP-1 flowlines reinforcement project (piperack and shelters supporting structure)
Construction Services / TVX – Moscow Russia

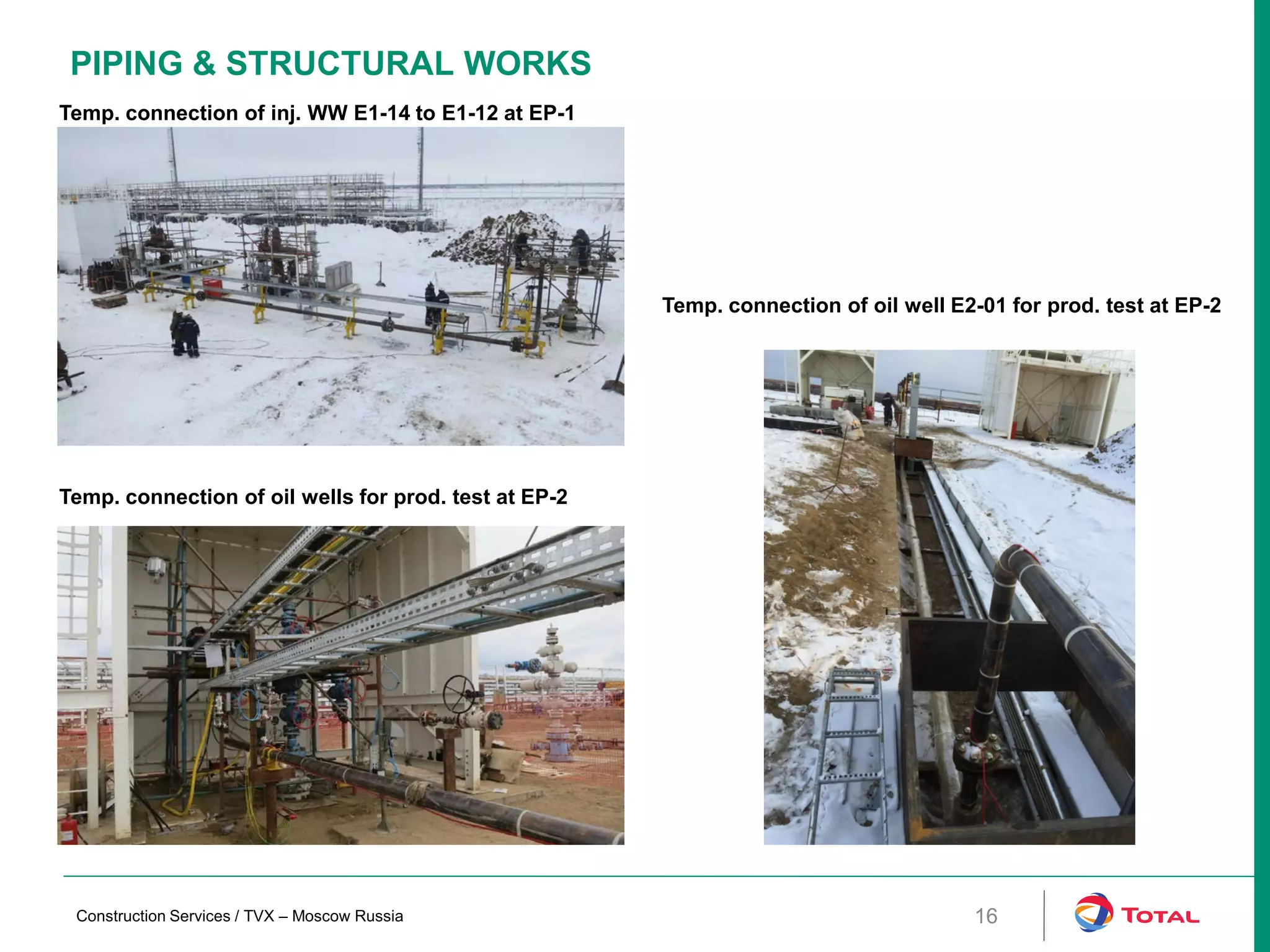

16. PIPING & STRUCTURAL WORKS
16
Temp. connection of inj. WW E1-14 to E1-12 at EP-1
Construction Services / TVX – Moscow Russia
Temp. connection of oil wells for prod. test at EP-2
Temp. connection of oil well E2-01 for prod. test at EP-2

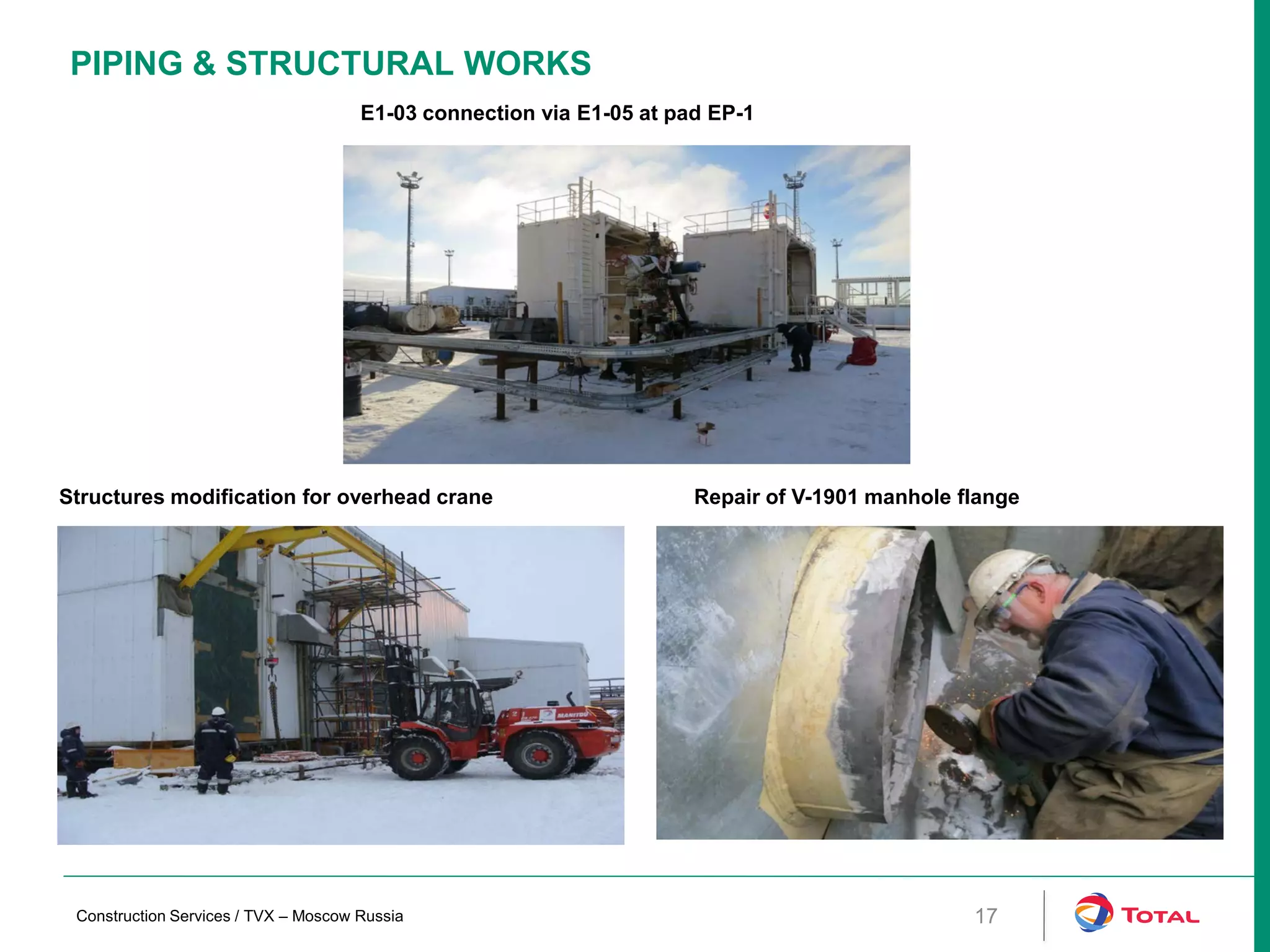

17. PIPING & STRUCTURAL WORKS
17
E1-03 connection via E1-05 at pad EP-1
Construction Services / TVX – Moscow Russia
Structures modification for overhead crane Repair of V-1901 manhole flange

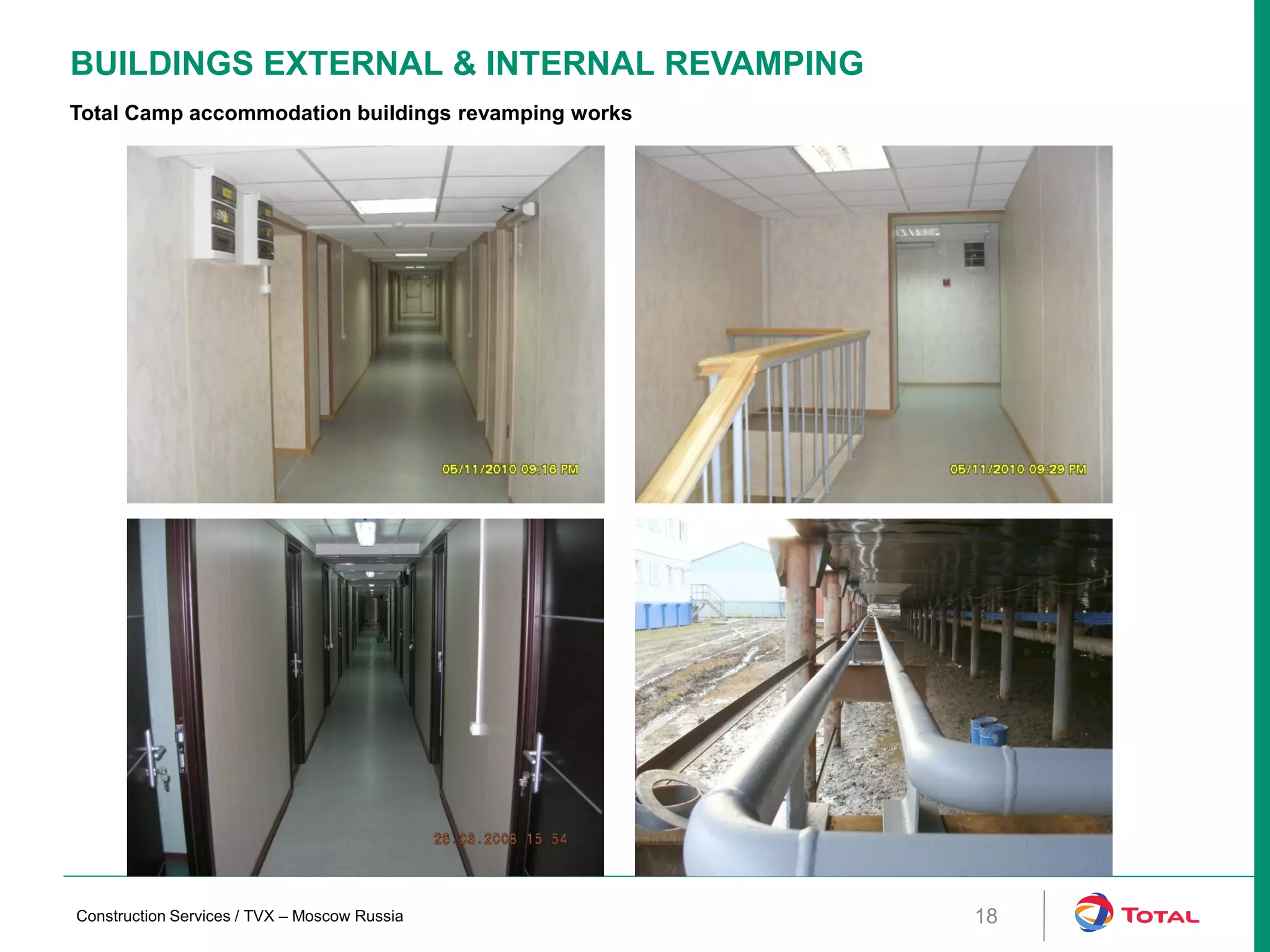

18. BUILDINGS EXTERNAL & INTERNAL REVAMPING
18
Total Camp accommodation buildings revamping works
Construction Services / TVX – Moscow Russia

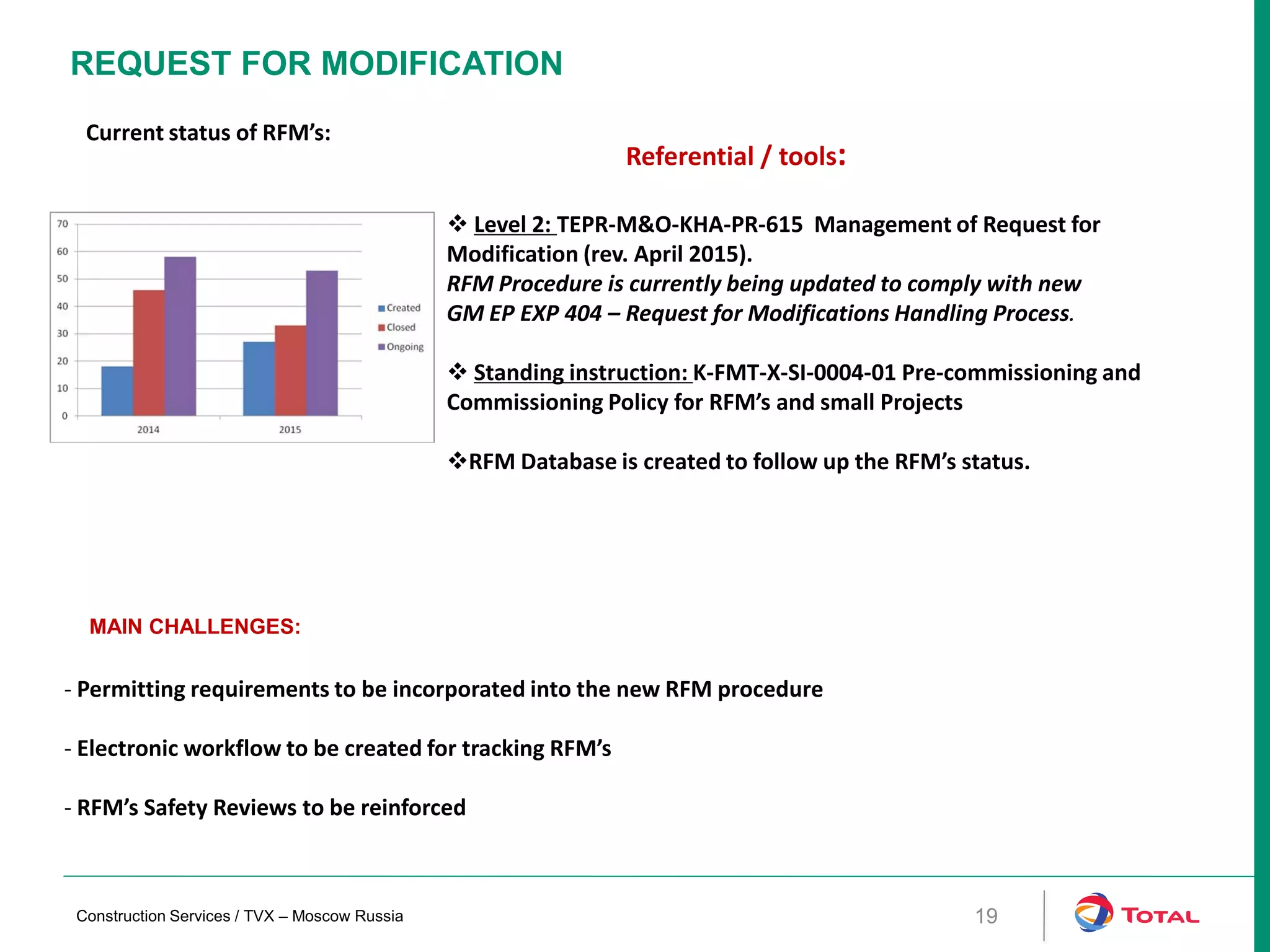

19. REQUEST FOR MODIFICATION
19
- Permitting requirements to be incorporated into the new RFM procedure
- Electronic workflow to be created for tracking RFM’s
- RFM’s Safety Reviews to be reinforced
 Level 2: TEPR-M&O-KHA-PR-615 Management of Request for
Modification (rev. April 2015).
RFM Procedure is currently being updated to comply with new
GM EP EXP 404 – Request for Modifications Handling Process.
 Standing instruction: K-FMT-X-SI-0004-01 Pre-commissioning and
Commissioning Policy for RFM’s and small Projects
RFM Database is created to follow up the RFM’s status.
MAIN CHALLENGES:
Current status of RFM’s:
Referential / tools:
Construction Services / TVX – Moscow Russia

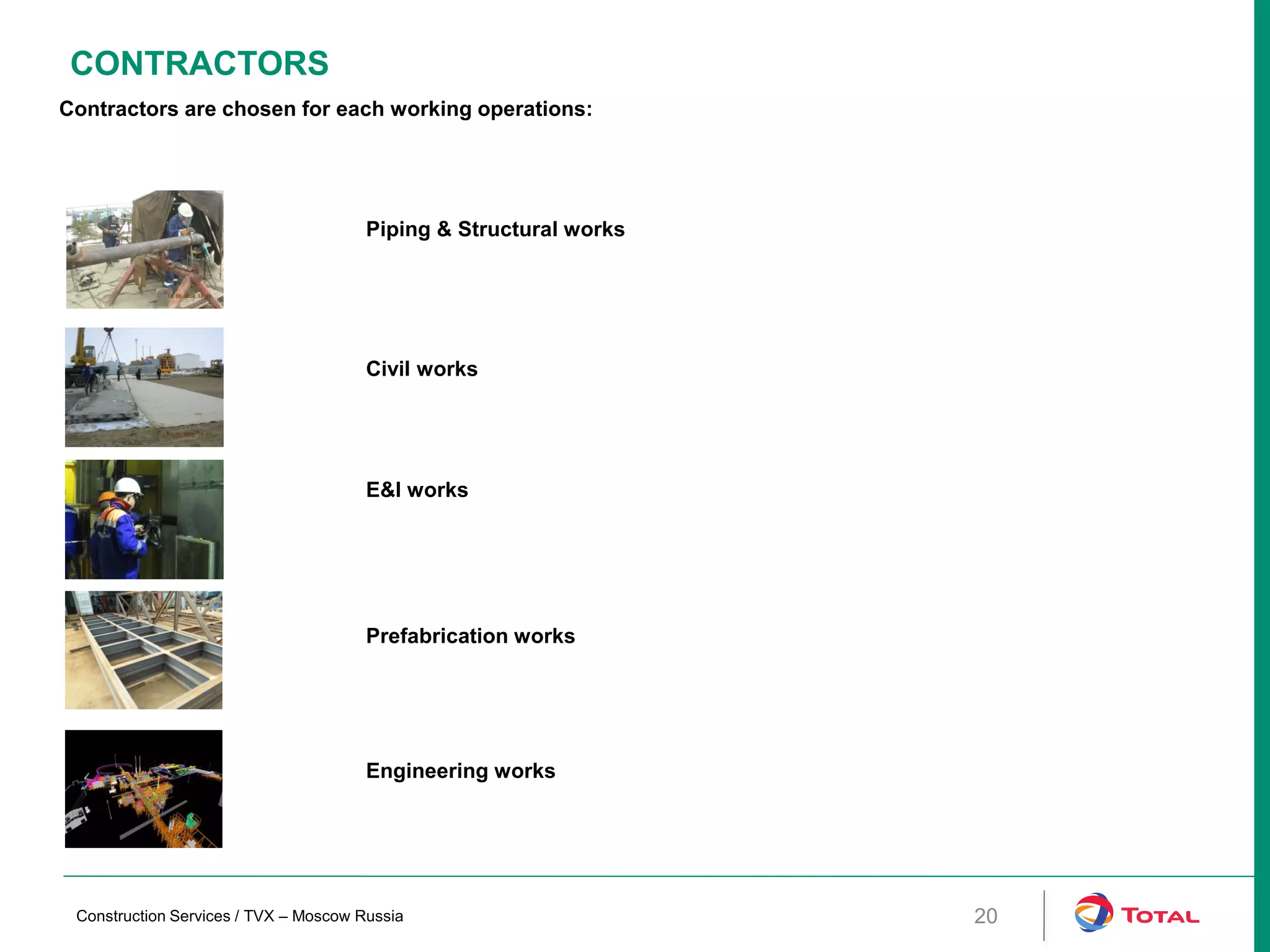

20. CONTRACTORS
20
Contractors are chosen for each working operations:
Piping & Structural works
Civil works
E&I works
Construction Services / TVX – Moscow Russia
Prefabrication works
Engineering works

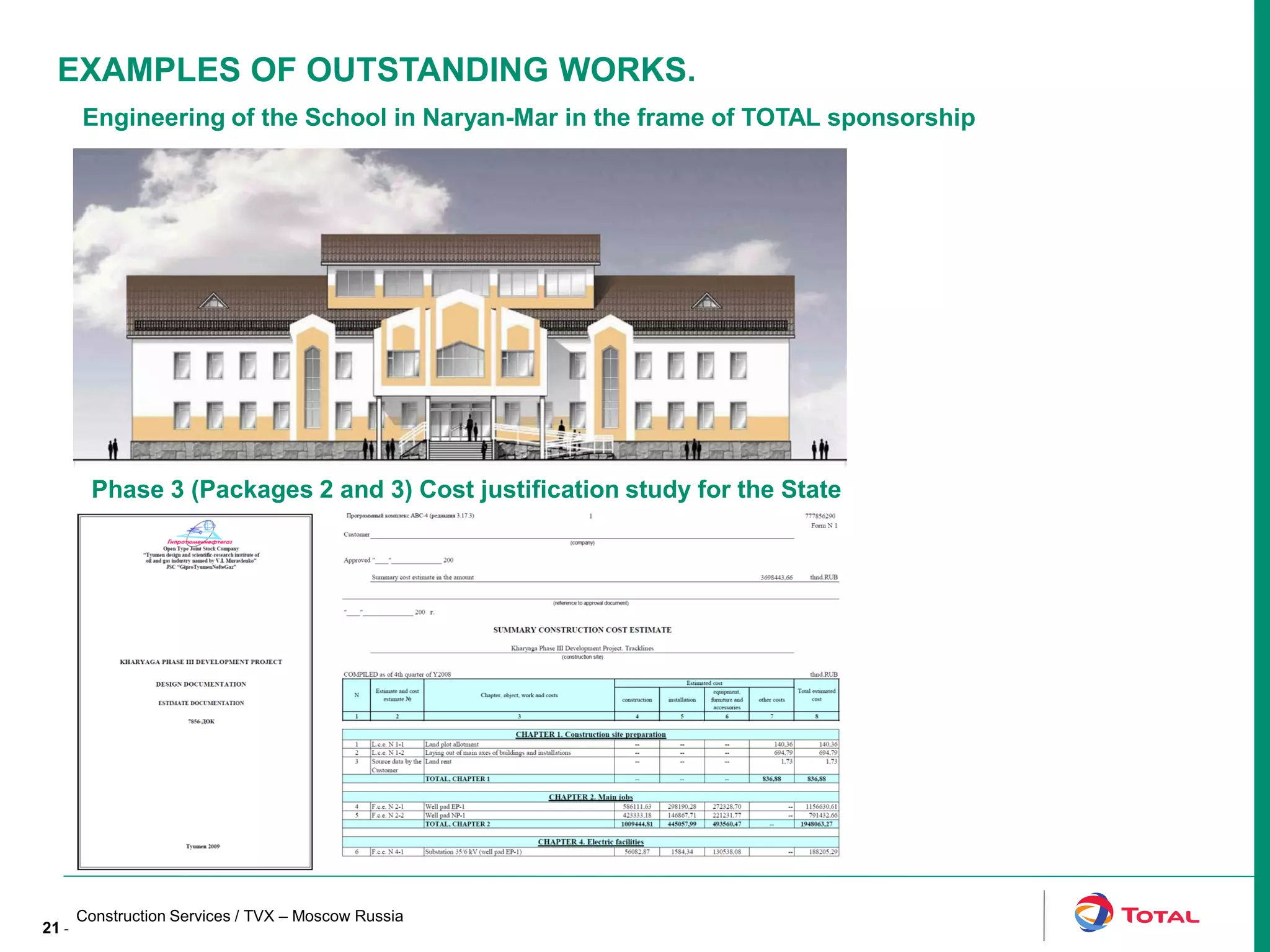

21. 21 -
Engineering of the School in Naryan-Mar in the frame of TOTAL sponsorship
Phase 3 (Packages 2 and 3) Cost justification study for the State
EXAMPLES OF OUTSTANDING WORKS.
Construction Services / TVX – Moscow Russia

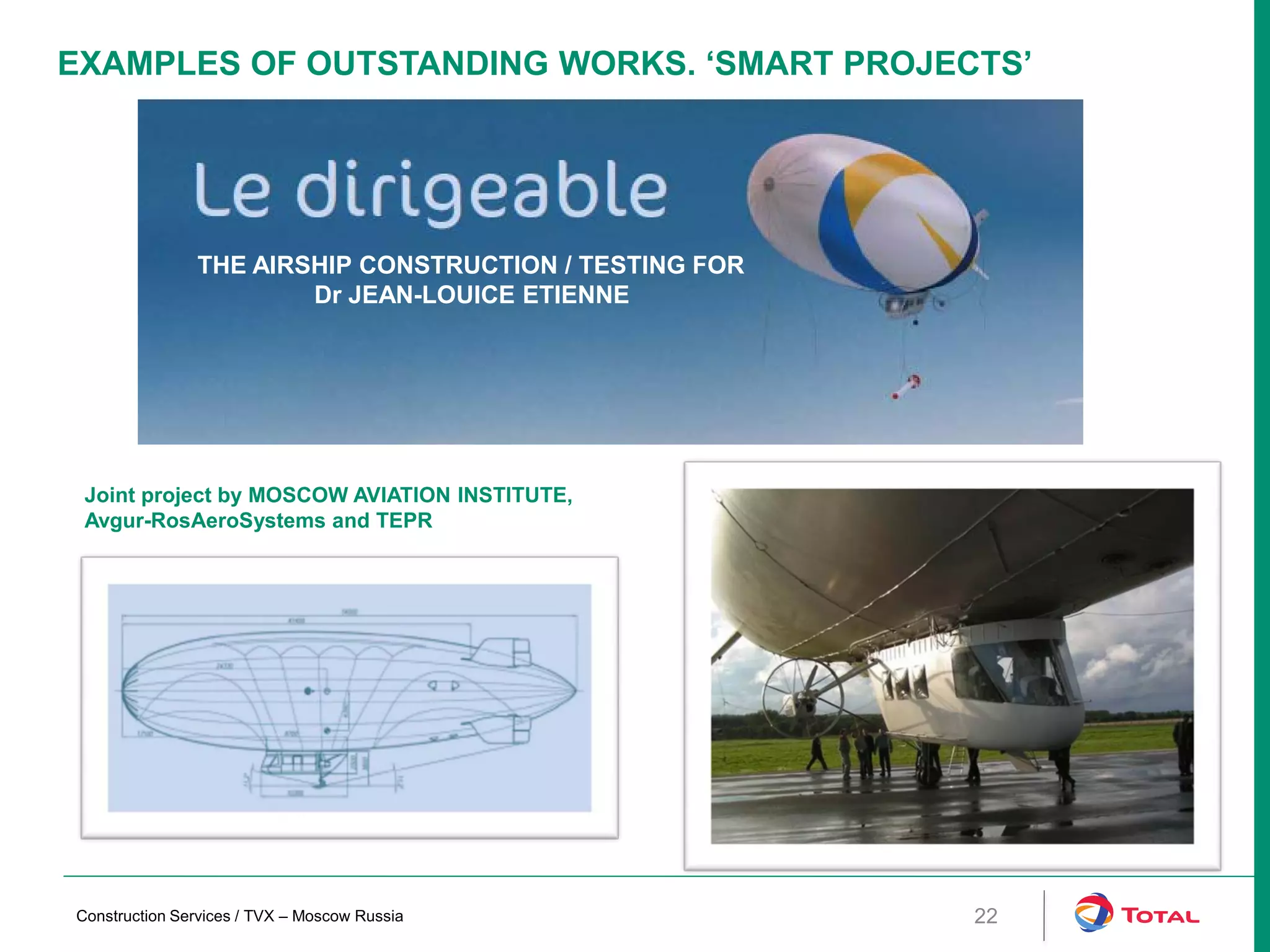

22. EXAMPLES OF OUTSTANDING WORKS. ‘SMART PROJECTS’
THE AIRSHIP CONSTRUCTION / TESTING FOR
Dr JEAN-LOUICE ETIENNE
Joint project by MOSCOW AVIATION INSTITUTE,
Avgur-RosAeroSystems and TEPR
22Construction Services / TVX – Moscow Russia
