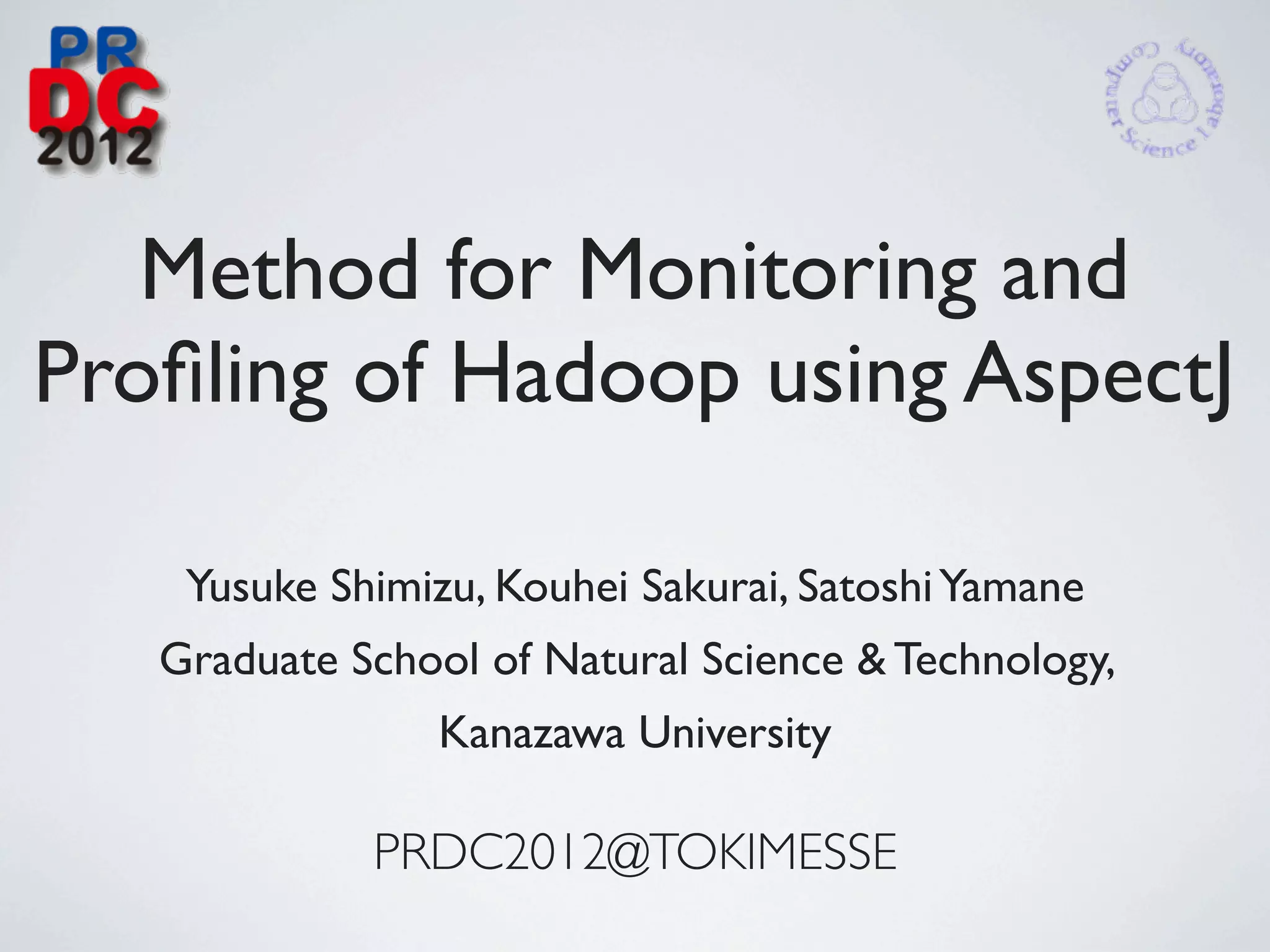

1. Method for Monitoring and
Profiling of Hadoop using AspectJ
Yusuke Shimizu, Kouhei Sakurai, Satoshi Yamane
Graduate School of Natural Science & Technology,
Kanazawa University
PRDC2012@TOKIMESSE

2. Introduction
The use scene of Large-scale Distributed Systems is increasing
Large-scale Distributed System is ...
“Flexible and available architecture for large
scale computation and data processing on a
network of commodity hardware”
[-- P. Julio, 2009]
- e.g. Apache Hadoop

3. For Dependable Distributed System ..
We have to consider
about and deal with ...
Only using advance
- Non-deterministic and static analysis
network or verification
- Fault tolerance is difficult
- Incomprehensible users
We also need runtime monitoring and analysis

4. How to monitor and debug
General method of debugging or monitoring the
Hadoop is ...
• logging text messages
• checking metrics via Web Interfaces, Ganglia, etc..

5. There are difficulties and requirements
General method of debugging or monitoring the
Hadoop is ...
• logging text message
→ Difficulties by a huge number of nodes
• checking metrics via Web Interfaces, Ganglia, etc..
→ For operators, not enough to developers

6. Introduction
Proposal
1. The Method Level Monitor
2. The Adaptive Profiling
- Provide effective information for development
- Help developers to understand system behaviors
and specifications

7. Outline of Talk
Introduction
- Distributed system’s difficulty
Proposal
- Monitor
- Profile Method
Experimental Results & Conclusion

8. 2. PROPOSALS
The Runtime Monitor
&
The Adaptive Profiling Method

9. Outline of Proposed System
Hadoop Monitor Profile
•MapReduce Record Trace Count up
using AspectJ frequency
•HDFS
of
•RPC instruction

10. Monitor
• observe the system behavior at runtime
• logging executed instructions passively = make “Trace”
‣ using AspectJ
- “AspectJ is implementation of “Aspect
Oriented Programming” using Java “
‣ no modification is needed to applications

11. Architecture of Hadoop & Monitor
Master
Name Job Slaves
Node Tracker
Map Map
Data Reduce Data Reduce
Blocks Blocks
Monitor
Data Task Data Task
Node Tracker Node Tracker
RPC
RPC
Monitor Monitor

12. Architecture of Hadoop & Monitor
Master
Name Job Slaves
Node Tracker
Map Map
Data Reduce Data Reduce
Blocks Blocks
Monitor
Data Task Data Task
Node Tracker Node Tracker
RPC
RPC
Monitor Monitor

13. Architecture of Hadoop & Monitor
Master
Name Job Slaves
Node Tracker
Map Map
Data Reduce Data Reduce
Blocks Blocks
Monitor
Data Task Data Task
Node Tracker Node Tracker
RPC
RPC
Monitor Monitor
Master’s Trace Slaves’ Trace
‣NameNode Trace ‣DataNode Trace
‣JobTracker Trace ‣TaskTracker Trace
‣RPC Trace ‣RPC Trace

14. Method of Profiling
• based on frequency of instructions
• count up instructions involved in “Trace”
• count up on each grain
➡ each node
➡ each process
➡ each method

15. Outline of Talk
Introduction
- Distributed system’s difficulty
Proposal
- Monitor
- Profile Method
Experimental Results & Conclusion

16. 3. EXPERIMENT
Benchmark on the impact of the Monitor
&
do Profiling
&
Visualize the profiling results

17. Benchmark - the impact of Monitor
Throughput [MB/sec] = Data size / Elapsed time
Data size Elapsed time Throughput Trace size
Monitor
[GB] [sec] [MB/sec] [MB]
1 ⃝ 2m 25s (145sec) 6.9 2.4
84.1%
1 × 2m 2s (122s) 8.2 0
10 ⃝ 8m 45s (525sec) 19.0 3.6
88.3%
10 × 7m 45s (465sec) 21.5 0
1h 21m 54s
100 ⃝ 20.4 31.6
96.2%
(4,914sec)
1h 18m 37s
100 × 21.2 0
(4,717sec)
use “terasort” - a sample sorting program using MapReduce
Trace size increase by 6.43 KB/sec

18. A Part of Profiling
the statistics of the last 10 seconds, about master
Tue Nov 13 12:30:08 JST 2012
from 1352777408766 until 10000 after
HOSTNAME ::> DAEMON & PROCESS = { METHODS }
--------------------------
sirius:177 ::>>
[namenodetrace : 23, jobtrackertrace : 41, datanodetrace : 0,
tasktrackertrace : 0, rpctrace : 113]
={
! hdfs.server.namenode.CorruptReplicasMap.numCorruptReplicas=5
! hdfs.server.namenode.FSNamesystem.getBlockLocations=3
! hdfs.server.namenode.FSNamesystem.getDatanode=1
! hdfs.server.namenode.NameNode.getBlockLocations=4
! hdfs.server.namenode.NameNode.getFileInfo=2
! hdfs.server.namenode.NameNode.sendHeartbeat=2
! hdfs.server.namenode.NameNode.verifyVersion=3
! hdfs.server.namenode.UnderReplicatedBlocks.BlockIterator.hasNext=2
! hdfs.server.namenode.UnderReplicatedBlocks.BlockIterator.next=1
! ipc.Client.Connection.PingInputStream.read=4
! ipc.Client.Connection.sendParam=2
! ipc.Client.call=1
! ipc.ConnectionHeader.readFields=4

19. Node Level Profiling
Node Level Profiling is
-- profiling by aggregating frequencies of
instruction within each node for per unit
time.
800
192.168.1.10 192.168.1.11
number
of
occurrences
640
192.168.1.12 192.168.1.13
192.168.1.14 192.168.1.15
480
320
160
0
time(s) 6420

20. Process Level Profiling about MASTER
Process Level Profiling is
-- profiling by aggregating frequencies of instruction of each process
within each node for per unit time.
Master
400
rpc
number
of
occurrences
300 jobtracker
namenode
200
100
0
6420
time(s)

21. Process Level Profiling about Slaves
192.168.1.11
200
number
of
occurrences
rpctrace
150 tasktrackertrace
datanodetrace
100
50
0
6420 time(s)
Map phase Reduce phase
192.168.1.12 192.168.1.13
There are free resouces.
200
150
150
113
should do
100 75 speculative executions.
50 38
192.168.1.14 192.168.1.15
200 200
150
100
150
100
Imbalance of RPC
50 50

22. Conclusion
summary
• Proposal
- the lightweight method-level monitor using AspectJ
- the profiling method based on frequency of instruction
• Provide effective information for development
• Help developers to understand system behaviors and
specifications
future work
• Create an algorithm for determining the degree of deviation
using a profiling results indicate the possibility of failure.

23. Thank you for your kind attention
