1. A Practical Approach
A Practical Approach
to Strategic Risk Management
to Strategic Risk Management
Part One of a three-part Strategic Risk Management training program
Katharine Hullinger, ARM
Risk Manager
California State University Channel Islands
Revised 3/13/2018
Part One
Part One

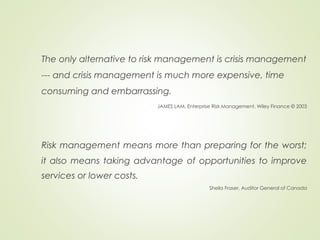

2. The only alternative to risk management is crisis management
--- and crisis management is much more expensive, time
consuming and embarrassing.
JAMES LAM, Enterprise Risk Management, Wiley Finance © 2003
Risk management means more than preparing for the worst;
it also means taking advantage of opportunities to improve
services or lower costs.
Sheila Fraser, Auditor General of Canada

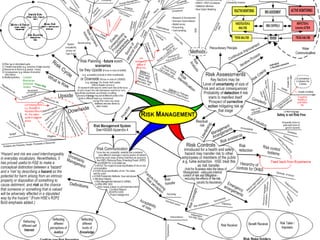

3. Keep it simple
3

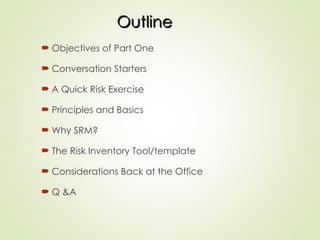

5. Outline
Outline
 Objectives of Part One
 Conversation Starters
 A Quick Risk Exercise
 Principles and Basics
 Why SRM?
 The Risk Inventory Tool/template
 Considerations Back at the Office
 Q &A

6. A Practical Approach to Strategic Risk Management (SRM)
A Practical Approach to Strategic Risk Management (SRM)
Training
Components
Introduction to SRM Participant Outcomes
Introduction to the risk
management process and
terminologies
Introduction to the SRM
framework
Introduction to Risk Assessments
Discuss best way to
implementation SRM in work
area
Clarify roles & responsibilities for
SRM
 Understanding of risk management
process
 Understanding of how risk management
is already incorporated in day-to-day
work
 Understanding the reasons for SRM
 SRM roles and responsibilities clearly
defined
 Awareness of SRM tools
 Commitment to SRM implementation in
area of work
 Commitment to continuous risk
communication & learning

7.  Who is accountable for risks?
 How do we talk about risk? Do we have a
common language in the department, across
divisions, across the campus, across the CSU?
 Are we taking too much risk? Or not enough?
 Are the right people taking the right risks at the
right time?
 What’s our risk culture? Are we risk-adverse, risk-
takers, or somewhere in between?
Conversation Starters
Conversation Starters

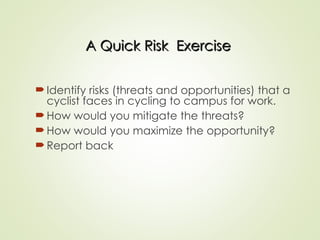

8. A Quick Risk Exercise
A Quick Risk Exercise
Identify risks (threats and opportunities) that a
cyclist faces in cycling to campus for work.
How would you mitigate the threats?
How would you maximize the opportunity?
Report back

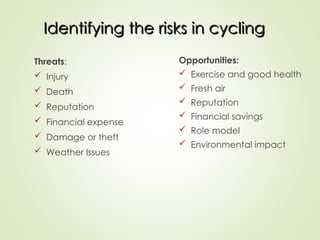

9. Identifying the risks in cycling
Identifying the risks in cycling
Threats:
 Injury
 Death
 Reputation
 Financial expense
 Damage or theft
 Weather Issues
Opportunities:
 Exercise and good health
 Fresh air
 Reputation
 Financial savings
 Role model
 Environmental impact

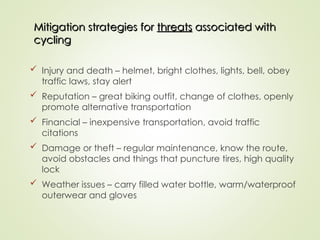

10. Mitigation strategies for
Mitigation strategies for threats
threats associated with
associated with
cycling
cycling
 Injury and death – helmet, bright clothes, lights, bell, obey
traffic laws, stay alert
 Reputation – great biking outfit, change of clothes, openly
promote alternative transportation
 Financial – inexpensive transportation, avoid traffic
citations
 Damage or theft – regular maintenance, know the route,
avoid obstacles and things that puncture tires, high quality
lock
 Weather issues – carry filled water bottle, warm/waterproof
outerwear and gloves

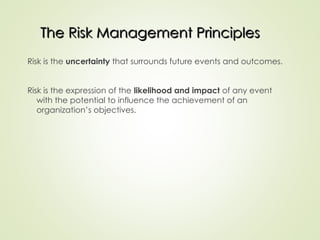

11. The Risk Management Principles
The Risk Management Principles
Risk is the uncertainty that surrounds future events and outcomes.
Risk is the expression of the likelihood and impact of any event
with the potential to influence the achievement of an
organization’s objectives.

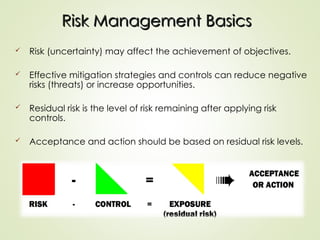

12. Risk Management Basics
Risk Management Basics
 Risk (uncertainty) may affect the achievement of objectives.
 Effective mitigation strategies and controls can reduce negative
risks (threats) or increase opportunities.
 Residual risk is the level of risk remaining after applying risk
controls.
 Acceptance and action should be based on residual risk levels.

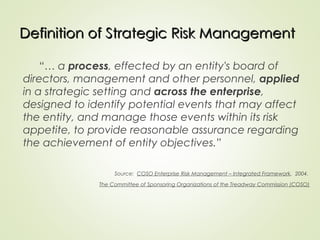

13. Definition of Strategic Risk Management
Definition of Strategic Risk Management
“… a process, effected by an entity's board of
directors, management and other personnel, applied
in a strategic setting and across the enterprise,
designed to identify potential events that may affect
the entity, and manage those events within its risk
appetite, to provide reasonable assurance regarding
the achievement of entity objectives.”
Source: COSO Enterprise Risk Management – Integrated Framework. 2004.
The Committee of Sponsoring Organizations of the Treadway Commission (COSO)

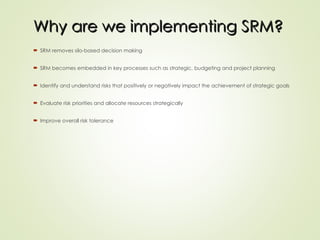

14.  SRM removes silo-based decision making
 SRM becomes embedded in key processes such as strategic, budgeting and project planning
 Identify and understand risks that positively or negatively impact the achievement of strategic goals
 Evaluate risk priorities and allocate resources strategically
 Improve overall risk tolerance
Why are we implementing SRM?
Why are we implementing SRM?

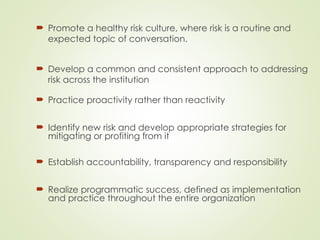

15.  Practice proactivity rather than reactivity
 Identify new risk and develop appropriate strategies for
mitigating or profiting from it
 Establish accountability, transparency and responsibility
 Realize programmatic success, defined as implementation
and practice throughout the entire organization
 Promote a healthy risk culture, where risk is a routine and
expected topic of conversation.
 Develop a common and consistent approach to addressing
risk across the institution

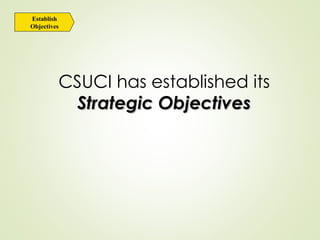

16. CSUCI has established its
Strategic Objectives
Strategic Objectives
Establish
Objectives

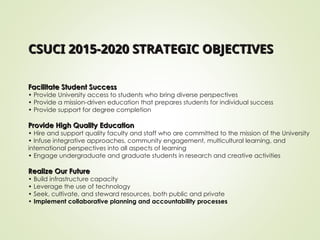

17. CSUCI 2015-2020 STRATEGIC OBJECTIVES
CSUCI 2015-2020 STRATEGIC OBJECTIVES
Facilitate Student Success
Facilitate Student Success
• Provide University access to students who bring diverse perspectives
• Provide a mission-driven education that prepares students for individual success
• Provide support for degree completion
Provide High Quality Education
Provide High Quality Education
• Hire and support quality faculty and staff who are committed to the mission of the University
• Infuse integrative approaches, community engagement, multicultural learning, and
international perspectives into all aspects of learning
• Engage undergraduate and graduate students in research and creative activities
Realize Our Future
Realize Our Future
• Build infrastructure capacity
• Leverage the use of technology
• Seek, cultivate, and steward resources, both public and private
• Implement collaborative planning and accountability processes

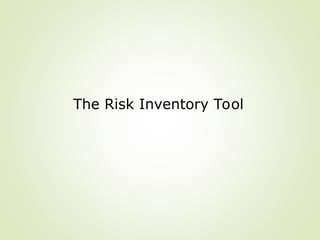

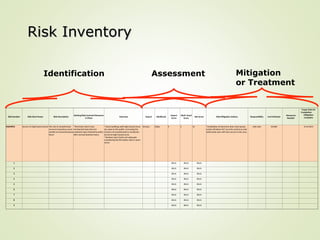

18. The Risk Inventory Tool

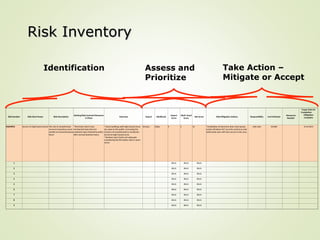

19. Risk Number Risk Short Name Risk Description
Existing Risk Controls/Measures
in Place
Outcome Impact Likelihood
Impact
Score
Likeli- hood
Score
Net Score Risk Mitigation Actions Responsibility Cost Estimate
Resources
Needed
Target Date for
Completion
Mitigation
Complete
EXAMPLE Access To High Hazard Areas The risk of unauthorized
access to hazardous areas
outside of normal business
hours
*Perimeter doors have
mechanical locks that are
randomly spot checked by police
after normal business hours.
*Some buildings with high hazard areas
are open to the public, increasing the
chances of unauthorized or accidental
access to high hazard areas
*Random spot checks not adequate
considering the life/safety risks in some
areas.
Serious Likely 4 3 12 *Installation of electronic door locks (proxy
cards) will allow 24/7 security control as only
authorized users will have access to the area.
John Doe $3,000 3/14/2015
1 #N/A #N/A #N/A
2 #N/A #N/A #N/A
3 #N/A #N/A #N/A
4 #N/A #N/A #N/A
5 #N/A #N/A #N/A
6 #N/A #N/A #N/A
7 #N/A #N/A #N/A
8 #N/A #N/A #N/A
9 #N/A #N/A #N/A
Identification Assess and
Prioritize
Take Action –
Mitigate or Accept
Risk Inventory
Risk Inventory

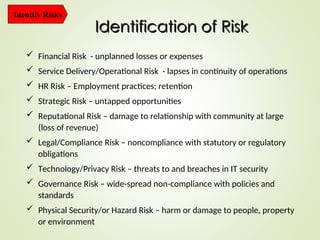

20. Identification of Risk
Identification of Risk
Identify Risks
 Financial Risk - unplanned losses or expenses
 Service Delivery/Operational Risk - lapses in continuity of operations
 HR Risk – Employment practices; retention
 Strategic Risk – untapped opportunities
 Reputational Risk – damage to relationship with community at large
(loss of revenue)
 Legal/Compliance Risk – noncompliance with statutory or regulatory
obligations
 Technology/Privacy Risk – threats to and breaches in IT security
 Governance Risk – wide-spread non-compliance with policies and
standards
 Physical Security/or Hazard Risk – harm or damage to people, property
or environment

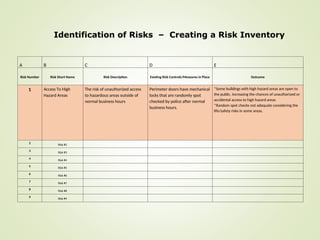

21. A B C D E
Risk Number Risk Short Name Risk Description Existing Risk Controls/Measures in Place Outcome
1 Access To High
Hazard Areas
The risk of unauthorized access
to hazardous areas outside of
normal business hours
Perimeter doors have mechanical
locks that are randomly spot
checked by police after normal
business hours.
*Some buildings with high hazard areas are open to
the public, increasing the chances of unauthorized or
accidental access to high hazard areas
*Random spot checks not adequate considering the
life/safety risks in some areas.
2
Risk #2
3
Risk #3
4
Risk #4
5 Risk #5
6 Risk #6
7
Risk #7
8
Risk #8
9
Risk #9
Identification of Risks – Creating a Risk Inventory

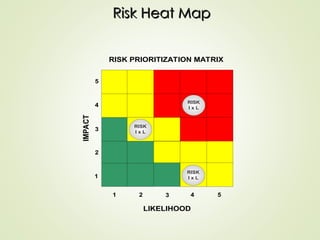

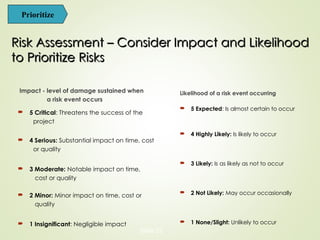

22. Risk Assessment – Consider Impact and Likelihood
Risk Assessment – Consider Impact and Likelihood
to Prioritize Risks
to Prioritize Risks
Likelihood of a risk event occurring
 5 Expected: Is almost certain to occur
 4 Highly Likely: Is likely to occur
 3 Likely: Is as likely as not to occur
 2 Not Likely: May occur occasionally
 1 None/Slight: Unlikely to occur
Impact - level of damage sustained when
a risk event occurs
 5 Critical: Threatens the success of the
project
 4 Serious: Substantial impact on time, cost
or quality
 3 Moderate: Notable impact on time,
cost or quality
 2 Minor: Minor impact on time, cost or
quality
 1 Insignificant: Negligible impact
Slide 22
Prioritize

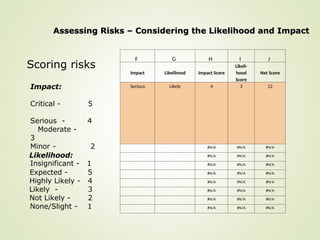

23. F G H I J
Impact Likelihood Impact Score
Likeli-
hood
Score
Net Score
Serious Likely 4 3 12
#N/A #N/A #N/A
#N/A #N/A #N/A
#N/A #N/A #N/A
#N/A #N/A #N/A
#N/A #N/A #N/A
#N/A #N/A #N/A
#N/A #N/A #N/A
#N/A #N/A #N/A
Assessing Risks – Considering the Likelihood and Impact
Assessing Risks – Considering the Likelihood and Impact
Scoring risks
Impact:
Critical - 5
Serious - 4
Moderate -
3
Minor - 2
Insignificant - 1
Likelihood:
Expected - 5
Highly Likely - 4
Likely - 3
Not Likely - 2
None/Slight - 1

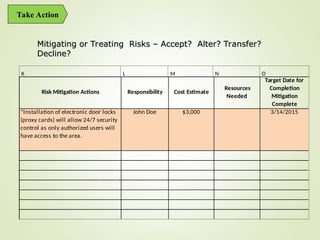

24. Risk Mitigation Actions Responsibility Cost Estimate
Resources
Needed
Target Date for
Completion
Mitigation
Complete
*Installation of electronic door locks
(proxy cards) will allow 24/7 security
control as only authorized users will
have access to the area.
John Doe $3,000 3/14/2015
Mitigating or Treating Risks – Accept? Alter? Transfer?
Mitigating or Treating Risks – Accept? Alter? Transfer?
Decline?
Decline?
K L M N O
Take Action

25. Risk Number Risk Short Name Risk Description
Existing Risk Controls/Measures
in Place
Outcome Impact Likelihood
Impact
Score
Likeli- hood
Score
Net Score Risk Mitigation Actions Responsibility Cost Estimate
Resources
Needed
Target Date for
Completion
Mitigation
Complete
EXAMPLE Access To High Hazard Areas The risk of unauthorized
access to hazardous areas
outside of normal business
hours
*Perimeter doors have
mechanical locks that are
randomly spot checked by police
after normal business hours.
*Some buildings with high hazard areas
are open to the public, increasing the
chances of unauthorized or accidental
access to high hazard areas
*Random spot checks not adequate
considering the life/safety risks in some
areas.
Serious Likely 4 3 12 *Installation of electronic door locks (proxy
cards) will allow 24/7 security control as only
authorized users will have access to the area.
John Doe $3,000 3/14/2015
1 #N/A #N/A #N/A
2 #N/A #N/A #N/A
3 #N/A #N/A #N/A
4 #N/A #N/A #N/A
5 #N/A #N/A #N/A
6 #N/A #N/A #N/A
7 #N/A #N/A #N/A
8 #N/A #N/A #N/A
9 #N/A #N/A #N/A
Identification Assessment Mitigation
or Treatment
Risk Inventory
Risk Inventory

26. Risk Heat Map
Risk Heat Map
LIKELIHOOD
IMPACT
1
1
2
2
3
3
4
4
5
5
RISK
I x L
RISK
I x L
RISK
I x L
RISK PRIORITIZATION MATRIX

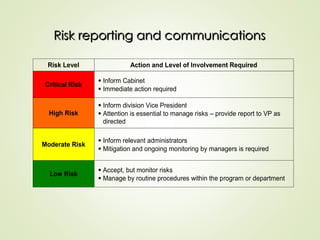

27. Risk Level Action and Level of Involvement Required
Critical Risk
 Inform Cabinet
 Immediate action required
High Risk
 Inform division Vice President
 Attention is essential to manage risks – provide report to VP as
directed
Moderate Risk
 Inform relevant administrators
 Mitigation and ongoing monitoring by managers is required
Low Risk
 Accept, but monitor risks
 Manage by routine procedures within the program or department
Risk reporting and communications
Risk reporting and communications

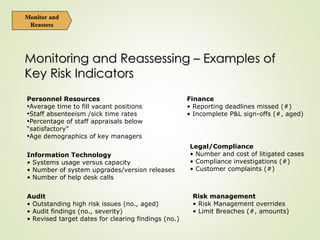

28. Personnel Resources
•Average time to fill vacant positions
•Staff absenteeism /sick time rates
•Percentage of staff appraisals below
“satisfactory”
•Age demographics of key managers
Information Technology
• Systems usage versus capacity
• Number of system upgrades/version releases
• Number of help desk calls
Finance
• Reporting deadlines missed (#)
• Incomplete P&L sign-offs (#, aged)
Legal/Compliance
• Number and cost of litigated cases
• Compliance investigations (#)
• Customer complaints (#)
Audit
• Outstanding high risk issues (no., aged)
• Audit findings (no., severity)
• Revised target dates for clearing findings (no.)
Risk management
• Risk Management overrides
• Limit Breaches (#, amounts)
Monitoring and Reassessing – Examples of
Monitoring and Reassessing – Examples of
Key Risk Indicators
Key Risk Indicators
Monitor and
Reassess

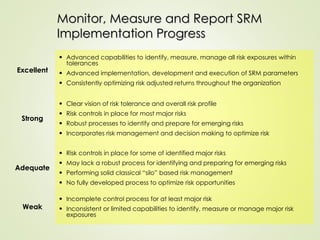

29. Excellent
• Advanced capabilities to identify, measure, manage all risk exposures within
tolerances
• Advanced implementation, development and execution of SRM parameters
• Consistently optimizing risk adjusted returns throughout the organization
Strong
• Clear vision of risk tolerance and overall risk profile
• Risk controls in place for most major risks
• Robust processes to identify and prepare for emerging risks
• Incorporates risk management and decision making to optimize risk
Adequate
• Risk controls in place for some of identified major risks
• May lack a robust process for identifying and preparing for emerging risks
• Performing solid classical “silo” based risk management
• No fully developed process to optimize risk opportunities
Weak
• Incomplete control process for at least major risk
• Inconsistent or limited capabilities to identify, measure or manage major risk
exposures
Monitor, Measure and Report SRM
Monitor, Measure and Report SRM
Implementation Progress
Implementation Progress

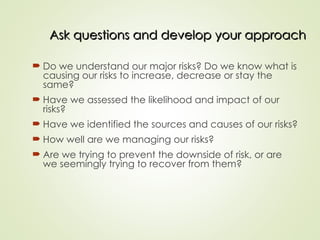

31. Ask questions and develop your approach
Ask questions and develop your approach
 Do we understand our major risks? Do we know what is
causing our risks to increase, decrease or stay the
same?
 Have we assessed the likelihood and impact of our
risks?
 Have we identified the sources and causes of our risks?
 How well are we managing our risks?
 Are we trying to prevent the downside of risk, or are
we seemingly trying to recover from them?

32. Considerations back a
Considerations back at the office
t the office
 Why is the organization interested in SRM? What are we
hoping will be achieved with its implementation?
 Who is doing what? Roles and responsibilities must be
clearly defined. Leadership must support SRM and use SRM
results to when making decisions. Everyone is a risk
manager. Make sure that all risks have owners and the
responsibilities for mitigation are assigned.
 How will it be implemented? What is your framework? How
will risks be measured and reported? Who is your
champion?
 Where will you start? Where you can most easily succeed,
or where it is needed the most?
 When will it be implemented? SRM is a journey, not a
destination; risks should be continually assessed and
mitigation methods re-considered. Change is inevitable;
recognize new risks and opportunities.

33. Questions?
Questions?
Thank you for participating!
Thank you for participating!
