EDIXEON provides parking guidance systems and intelligent electronics. It was established in 2006 and has over 120 employees across engineering, marketing, production, and quality control teams. The EDIXEON Parking Guidance System uses ultrasonic sensors, bay indicators, data collectors, and management software to monitor parking availability, provide guidance to drivers, and analyze parking statistics. Installation involves designing wiring layouts, installing sensors above each bay and indicators at the front of bays, connecting components to data collectors, and configuring the system using software.

1. LOGO
EDIXEON Introduction

2. 1 EDIXEON Company Profile
2 EDIXEON -PGS
4

4. Company Introduction
Established in 2006
More than 120 on-line worker
8 experienced engineering team:
Monthly production capacity: 100,000 units
Setup: LED Lighting division; Intelligent electronics division a final
product working shop (Xinjin Cheng Electronics Co.,ltd)
A Long Term OEM Partner (electronics factory)
ISO 9001 Certified Enterprise
CE and RoHS approved
Turnover in 2009: USD 2.7 million
Expected turnover this year : USD 5 million, while hopefully
reaching USD5.5 million
Company policy: Be a Win-win business partner and help the client
grow up together
Our aims: Strive to be an energy-saving pioneer.

5. Company Structure
Board of Director
General Manager
Administration Centre R&D Centre Marketing Dept Production Centre
Executive Dept Product Technology Dept Lighting Dept Quality Control Dept
Financial Dept Testing Dept Foreign Sales Production Dept 1
Human Resource Local Sales Production Dept 2
Purchase Dept Technical Support
Warehouse Intelligent Electronics Dept
Foreign Sales
Local Sales
Technical Support

6. CE Certificate

8. Working Principle and Component

9. PGS Primary Functions
Function Highlights
Parking Lot Availability Accounting
Smart Guidance System
Graphical Management to the Parking Lot
Statistical Management to the Parking Lot
Statistics Report
Self-Diagnose Function

10. Return of Investment (ROI)
Mitigate congestion inside and outside the Parking Lot.
Increase the desirability of the Parking Lot.
Improve the image of the Parking Lot.

12. Features of Sensor
Features
a) Detects the bay 2 times every second
b) False detecting-proofed function--avoiding false detection to adjacent
spaces
c) Sensor and indicating light integration design
Ultrasonic Sensor(US02)
d) Low working voltage(24V)
e) Two detecting methods--detecting car or detecting ground
d) Power input protection
e) High safety

13. EDIXEON-PGS- Parking Lot Indicating Light
Introduction
a) Indicating Light is controlled by the ultrasonic sensors and displays
synchronous status with the ultrasonic sensor
b) Large-size design; large emitting angle with visable distance of 150m.
c) High brightness built-in LED lamp beads (￠5), 5 green and 5 red.
Parking Lot Indicating Light
Technical Data
Voltage DC5V Current Peak Current 450mA
LED quantity 5R 5G Size 13cm(D)×6cm（H）

14. Contents

15. System Structure
EDIXEON-PGS is made up of ultrasonic sensor, bay indicator, data collector, centre processor, LED
display, management software, cables and switches.

16. Installation Guideline
The installation procedure is as followed:
Pre-installation Stage
A. According to Parking Lot structure to design wiring layouts;
B. According to the wiring layout design to calculate the cable load. And then
define the cable types and quantity.
Installation Stage
A. According to the Wiring Layout Design to do wiring. Then install PGS component
according to System Diagram.
B. PGS component installation (pls refer to Installation Guidance)
C. After component installation, cable checking, power testing, commissioning is
required. Technician will also need to check all the components via software.
Post-installation Stage
A. A component number table and a wiring layout shall be keep into file in case of
future maintenance.

17. Installation Guideline
Sensor Installation Guidance
Installation Site Function Image
Right above the bay Monitor bay occupancy
Installation Procedure
Step 2
Step 1
Step 4 Step 3

18. Installation Guideline
Wiring and Status Light
detector
Status Light
Red Light： Red light indicates the working status of the power.
Yellow Light：Yellow light will be on when the ground is not even
enough for the ultrasonic to detect. In this circumstance, the
detecting mode shall be switched to un-even mode .
(Plsrefer to DIP switch manual)；
Green Light: When an object is detected at a distance beyond 4 meters,
Green light will be on. It’s used to test the detecting ability
of the ultrasonic sensor.
Status Light
Blue Light: Blue light indicates communication status. Every time when
the ultrasonic receive a command, the blue light blinks
Wiring Interface
Interface Terminal
＋： DC24V power input；
GND：Power ground cable interface terminal;
A：Connects to Data collector’s RS485 Can bus A
B：Connects to Data collector’s RS485 Can bus B;
GND：RS485 Can bus ground cable interface terminal；
R: Red Light Power Outlet (5V Output)；
G： Green Light Power Outlet (5V Output);
DIP Switch GND：Signal Light ground cable interface terminal;

19. Installation Guideline
Sensor Configuration
DIP Address Switch and Detecting range Switch
DIP Switch Address Switch
Address Switch(543210）：It’s used to configure address of
ultrasonic sensor
SW Switch
Mode Switch（SW）: It’s used to configured the status light
“2” Switch
Mode Switch（SW）：It’s used to configure detecting mode
of the ultrasonic sensor.
6 7 1 0 Switch Configuration Detecting Distance (meter) Actual Installing Height (meter)
□□□□（0） 1（Reserved） 1.5～2
□□□■（1） 1.5 2～2.5
“6 7 1 0”Switch □□■□（2） 2 2.5～3
Configuration □□■■（3） 2.5 3～3.5
■■□□（4） 2.5 3～3.5
■■□■（5） 3 3.5～4
■■■□（6） 3.5 4～4.5
■■■■（7） 4（Reserved） 4.5～5

20. Installation Guideline
Bay Indicator Installation Guidance
Installation Site Function Image
At the forefront of the bay Indicate space availability
Installation Procudure
Step 1
Step 2
Step 4
Step 3

21. Installation Guideline
Data Collector Installation Guidance
Installation Site Function Image
Nearby its correlated Collects ultrasonic sensor
ultrasonic sensor (depend signal and forward it to
on actual circumstance) centre processor
Wiring Procedure
DIP Switch
Wiring Interface：
Power Input Interface：DC Power input . Please
make sure the polarity is not reversed.
RS485-(2) Interface： This interface is connected to centre
processor’s RS485-(1) interface
RS485-(1) Interface： This interface is connected to
Indicating RS485 Can bus.
Light
Status Light：
Red Light： It indicates the working status of power.
Green Light： It indicates the communication status
of RS485-(1).
Power Input
Interface
RS485-(1)
RS485-(2) Interface
Interface

22. Installation Guideline
Centre Processor Installation Guidance
Installation Site Function Image
Management Centre
(control room) Act as the processing centre
of the whole system
Wiring Procedure
Infrastructure
DIP Address
Serial Port Line
Status
Light Power Input：DC Power. Make sure the polarity is not reversed.
RS485-(2) Interface： This interface connects to the RS232-485 converter
in the PC.
RS485-(1) Interface： This interface connects to the RS485-(2) Can bus.
Power Input RS485-(2)
Interface Status Light：
Interface
Red Light： Red light is the Power Light that indicates the status of power.
RS485-(1) Green Light： Green light is the light that indicates
Interface the communication status of RS485-(1).

23. Installation Guideline
Internal LED Display
Installation Site Function Image
Shall be installed at the Display availability
crossing or driveway of the information and guide
Parking Lot. drivers to available bays.
Installation Procedure

24. Installation Guideline
LED Display Wiring Guidance
MH
NS
Power Input Interface：DC5V input, please make sure the
polarity is not reversed.
RS485-(2) interface：Suspended
RS485-(1) Interface： Connect to data collector’s RS485 –(1)
Can bus.
Status MH：Connect to external LED displays
Light NS：Connect to internal LED displays
Status Light：
Red Light： Red light is the Power Light that indicates the status
of power.
Green Light： Green light is the light that indicates.
the communication status of RS485-(1).
Power Input RS485-(1)
Interface

25. Installation Guideline
Management Software Installation Requirement
Installation Enviroment Function Image
Software Enviroment: Timely display of
•CPU：Intel P above 1.8G parking status
•RAM：more than 1G（necessary） Statistic Function
•hardware：more than 80G Permission
（recommended） Remotely monitor
• screen：17 inch LCD and control the
（necessary） working status of each
•CD ROM（necessary） part of PGS
•USB connection（recommended Repeatedly
Development
）
•Operating system：Windows XP
（necessary）,
•Connector：one piece of PCI bus
cable RS232 COM (male)
•surveillance software: Microsoft
Office Access2003、Excel2003
（necessary）
For software installation, pls refer to software installation guidance.

26. Installation Guideline
Configuration Software
Installation Enviroment Function Image
•CPU：Intel P above 1.8G This software is used to
•RAM：more than 1G（necessary） configure the LED message
and data collector quantity.
•hardware：more than 80G
It can also be used to
（recommended）
observe the system data, and
• screen：17 inch LCD to test system hardware
（necessary） (sensor, data collector, and
•CD ROM（necessary） LED display)
•USB connection（recommended
）
•Operating system：Windows XP
（necessary）,
•Connector：one piece of PCI bus
cable RS232 COM (male)
•surveillance software: Microsoft
Office Access2003、Excel2003
（necessary）
For software installation, pls refer to software installation guidance

28. Routine Maintenance
To make sure a health system, routine inspection is required.
1. Quarterly inspection--dust cleaning. Such maintenance can prevent the component from
being damaged by static.
2. Monthly inspection—component inspection.
a) According to the component manual, user shall inspect component parameter, cable condition (voltage, cable
temperature and aging state), power supply.
b) Use management software to check the working status of the component. If any abnormal is found, pls send
the component back to us for further inspection. Our engineer will then provide a solution in case other
component meets similar problems.
3. Monthly inspection to the PC is required to make sure a healthy enviroment for the management software --PC
antivirus, PC system cleaning. Meanwhile, monthly data backup is also required.
Matters that need attention
Extra protections are also required, such as protection against moisture, corrosion, dust, interference and lightning.

29. Trouble Shooting
Quick solution for the sales agent and engineering company：
Check up the faulty component
Use the management software to check up the site of the faulty component.
Solutions
1. Edixeon engineer diagnose the problem via internet.
2. Replace the faulty component directly.
3. If problem can’t be solved by above measures, on-site assitance will be
provided.

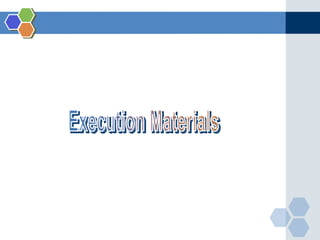

31. Execution Materials
Trunk Line Materials
Cable Tray 50mm*100mm KBG ￠25mm
Power cable and Data cable
RVVP 2*0.75mm RVV 3*0.5mm RVV 2*1.0mm RV 3*2.5mm

32. Execution Materials
Spare Parts
Watertight Cabinet 30cm*50cm Anti-creeping Switch 220V 10-40A
24V 20A and 24V 1A Power

34. Warranty and Service
“Strive to meet customer’s requirement; Answer prompt, Act prompt” Under the guidance of such service concept,
we divide our service into three phases ----Pre-sale, in-sale and after-sale.
1.Pre-sale Service
Service Content --System Introduction and pre-installation technical guidance.
Service Mode --You can propose any questions to our customer service department, If necessary,
on-site guidance would also be provided. (Any charges incurred shall be paid by
customer)
2. Sales service
Service Content --Free on-line technical guidance for any on-going project. If needed, on-site assistance
is available. (Any charges incurred shall be paid by customer)
Service Mode --Free training for products’ installation, setting-up, system operating will be provided. If
you meet any technical problem in the construction, we can by email, telephone etc to
provide guidance; if necessary, our engineer will be assigned to go to your place at very
early time to offer our guidance.

35. Warranty and Service
3. After-sale Service
Service Content --Free on-line technical guidance for any products within or beyond warranty period. If
necessary, on-site guidance will also be provided (charges incurred shall be paid by
customer).
Service Mode –
Technical Guidance
Free technical guidance for any products (within or beyond warranty) will be provided by means of
email, telephone etc. If necessary, on-site guidance will be also provided.
Product Maintenance
Warranty period—Warranty period starts since the delivery date. Service within Warranty Period—If
any component runs into faulty within warranty period, replacement of the component will be free.
Beyond warranty period—For component running into faulty beyond warranty period (or caused by
incorrect installation within warranty period), we will charge the fee of the component replacement
and labor cost.
