The document details the specifications for P-260W polycrystalline silicon solar panels, highlighting their advanced features such as high efficiency, durability, and safety in high-voltage operations. It outlines the product's electrical characteristics, including maximum power and voltage parameters, and provides a 5-year workmanship warranty along with efficiency guarantees over 25 years. Additionally, it emphasizes the innovative design and environmental considerations in the packaging of the solar panels.

1. International T +86 0510-87800566 | wxminyue@gmail.com
Technicalspecification | 1 of 2
Find this product online: www.wxminyue.com | Solar panels
Solar Panels | P-260W Polycrystalline Silicon Solar Panels
P-260W
Polycrystalline Silicon Solar Panels
MATERIALS
 Advanced EVA encapsulation system with triple-layer
back sheet meets the most stringent safety requ irements
for high-voltage operation.
 The sturdy, anodized aluminum frame allows the
modules to be mounted on a variety of standard racking
systems and to withstand harshest conditions.
 Ultra reliable bypass diodes prevent damage through
overheating due to shaded or defective cells.
 Innovative, environmentally friendly packing method
using pile-edges ensures modules arrive in
perfect condition.
 New frame design incorporating hexagonal shaped
drainage holes, with more grounding holes, provide
flexible installation and use.
DIMENSIONS
CURRENT-VOLTAGE & POWER-VOLTAGE
CURVE
STC:lrradiance 1000w/㎡ Module temperature25℃
AM＝1.5
EFFICIENCY
 High efficiency, high safety, high reliability.
 Low voltage-temperature coefficient allows
higher power output at high-temperature
condition.
 High efficient, high reliable solar cells ensure our
product output stability.
PRODUCT GUARANTEE
 5 years workmanship warrantee.
 Guarantee the efficiency of 90% in the first 12
years.
 Guarantee the efficiency of 80% in the first 25
years.

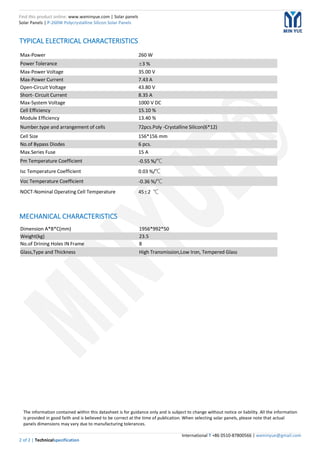

2. Find this product online: www.wxminyue.com | Solar panels
Solar Panels | P-260W Polycrystalline Silicon Solar Panels
International T +86 0510-87800566 | wxminyue@gmail.com
2 of 2 | Technicalspecification
TYPICAL ELECTRICAL CHARACTERISTICS
MECHANICAL CHARACTERISTICS
Max-Power 260 W
Power Tolerance ±3 %
Max-Power Voltage 35.00 V
Max-Power Current 7.43 A
Open-Circuit Voltage 43.80 V
Short- Circuit Current 8.35 A
Max-System Voltage 1000 V DC
Cell Efficiency 15.10 %
Module Efficiency 13.40 %
Number.type and arrangement of cells 72pcs.Poly -Crystalline Silicon(6*12)
Cell Size 156*156 mm
No.of Bypass Diodes 6 pcs.
Max.Series Fuse 15 A
Pm Temperature Coefficient -0.55 %/℃
Isc Temperature Coefficient 0.03 %/℃
Voc Temperature Coefficient -0.36 %/℃
NOCT-Nominal Operating Cell Temperature 45±2 ℃
Dimension A*B*C(mm) 1956*992*50
Weight(kg) 23.5
No.of Drining Holes IN Frame 8
Glass,Type and Thickness High Transmission,Low Iron, Tempered Glass
The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information
is provided in good faith and is believed to be correct at the time of publication. When selecting solar panels, please note that actual
panels dimensions may vary due to manufacturing tolerances.
