The document contains specifications for various solar panel models, including polycrystalline, monocrystalline, and flexible options, detailing their power output, voltage, size, and application. The panels feature warranties for manufacturing and power output and are designed to withstand harsh conditions. It also highlights bespoke design and manufacturing services available for customized solar panel solutions.

1. CATALOG 2019
SOLAR PANELSSOLAR PANELS

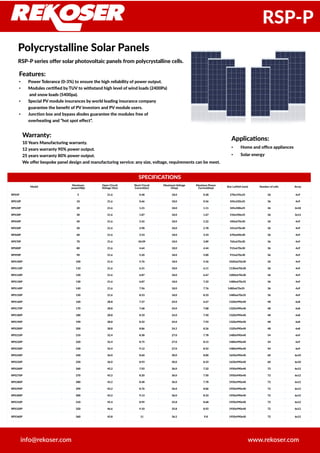

2. SPECIFICATIONS
Model
Maximum
power(Wp)
Open Circuit
Voltage (Voc)
Short Circuit
Current(Isc)
Maximum Voltage
(Vmp)
Maximun Power
Current(Imp) Size LxMxH (mm) Number of cells Array
RPS5P 5 21.6 0.48 18.0 0.28 270x195x25 36 4x9
RPS10P 10 21.6 0.66 18.0 0.56 345x250x25 36 4x9
RPS20P 20 21.6 1.21 18.0 1.11 345x500x25 36 2x18
RPS30P 30 21.6 1.87 18.0 1.67 510x450x25 36 3x12
RPS40P 40 21.6 2.42 18.0 2.22 450x670x30 36 4x9
RPS50P 50 21.6 2.98 18.0 2.78 541x670x30 36 4x9
RPS60P 60 21.6 3.53 18.0 3.33 670x640x30 36 4x9
RPS70P 70 21.6 04.09 18.0 3.89 765x670x30 36 4x9
RPS80P 80 21.6 4.64 18.0 4.44 915x670x30 36 4x9
RPS90P 90 21.6 5.20 18.0 5.00 915x670x30 36 4x9
RPS100P 100 21.6 5.76 18.0 5.56 1020x670x30 36 4x9
RPS110P 110 21.6 6.31 18.0 6.11 1130x670x30 36 4x9
RPS120P 120 21.6 6.87 18.0 6.67 1200x670x30 36 4x9
RPS130P 130 21.6 6.87 18.0 7.22 1480x670x35 36 4x9
RPS140P 140 21.6 7.96 18.0 7.76 1480x670x35 36 4x9
RPS150P 150 21.6 8.53 18.0 8.33 1480x670x35 36 4x9
RPS160P 160 28.8 7.27 24.0 6.67 1320x990x40 48 6x8
RPS170P 170 28.8 7.68 24.0 7.08 1320x990x40 48 6x8
RPS180P 180 28.8 8.10 24.0 7.50 1320x990x40 48 6x8
RPS190P 190 28.8 8.52 24.0 7.92 1320x990x40 48 6x8
RPS200P 200 28.8 8.86 24.2 8.26 1320x990x40 48 6x8
RPS210P 210 32.4 8.38 27.0 7.78 1480x990x40 54 6x9
RPS220P 220 32.4 8.75 27.0 8.15 1480x990x40 54 6x9
RPS230P 230 32.4 9.12 27.0 8.52 1480x990x40 54 6x9
RPS240P 240 36.0 8.60 30.0 8.00 1650x990x40 60 6x10
RPS250P 250 36.0 8.93 30.0 8.33 1650x990x40 60 6x10
RPS260P 260 43.2 7.92 36.0 7.22 1950x990x40 72 6x12
RPS270P 270 43.2 8.20 36.0 7.50 1950x990x40 72 6x12
RPS280P 280 43.2 8.48 36.0 7.78 1950x990x40 72 6x12
RPS290P 290 43.2 8.76 36.0 8.06 1950x990x40 72 6x12
RPS300P 300 43.2 9.13 36.0 8.33 1950x990x40 72 6x12
RPS310P 310 45.4 8.99 35.8 8.68 1950x990x40 72 6x12
RPS320P 320 46.6 9.10 35.8 8.92 1950x990x40 72 6x12
RPS360P 360 43.8 11 36.5 9.8 1950x990x40 72 6x12
Polycrystalline Solar Panels
RSP-P series offer solar photovoltaic panels from polycrystalline cells.
www.rekoser.cominfo@rekoser.com
RSP-P
Features:
● Power Tolerance (0-3%) to ensure the high reliability of power output.
● Modules certified by TUV to withstand high level of wind loads (2400Pa)
and snow loads (5400pa).
● Special PV module insurances by world leading insurance company
guarantee the benefit of PV investors and PV module users.
● Junction box and bypass diodes guarantee the modules free of
overheating and “hot spot effect”.
Warranty:
10 Years Manufacturing warranty.
12 years warranty 90% power output.
25 years warranty 80% power output.
We offer bespoke panel design and manufacturing service: any size, voltage, requirements can be meet.
Applications:
● Home and office appliances
● Solar energy

3. SPECIFICATIONS
Model Maximum
power(Wp)
Open Circuit
Voltage (Voc)
Short Circuit
Current(Isc)
Maximum
Voltage (Vmp)
Maximun
Power
Current(Imp)
Size LxMxH
(mm)
Number of
cells
Array
RPS30M 30 21.6 1.77 18.0 1.67 541x430x25 36 4x9
RPS40M 40 21.6 2.32 18.0 2.22 541x510x25 36 4x9
RPS50M 50 21.6 2.98 18.0 2.78 670x530x30 36 4x9
RPS60M 60 21.6 3.52 18.0 3.33 780x541x30 36 4x9
RPS70M 70 21.6 4.09 18.0 3.89 770x670x30 36 4x9
RPS80M 80 21.6 4.64 18.0 4.44 910x670x30 36 4x9
RPS90M 90 21.6 5.20 18.0 5.00 1195x541x30 36 4x9
RPS100M 100 21.6 5.76 18.0 5.56 1195x541x30 36 4x9
RPS110M 110 21.6 6.31 18.0 6.11 1120x670x30 36 4x9
RPS120M 120 21.6 6.87 18.0 6.67 1195x670x30 36 4x9
RPS130M 130 21.6 7.42 18.0 7.22 1280x670x30 36 4x9
RPS140M 140 21.6 7.96 18.0 7.76 1480x670x35 36 4x9
RPS150M 150 21.6 8.53 18.0 8.33 1480x670x35 36 4x9
RPS160M 160 43.2 4.64 36.0 6.67 1480x670x35 36 4x9
RPS170M 170 28.8 7.68 24.0 7.08 1580x808x35 72 6x12
RPS180M 180 28.8 8.10 24.0 7.50 1580x808x35 72 6x12
RPS190M 190 28.8 8.52 24.0 7.92 1580x808x35 72 6x12
RPS200M 200 28.8 8.93 24.0 8.33 1580x808x35 72 6x12
RPS210M 210 32.4 8.38 27.0 7.78 1320x990x35 48 8x6
RPS220M 220 32.4 8.75 27.0 8.15 1480x990x35 54 9x6
RPS230M 230 32.4 9.12 27.0 8.52 1480x990x35 54 9x6
RPS240M 240 36.0 8.60 30.0 8.00 1650x990x40 60 6x10
RPS250M 250 36.0 8.98 30.2 8.28 1650x990x40 60 6x10
RPS260M 260 43.2 7.92 36.0 7.22 1950x990x40 72 6x12
RPS270M 270 43.2 8.20 36.0 7.50 1950x990x40 72 6x12
RPS280M 280 43.2 8.48 36.0 7.78 1950x990x40 72 6x12
RPS290M 290 43.2 8.76 36.0 8.06 1950x990x40 72 6x12
RPS300M 300 43.2 9.13 36.0 8.33 1950x990x40 72 6x12
RPS310M 310 45.4 8.99 35.8 8.68 1950x990x40 72 6x12
RPS320M 320 46.6 9.10 35.8 8.92 1950x990x40 72 6x12
RPS360M 360 43.8 11 36.5 9.9 1950x990x40 72 6x12
Monocrystalline Solar Panels
RSP-M series offer solar photovoltaic panels from monocrystalline cells.
www.rekoser.cominfo@rekoser.com
RSP-M
Features:
● Power Tolerance (0-3%) to ensure the high reliability of
power output.
● Modules certified by TUV to withstand high level of wind
loads (2400Pa) and snow loads (5400pa)
● Special PV module insurances by world leading insurance
company guarantee the benefit of PV investors and PV module users.
● Junction box and bypass diodes guarantee the modules free of
overheating and “hot spot effect”.
Warranty:
10 Years Manufacturing warranty.
12 years warranty 90% power output.
25 years warranty 80% power output.
We offer bespoke panel design and manufacturing service: any size, voltage, requirements can be meet.
Applications:
● Home and office appliances
● Solar energy

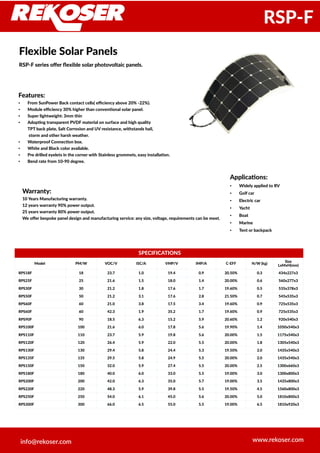

4. SPECIFICATIONS
Model PM/W VOC/V ISC/A VMP/V IMP/A C-EFF N/W (kg)
Size
LxMxH(mm)
RPS18F 18 23.7 1.0 19.4 0.9 20.50% 0.3 434x227x3
RPS25F 25 21.6 1.5 18.0 1.4 20.00% 0.6 560x277x3
RPS30F 30 21.2 1.8 17.6 1.7 19.60% 0.5 535x378x3
RPS50F 50 21.2 3.1 17.6 2.8 21.50% 0.7 545x535x3
RPS60F 60 21.0 3.8 17.5 3.4 19.60% 0.9 725x535x3
RPS60F 60 42.3 1.9 35.2 1.7 19.60% 0.9 725x535x3
RPS90F 90 18.5 6.3 15.2 5.9 20.60% 1.2 920x540x3
RPS100F 100 21.6 6.0 17.8 5.6 19.90% 1.4 1050x540x3
RPS110F 110 23.7 5.9 19.8 5.6 20.00% 1.5 1175x540x3
RPS120F 120 26.4 5.9 22.0 5.5 20.00% 1.8 1305x540x3
RPS130F 130 29.4 5.8 24.4 5.3 19.50% 2.0 1435x540x3
RPS135F 135 29.5 5.8 24.9 5.5 20.00% 2.0 1435x540x3
RPS150F 150 32.0 5.9 27.4 5.5 20.00% 2.5 1300x660x3
RPS180F 180 40.0 6.0 33.0 5.5 19.00% 3.0 1300x800x3
RPS200F 200 42.0 6.3 35.0 5.7 19.00% 3.5 1435x800x3
RPS220F 220 48.3 5.9 39.8 5.5 19.50% 4.5 1560x800x3
RPS250F 250 54.0 6.1 45.0 5.6 20.00% 5.0 1810x800x3
RPS300F 300 66.0 6.5 55.0 5.5 19.00% 6.5 1810x920x3
Flexible Solar Panels
RSP-F series offer flexible solar photovoltaic panels.
www.rekoser.cominfo@rekoser.com
RSP-F
Features:
● From SunPower Back contact cells( efficiency above 20% -22%).
● Module efficiency 30% higher than conventional solar panel.
● Super lightweight: 3mm thin
● Adopting transparent PVDF material on surface and high quality
TPT back plate, Salt Corrosion and UV resistance, withstands hail,
storm and other harsh weather.
● Waterproof Connection box.
● White and Black color available.
● Pre drilled eyelets in the corner with Stainless grommets, easy installation.
● Bend rate from 10-90 degree.
Warranty:
10 Years Manufacturing warranty.
12 years warranty 90% power output.
25 years warranty 80% power output.
We offer bespoke panel design and manufacturing service: any size, voltage, requirements can be meet.
Applications:
● Widely applied to RV
● Golf car
● Electric car
● Yacht
● Boat
● Marine
● Tent or backpack
